• Three stateroom layout
• VIP crossover forward
• Bunk arrangement
• Satin finish throughout
• Interior wood horizontal walnut

• Helm air conditioning
• Additional furl tank for a total of three tanks
• Additional generator 13.5 KW

Flybridge:

• Fiberglass hardtop with molded in spreader lights
• Remote spot light
• Electronic single lever controls for helm pod
• Release wood helm pod
• Center outrigger
• (8) rod rocket launcher
• Open flybridge: three sided Costa clear enclosure to back of helm
• Side rear panel with strataglass "U" zip

Cockpit:

Outriggers, Rupp with spreaders, Grommets an Halyards

Deck:

• Bow cleats fore and aft
• Salon forward window mask

Hull:

• DC bow thruster
• Gelcoat hull color: Kinston Grey
• Bottom color: Dark blue

• Flooring: Dark walnut
• Cambria Brittanicca countertops
• Eclipse Snow white headliner and companionway walls
• White head sinks
• Stainless Steel galley sink
• LED lighting with satin nickle trim throughout
• Electric door opener in salon
• Champagne color blinds in salon
• Barstools in salon
• Salon: Carpet runner, full, canvas
• Companionway, Costa, canvas carpet runner with step covers

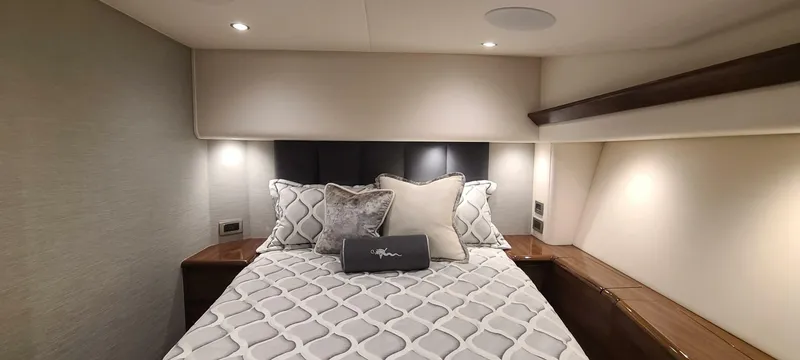

• Master Stateroom: Electronic safe under bed
• Forward Stateroom: TV, Flat screen
• Guest Stateroom: TV, Flat screen
• Décor: Classic décor, accessory kit
• Galley décor: Essential, accessory kit

• Power: MAN V12 1550 CRM - 1550 HP
• Electrosea clearline system
• Spot zero watermaker combo unit
• Seakeeper Gyro SK 18
• Eskimo ice machine

• AME supplied sonar tube
• Ceramic coat
• Delta fan in lazarette

• Stainless Steel gas springs on bench seats
• Horns in PB brow
• Center rigger
• Hardware allows teaser line to pass under hardtop with welded eye on hardtop piping
• Partially scalloped overhead box in hard top
• Engine displays

• Two full length fish boxes
• Ice machine with discharge into cockpit sole box
• Rod holders in bach haunch (total of 6)
• Two 24V 30 AMP outlets forward under coaming , one in each side
• Cockpit freezer bait trays
• Outrigger Bigg Rigg Bar
• Fasteners on inboard side of fish boxes
• Corner hawse pipes
• Teak cockpit sole and mezzanine
• Teak covering boards and coaming boards

• Windlass, Lewmar V4 stainless steel with 50' chain, 250' rope
• Stainless Steel Lewmar anchor
• S & I full length bow rail
• Faux teak toe rail - clearcoat
• Bow rail
• S & I sliding fender track under rub rail
• Handrails extended 24" forward to wrap around bow

• Custom non metallic boot stripe IPO standard single stripe dark blue
• 1/2" accent stripe white

Radar:

• Garmin GMR 2536
• Garmin GPS Plotter

Plotter:

• Garmin GPSMAP9222 w/22" display
• Garmin remote input grid 20 - vertical
• AVPRO AC-EX40-444 Kit Sealoc HDMI Extender
• 48V step up voltage regulator

Navigation:

• Garmin 40' Network cable
• Garmin GMS10 Network expander
• Garmin GXM54 weather antenna
• Garmin USB card reader
• Garmin Bluenet 30 gateway network
• Garmin Bluenet 20 Network switch

Sounder:

• Garmin GSD-26 Chirp video sounder module
• Airmar PM411-C-L ultra wide beam Tournament series

Digital Depth / Temp:

• Garmin GM120 marine instrument
• Airmar DT820BV transducer
• Airmar ST850 speed and temp transducer

Sonar:

• SImrad fisheries SY50 processor unit
• Simrad fisheries SY50 transducer
• Simrad fisheries SY50 130MM shaft
• Simrad fisheries SY50 operating panel
• Sonar tube Furuno F1918 CH300 1.8M
• AME custom CS94A 4 port VGA splitter
• Extron 15" Male-Male VGA cable
• Poly-Planar external VHF speaker
• AME custom sonar vent for SY50 Simrad fisheries

Autopilot:

• Garmin reactor 40 corepack with GHC 50
• Garmin interconnect cable steer-by-wire

VHF:

• Icom M510 VHF radio
• AME tower/hardtop Rupp mount pak
• Icom MBF7 VHF
• Icom CTM-500 wireless interface box
• Corod AV90/2BI 16" VHF antenna
• Poly-Planar external VHF speaker

Stereo:

• Fusion stereo MS-RA770 Apollo series touchscreen with Apple air play mounter under helm
• Fusion Apollo ERX400 wired remote
• Fusion MS-ACSXV-only Sirius antenna
• JL M6 Marine 7.7" white coax speaker
• JL Audio 100W amplifier

Satcom:

• Starlink flat high performance maritime package single antenna

Camera:

• Gost wide angle 1080P mini-ball camera
• 3 engine room cameras
• VM-HD-4 TVI AHD quad processor

Thermal Imaging:

• FLIR M364C color thermal camera system
• FLIR M300 series JCU1 control unit
• Tycon sport ethernet
• Garmin network for isolation coupler
• Sea View FLIR, spilt 5 mile radius

Spotlight:

• ACR RCL100 LED spotlight with controller

SAT TV:

• KVH UHD7 with tapered base
• Direct TV with controller
• Cyperpower PC sinewave 750 W smart UPS
• Sea View HD7 SDR mount

Salon:

• Apple TV 4K

Master Stateroom:

• Apple TV 4K

Forward Stateroom:

• Apple TV 4K
• URC Wi-Fi remote control TRC-1180

Starboard Stateroom:

• Apple TV

Cockpit:

• Fusion Apollo ERX400 wired remote
• JL M6 marine 7.7" white coax speaker
• JL Audio amplifier
• James Loudspeaker
• Russound BTC-2X bluetooth transceiver

The Viking 54 sets new milestones of innovation while integrating ideas garnered from sales and owner feedback, as well as thousands of hours logged by our Viking demo teams on the tournament trail. "We're in a constant state of refinement," says Viking Design Manager David Wilson. "Everything from interior and exterior design and accommodations to performance, fishability and ease of operation are evolving."

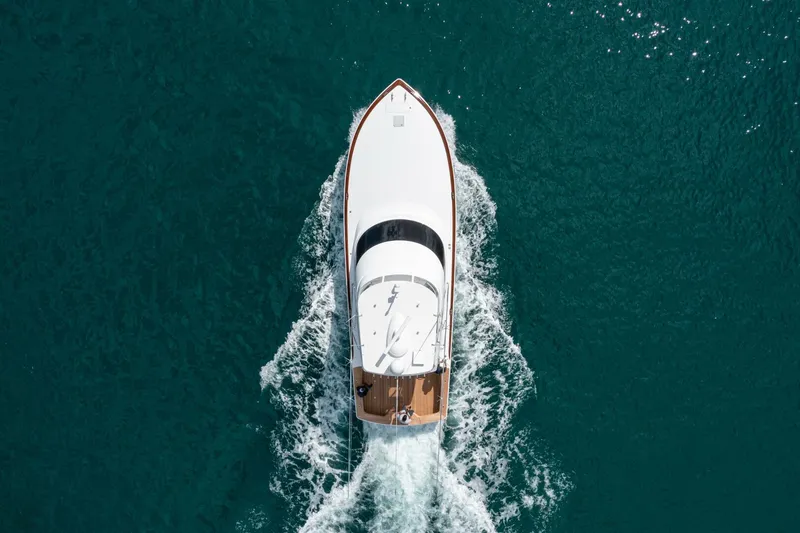

The 54 presents an eye-pleasing profile that's unmistakably Viking, with signature design traits such as a gently sloping unbroken S-shaped sheer, aggressively raked stem, double chines, hull-side vents and deftly placed exterior feature lines.

Using Computational Fluid Dynamics (CFD) software, the Viking Design and Engineering Department has optimized the 54's running surface for maximum performance. Now an integral part of the design process, our in-house CFD allows us to run numerous virtual sea trials to fine-tune the shape of the hull bottom for increased efficiency. We can also analyze pressure distribution, study trim angle and trim tab effectiveness and modify strakes and chine shape and size.

The hull is built with an engineered composite of fiberglass fabrics and coring that's vacuum-infused with vinylester resin. Utilizing a calculated resin-to-fiberglass ratio, great stiffness and strength is brought to the structure while minimizing weight. The structural bulkheads and fuel tanks (which are customized to the shape of the hull) are also resin infused. The hull-to-deck is through-bolted every three inches and fiberglassed from inside for a rock-solid union.

The 54's business end offers more space than any other boat in its class. The 154-square-foot unobstructed cockpit comes to the fishing wars with the ammunition to put you in the winner's circle, starting with molded non-skid on the cockpit sole for grippy footing (even when wet) and large scuppers to drain water quickly. The cockpit, covering boards and mezzanine can be finished in teak, which also delivers excellent traction with low maintenance.

A walk-through transom door with a lift gate takes the work out of boating a trophy catch. And when you're release-fishing, a three-foot reach to the waterline means you can quickly turn a billfish loose. Anglers will appreciate Viking's signature rounded cockpit coamings and toekick for those lengthy stand-up battles. Flush rod holders, recessed stainless-steel hawse pipes and cleats keep the cockpit clear.

Multiple insulated fishboxes of various capacities increase flexibility. The raised transom box can be used as a live well, fishbox or general storage. A full-length in-deck fishbox spans the starboard side, while the port side holds two storage compartments with the forward serving as an optional live well. A mounting plate laminated into the sole will anchor the mightiest of fighting chairs, and you can also opt for a rocket launcher or table. All in-deck boxes are finished on both sides, and their lids are equipped with latches and thick rubber gasketing to prevent water intrusion. Deep gutters with overboard drains rim the hatch perimeters. A single centerline lazarette hatch (available with power actuation) opens nearly 90 degrees for full viewability and access to the available Seakeeper as well as the steering, trim tabs and drain pumps.

Guests will be enamored with the raised observation mezzanine (pioneered by Viking) as they watch the action in comfort, shaded by the flybridge overhang. Smart storage solutions abound, with freezer and cooler space under the mezzanine for baits and drinks and a tackle cabinet on the starboard side. The inboard portion of the mezzanine provides access to the engine room. An anodized aluminum ladder with nonslip treads (and a handrail at the top) provides secure egress to the flybridge. In the salon step, an insulated drink box means you can quench your thirst without missing any of the action.
