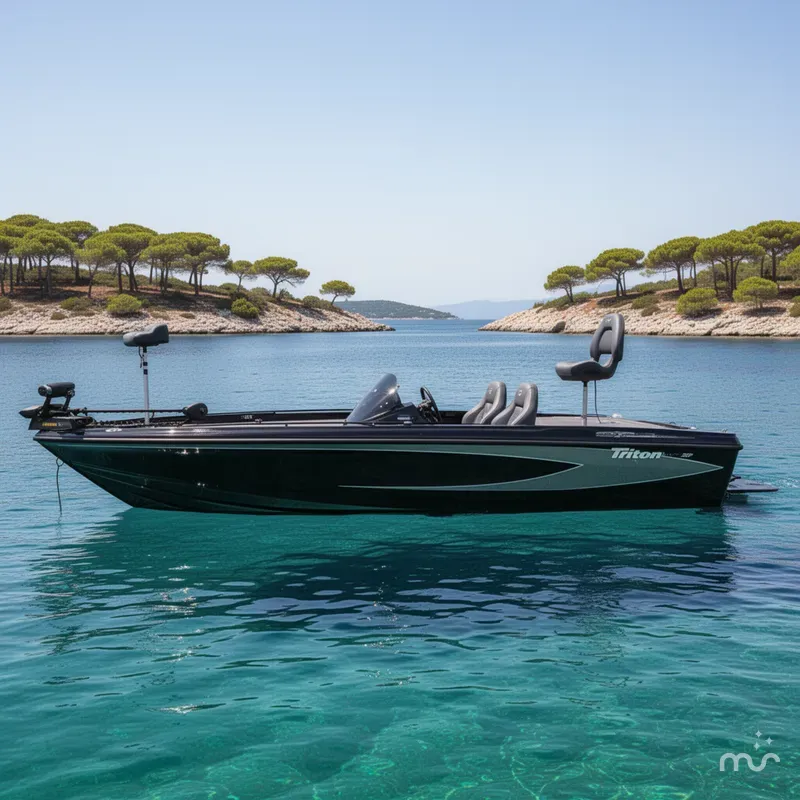

2025 Triton 20XP Patriot

• Length:20' 5"

• Beam: 95"

• Max. Recommended HP: 250 HP

• Fuel Capacity: 50 gal.

• Livewell Capacity: 38 gal.

• Rear Storage Boxes: 168 Qt

• Built-In Ice Chest: 45 Qt

• Total Persons Capacity: 660 lbs.

• Length with Swing Tongue: 23' 11"

• Height On Trailer: 68"

• Length without Swing Tongue: 26 ft.

• Average Package Weight: 2890 lbs.

Convenience and Comfort

• Deluxe 3-Spoke Matte Black Steering Wheel

• Tilt steering

• NOCO On Board Charger

• Cranking battery with tray

• Trolling Motor Battery Trays Only

• Console with Capability to Flush Mount up to a 12" MFD and Gimble Mount Two 12" MFD's Side by Side

• Dash Features Built in TriTouch Gauge Display

• Engine Trim Lever on the Helm

• (10) Standard Color Schemes to Choose From

• Center Coinbox with Color Match Fiberglass Lid

• Built-in Ice-Chest in Front-Deck Step

• Adjustable Driver and Passenger Suspension Bucket Seats

• Passenger Foot Rest Sliding Drawer

• Extended Leg-Room Driver's Console

• Stainless Steel Bow and Transom Eyes

• Stainless Steel Pull-Up Cleats

• Stainless steel drink holders

• Removable Windshield

• Chrome Fuel Fill

• Remote drain plug

• Front Deck Carpet Padding

• 2 Rod Locker Lid Pistons

• 2-Storage Box Lid Pistons

• 6' Keel Guard

• Stainless Steel Prop

• Lucas® Oil Detail Kit

Safety and Quality

• Lifetime Limited Hull Warranty to Original Owner

• 3-Year Limited Warranty on Most Factory Installed Components

• All Composite Construction

• Upright and Level Flotation

• Automatic bilge pump

• Electric Bilge Pump

• Built-in LED Bow Navigation Lights

• Removable Stern Light

• Circuit Breaker Protected Wiring with Custom Rotary Switches

• Plush Carpet with Edge Trim

• Horn

• Non-Skid Aft Step Mats

• Non-Skid Bow Step Mat

• Plexiglass Tinted Windshield (2 on Dual Console)

• Res-Q Retractable Boarding Ladder

• Passenger Grab-Handle

• Pro-Pedal Foot Throttle

• Padded Passenger Footrest

• Cockpit Courtesy Light

• SeaStar® hydraulic steering

• Standard Lockable Latches

• Midship Tie Cleats

• Custom Polished Aluminum and Adjustable 12" Jackplate

Trailer Features

• Channel Steel Frame

• Swing Tongue

• Tandem Axle

• Seven Pin Trailer Plug

• Balanced Radial Tires

• Custom Aluminum Wheels and Radial Tires

• Spare Aluminum Wheel and Radial Tire

• Spare Tire Mount (Underslung)

• Vault® Hubs with 10 Year Limited Warranty

• Disc Brakes on All Axles

• Aluminum Diamond Tread Plate, Front and Rear Step Pads

• Bow Entry Ladder System

• TRITON® Lighted Step Pads

• LED Trailer Tail and Reverse Lights

• Recessed and Waterproof Lighting

• Road Armor® Protective Finish

• DLx Deluxe Winch

• DLx Deluxe Jack Stand

• Ratchet Trailer TieDowns

Fishing

• "Stay-Full" Livewell Overflow System

• 2-800 gph Livewell Aerator Pump with Timer

• 2-800 gph Livewell Recirculation Pump

• 2-800 gph Livewell Pumpout

• Tournament Livewell System with Oxygenators in each Livewell

• Two Hi-Capacity Rear Insulated Livewells with Divider

• Livewell Aerator Timer

• 1-Bike Seat with Hydraulic Pedestal Seat Pole

• Centric II™ Pedestal Seat with Mesh Suspension

• 2-Front Pedestal Locations

• 3 TH Marine Rod Tamers, 2 Bow 1 Aft

• Front Deck Tool Holder

• Bow Trim Switch & Nav Light Switch

• Built-in Fish Measuring Board with Tool Holder

• Auto On LED Compartment Lights

• Stainless Steel Capped Fittings Above Rubrail

• Oversized Rod Lockers

• Locking Oversized Storage Boxes

• Built in Port Locker Rod Butt Shelf

• Passenger-Side Rod Ramp

• Lowrance® HDS 9 PRO w/ActiveTarget® 2 Live Sonar Transducer at Bow

• Lowrance® HDS 12 PRO w/ActiveImaging HD™ 3-in-1 Transducer at Console

• Lowrance® Ghost 47" 36V Trolling Motor

• Trolling Motor Foot-Control Deck Recess

• Built in Net Stow

• Center Storage Box Tackle Organizing System
