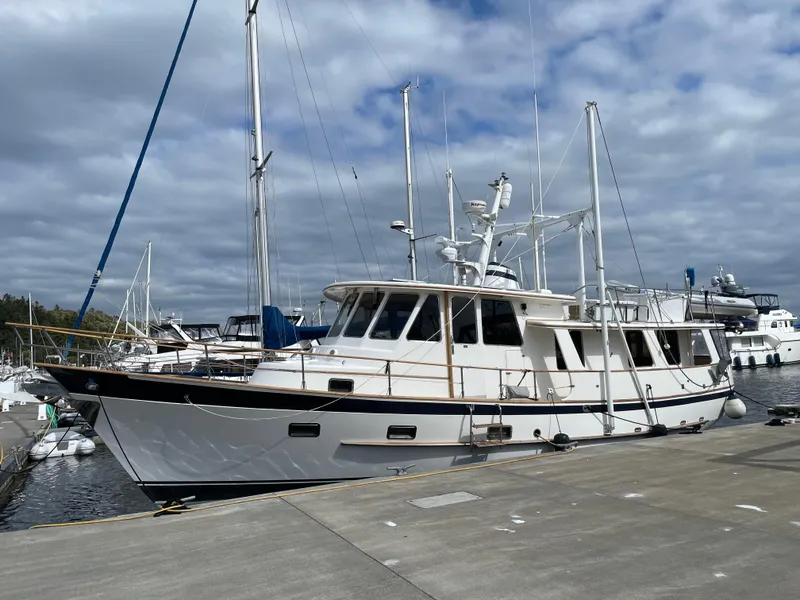

1991 TransWorld Fantail 50 Pilothouse Motor Yacht
$239,000
$10,000
Boat in Anacortes, WA 98221 US
Built in 1991
Fantail 50 Pilothouse Motor Yacht
1 Engine (Cummins)
50 feet
Diesel
Fiberglass/Reinforced
PRICE REDUCTION!!!
BY APPOINTMENT ONLY
Introducing The Transworld Fantail Motor Yacht
Conceived as the ultimate in fuel efficient long range cruising yachts, the fantail required nearly four years of development, refinement and no compromised construction. The result has been a yacht that has set a new standard for the word "quality"
The Fantail is believed to be one of the most complex yachts being built in Taiwan. She requires 22 separate molds. From the start we required that only the finest materials be used in her construction. Hence the Fantail has received unsolicited praise on her design and excellent construction.
She stands out for her design, excellent construction & attention to detail. From her beautifully radiused fantail stern to her massive stainless steel anchor chock, the feel is that of a small ship. She incorporates a full walk around and an inlaid deck with a 42 inch high weather screen aft of the pilothouse, giving the feeling of complete security when walking the deck. Her fantail lounge contains a curved settee with an inlaid teak table that will provide for many intimate conversations protected from the elements by the weather screen and optional weather curtains
SPECIFICATIONS:
- LOA - 49' 8"
- LWL - 40' 6"
- Beam - 15' 3"
- Draft - 4' 6"
- Beam - 15' 3"
- Gross Tons - 32 Tons = 64,000lbs.
- Net Tons - 26 Tons = 52,000lbs.
- Ballast - 3,600 Lead in Keel
- Raised Pilothouse Fantail
- Main Salon & Galley Aft of Pilothouse
- Owner's Stateroom Mid-Ship Below Pilothouse
- Guest Cabin Below & Forward
- Hull #8 - Last Hull Built
- Hull Type - Full Displacement - Full Length Keel - Canoe Stern
- Hull Construction - Heavy Lay-Up - FRP Divinicel Core in Decks and Topsides
- Decks - Europa Style Covered Side Decks & Covered Fantail Deck with Full Enclosure
- Molded, Divinicell Foam Cored Fiberglass Deck & Side Deck Construction
- Side Decks & Cockpit Deck haveTraditional Teak Overlay on FRP Sub-Deck
- with Mechanical Fasteners Encapsulated in Epoxy - NO Water Intrusion
- Salon Cabin Roof Deck - Molded Fiberglass with Molded Nonskid
- Top sides - FRP Bulwarks, Cabin Walls & Roofs
- Fantail - FRP Roof with Complete Eisenglass & Canvas Enclosure
- Sliding Doors Close off Fantail from Side Decks
- Hull Designers - Rob Ladd - Annapolis, Maryland
- Topsides, Systems & Accommodations Designers - The Yacht Consortium, Port Hadlock, WA.
- Builder - Transworld Boat Building - Taipei, Taiwan
- Transworld is still in Business Building Mega Yachts
TANKAGE:
- FUEL - 196 Gallons / 216 Gallons / 60 Gallons
- 484 Gallons Total in (3) Stainless Steel Tanks
- DOMESTIC WATER - 200 Gallons in (2) Stainless Steel Tanks

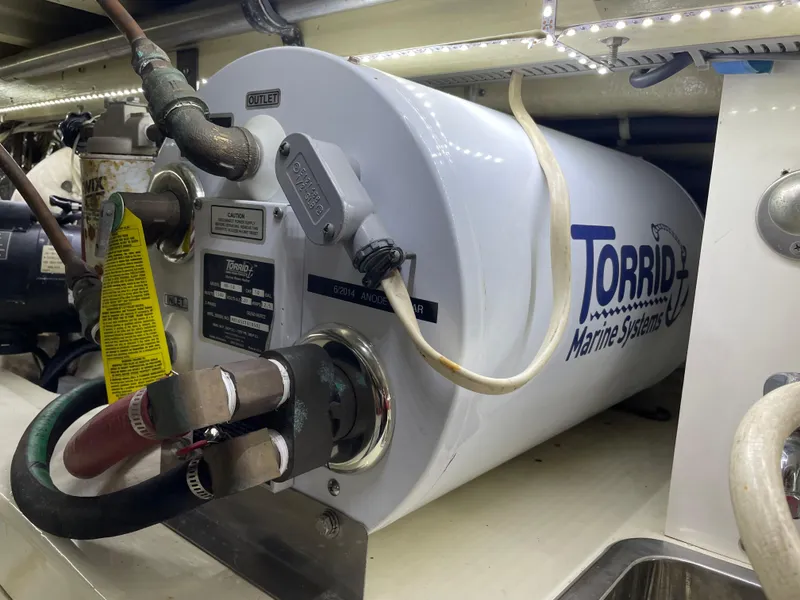

- HOT WATER TANK - 10 Gallons - AC or Engine - Serviced & Flushed August 2025
- NEW Hot Water Element August 2025
- WASTE HOLDING - Holding Tank with Pump Overboard / Deck Cap Pump-Out
- PROPANE - (2) Steel Tanks
- Tank Tender - Tank Level Monitoring System

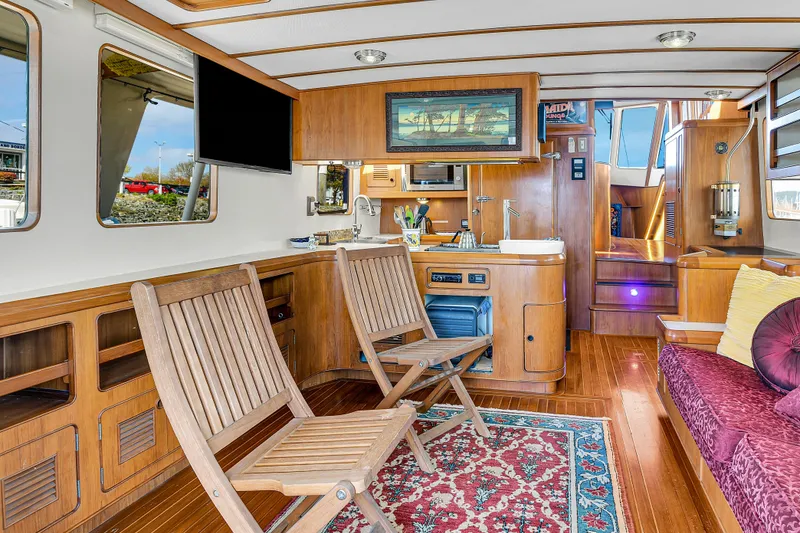

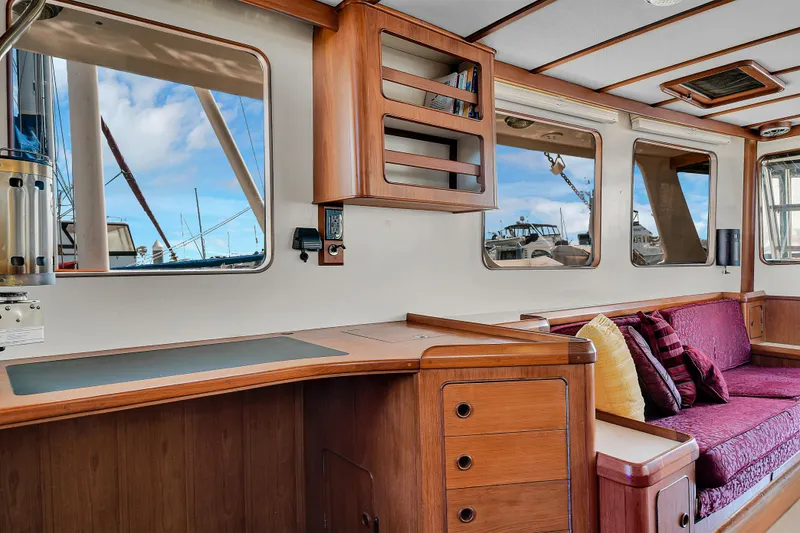

INTERIOR:

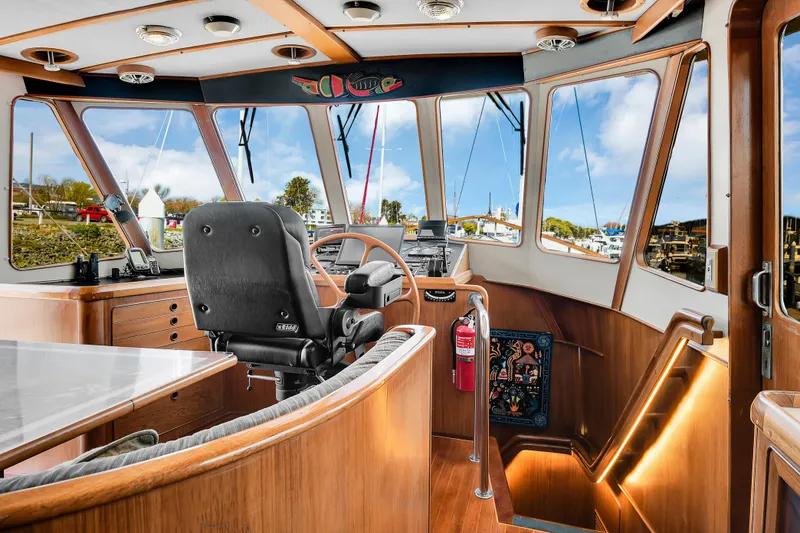

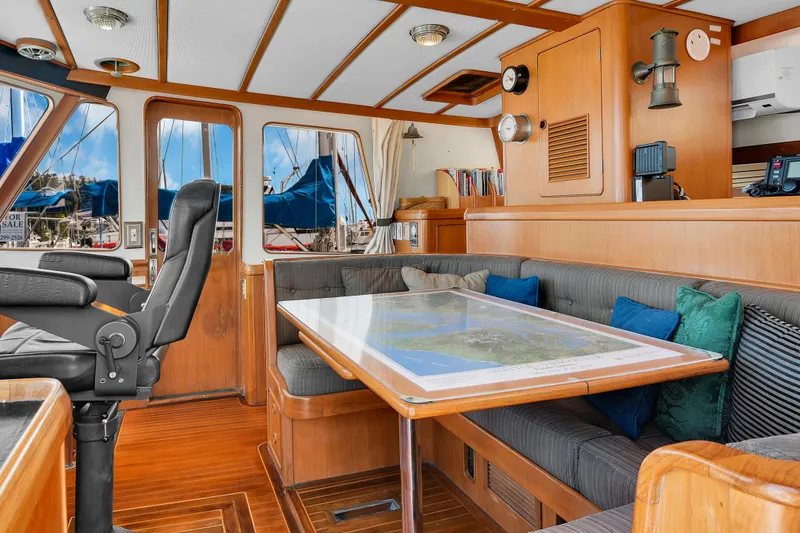

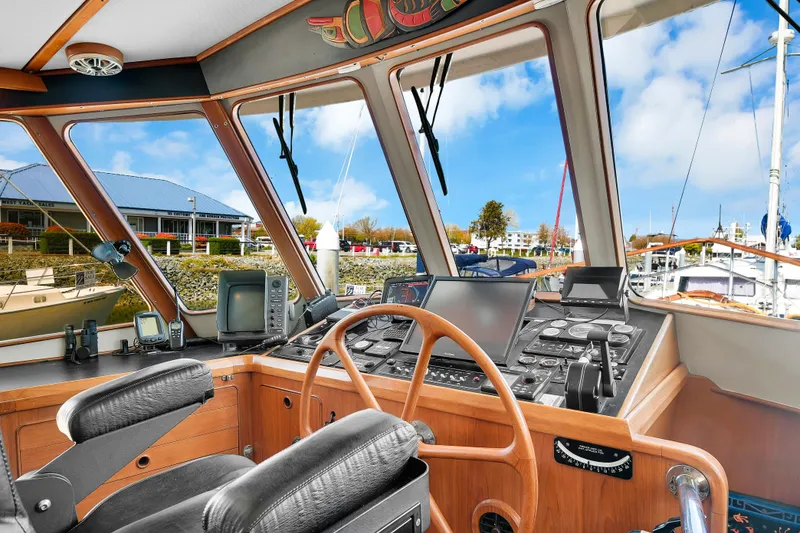

- Pilothouse includes Stidd Helm Seat

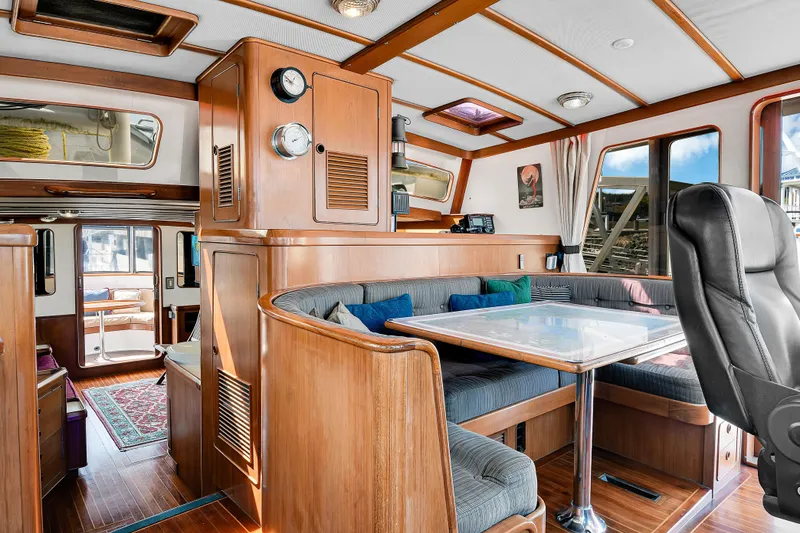

- Has a Dinette Table with Seating for 5 & a Great Location with Visibility While Cruising

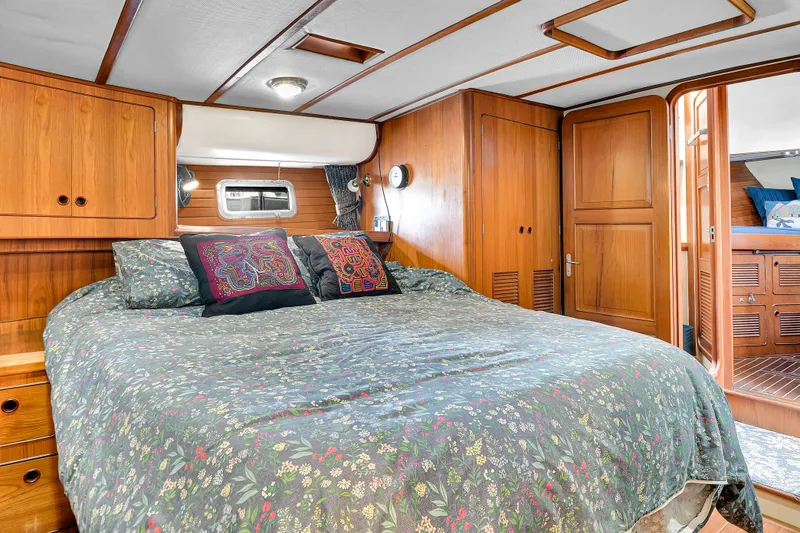

- Sleeps (4) - 2 in Master Suite with On-Suite Head

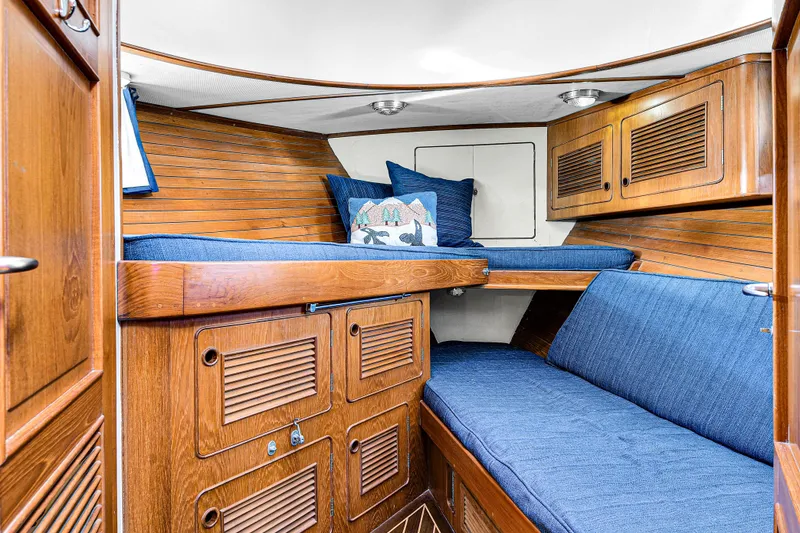

- 2 in Forward Bunk Room
- Private Enclosed Heads - (2) with Vacuflush Macerating Toilets - NEW Dec 2024

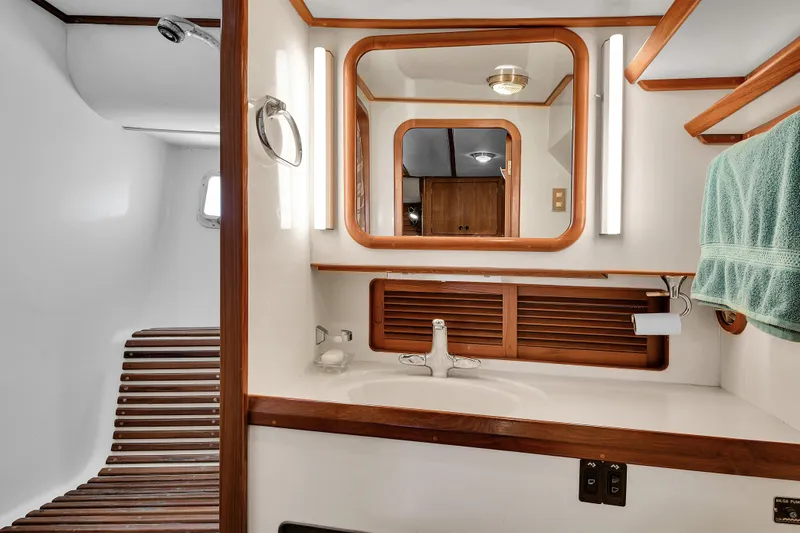

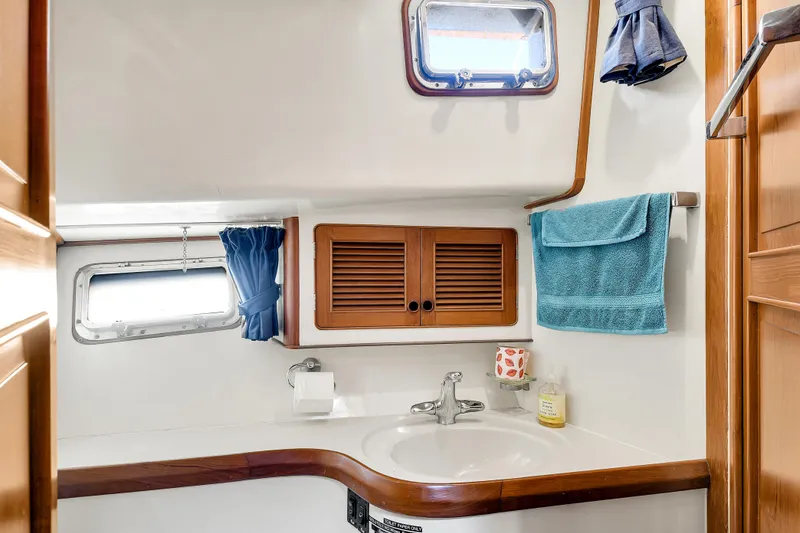

- Master Suite Head as Separate Stall Shower
- Guest Suite Head with Intrigal Shower
- Refrigeration - Built-In
- Freezer - Dometic Chest Freezer
- Galley Stove - Force 10 3-Burner Propane Cooktop / Oven
- Microwave - Panasonic Oven
- Hot & Cold Pressure Domestic Water System - Outlets in Galley, Head & at Transom
- Raw Water Pressure Salt Water System - Deck Wash Outlets Fore & Aft
- Cabin Lighting - NEW Upgraded Salon Light Sconces August 2025

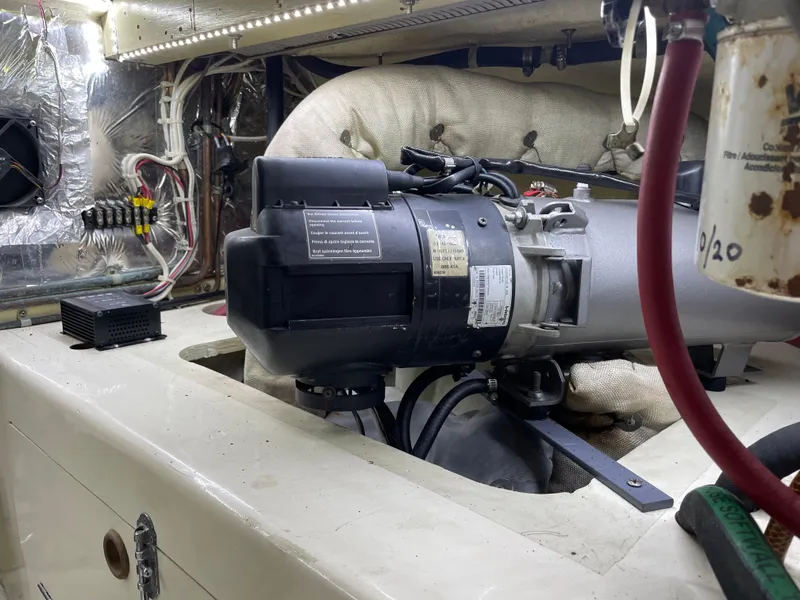

- Cabin Heat/Air - Webasto DBW2010 Diesel Hydronic Hot Water Cabin Heat Interfaced with Engine
- Thermostats - (4) NEW August 2025
- 2010 24volt Webasto - Serviced + NEW Combustion Motor - November 2025
- Domestic Split Type Air Conditioning
- Force 10 LPG Fired Bulkhead Mounted Heater with Oxygen Sensor
- Washer & Dryer - Slendide 2100 XC
- TV - 45" LG in Salon
- Stereo - Clarion CZ302
- Weems & Plath - 4" Chrome Barometer & 4" Black Clock in Salon
- 5" Black Clock in Master Stateroom

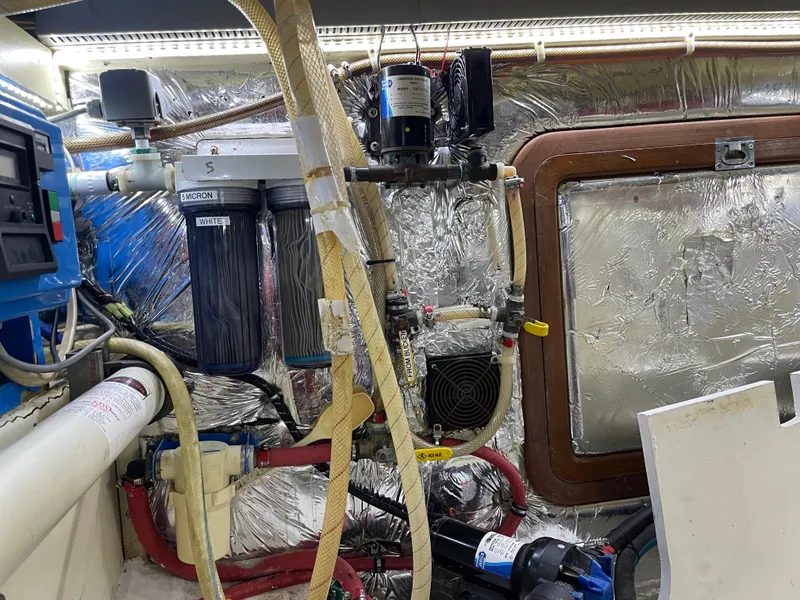

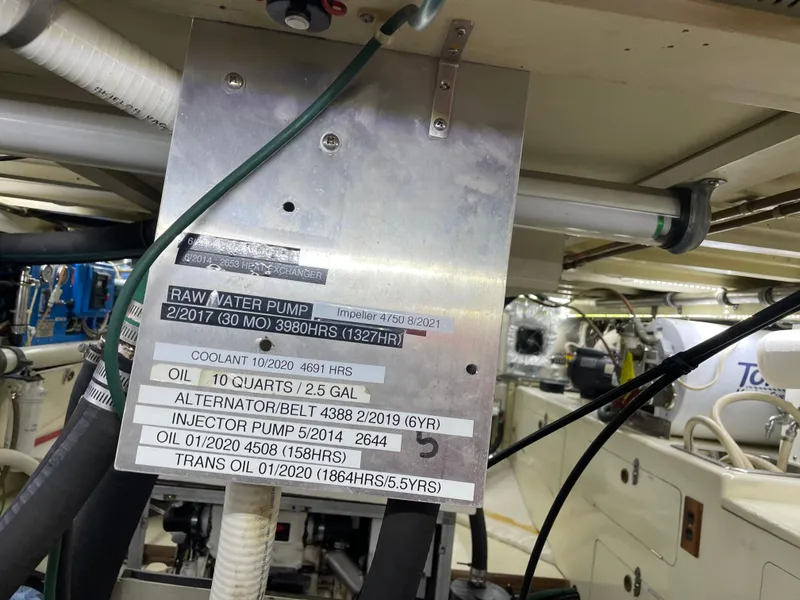

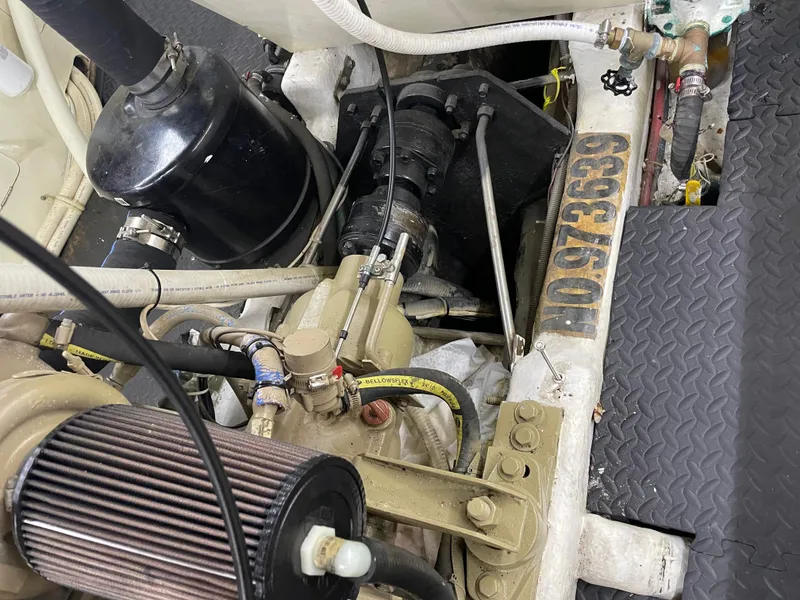

MECHANICAL:

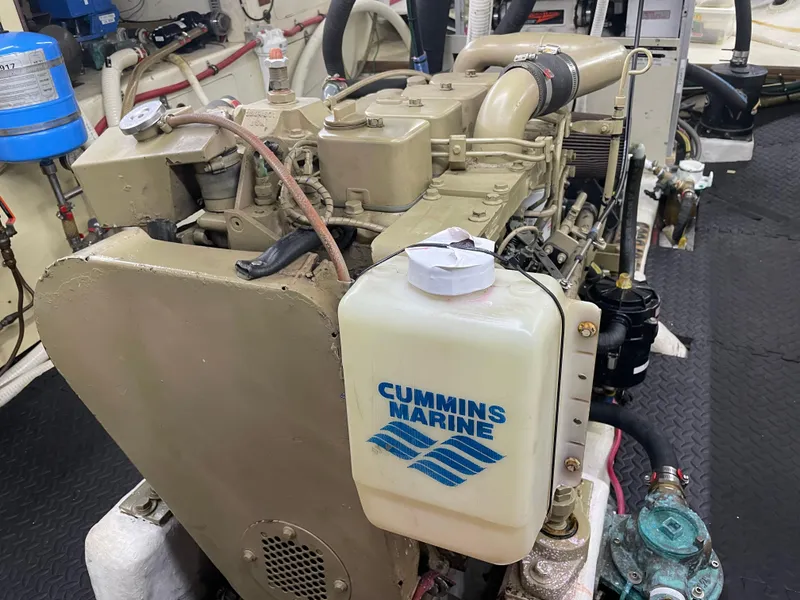

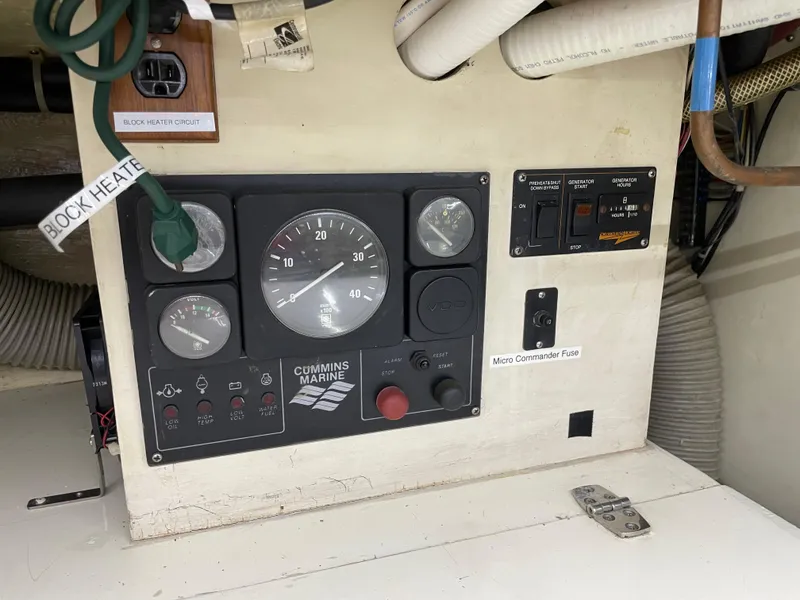

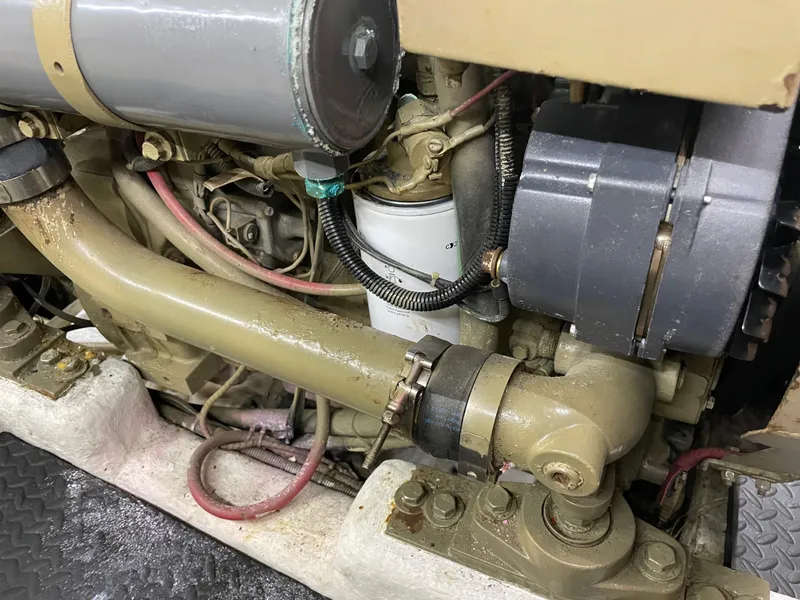

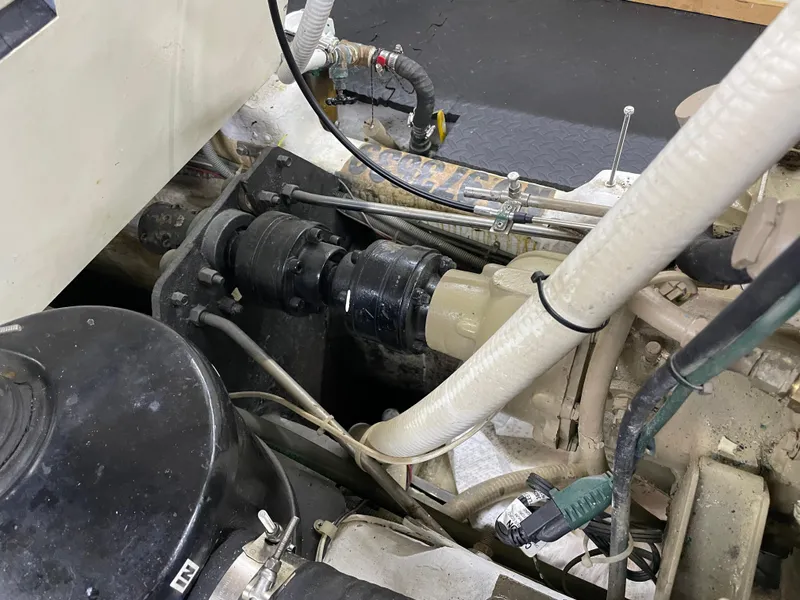

- Single Cummins 4BT-3.9, 150hp at 2800 rpm, Freshwater-Cooled, Naturally Aspirated, Direct-Drive, Diesel Engine
- Hours - 4,969
- Engine - Serviced August 2025
- Cruising Speed - 7.5Knots @ 1500rpm
- Engine Controls - Manual Cable Transmission & Throttle Controls - NEW August 2025
- Engine Fuel Injectors - NEW August 2025
- Engine Alternator - 130 AMP
- Engine Coolant Overflow Bottle - NEW Factory Bottle
- Engine Heat Exchanger - NEW MR. Cool Heat Exchanger August 2025
- Engine Sea Strainer - Serviced/Cleaned August 2025
- Engine Fuel Filters - Primary - Racor 1000MA
- Secondary - Engine Mounted
- Engine Shaft - 1.5" Stainless Steel
- PSS Dripless Shaft Seal
- Rubber Cutlass Bearing in FRP Stern Tube
- Engine Propeller - 4-Blade LH Bronze - 24 x 20
- Engine Bock Heater - 115 Volt AC
- Engine Oil Changing System

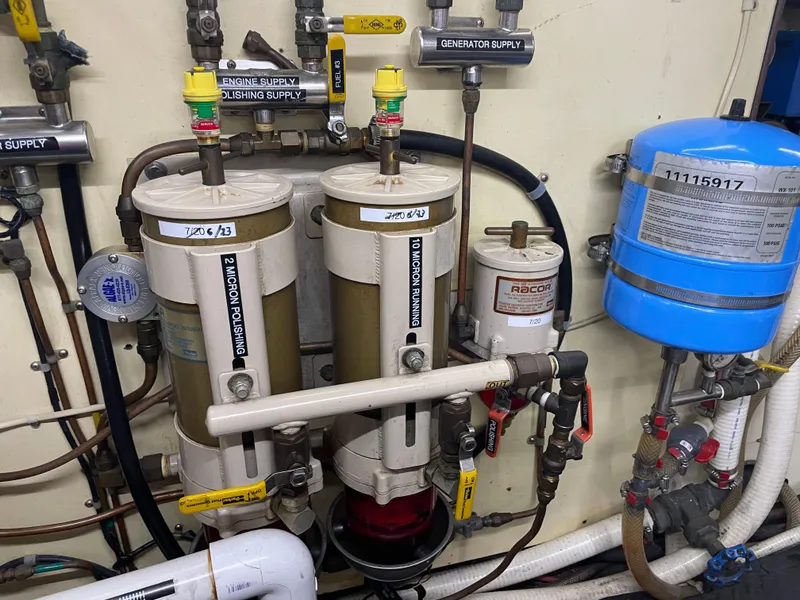

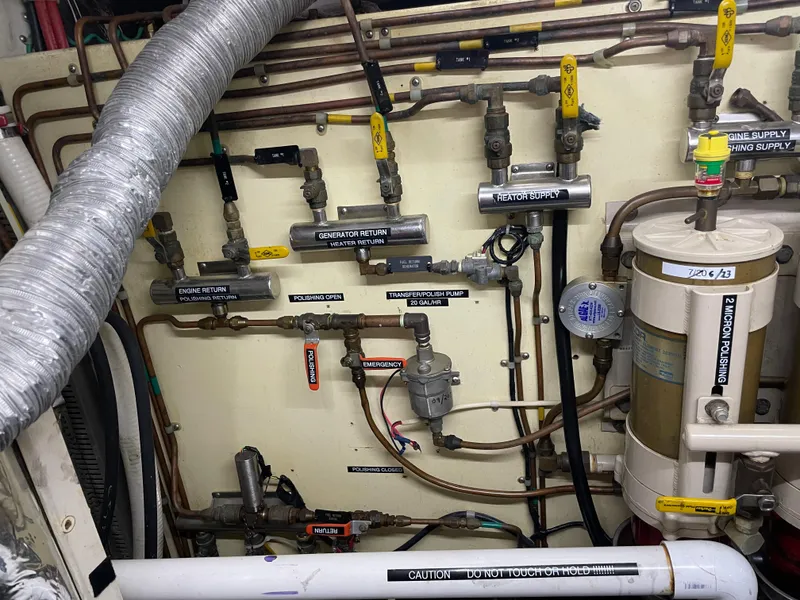

- Fuel Polishing System with Racor 1000MA Filter
- Steering System - Hynautic Hydraulic Steering
- Shaft - 1 1/2" Stainless Steel
- Shaft Log thru Shoal Keel (No Strut)
- Rudder - Inboard Keel Shoe Hung Curved Foil Shaped Rudder - FRP Cord
- Stuffing Box - Bronze
- Thru Hull Fittings - Bronze
- Thru Hull Valves - 1/4 Turn Type
- Bilge Pumps - (2) 12Volt dC Auto/Manual Switched Submersible Pumps
- (1) NEW Bilge Pump Beneath the Engine
- (1) Whale Manual Bilge Pump
- (1) Portable 115volt AC Sump Pump
- Thruster - Vetus 12Volt DC Electric Bow Thruster
- Stabilizers - Paravanes Outrigger System - Solid Steel Stabilizers
- (2) External Stabilizing Keels Port & Starboard Parallel to the Main Bow to Stern Keel
ELECTRICAL:
- Shore Power - 30AMP & 50AMP - Port & Starboard Outlets
- Galvanic Isolator
- Batteries - Start - (1) 8D
- House - (8) 6Volt Golf Cart Batteries in (2) Banks - All Wet Cells
- All Batteries - Serviced & Installed Battery Post Stainless Steel Lock Nuts - August 2025
- Battery Monitor - Link Lite
- Inverter/Charger - Magnum ME2512

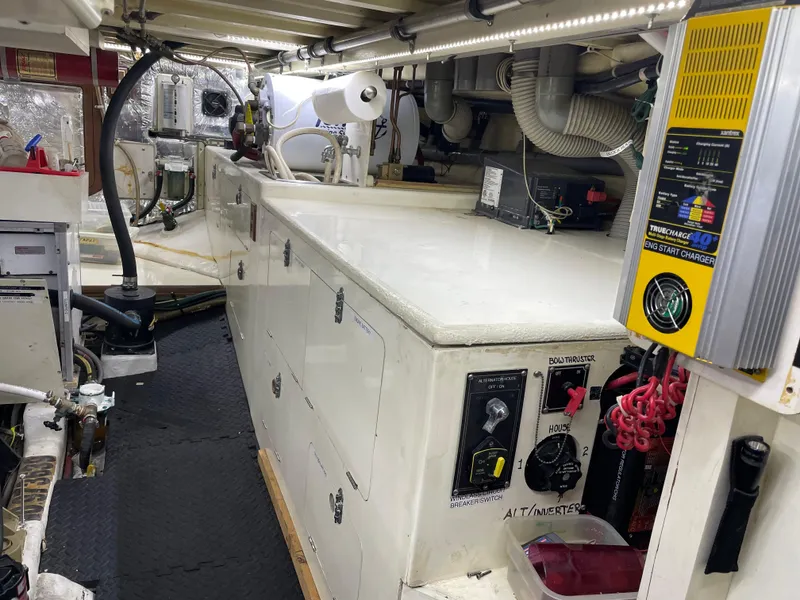

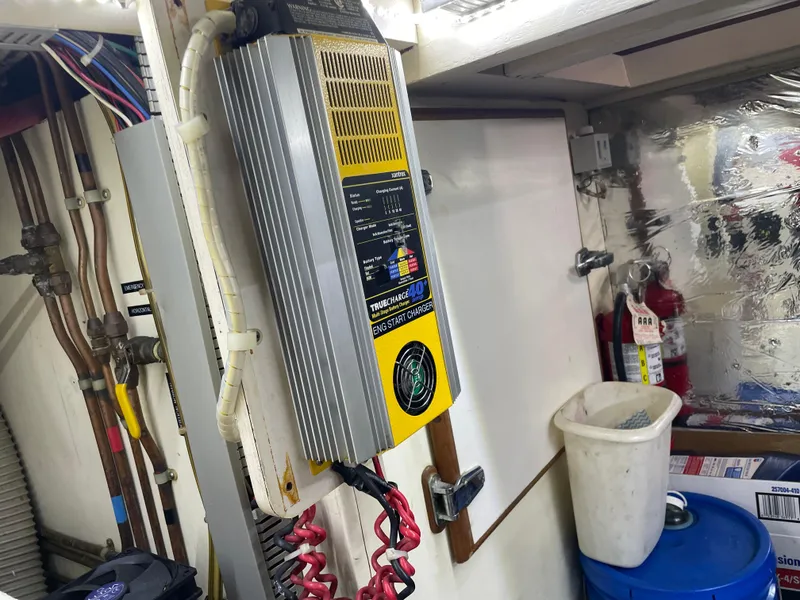

- Battery Charger - Truecharger 40

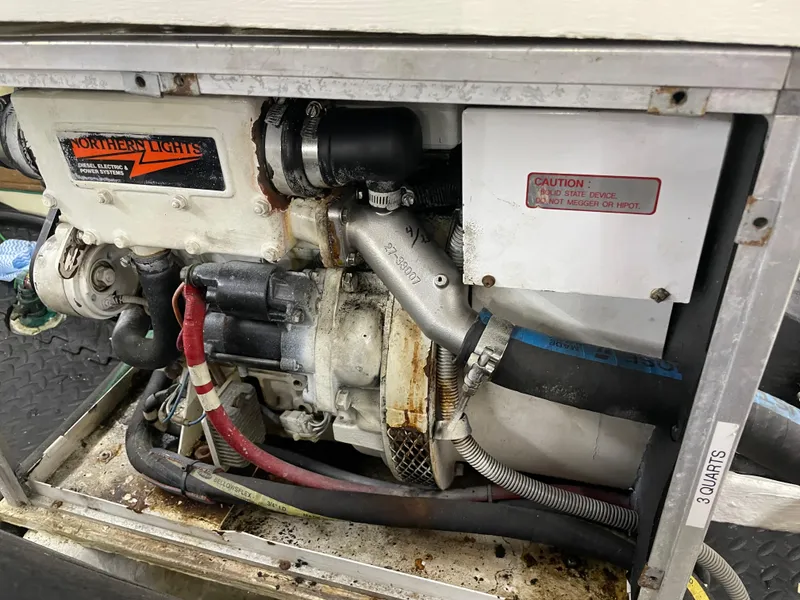

- Generator - Northern Lights M643-5N, 5KW, 120Volt AC. Diesel-Fired, Freshwater-Cooled,
- Racor Fuel Filter, Sea Strainer, Wet Exhaust
- Hours - 4,173

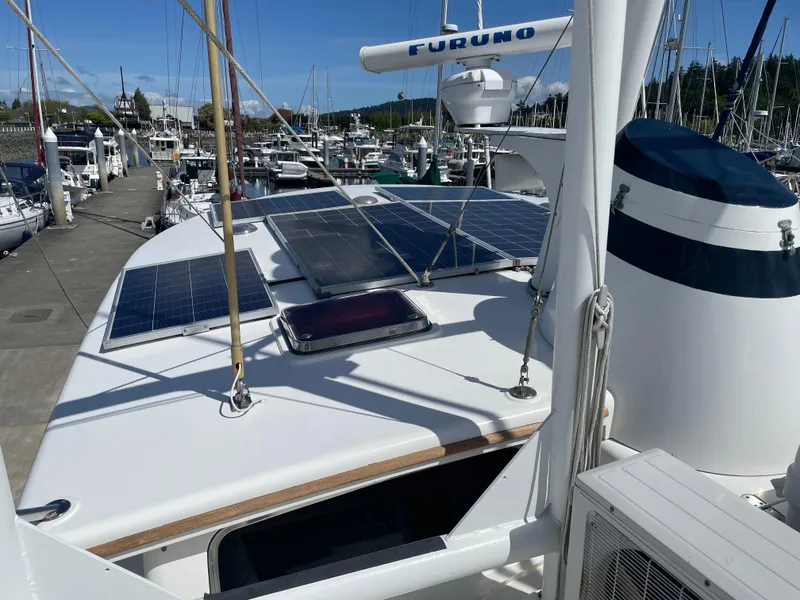

- Solar Panels - 850 Watts with (4) Smaller Panels & (2) Larger Panels
NAVIGATION / COMMUNICATION:
- Compass - Ritchie 4.5"
- Autopilot - Navman Pilot 3380
- Depth Sounder Humminbird 160
- Radios - ICOM 127 VHF
- Yaesu FT2900
- ICOM ICM802 SSB
- AIS - Vesper B
- Coastal Explorer Navigator - It's a sophisticated, full featured, easy-to-use, navigation software package
- designed specifically for the pleasure boat market.
- Plotter/GPS /Knotmeter - Raymarine 7"
- Radar - Raymarine 4K
- Furuno 1942 6K
- Radar Mast - Aluminum
- Rudder Angle Indicator - VDO
GROUND TACKLE:
- Windlass - Maxwell 3500 Vertical Type 12Volt DC Electric Windlass
- Forward Deck Foot Controls
- Pilothouse Helm Controls
- Anchors - Bruce 30KG
- CQR 75#
- Fortress FX23
- Parachute Anchor
- Chain - 260' of 3/8"
- Secondary - 30'
- Nylon Rode - 250'
SAFETY:
- Life Raft - Viking Rescyou 4UKI
- Navigation Lights
- Lifelines - Single Lines Vinyl Covered
- Boarding Gates - Port & Starboard
- Deck Scuppers - Large Slots at Hull Side Decks
- Air Horn - Dual Horns with Air Compressor Mounted Under the Pilothouse Hardtop
- Emergency Tiller
- Fire Extinguishers - Handhelds (1) 40BC, (1) 10BC Halon, (1) 3A 40BC, (2) 2A 10BC

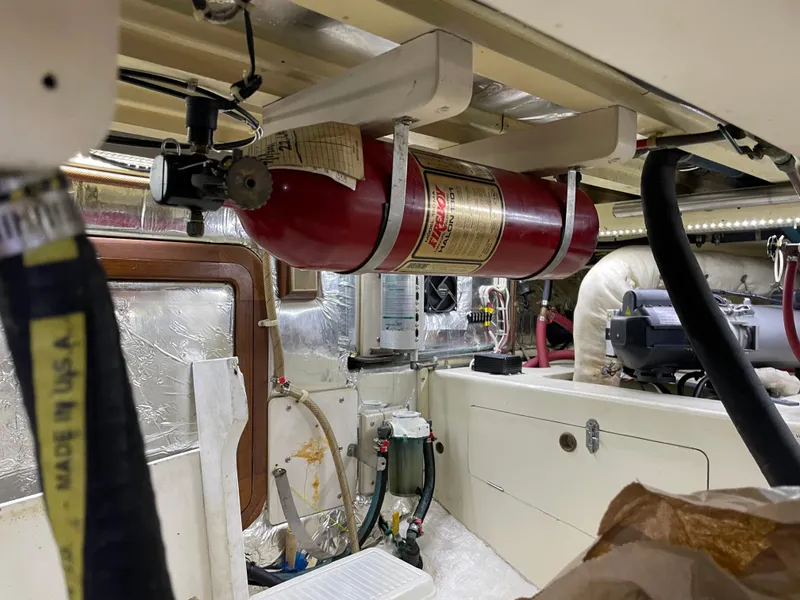

- Firebox Halon 1301 - Engine Room Automatic Thermal Release Unit
- Bow Pulpit / Railing - Stainless Steel with Teak Top Grab Rails
- Stanchions / Side Railings - Stainless Steel with Teak Top Grab Railings
MISCELLANEOUS:

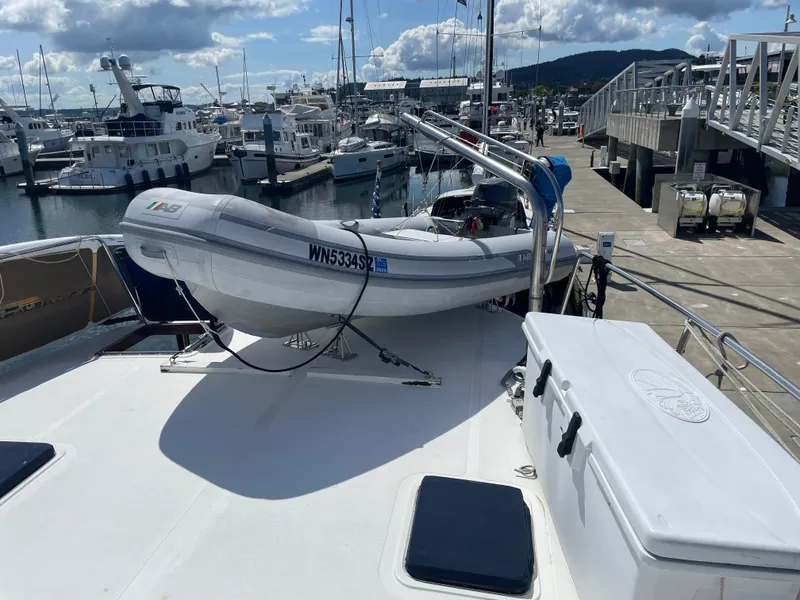

- Tender - 11' AB Model 11AL Inflatable
- Tender Outboard - Yamaha 20hp Outboard - Serviced NEW Oil, Filter & Spark Plugs August 2025
- Tender Davit - 12Volt DC Electric Crane - Stainless Steel
- Tender Storage - Tender Deck Chalks
- Canvas - Hatch Covers
- Aft Fantail Deck Enclosure Curtains
- Pilothouse Windshield Cover
- Windlass Cover
- Davit Winch Cover

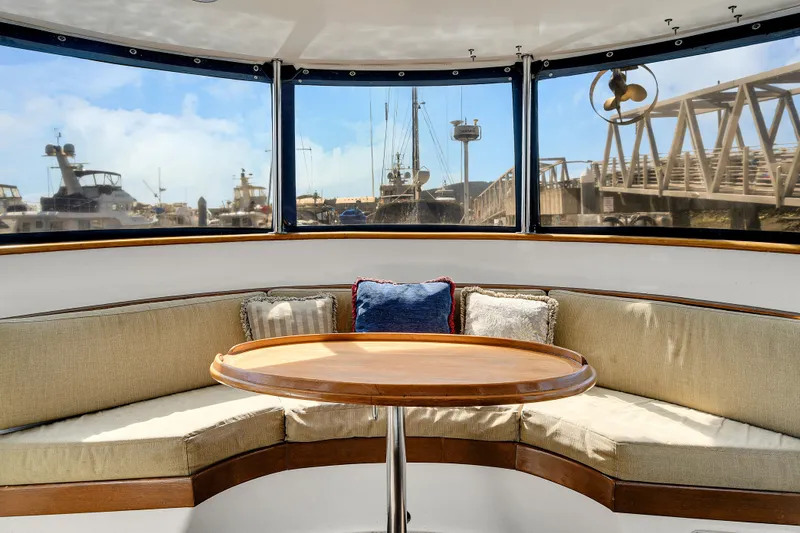

- Cockpit - Teak Table with Wrap-Around Upholstered Seating

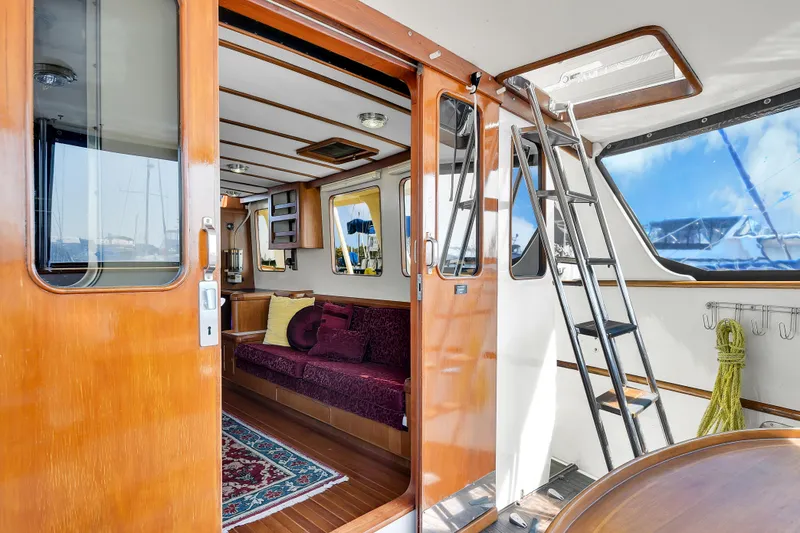

- Cockpit to Salon - Ingress & Egress Thru Beautiful Double Sliding Teak Doors
- Helm Pilothouse Doors - Ingress & Egress Thru Beautiful Sliding Teak Doors
- Multiple Deck Boxes - Bow & Upper Deck
- Staging & Personal Items removed at Time of Sale.
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Price History
| Date | Event | Price |
|---|---|---|
| 2/9/26 | Price decreased | $239,000(-4.0%) |
| 1/29/26 | No change | $275,000 |
| 1/19/26 | Price decreased | $249,000(-9.5%) |
Overview from around the web 1991 TransWorld Fantail 50 Pilothouse Motor Yacht
Customers praise the 1991 TransWorld Fantail 50 Pilothouse Motor Yacht for its classic design, spacious interior, and solid construction
Many highlight its comfortable pilothouse layout, which offers excellent visibility and protection from the elements, making it ideal for extended cruising. Owners appreciate the vessel’s reliable performance and ease of handling, as well as the ample deck space for entertaining and relaxing. Overall, feedback reflects satisfaction with the yacht’s blend of traditional styling and practical functionality, making it a favored choice among enthusiasts of classic motor yachts.
The Biggest Pros and Cons
The 1991 TransWorld Fantail 50 Pilothouse Motor Yacht offers a blend of classic design and practical features, making it a notable choice for enthusiasts of traditional motor yachts. Here are some pros and cons to consider:
Pros
Classic Pilothouse Design: The enclosed pilothouse provides excellent protection from the elements and offers great visibility, making it ideal for cruising in varied weather conditions.
Spacious Layout: With ample interior space, the yacht comfortably accommodates guests and crew, featuring a well-designed salon, galley, and sleeping quarters.
Solid Construction: Built in 1991 with quality materials, the TransWorld Fantail 50 is known for its sturdy build and seaworthy characteristics.
Functional Flybridge: The flybridge offers an additional helm station and outdoor seating, enhancing the cruising experience and providing panoramic views.
Large Fantail Deck: The aft deck area is spacious and versatile, perfect for fishing, relaxing, or entertaining.
Reliable Systems: Many owners appreciate the yacht's mechanical and electrical systems for their reliability and ease of maintenance.
Cons
Aging Equipment: As a 1991 model, some systems and equipment may require updating or refurbishment to meet modern standards.
Fuel Efficiency: Being a traditional motor yacht with substantial displacement, fuel consumption can be higher compared to more contemporary designs.
Limited Speed: The design prioritizes comfort and stability over speed, so it may not be suitable for those seeking fast cruising.
Maintenance Requirements: Older yachts typically require consistent upkeep, which can involve time and investment to maintain optimal condition.
Interior Décor: The styling and finishes may feel dated to some, potentially necessitating interior modernization for personal taste.
Made For
The 1991 TransWorld Fantail 50 Pilothouse Motor Yacht is perfect for boaters seeking a classic, well-crafted vessel that combines spacious comfort with reliable performance. Ideal for families or cruising enthusiasts who appreciate traditional design and ample living space, this yacht offers a sturdy pilothouse for safe navigation and a roomy layout for extended trips on the water. Whether for leisurely coastal cruising or longer voyages, it suits those who value timeless style and functional elegance in a motor yacht.
