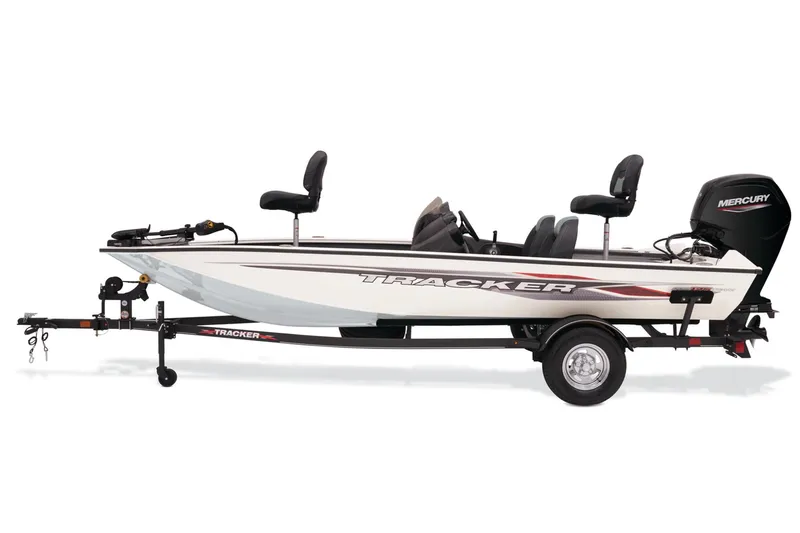

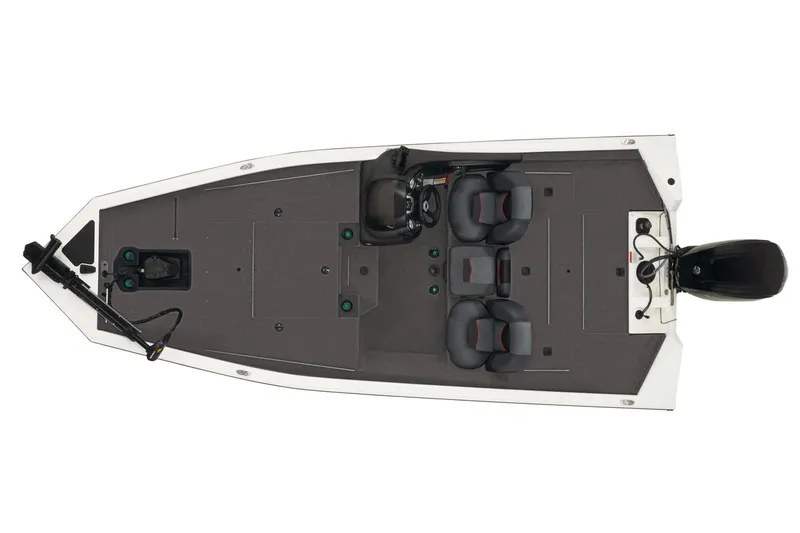

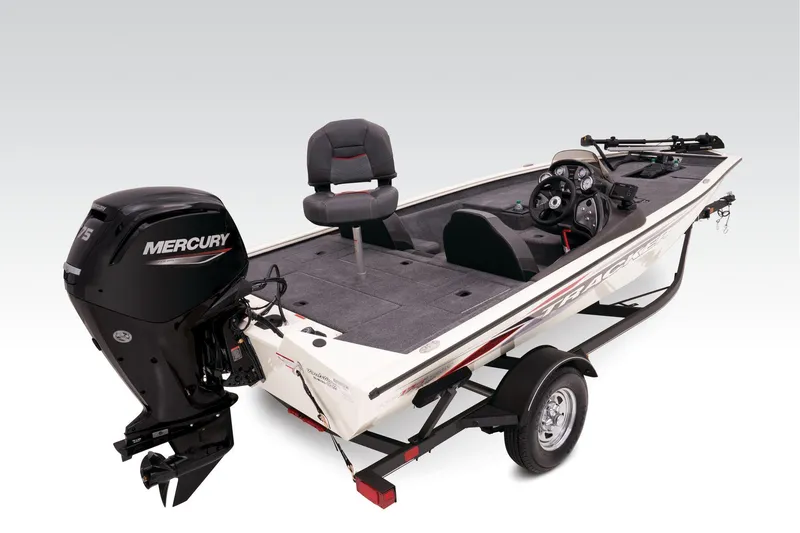

2023 Tracker Pro Team 175 TXW

• Length: 17' 7"

• Beam: 7' 5"

• Bottom Width: 5' 0"

• Max. Recommended HP: 75 HP

• Fuel Capacity: 21.5 gal.

• Max. Person Capacity: 4 persons

• Max. Person Weight: 555 lbs.

• Max. Person, Motor & Gear Weight: 1100 lbs.

• Interior Depth: 17.75"

• Transom Height: 22.25"

• Deadrise At Bow: 16 degrees

• Deadrise At Transom: 10 degrees

• Draft: 12"

• Hull Material: 0.1 5052 marine alloy

• Average Dry Weight: 1050 lbs.

• Average Package Weight: 2235 lbs.

• Package Height: 6' 4"

• Package Width: 7' 6"

• Towing Length: 22' 8"

• Storage Length (w/Outboard Trimmed Down): 20' 3"

Comfort, Convenience & Peace of Mind

• Backed by the TRACKER® PROMISE—the best factory warranty in aluminum boats

• Limited lifetime hull warranty

• NMMA® certified

• Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements

• Easy-fill EPA-compliant fuel tank system

• Bow & stern eyes

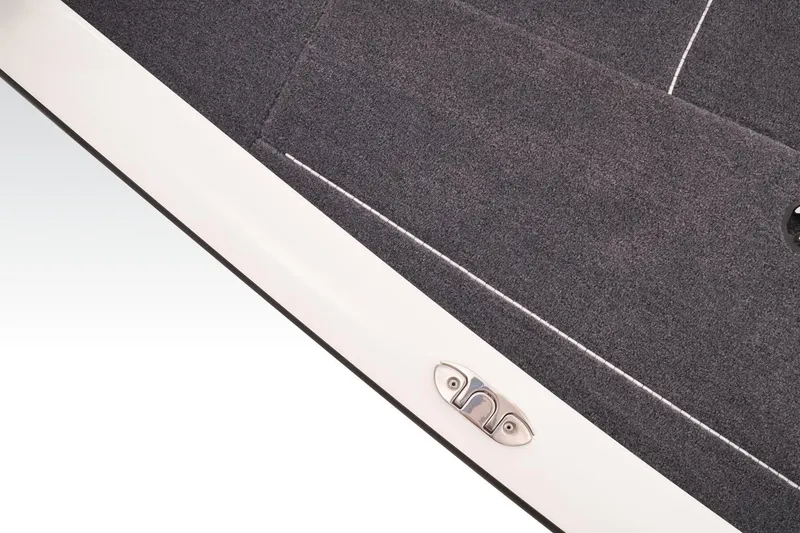

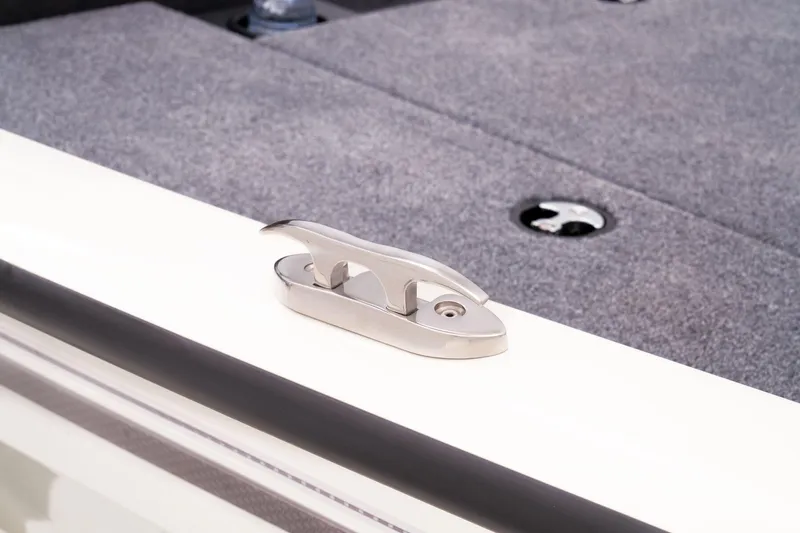

• 4 cleats

• 4 drink holders—2 on bow deck, 2 in bow tackle storage

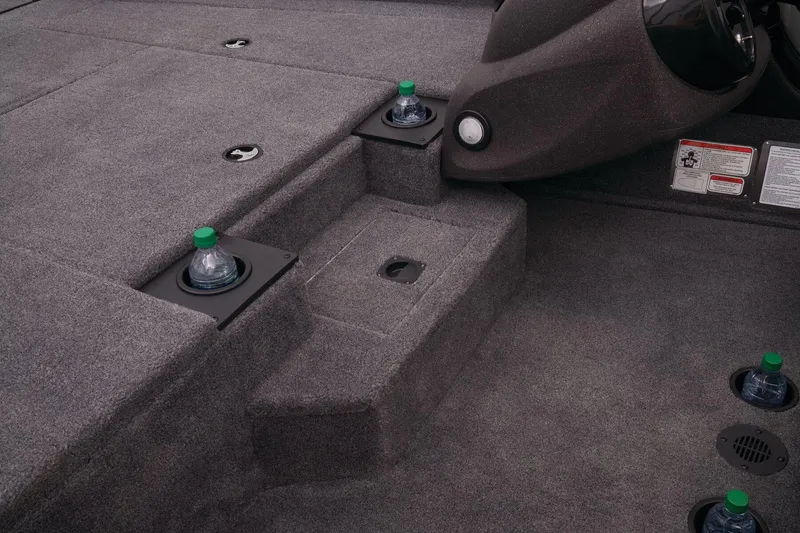

• 2 floor-mounted drink holders

• Motor-stop safety lanyard

• Fire extinguisher

• Horn

• Paddle

Livewell System

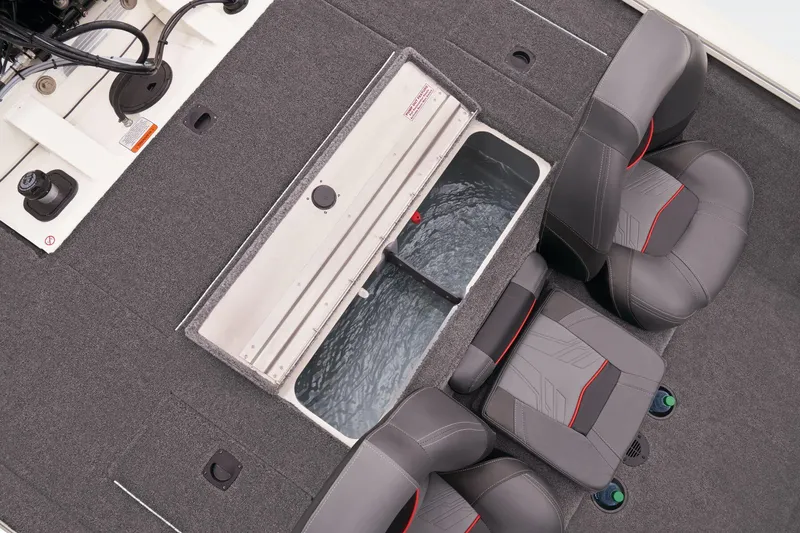

• Aft 21-gal. (79.49 L) aerated livewell w/divider, timer, recirculator, pump-out system & oversized overflow drain

• 500 GPH (1,892.71 LPH) aerator/fill pump & 500 GPH (1,892.71 LPH) recirculating pump w/timer

• Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch

Trolling Motor

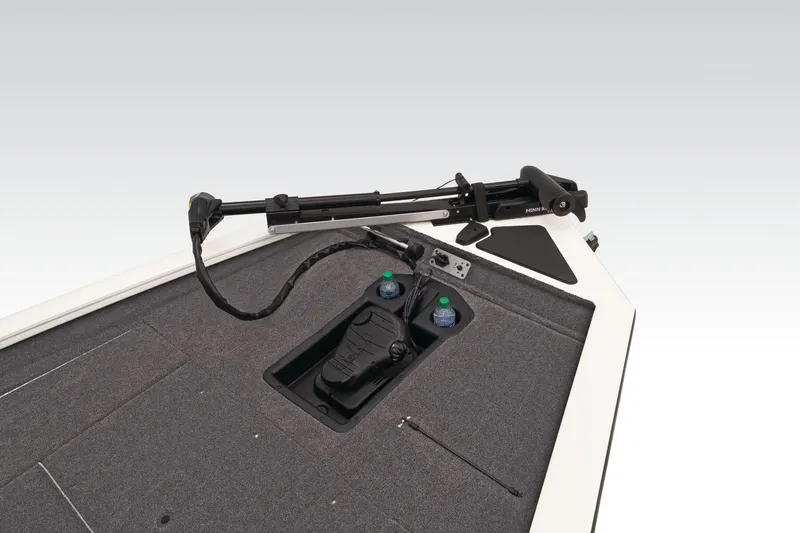

• Minn Kota® Edge® 12V, 45-lb. (20.41 kg) thrust, 45" (1.14 m) shaft, foot-control trolling motor w/rotocasted foot pedal

• Able to accept 2nd trolling motor battery & up to a 24V trolling motor w/circuit breaker change (dealer installed)

• Trolling motor pedal recess w/tool holder & drink holder

• Thru-bolted trolling motor mount for durability

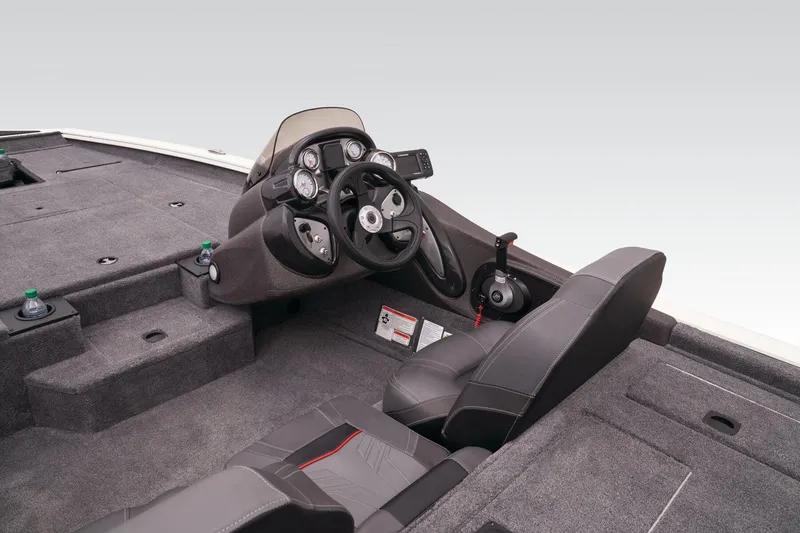

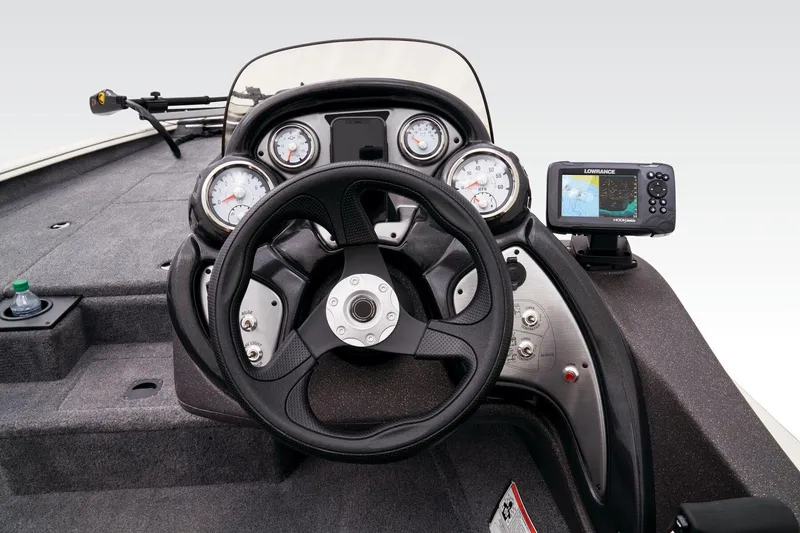

Console

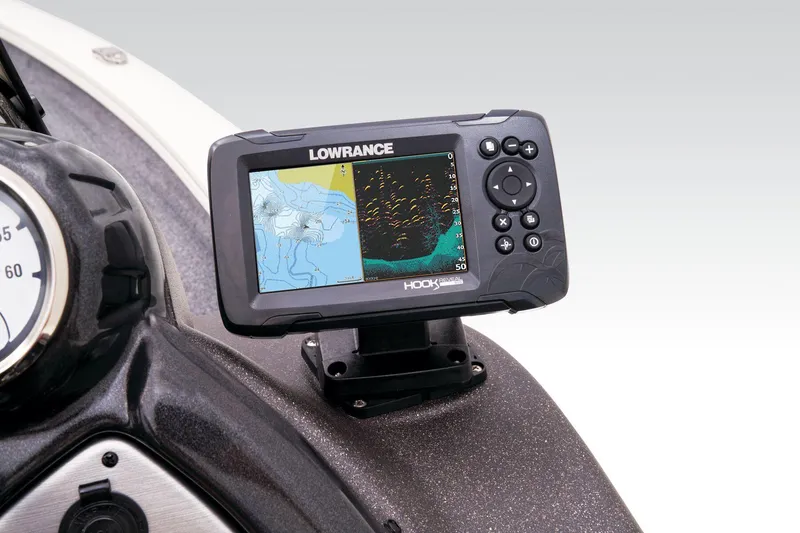

• Lowrance® HOOK2 5 Reveal swivel color fishfinder w/SplitShot™ transducer & GPS

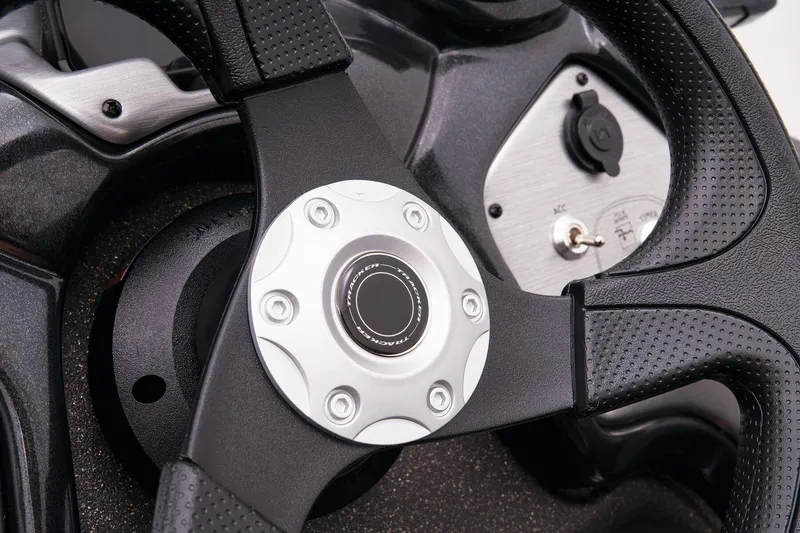

• Soft touch sport steering wheel

• Single-cable, no-feedback rotary steering

• 1-piece rotomolded console w/tinted windscreen & mobile phone holder

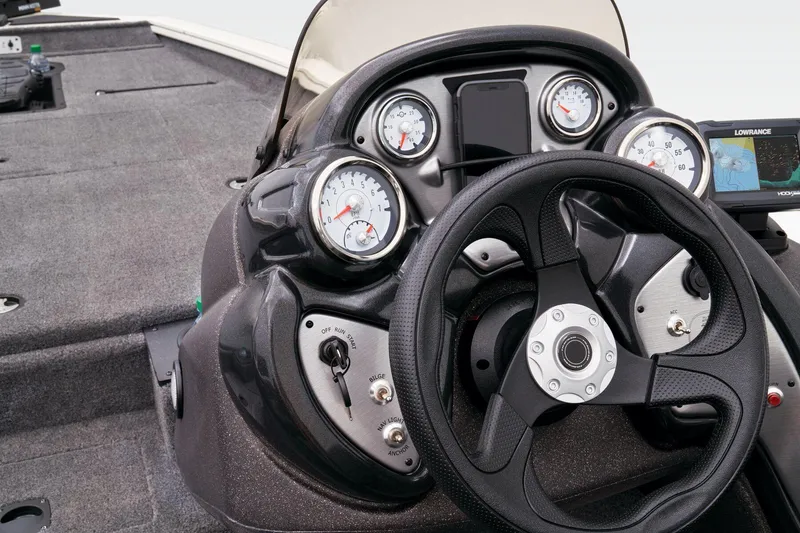

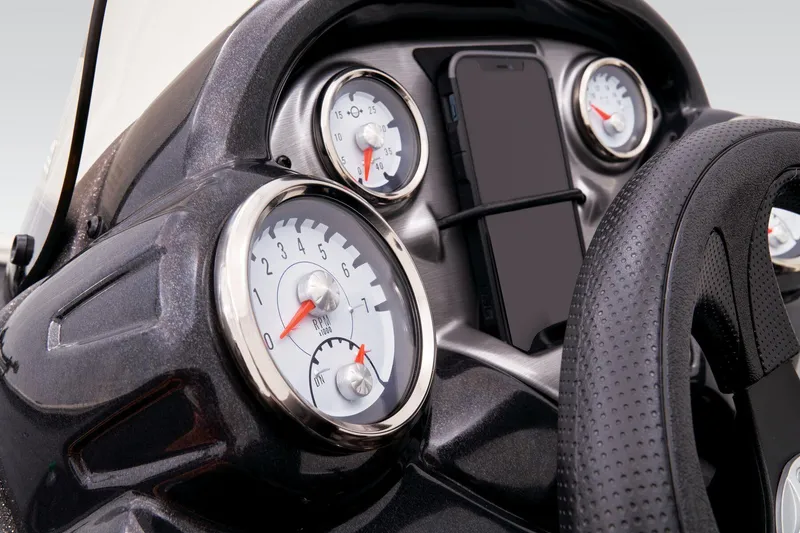

• Multifunction speedometer/fuel gauge & tachometer/trim gauge

• Voltmeter & water pressure gauge

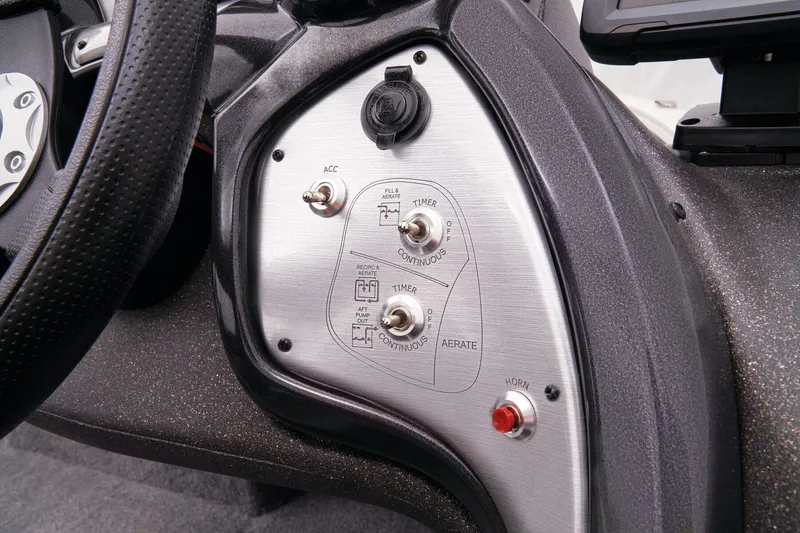

• Silver switch panels

• Mercury® control box

• Stardust console color

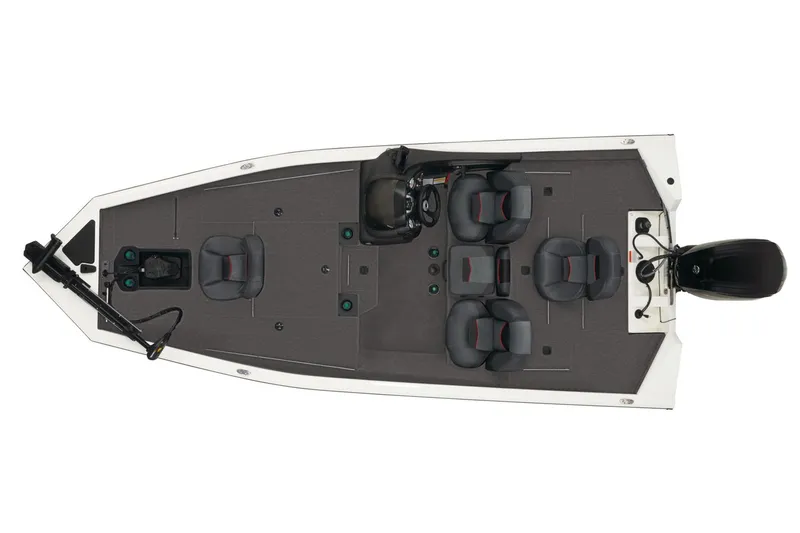

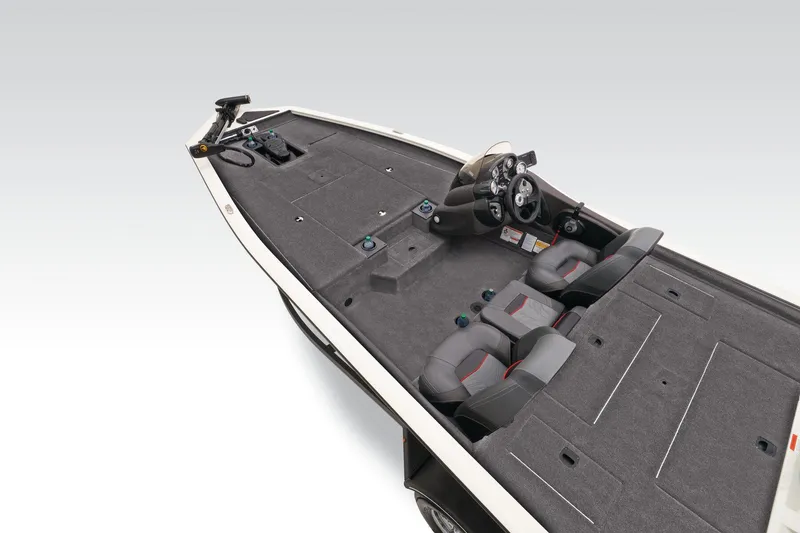

Interior

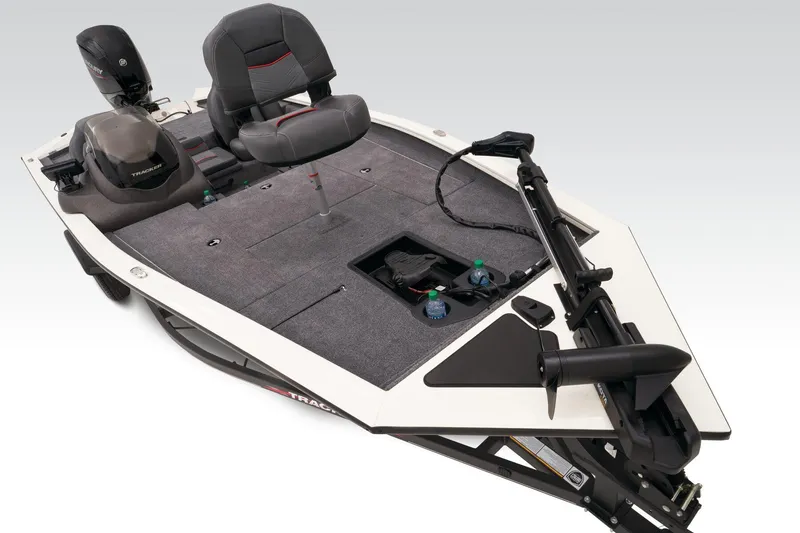

• Tournament-style 32-sq.-ft. (2.97-sq.-m) elevated bow deck

• 2 pedestal seat base locations

• 100% composite fishing seats w/contoured hinges & snap-off cushions

• 2 folding fishing seats

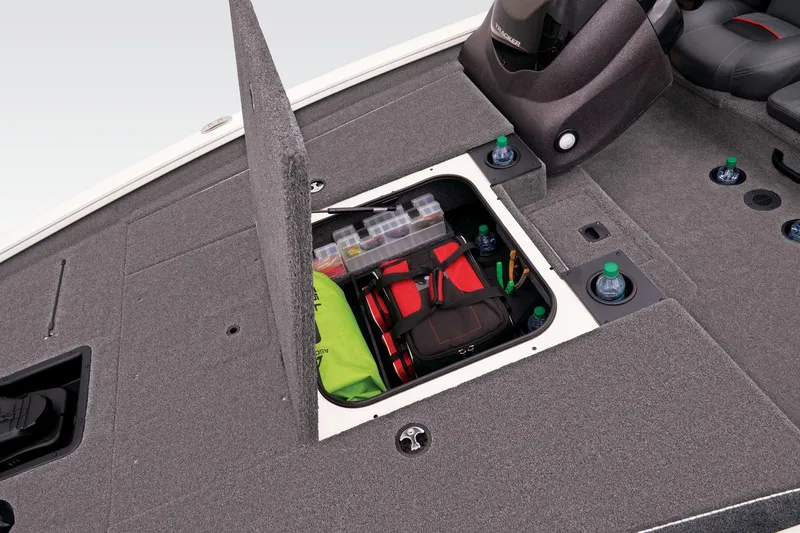

• Bow center tackle organizers & tool/tackle holder

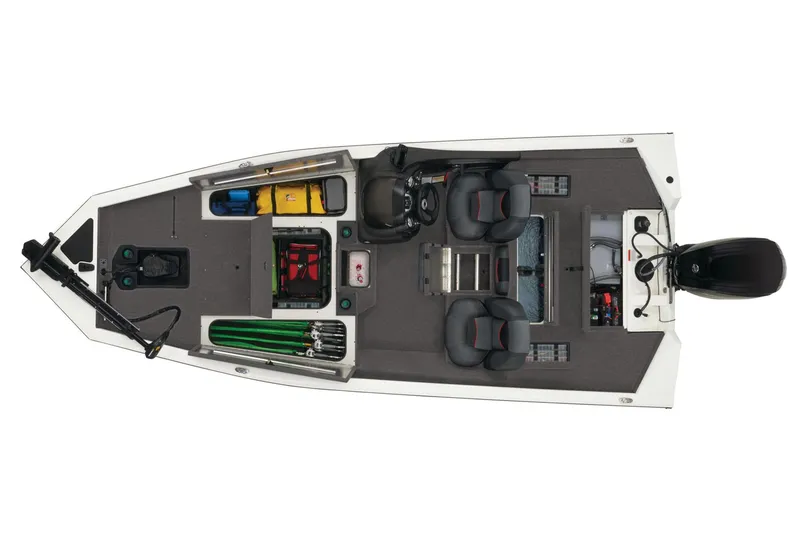

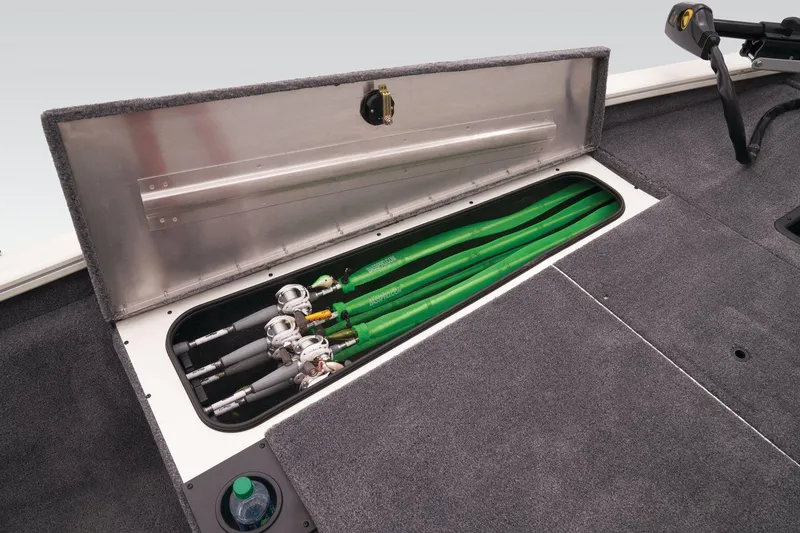

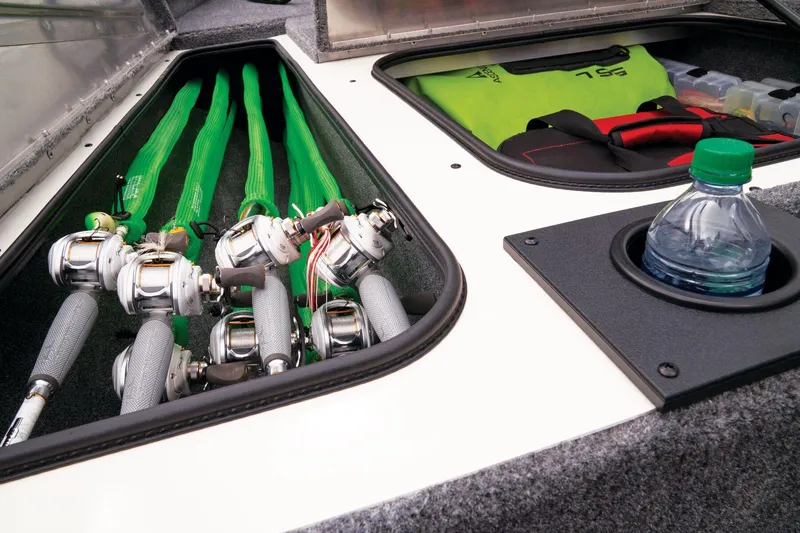

• Bow port & starboard rod storage w/large lids & rod organizers w/tubes—16 total rods up to 8' (2.44 m) casting/7' (2.13 m) spinning

• Bow storage ventilation to reduce condensation

• Bow deck rod hold-down strap

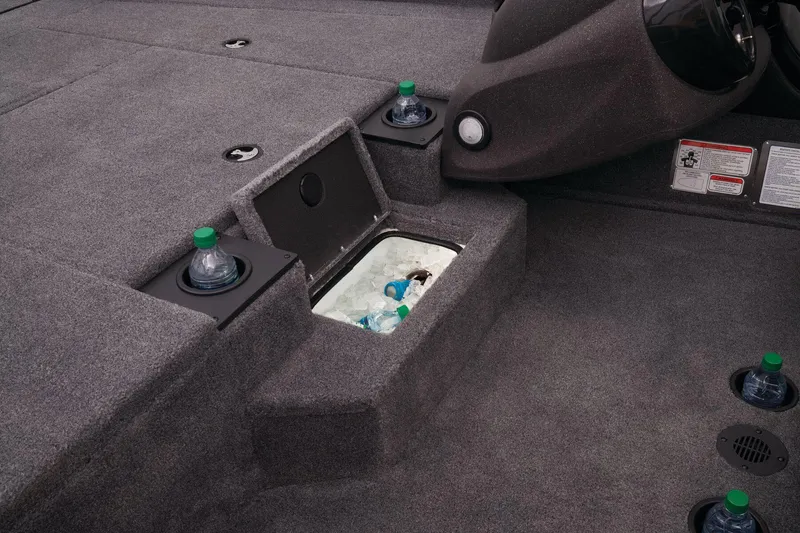

• 30-qt. (28.39 L) step cooler, box & lid

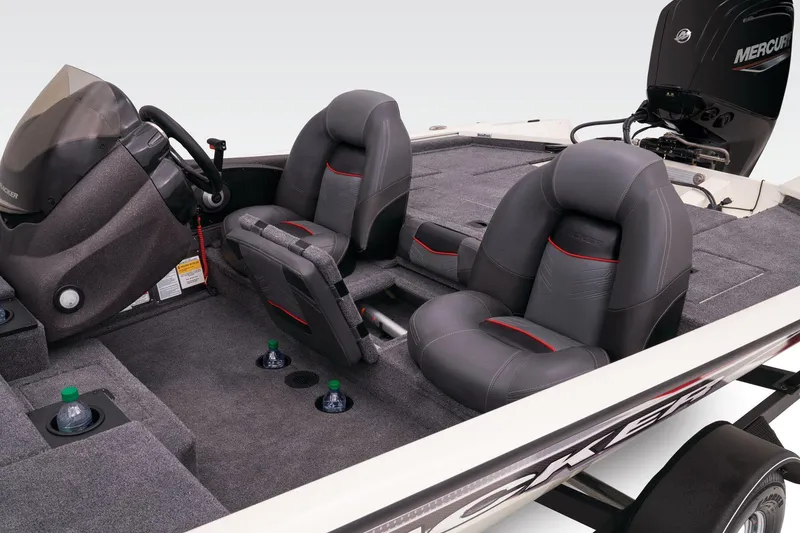

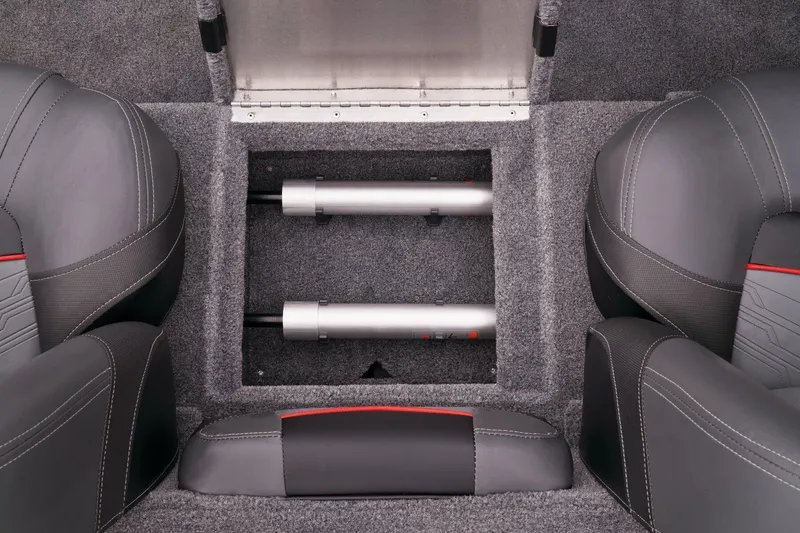

• 3-across cockpit seating w/storage below center

• Removable center cushion w/back bolster

• Elevated aft casting deck

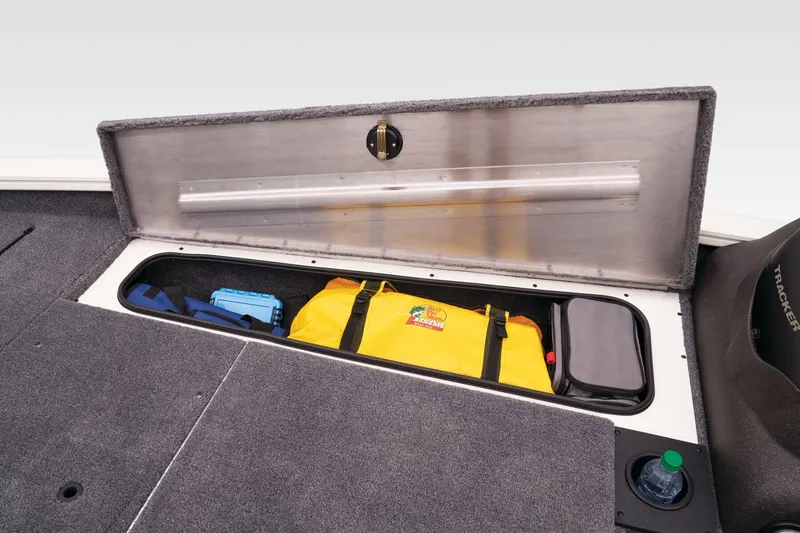

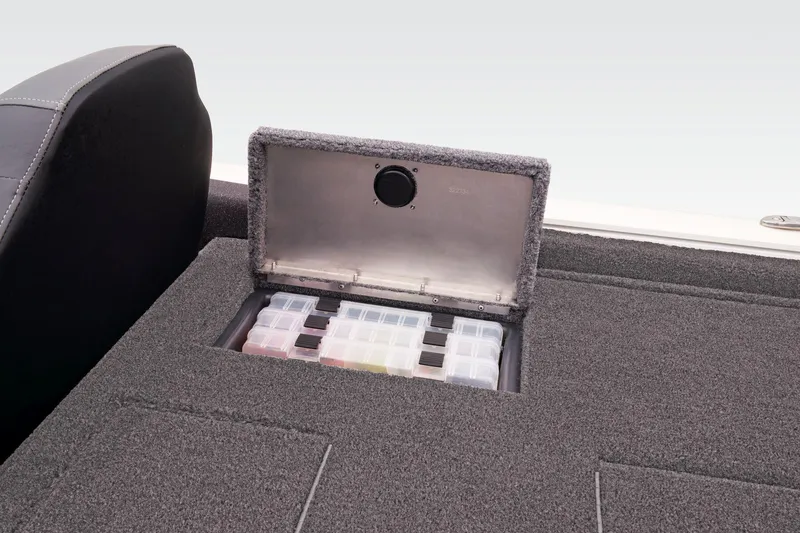

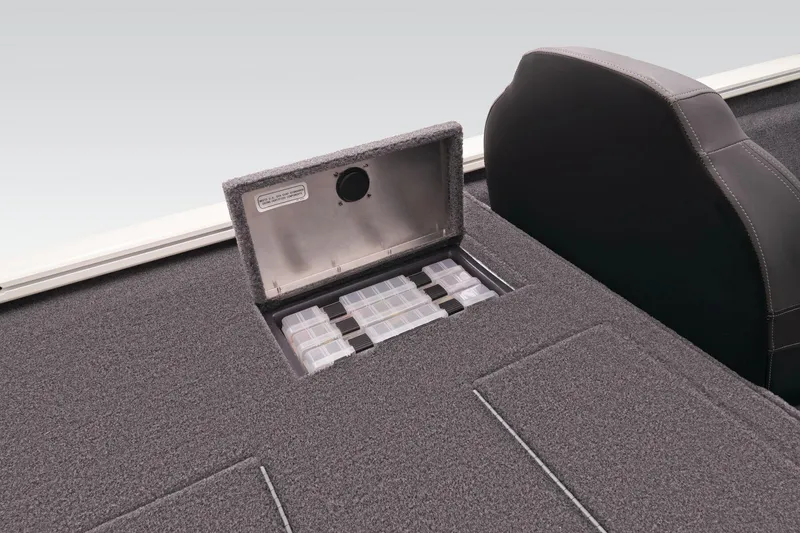

• Aft port & starboard molded storage boxes each hold three 3700 tackle boxes

• Exclusive VERSATRACK® accessory-mounting channel in gunnels

• 16-oz. (.45 kg) marine-grade, fishing-friendly carpet throughout

• T-handle locks on all lockable compartments

• Interior color w/Dark Gray tones

Performance

• POWER-TRAC™ offset transom for quicker holeshots & better overall performance

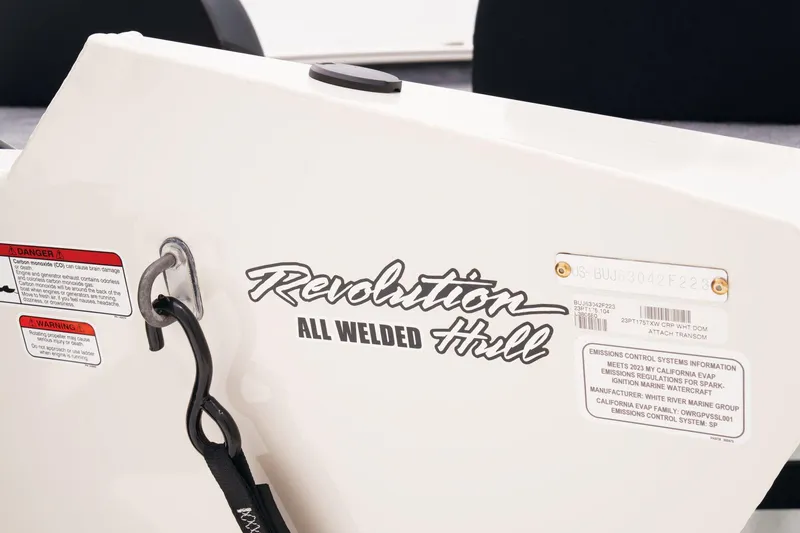

• REVOLUTION™ variable-deadrise hull w/SMOOTH RIDE GUARANTEE™

• Factory-matched, performance-tested propeller

Construction & Exterior

• NEW TRACKER® 45th Anniversary badging

• Color: DIAMOND COAT™ Starlite Blue, Starlite Red or TRACKER® Black gunnels & hull sides w/Starlite Gray bottom

• DIAMOND COAT™ 2.0 finish features industry-exclusive powdercoat & clearcoat for brilliant durability

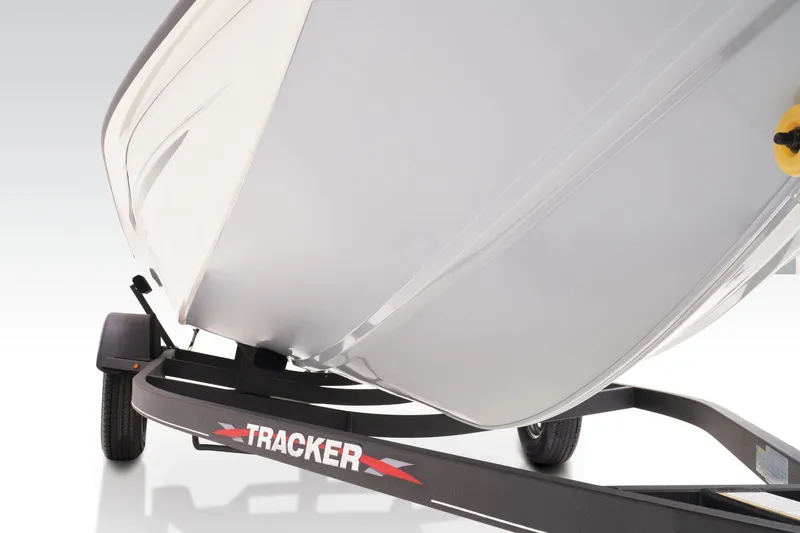

• Rugged, all-welded, 2-piece aluminum hull w/pressed-in strakes & chines for structural strength & handling

• All-welded .100 aluminum hull

• Robotically welded, all-aluminum box-beam transom w/corner braces welded in to unitize & strengthen the hull

• Welded-in longitudinal stringer system for full-length support along the running surface

• Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride

• 4" (10.16 cm) extruded 1-piece gunnels w/rub rail insert for structural strength, rigidity & side protection

• Pressure-treated floor & decks w/limited lifetime warranty

• All compartment lids are flush-mount, carpeted & all-aluminum for structural rigidity, tight fit & long-term durability

• Weather-resistant lid design w/rubber molding to keep your gear drier

Electrical

• 800 GPH (3,028.33 LPH) bilge pump

• Stowable navigation lights w/LED courtesy light at bow

• Bow & console courtesy lights

• 2-bank battery charger

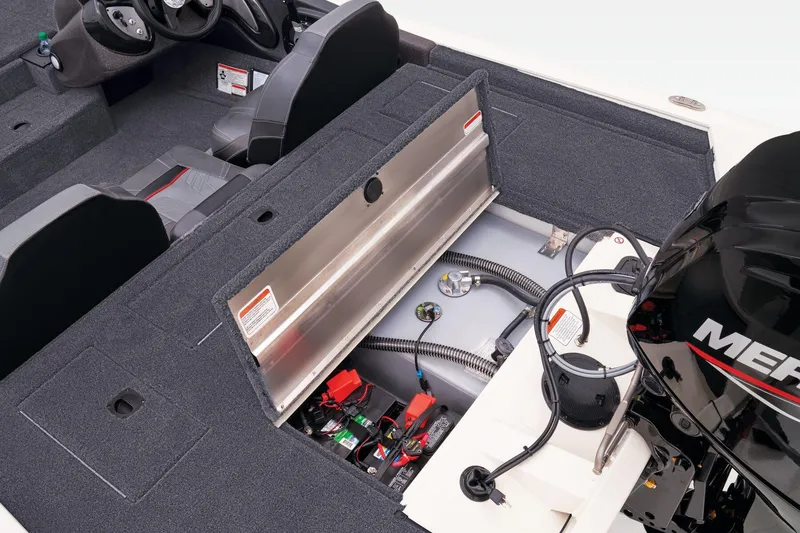

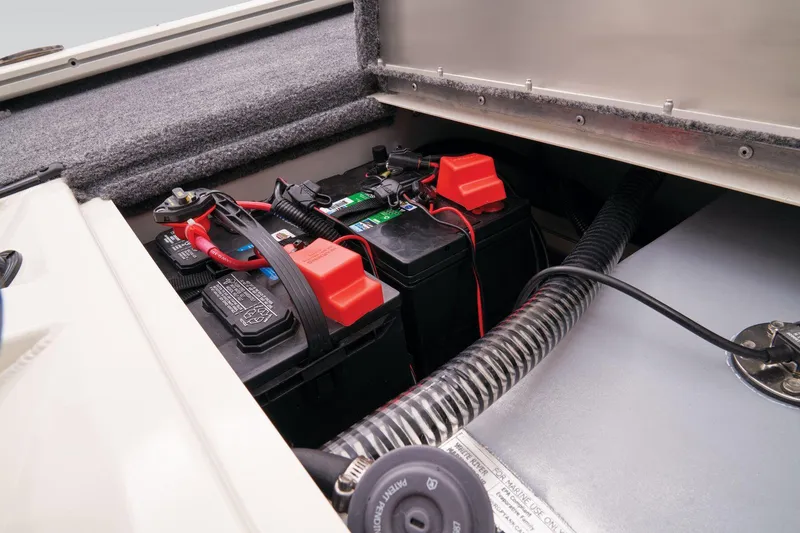

• 2 battery trays

• Interstate® batteries: 1 cranking & 1 trolling

• 12V trolling motor harness & receptacle

• Bow panel w/trolling motor receptacle & motor tilt switch

• Wiring system wrapped in abrasion-resistant protective conduit

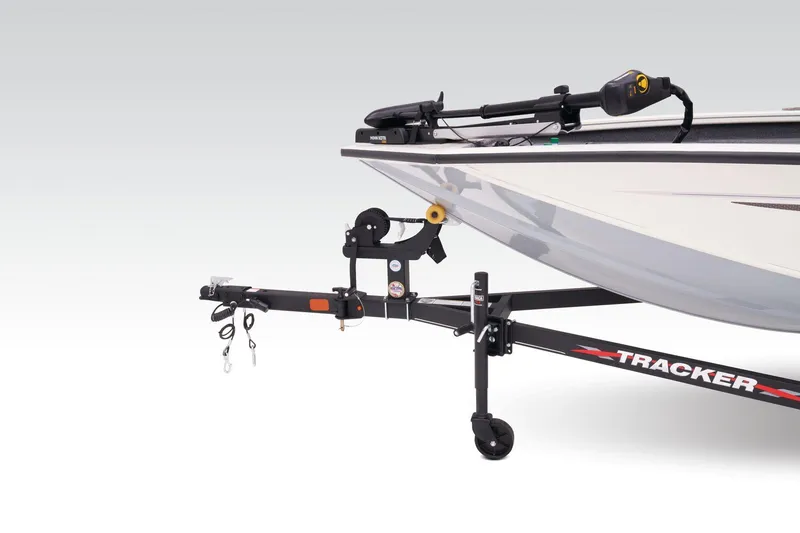

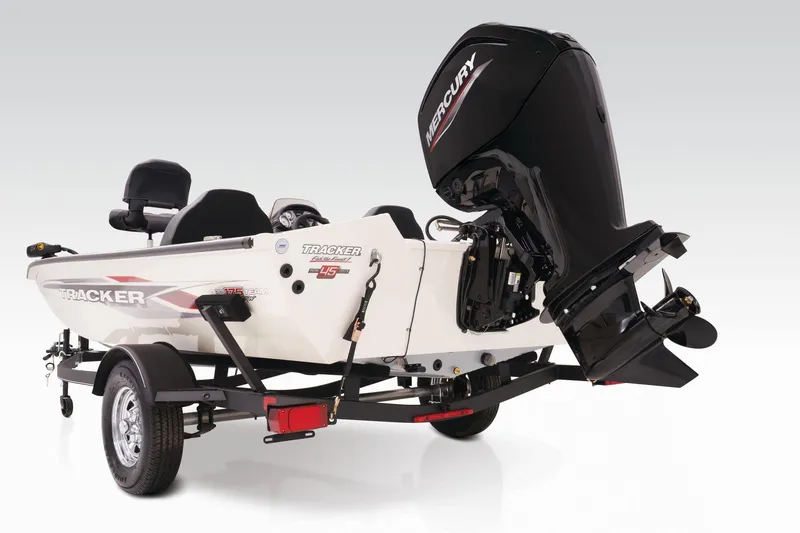

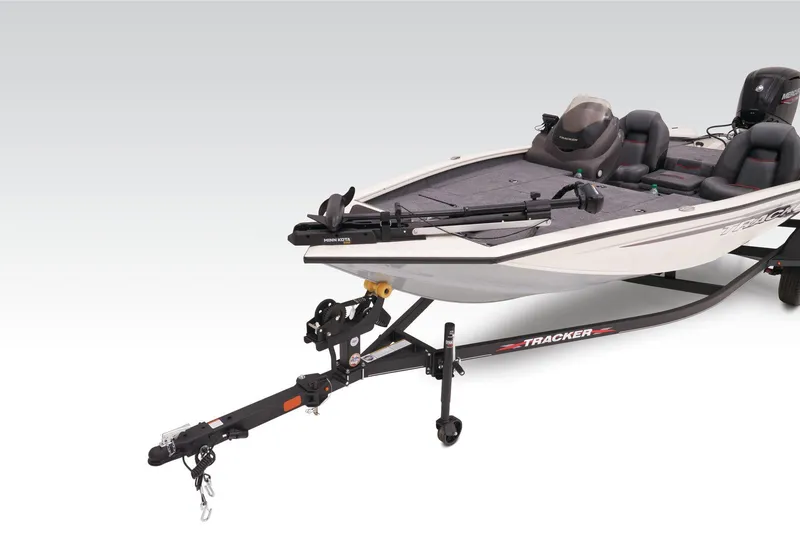

Trailer

• Custom-fit, single-axle trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability

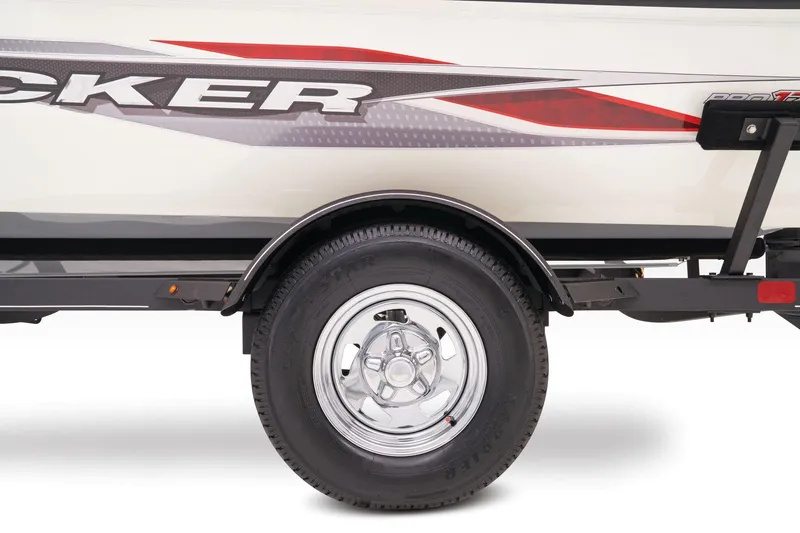

• Chrome wheels & matching hub covers w/13" (33.02 cm) radial tires

• Hubs designed for quick & easy hub lubrication

• Space-saving swing-away tongue to reduce storage length

• Pivot-up locking jack w/swivel wheel

• Heavy-duty winch w/nylon strap & bow safety strap

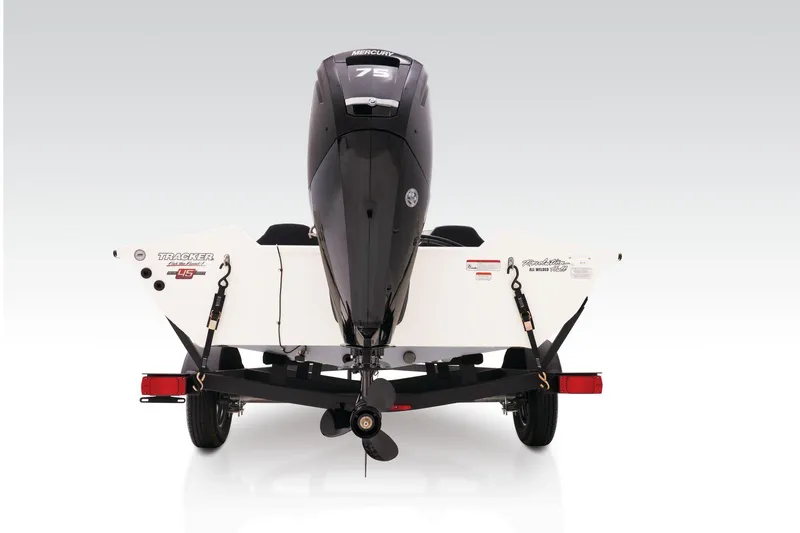

• Outboard motor support to reduce hull & transom stress while towing

• Heavy-duty upright load guides for easy, centered loading

• Carpeted bunks & fender boards to protect hull

• Submersible LED lighting

• Nylon tie-down straps (supplied w/boat package)

• Safety cables
