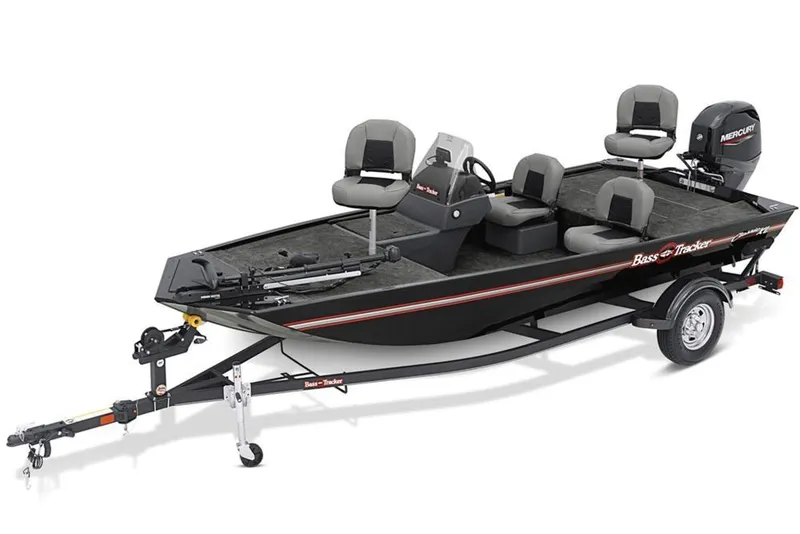

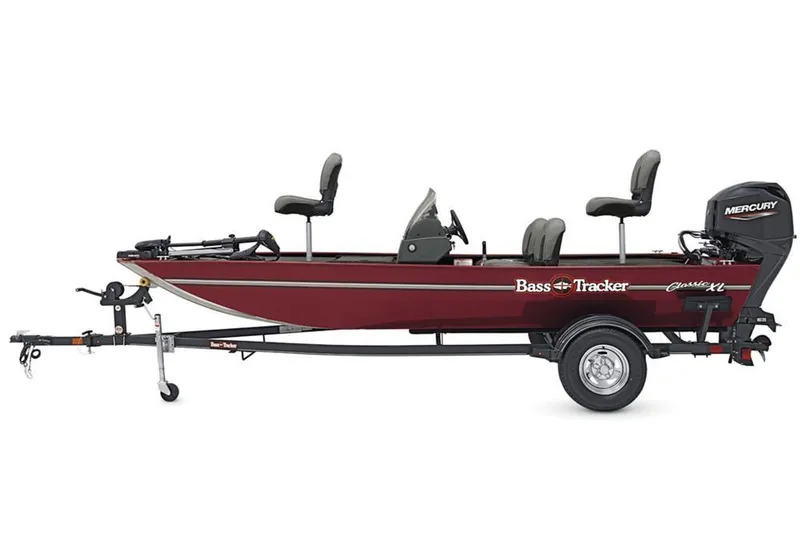

2024 Tracker Bass Tracker Classic XL

• Length:16' 8"

• Beam: 6' 5"

• Bottom Width: 4' 6"

• Max. Recommended HP: 50 HP

• Fuel Capacity (Portable): 6 gal.

• Max. Person Capacity: 3 persons

• Max. Person Weight: 555 lbs.

• Max. Person, Motor & Gear Weight: 1025 lbs.

• Interior Depth: 15"

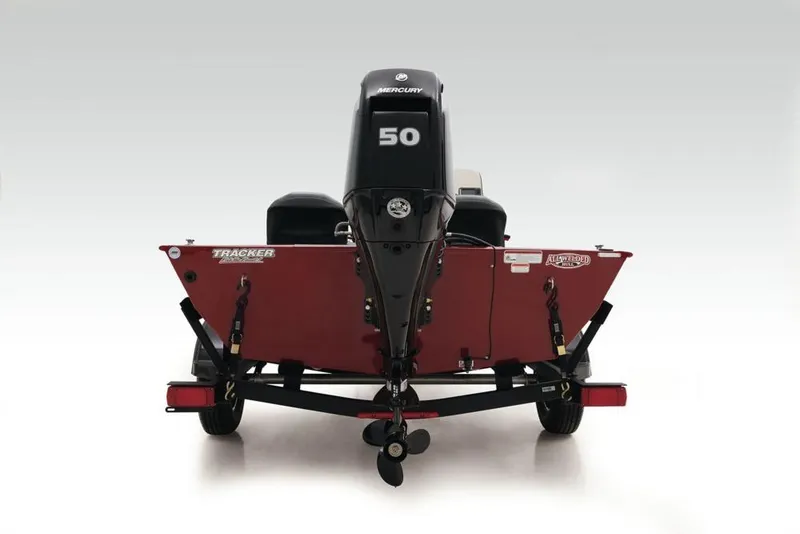

• Transom Height: 22.5"

• Deadrise At Bow: 13 degrees

• Deadrise At Transom: 6 degrees

• Hull Material: 0.1 5052 marine alloy

• Average Dry Weight: 780 lbs.

• Average Package Weight: 1705 lbs.

• Package Height: 6' 0"

• Package Width: 6' 8"

• Towing Length: 23' 2"

• Storage Length (w/Outboard Trimmed Down): 20' 1"

Comfort, Convenience & Peace of Mind

• Backed by the TRACKER® PROMISE—the best factory warranty in aluminum boats

• Limited lifetime hull warranty

• NMMA® certified

• Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements

• Bow & stern eyes

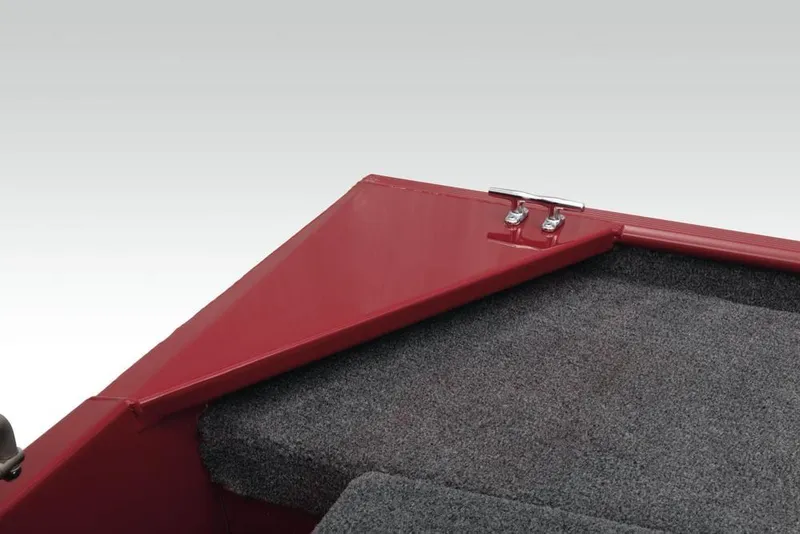

• 4 cleats

• Motor-stop safety lanyard

• Fire extinguisher

• Horn

• Paddle



Livewell System

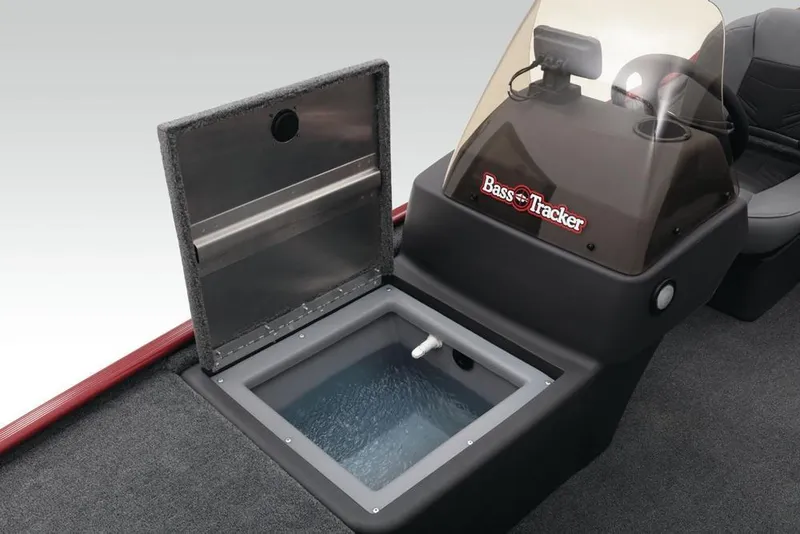

• 9-gal. (34.07 L) aerated livewell molded into front of console

• 500 GPH (1,892.71 LPH) aerator/fill pump

• Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch



Trolling Motor

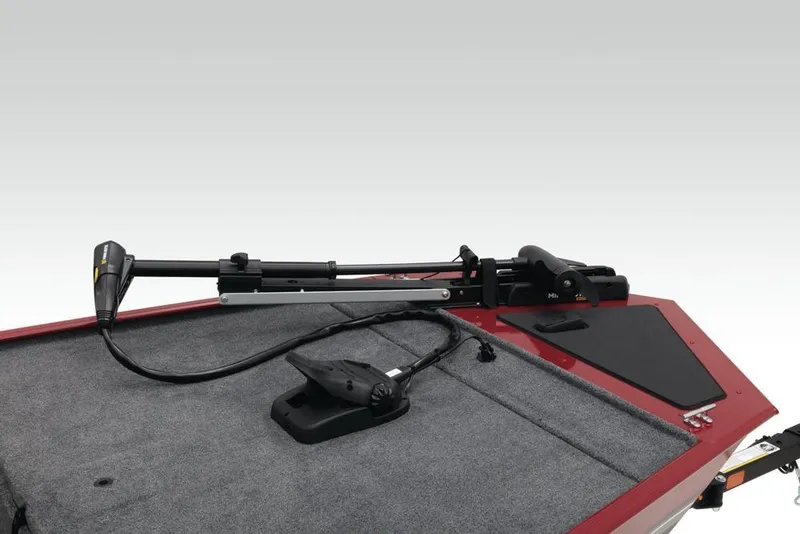

• Minn Kota® Edge® 12V, 45-lb. (20.41 kg) thrust, 45" (1.14 m) shaft, foot-control trolling motor

• Thru-bolted trolling motor mount for durability

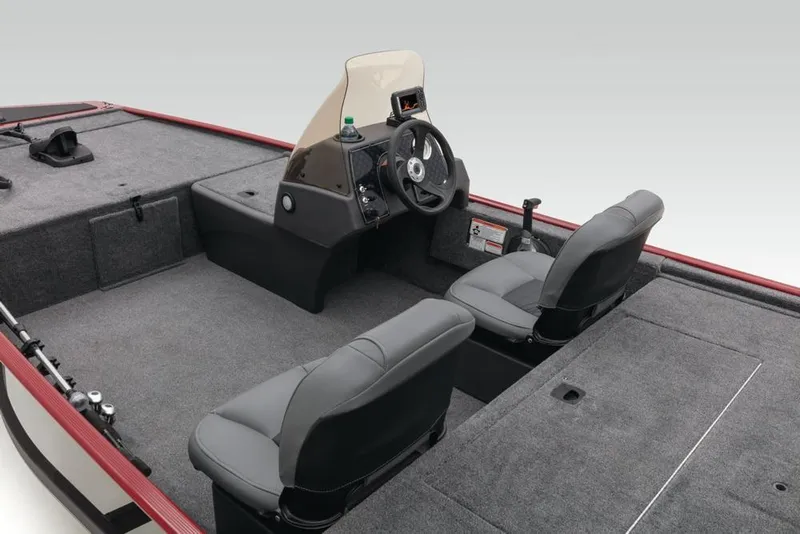

Console

• NEW Garmin® STRIKER™ 4 color fishfinder w/CHIRP transducer & GPS

• Sport steering wheel

• Single-cable, no-feedback rotary steering

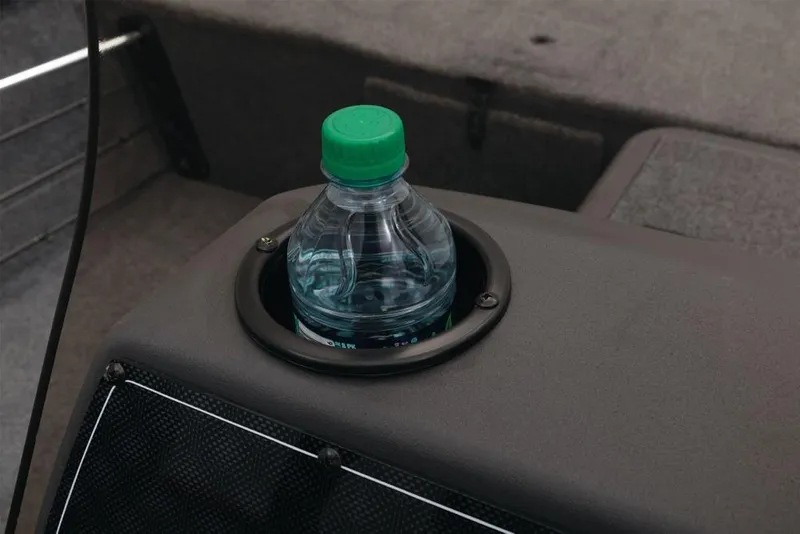

• 1-piece rotomolded console w/tinted windscreen, integrated livewell, drink holder & 12V outlet

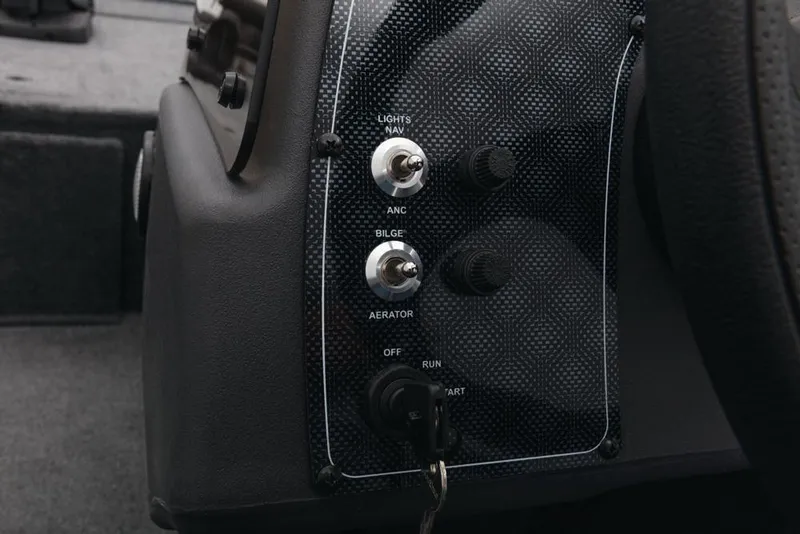

• Midnight Lazer switch panel

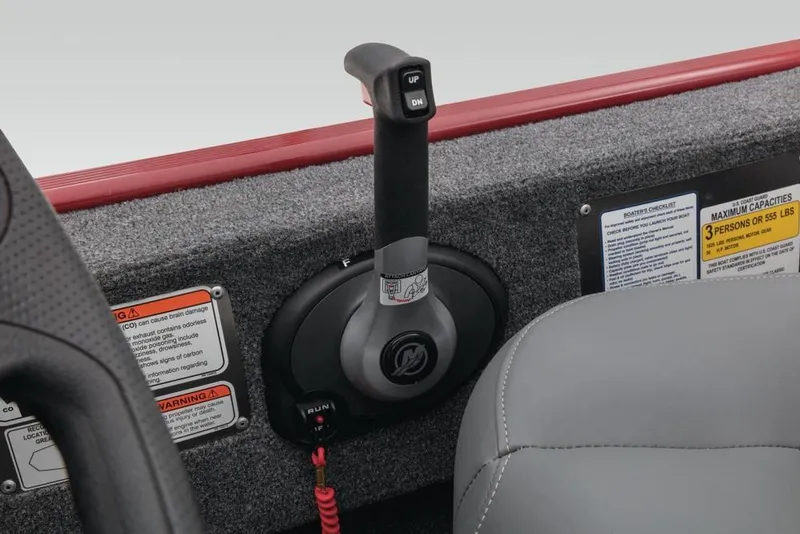

• Mercury® control box

• Navigation lights, aerator & bilge switches

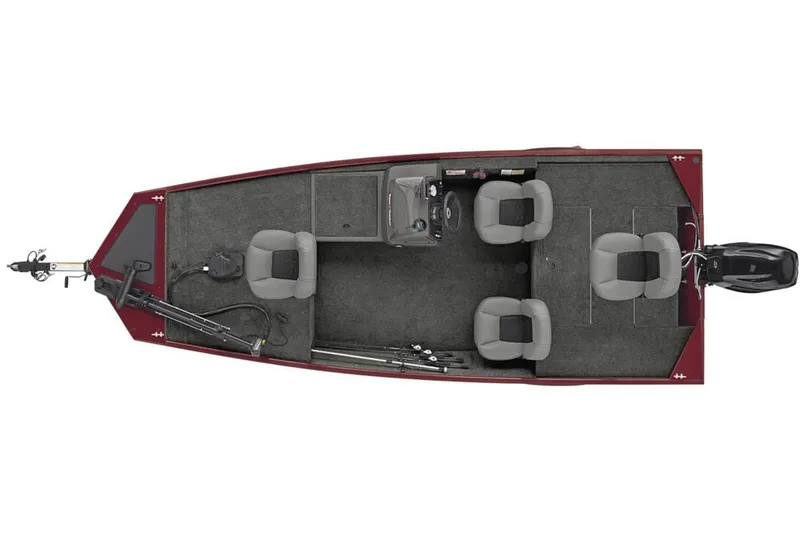

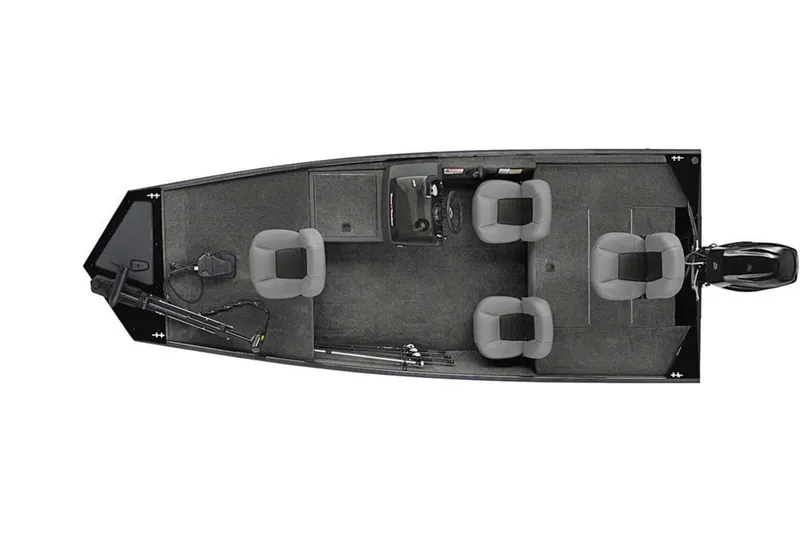

Interior

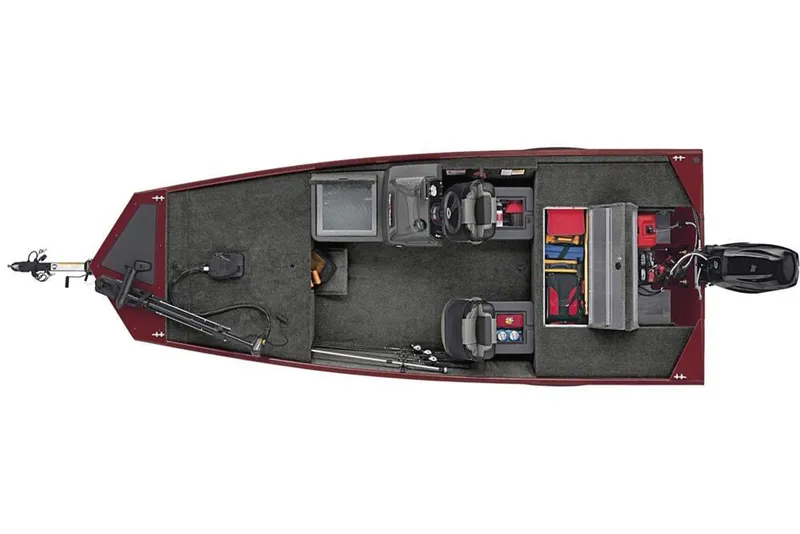

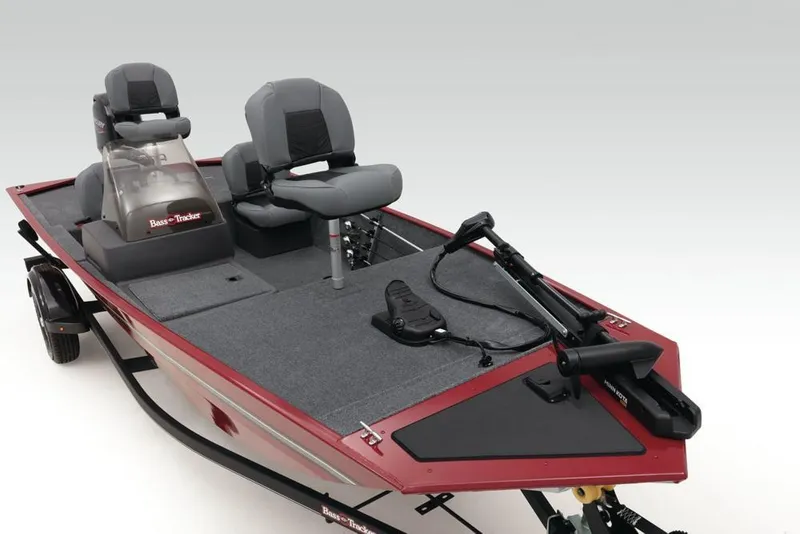

• Elevated bow & aft casting decks w/storage below bow deck

• 2 pedestal seat base locations

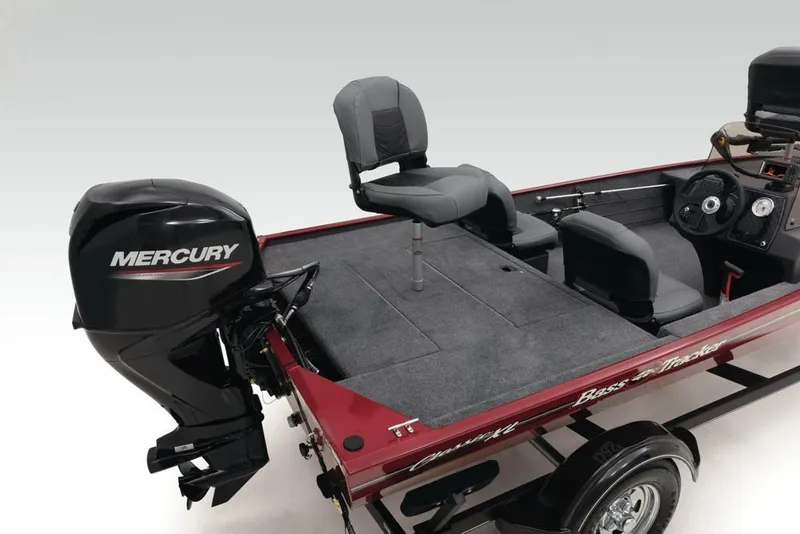

• 100% composite fishing seats w/contoured hinges & snap-off cushions

• 2 folding fishing seats

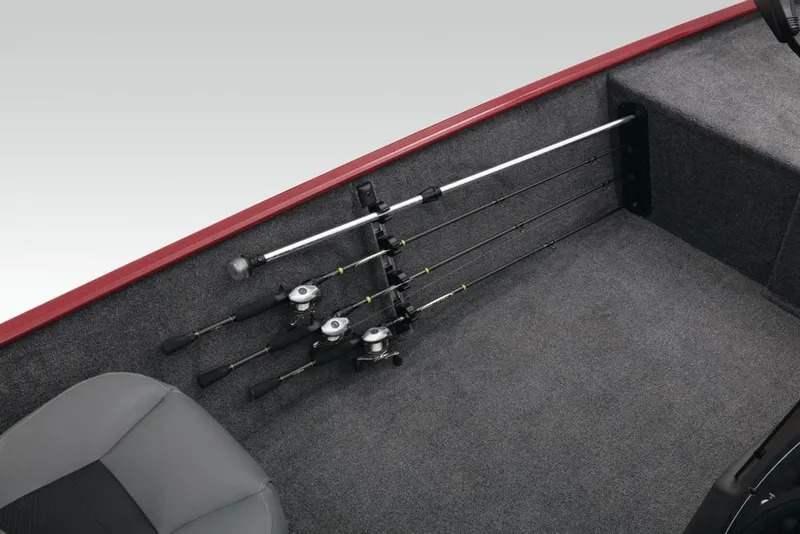

• Port side rod holders w/organizer for 4 rods to 7' (2.13 m)

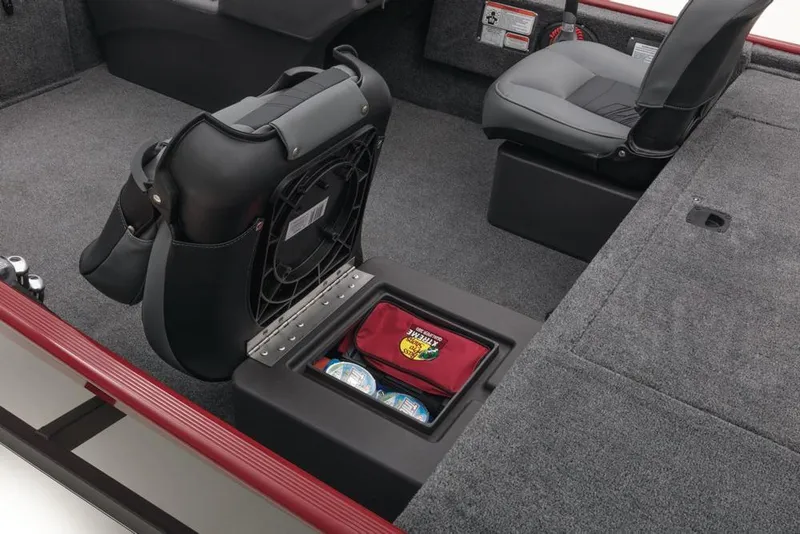

• Driver & passenger seats w/storage below

• Aft deck storage

• 16-oz. (.45 kg) marine-grade, fishing-friendly carpet throughout



Performance

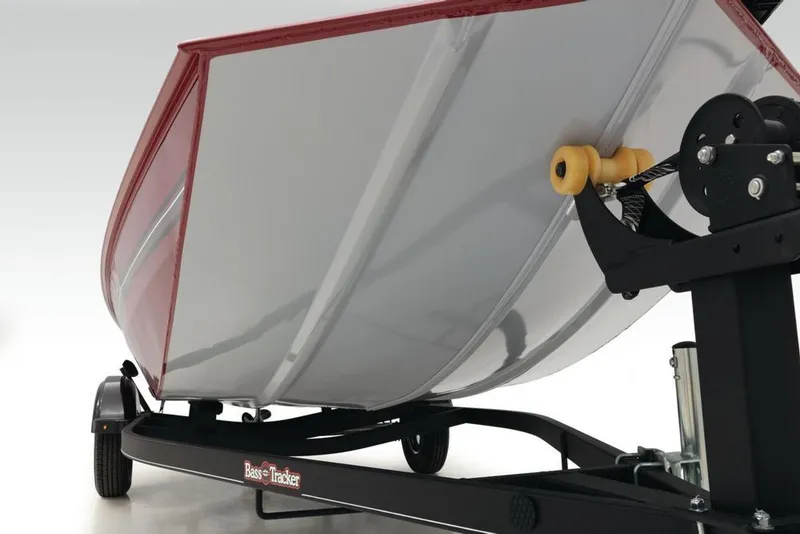

• Pressed-in keel & strakes for optimal performance

• Factory-matched, performance-tested aluminum propeller



Construction & Exterior

• Color: DIAMOND COAT™ Starlite Red or TRACKER® Black gunnels & hull sides w/Starlite Gray bottom

• NEW DIAMOND COAT™ 3.0 finish features industry-exclusive powdercoat for brilliant durability

• Rugged, all-welded, 2-piece aluminum hull w/pressed-in strakes & chines for structural strength & handling

• Robotically welded, all-aluminum box-beam transom w/corner braces welded in to unitize & strengthen the hull

• Welded-in longitudinal stringer system for full-length support along the running surface

• Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride

• 2" (5.08 cm), heavy-duty extruded 1-piece gunnel for structural strength & rigidity

• Pressure-treated floor & decks w/limited lifetime warranty

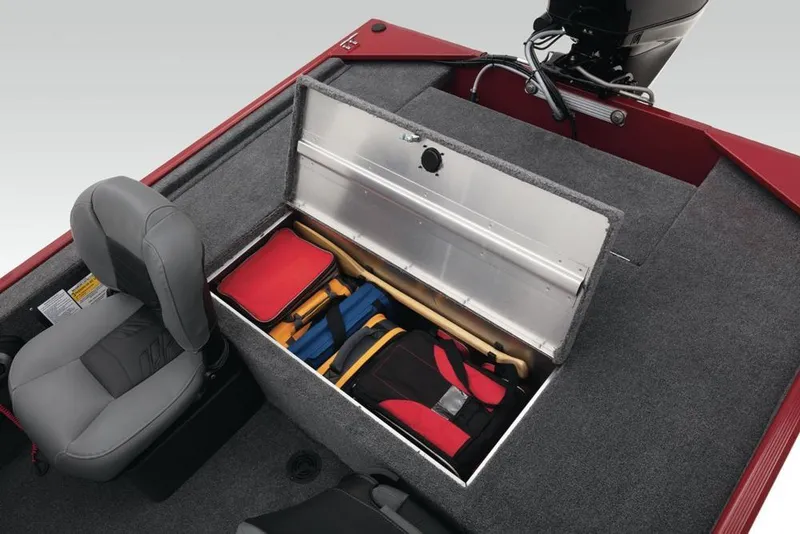

• Flush-mount, carpeted, all-aluminum compartment lids for structural rigidity, tight fit & long-term durability



Electrical

• 800 GPH (3,028.33 LPH) bilge pump

• Stowable navigation lights w/LED courtesy light at bow

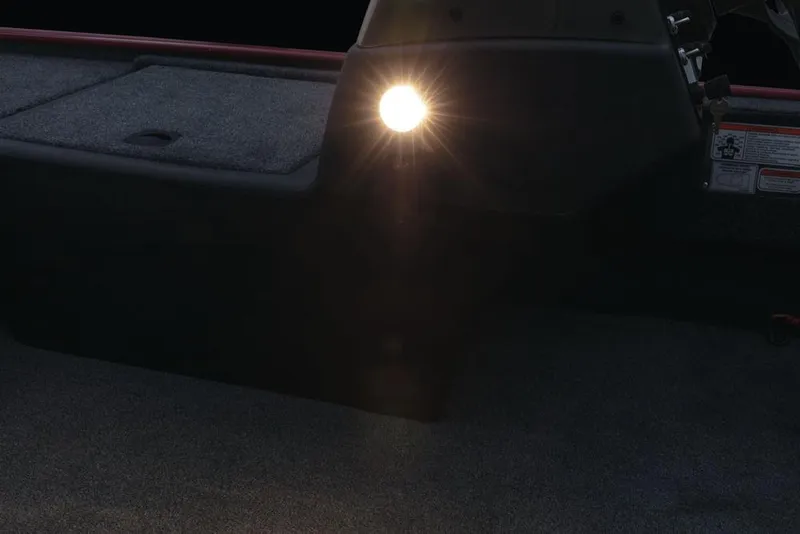

• Bow & console courtesy lights

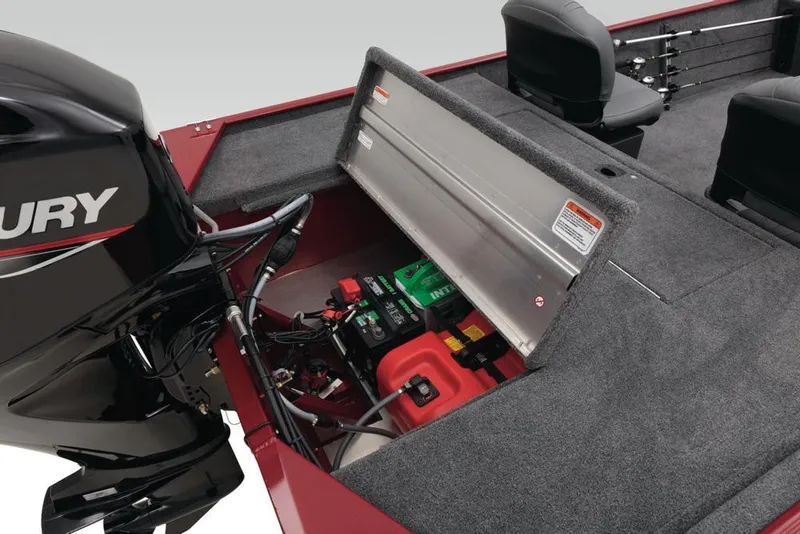

• 2 battery trays

• Interstate® batteries: 1 cranking & 1 trolling

• 12V trolling motor harness & receptacle

• Wiring system wrapped in abrasion-resistant protective conduit

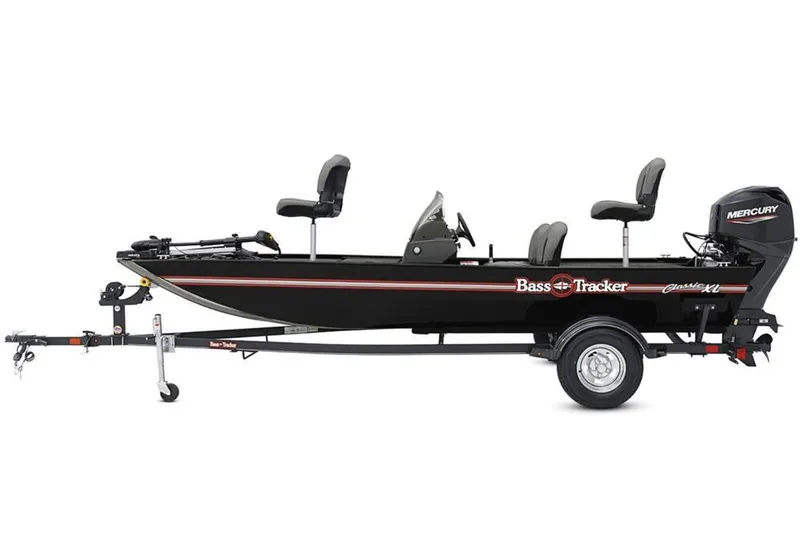

Trailer

• Custom-fit, single-axle trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability

• Chrome wheels & matching hub covers w/13" (33.02 cm) radial tires

• Hubs designed for quick & easy hub lubrication

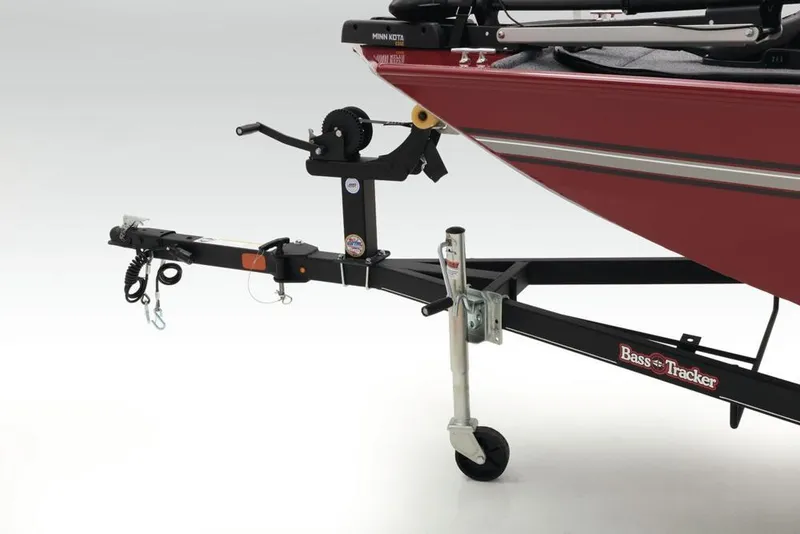

• Space-saving swing-away tongue to reduce storage length

• Pivot-up locking jack w/swivel wheel

• Heavy-duty winch w/nylon strap & bow safety strap

• Outboard motor support to reduce hull & transom stress while towing

• Heavy-duty upright load guides for easy, centered loading

• Carpeted bunks to protect hull

• Submersible LED lighting

• Nylon tie-down straps (supplied w/boat package)

• Safety cables
