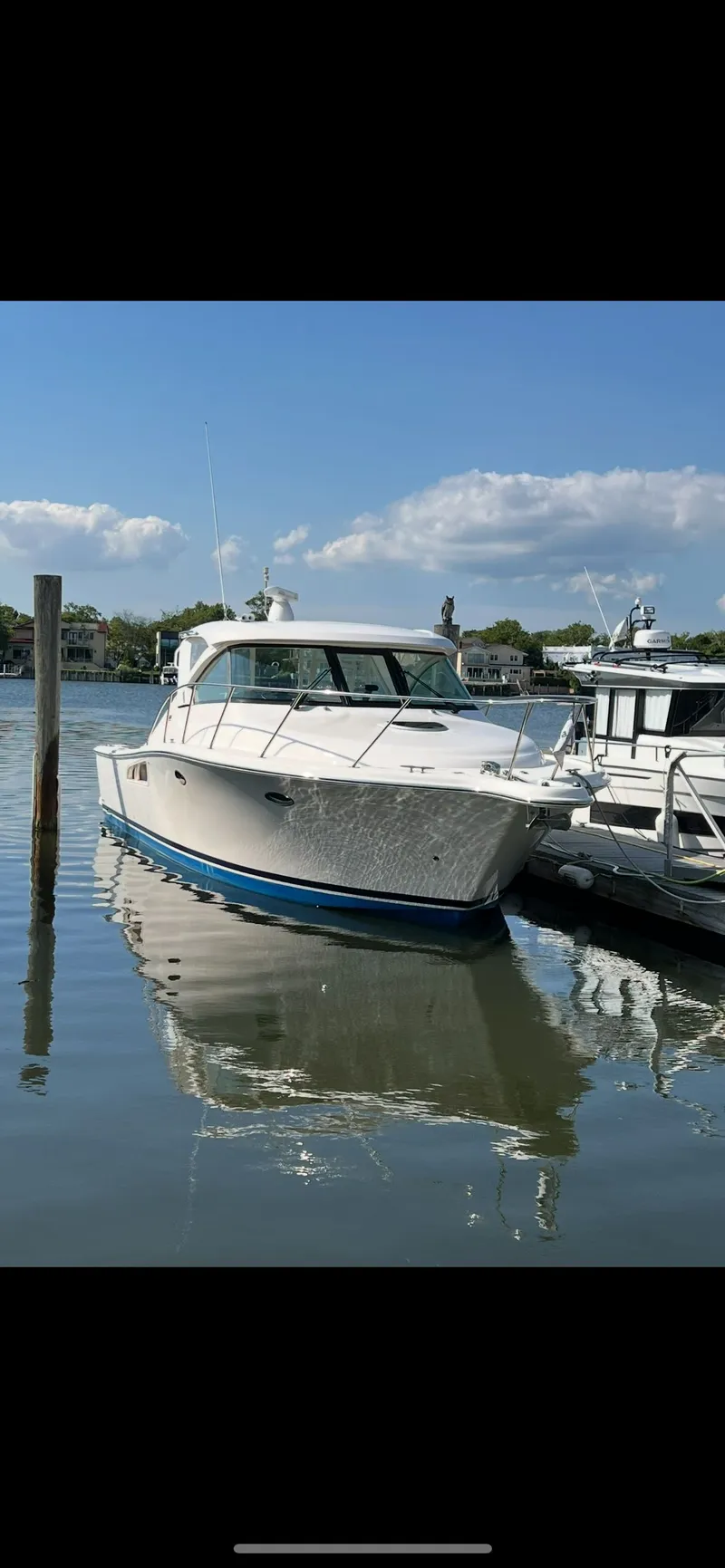

2013 Tiara 36 Coronet

Overview
Introducing the Tiara 3600 Coronet, a luxurious express boat designed for ultimate comfort and style. With elegant Tiara styling, this posh vessel features a spacious upper/lower cockpit perfect for entertaining up to 10 guests. The entertainment center behind the helm seat includes drawer refrigeration and a sink, while the L-shaped settee offers cozy seating with angled seatbacks for lounging in any direction. Enjoy seamless protection from the elements with the integrated hardtop/windshield featuring a manually operated sunroof. The helm deck lifts for easy engine access, and the well-appointed interior boasts a double berth forward with privacy door, amidships berth, compact galley, small dinette, and a separate stall shower in the head. Standard features include a 45" extended swim platform, teak cockpit table, electric helm seat, center windshield vent, lower cockpit L-lounge, and molded bow pulpit. Powered by 380hp Cummins diesels, the 3600 Coronet cruises at 25 knots with a top speed in the mid-30s. Experience luxury on the water with the Tiara 3600 Coronet.

Cockpit

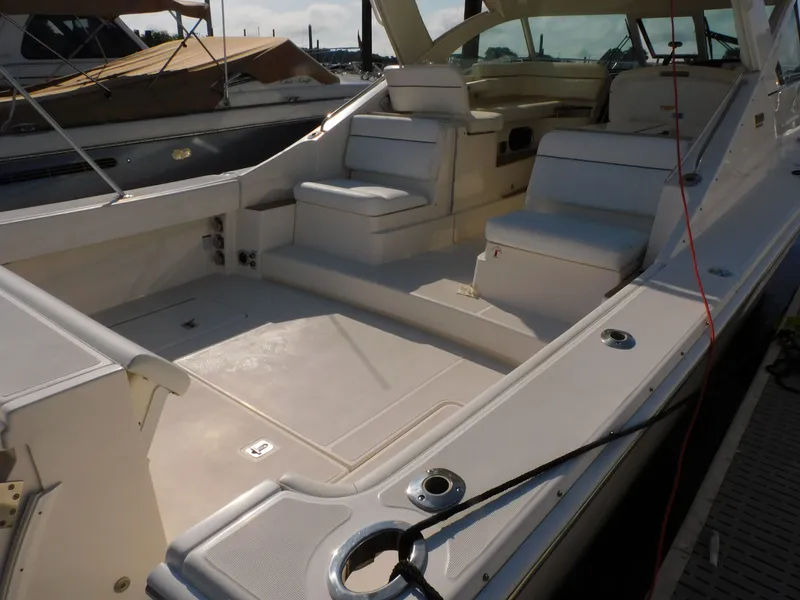

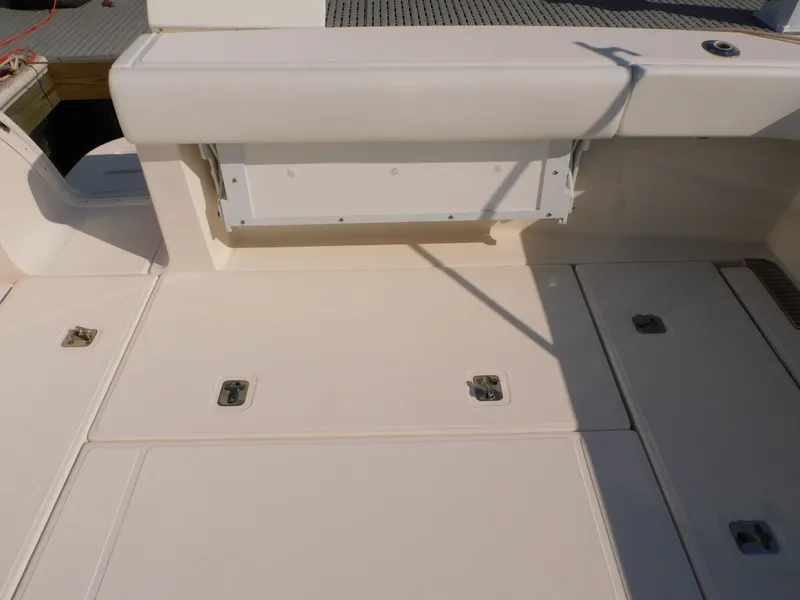

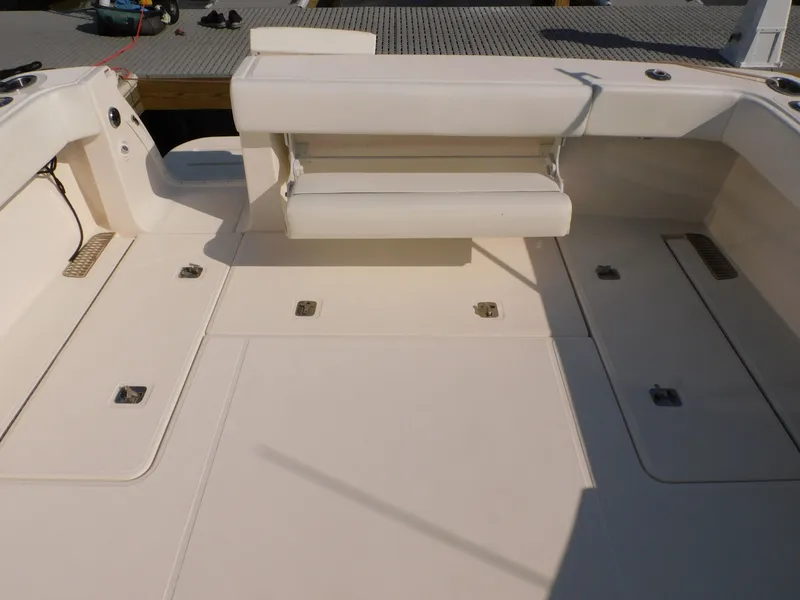

Deck features include an oversized upper/lower cockpit made for entertaining and socializing
Helm/cockpit A/C, 16,000BTU
Ample seating for 10

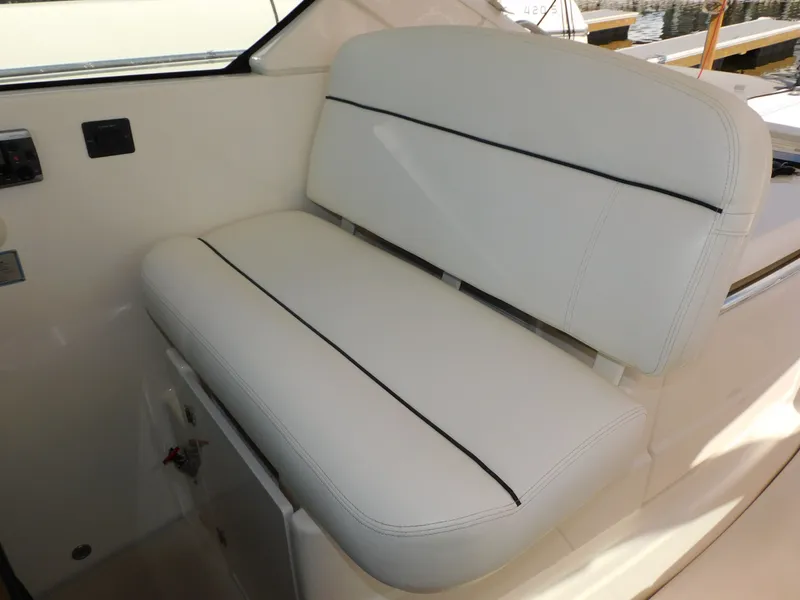

Double-wide helm seat

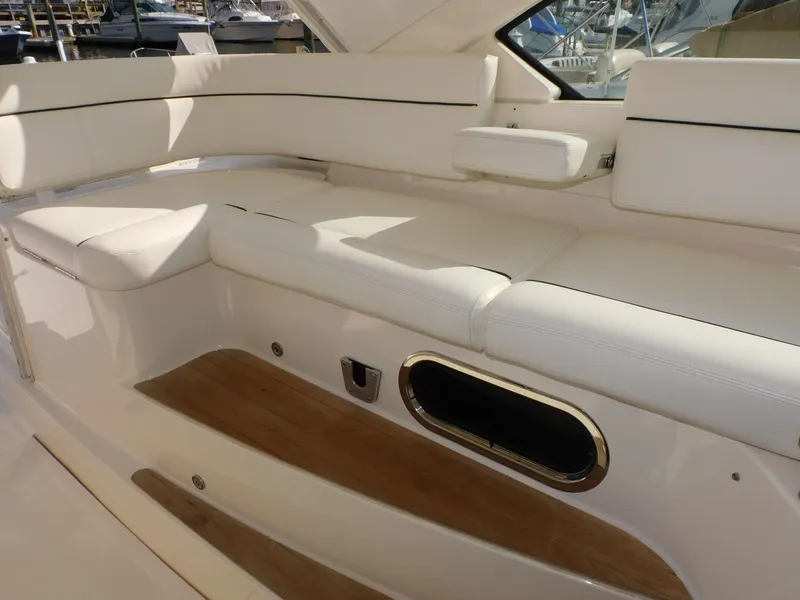

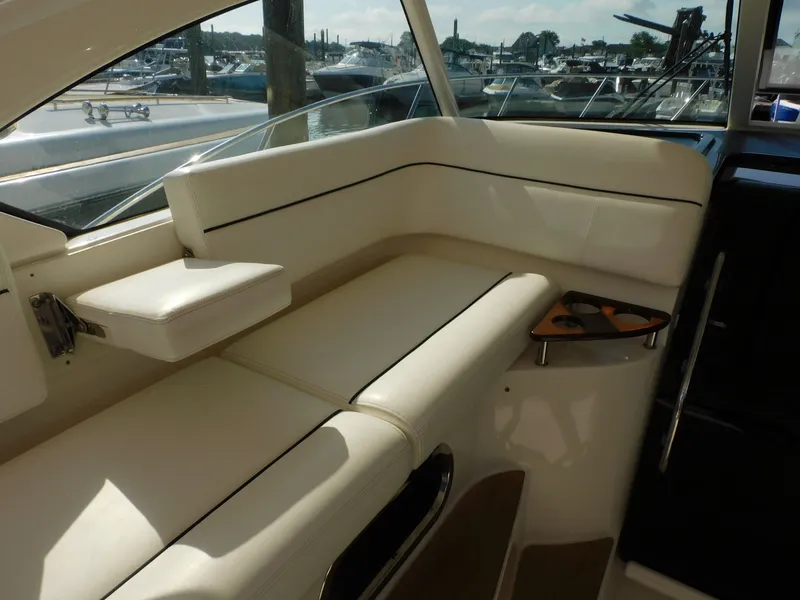

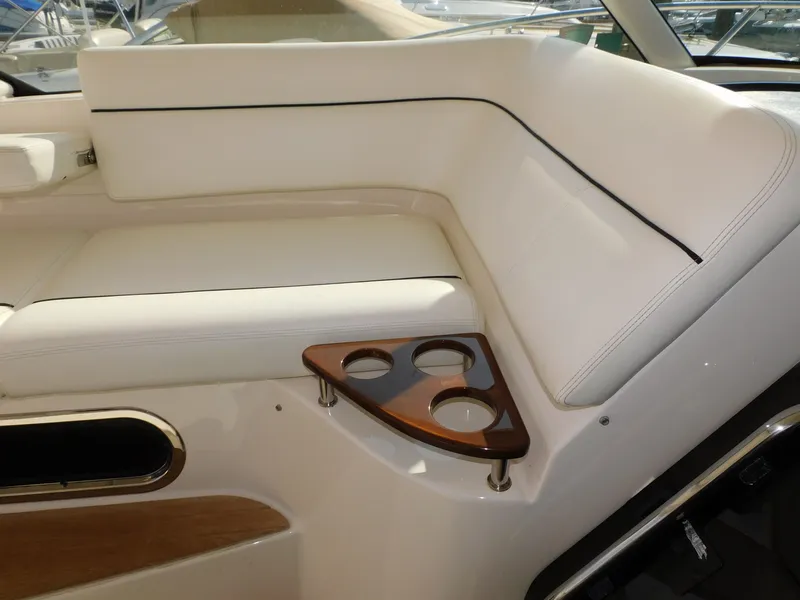

Curved companion lounge (with removable Teak table)

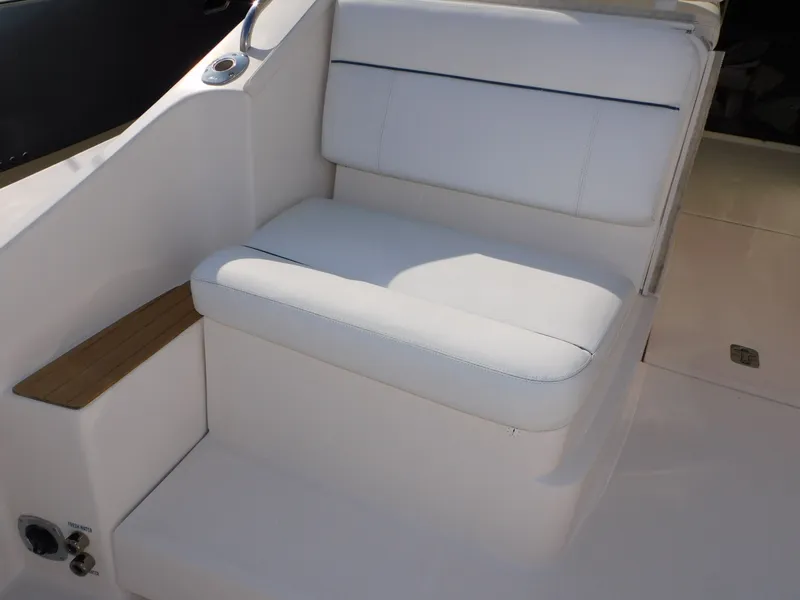

Twin port/starboard aft-facing mezzanine seats
Large aft transom lounge with teak table and sun pad filler cushion

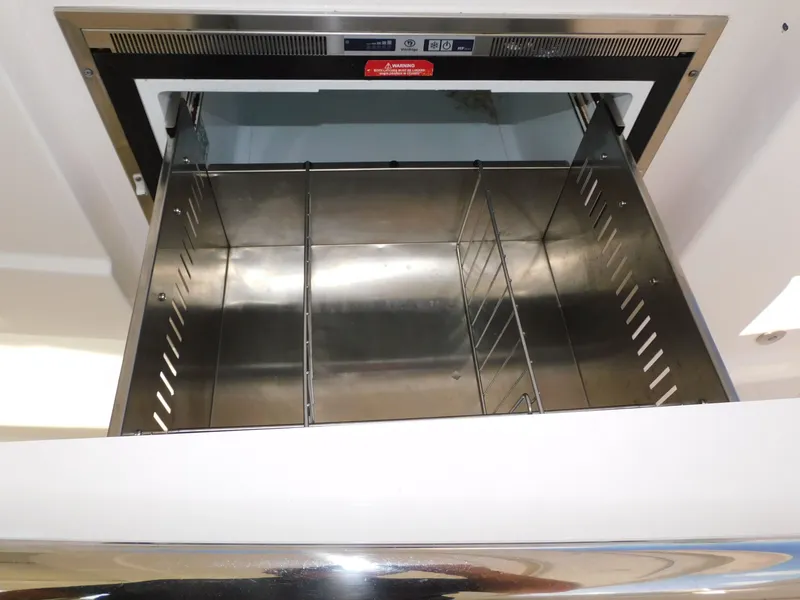

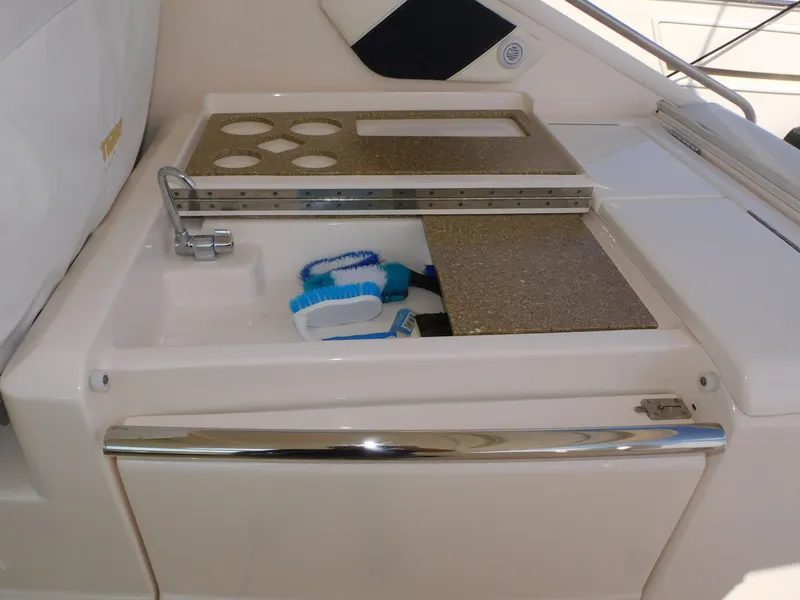

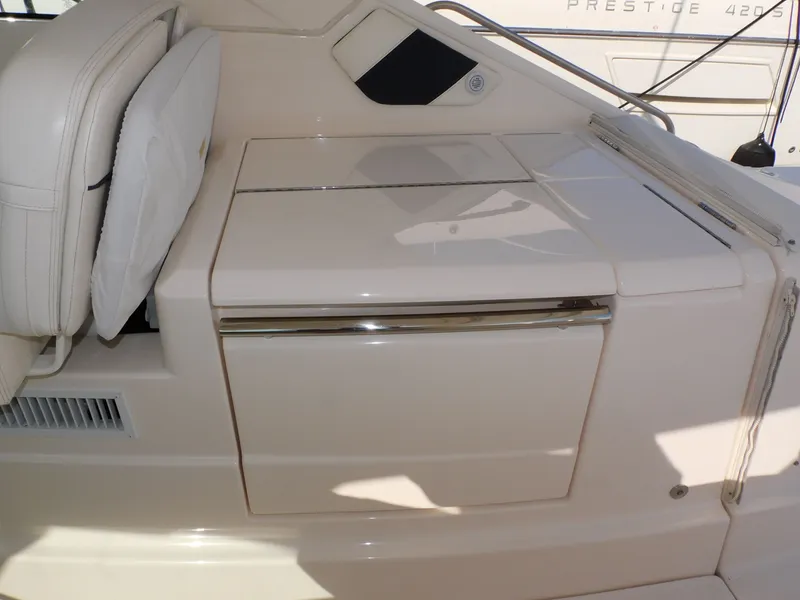

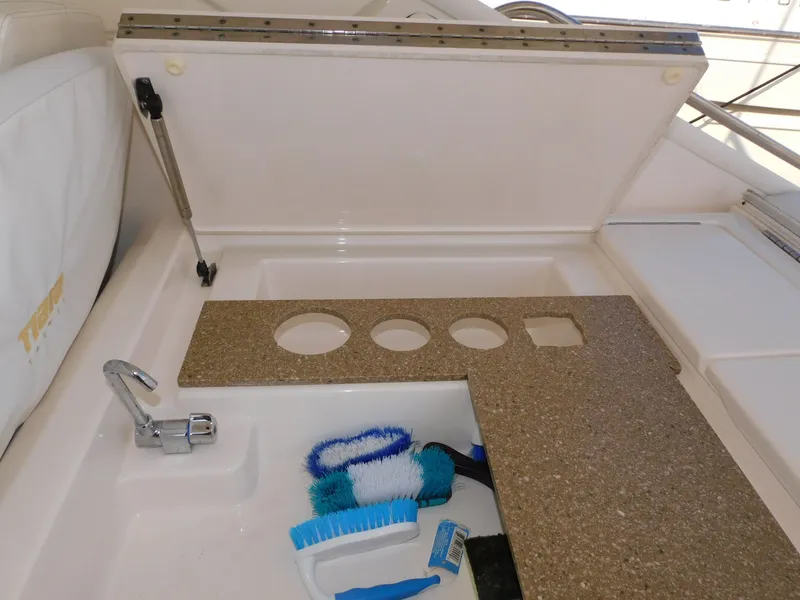

Wet bar with sink, drawer refrigerator and bottle storage
Plasdeck synthetic teak decks (replaced 2023)
Exterior

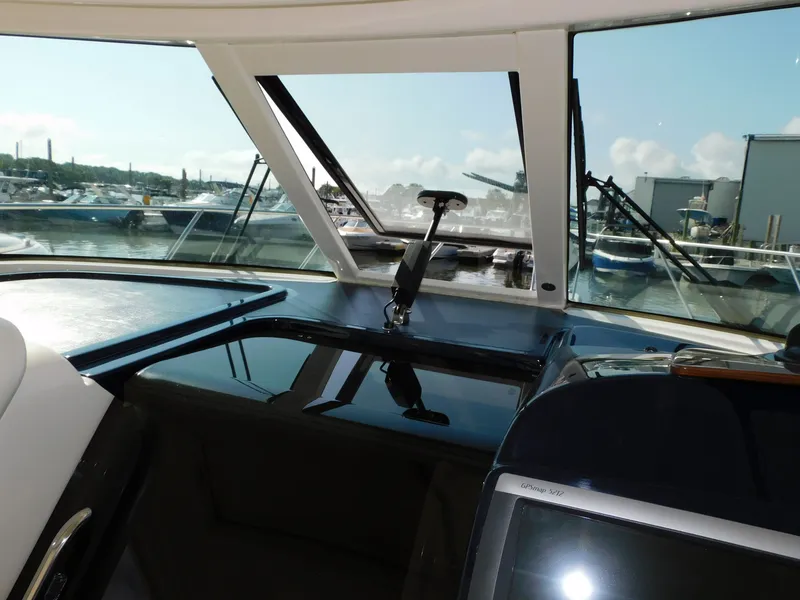

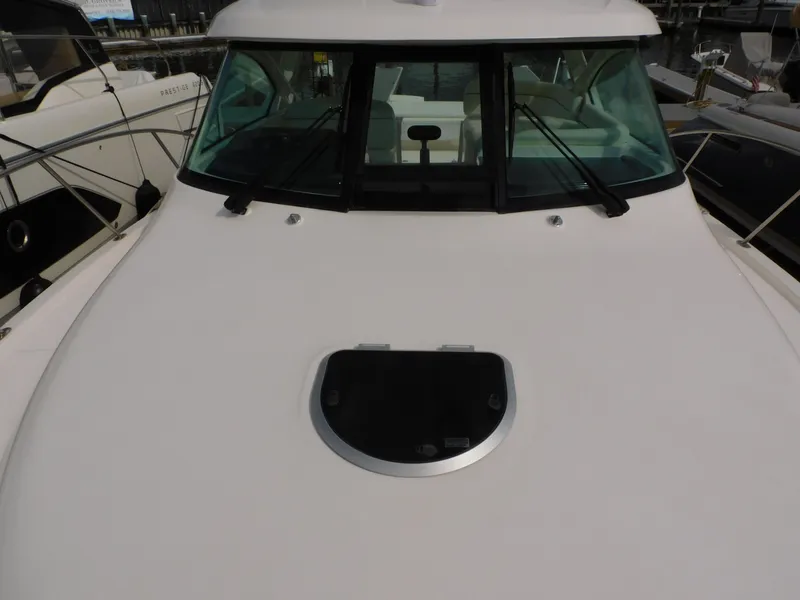

Tiara custom composite windshield frame with tempered safety glass and electronically opening center vent

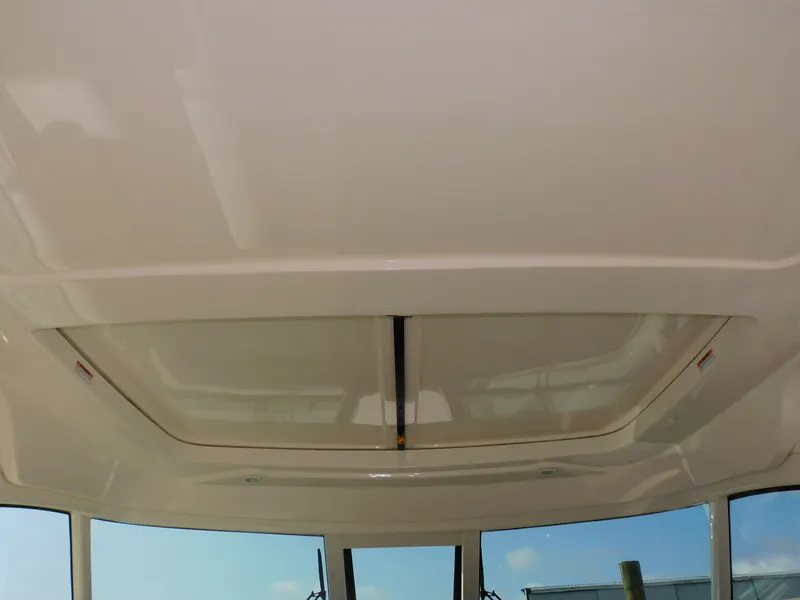

Factory option Hardtop with manually opening sunroof

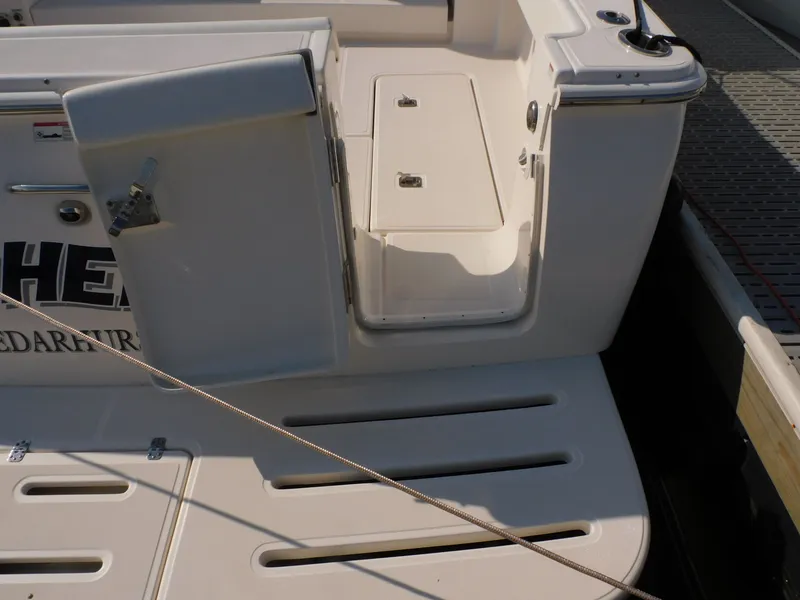

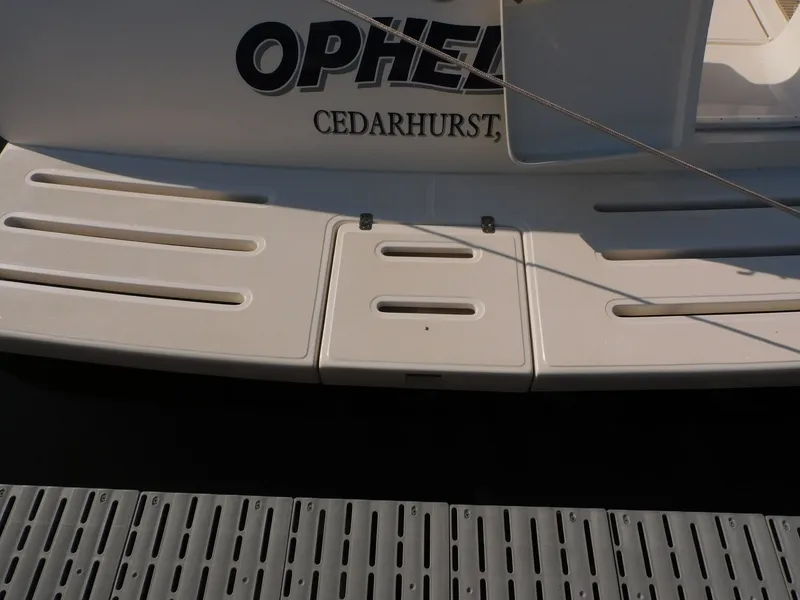

45" fiberglass molded swim platform with built-in ladder
Magma propane grill with deck mount on swim platform

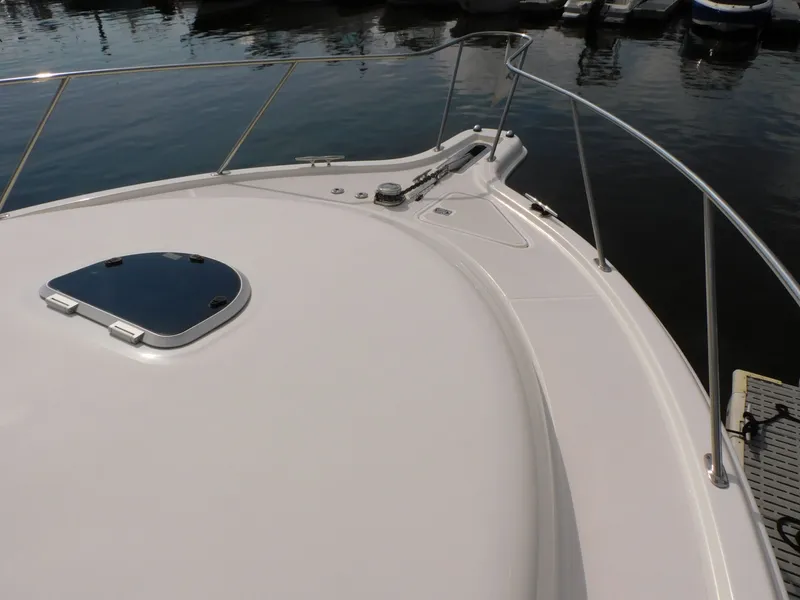

Molded-in fiberglass bow pulpit
Tiara custom diamond pattern non-skid
2-tone milkweed exterior seating
Teak hi/low table with sun pad filler for the transom lounge

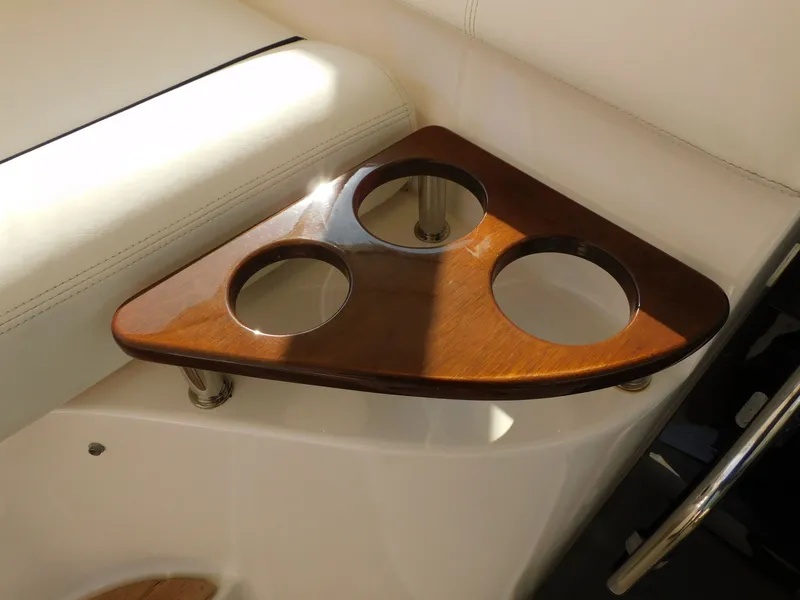

Teak exterior accent package - including Teak steering wheel, cockpit drink holders, bow cap rail, taffrails,

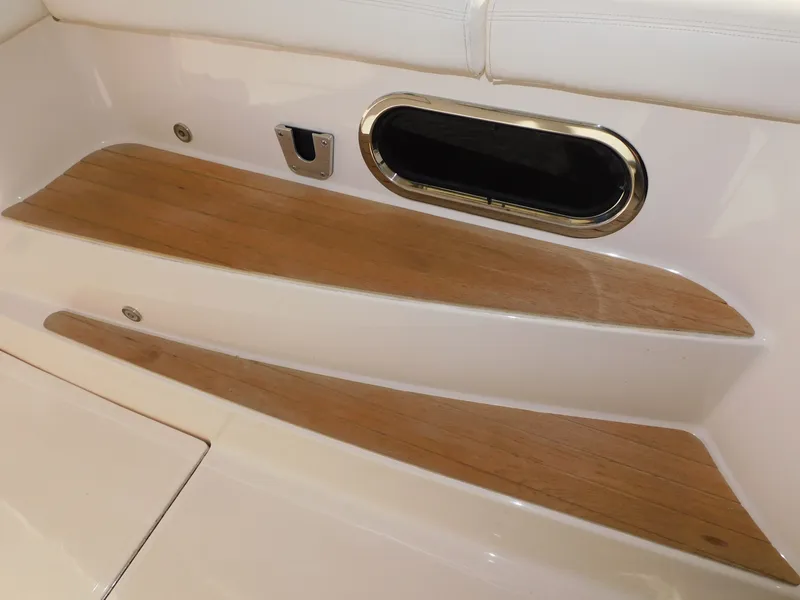

companion L-lounge step treads, and deck wing handrails
Underwater lights

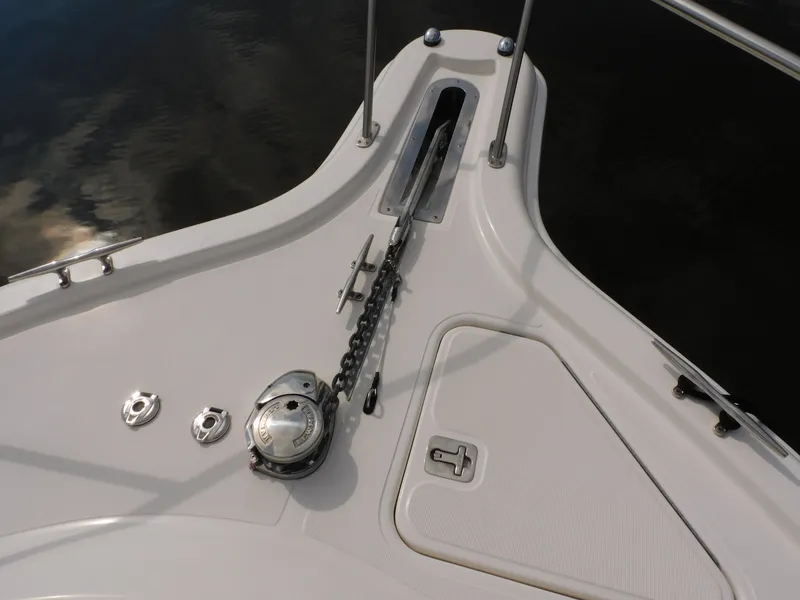

Lewmar windlass with chain/rope and flush system

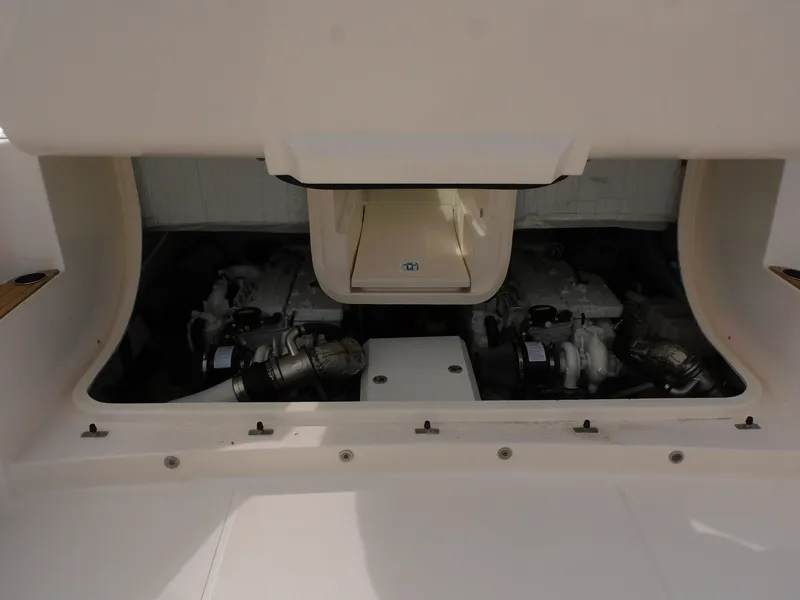

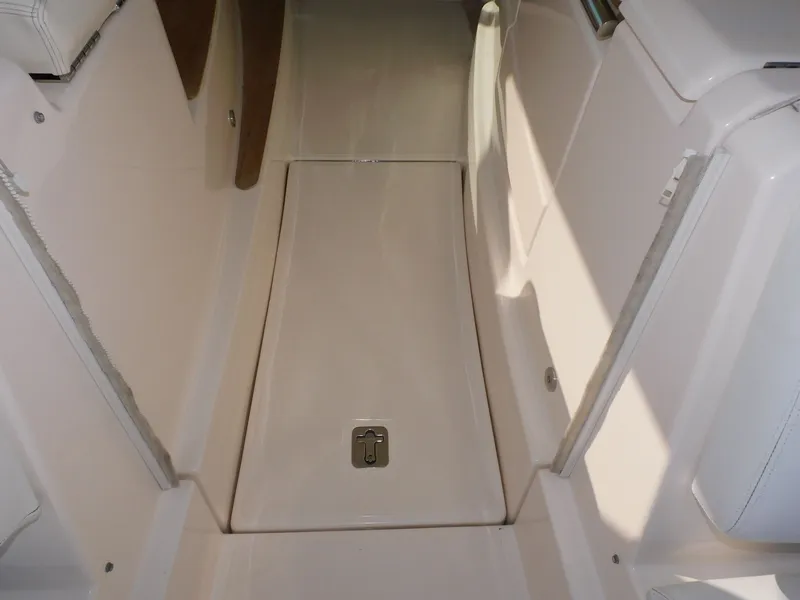

Electrically lifting hatch for engine room access
Electrical

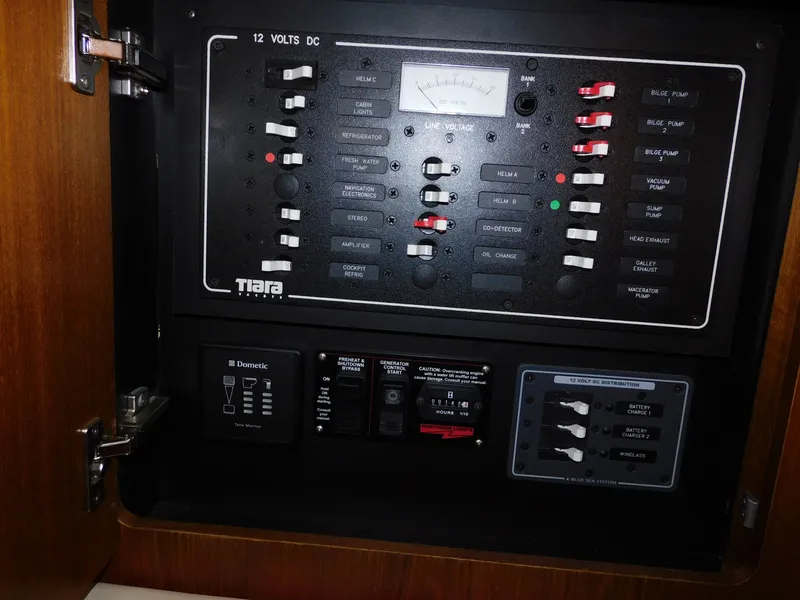

Tiara 12v and 120V electrical system with master panel in cabin

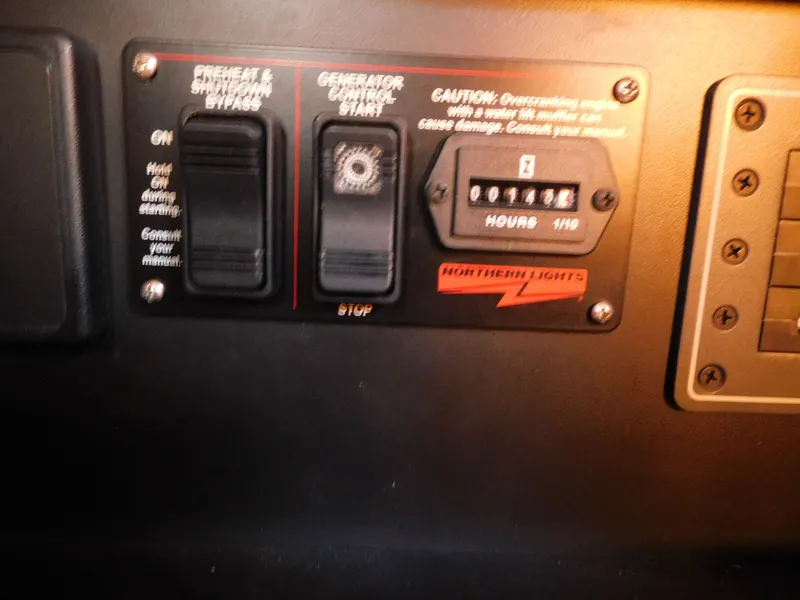

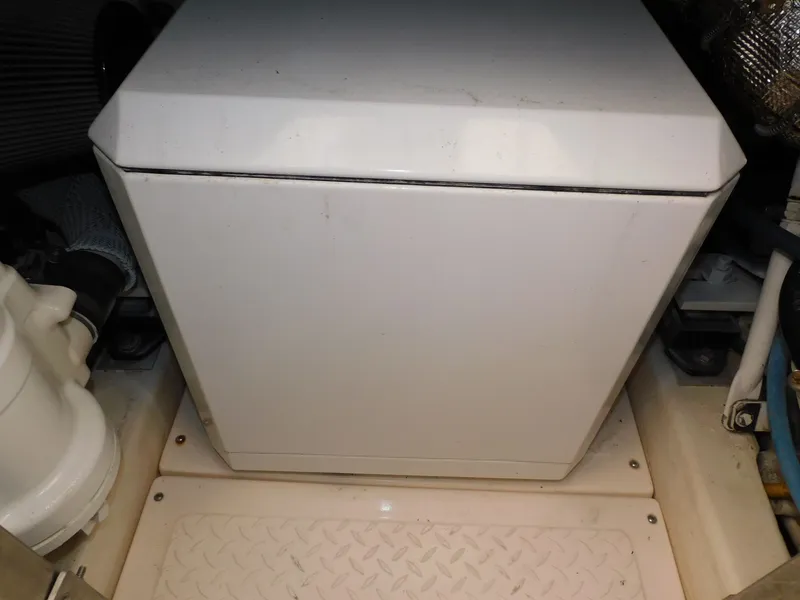

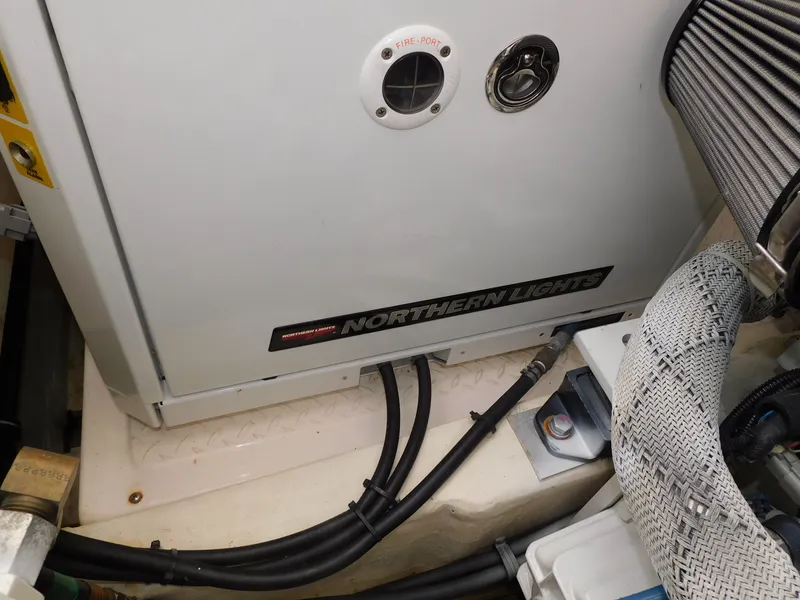

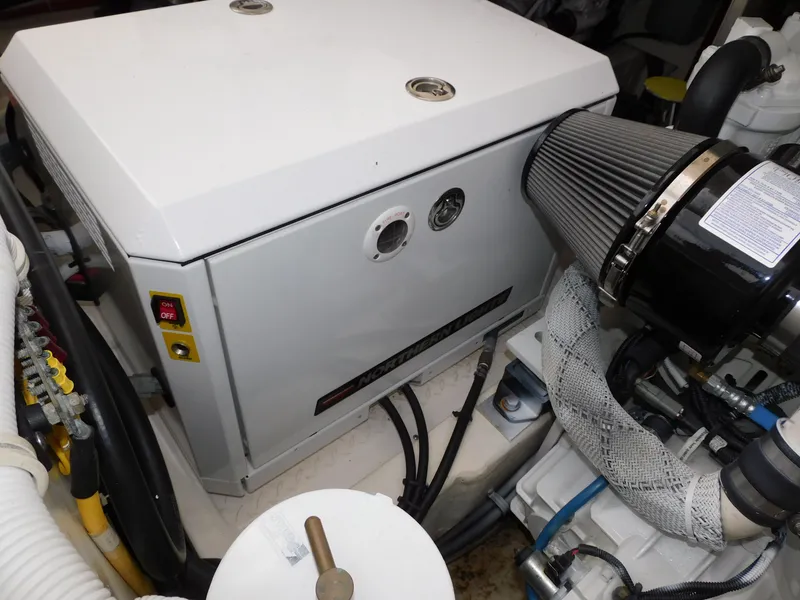

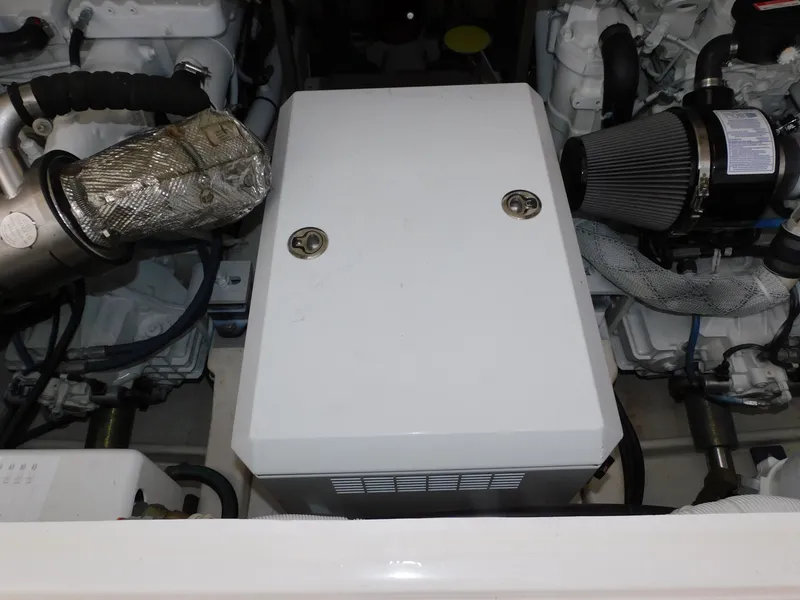

Onan 5kw 120V diesel generator

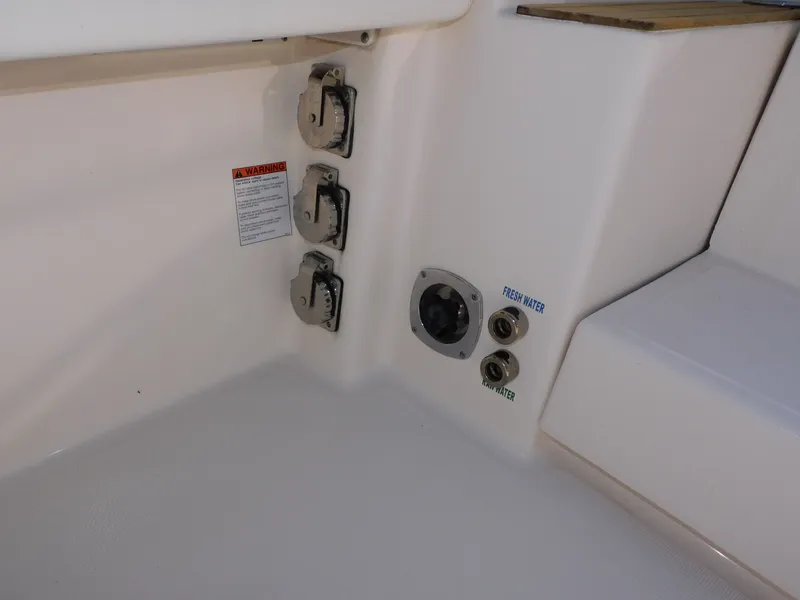

Two 120V 30 Amps ELCI protected shore power connections
30 Amp battery charger
12V batteries, two-start, three house

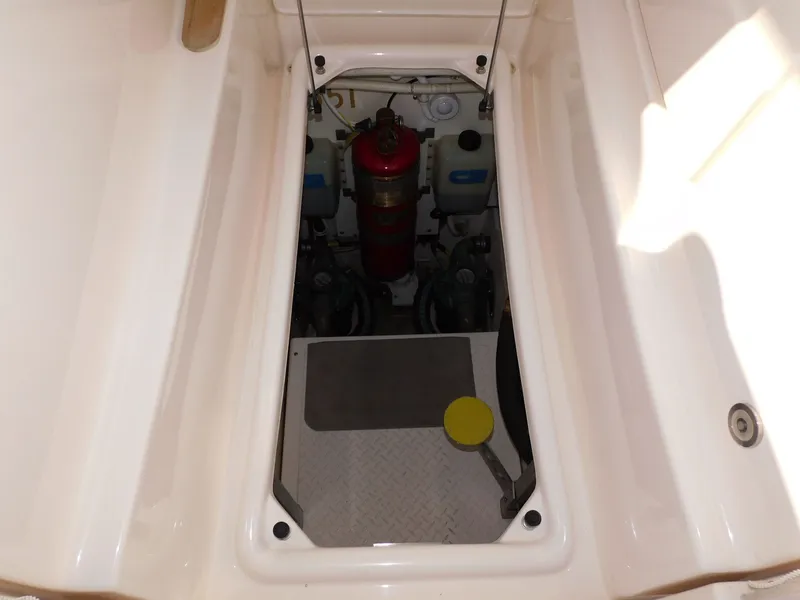

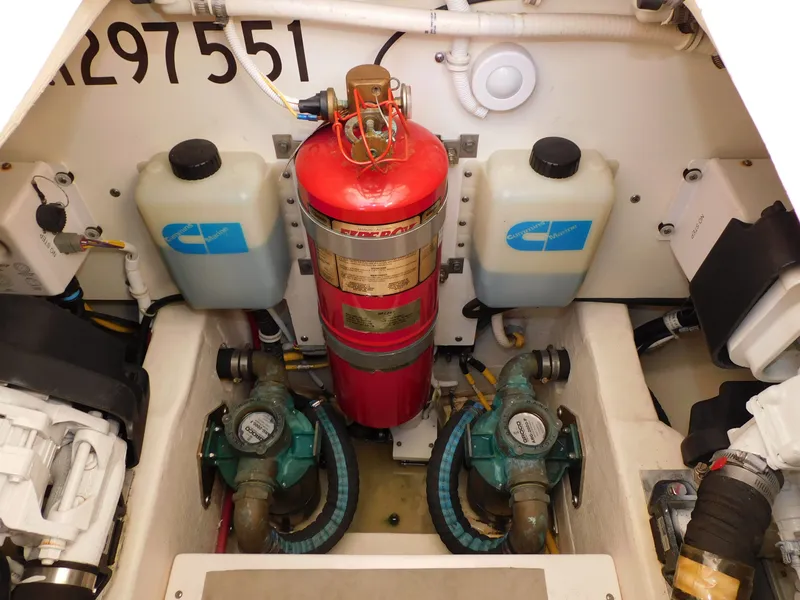

FE-241 Automatic engine room fire shutdown system
Smoke and CO2 detectors

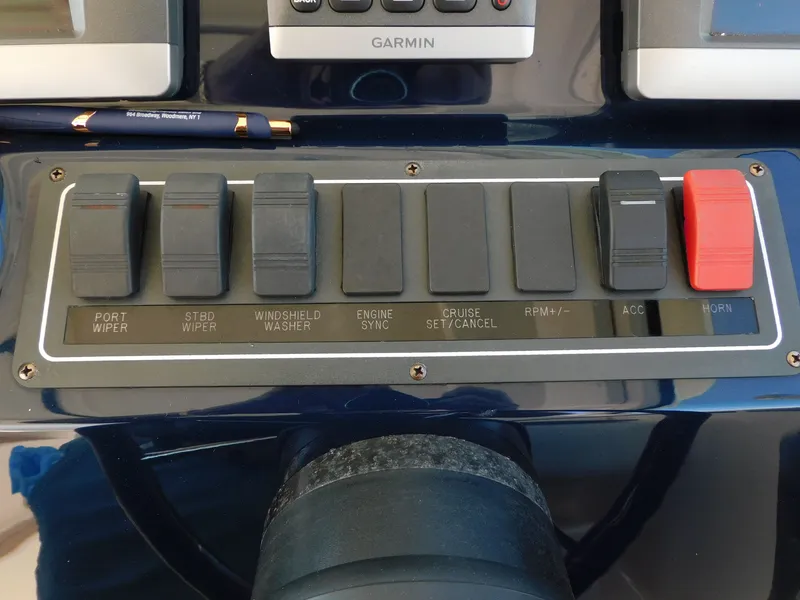

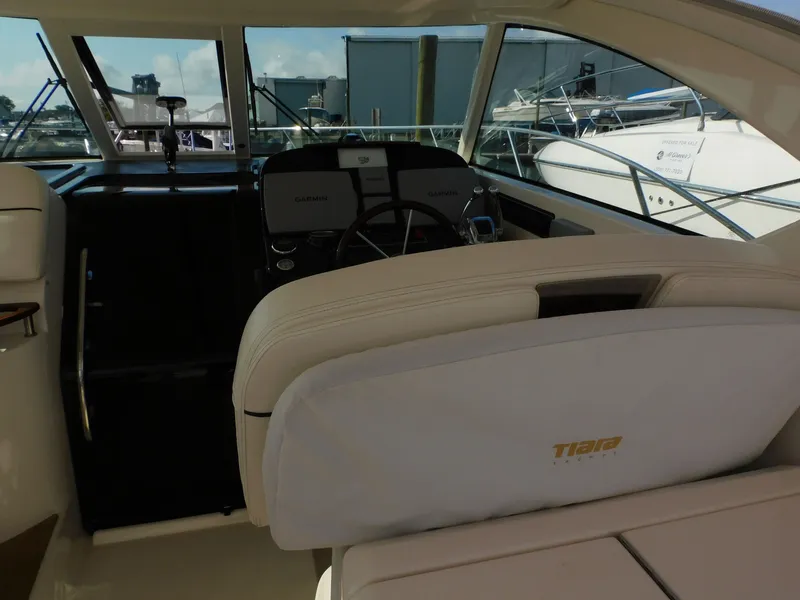

Command Station

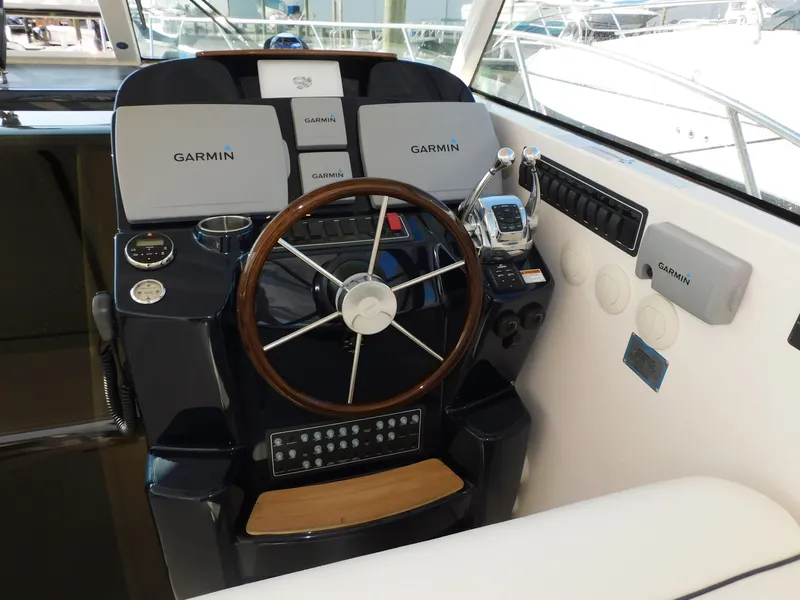

Tiara EZ Tilt-Away® helm console (for easy rear access to electronics)

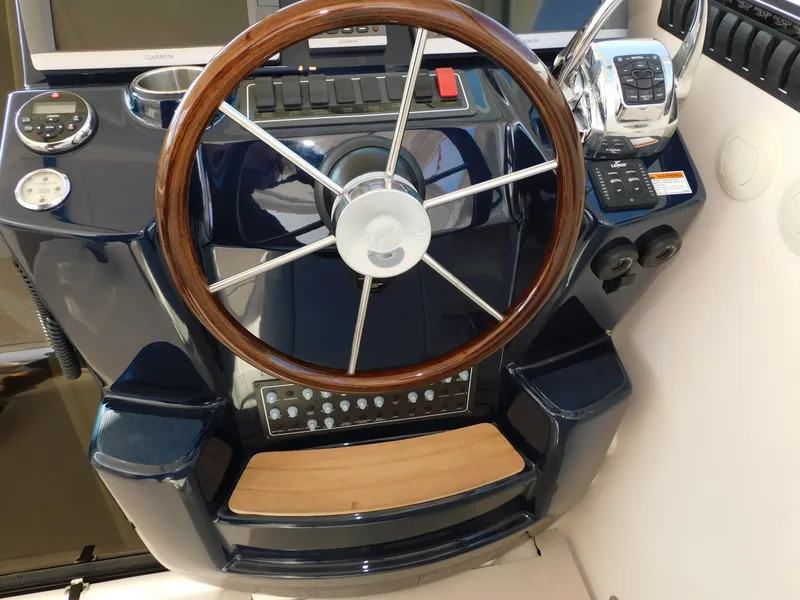

Navigation center with teak steering wheel

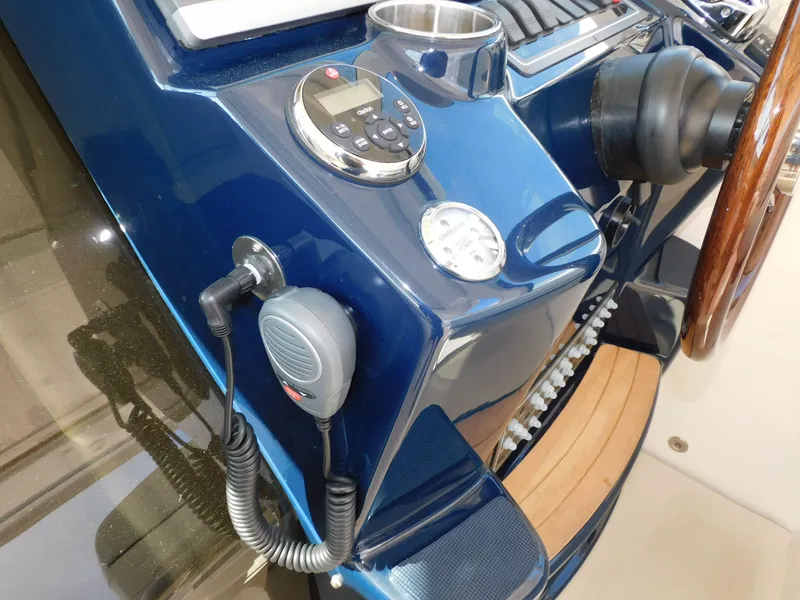

Premium JL Audio stereo system upgrade with additional aft speakers, Garmin interface, remote control at
helm and swim platform

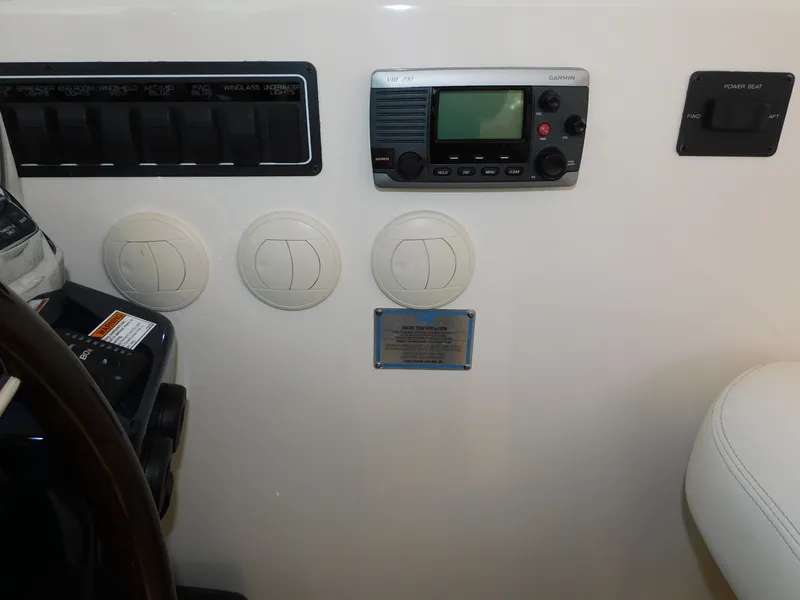

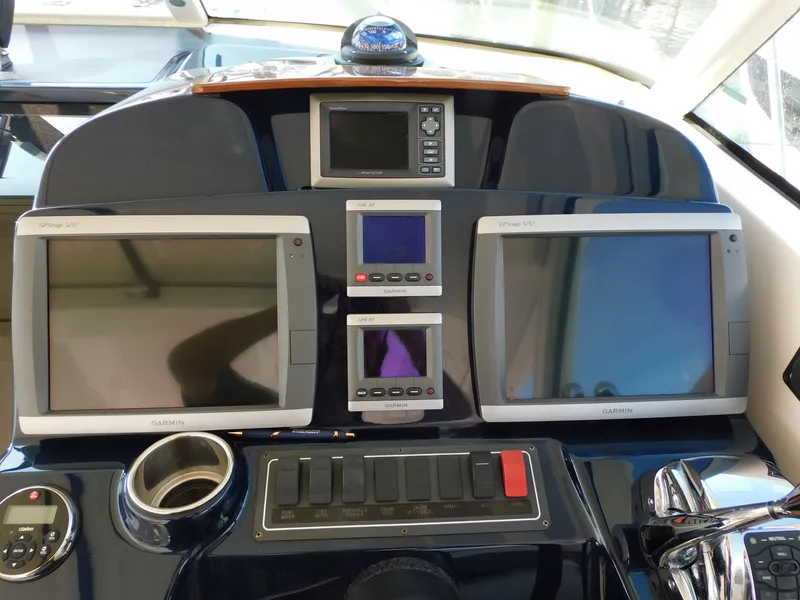

Fully integrated Garmin® electronics package: (2) Garmin 8212 12” MFD, GSD 24 HD sounder, XHD 24” 4KW
Radome radar, GHP 20 Autopilot with GHC 20 display, VHF 300 black box with CHS 10 handset
SD chart reader
Cummins SmartCraft vessel view display
Adjustable position helm seat with electronic actuator
ACR remote spotlight mounted on pulpit and remote at helm

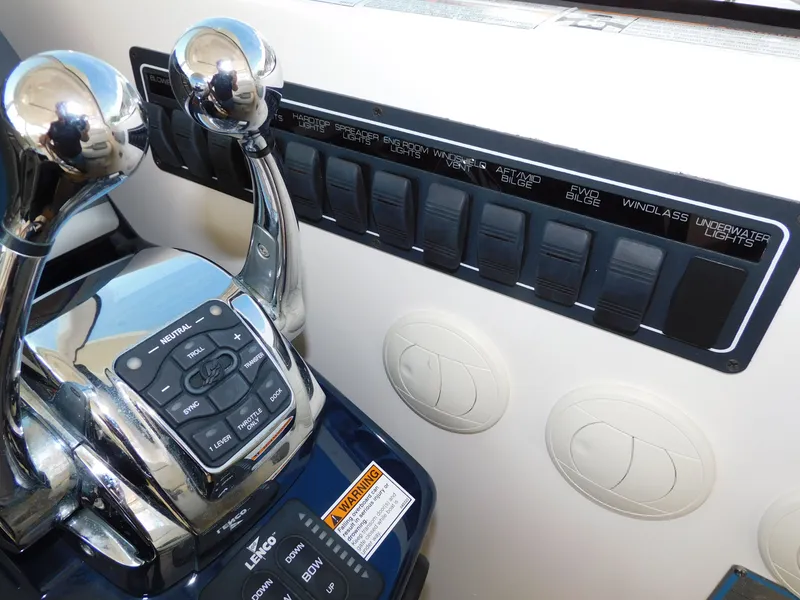

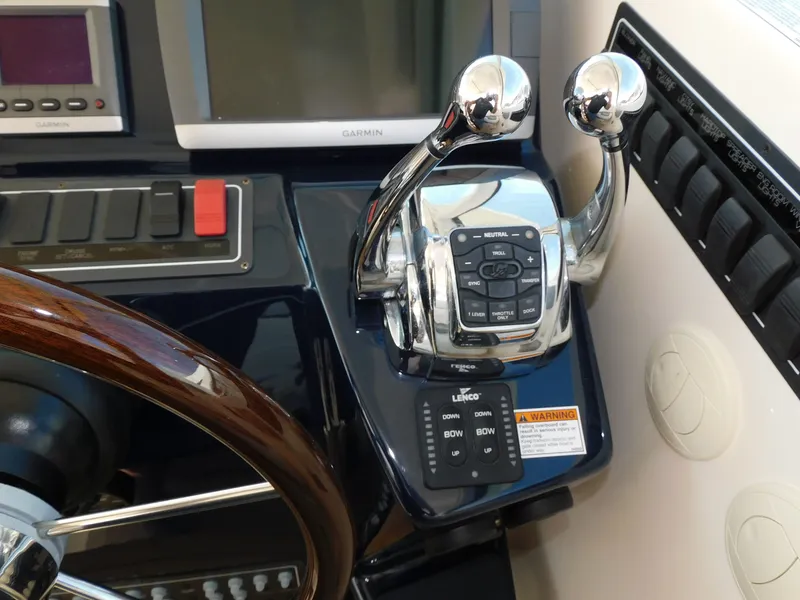

Lenco trim tab controls and indicator
Cabin
Large comfortable retreat, featuring a soothing Teak interior
Amtico® dark walnut floor
Forward master stateroom
Full galley
Aft cabin settee/ 2-person sleeper mattress
Full fiberglass head with separate standup shower

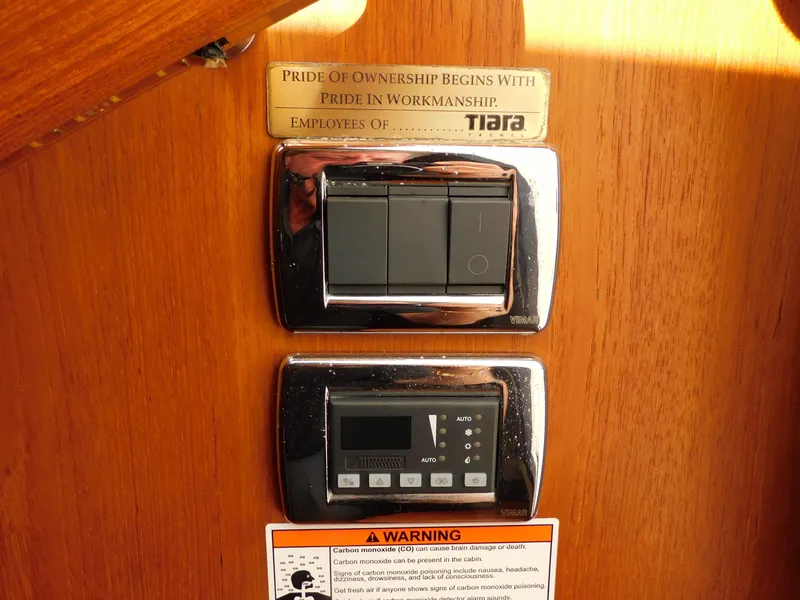

Marine Air Systems® 12,000 BTU air conditioner with reverse cycle heat
Master Stateroom
A double pedestal berth with innerspring mattress (with storage under)
Teak tri-fold entry door

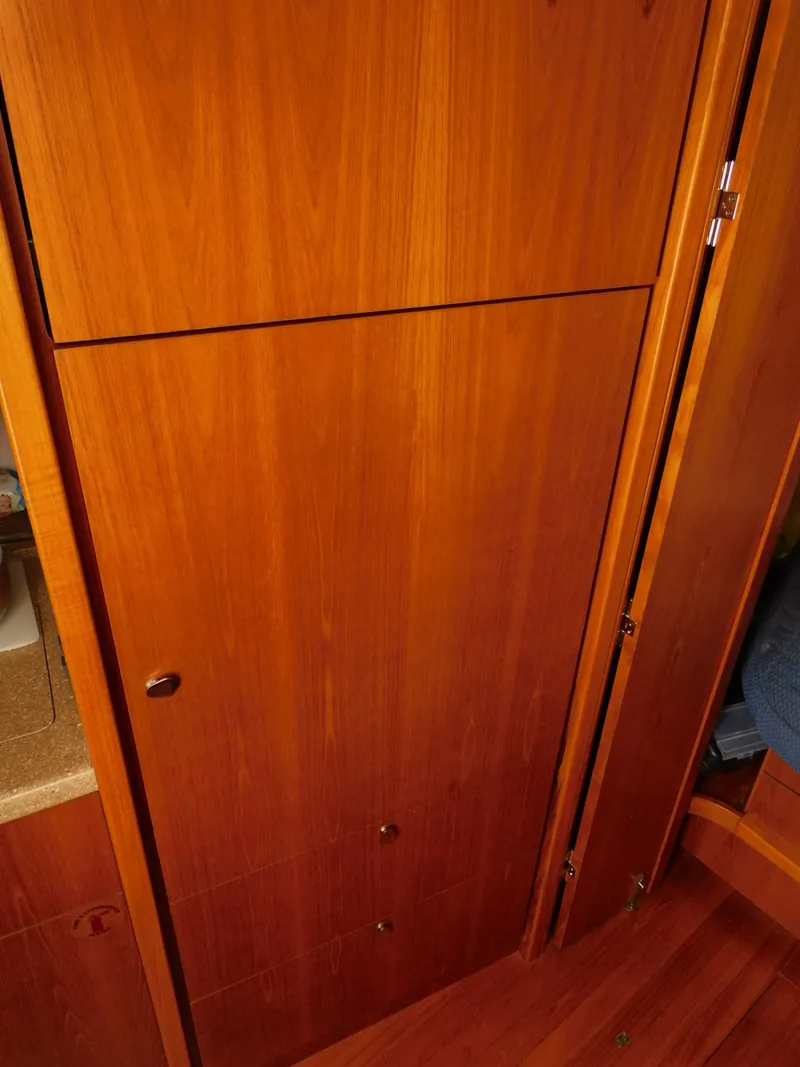

Port and starboard hanging lockers
Upper hull side cabinets
Flat screen LCD TV with connection port
Bowmar deck hatch with screen and privacy shade

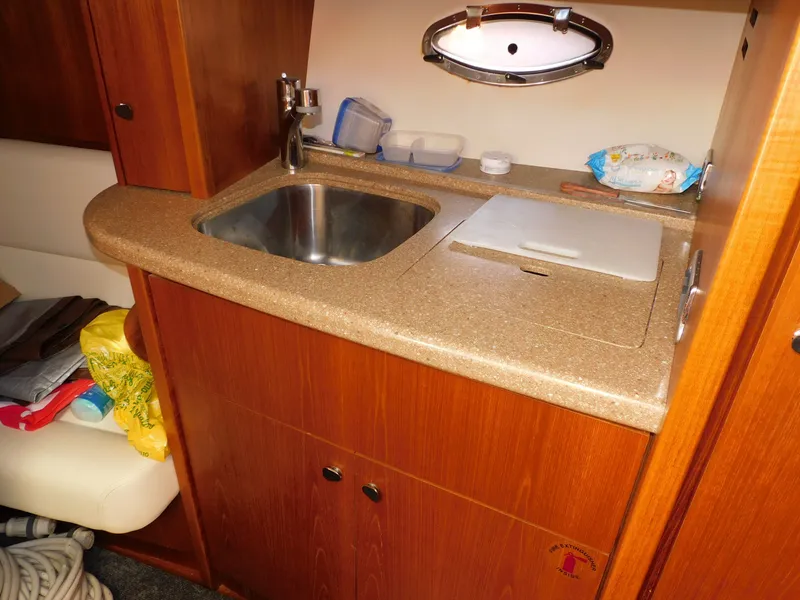

Galley
Corian® tumbleweed countertop
Stainless steel undermount sink
Sharp microwave/convection oven
Recessed one-burner Kenyon electric cooktop

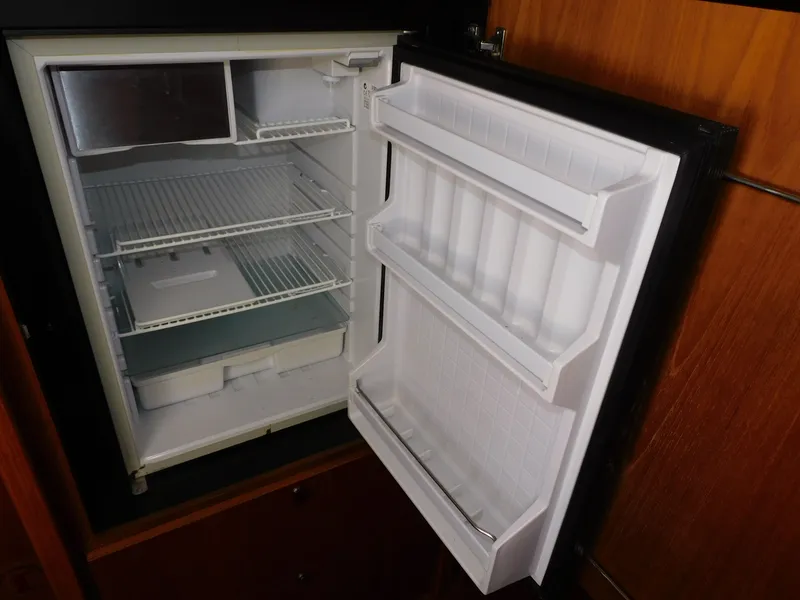

Refrigerator/freezer combo
Under counter storage and upper storage cabinets
Keurig coffee maker
Aft Stateroom
2-person mattress
Settee lounge
Privacy curtain

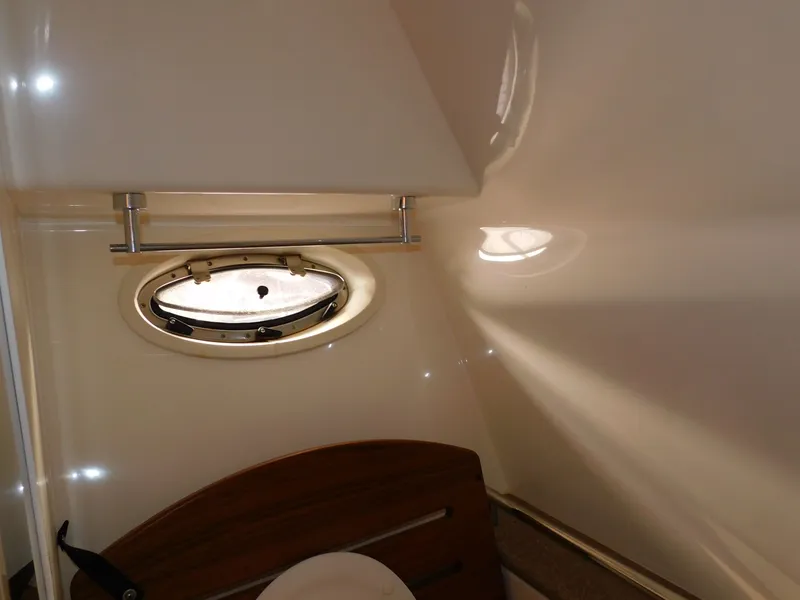

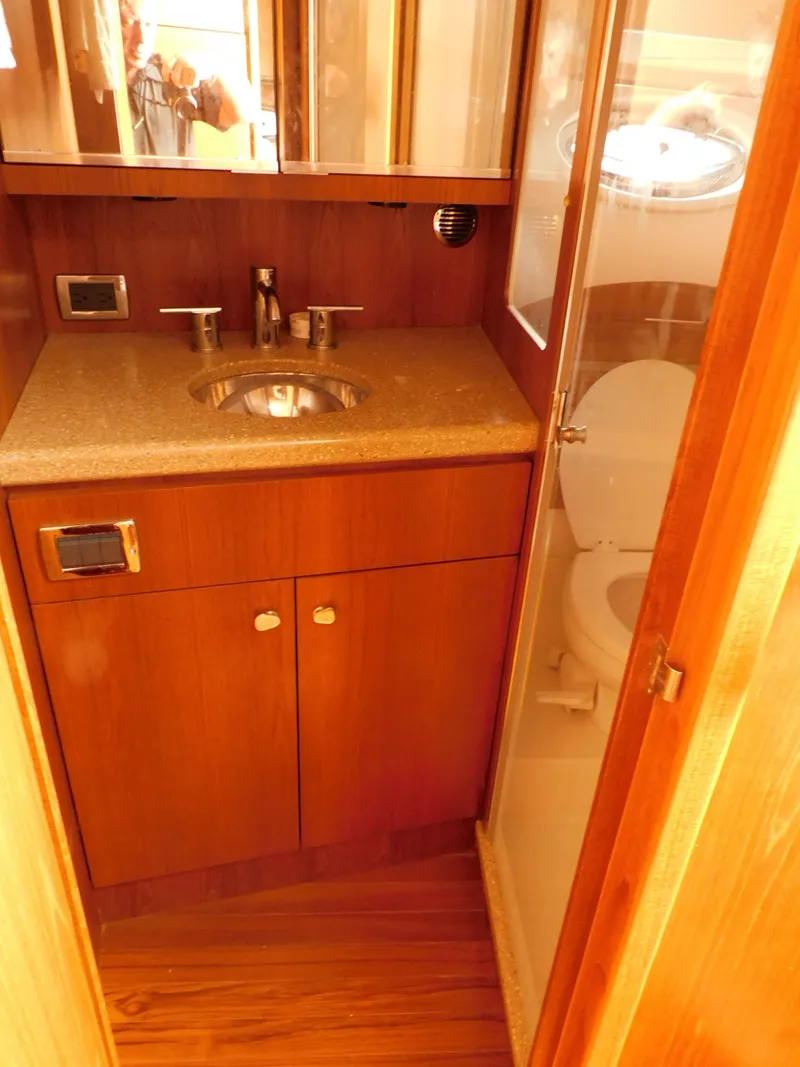

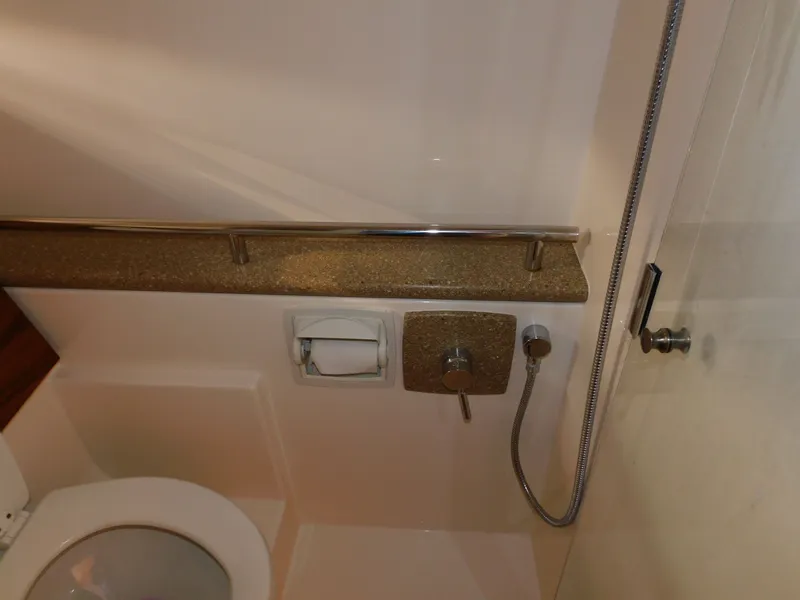

Head
Corian® countertop with integrated sink
Mirror
Storage

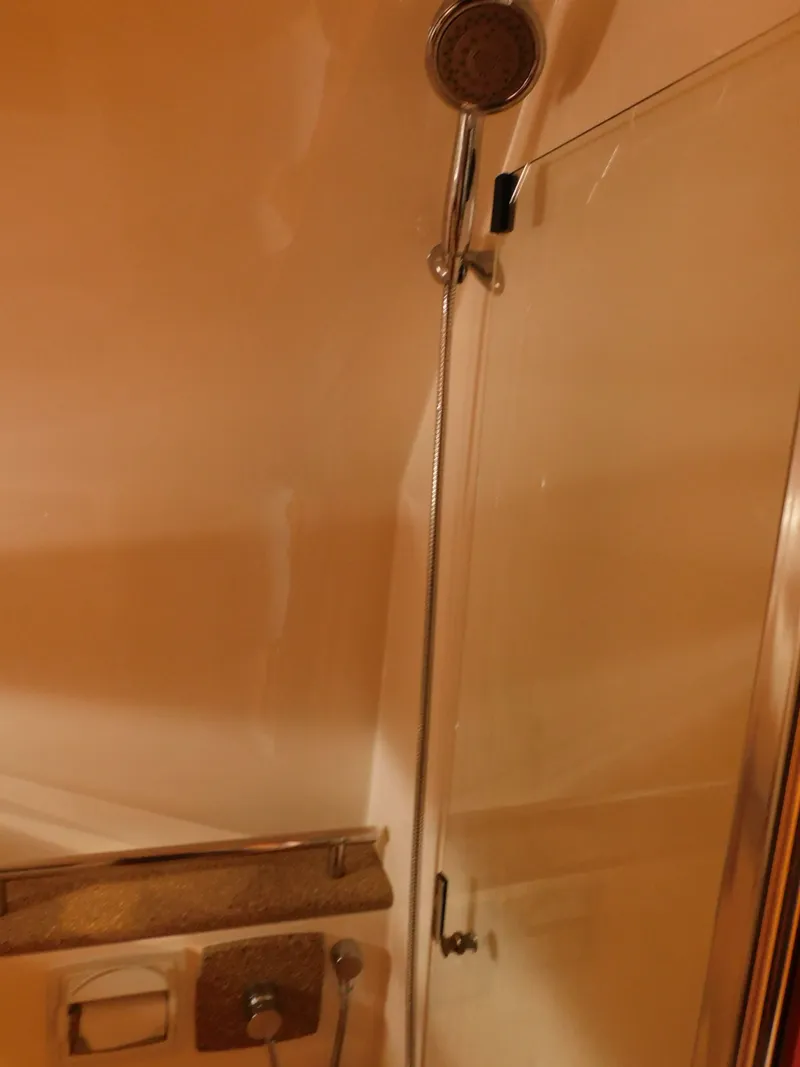

Separate shower with glass door

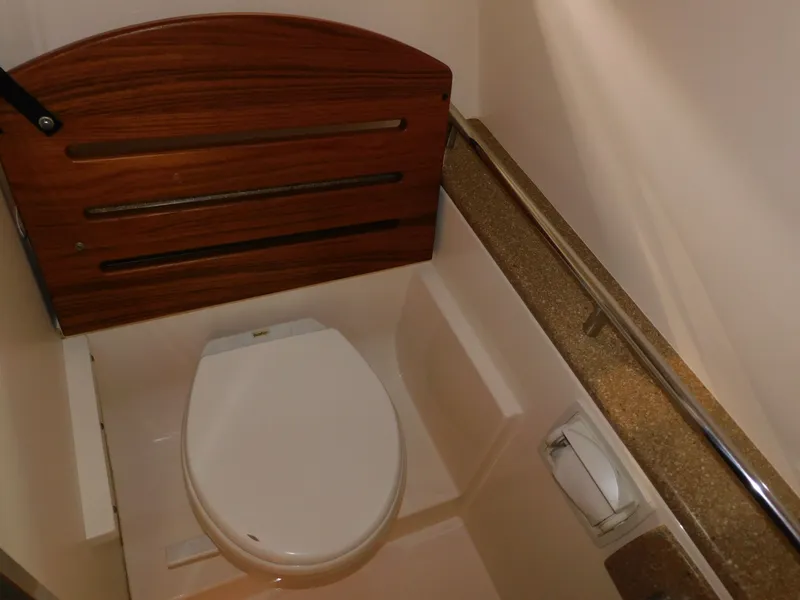

Vacuflush® toilet

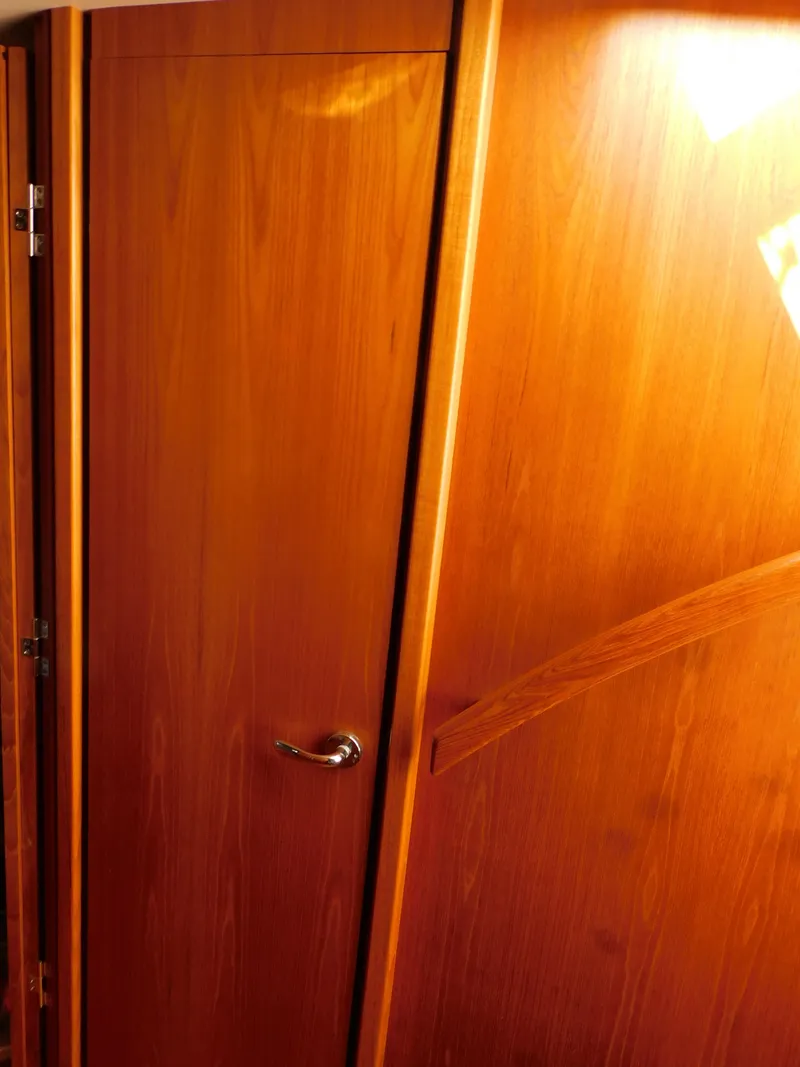

Full frame wood door
Fiberglass shower enclosure with Lucite door
Tiara Factory Upgrade Options

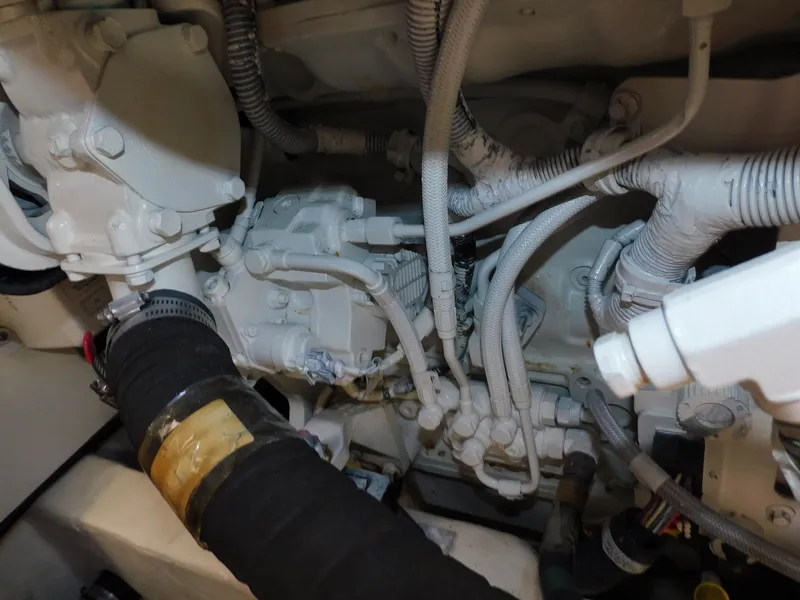

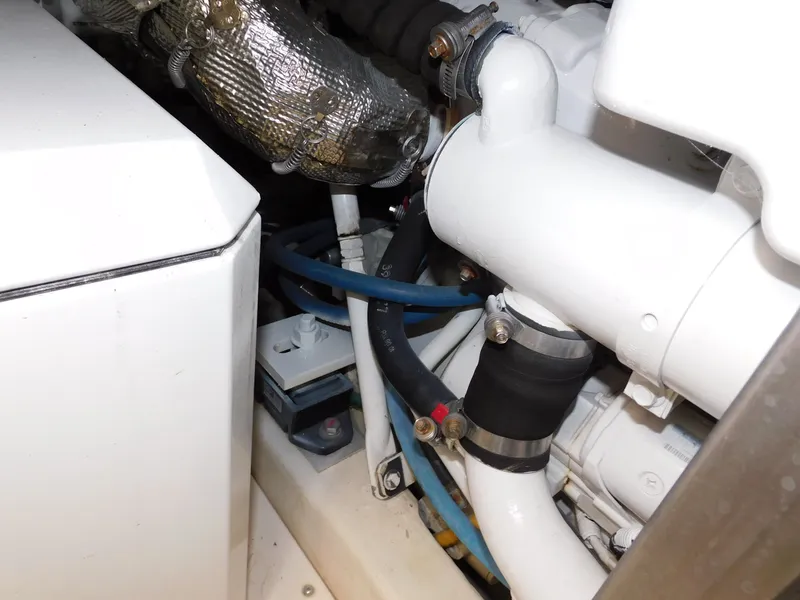

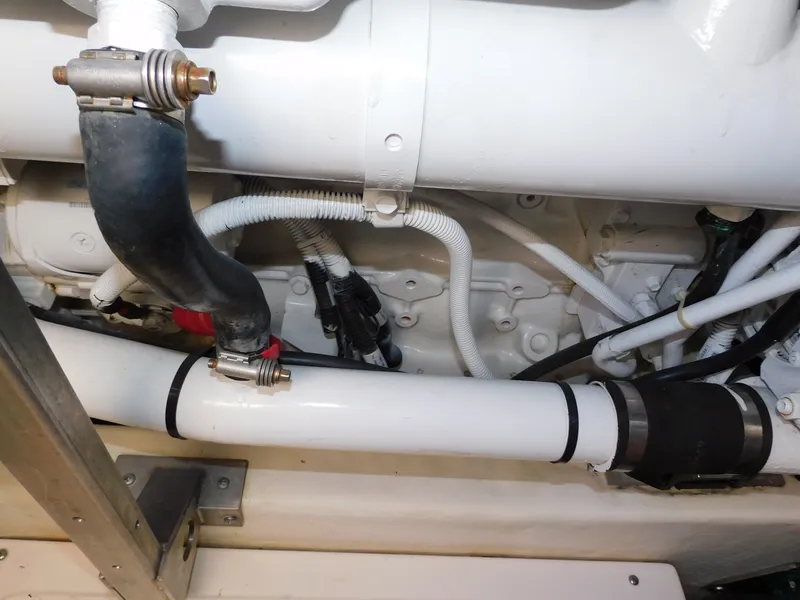

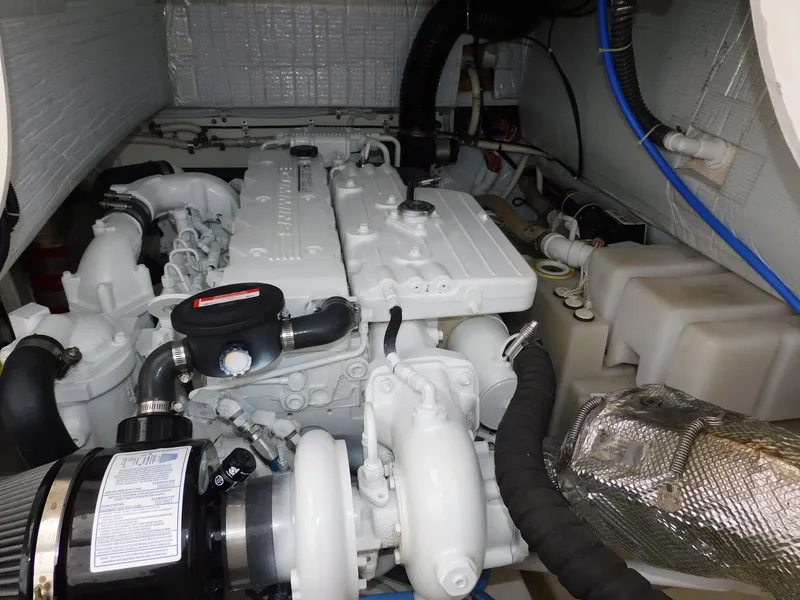

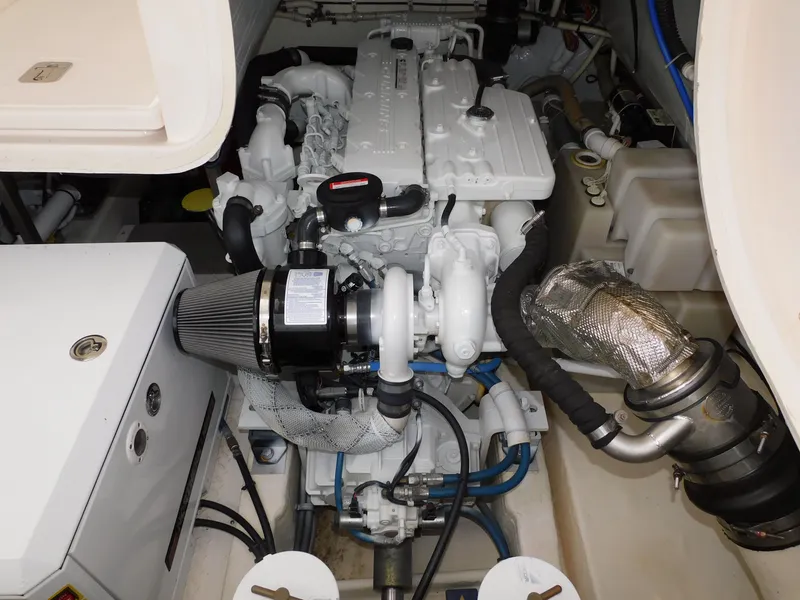

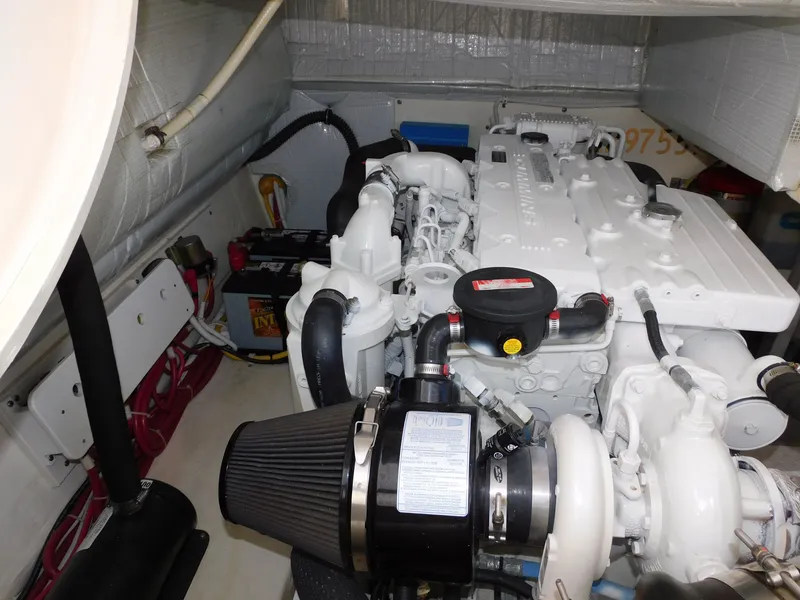

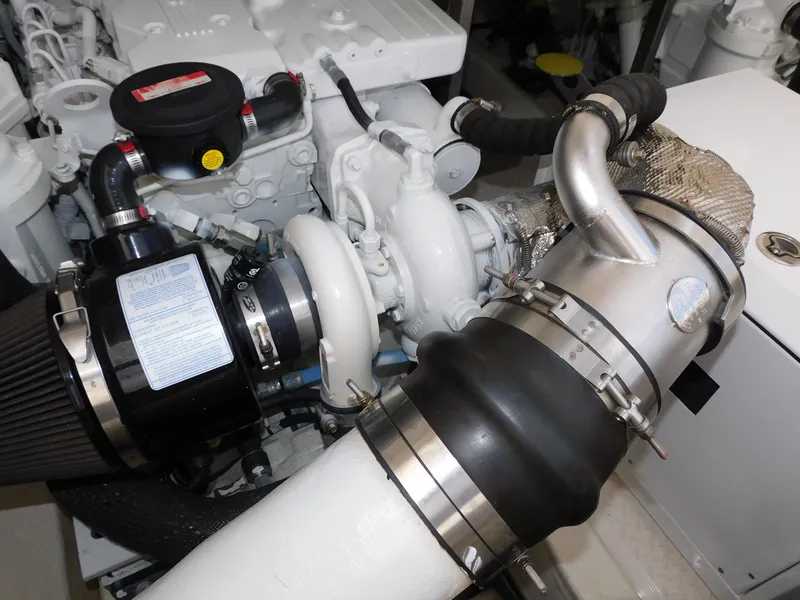

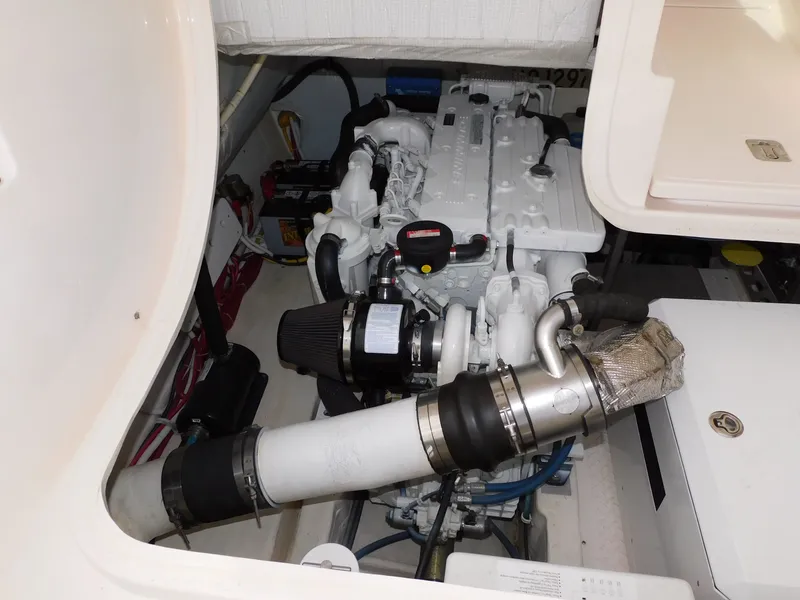

Twin Cummins QSB 380hp inboard diesel engines
Upper Cool Helm (16K BTU)
Diesel Generator
Reverso Oil Change system: drives, engines and generator

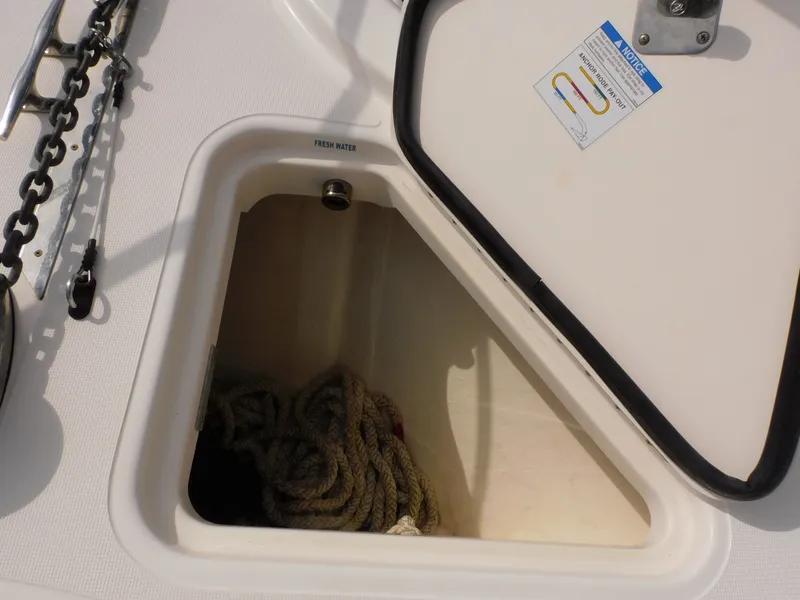

Raw Water washdown, anchor locker
Exterior teak accent package includes Teak steering wheel, Teak step treads on helm console, Teak helm console visor
Hardtop with manually opening sunroof
Blue bottom paint
Cockpit drawer refrigerator
Macerator system

Tiara 3600 Coronet
Power & Motoryacht's boat test of the Tiara 3600 Coronet.
By Chris Caswell
March 4, 2013

Way Too Cool
Thanks to a multifaceted, comfy-in-all-climes approach to onboard enjoyment, the Tiara 3600 Coronet is a great dayboat as well as a superior weekender.
I had already tested the new Tiara 3600 Coronet for the Power & Motoryacht New Boat Buyer’s Guide 2013 (on newsstands now), but I found myself admiring her at a boat show when two teenagers emerged from her interior.

“This is, like, way too cool,” said one.

“This is the one Mom and Dad have to get,” said the other, adding, “We’d have our own cabin!”

I moved on, reflecting that this is exactly why Tiara Yachts has flourished. The company is able to read the minds of boat owners (and their decision-making broods), creating boats that fit their needs rather than trying to force-feed folks on preconceived notions. And that ability has created the Tiara mystique of sensible, well-built, and thoroughly enjoyable boats from this family-owned company.

Fashioned to be a comfortable and good-looking dayboat with an interior suitable for long weekends aboard, the new 3600 Coronet has the classic Tiara styling genes, with just a hint of Down East thrown in to create a yacht that is pretty from any angle.

I made the comment in my earlier review that the 3600 Coronet was 75 percent cockpit and 50 percent cabin, thereby prompting one of Power & Motor-yacht’s editors to make a snippy comment about how I must have failed fifth-grade mathematics.

While I did come close to tanking that dreary subject, it only takes a quick tour of the 3600 to learn “the new math.” Tiara made two decisions early in the design process. First, they focused on making the cockpit the primary living area, since this is where people spend the majority of their boating time. Second, they created a comfortable interior that is an inviting retreat, unlike the Motel 6-type cabins found on many so-called dayboats.

The result is a yacht that doesn’t try to be everything to everyone. The cabin, for example, has nary a settee (well, except for a small one I’ll mention in a moment) because they suck up space like a Star Trek black hole and, besides, Tiara created a settee-laden outdoor living room on the bridgedeck that can be easily enclosed if the weather is too hot, cold, or wet. No, Tiara realized that boat owners mostly use the cabin to prep a salad or make sandwiches, for sleeping, and of course, for showering and that other stuff.

And here’s what Tiara gains by not trying to shove a useless settee into the cabin. They get two cabins with berths large enough for two real-sized couples who want double berths. They get a spacious head with a separate stall shower complete with Lucite door. Moreover, they get a galley with electric cooktop, fridge, microwave, and lockers. And it’s all done in three color schemes that are not just attractive, but downright posh.

What about the cockpit, you ask? Well, that’s the alfresco living room for the 3600, but Tiara Yachts is located in Holland, Michigan, where the weather is not always sunshine and fluffy clouds.

Better Boat: Composite Windshield Frames
For anyone who has ever owned a boat with an aluminum-framed windshield and who has watched the aluminum corrode (even under paint) into a nautical version of leprosy, composite frames are a godsend. Tiara Yachts (and sister company, Pursuit Boats) benefit from a sophisticated composite windshield frame construction that not only will never corrode or warp, but which allows for extremely slim pillars for better vision.

The starting point for each windshield frame is a foam core, made from two-part foam in a high-pressure mold much like that for surfboards. The foam “blank” is then wrapped in fiberglass laminate and placed in another mold from which, after more pressure is applied during a resin-infusion process, the finished frame emerges. This frame, carefully trimmed and insulated, is then fitted with tempered glass to create a durable and consistent windshield that is vastly superior to the aluminum type.

So the design boffins at Tiara came up with more cockpit flexibility than a Swiss Army knife has blades. Let’s take nice weather. With your guests aboard, you’ll slide open the extra-large sunroof in the optional hardtop over the bridgedeck, toggle a rocker switch to open the center panel of the windshield for a breeze, and you’re as close to a runabout as you can get.

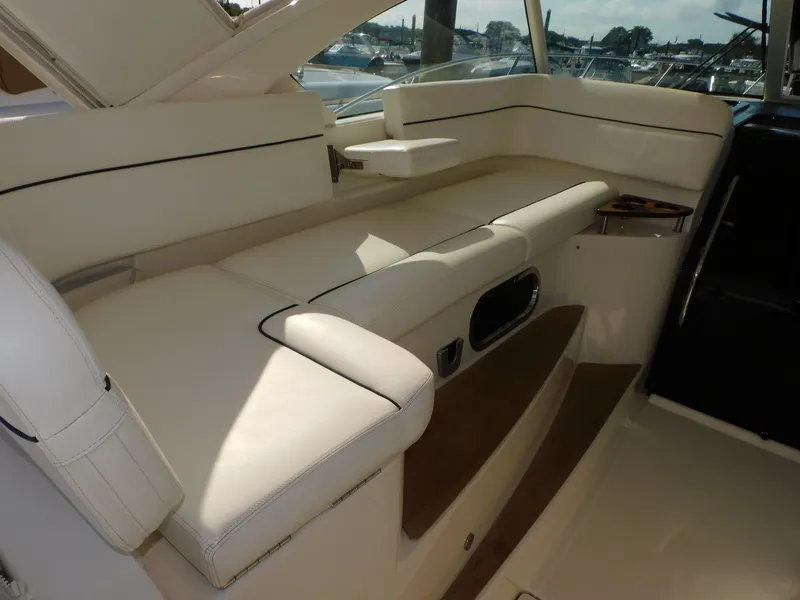

Your guests are everywhere: in the L-shaped settee at the stern with its optional table, on the two aft-facing double seats on the mezzanine, or around the L-lounge opposite the skipper, who is on a double-wide seat with electric adjustments. Also tucked under the hardtop is the optional entertainment center, by the way, with electric grill, Vitrifrigo fridge drawer, and a fold-out flatscreen TV for watching the game.

If it’s rainy or cold (or too hot), just weatherproof the helm deck with the soft enclosure and turn on the heat or air-conditioning. Yes, you lose the settee at the stern, but you still have a comfy dinette/lounge and the entertainment center to keep you happy.

The master stateroom is forward and, get this, it has a quilted innerspring mattress just like real residential beds, so you’ll sleep well. The entire berth hinges up on gas lifts to reveal a cavernous bin and the cabin closes off with teak trifold doors for privacy.

Under the raised bridgedeck is the amidships berth, which has another deep and comfy double mattress. There is a smallish settee in the port corner, and the mattress folds out of the way to provide more foot space (there is good headroom) when pulling on your pants. A curtain closes off this area, which is perfect for a second couple … or kids, like the two teenagers I saw at the boat show.

The standard interior finish is teak, with a hardwood teak sole, and a maple interior is optional. Either way, you get ample fresh air from a forward hatch plus four opening portlights.

The helm console is flawless gelcoat in colors (your choice of carbon, blue, or sand) that don’t reflect in the curved windshield, so the skipper’s view forward is impressive, and the slim composite windshield pillars minimize blind spots (see “Better Boat: Composite Windshield Frames,” opposite). The entire helm tilts forward for easy access to the electronic systems.

The dash panel is sized for three flush-mounted monitors of your choice, and our test boat had the lovely to behold and even nicer to hold optional teak wheel. Rocker switches are neatly accessible on the dash and side panel, while breakers are right below the wheel. I liked the built-in steps and the teak footrest for the helm seat which, when slid aft, leaves ample space to stand behind the wheel. Even better, the Mercury SmartCraft shifter is perfectly positioned whether you’re seated for a day cruise or standing while docking.

On deck, Tiara hasn’t missed a beat either. There’s a sturdy walk-through transom door to the extra-wide (45-inch) teak-clad swim platform, welded stainless steel grabrails surround the foredeck, and the wide side decks have both grabrails and a good nonslip surface.

The 3600 Coronet is available with a mix-and-match variety of propulsion choices that should meet the needs and budget of every owner, with options including twin gas, twin conventional diesel, or twin diesels with pod drives. All come from either Cummins Marine or Mercury Marine, all have roughly the same horsepower ratings, and all most likely provide respectable performance numbers.

The base engine is the 380-horsepower Mercury 8.2L gas with shaft drive, and our test boat had the mid-range 380-horsepower Cummins QSB5.9 diesels, also with shafts. That same Cummins diesel can be optioned with ZF pod drives. The pods, because they are mounted in tunnels, add only two inches to the boat’s draft.

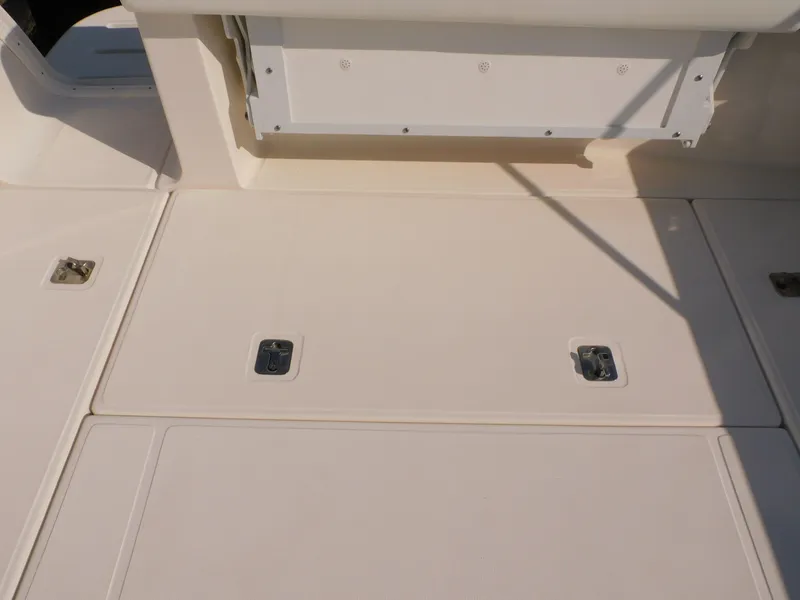

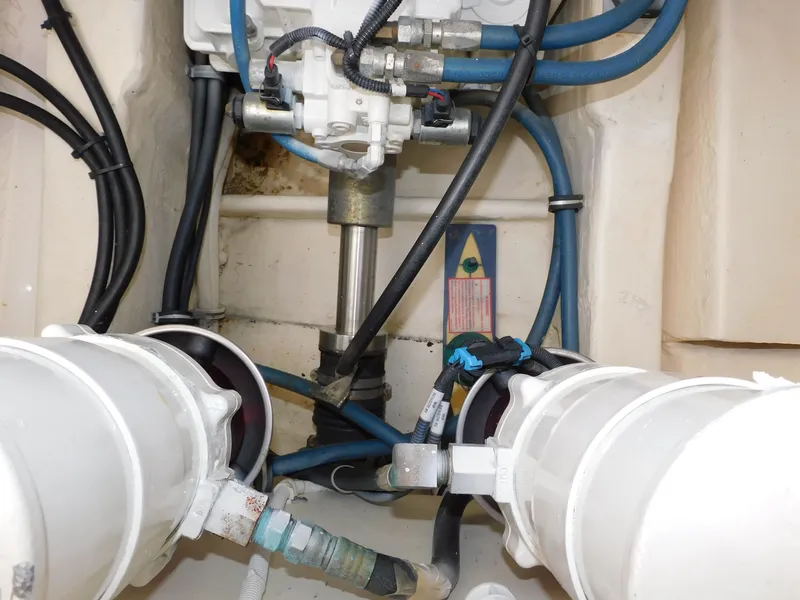

Access to the engines for daily service checks is through a hatch in the cockpit sole near the helm, but the entire aft section of the bridgedeck also raises on electric lifts to open the entire engine room for service. Our test boat had the optional 5-kilowatt Onan genset, which is mounted aft between the two main engines.

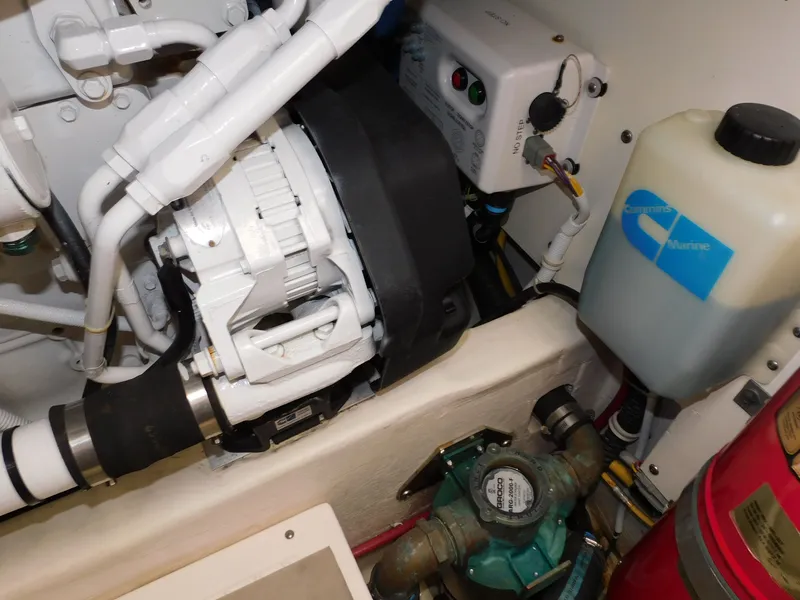

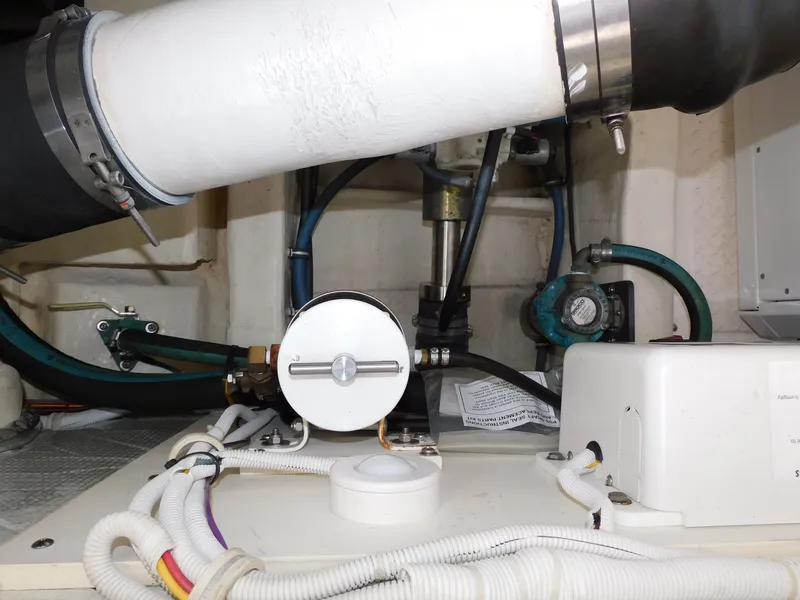

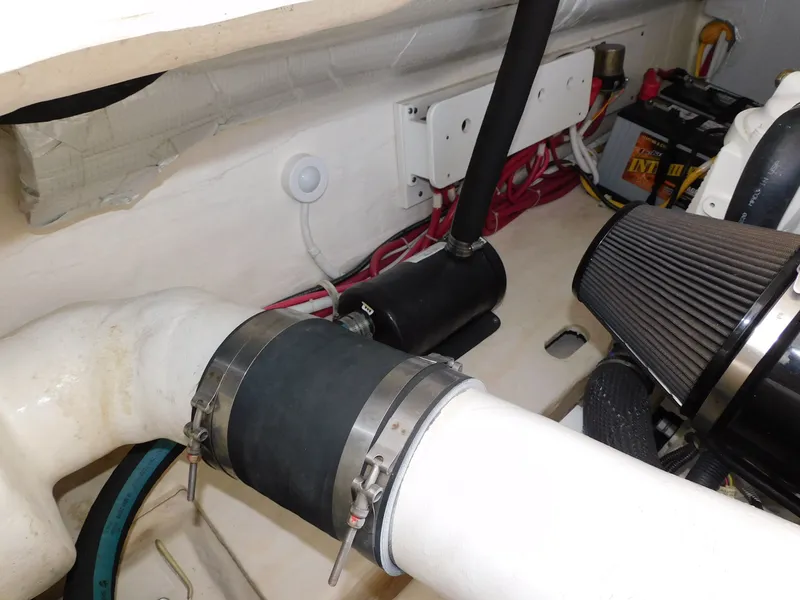

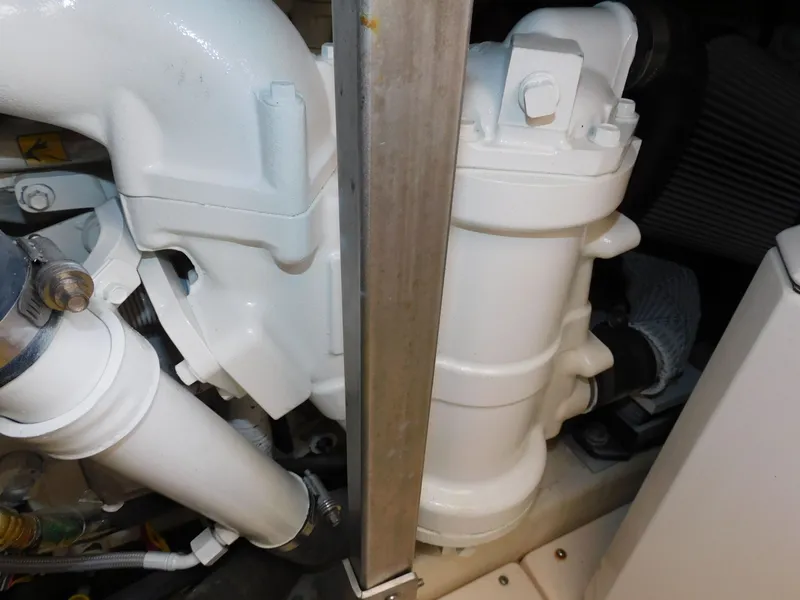

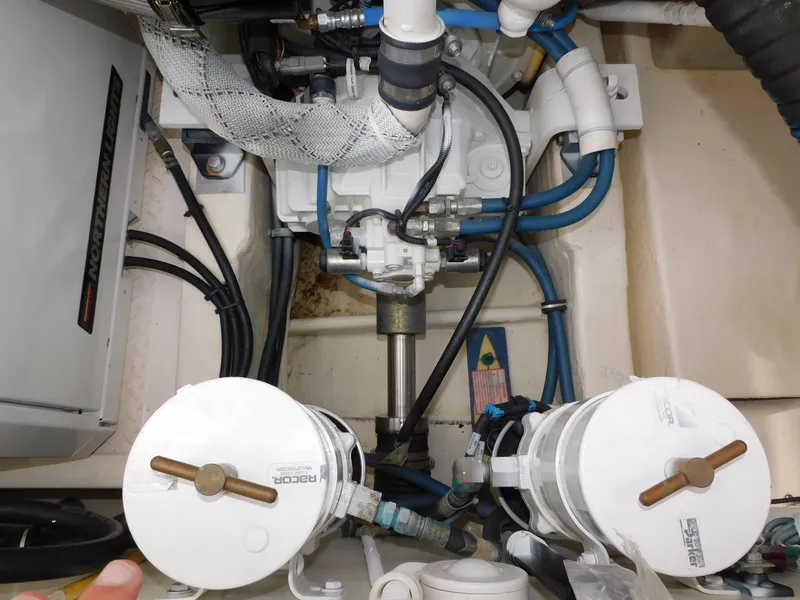

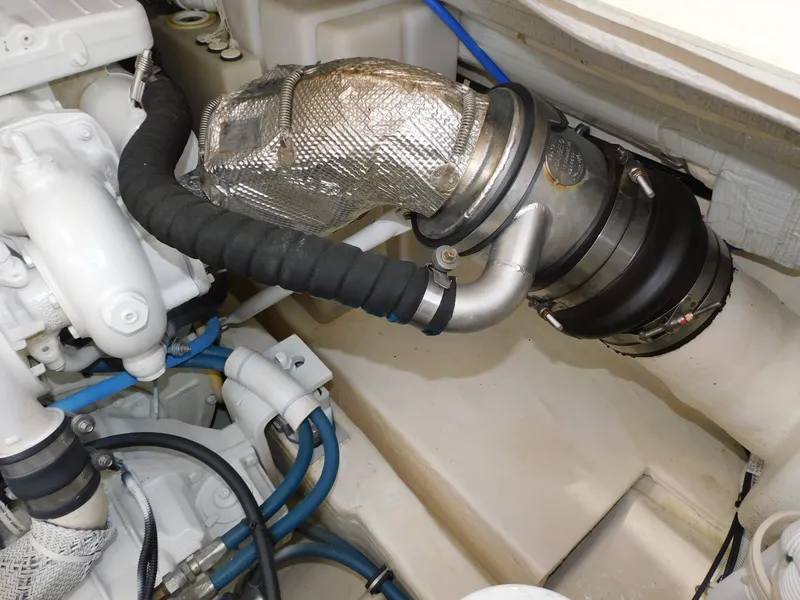

In the engine room, the high quality of the Coronet’s construction is visible, with the bilges entirely gelcoated for easy cleaning and the foam-cored stringers encapsulated in hand-laid fiberglass and integrated into the hull. There is a five-year warranty on the hull, deck, and fiberglass fuel tank.

With the optional Cummins diesels, we topped out at nearly 32 knots with all our tanks full and four people aboard, so the 3600 Coronet is no slouch on performance. Even better, when backed off to around 2500 rpm, she cruised comfortably at 26 knots at almost exactly one mile per gallon. This gives owners two good choices: go fast to get home quickly, or cruise comfortably and economically.

I liked the way the 3600 handled, too. In lumpy conditions inshore, she threw spray out to the side and, in the confused seas of the Gulf Stream, she was dry, soft-riding, and entirely predictable.

So yes, the two kids I saw at the boat show were right: The Tiara 3600 Coronet is, like, way too cool. And additionally, she’s well built, thoughtfully designed, and a thoroughly likable dayboat with occasional weekender ambitions. I just hope Mom and Dad took the kids’ advice.

Optional Equipment
NOTEWORTHY OPTIONS: 5-kW Onan generator ($19,800); hardtop ($17,500); Imron hull paint ($13,200); teak accent package ($11,180); cockpit a/c ($5,380); Garmin electronics package ($10,980)

Specifications
Water Capacity: 70
Overall Length: 42’8″
Displacement: 19,100 lb.
Beam: 13’3″
Fuel Capacity: 350
Draft: 3’3″
Year: 2013
The Test
Conditions During Boat Test
Air temperature: 82°F; humidity 61%; seas: calm

Load During Boat Test
fuel: full; water: full; 4 persons

Test Boat Specifications
Test Engine: 2/380-mhp Cummins QSB5.9 diesels
Transmission/Ratio: ZF gears w/ 1.75:1 ratio
Props: 21 x 28 4-blade Federal Nibral EQX
Price as Tested: $518,930
The Numbers
RPM KNOTS GPH RANGE dB(A)
1000 7.1 2.4 1,071 65
1400 8.5 6.8 457 78
2000 16.3 18.9 313 80
2600 26.7 28.1 344 82
3043 31.8 40.7 284 84
This article originally appeared in the March 2013 issue of Power & Motoryacht magazine.

Review: Tiara 3600 Coronet
By Quimbys Editor| September 25, 2013

At its heart, the new 3600 Coronet is a delightful day boat with overnighter ambitions. Tiara designed the cockpit to be the “living room,” with seating everywhere plus a bridge deck that can be easily enclosed if the weather is too hot, cold or wet.

But, unlike most express cruises, Tiara didn’t try to overload the cabin, so it’s more livable than many larger yachts. The usual interior settees are missing — you’re encouraged to sit in the cockpit, where the view is best. What you do have is a small, efficient galley (to augment one in the cockpit) and, ta-da, room for a nicely sized head with a surprisingly large stall shower. No more wet head!

Forward, there is an island double berth with a real mattress and, tucked under the bridge amidships, is another double berth with full headroom to pull on your pants.

Back up top, the very comfortable helm features three monitors and user-friendly controls, all surrounded by composite windshield frames. No more corroded windshields! To port is a massive, wraparound lounge with removable table. Behind the bridge deck are two aft-facing settees and a plush transom bench with another table. The space is served by an outdoor galley with sink, refrigerator and grill.

Power starts at twin 375-horsepower Mercury 8.2 gas engines with shaft drives, while options range up to 380-horsepower Cummins diesels with pod drives featuring joystick maneuvering around the dock. Top speed is 32 knots fully loaded, with a comfortable cruise at 26 knots, burning one mile per gallon. A delightful combination of dayboat and weekender, the Tiara 3600 Coronet should be on your short list of capable cruisers. www.tiarayachts.com

Tiara 3600 Coronet: Memory Maker
Introducing a new high-end day-boat from this experienced builder.

By Jeanne Craig, February 18, 2012
At the Miami International Boat Show, David Slikkers was reminiscing about all of the good times he spent on the water as a child. His father, Leon Slikkers, founded Michigan-based S2 Yachts, the parent company of Tiara Yachts. “Dad would always let me go with him to test a new boat, and I will never forget those great experiences,” said Slikkers, now CEO of S2, speaking to an audience gathered in his company’s booth. “Creating lifelong memories with your family is what boating is all about.”

The new Tiara 3600 Coronet can be powered by twin Mercury gas inboards or Cummins diesels, with either conventional running gear or ZF pod drives.

With that, Slikkers unveiled the newest model in the company’s line of premium inboard-powered yachts, the 3600 Coronet. Although this boat was on display at the Ft. Lauderdale show last fall, the Miami venue was its world premiere. This is the second model in the builder’s Coronet Series. It joins the 3100, which received an enthusiastic reception from fans of the Tiara brand when it was introduced last year.

Like the 3100, the 3600 is designed as a luxury day boat with a heavy focus on entertaining, thanks to a two-level cockpit that maximizes the available space for plush upholstered lounges, teak tables, a big outdoor grill, and a top-notch entertainment center. However, the 3600 really is much more than your average afternoon cruiser. For instance, there are accommodations in the cabin for overnighting: Think private master stateroom, full galley, and a fiberglass head with shower.

The moderate V-hull is capable of offshore work. Most interesting on the 3600 are the propulsion options. The boat is available with either conventional straight-shaft inboards or ZF pod drives, which improve fuel efficiency and make for exceptional maneuverability, particularly in close quarters. Engine options are twin 375-hp Mercury 8.2 DTS gas inboards or 380-hp Cummins QSB diesels.

The 3600 Coronet is equipped with many of the features that have become hallmarks of the Tiara brand. They include the EZ Tilt Away helm console (with full flush-mount electronics capability); custom composite windshield frame with tempered safety glass and an opening center vent; and custom diamond-pattern non-skid. For years, this builder’s non-skid has set the standard by which other cruisers are judged.

The 3600 is a beautiful boat, too, and that’s probably one reason why Slikkers says he was just as excited to run this new model as he was to ride along with his father decades ago. Said Slikkers: “With the 3600, I think we’ve given those who love boating a great new vehicle on which to make their own memories and find their dreams.”

Tiara Yachts Introduced the 3600 Coronet at Ft. Lauderdale Boat Show
facebook sharing buttontwitter sharing buttonemail sharing buttonsharethis sharing button
Published: Saturday, December 10, 2011
By: Tiara Yachts

Introduced at the 2011 Fort Lauderdale International Boat Show, and the second Coronet™ in the Tiara Yachts Coronet™ Series, the 3600 is a completely new dayboat, reflecting the design, engineering and construction heritage of Tiara, and offering outstanding standard features and optional equipment that will enthuse all dayboaters; it is dayboating at its finest.

Complementing the beautiful styling, fit/finish, features, and detailing, the 3600 Coronet™ offers two drives: either Inboard or ZF® Pod Drive. It also offers a choice of power: Twin inboard Mercury® 8.2 DTS/375 H.P. gas and Cummins® QSB/380 H.P. diesels, or ZF® pod drive with twin Cummins® QSB/380 H.P. diesels. Whatever the propulsion/power choice, the new 3600 offers outstanding performance, handling, and maneuverability.

The standard hull and deck color is Fresh White, with Carbon color bootline and helm console/dash. Optional custom hull and bootline colors are available, and the helm/dash is also available in Sand or Flag Blue color. Standards include a Tiara custom composite windshield frame with tempered safety glass and opening center vent, radar arch, 45” swim platform with built-in ladder, molded-in fiberglass bow pulpit, Tiara custom diamond pattern non-skid, and 2-tone exterior vinyl. The command station features the Tiara EZ Tilt-Away® helm console (with full flush mount electronics capability), stainless steel tilt steering wheel and portside navigation center.

The oversized upper/lower cockpit gives ample seating, including a double-wide helm seat, curved companion lounge, and twin port/starboard aft-facing mezzanine seats. An entertainment center with sink and drawer refrigerator (optional electric grill and LCD TV) is aft of the helm seat.

Additional options include: Hardtop with standard sunroof or canvas soft top, lower cockpit aft transom lounge with Teak table, exterior Teak accent package (includes Teak steering wheel, Teak inlay for standard swim platform, Teak cockpit drink holder, toe rails, taft rails, companion L-lounge step treads, and deck wing handrails), upper/lower cockpit carpet, premium stereo system upgrade, exterior (4) and interior (3) pillow package, Garmin® electronics package, and additional Garmin® package upgrade to include autopilot and radar.

Below deck, the 3600 Coronet™ offers a large comfortable retreat, featuring a Teak interior (optional Maple interior also available) and solid Teak hardwood floor—as well as private forward master stateroom, full galley, aft cabin settee/2-person sleeper, and full fiberglass head with shower. The master stateroom includes a double pedestal berth (with storage under), full frame Teak tri-fold entry door, port/starboard hanging lockers and upper hullside cabinets, and 19” flat screen LCD TV (VGA or USB connection port). The galley features a Corian® countertop, stainless steel undermount sink, microwave, one-burner electric cooktop, refrigerator, and upper/lower cabinet storage. The settee (optional Teak table) is convertible to a berth (includes privacy curtain), and the head includes a Corian® countertop with integrated sink, mirror, storage, shower with glass door, Vacuflush® toilet, and full frame wood door. Clarion® AM/FM/CD stereo with cockpit remote, and Marine Air Systems® 12,000 BTU air conditioner with reverse cycle heat.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
