Key Specifications



• LOA: 40 ft 8 in (12.4 m)
• Beam: 13 ft (3.96 m)
• Draft: 5 ft 10 in (1.78 m) - beavertail bulb lead keel
• Displacement: 20,104 lbs
• Engine: Volvo Penta D2-55F, 55 HP diesel
• Fuel Capacity: 60 gal (aluminum tank)
• Fresh Water Capacity: 120 gal (two aluminum tanks)
• Holding Tank Capacity: 20 gal (plastic tank)

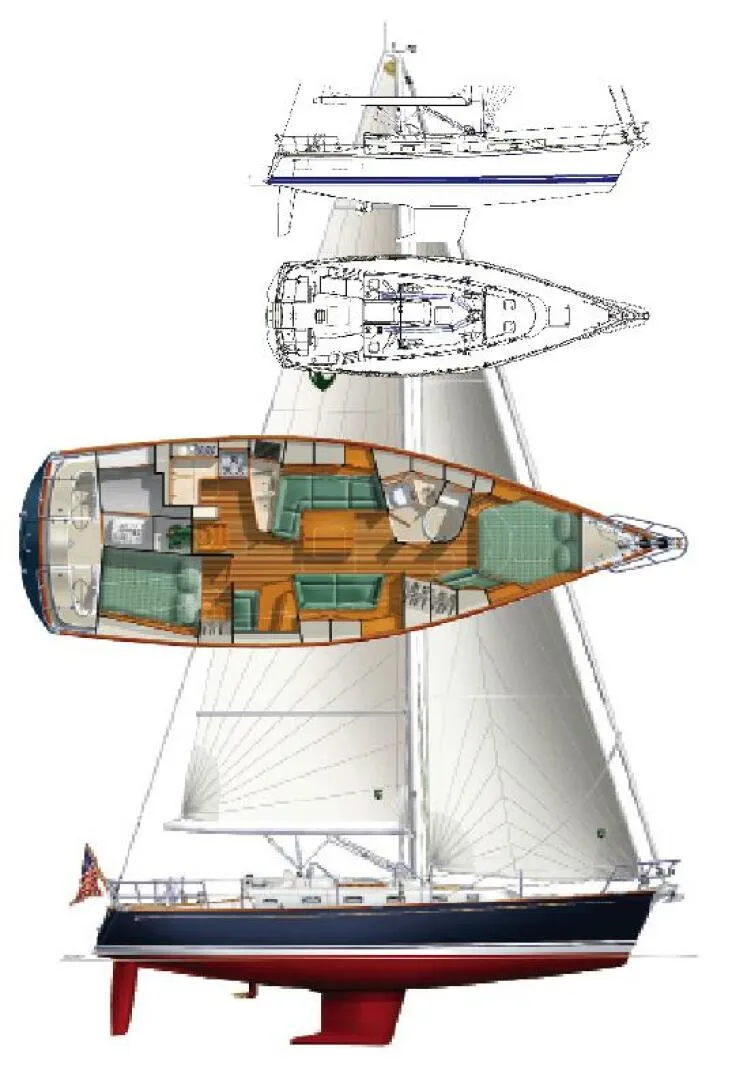

Accommodations

The interior features high-quality, handcrafted solid cherry cabinetry with raised panel doors and a V-grooved solid teak cabin sole. The layout offers two cabins and one head with a separate stall shower.

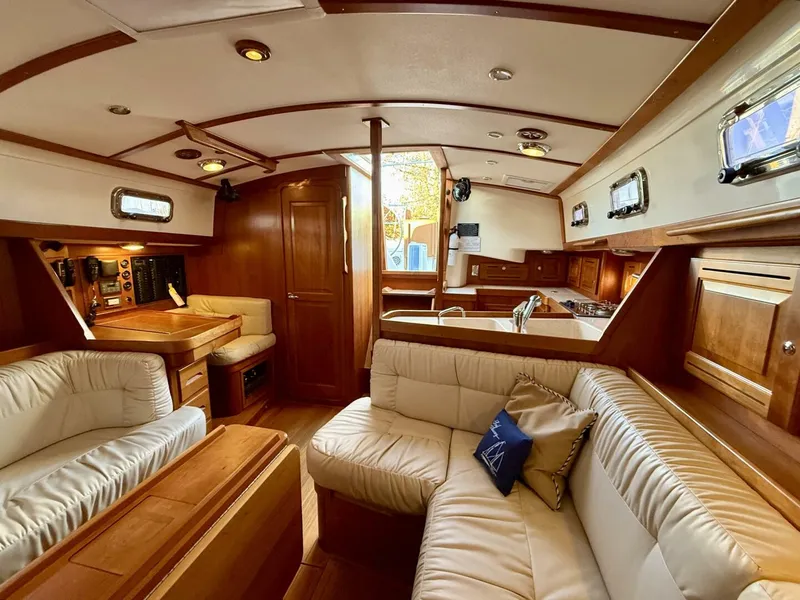

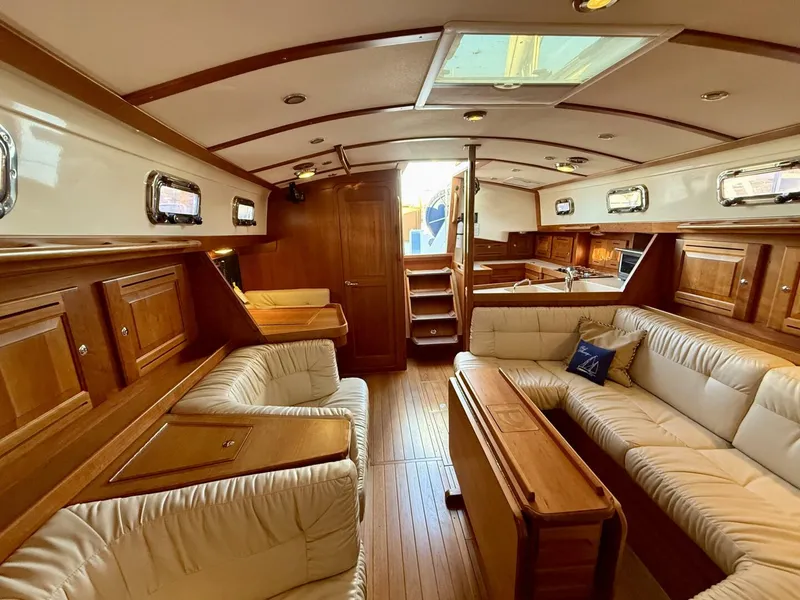

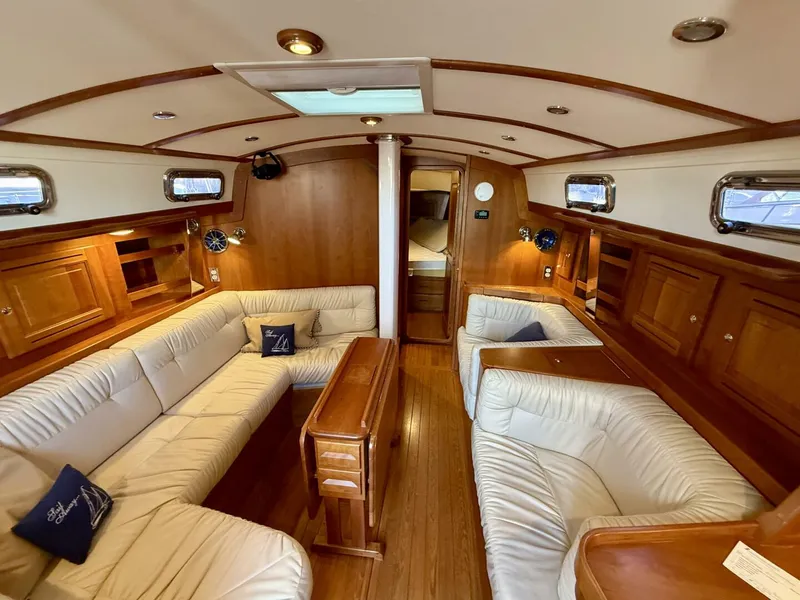

• Saloon: Features 6'4" headroom, C-shaped port settee (convertible to a berth), two starboard club seats, a drop-leaf dinette table with center storage, and cream Ultraleather cushions.

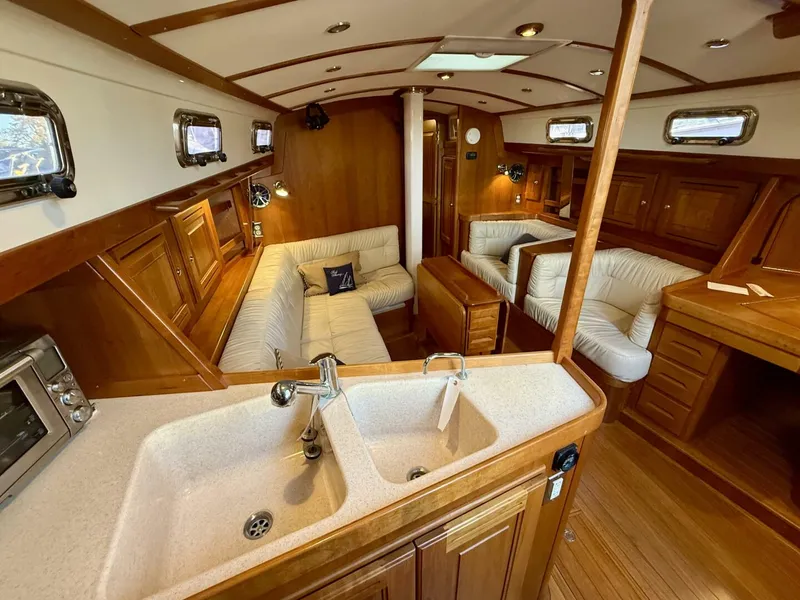

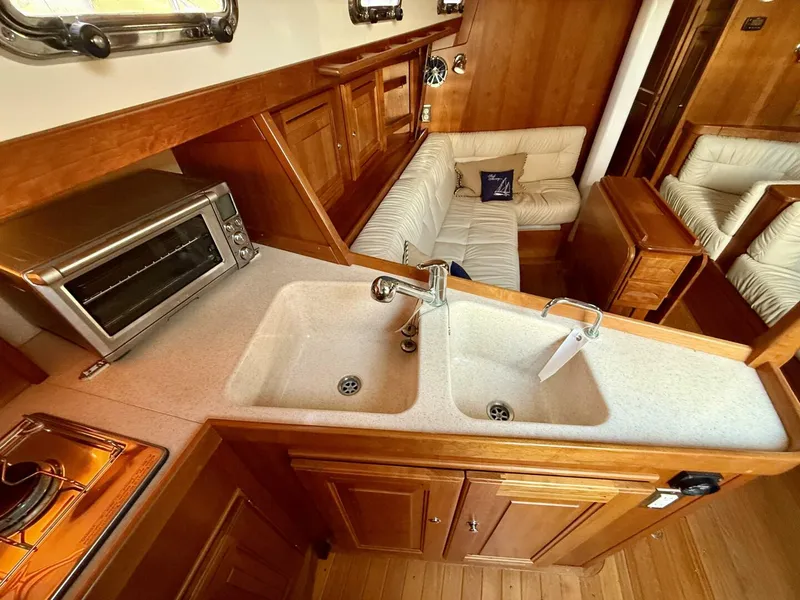

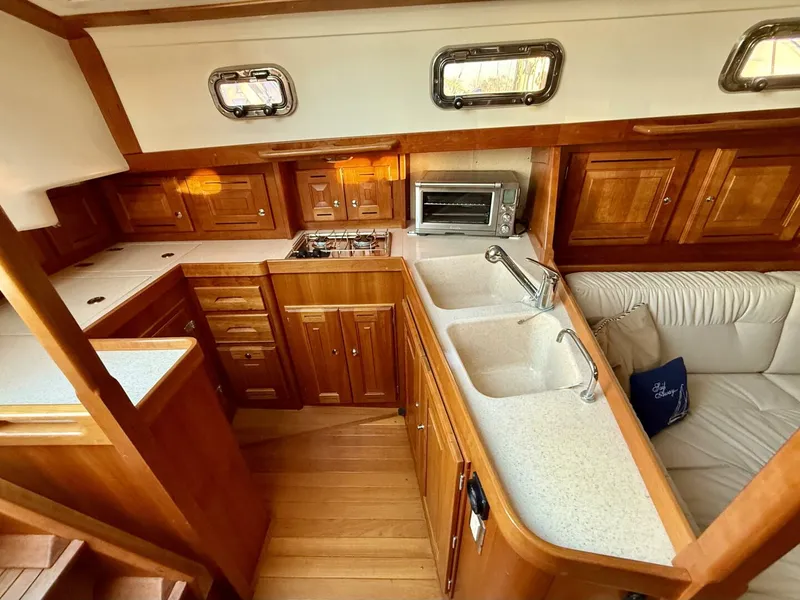

• Galley: A J-shaped galley on the port side with Granicote solid surface countertops, double sinks, a two-burner LPG cooktop, Breville convection oven, and top/front-loading Isotherm 12v refrigeration/freezer.

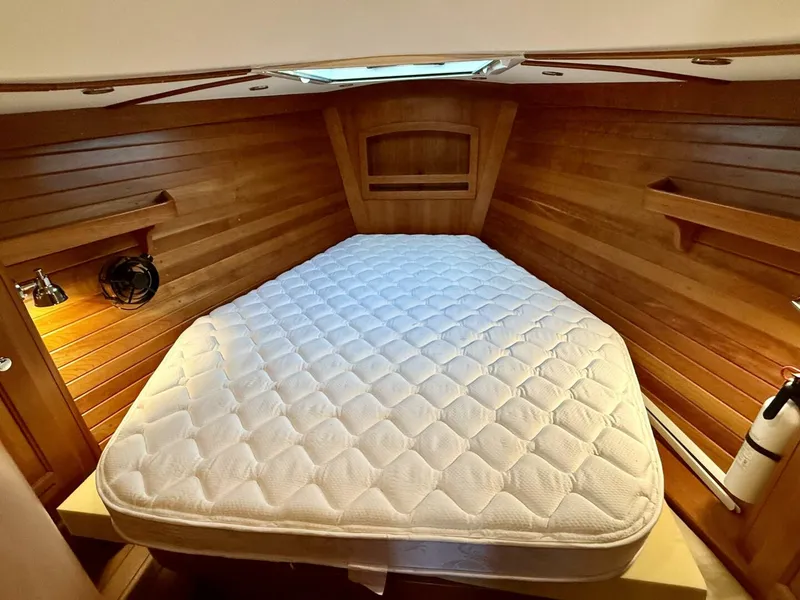

• Master Stateroom (Forward): A centerline queen-sized berth (80" x 64") with a custom mattress, extensive storage, cedar-lined hanging lockers, and direct access to the head.

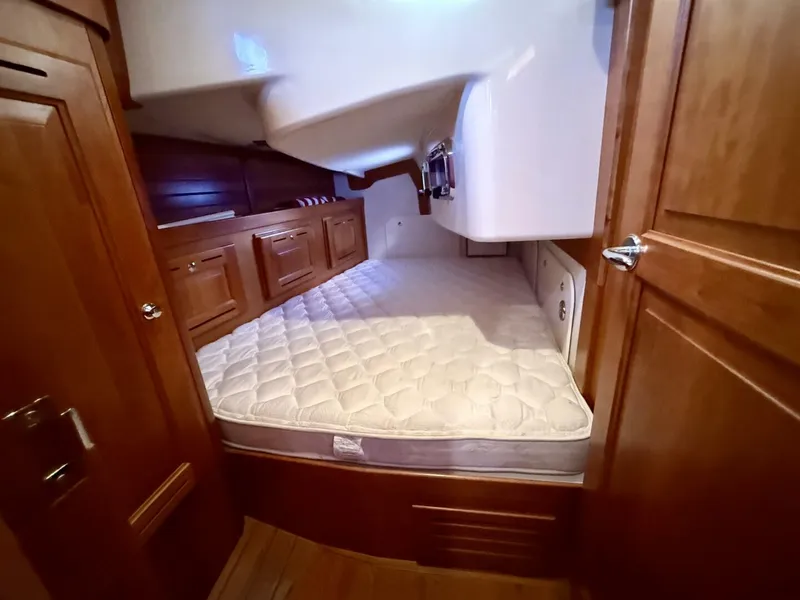

• Aft Stateroom: Features a fore and aft-oriented berth, hanging locker, and hullside lockers.
• Layout: Two-cabin layout
• Master Stateroom: A centerline 80" x 64" queen-sized berth forward with a custom quilted mattress.

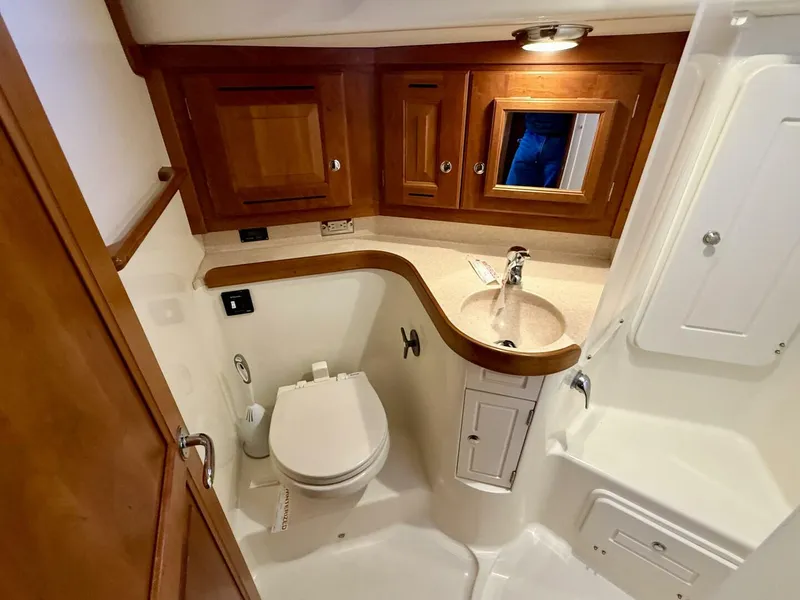

• Head: A separate stall shower with a VacuFlush marine head is located on the port side.
• Saloon: Features plush seating, a drop-leaf table, and storage.
• Galley: Located at the base of the companionway to port, featuring Granicote solid surface countertops, Isotherm 12v refrigeration, and a two-burner Eno LPG cooktop.

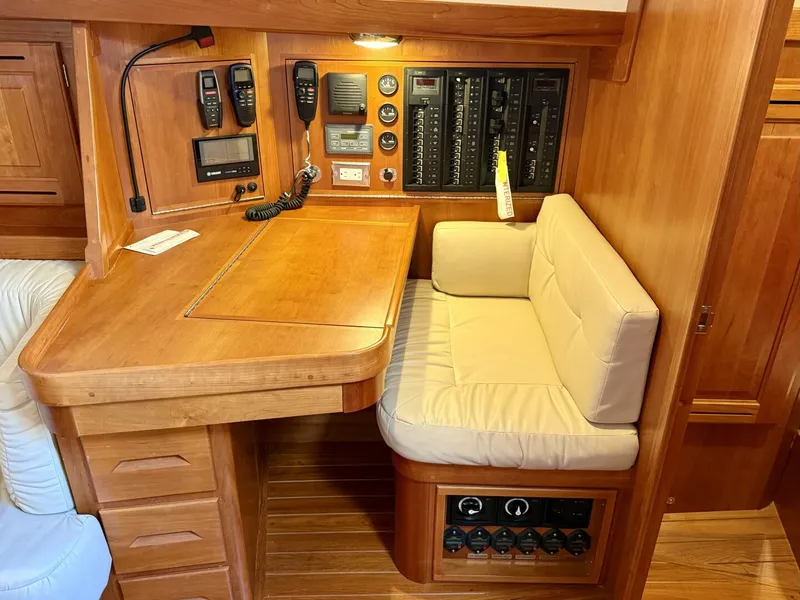

• Nav Station: Forward-facing navigation station to starboard, equipped with electrical panels and electronics.

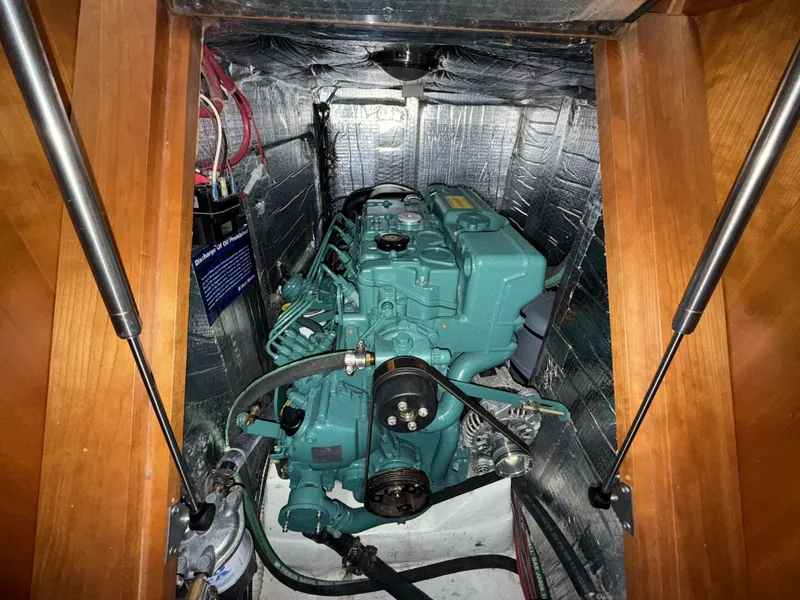

Engine and Mechanical

• Engine make: Volvo Penta S/N: 5103908151Y
• Engine model: D2-55F
• Horsepower: 55 hp
• Hours: Approximately 165
• Drive type: Saildrive
• Propeller: 14-inch, three-blade, epoxy-coated aluminum prop
• Lead lined engine room insulation
• Fire port
• Engine room light
• Bilge blower for engine compartment with switch at helm
• Engine service access front, top, sides, and aft
• Groco bronze raw water strainers (2)
• Engine services annually, with fluids and filters replaced as per manufacturer's requirements
• Injectors and high pressure pump removed and tested ('23)
• #3 injector rebuilt ('23)
• Heat exchanger back-flushed ('23)
• Sail drive gear oil replaced every three years
• 60-gallon aluminum fuel tank with remote gauge
• Electrical fuel tank gauge
• Volvo fuel filter/water separator
• 14" three blade epoxy coated aluminum prop ('24)

Electronics and Navigation

The boat is equipped with a comprehensive Garmin electronics package:

• Garmin GPSMAP 741 displays (2)
• Garmin GMR 18HD radar
• Edson 3.5" radar mast with antenna bracket
• Garmin GMI 20 instrument displays (3)
• Airmar DST800 depth, speed, temperature transducer ('24)
• Garmin gWind wind transducer
• Garmin GHC 20 Autopilot Control Head
• Garmin GHC 10 Autopilot Remote
• Garmin GHP 12 Autopilot corepack w/Class A drive unit
• Garmin GWH 20 wireless hub
• Garmin GHS 20 wireless VHF handset
• Masthead VHF antenna
• Garmin GXM 52 SiriusXM marine receiver
• Garmin VHF 300 AIS
• Meteor 300 stereo system with remote
• Infinity 612M speakers in salon and cockpit
• RogueWave WiFi booster with radar mast mounted antenna
• Meade Instruments electric weather station

Electrical

• 30A 110V shore power connections (2)
• 30A 110V 50' shore power cords (2)
• ProMariner galvanic isolator
• Blue Sea Systems 110V electrical panel
• Blue Sea Systems 8247 AC multimeter
• 110V receptacles throughout with GFI protection
• Blue Sea Systems 12v DC electrical panel
• Blue Sea Systems 8248 DC multimeter
• Electric panel prepped for generator installation
• 12v receptacles at nav and one helm
• Battery selector switch
• Two 8D AGM house batteries ('24)
• Group 27 AGM starting battery ('24)
• Mastervolt 12/2500 -2.5 KW True Sine Wave 2500W inverter/100A charger with remote control panel
• Balmar digital Duo Charge controller
• Polished chrome and stainless-steel LED interior lighting
• Automatic LED lights in hanging lockers, main cabin, lockers and refrigerator compartment
• LED service lighting in engine compartment and deck lockers
• Custom LED entry lighting at companionway
• Directional LED reading lights at berths and main cabin settees
• Directional LED spotlights over main cabin table
• Recessed, dimmable LED overhead spotlights in main, forward and aft cabins
• LED Interior, cockpit and swim platform courtesy lighting
• USCG approved LED navigation lights
• Mast wiring conduit
• Masthead LED anchor light
• LED steaming light with foredeck illuminator
• Wiring bundled in PVC conduit with room for future installation
• All wiring chafe protected where it passes through internal structure
• Electrical bonding system

Rigging

• Tartan "Cruise Control Rig" with twin headstays (Solent Rig)
• Carbon-fiber mast with white acrylic urethane topcoat
• Tapered mast section for reduced weight aloft
• Carbon fiber backstay crane integrally molded at lamination
• Custom carbon fiber masthead with sheaves for jib, main, reacher and spinnaker halyards
• Tapered airfoil swept spreaders
• Hayn 1 x 19 316 stainless steel wire rigging with forged turnbuckles
• Custom stainless steel chainplate system ties structural FRP grid and hull
• Spartite mast sealing system
• Internal halyards
• Leisure-Furl boom
• Forespar rigid boom vang
• Harken mainsheet traveler with double ended sheet led to primary winches
• Harken aft lead control and turning blocks
• Harken deck hardware and blocks

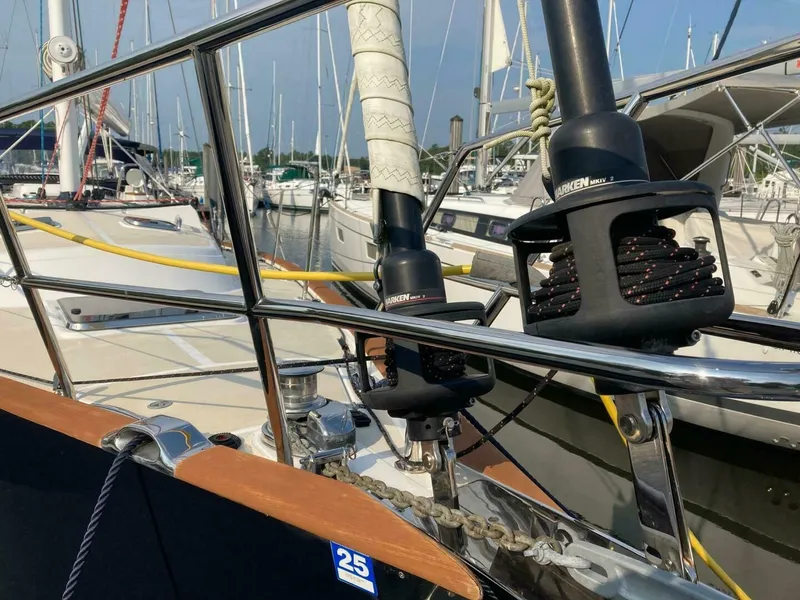

• Harken Mark IV furler for reacher sail
• Harken main and jib sheet turning blocks with lock-offs
• Harken Mark IV furler for self-tacking jib
• Harken self-tacking jib traveler with double ended sheet led to primary winches
• Harken 44.2 STC house top winch
• Harken 44.2 STEC electric main halyard winch
• Spinlock rope clutches (8)
• Harken Rewind 46 chrome electric primary winches (2)
• Harken Rewind 46 chrome electric secondary winches (2)
• Switches for remote operation of all Rewind winches at both helm stations
• Running rigging (except halyards) replaced ('22)
• Harken aluminum winch handles (3)
• All winches serviced every other year

Deck & Hull

• Resin infused modified epoxy hull and deck with closed cell foam hull coring
• Hull locally reinforced at high load areas
• Internal structural grid glass taped into hull

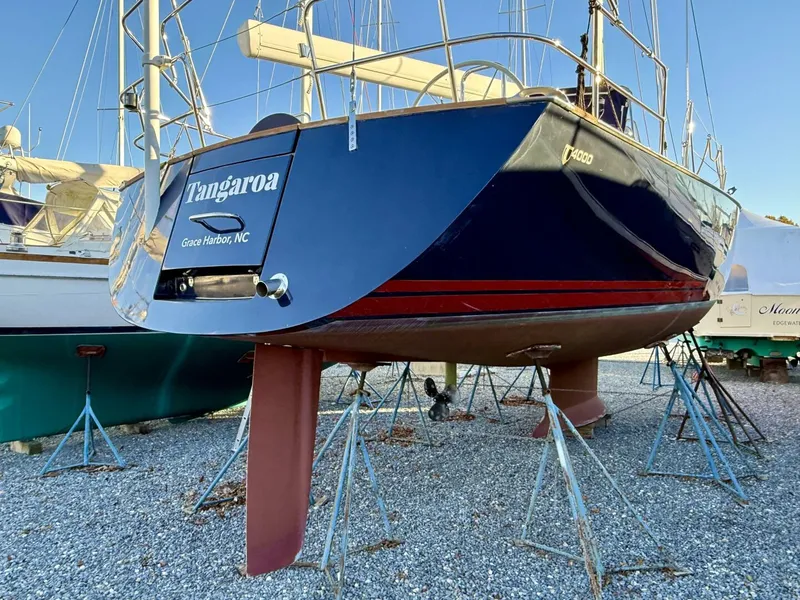

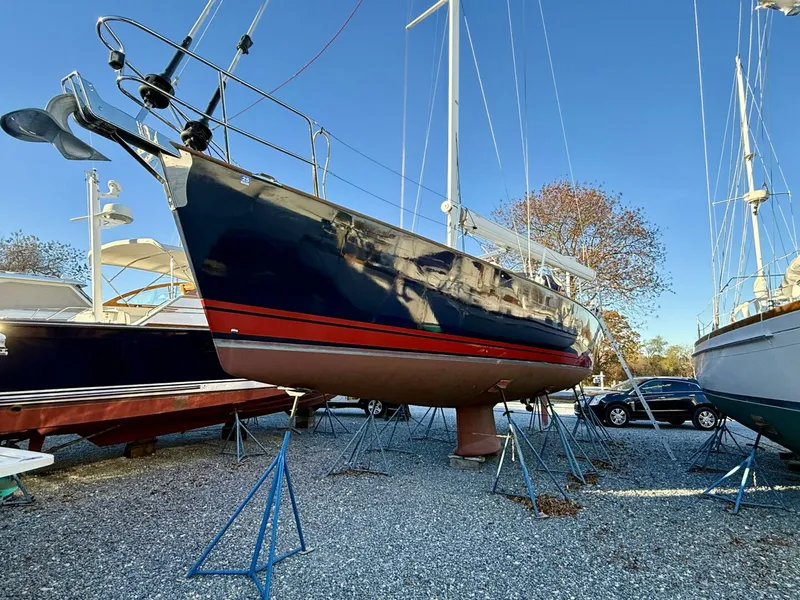

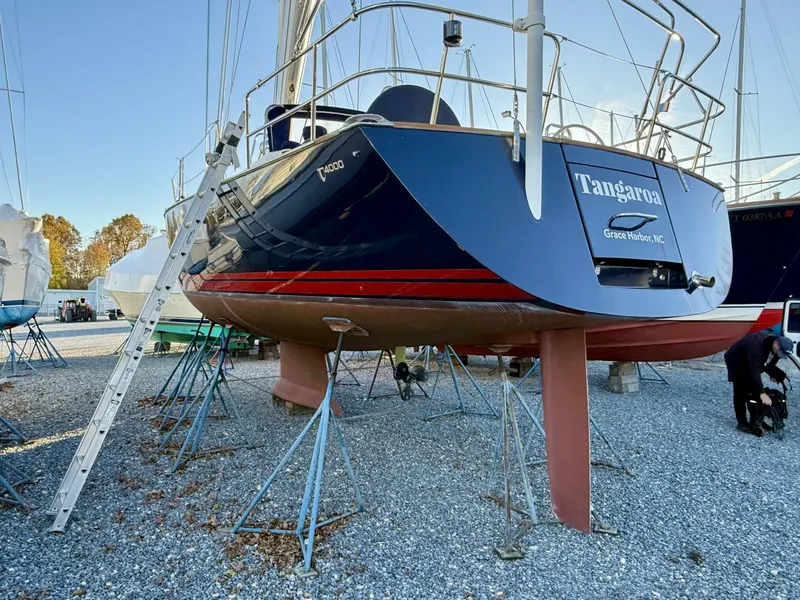

• Beavertail bulb lead keel
• Stripped and barrier coated with three coats ('15)
• Bottom painted with Petit SR ('24)
• Keel bolt quantity and size exceed ABS standard for offshore use
• Carbon fiber rudder post
• High density, closed cell urethane foam rudder blade with modified epoxy reinforced skins
• Self-aligning roller rudder bearings
• All hull and deck penetrations made into solid fiberglass "core windows"
• Interior hull surfaces painted out with enamel gelcoat for aesthetics
• Aluminum backing plates added at lamination for all loaded hardware
• Bulwark mounted teak cap rails through bolted to hull flange
• Custom cast rail mount chocks for mooring cleats (6)
• Stainless steel 10" mooring cleats (6)
• Stainless steel breast plates for mooring line chafe protection

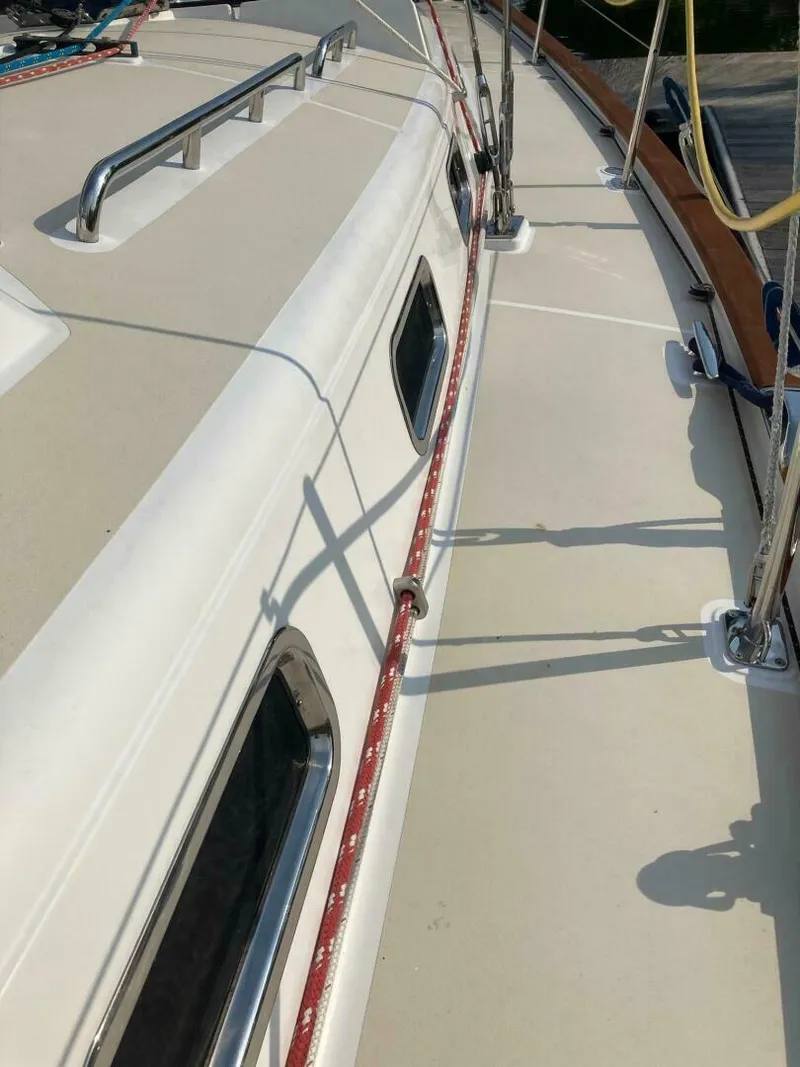

• Contrasting deck non-skid in white and sand
• Deck drains to waterline discharge, eliminates hull streaking
• Transferrable 15-year hull structural and blister warranty

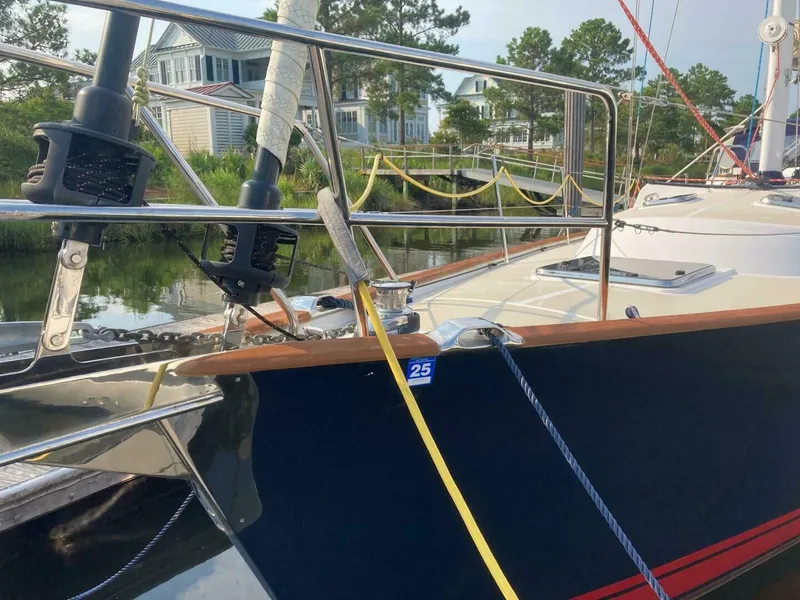

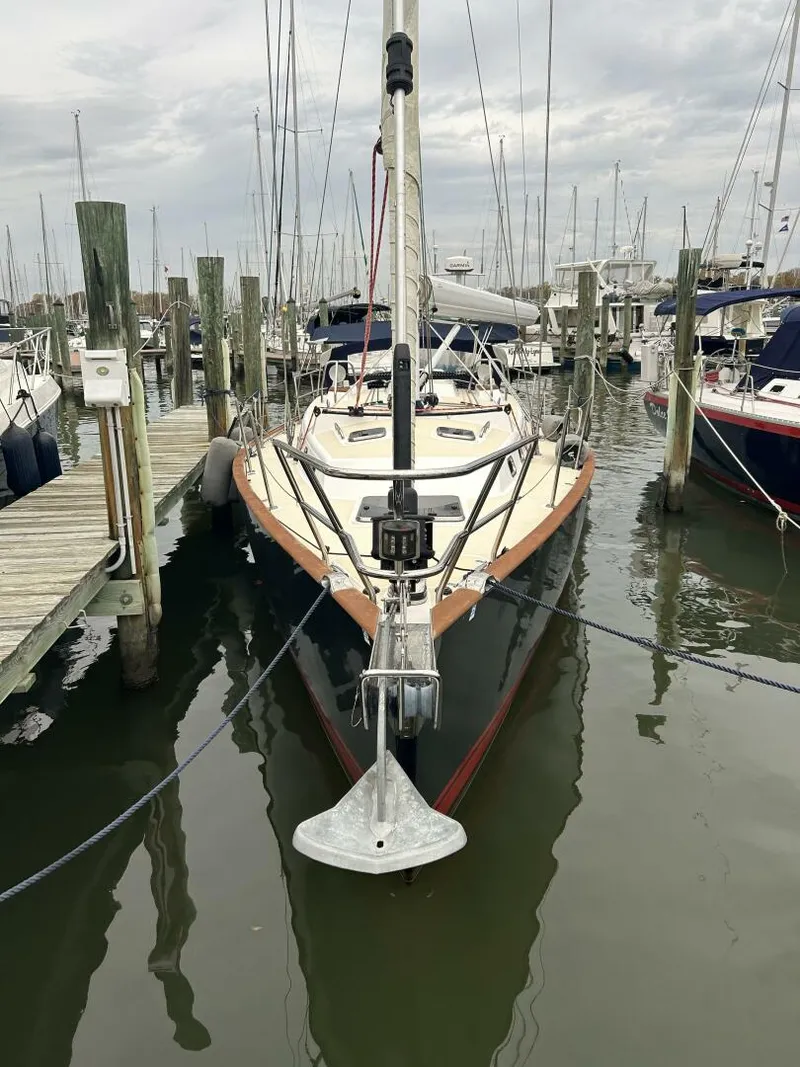

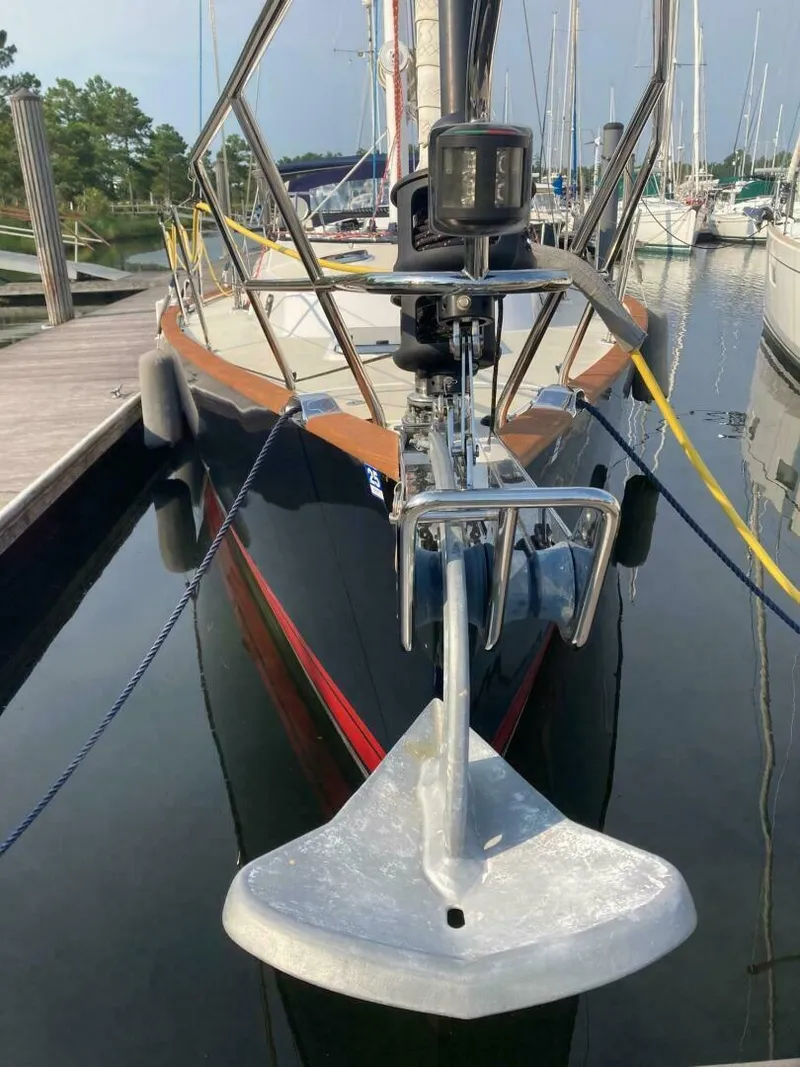

• Custom fabricated stainless-steel stem fitting with integral double bow roller
• Vulcan anchor w/ 50' 5/16" G40 chain and 200ft of 5/8" rode
• Lewmar 5/16 chain stopper
• Lewmar electric windlass
• 27" x 1 1/8" diameter stainless steel stanchions, bow and stern rails
• 1 x 19 double wire lifelines with port, starboard, and transom boarding gates

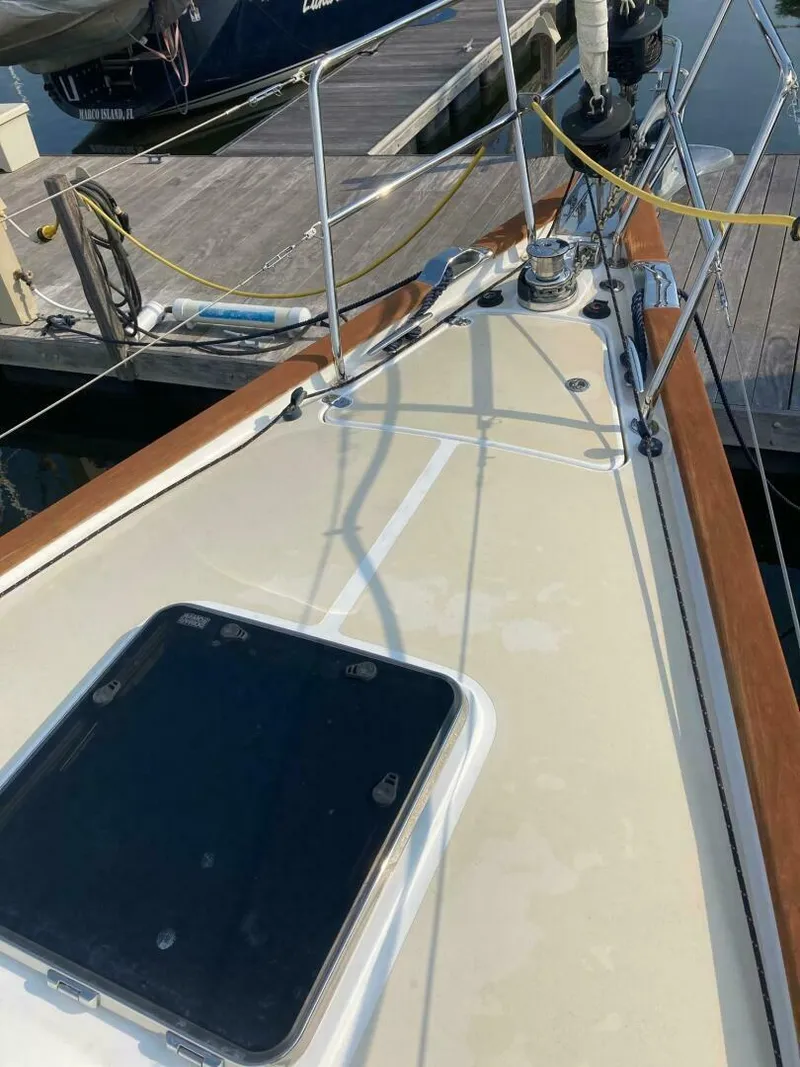

• Bomar stainless steel unlimited offshore CE approved deck hatches (6)
• Cabin side mounted stainless steel opening port lights with screens (12)
• Cockpit mounted stainless steel opening port lights with screens (2)
• Custom stainless steel mast collar with multiple attachments for blocks
• Polished chrome 4" dorades on teak dorade caps with stainless steel guards (2)
• Polished stainless steel outboard genoa track for reacher
• Stainless steel handrails
• Teak cockpit table with fixed fiberglass pedestal
• Cockpit coaming cubbies with teak treads
• Custom curved Lexan sliding companionway hatch with solid teak hatch boards and trim
• Offshore ready, match molded, and gasketed cockpit seat hatches
• Custom life raft compartment in cockpit locker
• Hinge-down swim platform with a retracting stainless swim steel ladder

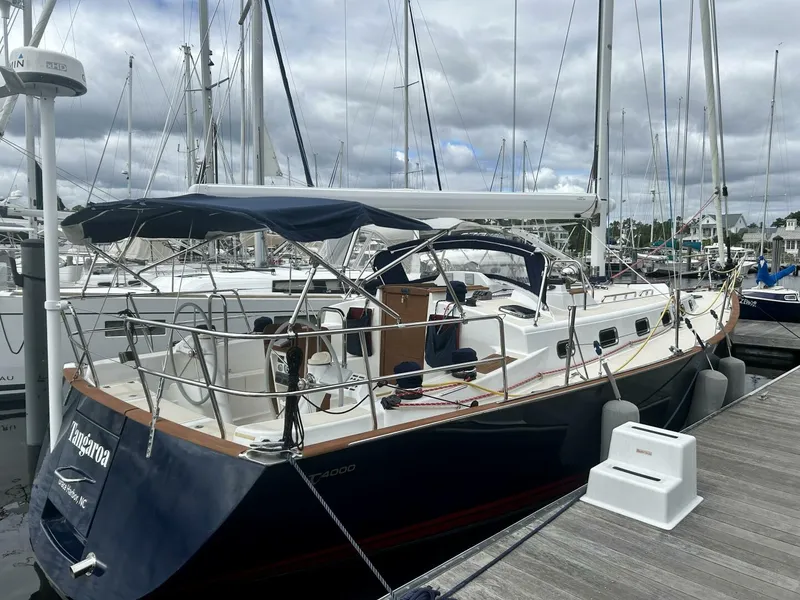

• Bimini and spray shield style dodger ('22)

Sails:

• Mainsail: Sobstad Leisure Furl with battens
• Jib: Sobstad Dacron self-tacking
• Drifter: Tri-Radial 150% cruising laminate masthead drifter (never used)

Other Equipment:

• Winslow 6-person Super-Light Offshore Plus life raft ('14)
• Life raft maintained per manufacturer's requirements
• PFD's
• Emergency tiller
• Fenders
• Dock lines
• Cockpit cushions
• Custom teak companionway screens
• Bottom Sider cockpit cushions
• Magma stainless steel LPG grill with cover
• Volvo Penta Workshop Manual & Parts Catalog
• Lots of spare parts for the engine, as well as belts, filters, gaskets and impellers
• Six winch covers ('24)
• Two mesh sheet tail bags ('24)
• Dehumidifier included and run during all warm weather months since purchase of boat
• Small heater included and set to 55 during cold months
