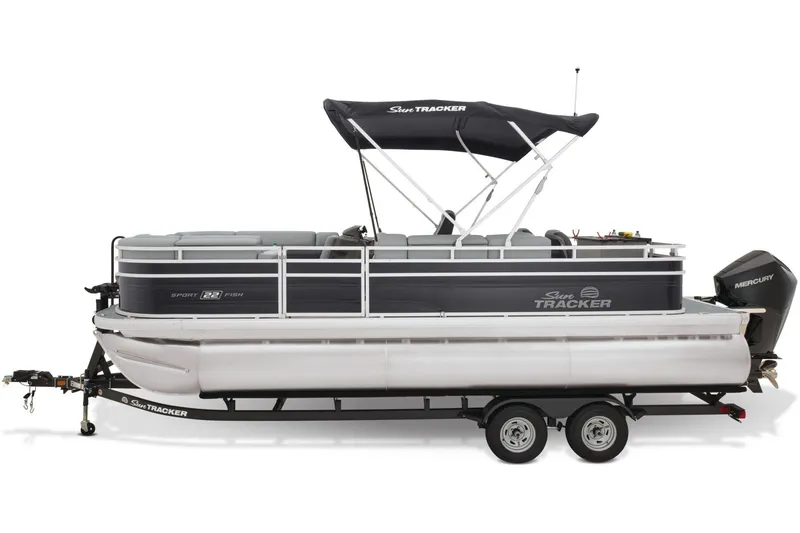

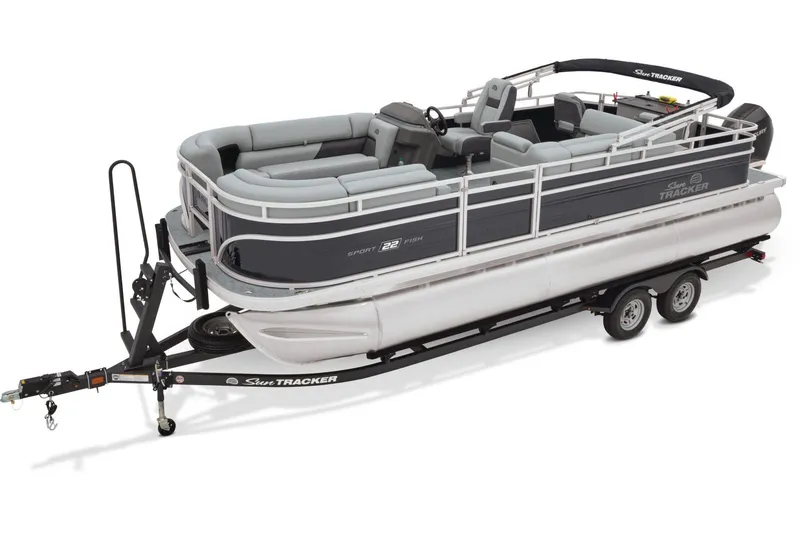

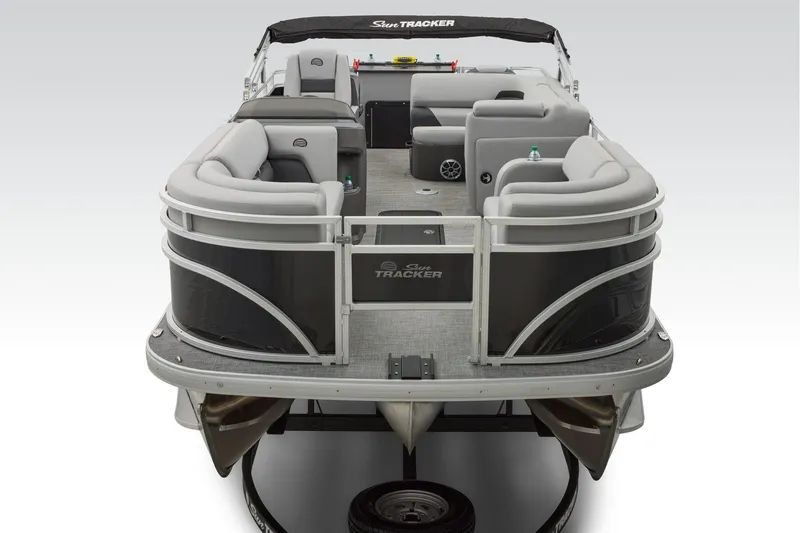

• Length:24' 2"

• Deck Length: 22' 1"

• Deck Width: 8' 6"

• Max. Recommended HP: 200 HP

• Fuel Capacity: 52 gal.

• Pontoon Log Length: 22' 3"

• Pontoon Log Diameter: 26"

• Pontoon Log Material: 0.1 5052 marine alloy

• Max. Person Capacity: 11 persons

• Max. Person Weight: 1500 lbs.

• Max. Person, Motor & Gear Weight: 2300 lbs.

• Interior Depth: 27.25"

• Average Dry Weight: 3250 lbs.

• Average Package Weight: 5250 lbs.

• Package Height: 9' 1"

• Package Width: 8' 6"

• Towing Length: 32' 4"

• Storage Length: 32' 4"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty

• NMMA® certified

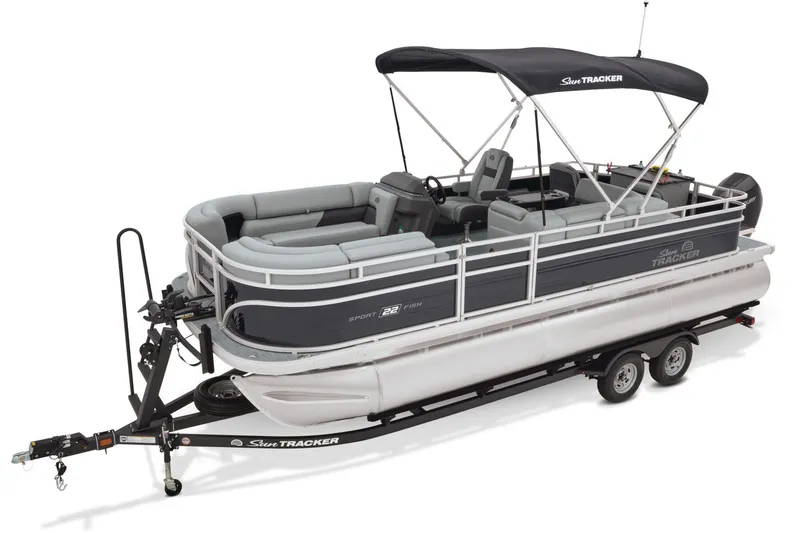

• 10' (3.05 m) Black SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot

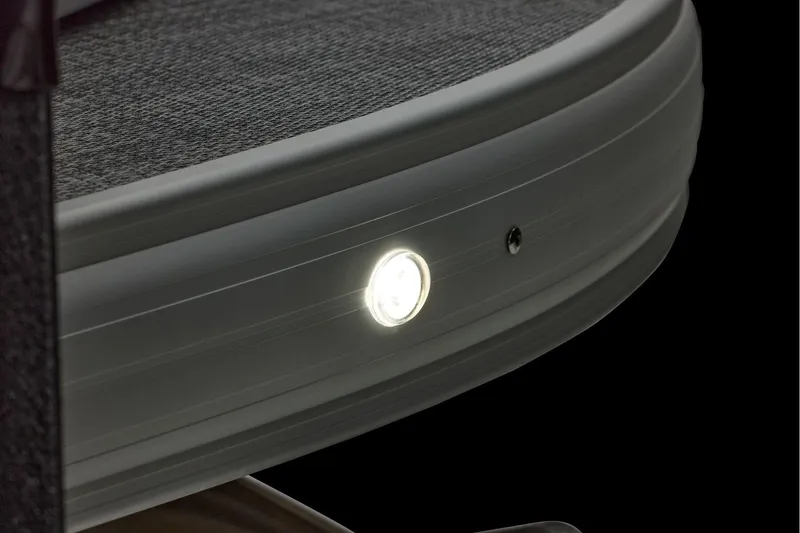

• NEW integrated LED docking lights

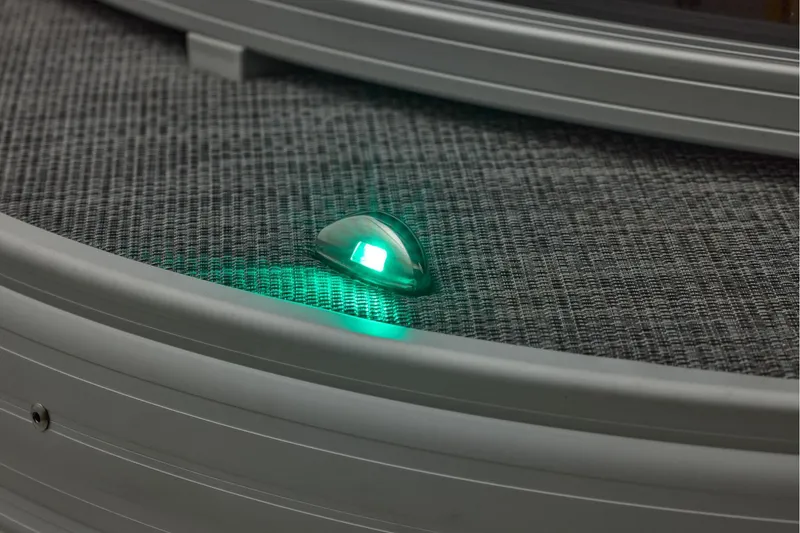

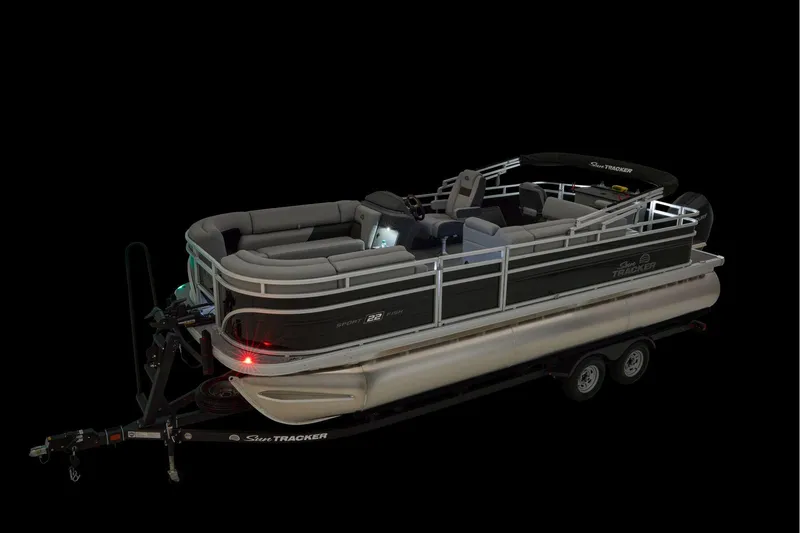

• Integrated LED navigation & anchor lights

• 4 folding mooring cleats & starboard side tie-off mooring eye

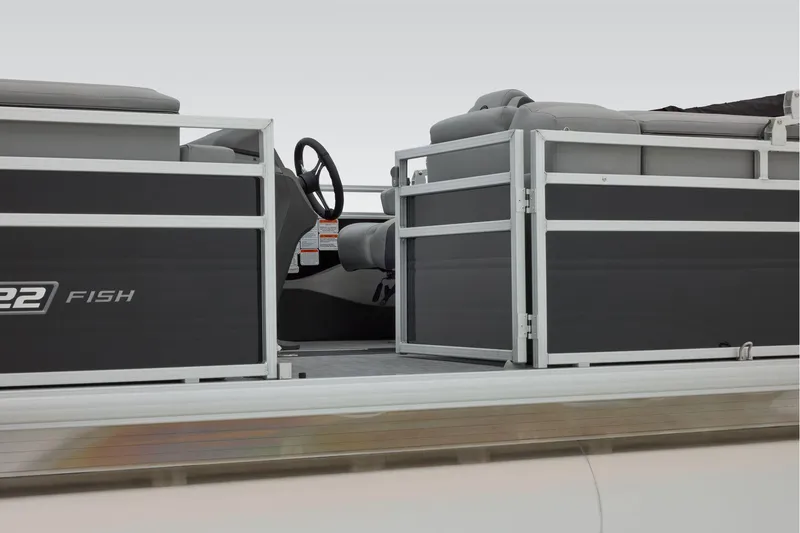

• Port wheelchair-accessible gate

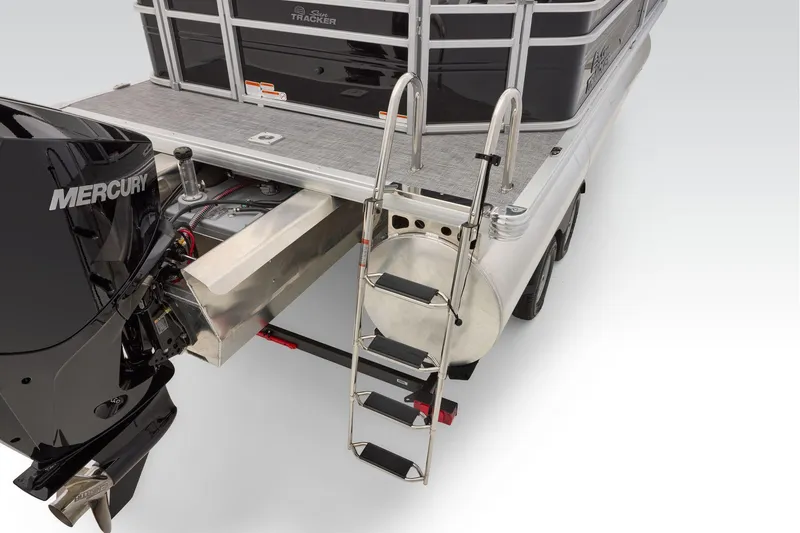

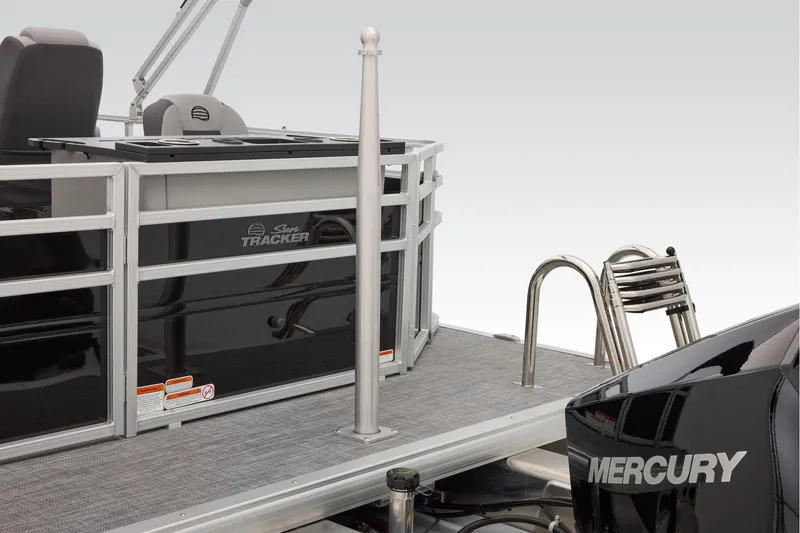

• Rear boarding platform w/NEW wider 4-step telescoping boarding ladder & grab rails

• Aft receptacle base for optional ski tow pylon

• Motor-stop safety lanyard

• Fire extinguisher

• Horn

Livewell System

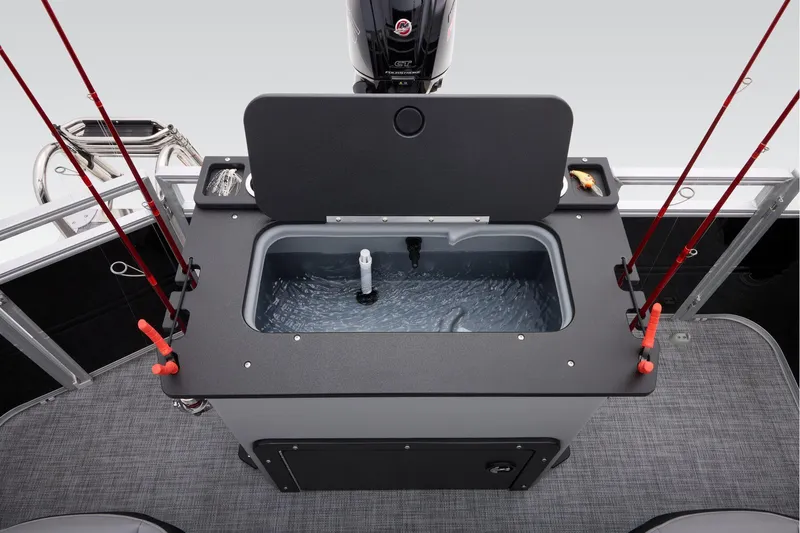

• Aft 15-gal. (56.78 L) aerated livewell/baitwell w/shutoff valve, drink holder, rod holder & composite lid w/fish ruler

Console

• NEW console design & color

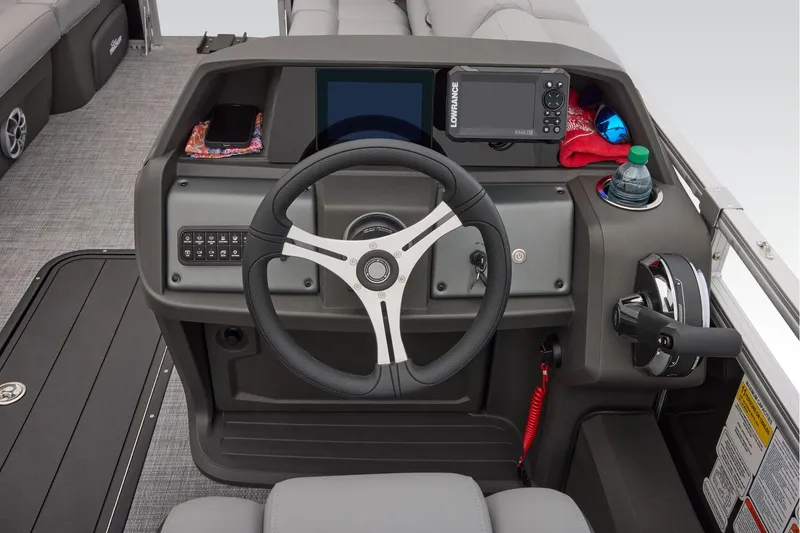

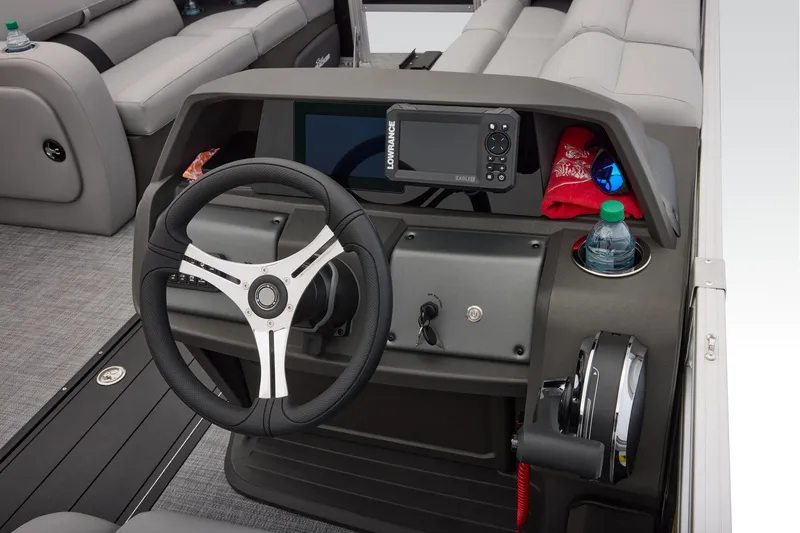

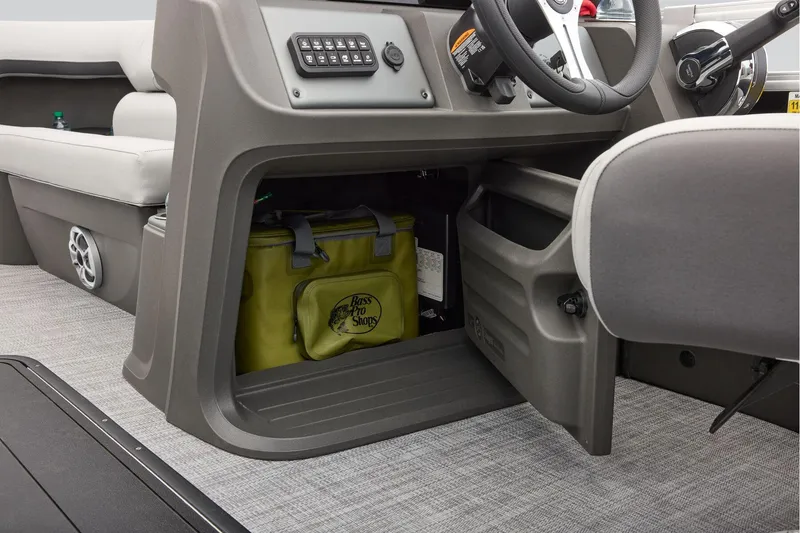

• Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

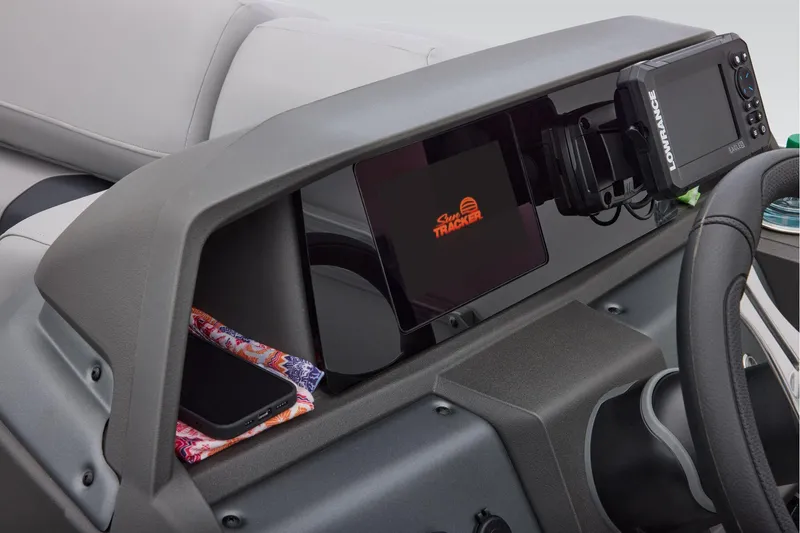

• SUN TRACKER FLARE™ touchscreen gauge display w/NEW integrated GPS & NEW stereo control

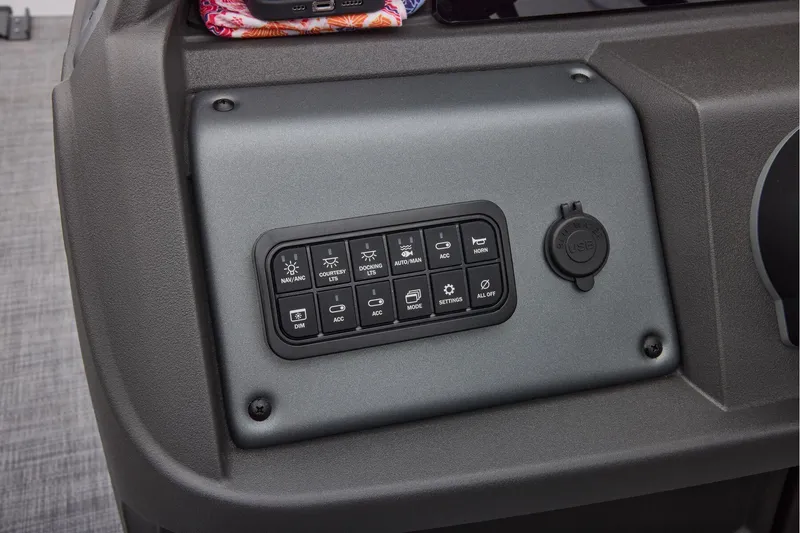

• NEW 12-button switch panel location

• Tilt hydraulic steering w/deluxe soft-touch steering wheel

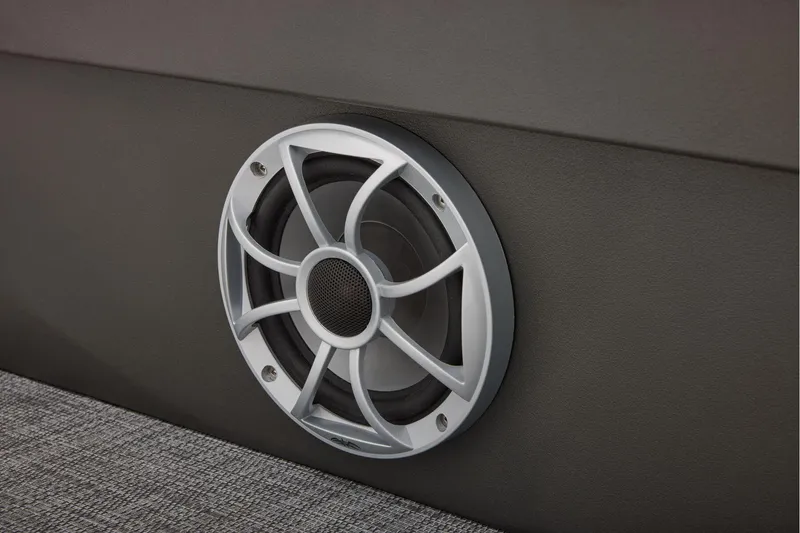

• NEW Wet Sounds® pre-tuned speakers, strategically located & shielded within the seat bases

• Master power on/off switch

• Recessed mobile phone cubbies

• USB charging receptacle

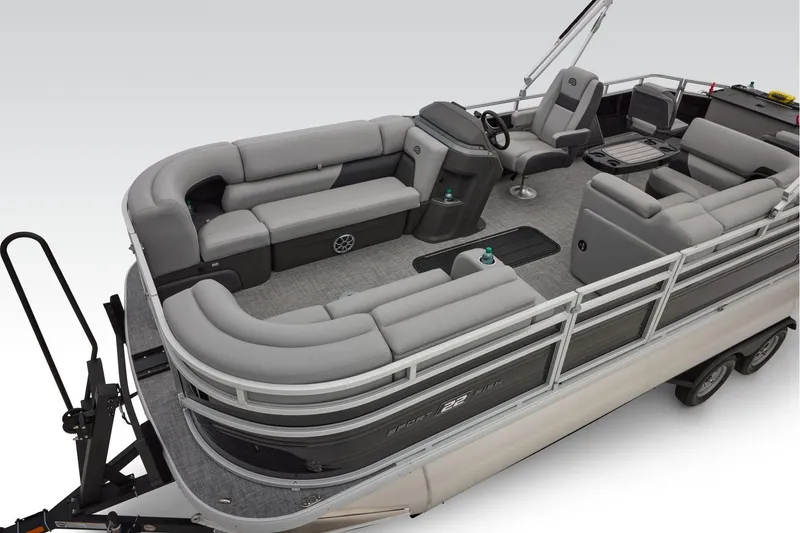

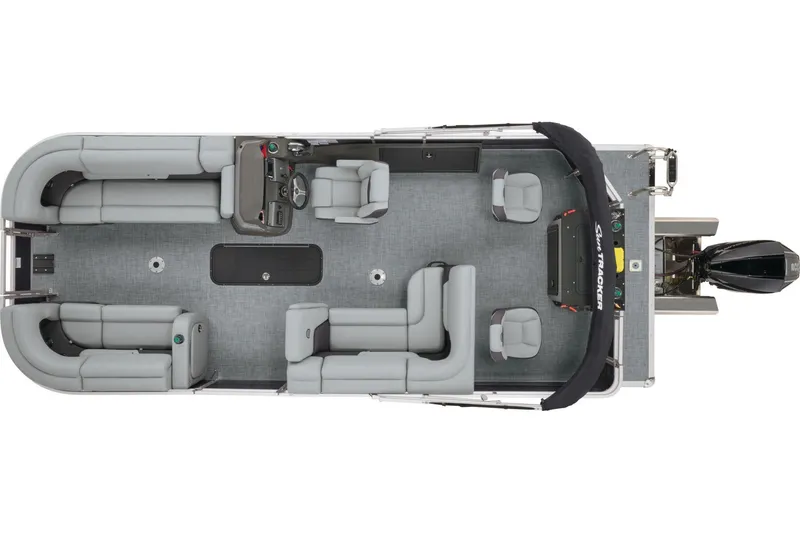

Interior

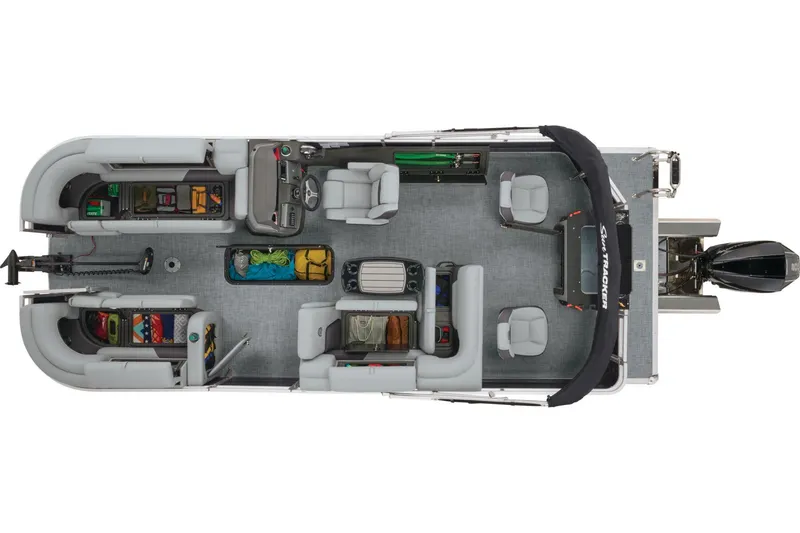

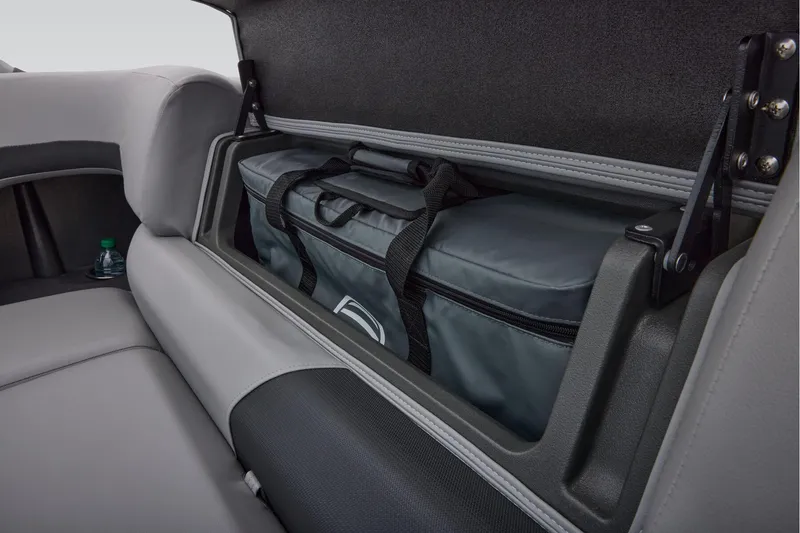

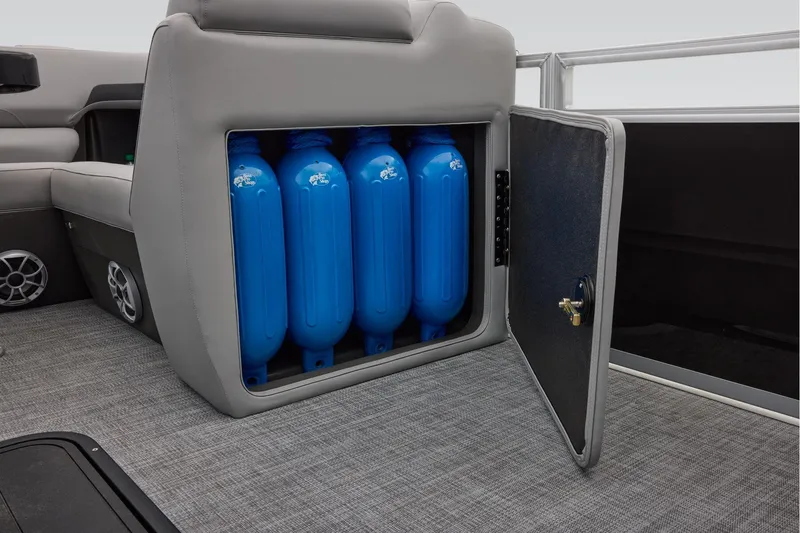

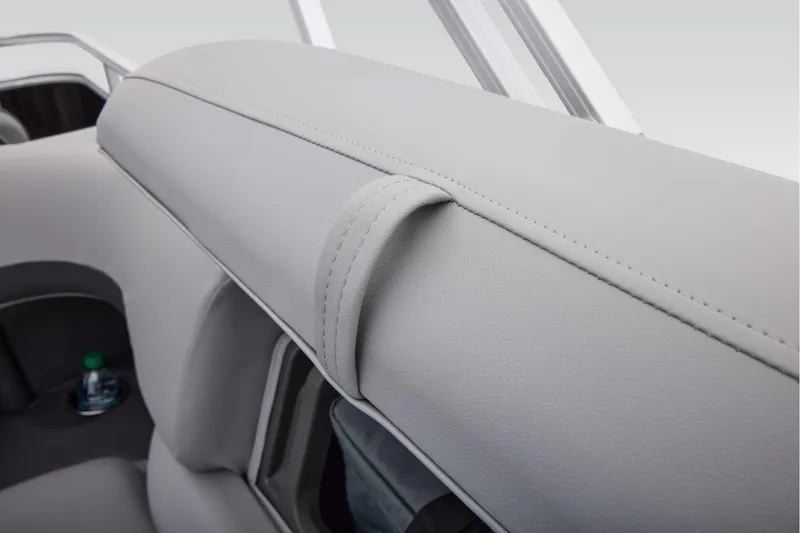

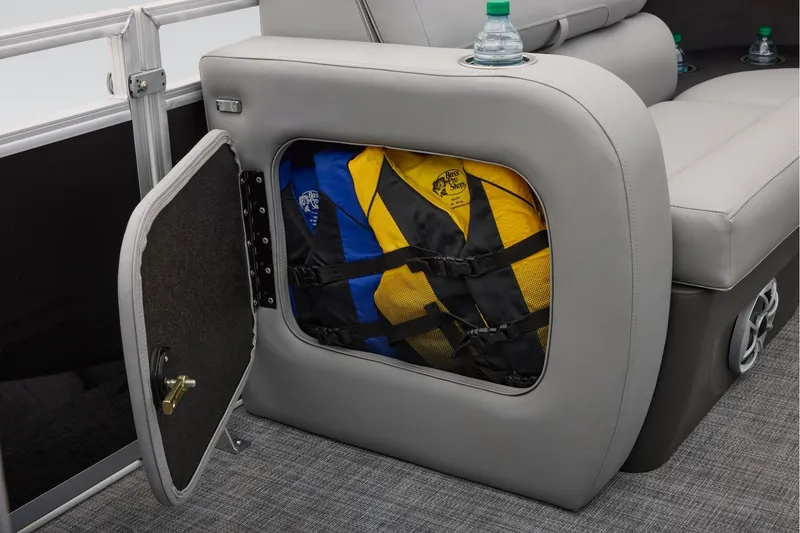

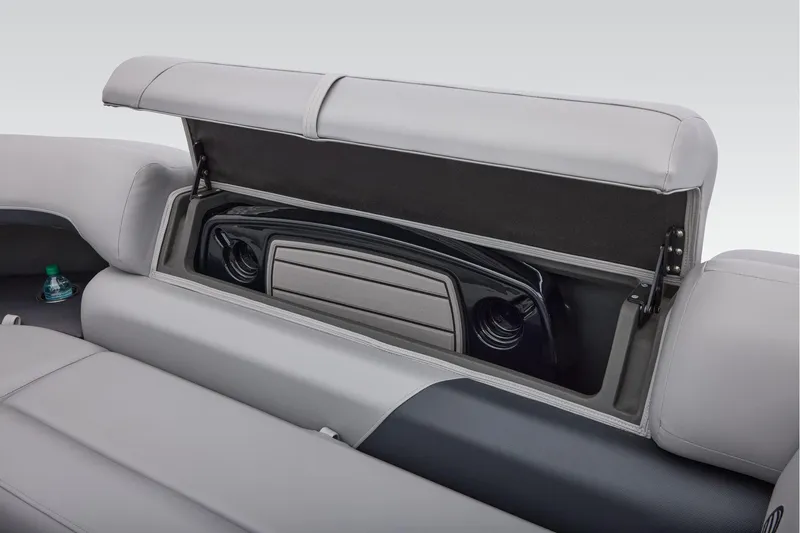

• Patented built-in STOW MORE™ seat-back storage system for all couches

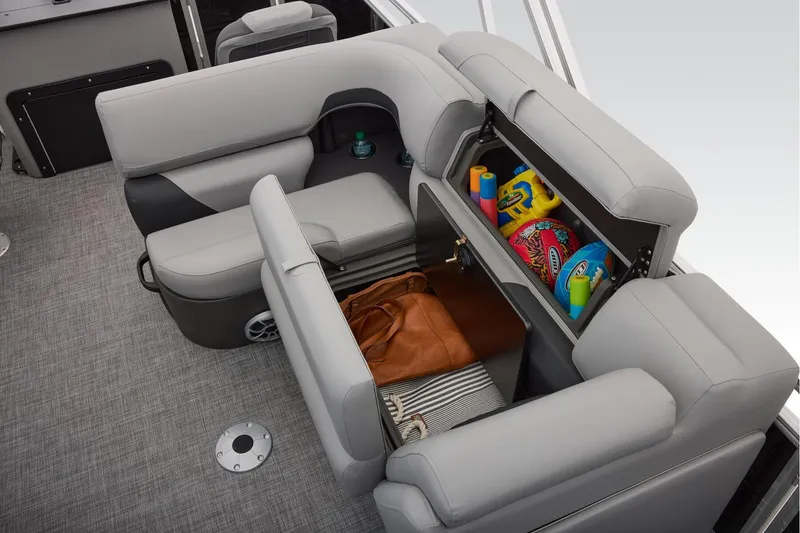

• Bow port couch w/STOW MORE™, underseat storage & armrest w/drink holder

• Bow starboard console couch w/STOW MORE™ & underseat storage

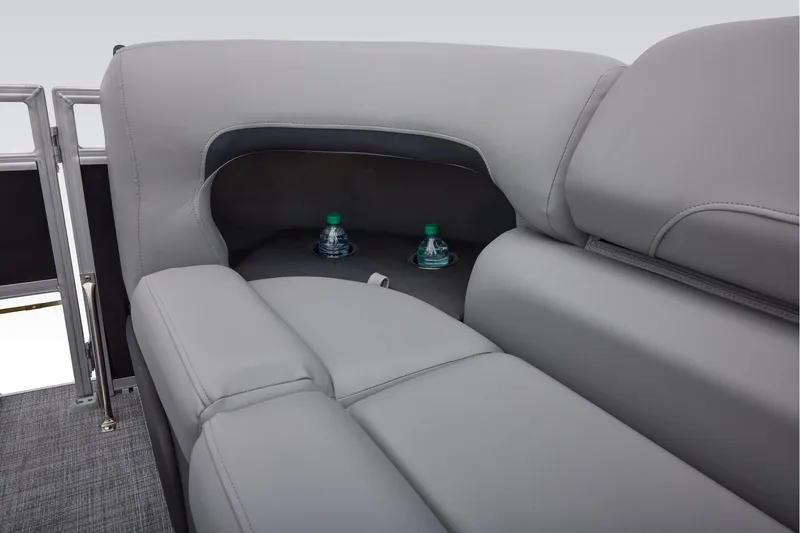

• NEW integrated drink holders w/storage area

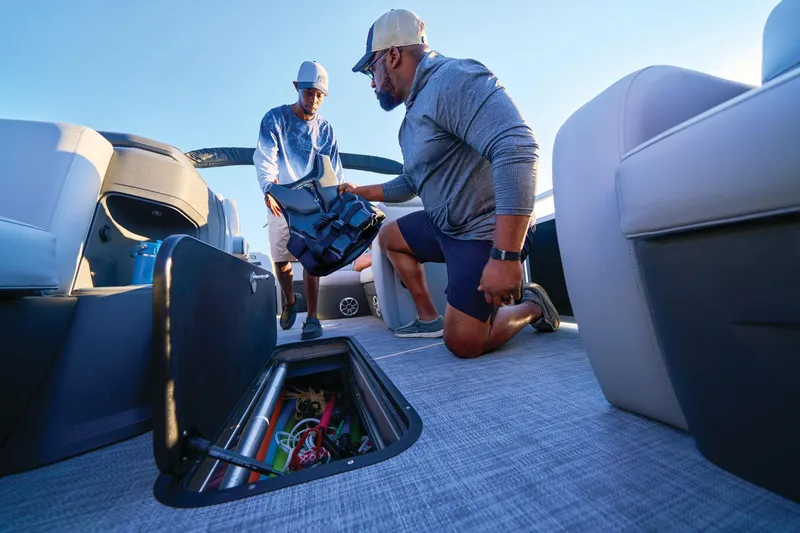

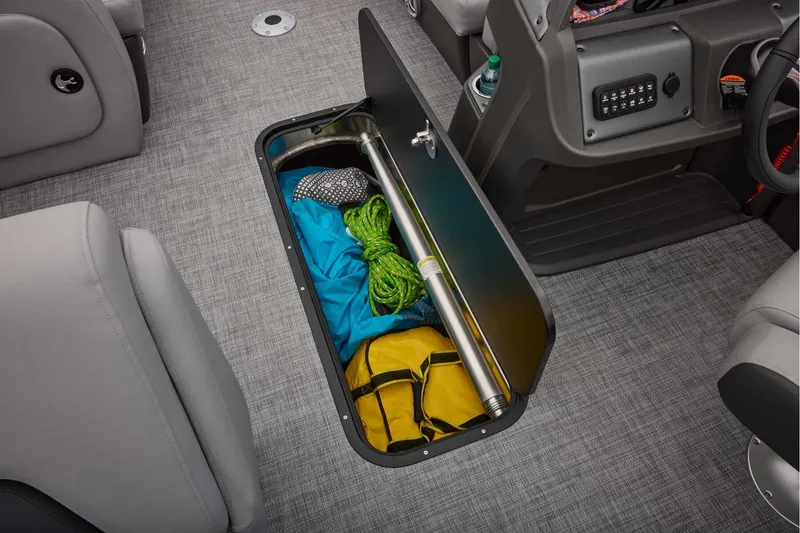

• In-floor lighted storage compartment — 88" (2.24 m) long, 23" (58.42 cm) deep — w/bilge pump in center log

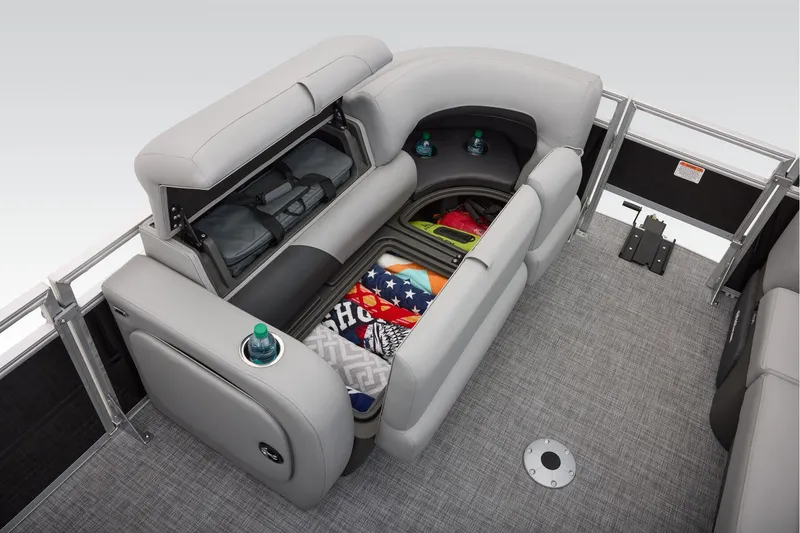

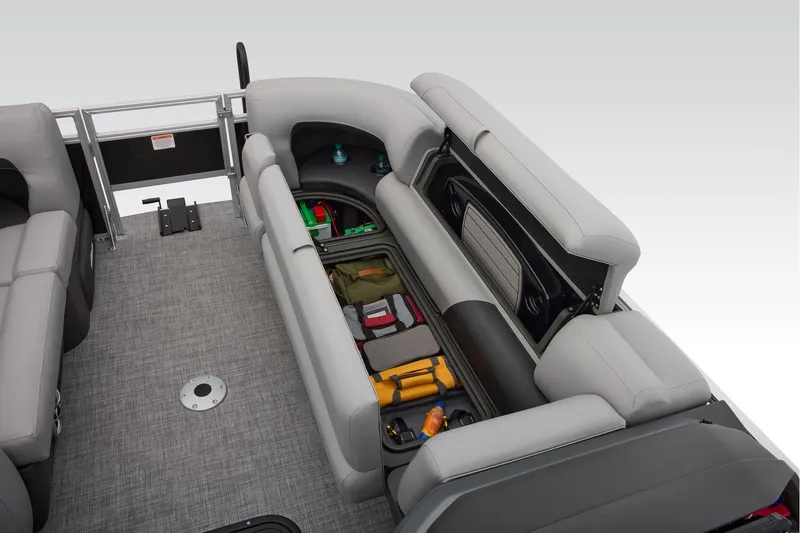

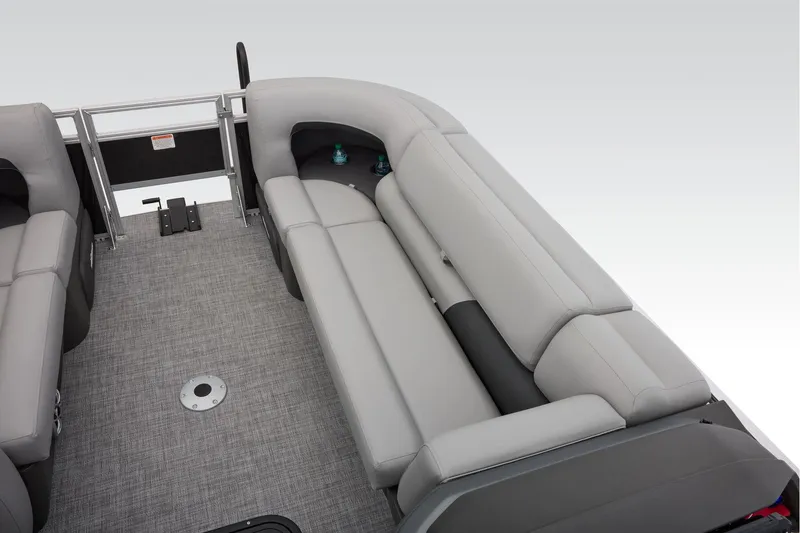

• Aft L-lounge couches w/STOW MORE™ & underseat, lockable storage

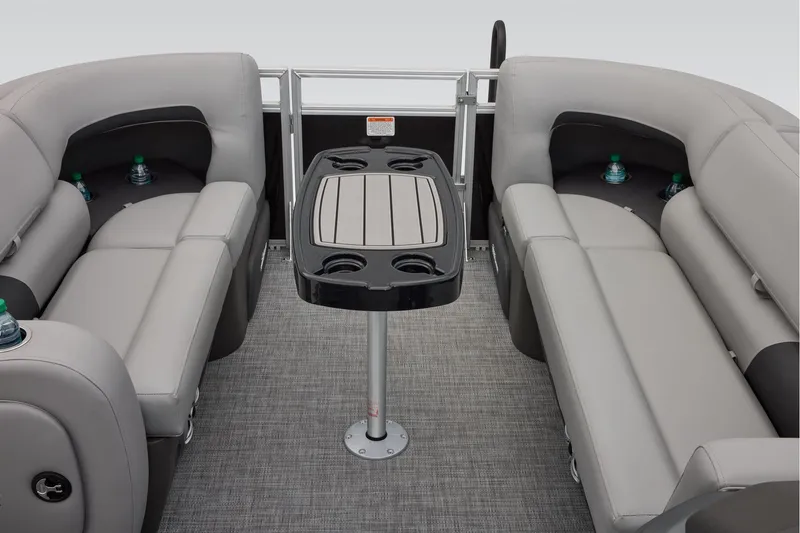

• Removable table w/4 molded-in drink holders; NEW color-coordinated, soft-touch mat; & NEW tailored table location per dealer (dealer installed)

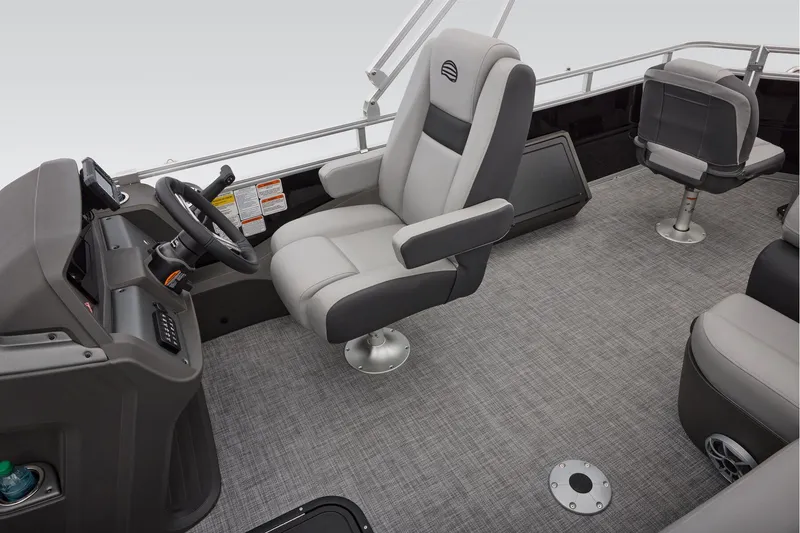

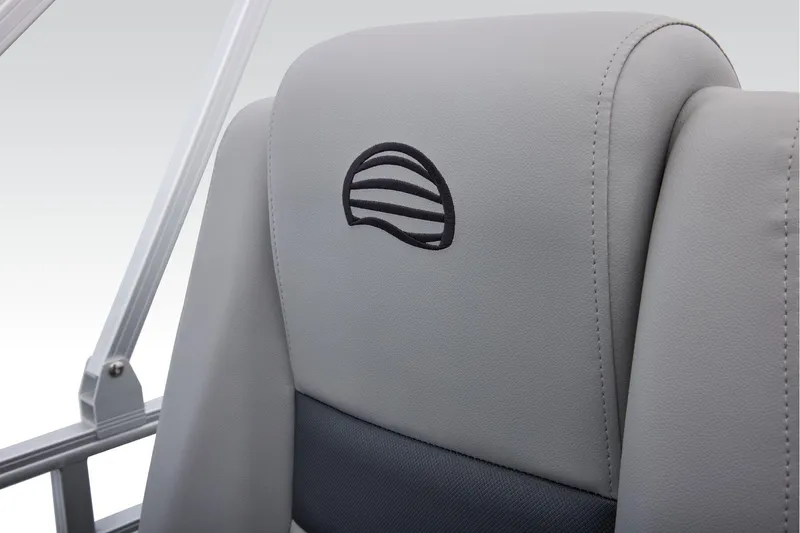

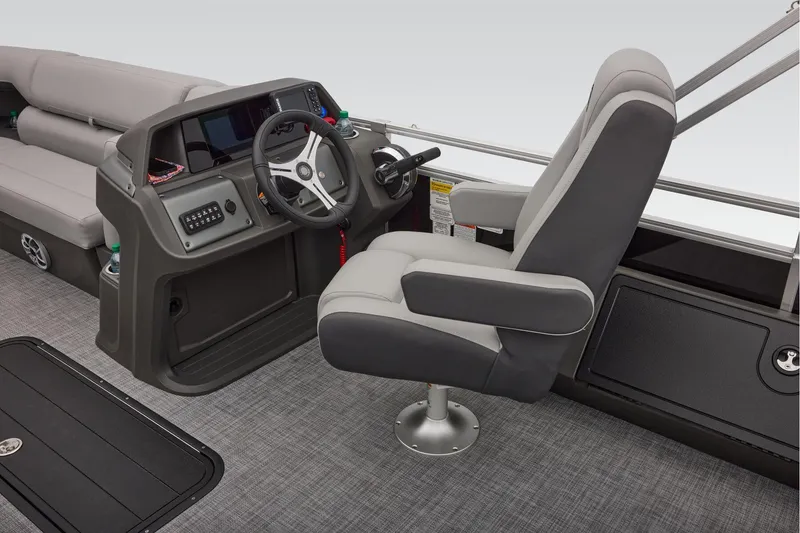

• Reclining, high-back swiveling helm bucket seat w/self-leveling armrests

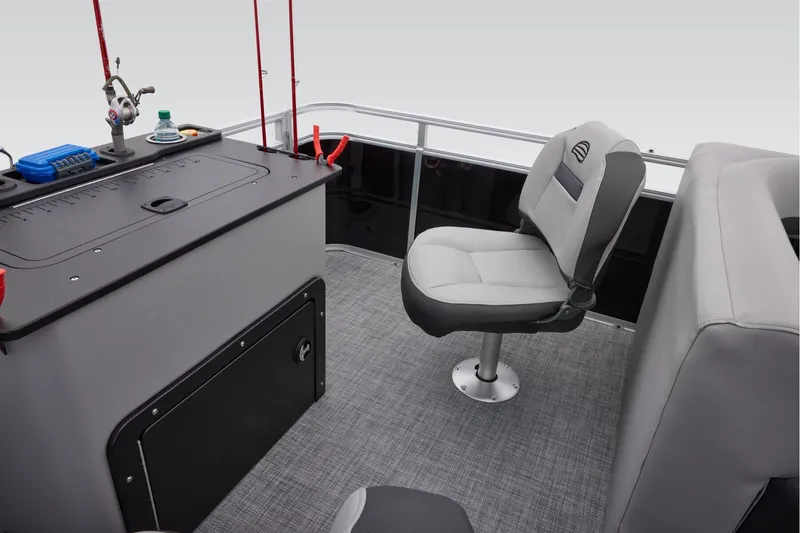

• 2 removable & folding fishing chairs w/heavy-duty 2-3/8" (6 cm) diameter pedestals

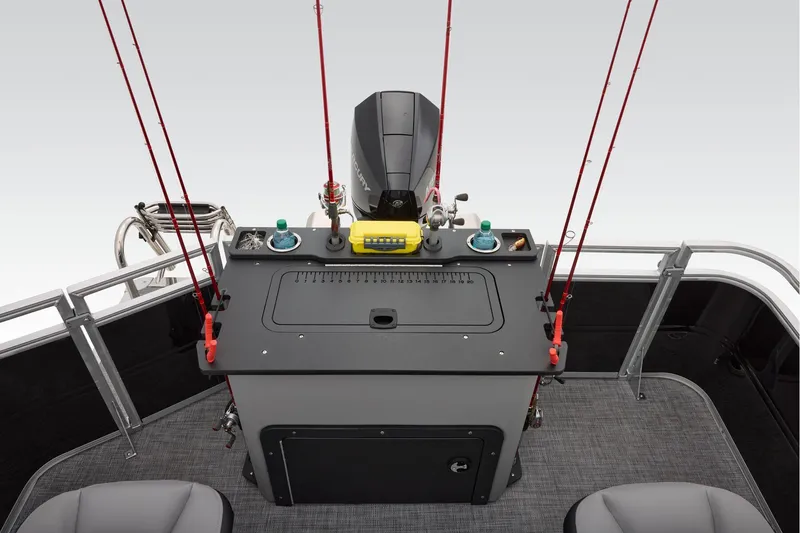

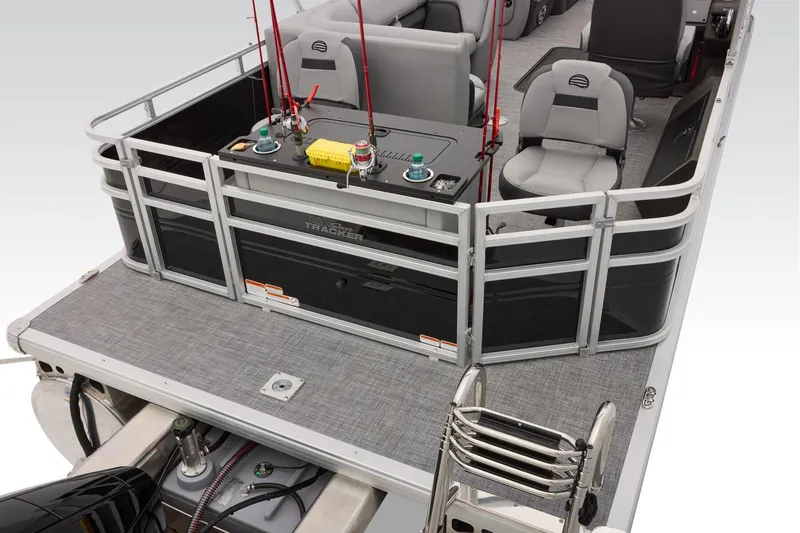

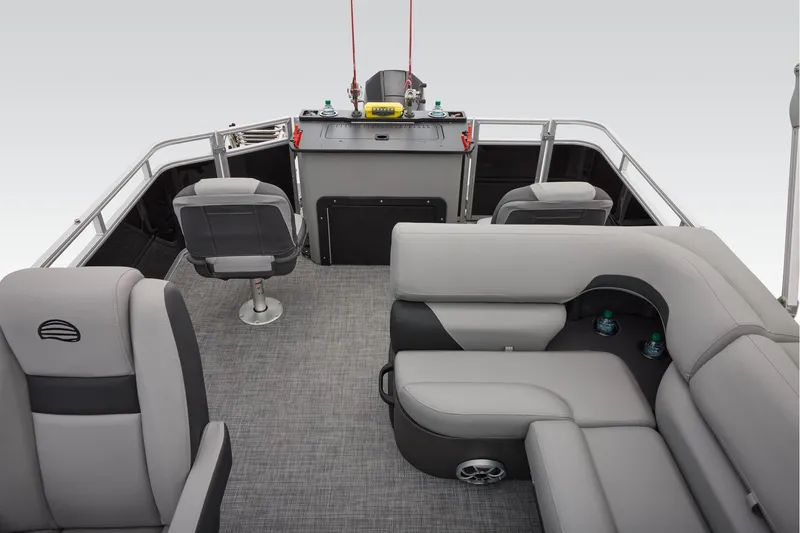

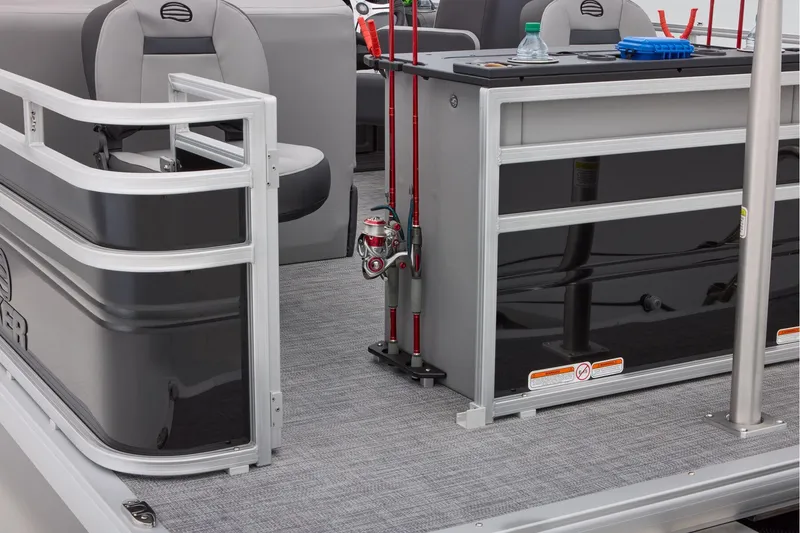

• NEW aft fishing station w/dual gates & aft platform; 2 pedestal seat base locations; & incorporated rod & tool holders

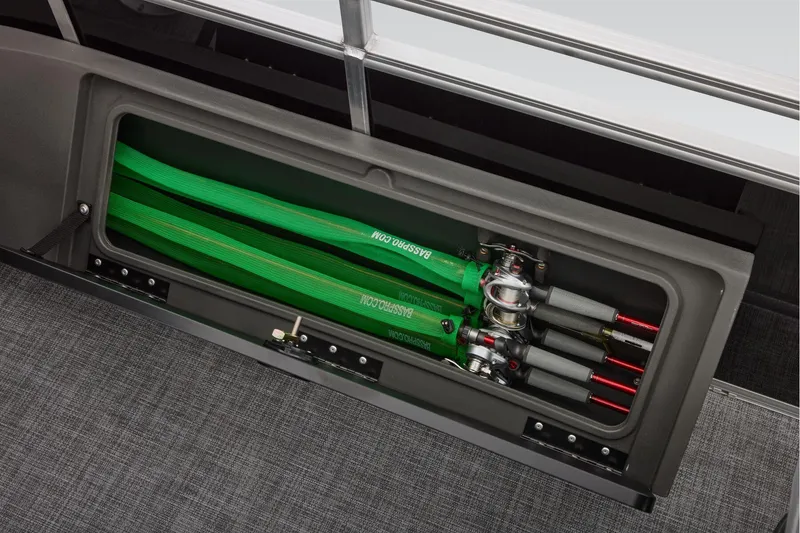

• Aft starboard lockable rod box for 6 rods to 7' 6" (2.29 m) w/lid, rod tube holders & organizer

• Interior courtesy lighting

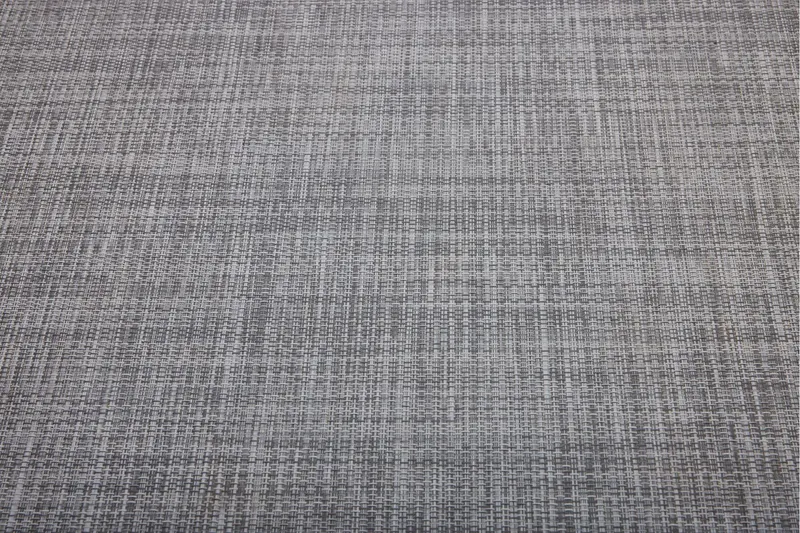

• NEW woven 16-oz. (.45 kg) marine-grade flooring throughout

• NEW marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Performance

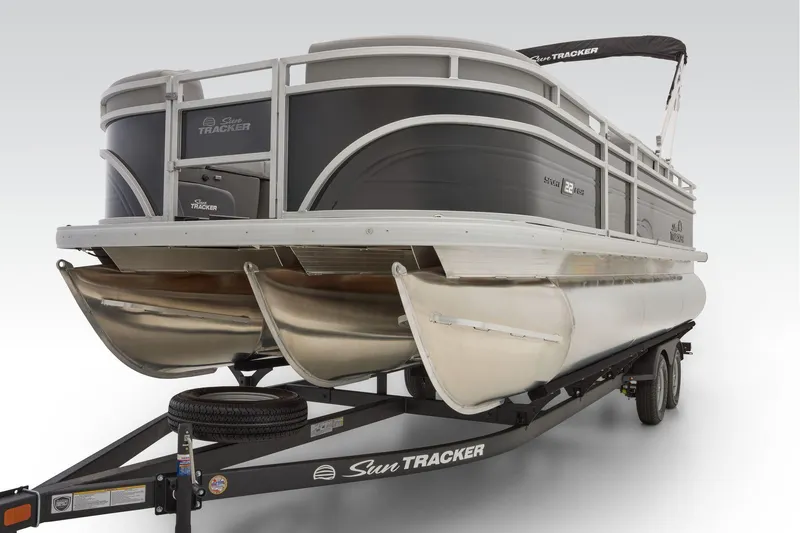

• Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs

• XP3 performance strakes & wave-deflecting nose cone for maximum performance

• Full-length, 1-piece longitudinal M-bracket deck supports

• Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets

• Heavy-duty aluminum U-channel reinforcement behind bow deck trim

• All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system

• All-aluminum box-beam transom for strength & longevity

• Factory-installed underpinning (under-deck shielding) for improved performance

• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty

• 1-1/4" (3.18 cm), .090" (.23 cm) anodized aluminum fence rails

• Sound- & vibration-deadening fence insulation for a quiet ride

• Extruded & anodized aluminum deck edging w/polished aft corner covers

• Precision fit & finish via plasma & laser-cut parts & robotically-welded construction

• Rotomolded storage, furniture & console for superior strength & longevity

• Nylon gate latches & heavy-duty hinges that open inward

• Stainless or coated corrosion-resistant fasteners

• Factory-matched aluminum propeller

Exterior

• Color: NEW Copper Red, NEW Indigo Blue or NEW Starlite Black fencing

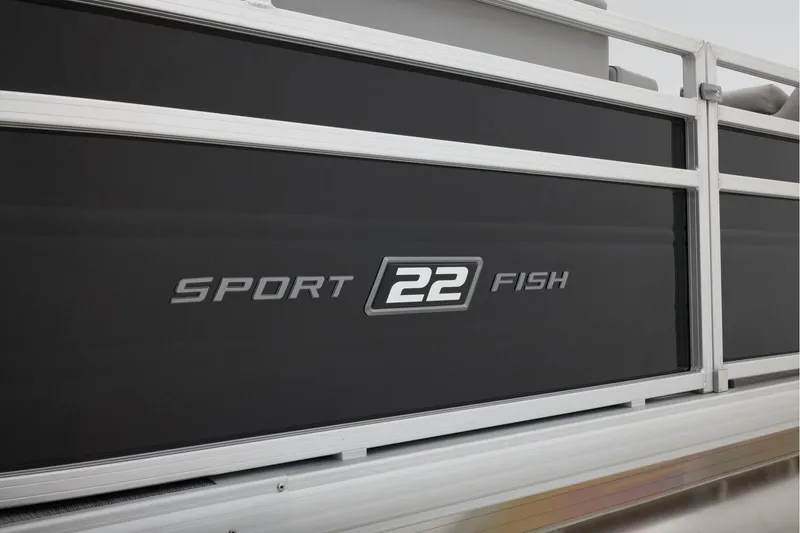

• NEW graphics

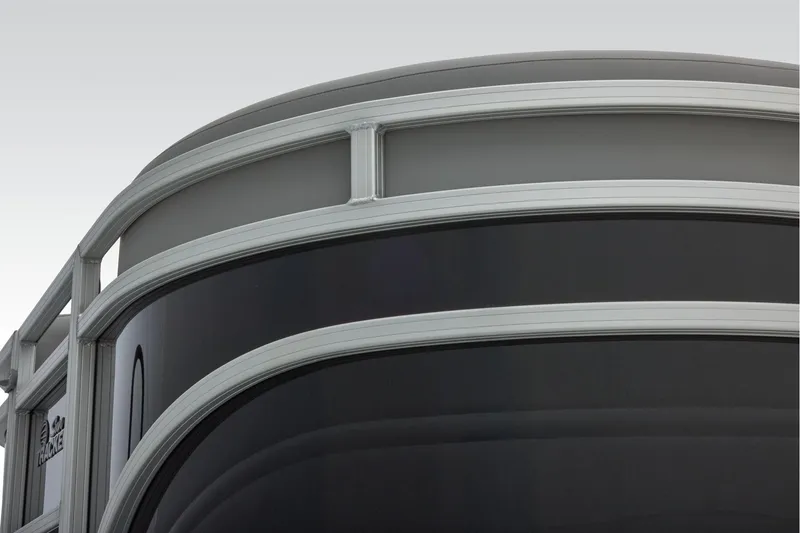

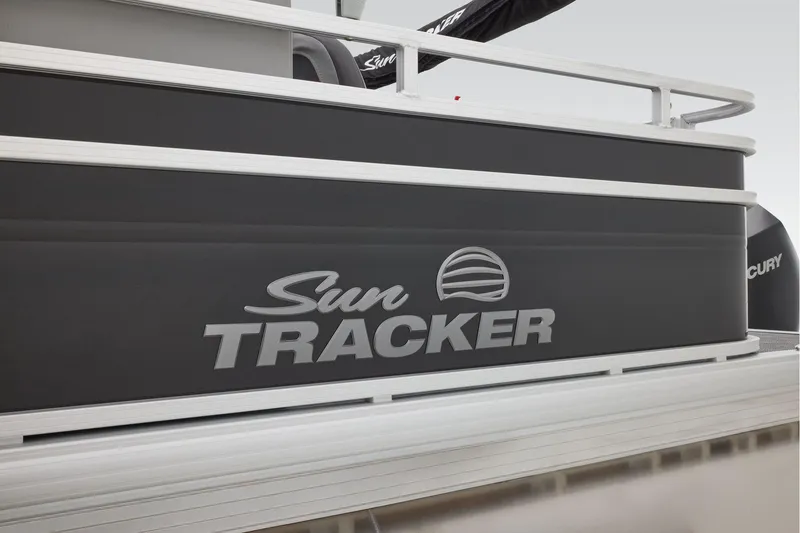

• Patent-pending TRACK FORMED® fence design w/high-sheen finish for long-lasting cosmetics

• Elevated fence panels for deck drainage & ventilation

Electrical

• 500 GPH (1,893 LPH) Ultima automatic bilge pump

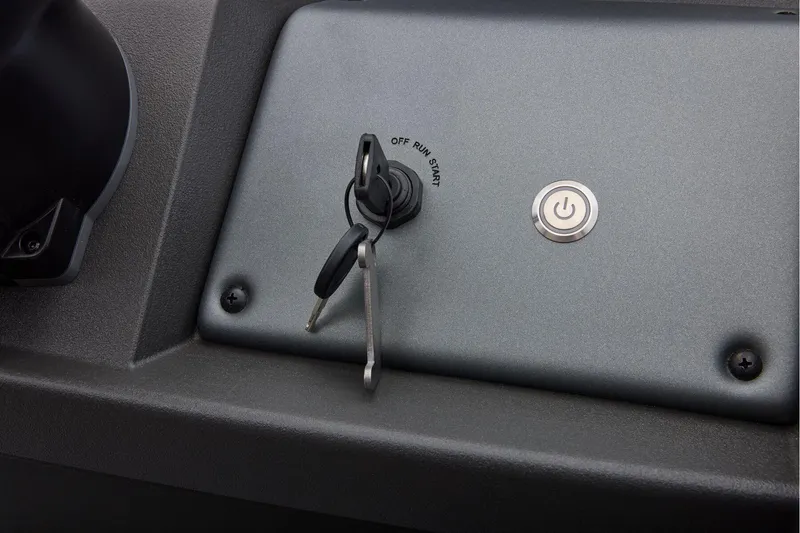

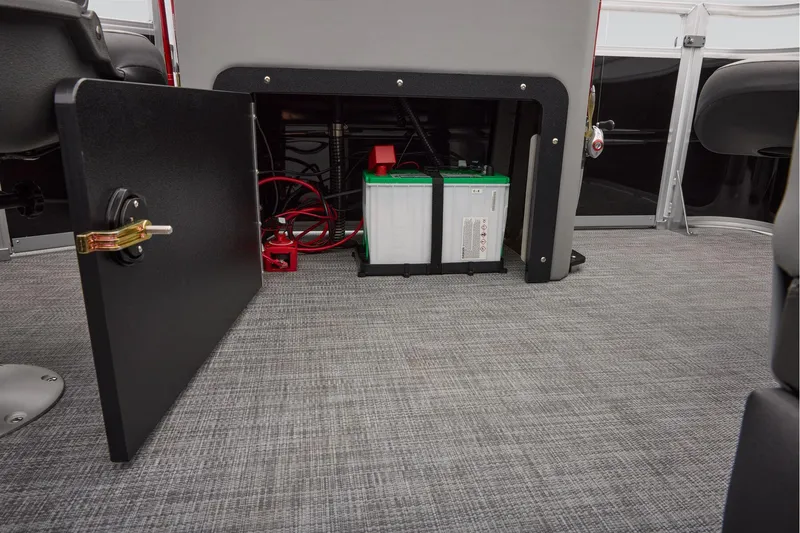

• Battery disconnect switch

• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door

• Protective abrasion-resistant wire wrap

• Water-resistant connectors

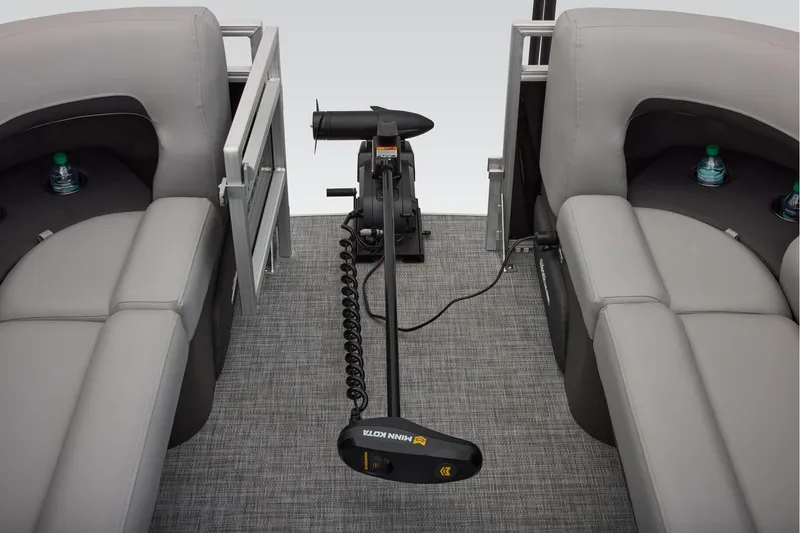

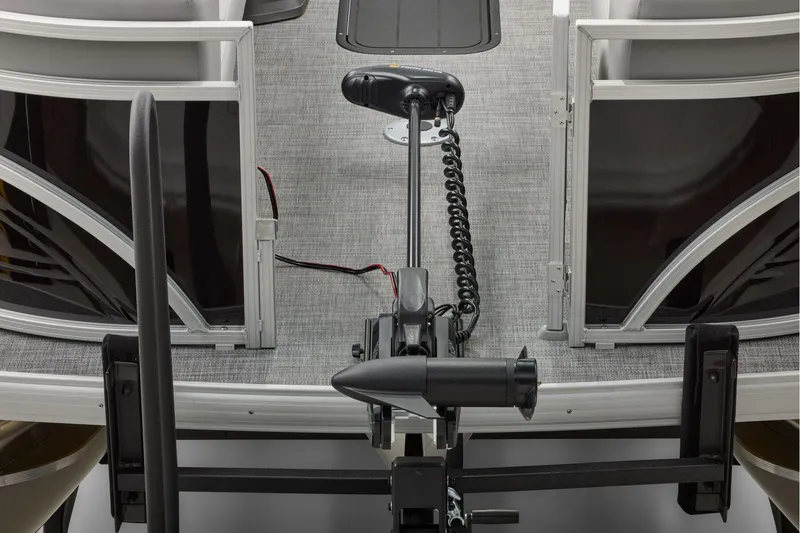

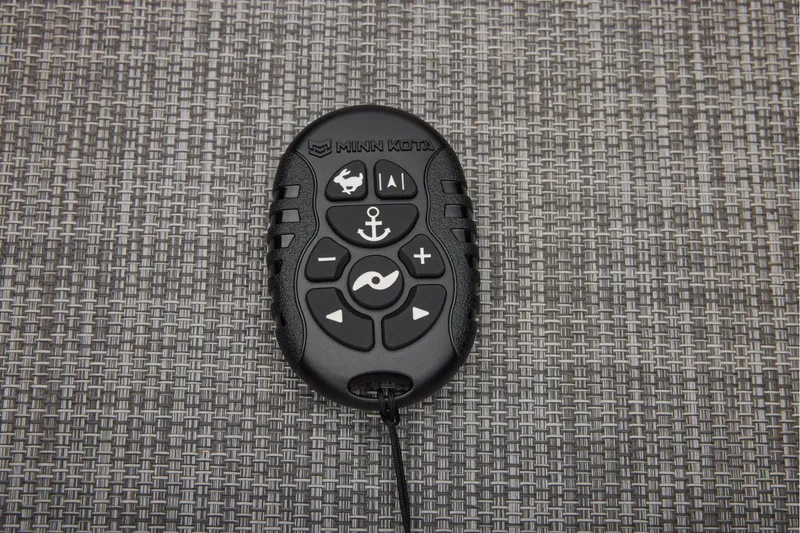

• Pre-wired for optional fishing package
