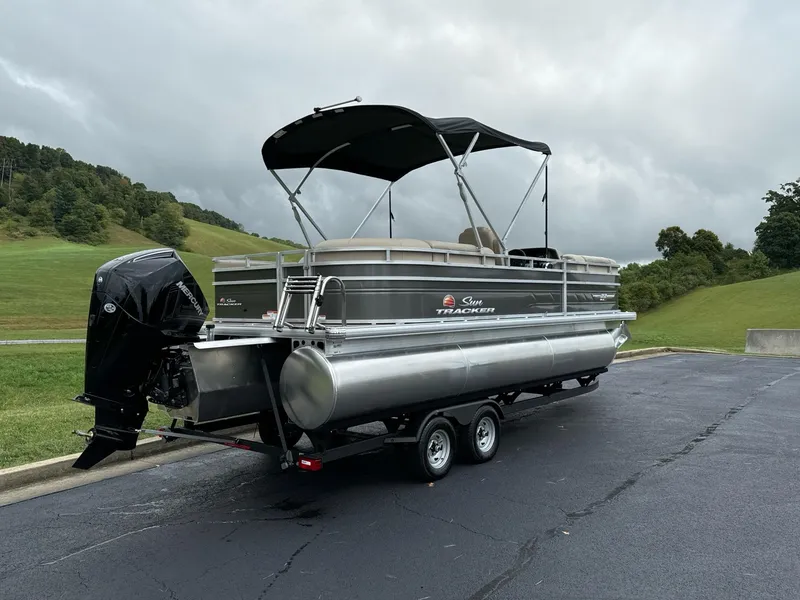

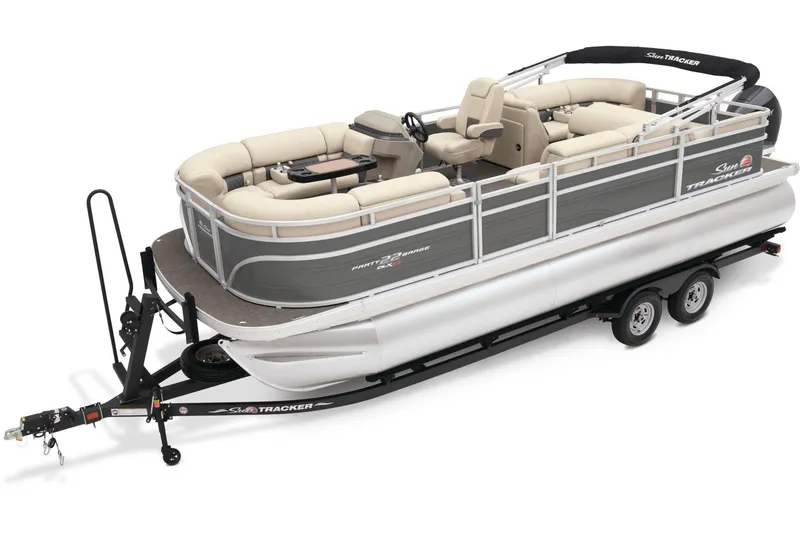

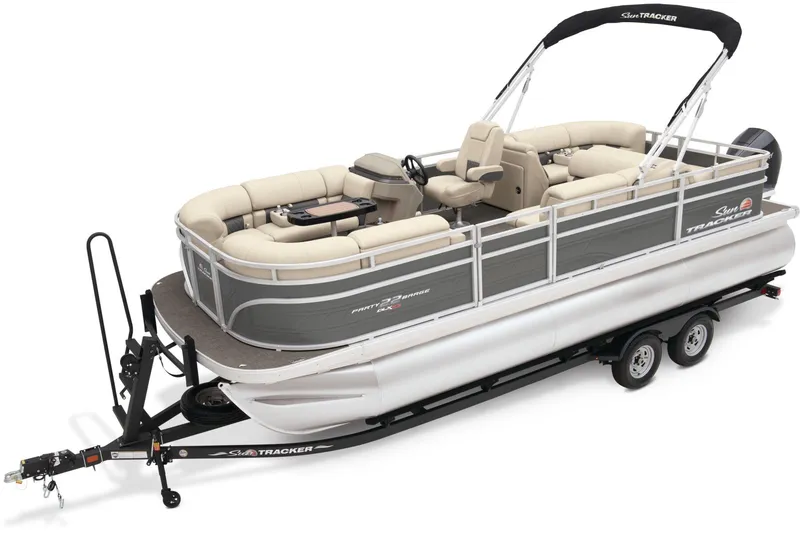

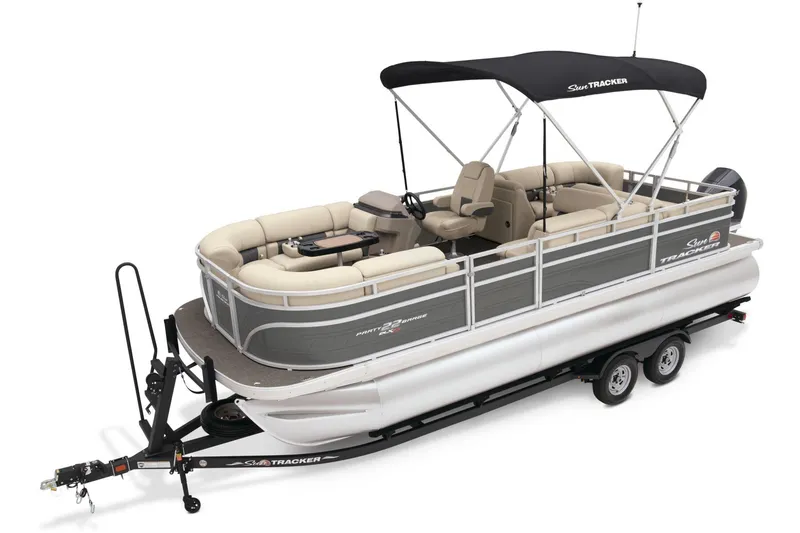

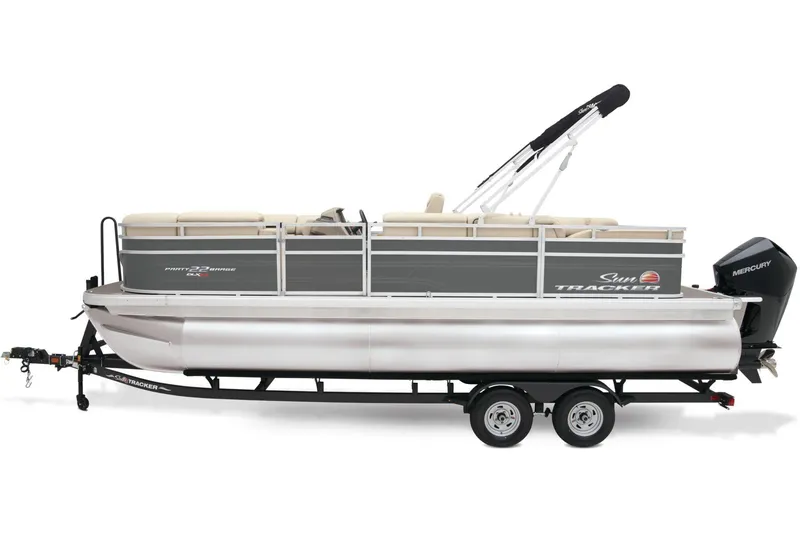

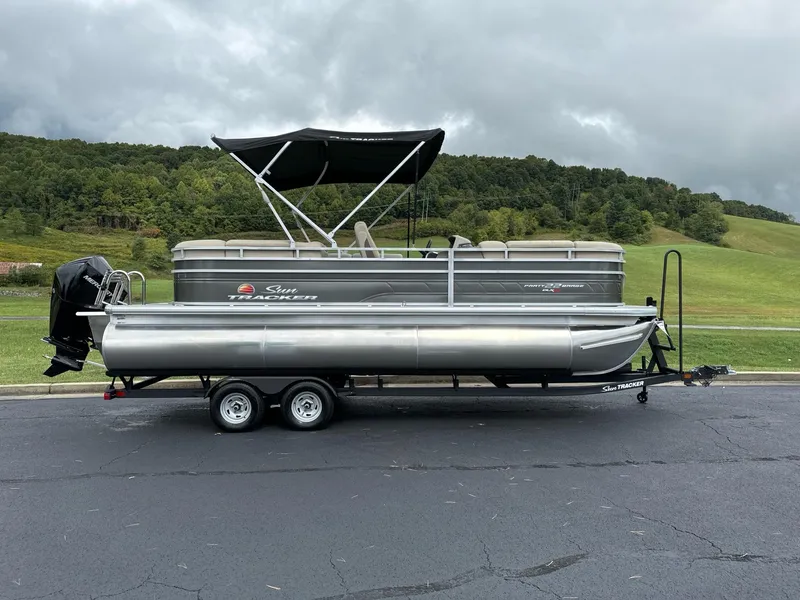

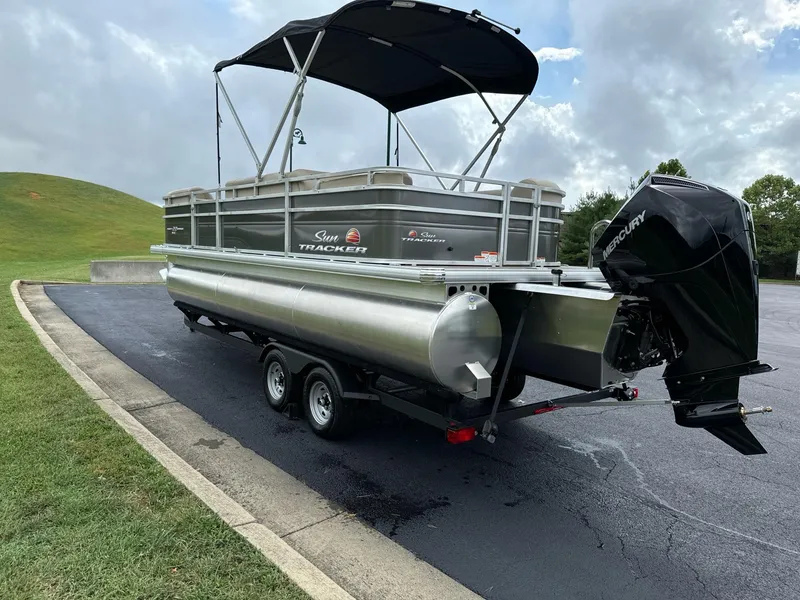

2025 Sun Tracker Party Barge 22 RF XP3

• Length:24' 2"

• Deck Length: 22' 1"

• Deck Width: 8' 6"

• Max. Recommended HP: 200 HP

• Fuel Capacity: 52 gal.

• Pontoon Log Length: 22' 3"

• Pontoon Log Diameter: 26"

• Pontoon Log Material: 0.1 5052 marine alloy

• Max. Person Capacity: 11 persons

• Max. Person Weight: 1600 lbs.

• Max. Person, Motor & Gear Weight: 2400 lbs.

• Interior Depth: 29.5"

• Average Dry Weight: 2980 lbs.

• Average Package Weight: 4970 lbs.

• Package Height: 8' 11"

• Package Width: 8' 6"

• Towing Length: 32' 4"

• Storage Length: 32' 4"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty

• NMMA® certified

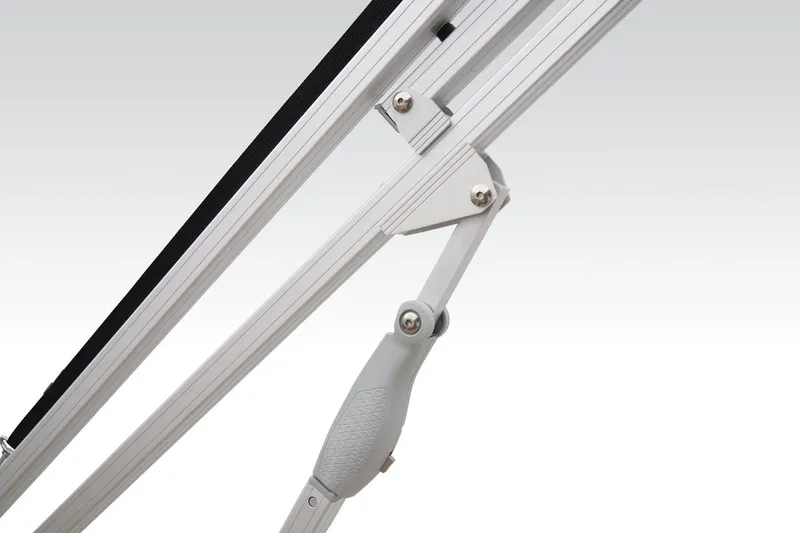

• 10' (3.05 m) SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot (color-coordinated Black w/Charcoal fencing or Sand w/Copper Red fencing)

• Built-in LED docking lights

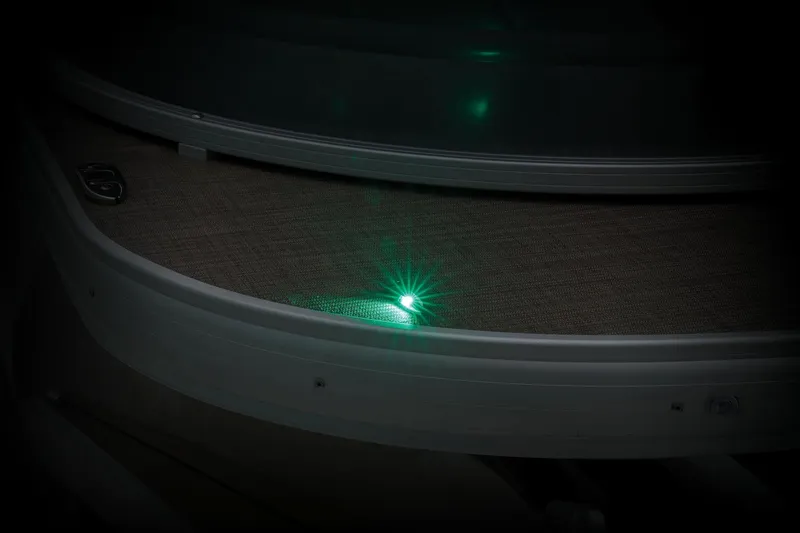

• Built-in LED navigation & anchor lights

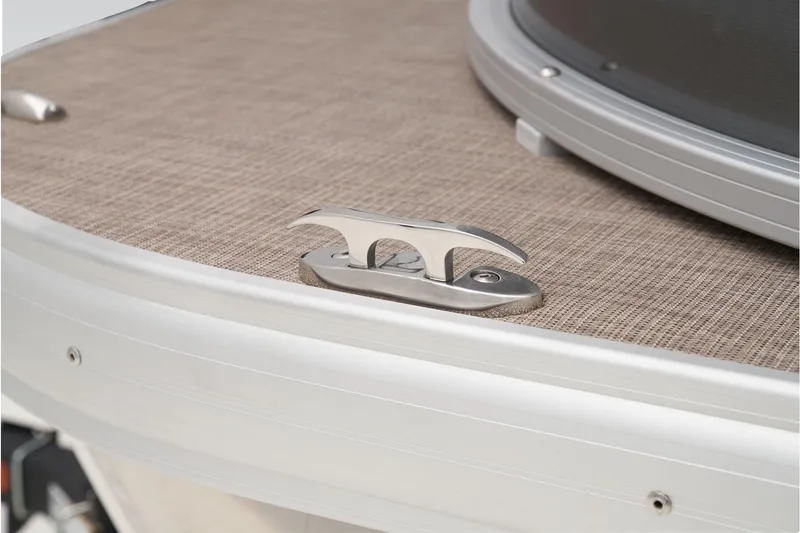

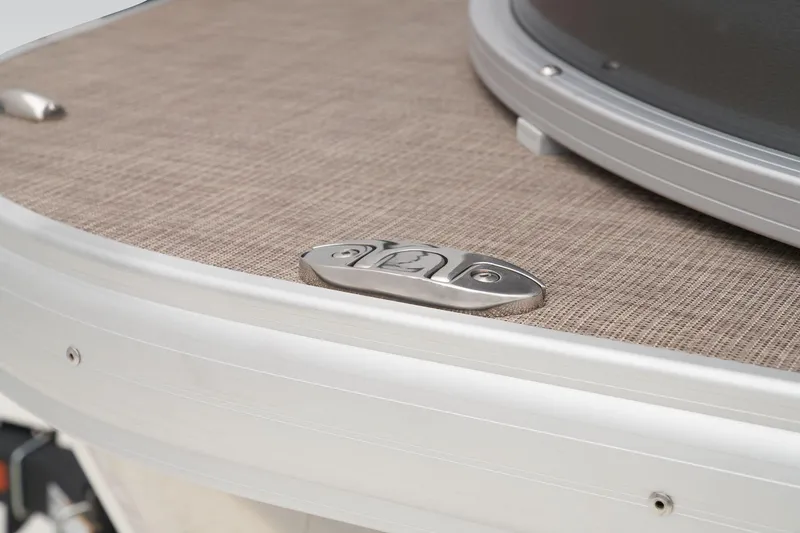

• 4 folding mooring cleats & starboard side tie-off mooring eye

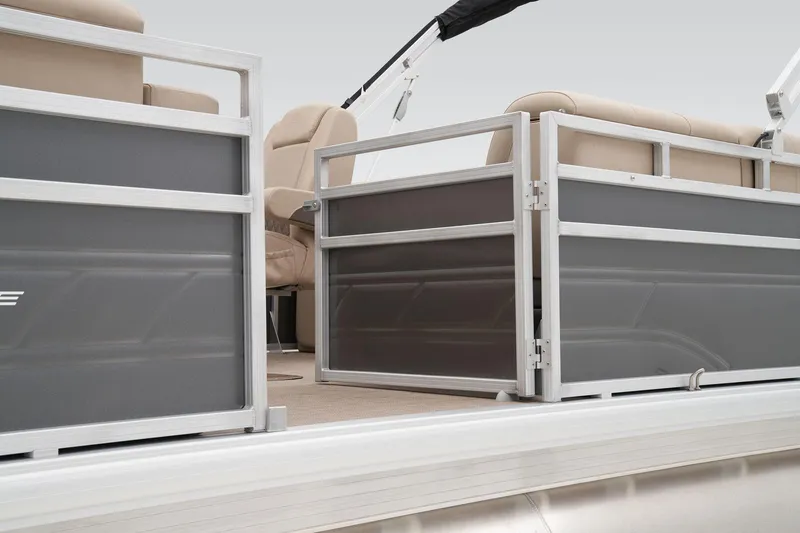

• Port wheelchair-accessible gate

• Rear boarding platform w/4-step telescoping boarding ladder & grab rails

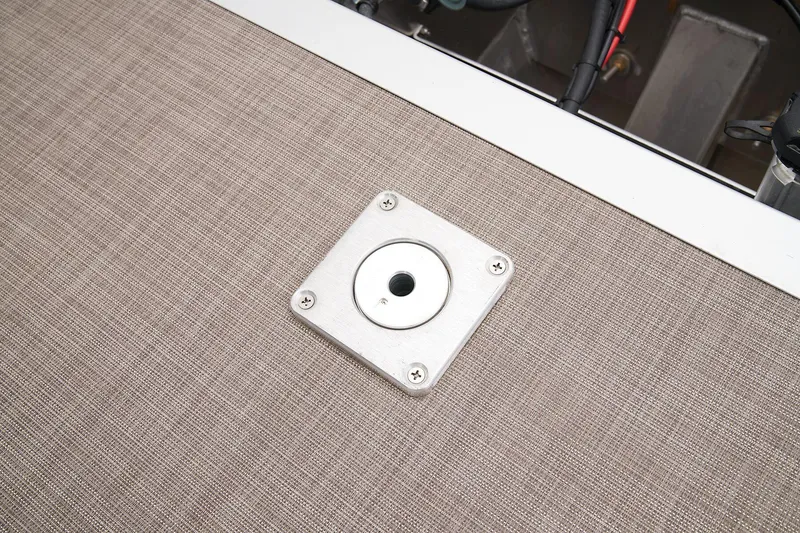

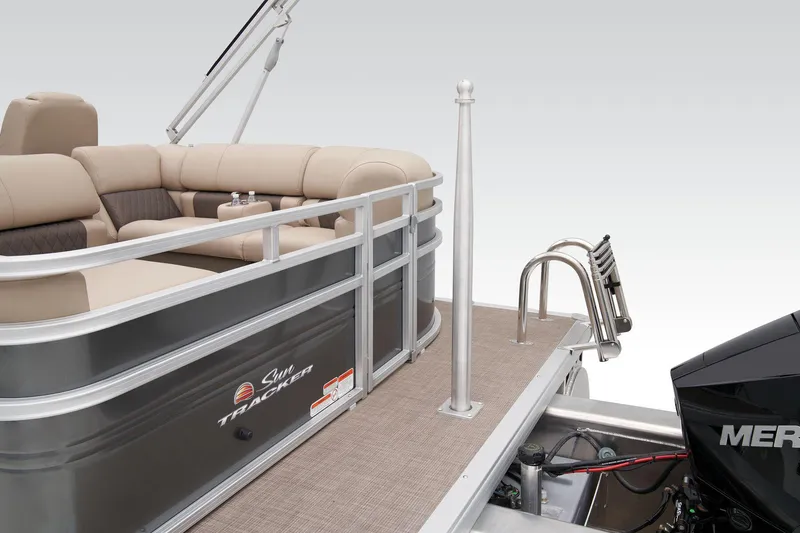

• Aft receptacle base for optional ski tow pylon

• Motor-stop safety lanyard

• Fire extinguisher

• Horn

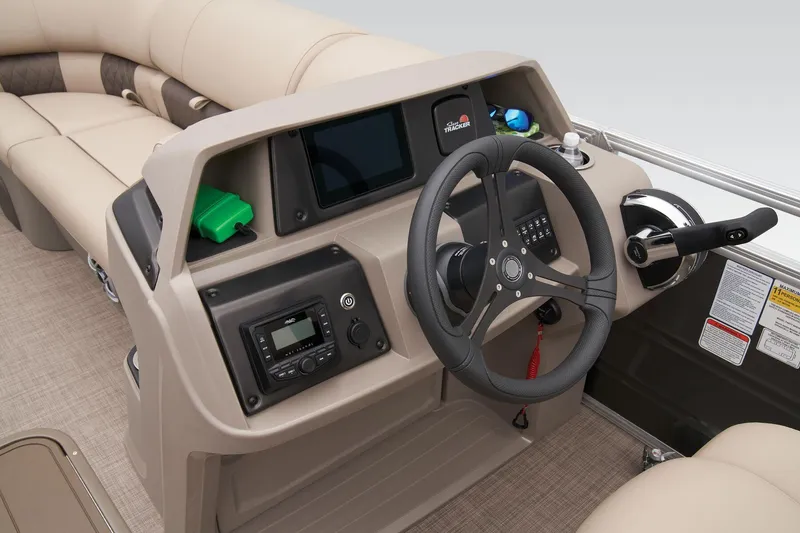

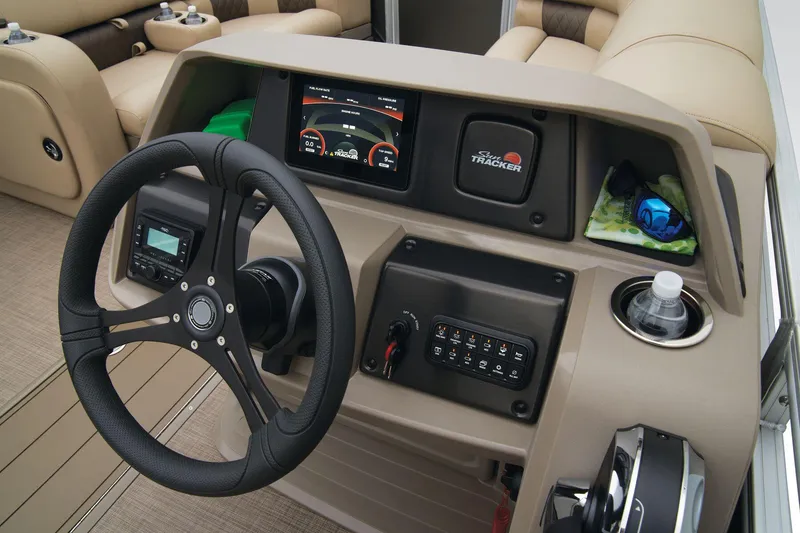

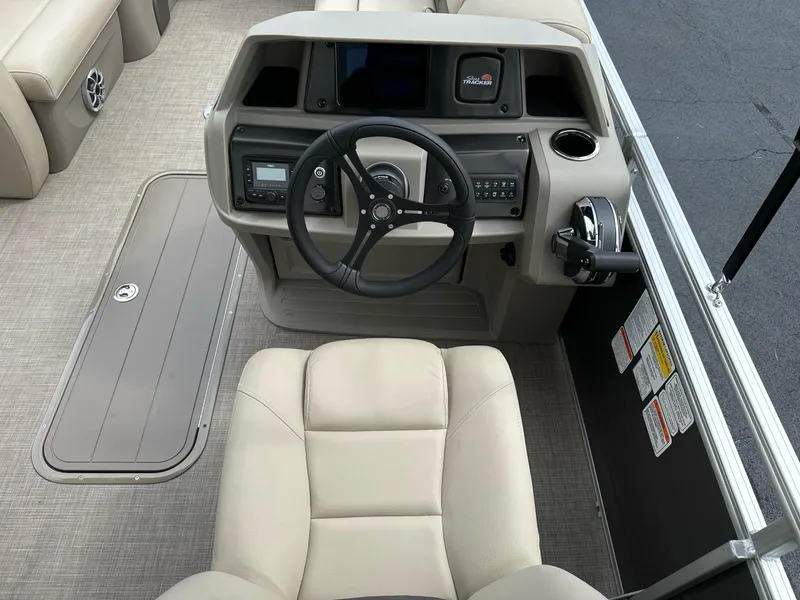

Console

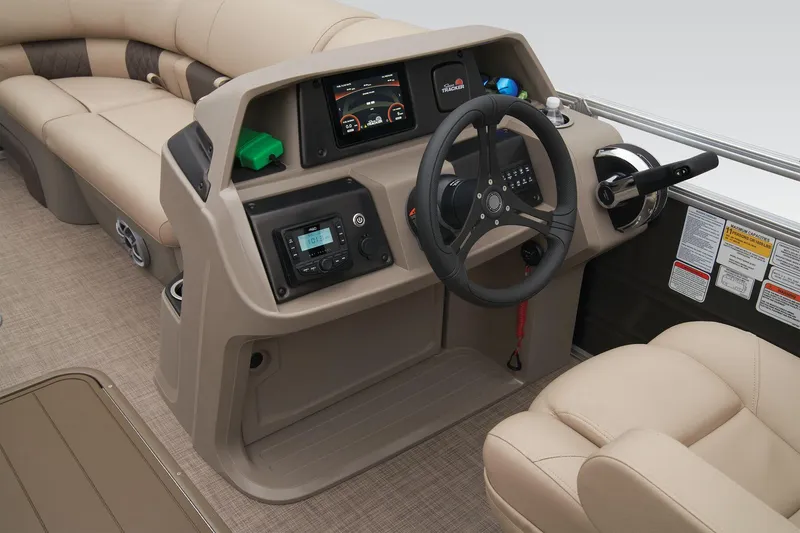

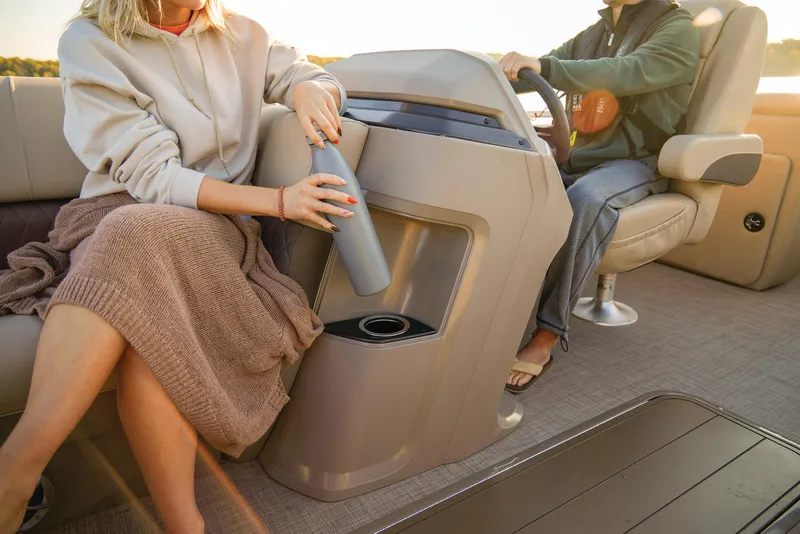

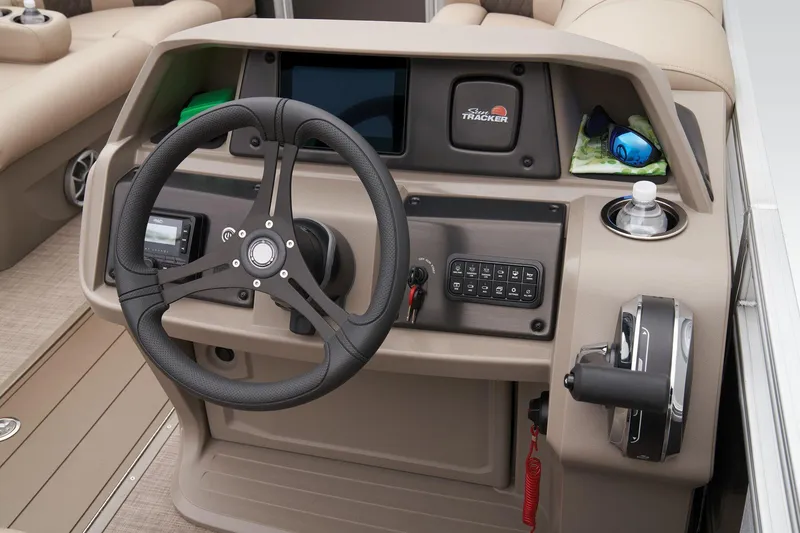

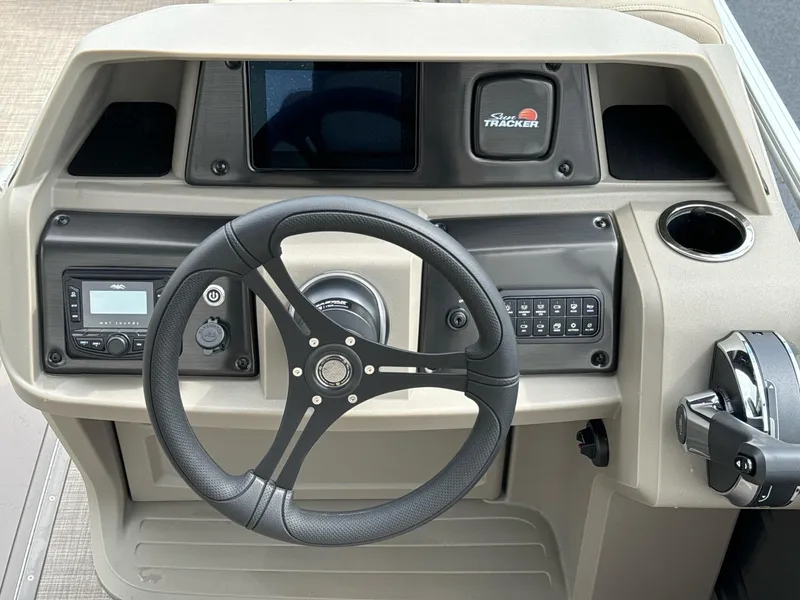

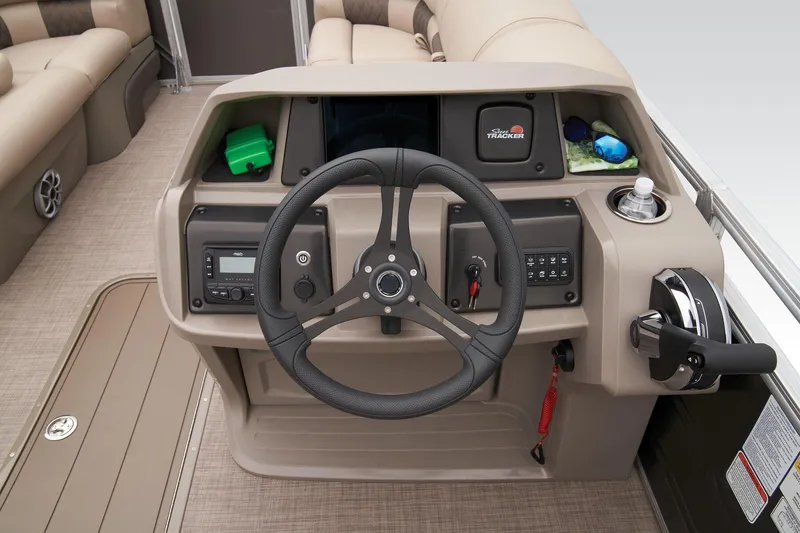

• Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

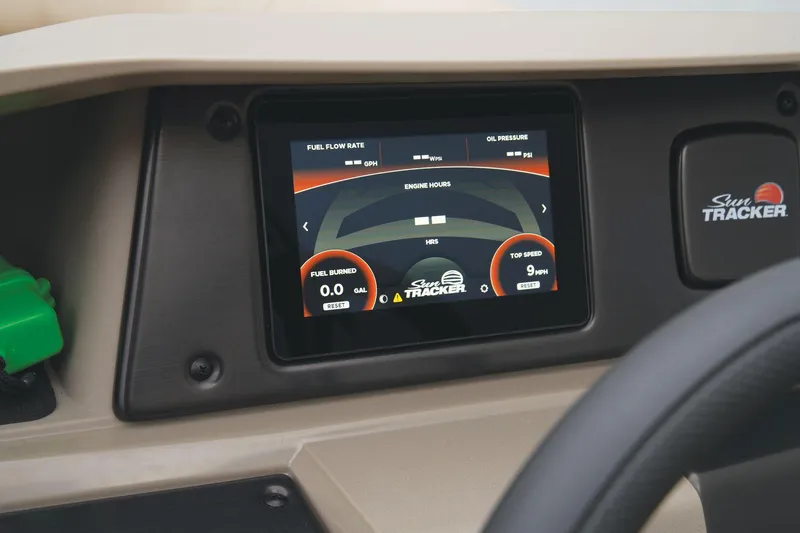

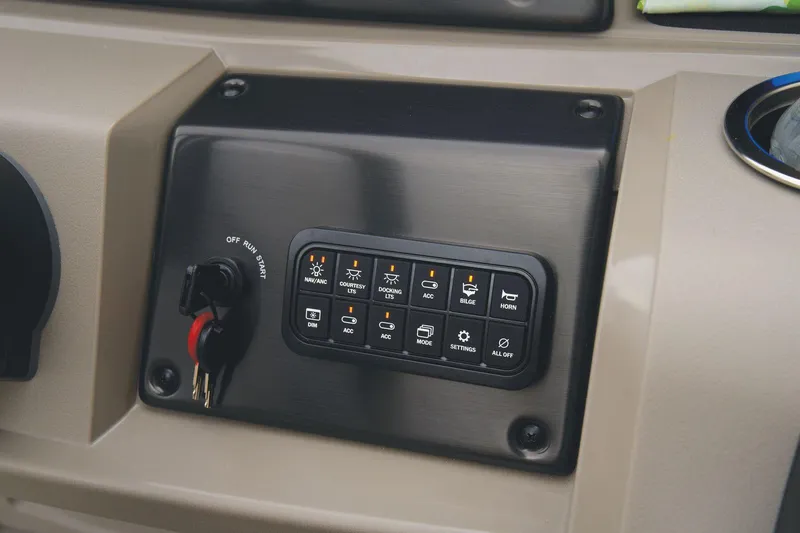

• SUN TRACKER FLARE™ touchscreen gauge display & 12-button switch panel

• Tilt hydraulic steering w/deluxe soft-touch steering wheel

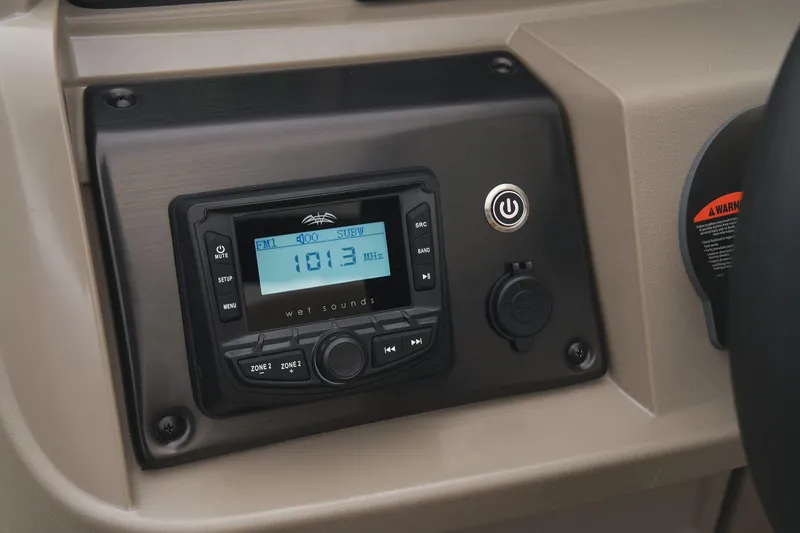

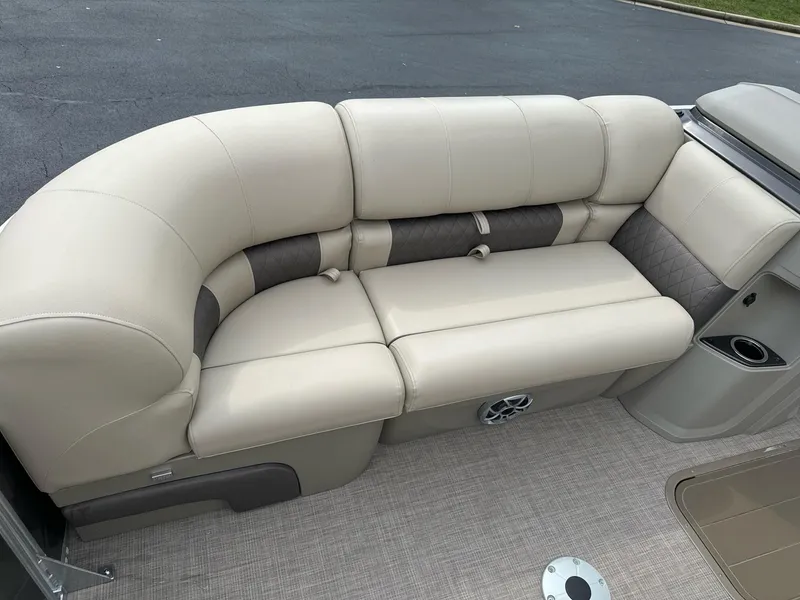

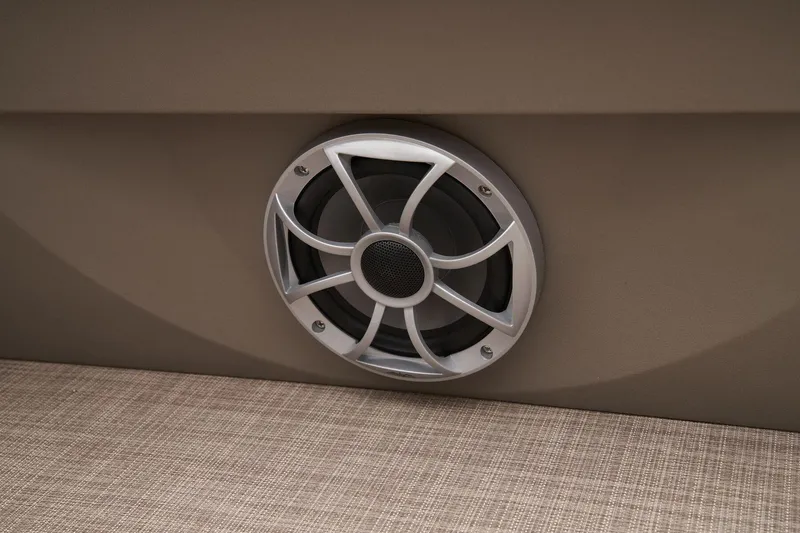

• Wet Sounds® stereo w/Bluetooth® & four 6.5" (16.51 cm) speakers, strategically located & shielded within the seat bases

• Master power on/off switch

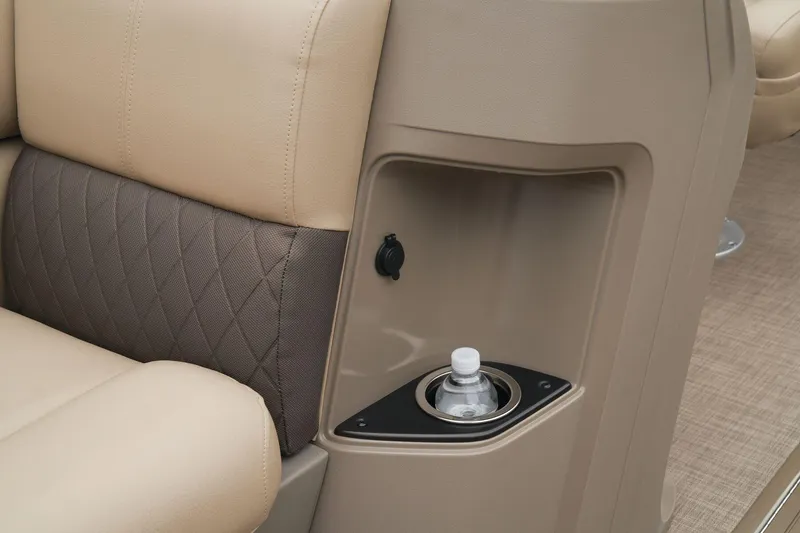

• Recessed mobile phone cubbies

• USB charging receptacle

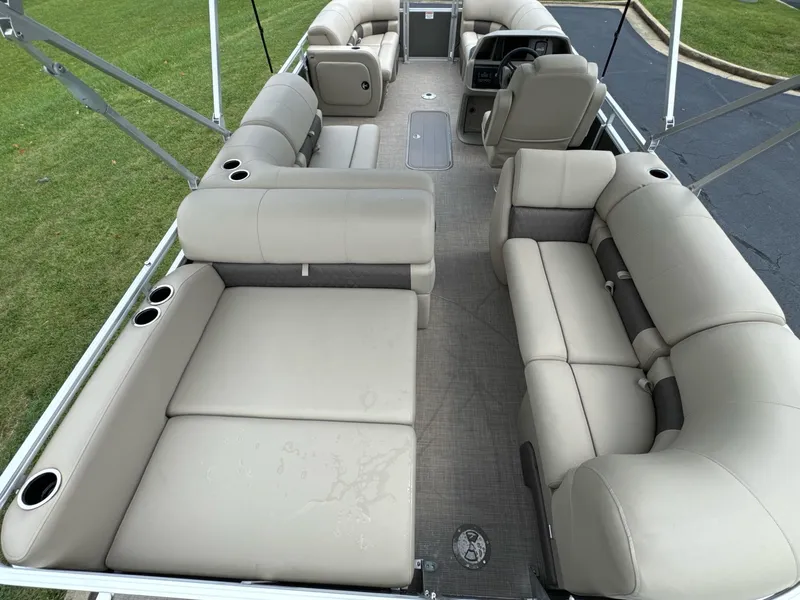

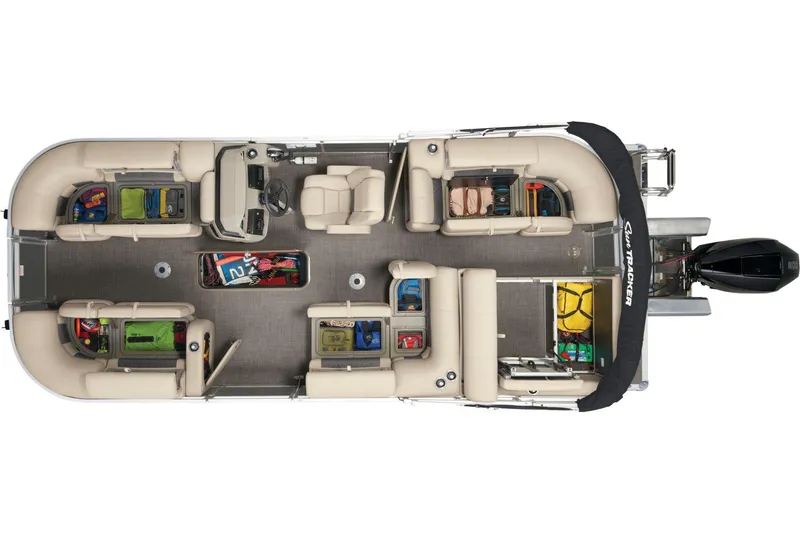

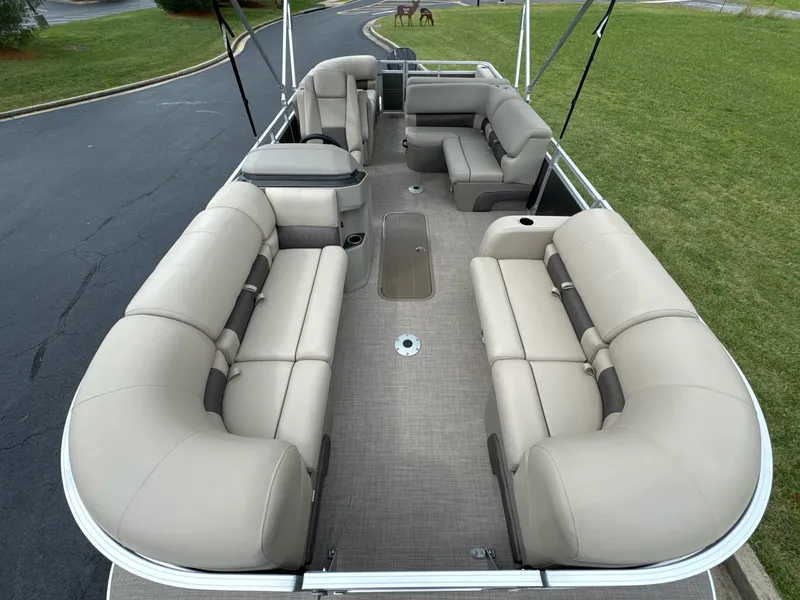

Interior

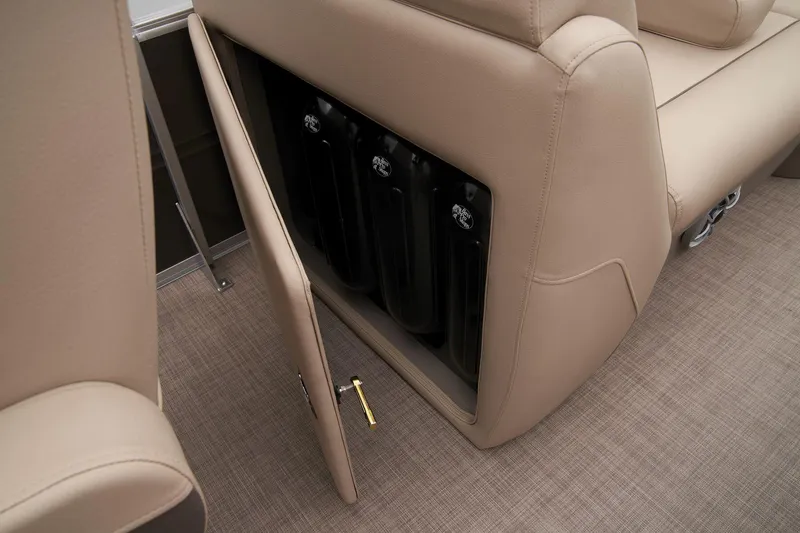

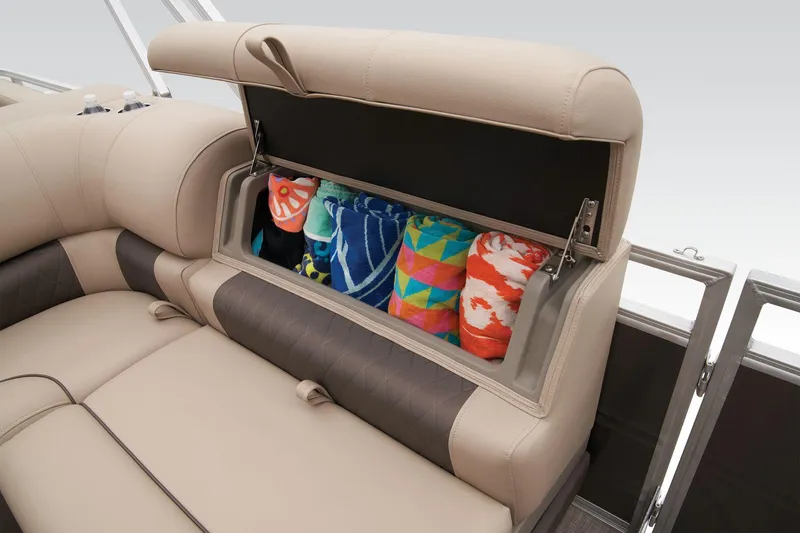

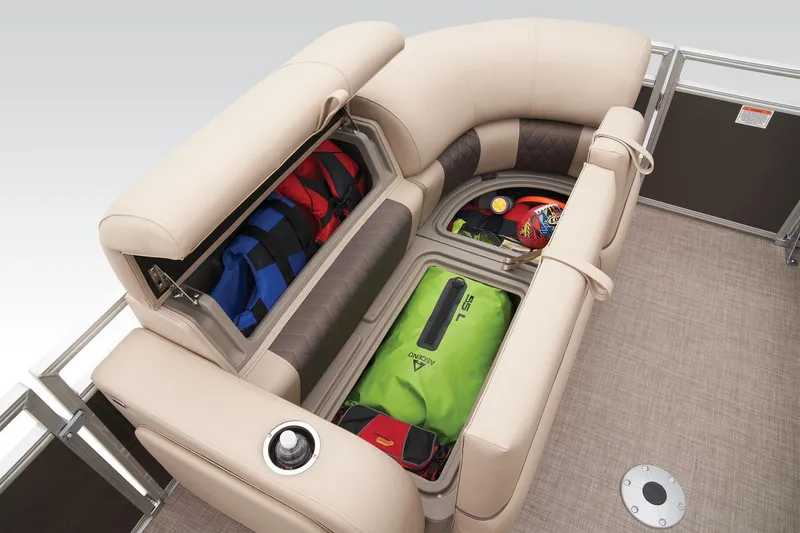

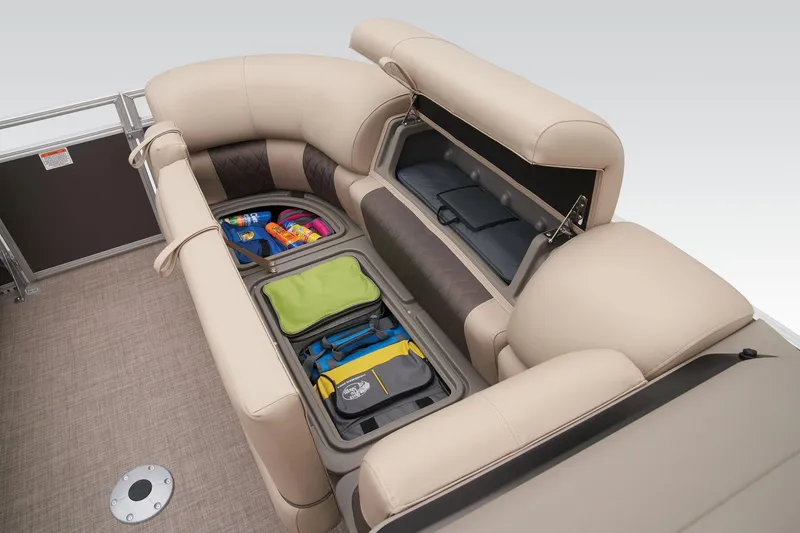

• Patented built-in STOW MORE™ seat-back storage system for all couches

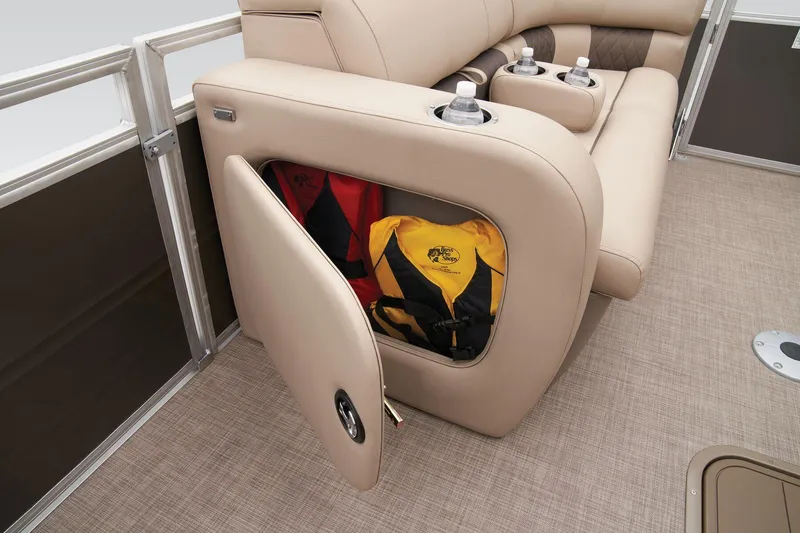

• Bow port couch w/STOW MORE™, underseat storage & armrest w/drink holder

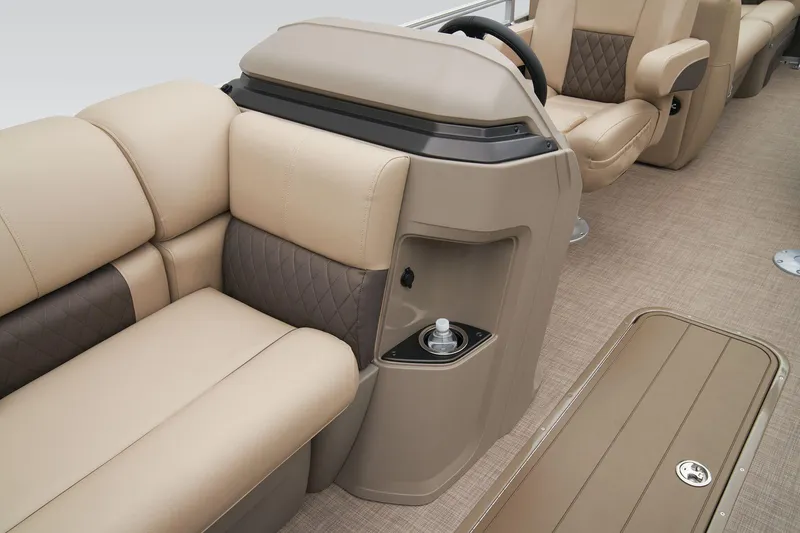

• Bow starboard console couch w/STOW MORE™ & underseat storage

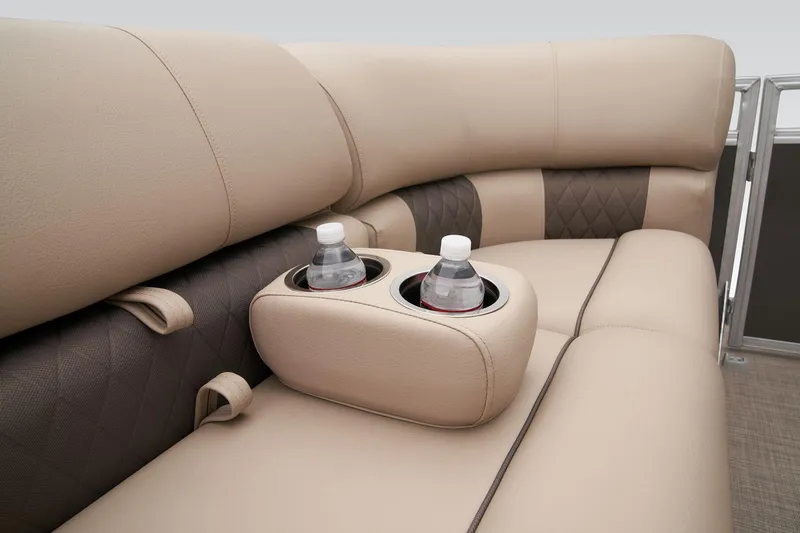

• 2 movable drink holders/armrests for couch seating

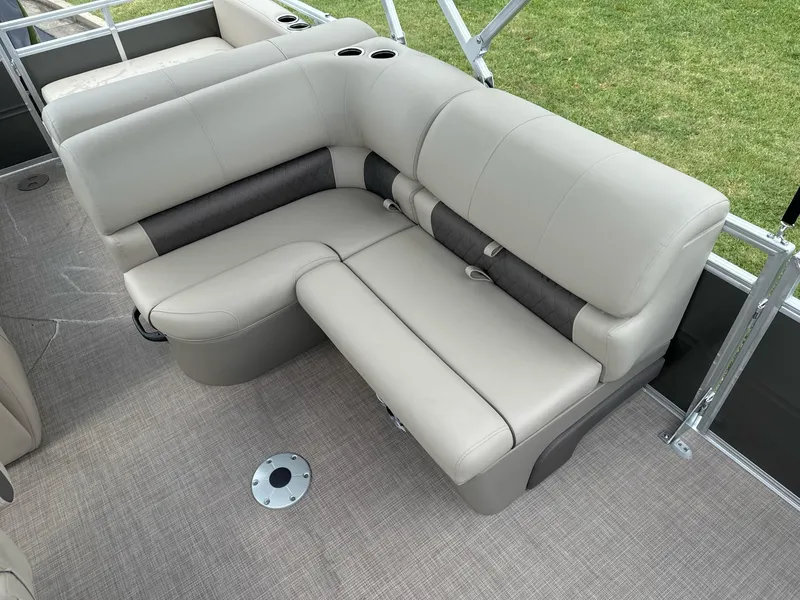

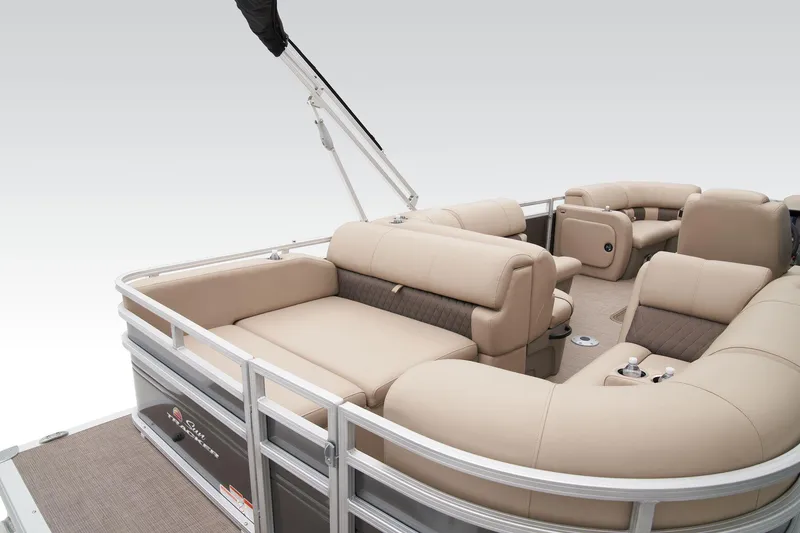

• Midship L-lounge couches w/STOW MORE™ & underseat storage

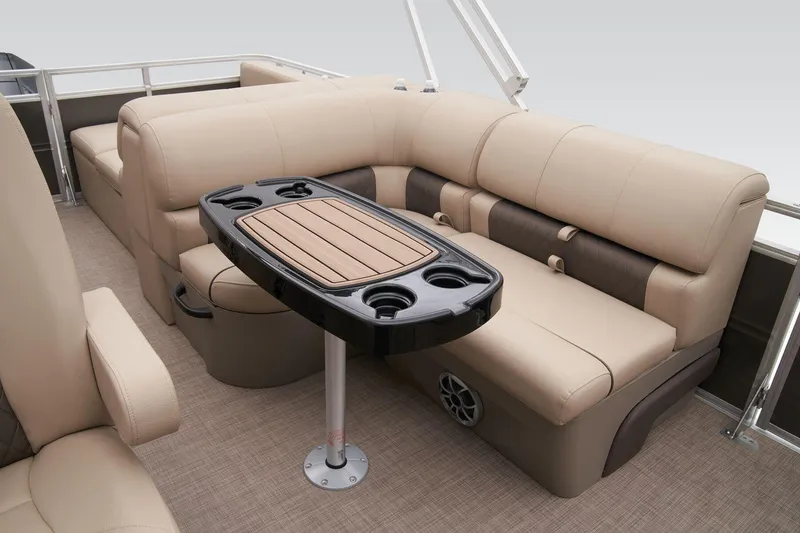

• Removable table w/soft-touch insert; 4 molded-in drink holders; & 2 pedestal base locations

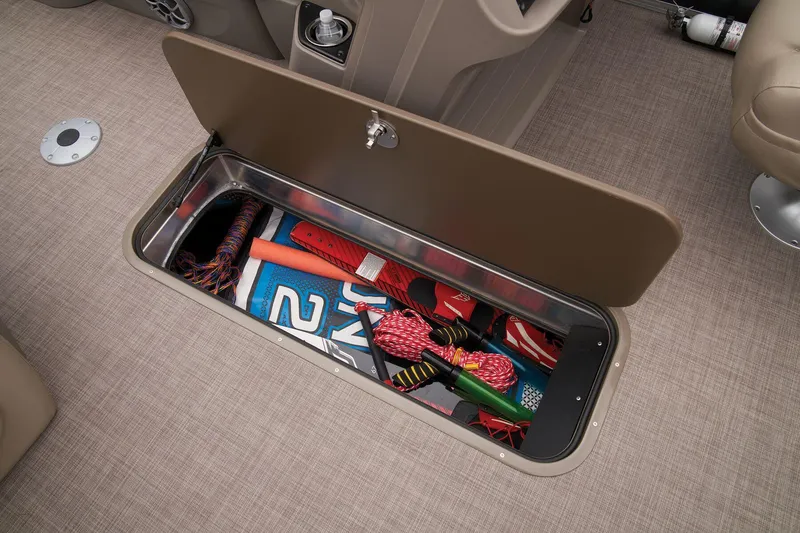

• In-floor lighted storage compartment — 88" (2.24 m) long, 23" (58.42 cm) deep — w/bilge pump in center log

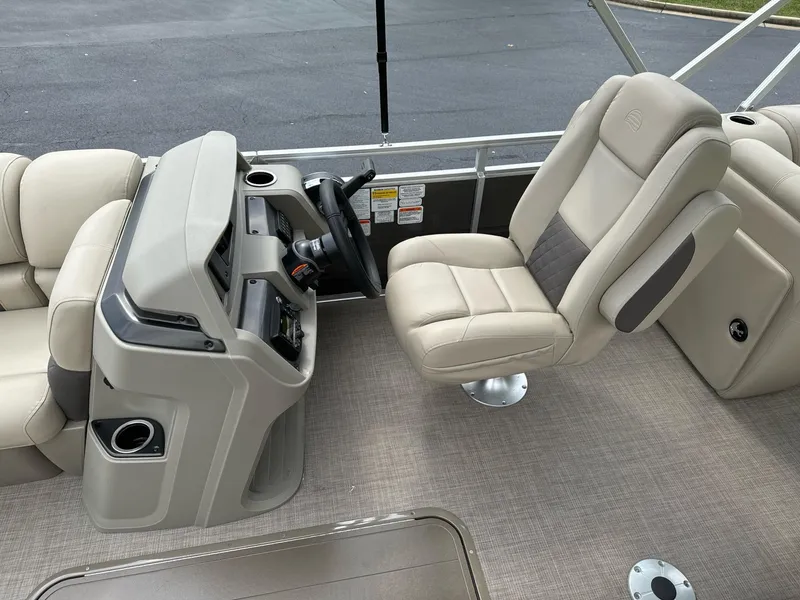

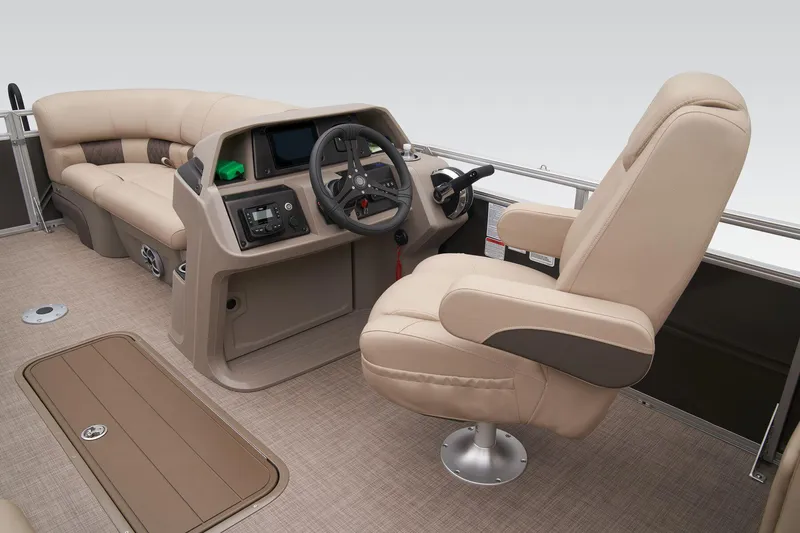

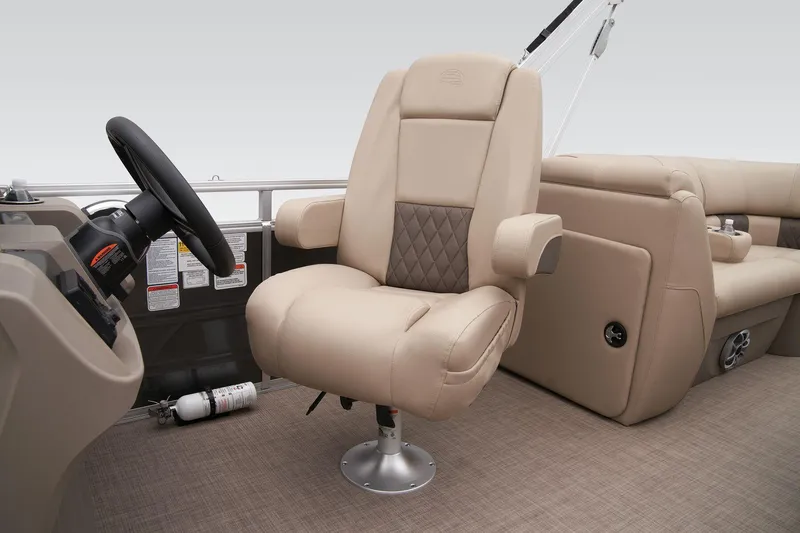

• Reclining, high-back swiveling helm bucket seat w/self-leveling armrests

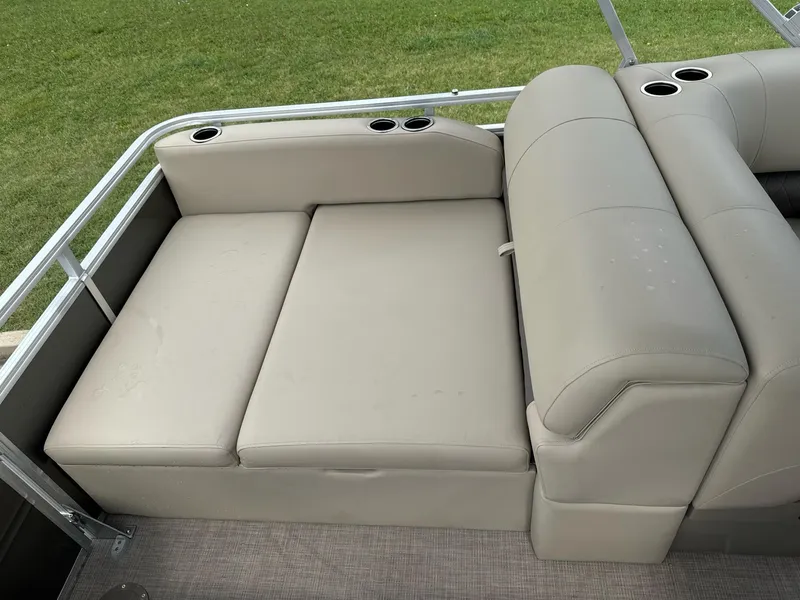

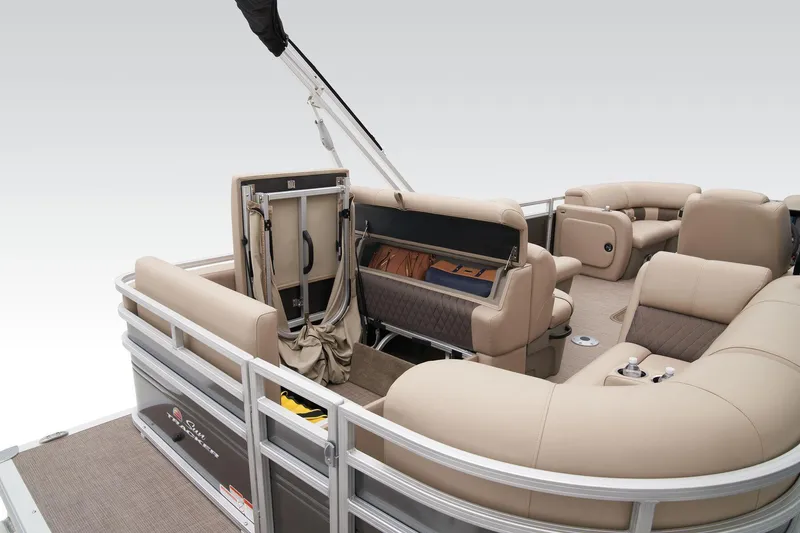

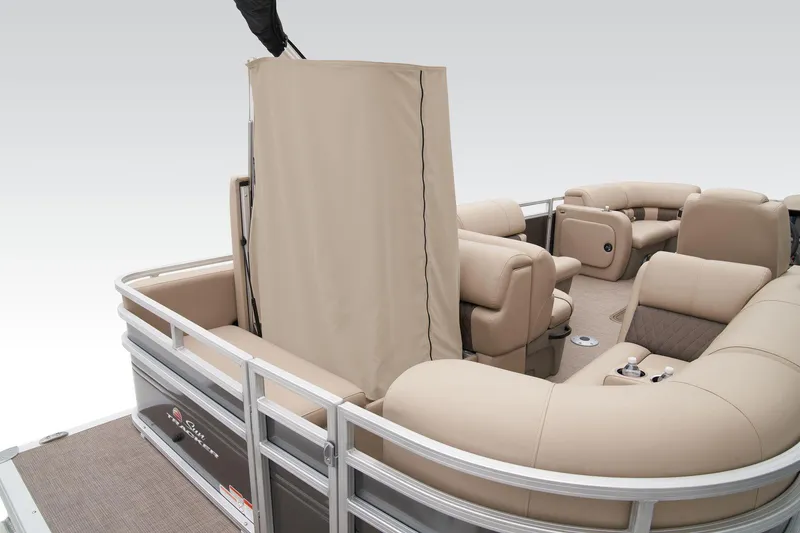

• Aft port rear-facing double lounge w/STOW MORE™, underseat storage & pop-up changing room

• Aft starboard couch w/STOW MORE™ & underseat, lockable storage

• Interior courtesy lighting

• Full-width aft swim deck

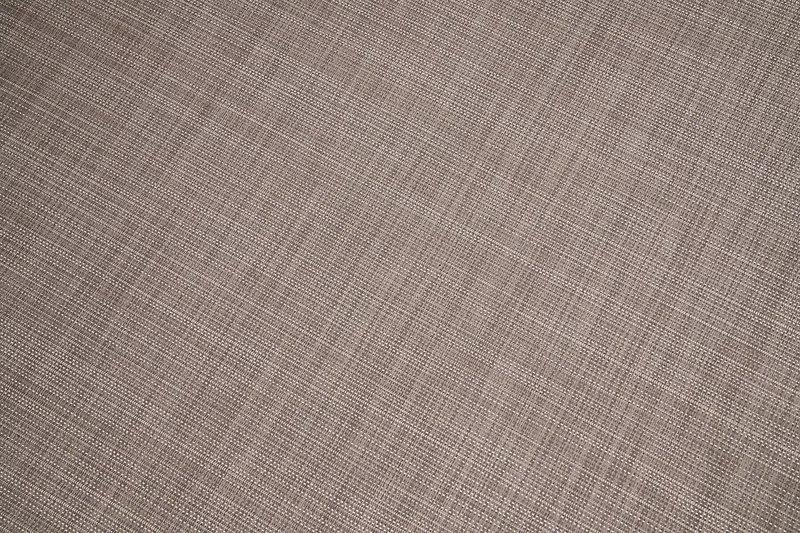

• Woven 16-oz. (.45 kg) marine-grade flooring throughout

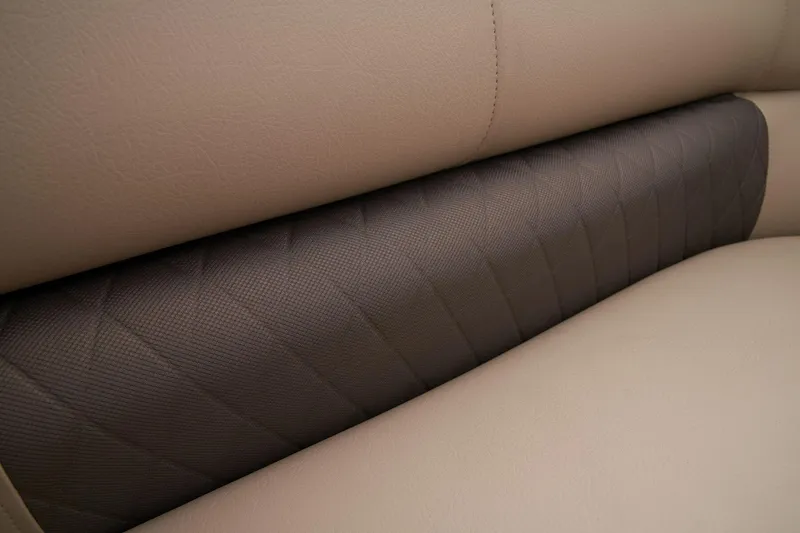

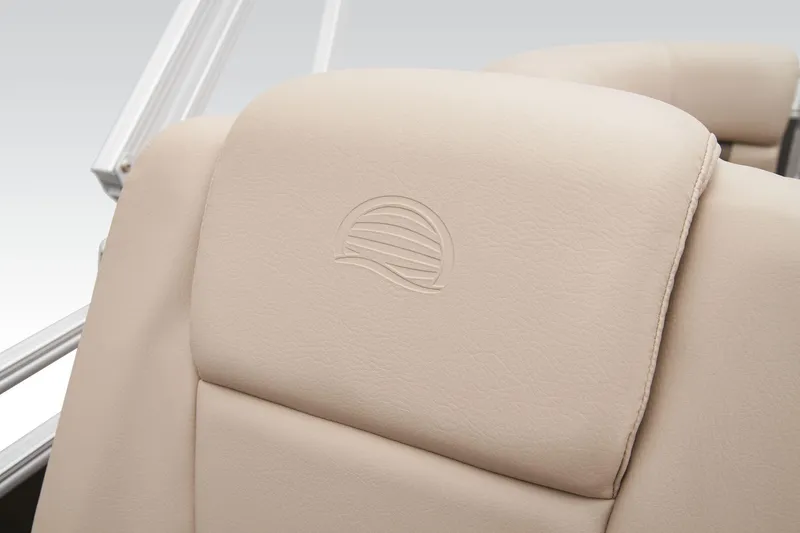

• Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Construction & Performance

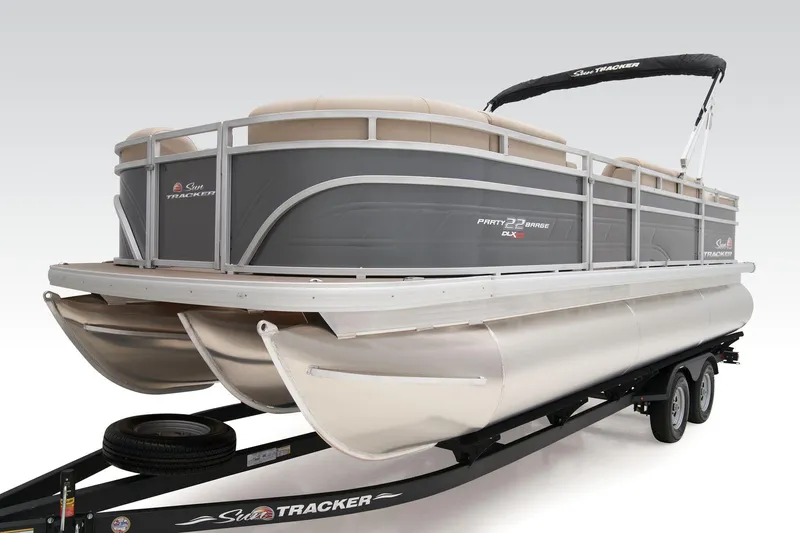

• Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs

• XP3 performance strakes & wave-deflecting nose cone for maximum performance

• Full-length, 1-piece longitudinal M-bracket deck supports

• Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets

• Heavy-duty aluminum U-channel reinforcement behind bow deck trim

• Reinforced bow & stern structures

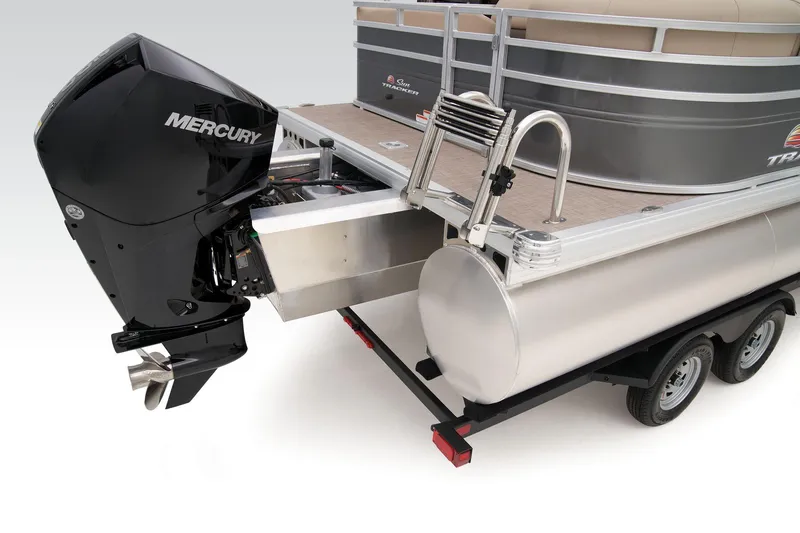

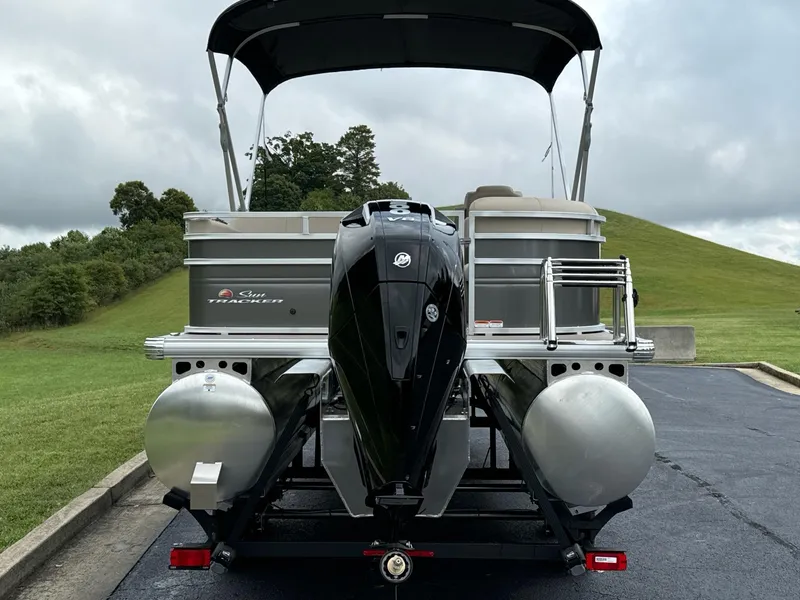

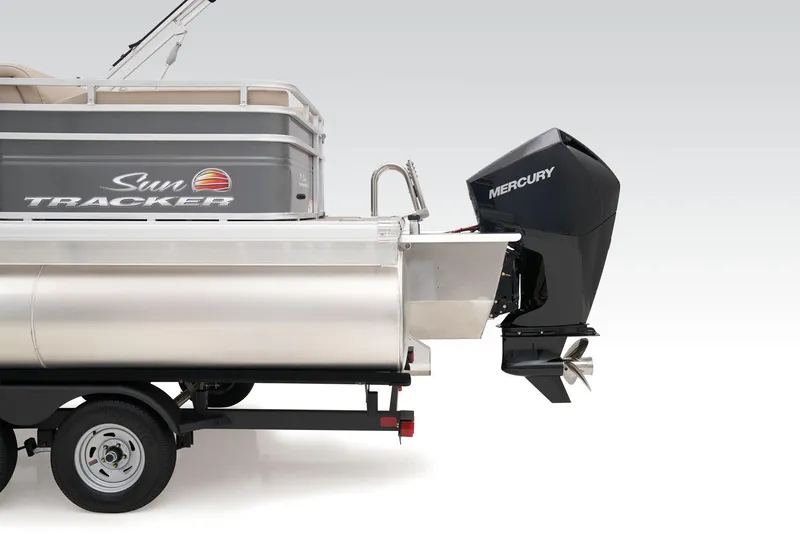

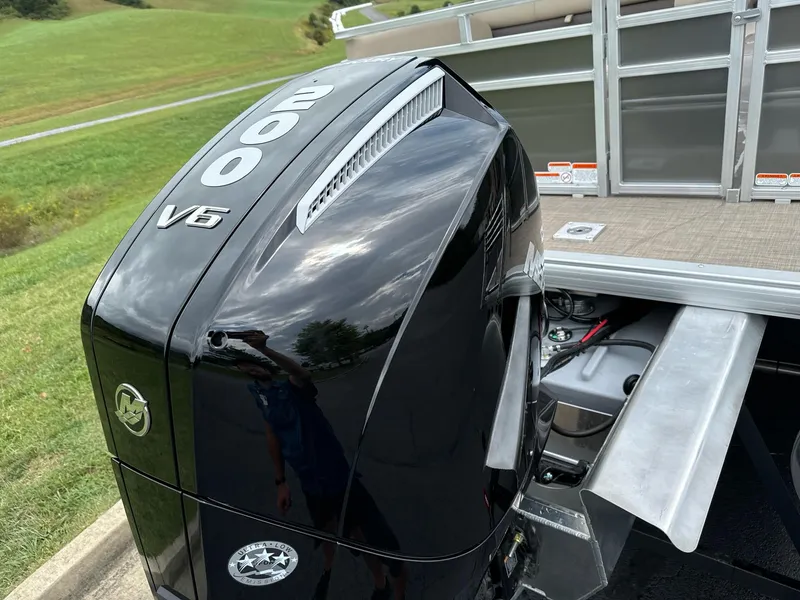

• All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system

• All-aluminum box-beam transom for strength & longevity

• Factory-installed underpinning (under-deck shielding) for improved performance

• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty

• 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails

• Sound- & vibration-deadening fence insulation for a quiet ride

• Extruded & anodized aluminum deck edging w/polished aft corner covers

• Precision fit & finish via plasma & laser-cut parts & robotically-welded construction

• Rotomolded storage, furniture & console for superior strength & longevity

• Nylon gate latches & heavy-duty hinges that open inward

• Stainless or coated corrosion-resistant fasteners

• Factory-matched aluminum propeller

Exterior

• Color: Charcoal or Copper Red fencing

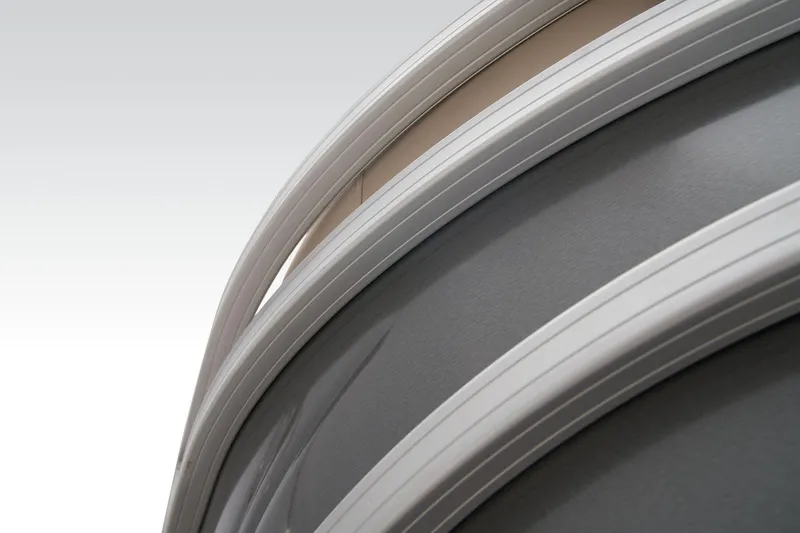

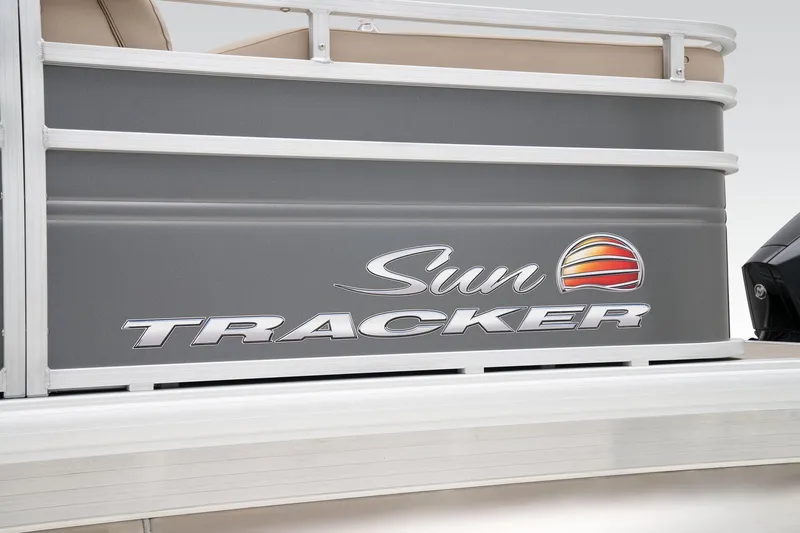

• TRACK FORMED™ fence design w/high-sheen finish for long-lasting cosmetics

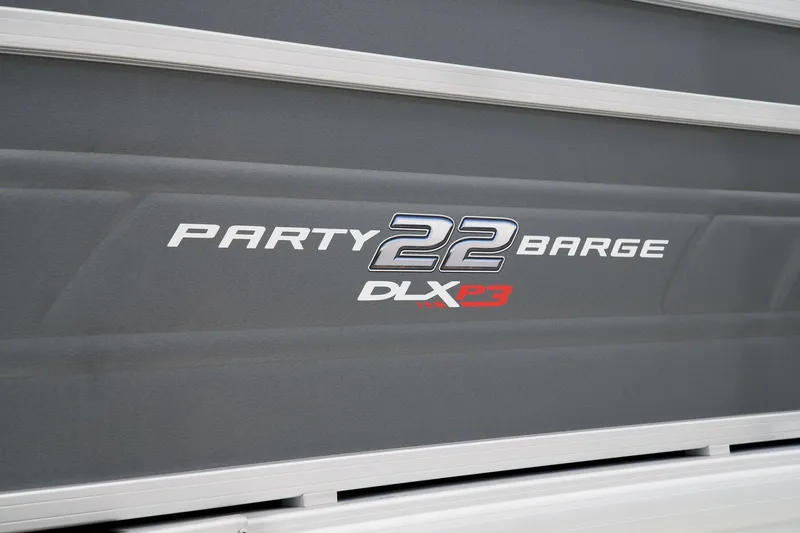

• Exterior styling w/XP3 graphics package

• Elevated fence panels for deck drainage & ventilation

Electrical

• 500 GPH (1892.71 LPH) Ultima automatic bilge pump

• Battery disconnect switch

• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door

• Protective abrasion-resistant wire wrap

• Water-resistant connectors
