2020 Sun Tracker Party Barge 22 RF XP3

• Length:24' 2"
• Deck length: 22' 1"
• Deck width: 8' 6"
• Max. recommended HP: 200 HP
• Fuel capacity: 52 gal.
• Pontoon log length: 22' 3"
• Pontoon log diameter: 26"
• Pontoon log material: 0.1 5052 marine alloy
• Max. person capacity: 11 persons
• Max. person weight: 1600 lbs.
• Max. person, motor & gear weight: 2400 lbs.
• Interior depth: 29.5"
• Draft: 12"
• Average dry weight: 2979 lbs.
• Average package weight: 4969 lbs.
• Package height: 8' 11"
• Package width: 8' 6"
• Towing length: 32' 4"
• Storage length: 32' 4"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty
• NMMA® certified
• NEW 11' (3.35 m) color-keyed Bimini top w/LED courtesy lights, protective boot & accepts optional drop-down changing curtain
• NEW Bazooka® Party Bar stereo & speakers in the Bimini top
• Front zipper on Bimini top to join optional forward Bimini together
• QUICKLIFT™ Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone
• Storage pockets in Bimini top
• Adjustable nylon pull-tight Bimini straps for quick adjustment & reduced vibration
• Nylon gate latches & heavy-duty hinges that open inward
• Port & starboard LED navigation lights
• Bimini-mounted anchor/navigation light
• 4 folding mooring cleats
• Motor-stop safety lanyard
• Fire extinguisher
• Horn

Console

• Deluxe soft-touch sport steering wheel
• Hydraulic steering w/tilt
• Wraparound sport shroud & tinted, removable windscreen
• Below-console cooler/storage space w/door & integrated pouch
• Small items tray
• Drink holders
• Built-in footrest w/non-skid pad
• Bluetooth®-capable stereo interface for Bazooka® Party Bar
• Tachometer, trim meter/speedometer & fuel & hour gauges
• Lighted rocker switches w/NEW bilge switch
• Ergonomically positioned Mercury® binnacle control box w/trim
• 12V outlet
• NEW darker console color

Interior

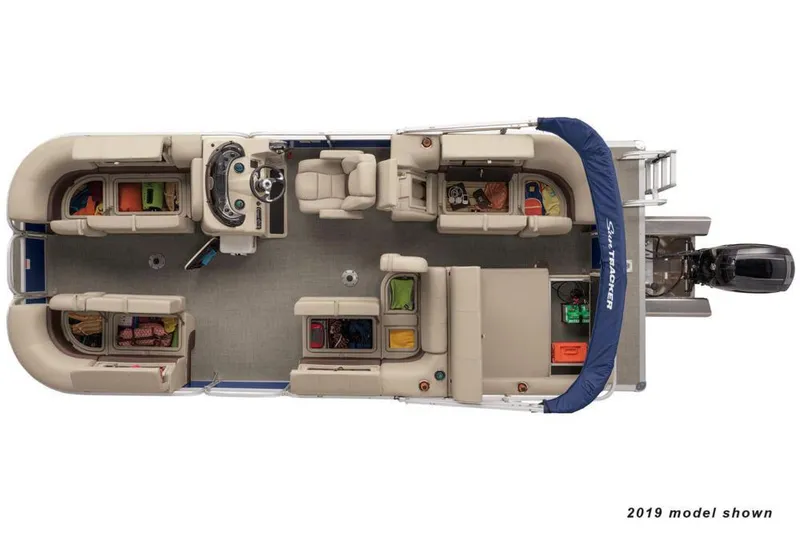

• STOW MORE™ system features an added compartment in the seat back for increased storage
• Bow port & starboard couches w/STOW MORE™ system & underseat storage
• NEW 88" (2.24 m) long, 23" (58.42 cm) deep lighted in-floor storage compartment w/bilge pump in center log
• Midship port L-lounge w/STOW MORE™ system & underseat storage
• Aft port rear-facing double lounge w/STOW MORE™ system, underseat storage & pop-up changing room
• Aft starboard couch w/STOW MORE™ system & lockable underseat storage
• High-back swiveling helm bucket seat, reclining & w/self-leveling arms
• Full-width aft swim deck
• Receptacle for optional ski tow pylon
• Woven 16-oz. (.45 kg) marine-grade flooring throughout
• NEW marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
• 2 movable drink holders/armrests
• Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
• Port wheelchair-access gate
• 4-step folding boarding ladder w/grab rails

Performance

• XP3 performance package – strakes on inboard side of outer logs & both sides of center tube
• Nose cone & motor pod wave/spray deflectors for a drier ride
• Factory-matched aluminum propeller

Construction & Exterior

• Color: Copper Red or Indigo Blue fencing
• NEW exterior styling w/XP3 graphics package
• Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
• Heavy-duty bow U-channel reinforcement behind deck trim
• Three 26" (66.04 cm) diameter XP3 high-performance multichambered pontoon logs w/welded-on lifting strakes & internal bracing for additional strength
• 1-piece full-length M-bracket deck supports
• RAIL-LOCK™ system for mounting optional tops & optional mooring cover
• NEW protective exoskeleton rail & panel system for durability & a quieter ride
• High-sheen fence finish for long-lasting good looks
• 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/NEW decorative styling & taller mid-rail fencing height
• Reinforced bow & stern structures
• Factory-installed underpinning (under-deck shielding) for improved performance
• Extruded anodized aluminum deck edging w/polished aft corner covers
• All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
• Stainless or coated corrosion-resistant fasteners
• 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
• Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
• Elevated fence panels for deck drainage & ventilation
• Sound- & vibration-deadening fence insulation for a quiet ride
• Box-beam all-aluminum transom for strength & longevity

Electrical

• NEW 500 GPH (1892.71 LPH) Ultima auto bilge pump
• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
• Protective abrasion-resistant wire wrap
• Water-resistant connectors
• Interior courtesy lighting
