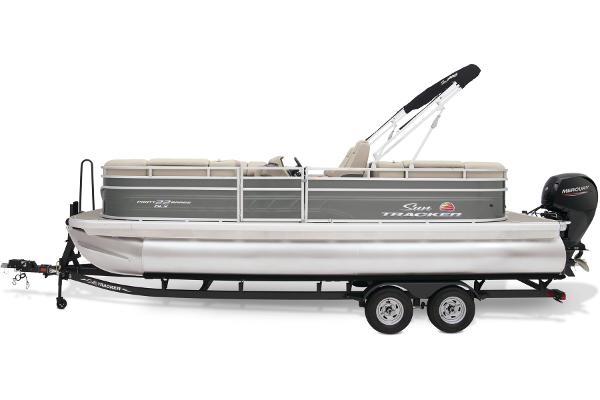

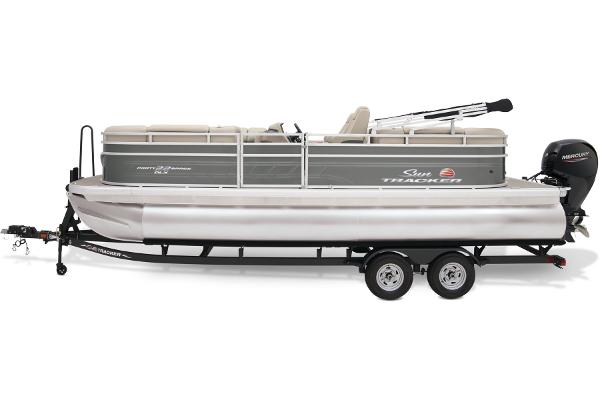

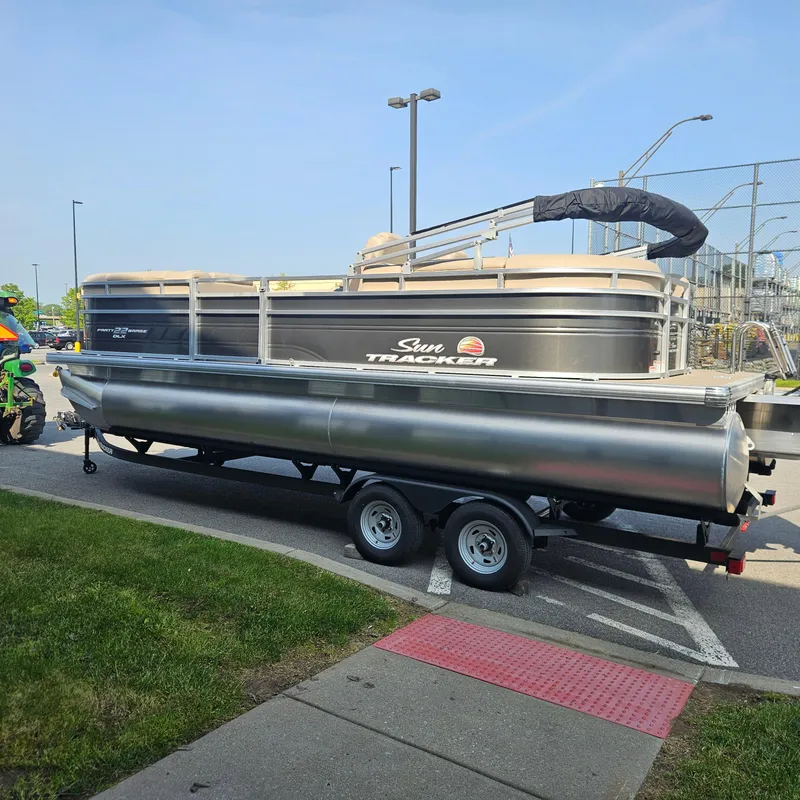

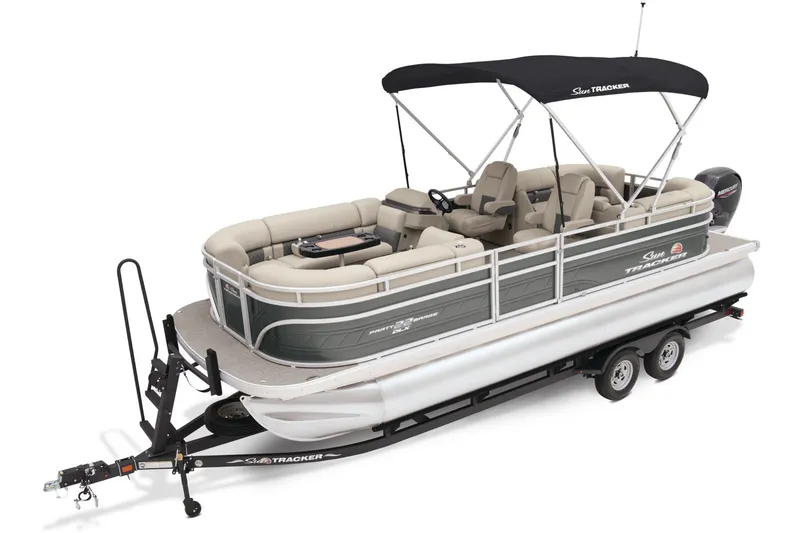

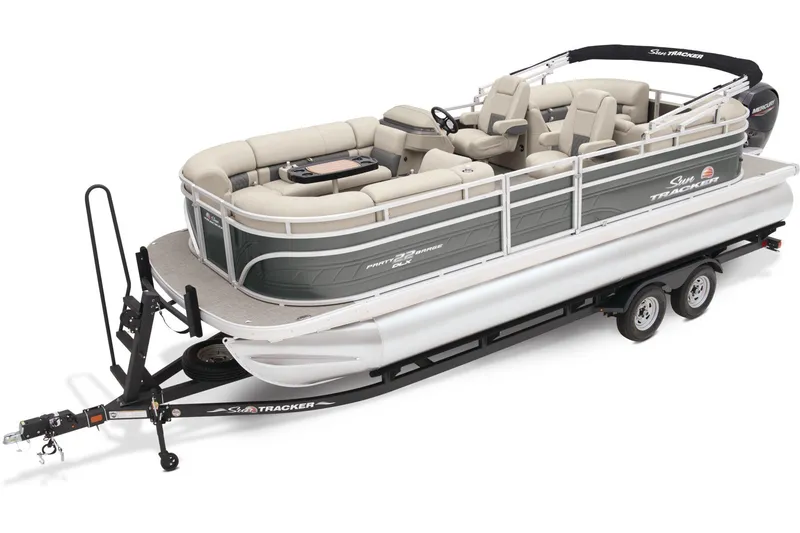

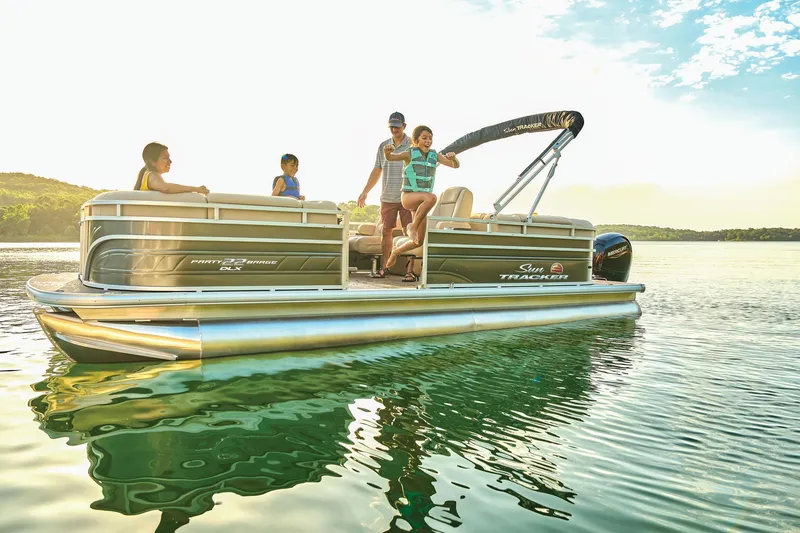

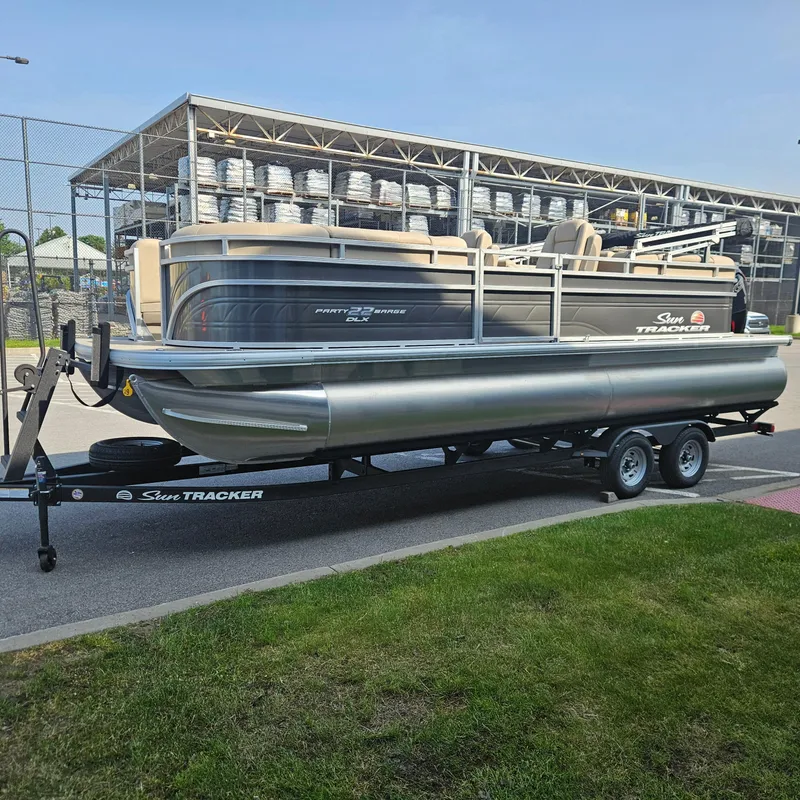

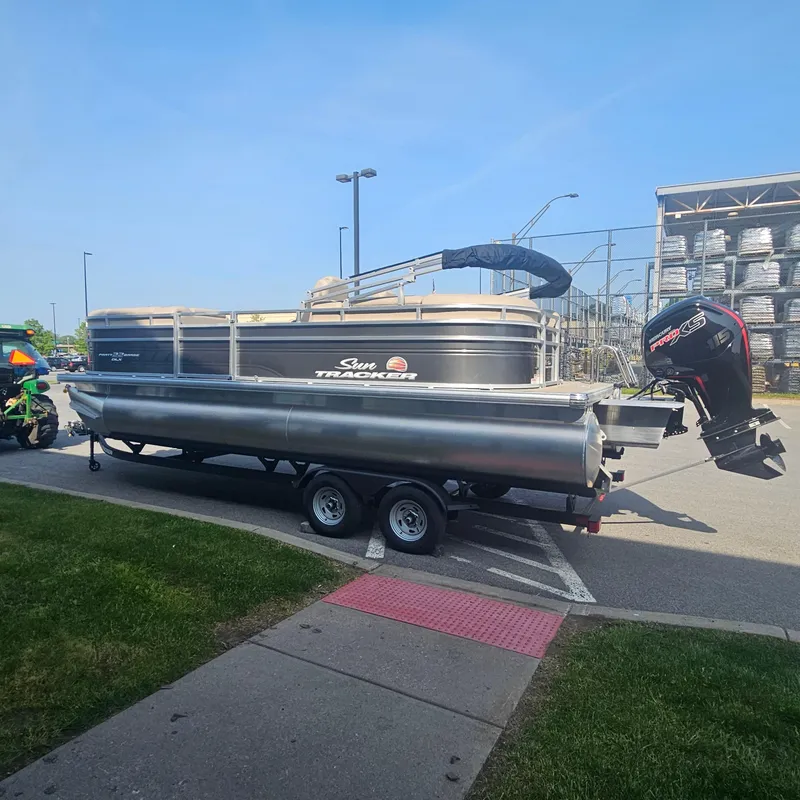

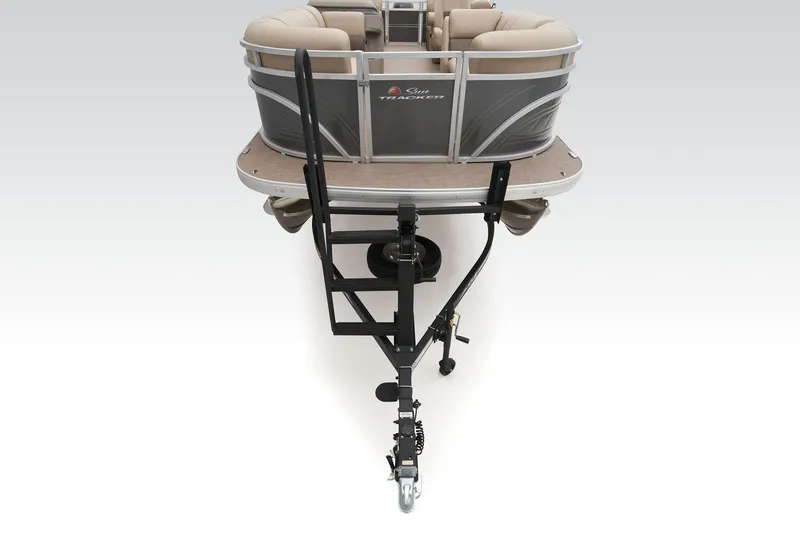

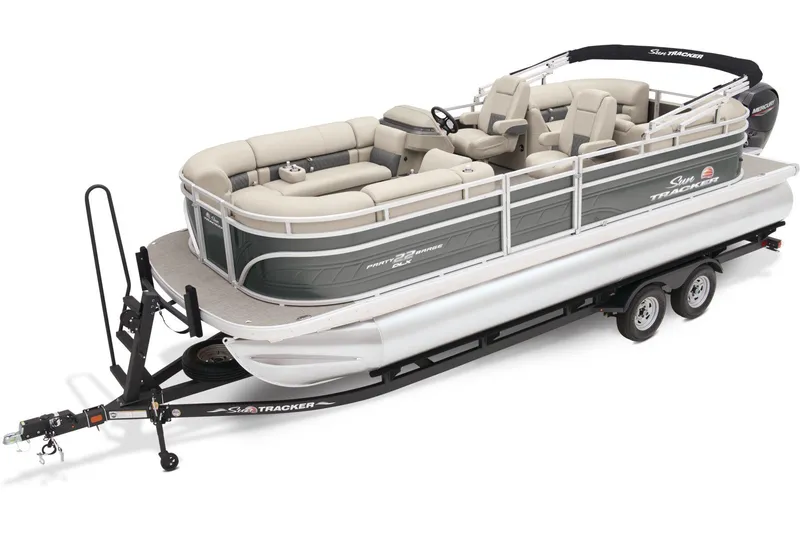

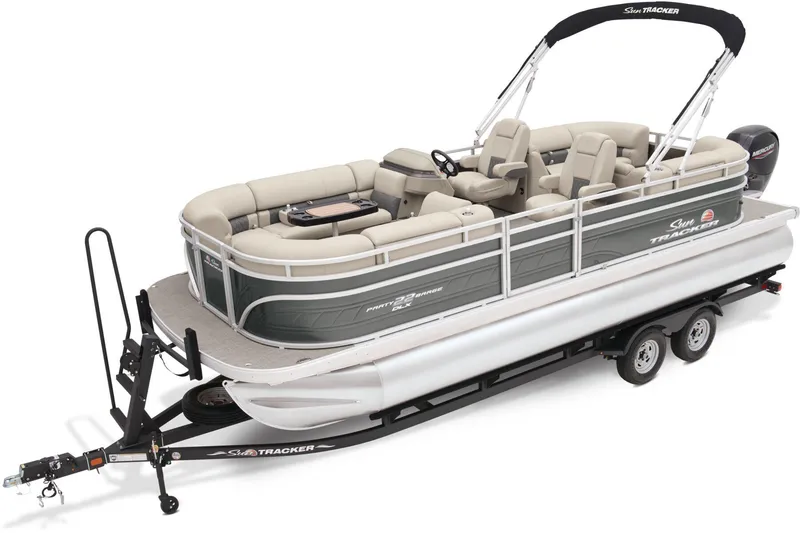

2025 Sun Tracker Party Barge 22 DLX

Additional Specs

• Length:24' 2"
• Deck Length: 22' 1"
• Deck Width: 8' 6"
• Max. Recommended HP: 150 HP
• Fuel Capacity: 32.1 gal.
• Pontoon Log Length: 22' 3"
• Pontoon Log Diameter: 24"
• Pontoon Log Material: 0.08 5052 marine alloy
• Max. Person Capacity: 11 persons
• Max. Person Weight: 1500 lbs.
• Max. Person, Motor & Gear Weight: 2200 lbs.
• Interior Depth: 29.5"
• Average Dry Weight: 2080 lbs.
• Average Package Weight: 3915 lbs.
• Package Height: 8' 10"
• Package Width: 8' 6"
• Towing Length: 32' 4"
• Storage Length: 32' 4"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
• NMMA® certified

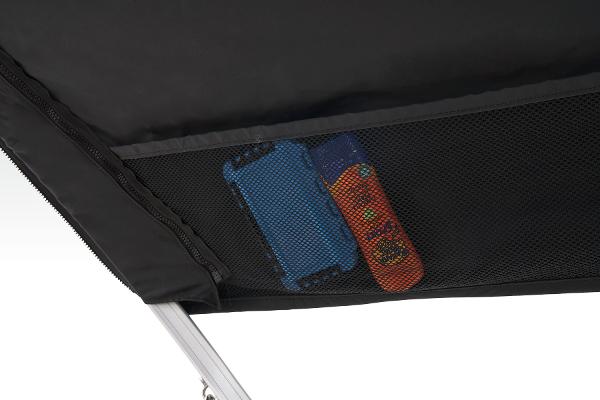

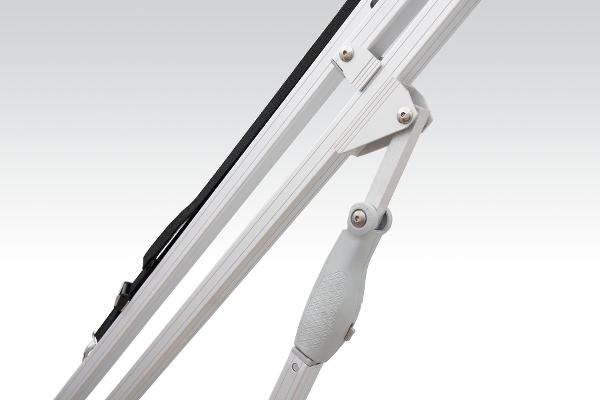

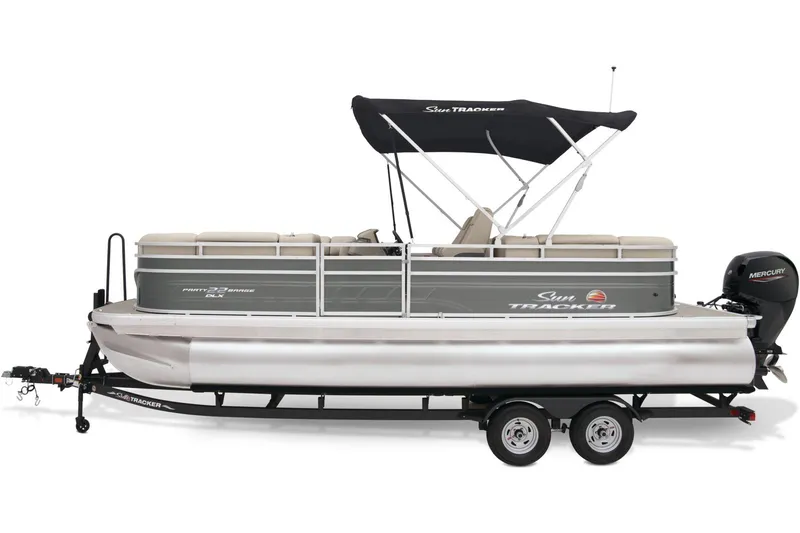

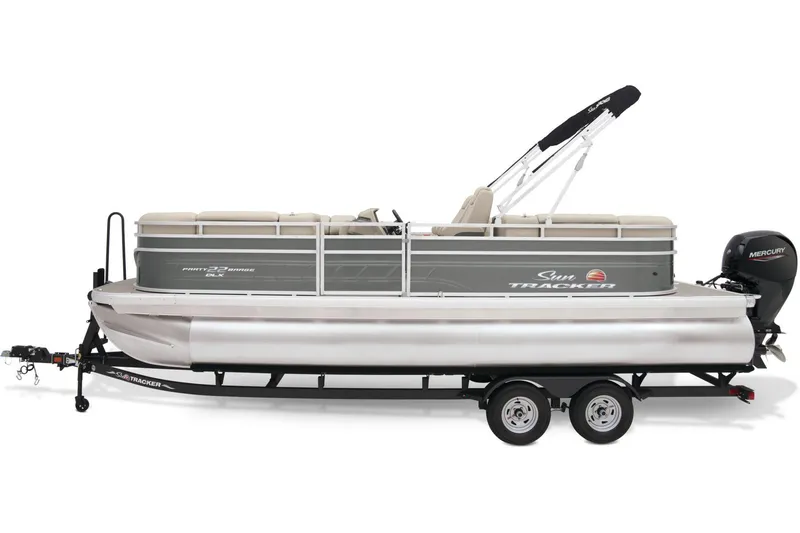

• 10' (3.05 m) SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot (color-coordinated Black w/Charcoal fencing or Sand w/Copper Red fencing)
• Built-in LED docking lights

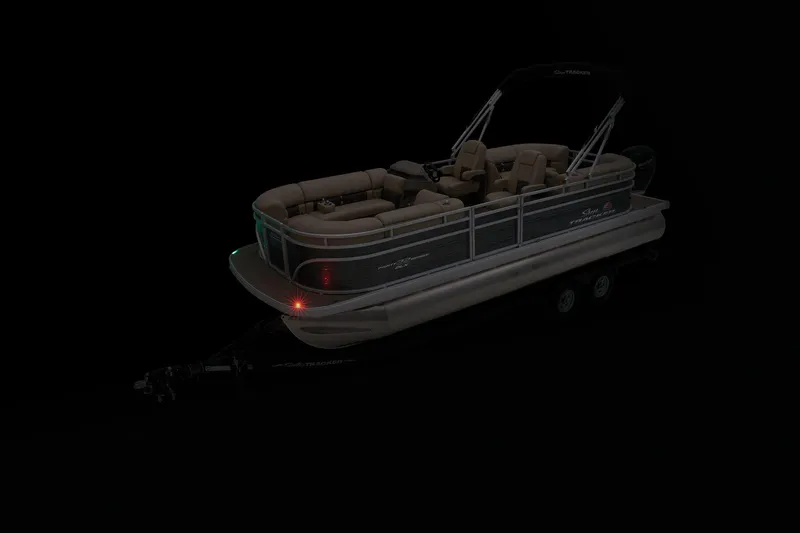

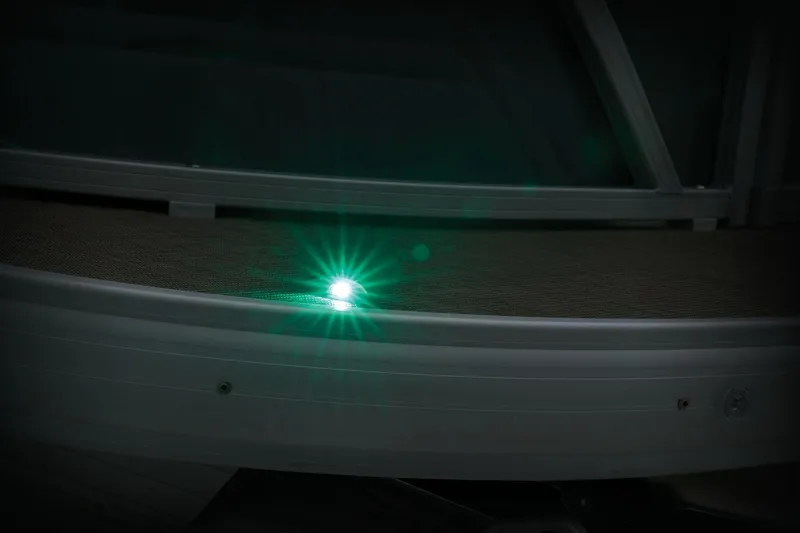

• Built-in LED navigation & anchor lights

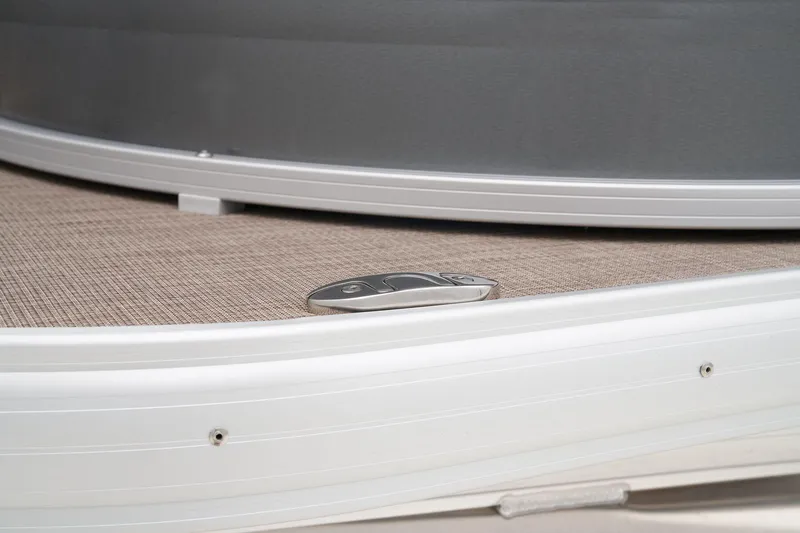

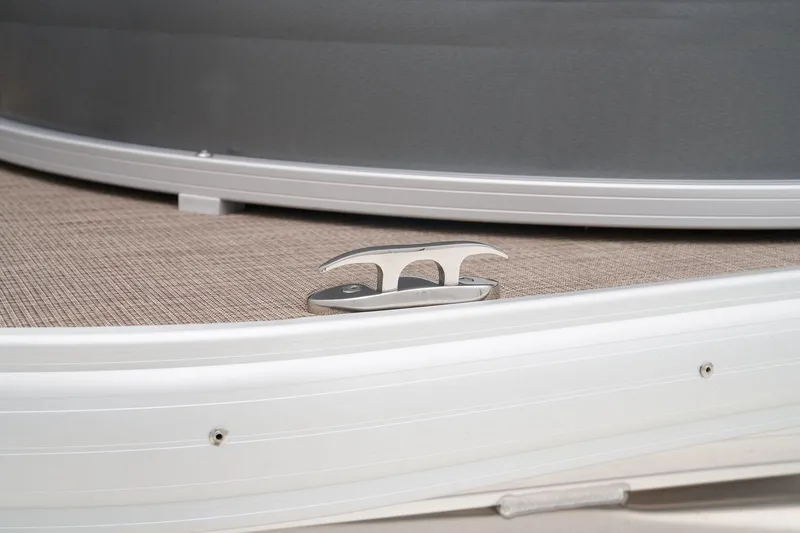

• 4 folding mooring cleats & starboard side tie-off mooring eye

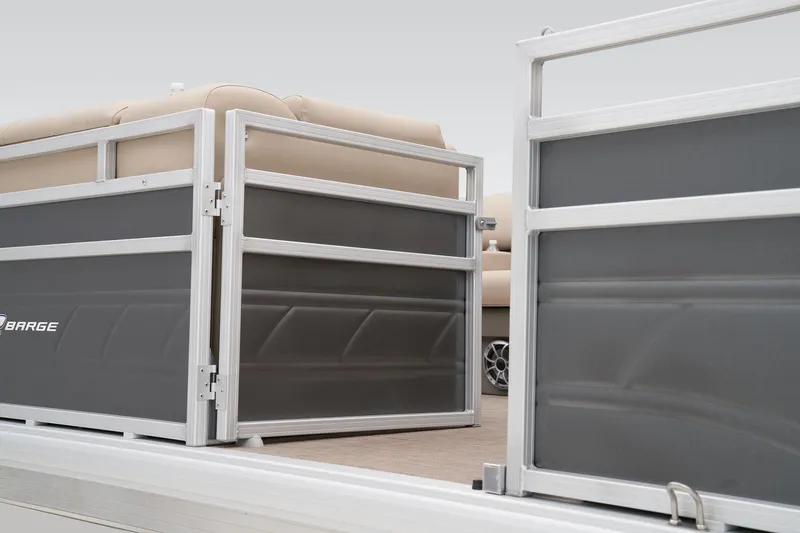

• Port wheelchair-accessible gate

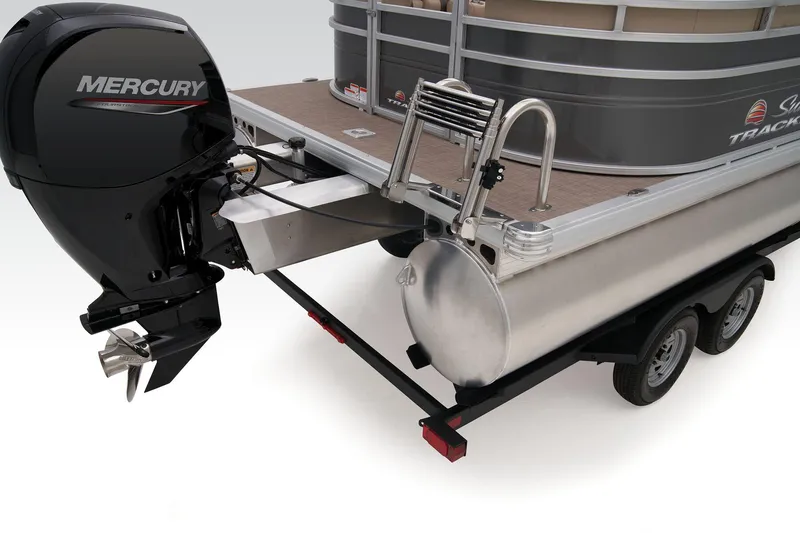

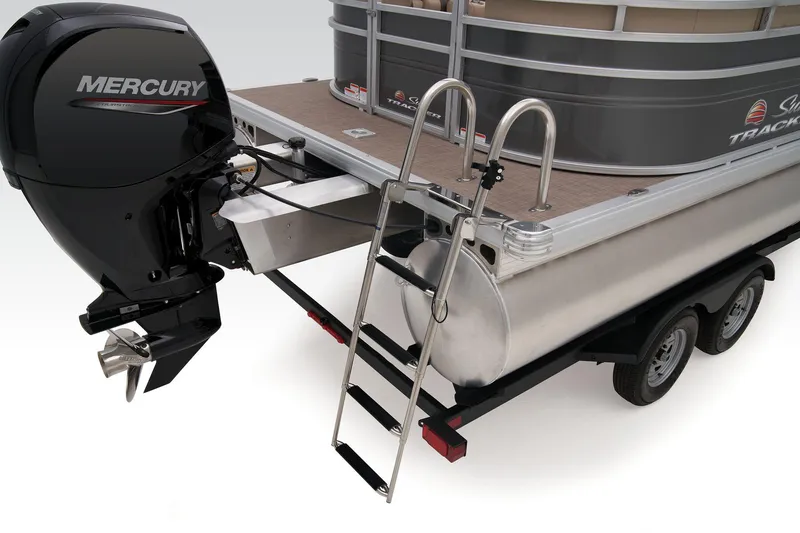

• Rear boarding platform w/4-step telescoping boarding ladder & grab rails
• Aft receptacle base for optional ski tow pylon
• Motor-stop safety lanyard
• Fire extinguisher
• Horn

Console

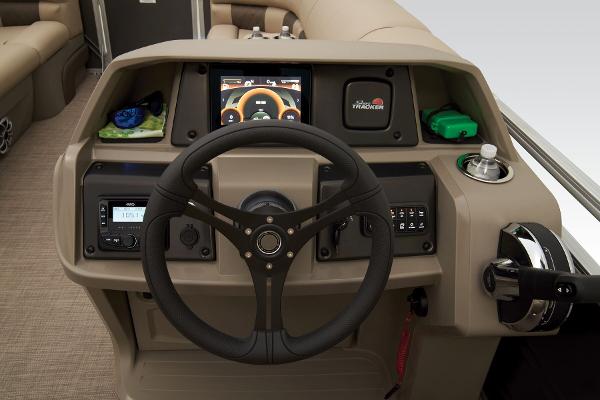

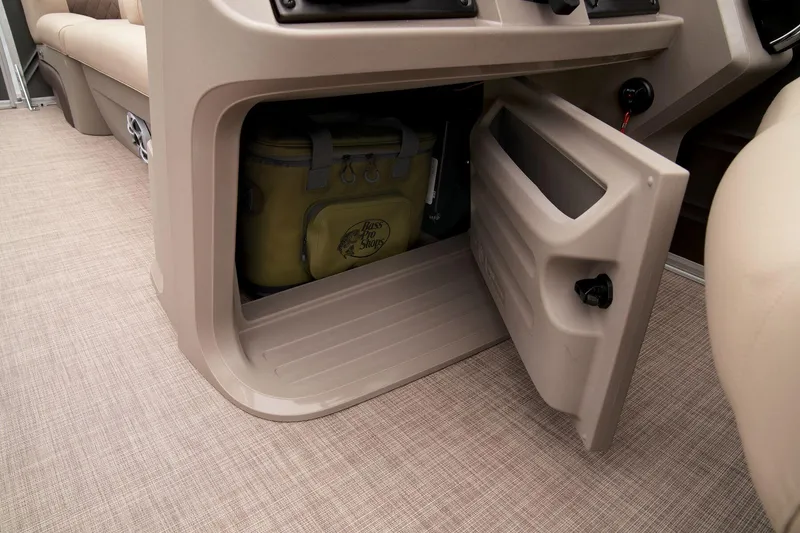

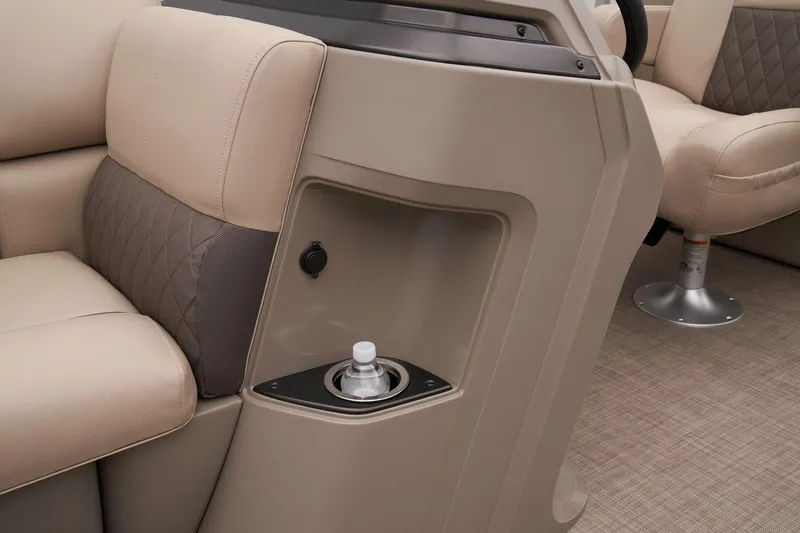

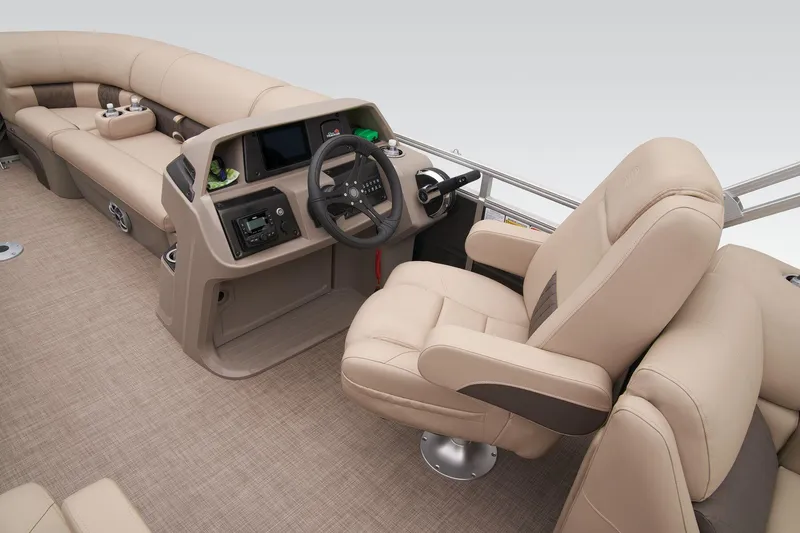

• Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

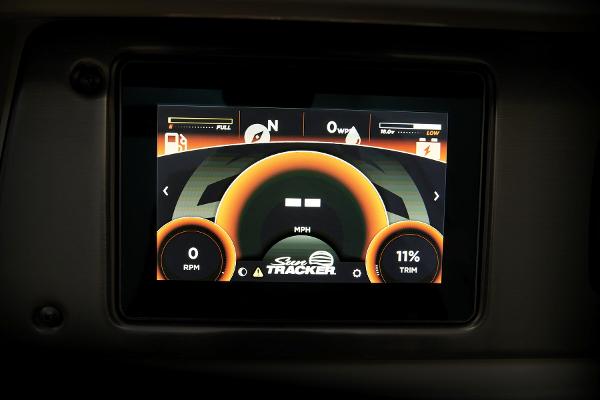

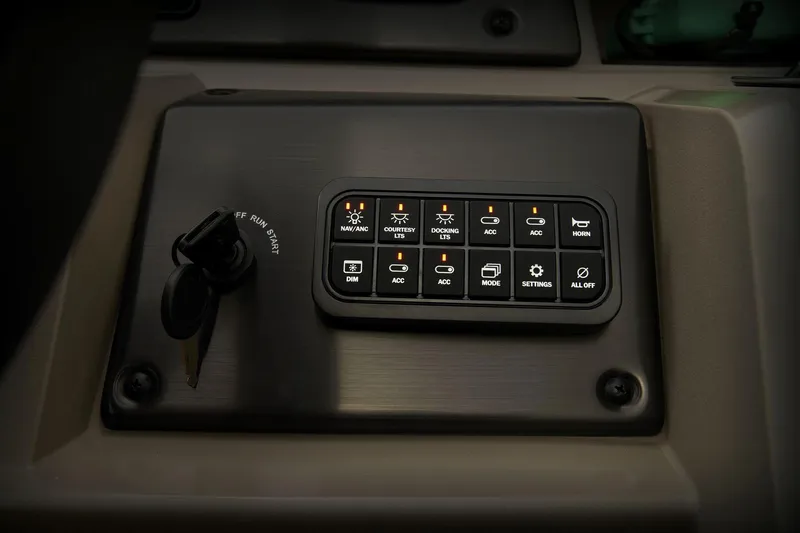

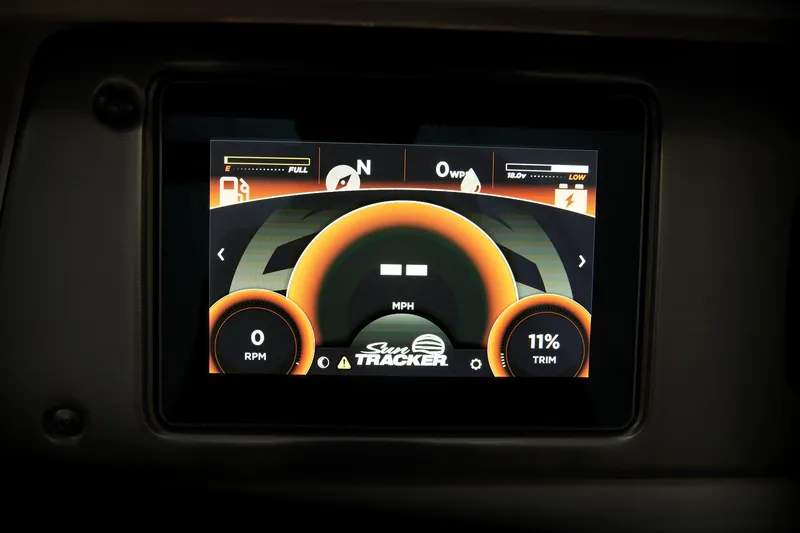

• SUN TRACKER FLARE™ touchscreen gauge display & 12-button switch panel
• Tilt steering w/deluxe soft-touch steering wheel

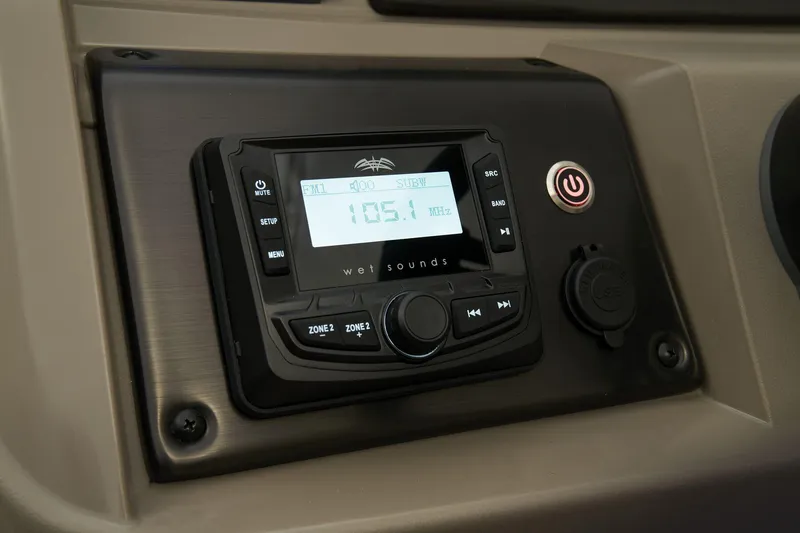

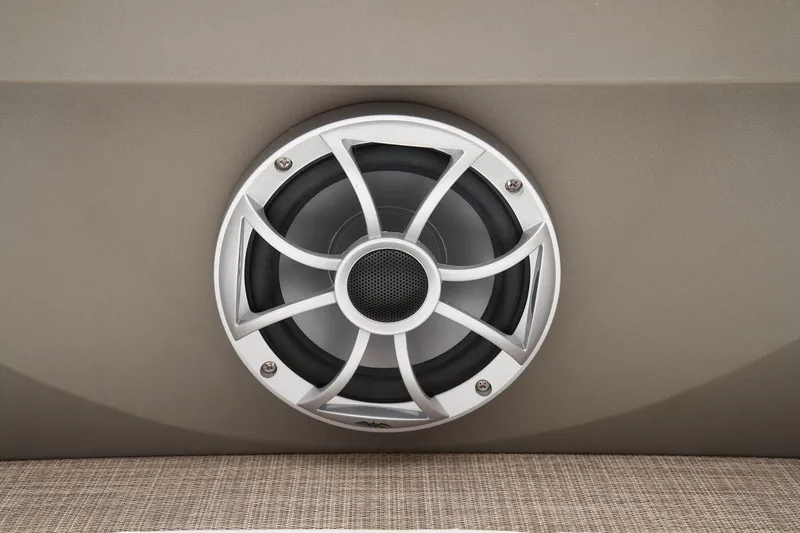

• Wet Sounds® stereo w/Bluetooth® & four 6.5" (16.51 cm) speakers, strategically located & shielded within the seat bases
• Master power on/off switch
• Recessed mobile phone cubbies
• USB charging receptacle

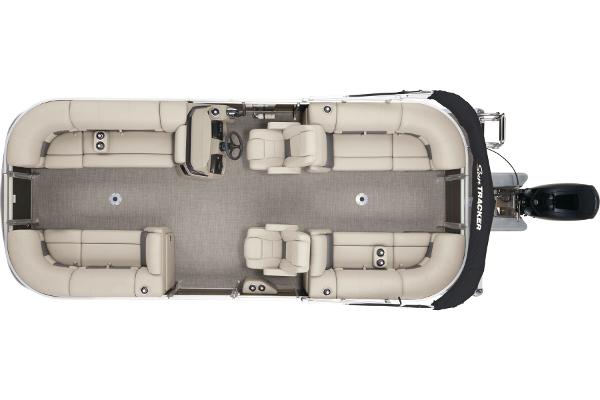

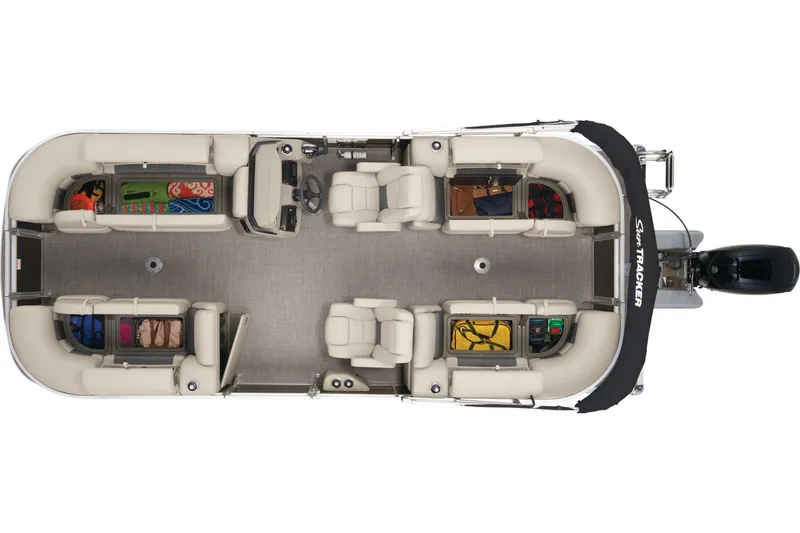

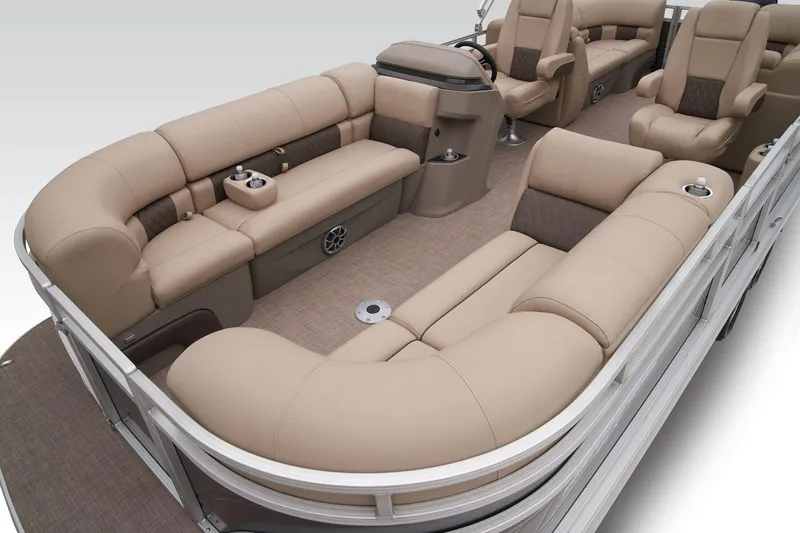

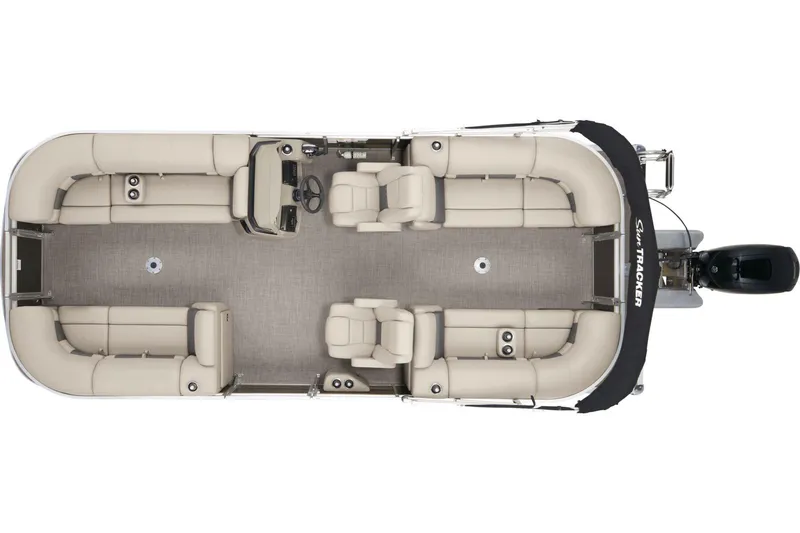

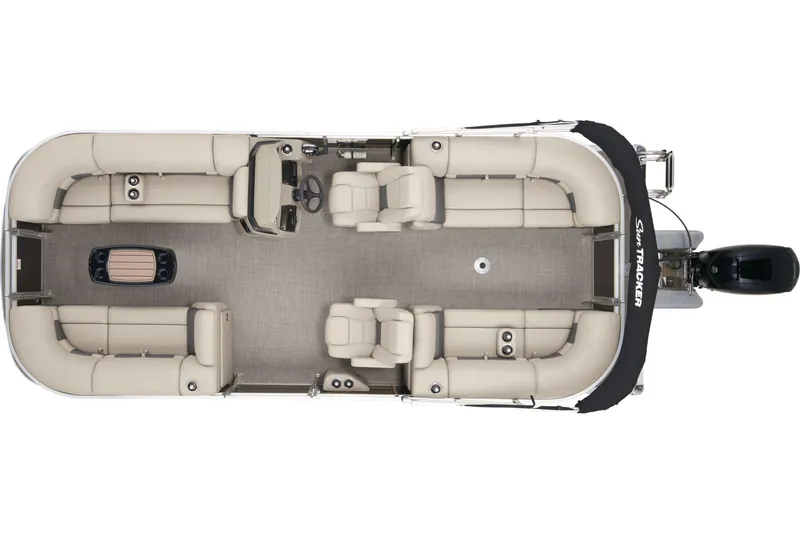

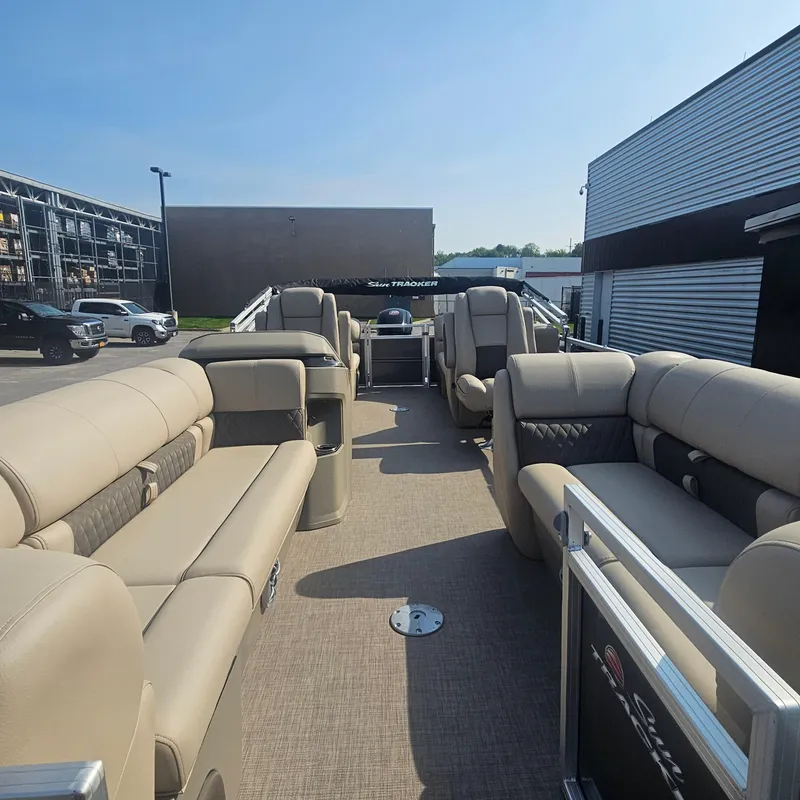

Interior

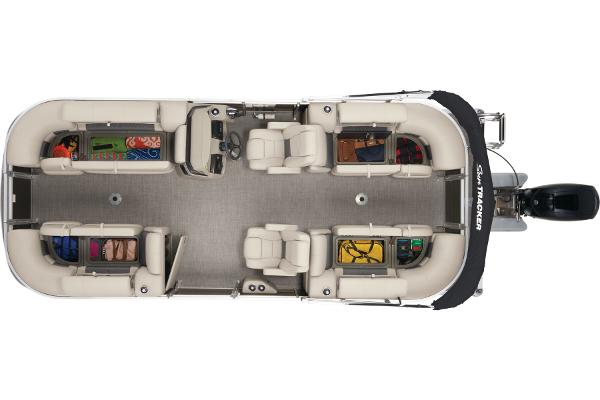

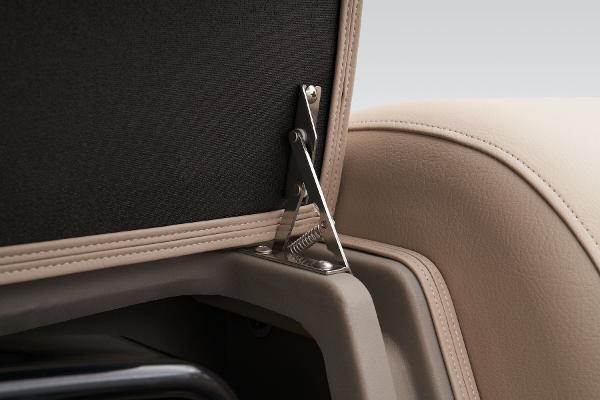

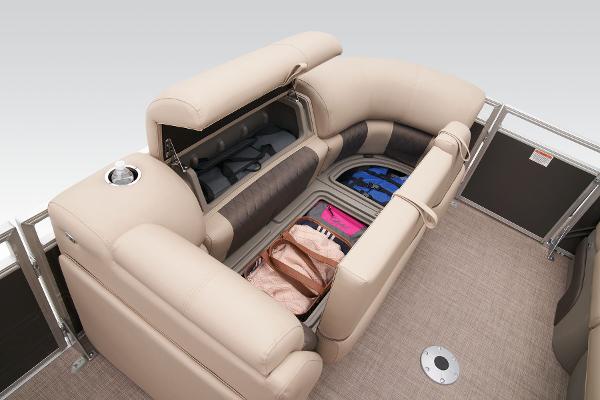

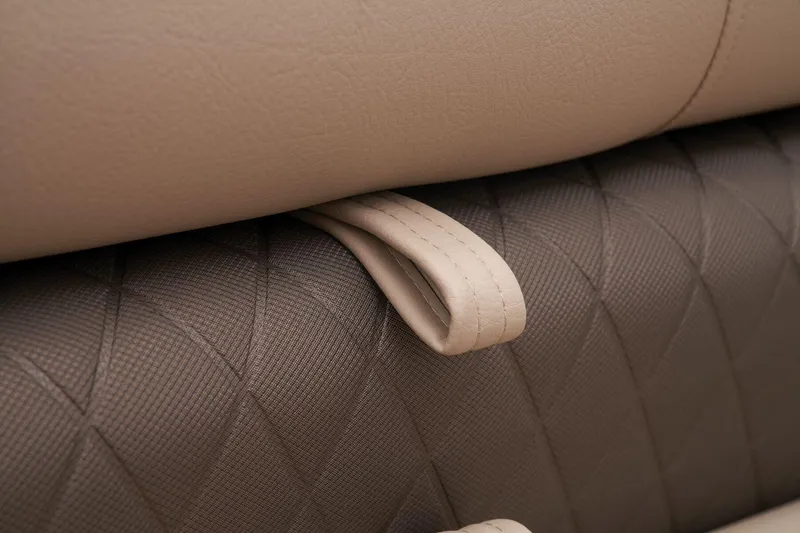

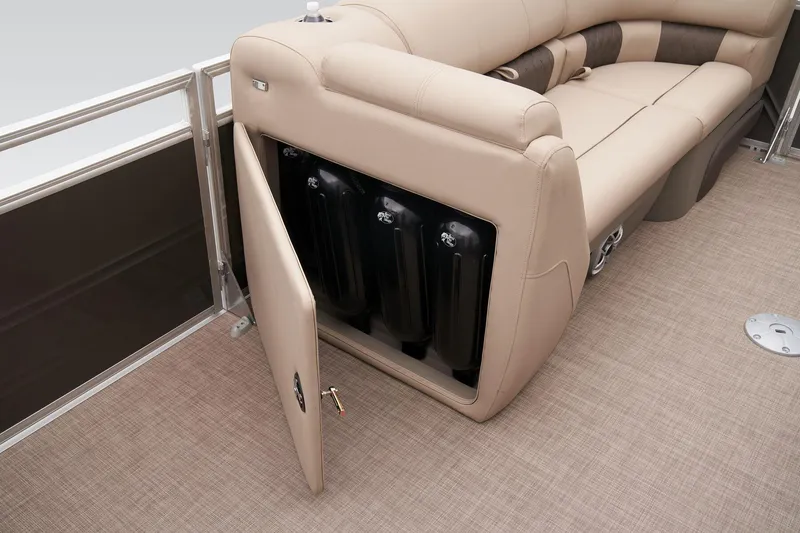

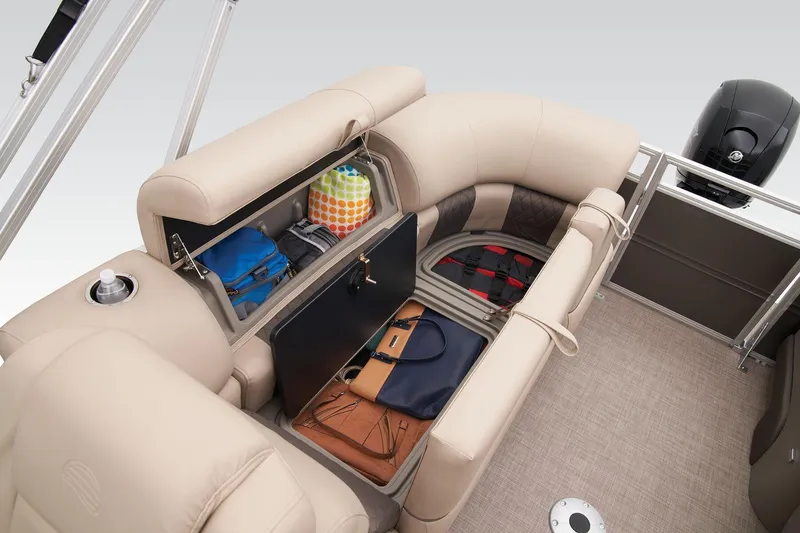

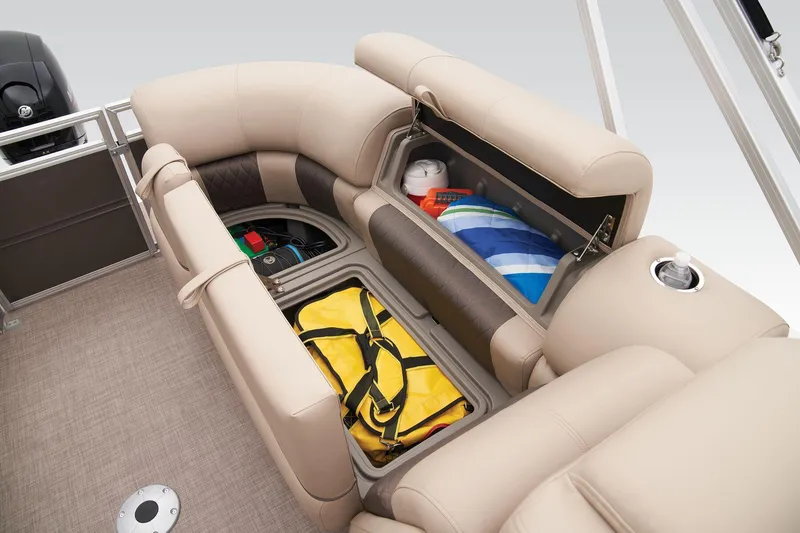

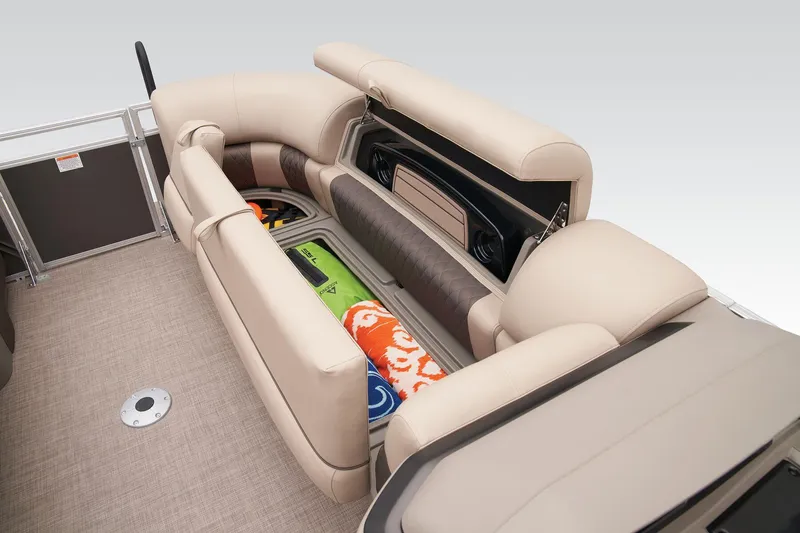

• Patented built-in STOW MORE™ seat-back storage system for all couches

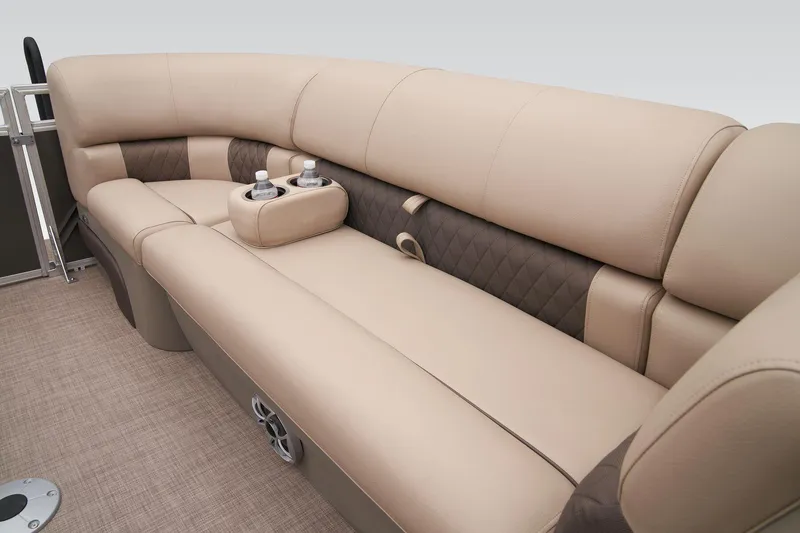

• Bow port couch w/STOW MORE™, underseat storage & armrest w/drink holder
• Bow starboard console couch w/STOW MORE™ & underseat storage

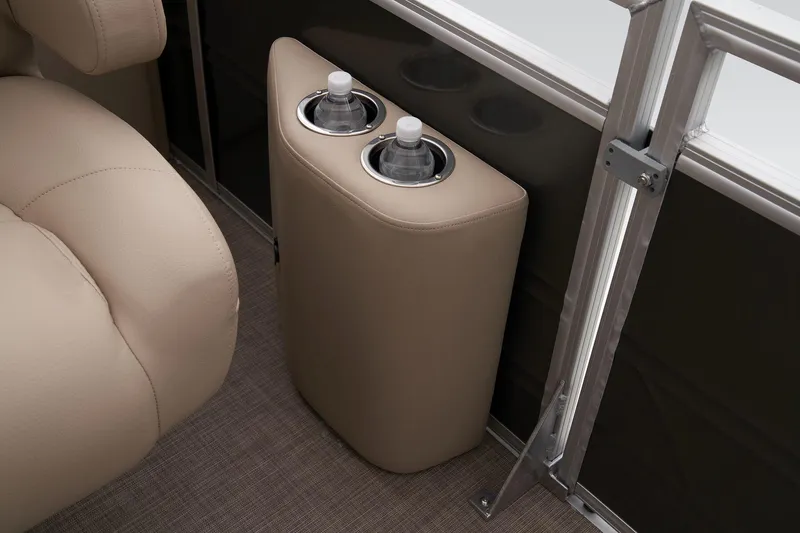

• 2 movable drink holders/armrests for couch seating

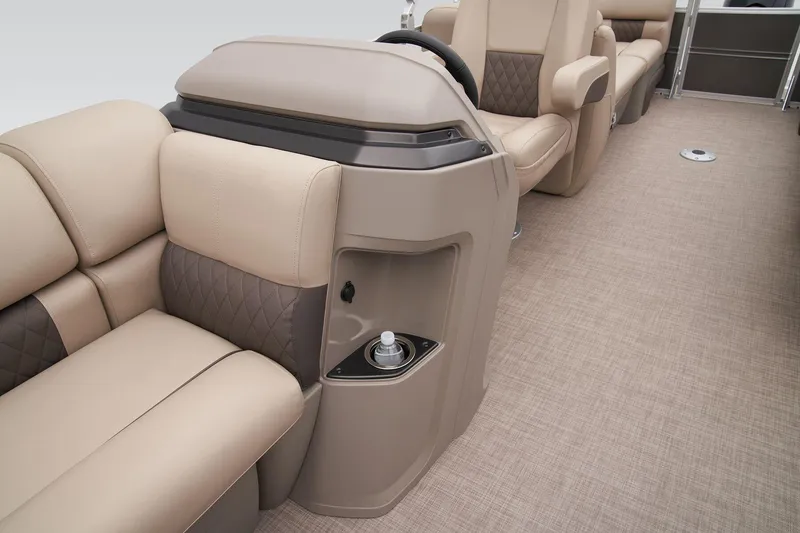

• Midship port side drink holder

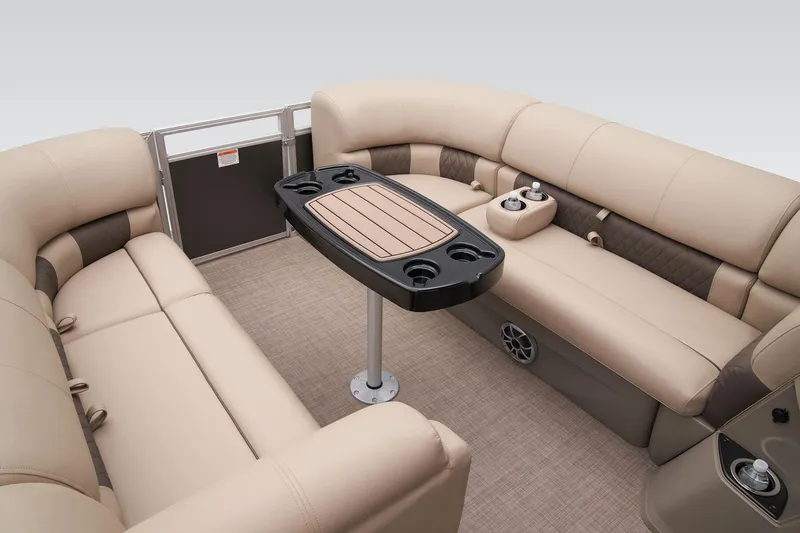

• Removable table w/soft-touch insert; 4 molded-in drink holders; & 2 pedestal base locations

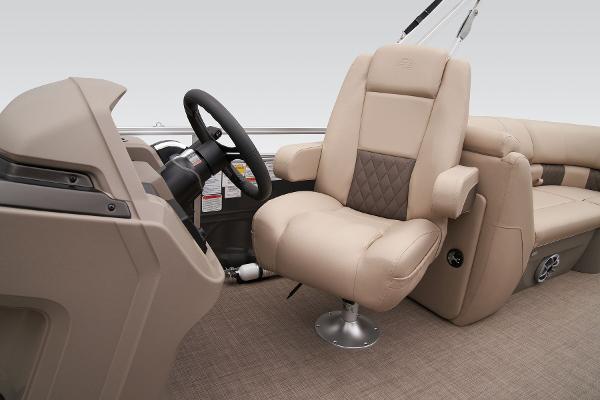

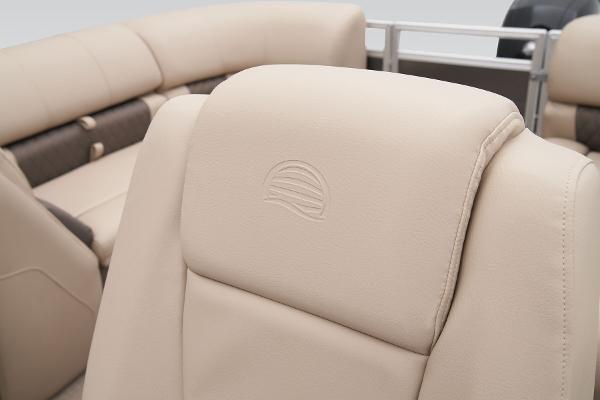

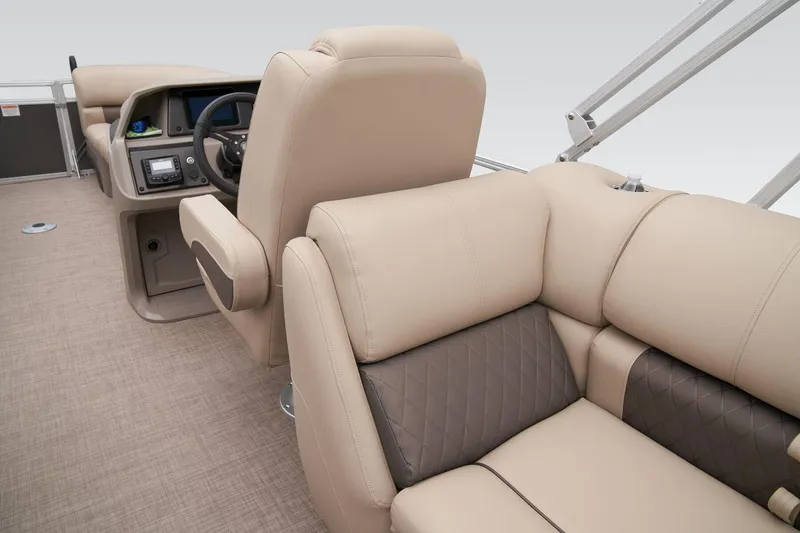

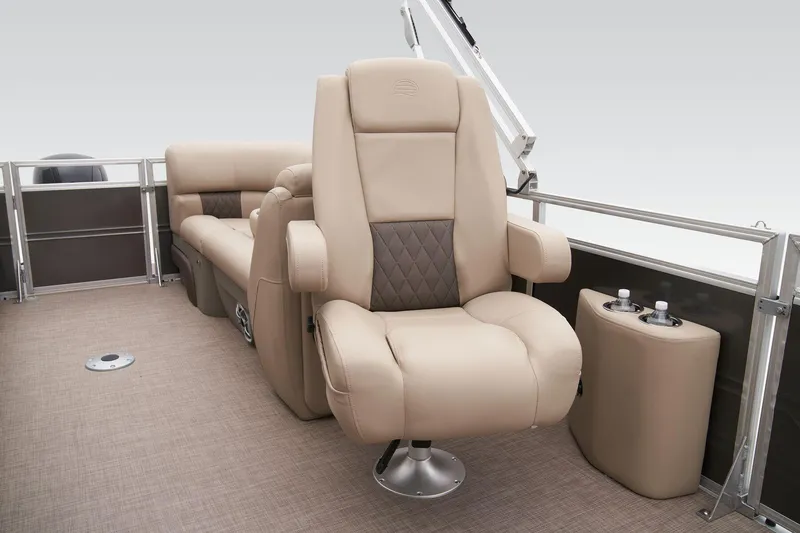

• Reclining, high-back swiveling port & helm bucket seats w/self-leveling armrests

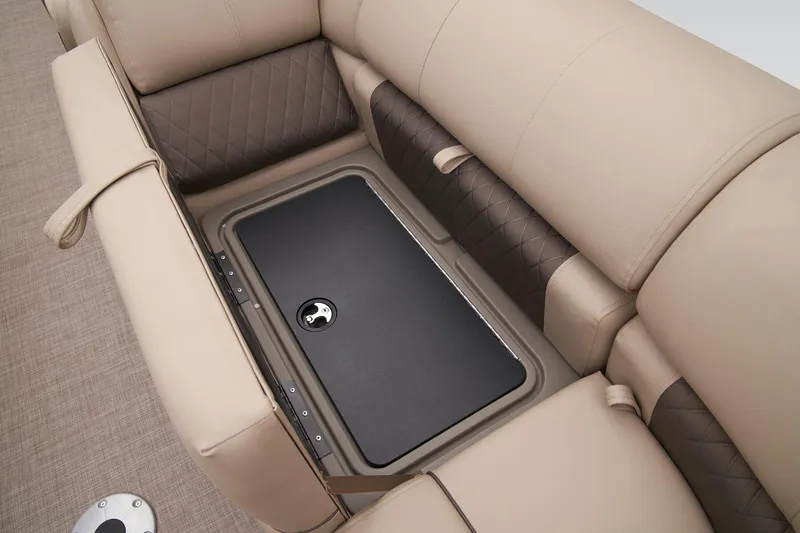

• Aft port couch w/STOW MORE™ & underseat storage
• Aft starboard couch w/STOW MORE™ & underseat, lockable storage

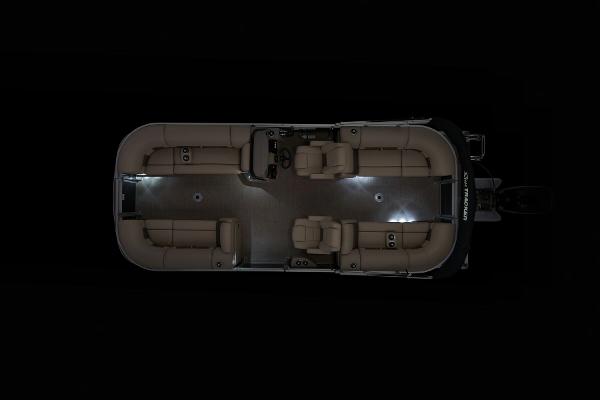

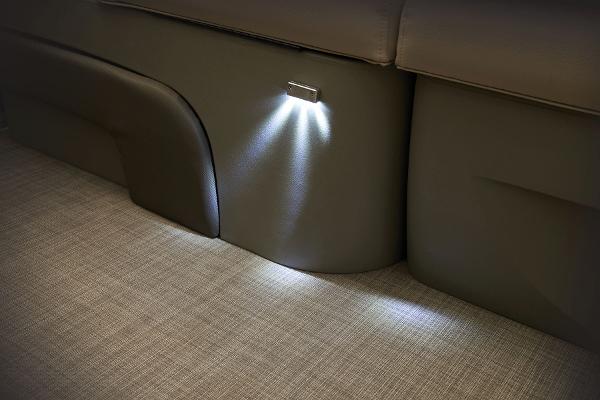

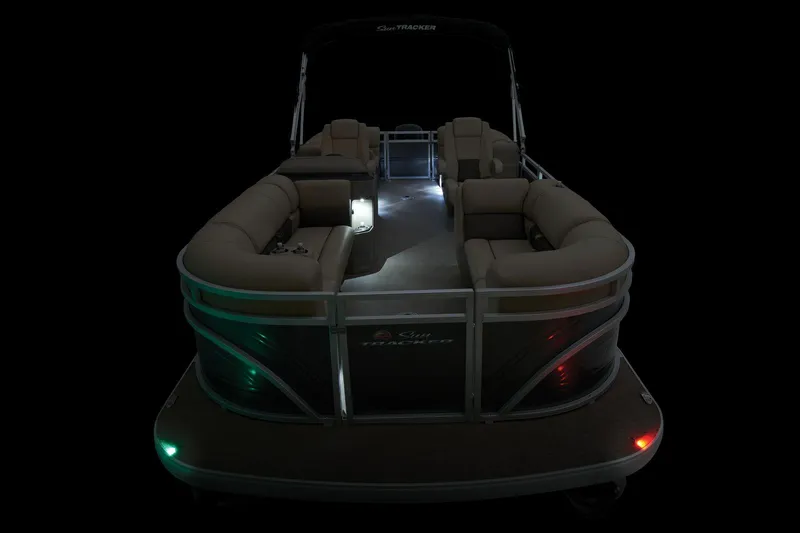

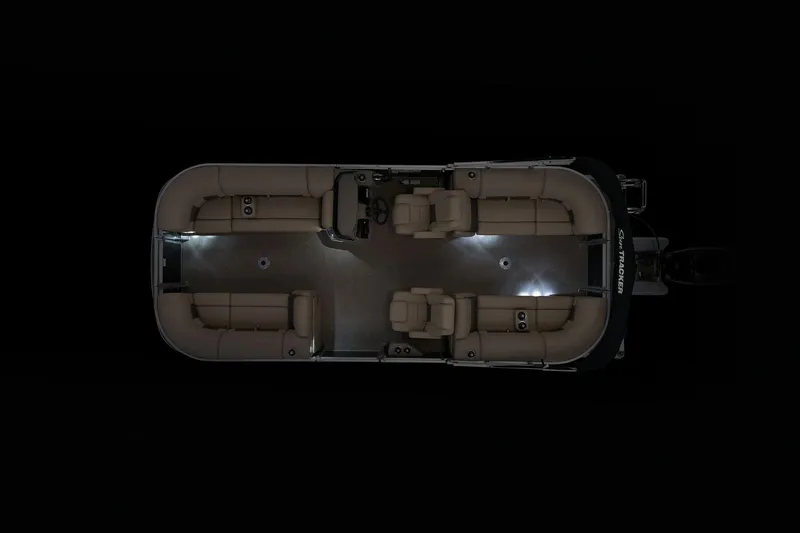

• Interior courtesy lighting
• Full-width aft swim deck

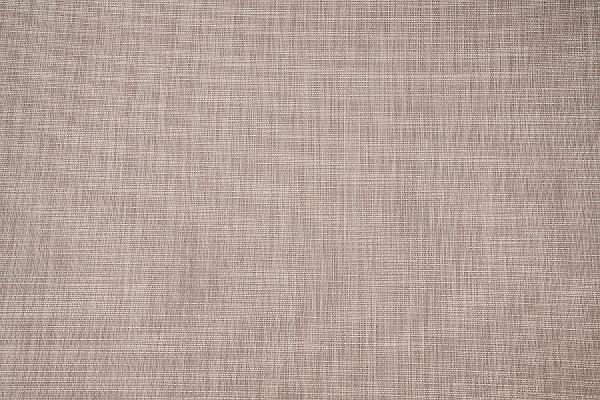

• Woven 16-oz. (.45 kg) marine-grade flooring throughout

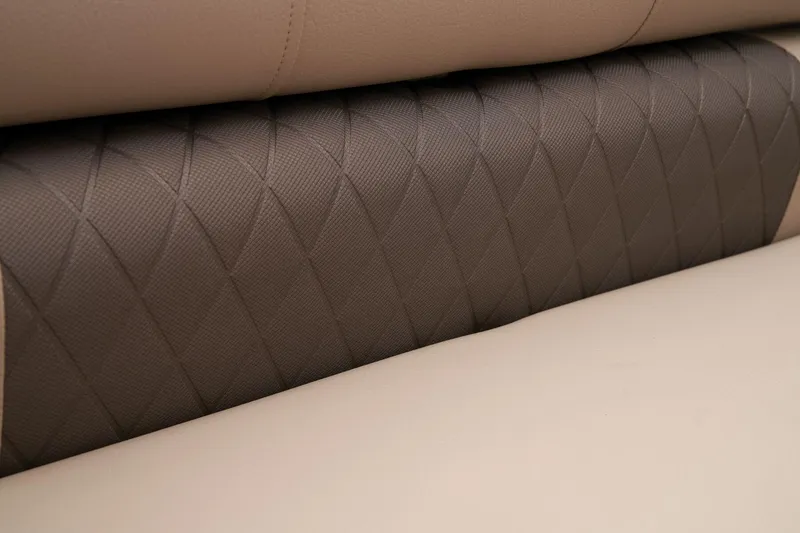

• Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Construction & Performance

• 24" (60.96 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
• Full-length, 1-piece longitudinal M-bracket deck supports
• Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
• Heavy-duty aluminum U-channel reinforcement behind bow deck trim
• Reinforced bow structure

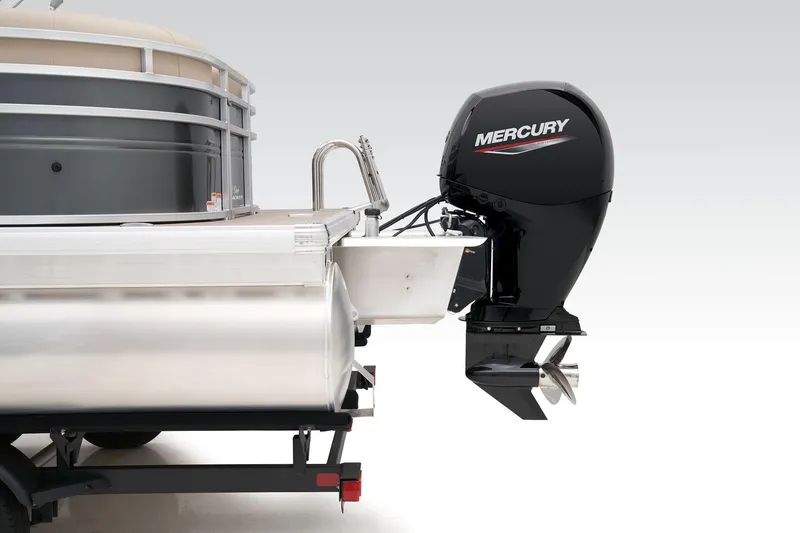

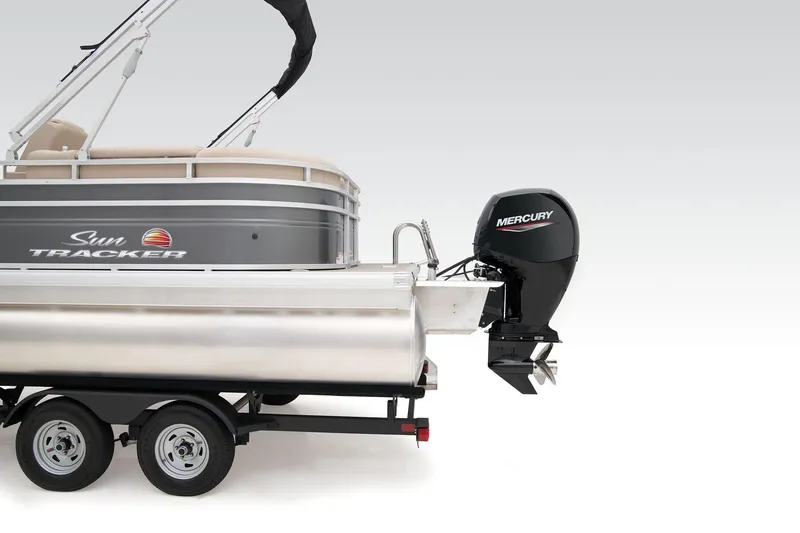

• All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
• All-aluminum box-beam transom for strength & longevity
• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
• 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails
• Sound- & vibration-deadening fence insulation for a quiet ride
• Extruded & anodized aluminum deck edging w/polished aft corner covers
• Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
• Rotomolded storage, furniture & console for superior strength & longevity
• Nylon gate latches & heavy-duty hinges that open inward
• Stainless or coated corrosion-resistant fasteners
• Factory-matched aluminum propeller

Exterior

• Color: Charcoal or Copper Red fencing

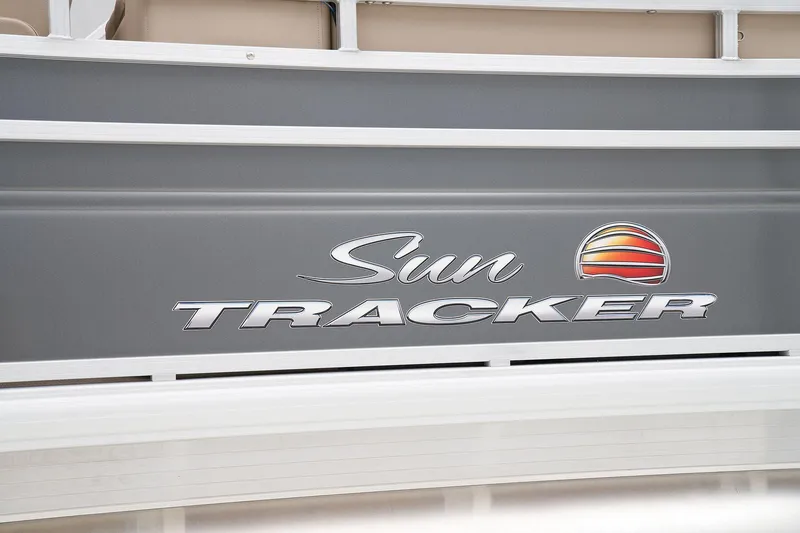

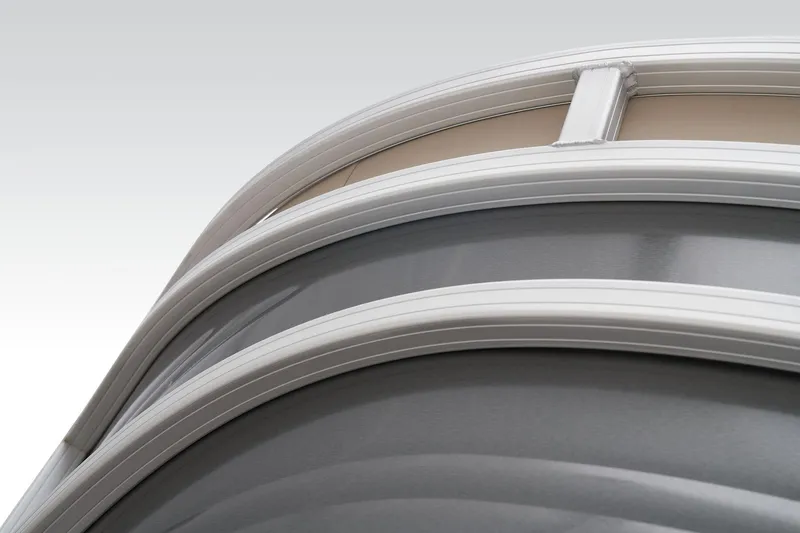

• Patent-pending TRACK FORMED™ fence design w/high-sheen finish for long-lasting cosmetics
• Elevated fence panels for deck drainage & ventilation

Electrical

• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
• Protective abrasion-resistant wire wrap
• Water-resistant connectors
