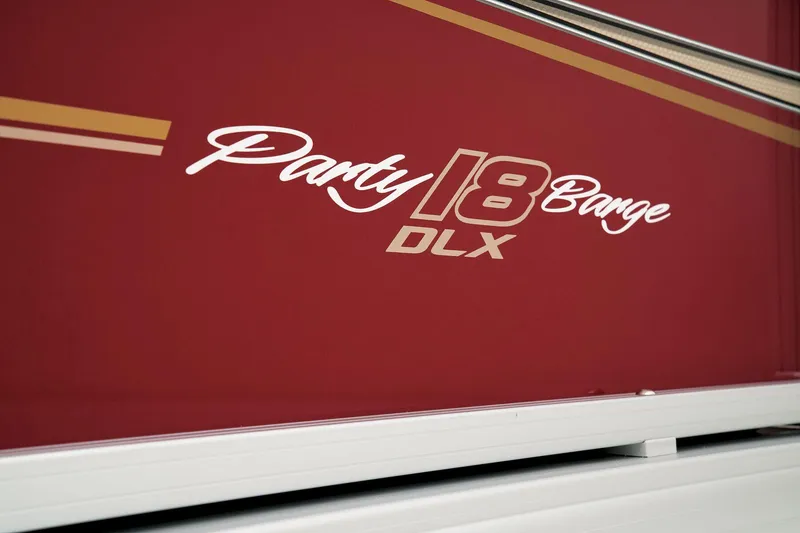

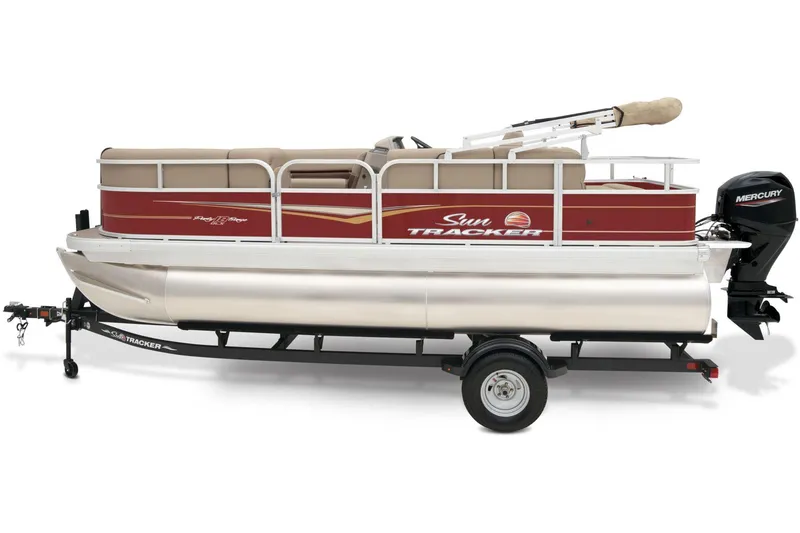

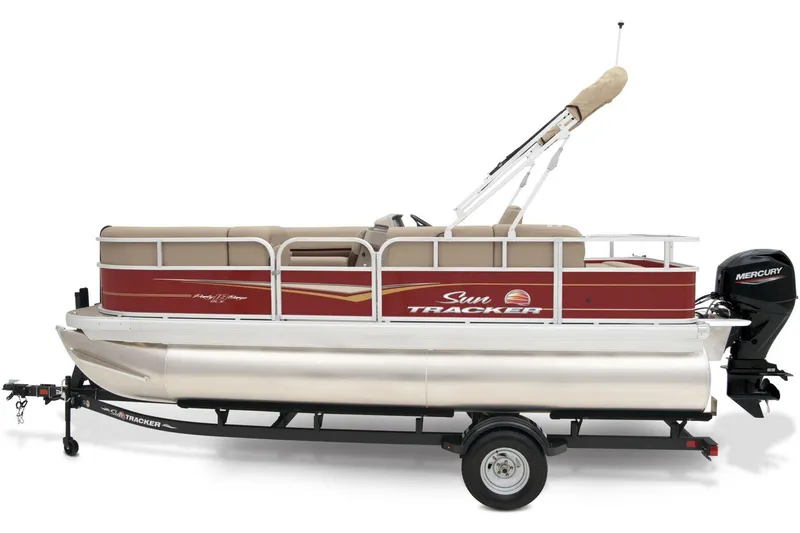

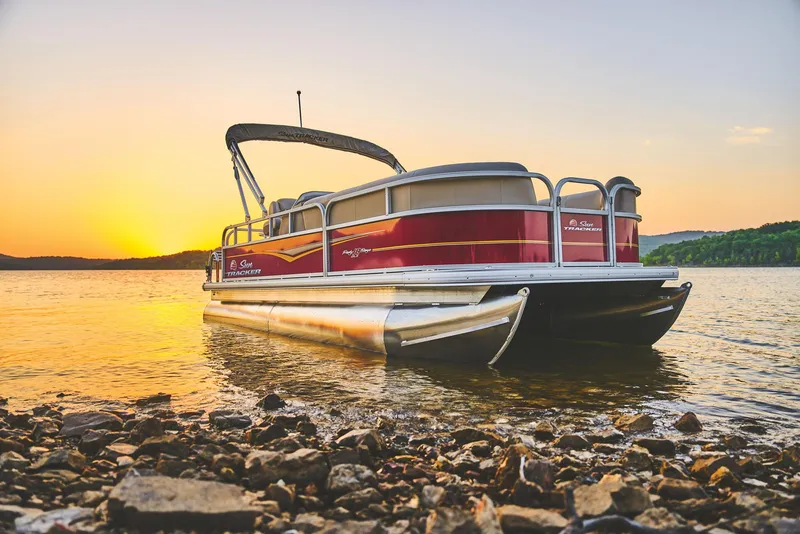

2025 Sun Tracker Party Barge 18 DLX

Additional Specs

• Length:20' 0"

• Deck Length: 17' 8"

• Deck Width: 8' 2"

• Max. Recommended HP: 75 HP

• Fuel Capacity: 32.1 gal.

• Pontoon Log Length: 18' 4"

• Pontoon Log Diameter: 24"

• Pontoon Log Material: 0.08 5052 marine alloy

• Max. Person Capacity: 9 persons

• Max. Person Weight: 1220 lbs.

• Max. Person, Motor & Gear Weight: 1750 lbs.

• Interior Depth: 26"

• Average Dry Weight: 1450 lbs.

• Average Package Weight: 2965 lbs.

• Package Height: 9' 0"

• Package Width: 8' 2"

• Towing Length: 27' 3"

• Storage Length: 27' 3"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty

• NMMA® certified

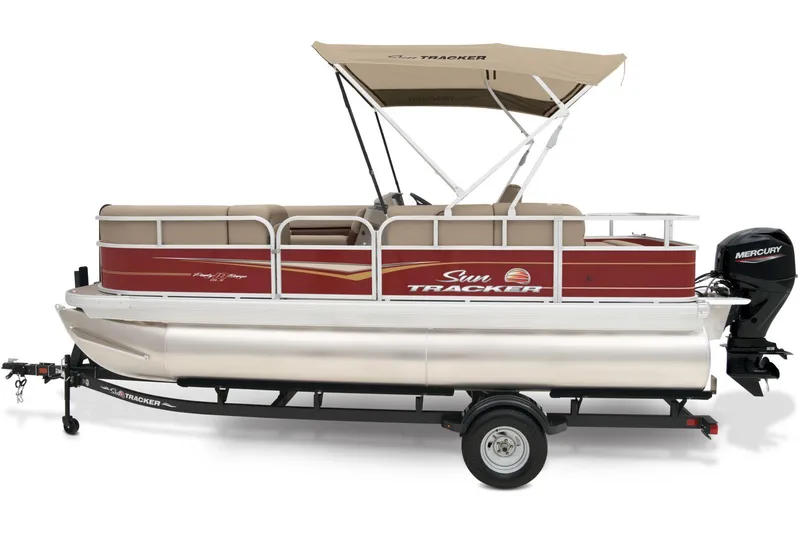

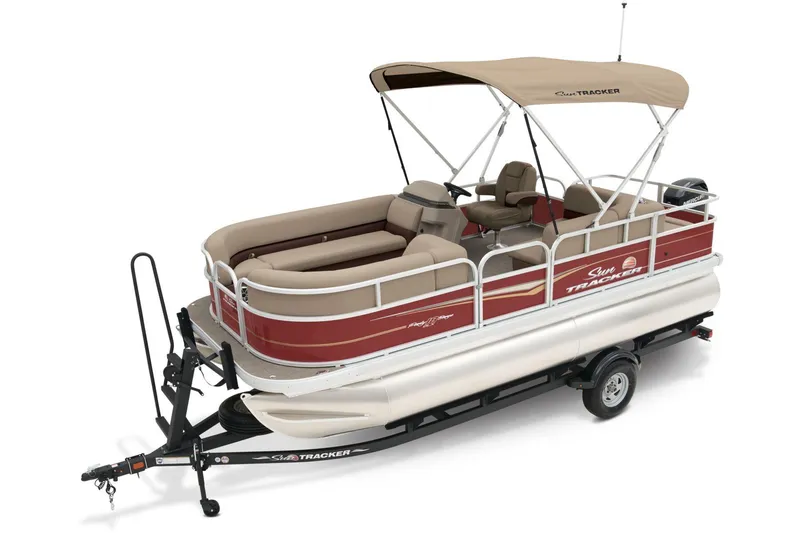

• 9' (2.74 m) Bimini top w/LED courtesy lights, storage pockets, protective boot & accepts optional drop-down changing curtain (color-coordinated Black w/Charcoal fencing or Sand w/Copper Red fencing)

• Easy-to-use, manual Bimini top deployment system

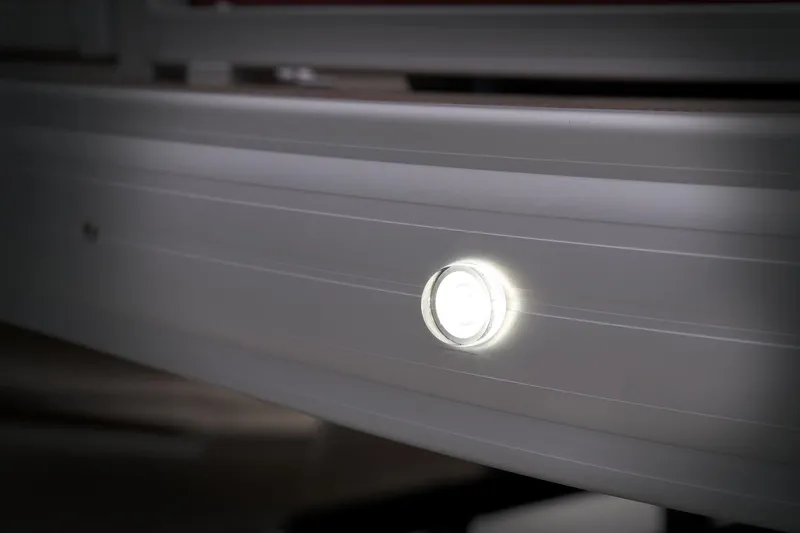

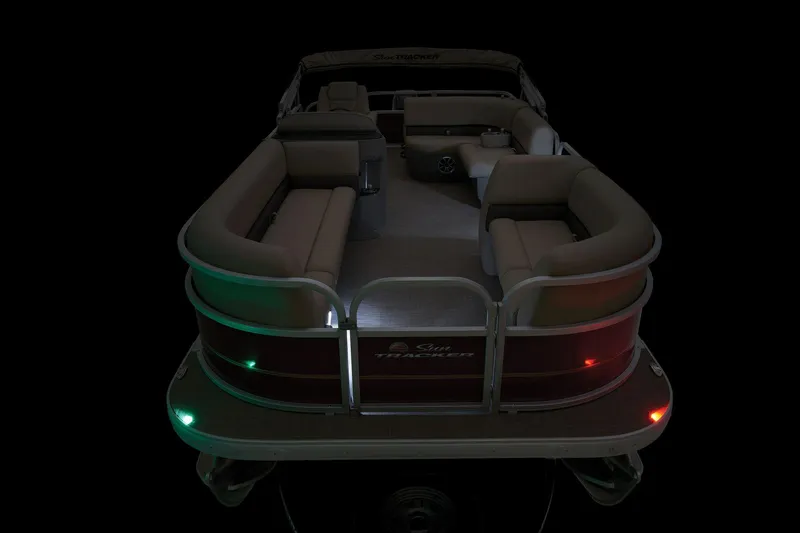

• Built-in LED docking lights

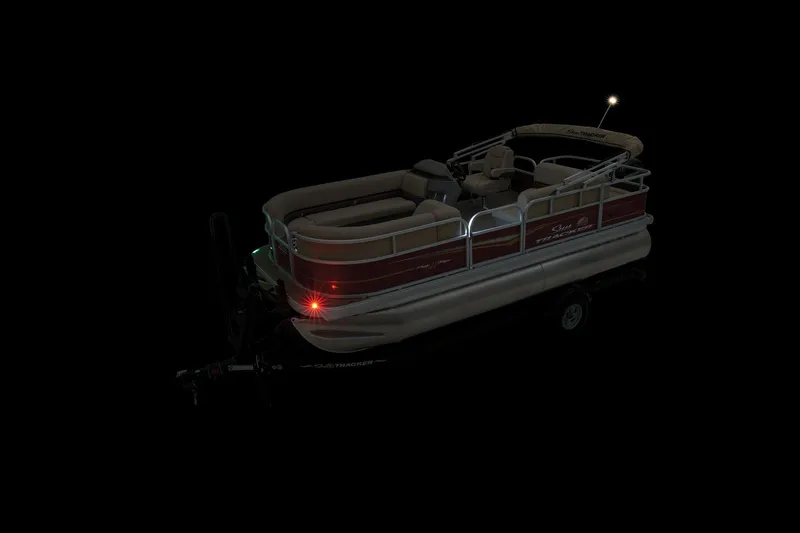

• Built-in LED navigation & anchor lights

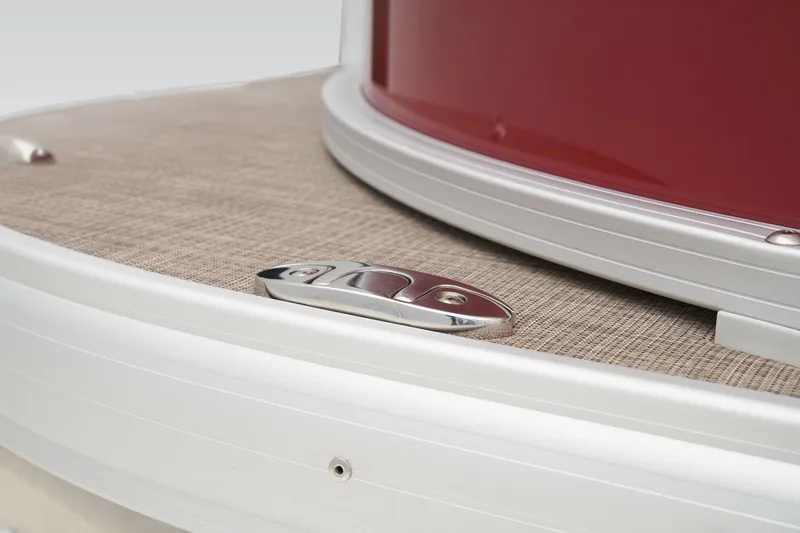

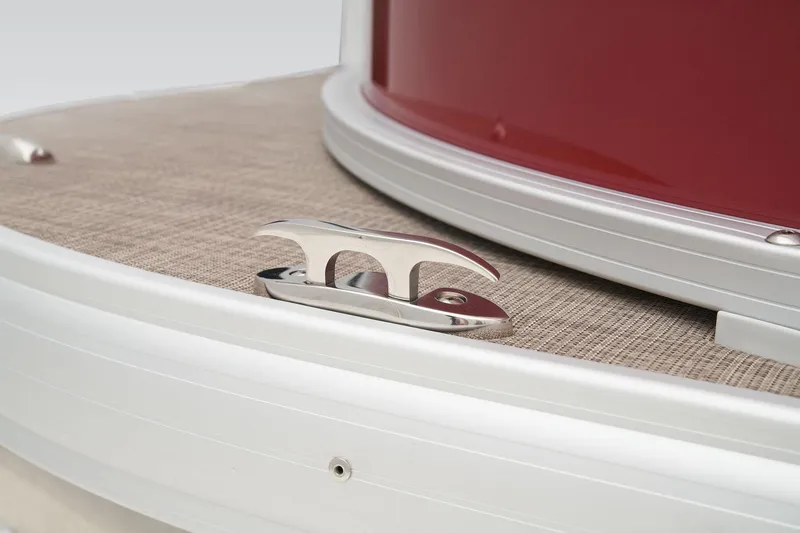

• 4 stainless steel mooring cleats

• Port wheelchair-accessible gate

• Rear boarding platform w/4-step telescoping boarding ladder & grab rails

• Motor-stop safety lanyard

• Fire extinguisher

• Horn

Console

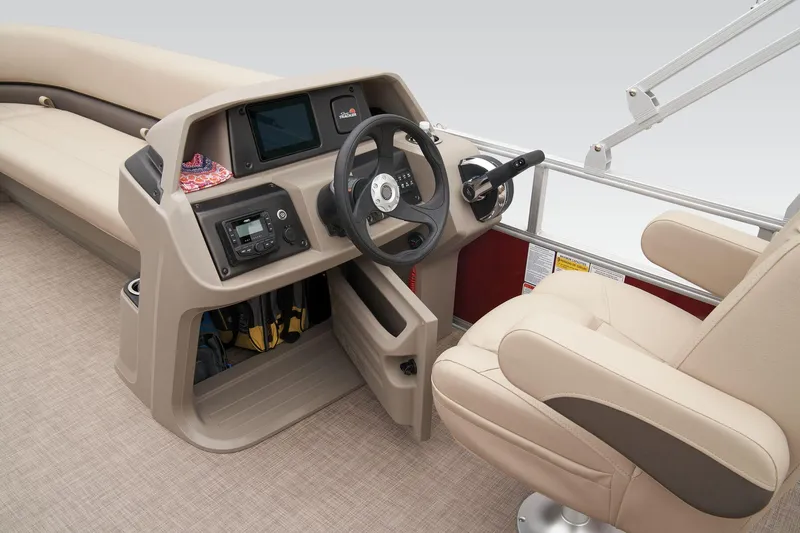

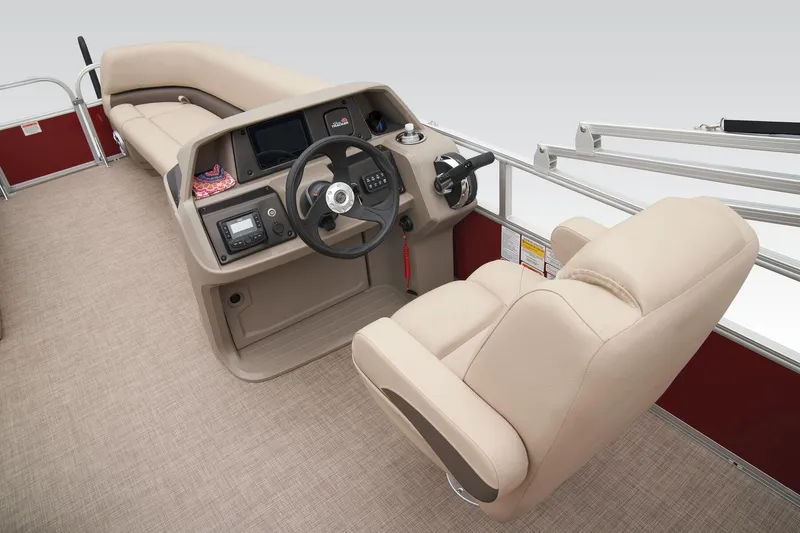

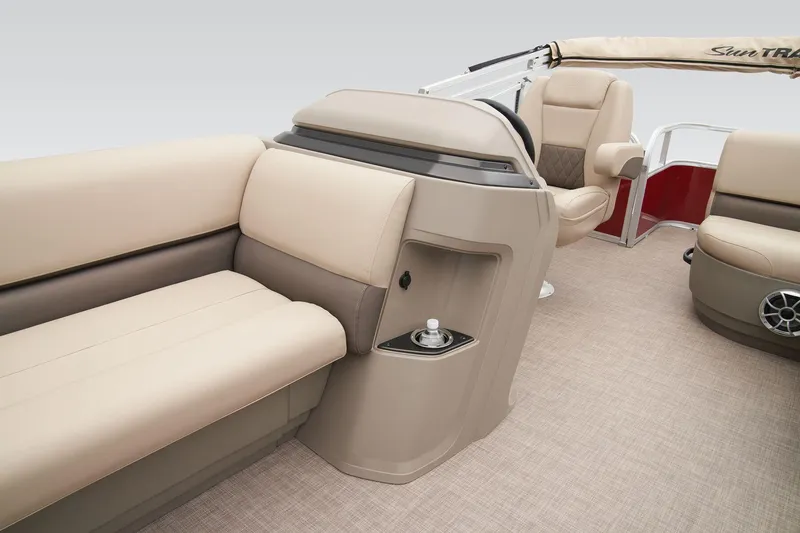

• Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

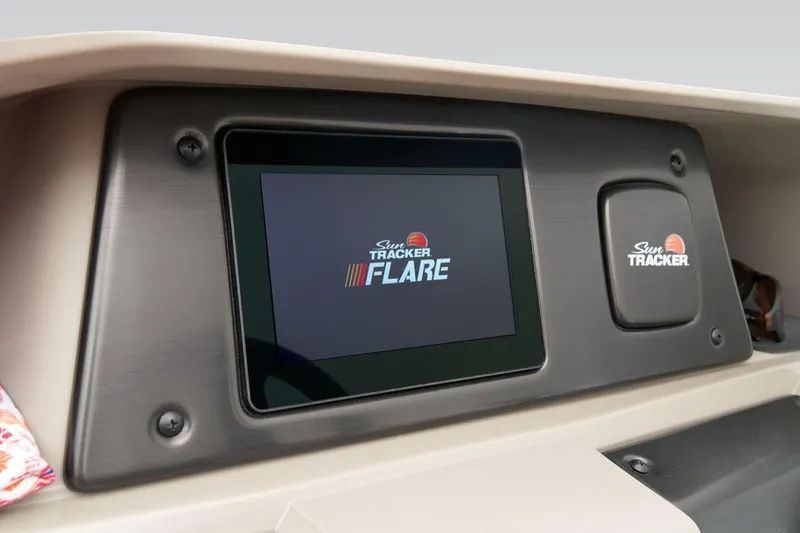

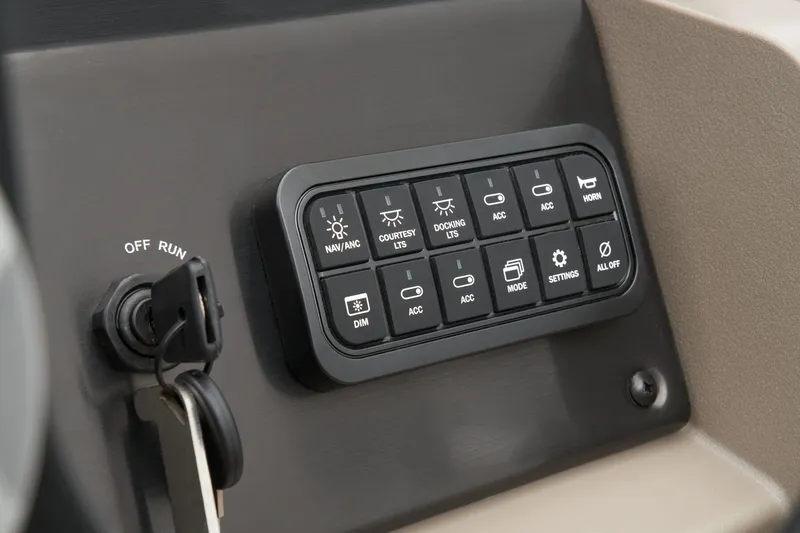

• SUN TRACKER FLARE™ touchscreen gauge display & 12-button switch panel

• 4:2 ratio no-feedback steering w/sport steering wheel

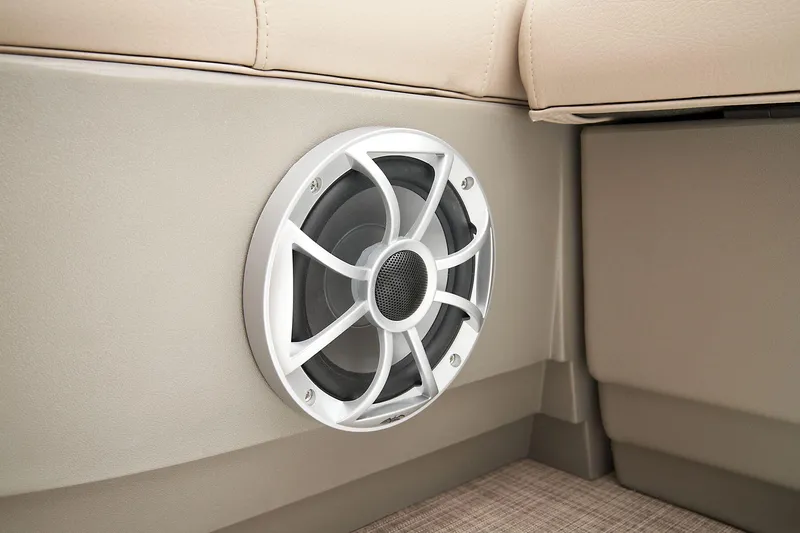

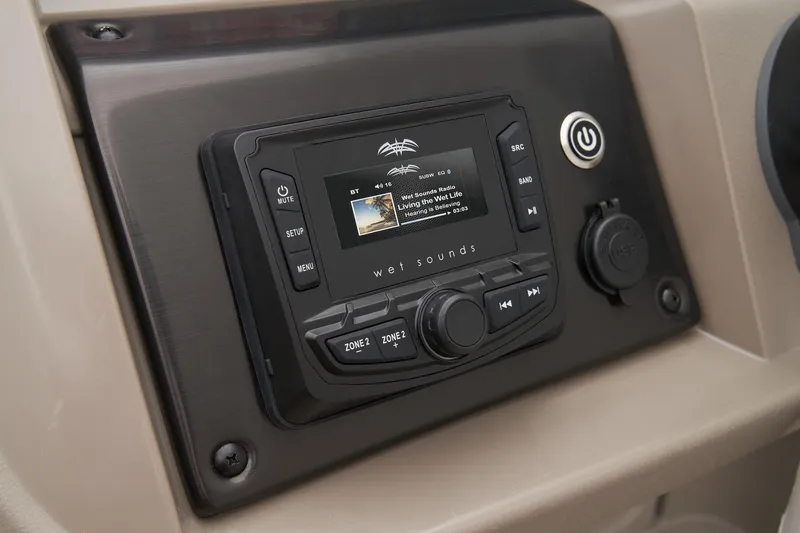

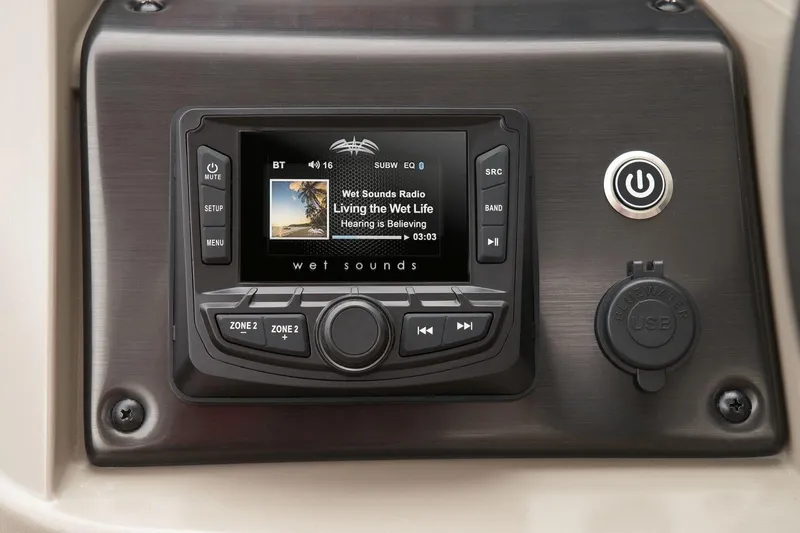

• Wet Sounds® stereo w/Bluetooth® & two 6.5" (16.51 cm) upholstery speakers

• Master power on/off switch

• Recessed mobile phone cubbies

• USB charging receptacle

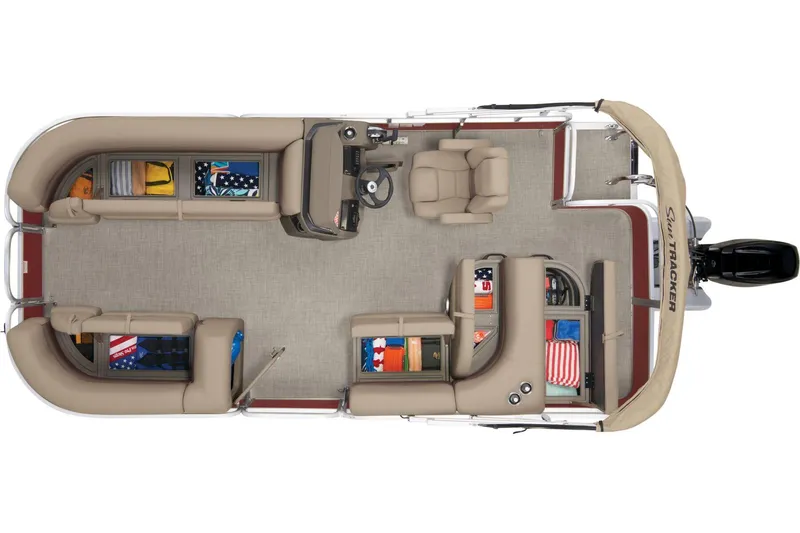

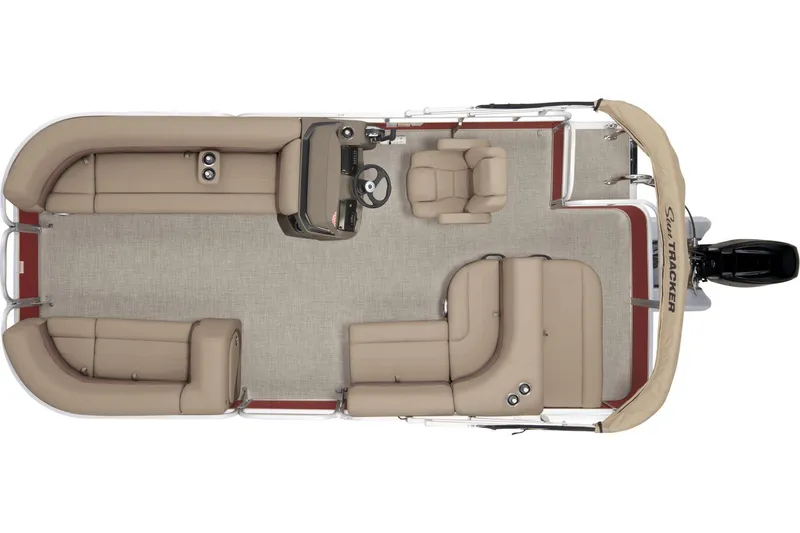

Interior

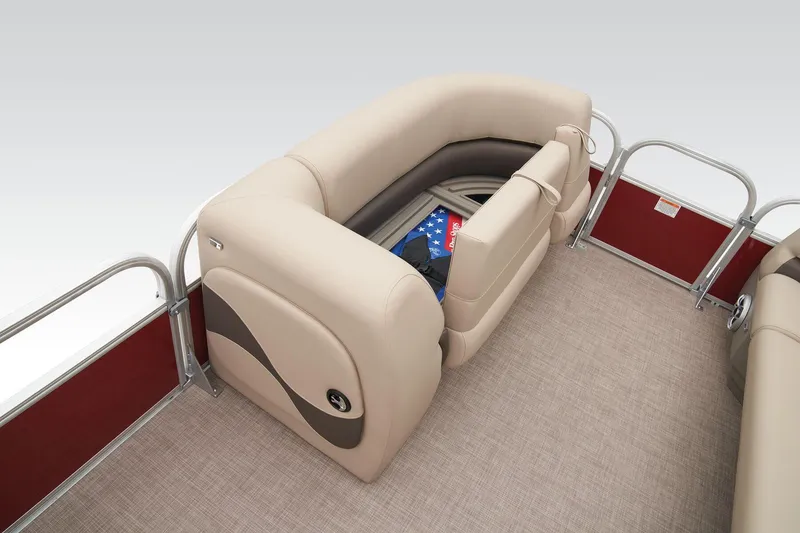

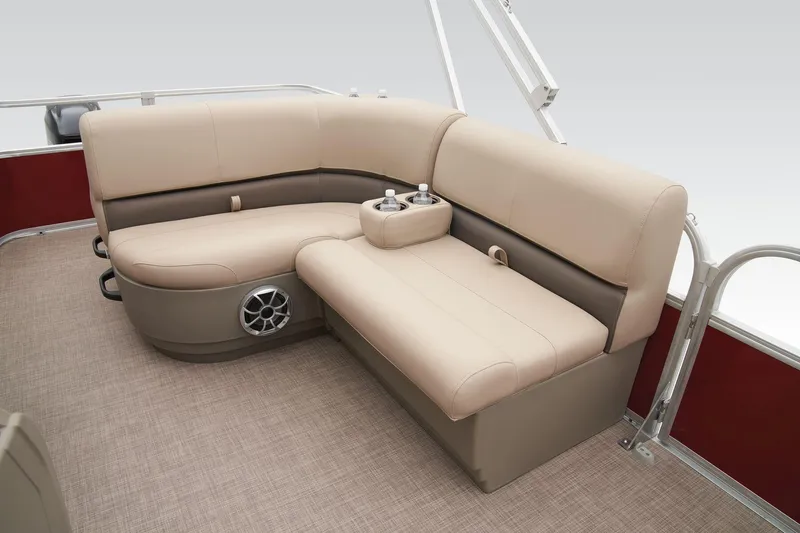

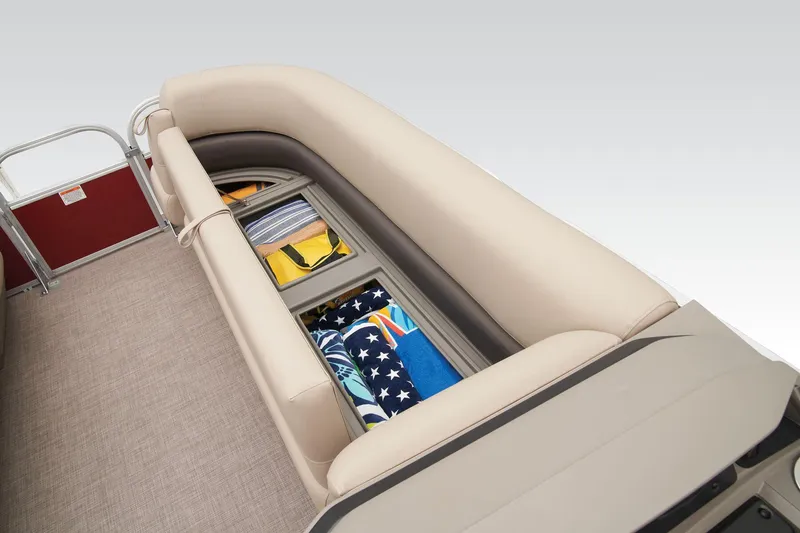

• Bow port couch w/underseat storage & armrest w/drink holder

• Bow starboard console couch w/underseat storage

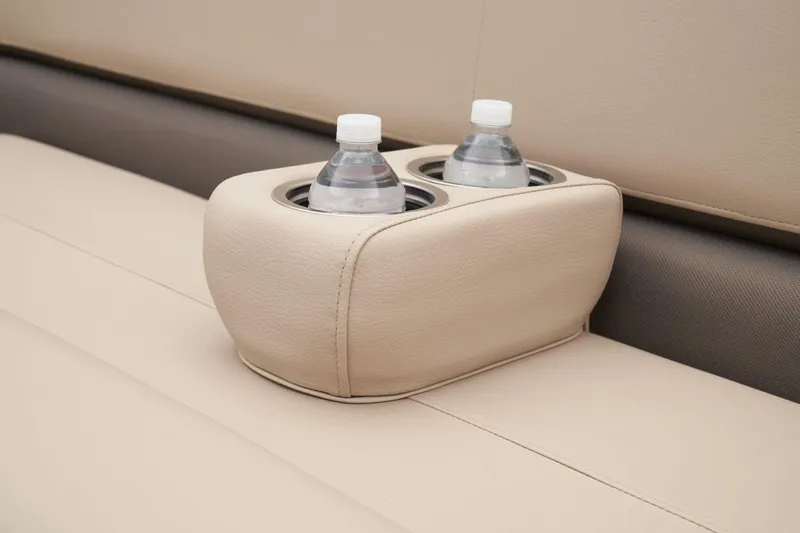

• Movable drink holder/armrest for couch seating

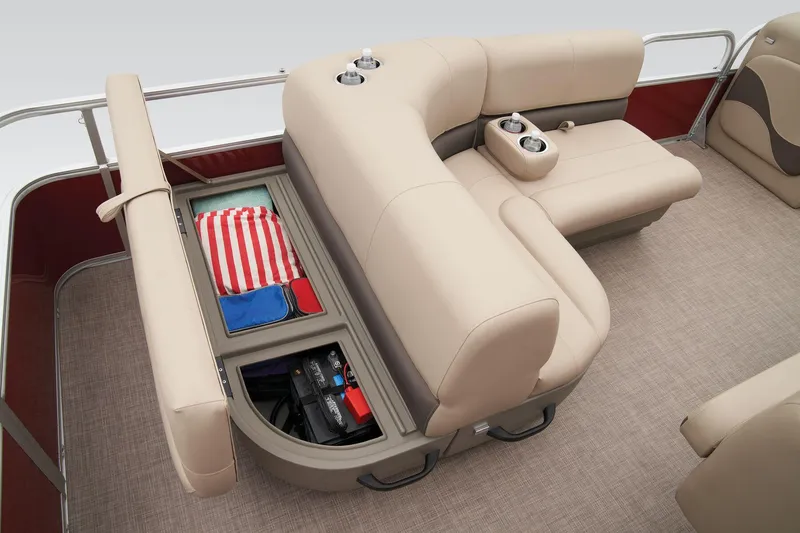

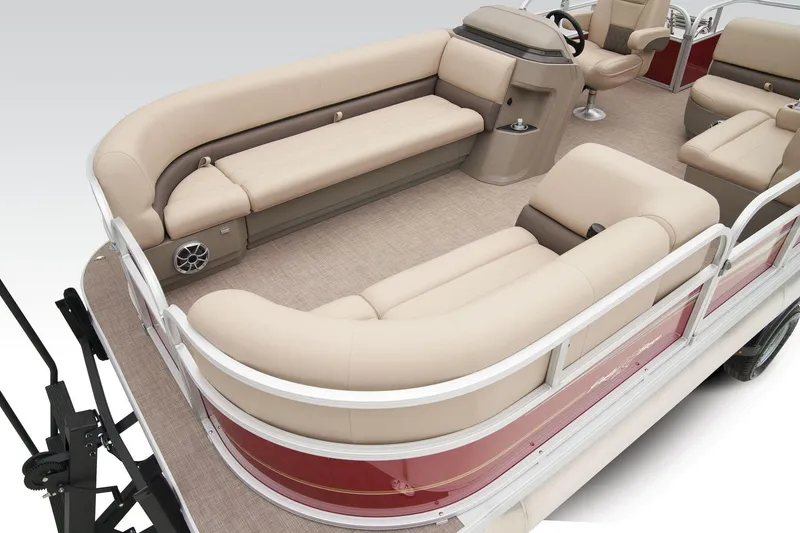

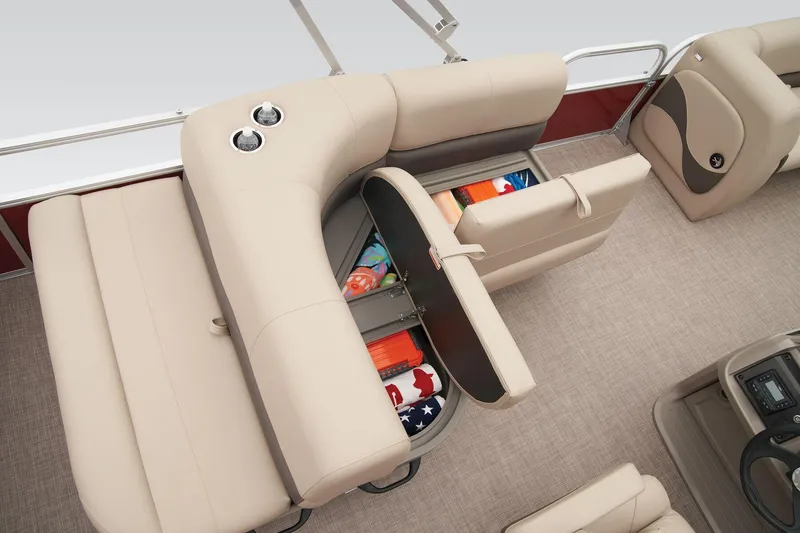

• Aft L-lounge couches w/underseat storage

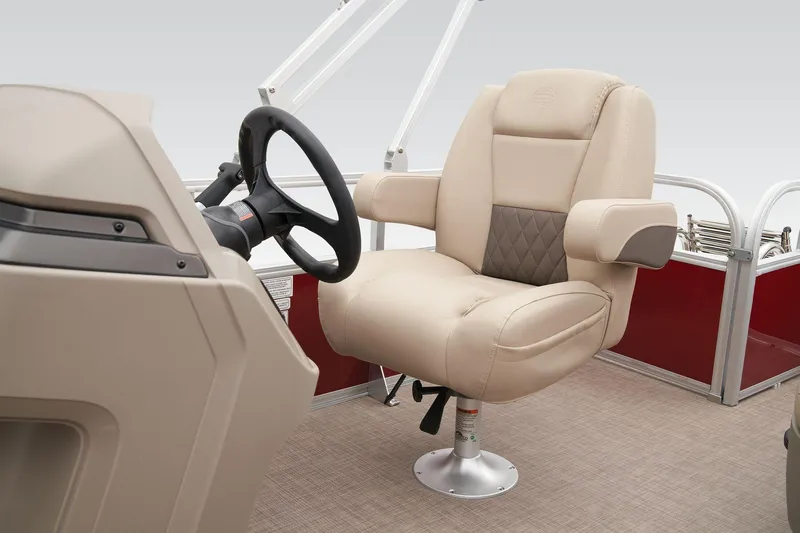

• Adjustable & swiveling helm bucket seat

• Aft port rear-facing double lounge w/underseat storage

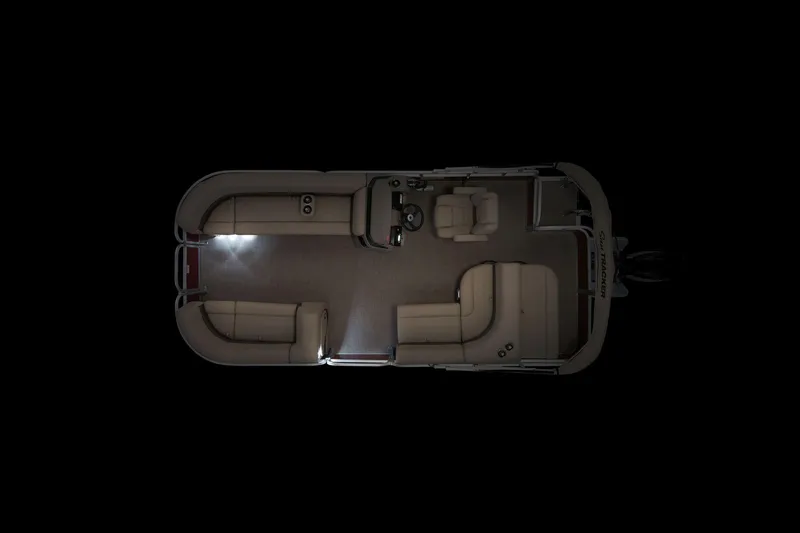

• Interior courtesy lighting

• Full-width aft swim deck

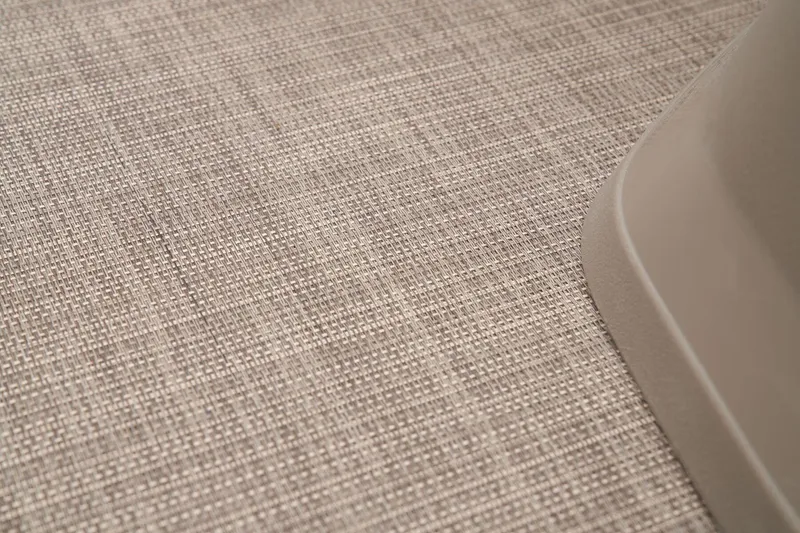

• Woven 16-oz. (.45 kg) marine-grade flooring throughout

• Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Construction & Performance

• 24" (60.96 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs

• Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets

• Heavy-duty aluminum U-channel reinforcement behind bow deck trim

• Reinforced bow structure

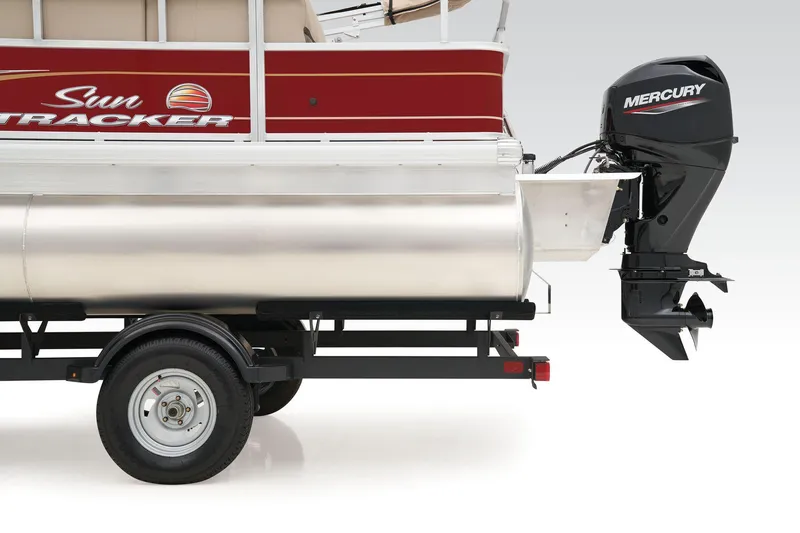

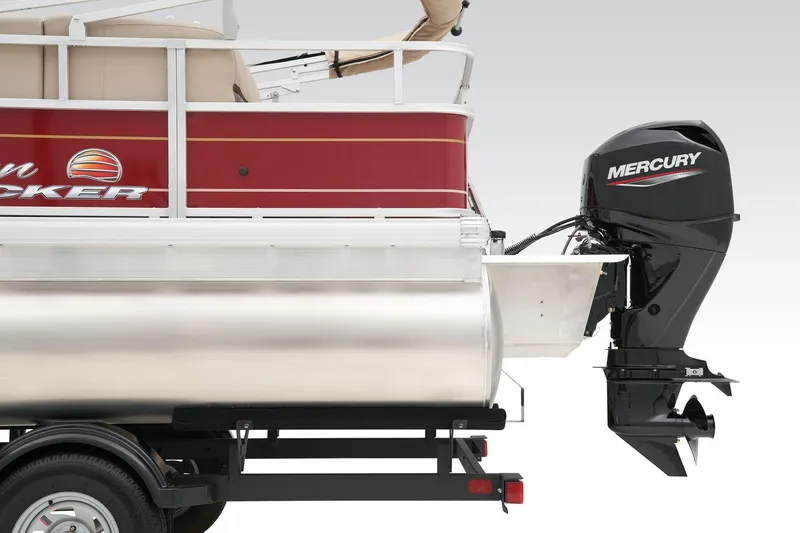

• All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system

• All-aluminum box-beam transom for strength & longevity

• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty

• 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails

• Sound- & vibration-deadening fence insulation for a quiet ride

• Extruded & anodized aluminum deck edging w/polished aft corner covers

• Precision fit & finish via plasma & laser-cut parts & robotically-welded construction

• Rotomolded storage, furniture & console for superior strength & longevity

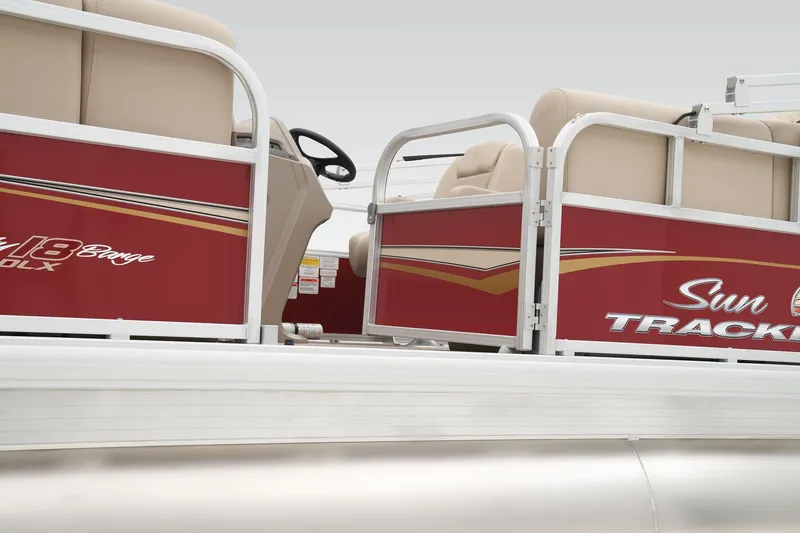

• Gate latches & heavy-duty hinges that open inward

• Stainless or coated corrosion-resistant fasteners

• Factory-matched aluminum propeller

Exterior

• Color: Charcoal or Copper Red fencing

• TRACK FORMED™ fence design w/high-sheen finish for long-lasting cosmetics

• Elevated fence panels for deck drainage & ventilation

Electrical

• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door

• Protective abrasion-resistant wire wrap

• Water-resistant connectors
