• Length:24' 2"
• Deck length: 22' 1"
• Deck Width: 8' 6"
• Max. Recommended HP: 150 HP
• Fuel Capacity: 32.1 gal.
• Pontoon log length: 22' 3"
• Pontoon log diameter: 24"
• Pontoon log material: 0.08 5052 marine alloy
• Max. Person Capacity: 11 persons
• Max. person weight: 1500 lbs.
• Max. person, motor & gear weight: 2148 lbs.
• Interior depth: 26"
• Draft: 15"
• Average dry weight: 2039 lbs.
• Average package weight: 3873 lbs.
• Package height: 9' 0"
• Package width: 8' 6"
• Towing length: 32' 4"
• Storage Length: 32' 4"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty
• NMMA® certified

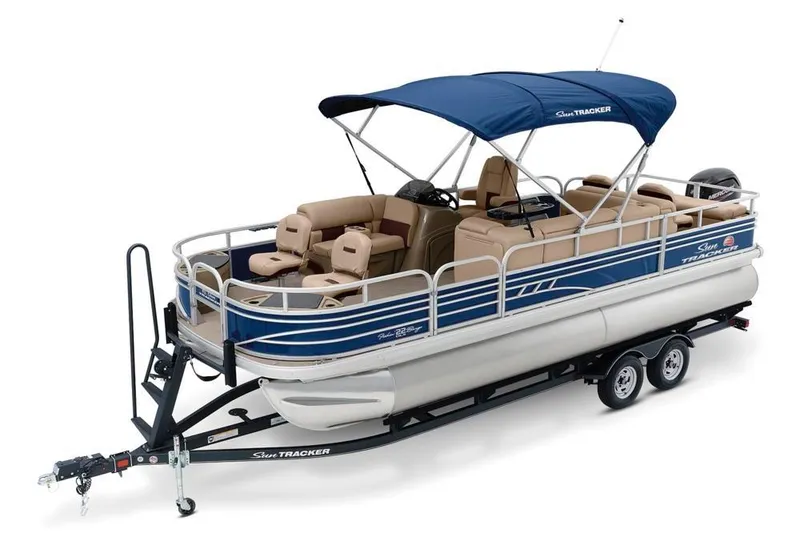

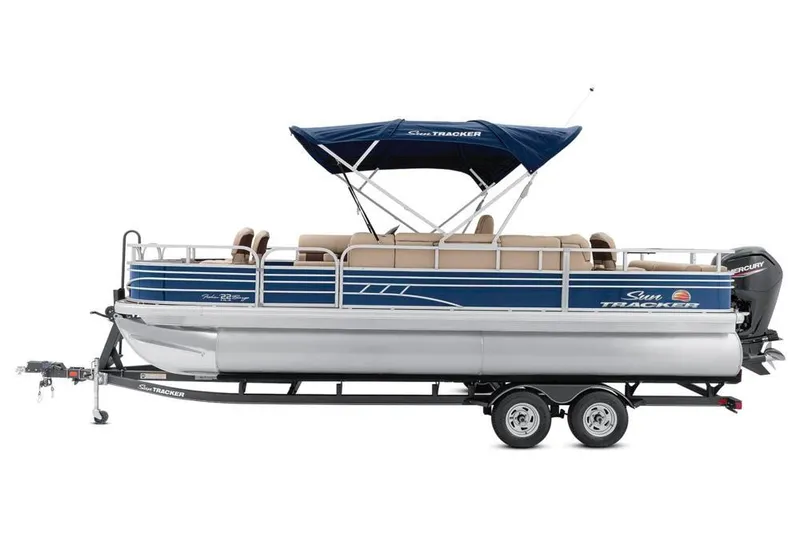

• 11' (3.35 m) color-keyed Bimini top w/LED courtesy lights, protective boot & accepts optional drop-down changing curtain
• Bazooka® Party Bar stereo & speakers in the Bimini top
• Front zipper on Bimini top to join optional forward Bimini together

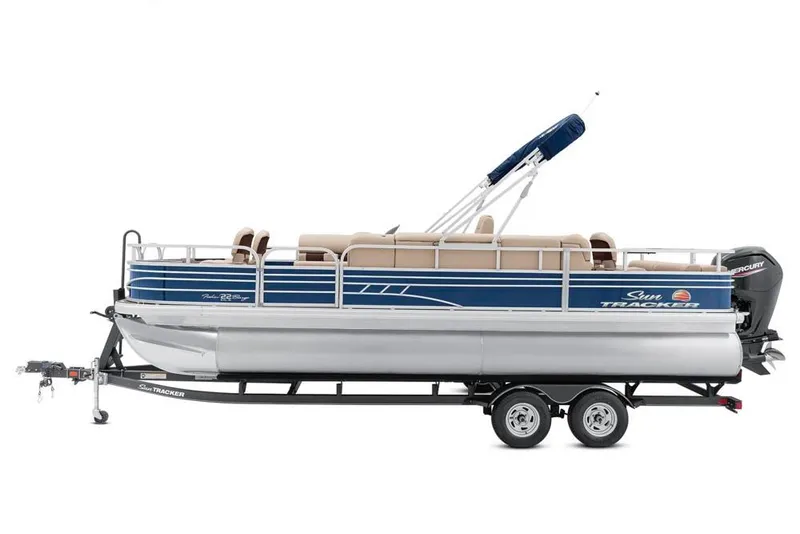

• QUICKLIFT® Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone
• Storage pockets in Bimini top
• Nylon gate latches & heavy-duty hinges that open inward
• Port & starboard LED navigation lights
• Bimini-mounted anchor/navigation light
• 4 mooring cleats
• Motor-stop safety lanyard
• Fire extinguisher
• Horn

Livewell Systems

• Bow port 16-gal. (60.57 L) rotomolded & aerated livewell w/shutoff valve & composite lid w/ruler
• Aft port 16-gal. (60.57 L) aerated livewell w/removable bait bucket & shutoff valve

Console

• Deluxe soft-touch sport steering wheel
• 4:2 ratio no-feedback steering for responsive, easy turning
• Wraparound sport console shroud & tinted, removable windscreen
• Below-console cooler/storage space w/door & integrated pouch
• Small items tray
• Drink holders
• Built-in footrest w/non-skid pad
• Bluetooth®-capable stereo interface for Bazooka® Party Bar
• Tachometer, trim meter/speedometer & fuel & hour gauges
• Lighted rocker switches
• Ergonomically positioned Mercury® binnacle control box w/trim
• 12V outlet
• Dark console color

Interior

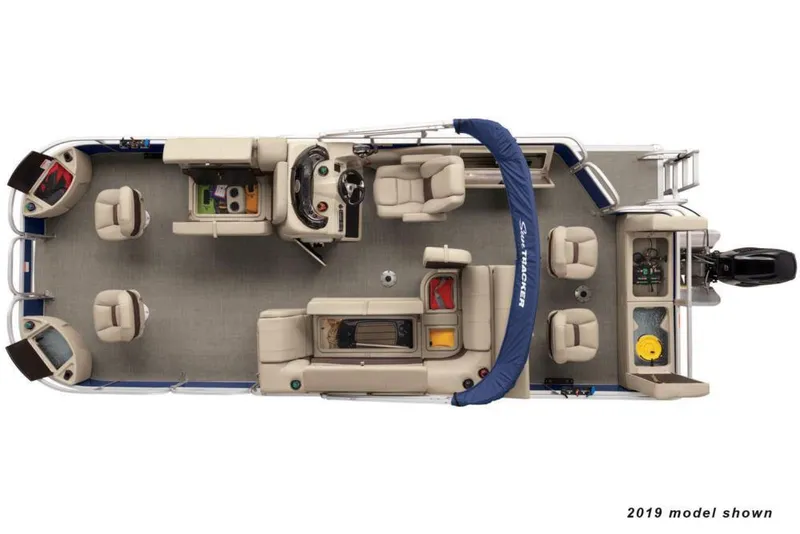

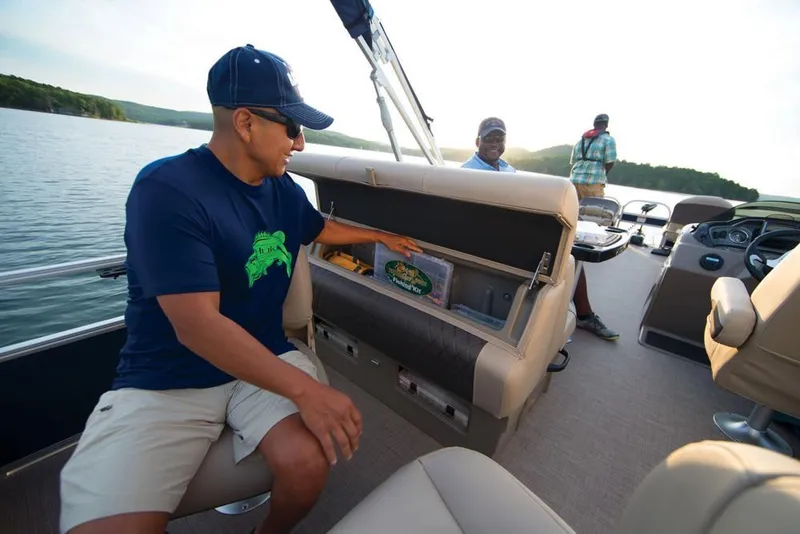

• STOW MORE™ system features an added compartment in the seat back for increased storage
• Large bow port rotomolded box w/livewell, ruler, drink holders & lid
• Large bow starboard rotomolded box w/storage, ruler, drink holders & lid w/room for 24V total battery capacity
• Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
• Bow & aft fishing positions w/4 removable folding fishing chairs
• Forward-console couch w/STOW MORE™ system & lockable underseat storage

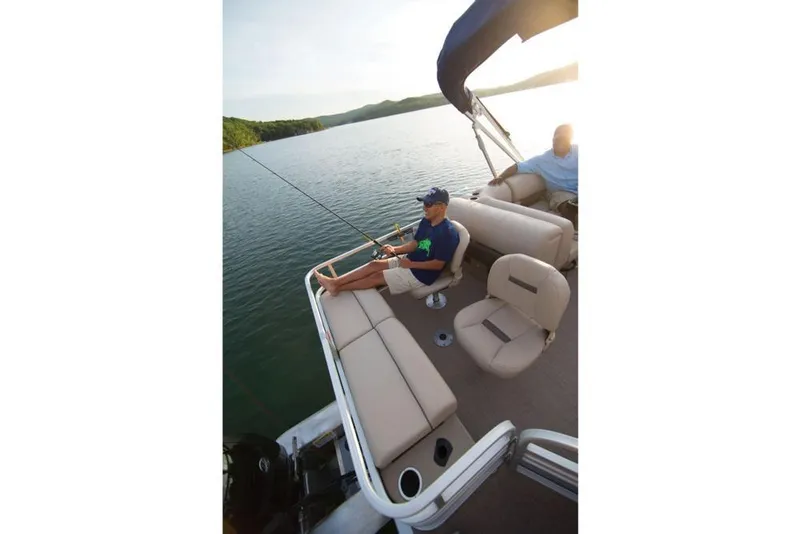

• Aft L-lounge w/STOW MORE™ system & underseat storage
• Rear-facing tackle storage in aft L-lounge

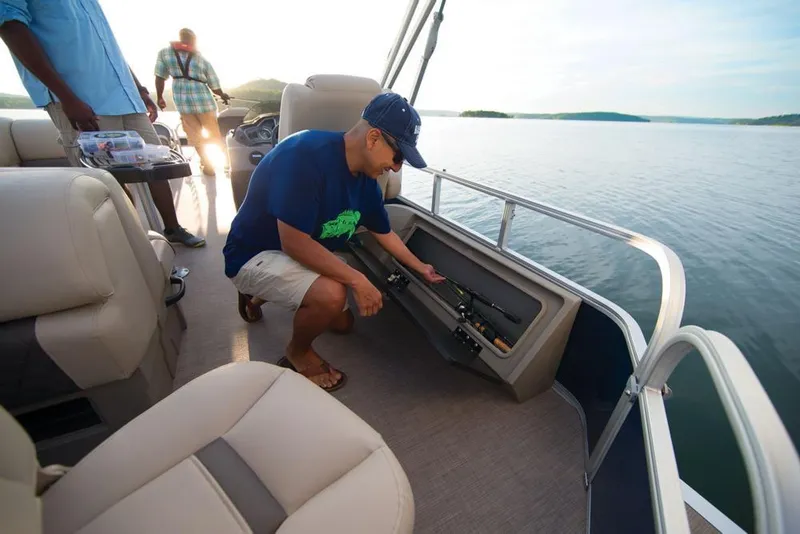

• Molded aft starboard lockable rod box for 6 rods to 7' 6" (2.29 m) w/lid, rod tube holders & organizer
• High-back swiveling helm bucket seat, reclining & w/self-leveling arms

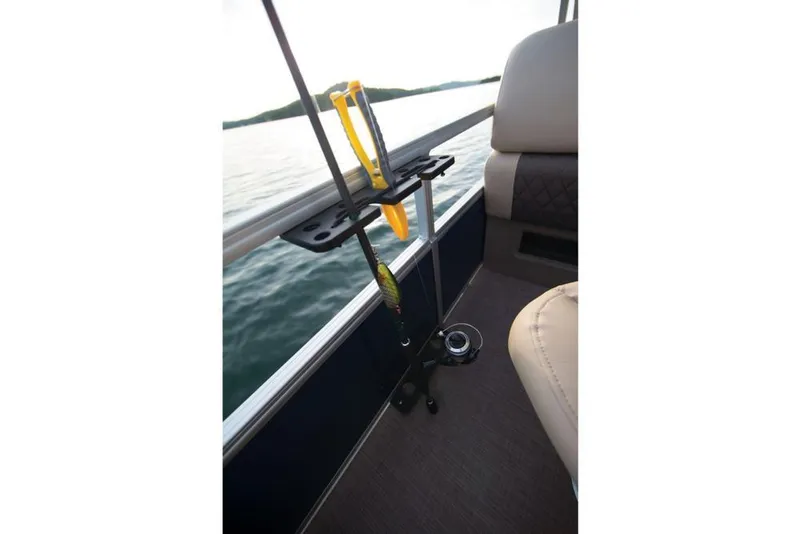

• Fore & aft vertical rod holders
• Woven 16-oz. (.45 kg) marine-grade flooring throughout
• Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
• Movable drink holder/armrest

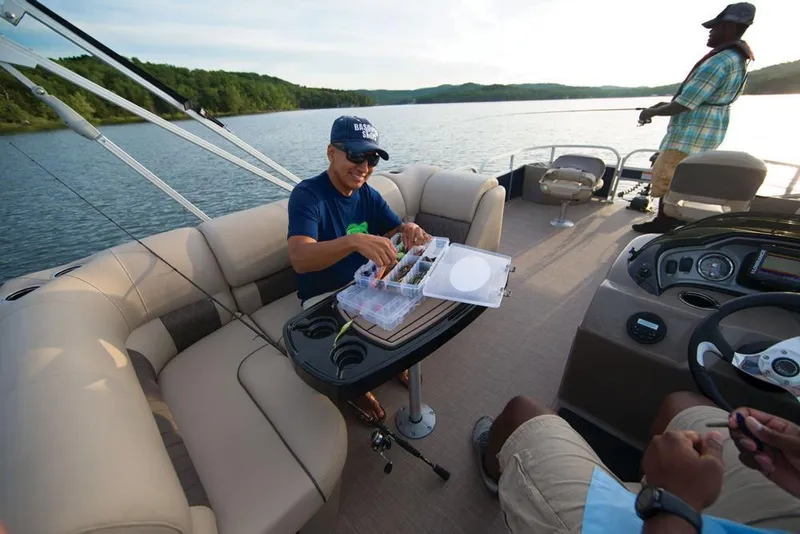

• Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
• Port wheelchair-access gate
• 4-step folding boarding ladder w/grab rails

Performance

• Nose cone & motor pod wave/spray deflectors for a drier ride
• Factory-matched aluminum propeller

Construction & Exterior

• Color: Black or Indigo Blue fencing
• Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
• Rotomolded couches & backs for furniture w/Diamante Pepper accent
• Fishing seats w/Diamante Pepper accent
• Heavy-duty bow U-channel reinforcement behind deck trim
• 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
• 1-piece full-length M-bracket deck supports
• RAIL-LOCK® system for mounting optional tops & optional mooring cover
• Protective exoskeleton rail & panel system for durability & a quieter ride
• High-sheen fence finish for long-lasting good looks
• 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
• Extruded anodized aluminum deck edging w/polished aft corner covers
• All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
• Stainless or coated corrosion-resistant fasteners
• 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
• Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
• Elevated fence panels for deck drainage & ventilation
• Sound- & vibration-deadening fence insulation for a quiet ride
• Box-beam all-aluminum transom for strength & longevity
• Rear boarding platform

Electrical

• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
• Protective abrasion-resistant wire wrap
• Water-resistant connectors

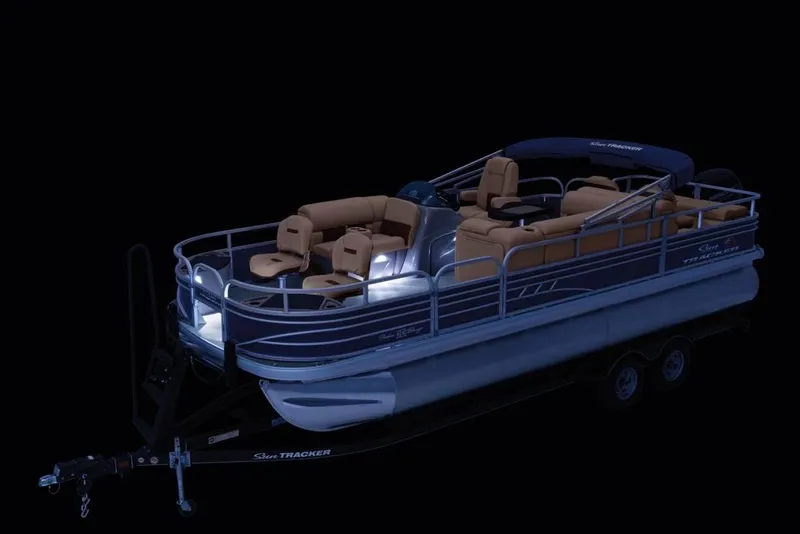

• Interior courtesy lighting

 .
