2025 Sun Tracker Fishin' Barge 20 DLX

Additional Specs

• Length:21' 11"
• Deck Length: 19' 10"
• Deck Width: 8' 6"
• Max. Recommended HP: 115 HP
• Fuel Capacity: 32.1 gal.
• Pontoon Log Length: 20' 4"
• Pontoon Log Diameter: 24"
• Pontoon Log Material: 0.08 5052 marine alloy
• Max. Person Capacity: 10 persons
• Max. Person Weight: 1370 lbs.
• Max. Person, Motor & Gear Weight: 1900 lbs.
• Interior Depth: 24"
• Average Dry Weight: 1940 lbs.
• Average Package Weight: 3605 lbs.
• Package Height: 8' 6"
• Package Width: 8' 6"
• Towing Length: 30' 4"
• Storage Length: 30' 4"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
• NMMA® certified
• 9' (2.74 m) SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot (color-coordinated Black w/Charcoal fencing or Sand w/Indigo Blue fencing)
• Built-in LED docking lights
• Built-in LED navigation & anchor lights
• 4 folding mooring cleats
• Port wheelchair-accessible gate
• Rear boarding platform w/4-step telescoping boarding ladder & grab rails
• Aft receptacle base for optional ski tow pylon
• Motor-stop safety lanyard
• Fire extinguisher
• Horn

Livewell System

• Bow 10-gal. (37.85 L) aerated livewell w/shutoff valve, drink holder, rod holder & composite lid w/fish ruler
• Aft 8-gal. (30.28 L) aerated livewell/baitwell w/shutoff valve, drink holder, rod holder & composite lid w/fish ruler

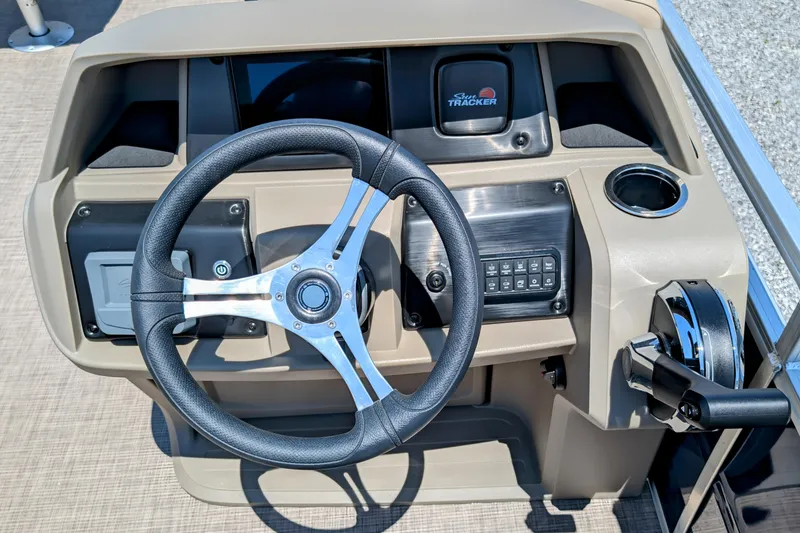

Console

• Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls
• SUN TRACKER FLARE™ touchscreen gauge display & 12-button switch panel
• Tilt steering w/deluxe soft-touch steering wheel
• Wet Sounds® stereo w/Bluetooth® & two 6.5" (16.51 cm) speakers, strategically located & shielded within the seat bases
• Master power on/off switch
• Recessed mobile phone cubbies
• USB charging receptacle

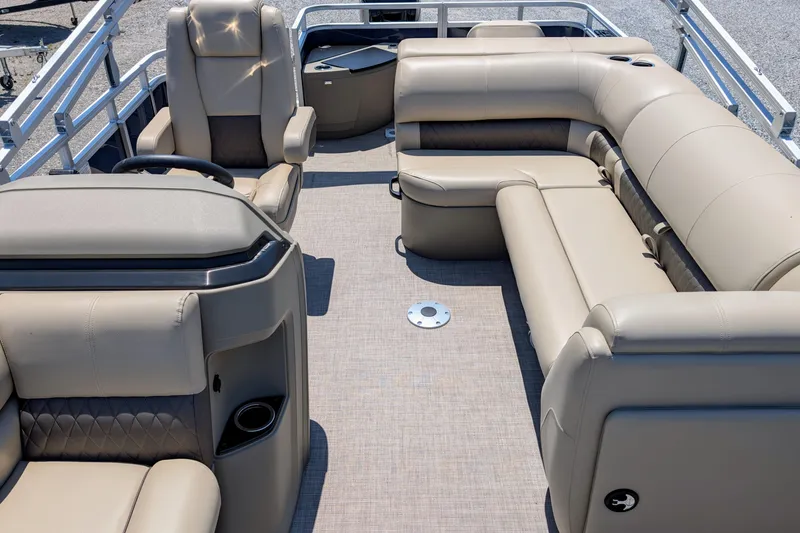

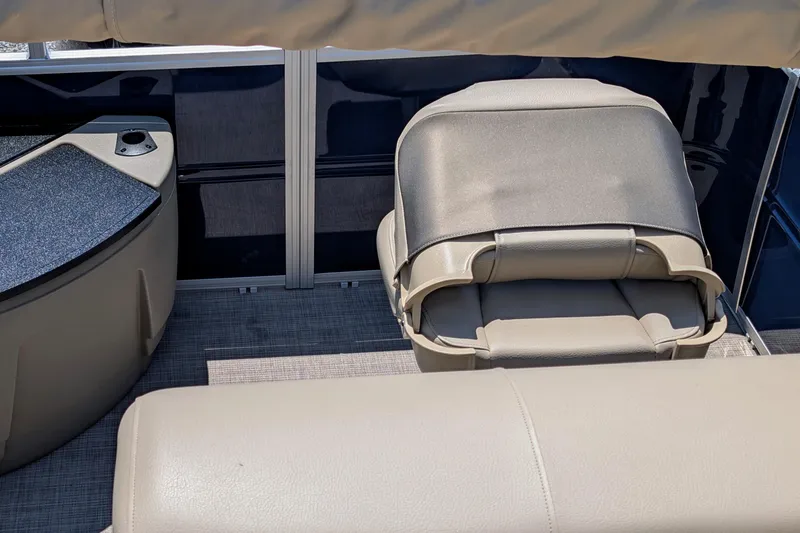

Interior

• Patented built-in STOW MORE™ seat-back storage system for all couches
• 3 removable & folding fishing chairs w/heavy-duty 2-3/8" (6 cm) diameter pedestals
• Front fishing station w/2 pedestal seat bases; rail-mounted rod & tool holders; & bow starboard storage compartment w/rod & drink holders
• Bow starboard console couch w/STOW MORE™ & underseat storage
• Movable drink holder/armrest for couch seating
• Aft L-lounge couches w/STOW MORE™ & underseat, lockable storage
• Removable table w/soft-touch insert & 4 molded-in drink holders
• Reclining, high-back swiveling helm bucket seat w/self-leveling armrests
• Aft fishing station w/2 pedestal seat bases; rail-mounted rod & tool holders; aft storage net; & STOW MORE™ tackle storage station
• Interior courtesy lighting
• Woven 16-oz. (.45 kg) marine-grade flooring throughout
• Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Construction & Performance

• 24" (60.96 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
• Full-length, 1-piece longitudinal M-bracket deck supports
• Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
• Heavy-duty aluminum U-channel reinforcement behind bow deck trim
• All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
• All-aluminum box-beam transom for strength & longevity
• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
• 1-1/4" (3.18 cm), .090" (.23 cm) anodized aluminum fence rails
• Sound- & vibration-deadening fence insulation for a quiet ride
• Extruded & anodized aluminum deck edging w/polished aft corner covers
• Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
• Rotomolded storage, furniture & console for superior strength & longevity
• Nylon gate latches & heavy-duty hinges that open inward
• Stainless or coated corrosion-resistant fasteners
• Factory-matched aluminum propeller

Exterior

• Color: Charcoal or Indigo Blue fencing
• Patent-pending TRACK FORMED™ fence design w/high-sheen finish for long-lasting cosmetics
• Elevated fence panels for deck drainage & ventilation

Electrical

• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
• Protective abrasion-resistant wire wrap
• Water-resistant connectors
• Pre-wired for optional fishing package
