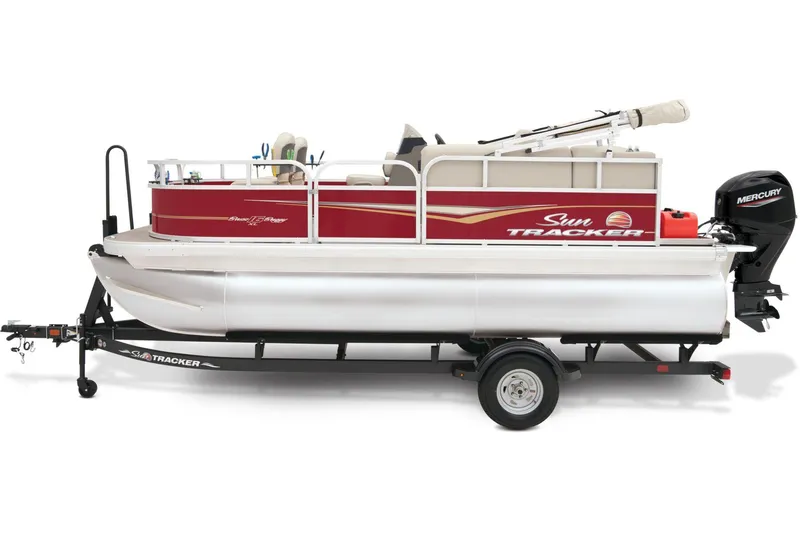

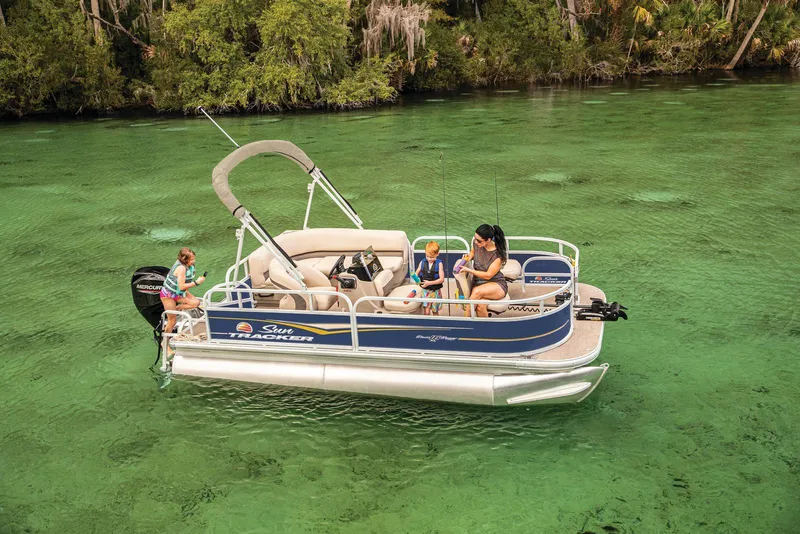

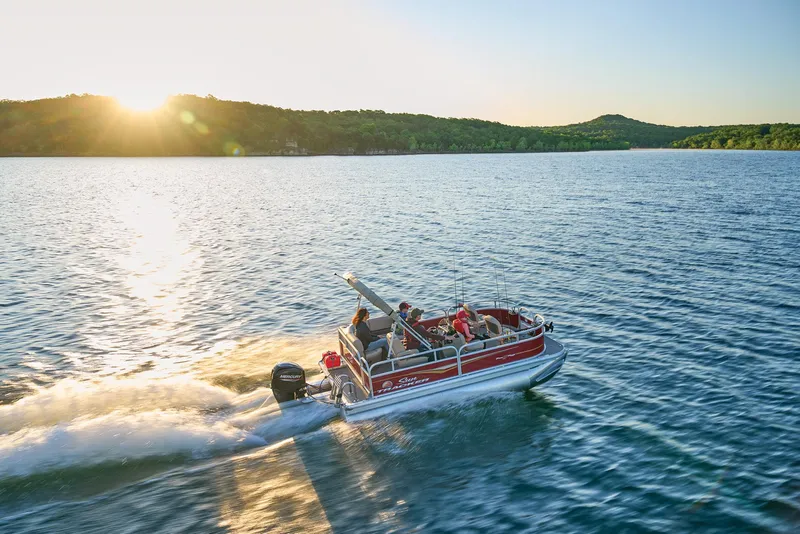

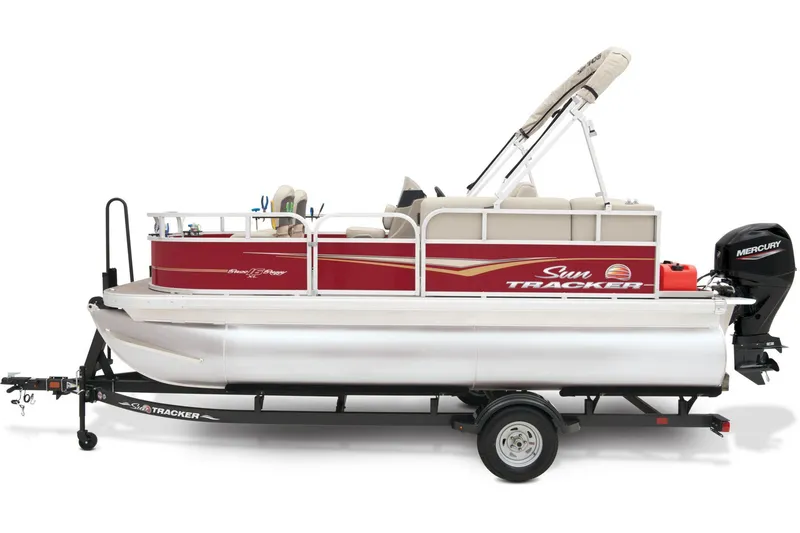

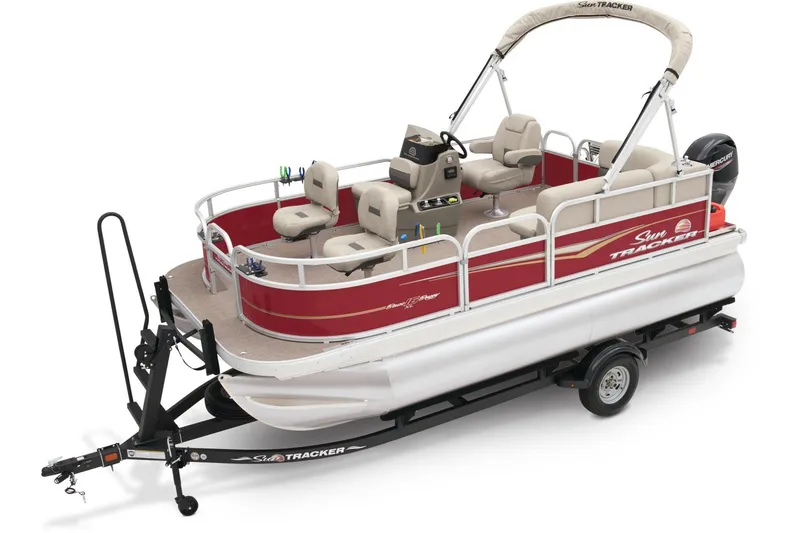

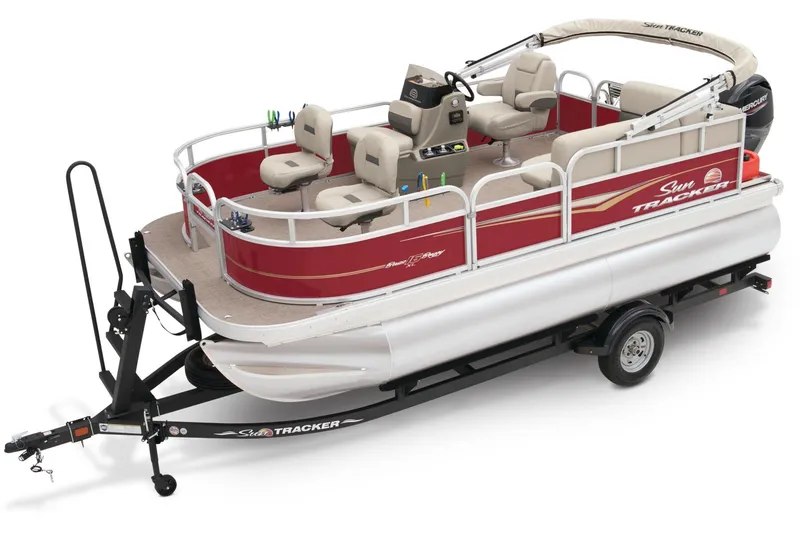

2025 Sun Tracker Bass Buggy 16 XL Select

• Length:18' 5"
• Deck Length: 16' 0"
• Deck Width: 8' 0"
• Max. Recommended HP: 50 HP
• Fuel Capacity: 6 gal.
• Pontoon Log Length: 16' 7"
• Pontoon Log Diameter: 24"
• Pontoon Log Material: 0.08 5052 marine alloy
• Max. Person Capacity: 7 persons
• Max. Person Weight: 1090 lbs.
• Max. Person, Motor & Gear Weight: 1550 lbs.
• Interior Depth: 24"
• Average Dry Weight: 1310 lbs.
• Average Package Weight: 2430 lbs.
• Package Height: 8' 8"
• Package Width: 8' 3"

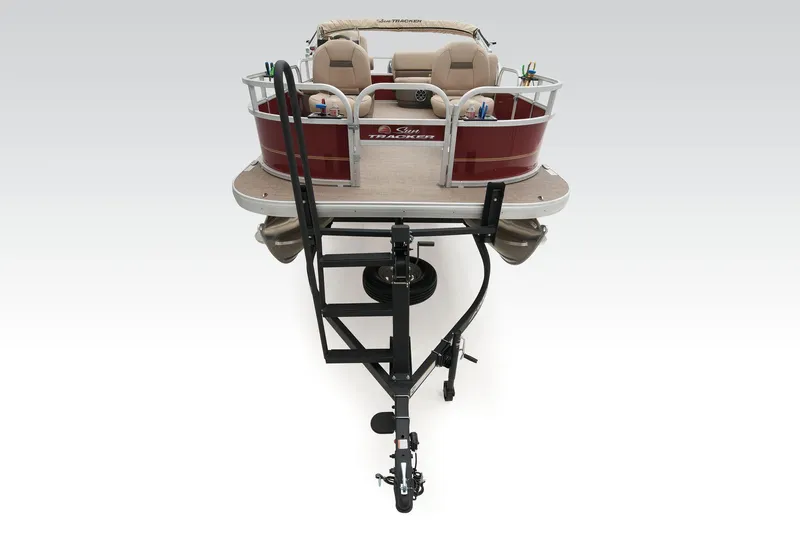

• Towing Length: 25' 1"
• Storage Length: 24' 10"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
• NMMA® certified

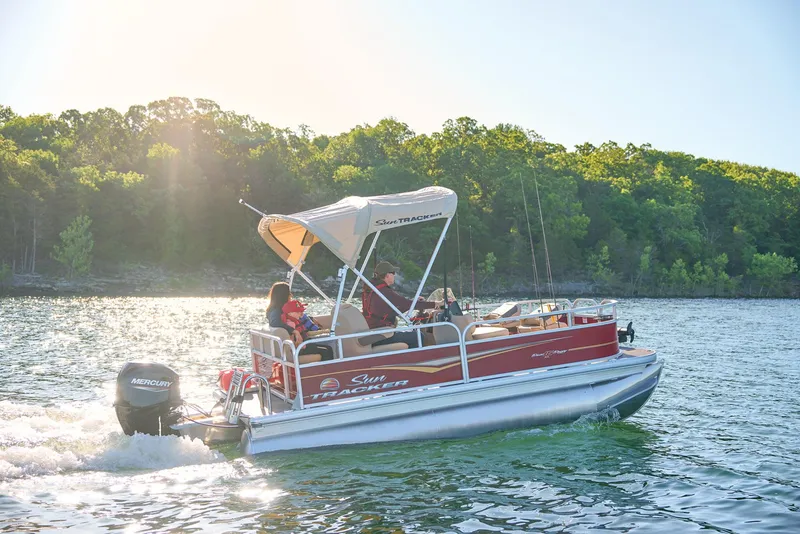

• 7' (2.13 m) polyester Bimini top w/easy-adjusting straps, trailering-position arms & protective boot (color-coordinated Sand w/Copper Red or Indigo Blue fencing)
• Easy-to-use, manual Bimini top deployment system

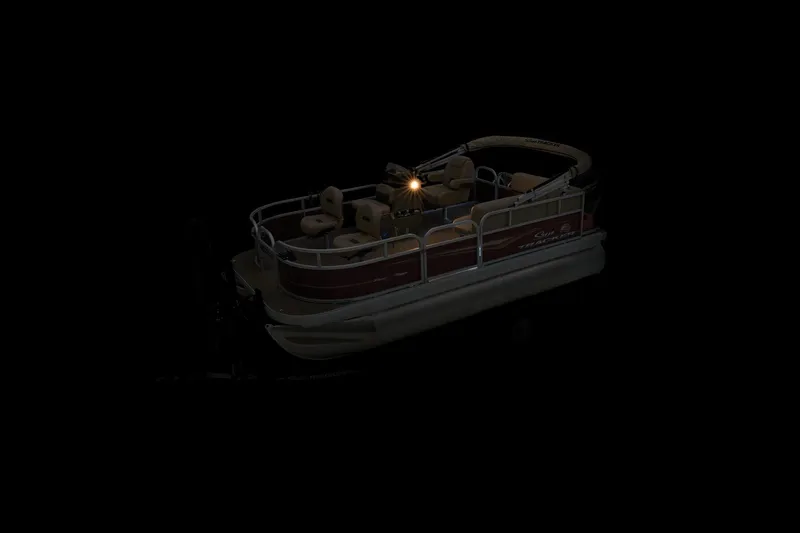

• Built-in LED navigation & anchor lights

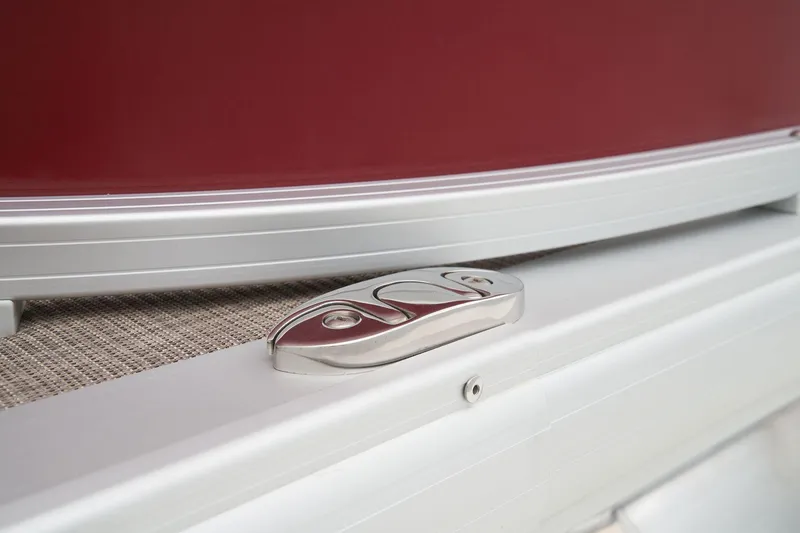

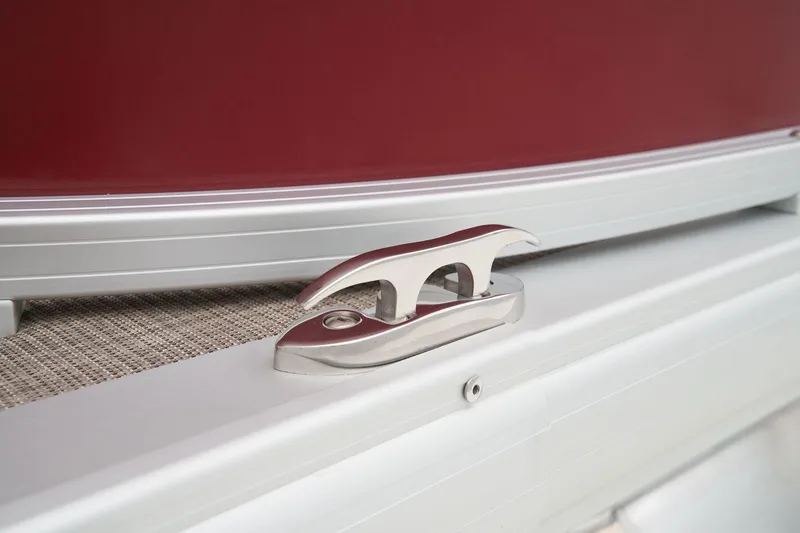

• 4 stainless steel mooring cleats
• Port wheelchair-accessible gate

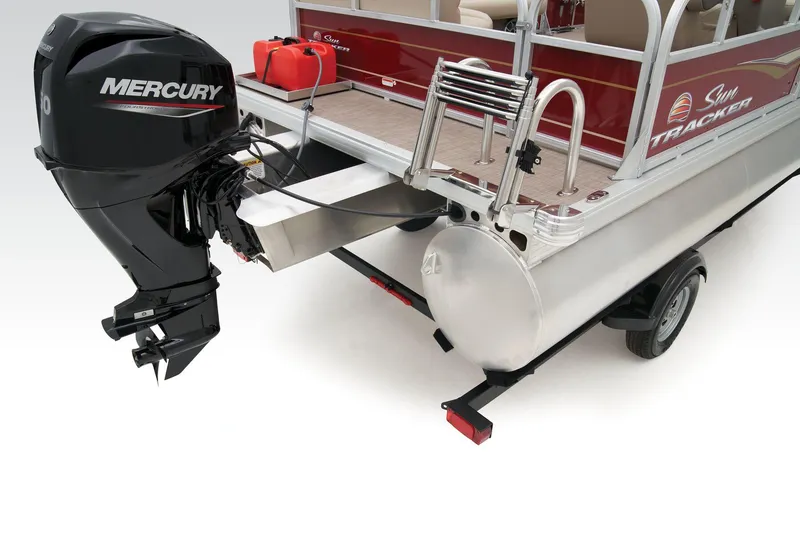

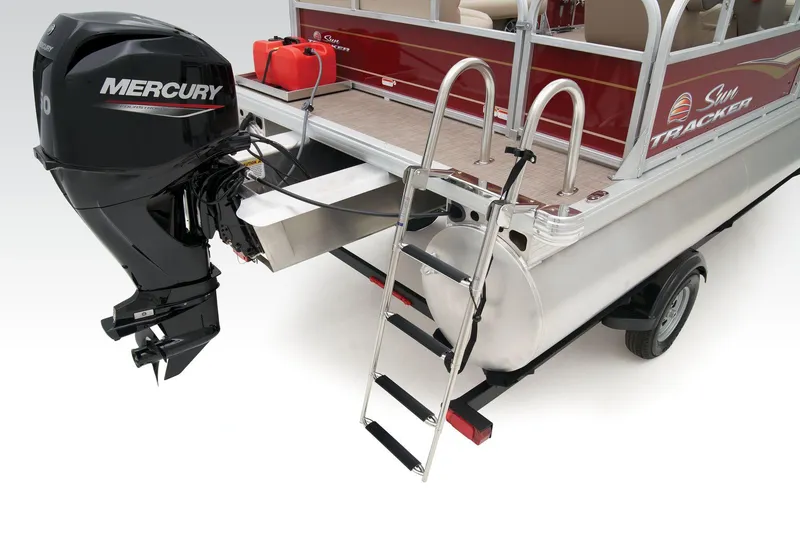

• Fore & rear boarding platforms w/rear 4-step telescoping boarding ladders & grab rails
• Motor-stop safety lanyard
• Fire extinguisher
• Horn

Livewell System

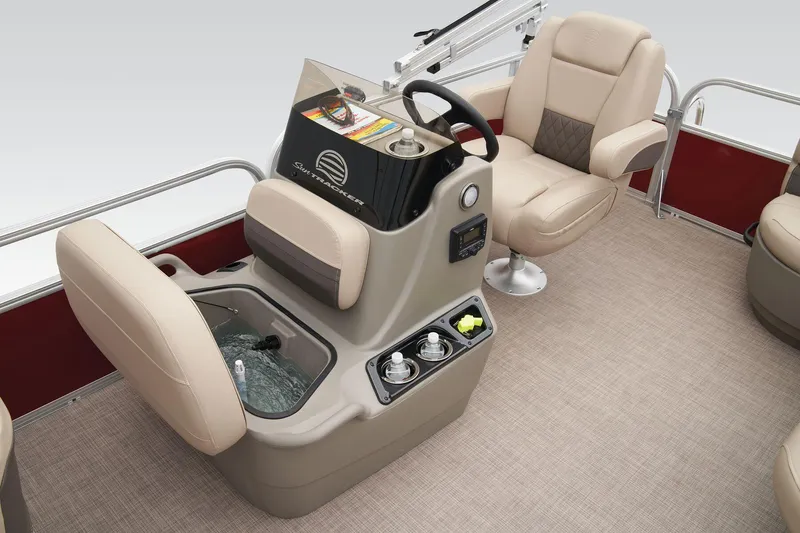

• Forward-console 9-gal. (34.07 L) aerated livewell w/shutoff valve

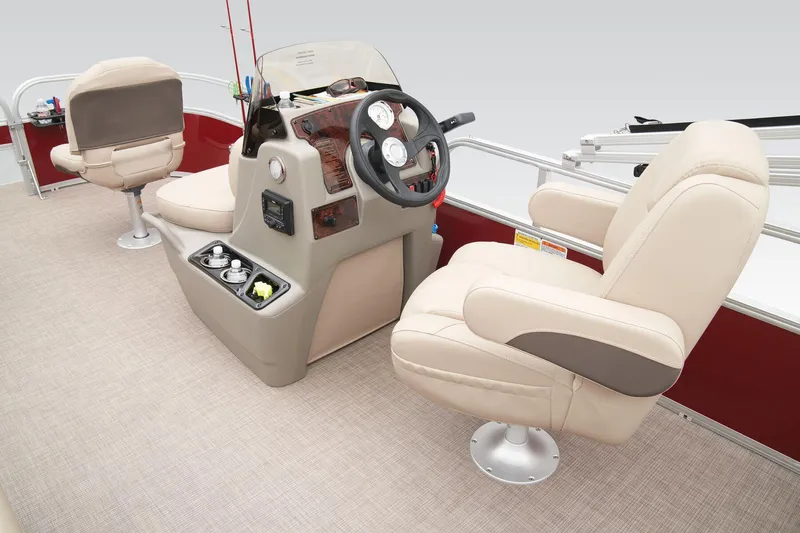

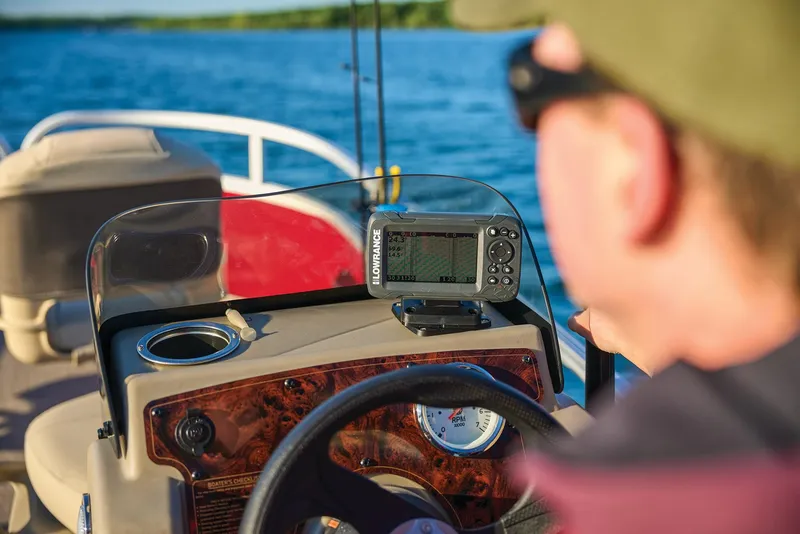

Console

• Wraparound tinted windscreen

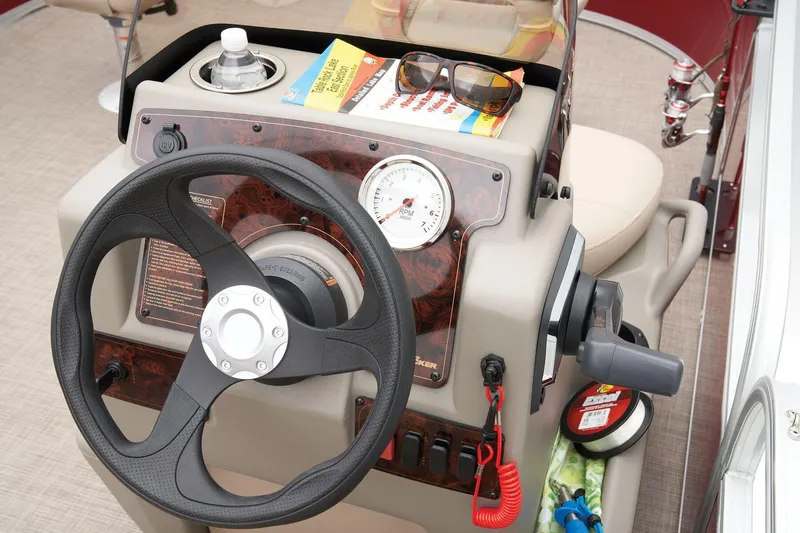

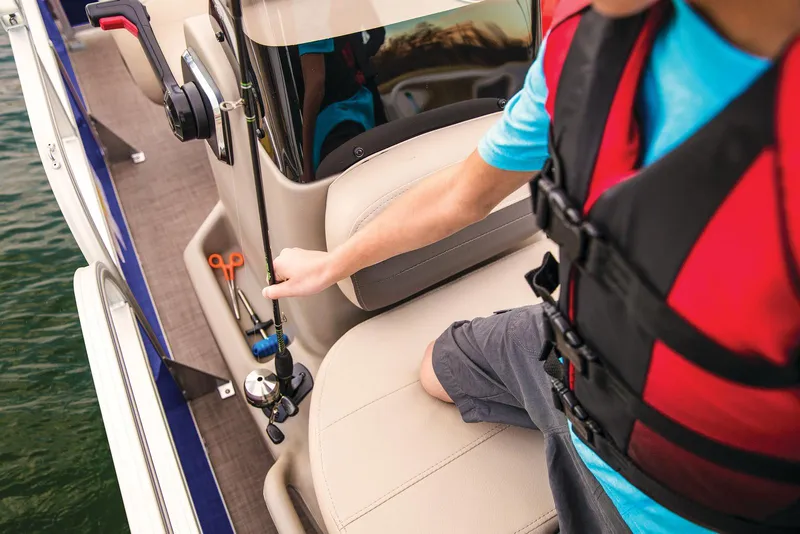

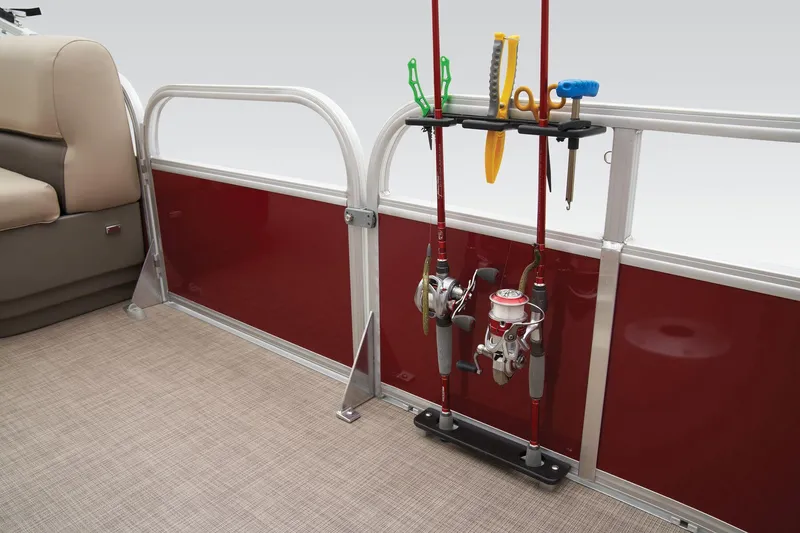

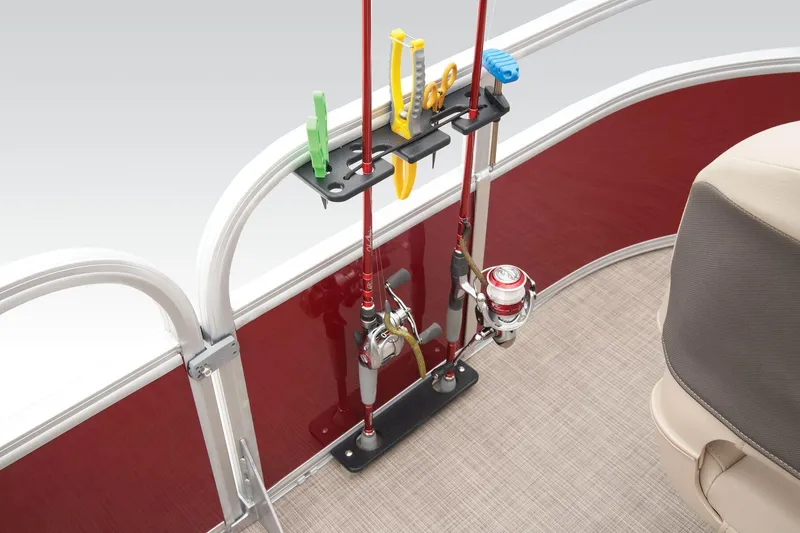

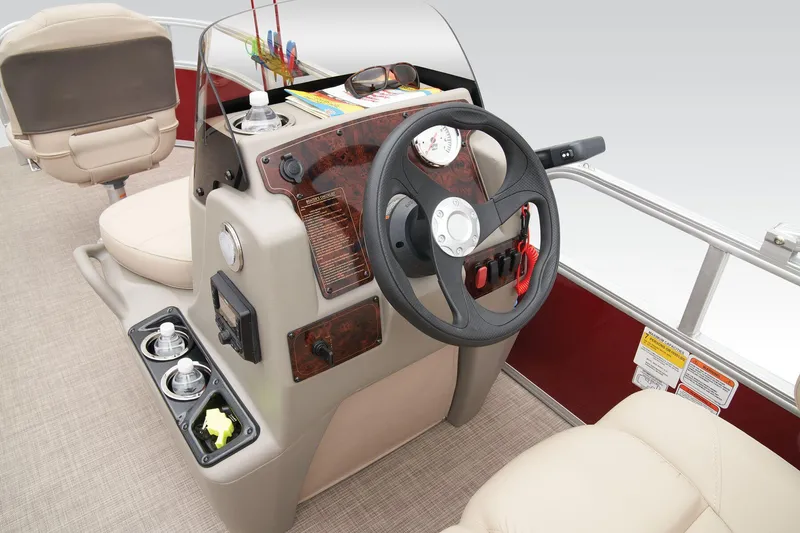

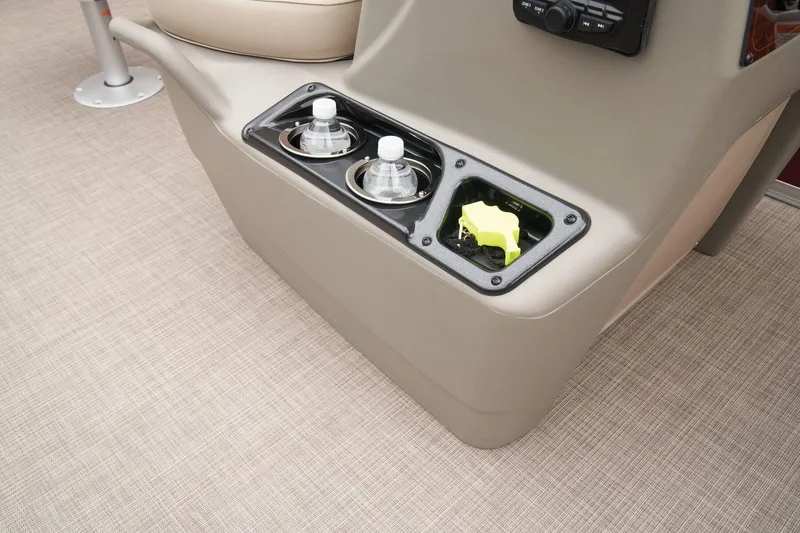

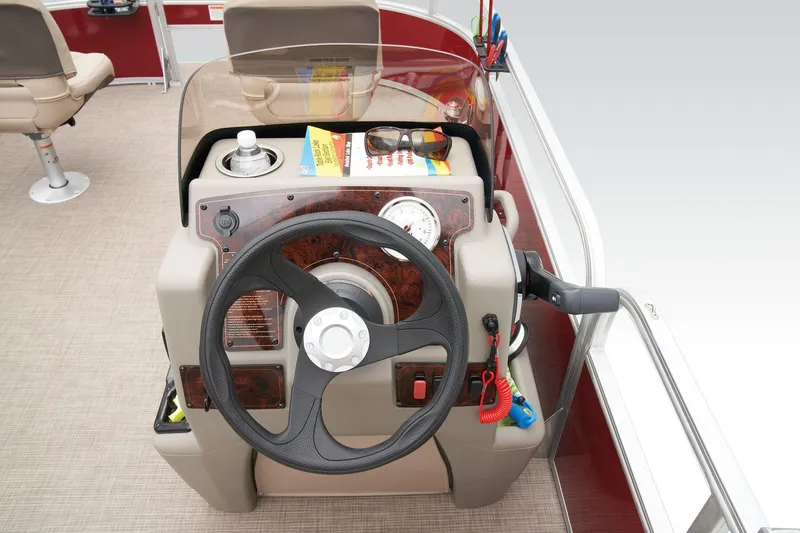

• Driver console w/vertical rod holder, integrated storage, drink holders & side-mounted controls
• 4:2 ratio no-feedback steering w/sport steering wheel

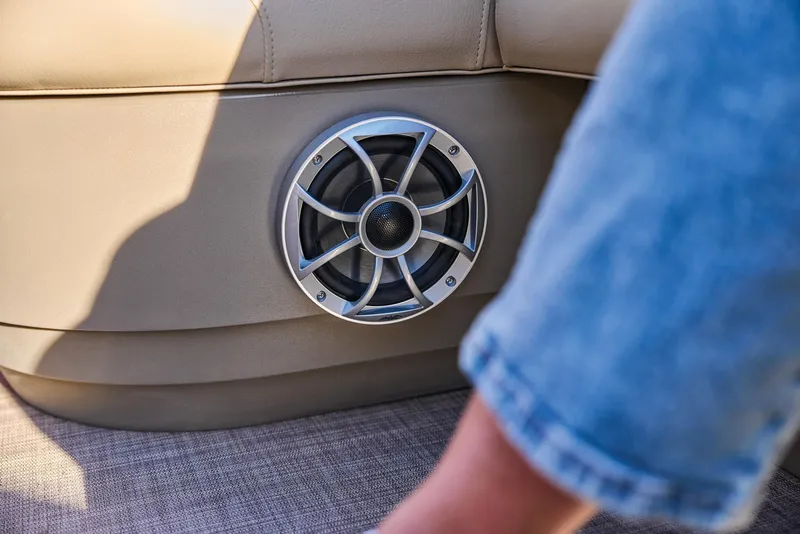

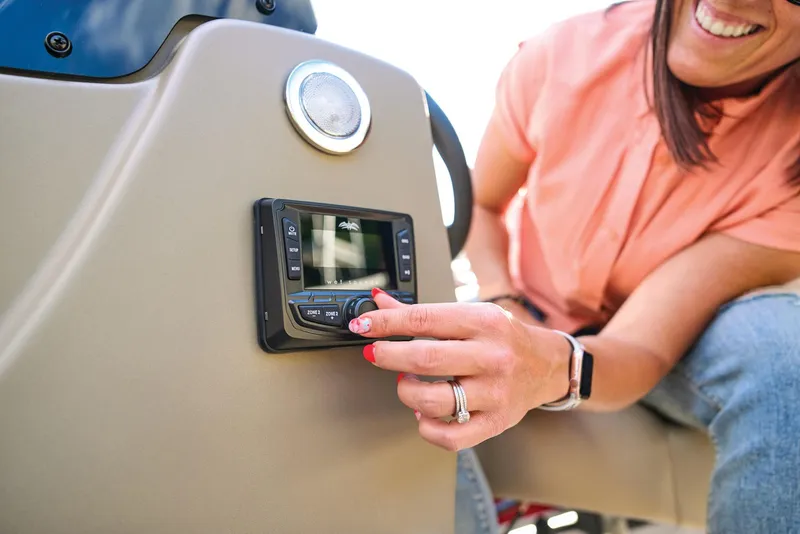

• Wet Sounds® stereo w/Bluetooth® & two 6.5" (16.51 cm) speakers, strategically located within the seat bases
• Illuminated tachometer

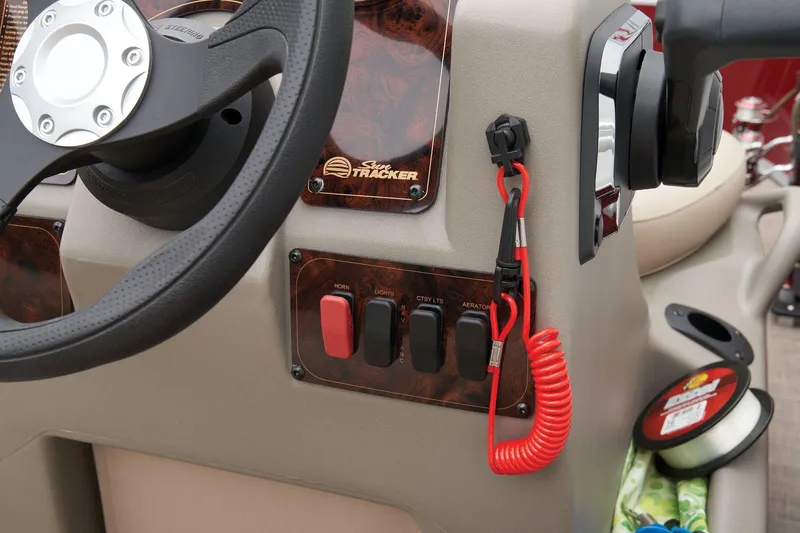

• Rocker switches
• 12V outlet

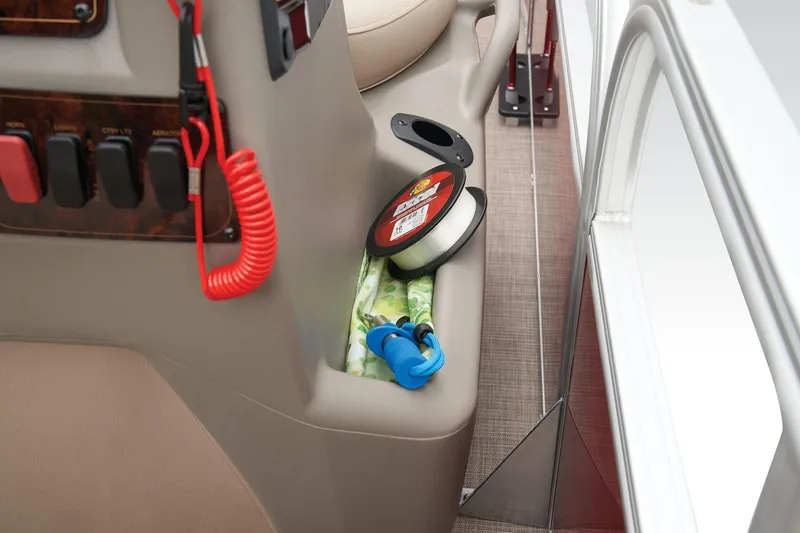

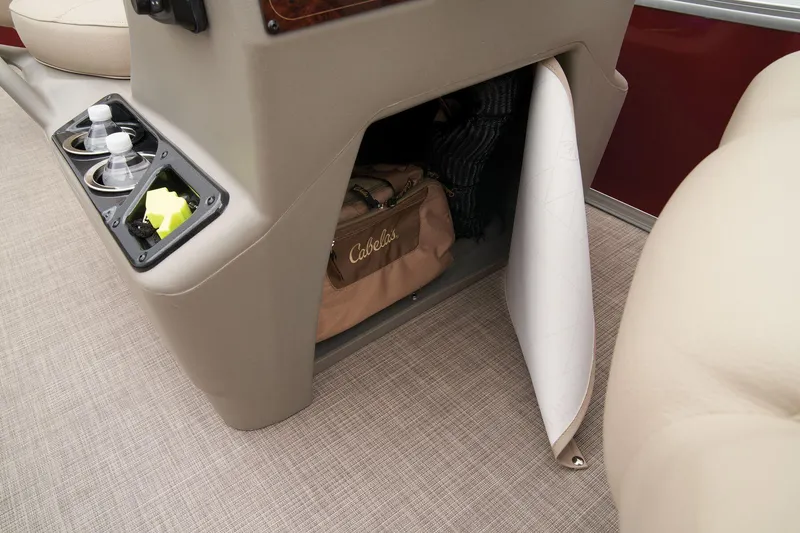

• Below-console storage space w/curtain

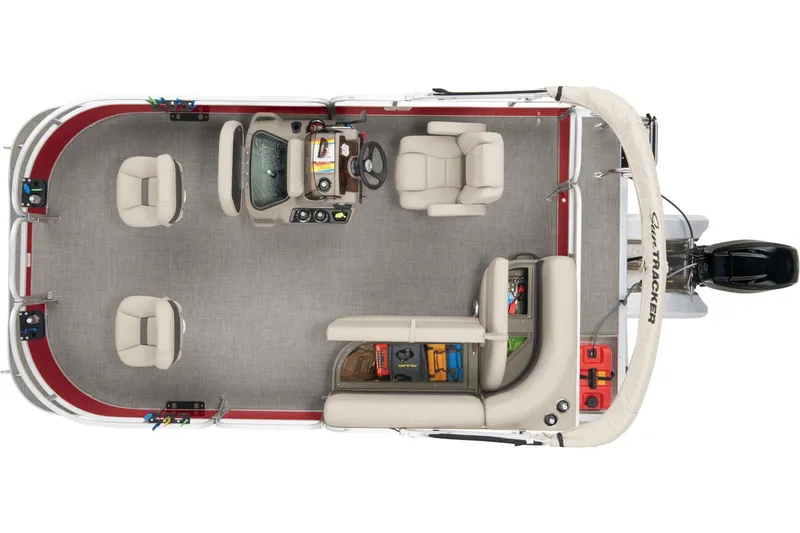

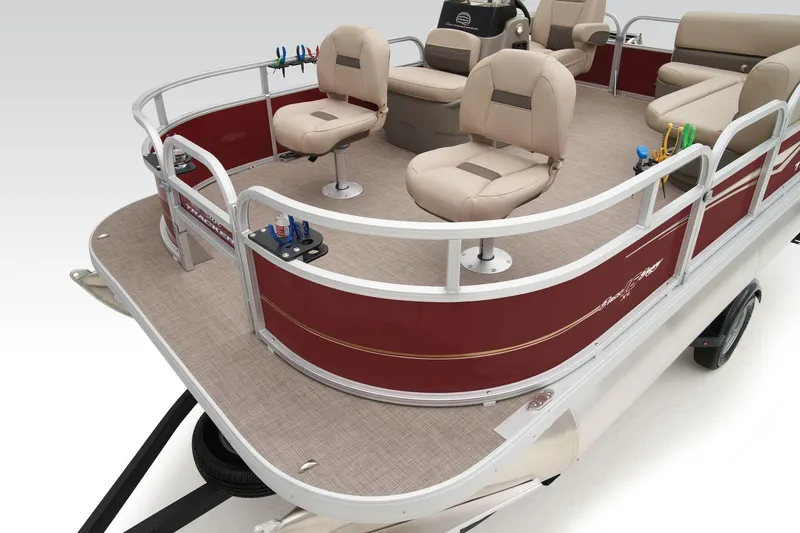

Interior

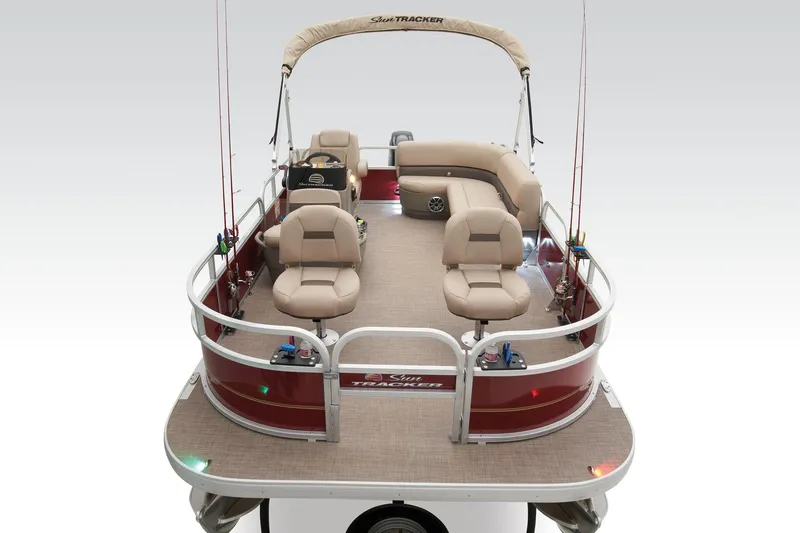

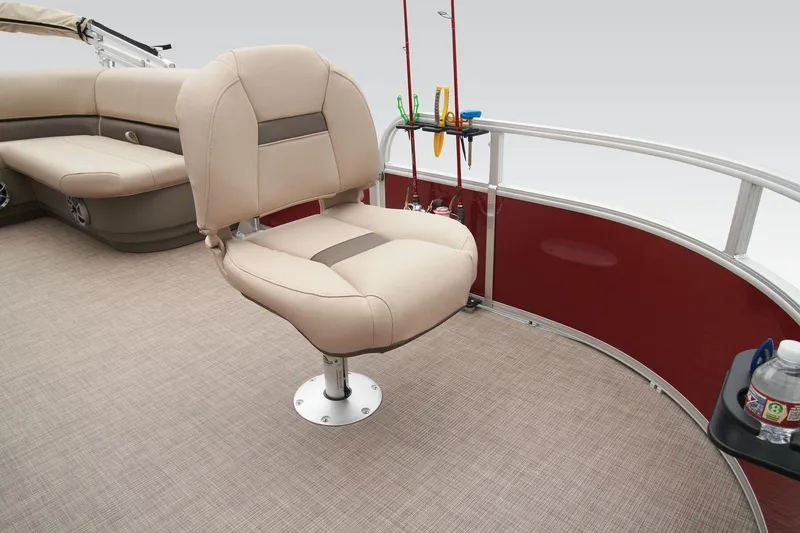

• 2 removable & folding fishing chairs w/heavy-duty 2-3/8" (6 cm) diameter pedestals

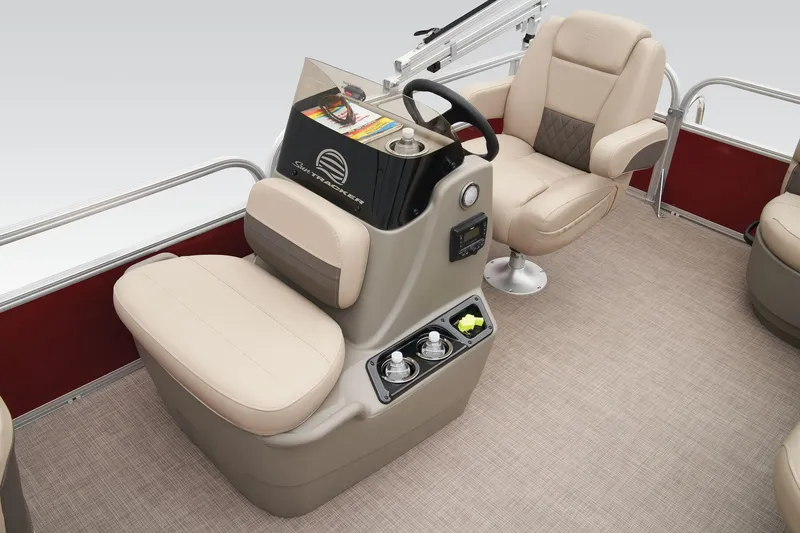

• Forward-console seat w/molded-in grab handles & below-cushion livewell

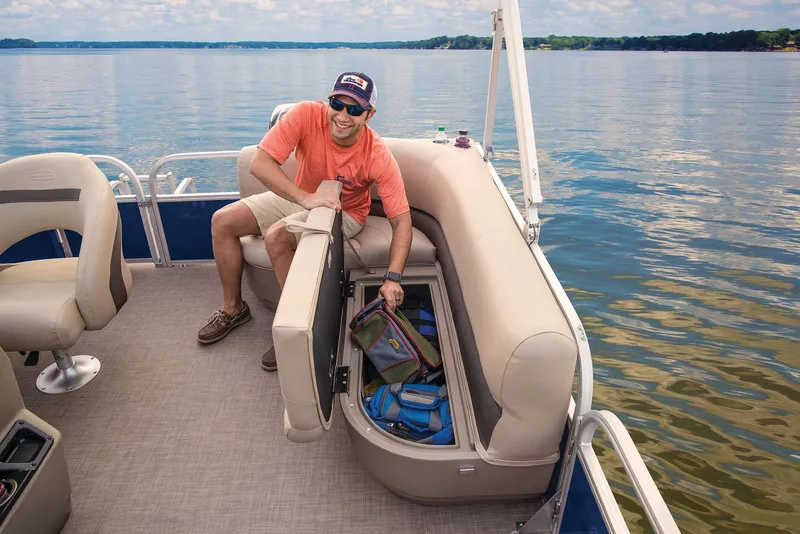

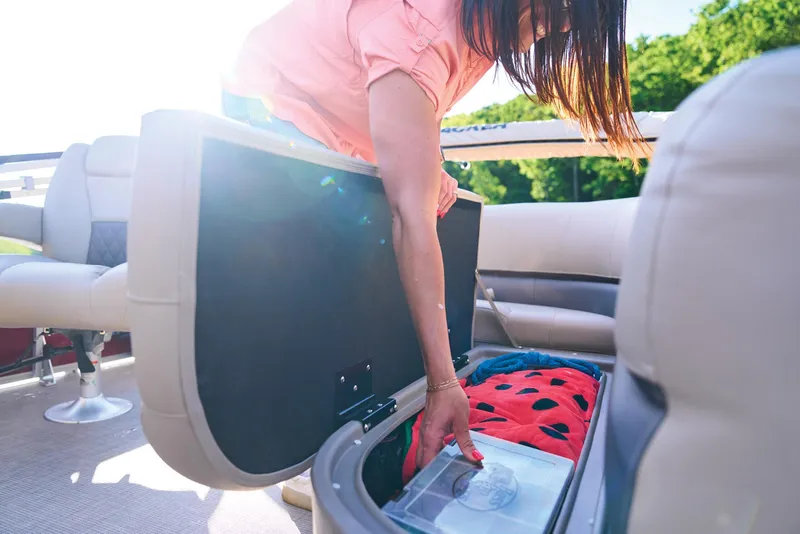

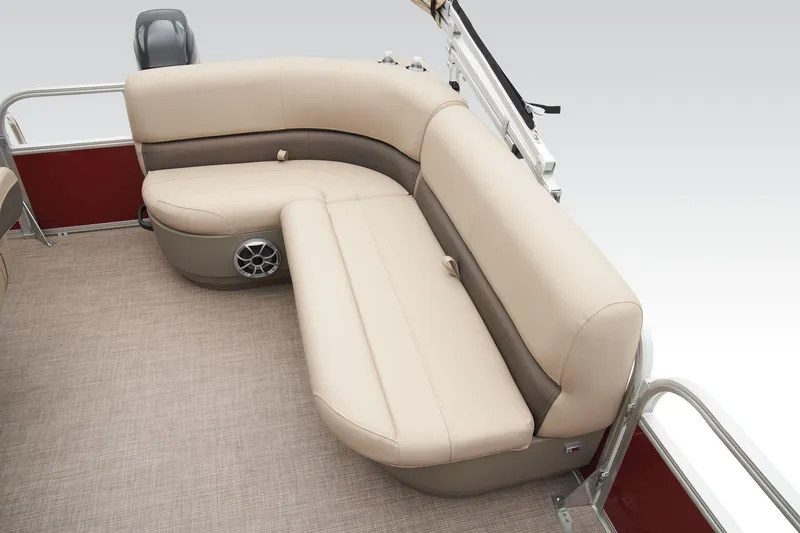

• Aft L-lounge couches w/underseat storage

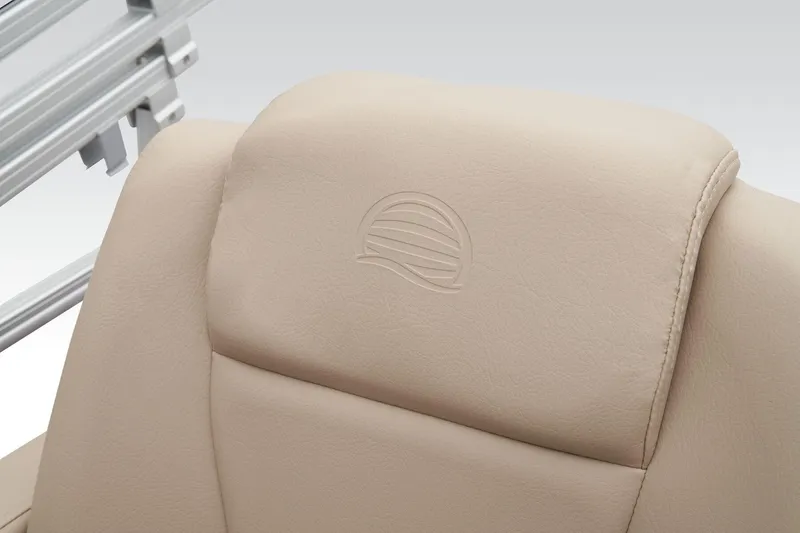

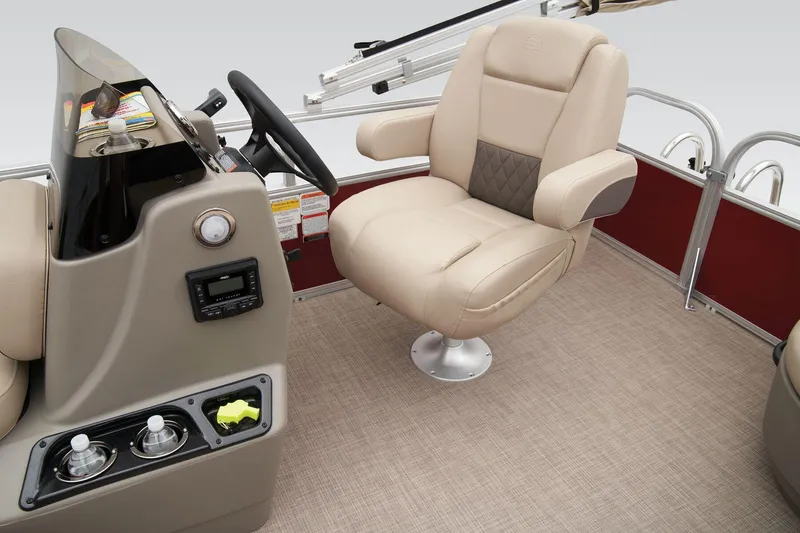

• Adjustable & swiveling helm bucket seat

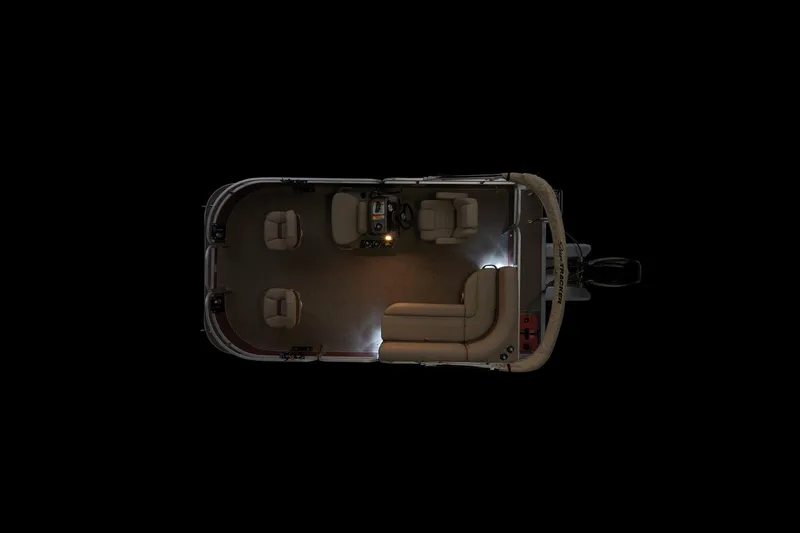

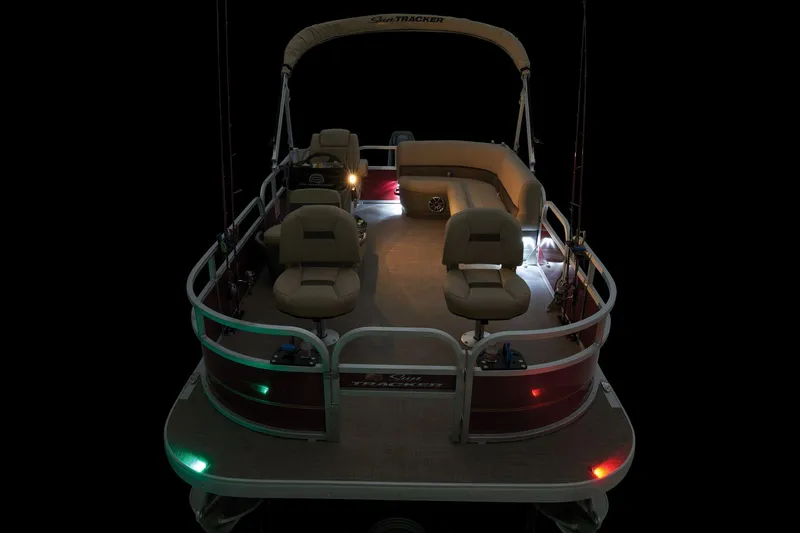

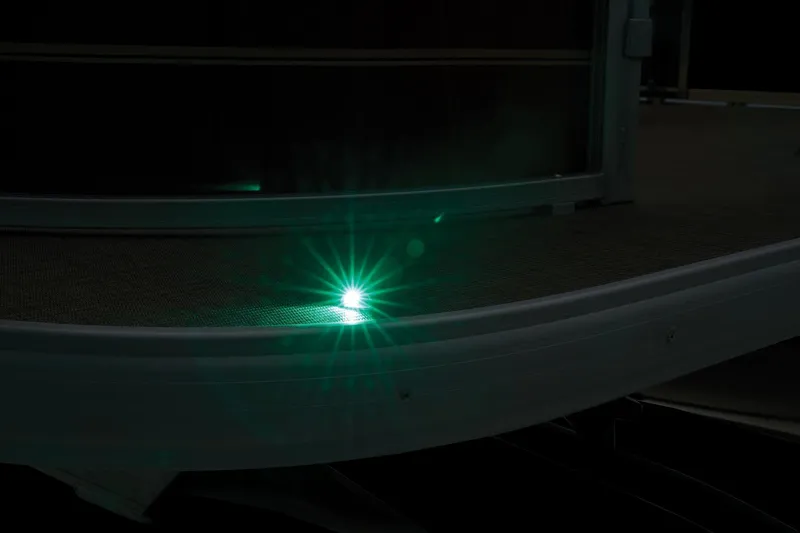

• Interior courtesy lighting
• Woven 16-oz. (.45 kg) marine-grade flooring throughout
• Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Construction & Performance

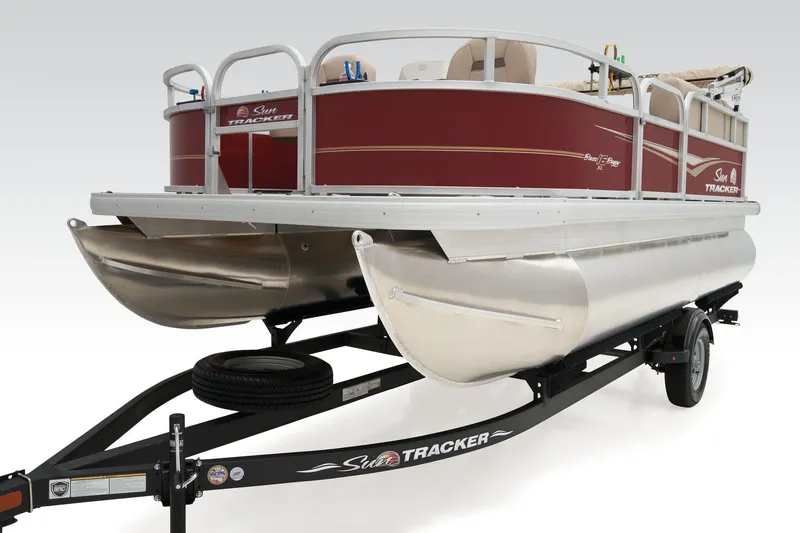

• 24" (60.96 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
• Full-length, 1-piece longitudinal M-bracket deck supports
• Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets

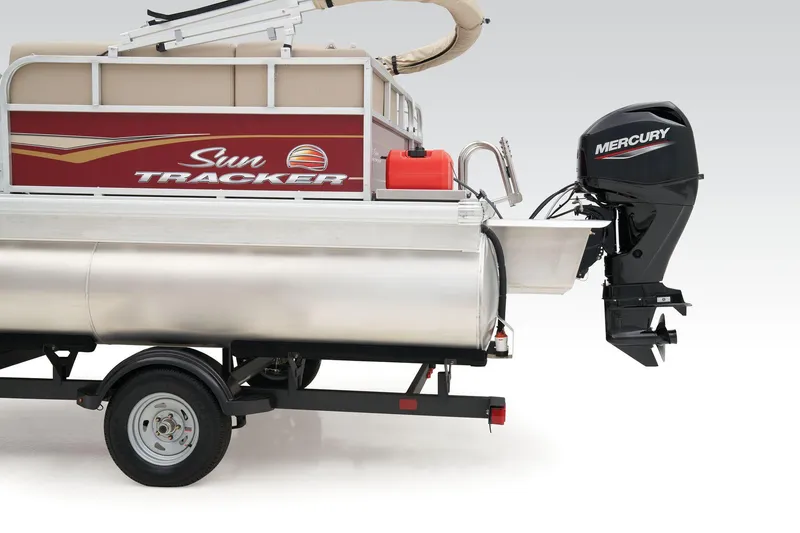

• All-aluminum box-beam transom for strength & longevity
• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty

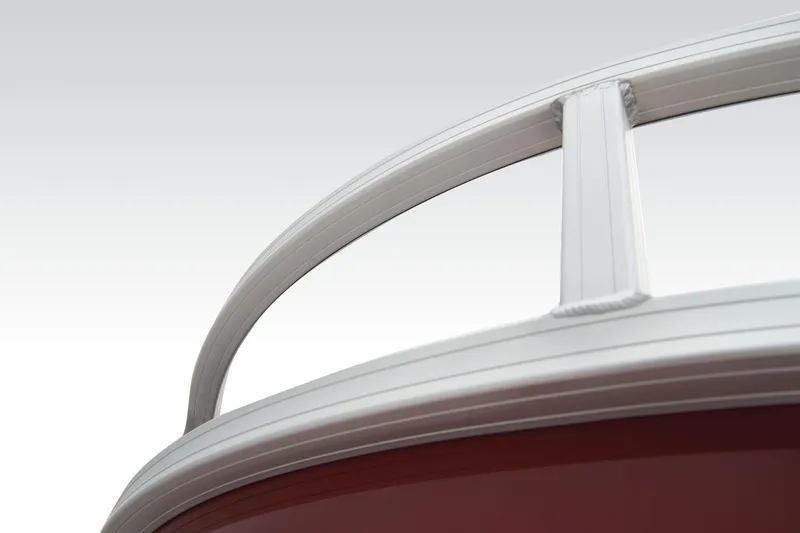

• 1-1/4" (3.18 cm), .090" (.23 cm) anodized aluminum fence rails
• Sound- & vibration-deadening fence insulation for a quiet ride
• Extruded & anodized aluminum deck edging w/polished aft corner covers
• Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
• Rotomolded storage & furniture for superior strength & longevity
• Gate latches & heavy-duty hinges that open inward
• Stainless or coated corrosion-resistant fasteners
• Factory-matched aluminum propeller

Exterior

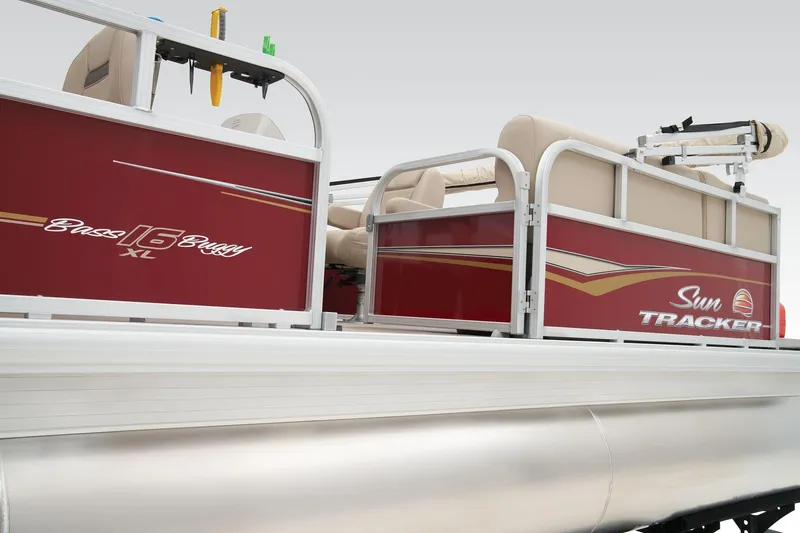

• Color: Copper Red or Indigo Blue fencing
• Fence design w/high-sheen finish for long-lasting cosmetics
• Elevated fence panels for deck drainage & ventilation

Electrical

• Marine-grade fuse panel
• Protective abrasion-resistant wire wrap
• Water-resistant connectors
