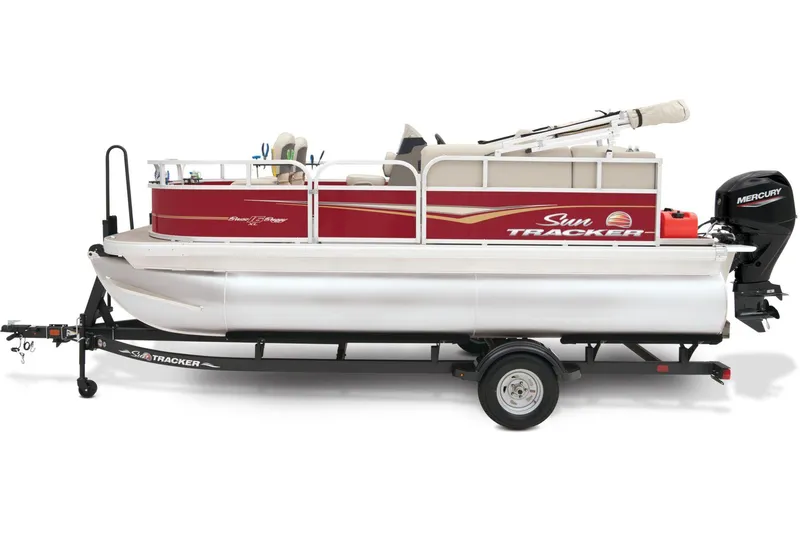

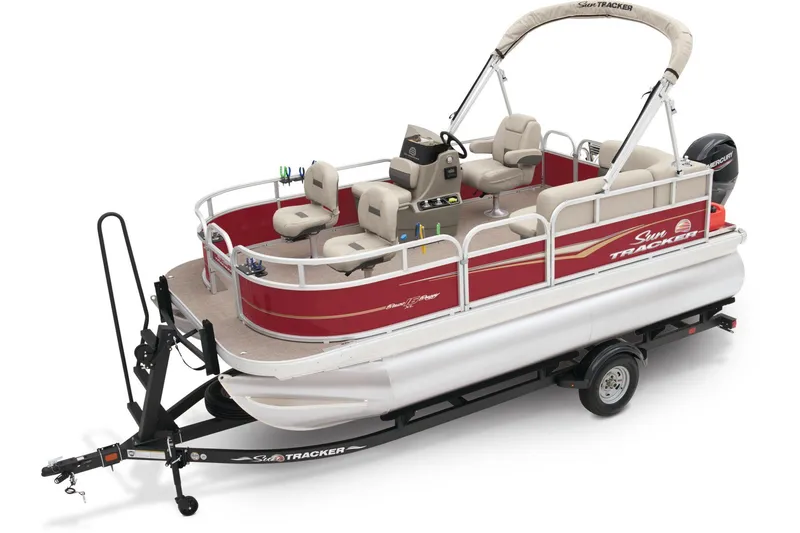

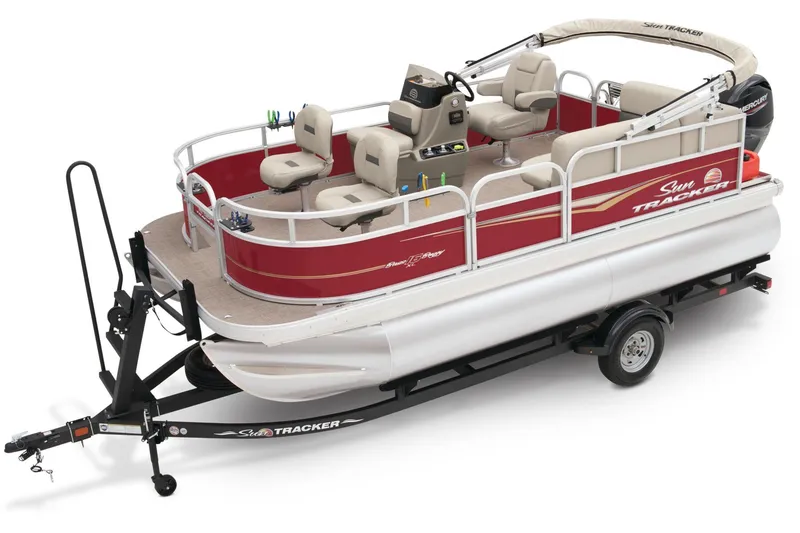

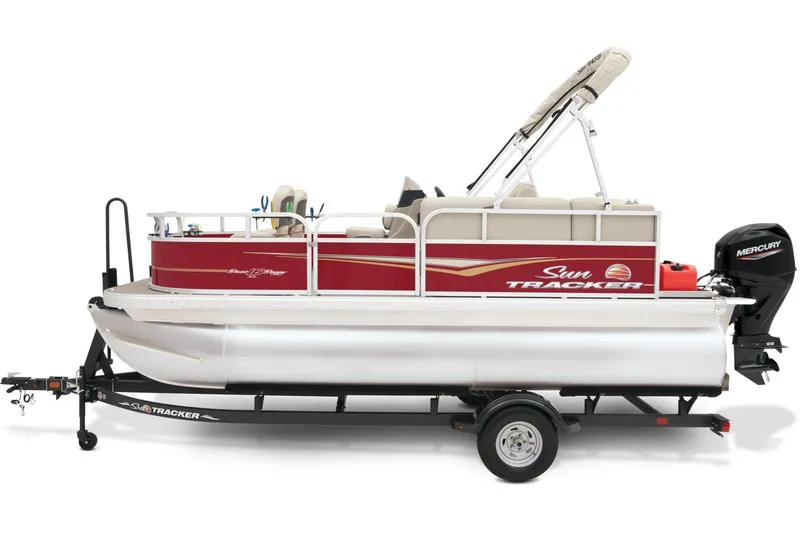

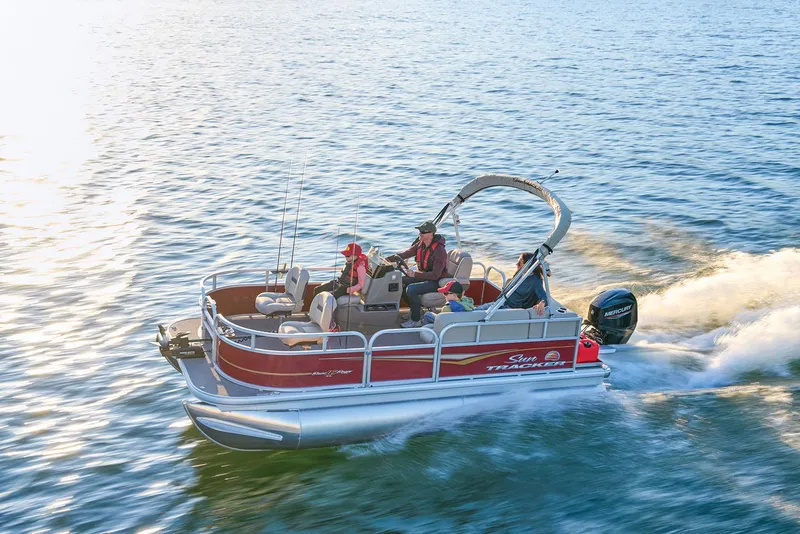

2025 Sun Tracker Bass Buggy 16 XL Select

Additional Specs

• Length:18' 5"

• Deck Length: 16' 0"

• Deck Width: 8' 0"

• Max. Recommended HP: 50 HP

• Fuel Capacity: 6 gal.

• Pontoon Log Length: 16' 7"

• Pontoon Log Diameter: 24"

• Pontoon Log Material: 0.08 5052 marine alloy

• Max. Person Capacity: 7 persons

• Max. Person Weight: 1090 lbs.

• Max. Person, Motor & Gear Weight: 1550 lbs.

• Interior Depth: 24"

• Average Dry Weight: 1310 lbs.

• Average Package Weight: 2430 lbs.

• Package Height: 8' 8"

• Package Width: 8' 3"

• Towing Length: 25' 1"

• Storage Length: 24' 10"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty

• NMMA® certified

• 7' (2.13 m) polyester Bimini top w/easy-adjusting straps, trailering-position arms & protective boot (color-coordinated Sand w/Copper Red or Indigo Blue fencing)

• Easy-to-use, manual Bimini top deployment system

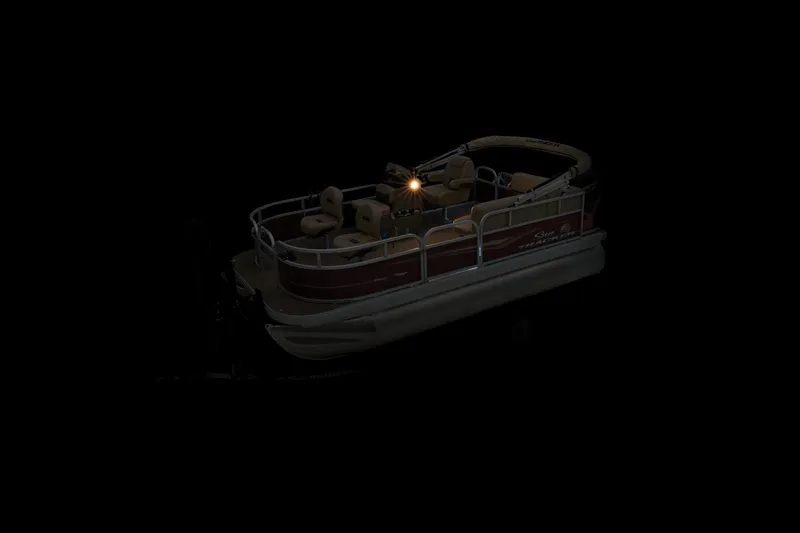

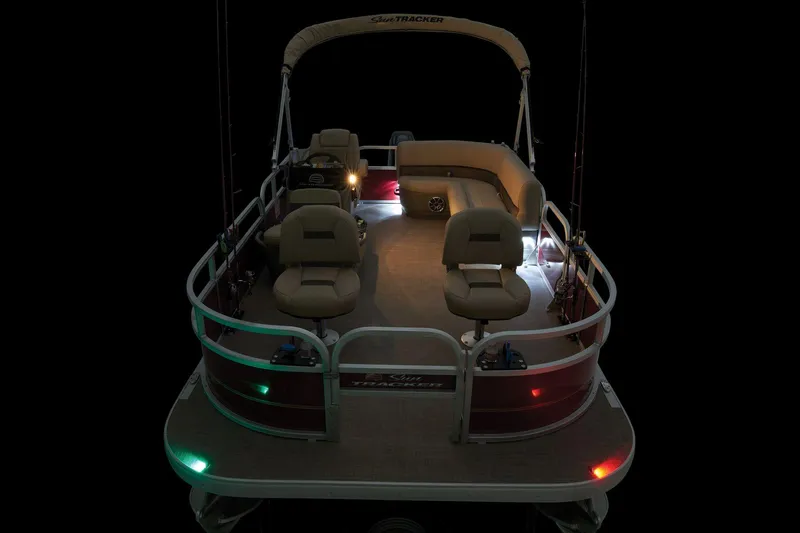

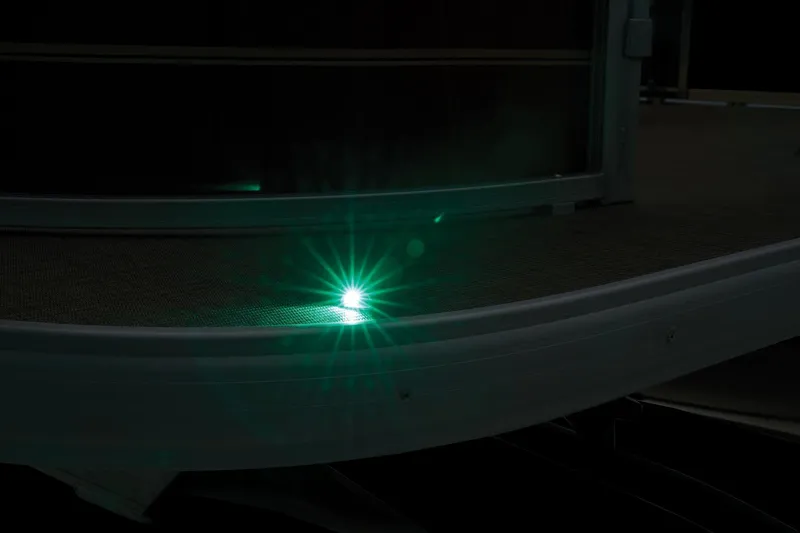

• Built-in LED navigation & anchor lights

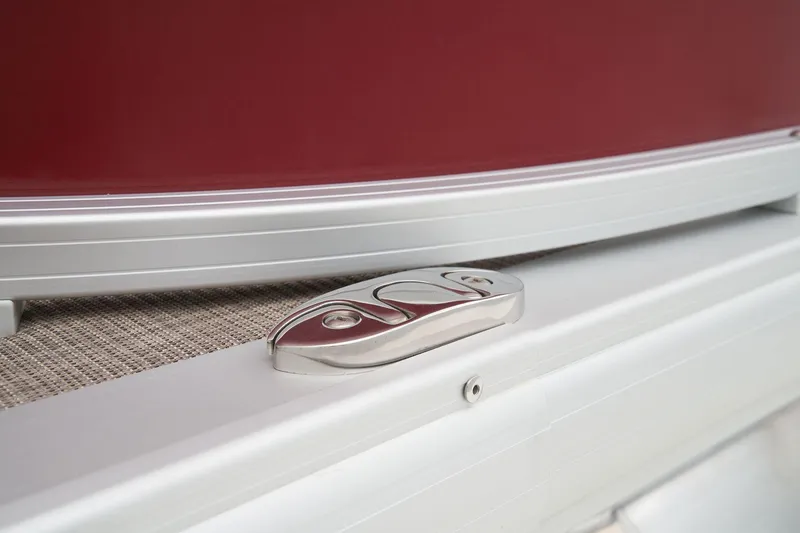

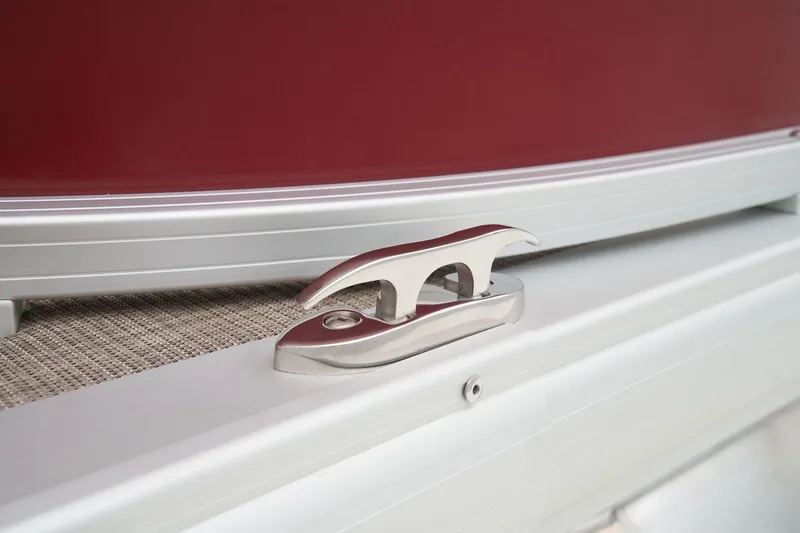

• 4 stainless steel mooring cleats

• Port wheelchair-accessible gate

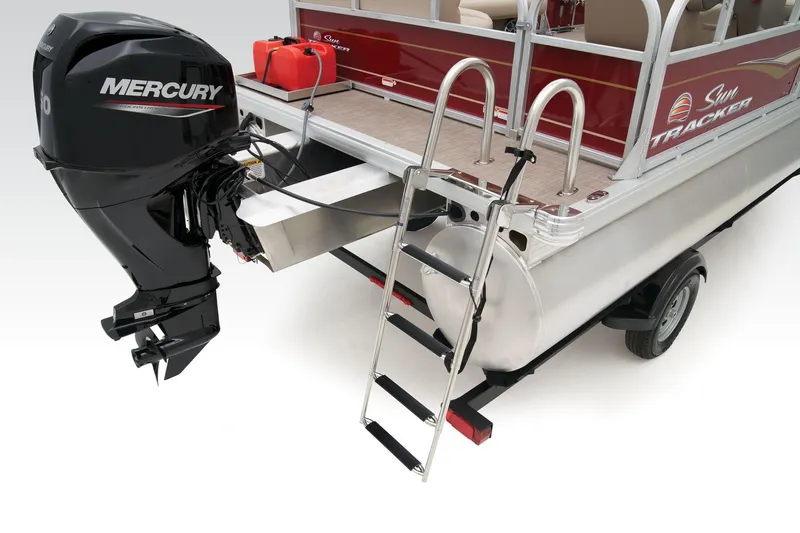

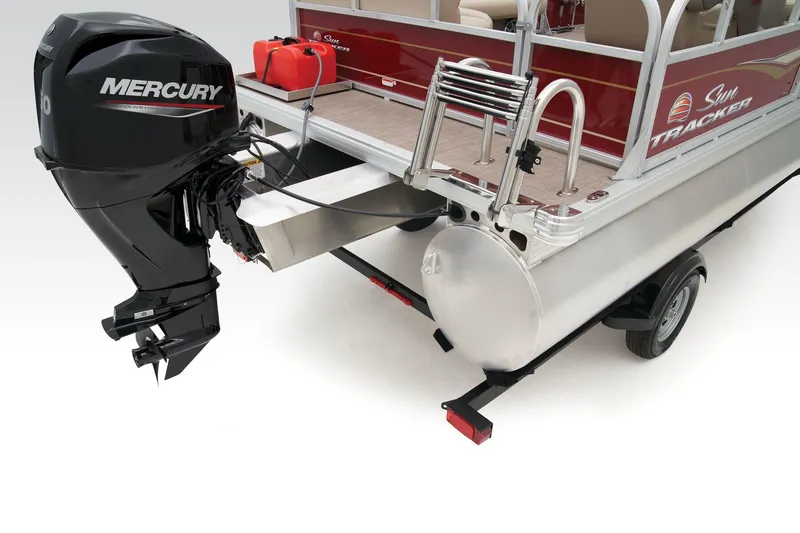

• Fore & rear boarding platforms w/rear 4-step telescoping boarding ladders & grab rails

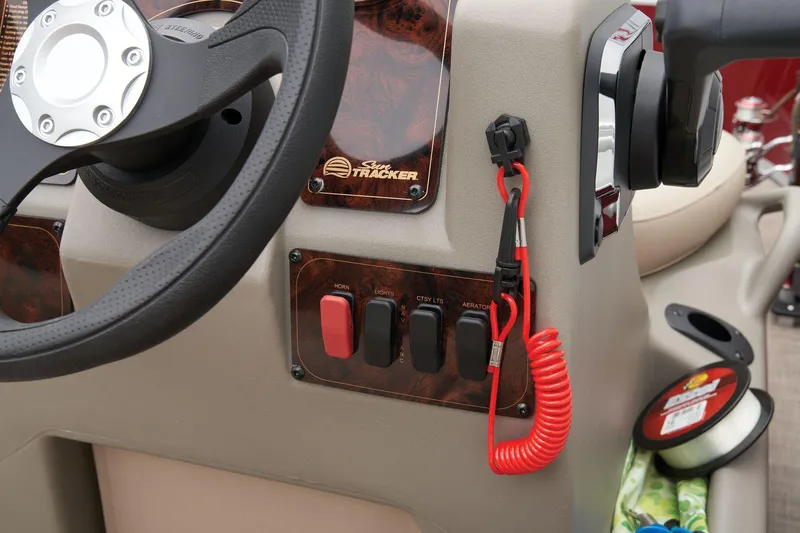

• Motor-stop safety lanyard

• Fire extinguisher

• Horn

Livewell System

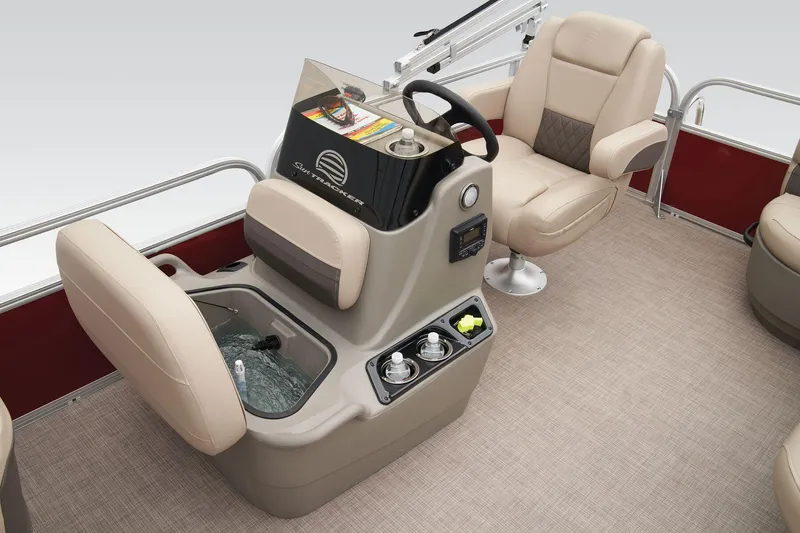

• Forward-console 9-gal. (34.07 L) aerated livewell w/shutoff valve

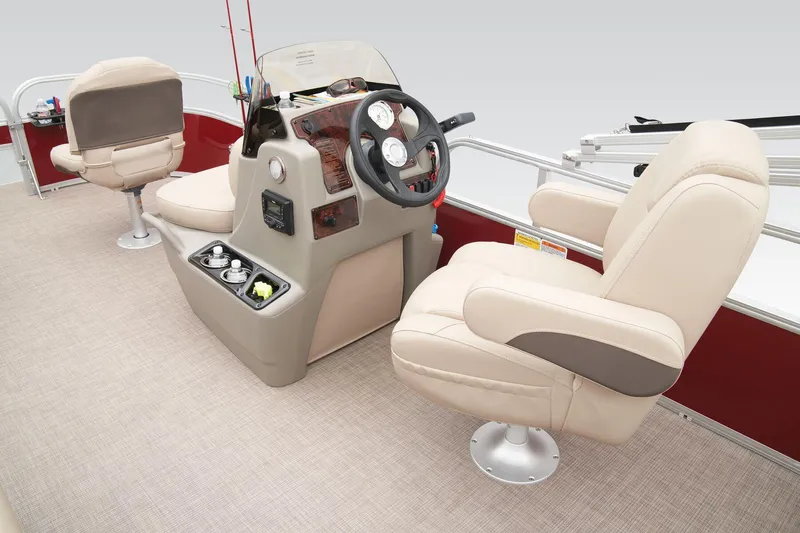

Console

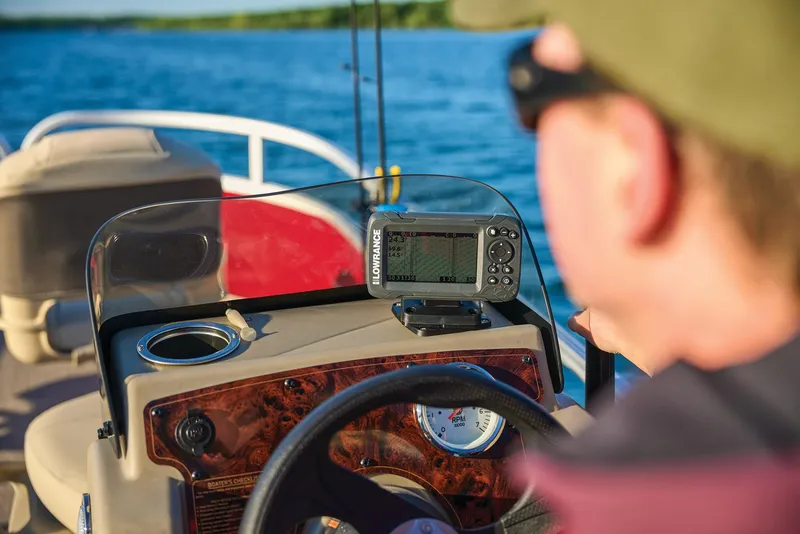

• Wraparound tinted windscreen

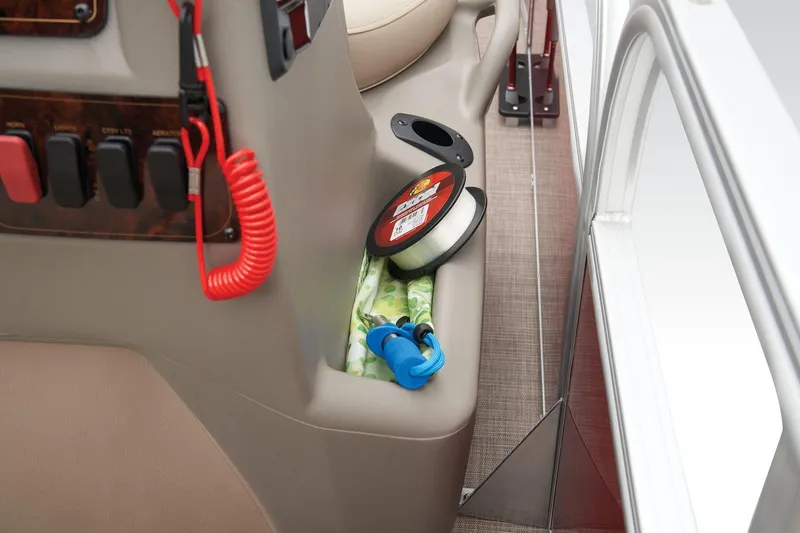

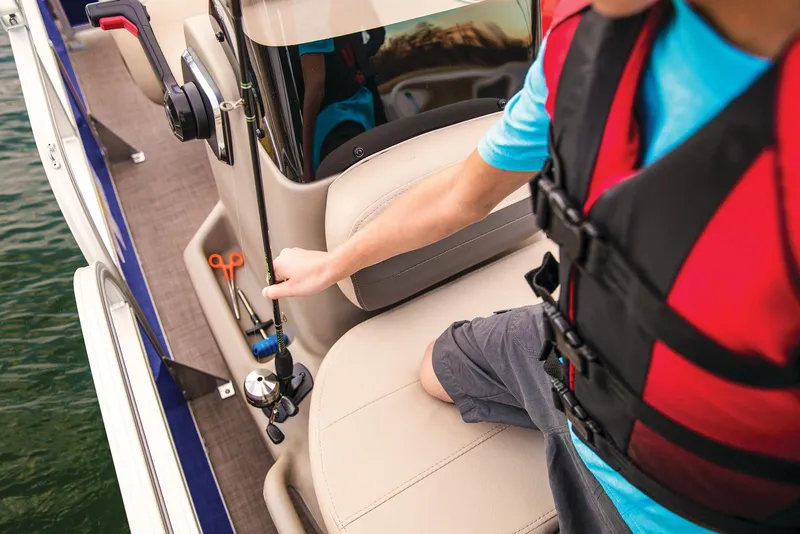

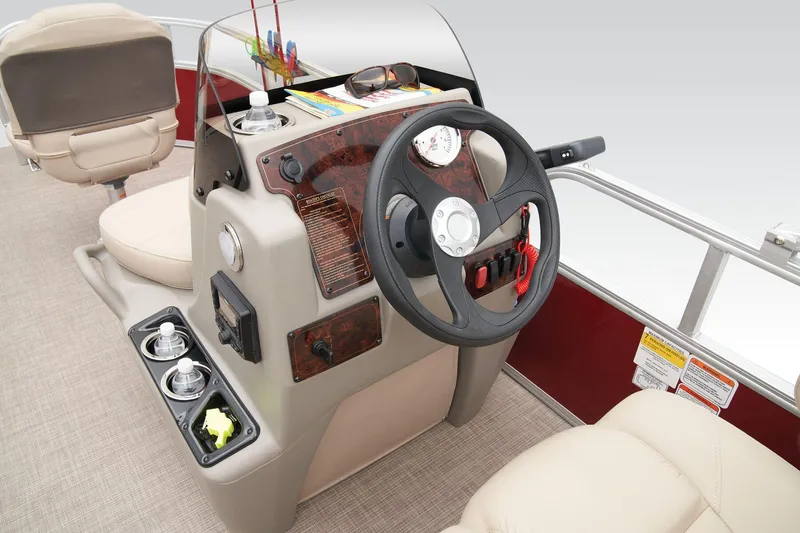

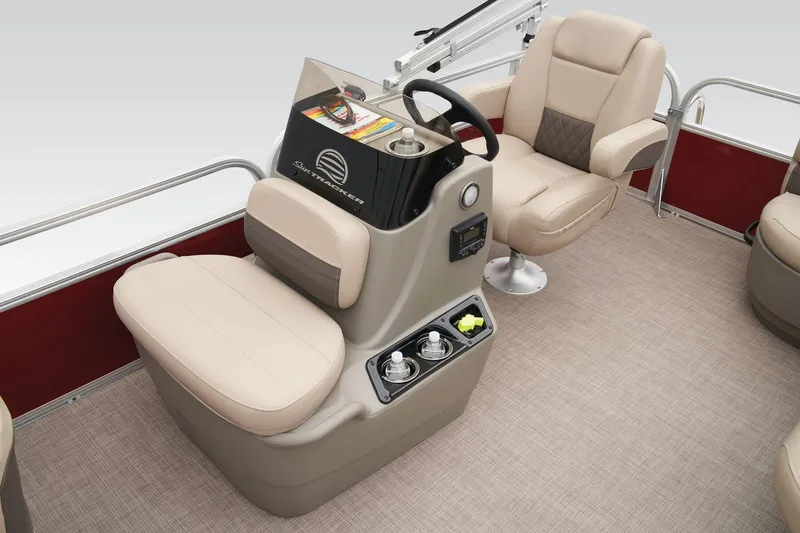

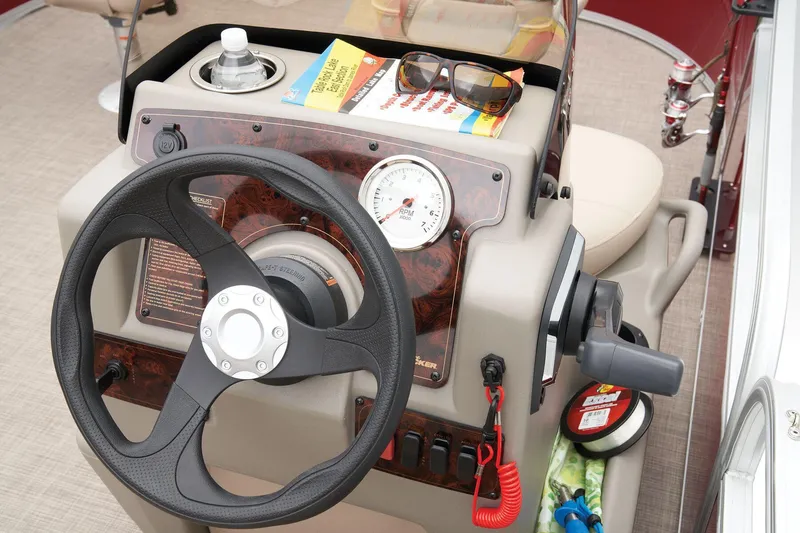

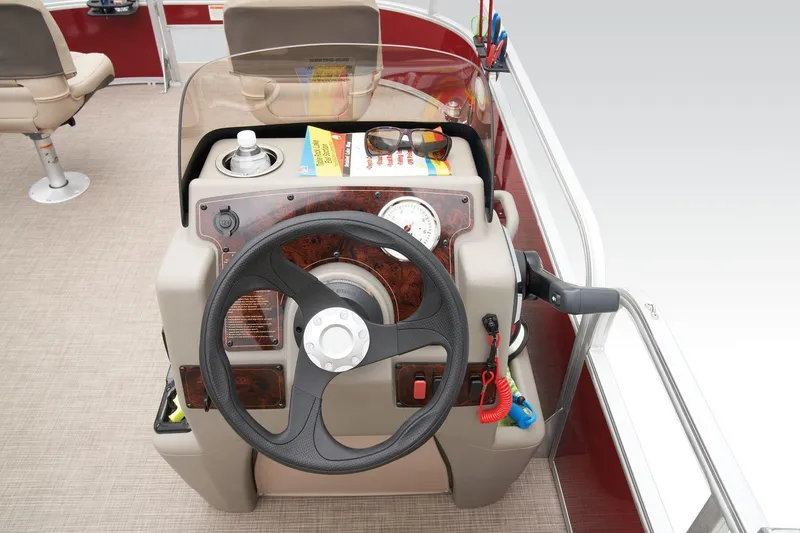

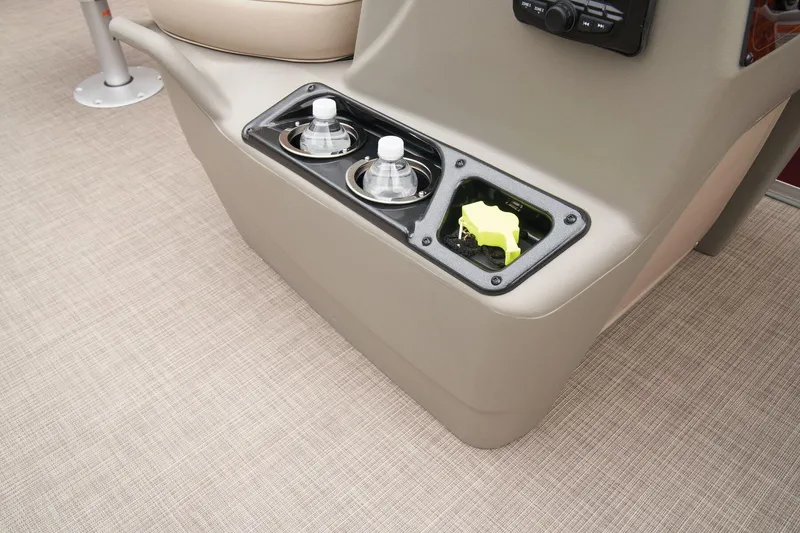

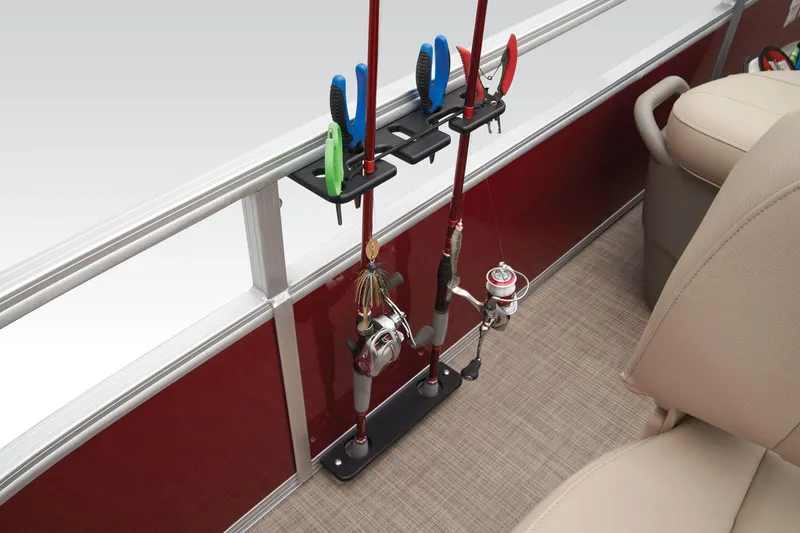

• Driver console w/vertical rod holder, integrated storage, drink holders & side-mounted controls

• 4:2 ratio no-feedback steering w/sport steering wheel

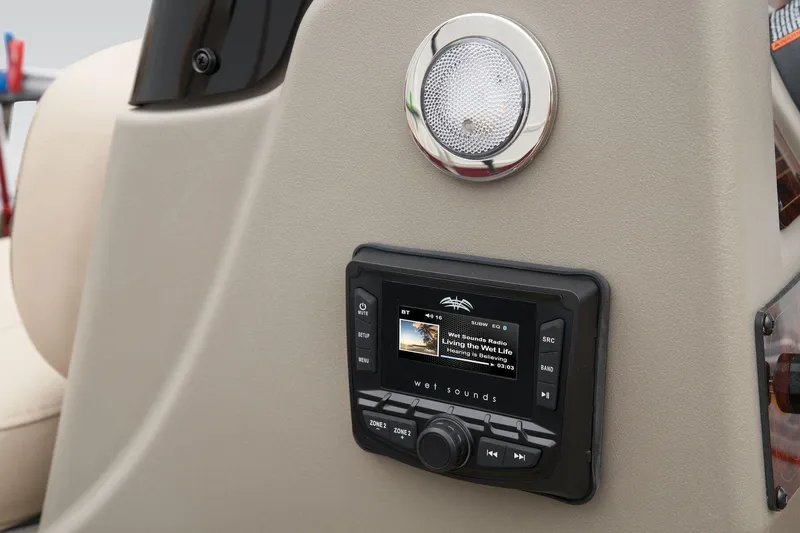

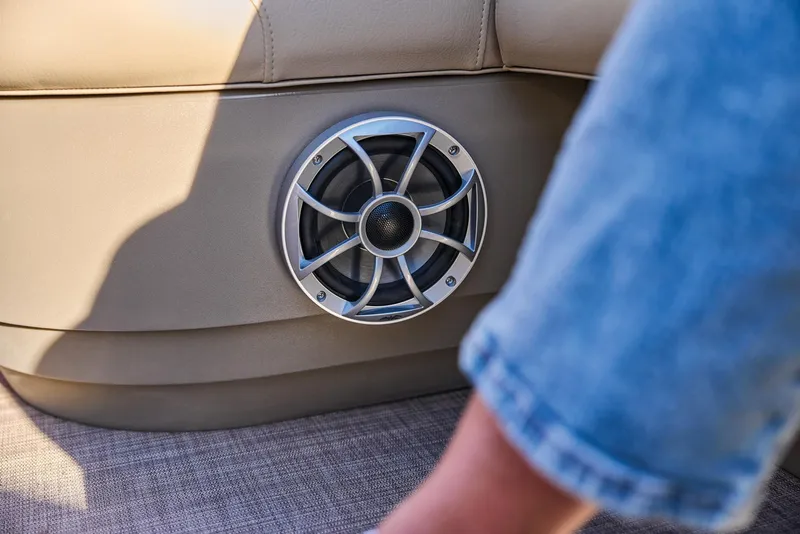

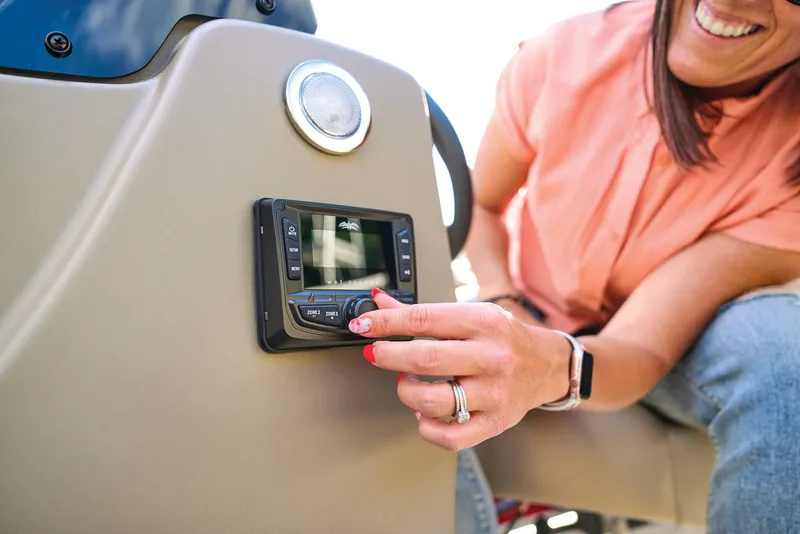

• Wet Sounds® stereo w/Bluetooth® & two 6.5" (16.51 cm) speakers, strategically located within the seat bases

• Illuminated tachometer

• Rocker switches

• 12V outlet

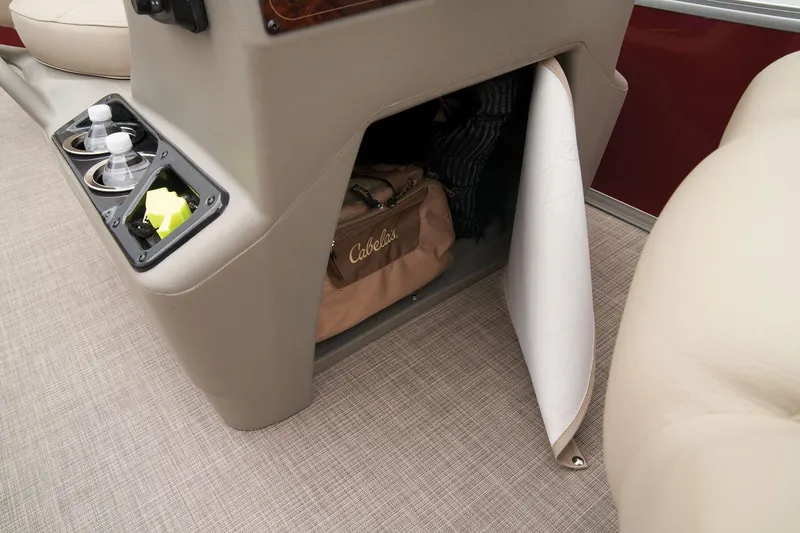

• Below-console storage space w/curtain

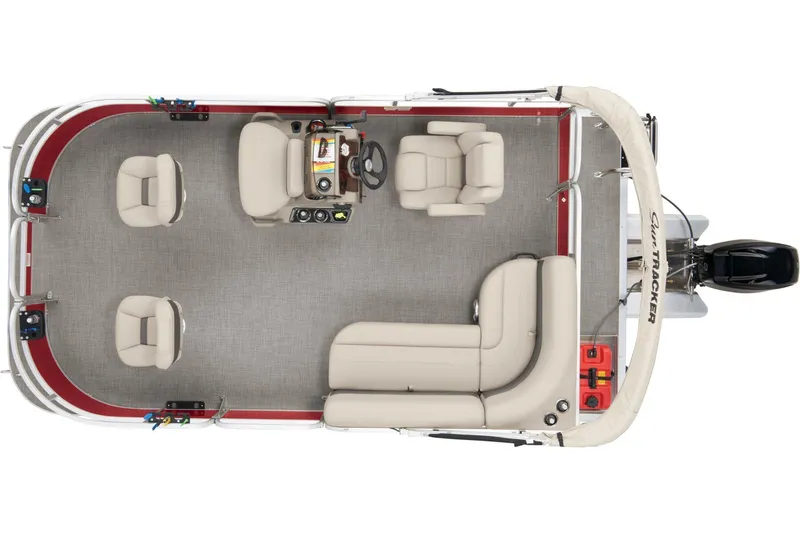

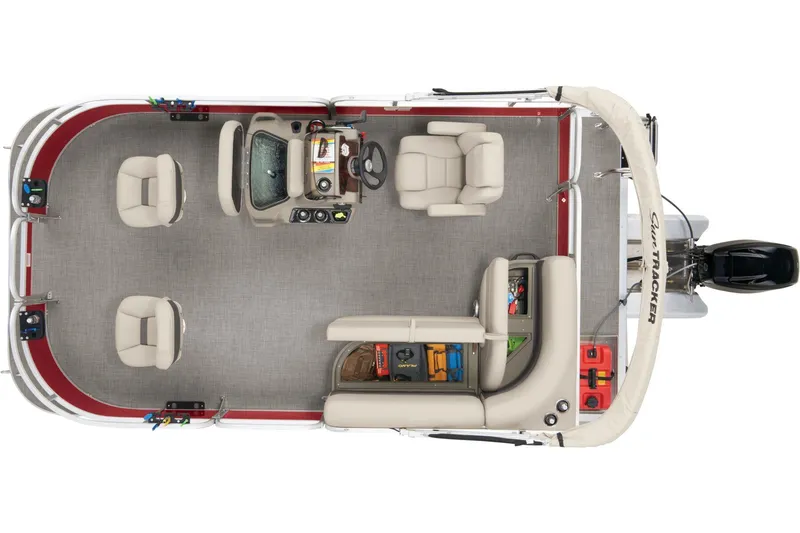

Interior

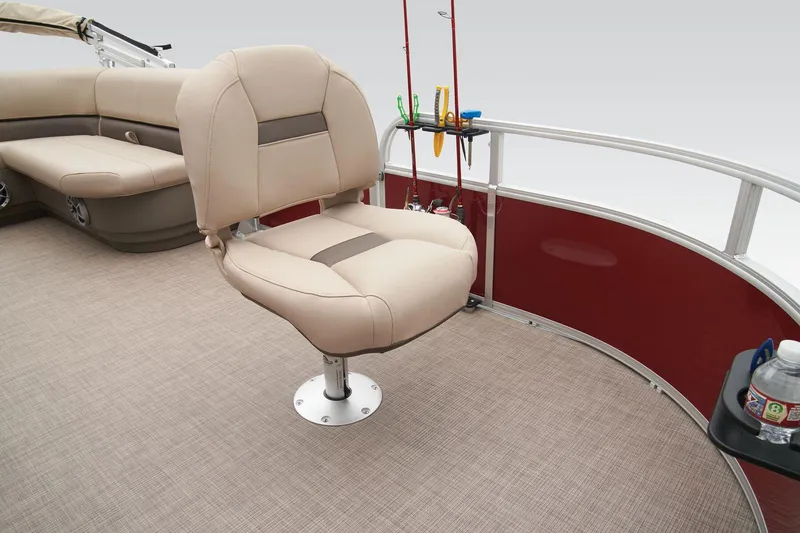

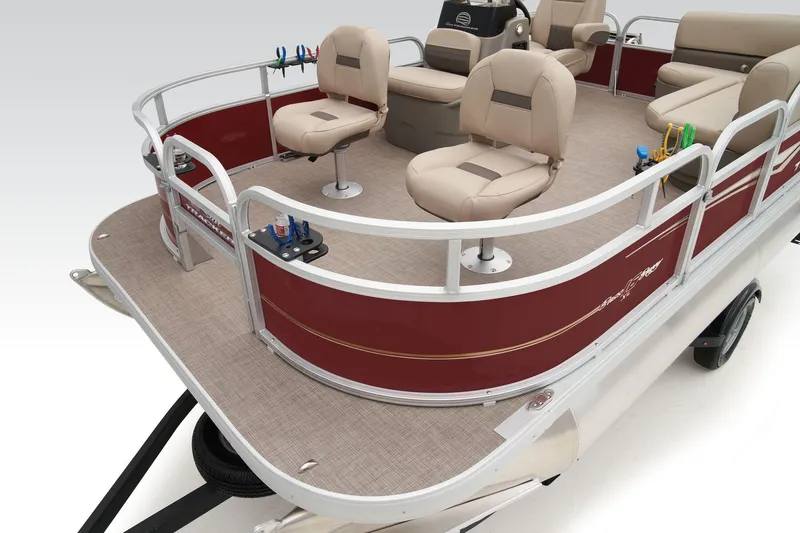

• 2 removable & folding fishing chairs w/heavy-duty 2-3/8" (6 cm) diameter pedestals

• Forward-console seat w/molded-in grab handles & below-cushion livewell

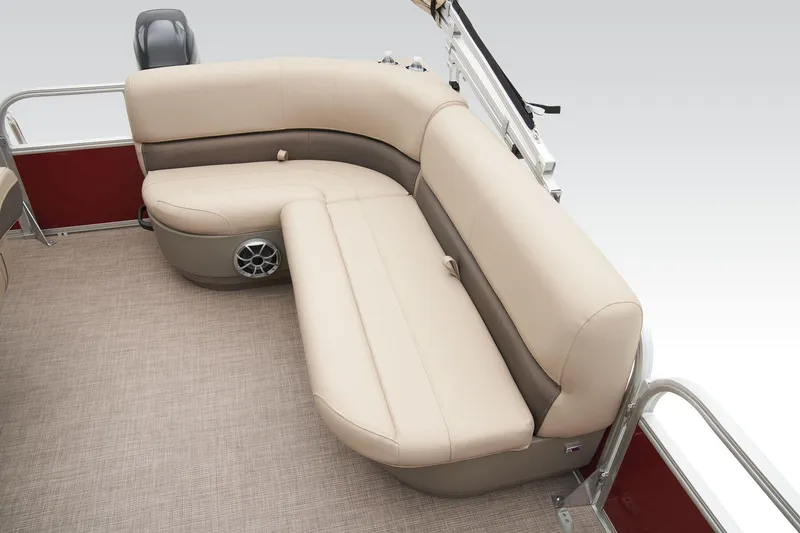

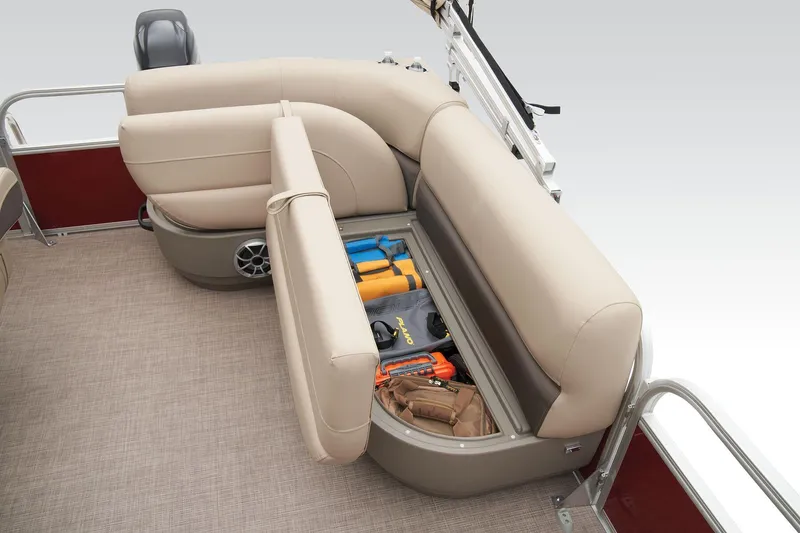

• Aft L-lounge couches w/underseat storage

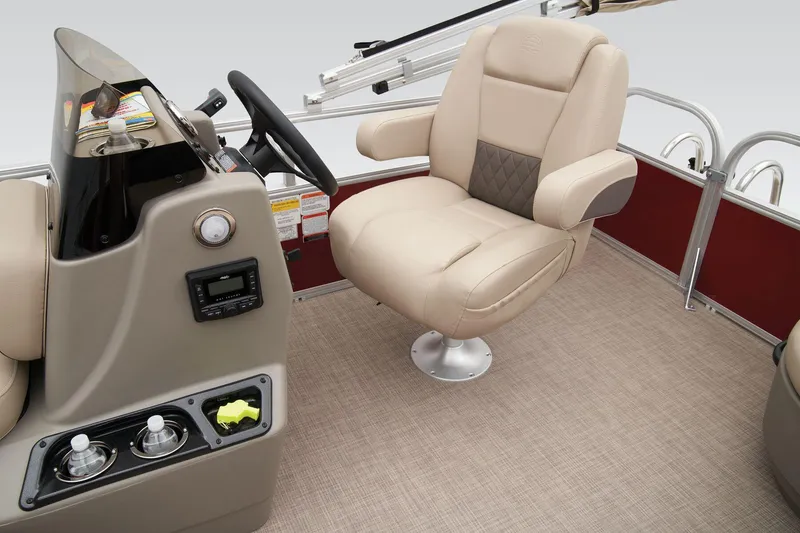

• Adjustable & swiveling helm bucket seat

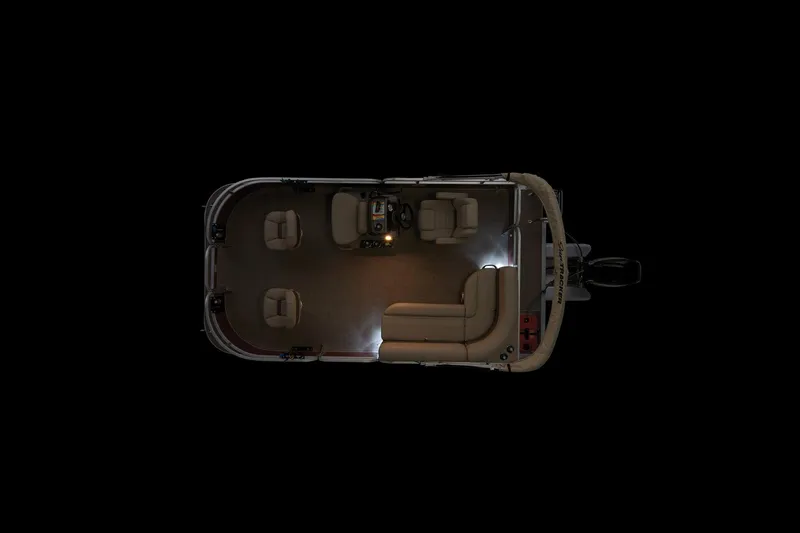

• Interior courtesy lighting

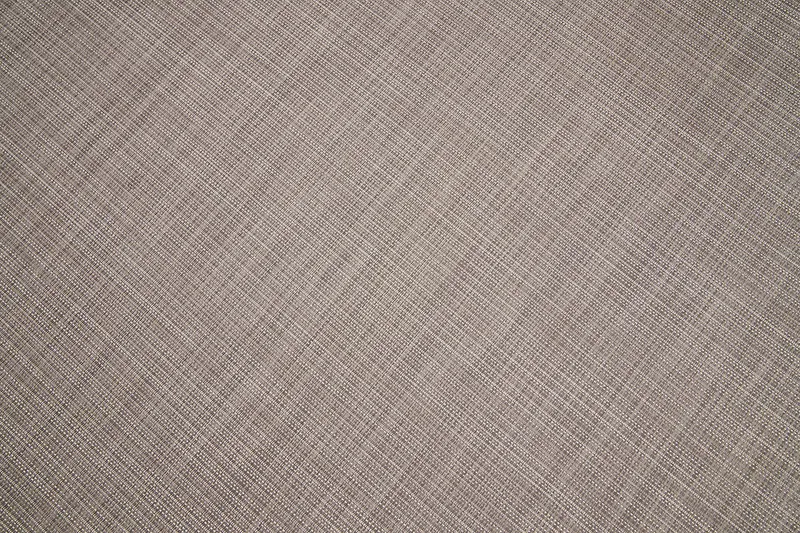

• Woven 16-oz. (.45 kg) marine-grade flooring throughout

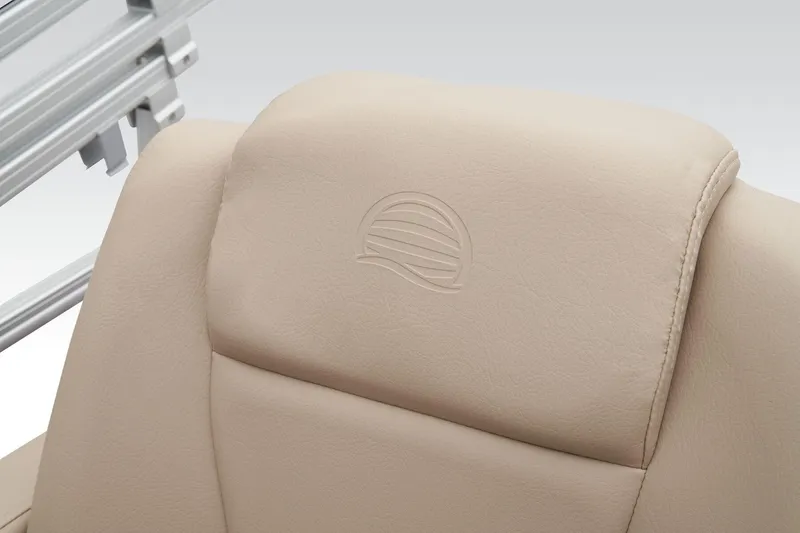

• Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Construction & Performance

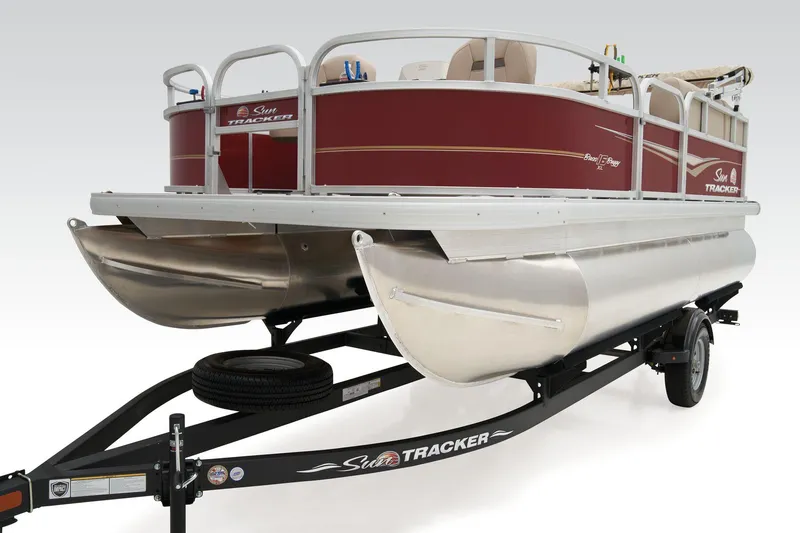

• 24" (60.96 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs

• Full-length, 1-piece longitudinal M-bracket deck supports

• Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets

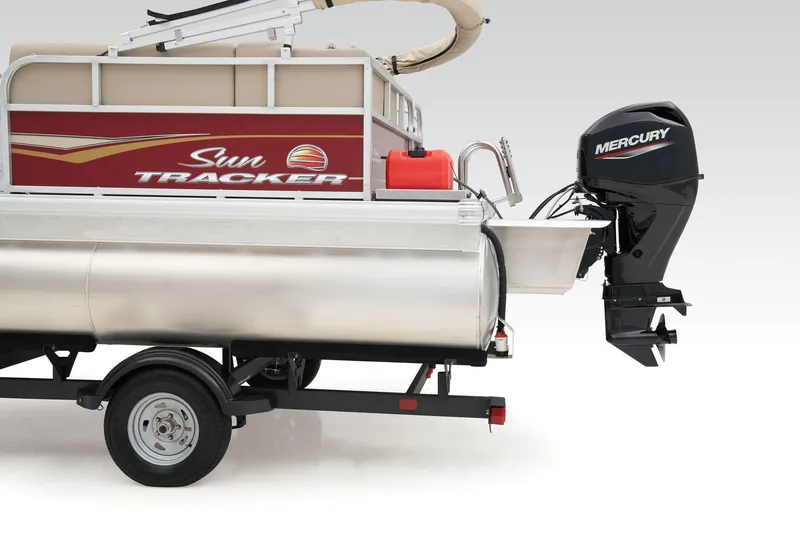

• All-aluminum box-beam transom for strength & longevity

• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty

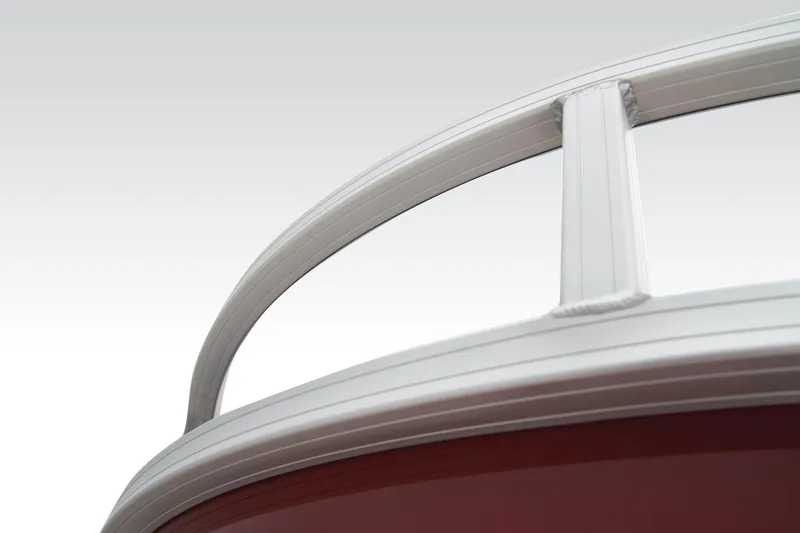

• 1-1/4" (3.18 cm), .090" (.23 cm) anodized aluminum fence rails

• Sound- & vibration-deadening fence insulation for a quiet ride

• Extruded & anodized aluminum deck edging w/polished aft corner covers

• Precision fit & finish via plasma & laser-cut parts & robotically-welded construction

• Rotomolded storage & furniture for superior strength & longevity

• Gate latches & heavy-duty hinges that open inward

• Stainless or coated corrosion-resistant fasteners

• Factory-matched aluminum propeller

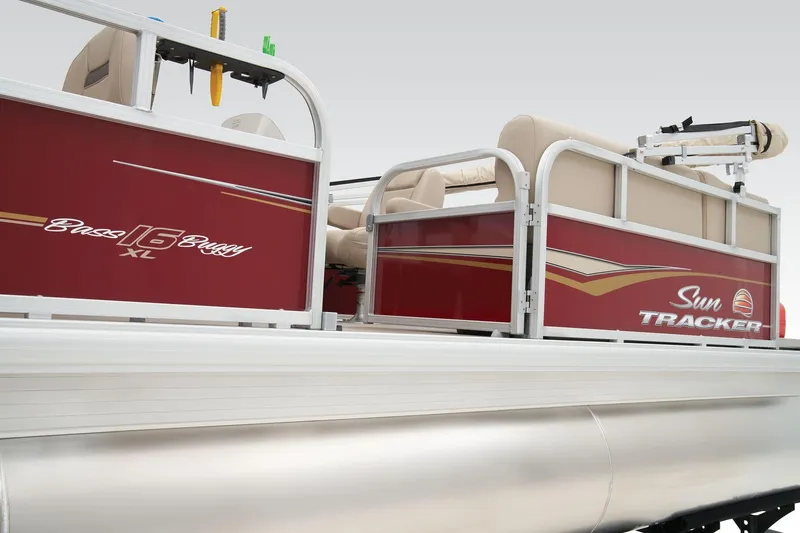

Exterior

• Color: Copper Red or Indigo Blue fencing

• Fence design w/high-sheen finish for long-lasting cosmetics

• Elevated fence panels for deck drainage & ventilation

Electrical

• Marine-grade fuse panel

• Protective abrasion-resistant wire wrap

• Water-resistant connectors
