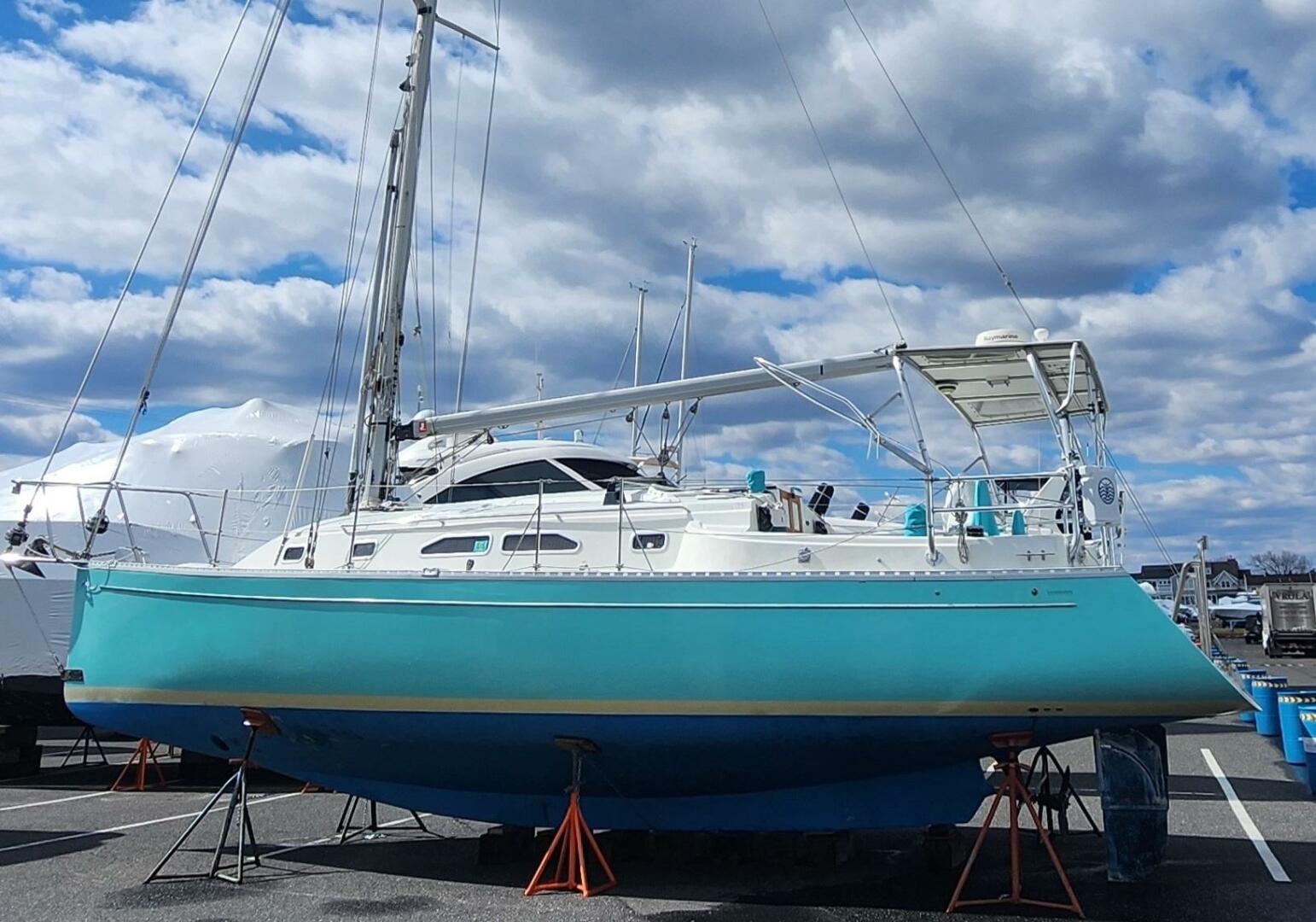

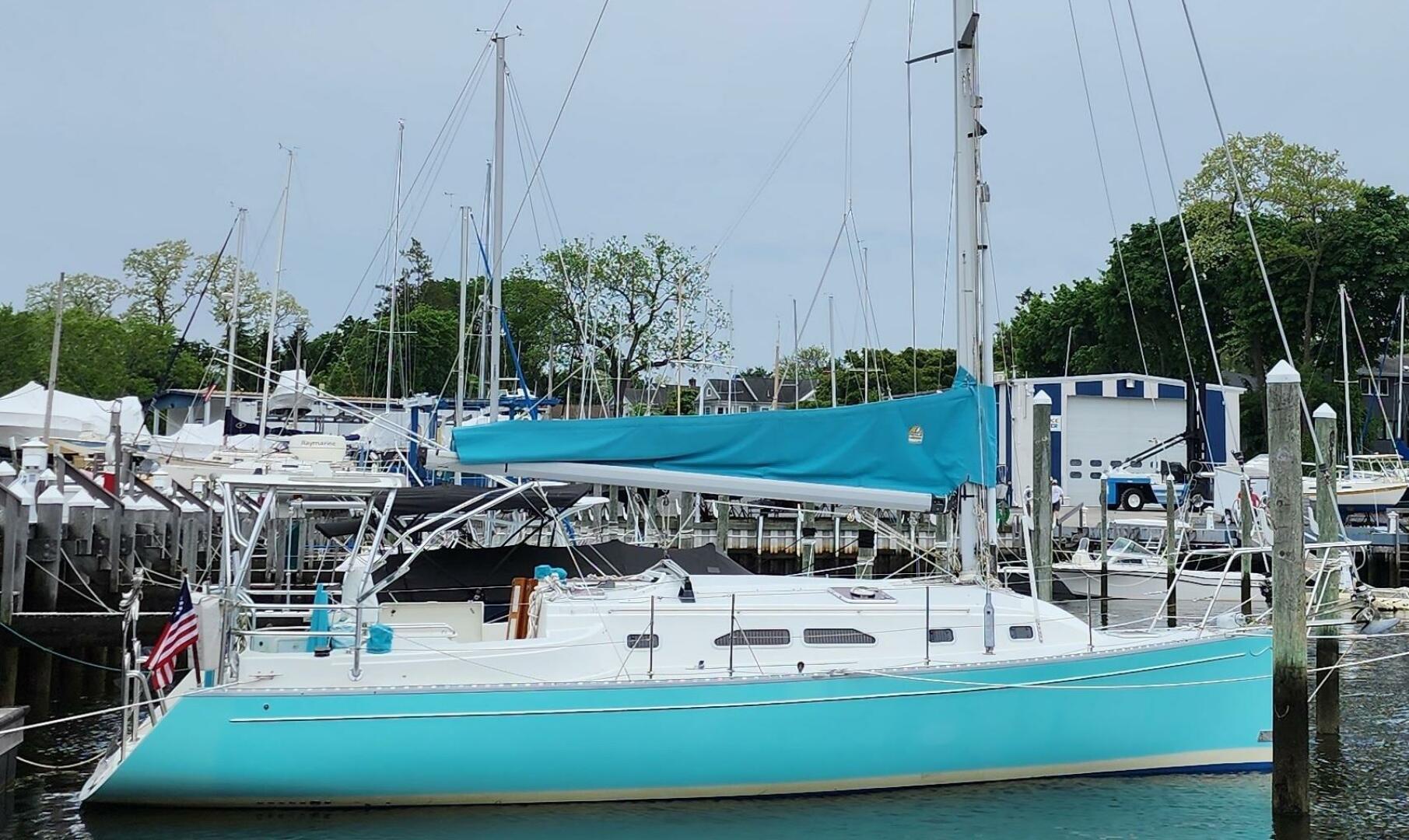

2005 Shannon 35

Patented Shoalsailer Hull

Internal Lead Keel

One Piece Hull Construction

PVC Linear Foam Cored Hull with Biaxial Laminates

All Hand Laid Fiberglass Laminate

Vinylester Resin Skin Coat

Special Crash Sole in the Bow for Beaching

NPG Isophthalic Gelcoat

Full Length Hull Stringer Grid Glassed and Reinforced

Boot top, Anti-fouling Bottom Paint and Epoxy Undercoat

Painted topsides “Aruba Green”

Hand Laid Closed Cell PVC Foam Core for Rigidity and Insulation

Molded-in Nonskid Deck Surface with Recessed Waterways

Hull to Deck Joint with Mechanical Fasteners and Adhesive/Sealant

Heavy Duty Anodized Aluminum Toerail

Two Cockpit Scuppers and Two Recessed Deck Scuppers

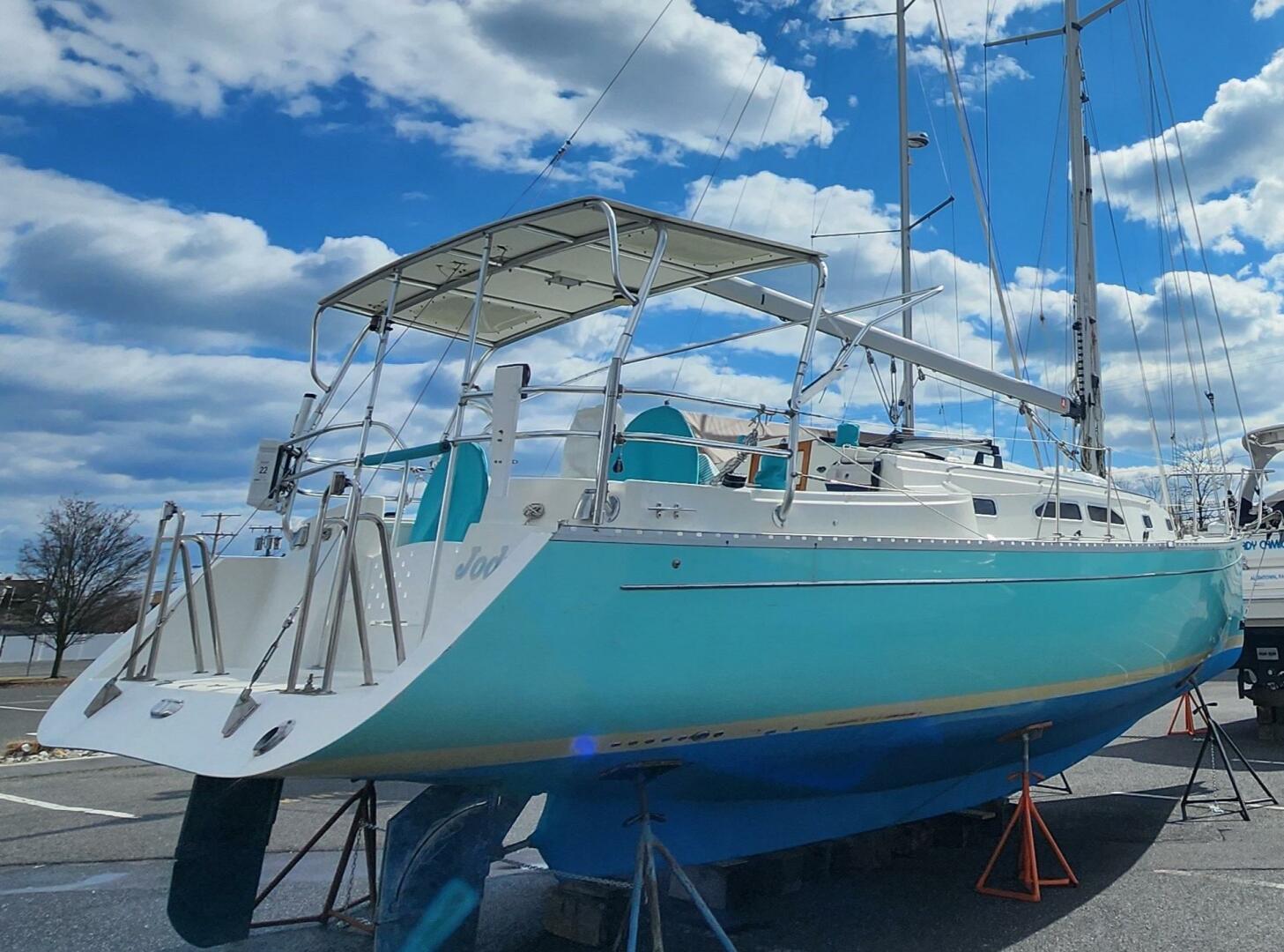

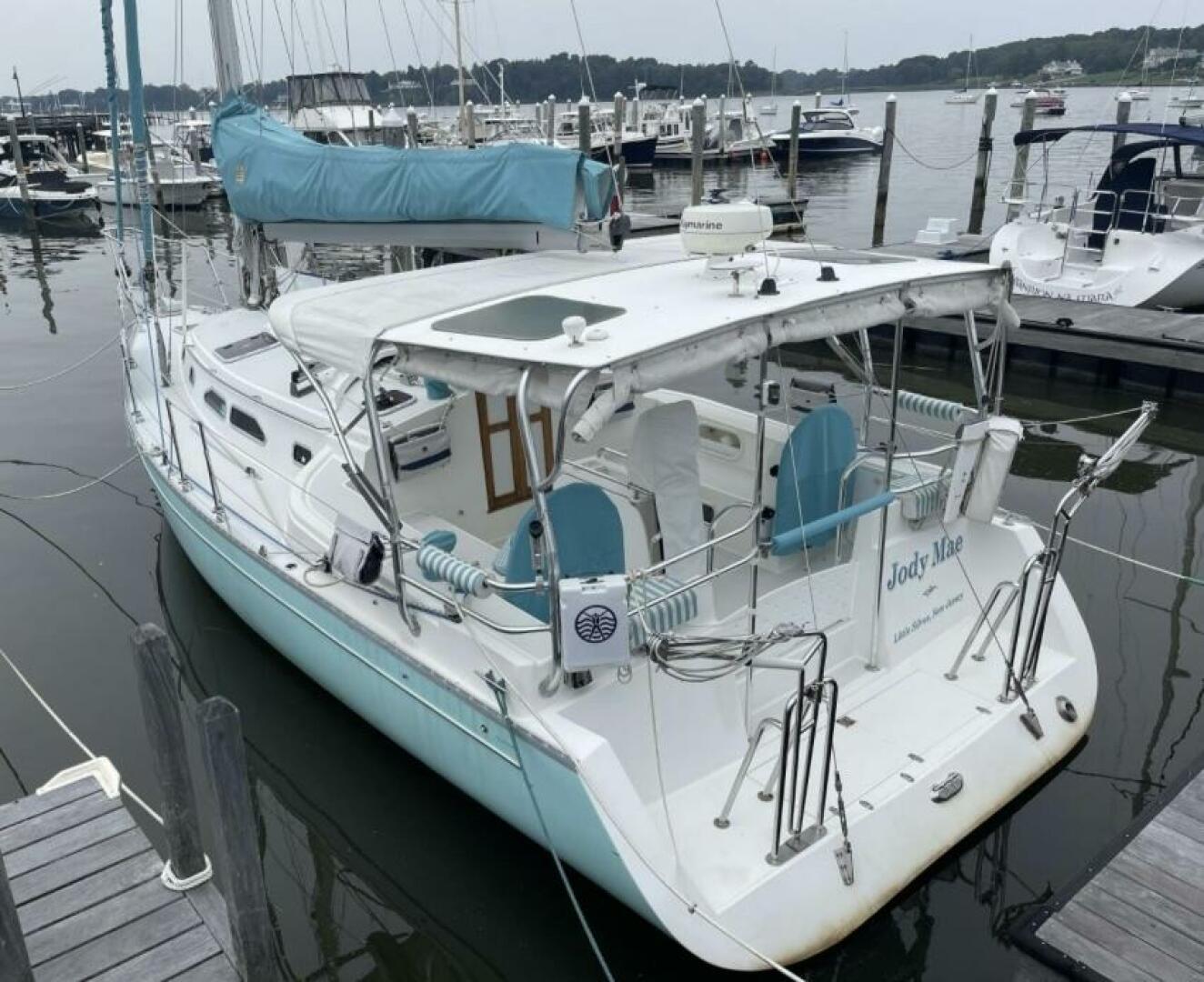

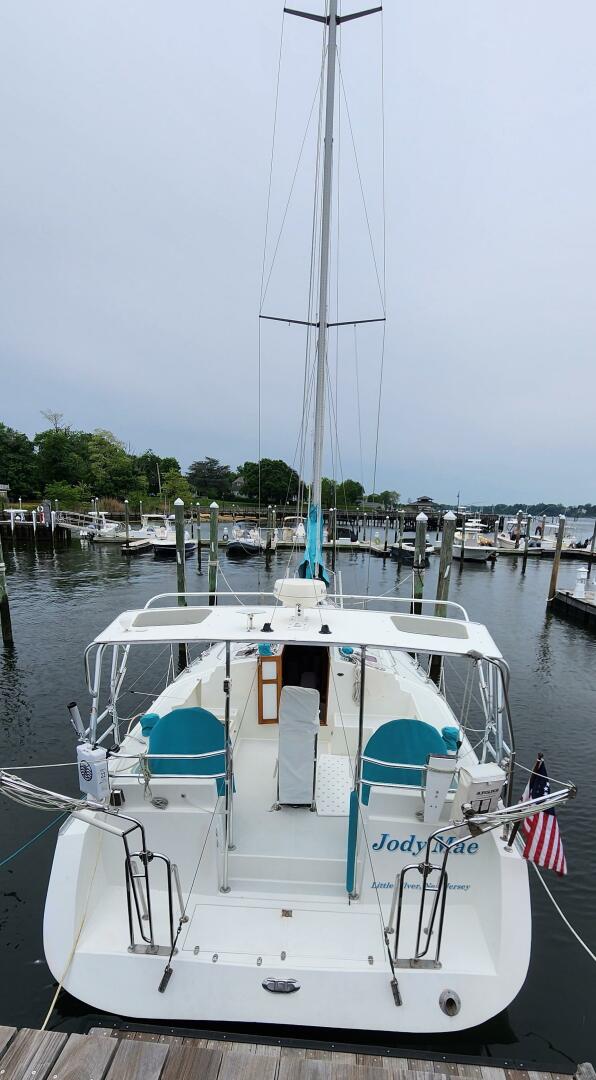

Transom Swim Platform with ladder and H/C shower

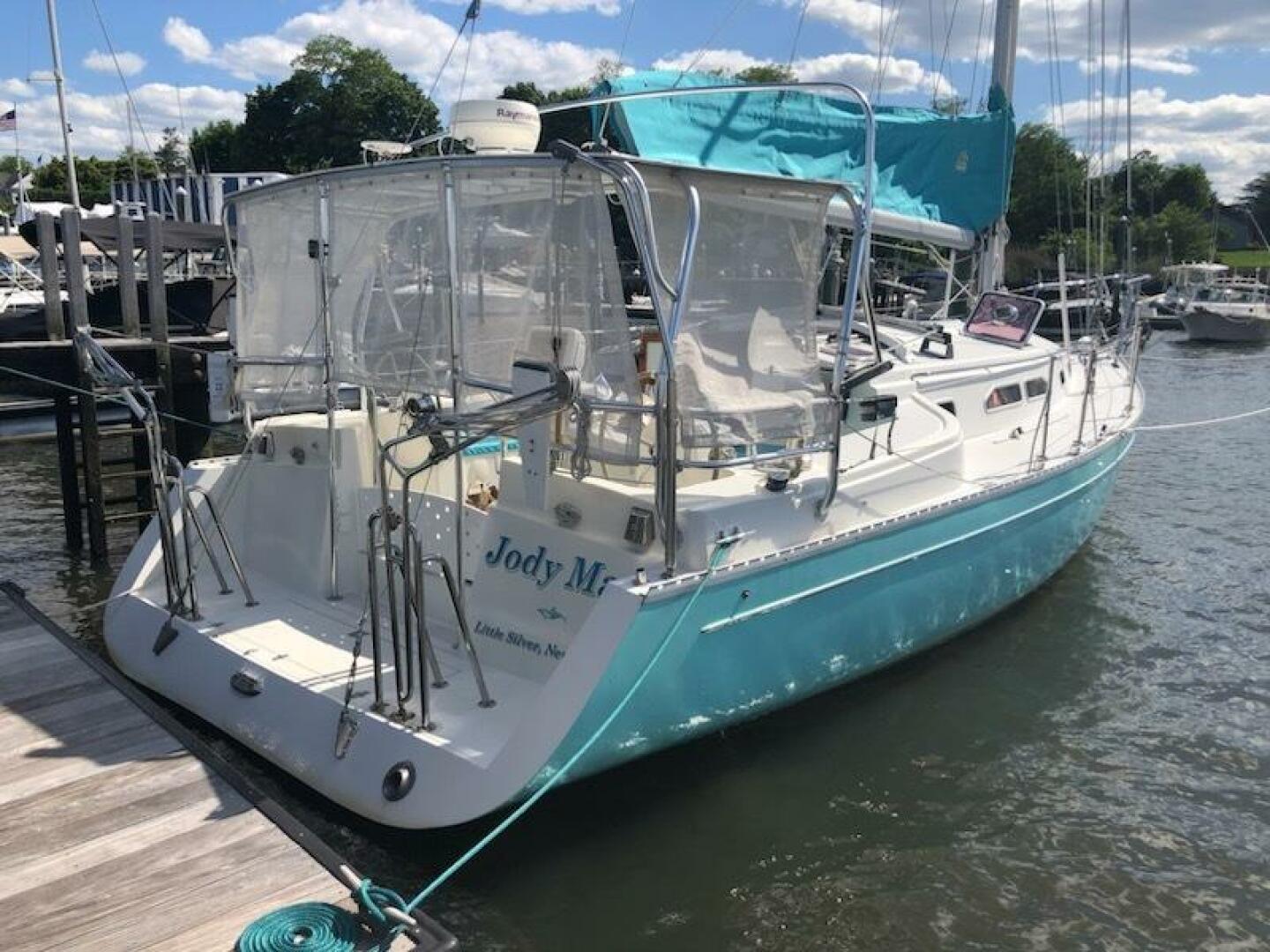

Hardtop bimini with clear plastic connectors and drop sun shades

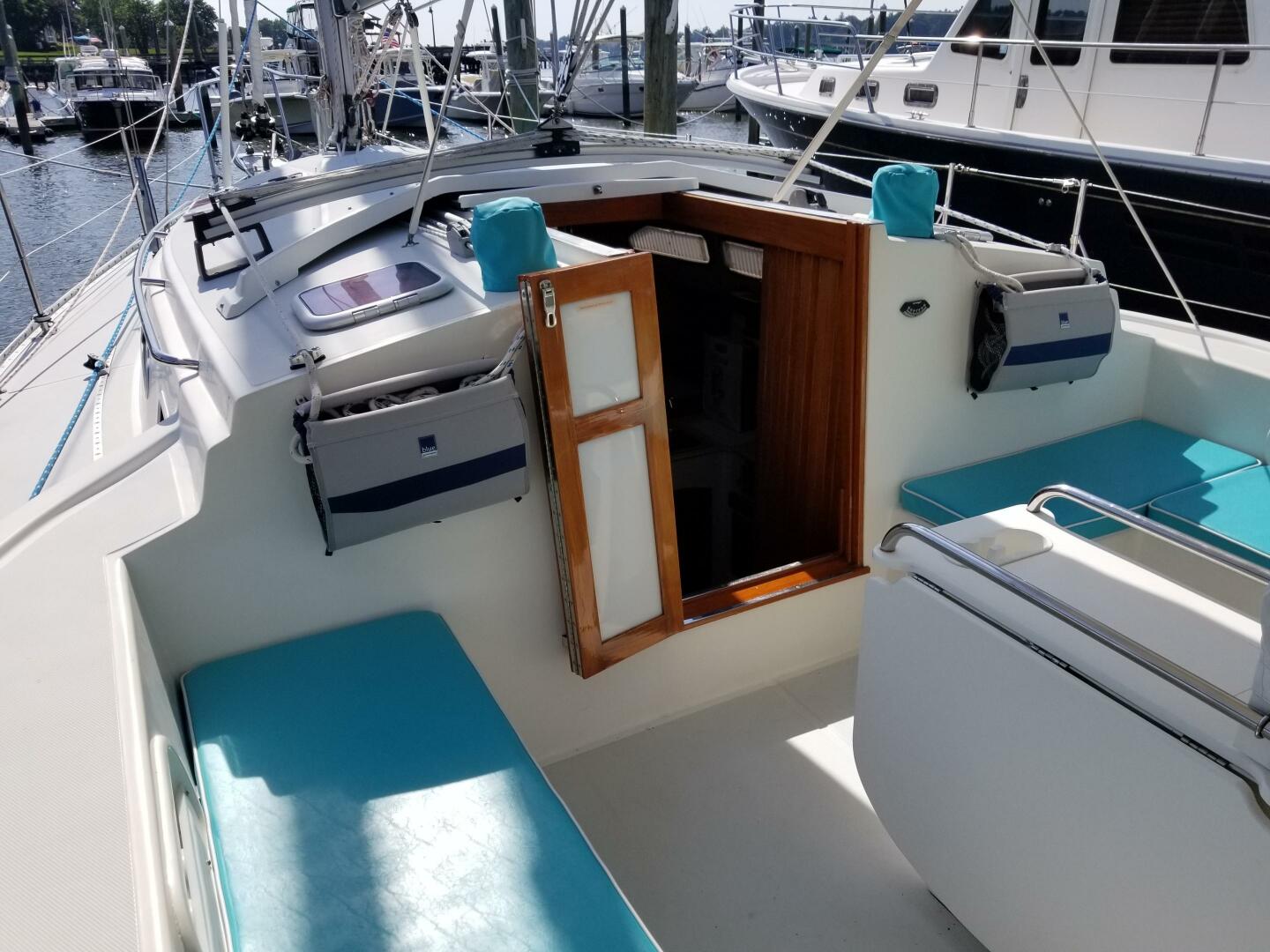

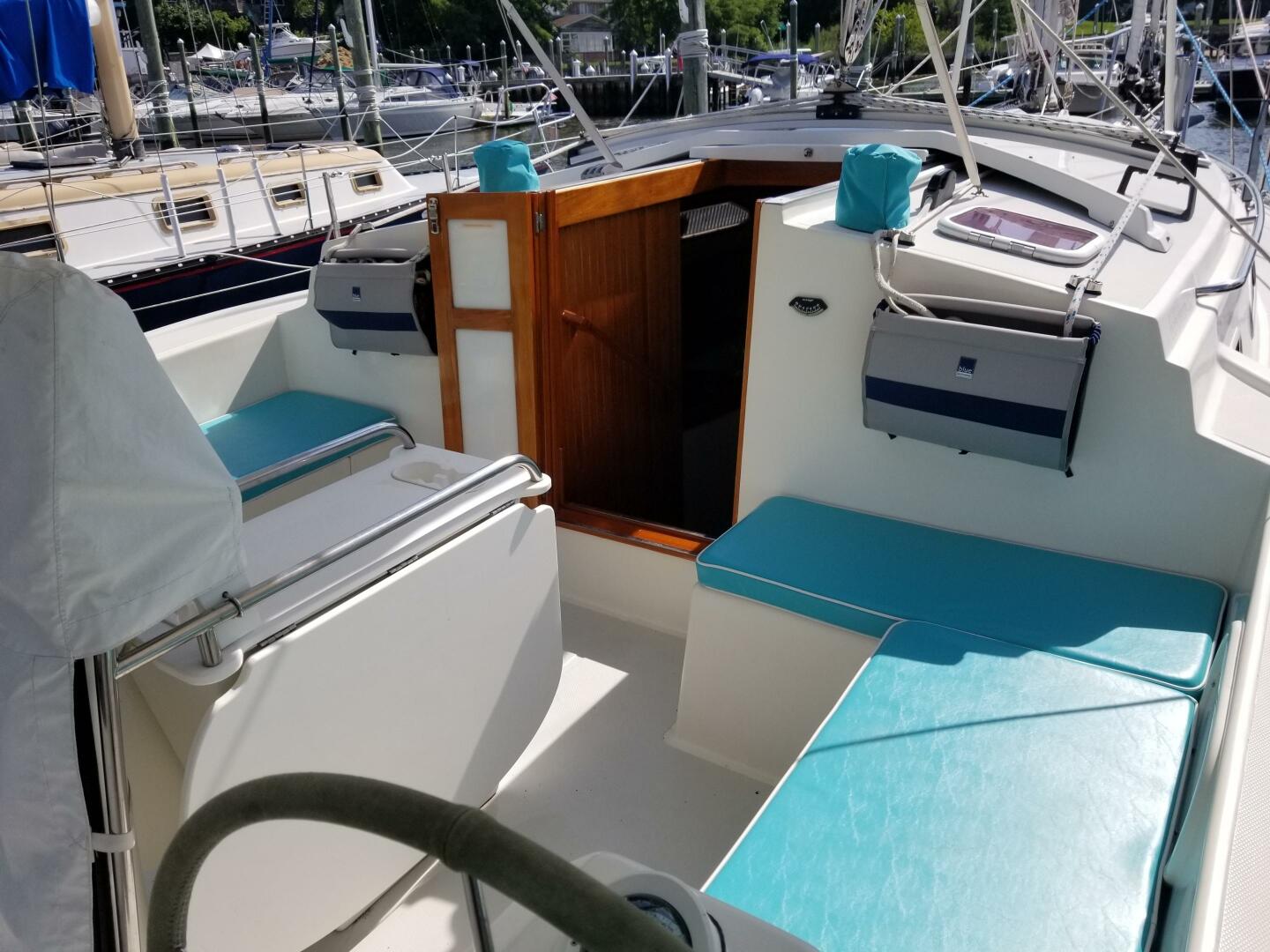

Hinged Companionway Doors

Large Cockpit and Swim Platform Storage Lockers

Custom stainless steel Dual Anchor Rollers

Anchor Rode Deck Pipe

Custom Welded Stainless-Steel Bow and Stern Rails

Stainless Steel Stanchions with Double Lifelines

Boarding Gates Port and Starboard

Dinghy davits and outboard motor crane

Four 10" Mooring Cleats and Two 10" Spring Cleats - Stainless Steel

Seven Opening Ports with Screens

Four Large Fixed Ports

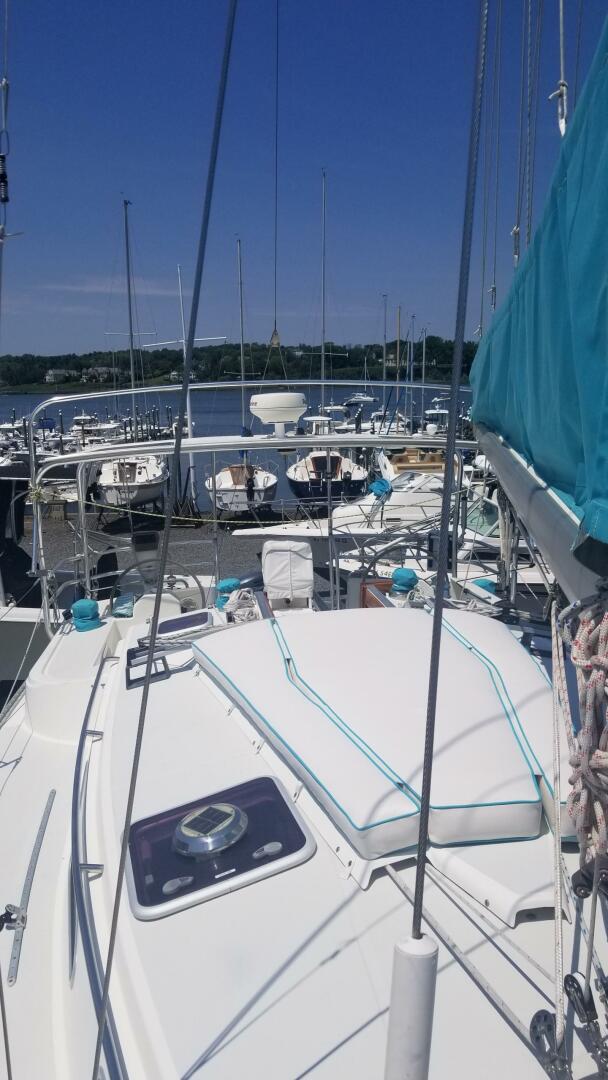

Five Deck Hatches with Screen

Custom Molded Storm Hood/Line Cover for Insulation

Stainless Steel Grab Rails

Cockpit and deck cushions

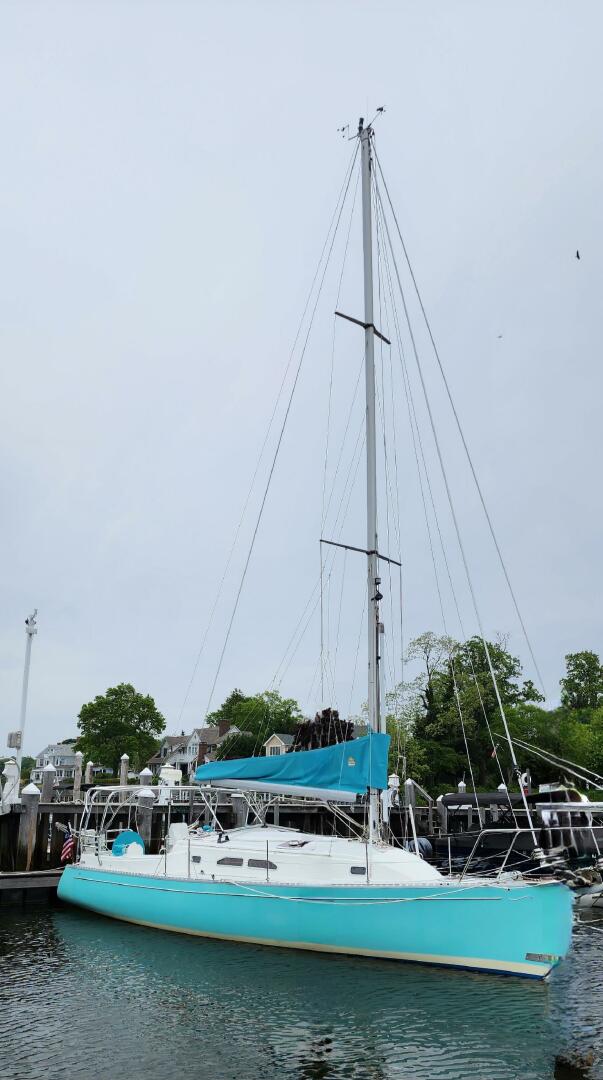

Custom Aluminum Selden Mast

1 X 19 Stainless Steel Standing Rigging with Open Turnbuckles

Stainless Steel Chain Plates thru-bolted to Transverse Knees

Heavy Duty Ball Bearing Mainsheet Traveler

Genoa Track with Adjustable Oversized Genoa Cars and Sheets

Continuous One-Line Mainsail Dual Reefing and Halyard Led Aft

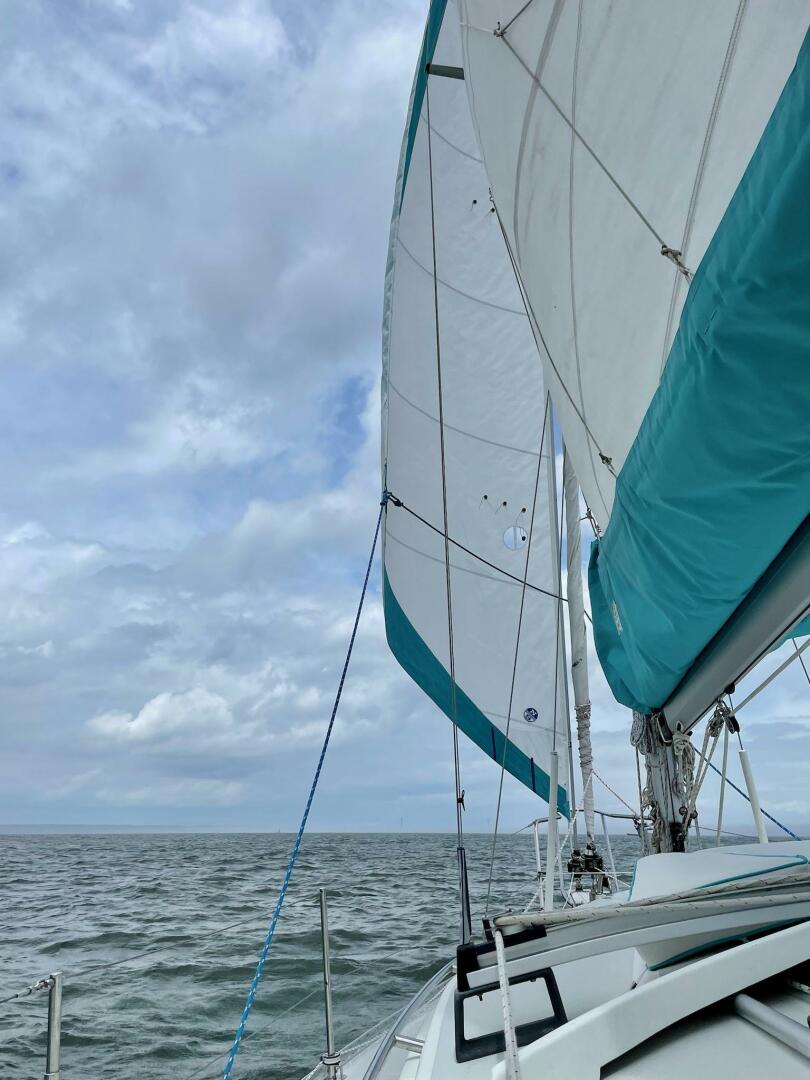

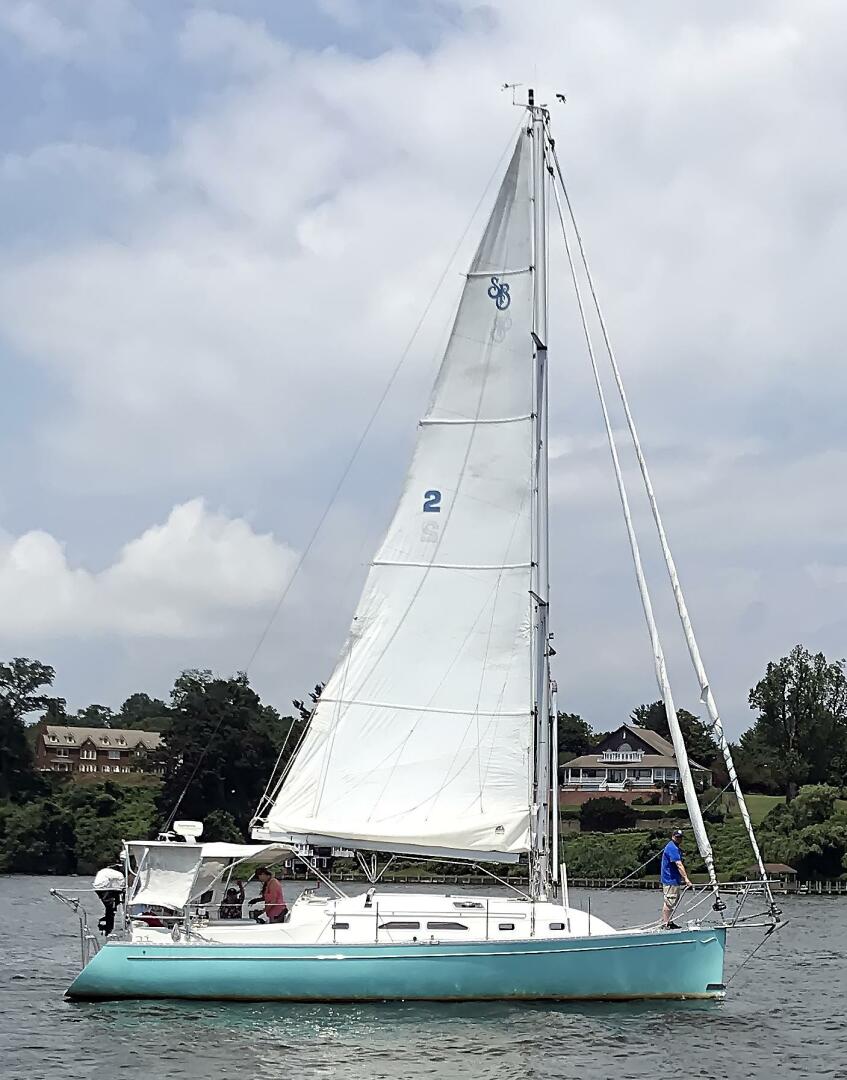

Shannon Custom Cutter rig

Four Lewmar Winches

Two 46ST Two-speed Self-tailing Primary Sheet Winches

One 40ST Two-speed Self-tailing Main Halyard/Reefing Winch

One 40ST Two-speed Self-tailing Main Sheet Winch

Winch Handles

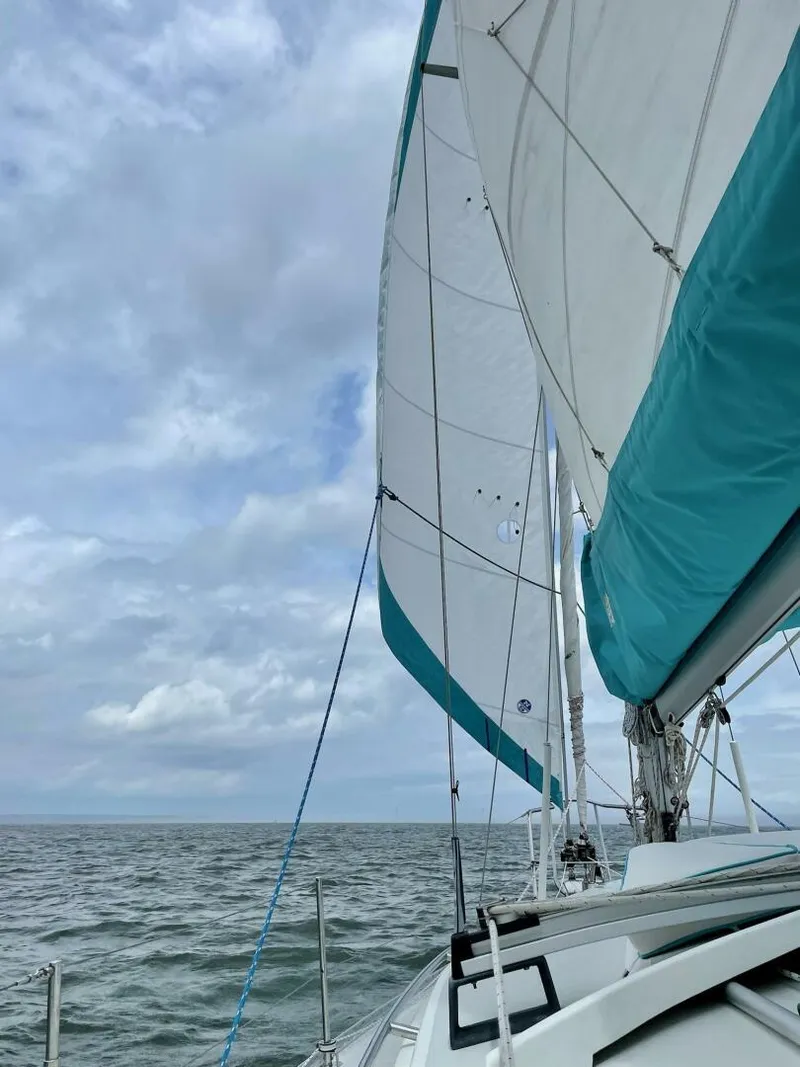

Main: North Sails - 2023

Genoa: North Sails - 2022

Yankee: North Sails – 2021

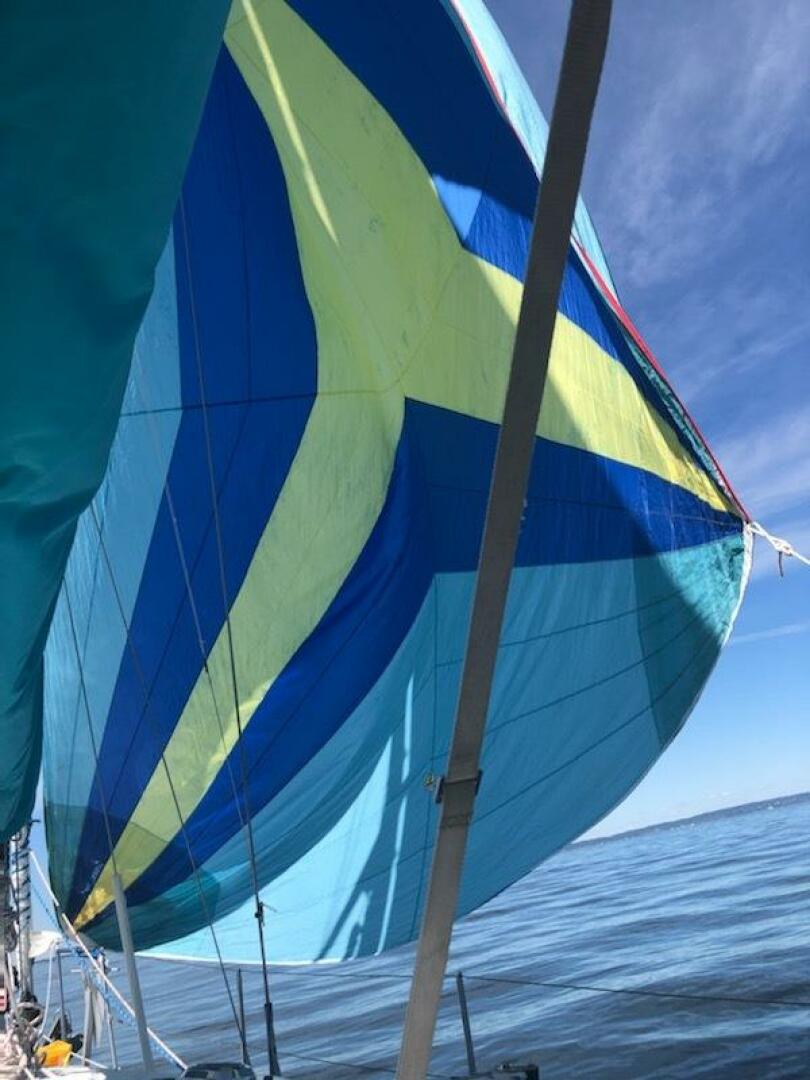

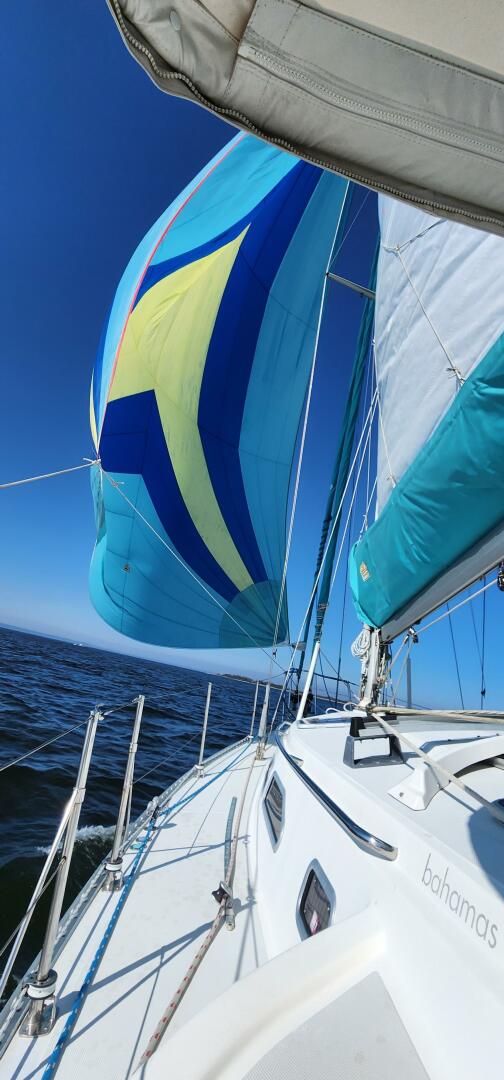

Spinnaker: asym with snuffer sock

Main Cover: Doyle Stack Pack with lazy jacks - 2020

CQR anchor with Nylon Rode and Chain Leader

Fenders, Dock Lines, Fire Extinguishers, Life Jackets

I (genoa height) 52 feet

J (genoa foot) 9 feet

P (mainsail luff) 41 feet

E (mainsail foot) 14 feet

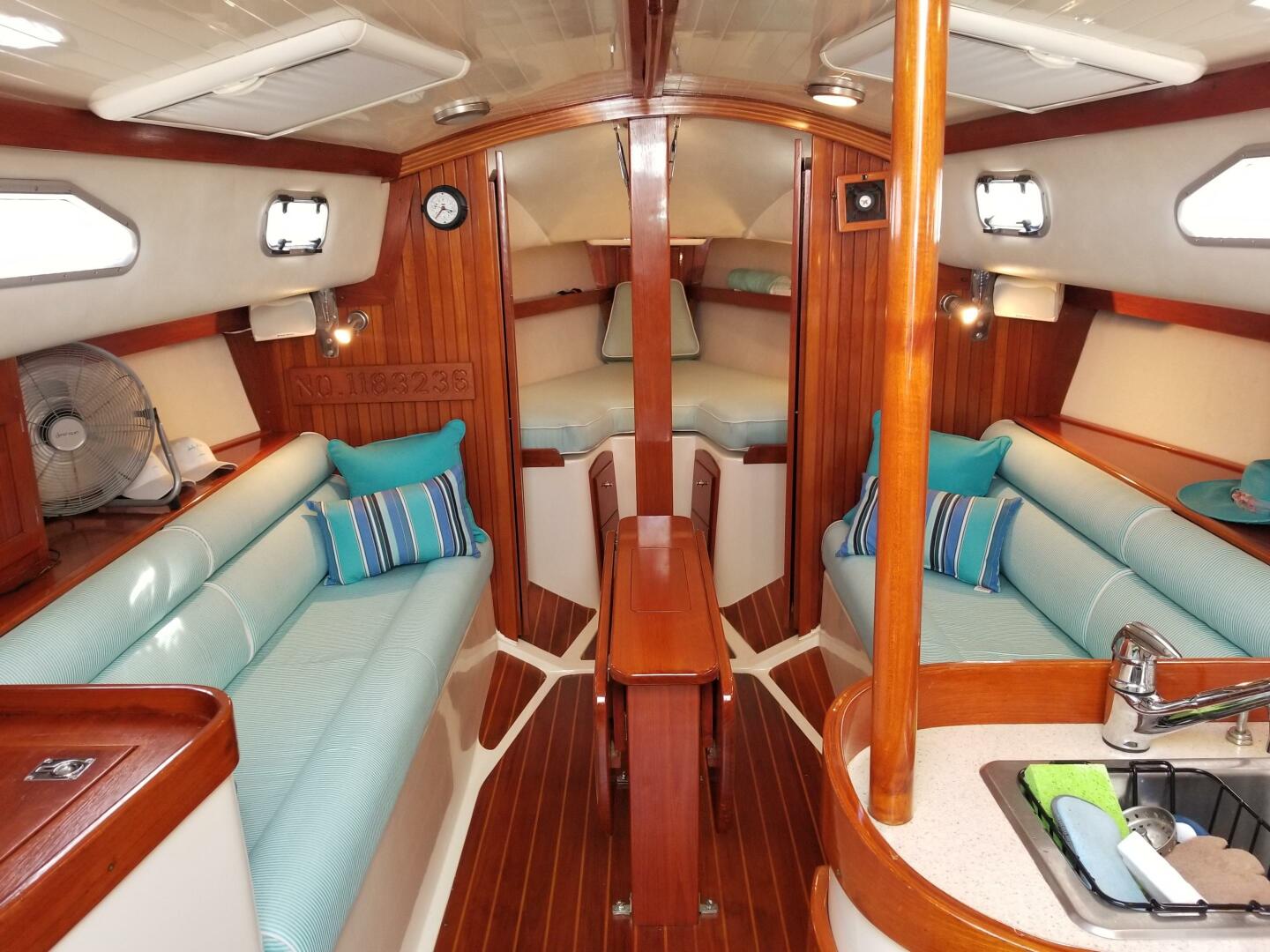

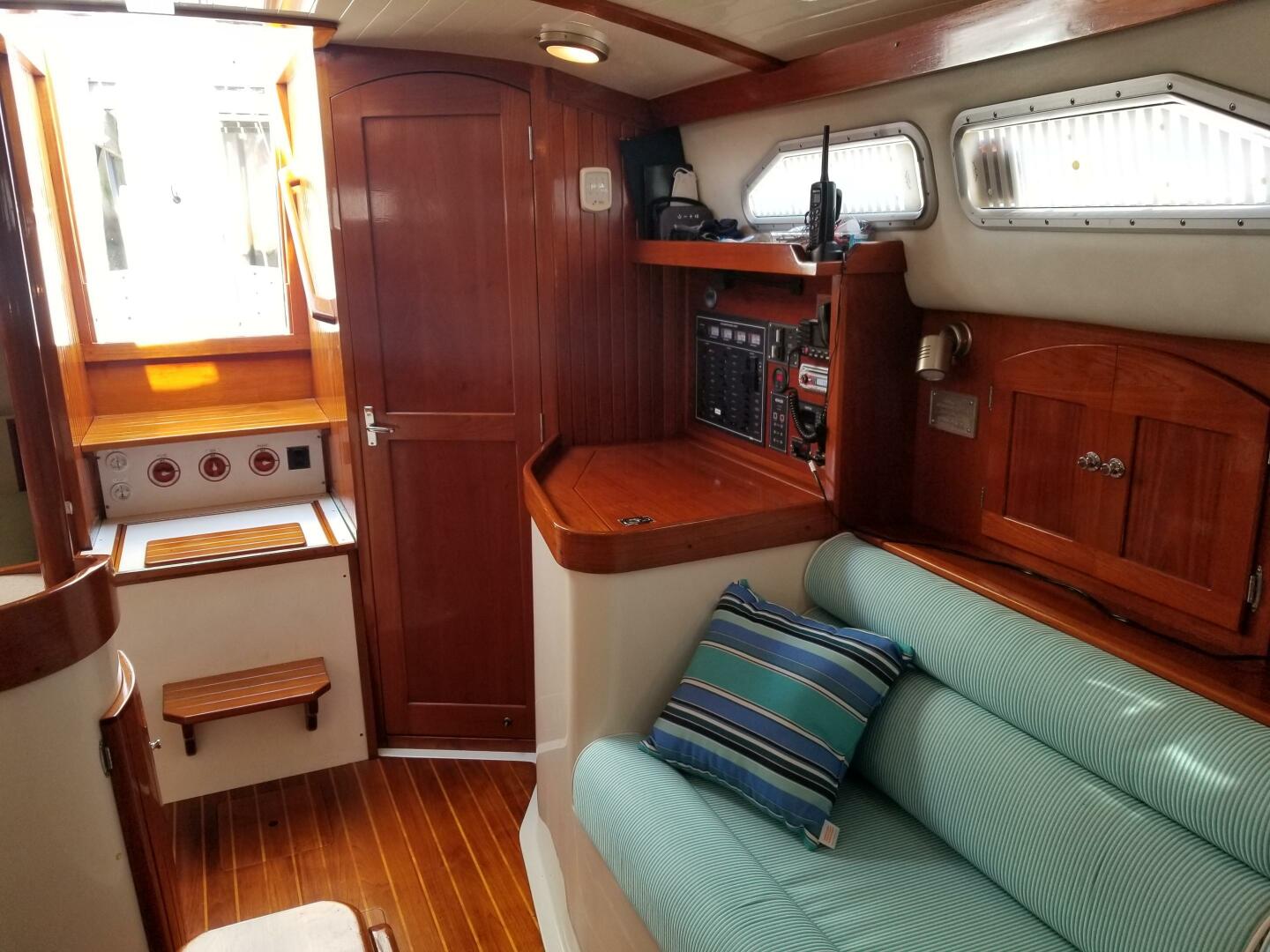

Marine-Lite Bulkheads with Herreshoff white laminate and Oiled Teak Trim

Varnished Teak and Holly Cabin Sole with Hatches

Fabric Hull Lining and Padded Foam Overhead

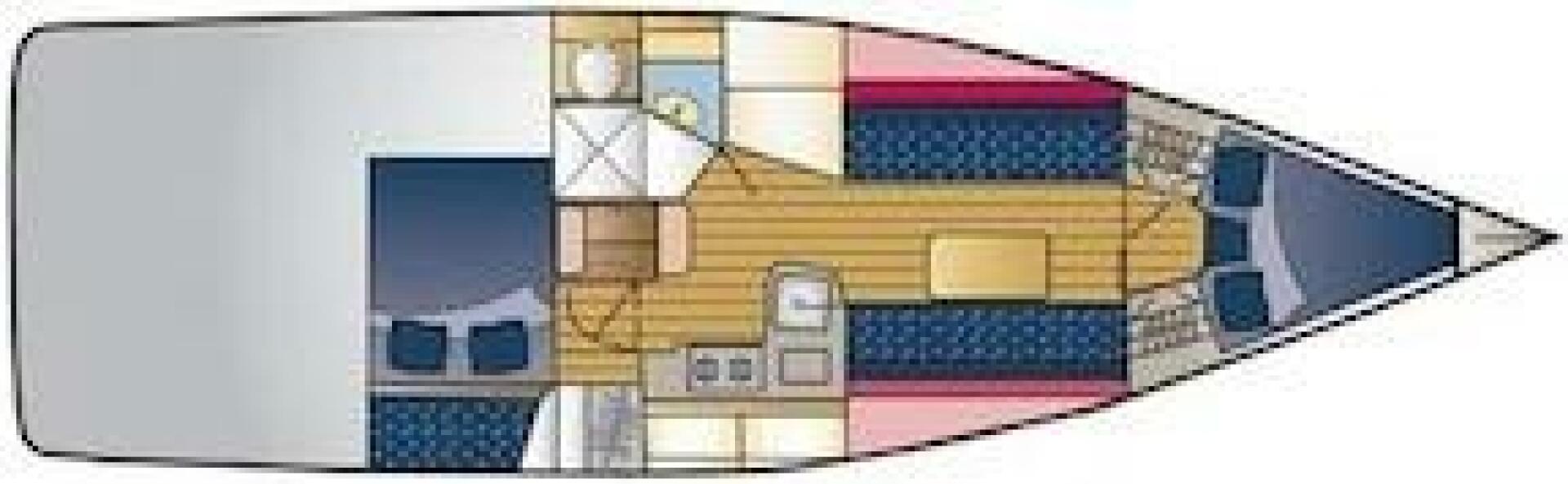

Accommodations for 6 people

Double V Berth with Filler in the Forward Cabin with Two Drawers Under, Two Hanging Lockers, and Privacy Doors

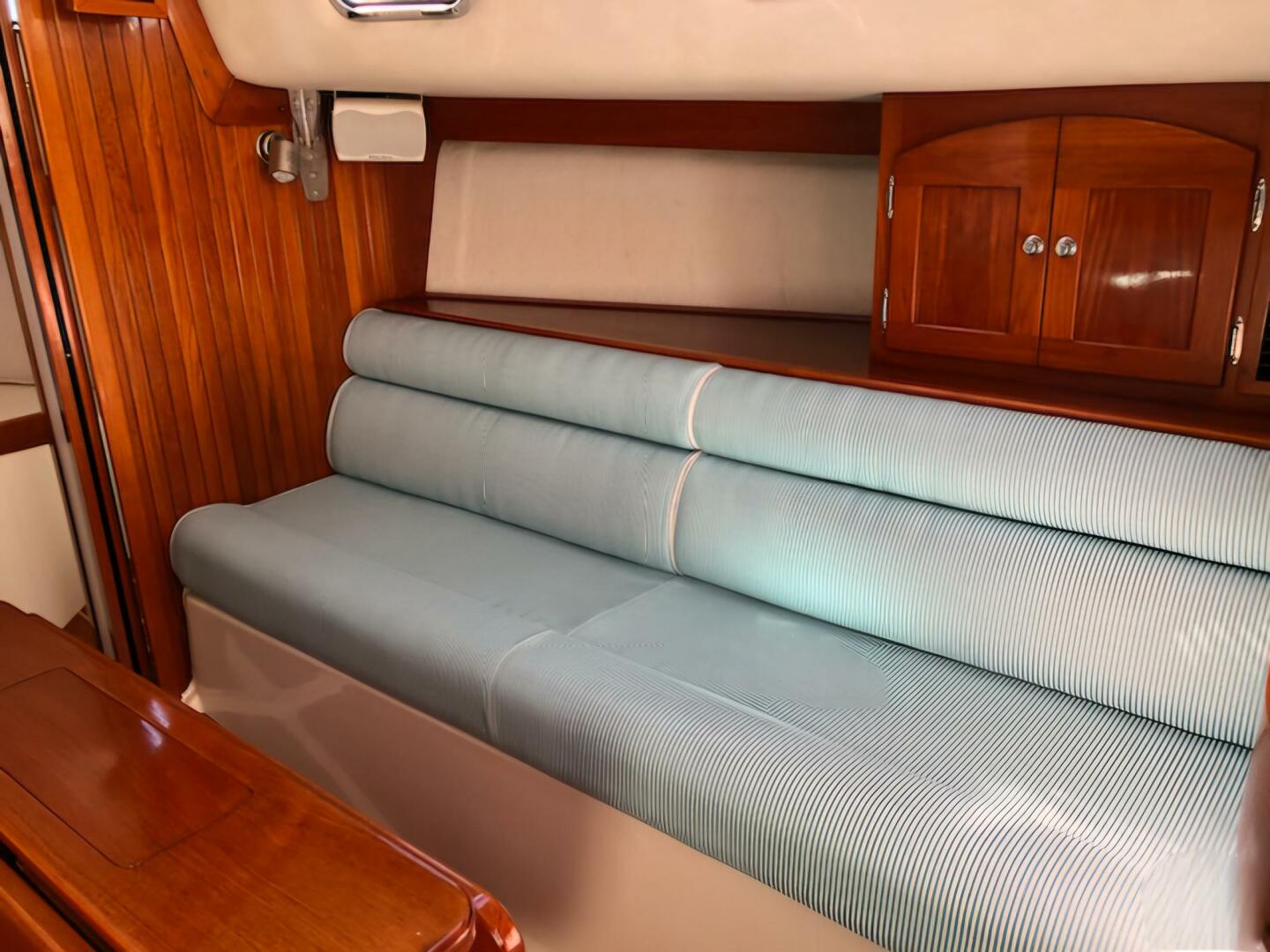

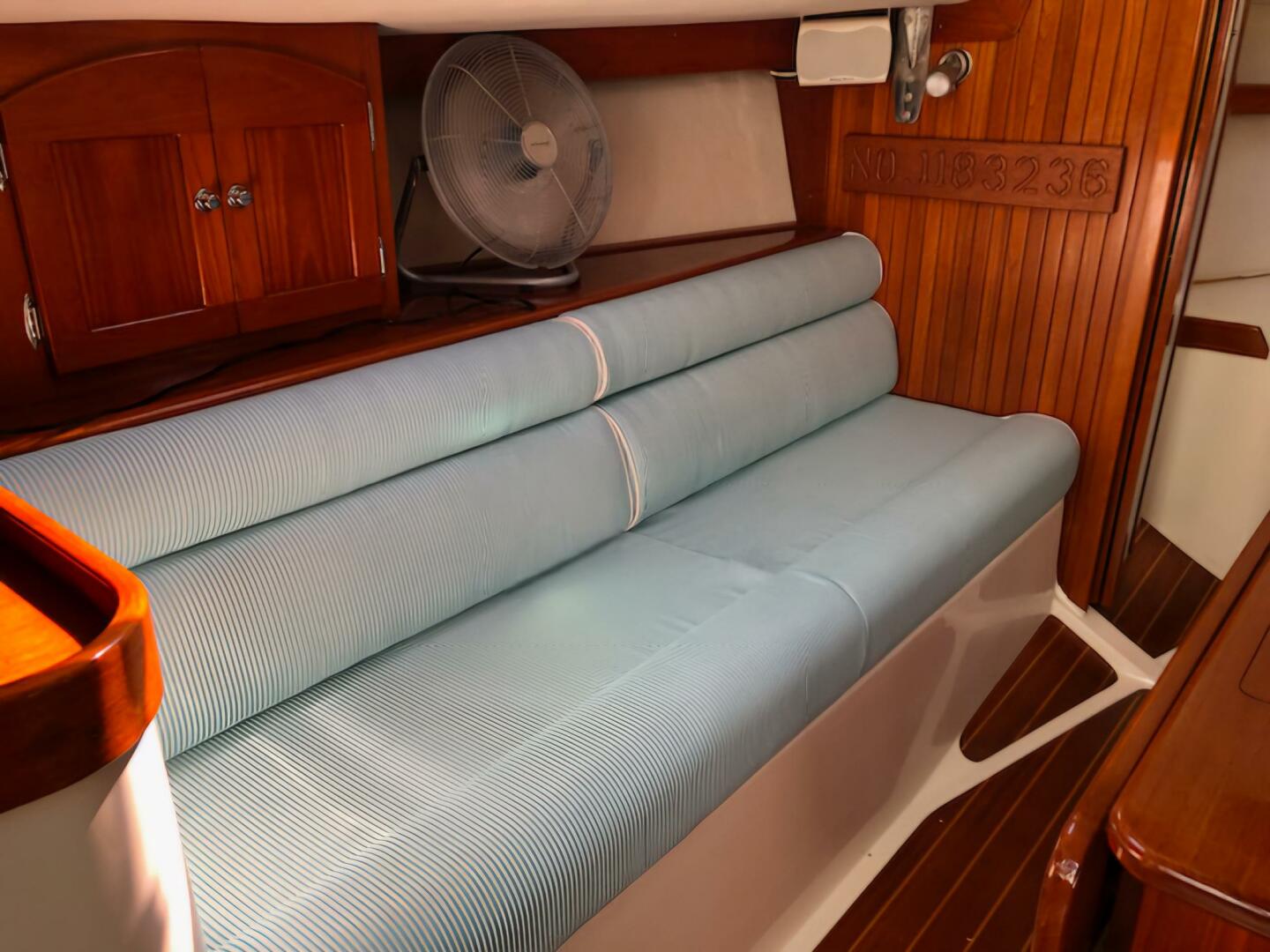

Built-in Convertible "Pullman" style Settee Single Berths to Starboard and to Port

Double Berth in the Private Aft Cabin With Hanging Locker

Teak Drop Leaf Salon Table

Fabric Covered Cushions

6'4" Headroom

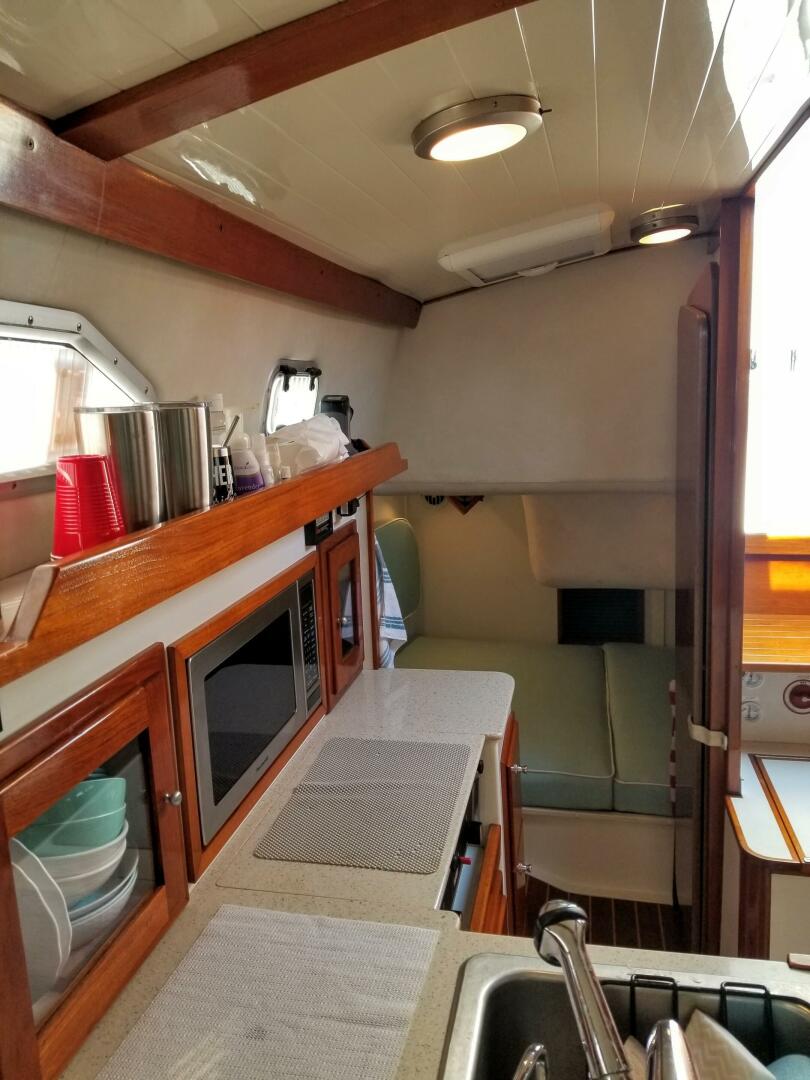

Stainless 2 Burner Propane Stove

Insulated Icebox

Large Stainless-Steel Sink

Single Lever Hot and Cold Pressure Water Faucet

Large Pots and Pans Storage Locker and Trash Bin

Food Pantry Locker

Cutlery/Utensil/Dishes/Glasses Storage

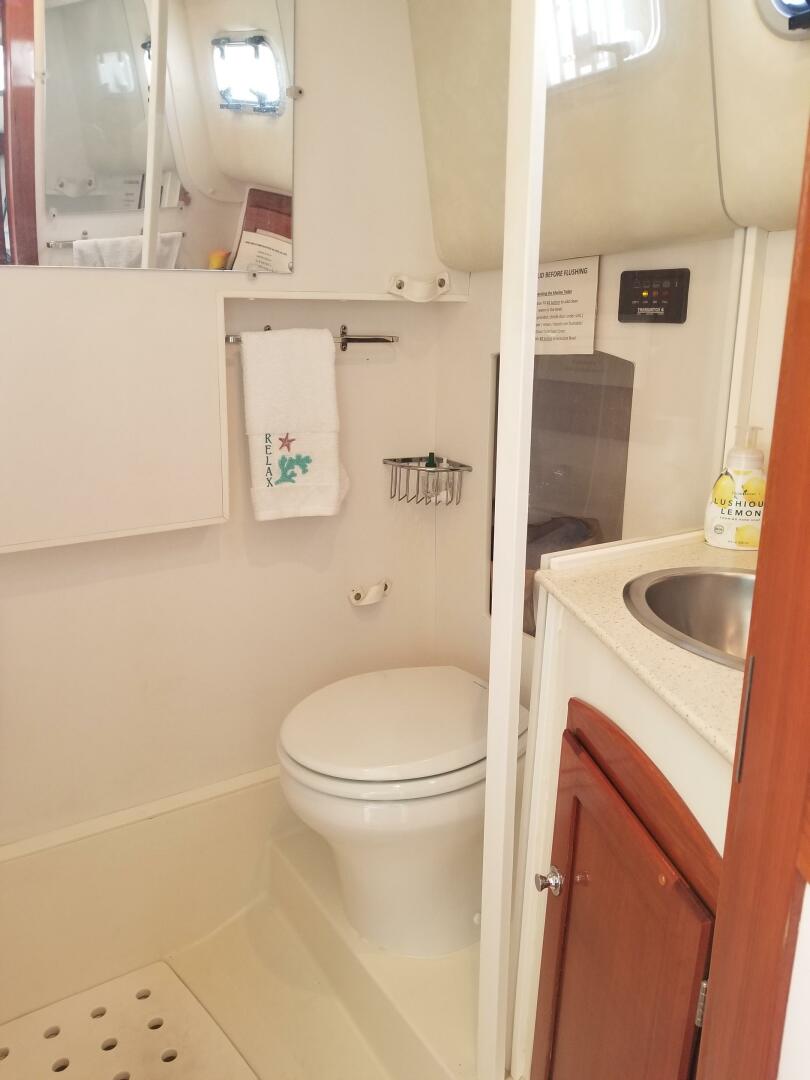

Head Vanity top with Stainless Steel Sink

Hot/Cold Pressure Water System

Marine Head: electric with freshwater flush - 2022

Sanitary system hoses replaced 2022

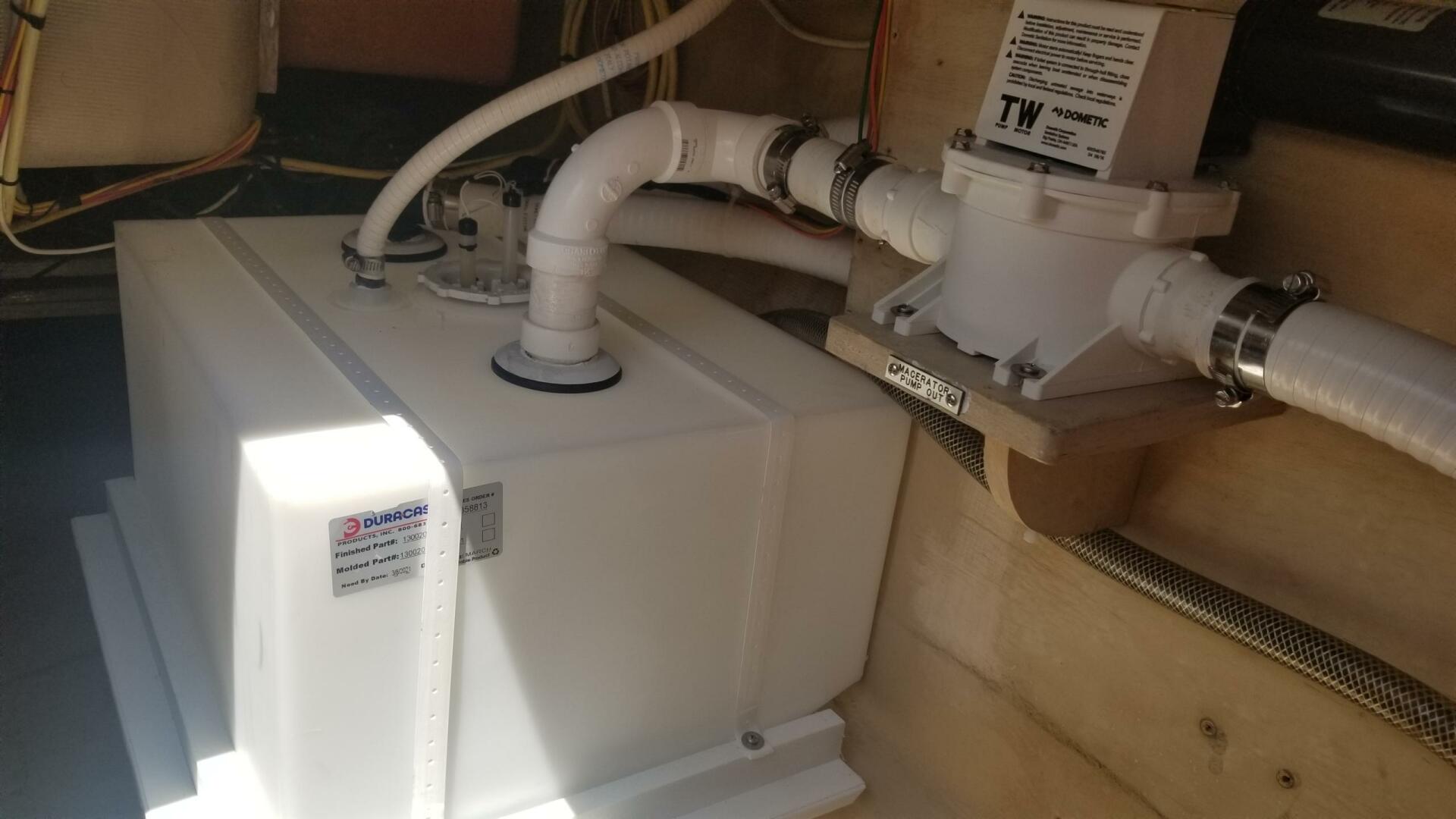

Holding tank 20 gal and macerator replaced 2022

Holding Tank Deck Pump Out

Handheld Hot/Cold Shower Fixture

Shower Sump Pump

Medicine Cabinet Outboard with Shelf and Door

Bulkhead Mirror over Sink

Opening Port with Screen

Yanmar 120 HP Diesel Engine (Fresh Water Cooled)

Kanzaki Reduction Gear

Exhaust hoses replaced 2023

Engine Panel with Gauges and Audible Alarms

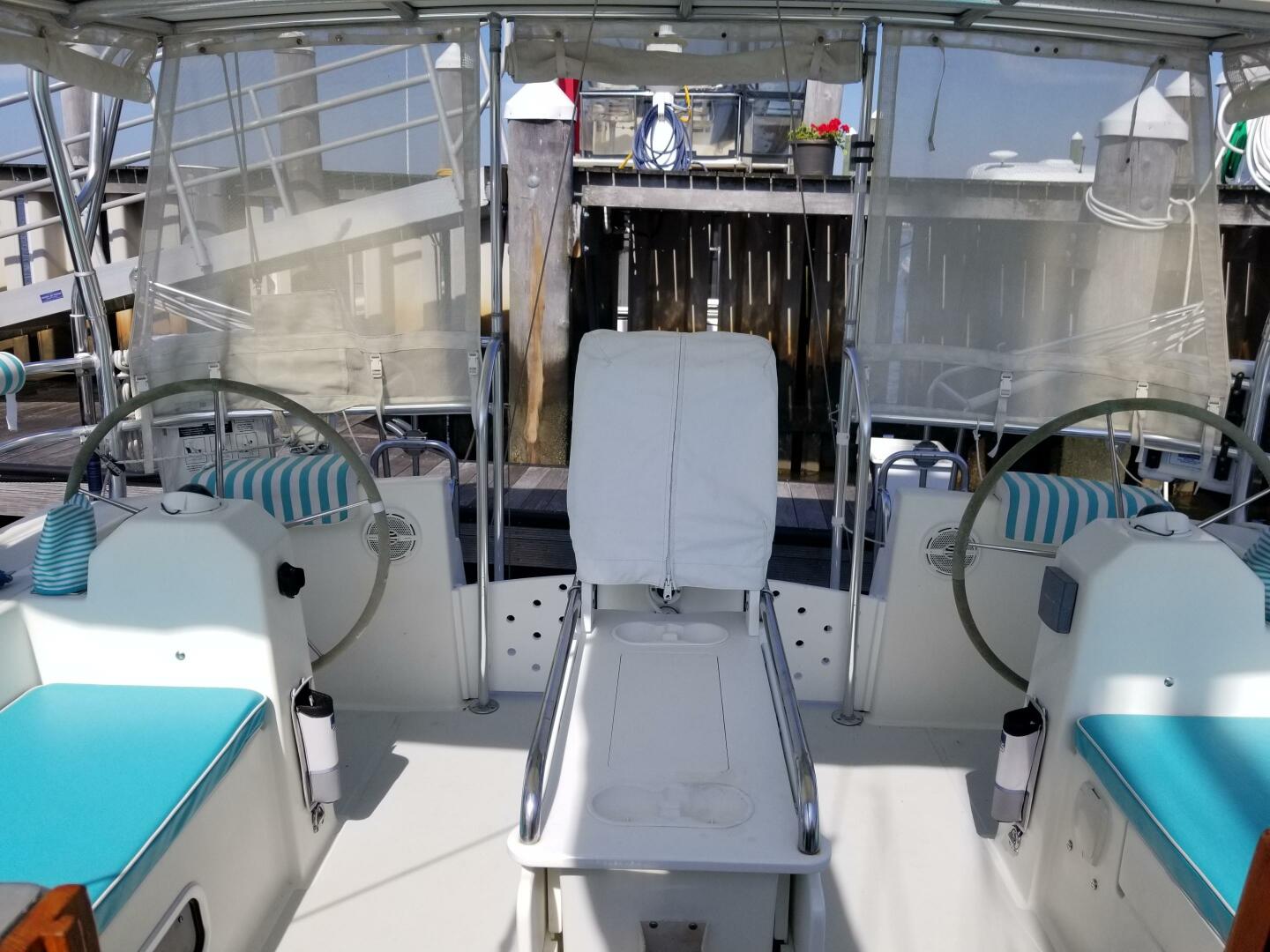

Dual Station Edson Steering System with Stainless Steel Wheels with leather cushioned wheel wraps

Engine Controls

Bow Thruster (new motor – 2022 and prop, gear, bearing & mount – 2023)

Dual Ritchie 4" Compasses

Racor Fuel Filter/Water Separator

Raw Water Intake Strainer

Heavy Duty Engine Room Sound Insulation

Stainless Steel Propeller Shaft

4-Blade Feathering Bronze Propeller

Twin Rudders Set Up for Lifting when Beaching

Forespar Seacocks on all Thru Hulls below the Waterline

Six Gallon Hot Water Heater (110V and Engine Heat Exchanger)

Alloy Fuel Tanks

Rigid PVC Water Tanks

Prepped for generator: fuel line, exhaust hose and electrical

Air conditioner – new unit & replaced all AC hoses 2023

Three 120ah Heavy Duty Gel Cell Group 31 Marine Batteries - 2020

Battery Parallel Switch

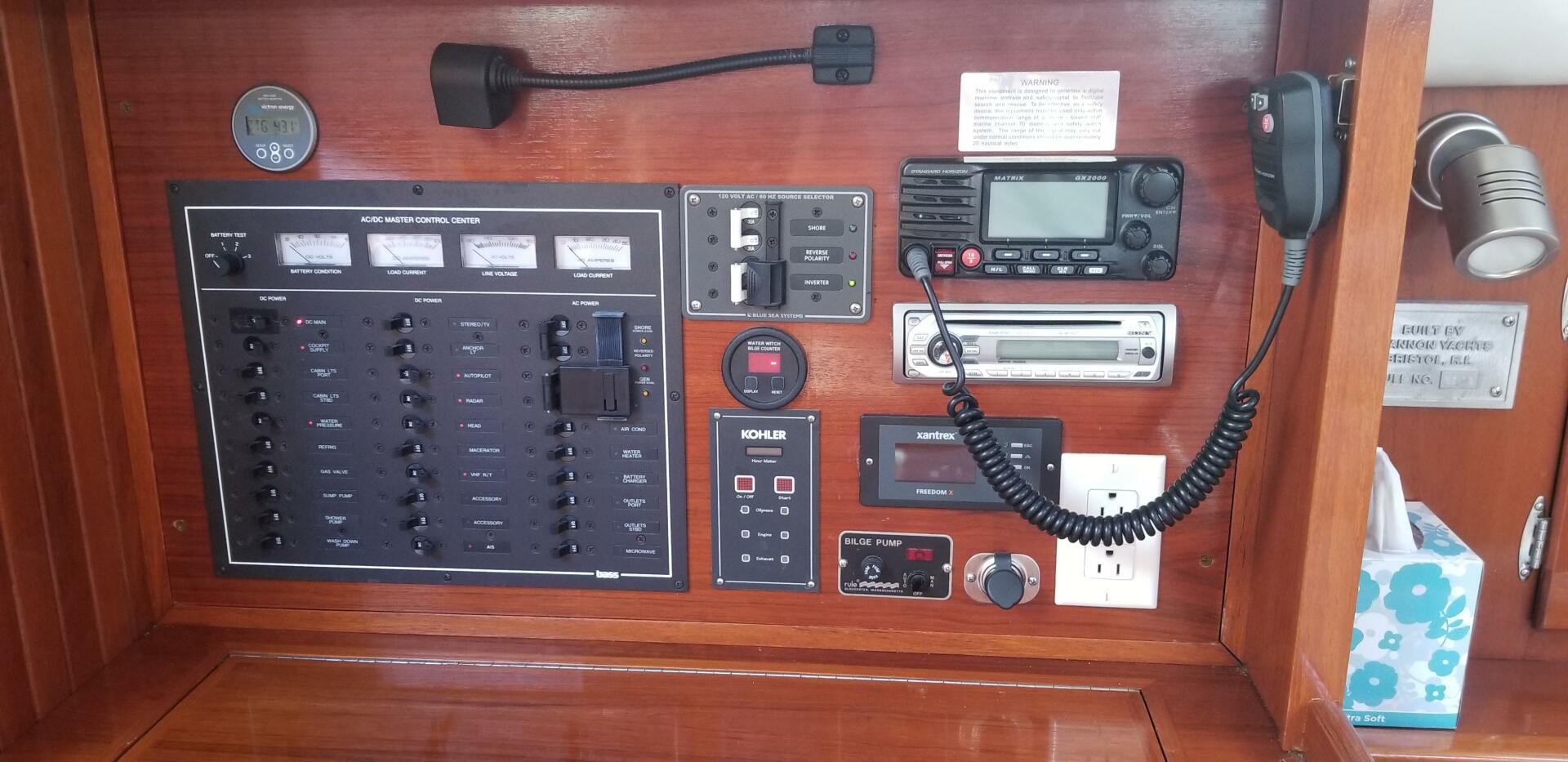

AC/DC Control Panel with Circuit Breakers, Voltmeter and Ammeter

AC Shore Power 30 AMP Shore Service Inlet and 50' Shore Power Cord and Reverse Polarity Indicator

All Wiring Color Coded to ABYC Codes

Navigation Lights with Anchor Light

Automatic Bilge Pump

Three 110 VT AC GFI Outlets in Interior

Eight 12 VDC Dome Lights and Six 12 VDC Reading Lights

Raymarine C-80 GPS chartplotter

Radar dome (unknown operating condition)

Stereo AM/FM/CD/Bluetooth w/ interior speakers - 2022
