• Overall Length                               38'
• Beam                                             21' 4"
• Draft                                               3' 6"
• Displacement                                 14,300lbs
• Power Tilt Outboards                     2 x 20 hp Honda
• Diesel Inboard (Optional)              2 x 29 hp Yanmar
• Fresh Water                                   185 US gallons
• Fuel                                                71 US gallons

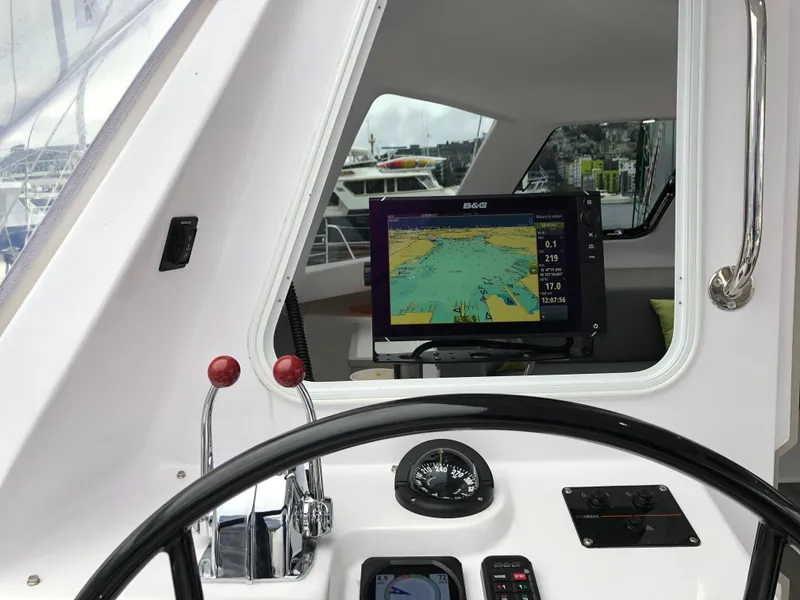

• Steering Twin Helms                     Cable Steering
• Underwing Clearance                    2' 4"

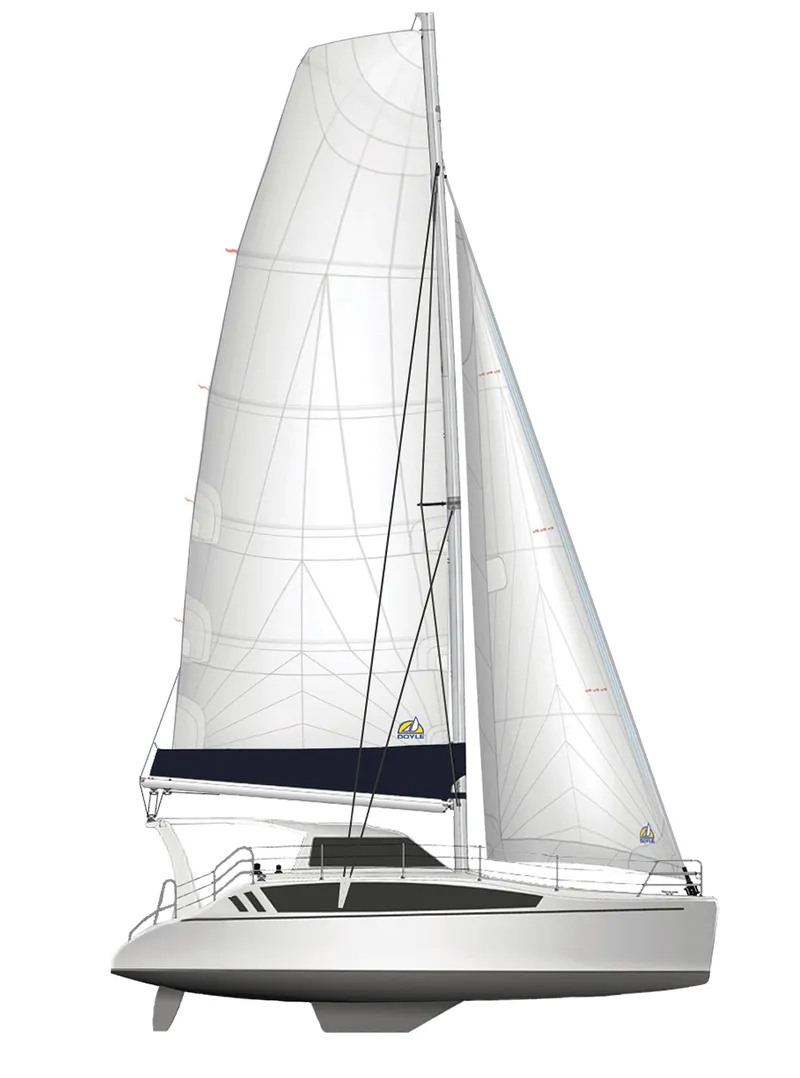

• Mainsail                                         635 sq ft
• Jib                                                  226 sq ft
• Screecher (optional)                      667 sq ft
• Spinnaker (optional)                      1,023 sq ft

• Finish: Full female moulded hulls & decks, exterior gelcoat finish with moulded-in non-slip surface on deck areas.
• Hull Laminate: New Infused Vinyl Ester (Modified epoxy) resin laminate of the entire hull laminate
• Hull Core Material: New PVC closed cell foam core
• Deck Laminate: New Vacuum formed polyester resin laminate
• Deck Core Material: PVC closed cell foam core

• Twin lightweight Honda 20hp 20” engines. Mounted under each helm seat at each steering station
• 5” leg extensions added to engines to reduce cavitation
• Remote electric key start with electric tilt fitted
• Dual engine controls at port helm station
• 71 Gal fuel tank mounted in external locker forward of the mast

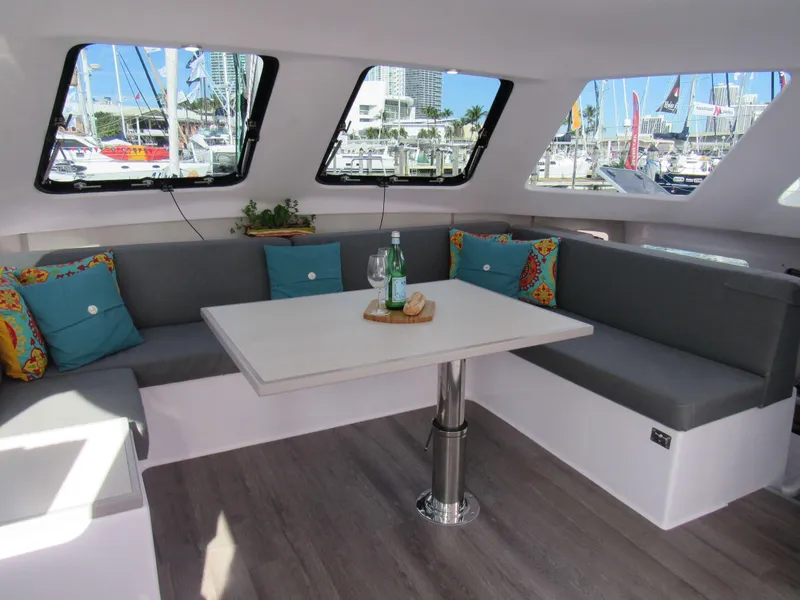

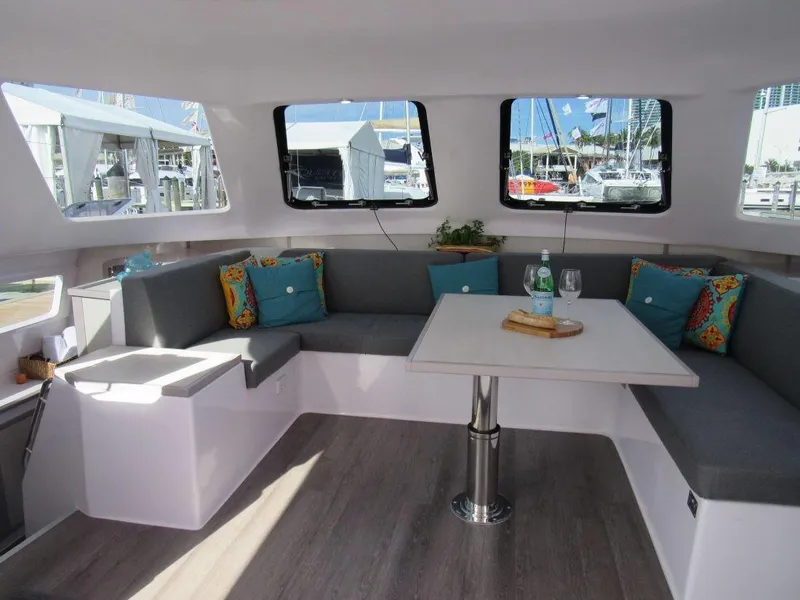

Saloon

• Polished wood dining table: Lowers to create coffee table or double bed.
• Upholstered settee.
• Cocktail cabinet with polished hinging lid.
• Forward windows in 10mm toughened glass and inset with opening 20" x 15" aluminium opening hatch. Side windows in 6mm toughened glass.
• Durable synthetic wood flooring.

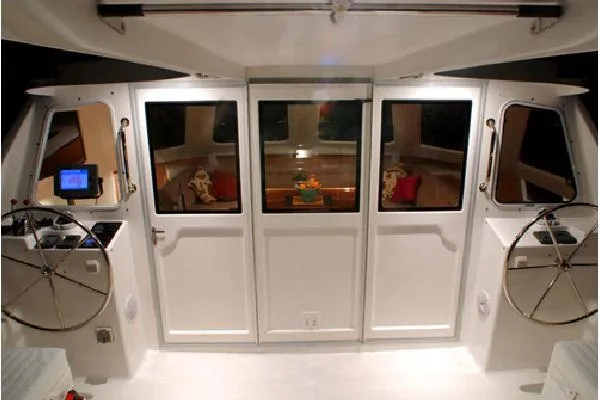

• Saloon / cockpit doors: Moulded gelcoat tri-fold doors. Complete with folding mechanism for folding into Targa walkway.

Sleeping Cabins

• Foam cored wood doors on all private cabins.

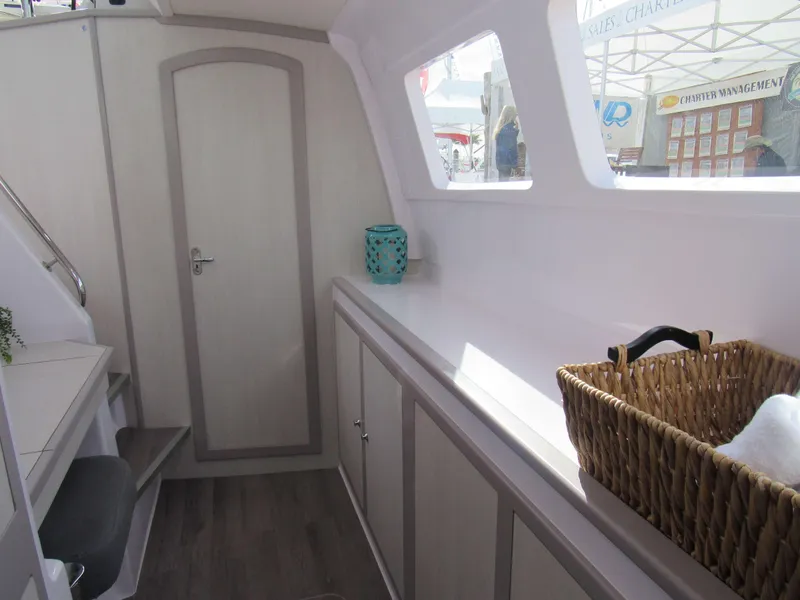

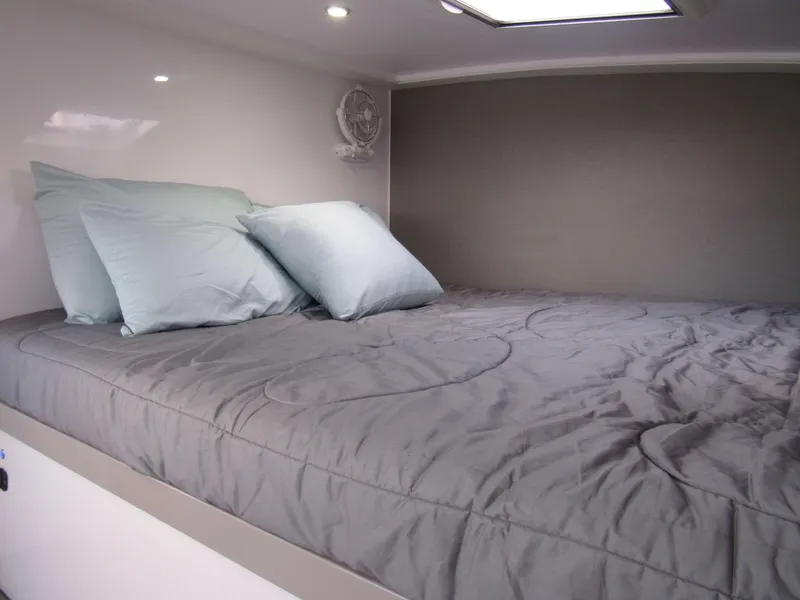

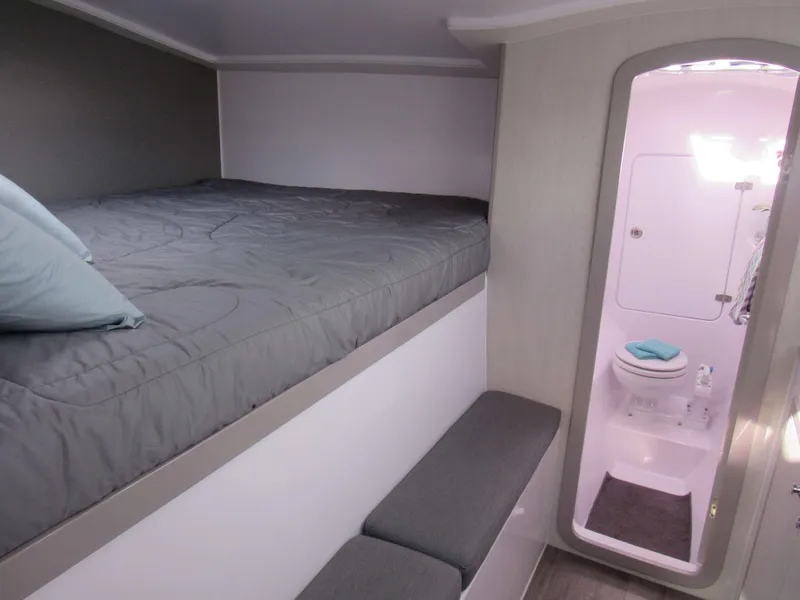

• Port & Starboard fwd cabins: Each queen sized bed (80" x 60")

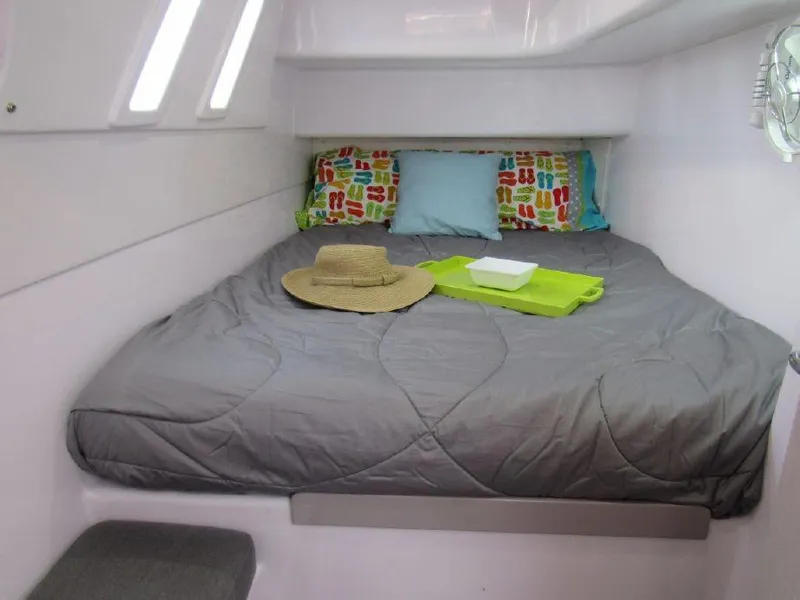

• Aft Starboard cabin: Double bed (78" x 48")
• Mattresses are 6" foam upholstered.
• Cabins lined.
• Recessed 12V lighting.
• Storage/Cupboards.

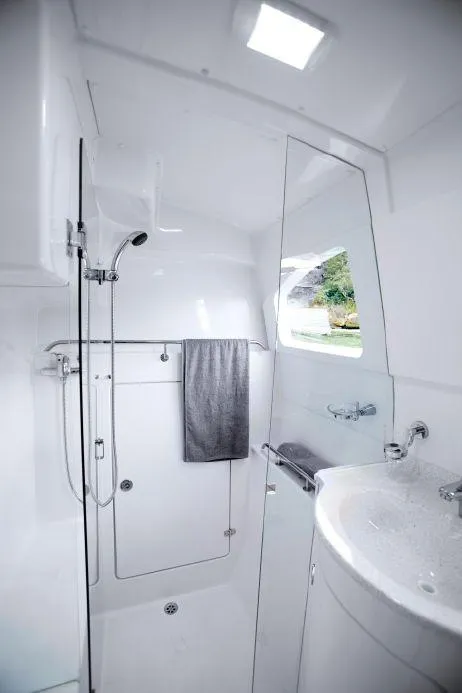

Port Head

• Foam cored wood lockable door
• PAR manual toilet. Discharge via holding tank
• Holding tanks built in. Discharge pump out by shore station or directly overboard. Port 34 Gal and Stb 29 Gal.
• Pipes, skin fittings and seacocks to be easily accessible and to meet survey requirements
• Vanity basin with pressure cold water (hot water is an option).
• Separate shower stall with clear glass door. Wall mounted shower head and mixer tap
• Electric shower bilge pump with direct overboard discharge
• Large quantity cupboards/shelves to very high quality

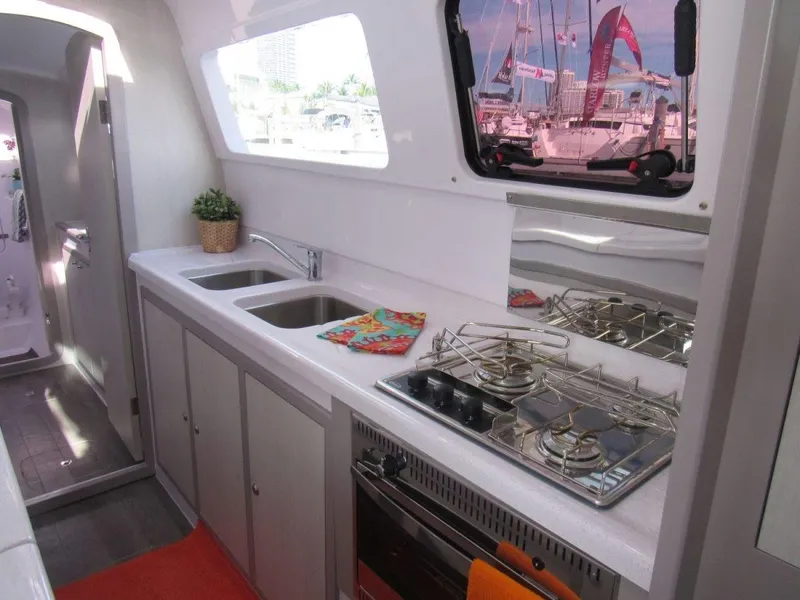

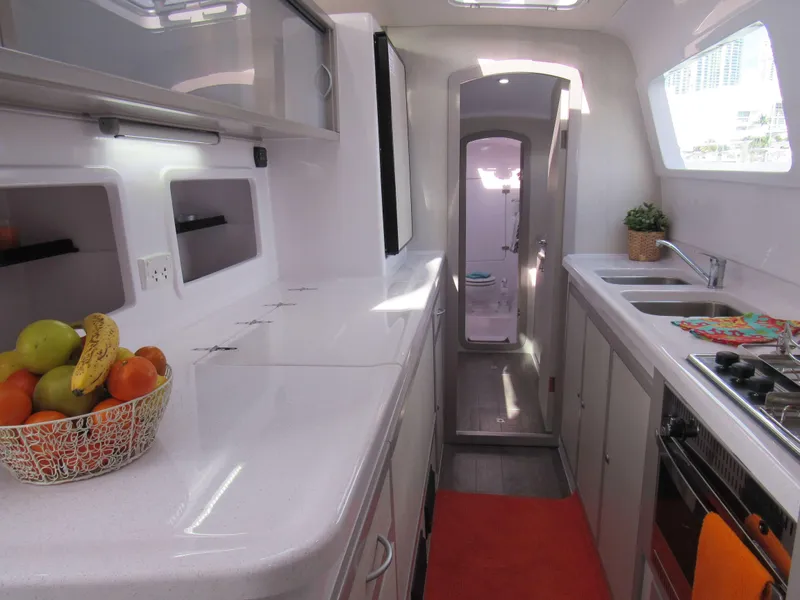

• Spacious galley with co-ordinated Polystone counter surfaces
• Three (3) burner LPG stove, stainless steel pot holders. Flame failure device to shut off LPG immediately in event of flame going out
• Double bowl stainless steel sink
• Pressure fresh water system
• Refrigerator: Front opening upright fridge with freezing compartment 80 litres
• Under bench storage
• Trash bin
• LPG solenoid control in galley

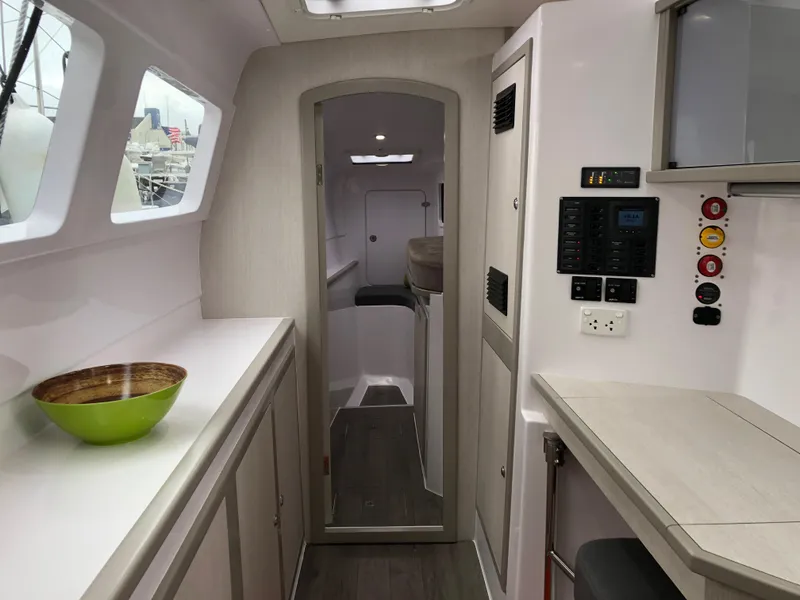

• High quality DC electrical switch panel with circuit breakers, LED indicator lights and voltage display
• Marine grade tinned electrical wiring with extensive use of heat sealed connectors
• Batteries x 3 comprising: House System (260 amp hrs) : 2 x 130 amp hr heavy duty batteries. One engine cranking battery – 130 amp hr heavy duty battery
• 230amp heavy duty isolation switch
• 12V lighting : Numerous 12V interior lamps and courtesy lights throughout including recessed lights in cockpit
• 4 x 12V Outlets
• CE approved navigation lights. Port & Starboard mounted on bow rails
• Deck floodlight mounted on spreaders
• Mast head anchor / riding light.

• Twin steering compasses

• Clear anodized aluminum mast and boom. Single Spreader, 7/8 rig
• Standing Rigging :

– Forestay 3/8” (10mm) 1 x 19 Dieform wire.
– Sidestays 3/8” (10mm) 1 x 19 Dieform wire
– Diamonds 5/16” (8mm) 1 x 19 Stainless Steel wire

• Halyards:

– Main halyard: 12 mm Spectra rope : Heavy duty shackle
– Jib halyard: 8 mm Spectra rope. Heavy duty shackle
– Topping lift: 8 mm rope, Heavy duty shackle
– Boom outhaul: 10mm Spectra

• Single line reefing, run to helm. Three reefing points with 2 reef lines

– Reef 1 & 3: 10mm rope. Leech/Clew blocks and snap shackle
– Reef 2: 10mm rope. Heavy duty shackle

• Sheets:

– Main sheet: 10mm rope
– Main traveller: 8mm rope
– Jib sheet: 10mm rope

• All halyards, reefing lines to be lead back to cockpit through turning blocks, rope clutches

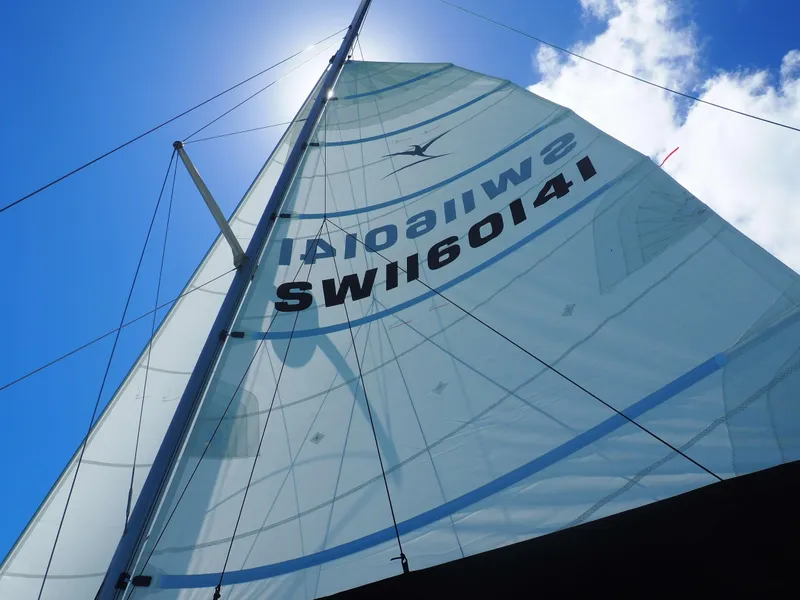

• Fully battened mainsail. Triple stitched reinforced construction. Leach adjustable batten end caps. Fibreglass sail battens
• Mainsail cover with integrated lazy jack system.
• Self-tacking headsail, curved headsail traveller track with end stops. With New single line control sheet to cockpit.

• Aluminium Hatches & portholes (9 in total)

– 4 x Forward Hatches 18.5” x 18.5”
– 2 x Mid cabin hatches 18.5” x 18.5”
– 1 x Port Bathroom window hatch 20” x 15”
– 1 x Galley window hatch 20” x 15”
– 1 x Aft Cabin window hatch 20” x 15”

• Fibreglass Deck Hatches:

– 5 x Forward anchor & storage hatches
– 2 x Cockpit storage hatches

• 6 x Docking cleats. Each side : bow, stern & amidships
• 6 x Safety handles around cockpit
• 1 x Heavy duty mooring cleat on forward walkway
• Ventilation: 2 x forward cabin hatch vents
• Mast base turning blocks. All halyards & sail controls to cockpit
• 9x Rope clutches
• Sheet winches : 1 x 45ST – 2 speed self tailing, 2 x 40ST – 2 speed self tailing
• Stanchions/Rails: High quality stanchions, bow rails and stern rails with 3 life-lines. With700mm high lifelines to meet CE requirements
• 2 x transom access gates with pelican hook releases
• 2 x side access gates with pelican hook releases
• Aft swim ladder: folding stainless aft swim ladder

• Pressure water system with water to galley and bathroom
• Fresh water tank: (185gallons) rotomoulded. Remote deck filler
• Electric fresh water pump
• Electric bilge pumps (2) with controls integral with master battery switch panel
• Manual bilge pumps (2) in each hull
• New Marelon through-hull fittings to CE/ISO standard
• Manual toilet in head
• 1 x LPG bottle – 10 lb
• Fresh water tank gauge

• Primary anchor is 45 lb CQR anchor type with 15 mtrs x 8mm short link galvanised chain and 40 mtrs x 16mm triple braid anchor warp
• Primary anchor is stored in a specially designed anchor roller under the forward beam
• 3 x PVC Inflatable Fenders
• 3 x Mooring lines (each 50’ x ½”)
