• LOA: 12.80 Meters/42 Ft
• BOA: 6.80 Meters/22.3 Ft.
• Draft: .400 Meters/15.75 Inches
• Mast Height: 17.00 Meters/55/Ft.
• Payload: 1500 Kg/3300 Lbs
• Displacement: 4500 Kg/10,000 Lbs
• Bridgedeck Clearance: .750 METERS/2.45 FT.
• Beam to Length Ratio: 15.2:1
• Engines: 2 30 HP Yanmar with Saildrives
• Cruising Speed: 16-19 Knts
• Top Speed: 15+ Knts

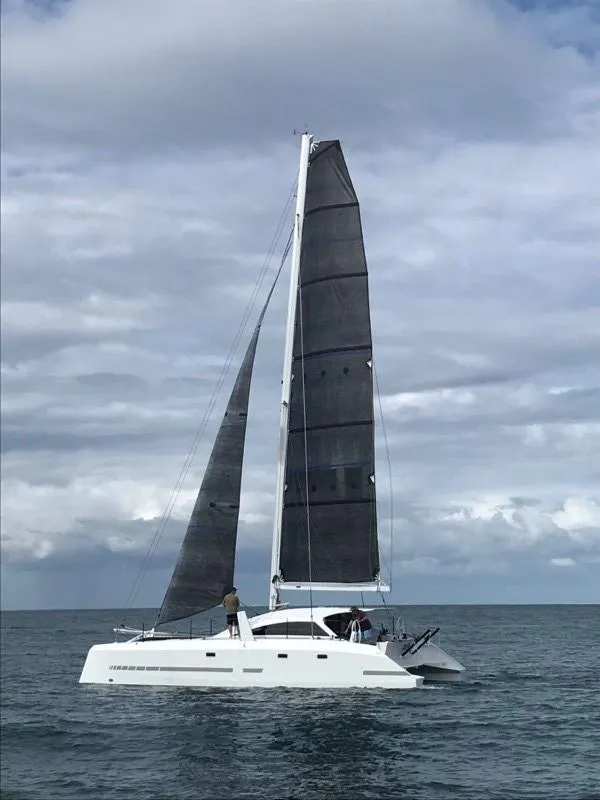

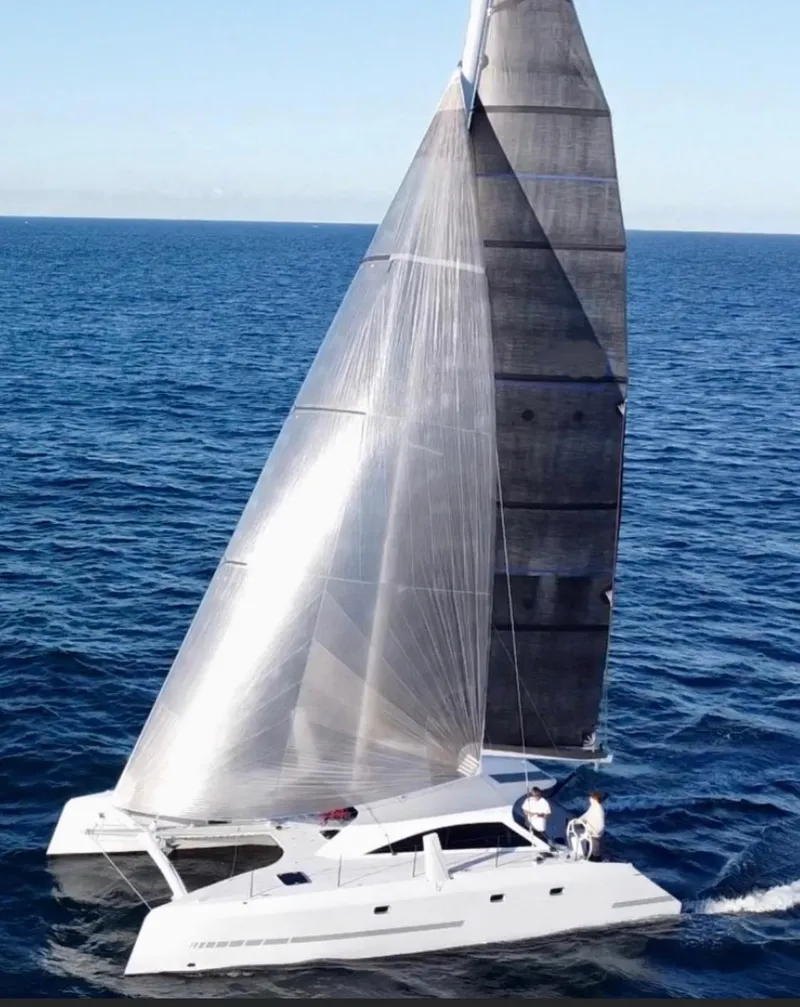

Sails, Mast and Rigging

Sails – Evolution
Main – Element Membrane (Liteskin) Color Black

61 m2
70/30 carbon/twaron 3 Reefs
Full batten squaretop

Self Tacking Furling Jib 35 m2

Liteskin
Black
Vertical Battens

Screecher
73 m2

Evo Technora

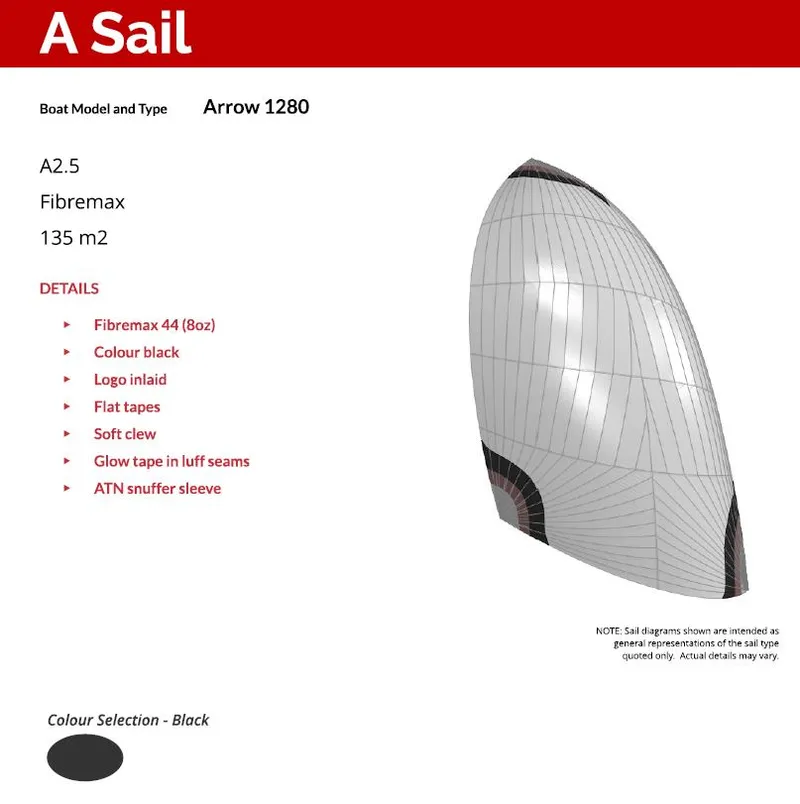

Continuous furler A 2.5 Spinnaker

135 m2
Black
Glow tapes in luff seams ATN snuffer sleave

Mast – Carbon Fiber fixed (Est. Delivery Aug 2024 – NZ Rigging) Halyard configuration:

* One main halyard 2:1
* One Main Topper
* 1 x masthead Spinnaker Halyard

* 1x Genoa below Forestay
* 1 x 2:1 Screecher Halyard Above f/stay.

* 1 x 1:1 Spinnaker above f/stay
Park Ave Style Boom – Composite Top Plate style wings for sail support

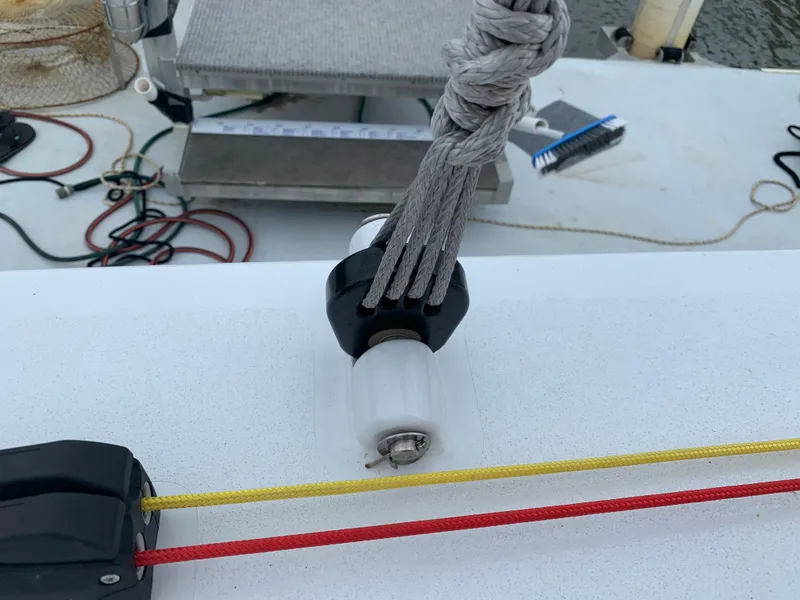

Standing Rigging Diamonds

Standing Rigging - Aramid rigging (Uni Direction Kevlar Fibers) Self Tacking Jib with Profurl R430 x 18mtr Furling system Carbon fiber park avenue boom with sail jacks

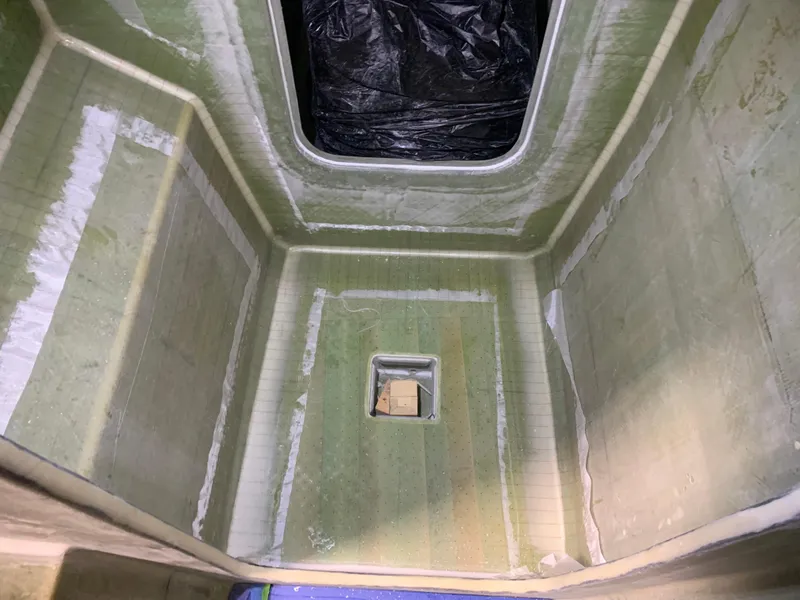

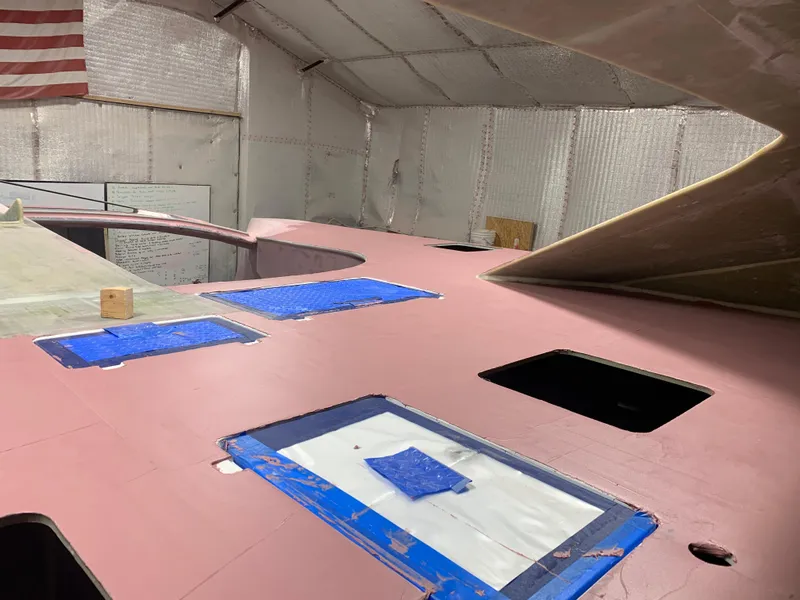

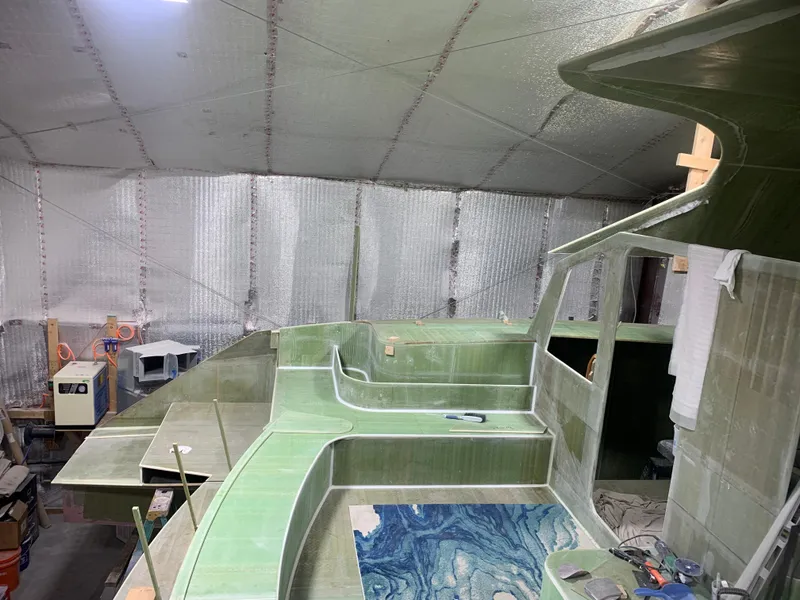

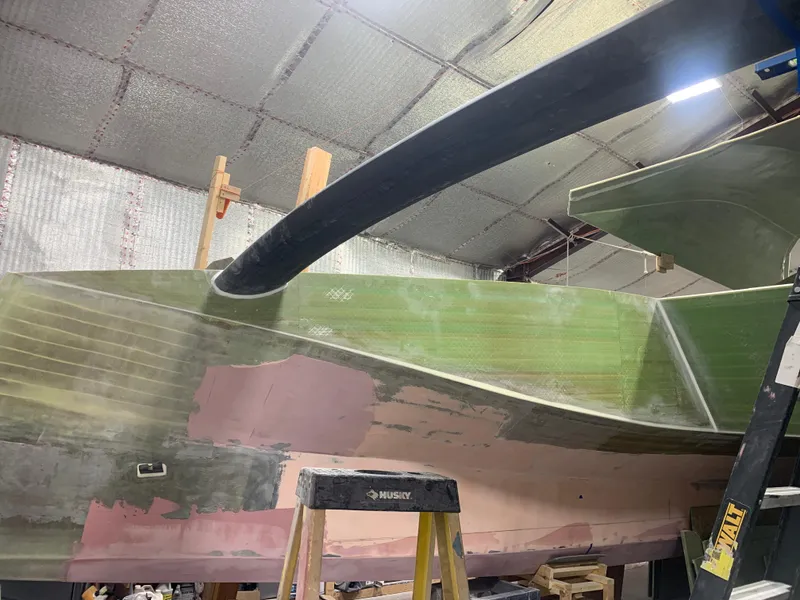

Hull and Deck

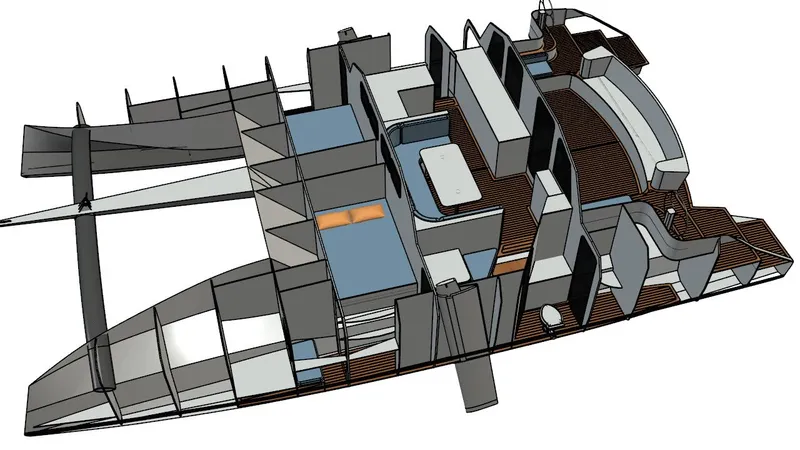

3 double bed staterooms

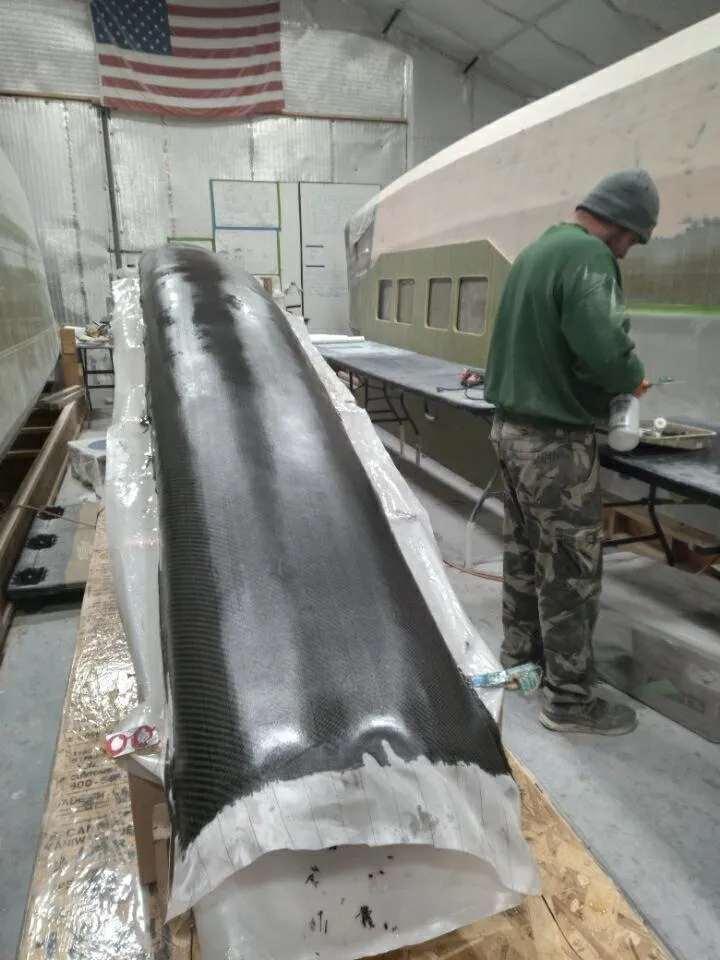

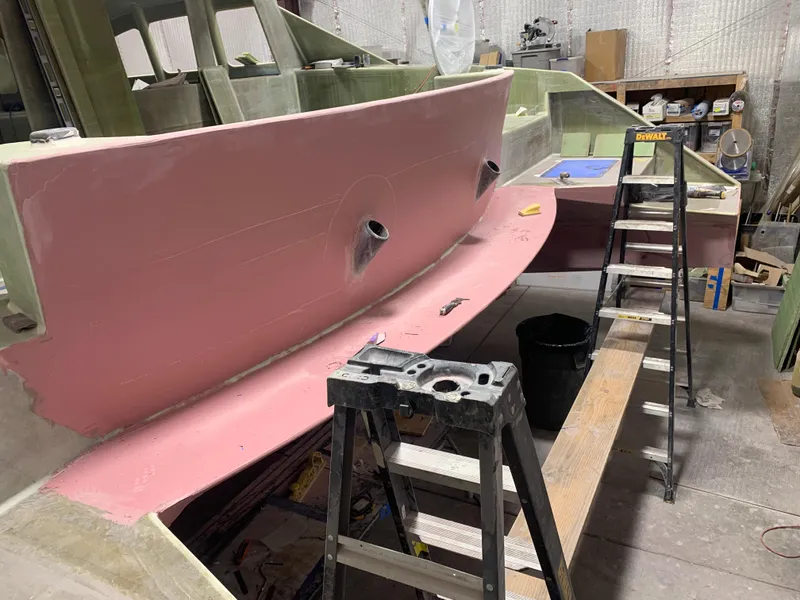

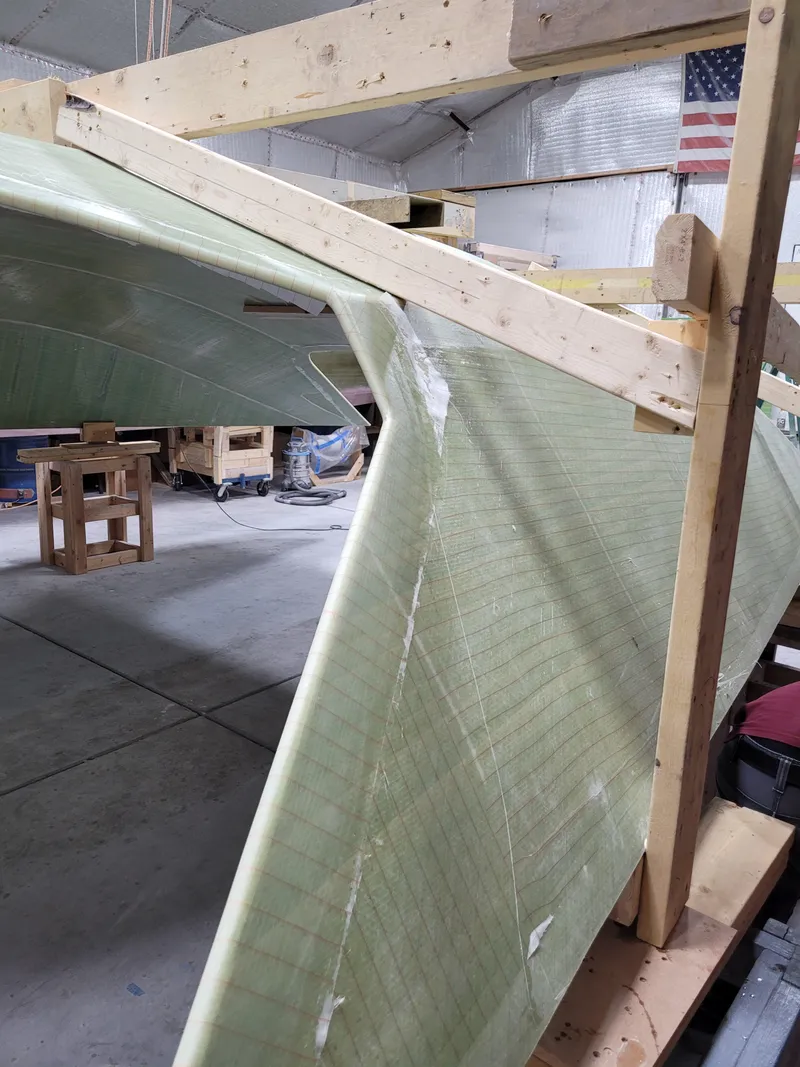

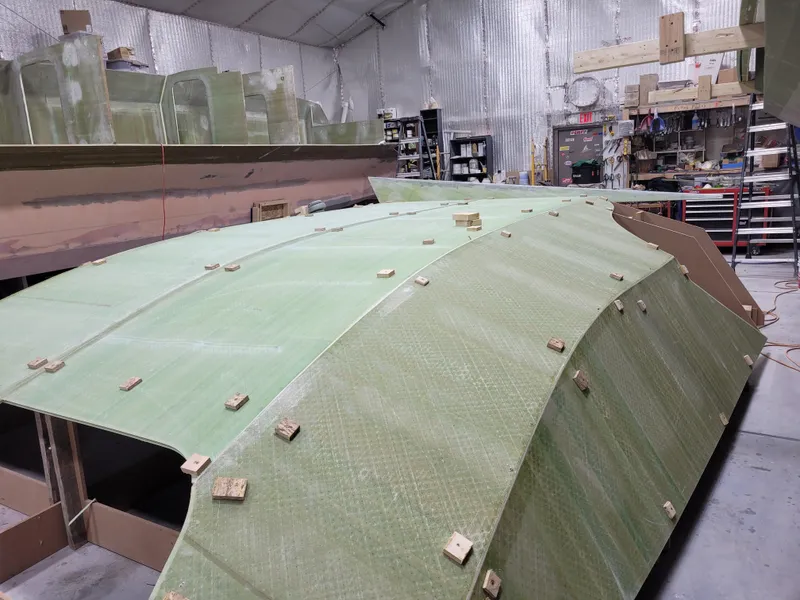

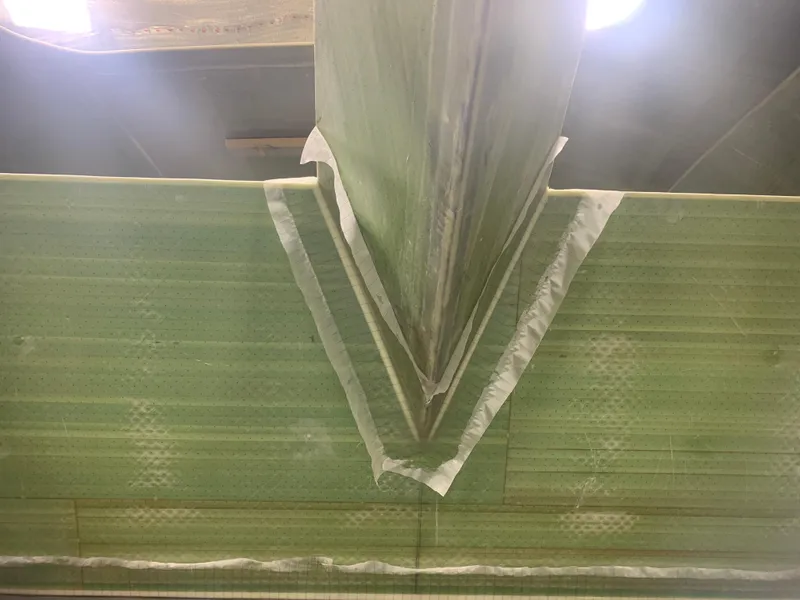

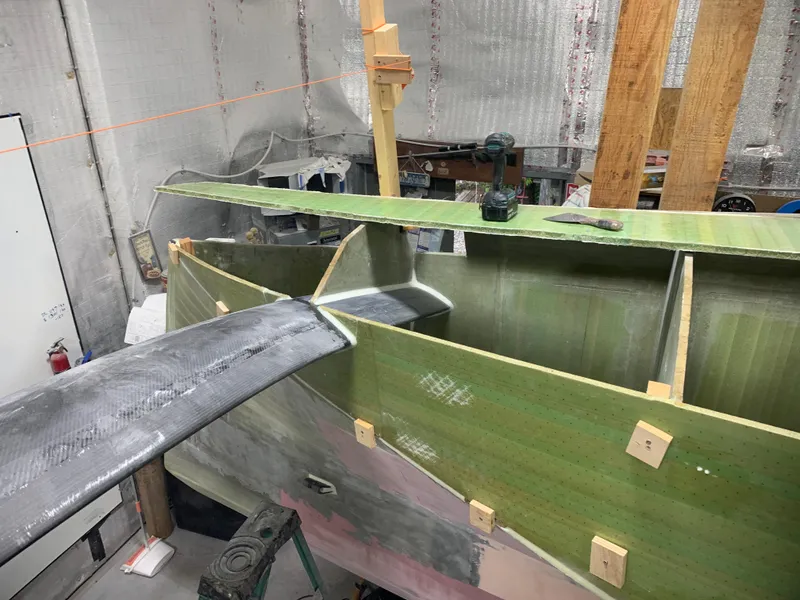

Epoxy resin infused closed cell core flat panels with fiberglass cloth. Carbon fiber used in high load areas (fore beam to hull bulkheads), daggerboards, dagger trunks, forestay, and rudders.

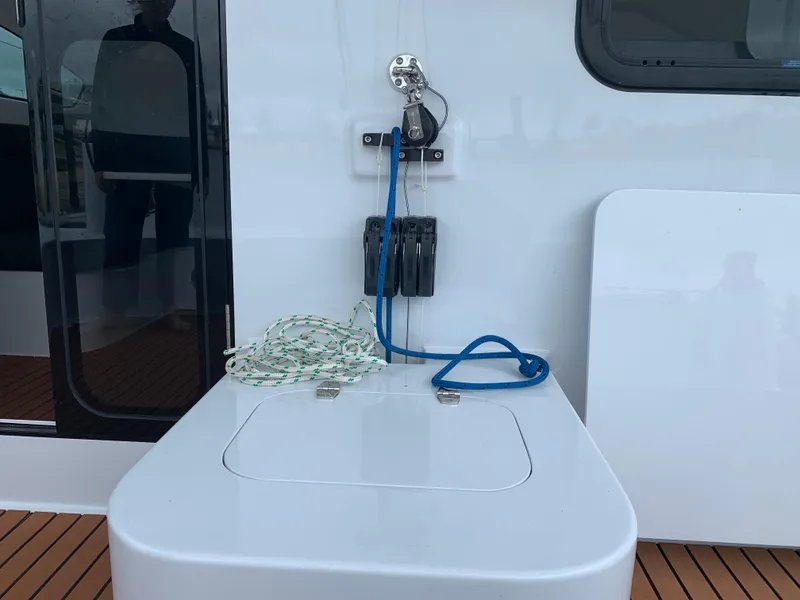

Deck hardware

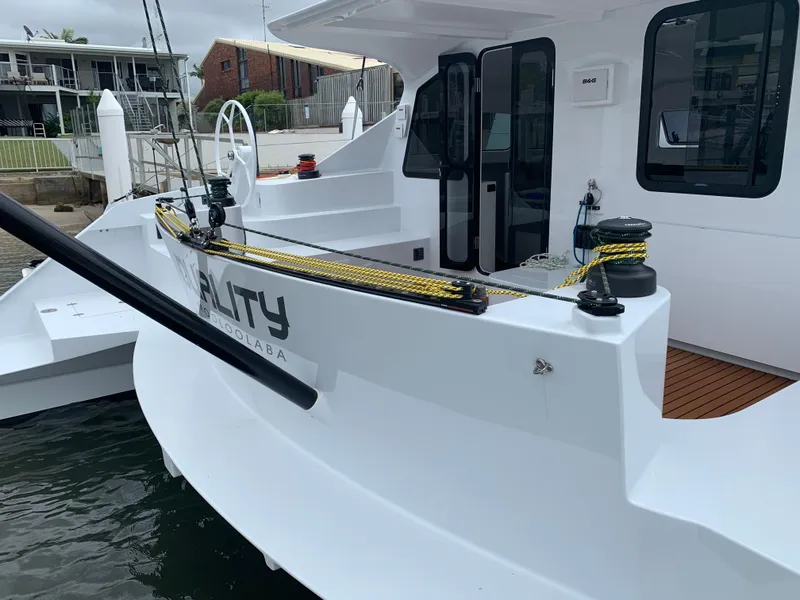

Harken 42 self tailing winches (6 total) Harken track and blocks

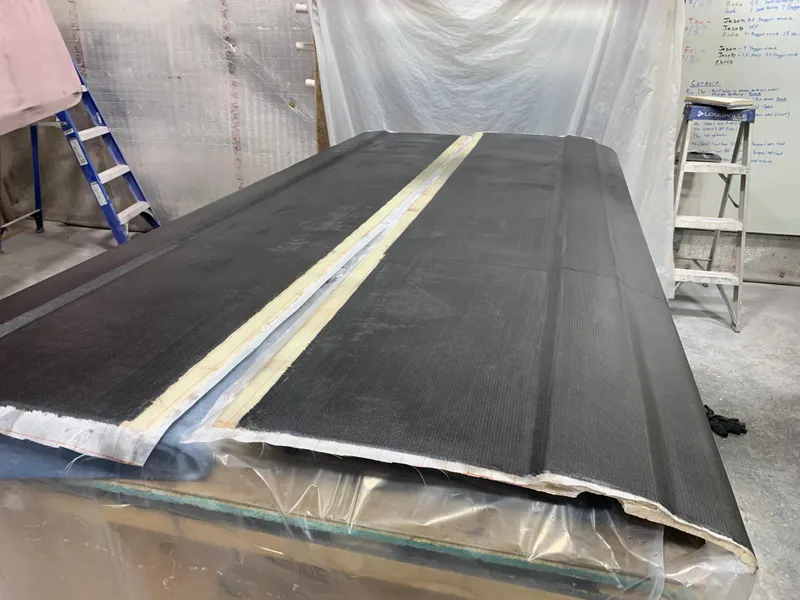

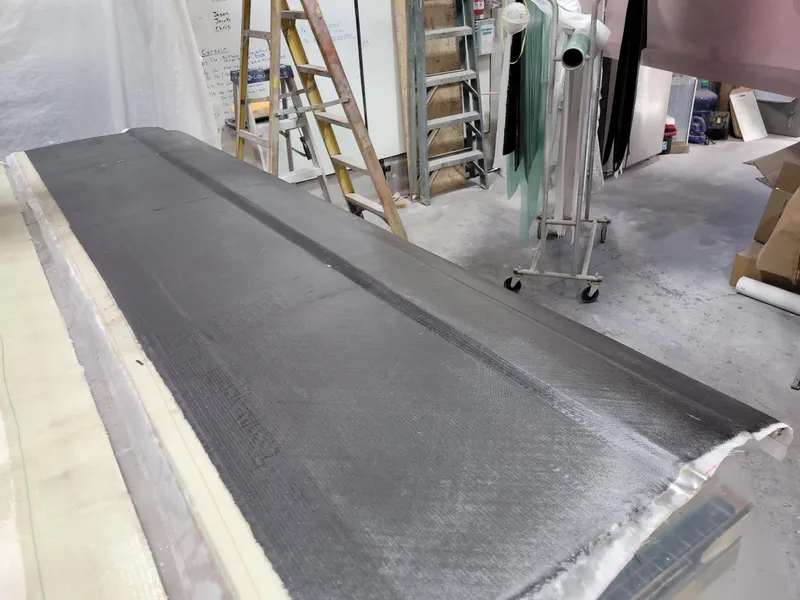

Daggerboards
Carbon fiber painted to match hull

Rudders

Carbon fiber with stainless steel shaft

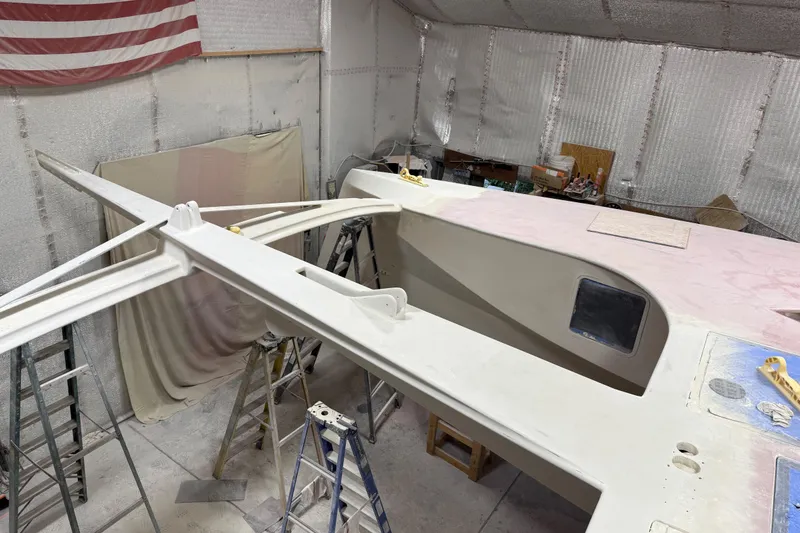

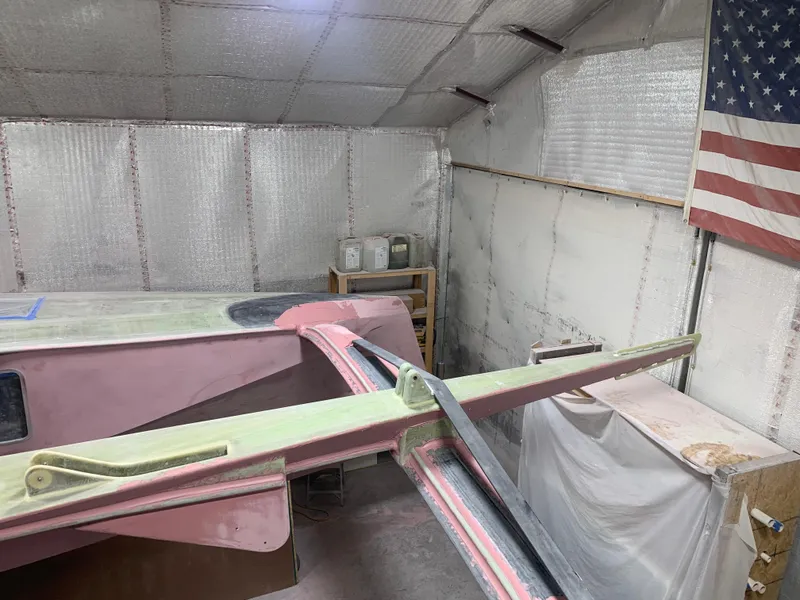

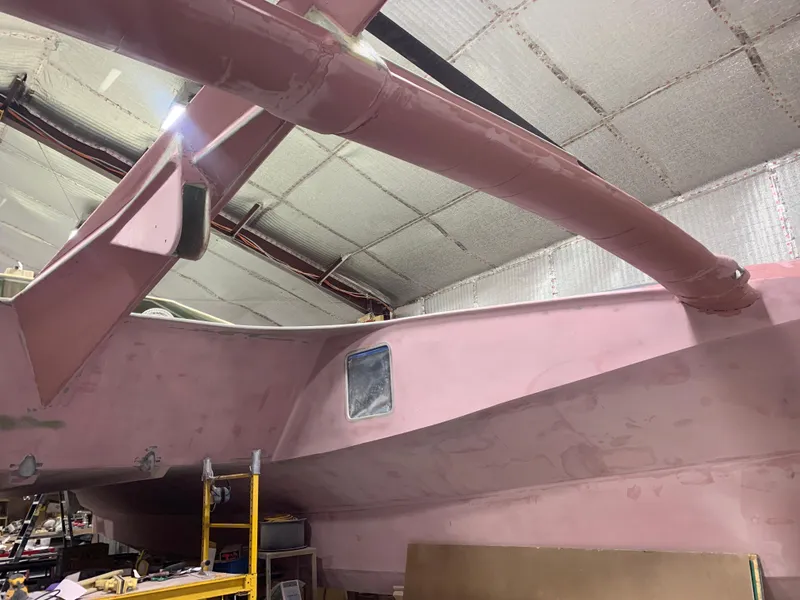

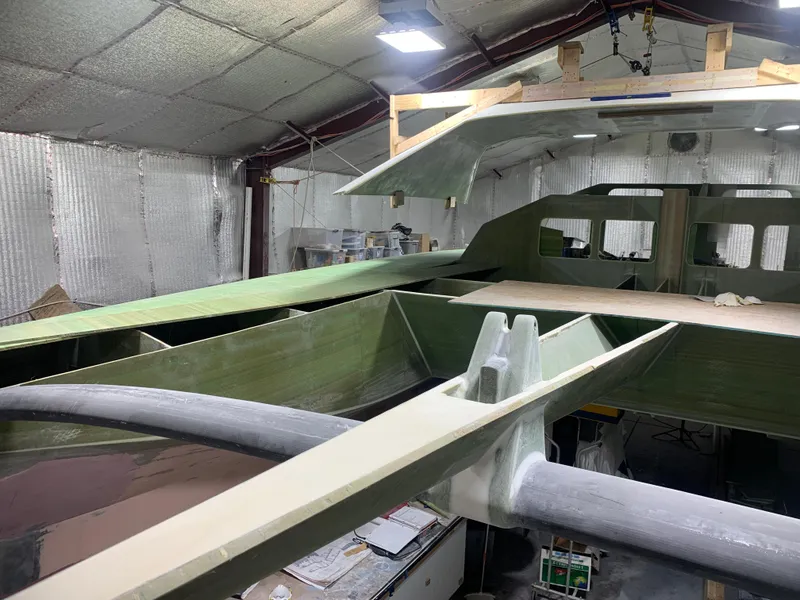

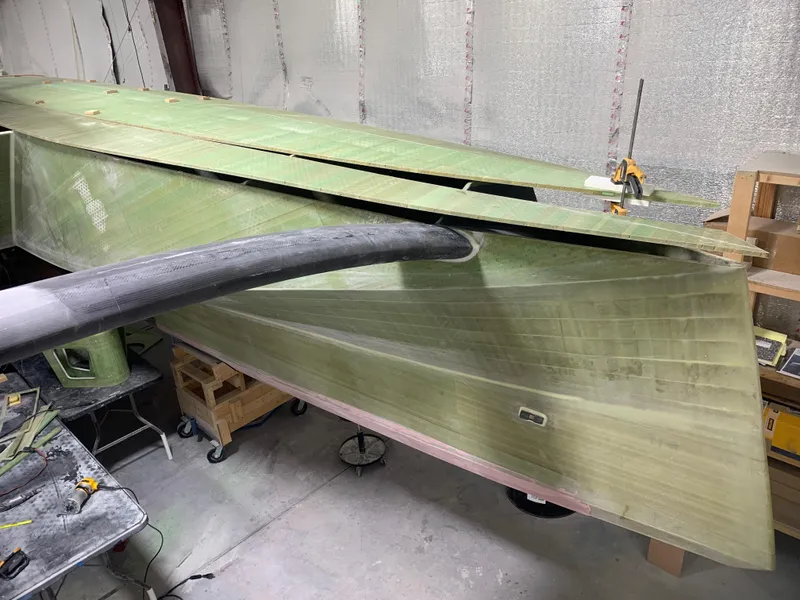

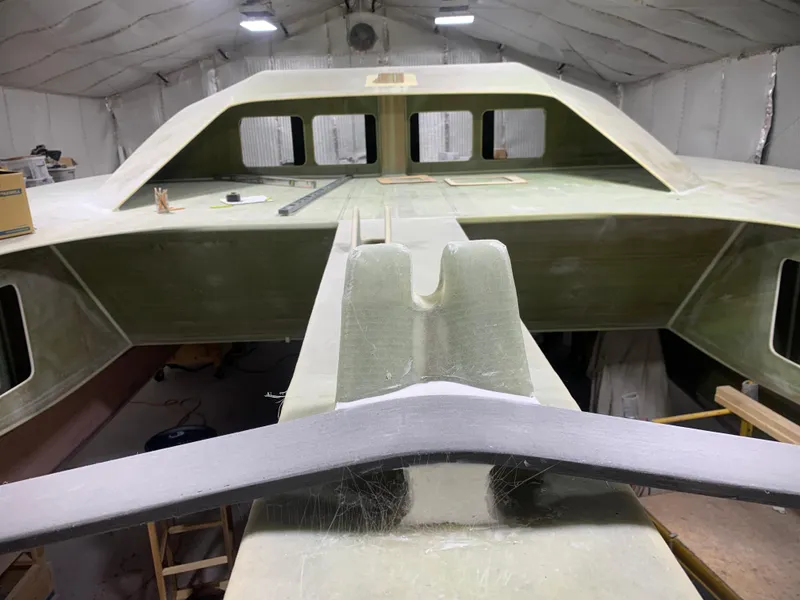

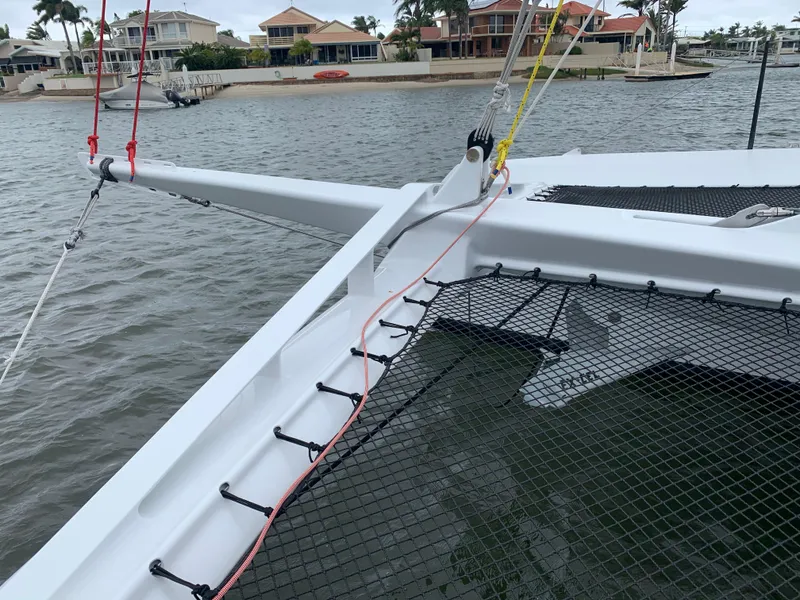

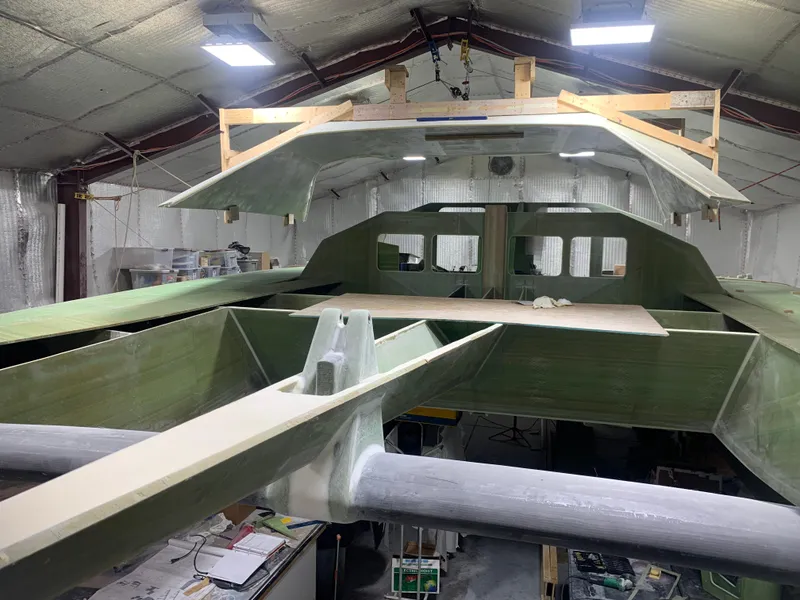

Forward beam
Carbon fiber with carbon fiber tabbing to hull bulkheads

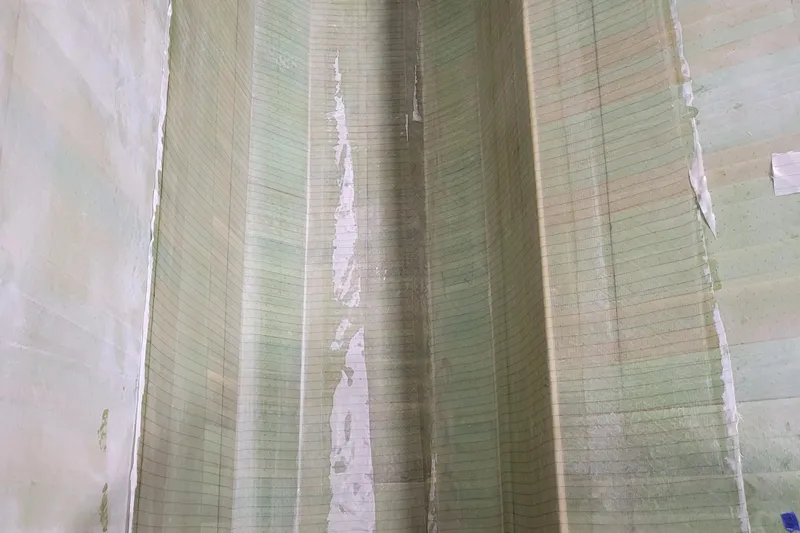

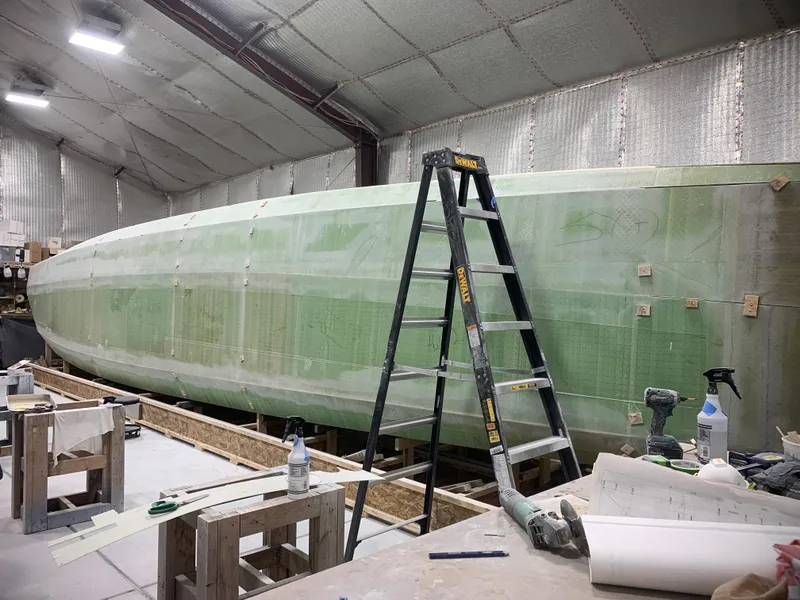

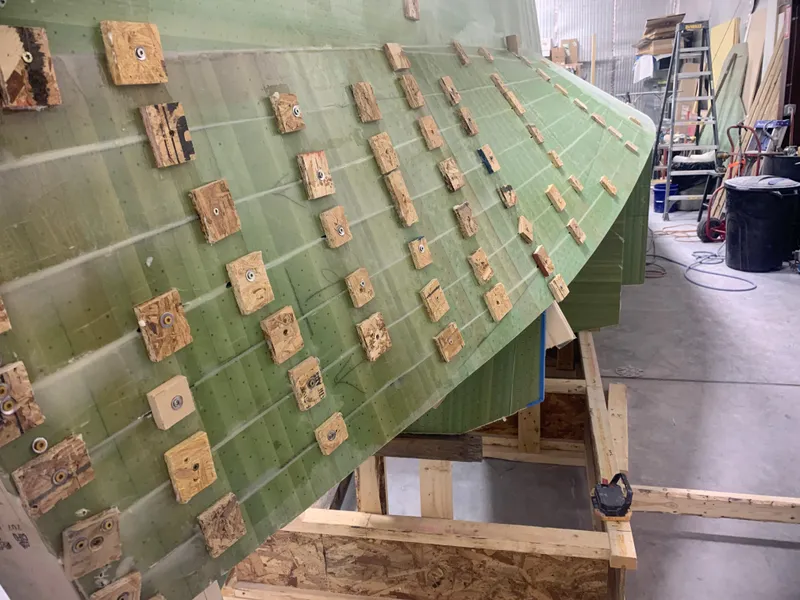

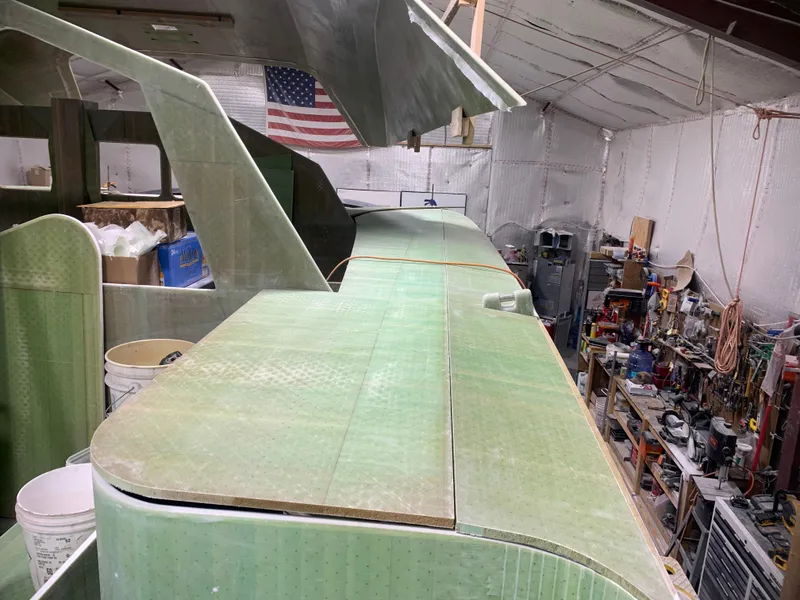

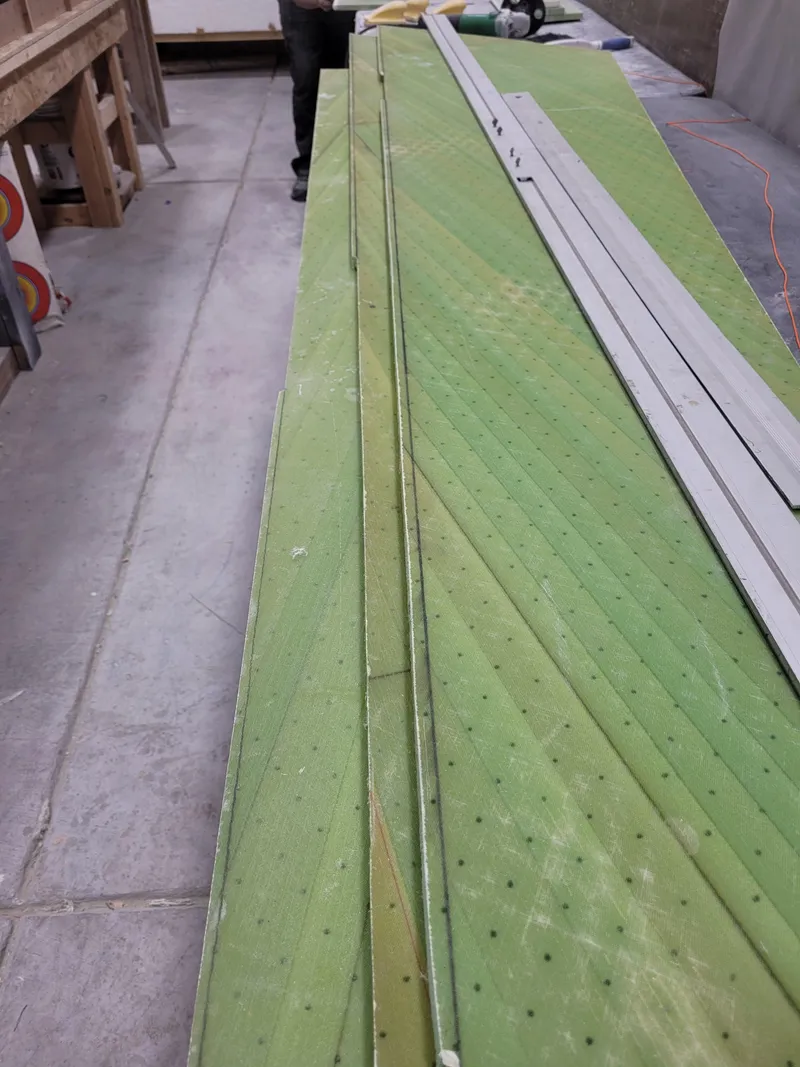

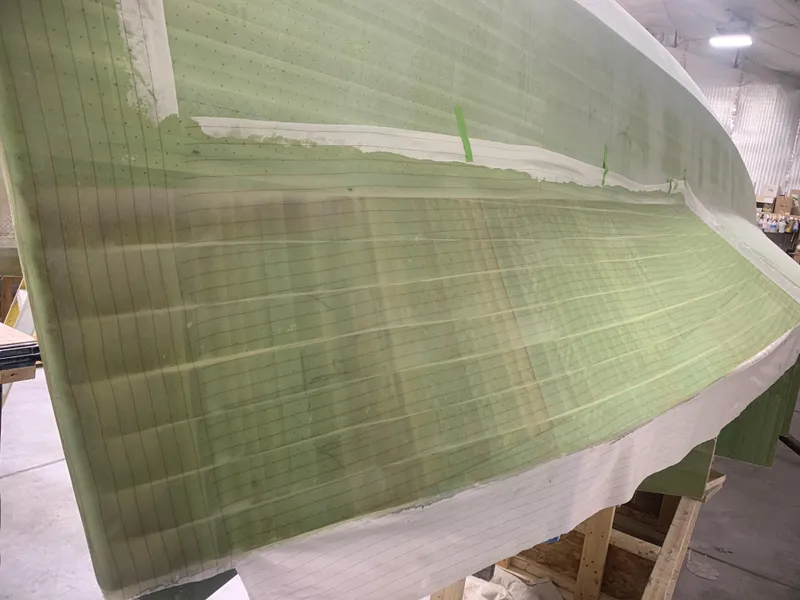

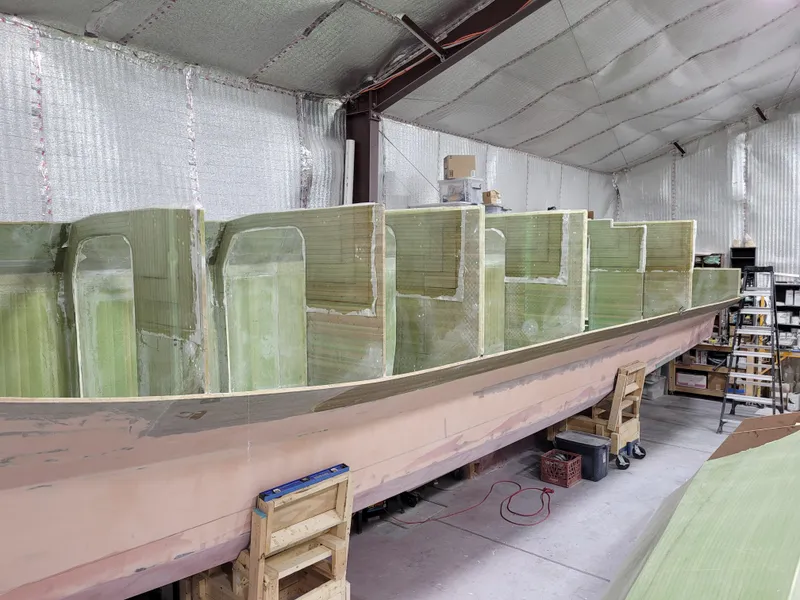

Hull panels
Infused epoxy laminates on closed cell core panels
Joined with cabosil/cotton flock high density fillers and epoxy/fiberglass tape lines Faired with epoxy 2 part fairing compound

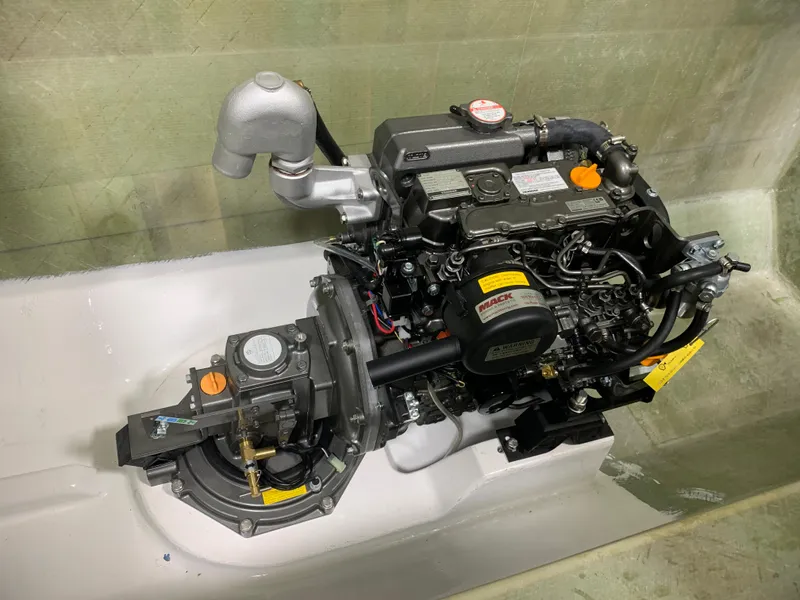

Engines

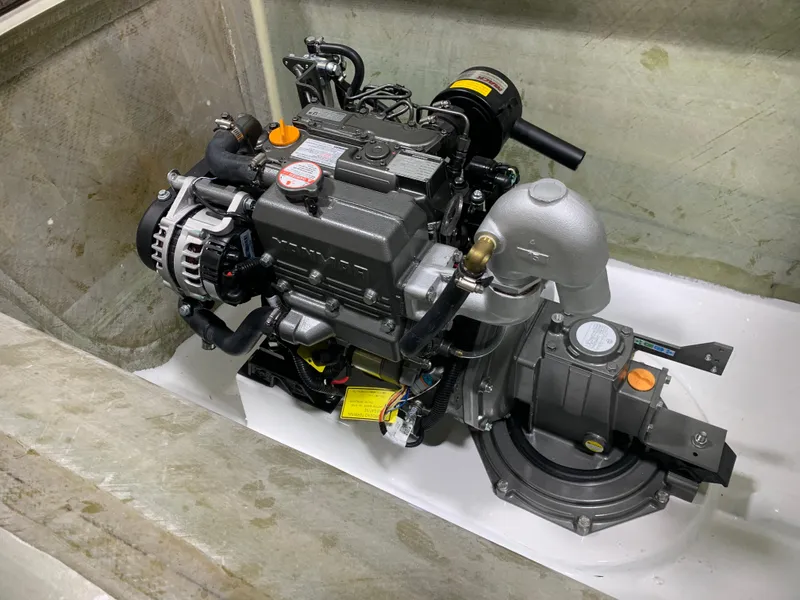

2X Yanmar Engine 29hp w/SD (3YM30AE) Inboard Diesels Yanmar saildrives with gori 3 blade folding props
High output alternator (125 amp)

Fuel tank – 70 Gal Diesel
Fresh Water – 75 Gal
Holding Tank – 20 Gal
Paint – boat can be painted to suit customer preference (any Awlgrip/Awlcraft product) 1 head - Option to add a second under single forward bunk.

Standalone shower
Cooktop –3 burner gas cooktop

Electrical

2 x VICTRON LITHIUM BATTERY 12VDC - 330AH - SMART LIFEPO4 (total of 660 AH @ 12VDC)

VICTRON QUATTRO INVERTER/CHARGER 12 VDC - 5000W -DUAL 100AMP 120VAC INPUTS - AUTO TRANSFER SWITCH - 200AMP BATTERY CHARGER -

2 x VICTRON GALVANIC ISOLATOR VDI-32A 32A MAX WATERPROOF VICTRON BLUE SMART IP65 CHARGER 12/5(1) 120V

2 x VICTRON VE.BUS BMS F/VICTRON LIFEPO4 BATTERIES 12-48VDC WORKS W/ALL VE.BUS

VICTRON ORION-TR SMART 12/12-30 30A (360W) ISOLATED DC-DC CHARGER OR POWER SUPPLY

VICTRON BMV-712 BLACK SMART BATTERY MONITOR
VICTRON SMARTSOLAR MPPT CHARGE CONTROLLER - 100V - 50AMP - UL APPROVED VICTRON COLOR CONTROL GX MONITOR - BUTTON CONTROL
VICTRON SMART BATTERYPROTECT - 220AMP - 6-35 VDC - BLUETOOTH CAPABLE
6 electric bilge pumps
2 x 12 V, 70 A/h engine starter batteries with bipolar battery isolating switches
1000 W vertical electric windlass
Navigation lights (LED), masthead light, mooring light (LED) and decklight.
Shore power outlet with differential circuit breaker and galvanic protection

Navigation

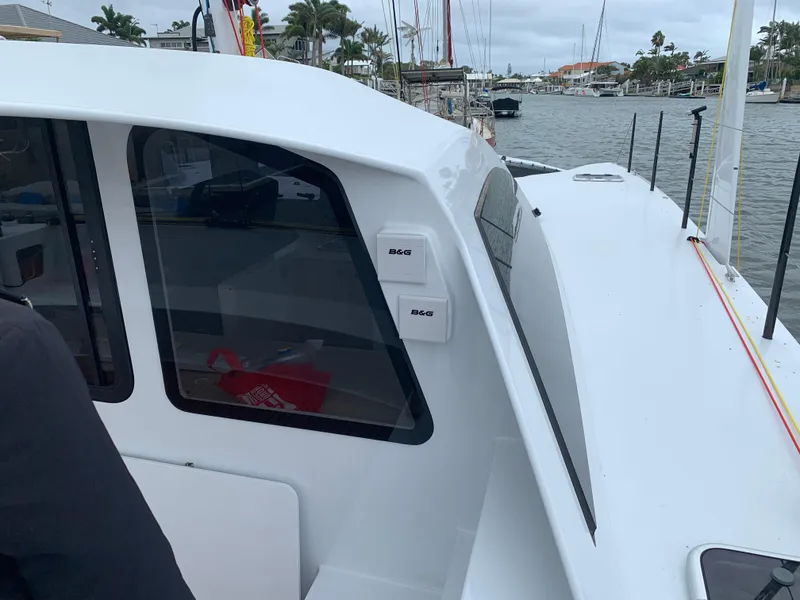

Dual B&G Zeus S 9 Chartplotter AMER. 9-inch SolarMAXTM high definition display. Built-in GPS, and WIFI, 1 kW echosounder. Unique Sailing Modes and enhanced sailing features, Next- generation C-MAP® DISCOVERTM X chart included.

Dual Triton2 Speed / Depth /Wireless Wind Instrument pack. Includes 2x Triton2 Instrument Display, DST810 Depth/Speed/Temperature transducer, WS320 Wireless Wind Sensor and a NMEA2000 starter kit.

The ZG100 GPS Antenna with Integrated Compass sensor providing Heading, Heel and Trim.

B&G V60 fixed-mount DSC VHF Radio - Stay safe and connected with this VHF marine radio featuring a sleek design with removable fist mic, Class D DSC functionality, and built-in GPS. With Masthead antenna.

Optional Equipment

Dual carbon fiber helms (clear coat, white or black) Autopilot – B&G
AIS – transmit – B&G
Radar - HALO20 Radar

Tender and outboard (Carbon fiber light weight option available) OC330 TENDER with 15hp 4 stroke Yahama

Second head to be built under starboard forward single bunk. Second helm throttle station:
AC/Reverse cycle – can be added per customer requirement. Solar –capacity will be tailored to customer requirements Freezer -Engel stand-alone DC/AC fridge or freezer

Water maker – boat will be plumbed for a water maker
