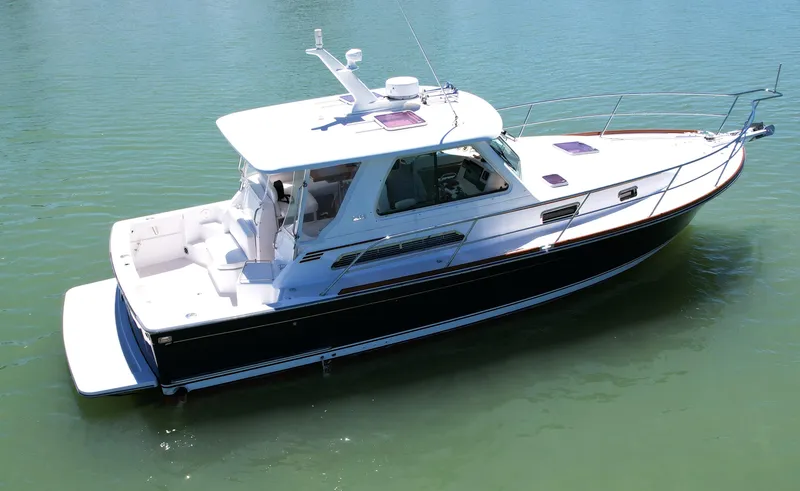

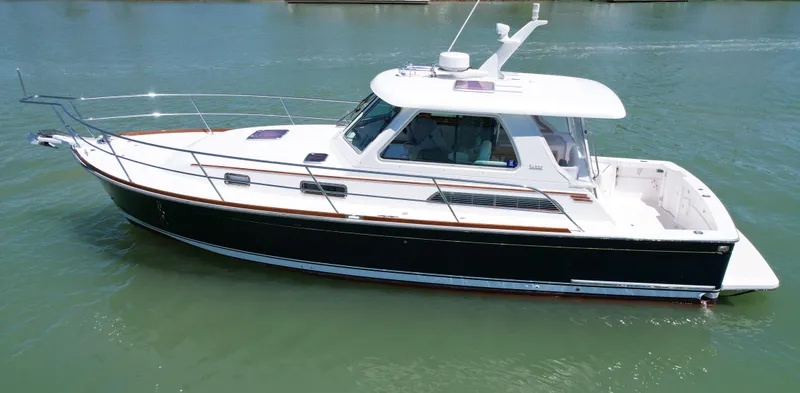

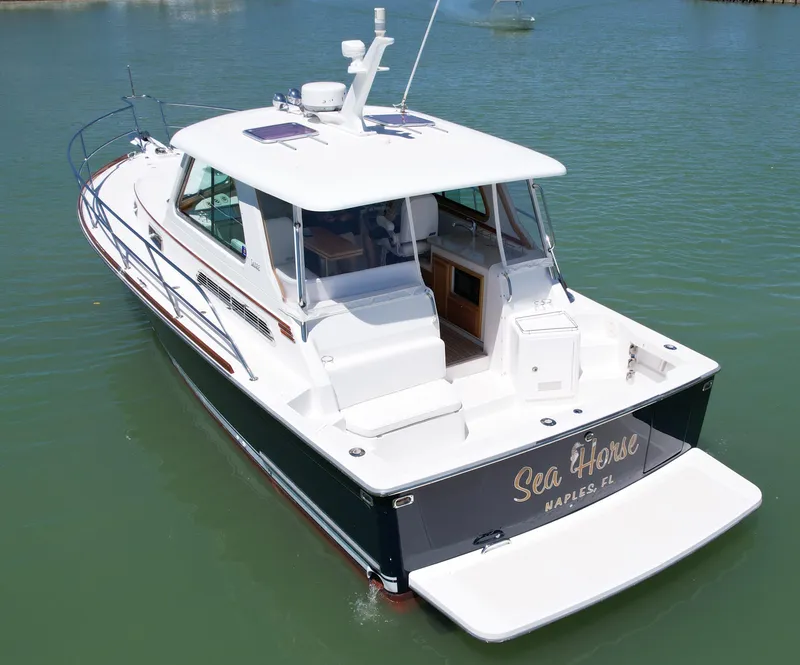

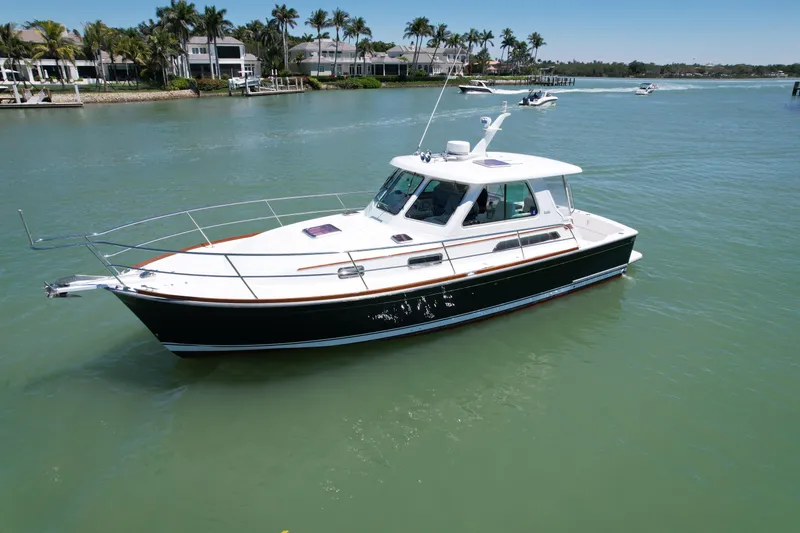

2009 Sabre 34 ExpressSold

Lewmar V3 rope chain windlass

Radar Mast on Hardtop

Teak Decking on helm

Electrically operated center opening window

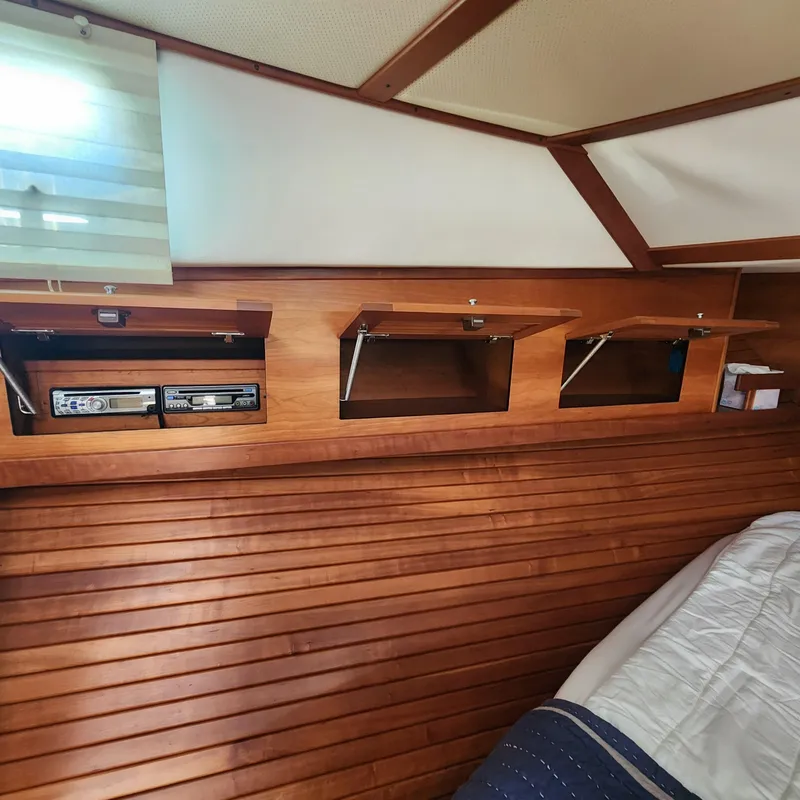

Clarion CD / FM / AM Stereo system with 4 speakers

Dimmer Switch in Main Salon

Zantrex MS2000 Inverter with remote

Ice maker

Dark Hull Colors (Flag Blue) with contracting anti skid

Accord Shades on all openings

Ultraleather upholstery

Yanmar 380 6LY electronic Engine Upgrade

Side Power Bow Thruster

Reverso oil changing system

Helm Deck air conditioning system

Groco bronze engine intake strainers with quick release plug

Searchlight and controls

Fresh water wash down in anchor locker

Hot and Cold transom shower

Shore water inlet

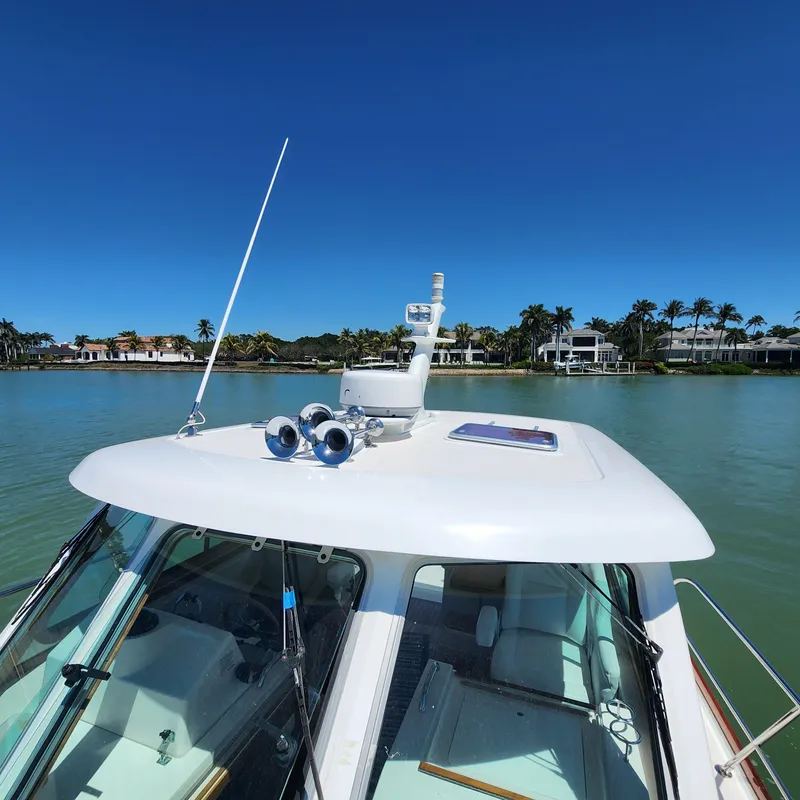

Triple Kahlenberg air horns, chrome with automatic M485-A horn control

Twin Yanmar 380hp 6LY3A-UTPelectronic diesel  engines

5.2 liter 6 cylinder , fresh water-cooled Includes Yanmar electronic controls

ZF 220-A Transmission

1 3/4" Aquamet 22 stainless steel shaft

PSS drip-less shaft seals Manganese bronze struts with cutlass bearing

Four blade NiBrAl propellers to ISO Class S

80Amp, 12V alternators each engine.

Seawater cooled 5" side exhaust system.

Groco raw water intake strainers

Engine room blower.

Engine room vent ducts.

Engine room floor with gray anti-skid rubber.

White gelcoated engine room

Foil face foam noise barrier.

Onan 9.0Kw EQD generator

Single 350 gal aluminum diesel fuel tank.

Racor fuel filters.

2”  “Diesel” deck fill plate

Fuel Level Indicator at helm.

Teleflex hydraulic steering system (BA135-7ATM cylinder)  Tilting Teleflex helm pump

Twin bronze rudders w/adjustable tie-rod. (1 3/8” dia rudder post.)  Twin Bennett stainless steel trim tabs.

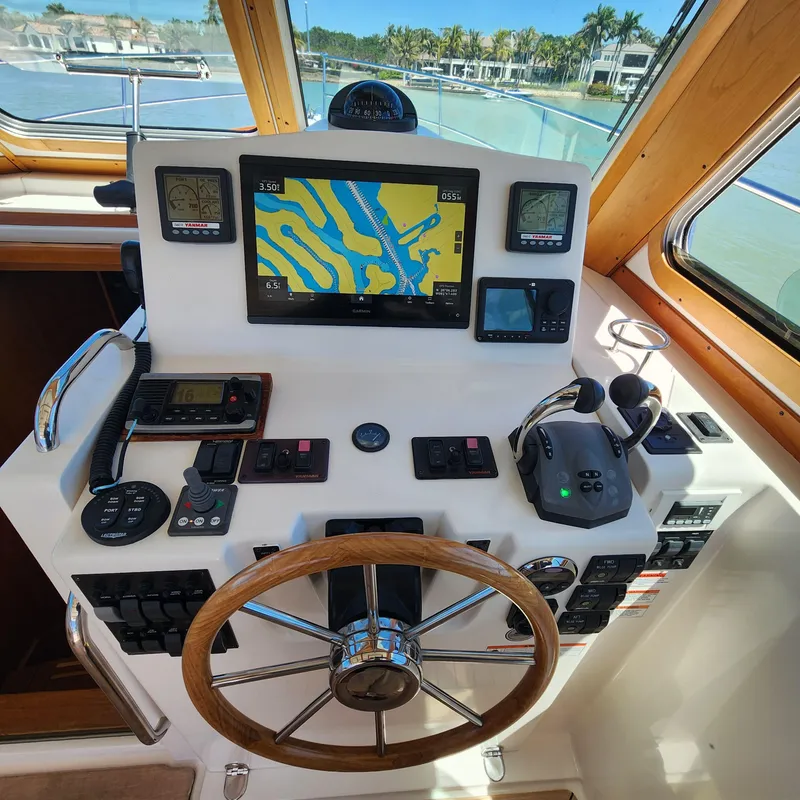

Yanmar single lever electronic controls.

Engine Start/Stop control panel.

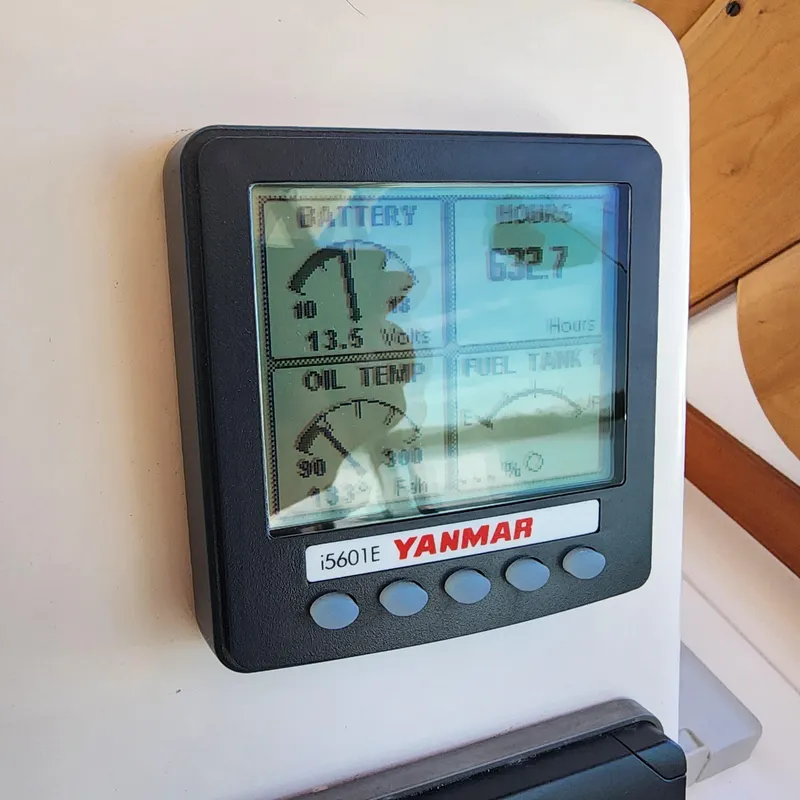

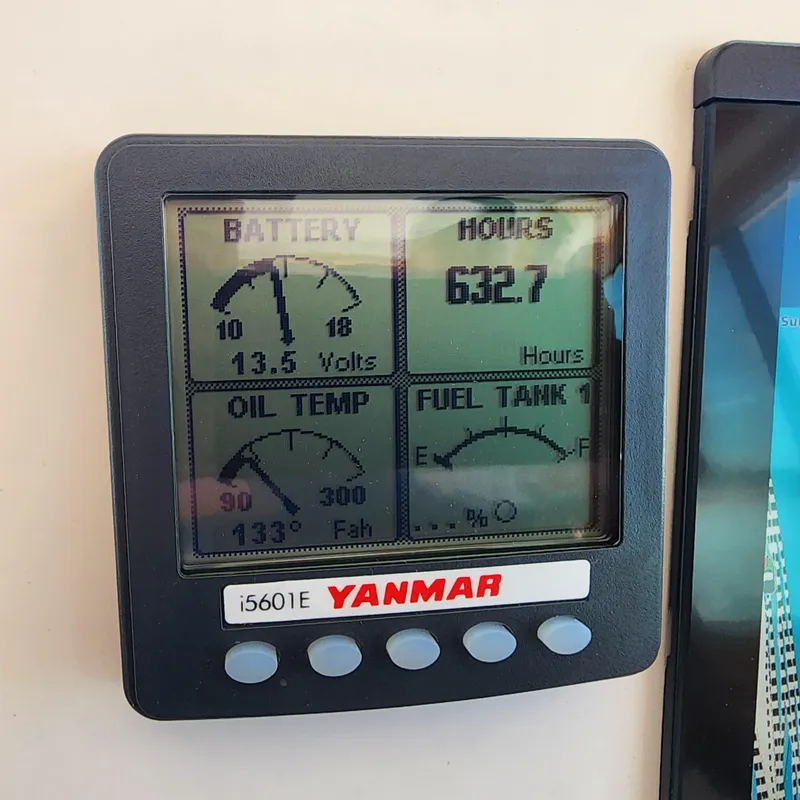

Custom gauge panel to include for each engine:

tachometer w/hour meter engine temperature engine oil pressure transmission oil pressure voltmeter Water in fuel warning light.

Hi water temp and low oil pressure alarm

Triple windshield wipers with washers.

Ritchie Compass

Fuel gage

Switch controls for horn, running lights, anchor light, engine room blower and optional equipment. control for red instrument lights w/dimmer

Stazo wood steering wheel

Two 30 A. AC shore power inlets and two 50 ft. cords

Galvanic isolator w/monitoring system

 Illuminated main circuit breaker distribution panel.

120V outlets in each cabin and one in engine room.

All galley and head receptacles are GFI protected.

 Additional outlets positioned in locations appropriate for entertainment systems in main cabin and fwd cabin One outlet located on the upper helm deck.

Charles Industries 50amp,

3-bank battery charger

Below deck reverse cycle heat/ air conditioning in (2) zones.

12VDC ELECTRICAL DISTRIBUTION SYSTEM

Two 1000 CCA dedicated engine starting batteries. Two 4D 210 AH deep cycle ship's service batteries. Battery Management panel including Emergency crossover switch.

Ships power switch Starting Battery switch Illuminated main circuit breaker distribution panel w/battery condition gauge

Lighting: Danish Cabin reading lights Cantalupi halogen lights in the overhead  Halogen bar lighting in appropriate locations

Improved engine room lighting Cockpit courtesy lights w/remote switch at transom door

Tinned wire throughout.

Deep “V” Planing hull design with Shallow prop pockets.

23 degree deadrise amidships and 16 degrees at transom.

ISO NPG white  gelcoat  w/ vinylester back-up resin.

Knitted Biaxial Structural E-Glass Reinforcements

Vacuum Bagged Airex foam core in hull bottom and topsides.

Foam/plywood cored fiberglass stringer system.

Swim platform with under mounted telescoping ladder.

Hull side rubbing strakes. PVC rub rail with stainless steel cap.  Painted (IMRON) Double Boot Strip Gold Cove Stripe

Deck and Windshield

ISO NPG gelcoat  Knitted Biaxial Structural E-Glass Reinforcements with balsa coring.

Molded in anti-skid deck surfaces.

Windows  with clear anodized frames  recessed into hard top Inside walls  sheathed w/high pressure laminate

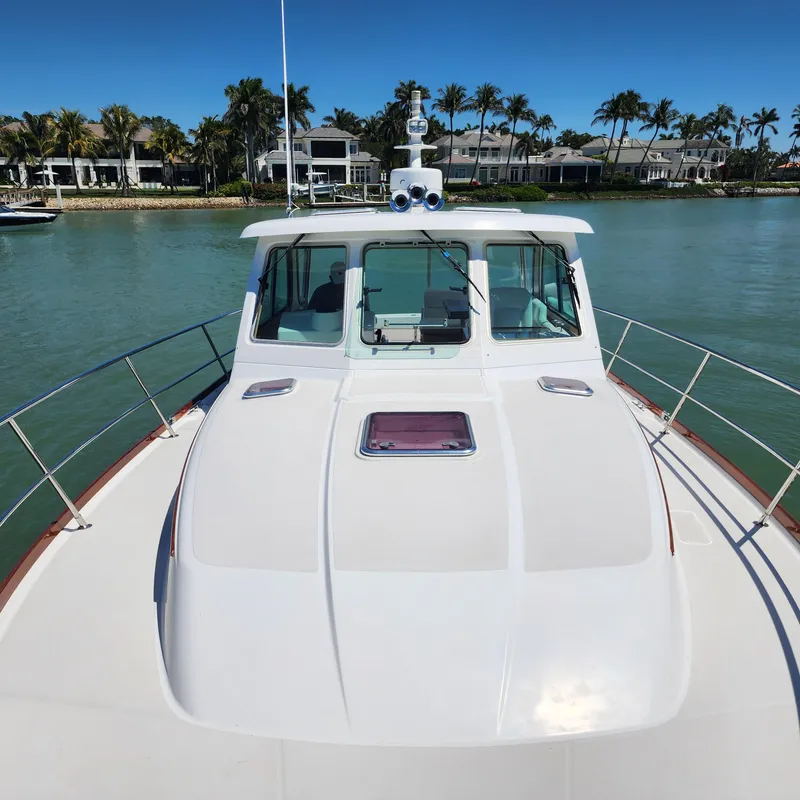

Hardtop w/ anti-skid surface on top In-swinging Transom Door with latch system

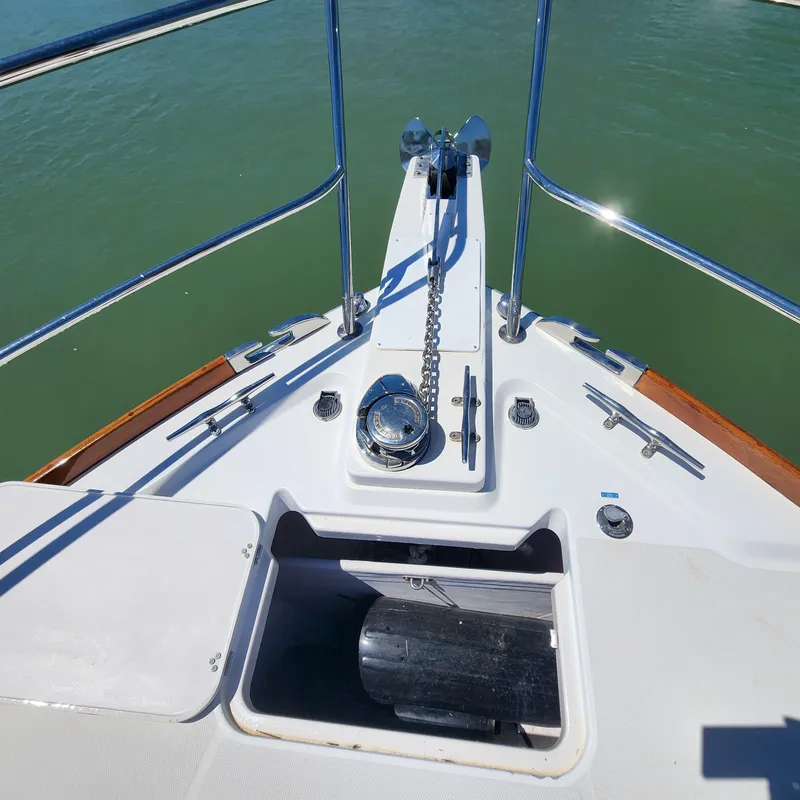

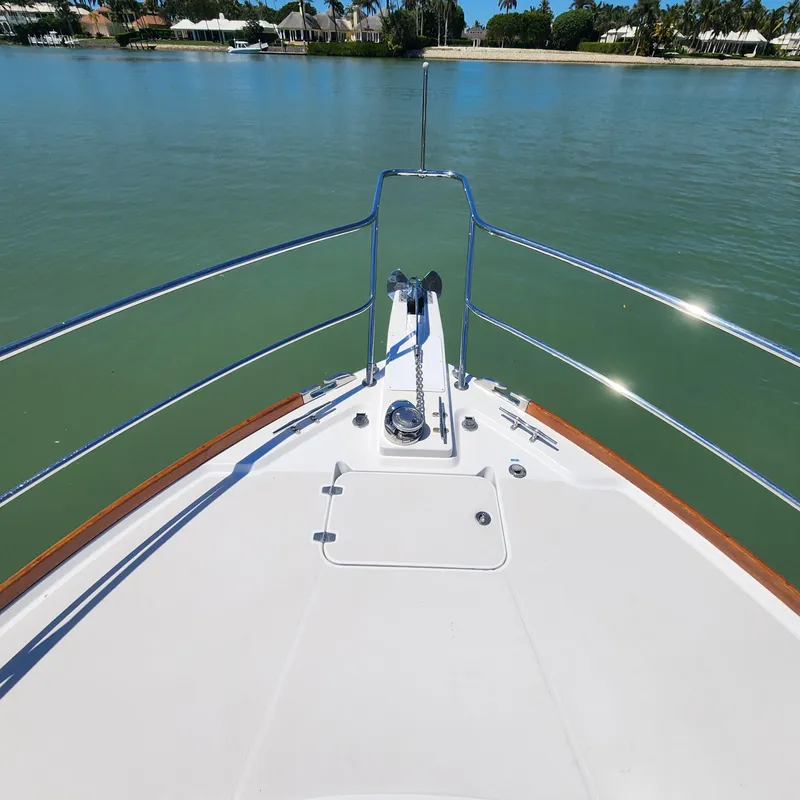

Fiberglass bow pulpit with single anchor roller and windlass

Anchor locker w/Southco slam latch #M1-64-8  (1) Large Aft hinged double sided

lazzarette locker hatch with gas struts and Southco (2) 3”dia  compression latches (1)

Large double-sided Engine Room hatch with  3” compression latches, and heavy SS hinges

Hinged helm pod Center opening windshield manual (Electrical is optional)

Deck Hardware

1 1/4" Diameter type 316 stainless steel perimeter rail system

(6) 12” Stainless Steel Cleats (2 fwd, 2 mid ship, 2 in aft cockpit) (1) 10” Stainless Steel Cleat to starboard  of windlass as anchor rode tie off.

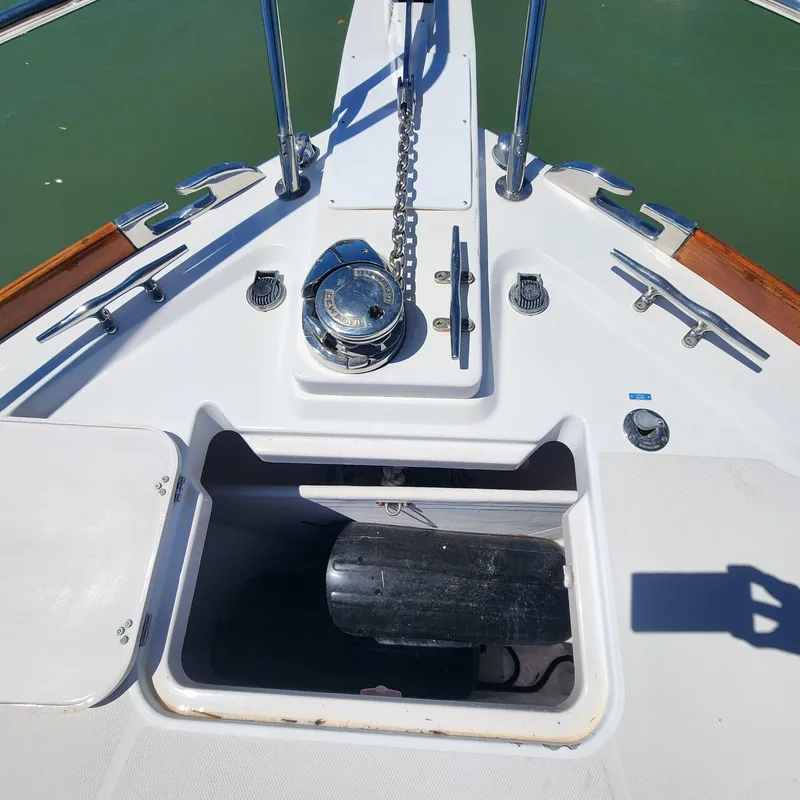

Windlass Lewmar rope/chain

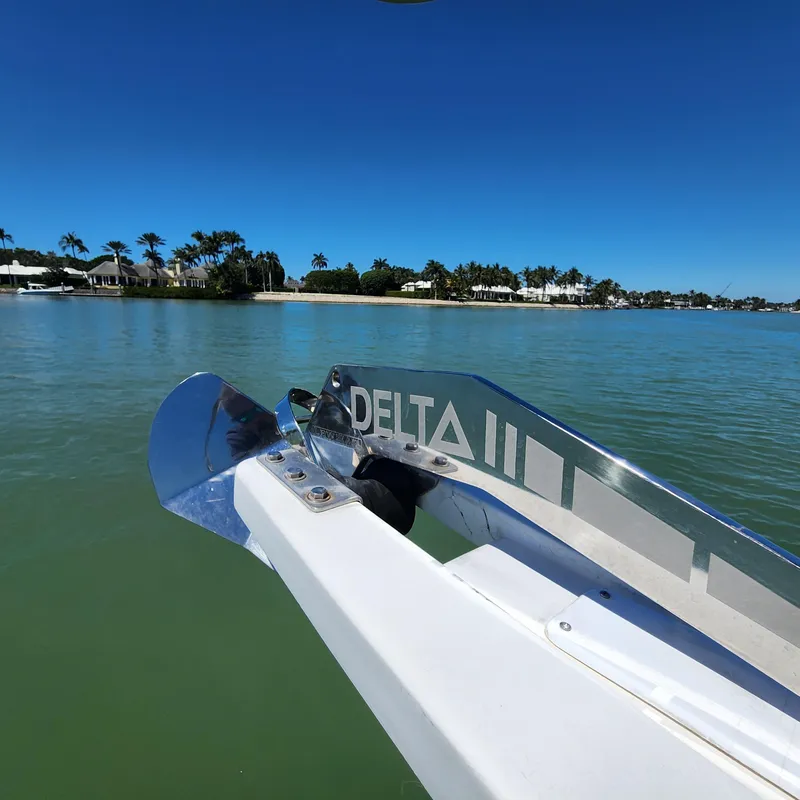

Single anchor roller sizes for 35# CQR or Delta

Flagpole holder and flag staff.      Burgee staff on pulpit

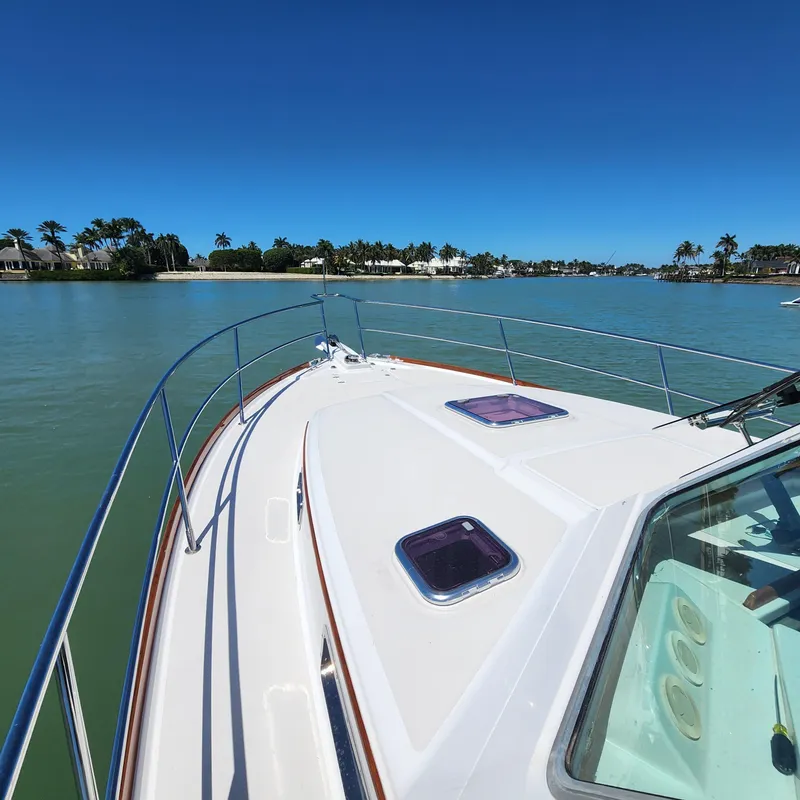

Lewmar Low Profile polished aluminum hatches w/screens (2) #44 on foredeck, (2) #10 port and starboard

Custom stainless steel opening ports.

Teak toe rails port and starboard with custom stainless steel cast mid rail chocks and forward skene chocks   Teak cabin side eye-brow

 Custom cast stainless steel “SABRE” medallion Cast stainless steel corner hawse pipes in cockpit coamings

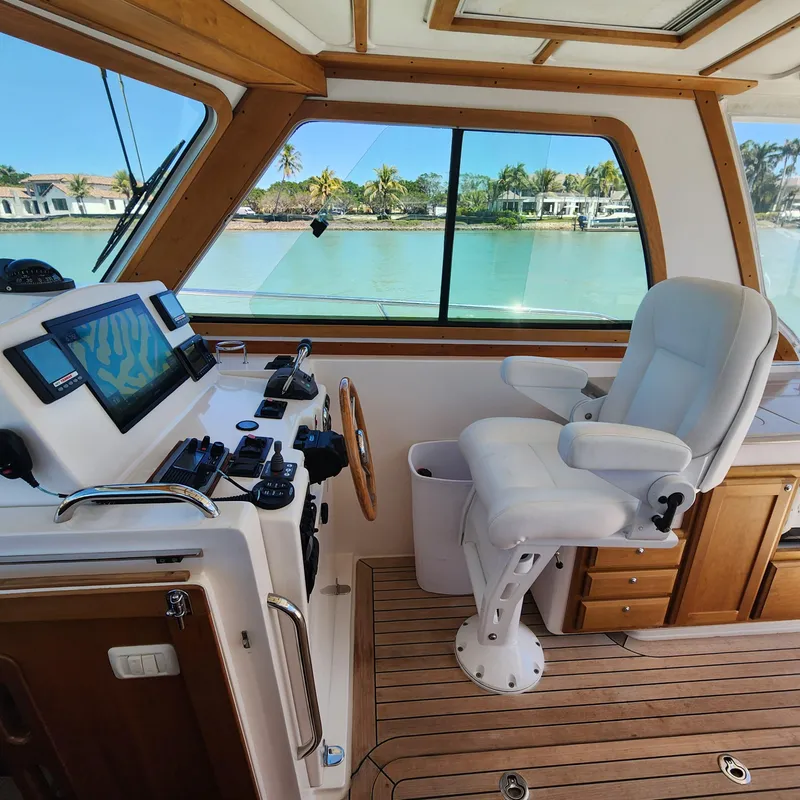

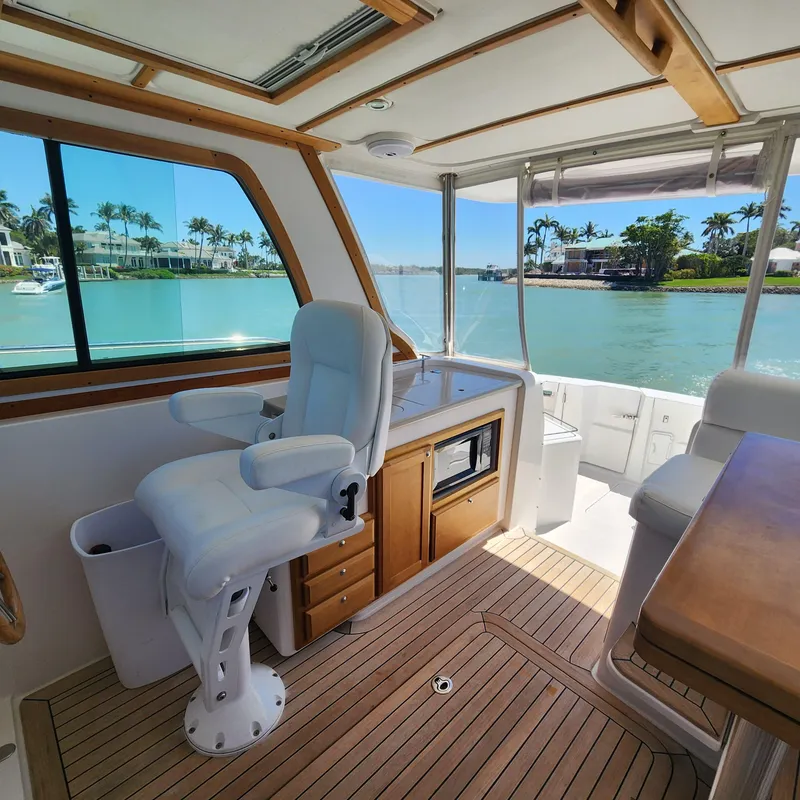

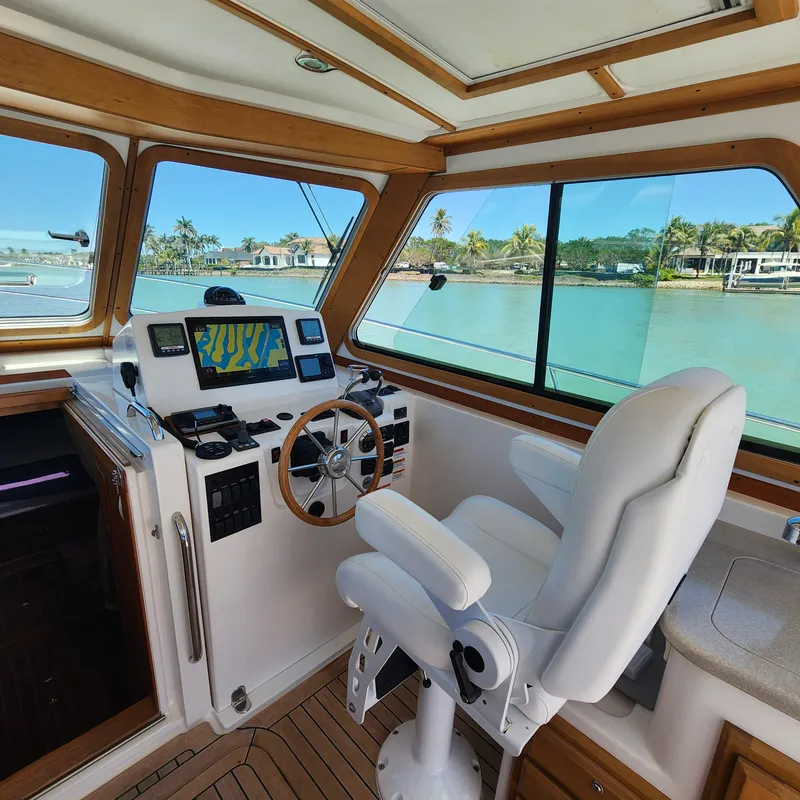

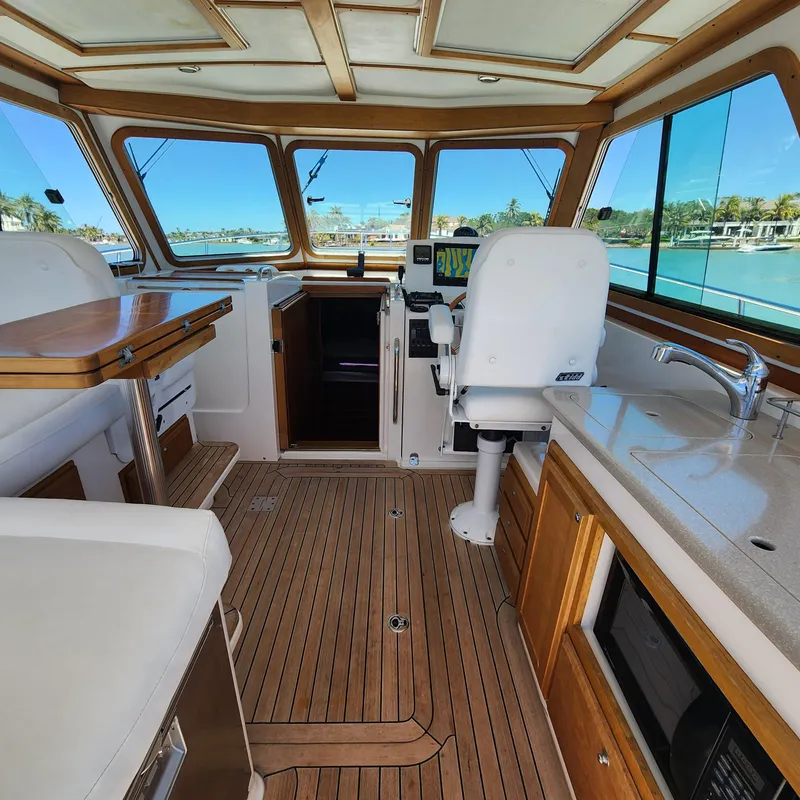

Stidd helm and mate’s seat

Standard wood in helm area is cherry

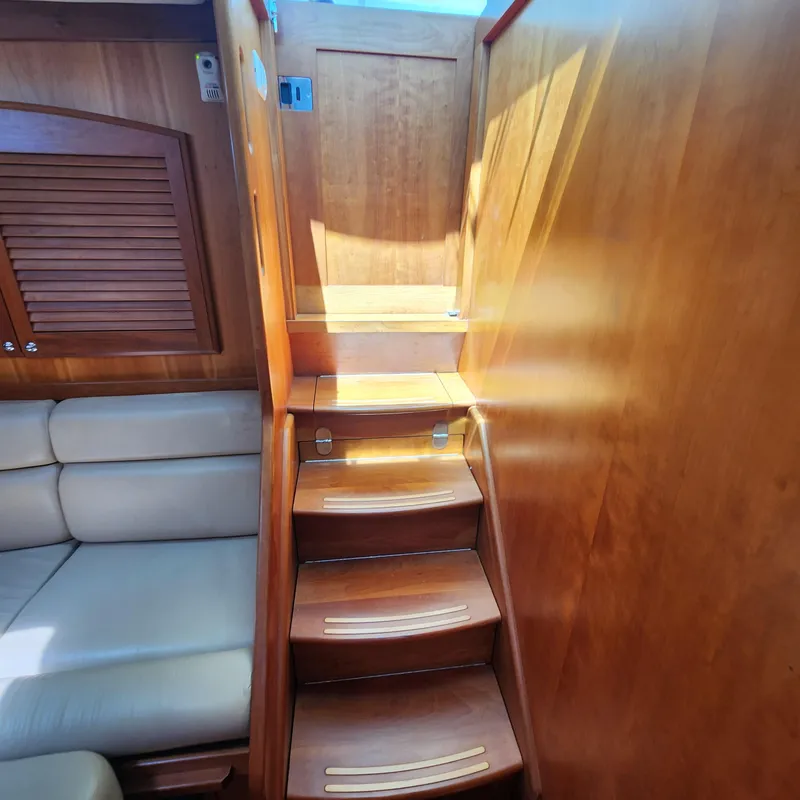

Sliding companionway hatch (smoked)

Bi-fold teak companionway door

Clear chart locker cover

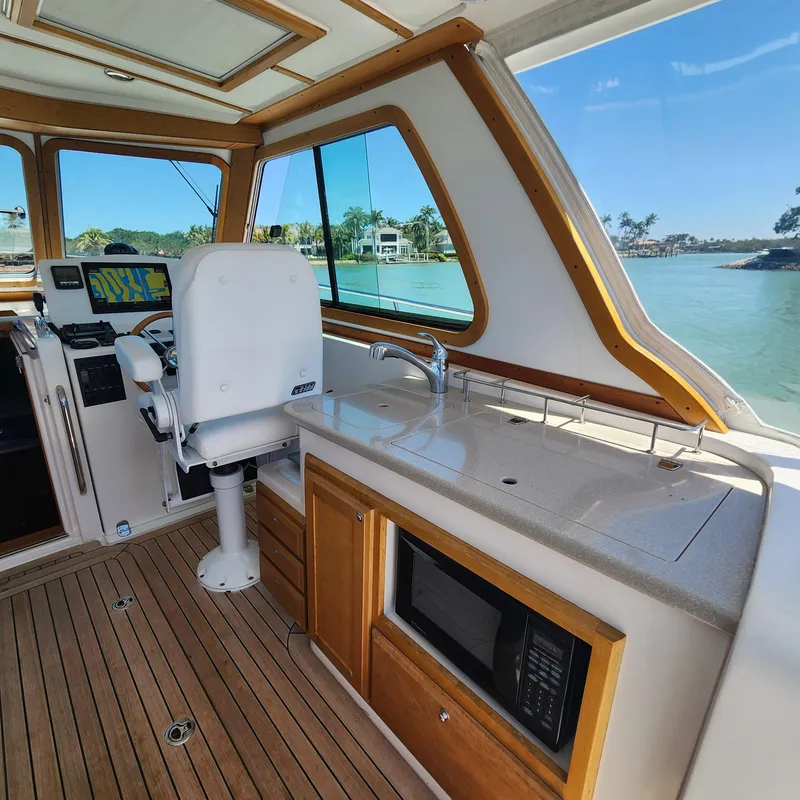

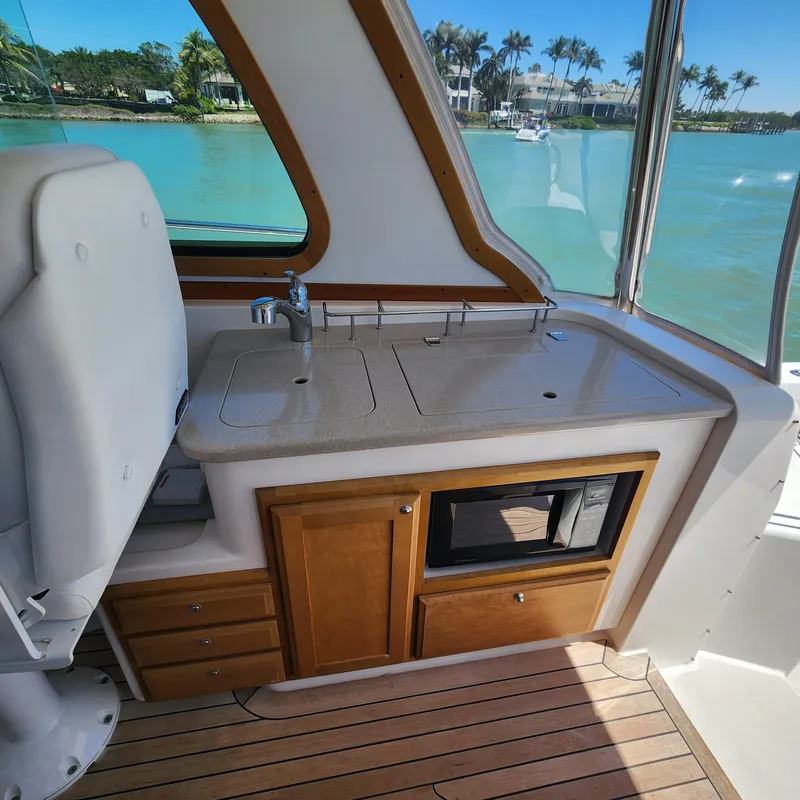

Wet bar with solid surface laminate bull nosed edge will overhang cabinet below.

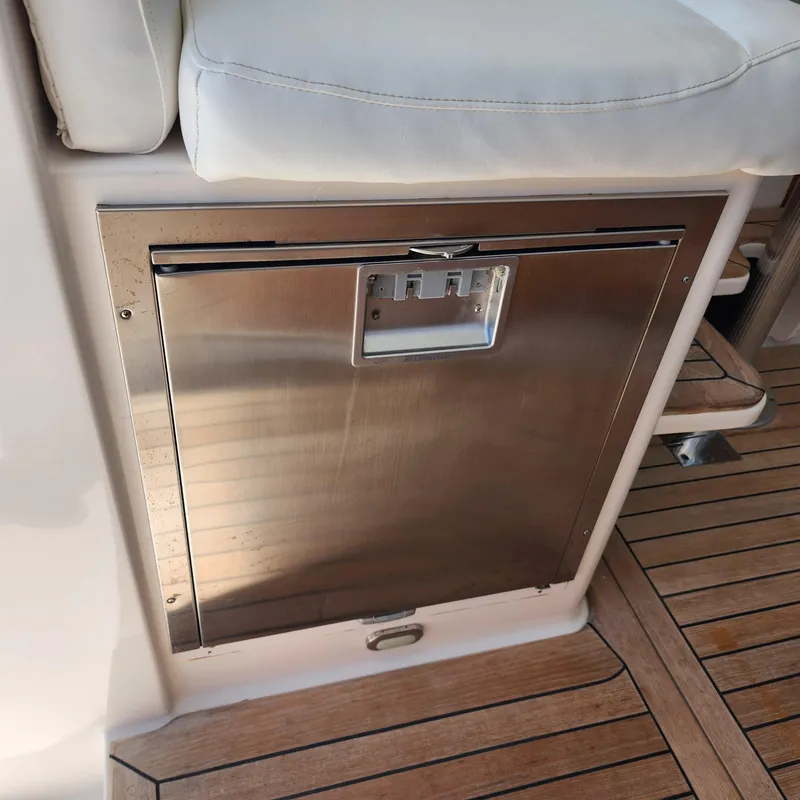

U-Line Ice Maker/ Refrigerator model COMBO-29FF, surface mounted.

Forward facing bench with footrest.

Dry storage below.

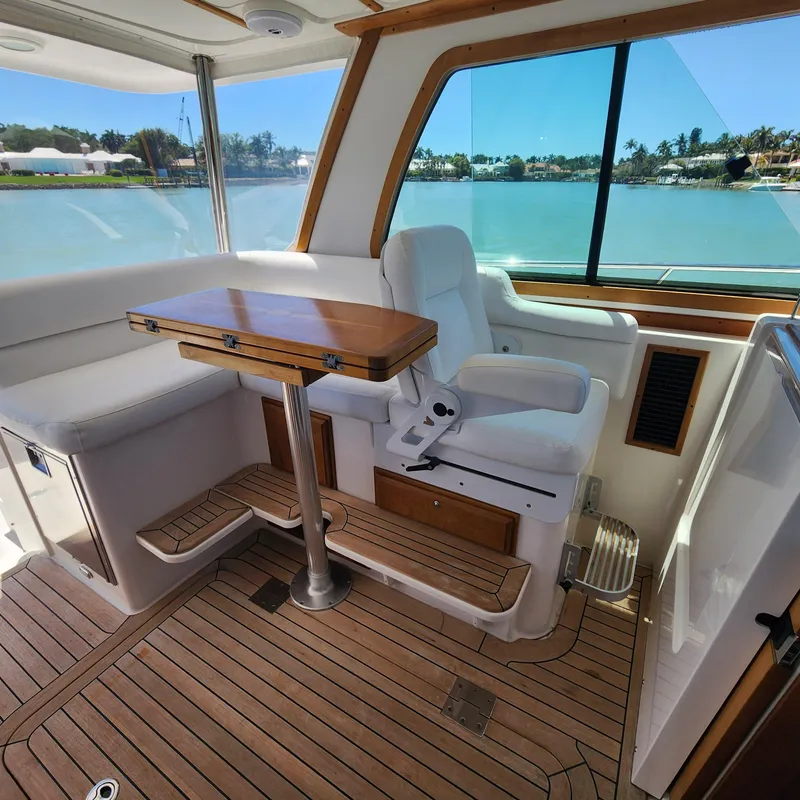

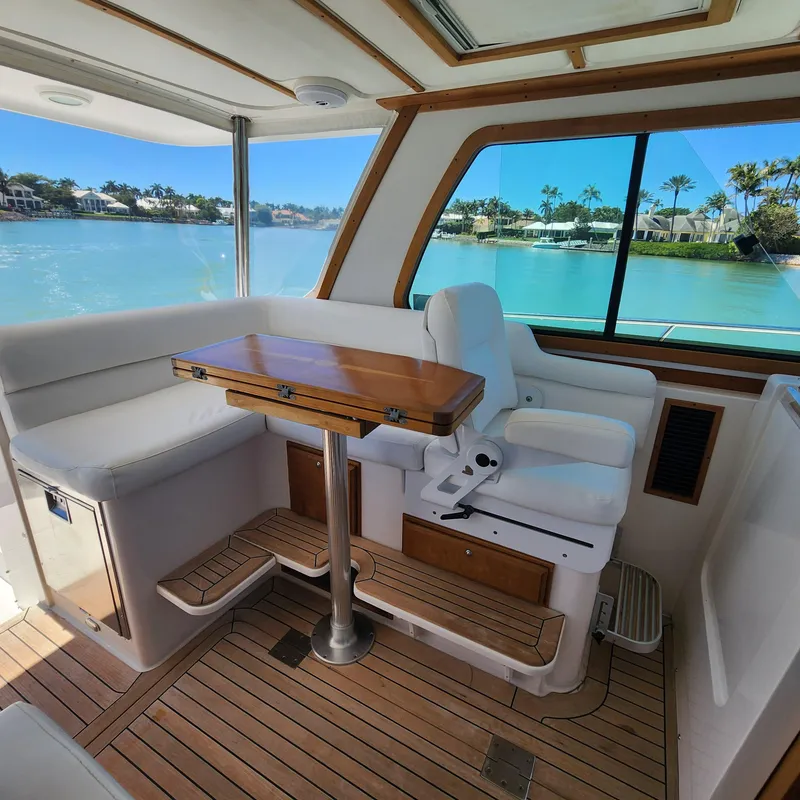

Folding  table from port cockpit bulkhead approx.

18 x 34 Lewmar pilot hatches overhead with roller shades

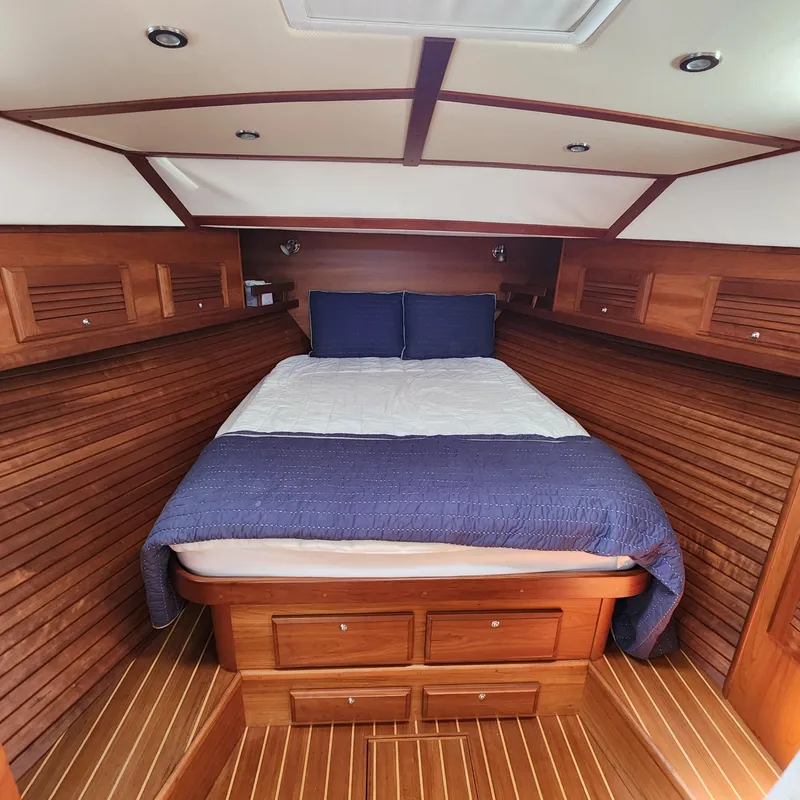

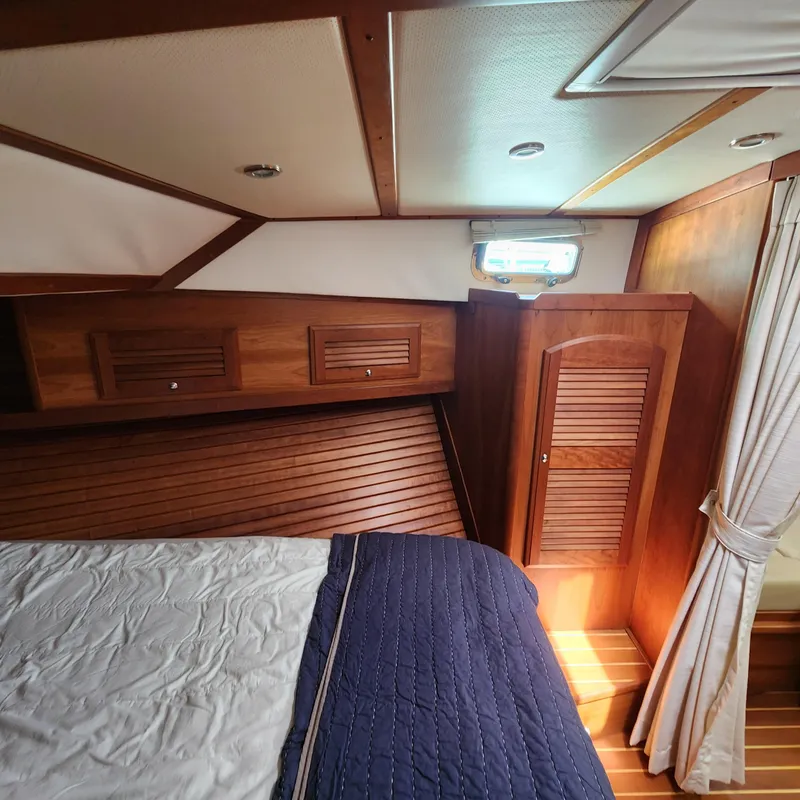

FORWARD STATEROOM

Spacious Island Berth layout with 5" cushion.

¾” laminated trim.

Cherry hull ceilings.

2 Drawers under bed.

A/C return grills under drawers

2 drawers in bureau w/locker w/shelf above and single louvered door.

Upper enclosed shelves with storage behind.

Locker face to have 2 louvered doors.

Each door to access partitioned space with shelves in the aft two compartments.

Doors hinged at bottom.

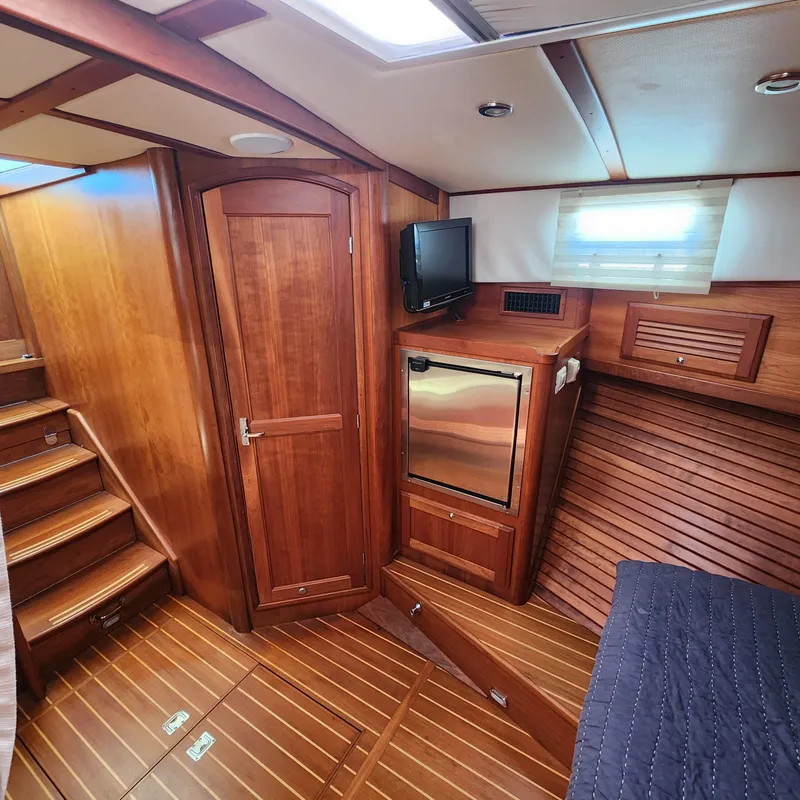

Recessed shelf with fiddle on starboard main bulkhead sized for 17” flat panel TV option.

Optional Air conditioning discharge above this locker.

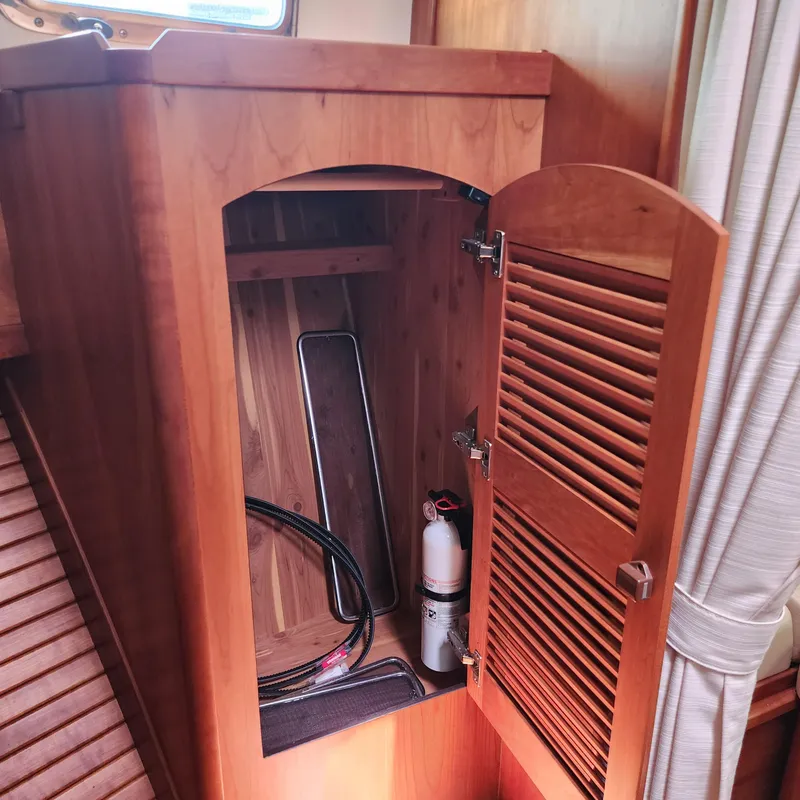

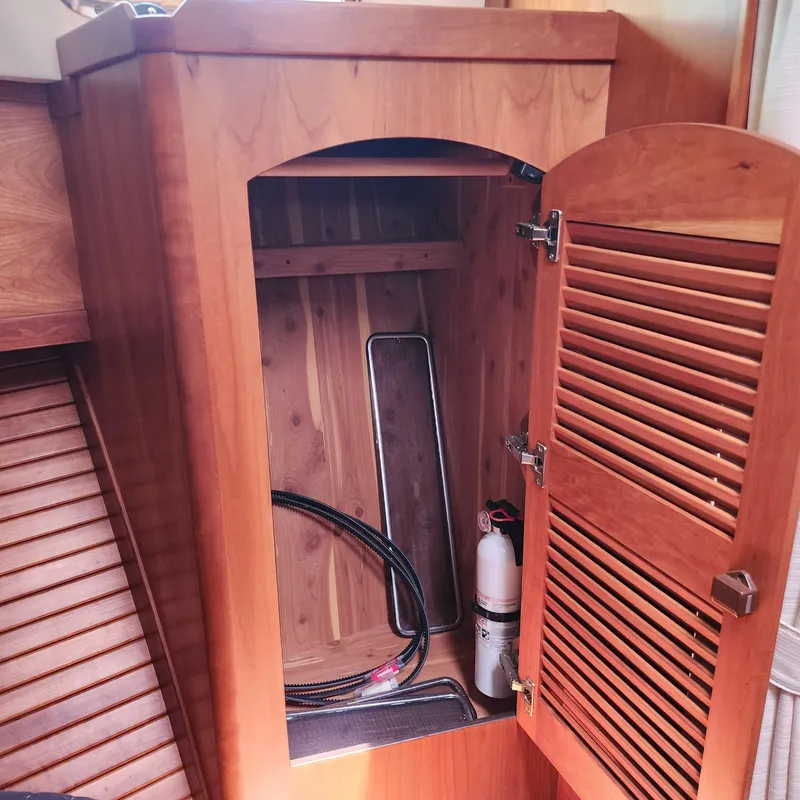

Large Hanging Locker to port, cedar lined with cedar shelf and hangar pole.

Open shelf above.   Louvered door.

Teak and holly sole with 2 coats of sealer.

Soft headliner panels.        Large pocket door between salon and forward cabin.

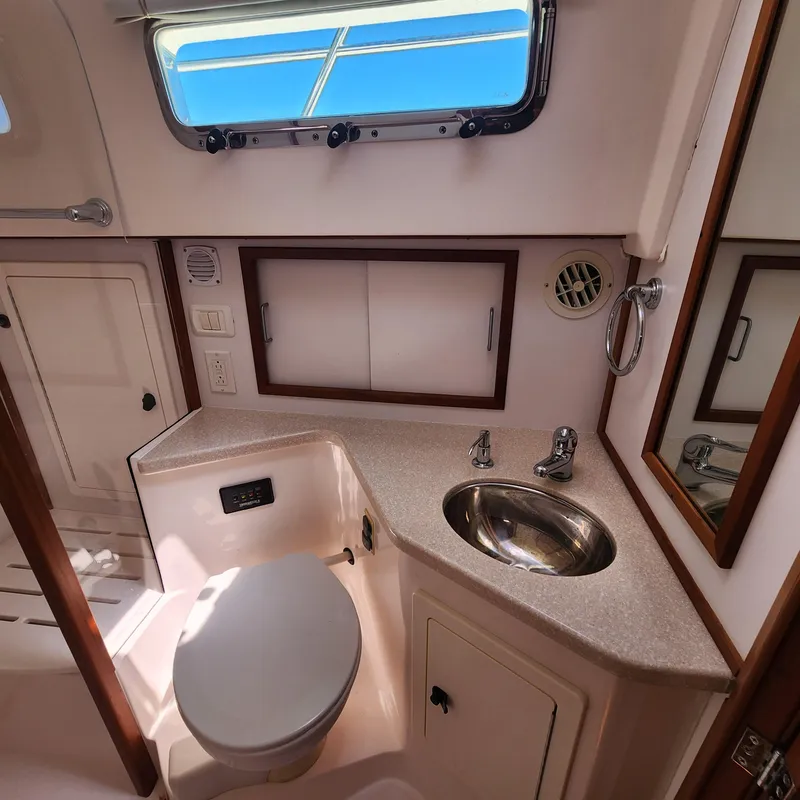

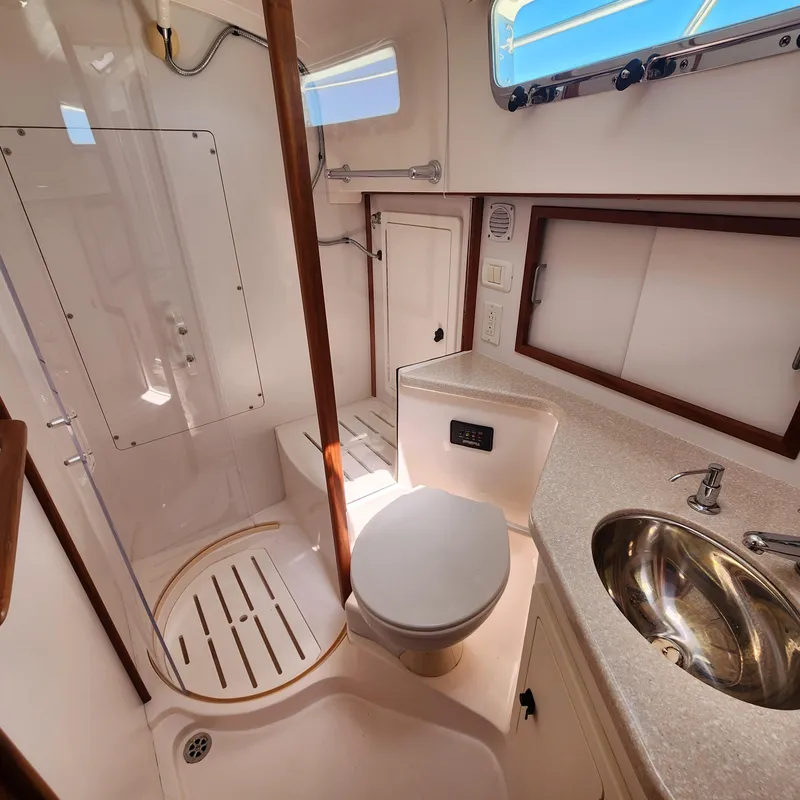

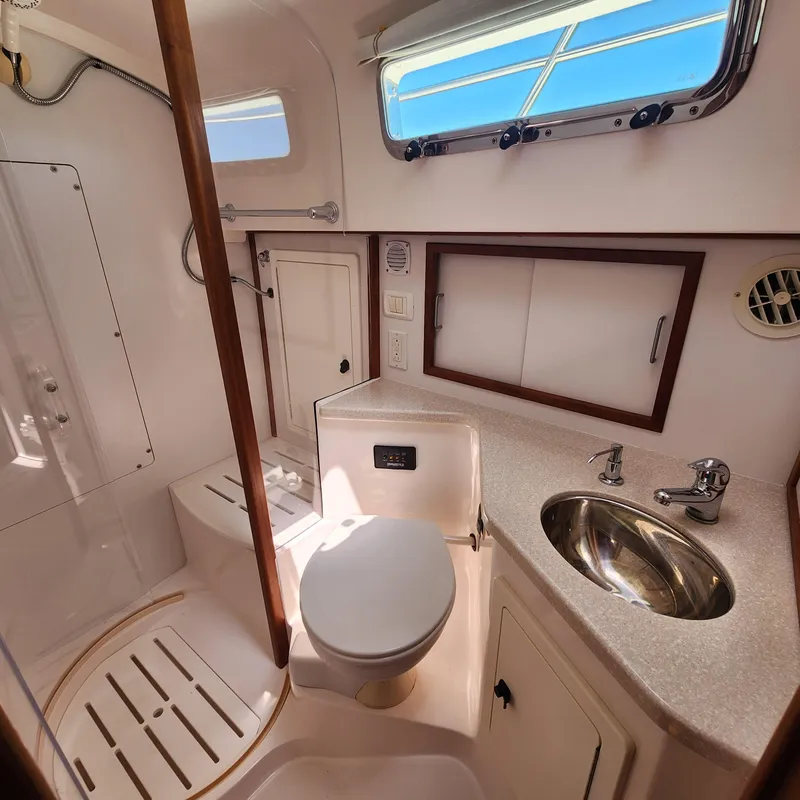

Head

Stainless sink

 Circular shower stall with seat and locker outboard.    Hot and cold pressure water.

Electric shower sump pump.     Storage lockers.

Corian counter with bull nose     Towel bar.     Wood trimmed mirror over sink Ventilation blower.

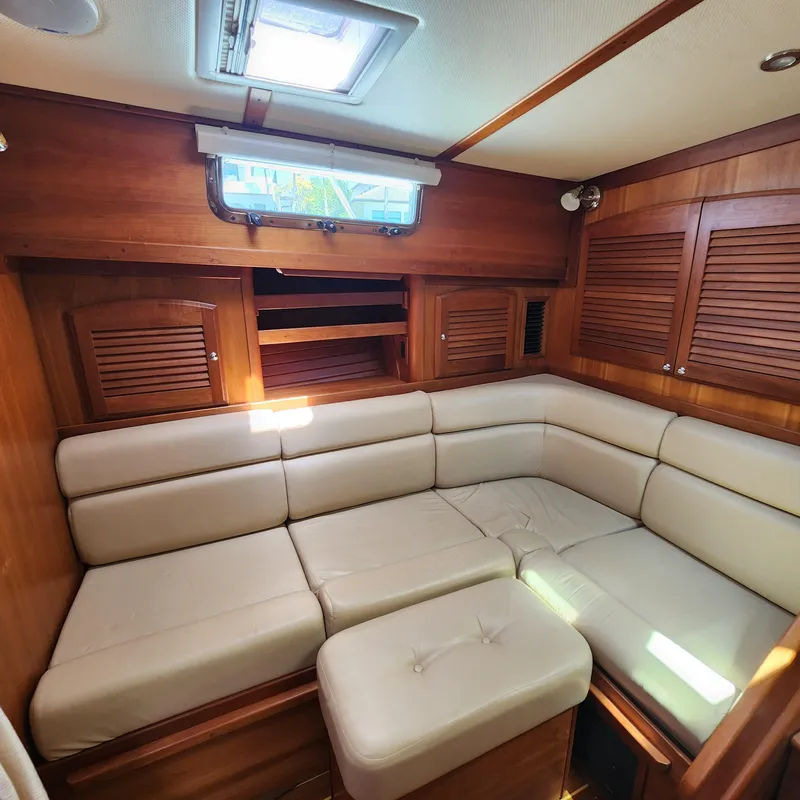

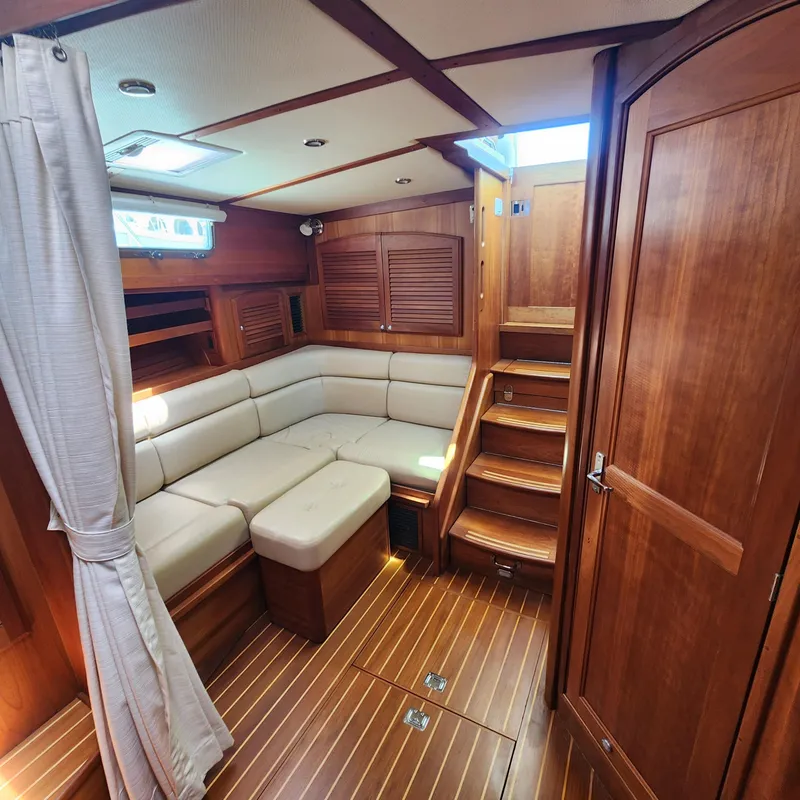

Saloon

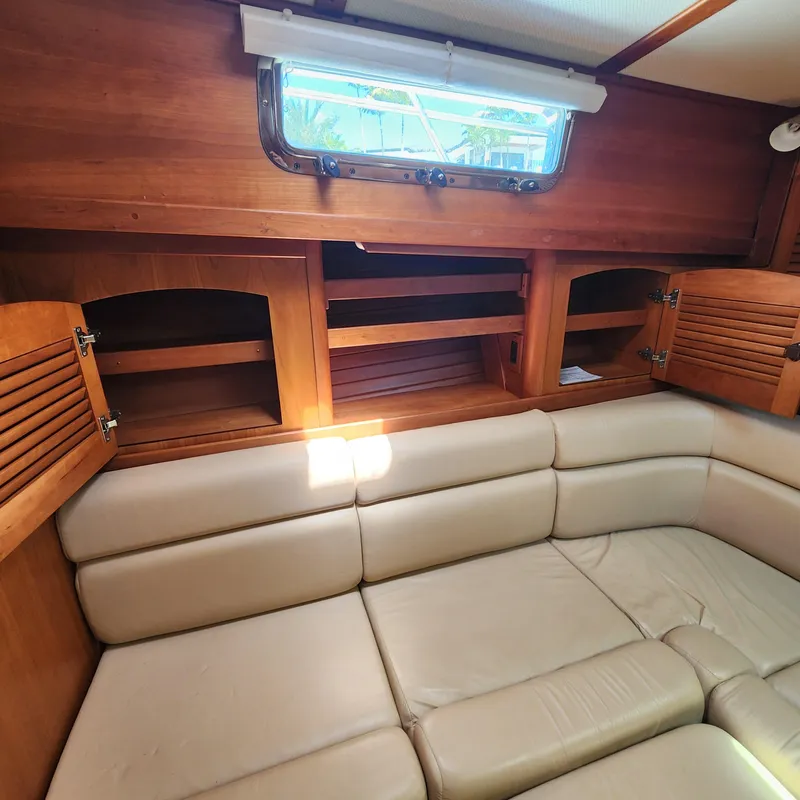

"L" settee converts to double berth, 4 1/2" foam cushions.

Storage under settee (2)   enclosed lockers outboard with open shelf and removable fiddle forward.

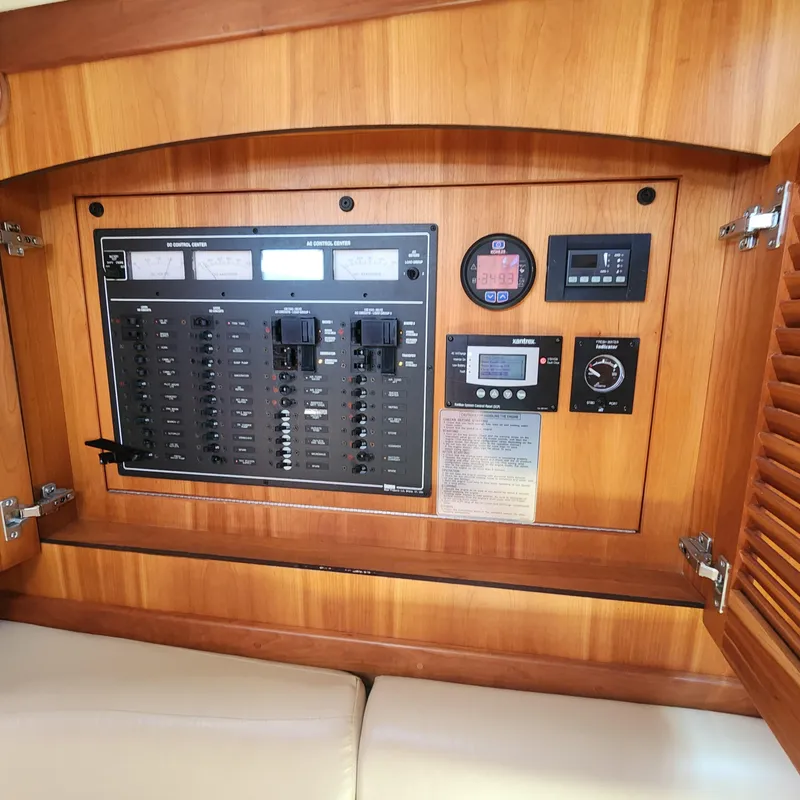

Master AC/DC breaker panel facing fwd on aft bulkhead behind pair of louvered doors.

Fwd starboard bulkhead forms entertainment center space for standard 20” flat LCD TV and DVD Player as well as chase for air conditioning duct and discharge grill.

Inlaid salon table on (2) hi- low pedestals  lowers to form berth with  filler.

Bottle storage locker        Teak and holly sole w/ sealer.        Sound deadening headliner panels.

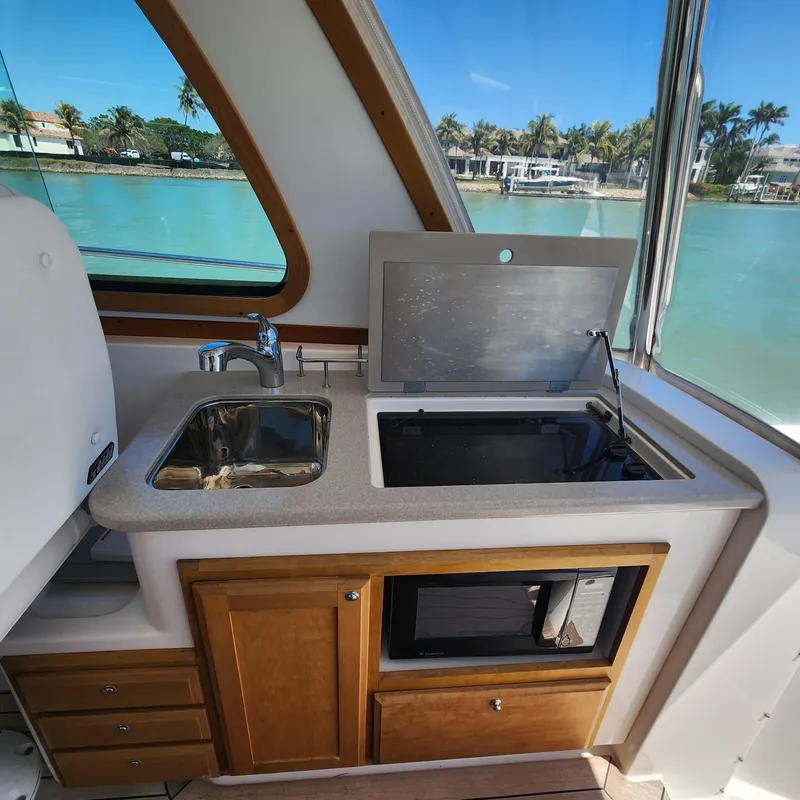

Galley

High pressure laminate galley counter.

Stainless steel sink with Scandvik faucet.    Built-in waste basket     Drawers and storage lockers below counter.

Storage cabinets outboard and above aft counter

Coffee Maker (Space Saver overhead mount)

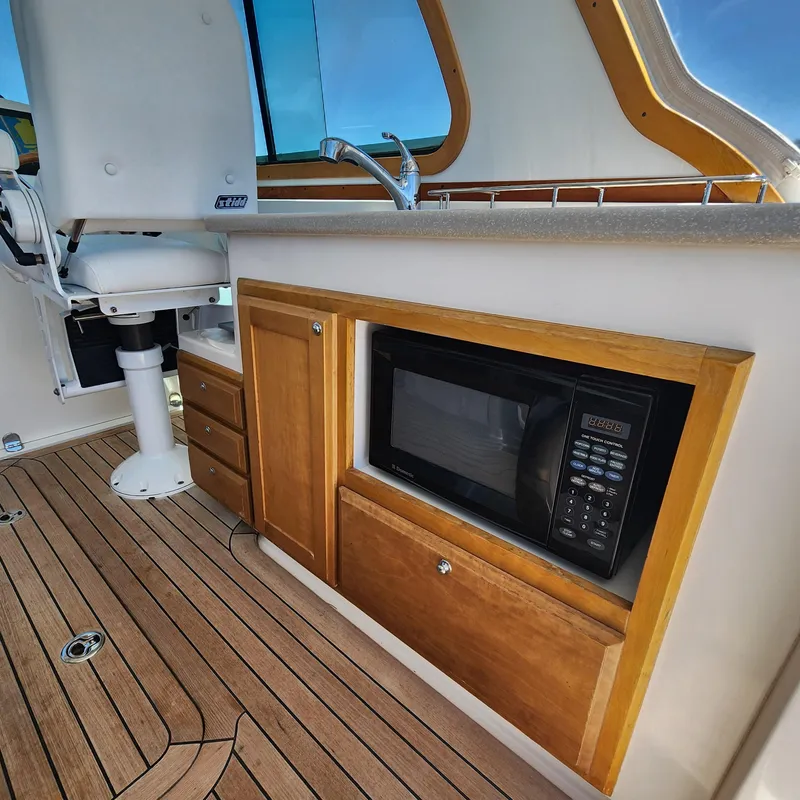

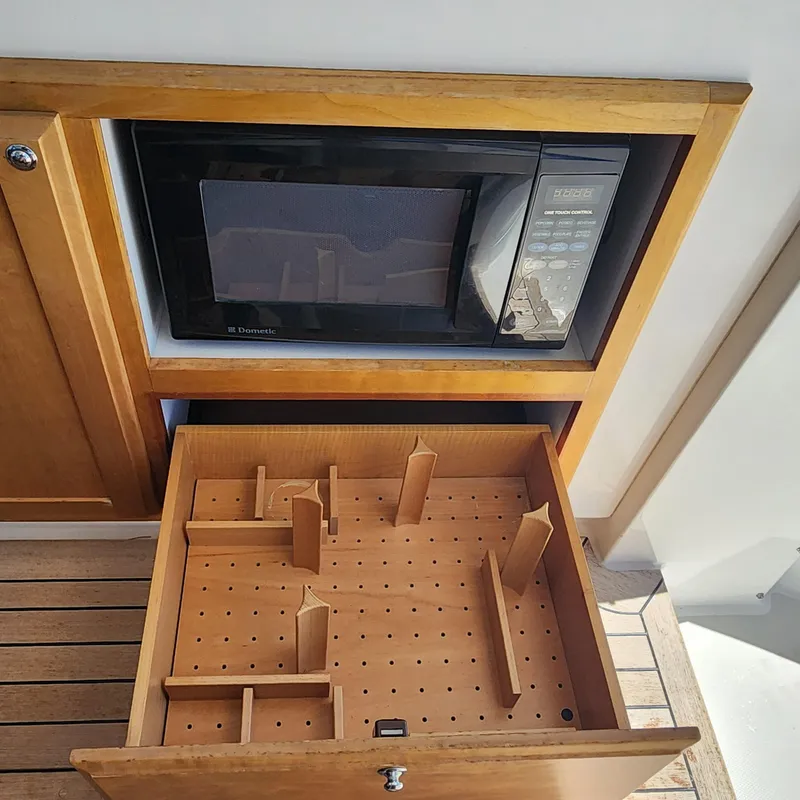

Two burner electric cook top with separate convection microwave.             Refrigerator/Freezer 12DC/120VAC

Polyethylene holding tank with 30 gallon capacity

Jabsco Quiet Flush fresh water MSD      Macerator pump on holding tank

Fire extinguishers, (4) at 2 1/2 lbs.

Marelon sea valves on all below waterline fittings.

Bonding system to safeguard against galvanic corrosion.

Automatic fire extinguishing discharge system with override.            Automatic 12V electric bilge pumps.
