1.     CONSTRUCTION

Fiberglass hull and superstructure, teak decks

2.     DIMENSIONS

2.1 General

Length Overall (L.O.A.):  94.00 feet  (28.50 meters)

Length at Waterline (L.W.L.): 75.78 feet (23.10 meters)

Beam (molded):  21.00 feet ( 6.40 meters)

Draft (loaded):  7.00 feet ( 2.13 meters)

Tonnage: 156 gross

Displacement:  100.8 tons

2.2 Capacities

Fuel Capacity:  2,298 US Gallons   (8,698 liters)

Water Capacity: 349 US Gallons   (1,320 liters)

Watermakers:    1,400 US Gallons   (6,354 liters)

Holding Tank:  141 US Gallons  (  535 liters)

Grey Water:  141 US Gallons  (  535 liters)

2.3 Speed

Maximum:  27.0 knots

Cruising:  22.0 knots

3.     MACHINERY

3.1 Main Engines

Engine Type:

• (2) MTU 16V 2000 M86 @ 2,186 Hp each
• MTU extended propulsion warranty until 2026

Drive: V-drive transmission & new cutlass bearings

Engines Exhaust System: Underwater silenced exhausts

Engine Ventilation: (2) Electric ventilation fans

3.2 Generators & Electricity

Generators:

• Main electric generator (27kW)
• Auxiliary generator (19kw)

Shore Power:

• 400V with cable
• 3 isolation transformer 400V-230V

Batteries:

• (12) 2-volt in engine room
• Port and starboard in the engine room 12-volt 8D for the generators
• (4) 12-vold 8D – Starboard in engine room
• Main generator battery 12V

Battery Chargers:

• Mastervolt 24-volt
• Mastervolt 24-volt 20-amp
• Mastervolt Mass Combo 24-volt 5000 watt 60-amp
• Mastervolt 24-volt 75-amp
• Mastervolt Mass Combo Inverter/charger 4000 watt 24-volt 100-amp

3.3 Air Conditioning

Type: New Dometic Titanium chiller plant with 5 year warranty (2025)

3.4 Other Machinery

Watermakers: Seafari Watermakers 1400 gpd ($17,000 option)

Trim Tabs/Stabilizers:

• (2) Seakeeper Gyro Stabilizers (Series 16 & 9)
• Humphree Trim stabilizers (interceptors)

Bow Thruster: Side power hydraulic with joystick

Stern Thruster: Side power hydraulic with joystick

Steering System: E-Steer Electro-hydraulic

Fuel Separator & Filtration: Double Racor fuel filters (2) for engines

Fresh Water System: Seafari Watermakers 1400 gpd ($17,000 option)

Bilge Water Filtration: Yes

4.     COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

4.1 Communication Systems

SATcom: KVH Mini-Vsat

VHF: (2) Simrad

4.2 Navigation Systems

Radar: Simrad

Magnetic Compass: Urania

Auto Pilot: Simrad

Depth Sounder: Simrad

GPS: Simrad

4.3 Entertainment System:

Video Equipment: KVH SAT KVH Tracvision HD7

TVRO: US SAT Receivers in guest cabins

Audio Equipment: A/V Package premium sound external

Light Management: Dimmers throughout

Main Salon: 40” LED TV 49” LED TV Mini Hi-fi CD/DVD & Bluetooth

Master Stateroom: 49” LED TV Mini Hi-fi CD/DVD & Bluetooth

VIP Stateroom: 49” LED TV Mini Hi-fi CD/DVD & Bluetooth

Guest Staterooms: 49” LED TV Mini Hi-fi CD/DVD & Bluetooth

Flybridge:

• (2) Terrestrial TV antenna. VHF antenna (2).
• Radar antenna
• Running and anchor lights.
• (2) Watertight loudspeakers connected to the stereo in the lounge (2).

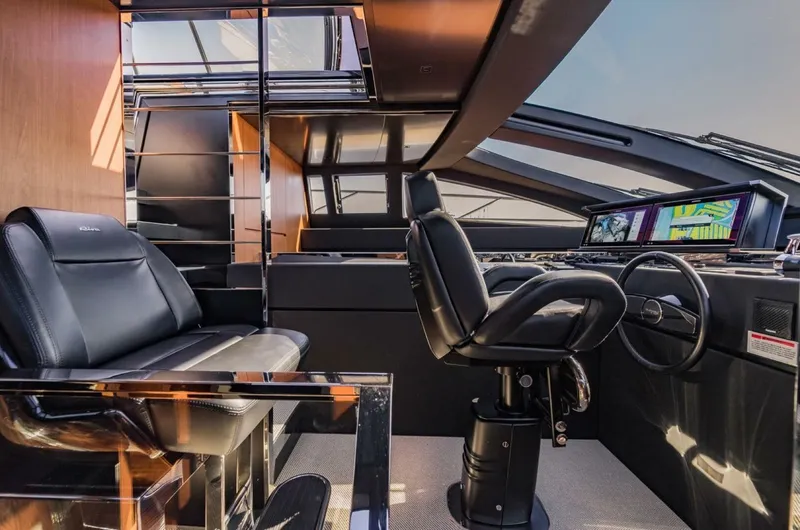

 Pilot House:

• Acoustic alarm for water bilge
• Automatic pilot with dudder angle indicator interfaced with plotter/GPS

Crew Mess: TV 24” with CD/DVD/MP3

5.     GALLEY & LAUNDRY EQUIPMENT

5.1 Galley Equipment

Cooking Equipment:

• Miele 4-burner electric
• Miele convection oven
• Miele microwave oven
• Electric barbecue grill (flybridge)

Refrigeration/Freezer:

• GE GZS221 Side-by-side
• Isotherm wine cooler (salon)
• U-line icemaker
• Magic Chef chest freezer (flybridge)

Dishwasher: Miele G 6880 SCV1

5.2 Laundry Equipment

     Main Laundry Equipment: Miele

6.  TENDERS & TOYS

Tenders: 13’ Williams Sport Jet 395 2017

Toys: Sea Doo Spark 2017

7.  DECK EQUIPMENT

Anchor Windlass System: (2) Lofrans- electric

Aft Warping Capstans: (2) Electric winches for stern warping

Anchors: (2) Stainless-steel 80kg

Anchor Chain: (2) Galvanized steel, 120m 13mm diameter

Stern Gangway: Concealed stainless steel electro-hydraulic gangway with stanchions and teak flooring

Swimming Platform: Teak floor & retractable & New hydraulics for swim platform (2025)

Garage:

• 12-roller fixture for tender and Jet Ski
• (2) hydraulic actuators for garage door
• Estec covered fiberglass deck
• (2) Quick 24-VDC winches

8.  SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

8.1 Security Equipment

CCTV System: (2) Color camera CCTV

8.2 Fire Fighting Equipment

Fire Control System:

• FM200
• Emergency pull handles for engines & generators for diesel break
• 32.7-kg / 101.3-kg HFC227
• 24-volt raw water with fire stations at the bow and starboard main deck

Fire Extinguishers: Extinguisher for garage with fire port from the cockpit

Flares: Orion

EPIRB: ACR 406

8.3 Safety Equipment

Life Rafts: (2) 10-person Euro-Vinyl

Life Rings: 24” USCG approved

Smoke Detection: Yes

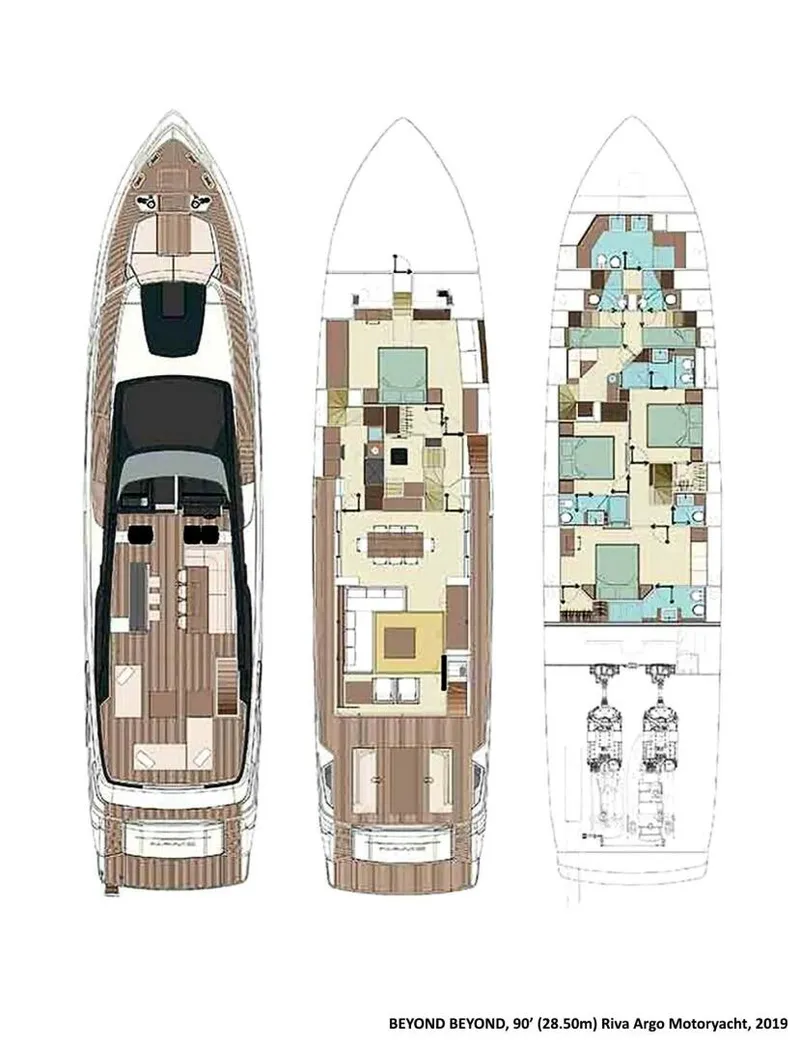

9.      ACCOMMODATIONS

This exceptionally maintained 90 Argo is in impeccable condition and offers spacious accommodation for eight guests. The arrangement comprises an on-deck master suite, a VIP double and two guest cabins that can be configured as double or twin berths. Each stateroom features an en-suite.

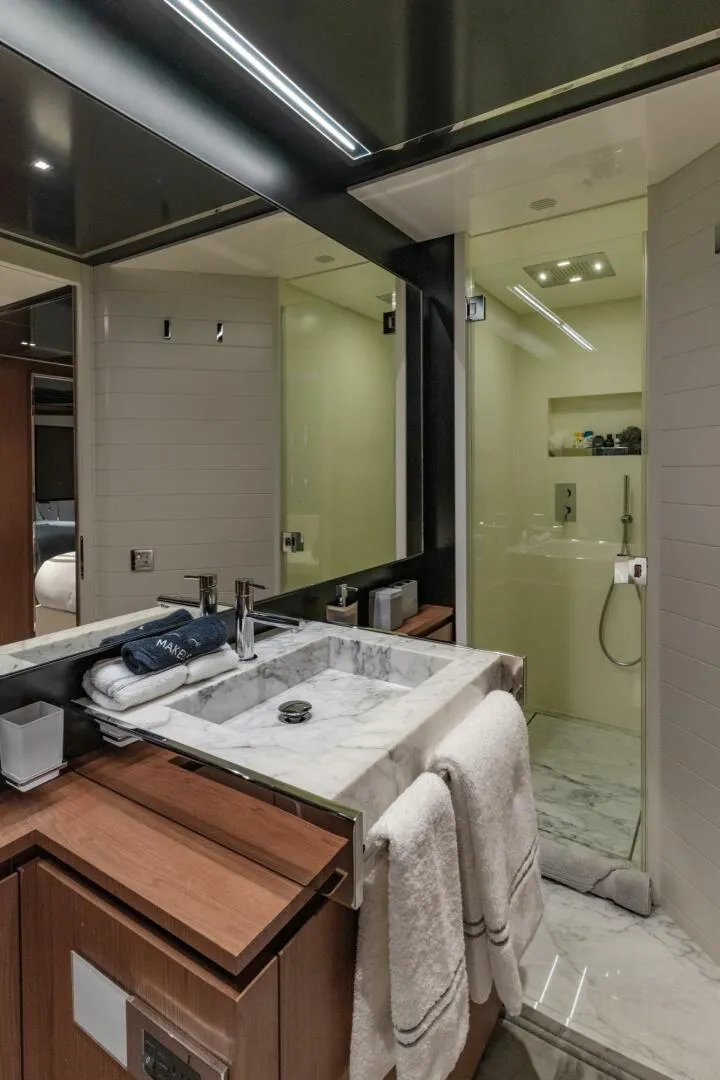

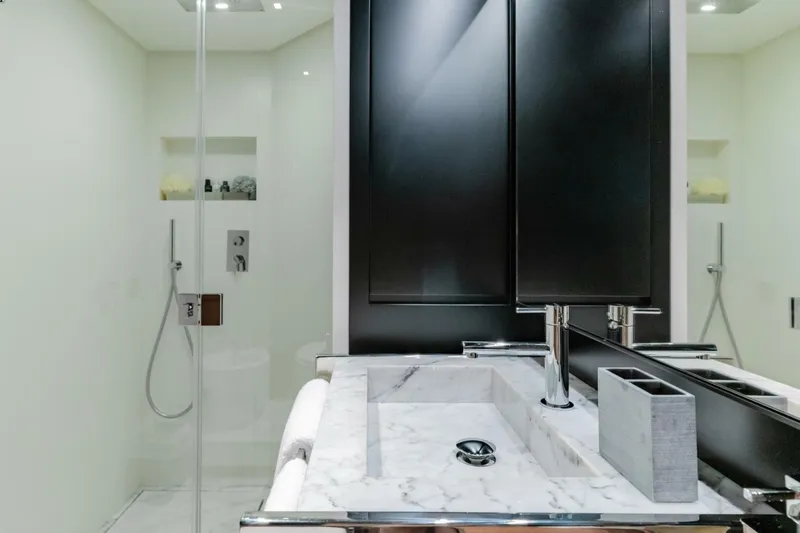

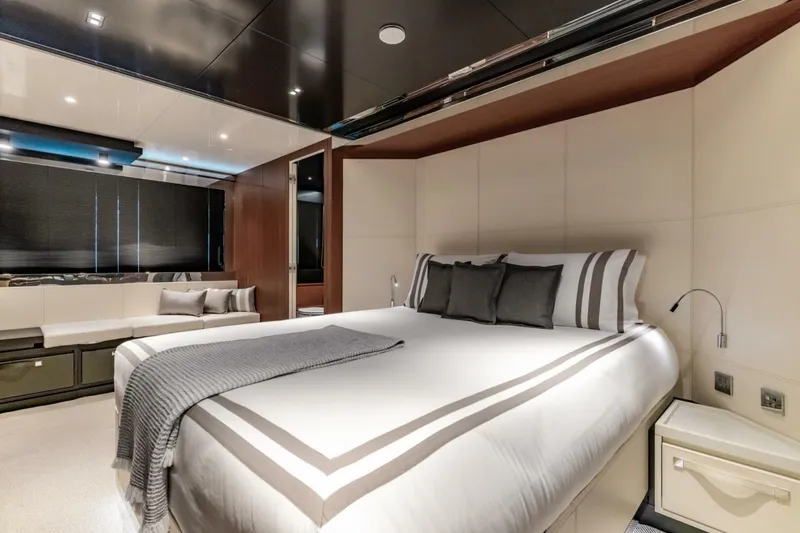

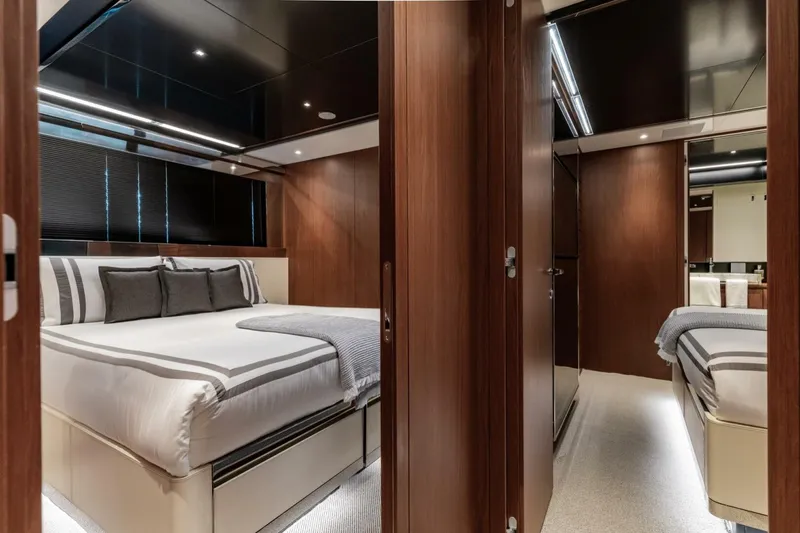

LOWER DECK:

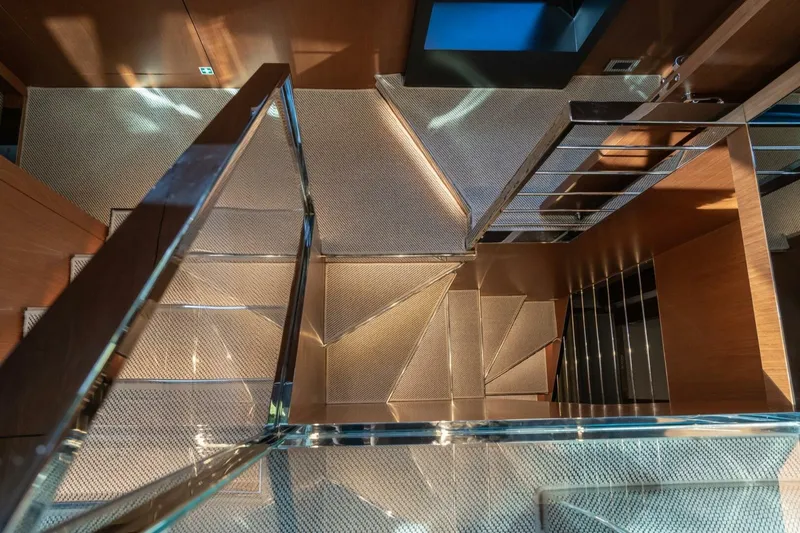

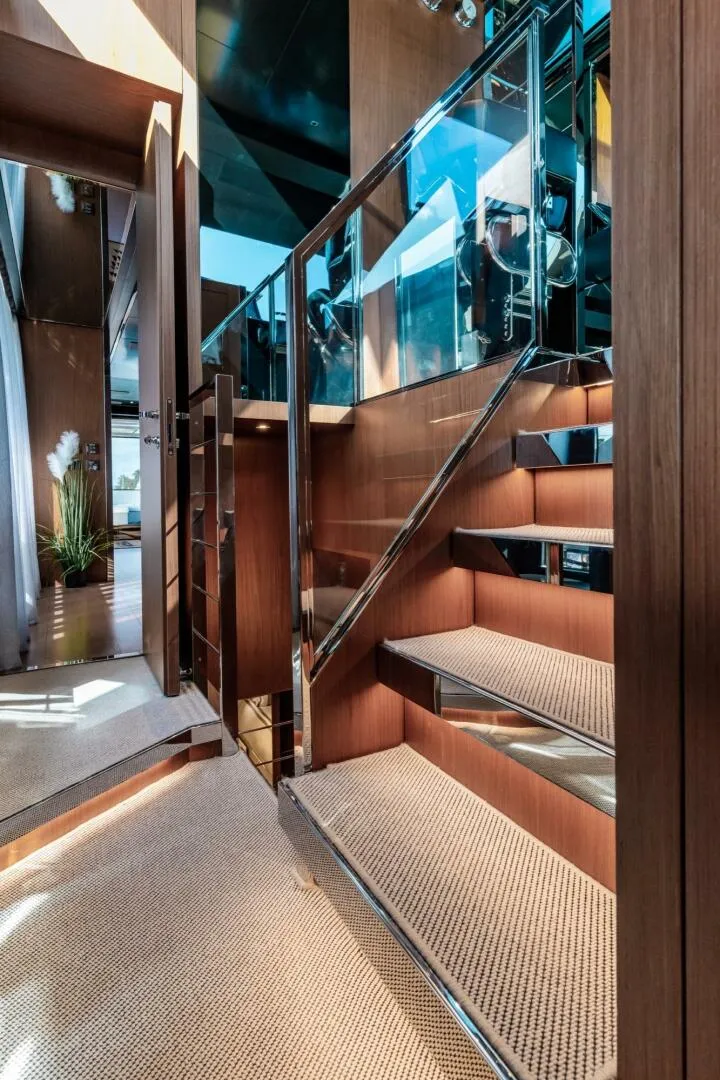

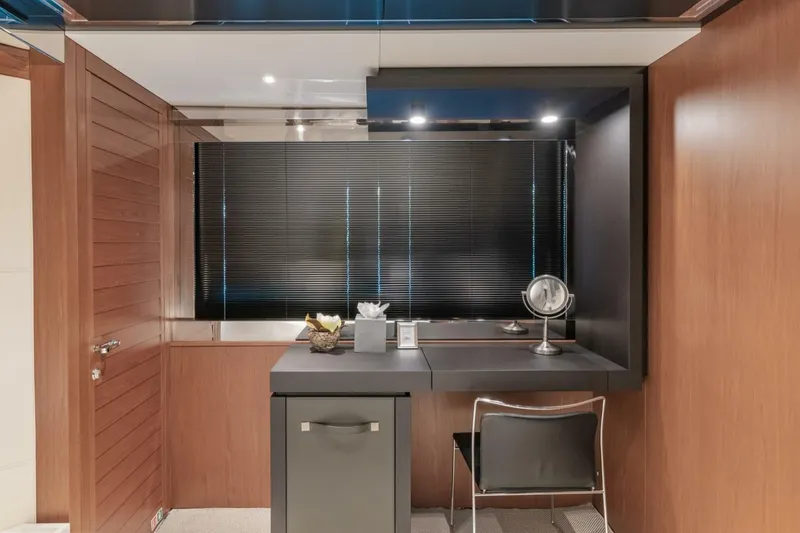

Forward of the dining area is a winding stairway with stainless handrails and glass siding that leads to the lower guest foyer and staterooms. Aft of the stairs is the full-beam VIP with a centerline, sole leather upholstered queen bed with drawers for storage. Forward of the stairs are two double cabins that can be converted to twin beds. Each guest room is faceted with modern furniture, a 32’ TV and entertainment system, ample closet space with additional storage under the beds, and an en-suite. All guest bathrooms feature Calcatta Austale marble floors and sinks.

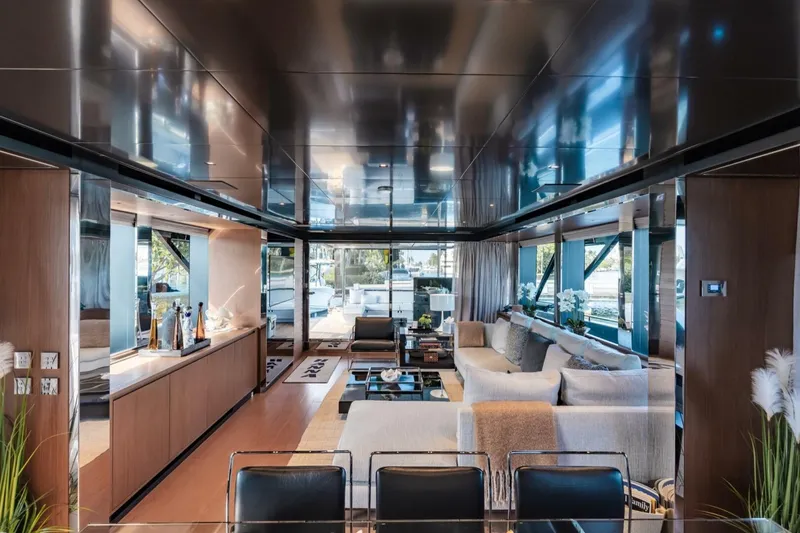

MAIN DECK:

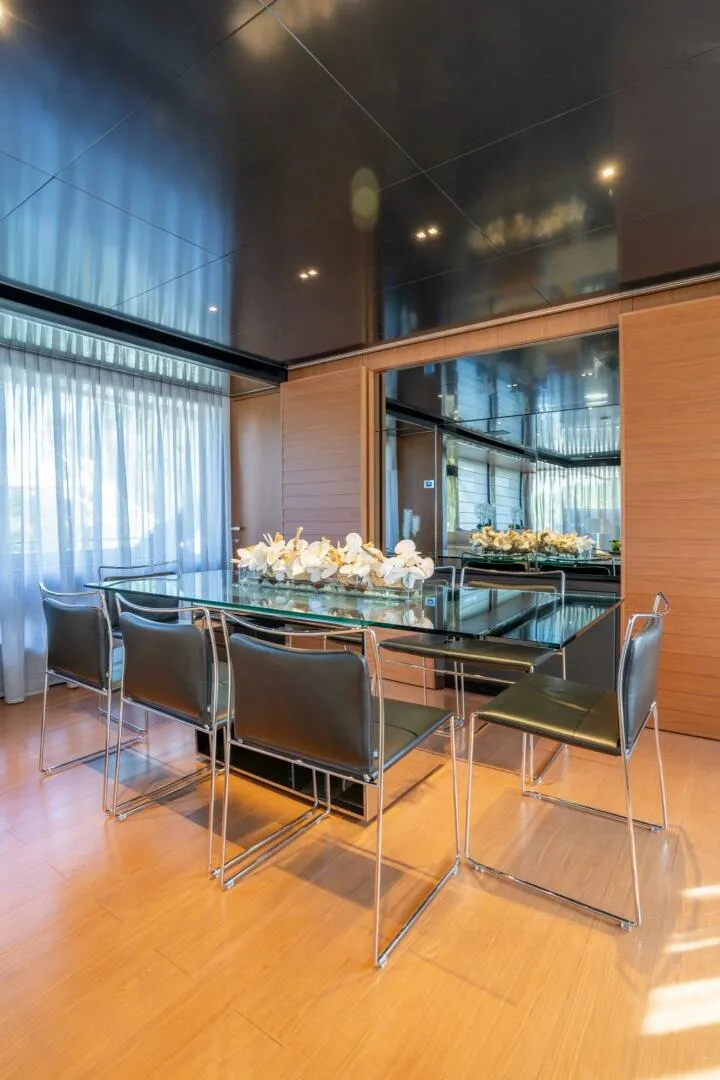

On the main deck, a large frame supports the superstructure and runs around the outside of the full-height glass windows. The spacious lounge covering almost 40m² is open to the sea and reaches heights of over 2.1 m. It is furnished with two lounge chairs, an L-shaped sofa, and a retractable TV. Beyond it is the formal dining area, with a large table and seating for eight guests. A special touch is added by incorporating a panoramic balcony on each side near the windows.

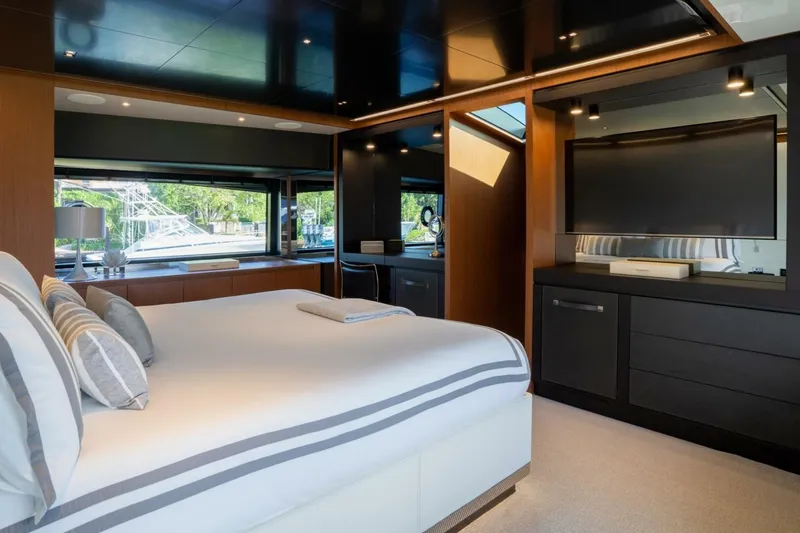

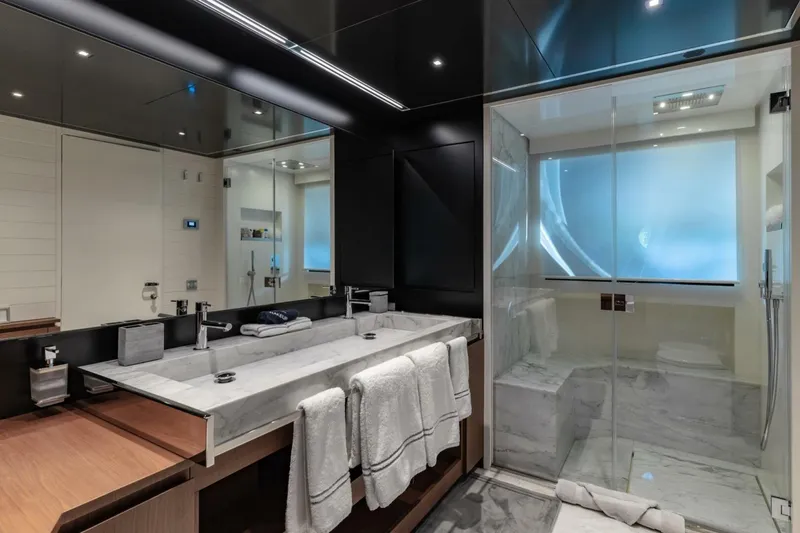

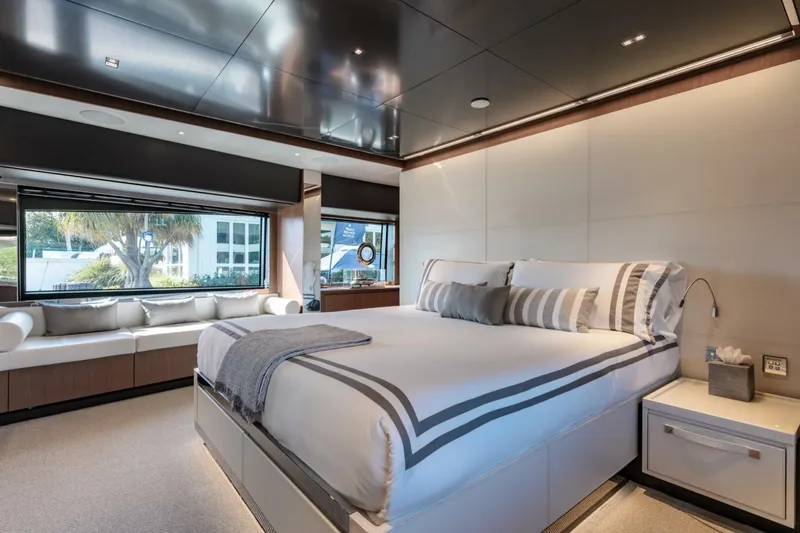

OWNER’S STATEROOM:

Forward of the guest stairway, owners are welcomed into their on-deck suite with large windows that allow natural light to beam through on both sides. Centerline is a queen-sized bed, framed in sole leather upholstery and stainless- steel polished details with a bed lifting system to allow for additional storage underneath. Lacquered nightstands with doors in sole leather and a glass top sit on each side of the bed. Matching storage furniture and large vanity is located on the starboard side along with a wardrobe with a mirror and ample space. The en-suite is set with Calacatta Australe Marble and his and her sinks, with lacquered walls.

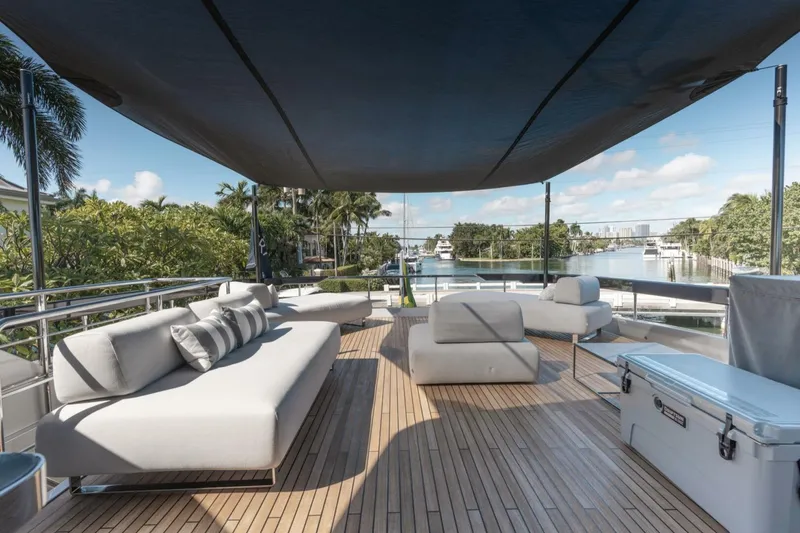

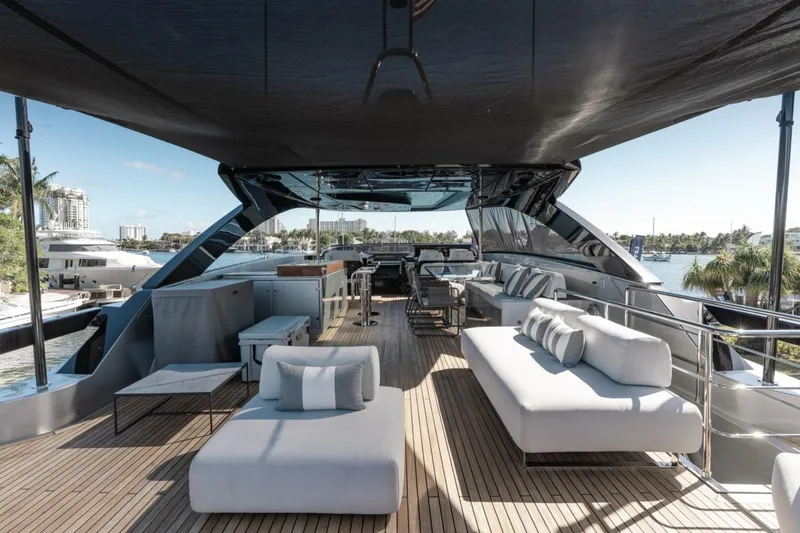

FLYBRIDGE DECK:

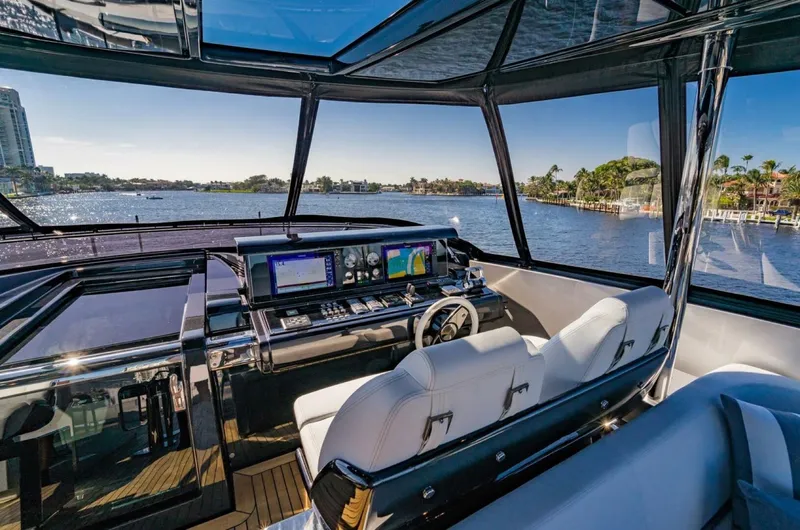

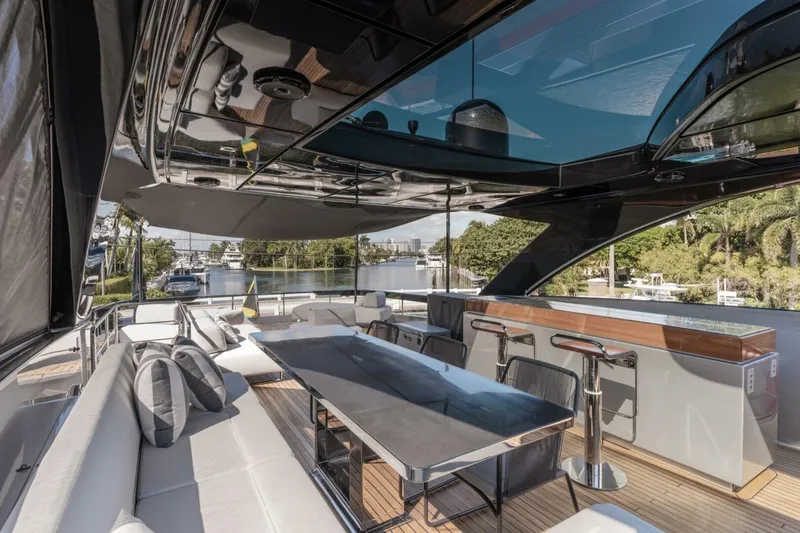

Access to the flybridge is up the stairs from either the aft deck or pilot house. A second fibreglass varnished control station with up-down system for forward display, upholstered steering wheel, instrumentation, compass, and alarm lights sits forward near the pilot house entrance. An additional dining table and L shape sofa with upholstered cushions, two helm chairs, and floating furniture aft provides substantial space for entertaining. Side cabinets with electric opening system top, equipped with sink, 24V refrigerator, storage and electric grill are located opposite the dining table.

CREW ACCOMMODATION:

The crew area is accessed from the main deck galley. The crew mess features an L-shaped sofa, teak table and crew kitchen. There are two crew cabins with pullman bed and private head for a total of 4 crew berths.

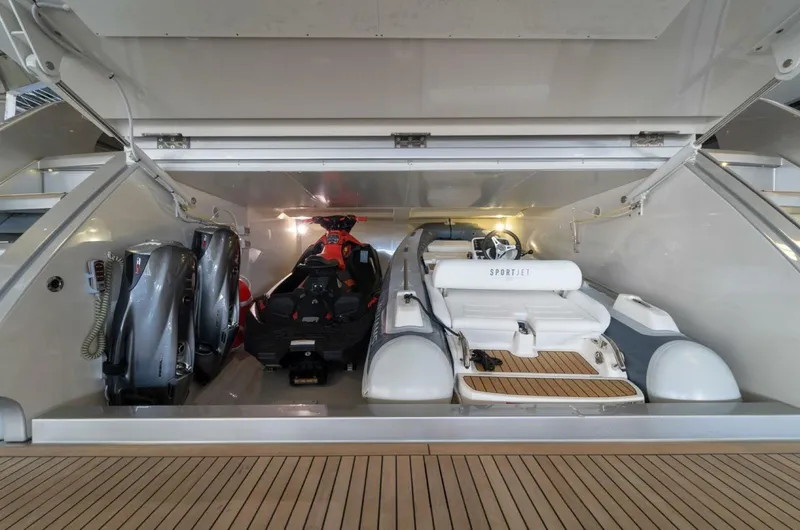

 GARAGE

The aft garage features an electrohydraulic platform. She houses a Williams Sport Jet 395 as well as a SeaDoo Spark Jet Ski

10.  COMMENTS

BEYOND BEYOND, the Riva 90 Argo is a large volume yacht with features such as an on-deck owner’s suite, full-beam VIP, a large tender storage garage, and three distinct outdoor entertainment areas. Built on Riva’s proven hull design, she is an excellent performer and ready to take off on her next voyage.

KEY FEATURES

• Accommodates 8 guests in 4 expansive staterooms

• Vast main deck master stateroom with lounge and ensuite

• Three spacious outdoor entertainment areas

• MTU extended propulsion warranty until 2026

• Zero speed stabilization with fins and Seakeeper Gyro stabilization

• New Dometic Titanium chiller plant with 5 year warranty (2025)

• New hydraulics for swim platform (2025)

• Recently completed yard period with new bottom paint and new Cutlass bearings (2025)

• U.S. duty paid
