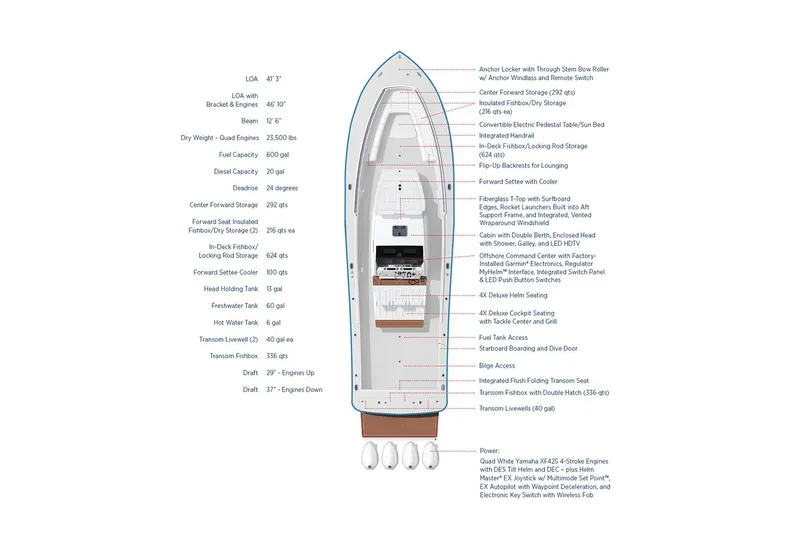

• LOA: 41’ 3”
• LOA w/ Bracket & Engines: 46’ 10”
• Beam: 12’ 6”
• Bridge Height: 128” (194” w/ Tower)
• Height from Keel: 162” (228” w/ Tower)
• Dry Weight w/ Engines: 23,500 lbs
• Fuel Capacity: 600 gal
• Diesel Capacity: 20 gal
• Deadrise: 24 Degrees
• Draft: 29” Engines Up
• Draft: 37” Engines Down

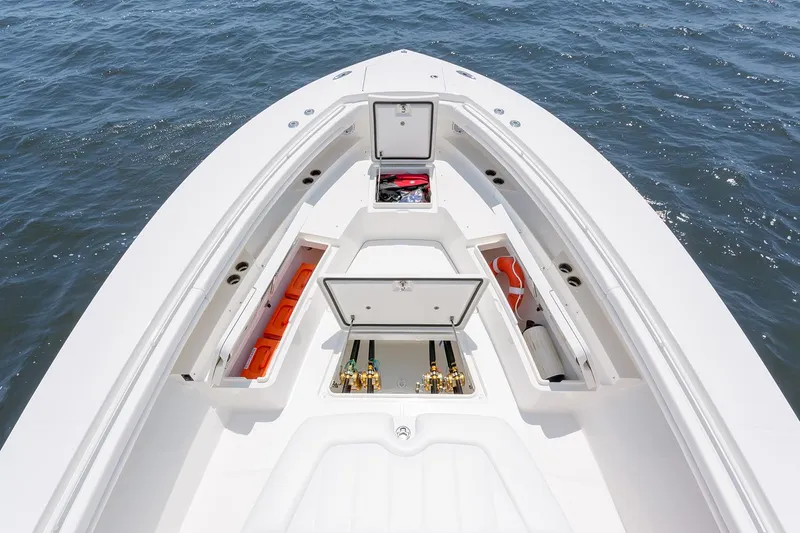

• Center Forward Storage: 292 qts

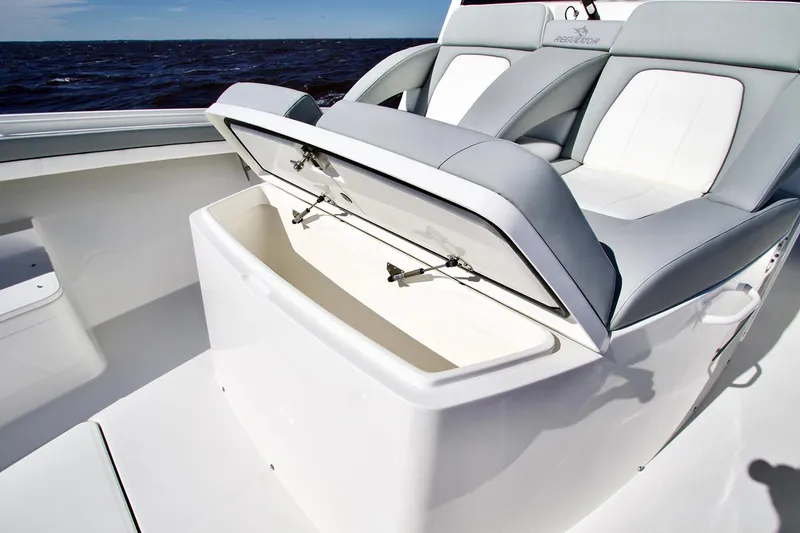

• Fwd Seat Insulated Fishbox/Dry Storage: (2) 216 qts ea
• In-Deck Fishbox/Locking Rod Storage: 624 qts
• Forward Settee Cooler: 100 qts
• Head with Holding Tank: 13 gal
• Freshwater Tank: 60 gal
• Hot Water Tank: 6 gal
• Transom Livewell (2): 40 gal ea
• Transom Fishbox: 336 qts

POWER

• Quad White Yamaha XTO Offshore® 450 4-Stroke Engines with DES Tilt Helm and DEC – Plus Helm Master® EX Joystick with Multimode Set Point™, EX Autopilot with Waypoint Deceleration, and Electronic Key Switch with Wireless Fob

SYSTEMS

• Seakeeper® 4.5 Gyro Stabilization System
• Onan 7.5kw Diesel Generator
• (2) 40-Amp Battery Charger with 50' Power Cord
• Battery System with Key-Fob Enabled Switches and (8) Marine Batteries

T-TOP, HELM & ELECTRONICS

• Fiberglass T-Top with Surfboard Edges, Electronics Box, Integrated Navigation/ Dock Lighting, Spreader Lights, and Multi-Colored LED Lights – Complete with Integrated, Vented, Wraparound Windshield and Windshield Wiper/Washer, Plus Rocket Launchers built into Aft Support Frame
• White Powder Coat Package

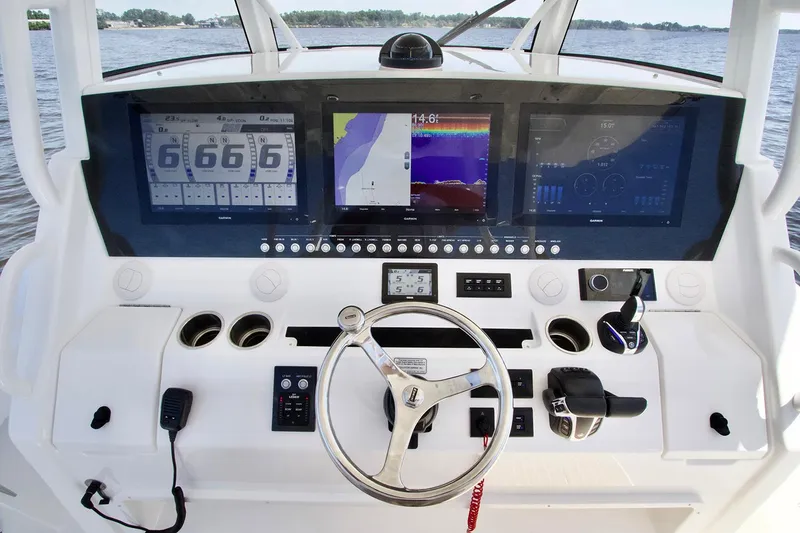

• Factory-Installed Garmin® Offshore 41 Package: Triple 17’’ GPSMAP® 8617 Multi-Touch Widescreen Chartplotter/Sonar Displays, VHF 215 AIS Radio with Dual 8’ Antennas, GMR™ 1224 xHD 12kW Open-Array Radar, Airmar® B275LHW with Wide Beam 1kW CHIRP Transducer, and Yamaha EX Autopilot, Plus Black Flushmount Electronics Face and Remote Mic
• Offshore Command Center: Garmin® Multi-Function Displays with Digital Switching and Monitoring, Plus Proprietary Regulator MyHelm™ Interface for Seamless and Intuitive Connectivity of Key Functions via Touchscreen
• Integrated Switch Panel with LED Push Button Switches
• Ritchie® SuperSport Compass
• Yamaha Next Generation Digital Boat Control System with Tilt Helm Digital Electric Steering (DES), Multifunction Digital Electronic Control (DEC), EX Autopilot with Waypoint Deceleration, Electronic Key Switches (EKS) with Wireless Fob, Helm Master® EX Joystick with Multimode Set Point™, and CL5™ Multifunction Touchscreen Display
• Fusion® Apollo 770 Marine Stereo with AM/FM/WB, SiriusXM® Ready, Wi-Fi Audio Streaming, Apple AirPlay 2, Bluetooth®, Integrated DSP, (10) Premium Backlit Speakers, (2) Subwoofers, Amps, External Antenna, and Integrated Wi-Fi
• Siren Trident with Siren 3 Pro
• EZ-View Flushmount Electronic Mounting Face with Access in Head Compartment
• Illuminated Glove Boxes with Fiberglass Lids
• Recessed Upholstered Console Storage Trays with Dash Brow
• Stainless Wheel with Knob
• Helm Air Conditioner Vents
• Synthetic Teak Marine Decking at Helm

CONSOLE INTERIOR

• USB Charging Ports
• CO Detector
• Courtesy LED Lights
• Bilge High Water Alarm

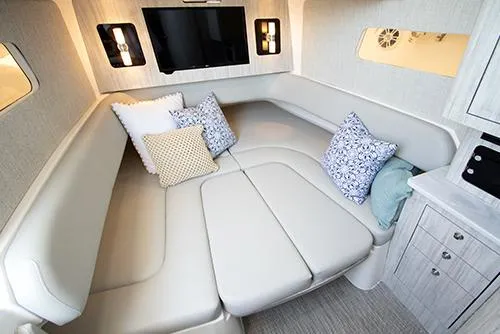

• Sleeping Accommodations for Two with Reading Lights

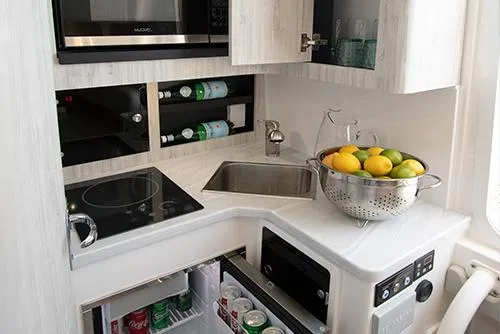

• Galley with Refrigerator, Microwave, Sink, Inductive Cooktop and Cabinet Storage

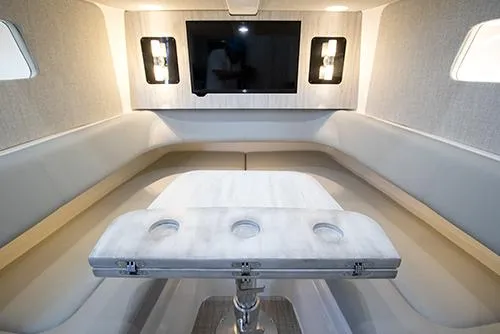

• Dining Table with Seating for Four
• Air-Conditioned Cabin
• LED HDTV
• Owner’s Choice of Classic Luxe Interior Package with Warm Beige and Deep Brown Tones OR Halcyon Luxe Interior Package with Cool Grey and Warm White Tones Across Countertops, Cabinets and Chilewich Accents

HEAD INTERIOR

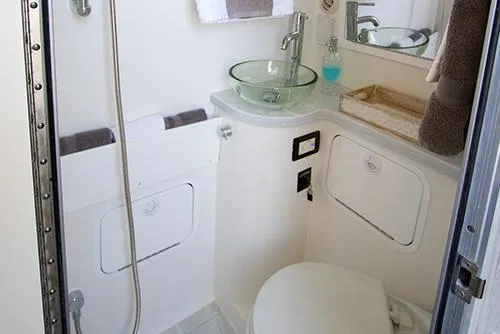

• Stand-Up Head Compartment with Solid Surface Countertop, Sink with Hot Water and Cabinet Storage, Interior Lighting and Mirror
• Electric Head with 13 gal. Holding Tank
• Hot Water Shower and (2) Towel Racks
• Vented Port Light

DECK & COCKPIT

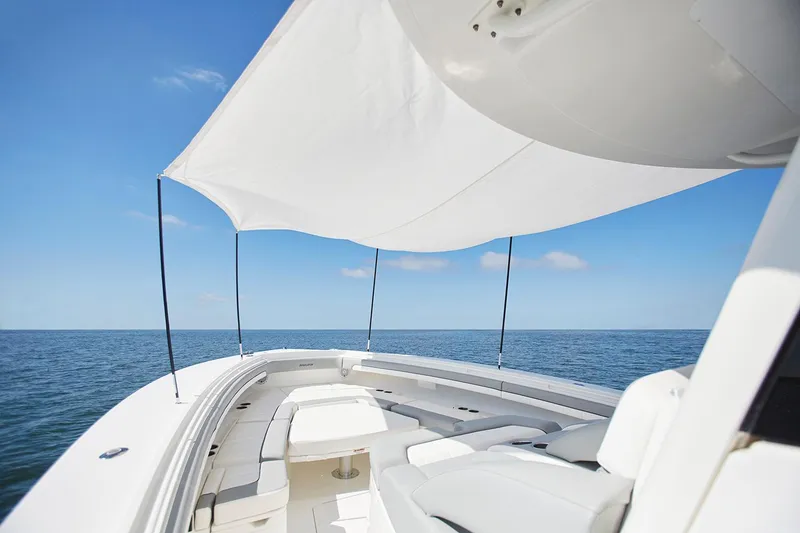

• Automated Rear Shade (Natural White)
• 360° Coaming Pads
• Stainless Steel 14x18 Trim Tabs with Indicator Switch

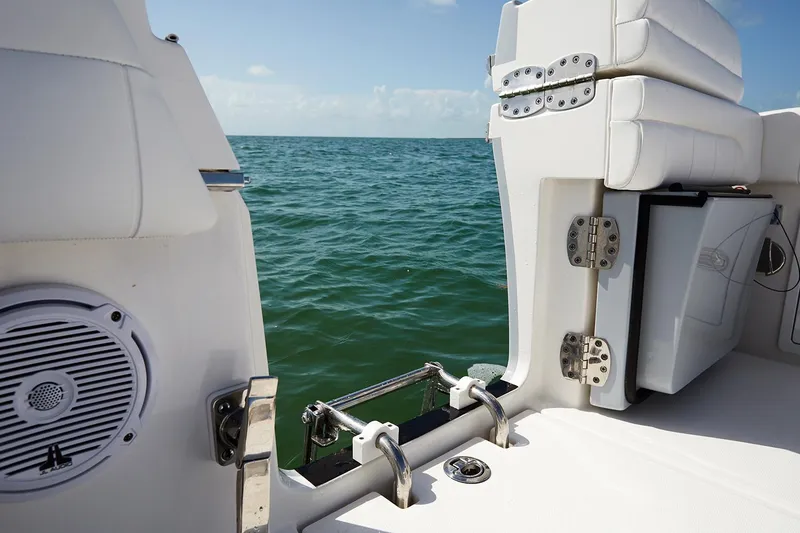

• Starboard Boarding and Dive Door with Integrated Folding Ladder
• Pull-Up Bow Cleats
• Stainless Steel Hardware Through-Bolted with Elastic Stop Nuts
• Molded-Non Skid Horizontal Surfaces
• Engine Bracket with Integrated Telescoping Ladder and Synthetic Teak Marine Decking
• Through Stem Bow Roller with Anchor Windlass in Forward Deck Anchor Locker, Freshwater Anchor Wash, Remote Switch, Chain, Chain Stop, Anchor, Freshwater Wash Down and Overboard Drain
• Stainless Steel Scuppers
• USB Charging Ports (FS Area)
• Ten (10) JL Audio® Backlit Speakers

SEATING

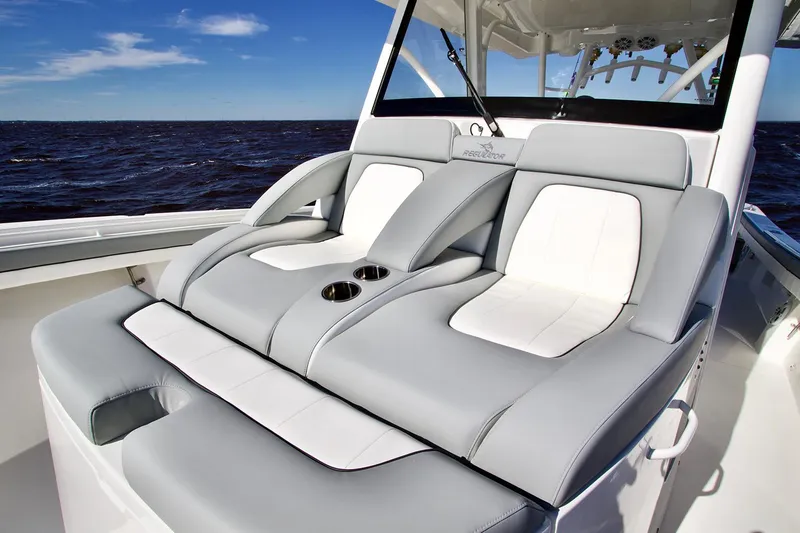

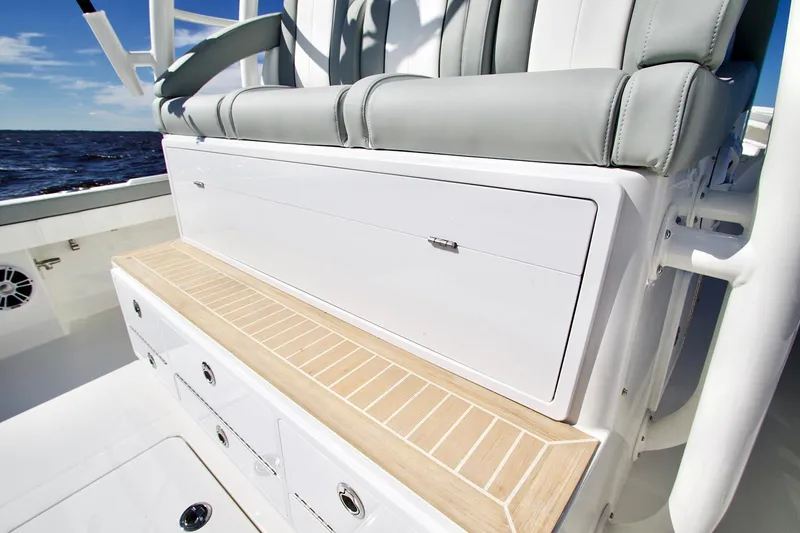

• 4X Deluxe Helm and Mezzanine Seating: Triple Helm Companion Seats with Armrests, Flip-Up Bolster, and (3) Individual Folding Footrests with SoftGripFoot Rail. Step-Up Mezzanine Seating for Three includes Tackle and Tray Storage Compartments and (11) Rocket Launchers built into Aft Support Frame

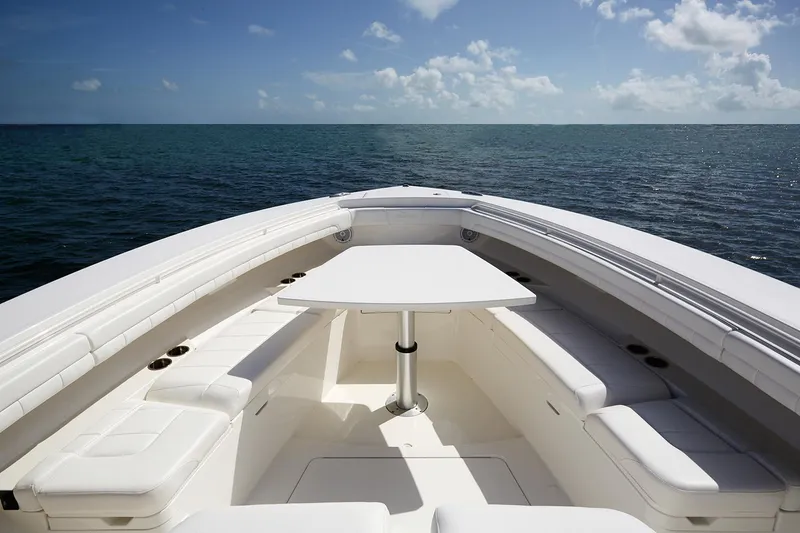

• Forward Seating with Flip-Up Backrests (2)
• Forward Console Settee with Built-In Insulated Cooler
• Integrated Flush-Folding Transom Seat
• Flush-Mounted Fiberglass Sun Bed with Filler Cushion and Convertible Pedestal Table with Electric Motor to Raise/Lower

FISHING EQUIPMENT

• Insulated, Illuminated Forward Fishbox (2)
• 60 gal. Freshwater System with Wash Down Faucets (2) and Transom Shower
• Insulated, Illuminated 336 qt. Transom Fishbox
• Insulated, Illuminated 40 gal. Transom Livewell (2)
• Raw Water Wash Down and Livewell Plumbing
• (6) Stainless Steel Aft Gunwale Conventional Rod Holders
• (2) Conventional Transom Rod Holders
• 624 qt. In-Deck Illuminated, Macerated Fishbox/Locking Rod Storage (Holds 8 Rods)

*Some standards may be upgraded based on the options you choose.

EXTERIOR COLORS

• Featured or Custom Hull Color - Entire Hull or Sides Only
• Bracket with Matching Gelcoat Color

POWER & SYSTEMS

• Arid Bilge Systems Series 2 (12V, 2-Zone)

T-TOP & TOWER

• Dual-Station Tower with Controls and Hardtop, Including Garmin® 115 VHF, GPSMAP® 943, and Yamaha CL5™ Touchscreen Display
• GEMLUX® Bluewater Outrigger Bases with 22’ Carbon Fiber Collapsible Poles and GEMLUX® Double Rigger Kit
• T-Top Underside to Match Hull Sides
• T-Top Underside Different Than Hull Sides
• T-Top Storage Compartment

SEATING AND UPHOLSTERY

• 4X Deluxe Entertainment Edition**: Retains all Triple Helm and Mezzanine Seating Features–Plus Recessed Prep Area under Mezzanine Seat with Countertop/ Electric Grill/Sink/Drawers operated via Automatic Switch
• Dove Gray Upholstery
• SandbarUpholstery
• Diamond Quilted Upholstery
• Teak Accents

ELECTRONICS

• Factory-Installed Garmin® GXM™ 54 SiriusXM® Marine Weather Receiver Upgrade
• Additional T-Top Garmin® 12” GPSMAP® 1243XSV Touchscreen Chartplotter
• Factory-Installed Garmin® GMR™ Fantom 124 Open-Array Radar**
• Factory-Installed Garmin® GT36UHD-TM Ultra High-Def ClearVüand SideVüSide Scan Transducer†
• Second VHF 215 AIS Radio
• (2) Inductive Cell Phone Chargers: (1) at Helm, (1) Inside Console
• (2) Inductive Cell Phone Chargers in Recessed Console Trays
• ElectricAnchor Light and Antenna Mounts (Not Available with Tower)
• FLIR™ M232 Thermal Camera
• Multi-Colored Underwater LED (2)
• LED Light Bar

FISHING UPGRADES

• Refrigerated Transom Fishbox
• (2) Clear Port and Starboard Livewell Lids with Etched Regulator Logos
• (6) Aft Gunwale Cup Holder Rod Holders (Converted from Standard)
• (10) Additional Forward Gunwale Conventional Rod Holders OR (10) Additional Forward Gunwale Cup Holder Rod Holders
• Under Gunwale Rod Storage
• (2) Electric Reel Hook-Ups
• Under Gunwale Rod Storage (2)
• Electric Reel Hook-Ups
• Quick-Release Under Gunwale Gaff Holder

COMFORT & CONVENIENCE

• Edson™ Elite Carbon Wheel with Power Knob (Console)**
• Edson™ Elite Carbon Wheel with Power Knob (Tower)**
• Cockpit Freshwater Engine Flush
• Phender Pro™with (4) Quick-Release Fender Cleats
• Hose Coil Racks (2) for Raw Water and Freshwater Wash Downs
• Built-In 12V Watersports Inflation Station

SHADES & CANVAS

• Automated Rear Shade Color other than Standard Natural White (Various)
• Forward Sun Shade (Various Colors)
• All-Weather Spray Curtain Enclosure
• Helmand Seating Canvas Covers (Various Colors)
• Engine Canvas Covers (Various Colors)

**In Lieu of Standard
†Requires Addt’l T-Top Garmin® Chartplotte
