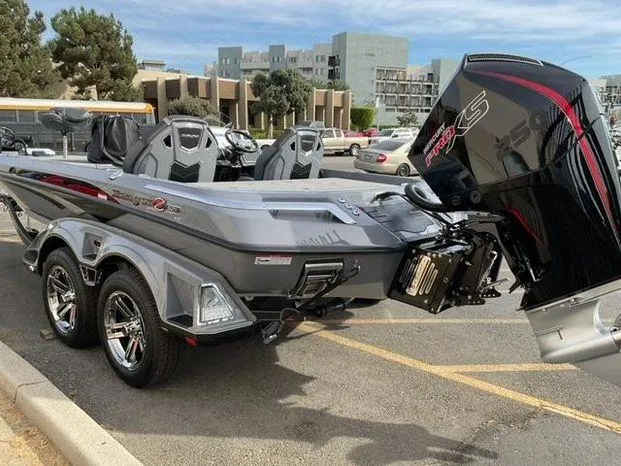

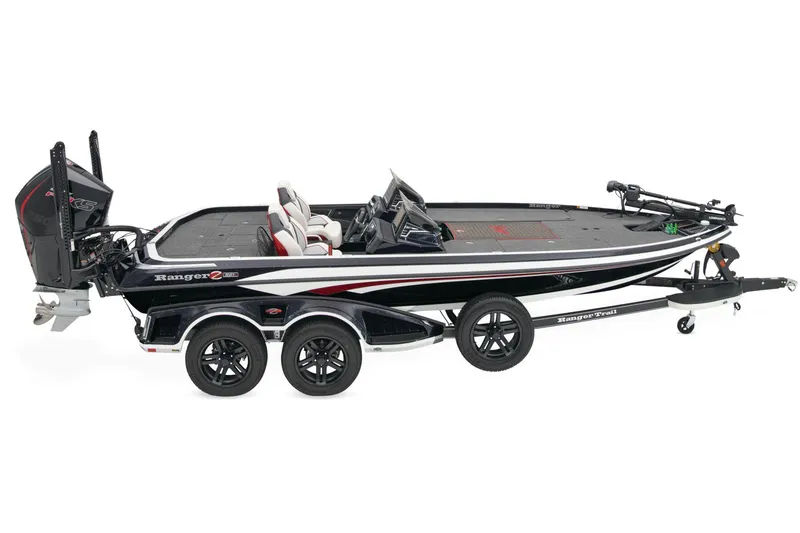

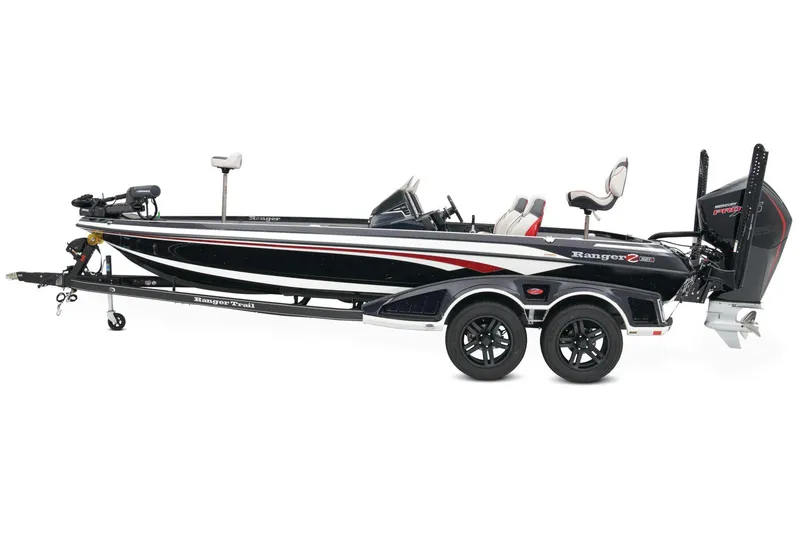

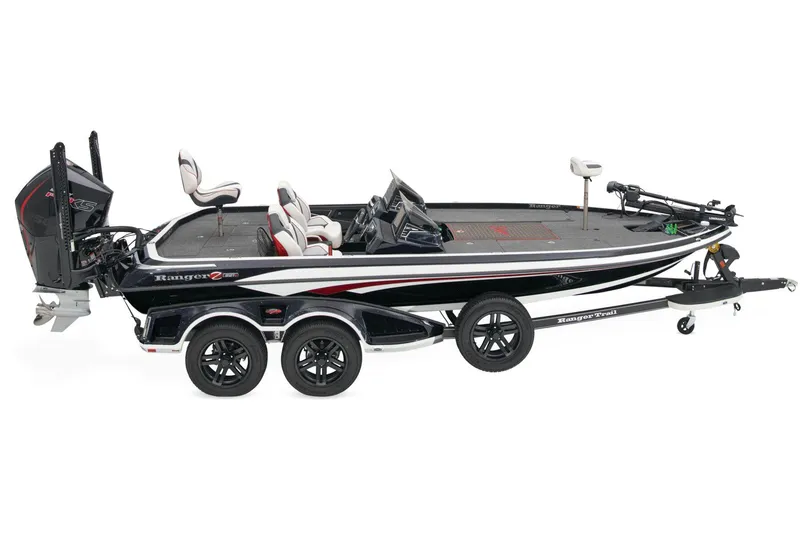

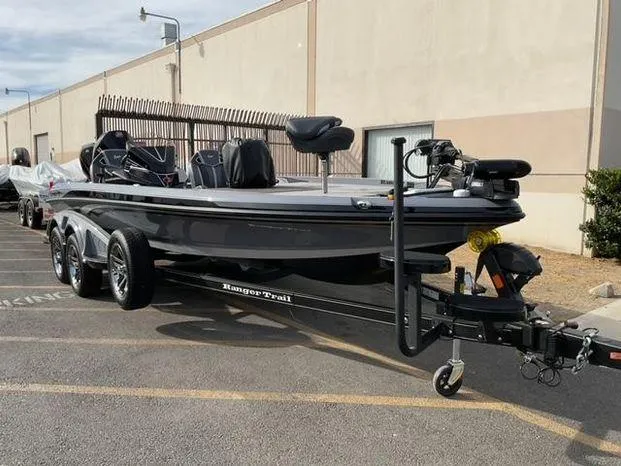

2025 Ranger Z521R Cup-Equipped
$106,370
Boat in Anaheim, CA 92806 US
Built in 2025
Z521R Cup-Equipped
1 Engine (MERCURY MARINE)
21.7 feet
Gas
Fiberglass/Reinforced
Custom color package (includes waterline stripe)

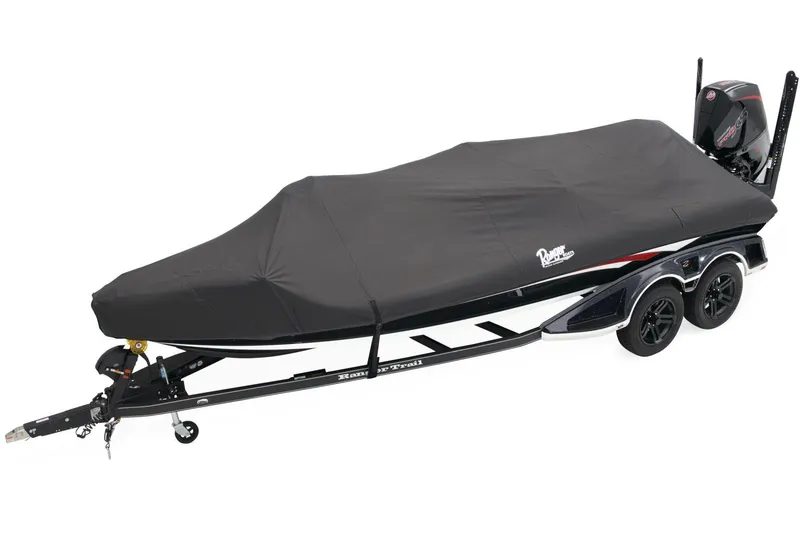

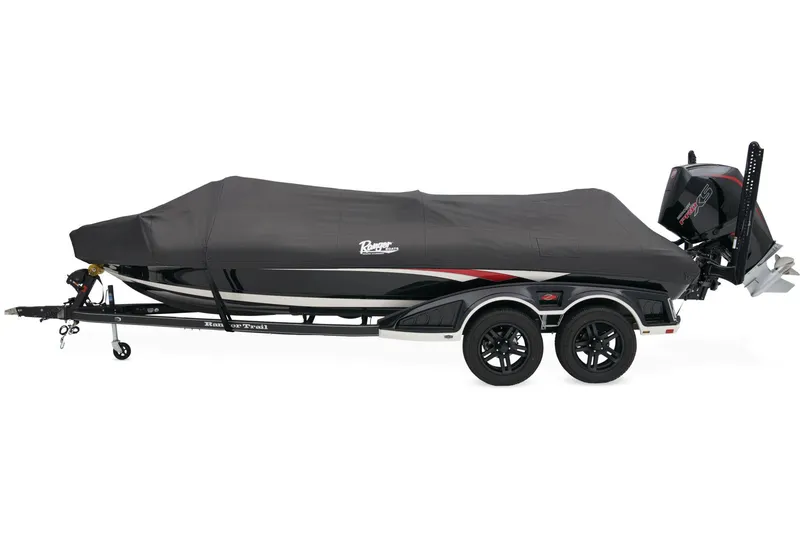

Deluxe boat cover flat (motor hood not included
Hamby's 6' keel protector / black

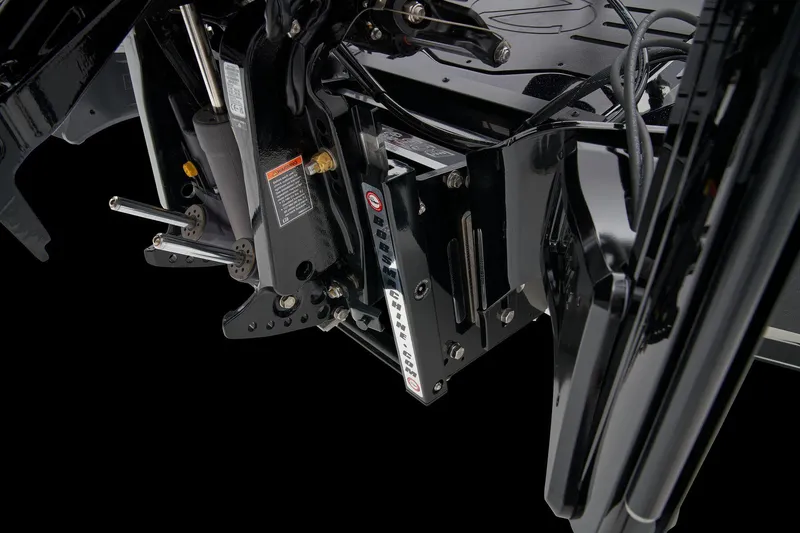

Bob's hydraulic setback plate
Trim Switch Lever Control
The Ranger Cup-Equipped package adds pro-selected options that let you hit the most daunting tournament trails with even more competitive advantage. Standard with factory-installed 12" graphs from Lowrance® or GARMIN®, the latest in forward-facing sonar technology, and a host of our most popular equipment from the Z521R options list, the Z521R Cup-Equipped package packs-on incredible value to the most hardcore tournament-ready machine on the water. For 2025 we've upped the ante even more by adding a host of top-tier touches to set apart this premium rig even more. New heated Cloud 9™ air ride SRS driver seating carries you in comfort, while a new non-skid traction pad graces the front deck for stylish functionality. Protecting your investment is a newly redesigned boat cover for even greater fit and security. Fishability gets an upgrade with a Minn Kota® Quest 115-pound thrust trolling motor and an optional dual BBT electronics mount keeps your graphs secure and easy to read in all conditions. Finally, a color-matched cockpit floor, push-to close latches, and compartment liner mats complement the peerless style of the Z521R Ranger Cup-Equipped. From bow to stern, hull to top cap, the Z521R has been tweaked, massaged, enhanced, and perfected across every inch with a passion for perfection. No element of the boat's design, performance, quality, safety, or fishability was untouched as we crafted this next-generation legend. The culmination of this work has yielded an all-new boat with revamped and elevated all-around performance that melds with aggressive modern styling that sets this rig apart as the apex of bass boats. Real-world improvements include a perfected hull that delivers rapid lift onto plane and a stronger top end. We've also elevated the technology that comes standard on the Z521R. The Ranger R.I.D.E. system lets you monitor and control every critical function while a key fob permits quicker start up and enhanced security when you're not nearby. The Z521R also features an industry-first push-to-start system that gets you to the next spot fast. Deep within the Z521R is a reimagined core and stringer system that not only bolsters our One-Piece Feel Interloc™ construction but permits larger storage boxes for even more space. The rod boxes feature an all-new Echelon tiered shelf system for unmatched customization, flexibility, and capacity and the ability to hole sticks up to 9'. Every box features an automatic light sensor that cuts on LEDs when a lid is lifted. A larger day box and massive 40qt. cooler feature the same construction as today's premium coolers for all-day-long ice. The Z521R carries more advancements in performance, technology, fishability, and style that not only set it apart from the crowd, but leads it.
-
Cup-Equipped™ tournament-ready electronics, trolling motor, and equipment package
-
Heated Cloud 9™ Air-Ride SRS Driver Seating
-
Push-to-Start Ignition
-

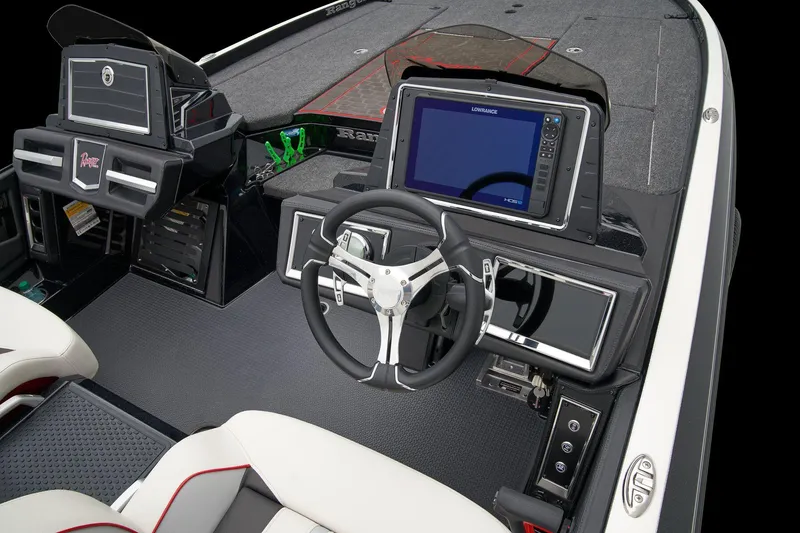

Ranger R.I.D.E. - integrating full-boat control and monitoring via 9" touchscreen
-
Traction Pad Front Deck Center Lid
-

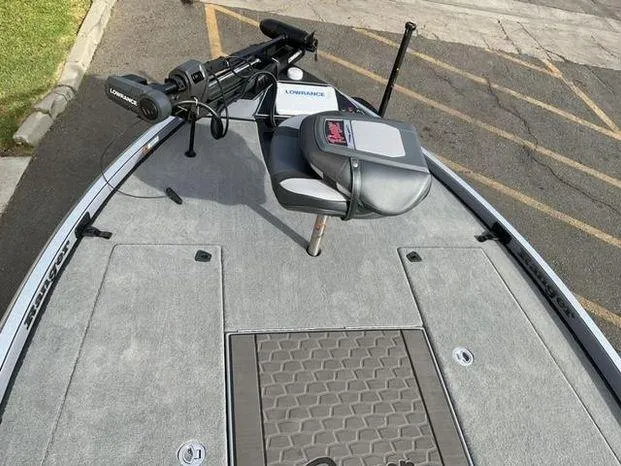

Padded Front Casting Deck
-
Pultruded Fiberglass Transom
-
Push-to-Close Latches
-
Length:21' 9"
-
Beam: 96"
-
Max. Recommended HP: 300 HP
-
Engine Shaft Length: 20"
-
Inside Depth: 21"
-
Fuel Capacity: 54 gal.
-
Livewell Capacity: 31 gal.
-
Total Person, Motor, Gear: 1900 lbs.
-
Approximate Boat Weight: 2300 lbs.
-
Rod Box Length - Port Top Shelf: 9 ft.
-
Rod Box Length - Port Middle Shelf: 8 ft.
-
Rod Box Length - Port Bottom Shelf: 7' 6"
-
Rod Box Length - Center Row 1: 8' 6"
-
Rod Box Length - Center Row 2: 8 ft.
-
Rod Box Length - Starboard: 7' 0"
-
Rod Box Length - Starboard Top Shelf: 7' 6"
-
Rod Box Length - Starboard Bottom Shelf: 6' 8"
-
Max. Person Capacity: 5 persons
-
Trailer GVWR: 5400 lbs.
-
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 27' 11"
-
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 25' 1"
-
Width On Trailer: 102"
-
Height On Trailer: 79"
Custom Details
-

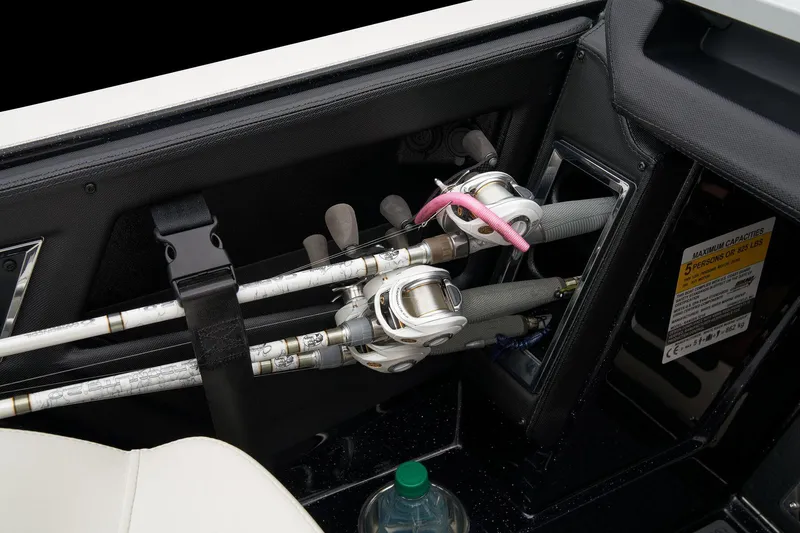

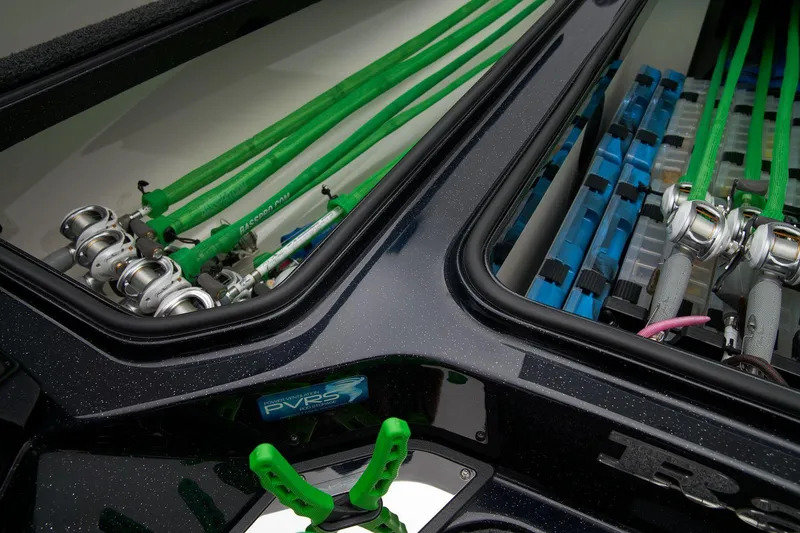

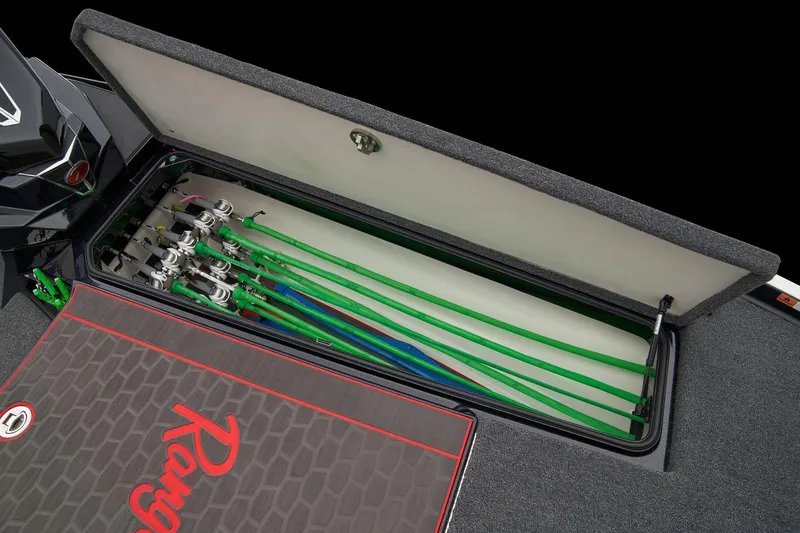

Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
-
Custom color package
-
Power Ventilation Rod Storage™
-

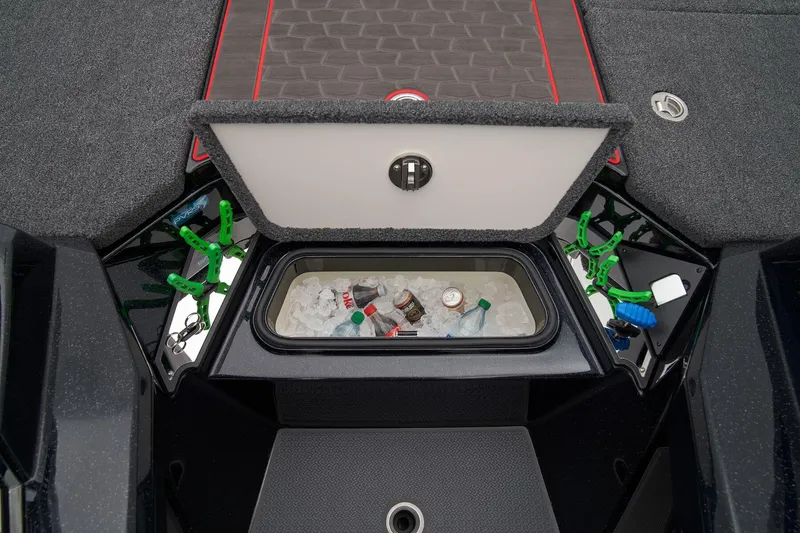

Insulated 40 qt. step-up cooler
-

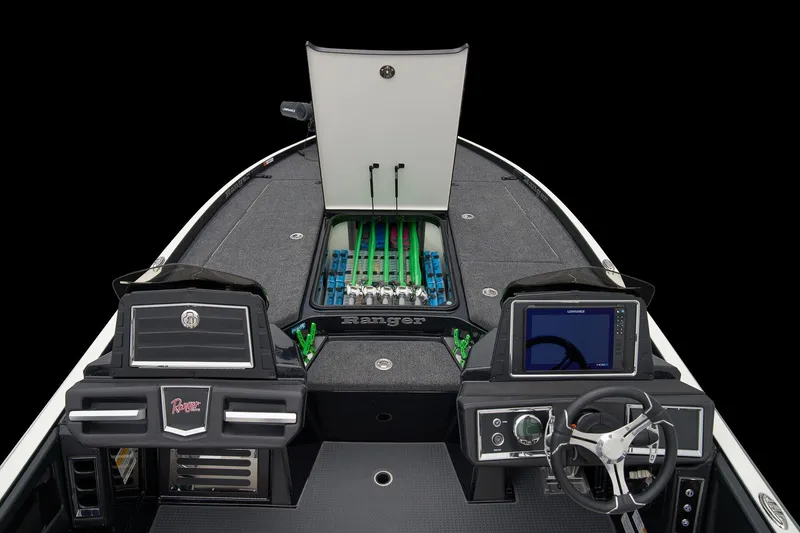

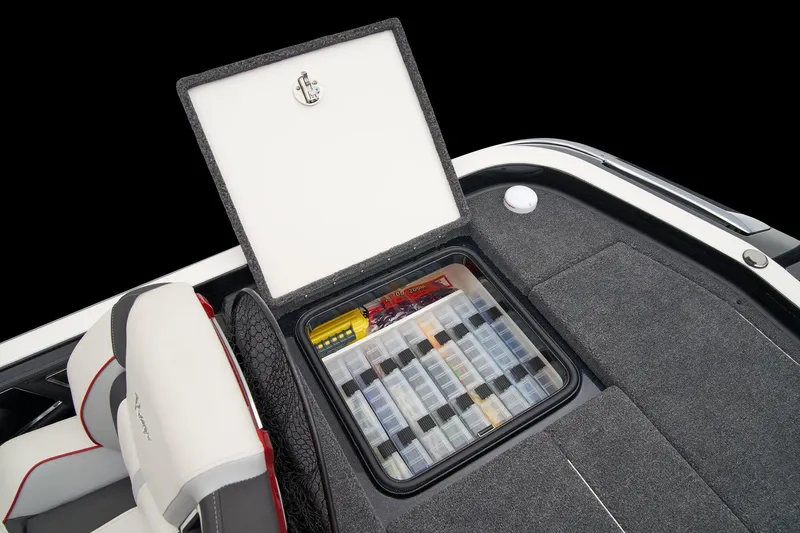

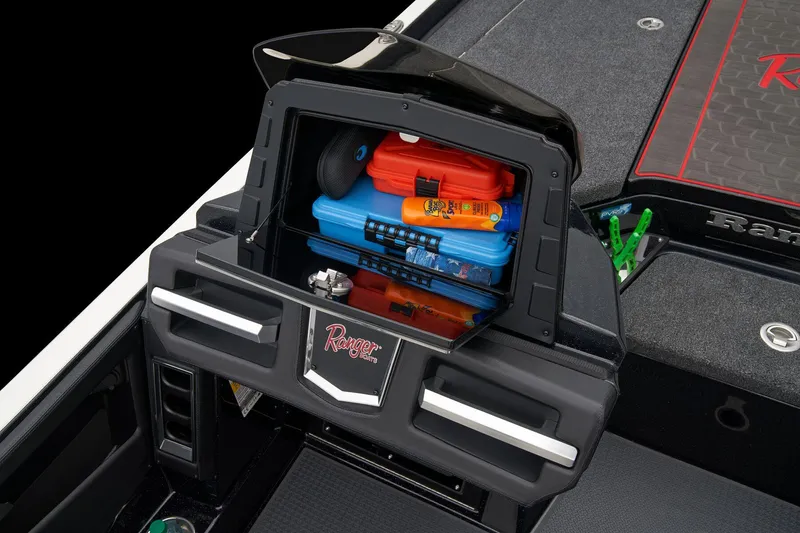

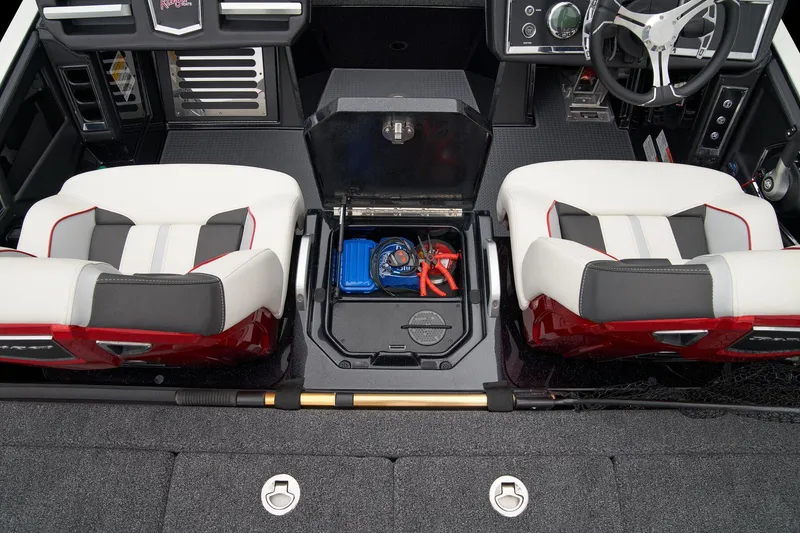

Integrated center-storage rod & tackle management system
-

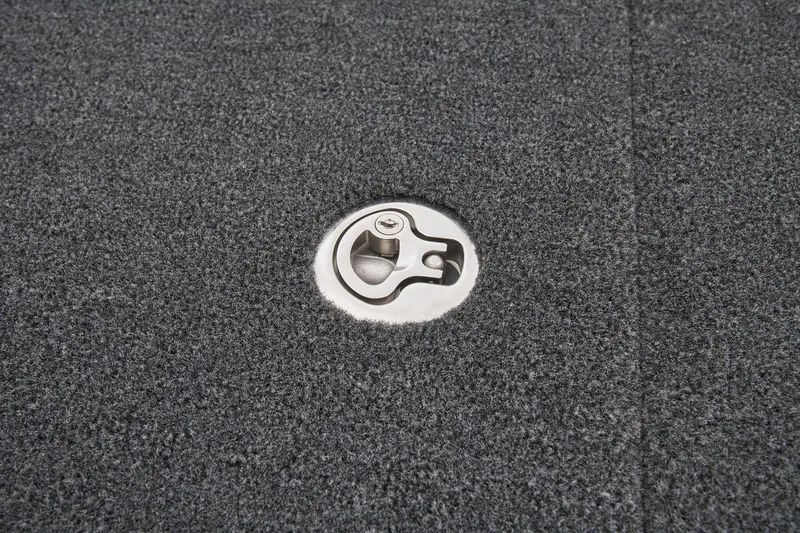

Stainless steel push-to-close locking latches
-
Traction Pad Front Deck Center Lid
-
Color-matched cockpit floor and compartment liner mats
-

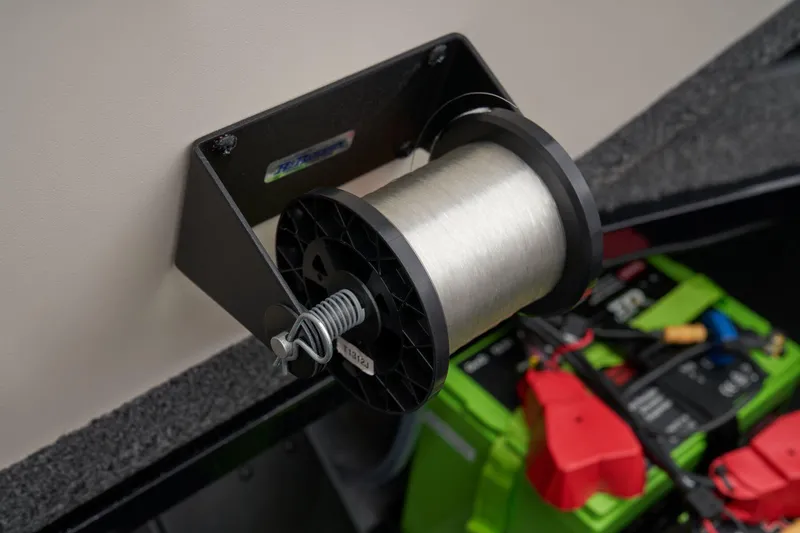

Integrated line spooling station under battery lid
-
Ranger® tournament measuring board integrated at front deck step
-
Retractable rod buckles
-
Runnin' rod rack w/ retractable strap
-
Remote drain plug
-
Tool holders at bow and front deck step
-
Pultrusion-reinforced decks, floors, transom & stringers
Electronics
-

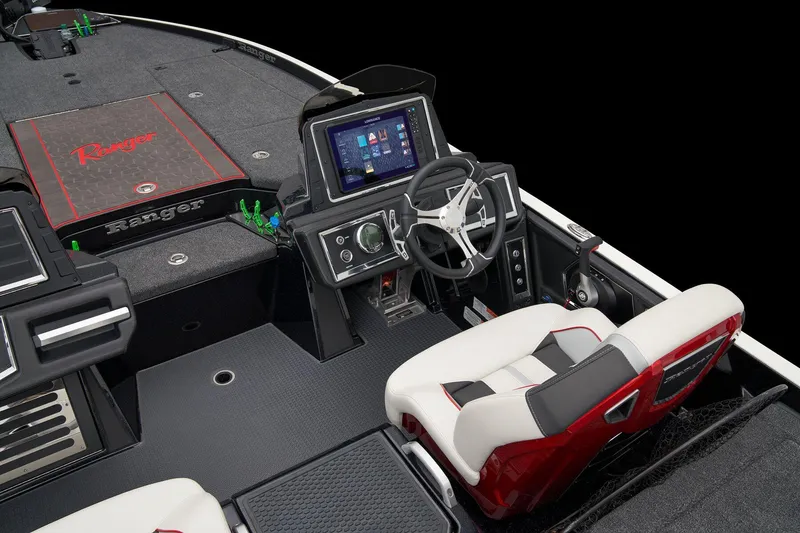

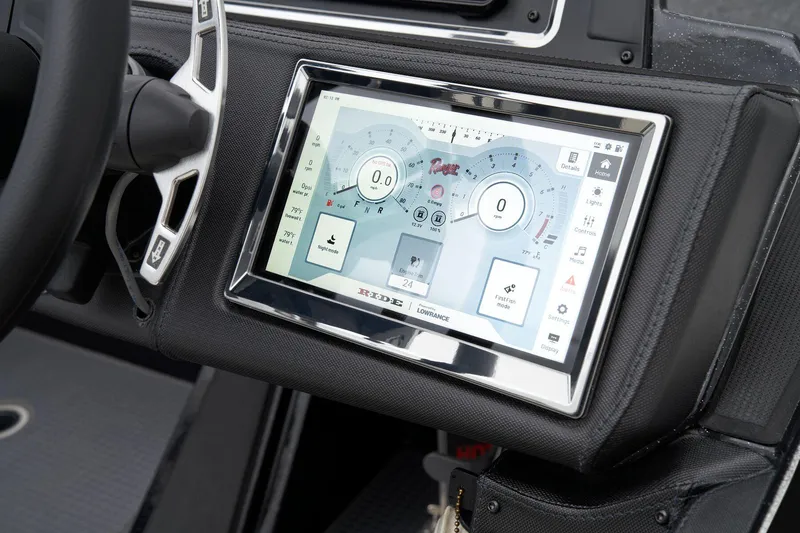

Ranger® R.I.D.E.™ (Ranger Intelligent Display Engine) -integrated full-boat network control and monitoring via 9" touchscreen
-
Push-to-Start Ignition with proximity Key Fob
-
Solid-state digital keypad at bow with push-button trim switches
-
Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
-
Ranger Cup Equipped Electronics Package (see RCE)
-
Ranger Cup Equipped Trolling Motor (see RCE Package)
-
Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker
-
Master Power on/off battery disconnect switch
-

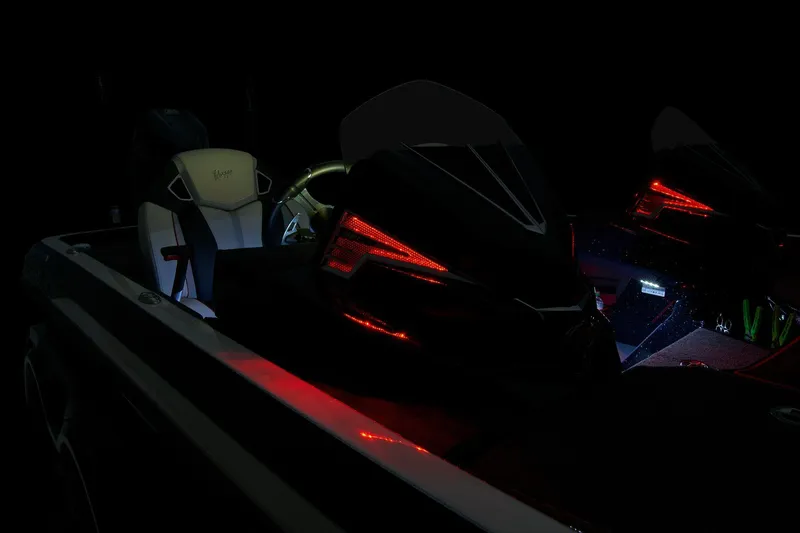

Auto-on LED storage compartment lighting & LED courtesy & livewell lighting
-
Integrated LED bow navigation lights & removable LED anchor light
-
Wireless phone charging station in Coin Box
-
12V power receptacle with USB
-
NOCO™ GB40 jump starter w/ on-board USB charging
-

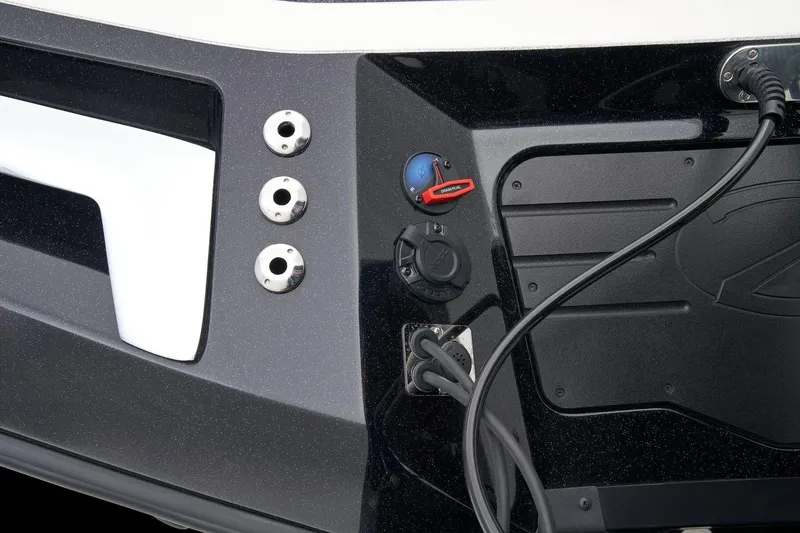

Dual Pro™ on-board 15A x 4 bank charger w/ auto-detect technology & remote charging port
-
Battery Charge Gauge
Ranger Cup Equipped - GARMIN® Package
-
GARMIN® ECHOMAP™ Ultra 2 126sv at bow
-
GARMIN® ECHOMAP™ Ultra 2 126sv at console w/ GT36UHD & GT8HW-IH Transducers
-
GARMIN® Live Scope™ Plus LVS34 Live Sonar
-
GARMIN® Force® 36V Trolling Motor
-
Blinker Trim
-

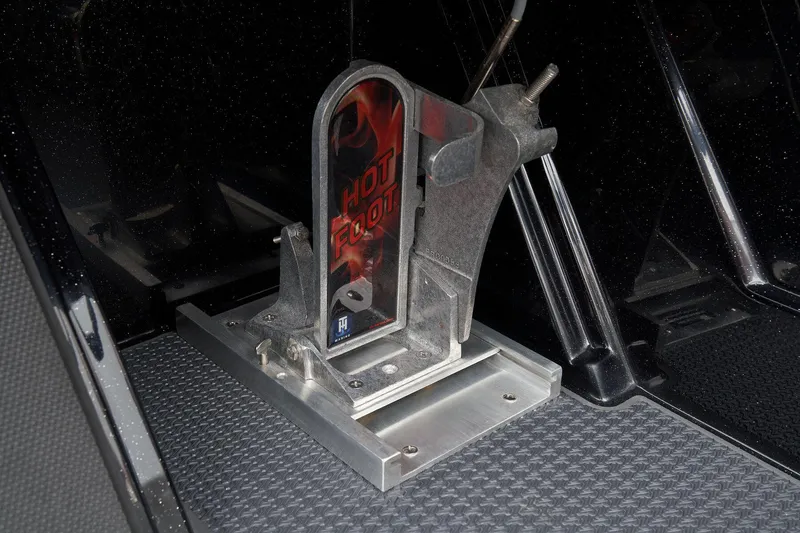

Hot Foot
-
17" Challenger II wheels w/ matching spare
Ranger Cup Equipped - LOWRANCE® Package
-

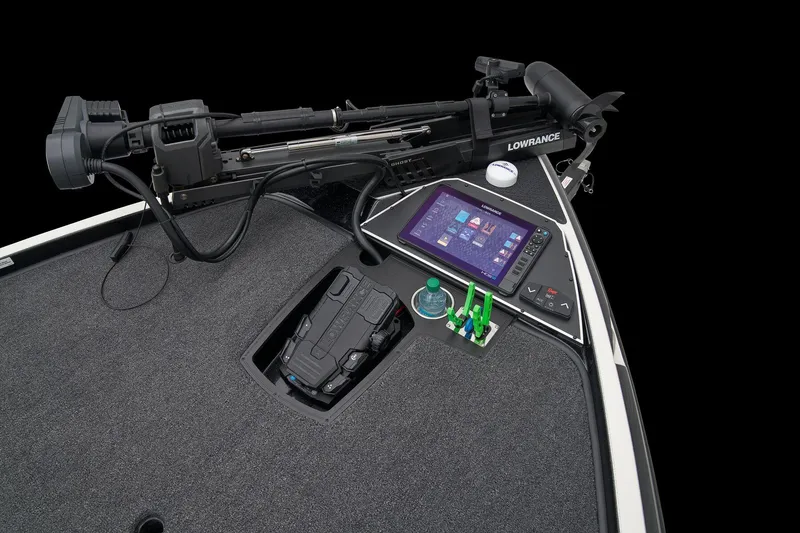

Lowrance® HDS® 12 PRO at bow
-

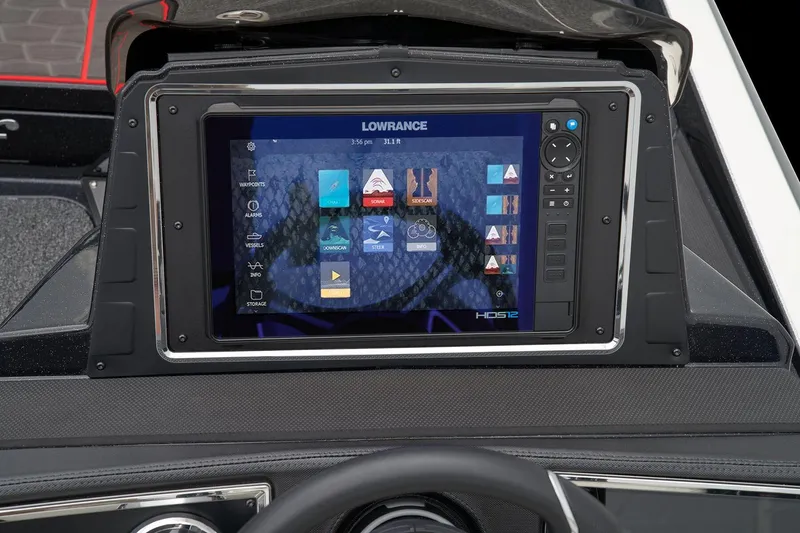

Lowrance® HDS® 12 PRO at console w/ Active Imaging™ HD
-
Lowrance® Active Target™ 2 Live Sonar
-
Lowrance® Ghost 45" 36V Trolling Motor
-
Blinker Trim
-
Hot Foot
-
17" Challenger II wheels w/ matching spare
Power/Performance
-
Pultruded Fiberglass Transom
-
(3) Lithium 80AH trolling batteries w/trays
-
AGM Starting battery w/ tray
-
Backup manual ignition keyswitch
-
One-Piece-Feel™ Interloc Construction
-
Integrated engine setback
-
12" manual setback plate
-
Tilt hydraulic steering
-

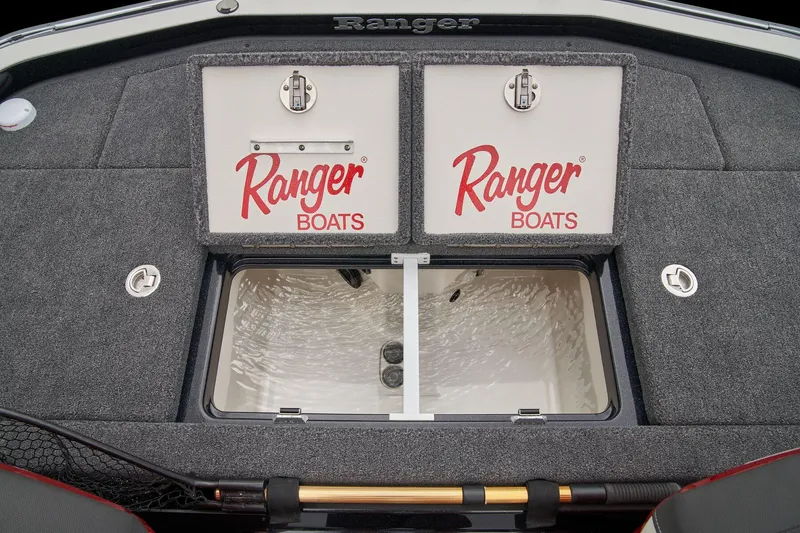

Recirculating aerated livewell w/ removable divider & integrated culling tag system
-
Pure Oxygen Generator
-
Venturi Aeration System
-
Recessed trolling motor foot pedal
-
High performance stainless steel prop
-
Foam-filled fiberglass stringer system
Safety/Comfort
-
Upright Level Flotation exceeding all USCG & NMMA standards
-

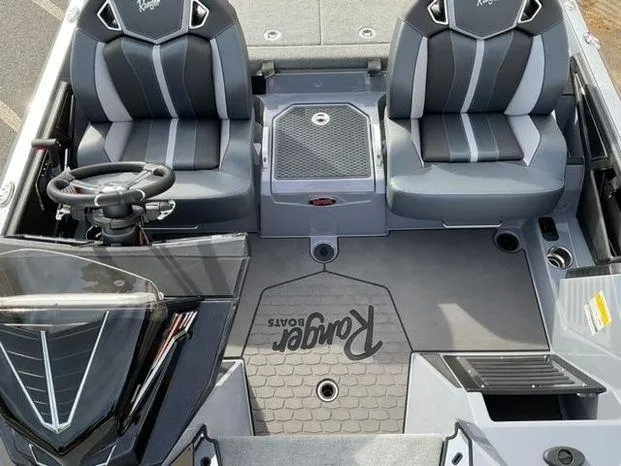

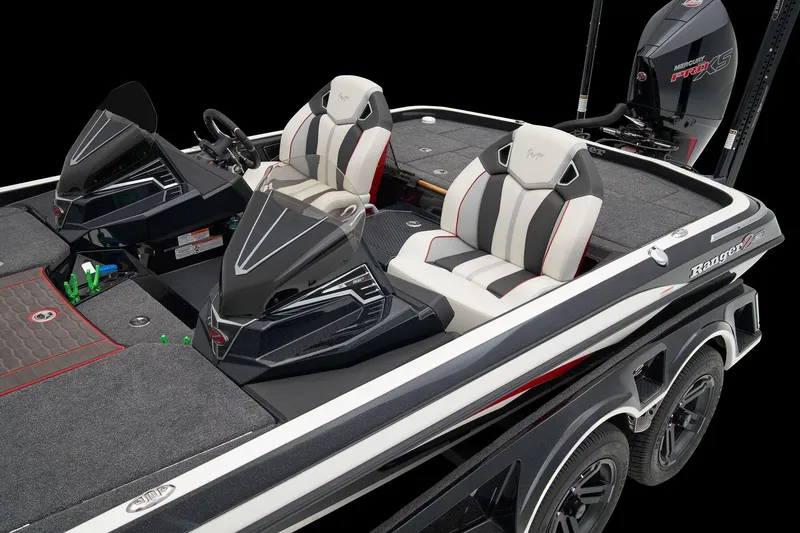

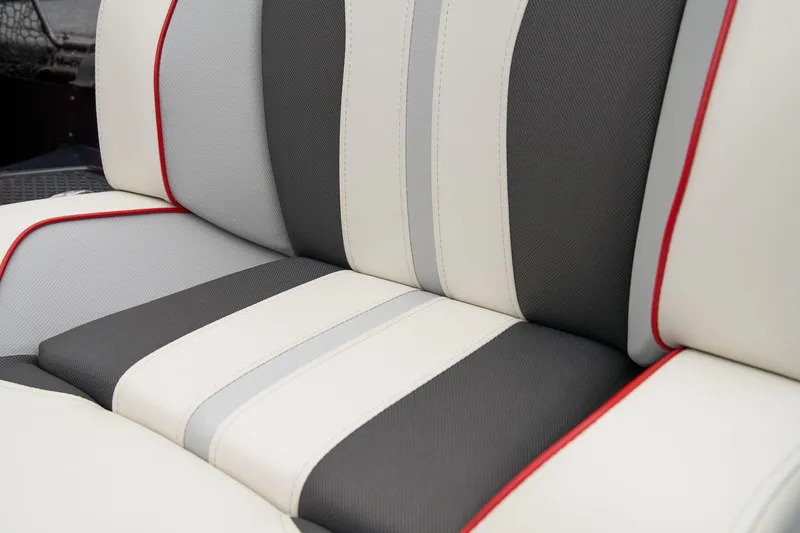

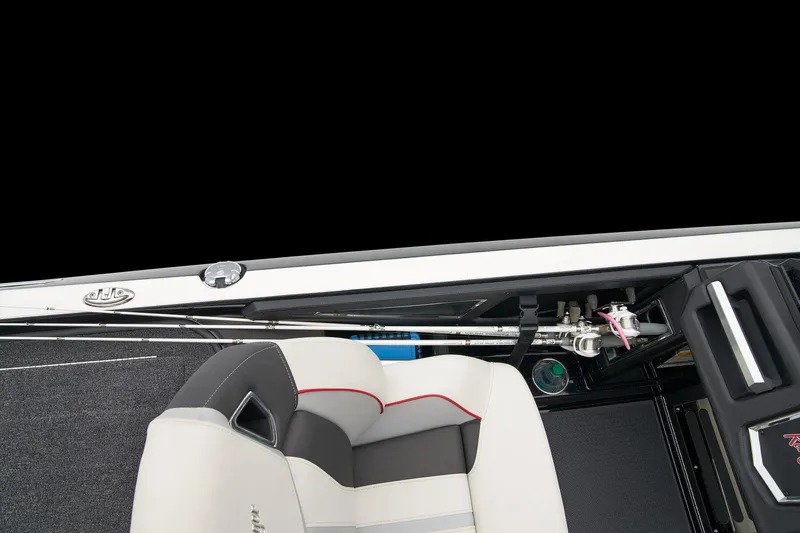

Heated Cloud-9™ Air-Ride Driver's Seat
-

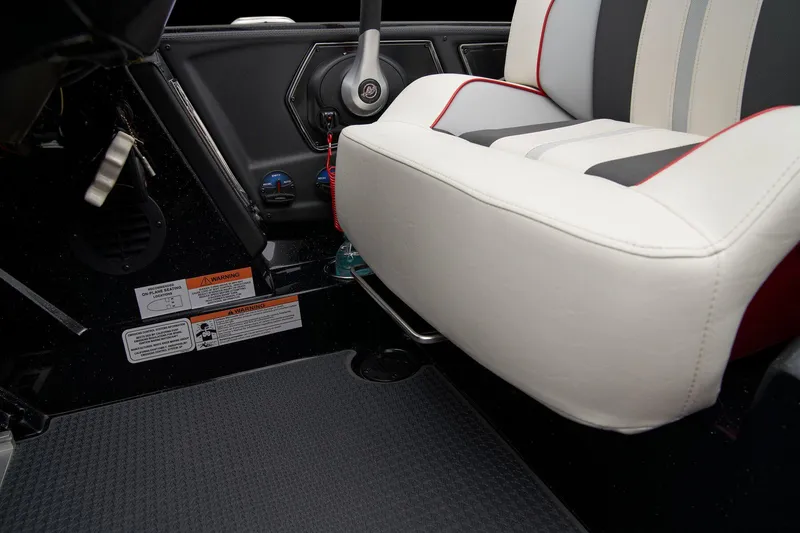

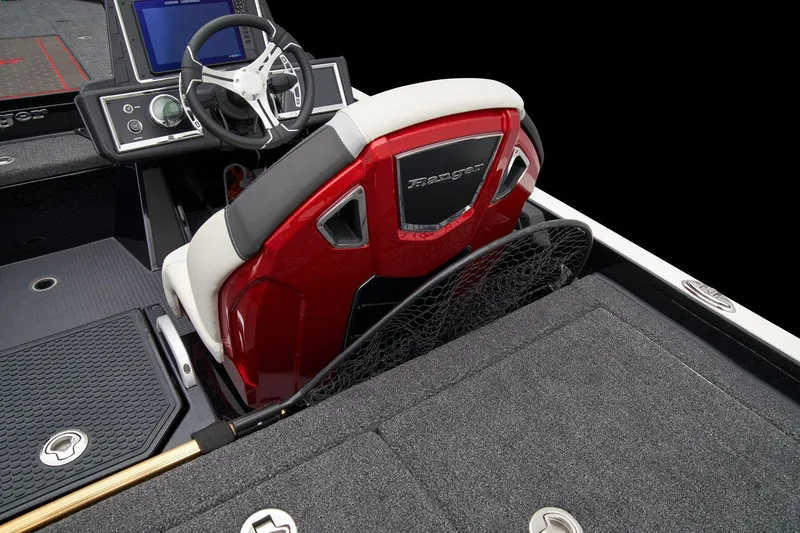

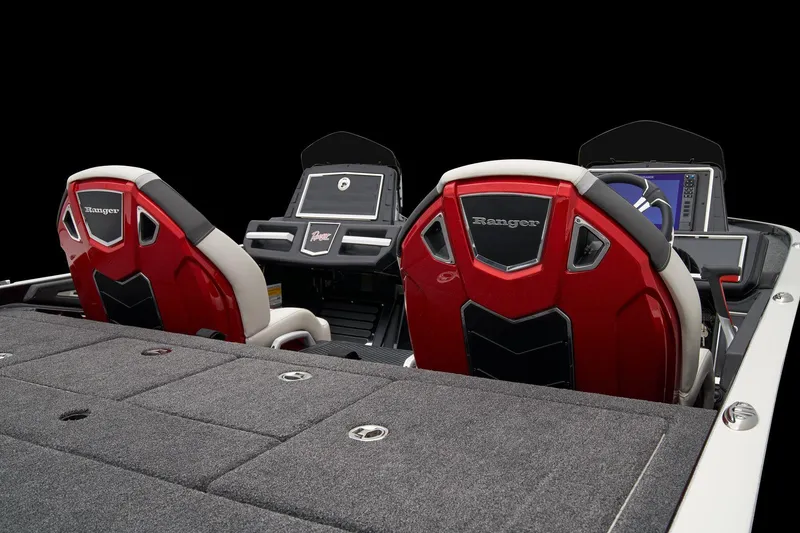

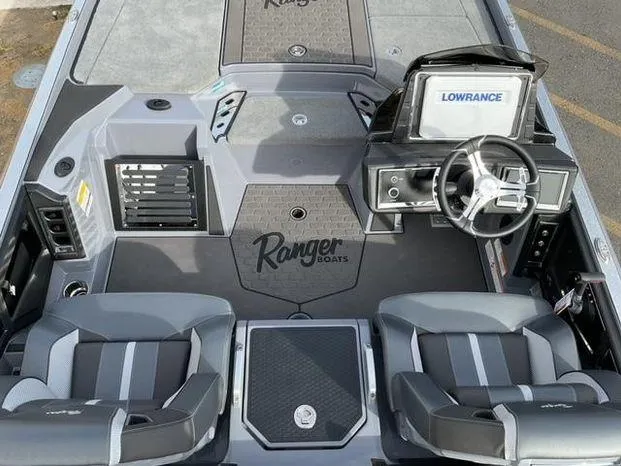

Custom-fitted Ranger® Soft Ride Seating™ system with driver & passenger seat slides & color-matched fiberglass seat shells
-

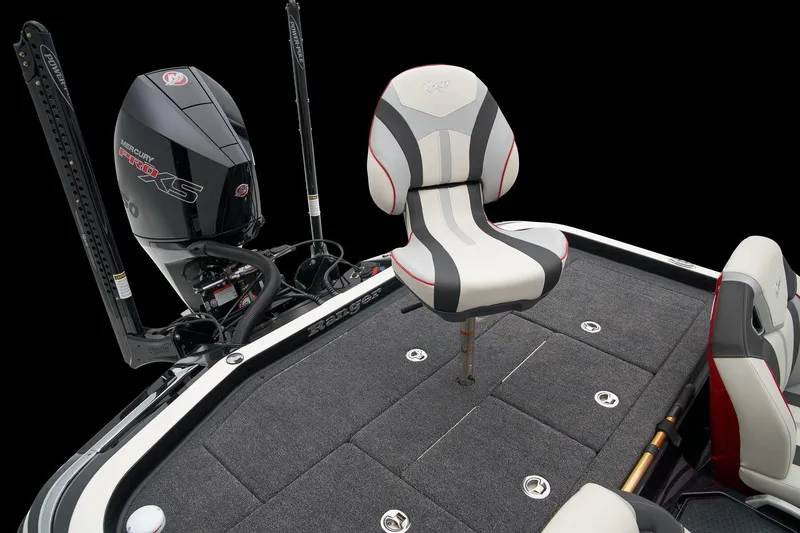

Custom bike seat & SRS fold-down on heavy duty pedestals
-

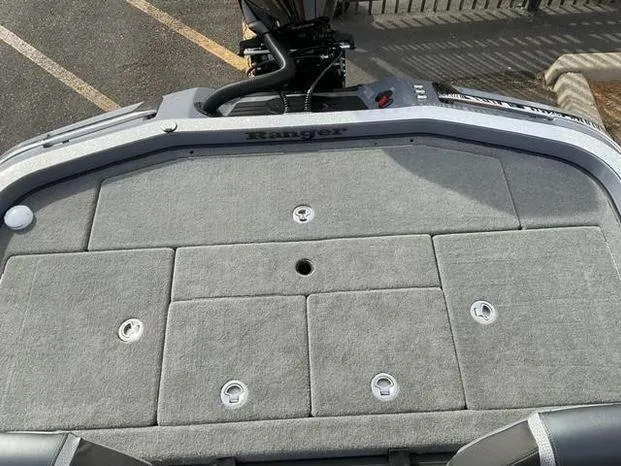

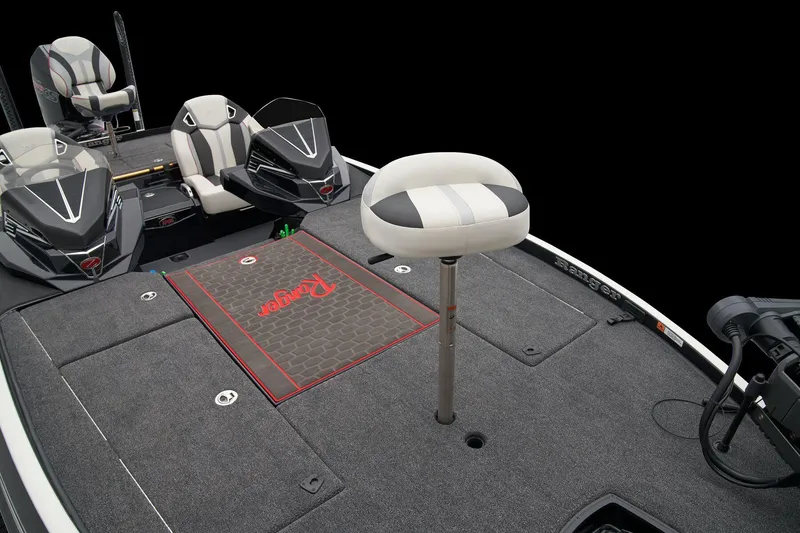

Padded front deck
-
Integrated grab handles
-

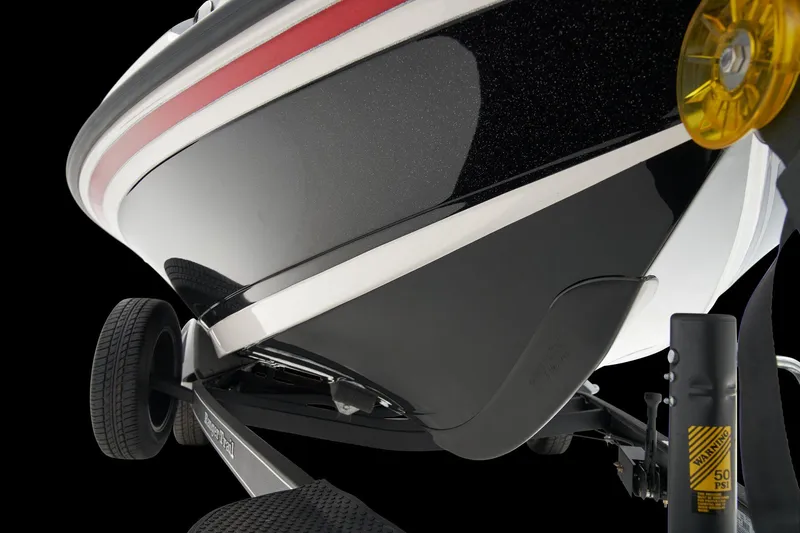

Rite Track Keel®
-

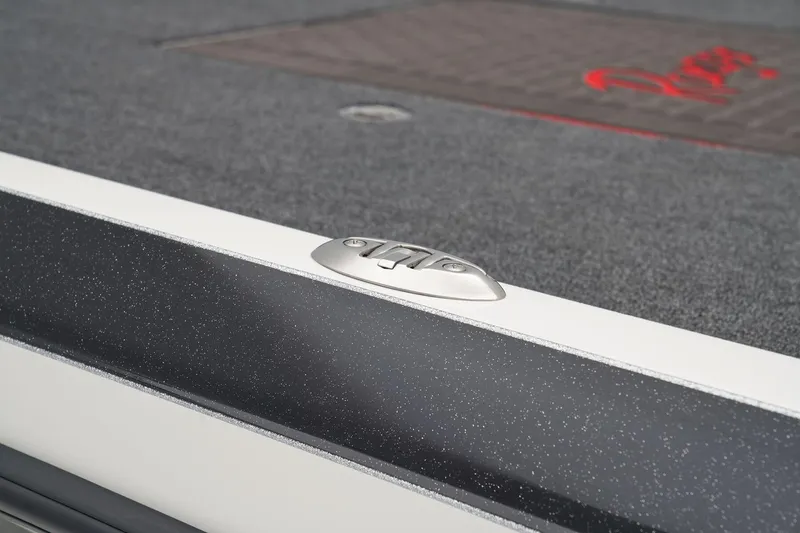

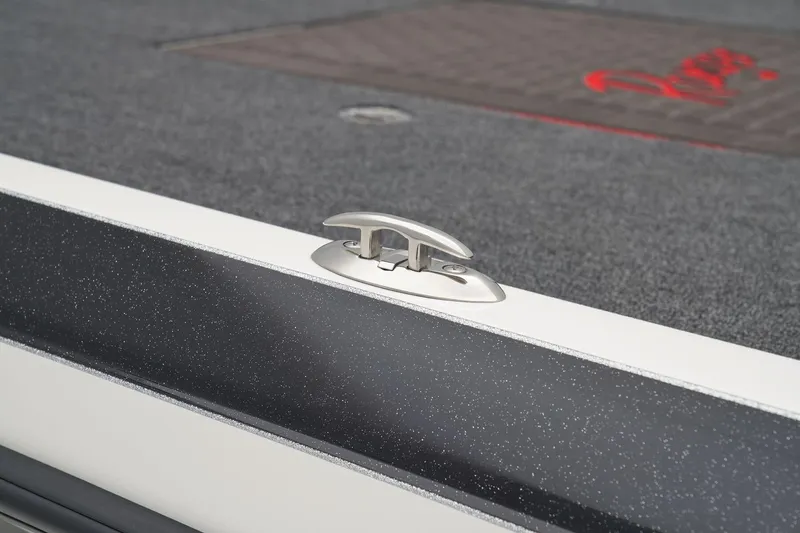

Pop-up tie cleats
-
Automatic and manual bilge pumps
-
Integrated re-boarding ladder
-
Skid-resistant material on bow
-
Stainles steel bow & stern eyes
-
Stainless steel seat bases
-
NMMA® certified
Trailer Features
-

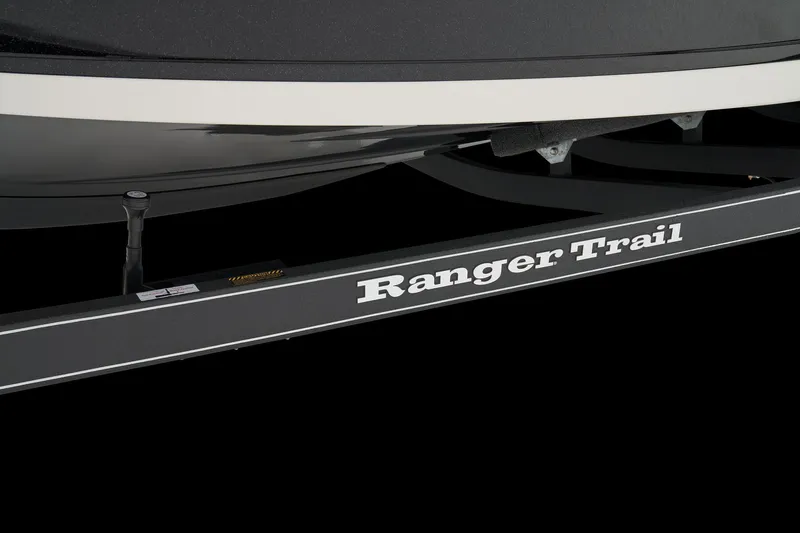

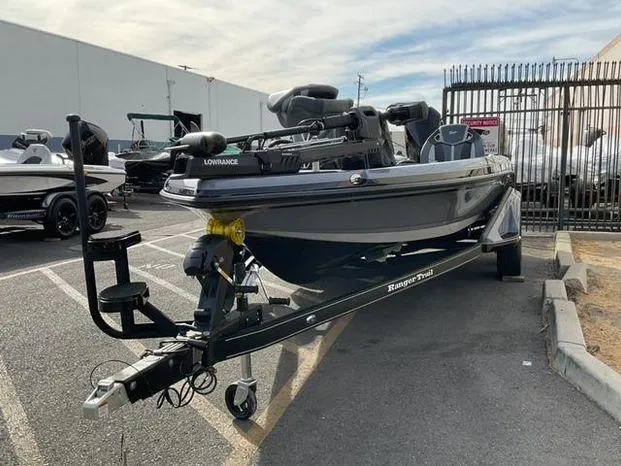

Ranger Trail® trailer w/ torsion axles and c-channel frame
-
Ranger® Road Armor Equipped® trailer protectant coating
-

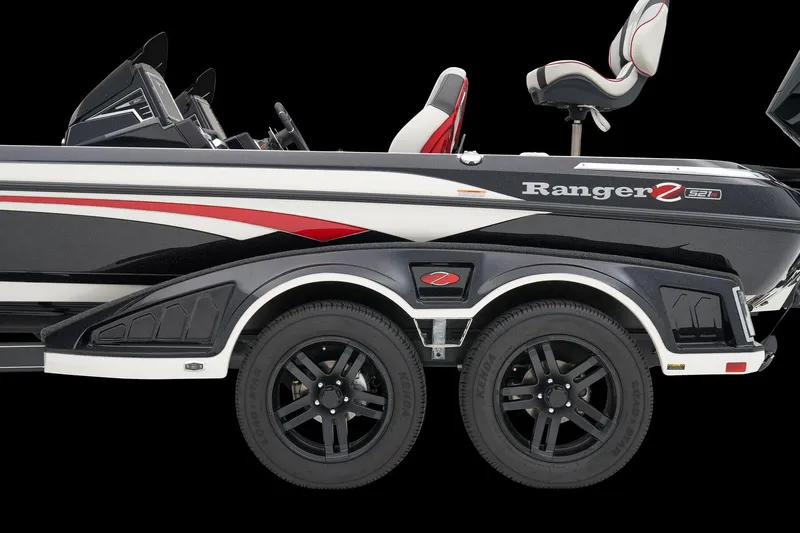

17" Challenger II wheels w/ matching spare
-
Ranger Trail® Vault® Hub lubrication system
-

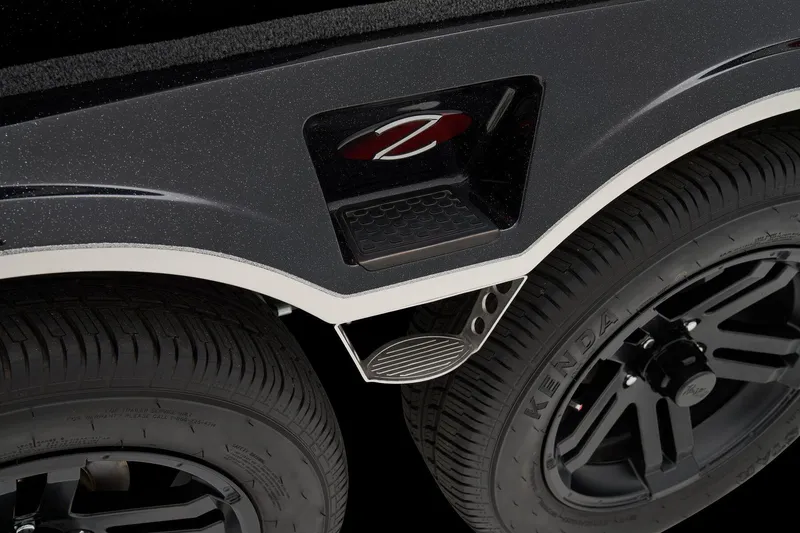

Fiberglass fenders w/ step pads
-
Hydraulic surge disc brakes
-

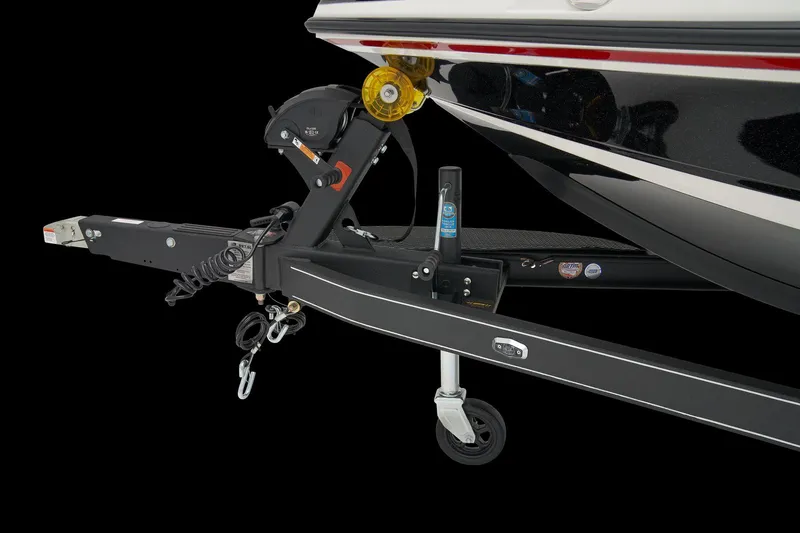

Swing-away tongue
-
Integrated center-swing jack finished in black powdercoat
-

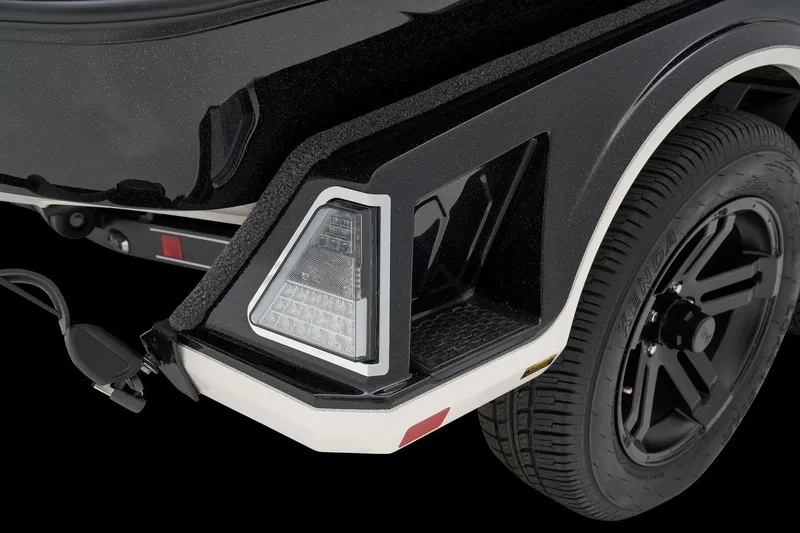

LED lighting
-
LED back-up lights
-
Stainless steel ratcheting tie-downs
-
NMMA®/NATM certified
Price History
| Date | Event | Price |
|---|---|---|
| 10/15/25 | Price increased | $106,370(+4.9%) |
| 8/8/25 | Price decreased | $101,370(-4.3%) |
| 6/28/25 | Initial price | $105,875 |
2025 Ranger Z521R Cup-Equipped Video Tours
Overview from around the web 2025 Ranger Z521R Cup-Equipped
Customers are praising the 2025 Ranger Z521R Cup-Equipped for its exceptional performance and versatility on the water
Many highlight its smooth handling and stability, making it ideal for both casual cruising and serious fishing. The boat’s spacious layout and thoughtful cup-equipped features receive positive remarks for enhancing comfort and convenience during long days on the lake. Additionally, users appreciate the durable construction and modern design, noting that the Z521R combines style with functionality perfectly. Overall, feedback emphasizes that this model delivers a reliable and enjoyable boating experience for a wide range of enthusiasts.
The Biggest Pros and Cons
The 2025 Ranger Z521R Cup-Equipped offers a range of advantages and a few considerations to keep in mind:
Pros
High Performance: Designed for serious anglers, the Z521R features a powerful hull that delivers excellent stability and speed on the water.
Tournament-Ready Features: Equipped with the Cup package, it includes advanced electronics and premium fishing amenities ideal for competitive fishing.
Spacious Layout: The deck provides ample room for casting and moving around, enhancing comfort during long fishing sessions.
Durable Construction: Built with quality materials to withstand tough conditions and provide long-lasting reliability.
Customizable Storage: Multiple compartments allow organized storage of gear and tackle.
Cons
Price Point: As a tournament-focused model with advanced features, it may come at a higher cost compared to more basic fishing boats.
Learning Curve: Some of the advanced electronics and features might require time to learn and optimize for new users.
Limited Recreational Features: While excellent for fishing, it may lack some amenities desired for casual cruising or family outings.
Made For
The 2025 Ranger Z521R Cup-Equipped is designed for serious anglers who demand top-tier performance and tournament-ready features. Ideal for competitive bass fishermen, this boat combines advanced technology, high-quality craftsmanship, and versatile functionality to help anglers excel on the water. Whether you're a seasoned pro or an avid weekend angler seeking precision and reliability, the Z521R Cup-Equipped offers the perfect platform to enhance your fishing experience.
