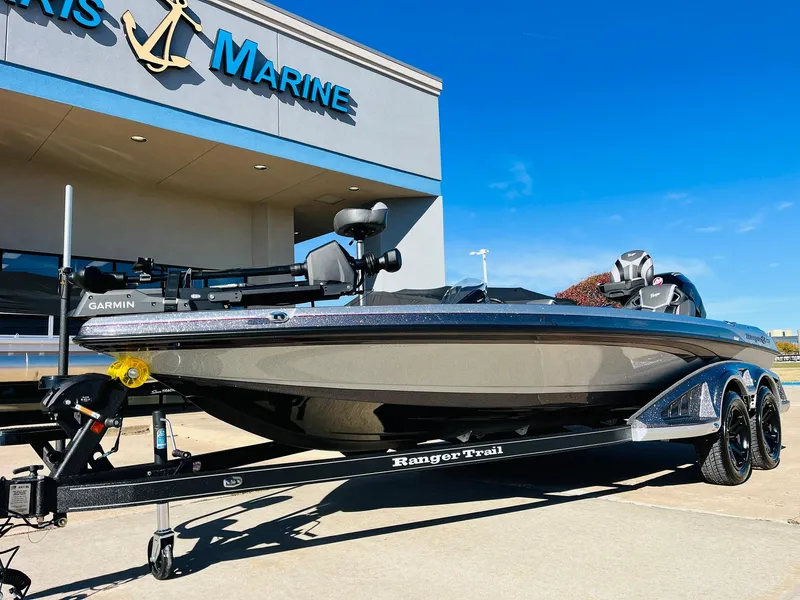

2025 Ranger Z520R Cup-EquippedSold
$88,680
Boat in Norman, OK 73072 US
Built in 2025
Z520R Cup-Equipped

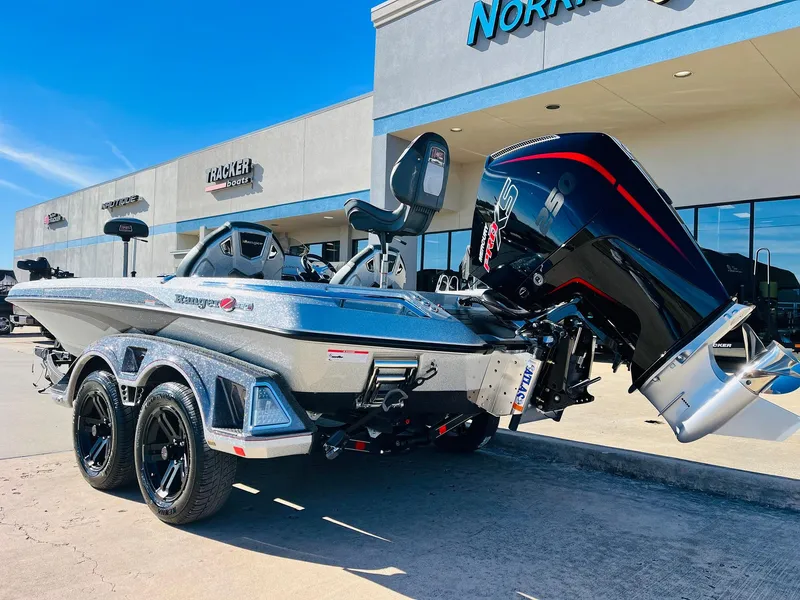

1 Engine (Mercury Marine)
20.9 feet
Gas
Fiberglass/Reinforced
Factory / Dealer Installed Options:
- Garmin Cup Package
- Garmin Force 50 36V Trolling Motor
- Garmin EchoMap Ultra2 126SV (Bow)
- Garmin PanOptix LiveScope LVS34 Forward Facing Sonar
- Garmin EchoMap Ultra2 126SV (Dash )
- Custom Mooring Cover
- Hamby's Keel Guard
- Trailer Bow Entry Step System

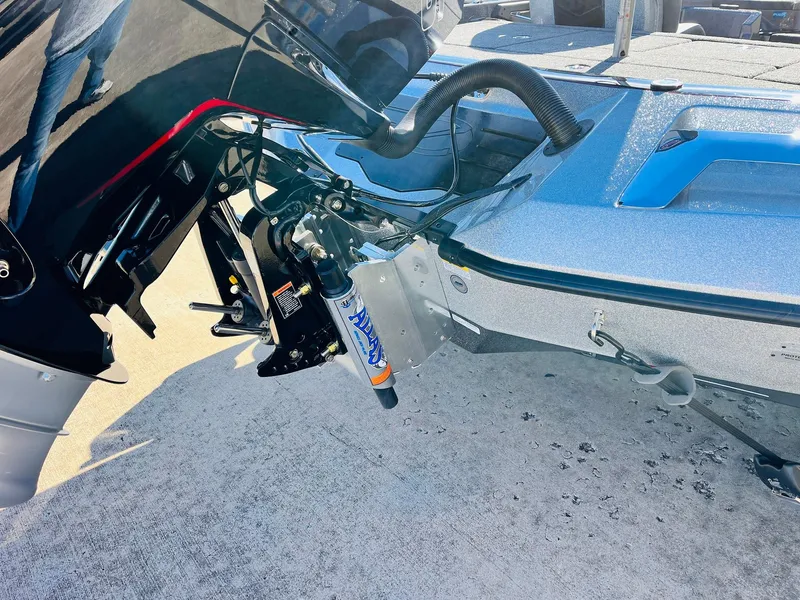

- DD26 Transom Saver w/Steering Clips
The Ranger Z520R is the next chapter in bass boat evolution and a quantum leap in design, functionality and dominating performance and the Ranger Cup Equipped package adds in top-tier features at a significant cost savings. For 2025 we've upped the ante even more by adding a host of top-tier touches to set apart this premium rig even more. New heated Cloud 9™ air ride SRS driver seating carries you in comfort, while a new non-skid traction pad graces the front deck for stylish functionality. Protecting your investment is a newly redesigned boat cover for even greater fit and security. Fishability gets an upgrade with a Minn Kota® Quest 115-pound thrust trolling motor and an optional dual BBT electronics mount keeps your graphs secure and easy to read in all conditions. Finally, a color-matched cockpit floor, push-to close latches, and compartment liner mats complement the peerless style of the Z520R Ranger Cup Equipped. We took the legendary Z Comanche "C" hull and digitally scanned and perfected it, resulting in an instant hole shot and stronger top-end. Every appreciable element of the cockpit, decks, and storage boxes has been revamped to complement the enhanced performance of the R Series. We've also gone to great lengths to incorporate more standard technology into the R Series, to not only raise the bar for the industry, but to give you greater comfort, convenience, and peace of mind. An all-new console carries dual graphs or a single 16" unit and the touchscreen Ranger R.I.D.E. system integrates total control over every boat and engine function. The all-new seats rest on easy-to-adjust slides and the color-matched fiberglass shellbacks take the aesthetic to a new level. A key fob and integrated push-to-start ignition let you start-up quicker and deliver greater security when you're on the road. Inside the coin box is a wireless phone charger, and in the battery box are standard lithium batteries. Storage boxes are demonstrably larger, thanks to a redesigned stringer system that builds on our One-Piece Feel Interloc™ Construction. The rod boxes feature our Echelon Rod Storage System with a tri-level storage shelf system that simplifies rod management and offers more room for sticks up to 9'. Inside and out, the Z520R ushers in the next generation of domination. The Z520R. It's a whole new era of Ranger.
Cup-Equipped™ tournament-ready electronics, trolling motor, and equipment package
Heated Cloud 9™ Air-Ride SRS Driver Seating
Push-to-Start Ignition
Ranger R.I.D.E. - integrating full-boat control and monitoring via 9" touchscreen

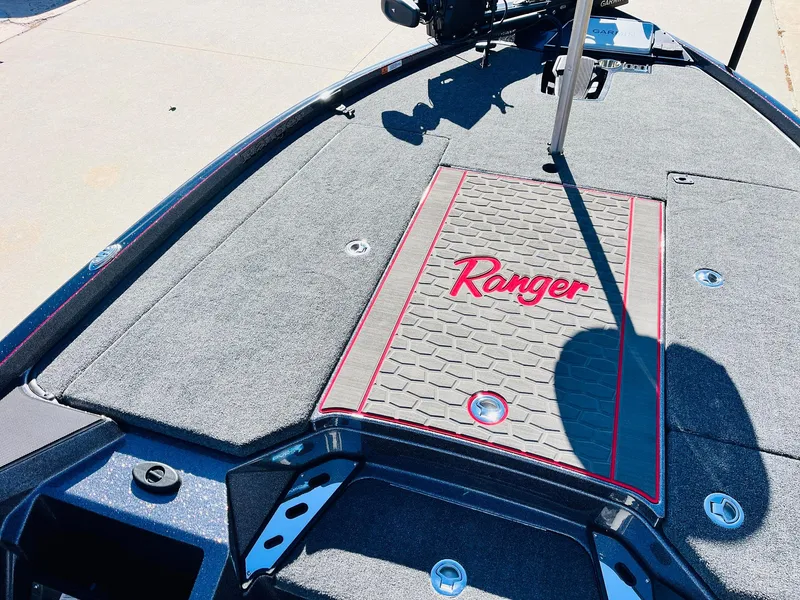

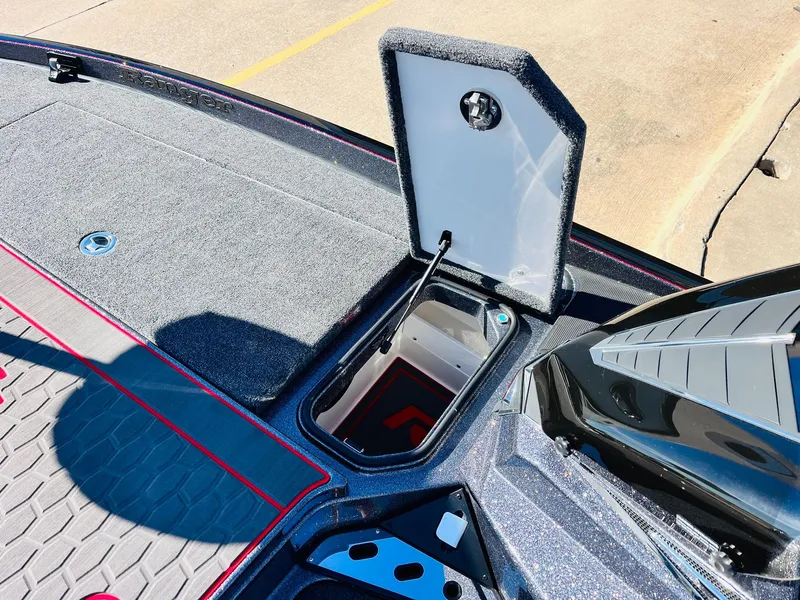

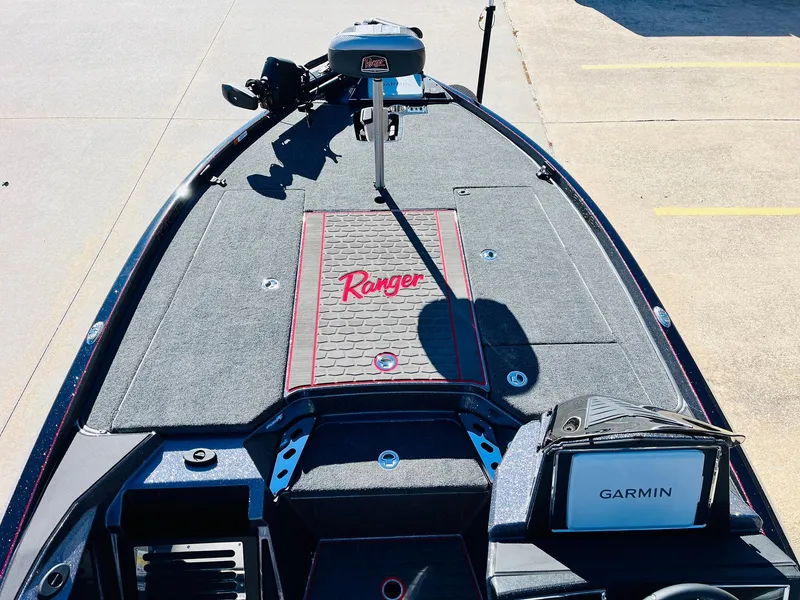

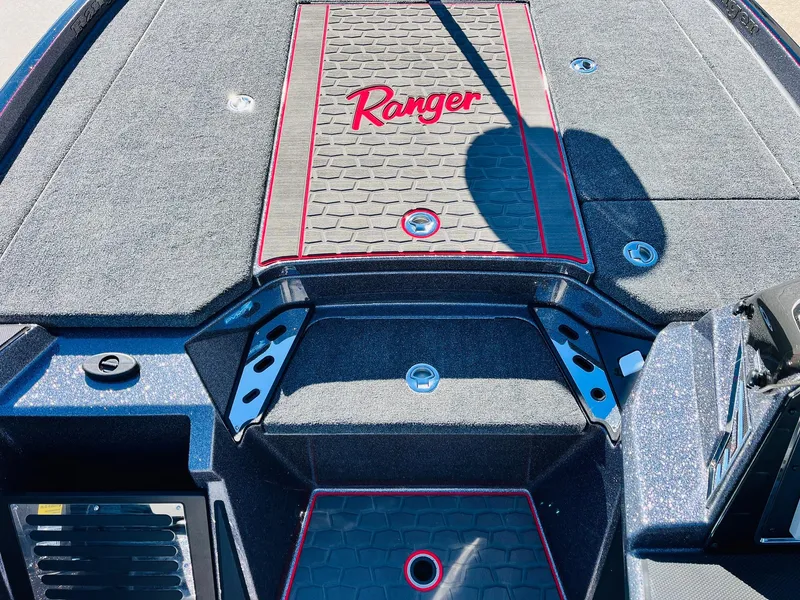

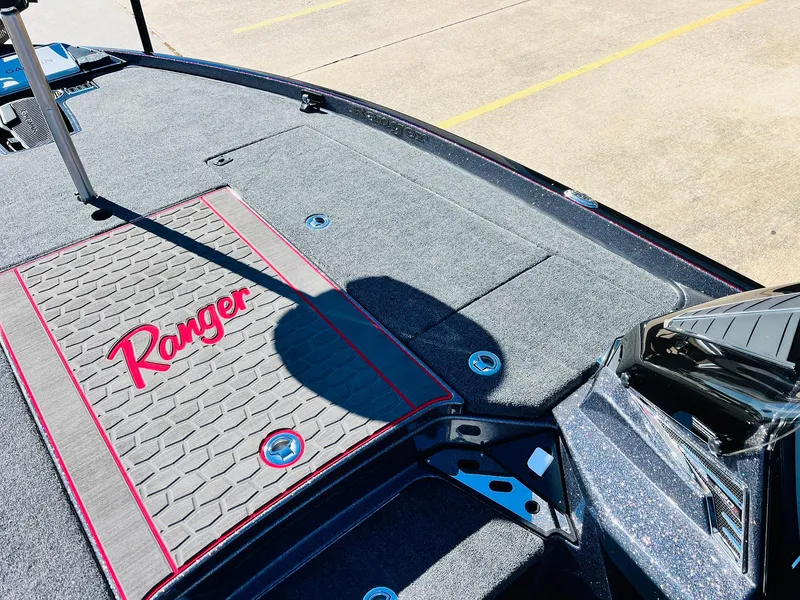

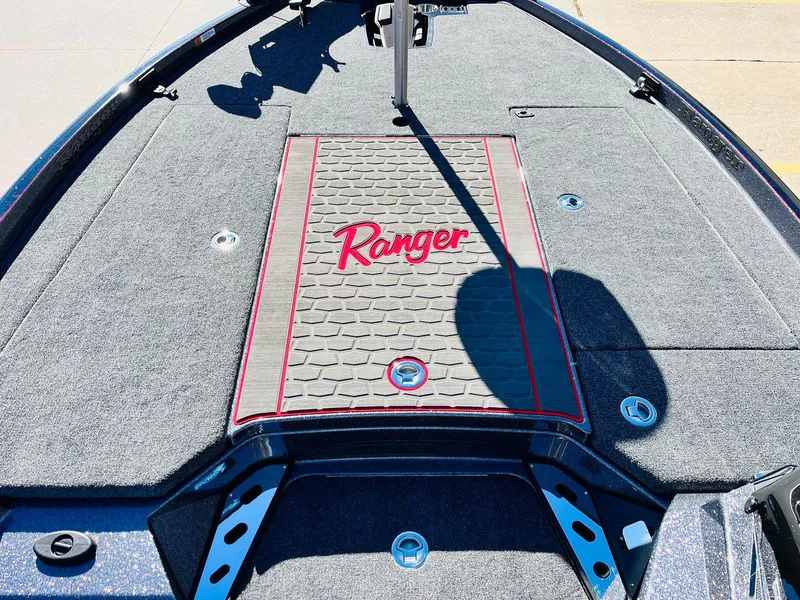

Traction Pad Front Deck Center Lid
Padded Front Casting Deck
Pultruded Fiberglass Transom
Push-to-Close Latches
Additional Specs
Length:20' 11"
Hull Length: 20' 11"
Beam: 96"
Max. Recommended HP: 250 HP
Engine Shaft Length: 20"
Inside Depth: 22"
Fuel Capacity: 54 gal.
Livewell Capacity: 31 gal.
Total Person, Motor, Gear: 1650 lbs.
Approximate Boat Weight: 1850 lbs.
Rod Box Length - Port: 8' 0"
Rod Box Length - Center Row 1: 8' 0"
Rod Box Length - Center Row 2: 7' 6"
Max. Person Capacity: 4 persons
Trailer GVWR: 5400 lbs.
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 27' 1"
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 25' 0"
Width On Trailer: 102"
Custom Details

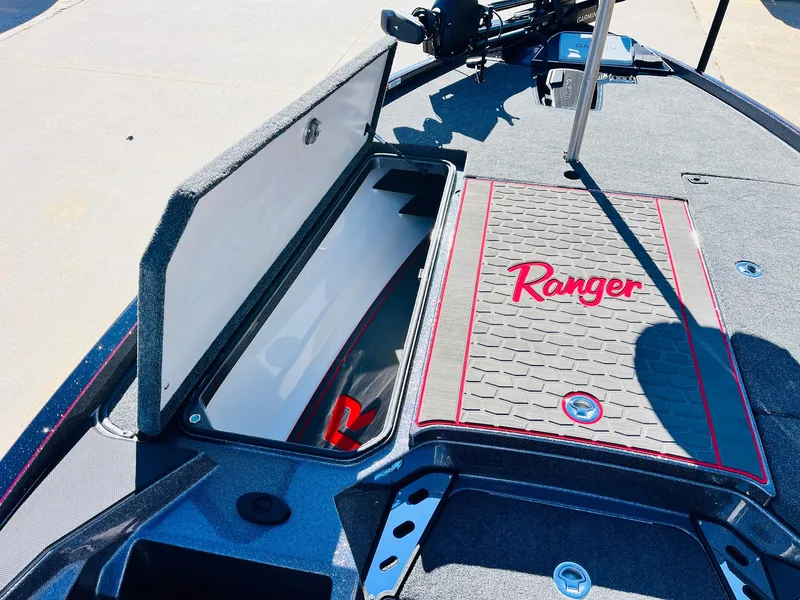

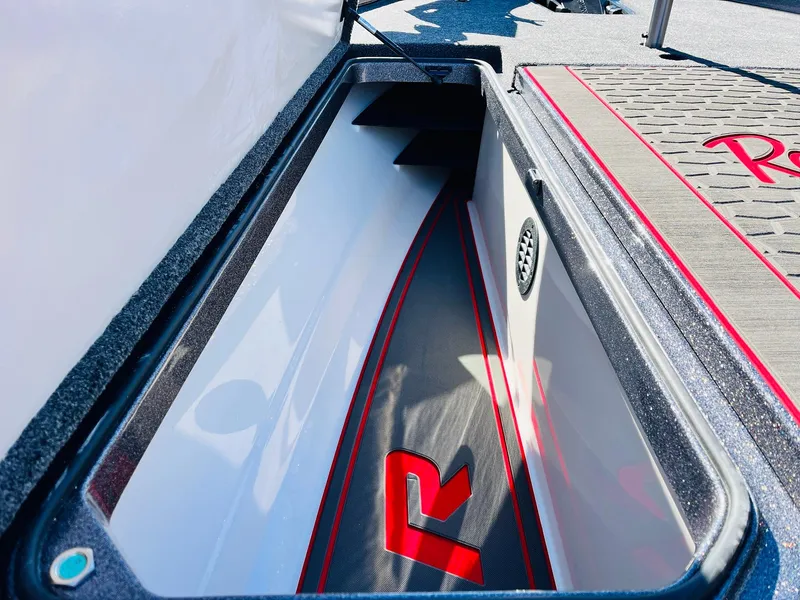

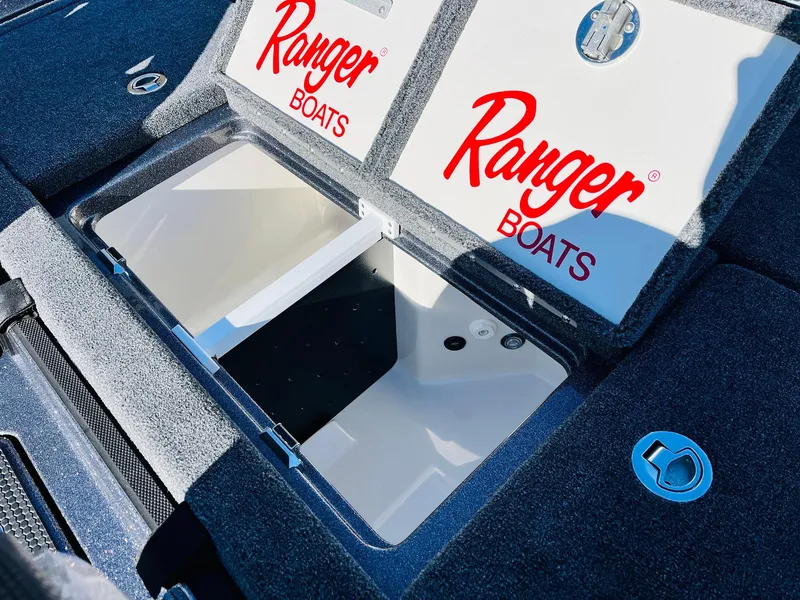

Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
Custom color package

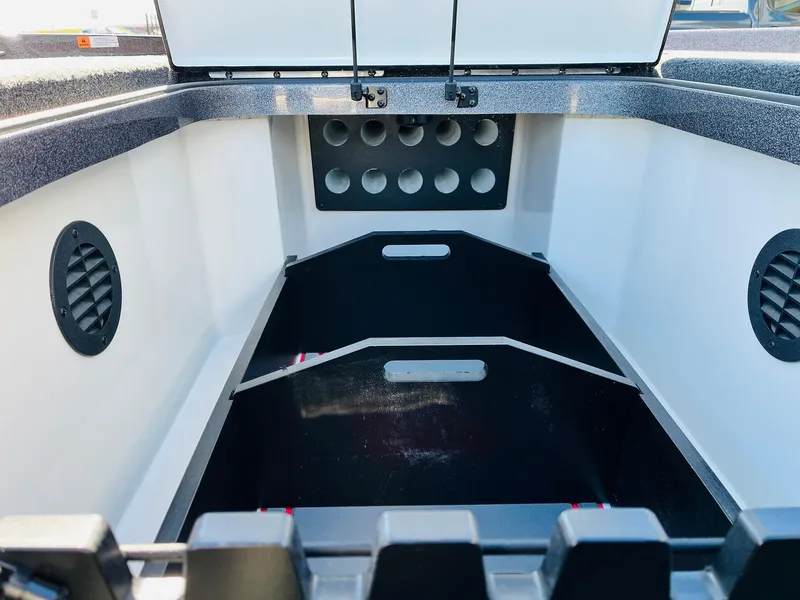

Power Ventilation Rod Storage™

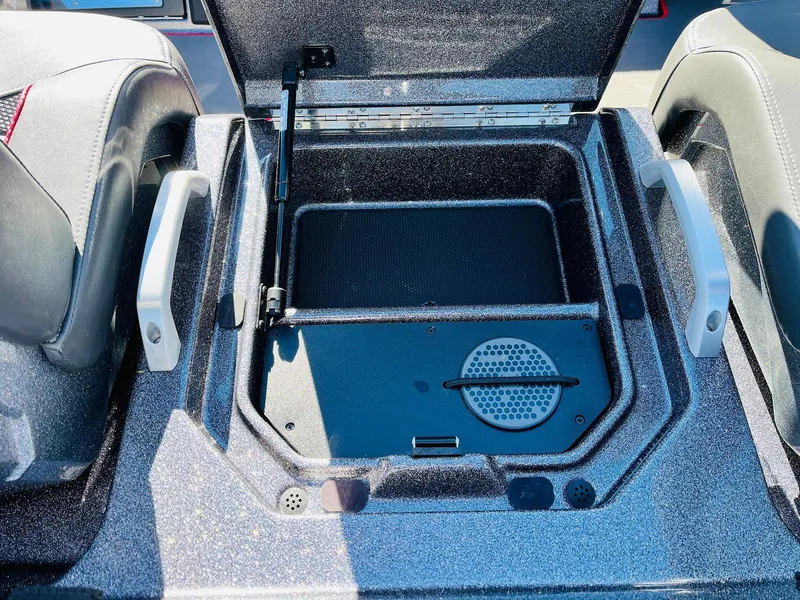

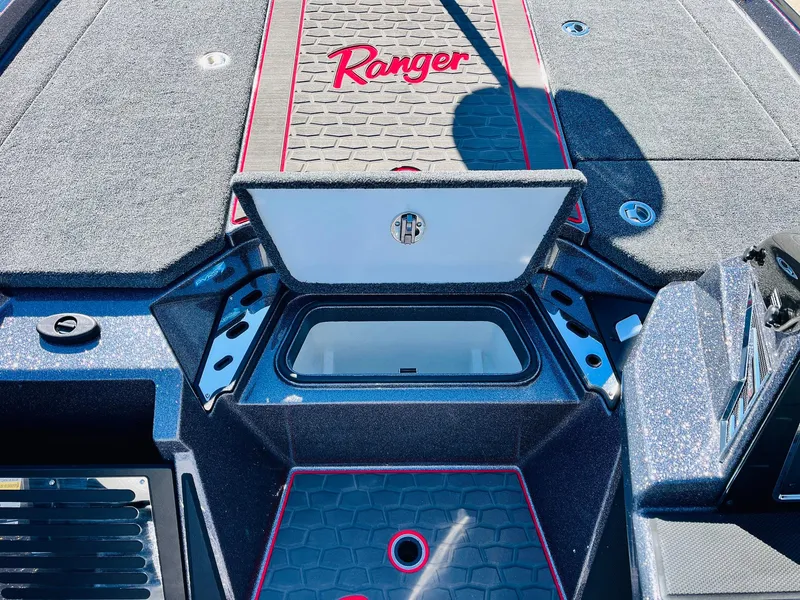

Insulated 40 qt. step-up cooler

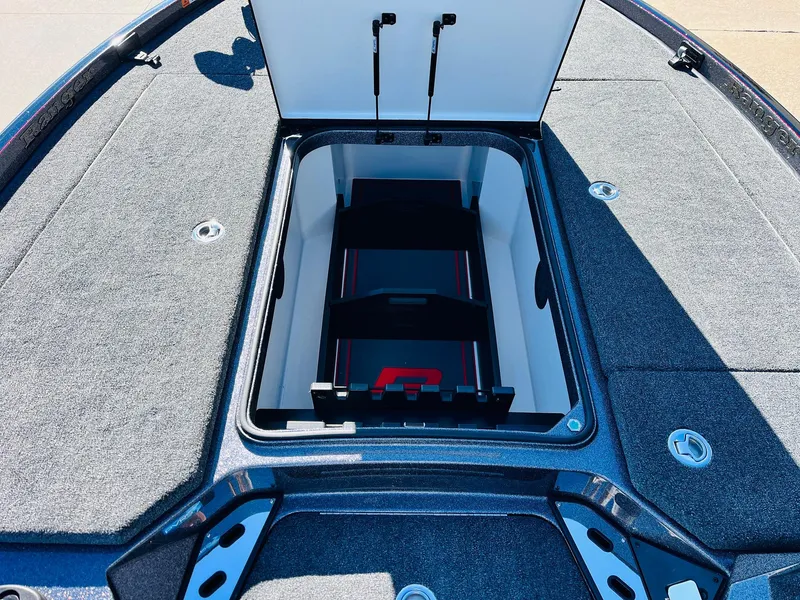

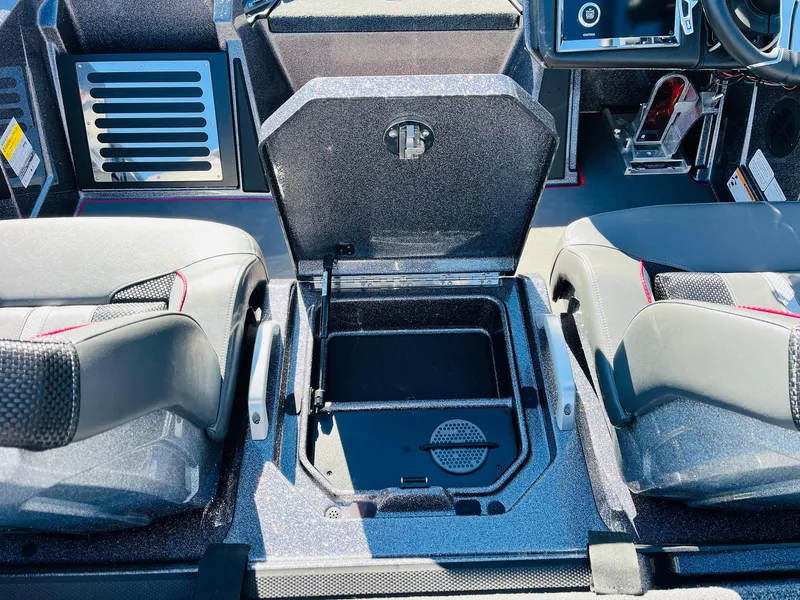

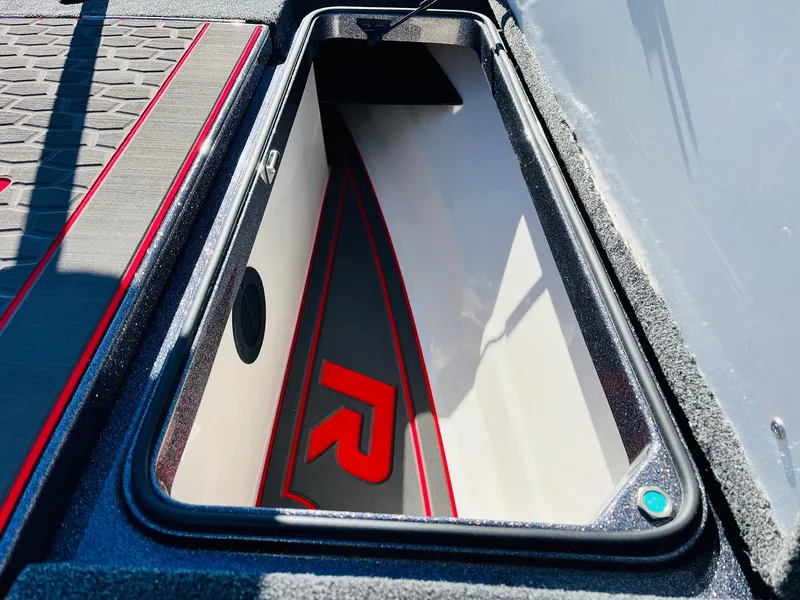

Integrated center-storage rod & tackle management system
Stainless steel push-to-close locking latches

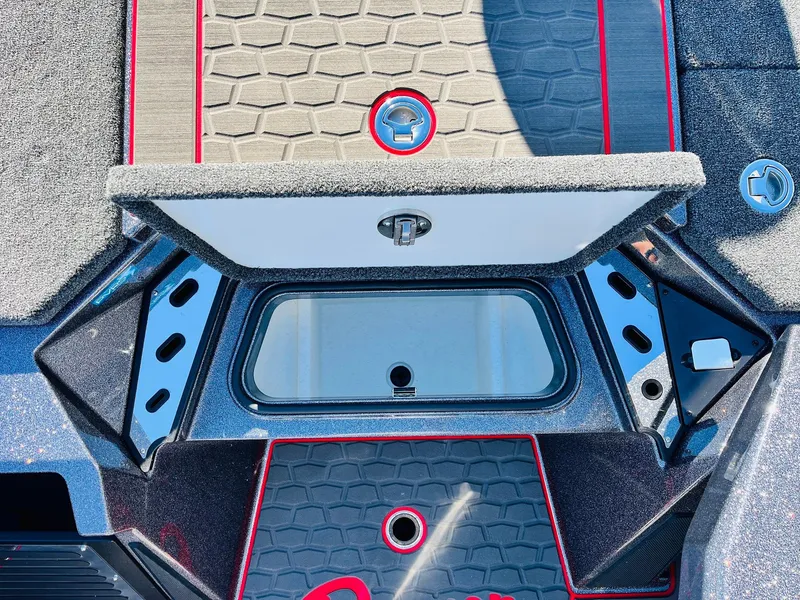

Traction Pad Front Deck Center Lid

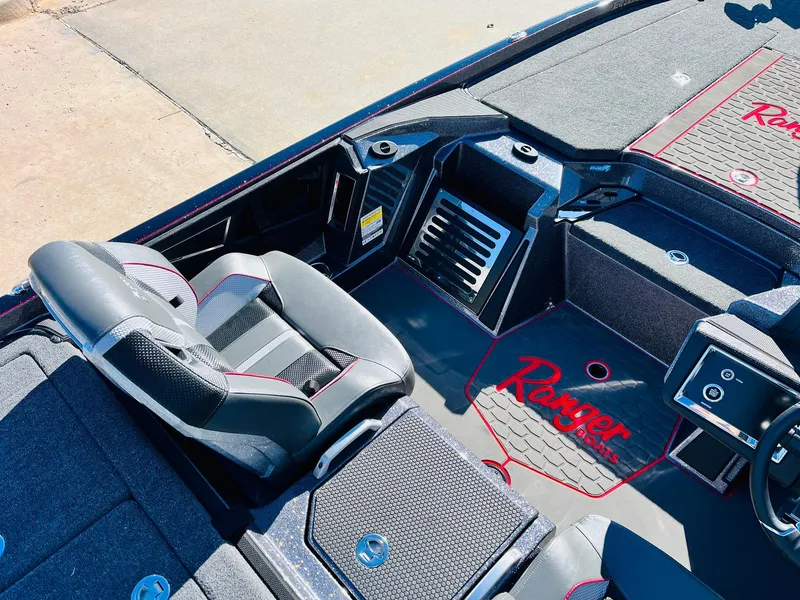

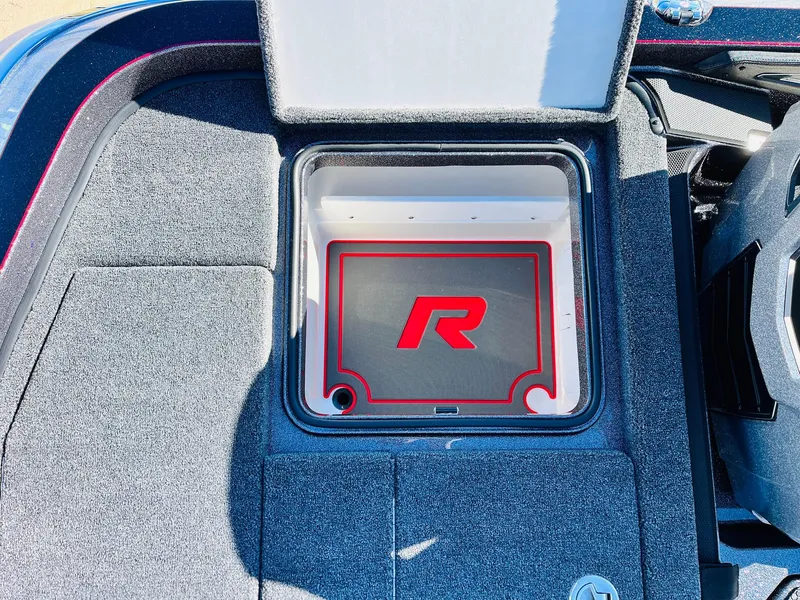

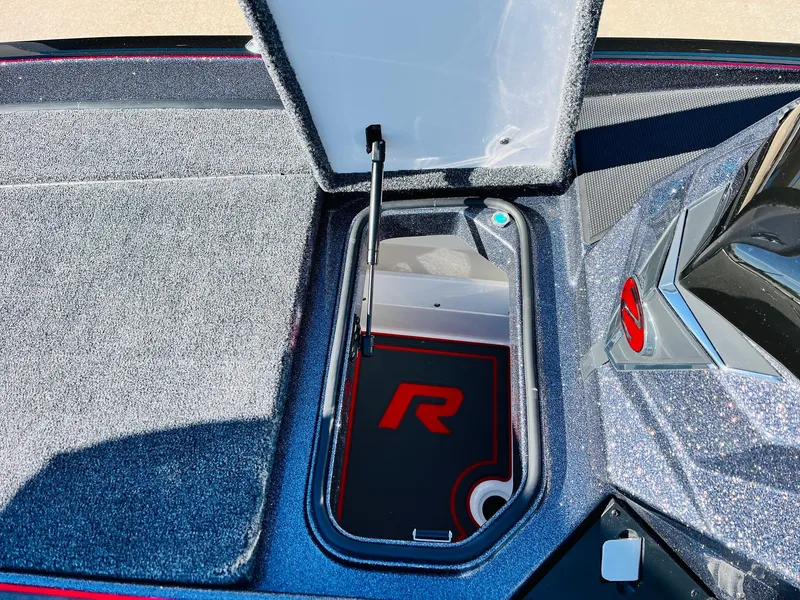

Color-matched cockpit floor and compartment liner mats
Integrated line spooling station under battery lid
Ranger® tournament measuring board integrated at front deck step
Retractable rod buckles
Runnin' rod rack w/ retractable strap
Remote drain plug
Tool holders at bow and front deck step
Pultrusion-reinforced decks, floors, transom & stringers
Electronics
Ranger® R.I.D.E.™ (Ranger Intelligent Display Engine) -integrated full-boat network control and monitoring via 9" touchscreen
Push-to-Start Ignition with proximity Key Fob
Solid-state digital keypad at bow with push-button trim switches
Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
Ranger Cup Equipped Electronics Package (see RCE)
Ranger Cup Equipped Trolling Motor (see RCE Package)
Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker
Master Power on/off battery disconnect switch
Auto-on LED storage compartment lighting & LED courtesy & livewell lighting
Integrated LED bow navigation lights & removable LED anchor light
Wireless phone charging station in Coin Box
12V power receptacle with USB
NOCO™ GB40 jump starter w/ on-board USB charging
Dual Pro™ on-board 15A x 4 bank charger w/ auto-detect technology & remote charging port
Battery Charge Gauge
Ranger Cup Equipped - GARMIN® Package

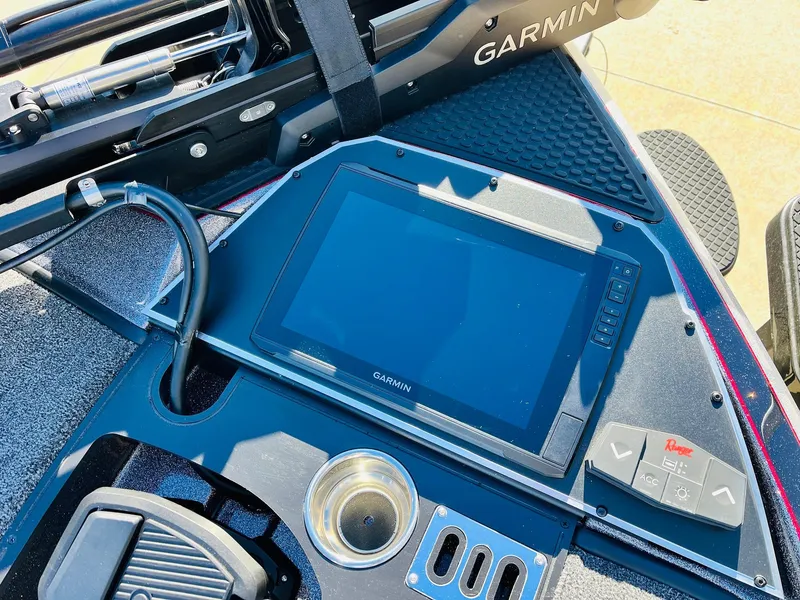

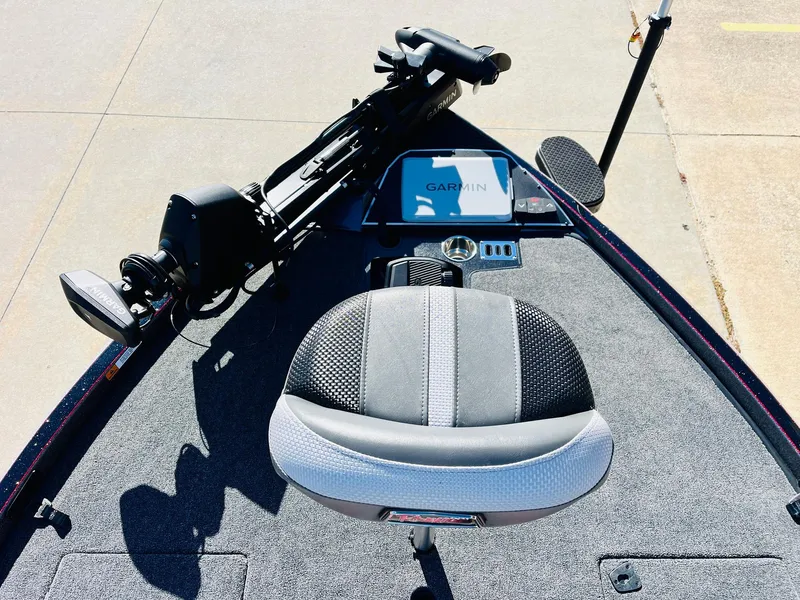

GARMIN® ECHOMAP™ Ultra 2 126sv at bow

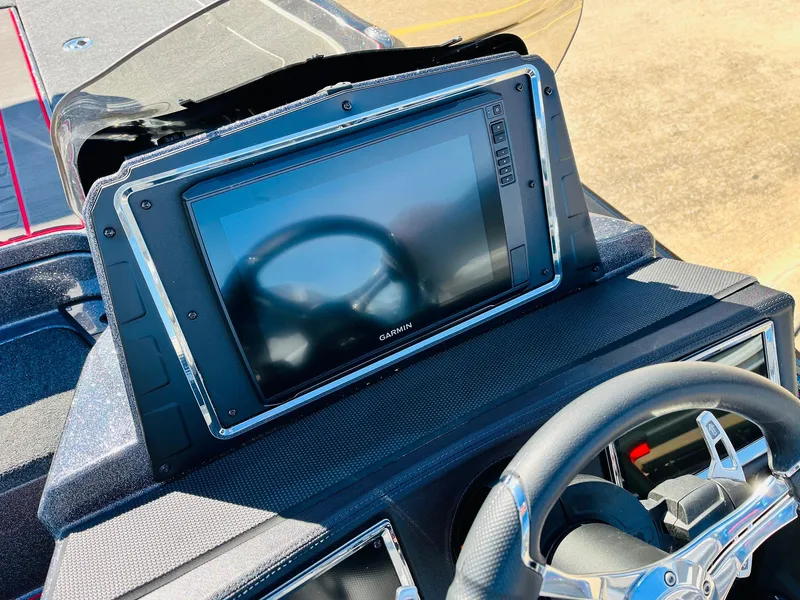

GARMIN® ECHOMAP™ Ultra 2 126sv at console w/ GT36UHD & GT8HW-IH Transducers
GARMIN® Live Scope™ Plus LVS34 Live Sonar

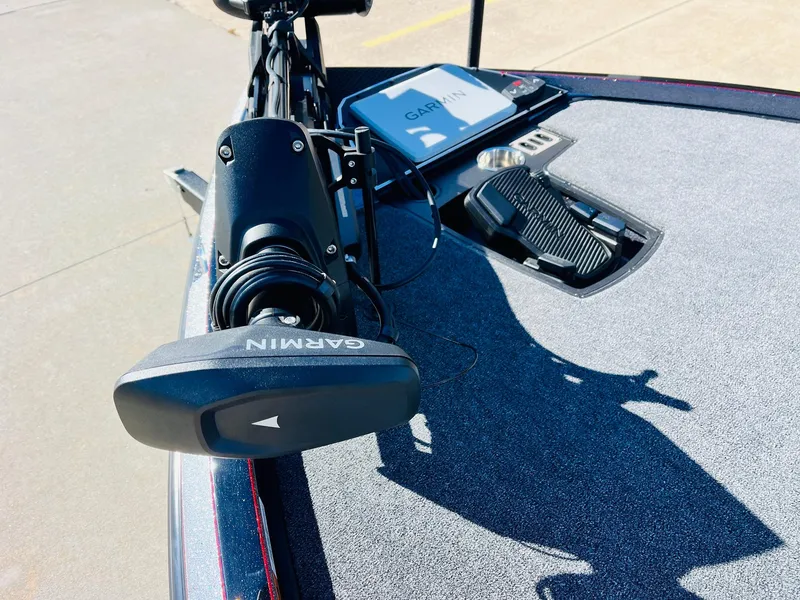

GARMIN® Force® 36V Trolling Motor
Blinker Trim
Hot Foot
17" Challenger II wheels w/ matching spare
Ranger Cup Equipped - LOWRANCE® Package
Lowrance® HDS® 12 PRO at bow
Lowrance® HDS® 12 PRO at console w/ Active Imaging™ HD
Lowrance® Active Target™ 2 Live Sonar
Lowrance® Ghost 45" 36V Trolling Motor
Blinker Trim
Hot Foot
17" Challenger II wheels w/ matching spare
Power/Performance
Pultruded Fiberglass Transom

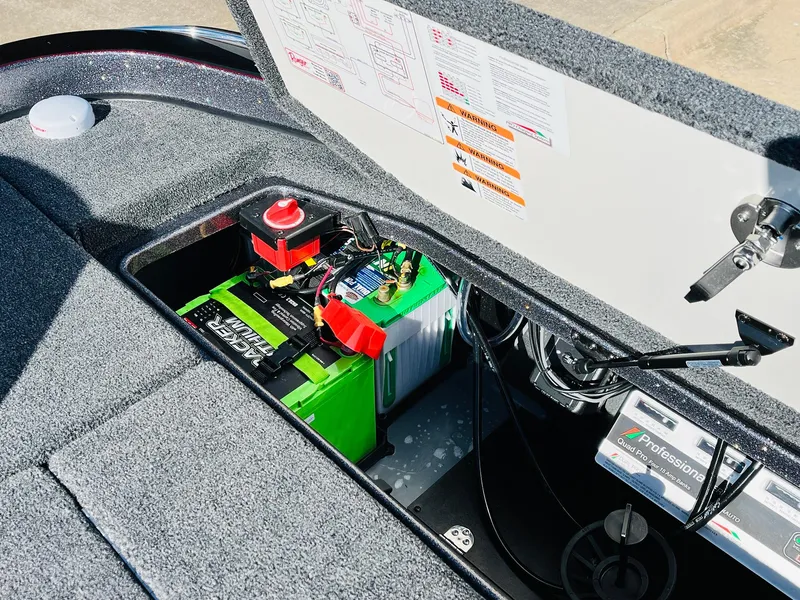

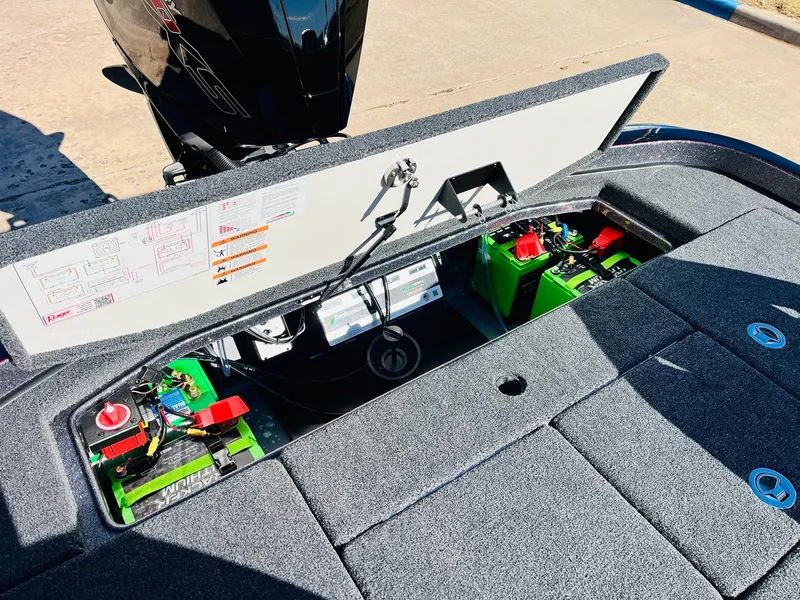

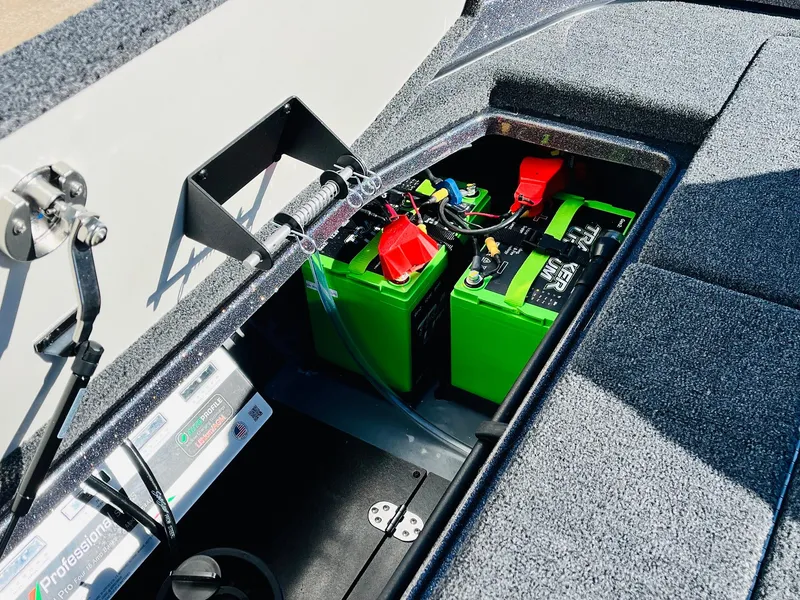

(3) Lithium 80AH trolling batteries w/trays
AGM Starting battery w/ tray
Backup manual ignition keyswitch
One-Piece-Feel™ Interloc Construction
Integrated engine setback
10" manual setback plate
Tilt hydraulic steering

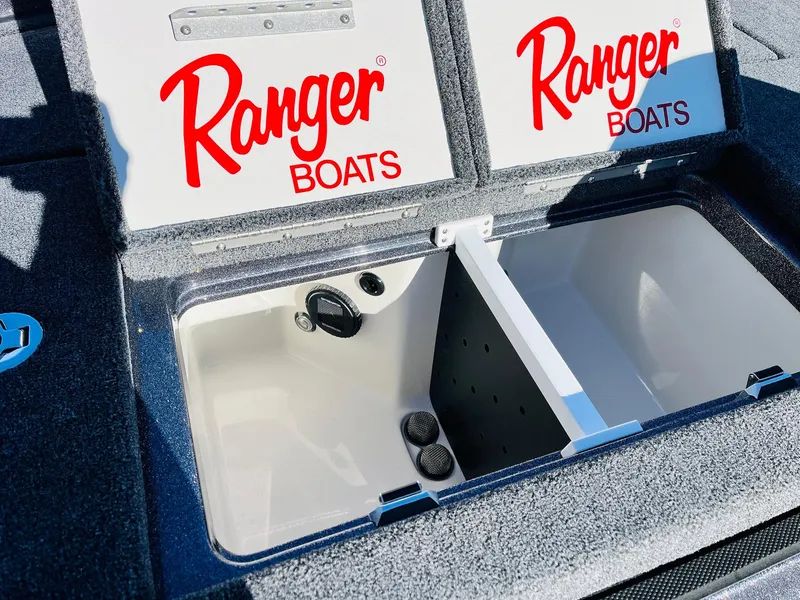

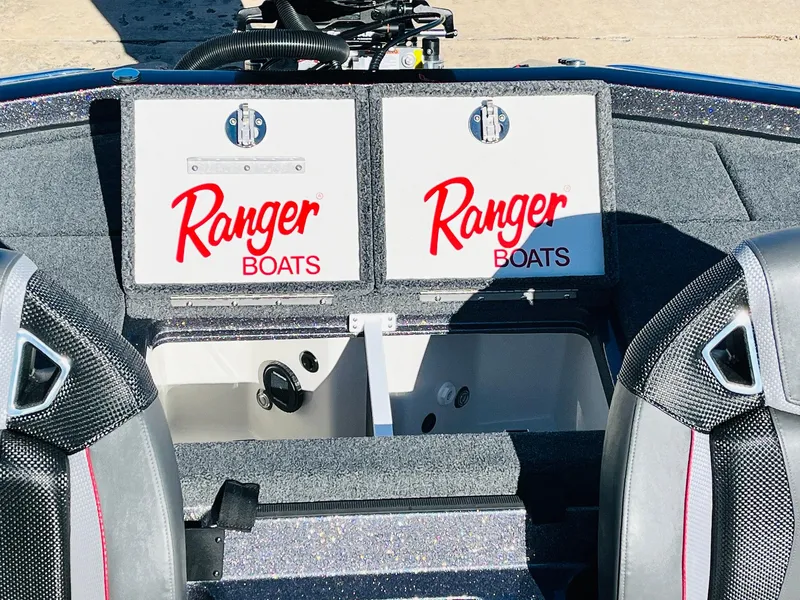

Recirculating aerated livewell w/ removable divider & integrated culling tag system
Pure Oxygen Generator
Venturi Aeration System
Recessed trolling motor foot pedal
High performance stainless steel prop
Foam-filled fiberglass stringer system
Safety/Comfort
Upright Level Flotation exceeding all USCG & NMMA standards
Heated Cloud-9™ Air-Ride Driver's Seat

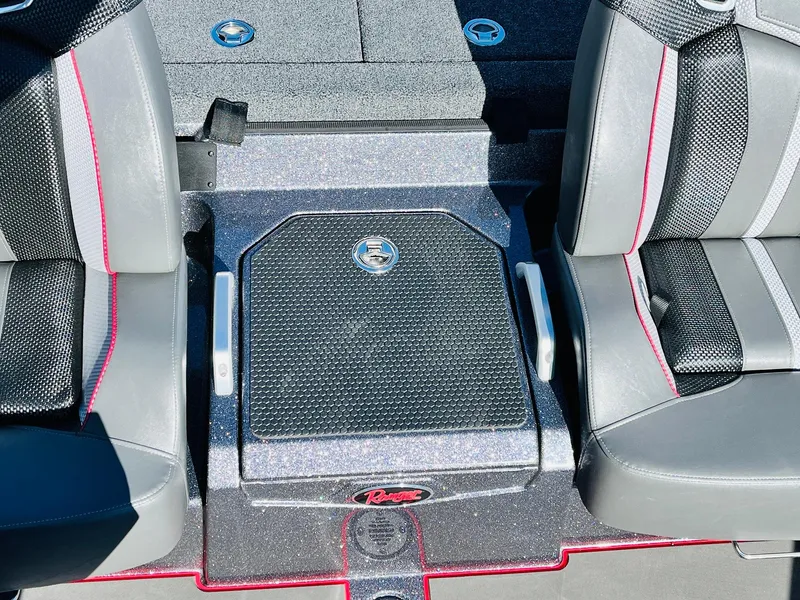

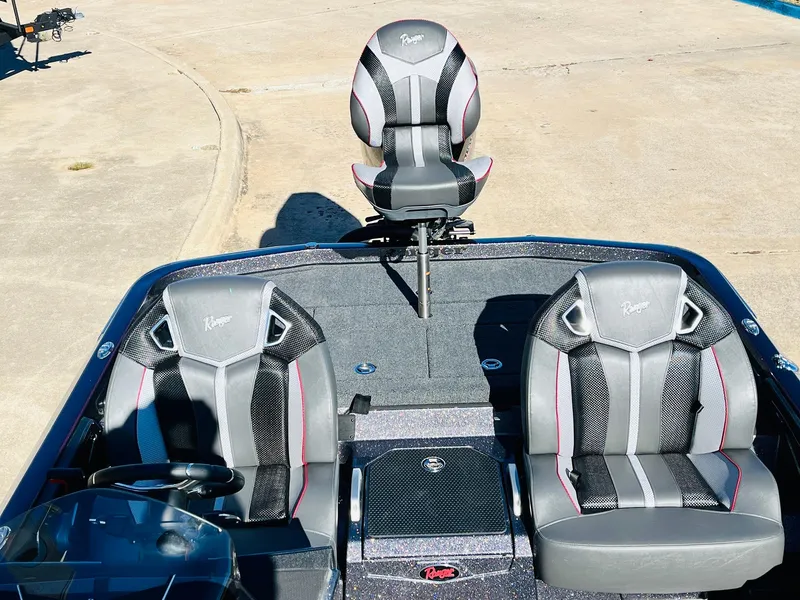

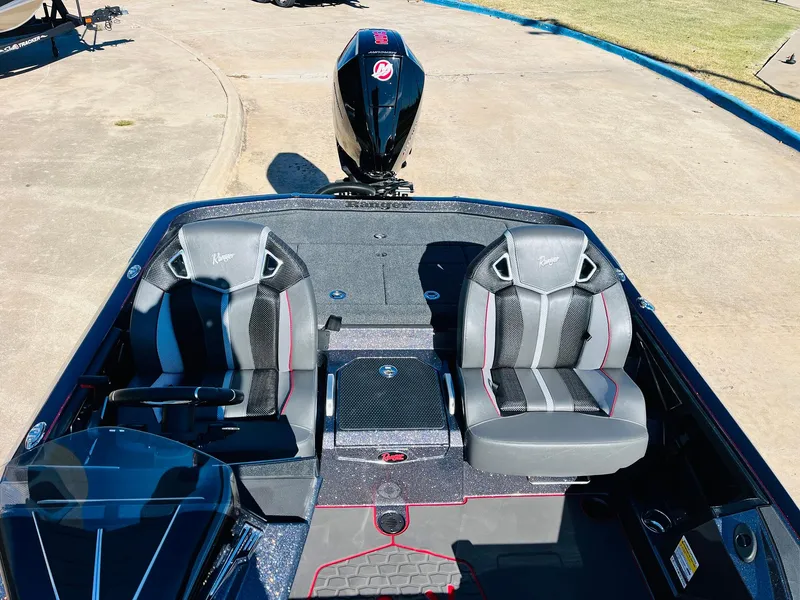

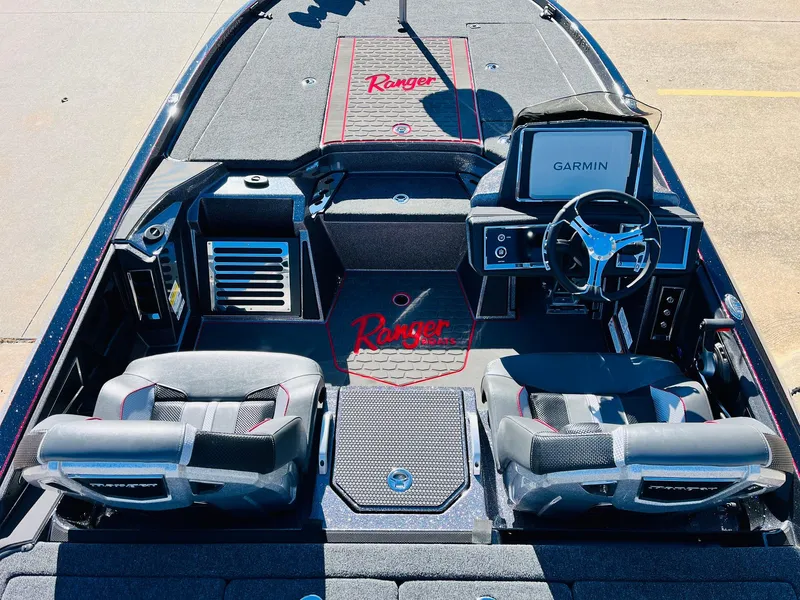

Custom-fitted Ranger® Soft Ride Seating™ system with driver & passenger seat slides & color-matched fiberglass seat shells
Custom bike seat & SRS fold-down on heavy duty pedestals
Padded front deck
Integrated grab handles
Rite Track Keel®
Pop-up tie cleats
Automatic and manual bilge pumps
Integrated re-boarding ladder
Skid-resistant material on bow
Stainles steel bow & stern eyes
Stainless steel seat bases
NMMA® certified
Trailer Features

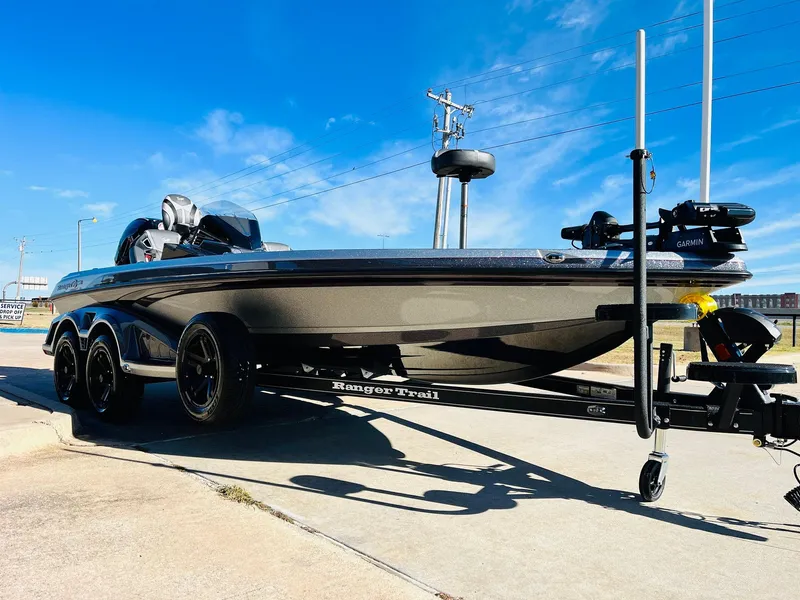

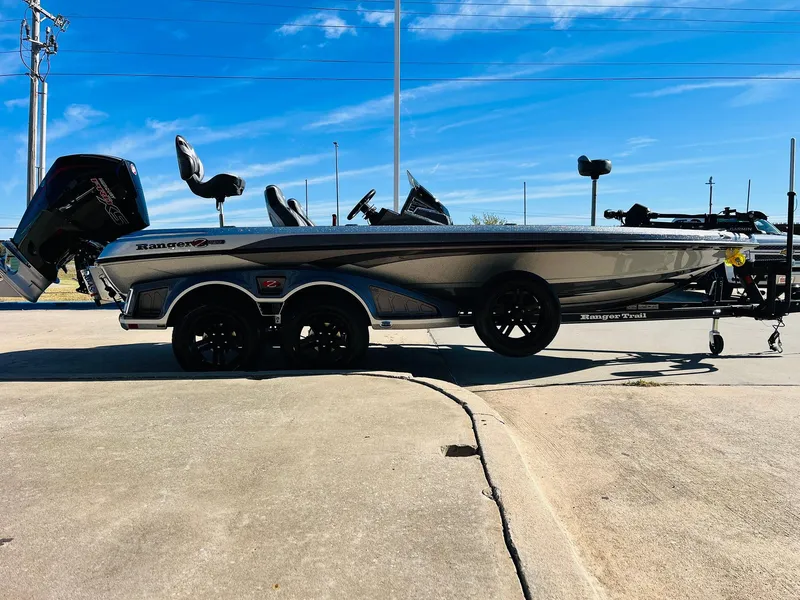

Ranger Trail® trailer w/ torsion axles and c-channel frame
Ranger® Road Armor Equipped® trailer protectant coating
17" Challenger II wheels w/ matching spare
Ranger Trail® Vault® Hub lubrication system
Fiberglass fenders w/ step pads
Hydraulic surge disc brakes
Swing-away tongue
Integrated center-swing jack finished in black powdercoat
LED lighting
LED back-up lights
Stainless steel ratcheting tie-downs
NMMA®/NATM certified
