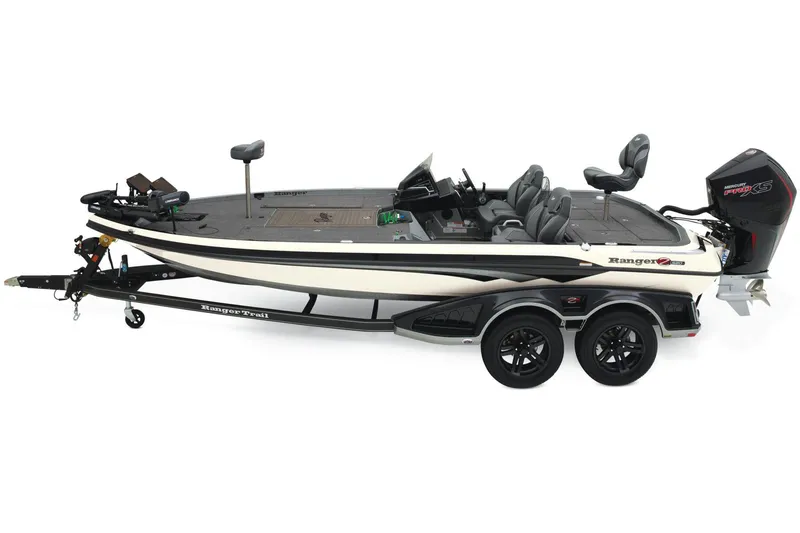

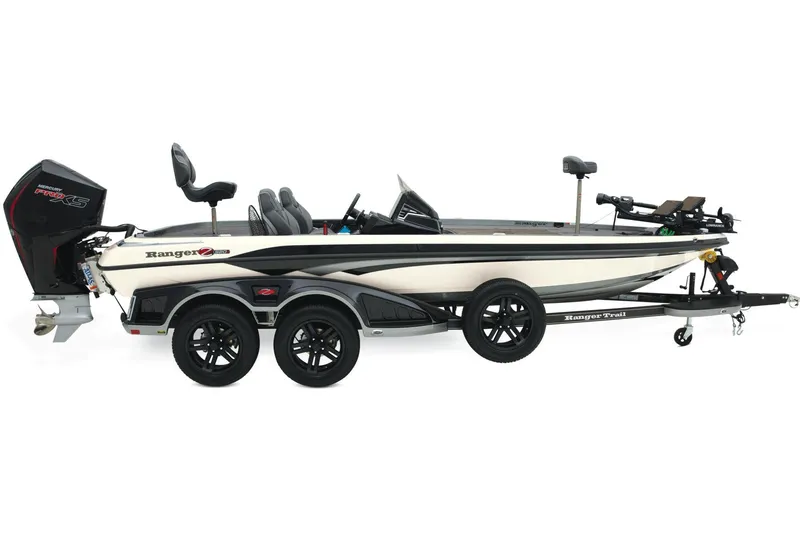

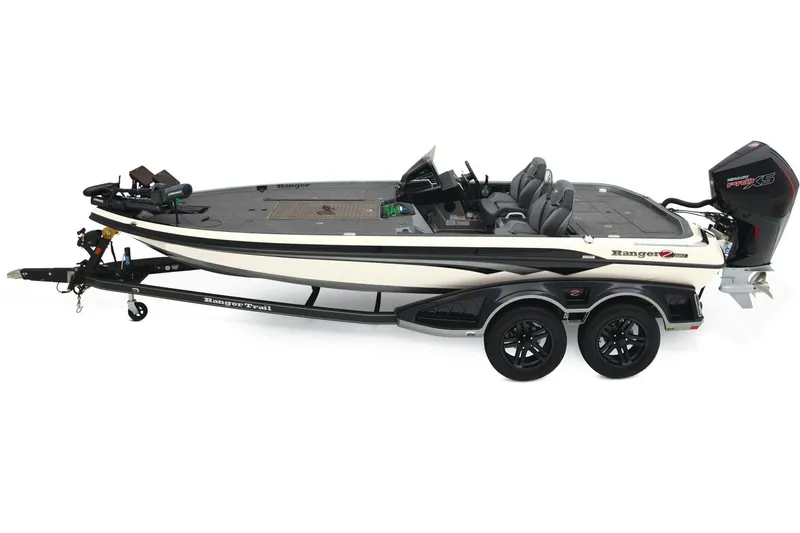

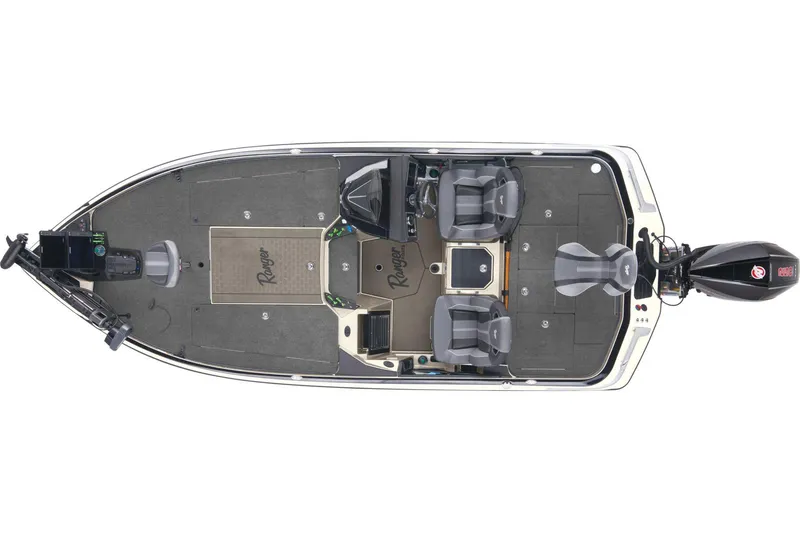

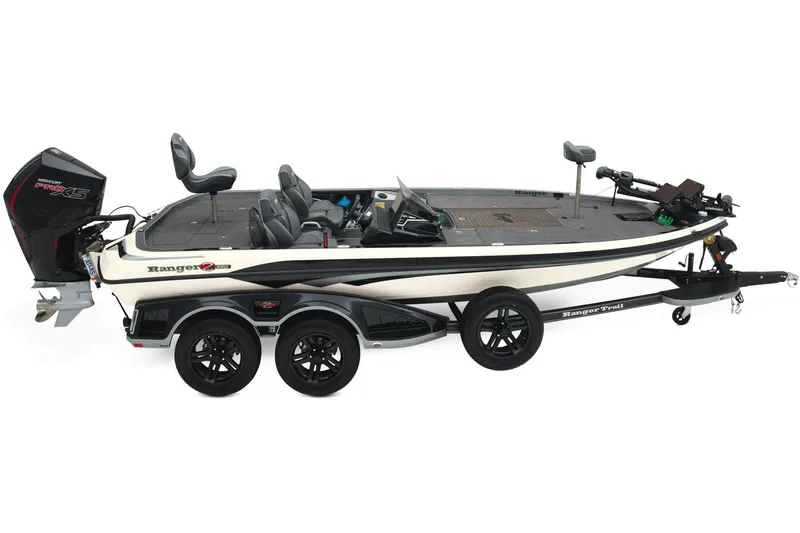

2025 Ranger Z520R Cup-Equipped

• Length:20' 11"

• Hull Length: 20' 11"

• Beam: 96"

• Max. Recommended HP: 250 HP

• Engine Shaft Length: 20"

• Inside Depth: 22"

• Fuel Capacity: 54 gal.

• Livewell Capacity: 31 gal.

• Total Person, Motor, Gear: 1650 lbs.

• Approximate Boat Weight: 1850 lbs.

• Rod Box Length - Port: 8' 0"

• Rod Box Length - Center Row 1: 8' 0"

• Rod Box Length - Center Row 2: 7' 6"

• Max. Person Capacity: 4 persons

• Trailer GVWR: 5400 lbs.

• Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 27' 1"

• Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 25' 0"

• Width On Trailer: 102"

Custom Details

• Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers

• Custom color package

• Power Ventilation Rod Storage™

• Insulated 40 qt. step-up cooler

• Integrated center-storage rod & tackle management system

• Stainless steel push-to-close locking latches

• Traction Pad Front Deck Center Lid

• Color-matched cockpit floor and compartment liner mats

• Integrated line spooling station under battery lid

• Ranger® tournament measuring board integrated at front deck step

• Retractable rod buckles

• Runnin' rod rack w/ retractable strap

• Remote drain plug

• Tool holders at bow and front deck step

• Pultrusion-reinforced decks, floors, transom & stringers

Electronics

• Ranger® R.I.D.E.™ (Ranger Intelligent Display Engine) -integrated full-boat network control and monitoring via 9" touchscreen

• Push-to-Start Ignition with proximity Key Fob

• Solid-state digital keypad at bow with push-button trim switches

• Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker

• Ranger Cup Equipped Electronics Package (see RCE)

• Ranger Cup Equipped Trolling Motor (see RCE Package)

• Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker

• Master Power on/off battery disconnect switch

• Auto-on LED storage compartment lighting & LED courtesy & livewell lighting

• Integrated LED bow navigation lights & removable LED anchor light

• Wireless phone charging station in Coin Box

• 12V power receptacle with USB

• NOCO™ GB40 jump starter w/ on-board USB charging

• Dual Pro™ on-board 15A x 4 bank charger w/ auto-detect technology & remote charging port

• Battery Charge Gauge

Ranger Cup Equipped - GARMIN® Package

• GARMIN® ECHOMAP™ Ultra 2 126sv at bow

• GARMIN® ECHOMAP™ Ultra 2 126sv at console w/ GT36UHD & GT8HW-IH Transducers

• GARMIN® Live Scope™ Plus LVS34 Live Sonar

• GARMIN® Force® 36V Trolling Motor

• Blinker Trim

• Hot Foot

• 17" Challenger II wheels w/ matching spare

Ranger Cup Equipped - LOWRANCE® Package

• Lowrance® HDS® 12 PRO at bow

• Lowrance® HDS® 12 PRO at console w/ Active Imaging™ HD

• Lowrance® Active Target™ 2 Live Sonar

• Lowrance® Ghost 45" 36V Trolling Motor

• Blinker Trim

• Hot Foot

• 17" Challenger II wheels w/ matching spare

Power/Performance

• Pultruded Fiberglass Transom

• (3) Lithium 80AH trolling batteries w/trays

• AGM Starting battery w/ tray

• Backup manual ignition keyswitch

• One-Piece-Feel™ Interloc Construction

• Integrated engine setback

• 10" manual setback plate

• Tilt hydraulic steering

• Recirculating aerated livewell w/ removable divider & integrated culling tag system

• Pure Oxygen Generator

• Venturi Aeration System

• Recessed trolling motor foot pedal

• High performance stainless steel prop

• Foam-filled fiberglass stringer system

Safety/Comfort

• Upright Level Flotation exceeding all USCG & NMMA standards

• Heated Cloud-9™ Air-Ride Driver's Seat

• Custom-fitted Ranger® Soft Ride Seating™ system with driver & passenger seat slides & color-matched fiberglass seat shells

• Custom bike seat & SRS fold-down on heavy duty pedestals

• Padded front deck

• Integrated grab handles

• Rite Track Keel®

• Pop-up tie cleats

• Automatic and manual bilge pumps

• Integrated re-boarding ladder

• Skid-resistant material on bow

• Stainles steel bow & stern eyes

• Stainless steel seat bases

• NMMA® certified

Trailer Features

• Ranger Trail® trailer w/ torsion axles and c-channel frame

• Ranger® Road Armor Equipped® trailer protectant coating

• 17" Challenger II wheels w/ matching spare

• Ranger Trail® Vault® Hub lubrication system

• Fiberglass fenders w/ step pads

• Hydraulic surge disc brakes

• Swing-away tongue

• Integrated center-swing jack finished in black powdercoat

• LED lighting

• LED back-up lights

• Stainless steel ratcheting tie-downs

• NMMA®/NATM certified
