2024 Ranger Z520R Cup-Equipped
$83,599
Boat in Fort Mill, SC 29708 US
Built in 2024
Z520R Cup-Equipped
1 Engine (MERCURY MARINE)
20.9 feet
Gas
Fiberglass/Reinforced
With an unmatched legacy and never-ending drive for domination, we've created the next iteration of the go-to for anglers at every level. With the Ranger Cup Equipped package, your Z520R comes with pro-preferred, factory-rigged add-ons that let you hit the water running-and saves you a little coin, too. The Ranger Z520R is the next chapter in bass boat evolution and a quantum leap in design, functionality and dominating performance at every level. From the outset, we took the legendary Z Comanche "C" hull, digitally scanned and perfected it, resulting in an instant hole shot and stronger top-end. Every appreciable element of the cockpit, decks, and storages has been revamped to complement the enhanced performance of the R Series. We've also gone to great lengths to incorporate more standard technology into the R Series to not only raise the bar for the industry, but to give you greater convenience and peace of mind. An all-new console carries dual graphs or a single 16" unit and the touchscreen Ranger RIDE system that gives you control over every boat and engine function. The all-new seats rest on slides and CloudNine™ air ride shock system that takes the teeth out of chop. A key fob and new push-button ignition let you start up quicker and deliver greater security when you're on the road. Inside the coin box is a wireless phone charger, and in the battery box are standard lithium batteries. Storage boxes are demonstrably larger, thanks to redesigned stringer system that builds on our One-Piece Feel Interloc™ Construction. The rod boxes feature a tri-level storage shelf system that simplifies rod management and offers more room for sticks up to 9'. Inside and out, the Z520R lets you release a new level of domination. The Z520R. It's a whole new era of Ranger.
Length:20' 11"
Hull Length: 20' 11"
Beam: 96"
Max. Recommended HP: 250 HP
Engine Shaft Length: 20"
Inside Depth: 22"
Fuel Capacity: 54 gal.
Livewell Capacity: 31 gal.
Total Person, Motor, Gear: 1650 lbs.
Approximate Boat Weight: 1850 lbs.
Rod Box Length - Port: 8' 0"
Rod Box Length - Center Row 1: 8' 0"
Rod Box Length - Center Row 2: 7' 6"
Max. Person Capacity: 4 persons
Trailer GVWR: 5400 lbs.
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 27' 1"
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 25' 0"
Width On Trailer: 102"
Custom Details
3 Level rod shelves port rod locker
2 Level rod shelves STBD rod locker
Power Ventilation Rod Storage™
Integrated rod and tackle management system
Double wall insulated cooler (10 gal) w/ drain
Stainless steel seat bases
Line spooling station under aft lid
Gas spring lid assists
Molded-in driver/ passenger footrests
Ranger® tournament measuring board
Remote drain plug
Stainless steel compression lid locks
Electronics
Lowrance® HDS-12 PRO w/ Active Target transducer at bow
Lowrance® HDS-12 PRO w/ Active Imaging at console
On-board Dual Pro™ charger, 15 x 4, auto detect lithium capable
Push to Start Ignition system with proximity keyfob
New Digital switching at bow with foot activated trim buttons

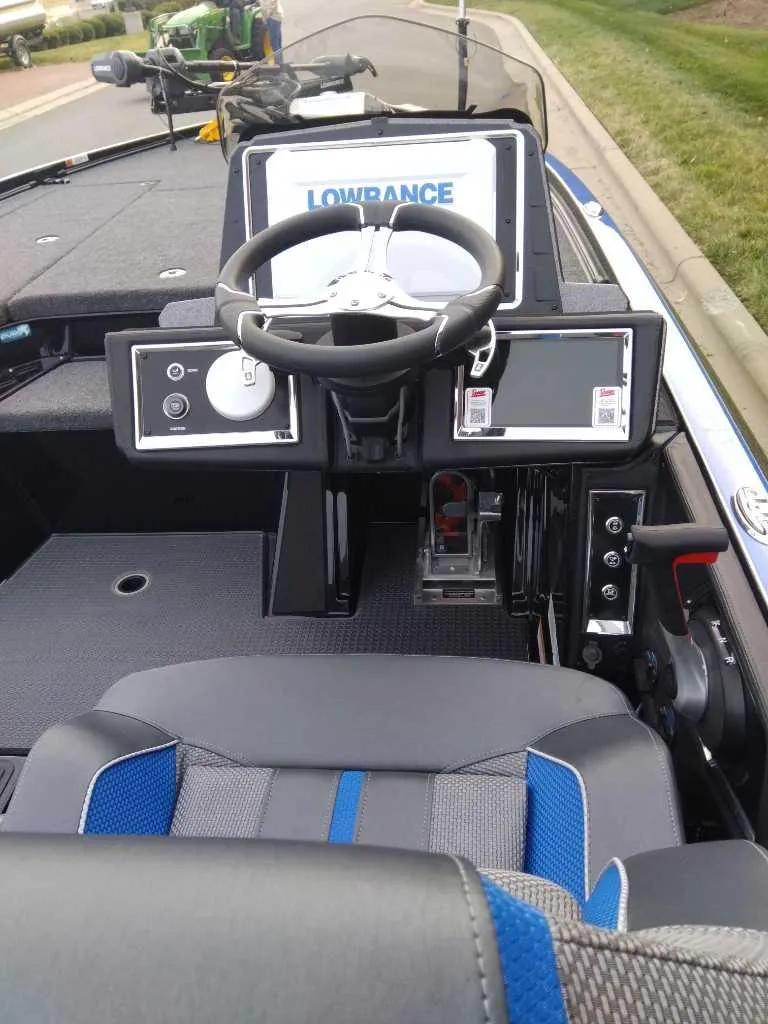

Console panel w/ Ranger® RIDE System (Ranger Intelligent Display Engine), integrating full-boat control and monitoring via 9" touchscreen
Heavy duty 6-gauge trolling motor wiring w/ 60 amp breaker
12V DC power receptacle with USB
LED compartment & livewell light package
Automatic box light sensors
Integrated LED bow navigation lights
Removable LED stern light
LED courtesy light(s)
Heavy duty 6-gauge electronics (MFD) wiring w/ 30 amp breaker
Solid state resettable switching w/ 30A master breaker
Wireless phone charger in coin box
Power/Performance
AGM starting battery w/ tray

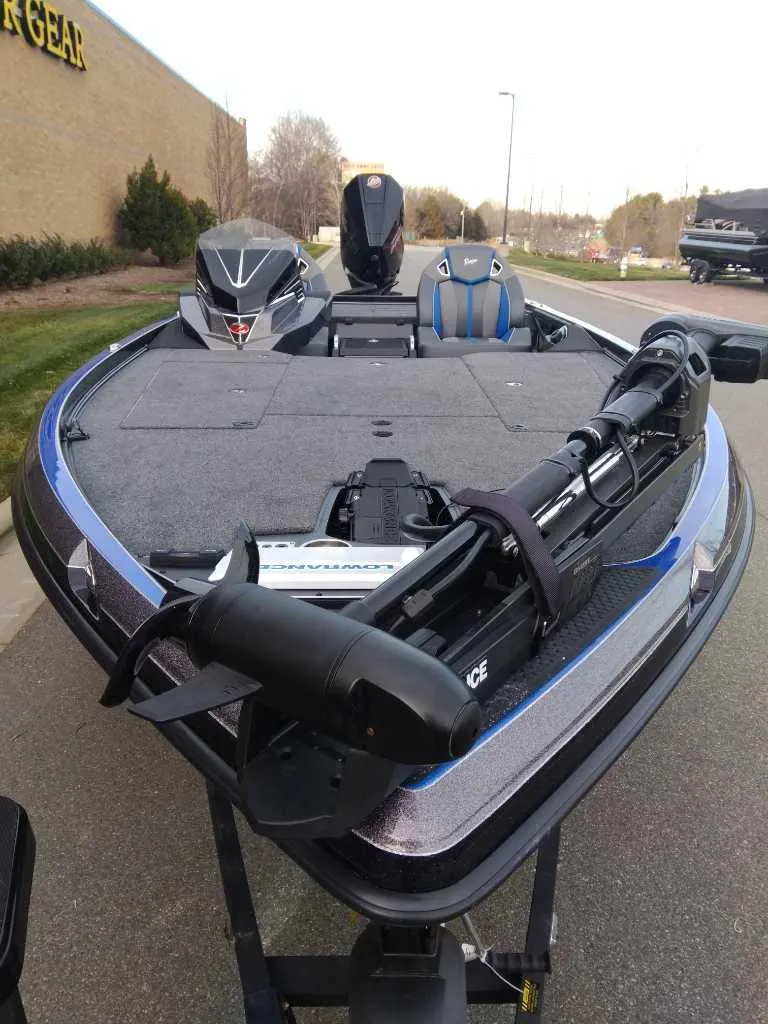

47” Lowrance Ghost 36V trolling motor
High performance stainless steel prop
Flush-mounted remote throttle control
(3) WRM80 lithium trolling motor batteries
Foam-filled unitized 1 pc fiberglass stringer system
Ranger I Beam Pultruded Fiberglass transom
Manual 10" setback plate
High performance steering wheel
Recirculating aerated livewell w/ removable divider
Dual livewell lids with cull bouy organizer STBD side
Venturi Air & livewell pump-out system
Integrated engine setback
Electrical system disconnect on/off switch
NOCO™ GB40 jump starter
Tilt hydraulic steering
Power trim
Recessed trolling motor foot pedal
Remote pump-out
Trim lever
Hot foot
Safety/Comfort
Upright, level flotation
Fire extinguisher & horn
Tinted windshield(s)
Pop-up tie cleats (drivers side cleat for easy tie up STD)
Integrated grab handles
Skid resistant material on bow
Automatic and manual bilge pump
Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ center storage, (1) bike seat w/ pro pole, (1) SRS all-weather fold down w/ power pedestal
NASCAR-inspired molded fiberglass (CCBM) seat back color matched to boat
Stainless steel seat bases
NEW integrated boarding ladder
Padded front deck
Trailer Features
Tandem axle trailer
17" black chrome Challenger wheels
Matching fiberglass fenders w/ step pads
Hydraulic surge disc brakes
Swing-away tongue
Center swing jack (black powder coated)
NMMA®/NATM certified
Ranger Trail® Vault® Hub lubrication system
Ranger® Boats Road Armor Equipped® trailer protectant
Torsion axles
LED lighting
Stainless steel ratchet tie downs
(2) Back-up lights
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.
Price History
| Date | Event | Price |
|---|---|---|
| 11/24/25 | Price decreased | $83,599(-2.5%) |
| 8/11/25 | Price decreased | $85,699(-1.3%) |
| 6/30/25 | Price decreased | $86,799(-4.6%) |
| 6/28/25 | Initial price | $90,999 |

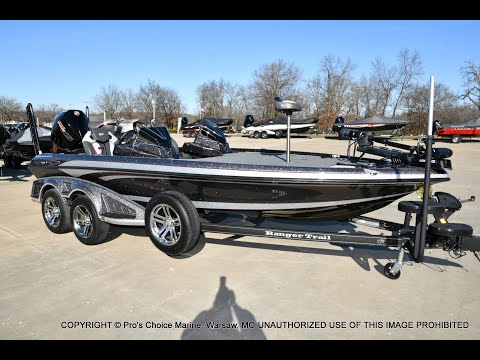

2024 Ranger Z520R Cup-Equipped Video Tours
Overview from around the web 2024 Ranger Z520R Cup-Equipped
Customers are praising the 2024 Ranger Z520R Cup-Equipped for its exceptional performance on the water, noting its impressive speed and handling
Many highlight the spacious and comfortable design, making it ideal for both competitive fishing and recreational outings. The advanced cup-equipped features receive positive feedback for enhancing convenience and functionality. Overall, users appreciate the boat's durable construction and modern technology, making it a top choice for serious anglers and boating enthusiasts alike.
The Biggest Pros and Cons
The 2024 Ranger Z520R Cup-Equipped offers a range of advantages and some considerations to keep in mind:
Pros
Tournament-Ready Design: Built specifically for competitive fishing, featuring a sleek, aerodynamic hull for enhanced speed and maneuverability.
High-Quality Construction: Durable materials and craftsmanship ensure long-lasting performance on the water.
Advanced Cup-Equipped Package: Includes premium fishing accessories and storage solutions tailored for serious anglers.
Spacious Deck Layout: Provides ample room for casting and gear organization, improving overall fishing efficiency.
Powerful Engine Options: Equipped to deliver strong, reliable propulsion for quick access to prime fishing spots.
Cons
Specialized Use: Designed primarily for tournament fishing, which may limit versatility for casual or family boating activities.
Higher Price Point: The advanced features and equipment may come at a premium cost compared to more basic models.
Limited Seating Capacity: Focus on fishing functionality might reduce passenger space, making it less ideal for larger groups.
Made For
The 2024 Ranger Z520R Cup-Equipped is designed for serious bass anglers who demand top-tier performance and tournament-ready features. Ideal for competitive fishermen seeking a high-speed, agile, and durable boat, it offers advanced technology and a spacious layout to enhance every fishing experience on the water. Whether you're competing in tournaments or enjoying a day of dedicated bass fishing, the Z520R Cup-Equipped provides the precision, power, and functionality you need to excel.
