Additional Specs

• Length:22' 10"

• Beam: 102"

• Max. Recommended HP: 400 HP

• Engine Shaft Length: 25"

• Inside Depth: 24.5"

• Fuel Capacity: 56 gal.

• Livewell Capacity: 28 gal.

• Baitwell Capacity: 7 gal.

• Total Person, Motor, Gear: 2400 lbs.

• Approximate Boat Weight: 2650 lbs.

• Rod Box Length - Center Row 1: 9' 0"

• Rod Box Length - Center Row 2: 8' 6"

• Max. Person Capacity: 7 persons

• Trailer GVWR: 6800 lbs.

• Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 28' 3"

• Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 26' 1"

• Width On Trailer: 102"

Custom Details

• Power Ventilation Rod Storage™

• Hamby's keel protector

• Soft-touch skid-resistant cockpit floor

• Under-console storage shelves - port and starboard behind driver console footrest

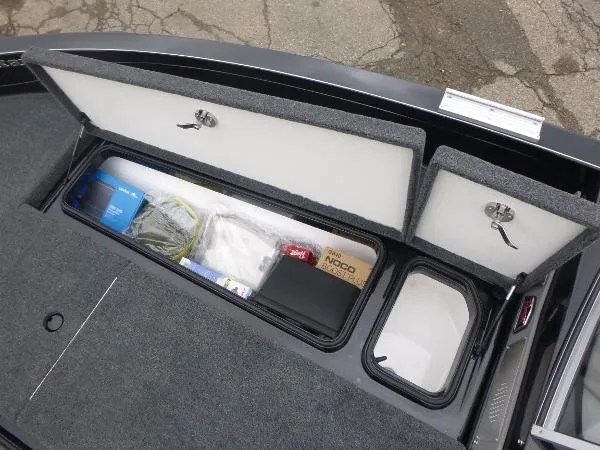

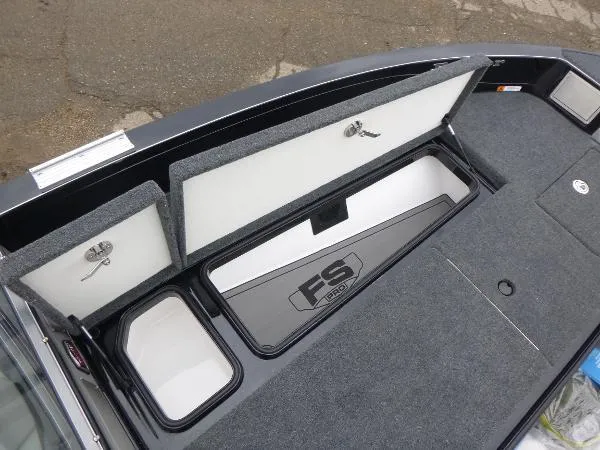

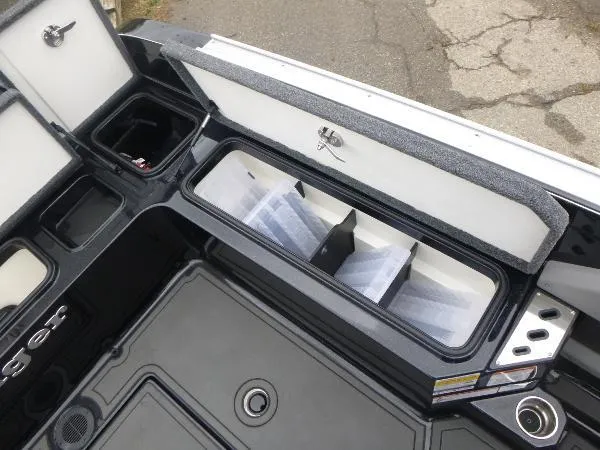

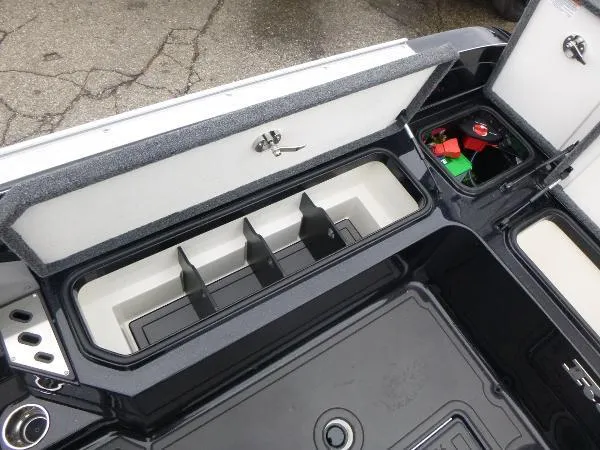

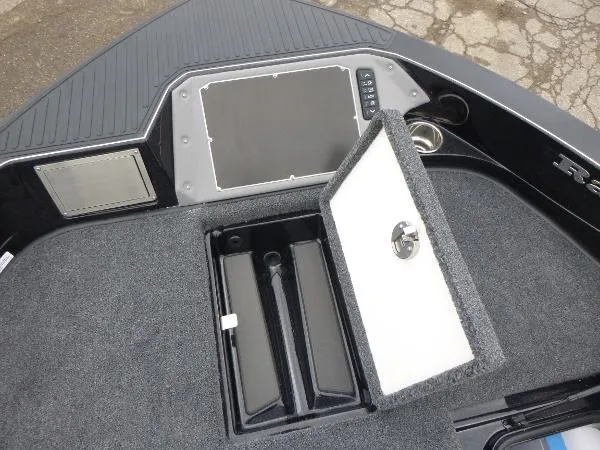

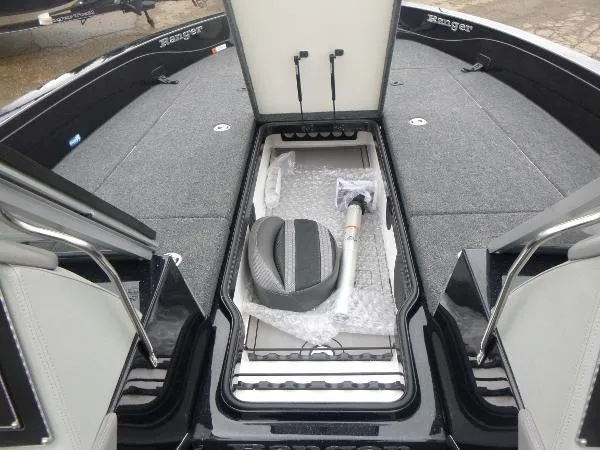

• Lockable storage compartments

• Gas spring lid assists

• Insulated cooler w/ gelcoat liner & drain

• Integrated stainless steel cup holders

• Stainless steel rear 44" grab rails

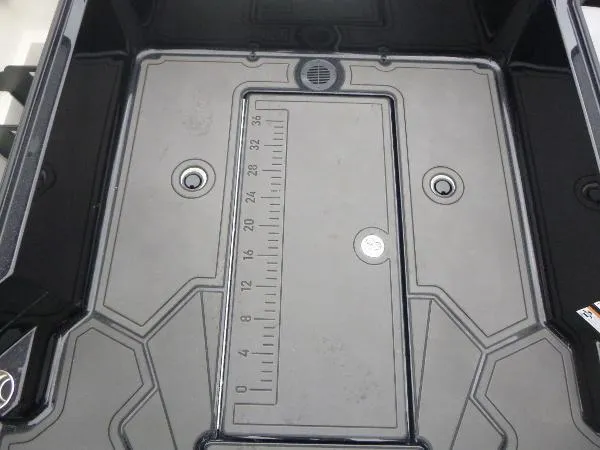

• Ranger® tournament measuring board

• Retractable bow rod buckles

• Tool holders - (1) Bow, (1) cockpit, (2) rear

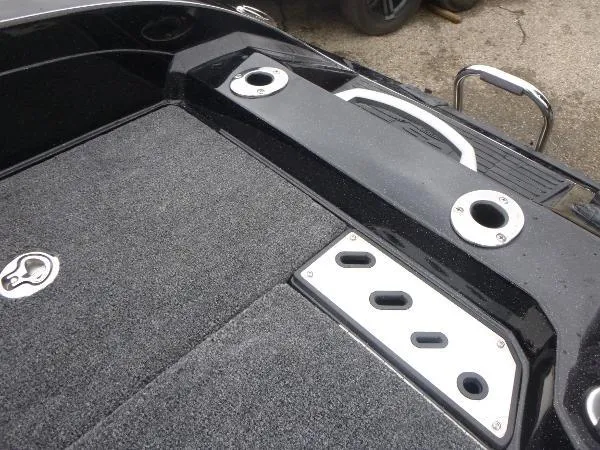

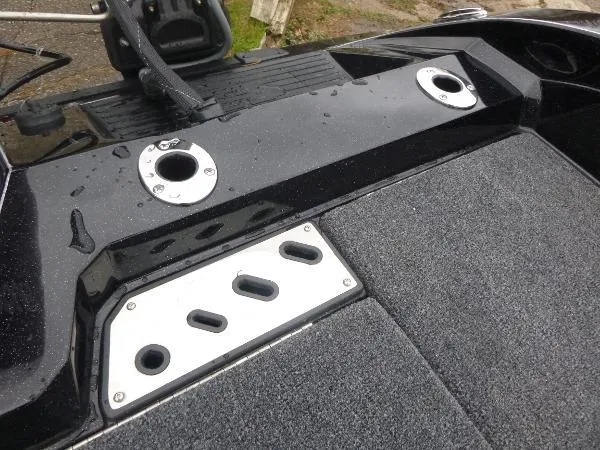

• (2) Deck-mounted stern rod holders

• Runnin' rod rack w/ holder

• Remote drain plug

• Under-console 5 gal. bucket storage on port side

Electronics

• Built to be Yours™ - Available with a wide array of custom-matched trolling motors, electronics, and accessories

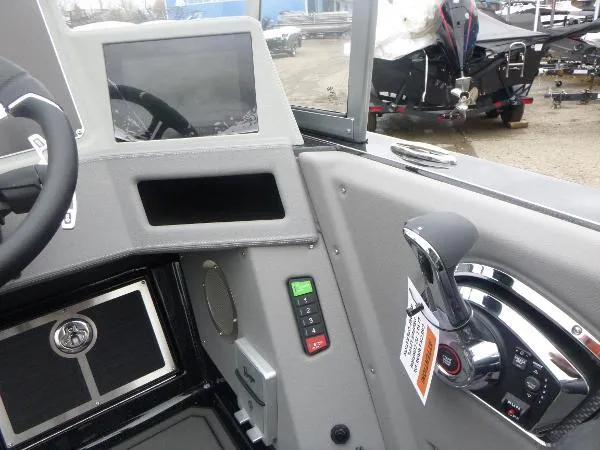

• Ranger® R.I.D.E.™ (Ranger Intelligent Display Engine) -integrated full-boat network control and monitoring via 9" touchscreen

• Solid-State digital ignition keypad at helm

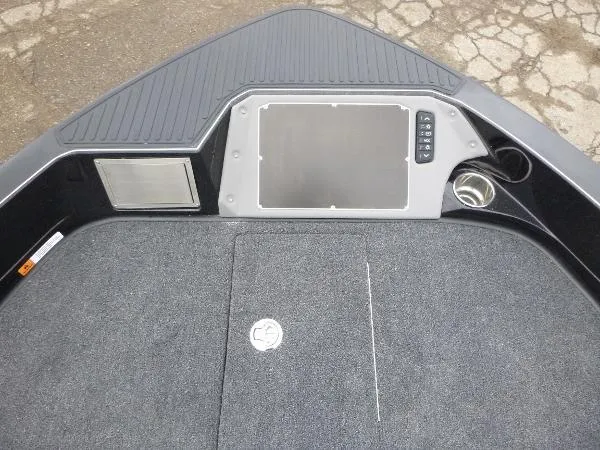

• Solid-state digital keypad at bow with push-button trim switches

• Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker

• Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker

• Wireless phone charging station at helm

• LED storage compartment lighting & LED courtesy & livewell lighting

• Integrated LED bow navigation lights & removable LED anchor light

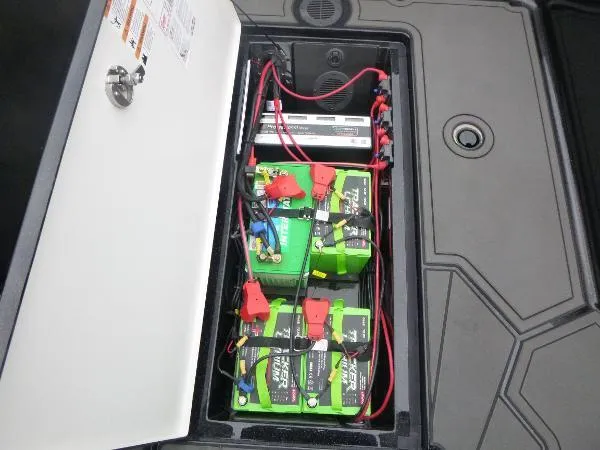

• Master Power on/off battery disconnect switch

• On-board Dual Pro® charger, 15 x 4, auto detect lithium capable

• Integrated LED bow navigation and removable stern lights

• Minn Kota® Terrova 112lb / DSC / 60" / 36V trolling motor

• Lowrance® Elite FS™ 9 at bow

• Lowrance® Elite FS™ 9 w/ Active Imaging™ HD at console

• 12V power receptacle with USB

• Additional manual key switch

• NOCO™ GB40 jump starter w/on-board USB charging

Power/Performance

• Pultruded Fiberglass Transom

• AGM Starting battery w/ tray

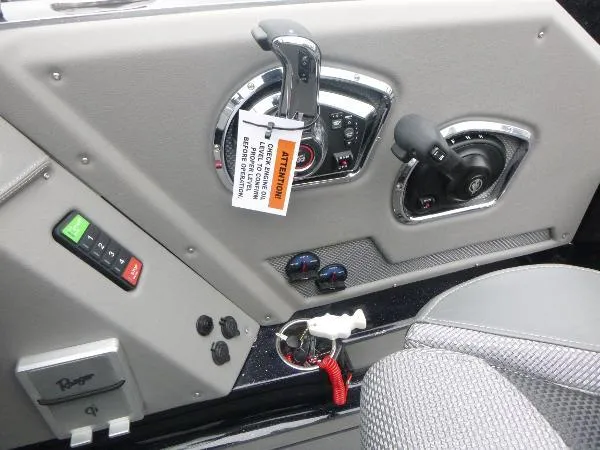

• Flush-mounted remote throttle control

• Foam-filled fiberglass stringers

• One-Piece-Feel™ Interloc Construction

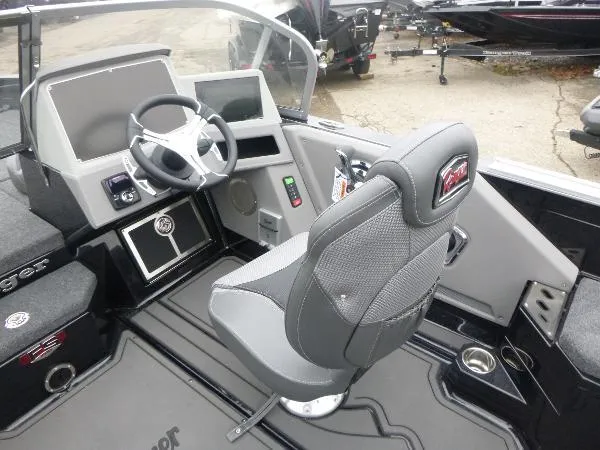

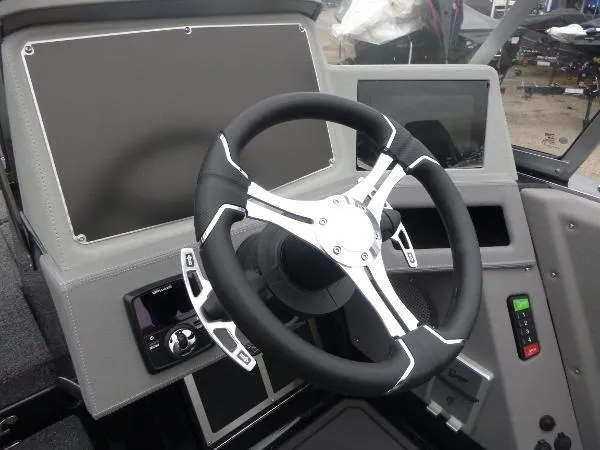

• High performance steering wheel

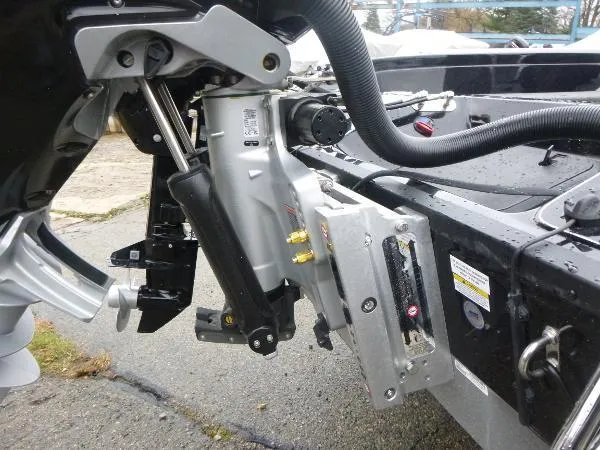

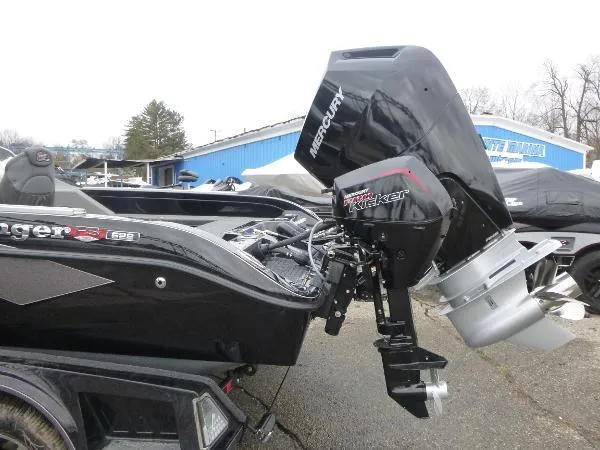

• Manual setback plate

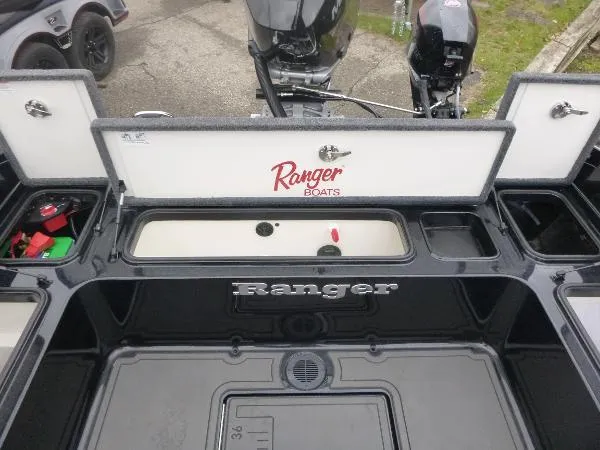

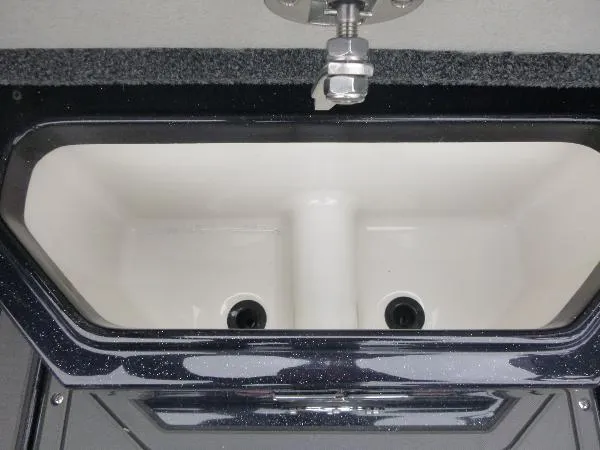

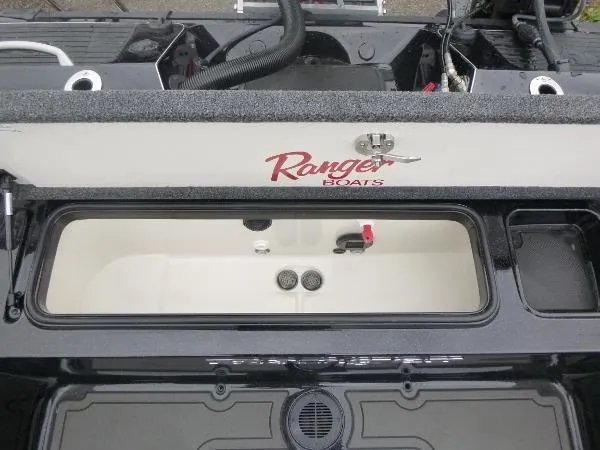

• Recirculating aerated livewell and baitwell w/ filter screens, automatic timers and livewell pump-out

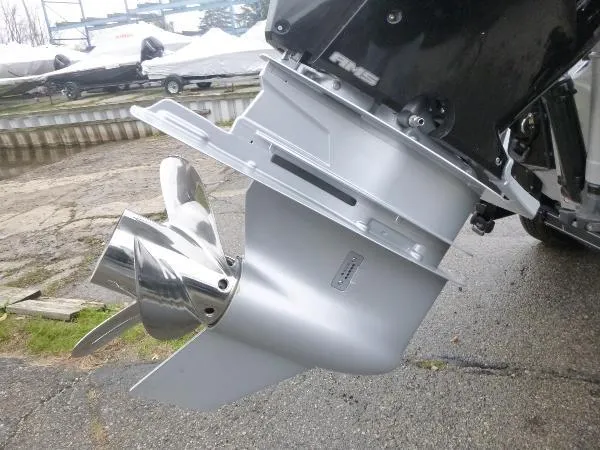

• High performance stainless steel prop

Safety/Comfort

• Upright Level Flotation exceeding all USCG & NMMA standards

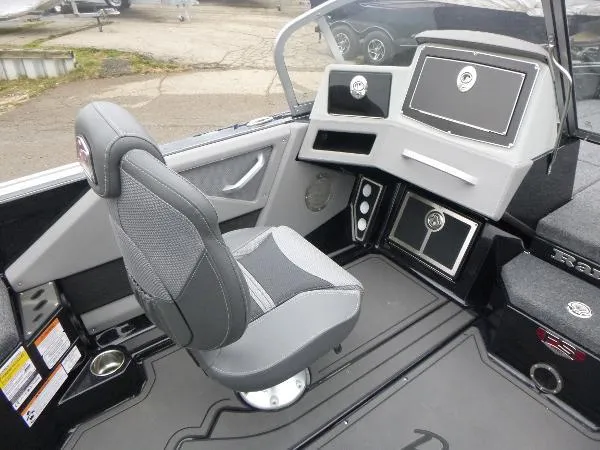

• Custom fitted premium marine upholstery - (2) driver/passenger tall-back Soft Ride Seating (SRS) fold-downs w/ (2) adjustable slides and (2) soft-ride bell pedestals and (2) SRS fold-downs w/ power pedestals

• Fire extinguisher & horn

• Boarding ladder

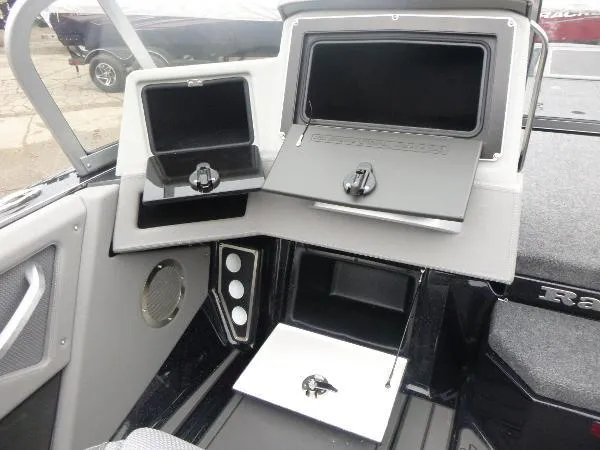

• Passenger Glove Box

• Rite Track Keel®

• Integrated front deck step-up cooler

• Skid-resistant molded rubber step pad on bow

• Automatic and manual bilge pumps

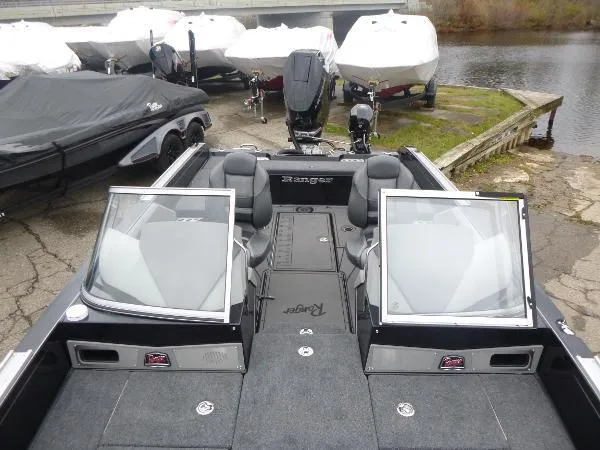

• Plexi windshield(s)

• Integrated grab handles

Trailer Features

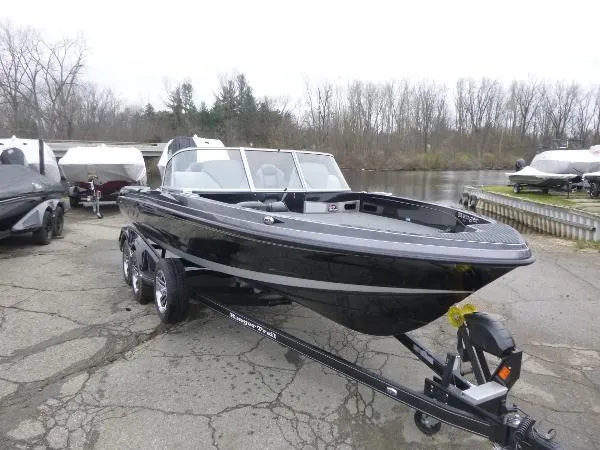

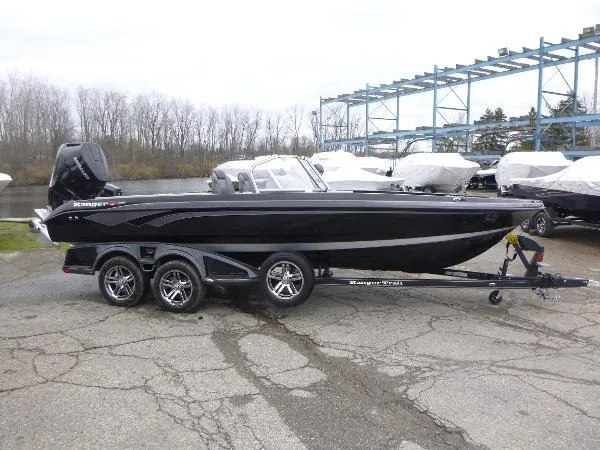

• Ranger Trail® tandem axle trailer w/ torsion axles and c-channel frame

• Ranger® Road Armor Equipped® trailer protectant coating

• Ranger Trail® Vault® Hub lubrication system

• Fiberglass fenders w/ step pads

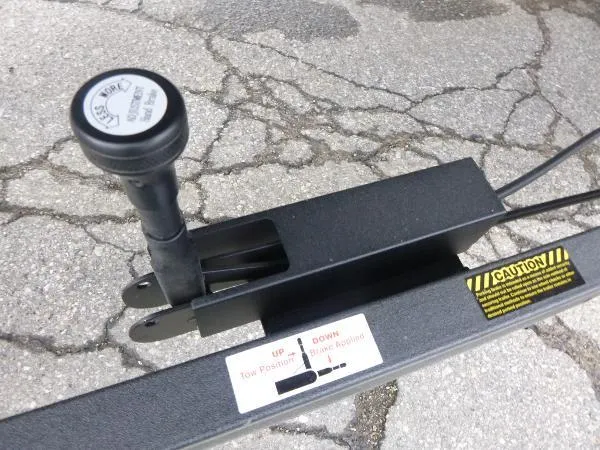

• Hydraulic surge disc brakes

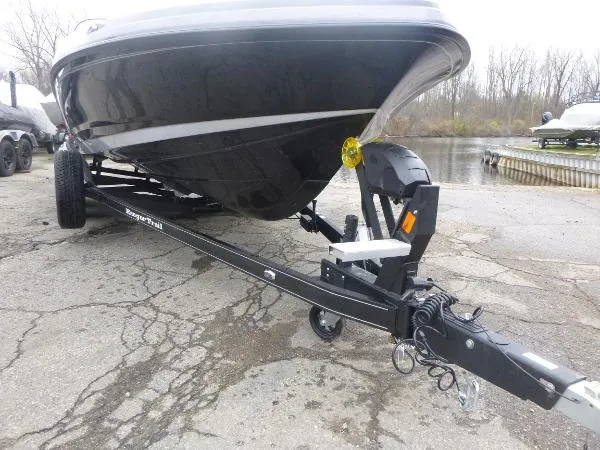

• Swing-away tongue

• Integrated center-swing jack finished in black powdercoat

• LED lighting

• Stainless steel ratcheting tie-downs

• NMMA®/NATM certified
