2025 Ranger 2360 Bay

Additional Specs

• Length:23' 5"

• Hull Length: 23' 5"

• Beam: 102"

• Max. Recommended HP: 300 HP

• Engine Shaft Length: 25"

• Inside Depth: 19"

• Draft (Engine, Bait, Fuel, Accessories): 14"

• Fuel Capacity: 81 gal.

• Baitwell Capacity: 40 gal.

• Total Person, Motor, Gear: 2700 lbs.

• Approximate Boat Weight (Add 300lbs for T-Top): 3400 lbs.

• Rod Box Length - Port: 9' 0"

• Max. Person Capacity: 10 persons

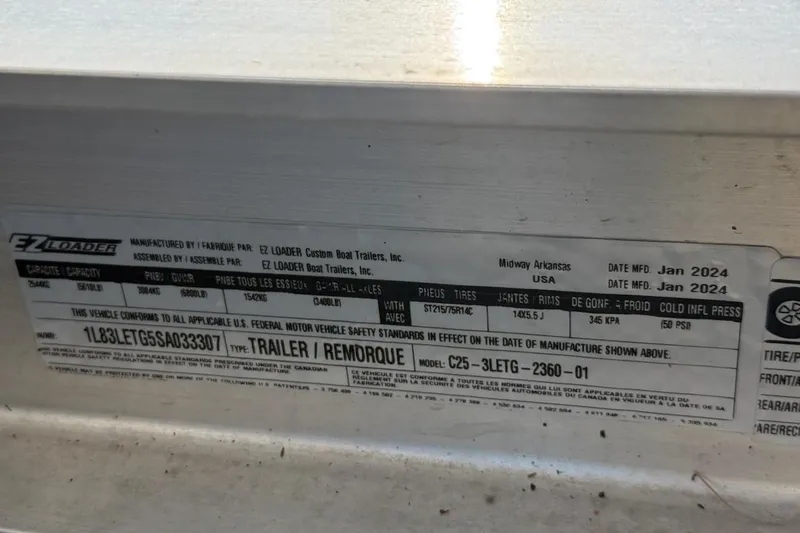

• Trailer GVWR: 6800 lbs.

• Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 29' 6"

• Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 27' 6"

• Width On Trailer: 102"

• Height On Trailer (Add Approx 3' for T-Top): 8' 4"

  Disclaimer
  We employ best efforts to present accurate pricing, specifications, features and availability for models shown on this site. On occasion, data transmission errors may produce anomalies in information presented. Photos could show optional accessories not included in the listed price or not available on the actual model in stock. Inventory shown is subject to prior sale. Products shown on this site are either newly manufactured products that contain cosmetic or other flaws that prevent them from being sold as ‘first quality’ products, prior-year models, or previously-purchased products that have been returned to WRMG for resale. All boats purchased on this site contain structural warranty only. No cosmetic warranty is included. All boats are purchased as is and as described on the attached appraisal.

Power/Performance

• Master battery switch

• Binnacle throttle control

• High performance stainless steel prop

• Pultruded Fiberglass Transom

• Fiberglass stringer system

• Stainless steel steering wheel w/ knob assist

• Hydraulic tilt steering (may vary with engine model and setback plate)

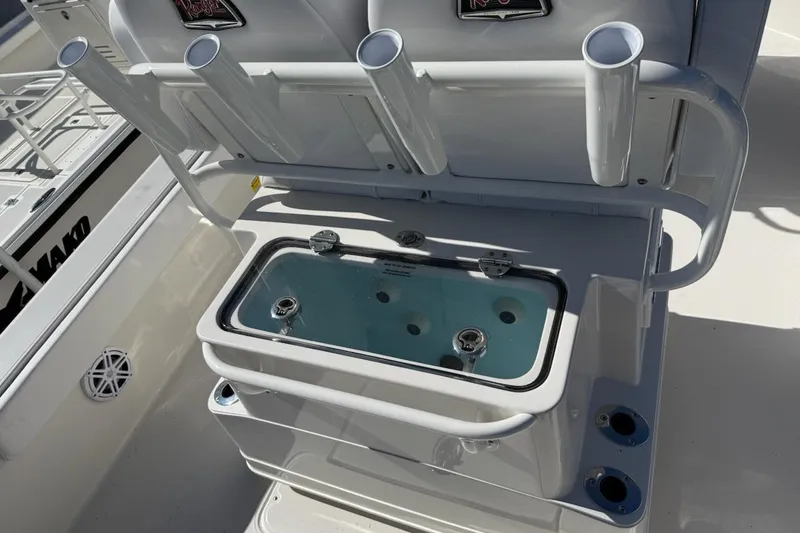

• Recirculating aerated livewell/baitwell leaning post combination w/ high speed pickup, dual pumps & in-line filter, rear

• Hydraulic setback plate

Trailer Features

• Swing-away tongue

• Aluminum Wheels w/matching spare tire & wheel

• Center swing jack

• Fenders (Stainless steel)

• Hydraulic surge disc brakes

• LED lighting

• Ranger Trail® Vault® Hub lubrication system

• Torsion axles

• NMMA®/NATM certified

Electronics

• Digital speedometer, Tach, Fuel, Trim & Water Pressure by engine manufacturer

• Heavy duty 6 ga. TM wiring w/60 amp breakers

• Corrosion resistant wiring w/ resettable breakers

• 12V DC power receptacle

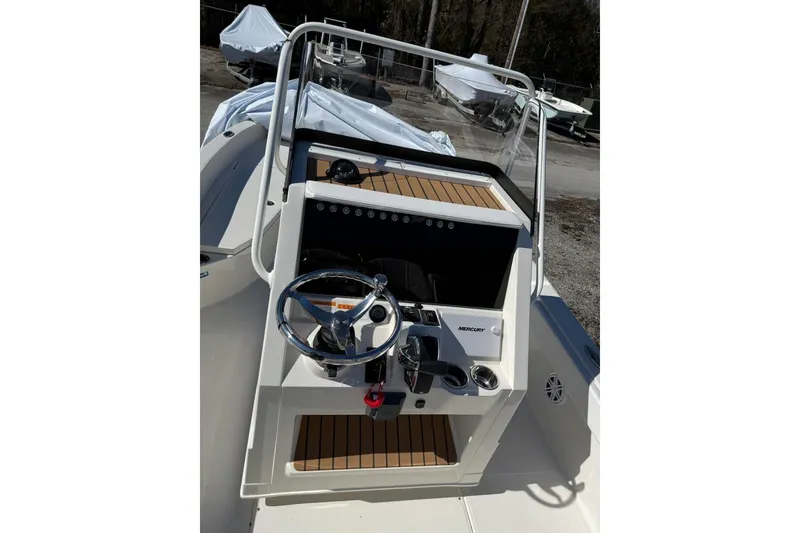

• Console panel w/ stainless push-button switching w/ 30 amp breaker

• LED cockpit, compartment & livewell light package

• LED under water lights

Custom Details

• Integrated rod storage

• Deck mounted rod holders

• Rod storage & port rod tubes

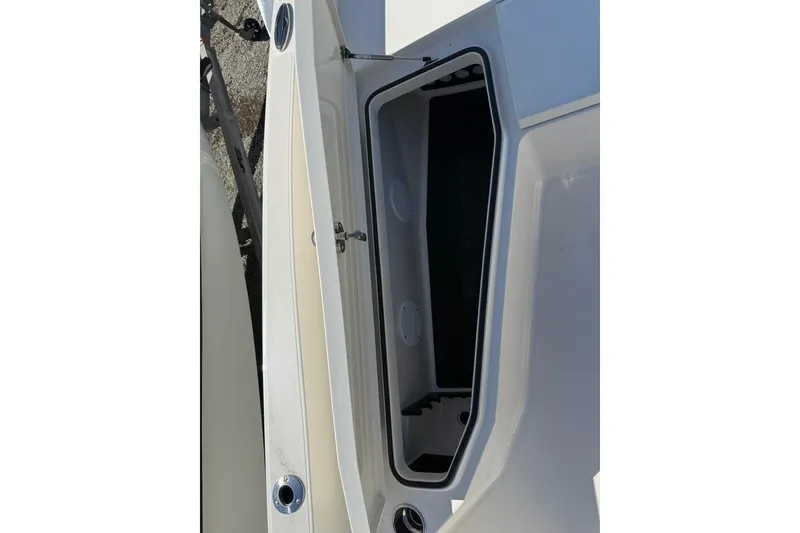

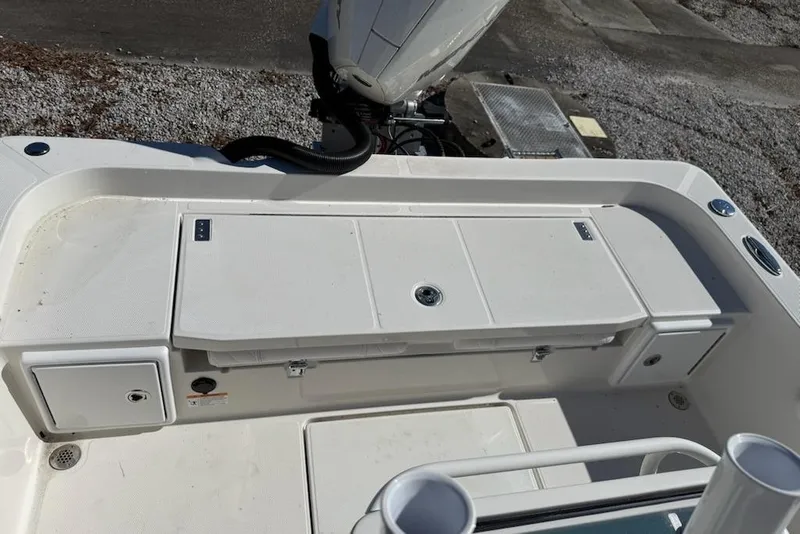

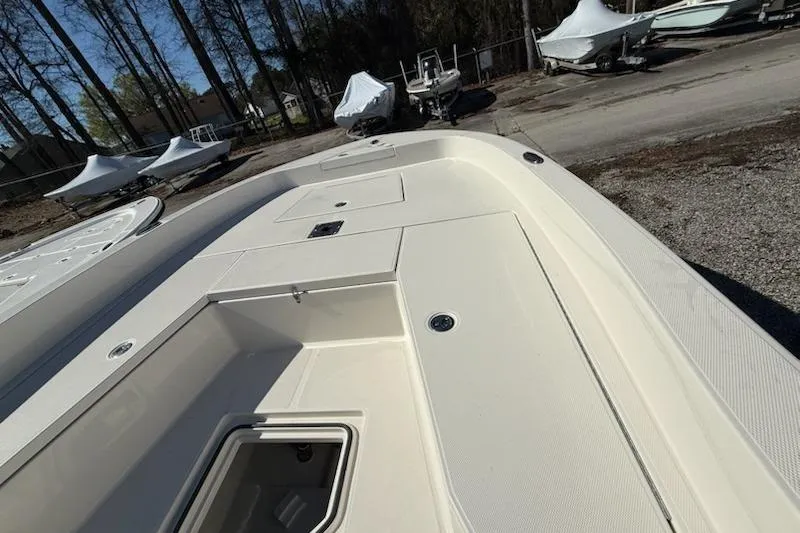

• Storage under front & rear deck

• Gelcoated storage boxes

• Anchor locker w/ protective stainless steel plate for tie-off

• Stainless steel fittings

• Stainless steel gas spring lid assist

• Custom 240 quart fish box w/ large overboard drain

• Gunnel & transom rod holders (8)

• Leaning post rod holders (4)

• Polished stainless steel pedestal base

• Built-in 100 quart cooler

• Trim tabs 12"x12"

• Fresh water and raw water washdowns

Safety/Comfort

• Heavy duty rubrail w/ stainless steel insert

• Fire extinguisher & horn

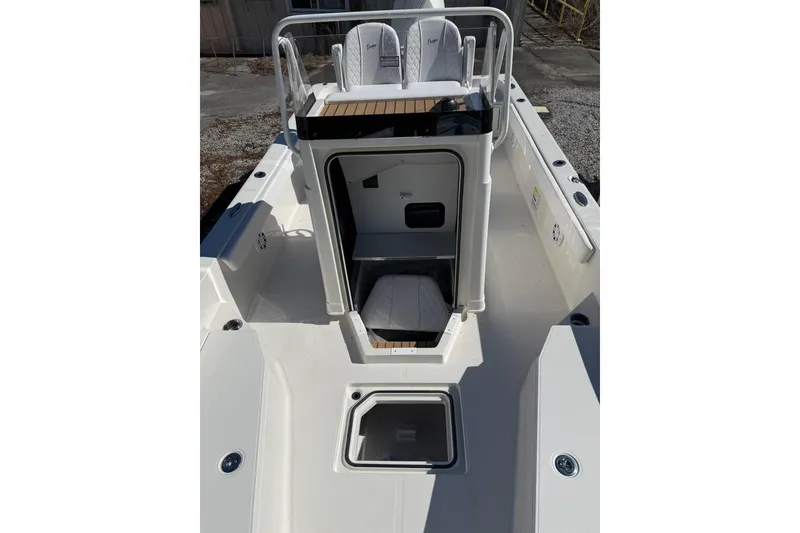

• Step in console

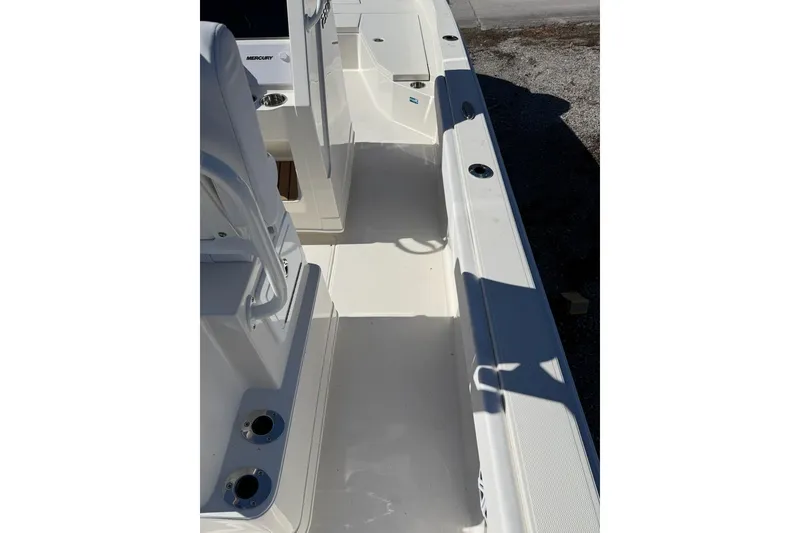

• Skid-resistant deck & interior

• Plexi windshield

• Upright, level flotation

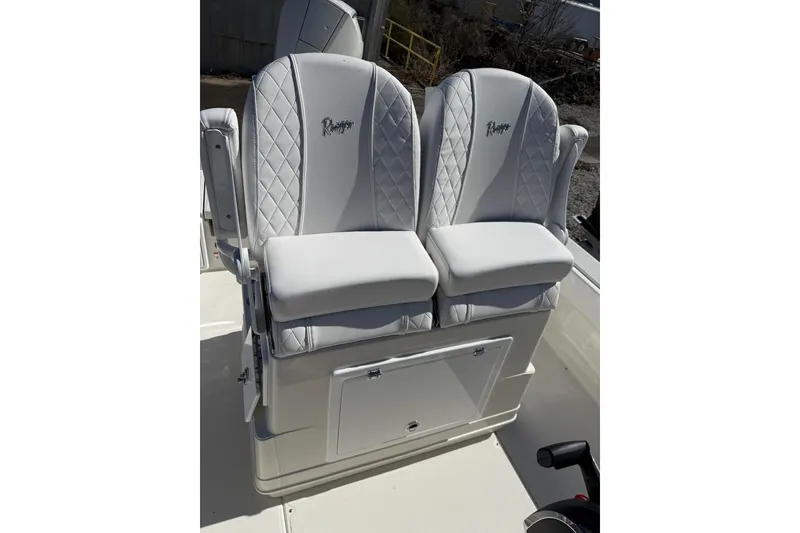

• Custom-fitted premium marine upholstery: leaning post w/ 40 gal. baitwell & added storage

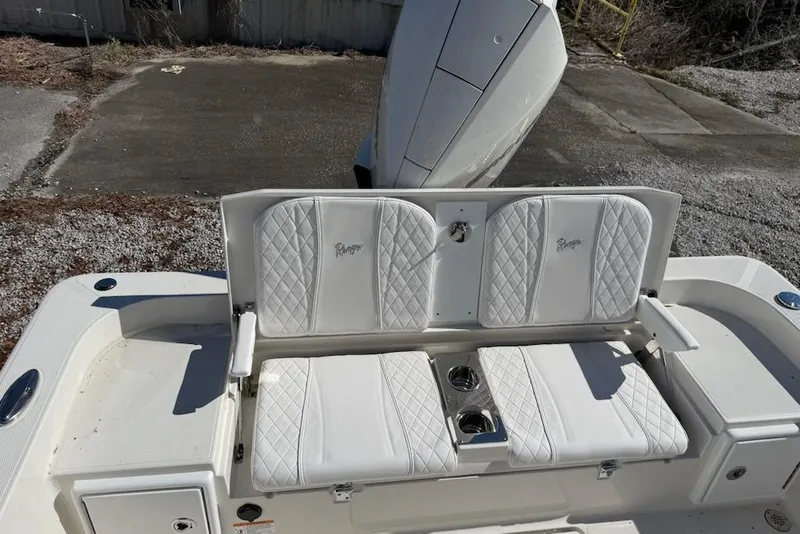

• Folding rear bench seat w/ storage

• Self-bailing cockpit w/ stainless steel scuppers

• Stainless steel pull up tie cleats/ fore, aft, & midship

• Swim platform w/ boarding ladder

• Mirror on console cabin door
