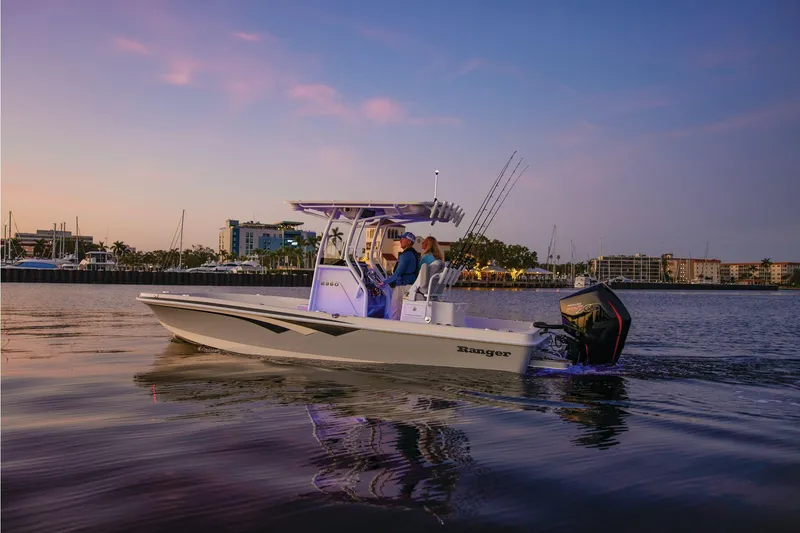

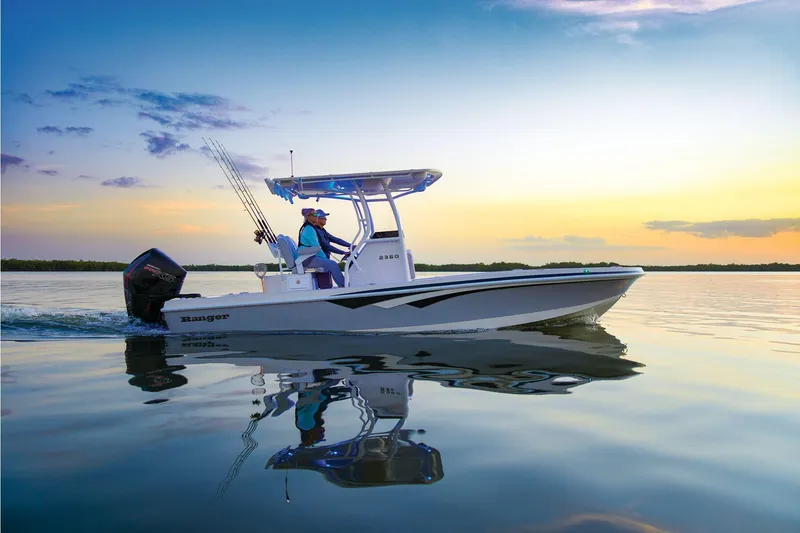

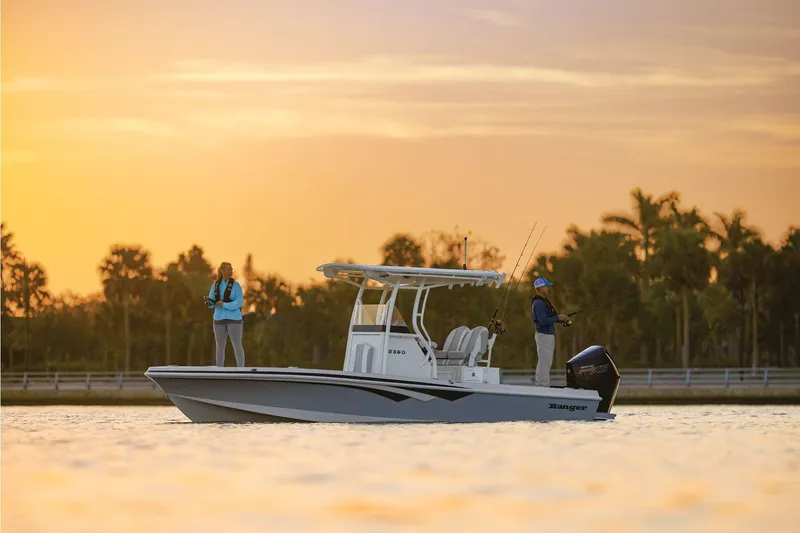

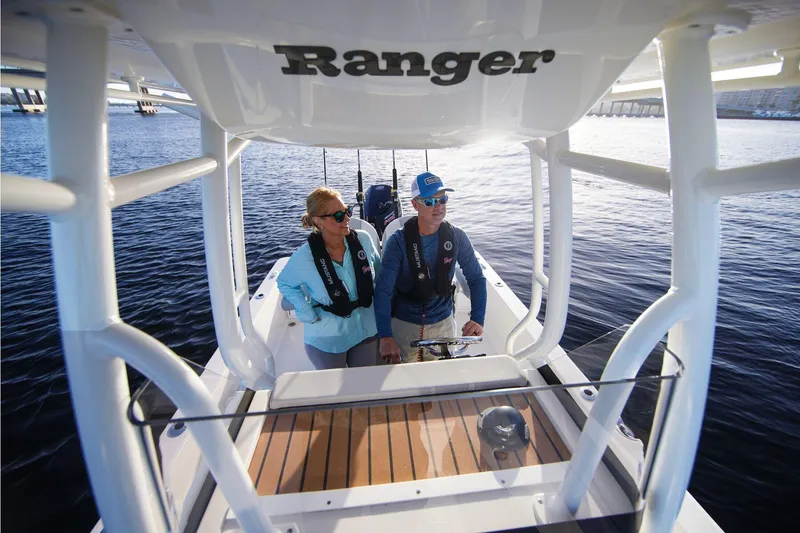

2025 Ranger 2360 Bay

Additional Specs

• Length:23' 5"

• Hull Length: 23' 5"

• Beam: 102"

• Max. Recommended HP: 300 HP

• Engine Shaft Length: 25"

• Inside Depth: 19"

• Draft (Engine, Bait, Fuel, Accessories): 14"

• Fuel Capacity: 81 gal.

• Baitwell Capacity: 40 gal.

• Total Person, Motor, Gear: 2700 lbs.

• Approximate Boat Weight (Add 300lbs for T-Top): 3400 lbs.

• Rod Box Length - Port: 9' 0"

• Max. Person Capacity: 10 persons

• Trailer GVWR: 6800 lbs.

• Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 29' 6"

• Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 27' 6"

• Width On Trailer: 102"

• Height On Trailer (Add Approx 3' for T-Top): 8' 4"

Power/Performance

• Master battery switch

• Binnacle throttle control

• High performance stainless steel prop

• Pultruded Fiberglass Transom

• Fiberglass stringer system

• Stainless steel steering wheel w/ knob assist

• Hydraulic tilt steering (may vary with engine model and setback plate)

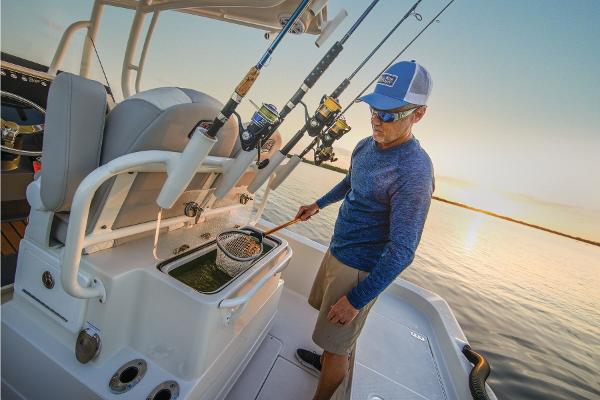

• Recirculating aerated livewell/baitwell leaning post combination w/ high speed pickup, dual pumps & in-line filter, rear

• Hydraulic setback plate

Trailer Features

• Swing-away tongue

• Aluminum Wheels w/matching spare tire & wheel

• Center swing jack

• Fenders (Stainless steel)

• Hydraulic surge disc brakes

• LED lighting

• Ranger Trail® Vault® Hub lubrication system

• Torsion axles

• NMMA®/NATM certified

Electronics

• Digital speedometer, Tach, Fuel, Trim & Water Pressure by engine manufacturer

• Heavy duty 6 ga. TM wiring w/60 amp breakers

• Corrosion resistant wiring w/ resettable breakers

• 12V DC power receptacle

• Console panel w/ stainless push-button switching w/ 30 amp breaker

• LED cockpit, compartment & livewell light package

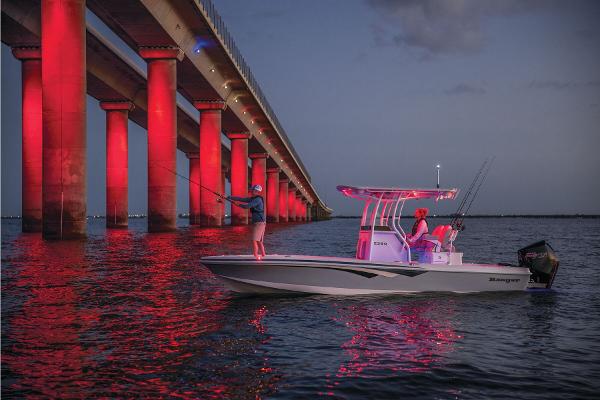

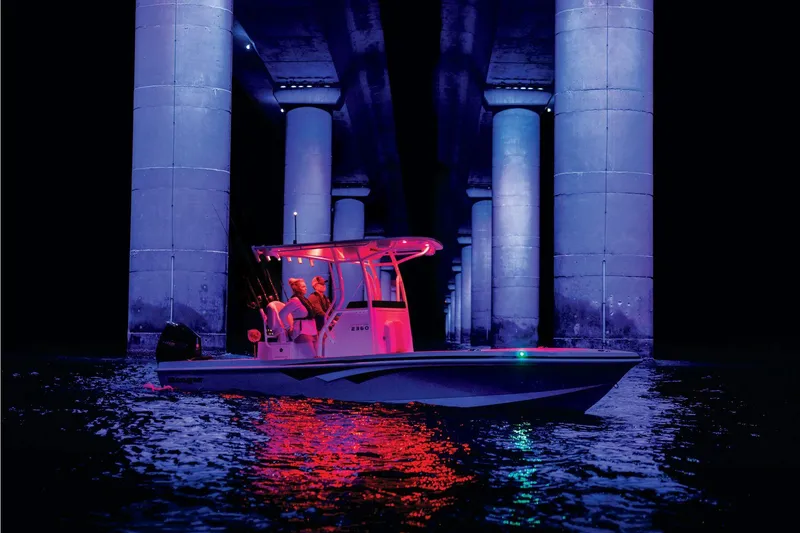

• LED under water lights

Custom Details

• Integrated rod storage

• Deck mounted rod holders

• Rod storage & port rod tubes

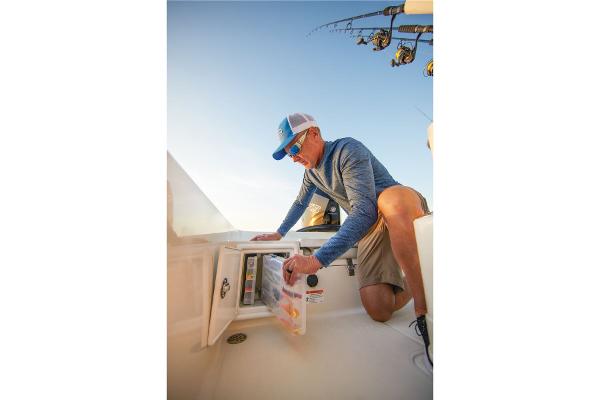

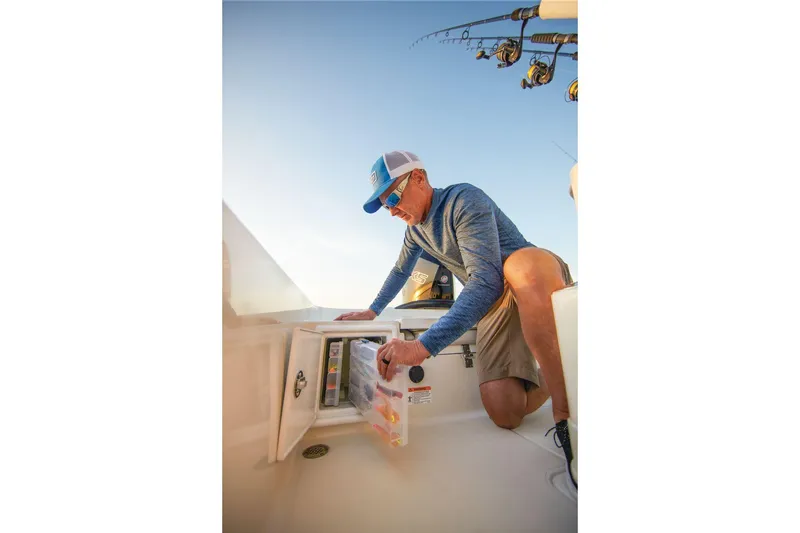

• Storage under front & rear deck

• Gelcoated storage boxes

• Anchor locker w/ protective stainless steel plate for tie-off

• Stainless steel fittings

• Stainless steel gas spring lid assist

• Custom 240 quart fish box w/ large overboard drain

• Gunnel & transom rod holders (8)

• Leaning post rod holders (4)

• Polished stainless steel pedestal base

• Built-in 100 quart cooler

• Trim tabs 12"x12"

• Fresh water and raw water washdowns

Safety/Comfort

• Heavy duty rubrail w/ stainless steel insert

• Fire extinguisher & horn

• Step in console

• Skid-resistant deck & interior

• Plexi windshield

• Upright, level flotation

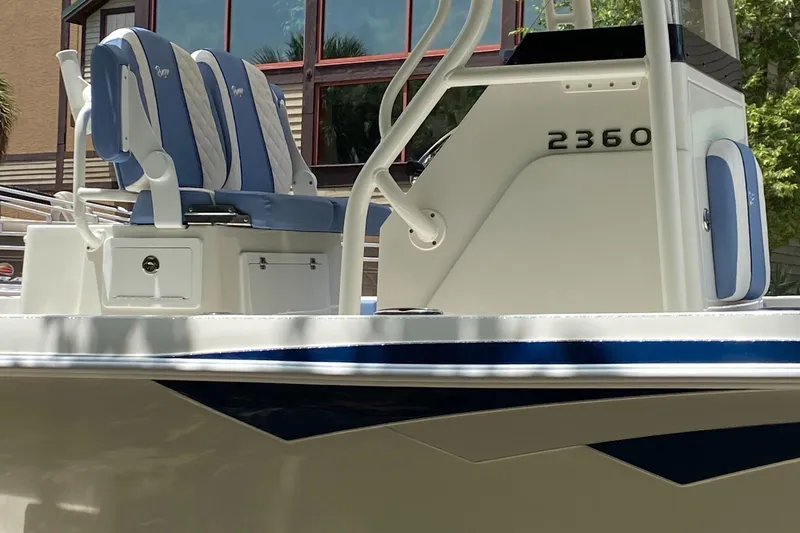

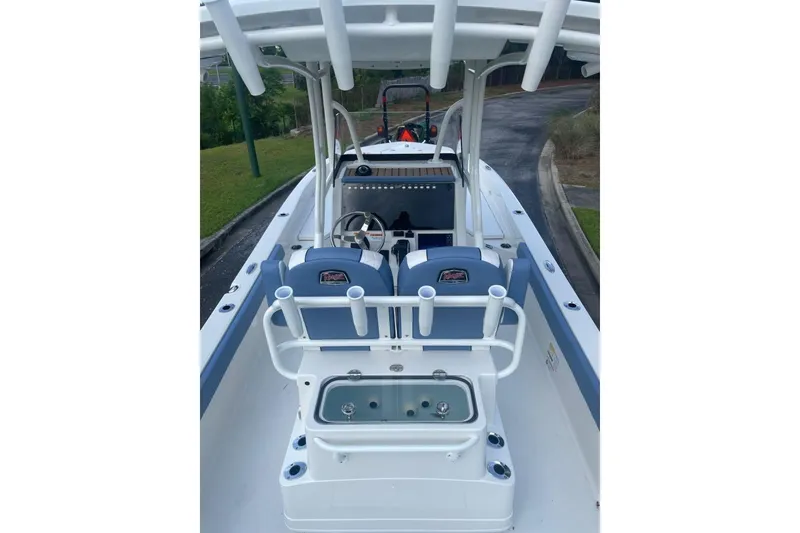

• Custom-fitted premium marine upholstery: leaning post w/ 40 gal. baitwell & added storage

• Folding rear bench seat w/ storage

• Self-bailing cockpit w/ stainless steel scuppers

• Stainless steel pull up tie cleats/ fore, aft, & midship

• Swim platform w/ boarding ladder

• Mirror on console cabin door
