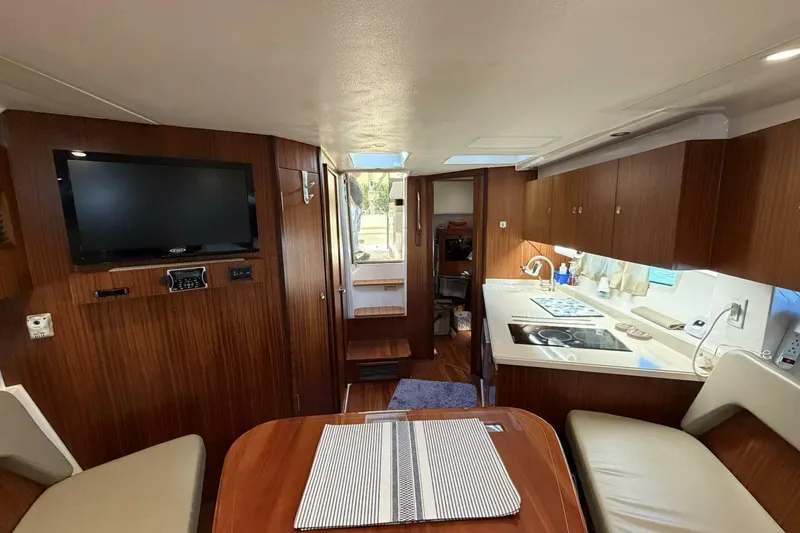

Cabin Area

• Molded/acrylic access door with gasket, 316L stainless steel locking latch and screen
• Molded cabin entry steps with handrail and wood treads
• Molded cabin hull liner with custom wood floor accents, storage access, drainage, and sound-damping insulation
• Molded cabin deck liner with sound-damping insulation
• Recessed bonded tempered glass hull and deck windows with shades
• 12 Volt outlet
• 120 Volt outlet with GFI protection
• Three switch panel with overhead LED lights (9) and LED floor accent lights (4)
• Pursuit entertainment center with TV/Stereo

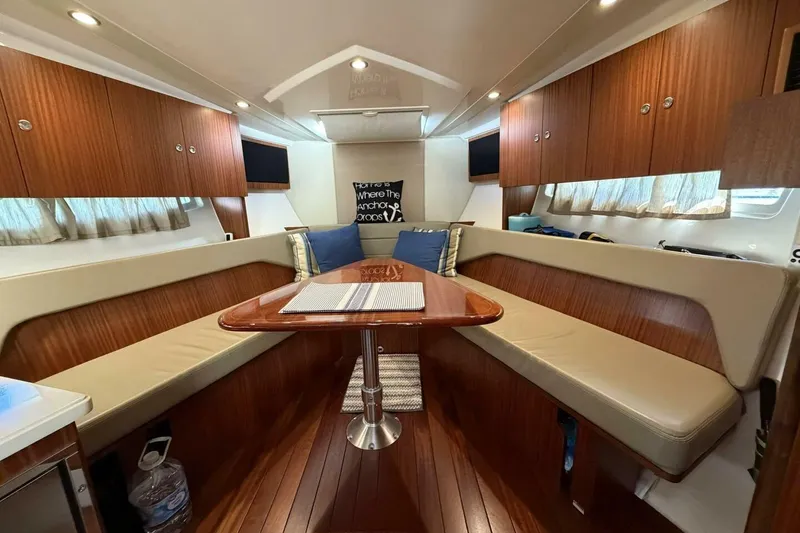

• Custom v-berth seating that converts into a queen-size island berth with storage below. Solid wood table with electric actuated table base.
• 240 Volt/60 cycle cabin air conditioner with reverse cycle heat 16000 BTU self-contained with raw water pump, bronze sea strainer, seacock, and bronze thru-hull fitting
• Gunnel storage cabinets with doors and latches
• Forward bulkhead treatment
• Starboard hanging locker with light
• Fwd bilge pump with automatic float switch

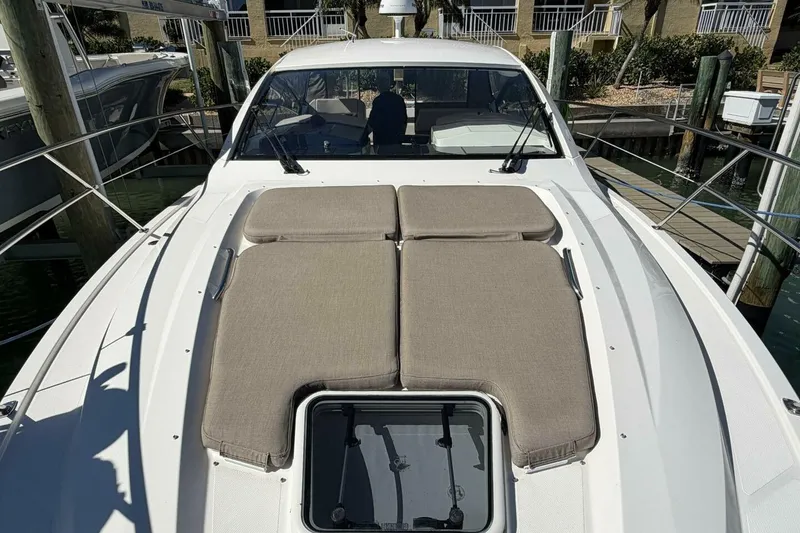

• Fwd deck hatch with screen and sunshade
• CO detector
•

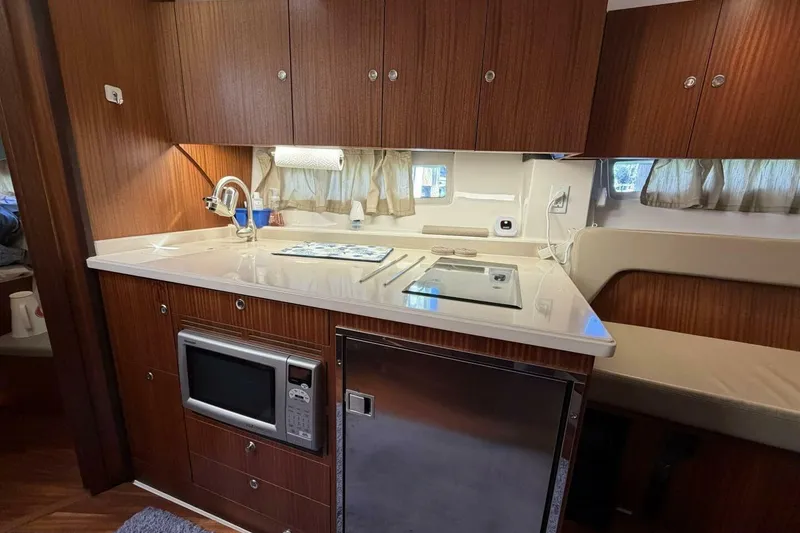

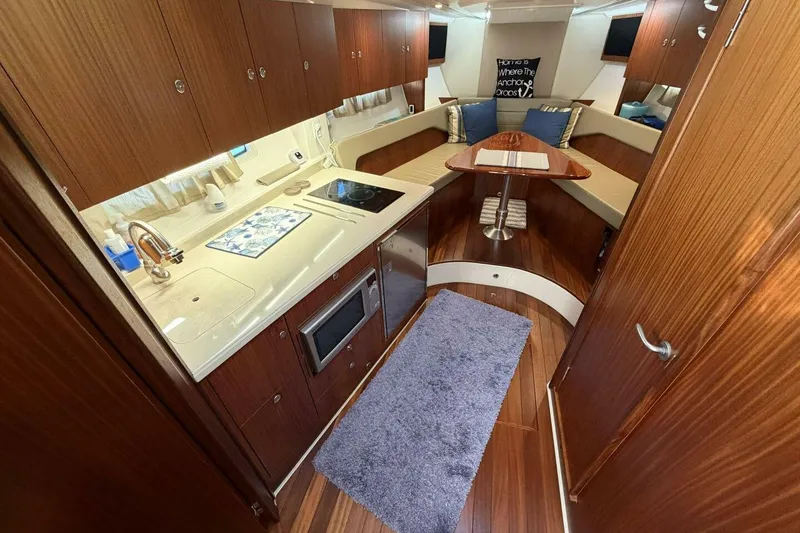

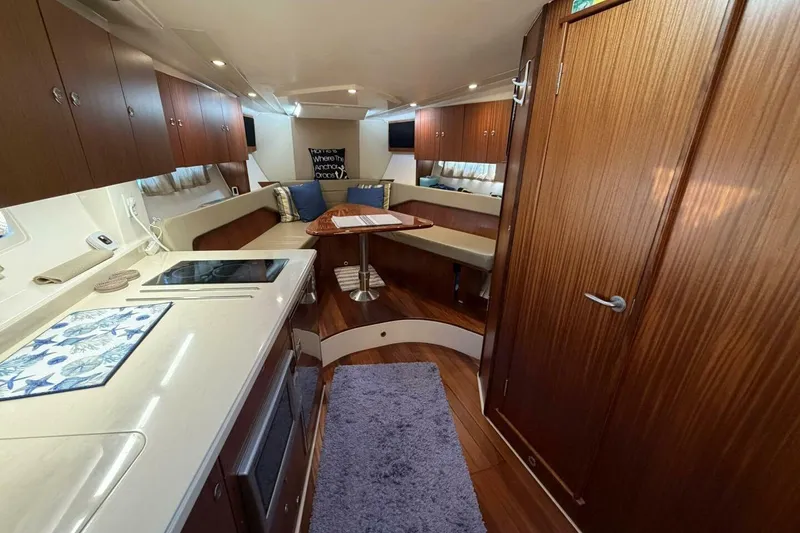

Galley

• Corian® galley top with integral stainless steel trivets
• Stainless steel sink with cutting board cover, overboard drain, and chrome stalon thru-hull fitting
• Pressurized hot/cold mixing valve and faucet
• 120v outlet with GFI protection
• Two burner 240v glass cooktop
• 4.6 ft refrigerator/freezer
• Convection microwave
• Lower galley cabinet with drawers, dedicated cabinet storage, positive latches, and slide-out trash can.
• Upper galley cabinets with hinged doors and positive latches
• Galley fire extinguisher

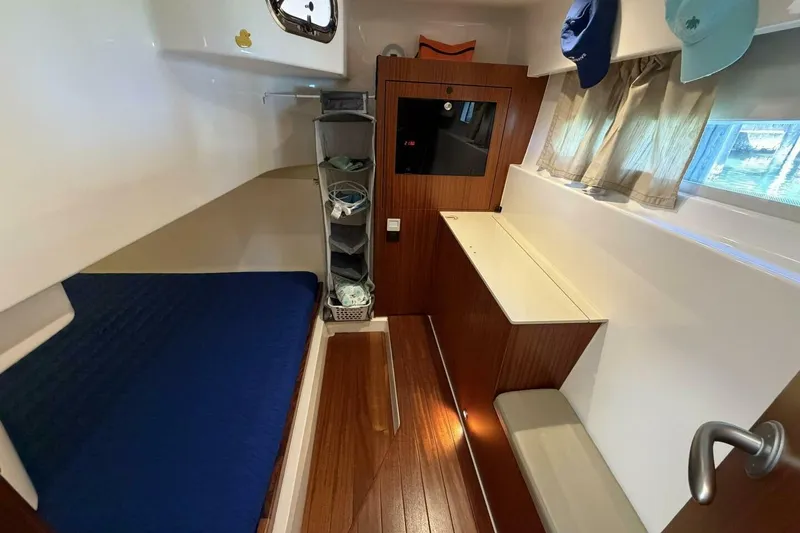

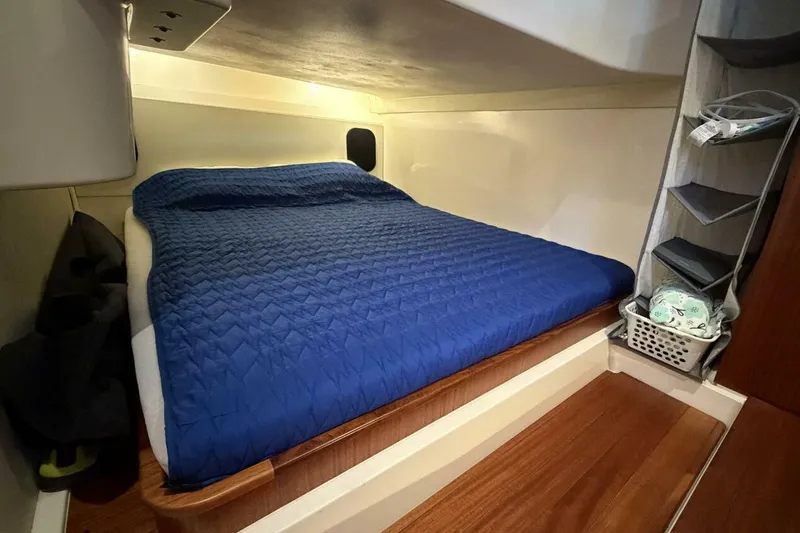

Aft Berth

• Full beam stateroom with hull light port and starboard with shades
• 1 1/4” privacy door with locking latch and door catches
• Full stand-up headroom
• 316L stainless steel opening port light with screen
• Pursuit custom 240/120v MDP switch panel for cabin interior circuits and lights
• Hinged storage cabinet with adjacent upholstered seat
• Hanging locker with light
• Convertible bed berth for 2 persons with separating innerspring mattress feature
• CO detector
• 12v outlet
• 120v outlet with GFI protection

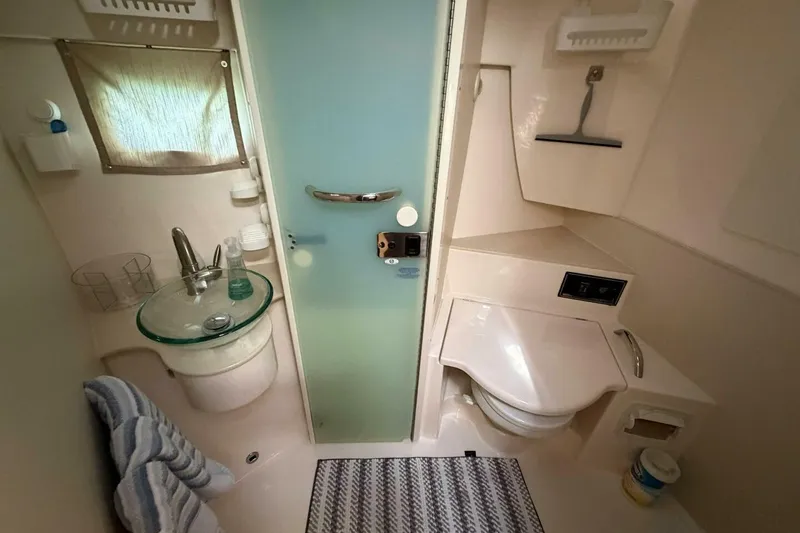

Head

• Fiberglass enclosed head compartment with Corian® countertop
• Designer sink with vanity mirror and grab rail
• Custom and 1 1/4” wood framed entrance door with custom latch
• Full-height storage cabinet with shelves
• Poly storage cabinet with shelves
• Toilet tissue holder
• Towel rack

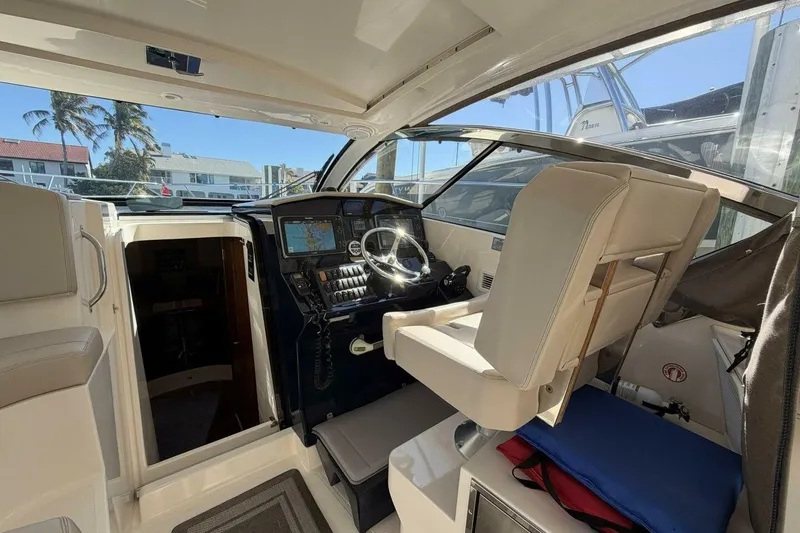

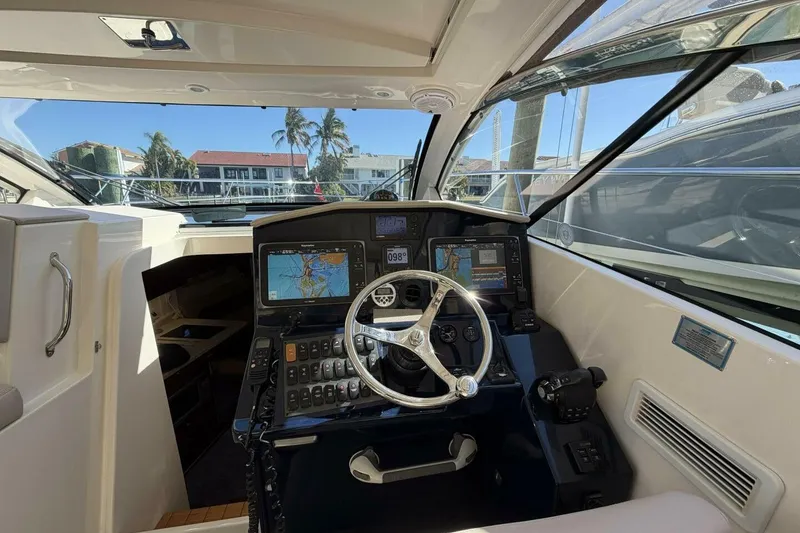

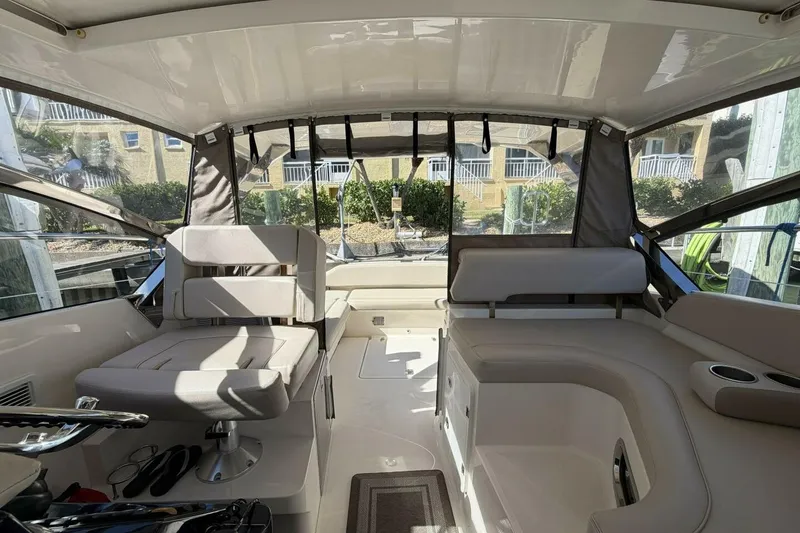

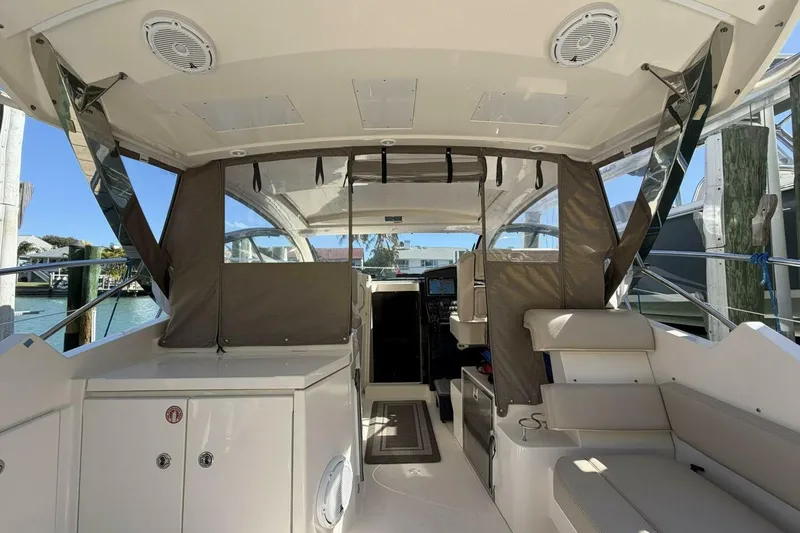

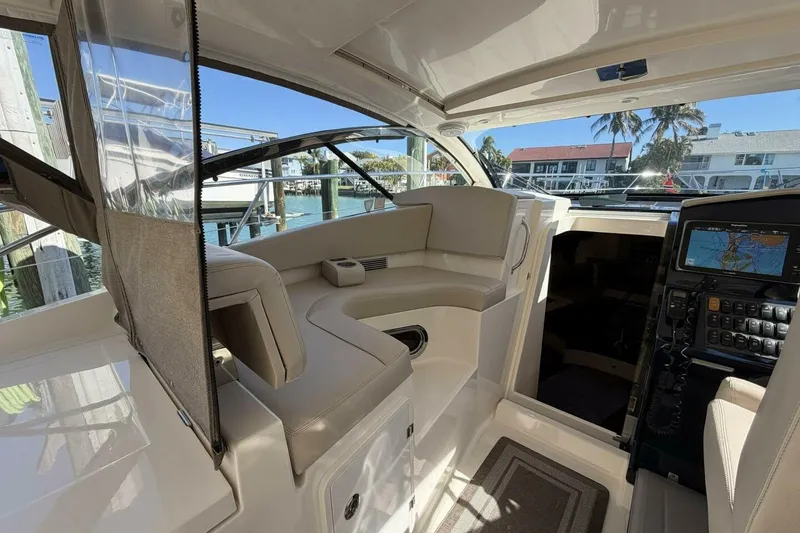

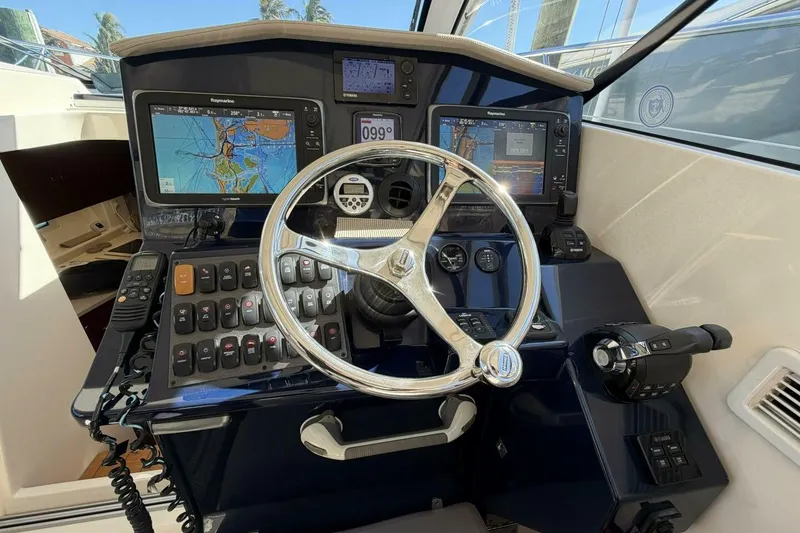

Helm

• Molded fiberglass helm with instrumentation visor, molded footrest, and folding floor
• Starboard aft tilting with safety lanyard
• Teleflex tilt sport helm
• Custom comfort grip steering wheel
• 12 Volt switch panel
• Independent windshield wiper washer control
• Compass
• Trim tab control panel and indicator
• 12 Volt outlet
• Helm fire extinguisher

Electronics

• Joystick Control
• Twin Ray Marine 12’ Hybridtouch Multi-Function Display Units
• Yamaha Multifunction LCD Display
• Ray Marine VHF

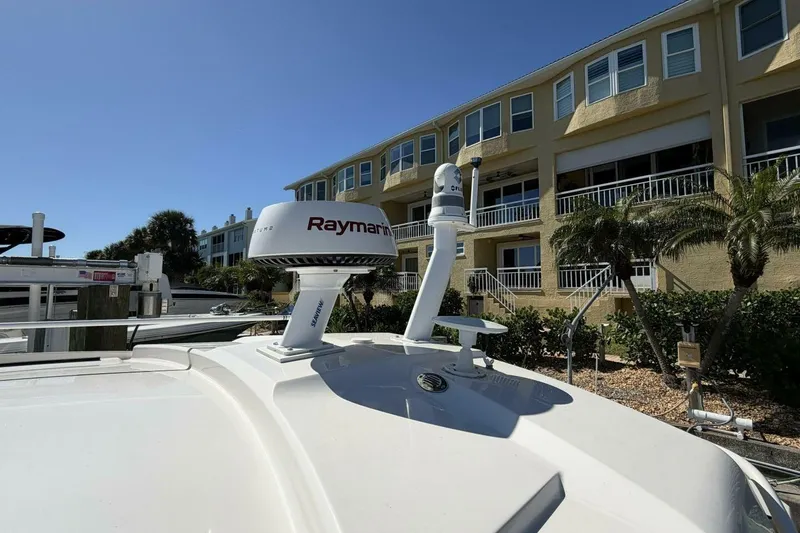

• Ray Marine Radar
• Ray Marine Auto Pilot
• Jensen Stereo Controls
• FLIR Night Vision
• Sea Blaze Under Water Lights

Hard Top

• Molded fiberglass hardtop with opening sunroof
• 316L stainless steel hardtop supports
• Single-piece, laminated, bonded windshield system
• Folding stainless steel all-around navigation light with flag burgee
• Six tricolor LED lights
• Aft LED spreader light
• 60 mil Stratoglass side curtains

Generator

• 240v/60 cycle 8.0 kw Panda diesel generator with sound shield
• EPA-compliant lined 24-gallon fuel tank with engine pickups, shutoff valves, and digital level indicator
• Custom-built fuel lines with mechanically crimped fittings

Fuel System

• Single EPA-compliant 300-gallon, dual fill (P&S) fuel tank with engine pickups, shutoff valves, and digital level indicator
• Custom-built fuel lines with mechanically crimped fittings
• Two Yamaha® water separating fuel filters with primer bulbs

Water System

• 75-gallon water tank with level indicator
• Custom-built reinforced color-coded water hose
• Fresh water distribution manifold with dedicated valves for each service line
• Pressure sensing pump
• 11-gallon 240v stainless steel water heater
• Dockside fresh water inlet with pressure regulator

Hull, Deck, and Cockpit

• Hand-laminated hull with vinyl ester resin and engineered fabrics
• Infused fiberglass structural grid system with molded finish and integrated bilge water management system
• 5-ply resin-infused composite transom system with patented transom reinforcement grid
• Trim tabs with indicator lights and auto-retract
• Bronze thru hull fittings below water line
• Chrome over bronze thru-hull fittings below 7-degree heel line
• Stalon thru-hull fittings above the 7-degree heel line
• Bronze garboard drain
• Dedicated transducer location is not recessed in the hull
• Full-length bonded hull windows (6)
• High-density PVC rub rail with solid 316L stainless steel insert
• 5/8” 316L stainless steel bow eye
• Bow thruster 5.4 gp with group 31 AGM battery will charge off third leg of 40 amp charger
• Molded one-piece deck and cockpit liner with non-skid pattern area and overboard drains
• Hull and deck joint mechanically fastened with aluminum backing plates and thru bolts at cleat locations
• 10” pop-up cleats (4) on stern and 10” Hershoff spring and bow cleats (4)
• Molded recessed hatches with gaskets and 316L stainless steel latches and overboard drain tracks

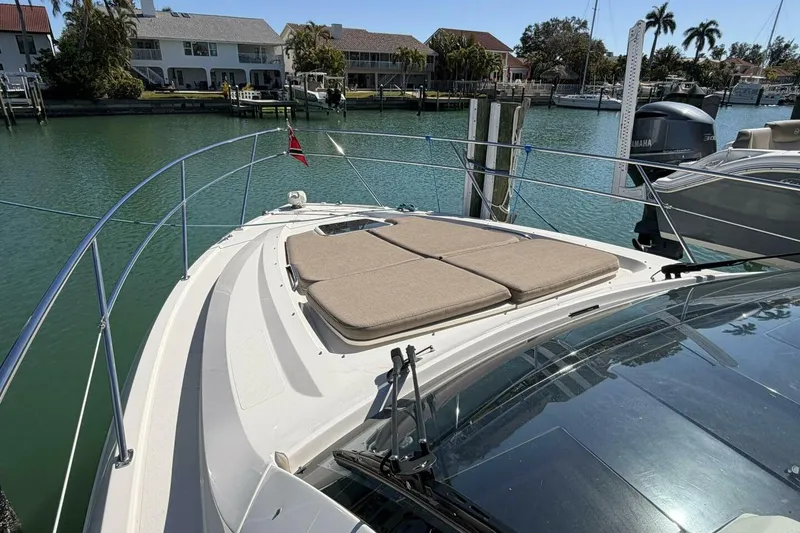

• Flush-mounted integral anchor locker with fiberglass lid
• Horizontal anchor windlass with switch at helm and remote
• 316L stainless steel delta plow style anchor, twist shackle, chain, and 250’ of 5/8” rode
• 316L stainless steel through stem anchor roller with 8” mooring cleat, chain binder, and aluminum backing plates
• Fresh and raw water wash down in anchor locker with quick connect fittings
• 1 1/4” welded 316L stainless steel bow rail with 1’ stanchions and mid-rail
• Port and starboard 316L stainless steel 2-mile LED navigation lights
• 316L stainless steel deck plates for water, waste, and diesel; fuel chrome over bronze
• Telescoping, platform-mounted four-step boarding ladder
• Full beam swim platform
• Molded lazarette storage box, fiberglass lid 316L stainless steel latch and shore power access, and 50 amp breaker

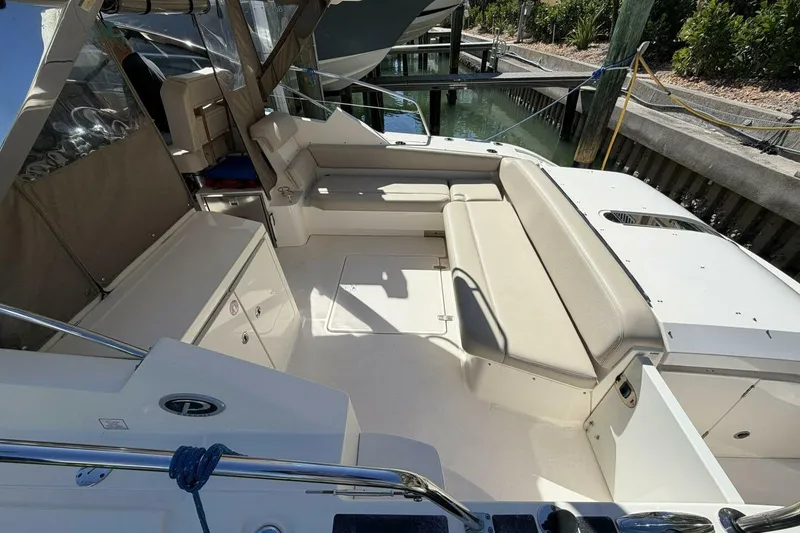

• Custom cockpit upholstery with dri-fast foam and mesh backing
• Molded port transom walkthrough and hinged acrylic transom door with 316L stainless steel latch and catch
• Port and starboard 316L stainless steel transom grab rails
• Molded port side lounger with backrest, footrest, drink holders, 316L stainless steel opening port light, and glove box.
• 12v MDP panel with acrylic door and latch

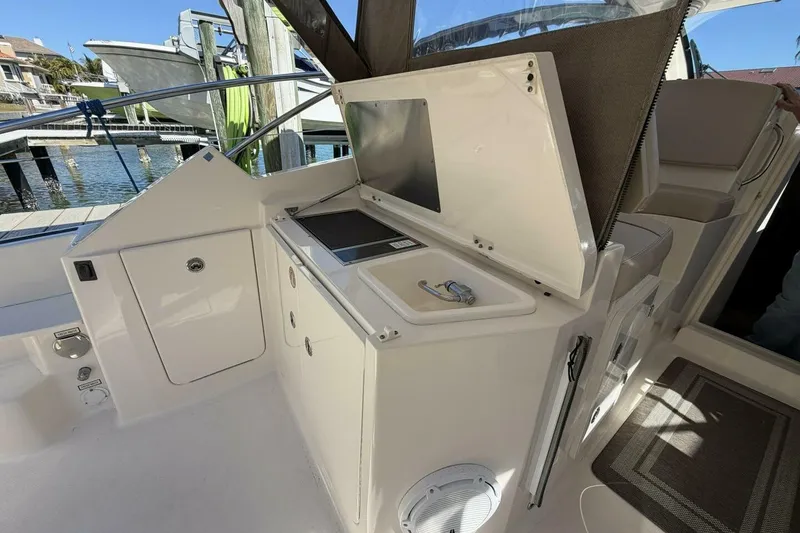

• Molded entertainment center with sink, faucet, electric grill, and hinged, fiberglass lids/ doors with magnetic latches.
• Single captain’s chair with foldable armrests, swivel, fore, aft, and vertical adjustment
• Fresh water wash with chrome over brass pull-out sprayer, HOT & COLD
• Fresh and raw water outlet in cockpit with quick connect fittings and 25’ hose
• LED cockpit lights with waterproof switch in cockpit at port side steps

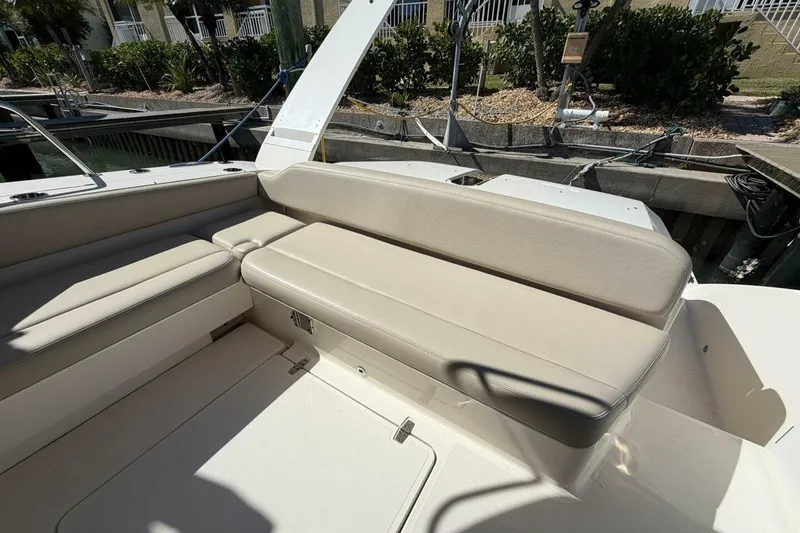

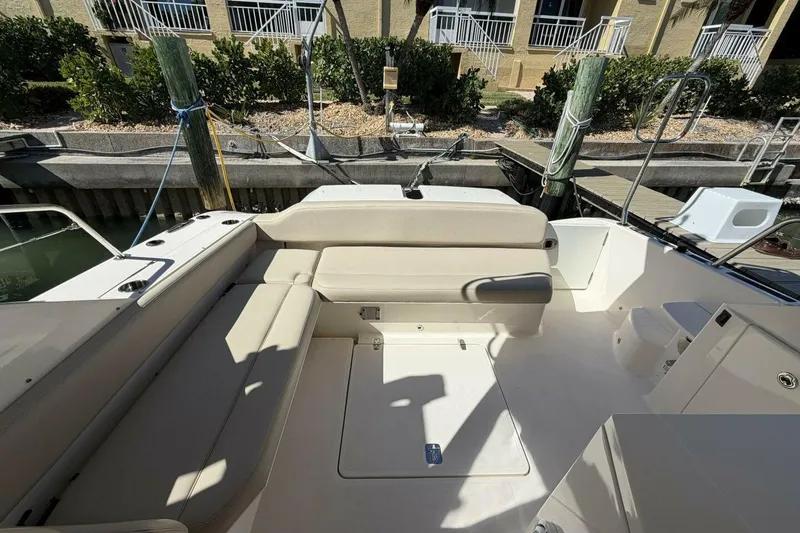

• Custom molded wrap-around seating with insulated storage, 2.3 ft3 12v cockpit refrigerator

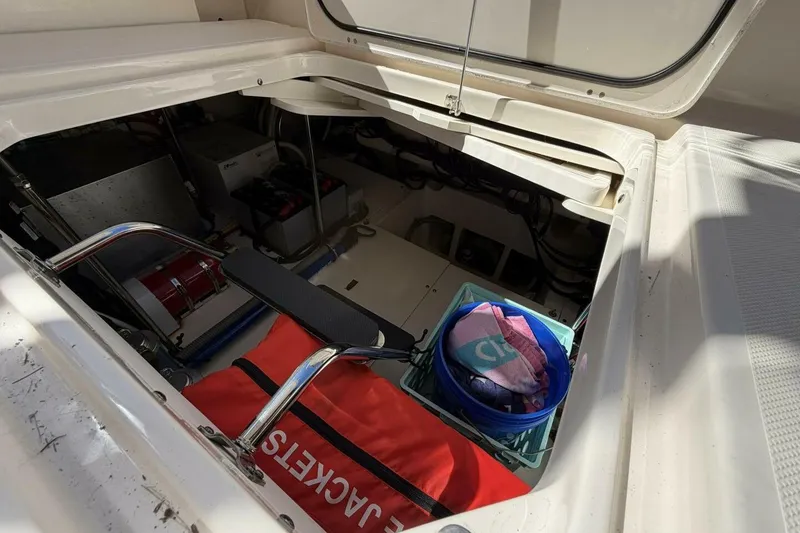

• Custom molded engine cover with stainless steel gas lift, latched/gasket port side entry door, and engine ignition lock out
• Custom molded cockpit table with teak accents and dedicated storage

• Twin 30” counter-rotating 5.4 L 350 hp four-stroke engines
• Stainless steel, three-blade Yamaha® Saltwater Series II SDS propellers
• Command link plus twin engine display
• Electronic twin-engine binnacle control
• Key switch panel with safety lanyard
• Push Button Start Panel
• Dual Teleflex hydraulic steering cylinders
• Power steering
• 316L stainless steel tie bar
