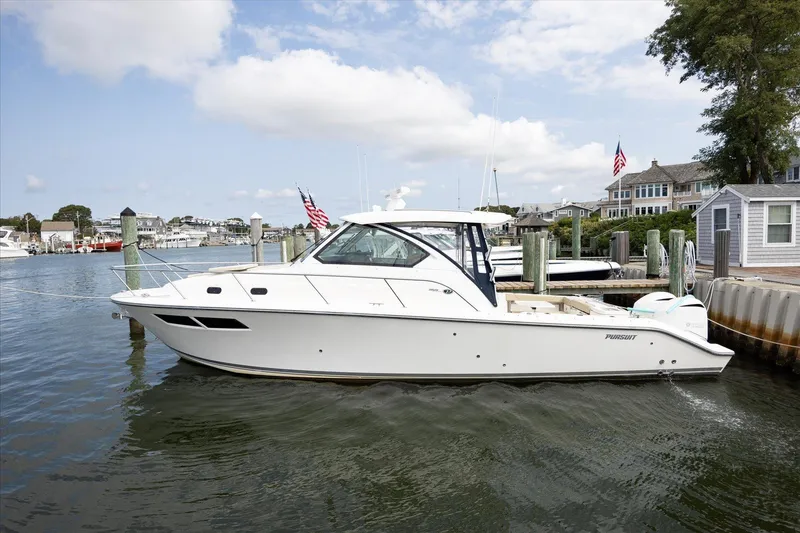

2016 Pursuit OS 355 OffshoreSold

Pursuit has delivered an exciting array of Offshore models in the past few years and the OS 355 takes that winning formula to a whole new level. A single-piece optically clear windshield, new exterior fabrics and finishes with exciting new seating arrangements give you every reason to dive into a brand new Offshore. The increased natural light through stylish hull-side windows, new large stainless-steel refrigerator and electrically actuated convertible berth/dinette are a few of the cabin features elevating this new model with yacht-caliber appointments.

HULL FEATURES

• Pursuit® Protection Plan:
  5-year hull/deck structural warranty
  5-year blister-free warranty
  2-year limited warranty
• Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
• Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
• 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
• Integrally Molded Thru-Stem Anchor System with Fresh and Raw Water Washdown
• Horizontal Anchor Windlass with Switch at Helm and Remote Switch at Anchor Locker
• 22lb 316L SS Plow Style Anchor, G-4 Chain, 200’ of 1/2”, 8 Plait Rode and Self-Righting Swivel
• 316L SS Anchor Roller with 8” Mooring Cleat
• Molded Hull Side Frameless Tempered Glass Windows
• 3.0 HP Bow Thruster with Group 31 AGM Battery
• Electric Oval Horn with SS Cover
• Trim Tabs with Indicator Lights and Auto-Retract
• Bronze Thru Hull Fittings Below Water Line
• Chrome over Bronze Thru Hull Fittings Below 7 Degree Heel Line
• Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
• Bronze Garboard Drain
• Integrated Transom Platform Extensions Outboard of Engines
• 4 Step Telescopic Boarding Ladder Mounted in Hull Platform
• Forward Hull One (1) 1100 GPH Bilge Pump with Automatic Float Switch
• High Density PVC Rubrail with Solid 316L SS Insert, and 316L SS Transom Cap
• ½“ 316L SS Bow Eye

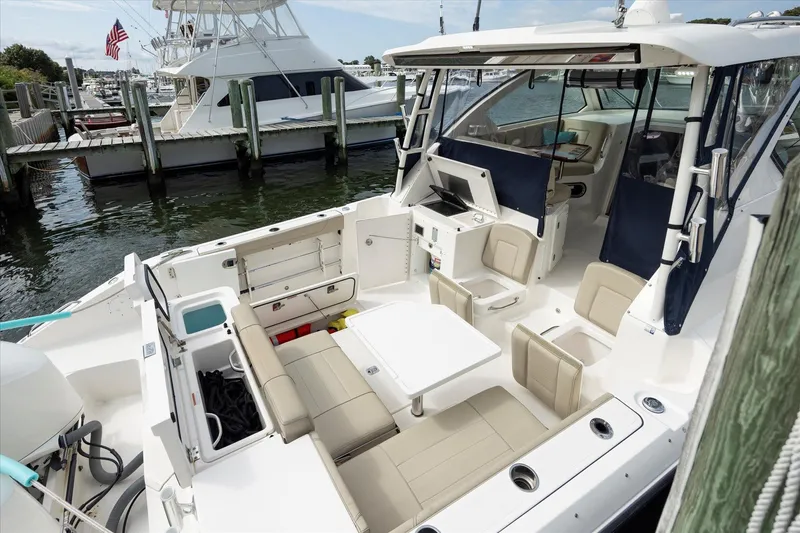

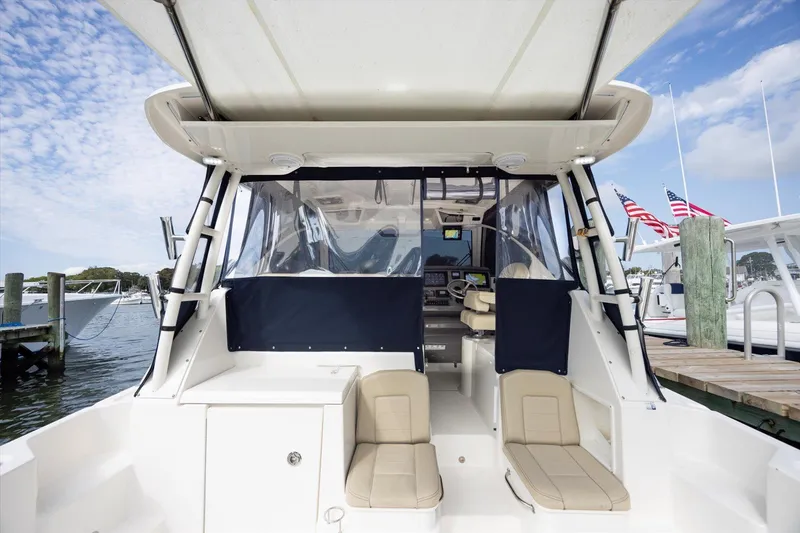

DECK & COCKPIT FEATURES

• Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area and Overboard Drains
• Hull and Deck Joint Mechanically Fastened
• 10” Pop Up Cleats (2) on Stern and 10” Hershoff Cleats Spring and Bow (4)
• Molded Recessed Hatches with Gaskets and 316L SS Latches and Overboard Drain Tracks
• 1 1/4” Welded 316L SS Foredeck Grab Rail with 1” Stanchions
• 316LSS Foredeck Hand Rails (2)
• 316L SS Deck Plates for Water, Waste and Diesel
• Four (4) 316L SS Rod Holders in Gunwale with (2) Two Drink Holders
• Under Gunwale Rod Storage, Port and Starboard
• Transom Walkthrough and Hinged Acrylic Transom Door with 316L SS Latch and Positive Catch
• Molded Non-Skid Step in Splashwell for Athwartship Access and Integrated Rigging
• Port and Starboard 316L SS Transom Grab Rails
• Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
• Captain’s Chair with Swivel Base, Foldable Armrests, Fore and Aft Adjustment
• Molded Port Bridge Lounge Seating with Large Backrest, Folding Arm, Molded Footrest & Port Articulating Armrest
• Pursuit Cockpit Entertainment System: 12V Bluetooth® Compatible Stereo System, Premium Speakers (7 Total, 4 in Hardtop, 2 Interior & Subwoofer), Amplifier and Remote at Helm

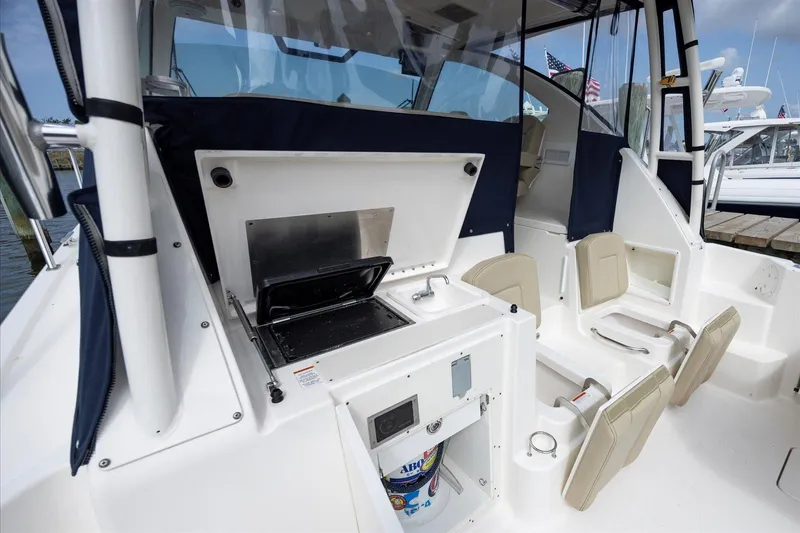

• Entertainment Center with Molded Sink, Hot / Cold Faucet, Electric Grill, Cutting Board, Storage, 120V Outlet and Fiberglass Lids/ Doors
• Molded Port and Starboard Aft Facing Seats w/ Insulated Storage Below
• 1.3 cu. ft. Bridgedeck Refrigerator/Freezer w/Fiberglass Lid
• Starboard Aft Facing Seat w/ Cup Holders and Storage Compartment

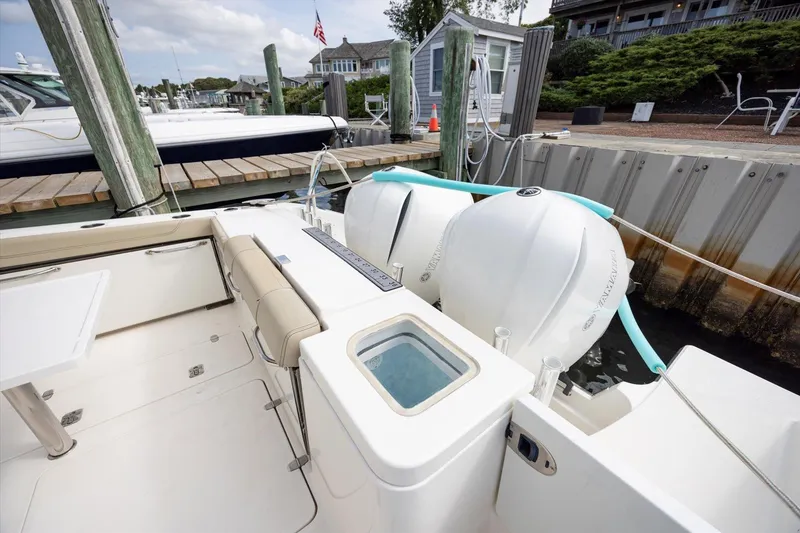

• Lighted Oceana Blue 28 Gallon Recirculating Livewell
• Cockpit Tackle Center

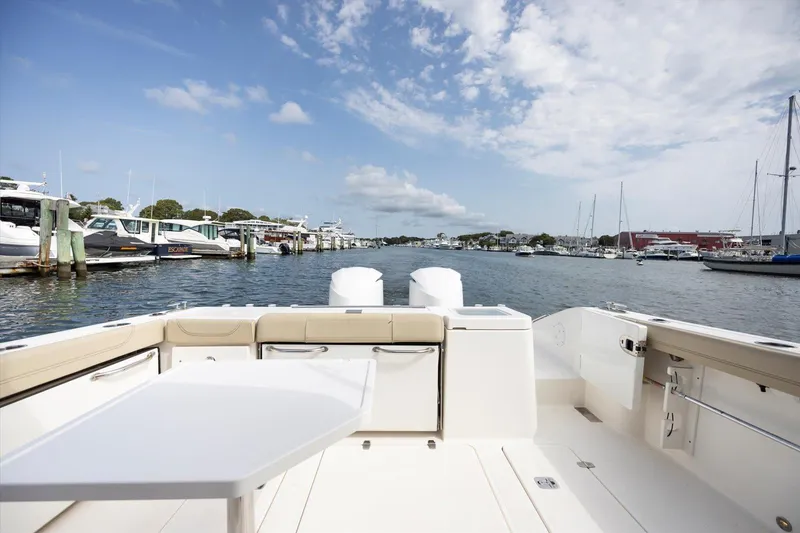

• Folding Transom Seat with Patented Adjusting Backrest
• 316L SS Bridge, Cockpit and Helm Drink Holders
• Port and Starboard Insulated Fishboxes in Cockpit w/ Dedicated Discharge Pumps
• Cockpit Machinery Access Hatch
• Fresh Water Wash with Hot / Cold Valve and Pull out Sprayer
• Raw Water Outlet in Cockpit with Quick Connect Fittings and 25’ Hose
• LED Cockpit Accent Lights (7) with Water Proof Switch in Cockpit
• Port and Starboard 2 mile LED Navigation lights

Hardtop

• Molded Fiberglass Hardtop Integrated Visor
• Aft Structural Hardtop Supports with 4 Rod Holders

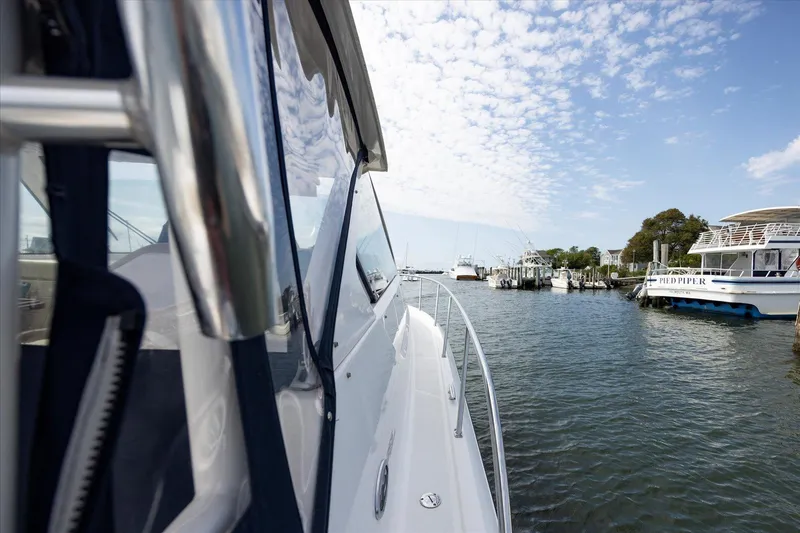

• Custom Windshield System with Optically Clear Laminated Windshield Glass, Tempered Side Glass with Infused Fiberglass Frame and Electrically Actuated Center Vent Window
• Combination Anchor / Stern LED All-around Navigation Light.
• Four (4) Tri Color LED Lights
• Aft Facing Spreader Light
• 316L SS Fore / Aft Underside Grab Rails
• 316L SS Fore / Aft Topside Grab Rails
• 60 mil Stratoglass Side Curtains
• Life Jacket Storage
• Integrated Port & Starboard Overhead Glove Boxes
• Port and Starboard Ventilation Hatches with Screens

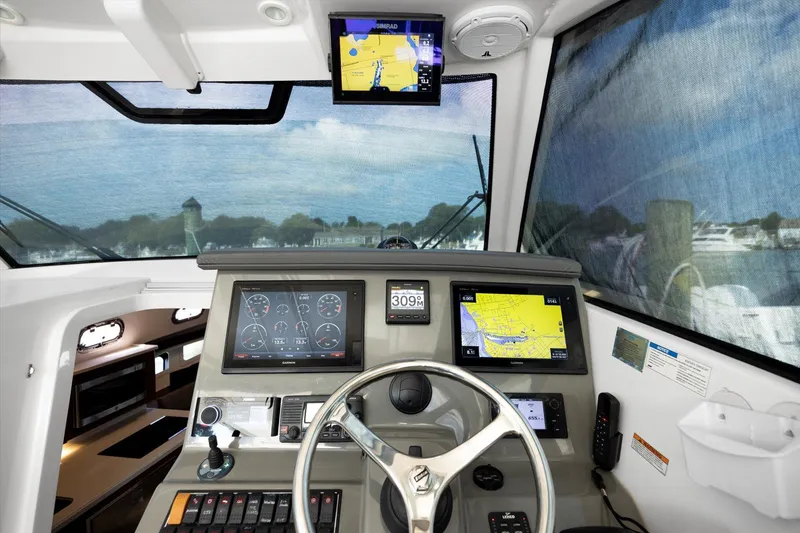

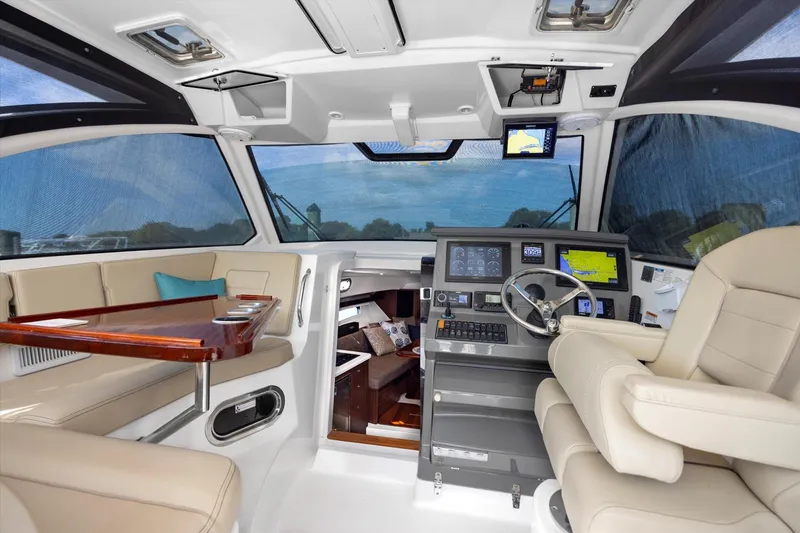

Helm

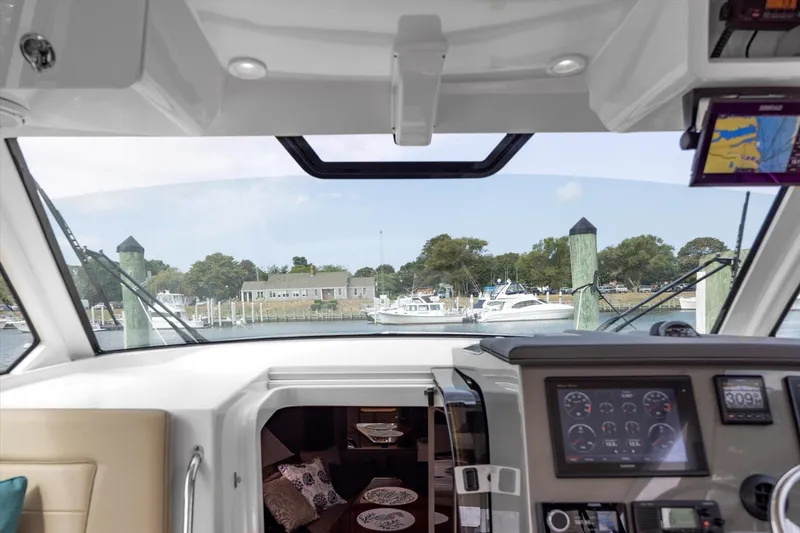

• Molded Fiberglass Aft Tilting Helm with Instrumentation Visor, Electronics Mounting Surface, Fold Out Fiberglass Foot Rest / Platform and Safety Lanyard
• Teleflex Tilt Sport Helm
• 316L SS Steering Wheel with Textured Grip and Control Knob
• 12V Switch Panel
• Port and Starboard Heavy Duty Pantographic Windshield Wiper System with Washer Control
• Compass
• Trim Tab Control Panel and Indicator
• Waterproof Stereo Remote
• Two 12V Outlets (2) and Dual USB Charger (1)
• Helm Fire Extinguisher

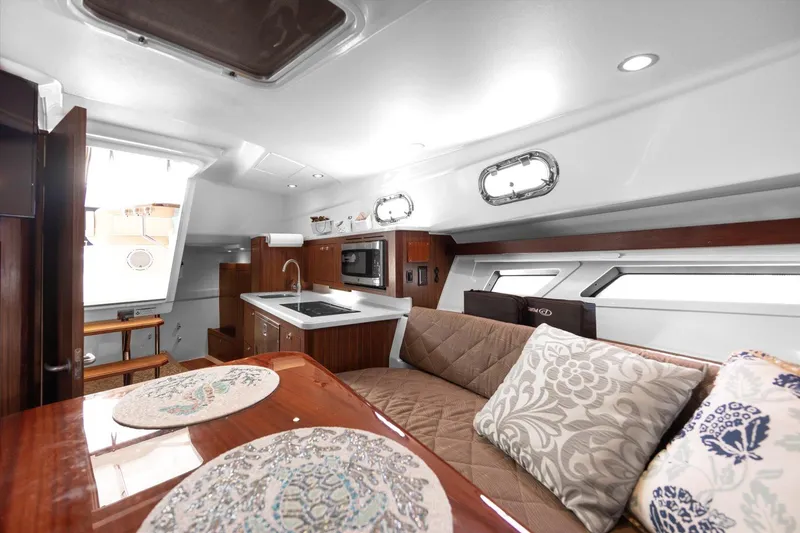

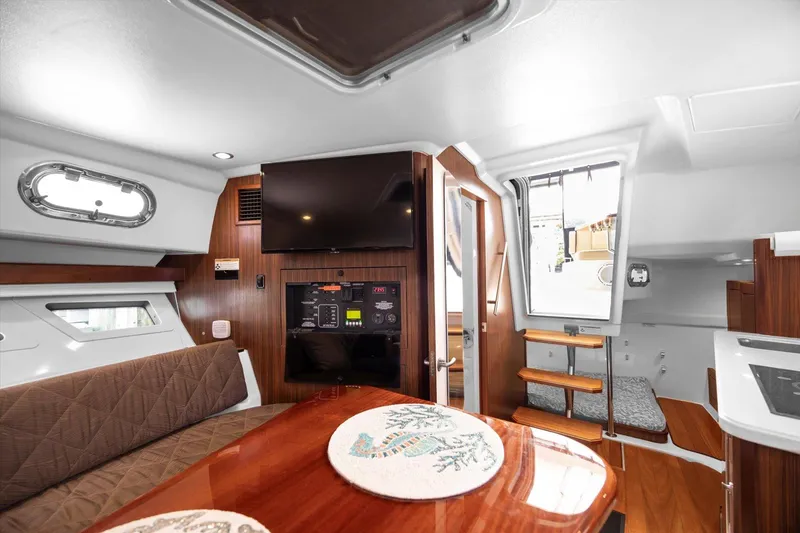

Interior cabin

• Molded Acrylic Access Door with Secondary Framed Screen Door and 316L SS Locking Latch

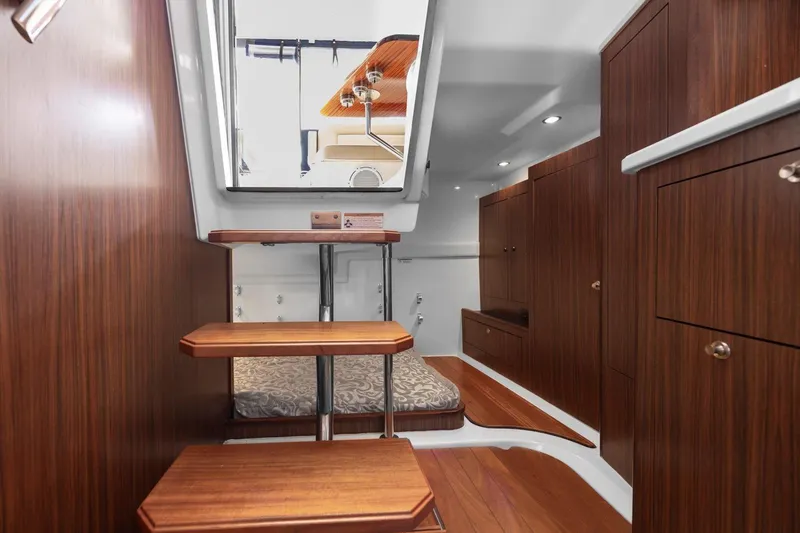

• Cabin Entry Steps with Custom Handrail and Wood Treads
• Molded Cabin Hull Liner with Custom Solid Wood Tongue and Groove Floor Accents, Mechanical Access, Drainage and Sound Damping Insulation
• Molded Cabin Deck Liner with Sound Damping Insulation
• 240V/60 Cycle Interior Air Conditioning W/ Reverse Cycle Heat and Sound Shield. 16,000 BTU
• Pursuit Digital Media Ready Entertainment Center with 28” LED TV and Dedicated, Amplified TV Audio System

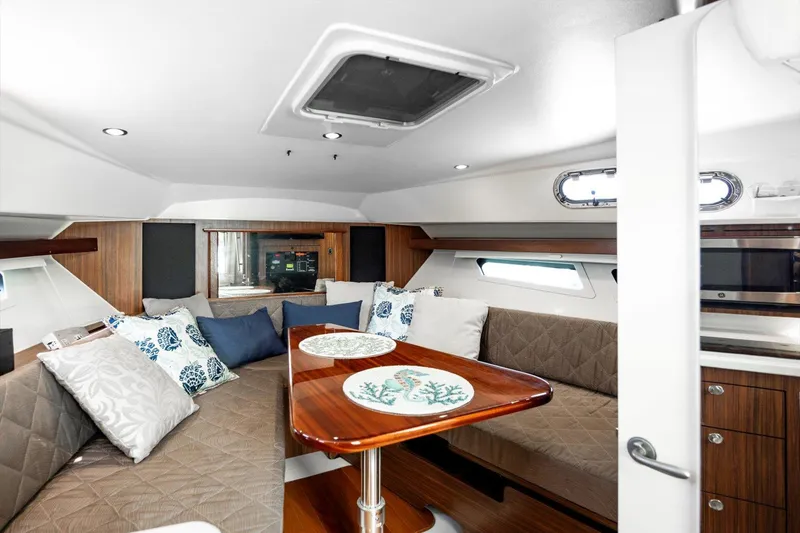

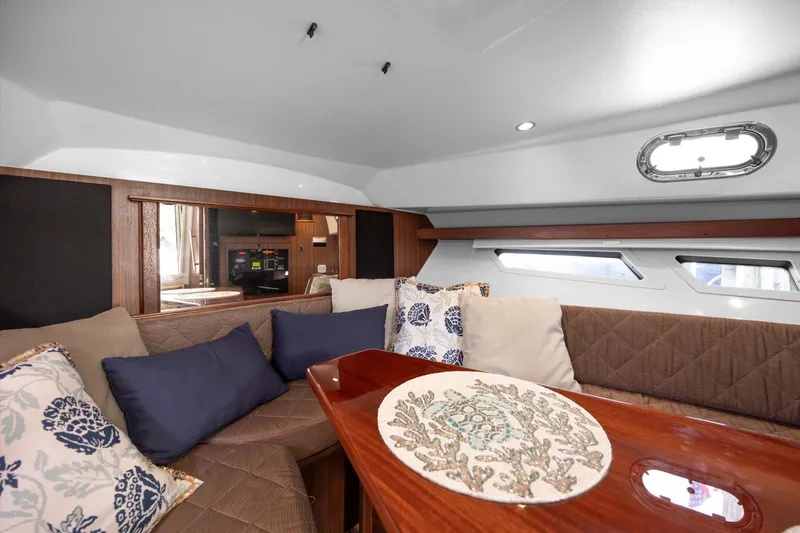

• Electrically Actuated Custom V-Berth Seating with Fixed Cushions that Converts into Queen size Berth. Solid Wood Table with Electrically Actuated Adjustable Table Base.
• Fwd Hardwood Framed Accent Mirror
• Hullside Windows Port and Starboard in Forward Berth with Curtains.
• Forward Gunwale Storage Shelves Port and Starboard
• Port and Starboard Forward Outboard Storage Compartments
• 7.5 cu. ft. In Floor Storage with Solid Wood Hatch
• Cedar Lined Hanging Locker with Automatic LED Light
• Flush Mounted Opening Foredeck Hatch with Screen
• 316L SS Opening Port Lights (2) with Screen
• Premium Stereo Speaker (2)
• 12V Outlet (1) and Dual USB Charger (1)
• Six Switch Panel with LED Floor Accent Light (2), Overhead Dinnette Lights (3), Fwd Reading Lights (2), Overhead Galley Lights (2), Dedicated Galley Surface Light (1) and Table Actuator
• CO Monitor

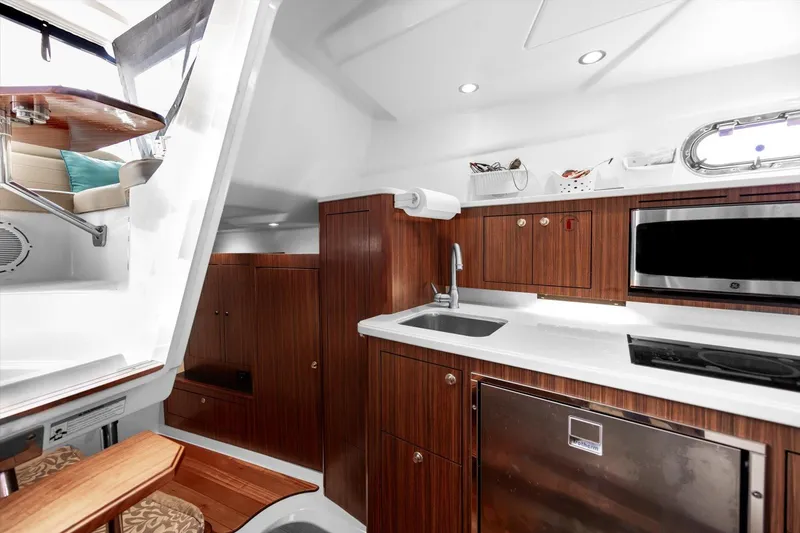

Galley (Port)

• Corian® Galley Counter Top with Backsplash and LED Under Cabinet Surface Lighting
• Stainless Steel Sink with Cutting Board Cover, Overboard Drain and Stainless Clad Composite Thru Hull Fitting
• Pressurized Hot/Cold Mixing Valve and Faucet
• Galley Upper and Lower Storage Cabinet with Maple Drawers (3), Dedicated Storage, and Trash Can
• Galley Pantry Storage Locker with Four Shelves and Hardwood Keepers
• 12V, 4.6 cu. ft. Stainless Steel Refrigerator
• 12V LED Overhead Light (2)
• 240V Dual Burner Glass Cook Top
• 1.1 cu. ft. 120V Microwave Oven
• 120V Outlet with GFI Protection (1)
• Fire Extinguisher
• 316L SS Opening Port Light with Screen

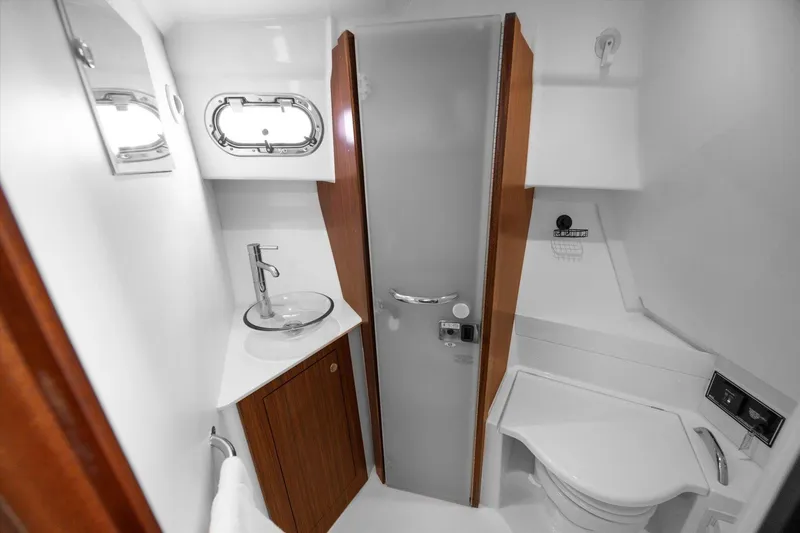

Head (Starboard)

• Fiberglass Enclosed Head Compartment with Non-Skid Pattern Area
• Custom 1 1/4” Wood Framed Entrance Door with Custom Latch and Full Length Mirror
• Designer Sink with Corian® Countertop with Storage Cabinet Below
• Vacuum Flush Marine Head with 22 Gallon Holding Tank, Macerator Discharge Pump, Deck Pump-out Fitting and Bronze Through Hull Fitting
• Full Height Storage Cabinet with Shelves and Acrylic Bi-Fold Shower Divider
• 316L SS Opening Port Light with Screen
• Vanity Storage Cabinet with Shelves and Vanity Mirror
• Toilet Tissue Holder
• Grab Rail / Towel Rack
• Shower with Hot/Cold Mixing Valve, Shower Wand and Adjustable Height Bar
• Shower Sump Box Drain with Automatic Discharge
• Two Switch Panel with Overhead LED Lights (2) LED Floor Accent Light (1)
• 120V Outlet with GFI Protection (1)

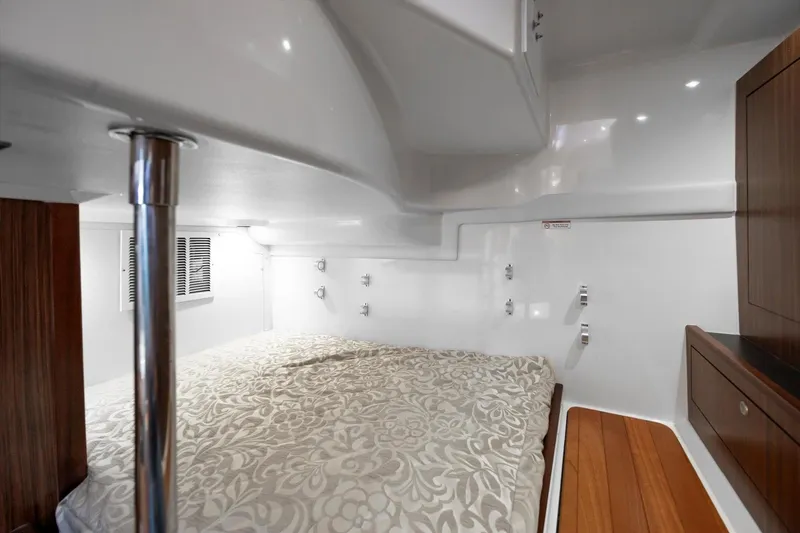

Aft Berth

• Aft Full Size Berth with Recessed, Wood Framed 6” Inner Spring Mattress
• 316L SS Opening Port Light with Screen
• Aft Rod Storage for 4 Rods
• Switch Panel with Overhead LED Lights (4)
• 120V Outlet with GFI Protection (1) and 12V Outlet (1)

Electrical Systems

• UL® Rated Fully Tinned, Color Coded Copper Wire
• Custom Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
• Custom Built, One Piece Electrical Harness with Water Proof Connectors and Chafe Protection
• Powder Coated, Aluminum, Screen Printed (Front & Back) Main Breaker Panels
• Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain
• 240V 50 Amp 60 Cycle Dockside Power Connection
• 240V 50 Amp 50’ Dockside Power Cord with Wireless/Switch Operated Electric Cord Retract Reel
• Five Battery System: Port Engine (1) Starboard Engine (1), Bow Thruster (AGM) (1) House (AGM) (1), and Electronics (AGM) (1)
• One 40 AMP Battery Charger For House, Electronics and Bow Thruster Bank
• One 20 AMP Battery Charger for Engine Bank
• One Grounding Bus Bar

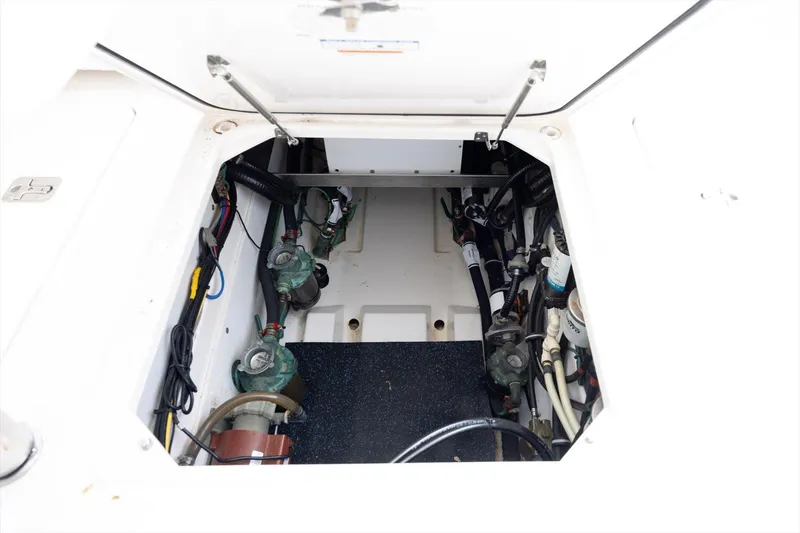

Mechanical Space

• Molded Interior White Gel Coat
• Molded Hatch with Gasket and SS Gas Spring
• Molded Bilge Sump Area
• One 900 GPH Bilge Pump with Automatic Float Switch, One 1500 GPH Bilge Pump with High Water Float Switch and Alarm w/ SS Clad Composite Thru Hull Fittings
• Fresh Water Pump with Filter
• Raw Water Pump with Bronze Sea Strainer, Sea Cock and Thru Hull Fitting
• Livewell Cyclone Pump with Bronze Sea Strainer

Generator

• 240V/60 Cycle 8.0 kW Fischer Panda® Diesel Generator with Sound Shield and Service Slide
• EPA Compliant Lined 24 Gallon Fuel Tank with Engine Pickups, Shutoff Valves and Digital Level Indicator

Fuel System

• EPA Compliant Lined 375 Gallon Rotomolded Fuel Tanks with Engine Pickups, Shutoff Valves and Digital Level Indicator.
• Custom Built Fuel Lines with Mechanically Crimped Fittings
• Two Yamaha® Water Separating Fuel Filters with Primer Bulbs

Water System

• 50 Gallon Water Tank W/Level Indicator
• Custom Built Reinforced Color Coded Water Hose
• Pressure Sensing Pump
• Dockside Fresh Water Inlet W/ Pressure Regulator
• 240V 60 Cycle 6 Gallon Stainless Steel Hot Water Heater
• Cockpit Shower with Hot / Cold Mixing Valve
• 16 Circuit Water Distribution Manifold with Dedicated Valves
