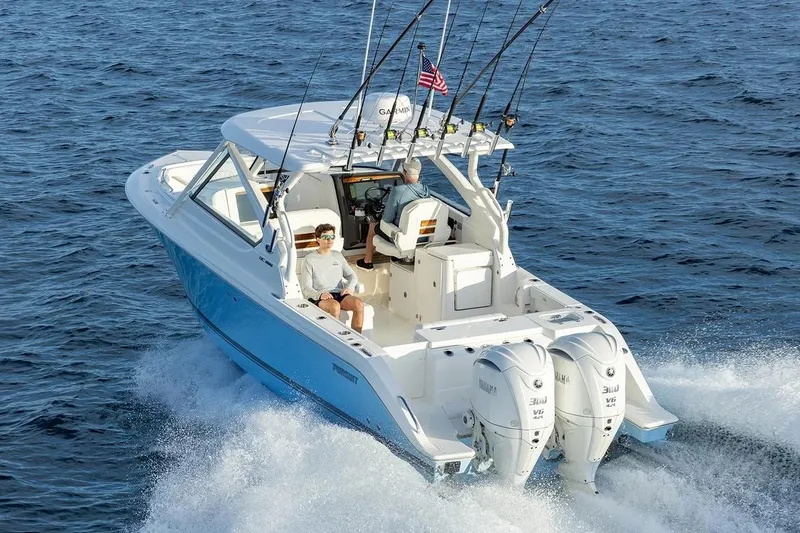

2026 Pursuit DC 286 Dual Console

HULL FEATURES

• Pursuit Protection Plan:

  • 5 Year Hull and Deck Structural Warranty

  • 5 Year Blister Free Warranty

  • 2 Year Limited Warranty




• Pursuit Fresh White Gelcoat

• Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics

• 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid

• Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System

• Foam Filled Structural Grid

• Molded FRP Hull Side Boarding Door with Removable/Storable Ladder and 316L Stainless Steel Grab Rail

• Bronze Thru Hull Fittings Below Water Line

• Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line

• Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line

• Bronze Garboard Drain

• Trim Tabs, Lenco Electric with Auto-Retract

• Bow Eye, 5/8” 316L Stainless Steel

• Stern Eyes (2), 5/8” 316L Stainless Steel

• Integrated Transom Platform Extensions Outboard of Engines

• Boarding Ladder, 3-Step Telescopic, Mounted in Hull Platform

• Anchor System, Integrally Molded Thru-Stem

• Horn, Electric, with Oval Stainless Steel Cover

• Dedicated Transducer Location

DECK FEATURES

• Hull and Deck Joint Mechanically Fastened

• Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert

• Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area

• Navigation Lights, LED, 2 Mile

• Flush Mounted Integral Anchor Locker with Fiberglass Lid and Gas Shock including:

  • Horizontal Anchor Windlass with Switch at Helm and Remote at Anchor Locker

  • 316L Stainless Steel through Stem Anchor Roller with 8” Mooring Cleat

  • Chain Binder

  • 14lb Stainless Steel Plow Style Anchor

  • Self-Righting Shackle

  • 150’ Rode (1/2” 8 Plait including 15’ of 1/4” G4 Chain)

  • Fresh & Raw Water Washdown Connections

  • LED Courtesy Light




• Removable/Storable Bow Beach Boarding Ladder (Shared for Hull Side Door)

• Cleats, 316 Stainless Steel, 8” Pop Up (2) Stern, (4) Spring and (2) Bow

• Molded Recessed Hatches with Flush Hinges, Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks

• Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch

• Self-Draining Cockpit with Bronze Ball Valve at Hull Side

• Bow Grab Rails, 316L Stainless Steel, (Port and Starboard)

• Transom Grab Rail, 316L Stainless Steel, (Port)

• Single-Level Splashwell Deck with Non-Skid Pattern Area

HARDTOP & WINDSHIELD

• Molded Fiberglass Full-Beam Hardtop with Dedicated Locations for Outriggers and Electronics

• Powder Coated Hardtop Structural System with Heavy Duty Aft Supports with Integrated Rod Holders (4) and handrails

• Custom Windshield System with Fiberglass Frames, Tempered Glass, and Center Walk-Through Door

• Custom Stainless Steel Ratcheting Anchor/Stern Light with Burgee Rings and USA Flag

• Tri-Color LED Lights (4)

• Integrated Fore and Aft-Facing LED Spreader Lights (1 fwd / 2 aft)

• 316L Stainless Steel Underside Grab Rails (2)

• Windshield Wiper (starboard) with Washer System

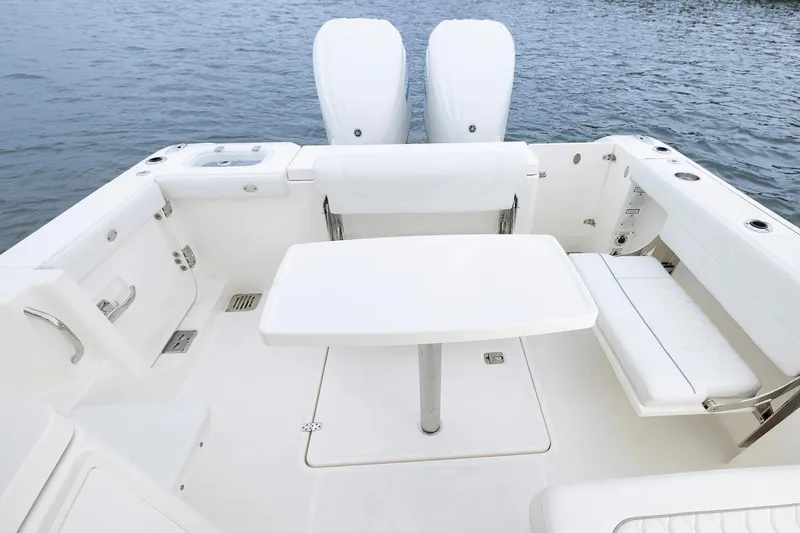

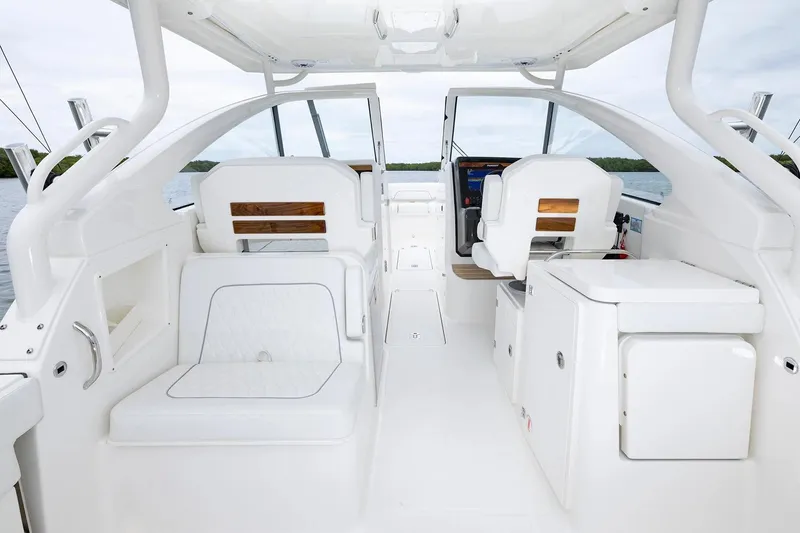

COCKPIT FEATURES

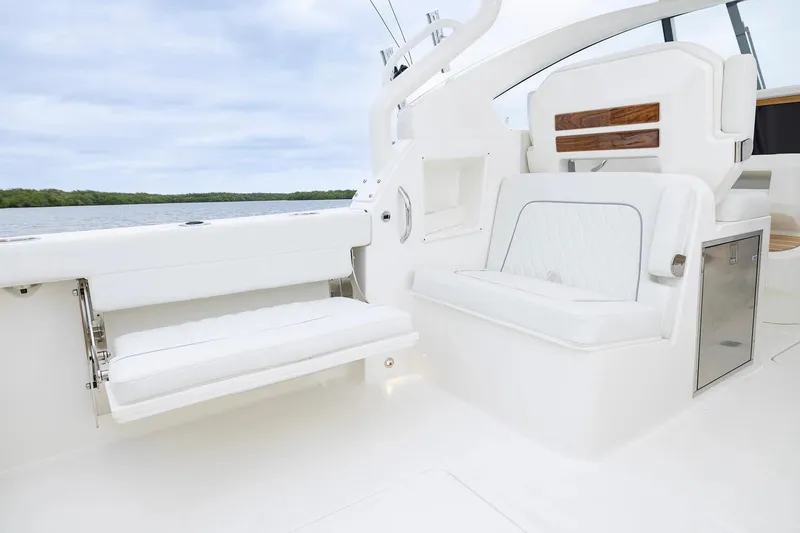

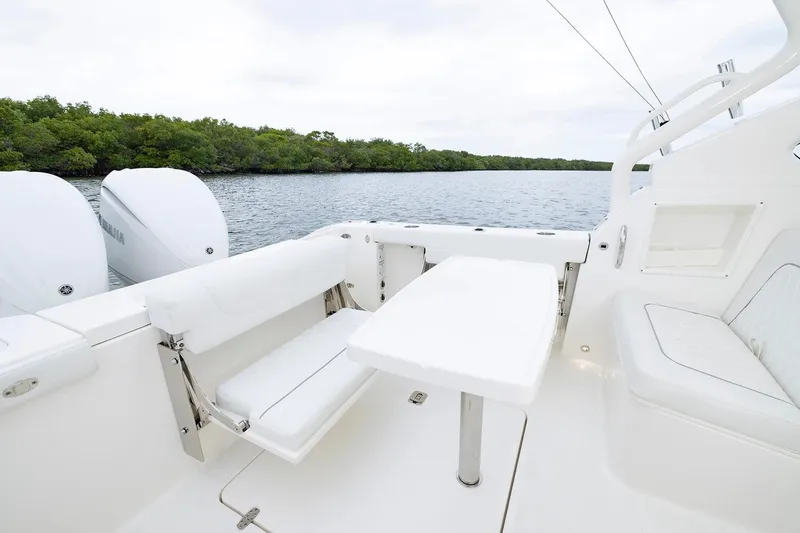

• Folding Transom Seat with Patented Self-Adjusting Backrest

• Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing

• Captain’s Chair with Folding Armrests, Flip-Up Bolster, Wood Accents, and Swivel Base with Fore & Aft Adjustment

• Starboard-Side Aft Facing Fold-Down Jump Seat

• Portside Aft Facing Seat with folding armrest, Recessed Drink Holder with Storage Pocket, and 28-gallon Insulated Cooler Below

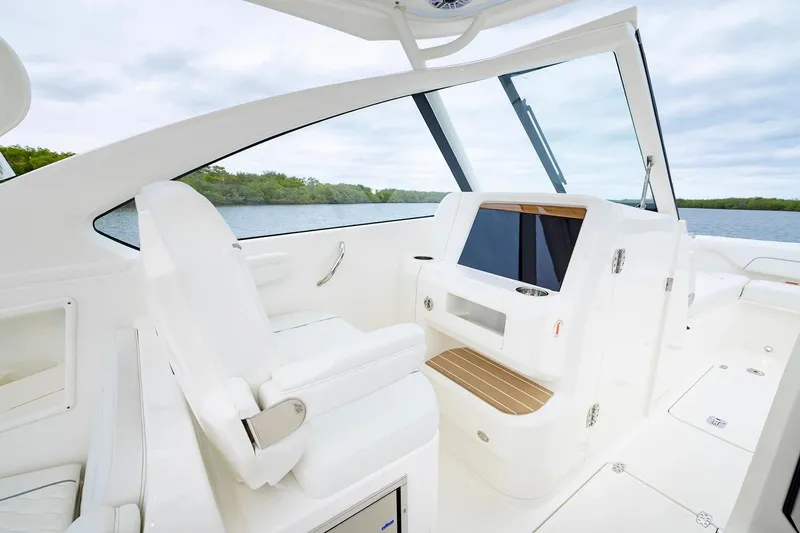

• Portside Companion Seat with Folding Armrests, Drink Holders, Storage Compartment and 316L Stainless Steel Grab Rail

• Audio Entertainment System: Custom-Tuned JL Audio Stereo System with Bluetooth Compatible Media Master MM105 Surface-Mount Source Unit, Premium M6 Coaxial Speakers with Classic Grilles - (4 Hardtop), 10” Subwoofer (1), DSP Amplifier, and FM Antenna with Ratchet-Mount Base

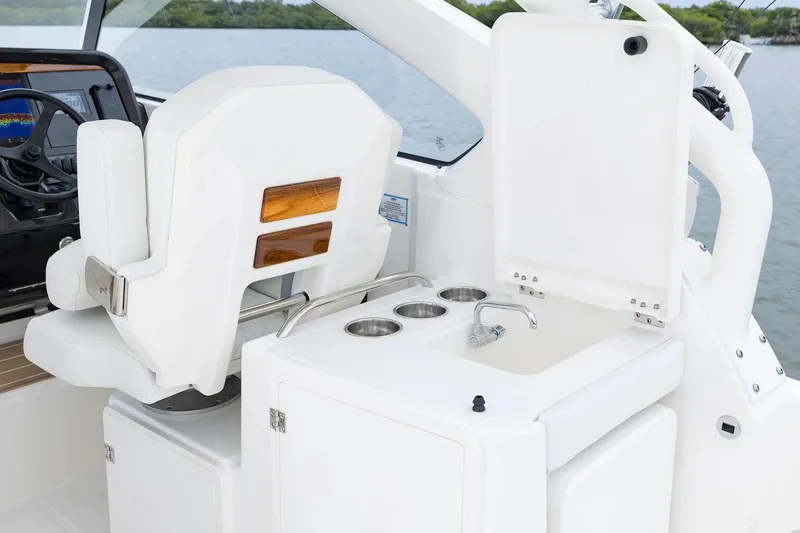

• Molded Entertainment Center with Sink, Faucet, Corian Countertop, Hinged Fiberglass Lid, Drink Holders, and Storage with Trash Can Below

• Cockpit Machinery Access Hatch

• Bow Floor Storage with Machinery Access

• Midship Floor Storage with Machinery Access

• Fresh Water Shower with Pullout Sprayer

• Fresh and Raw Water Outlets in Cockpit with Quick Connect Fittings and 25’ Coil Hose

• LED Cockpit Courtesy Lights (white)

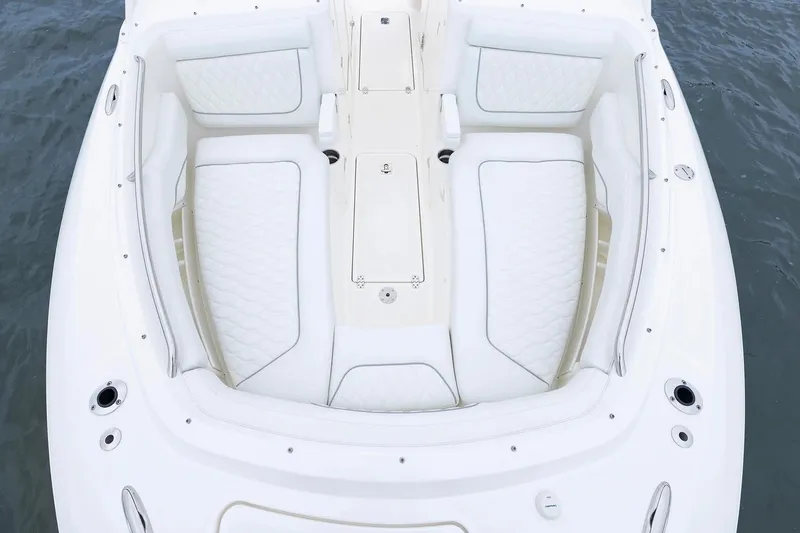

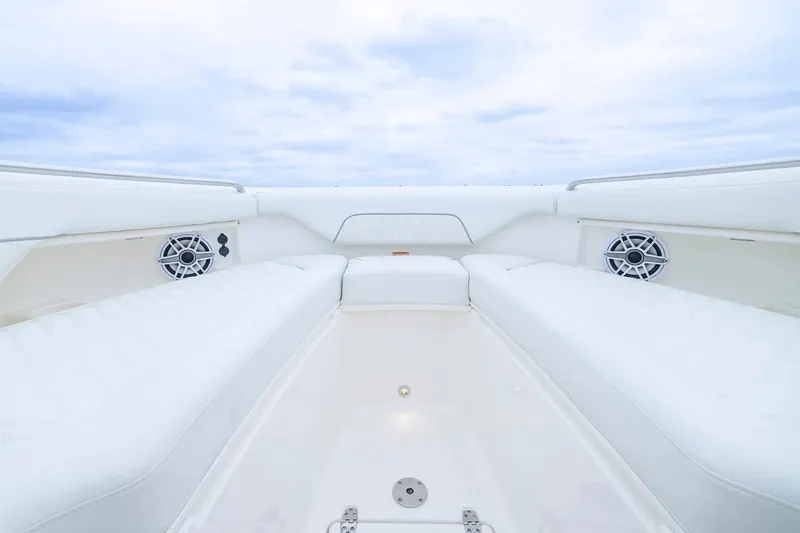

• Molded Forward Bow Seating with Folding Armrests and Insulated Storage Below with Molded Bucket Storage Retainers and Dedicated Storage for Hull Side Door/Bow Beach Boarding Ladder (port side)

• Port and Starboard Bow Coaming Boxes with Drink Holders, Storage Keepers, and 12V Outlet and USB (A & C) Charger (port side only)

• Single Piece Acrylic Bow Access Door

• Sunbrella Bow Tonneau Cover

• Fire Extinguishers (3 - helm / entertainment center / companion seat base)

FISHING FEATURES

• Rod Holders (4), Stainless Steel, in Gunwale

• Rod Holders (4), Stainless Steel, in Transom

• Rod Holders (4), Aft Hardtop Supports

• Lighted Oceana Blue 22 Gallon Recirculating Insulated Livewell, with Clear Acrylic Lid

• Under Gunwale Brush/Gaff Storage (Port) (n/a with port fold-out seat option)

• Insulated Transom Fish Box/Storage Tub (36 Gallon) with Overboard Drain

• Tackle Storage in Portside Seat Base (n/a with cockpit refrigerator option)

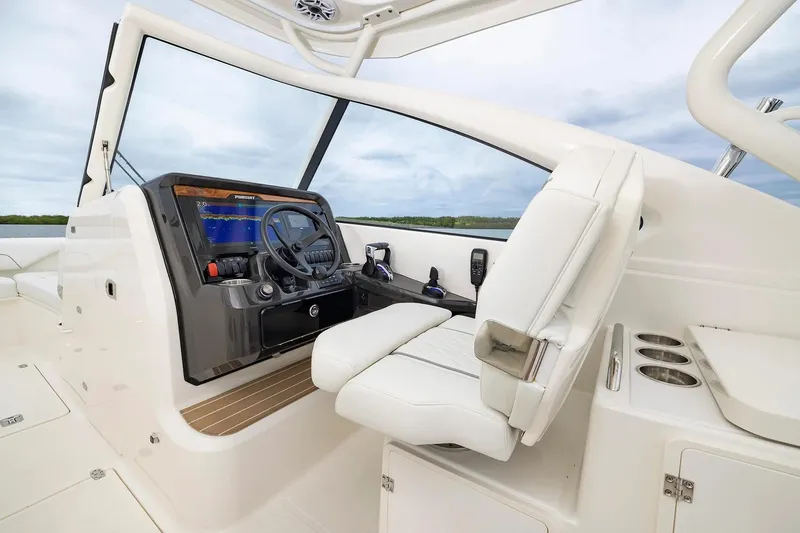

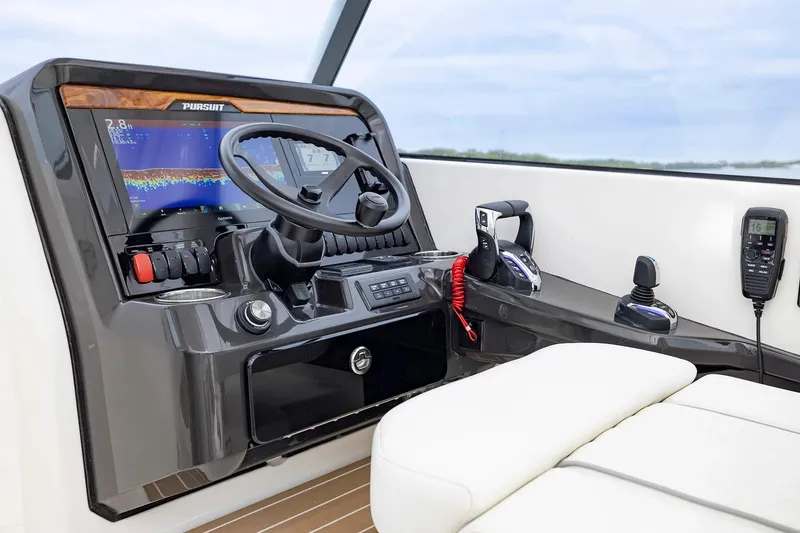

HELM

• Molded Fiberglass Helm with Instrumentation Visor, Wood Accent Trim, Electronics Mounting Surface, and Molded-In Footrest

• Yamaha Electric Steering with Programmable Steering Friction, Tilt Helm, Edson 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip

• 12V Switch Panel with Illuminated Rocker Switches and Backlit Function Text

• JL Audio MM105 Surface-Mount Source Unit

• Compass

• Trim Tab Control Panel and Indicator

• Drink Holders (2 - one extra-deep)

• Integrated Coaming Storage

• Glovebox

• 12V Outlet and Dual USB (A & C) Charger

• Wireless Phone Charger

ELECTRONICS

• Garmin Electronics Package: GPSMAP 1243-XSV with Custom Pursuit User Interface (UI) Displays, Custom Dash Panel, 1kW CHIRP Transducer, Yamaha CL-5 Touchscreen Display, NMEA 2000 Starter kit, and VHF Radio with Antenna and Ratchet-Mount Base

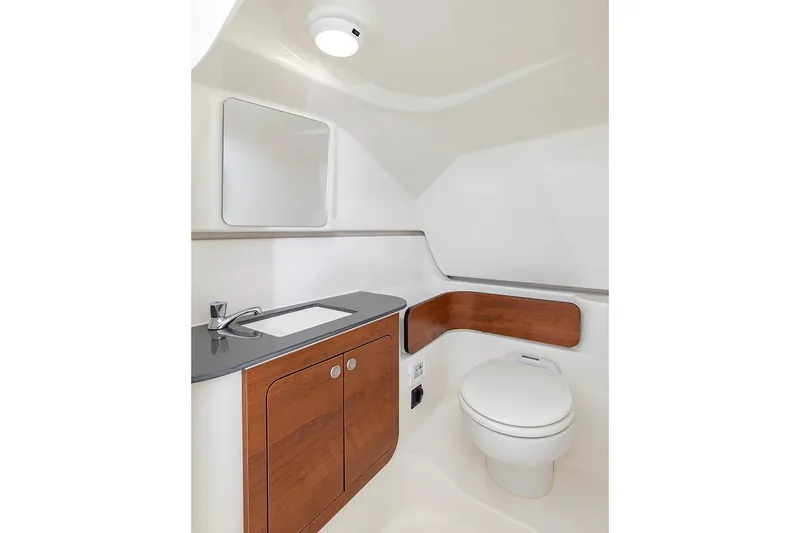

HEAD (PORT SIDE)

• Fiberglass Door with Integrated Storage Compartment and 316L Stainless Steel Locking Latch

• Entryway Step and 316L Stainless Steel Handrail

• Molded Interior Liners, Upper and Lower

• Electric Marine Head with 9 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze Through Hull Fitting with Seacock

• Vanity with Molded Sink, Faucet, Corian Countertop, Mirror, and Wood Accent Cabinet with Storage Below

• Cubby Storage with Wood Accent Keeper

• Toilet Tissue Holder

• Integrally Switched Overhead Light

• 12V Outlet and Dual USB (A & C) Charger

CONSOLE (STARBOARD SIDE)

• Locking Access Door (hidden behind bow access door)

• Molded Console Liners, Upper and Lower

• Dedicated Dock Line Storage

• Integrally Switched Overhead Light

ELECTRICAL SYSTEMS

• UL Rated Fully Tinned, Color-Coded Copper Wire

• Custom In-House Built, Heat Sealed, Mechanically Crimped, Color-Coded Battery Cables

• Custom In-House Built, One-Piece Electrical Harness with Waterproof Connectors and Chafe Protection

• Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel

• Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain

• Three (3) 12V Outlets and Three (3) Dual USB (A & C) Outlets

• Three Battery System: Port Engine (1), Starboard Engine (1) and House (1) (AGM)

• Electronics Fuse Block

• Grounding Bus Bar

WATER SYSTEM

• 26 Gallon Water Capacity (two 13-gallon tanks) and 316L Stainless Steel Deck Fill Plate

• Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends

• Pressure Sensing/Variable Speed Pump with In-Line Filter

• Centrally Located Freshwater Manifold

MECHANICAL SYSTEMS

• Molded Interior White Gel Coat

• Molded Hatch with Gasket and Stainless Steel Gas Spring

• Molded Bilge Sump Area

• Two (2) 1500 GPH Bilge Pumps with Electronic Switches and Stainless Steel Clad Thru Hull Fittings

• 1100 GPH Tournament Series Livewell Pump, with Bronze Seacock and Thru Hull Fitting

• Pressure Sensing Raw Water Pump with In-Line Filter

FUEL SYSTEM

• EPA Compliant Lined 217 Gallon Rotomolded Fuel Tank with Engine Pickups, Shutoff Valves, Digital Level Indicator and Deck Fuel Fill Plate

• Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings

• Two (2) Yamaha Water Separating Fuel Filters with Primer Bulbs
