1985 Passport 470 Center Cockpit

$175,000

Used

Boat in San Diego, CA 92106 US

builtBuilt in 1985
Year the boat was built
model

470 Center Cockpit

Boat model
engine

1 Engine (Westerbeke)

Engine type and count
length

47 feet

Overall boat length
fuel

Diesel

Fuel type
material

Fiberglass/Reinforced

Hull material
Nominal Length
47ft
Length Overall
47ft
Beam
13.5ft
Max Draft
6.5ft
Displacement
34000lb
Ballast
12000lb
Cruising Speed
7kn
Cabins
2
Heads
2
Seating Capacity
6
Fresh Water Tanks
45gal
Windlass
electric-windlass
Hull Material
fiberglass
Hull Shape
monohull
Engine 1
Engine Make
Westerbeke
Engine Model
71C
Total Power
71hp
Engine Hours
3060
Engine Type
inboard
Fuel Type
diesel
Engine Year
1996
Drive Type
v
Propeller Type
3-blade
Propeller Material
bronze
Teak Cockpit
Electric Winch
Teak Sidedecks
Outboard Engine Brackets
Davits
Tender
Liferaft
Cockpit Cushions
Cockpit Table
Swimming Ladder
Electric Bilge Pump
Oven
Manual Bilge Pump
Microwave Oven
Electric Head
Hot Water
Refrigerator
Fresh Water Maker
Deep Freezer
Battery Charger
Depthsounder
Radar
Log Speedometer
Wind Speed And Direction
Navigation Center
Plotter
Autopilot
Radio
Compass
Gps
Cockpit Speakers

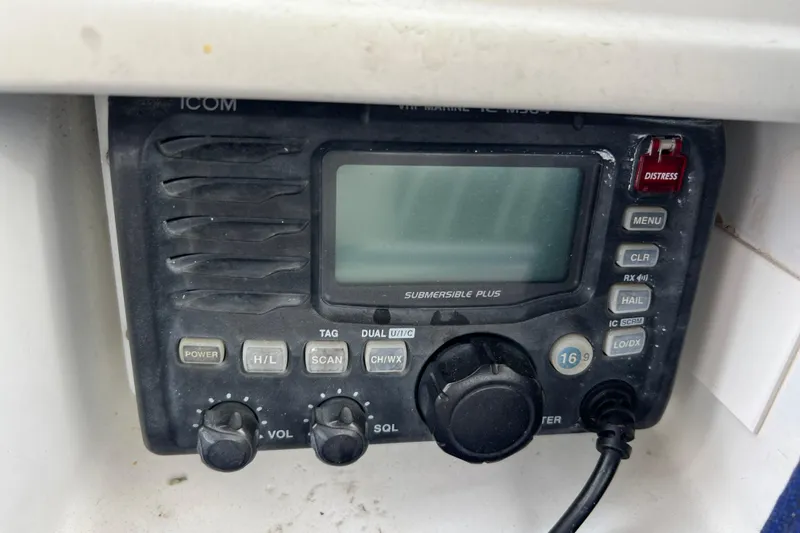

Vhf
Flat Screen Tv
Bimini Top
Mainsail Cover
Lazyjacks

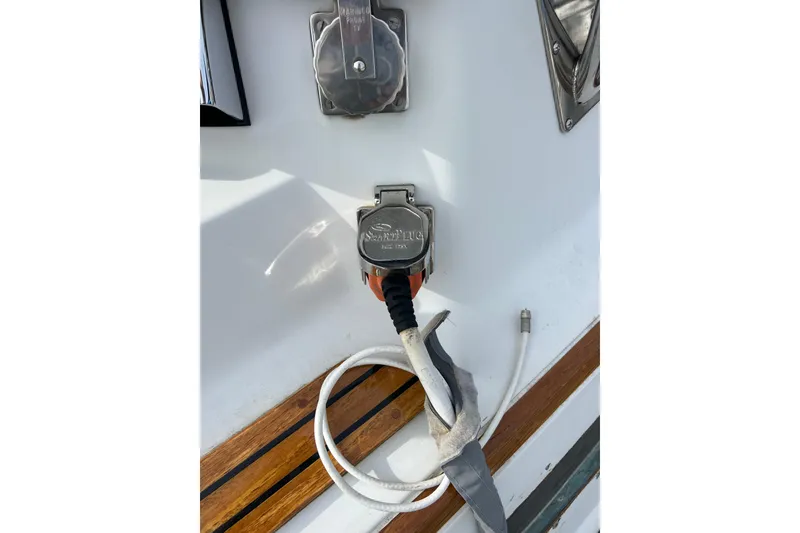

Shore Power Inlet
Generator
Inverter
Accommodations

The interior is richley executed with solid Burmese teak staving, satin varnished and finished to the quality of the fine furniture.  The sole is hi-gloss varnished solid teak and holly.  Well suited for live aboard cruising or elegant weekend and holiday sailing.  Sleeping accommodations are luxurious and comfortable in two staterooms with double berths, private heads, and showers, as well as a settee berth for two in the main salon.  Storage abounds in numerous louvered lockers, bins, hanging lockers, and shelves.

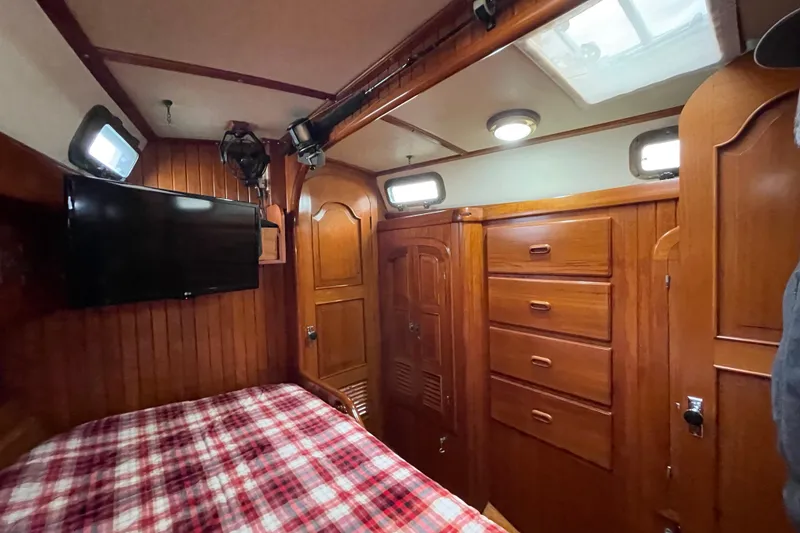

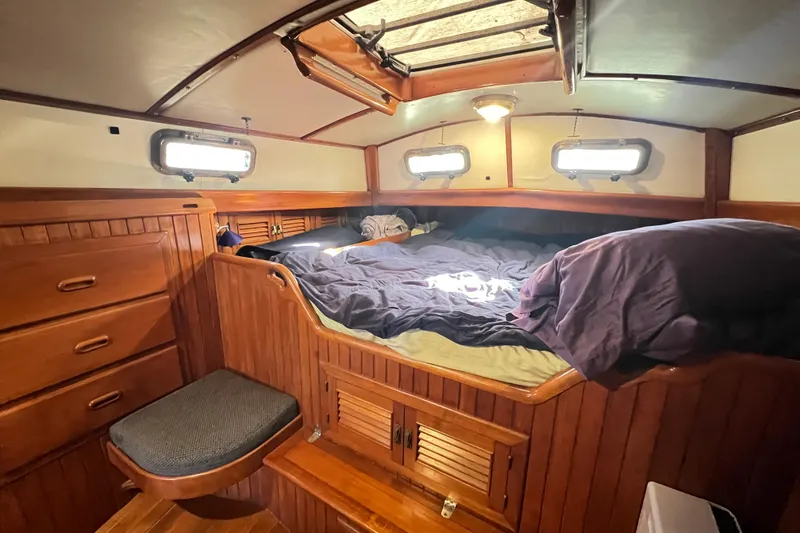

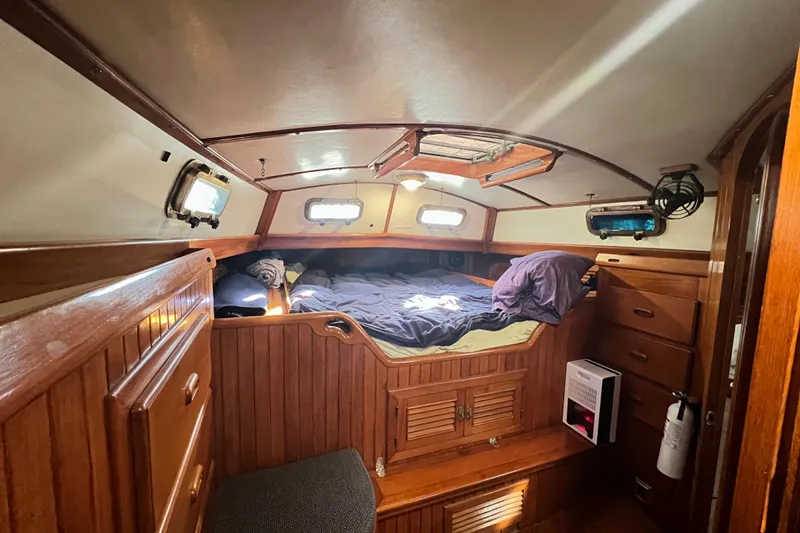

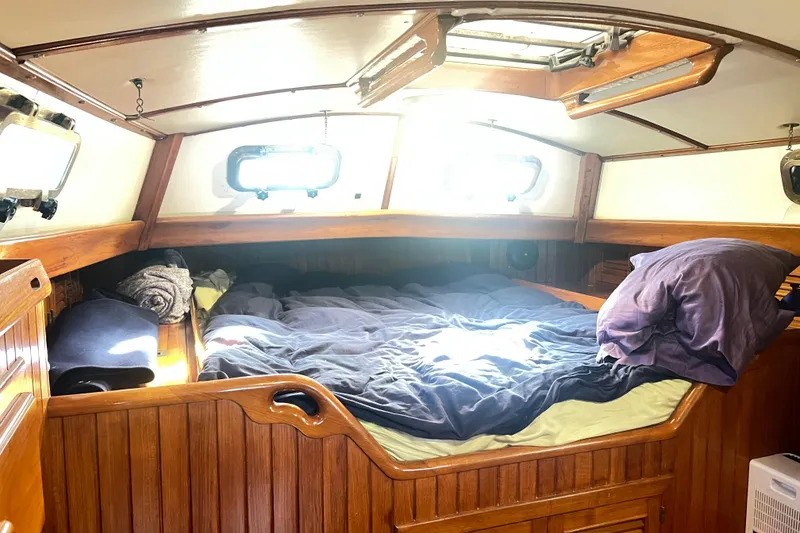

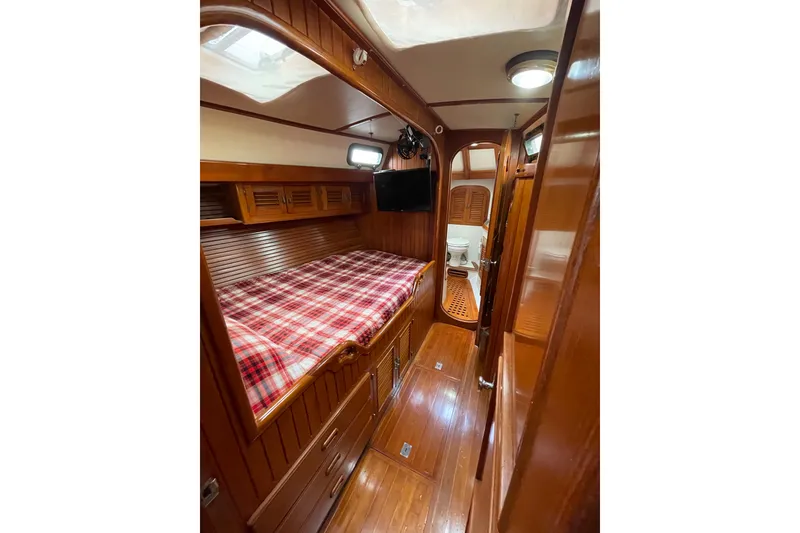

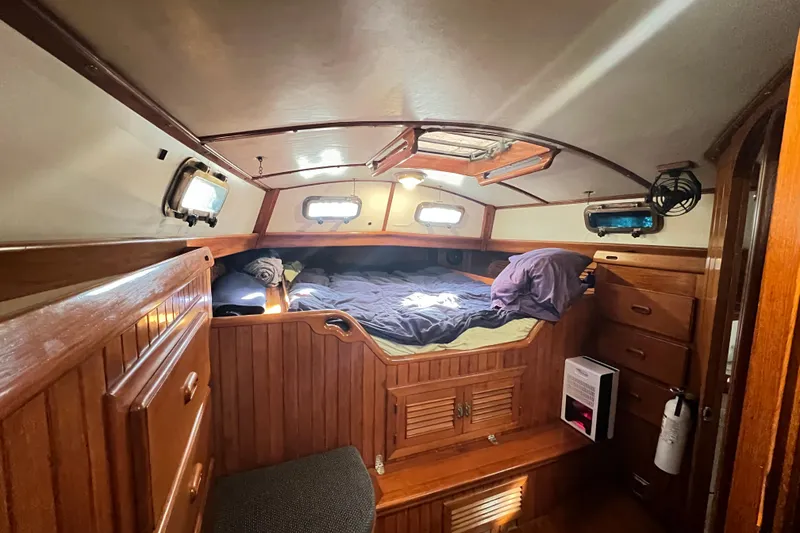

The master stateroom aft features a generous berth, two hanging lockers, a chshioned settee, bureau, and additional lockers outbound of the berth either side.  There is ample standing room for two to change in privacy.  NEW electric Raritan macerating toilet with fresh/sea water option (9/2020) in head with washbasin and stall shower with sump pump and chamfered teak grate sole.

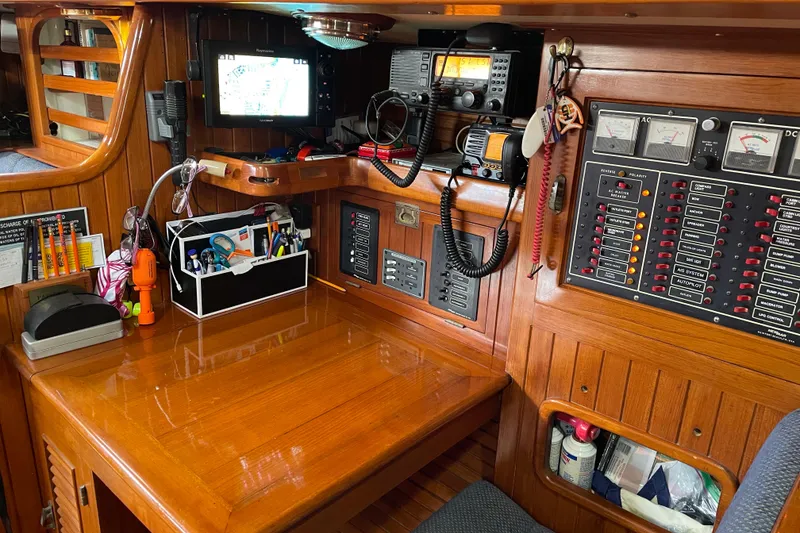

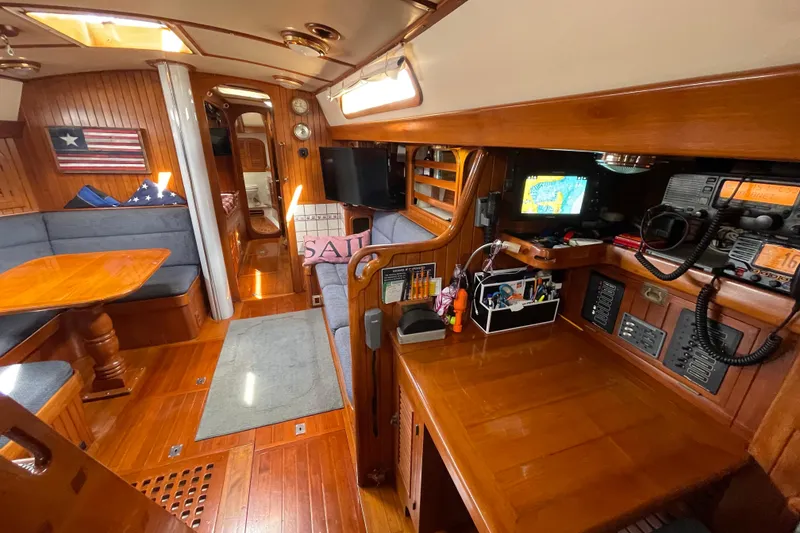

The walk-through to starboard features a handy workbench planning area outboard with locker below.  Next, the forward facing navigation station with cushioned seat and backrest is right off the companionway landing.  Across, to port, is the galley.

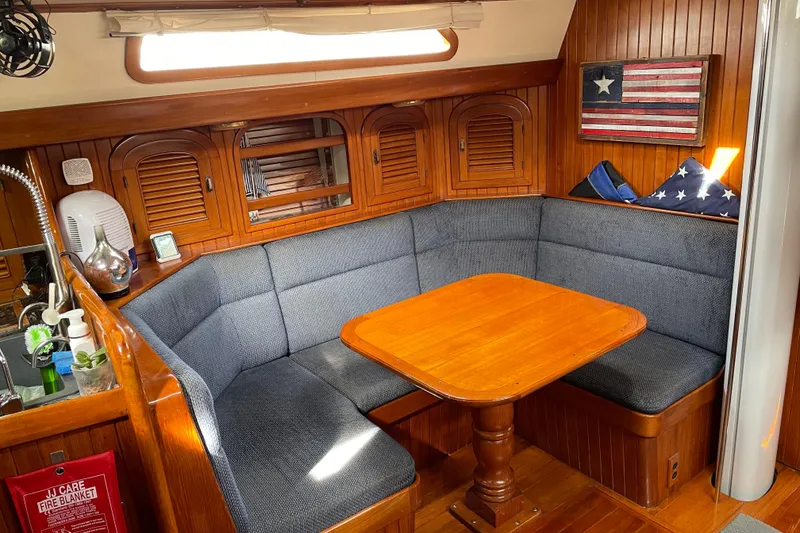

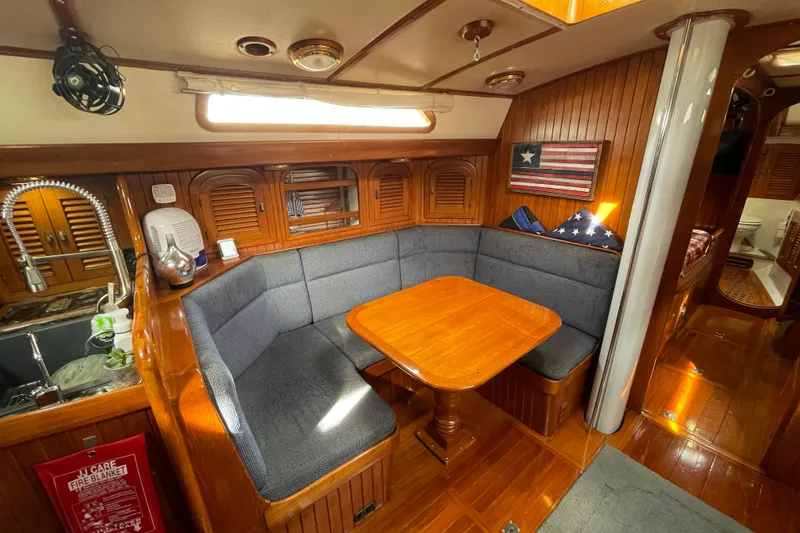

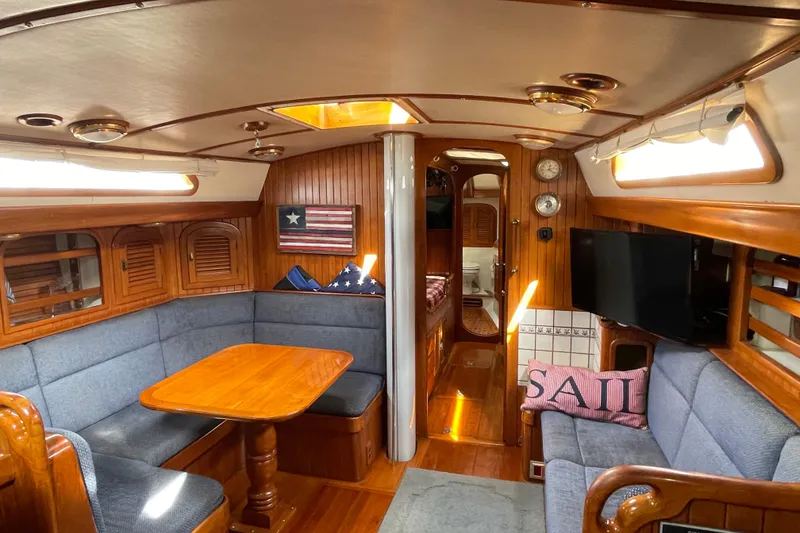

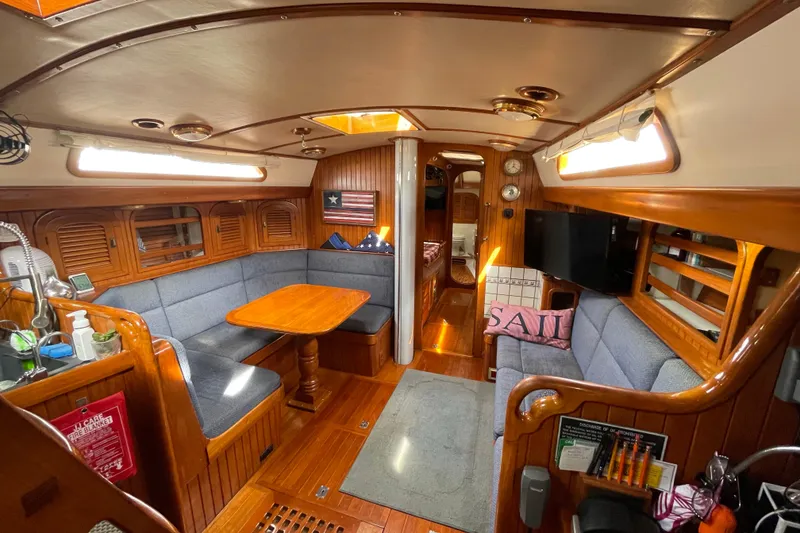

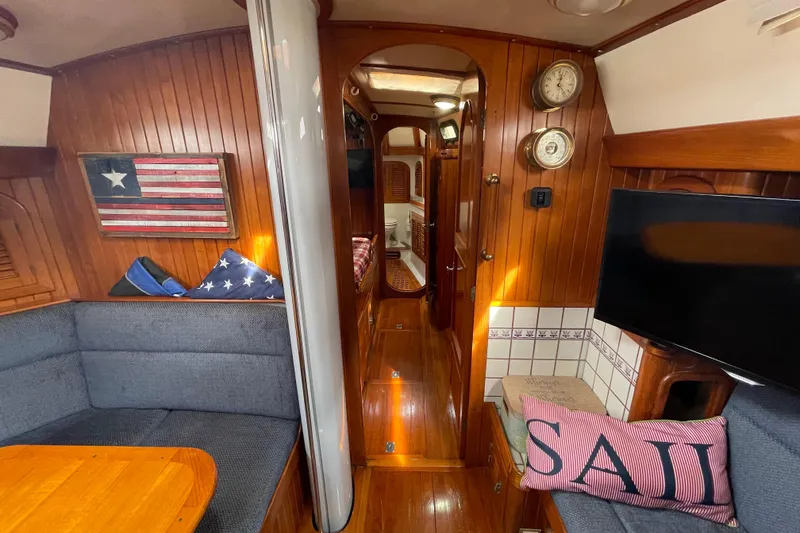

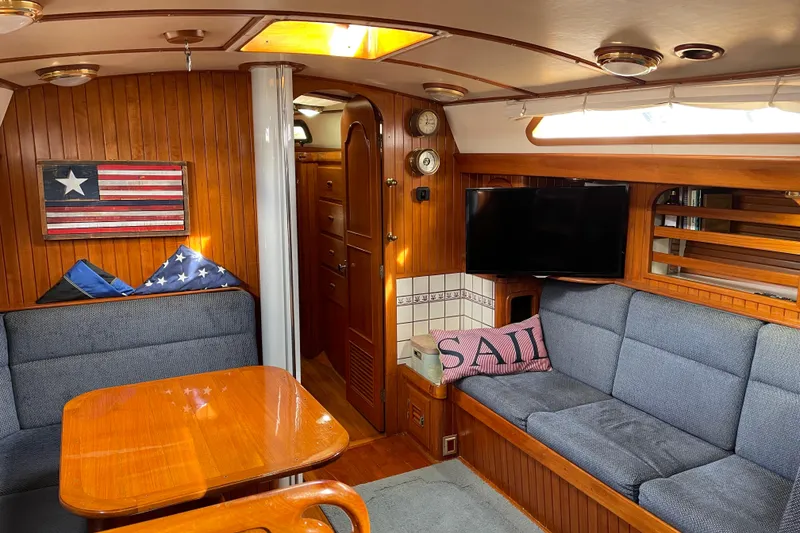

The luxurious main salon features a U-shaped dinette to port with a beautifully varnished teak table and louvered lockers outboard.  Opposite the table is a straight settee with storage behind the seat backs and louvered lockers outboard.  The main bulkhead and surrounds are strikingly crafted of solid teak staving, vanished to a warm glow.

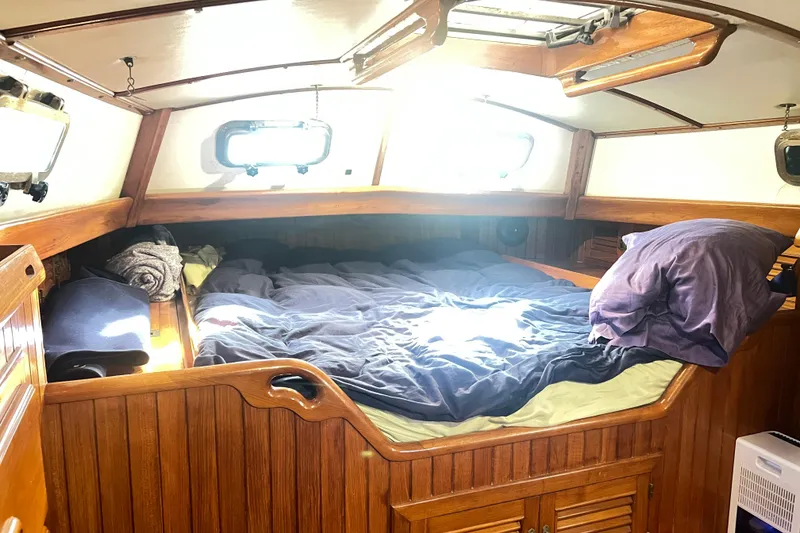

The guest stateroom is forward with a double Pullman berth to Port, drawers underneath, two hanging lockers, and abundant drawers for storage.  This stateroom also provides standing headroom for a couple to change in privacy.  New (8/2020) full-size Electric Raritan macerating toilet with fresh/sea water option forward has a separate stall shower with a sump pump with teak slat bench, washbasin with cambered teak grate sole.

Ventilation and cooling:

-Four dorades

-Seven hatches

Engine and Mechanical

Westerbeke 71C four cylinder naturally aspirated 205 litre diesel engine with ZF Model 630 V-drive transmission - Built 1996

-Fresh water cooled engine

-Fresh water cooled lube oil cooler

-Transmission oil cooler (New 2/2022)

-Self-bleeding fuel system

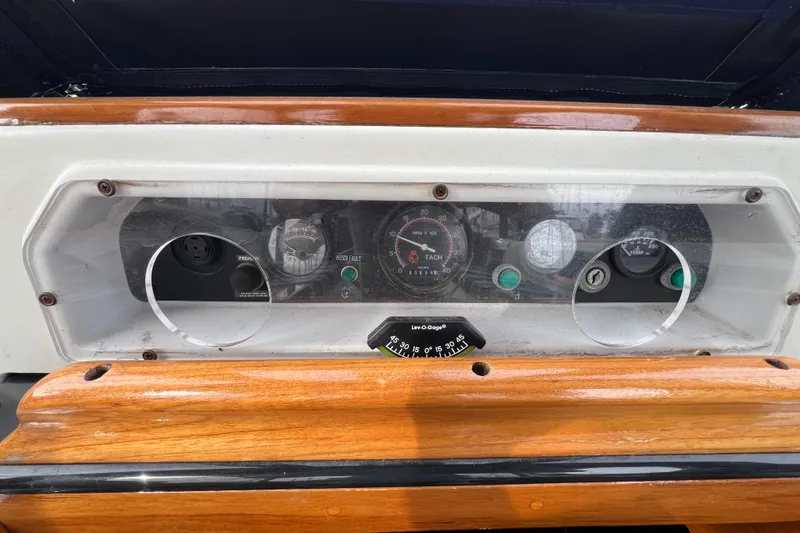

-Cockpit instrument panel

-Fuel transfer system

-External fuel priming pump

-3 bladed Max Pro Prop feathering

-3 bladed fixed prop as spare

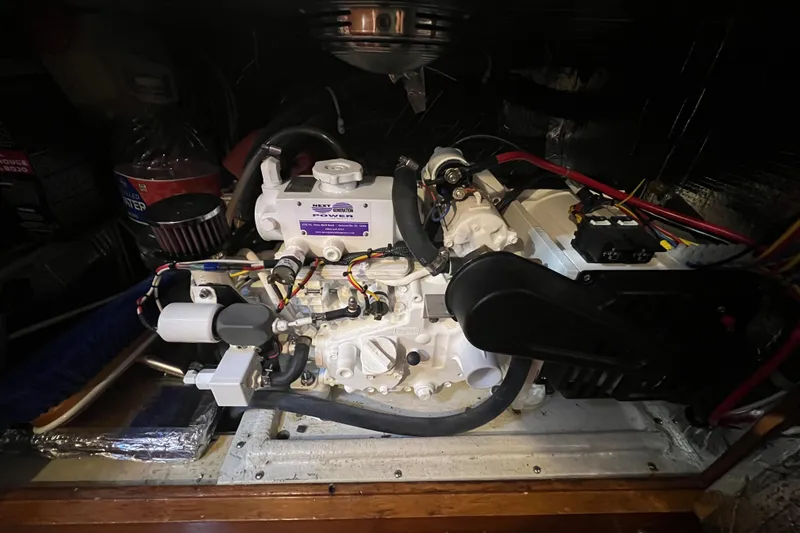

-New Next Gen 3.5k marine generator 30amp (8/2021)

-1 1/2" stainless steel shaft

-Fireboy clean agent fixed fire suppression in engine compartment

-Cable steering (newer - replaced 2020)

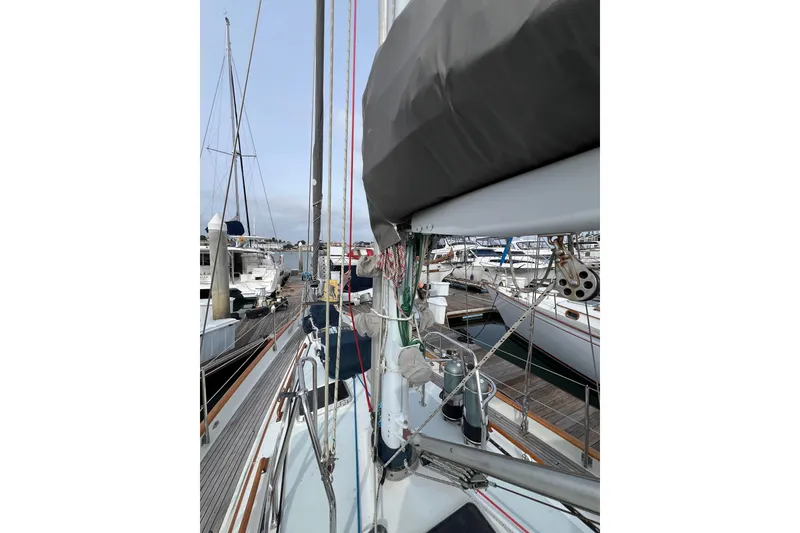

Sails & Rigging

-New Main Precision Sails Hydra Net Radial HNR393 Offshore Package (Tenara thread) 2019

-New Headsail Precision Sails Hydra Net Radial HNR393 100% Offshore Package (Tenara Thread) 2020

-Staysails 90% good condition

-Cruising spinnaker 1.5oz (very good condition)

-Harken 3-482 headsail roller furling

-Removable stay for staysail

-Quick Vang boom vang

-Sailpack with dyneema lazy jacks 2020

-Mast pulpits with scuba tank racks

-Hydraulic backstay tensioner

-19' Spinnaker pole munted on the mast

-New running rigging  11/2020

-New Chain Plates 4/2020

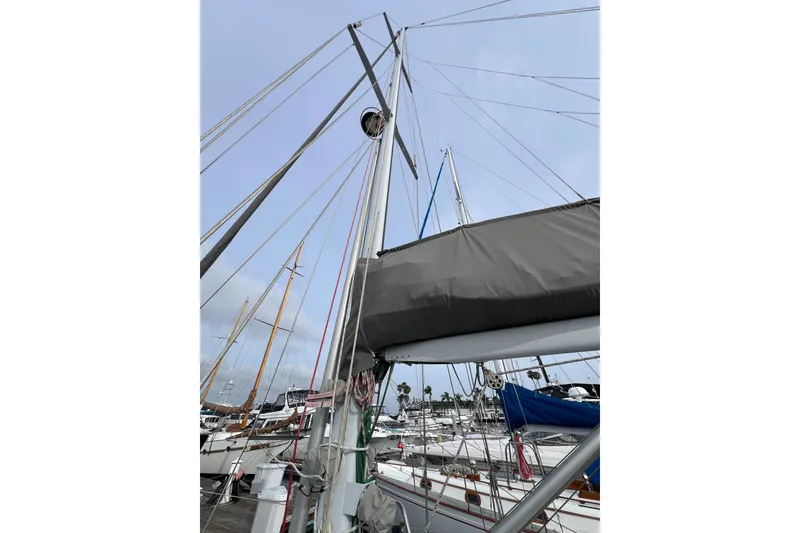

-2017 new "state of the art" mast was built by Forespar, which incorporated all their newest engineering features.  The spreader roots were redesigned to better distribute loads on the mast sides.  The mast was custom painted with Awlgrip "Whisper Grey" to match the newly painted hull in 2017.  Additionally, the mast has all new electronics with a Raymarine digital color radar, LED navigation lights and LED spreader lights.  All new rigging and rigging hardware was also installed.

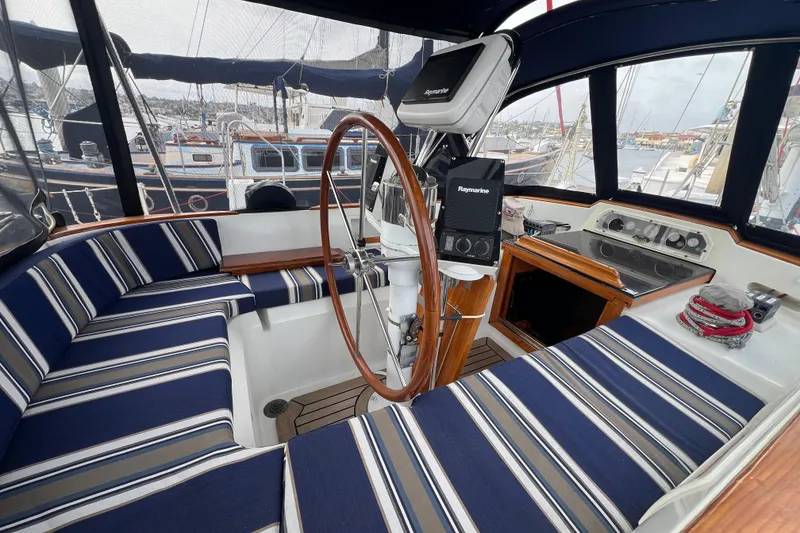

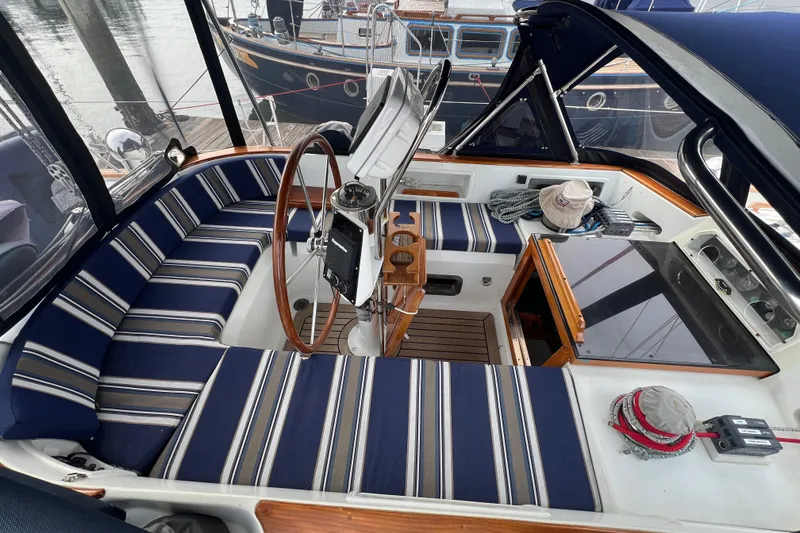

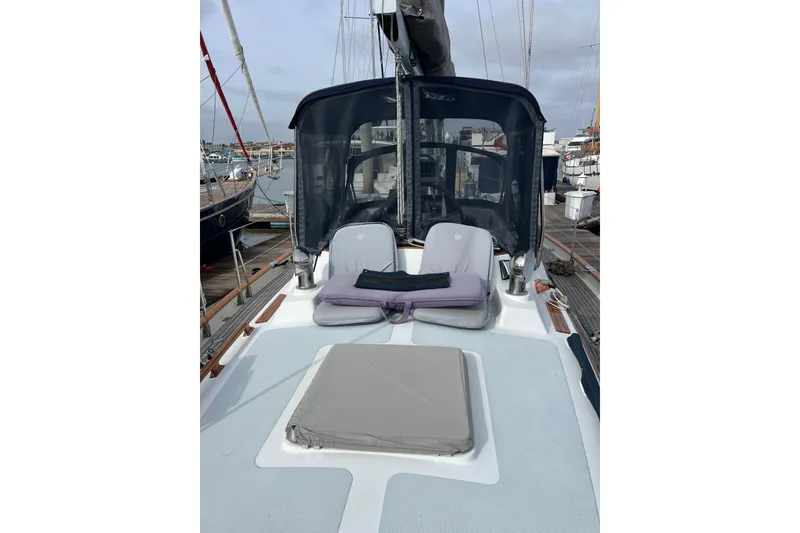

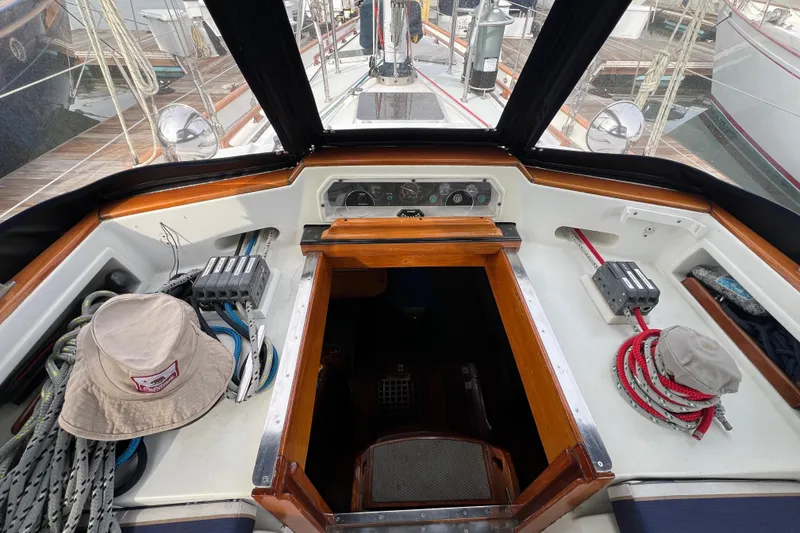

Decl & Cockpit

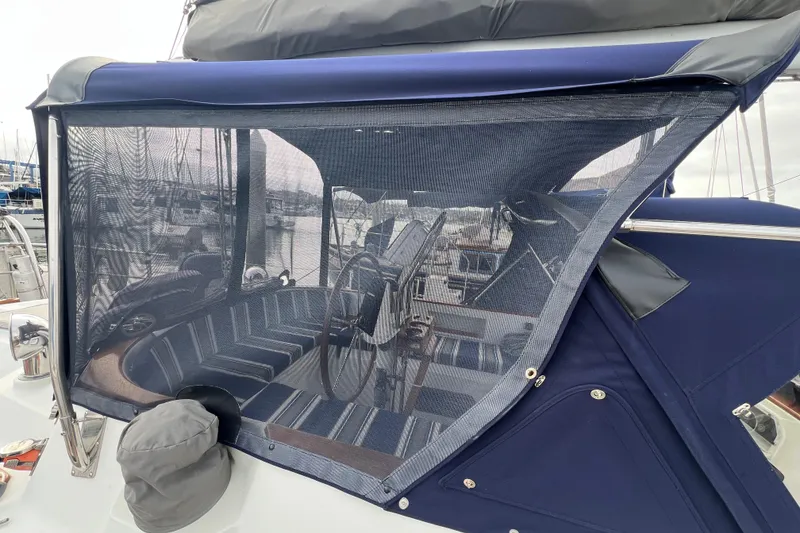

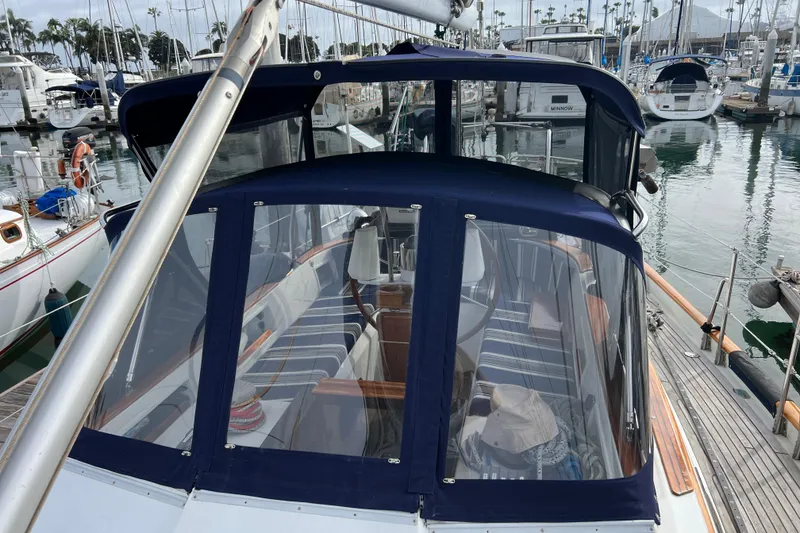

-New Bimini (2026) with removable zippered side screens

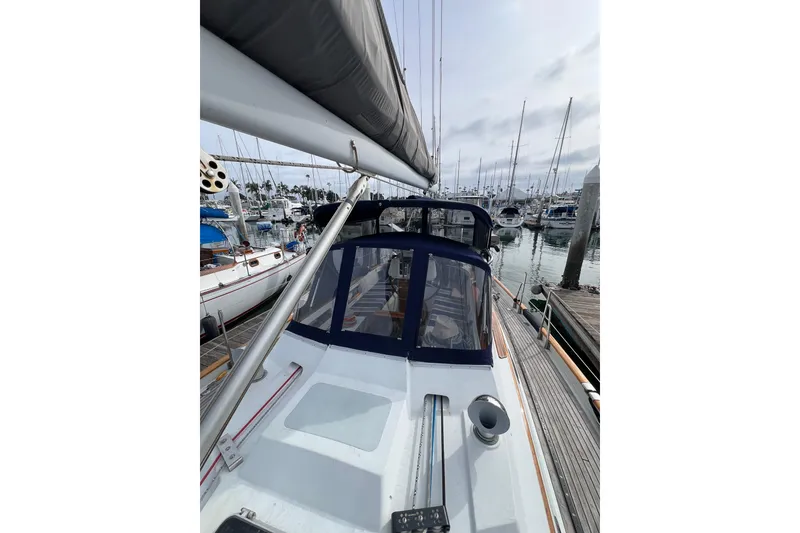

-New Dodger (2026) with extra sacraficial cover for UV protection

-Cockpit cover for use when boat is stored

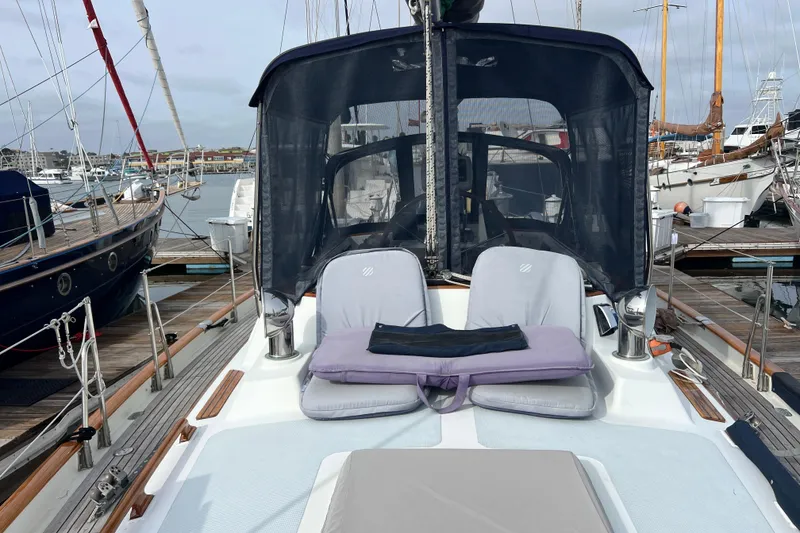

-New Cockpit cushions (2026)

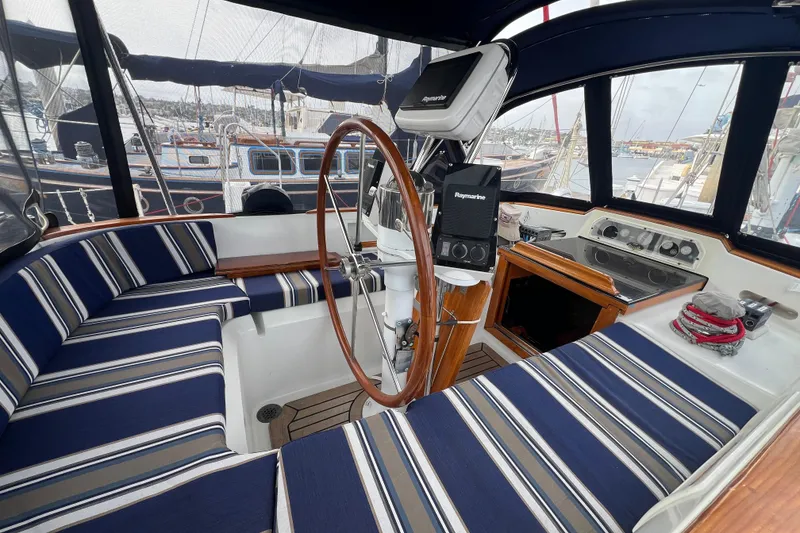

-42" teak rimmed wheel

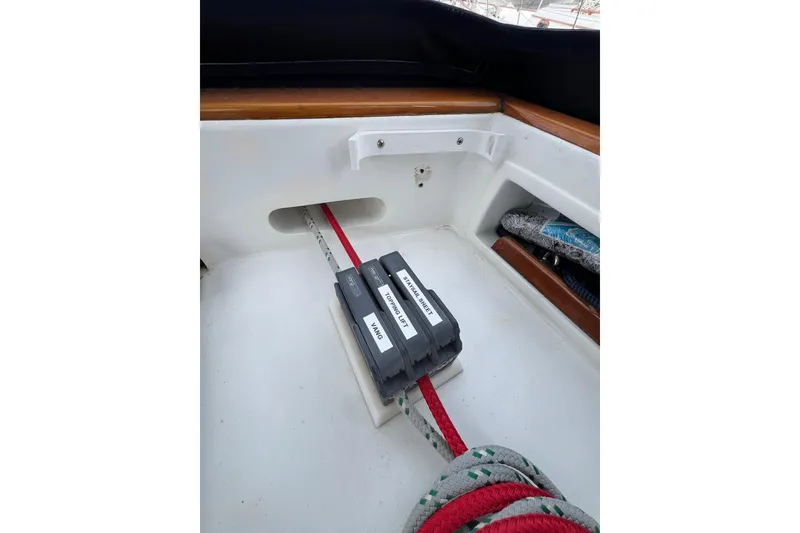

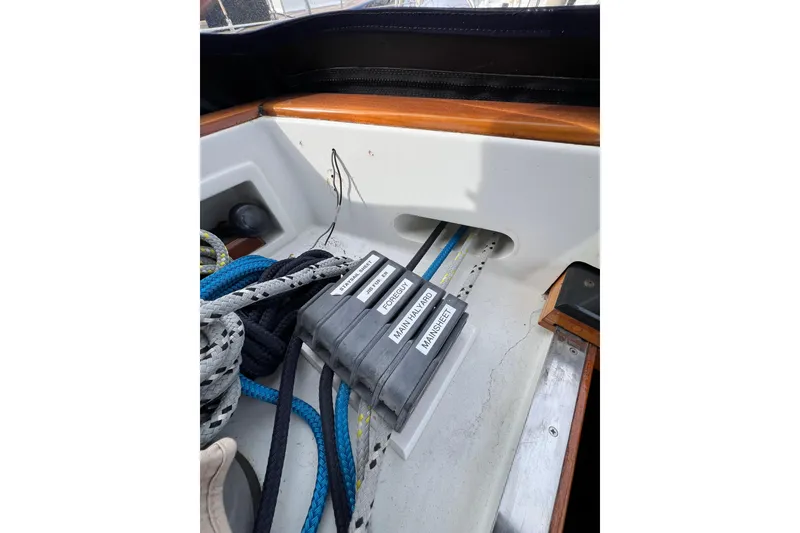

-Barrient winches (2) ST32 primaries, (2) ST 46utility 1-electric halyard winch, (4) mast winches, (8) Spinn-locks

-Hard vang, running backs, hydraulic backstay, 19' spinnaker pole

-5 Bowmar deck escape hatches

-1 (85 lb) Mantus anchor (2019)

-330' of 3/8" G4 chain rode (New, not used yet)

-2 fortress FX-37 anchors

-Maxwell 3500 12v Windlass (New, not used yet)

-Maxwell wireless controller / Chain counter for Windlass (New)

-Horseshoe connected to MOB strobe

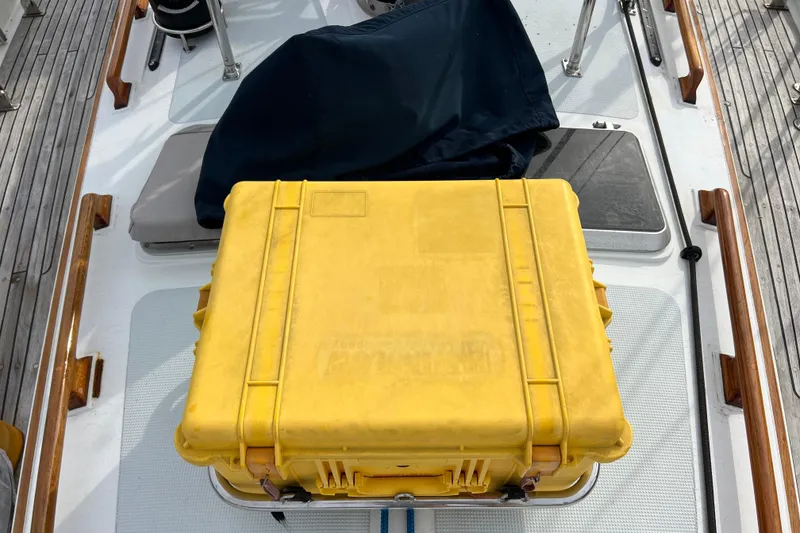

-Winslow six-person life raft (expired)

-10 ft Achilles Rigid Hull inflatable RIB

-15HP Mercury Outboard

-Stern rail mounted outboard bracket

-Stern rail storage box on starboard

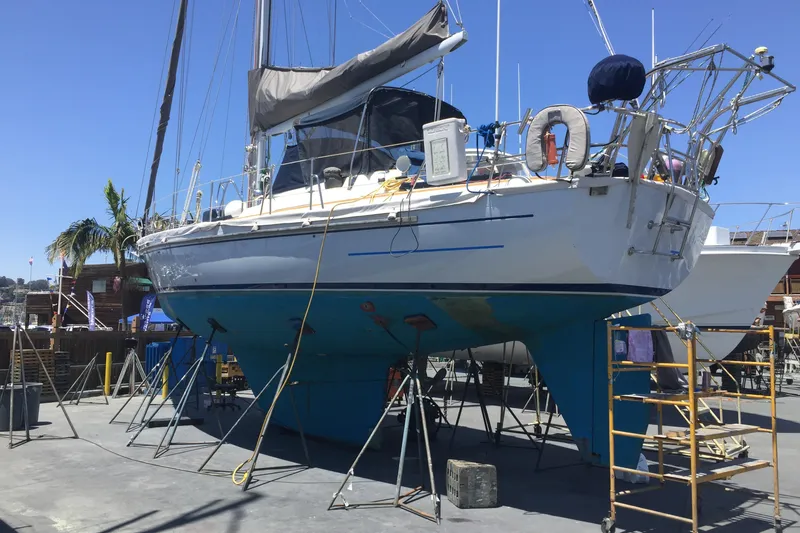

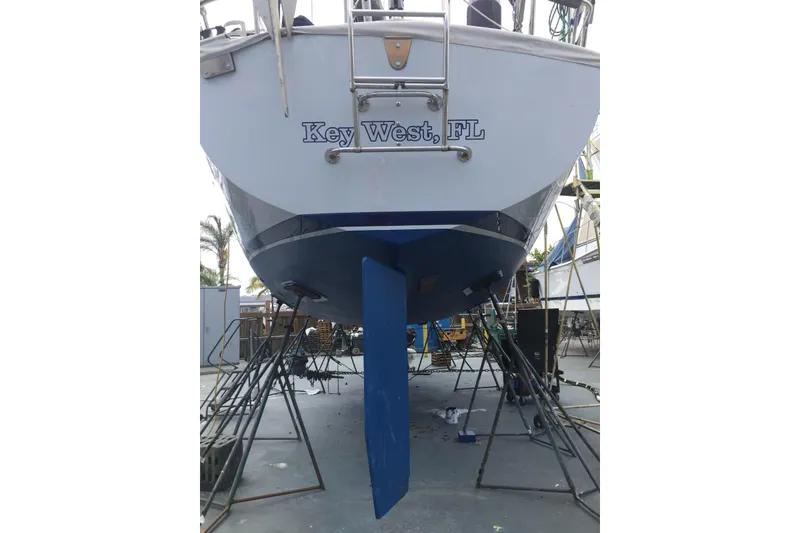

Hull

-Hull is solid hand laminated fiberglass

-Hull bottom epoxy barrier bottom (2006)

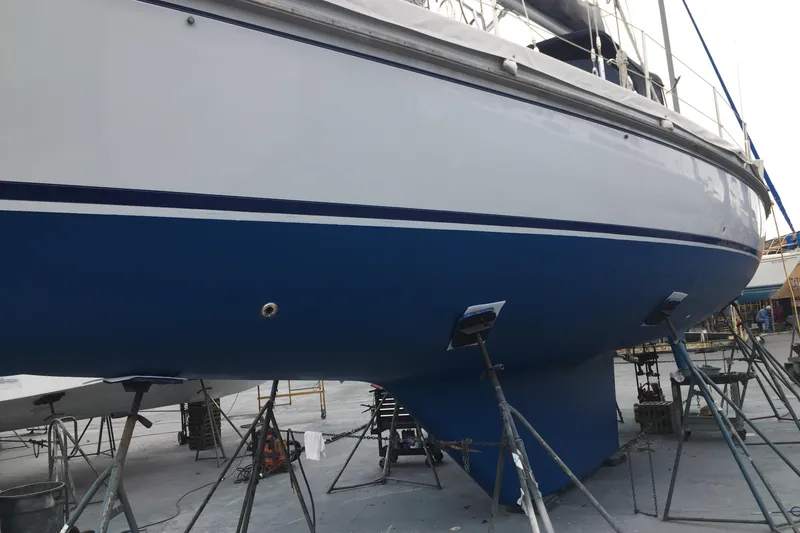

-New Bottom paint 2/2026

-(4) thru hulls repalced 7/2020 and (2) 2/2026

-The deck is hand laminated and cored for stiffness and insulation

-5/8" teak over side decks

-Molded non-skid surface on deckhouse

-Ballast is encapsulated internal cast iron

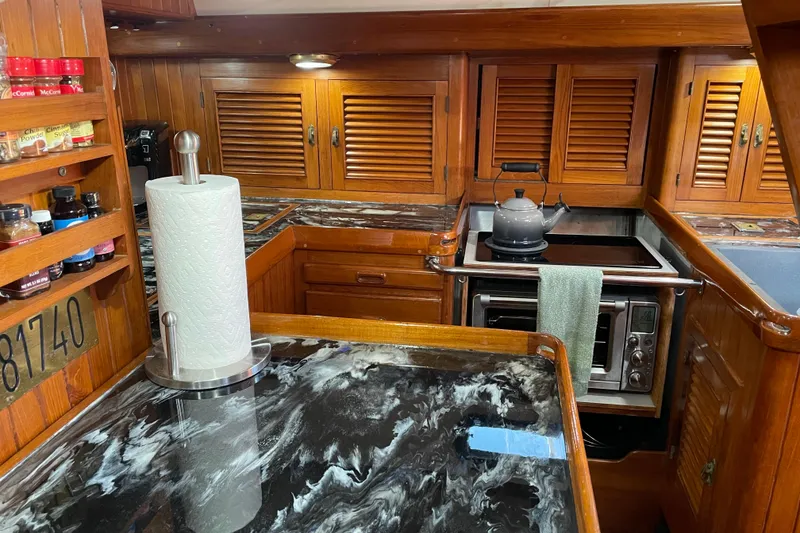

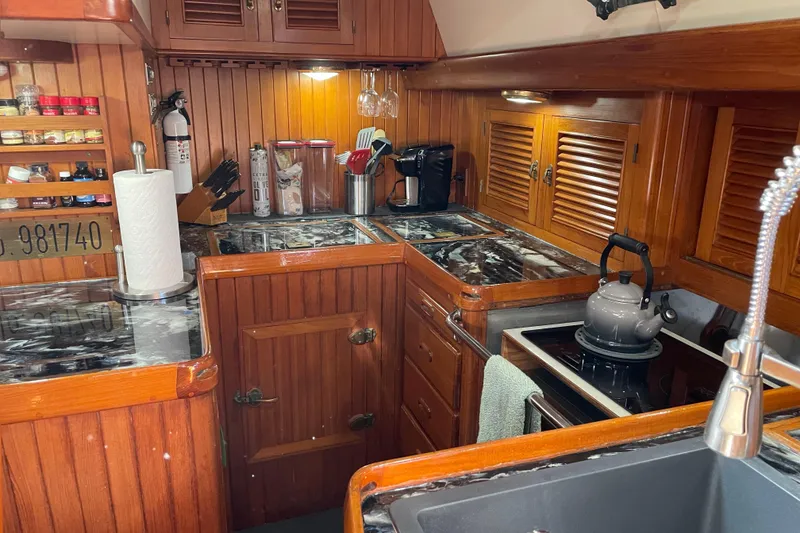

Galley

Galley completely updated 3/2020. Countertops (Epoxy) Propane stove/oven removed for safety and cooking surfaces replaced>

-renewed refrigeration storage unit -renewed Freezer storage unit

-Ozefridge New 12V fresh water cooled Eutectic Refrigeration system (5/2020)

-Ozefridge New 12V fresh water cooled dual Eutectic Freezer system (5/2020)

-Induction cook (two burner system)

-Breville convection oven/Airfryer

-New composite material sink with Pull down faucet

-Newly installed SeaGull IV purification system

-6 gal water heater, NEW 2021 110v/engine heat exchanger

-New Pex fresh water lines throughout entire boat 5/2020

-Sanyo Microwave oven

Tankage

-Fuel, 185 gal in one black iron and tow stainless steel tanks

-90 gal water in two stainless steel tanks

-Two holding tanks (New forward holding tank, New sanitation hoses, New valves, New overboard discharge 8/2020

- Aft holding tank re-built with all new sanitation hose 9/2020)

Electrical

-New Victron Battery Bank 3/2021

-Victron Lifepo4 (Lithium iron phosphate) 800 amp hour smart batteries (Bluetooth) house battery bank (weight is only 194 lbs) with 80% depth of discharge. Total Cost $14,000

-System Components: All Bluetooth and remotely controlled

      BMS-712 battery monitor (bluetooth) with Victron components

      Victron 3k Multiplus inverter/120 amp charger

      Victron VE.Bus Battery Management System

      Victron Smart Battery protect (Discharge)

      Victron Smart Battery protect (Charge side)

      Victron Lynx Distributor (battery fused protected system)

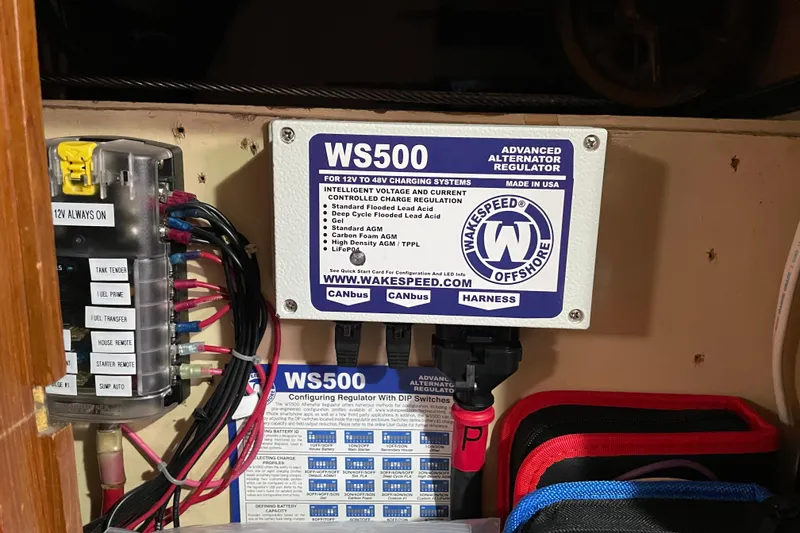

-Wakespeed WS500 External regulator (Lipo4 specific) programmable connected to 120 amp alternator

Navagation & Electronics

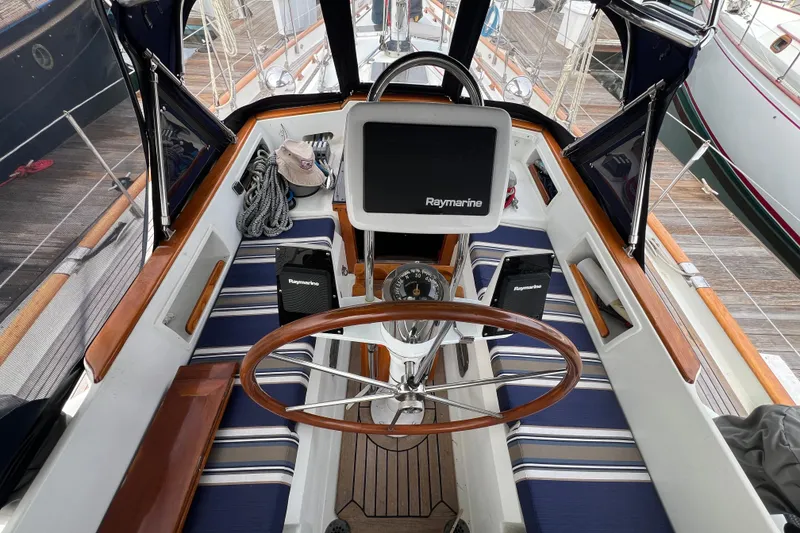

-New Raymarine Axiom Chartplotter (helm) with HS5 network switch 11/2020

-New Raymarine autopilot 11/2020

-New Transducer, Wind Indicator and instrument 11/2020

-Rebuilt Edson pedestal and replaced steering cable conduit system 10/2020 Other:

-Spectra 12V water maker (New low/high pressure hoses 6/2020

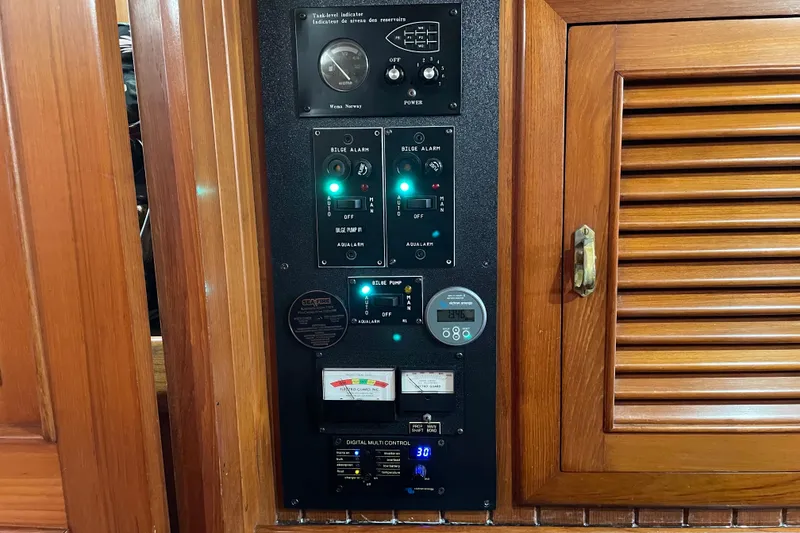

-New bilge pump systems, hoses, Aqualarm switches and floats 2/2021
