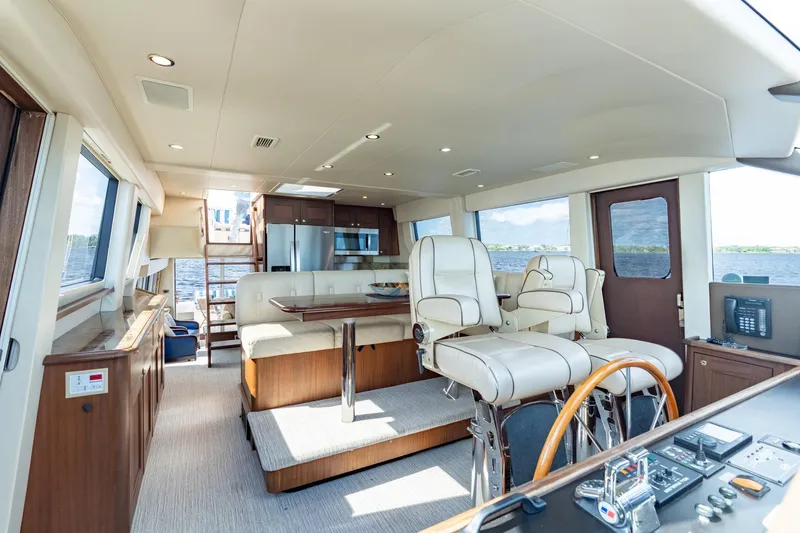

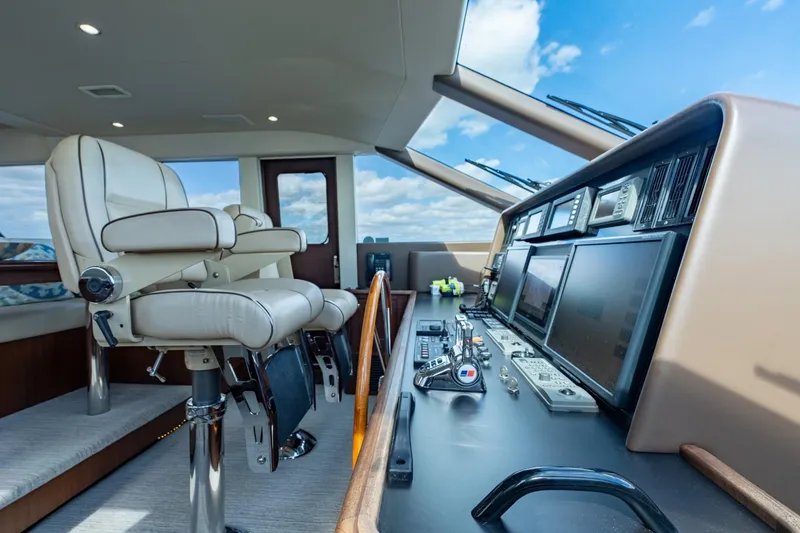

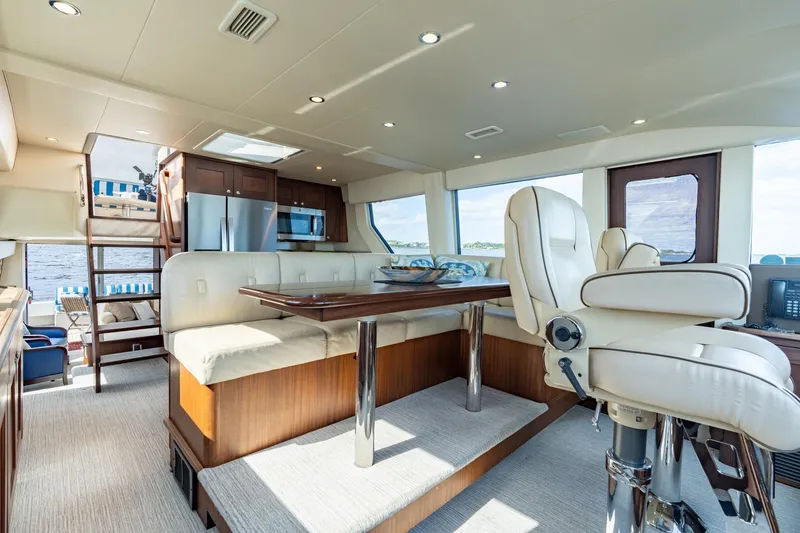

Pilothouse & Lower Helm

• Headroom 6’8”
• Custom Wool carpet - New 2024
• Overhead LED lights
• Port and stbd. sliding Pilothouse doors with retractable screens
• 3 Window forward Pilothouse windshield ½” thick
• (3)-39” Windshield wipers variable speed with washers
• 2x Windshield covers (white/black)
• Ships breaker panel 24v loc. stbd. side top of lower deck stairwell
• Electronics 12v breaker panel
• TankWatch Holding tank monitor with empty, low, medium, full indicator
• Stidd Helm and companion seats adjustable with arm and footrest
• Digital A/C controls
• “L” shaped settee - raised for easy viewing
• Storage below Pilothouse settee
• Dining table with center leaf and cover  30” H x 68” L x 25” W
• Stidd seats swivel for additional seating at dining table
• 5” Ritchie PowerDamp  Compass - flush mounted
• Centerline Helm with 30” destroyer style with Teak rim - hydraulic with power assist
• MTU single lever clutch and throttles – electronic with synchronizer and high/low idle
• MTU engine monitors
• Naiad Stabilizer digital control with roll rate control, 4.5 square foot fins
• Naiad Bow thruster control - hydraulic 25 HP
• Chart flat with chart light and chart drawers below
• Weems & Plath Barometer 5” chrome
• Engine back up controls for gears and throttles
• Engine gauges and start/stop switches
• Ships system monitor - navigation lights and bilge pumps
• Kahlenberg Dual Trumpet Air Horns, with air compressor
• Fuel gauges - port and starboard tanks
• Water gauge - (1) tank
• Fireboy FE241 built in Fire system & control – recertified 8/2025
• Bilge pump controls - auto & manual (8)

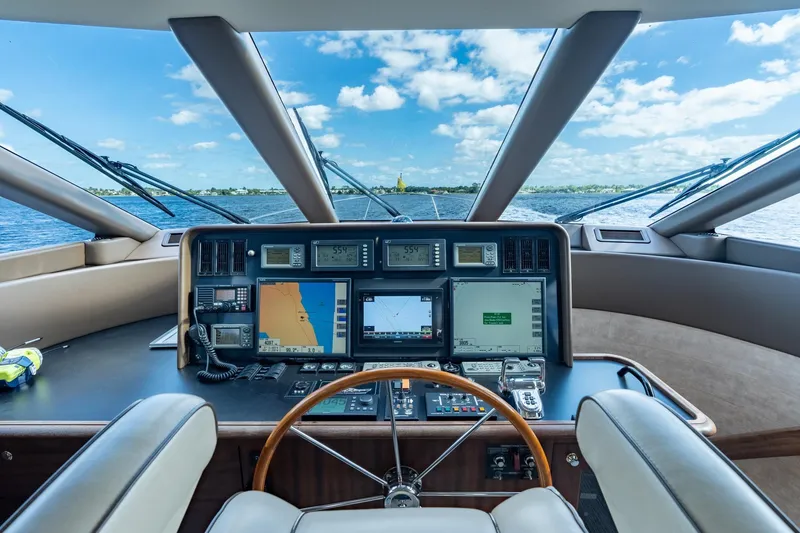

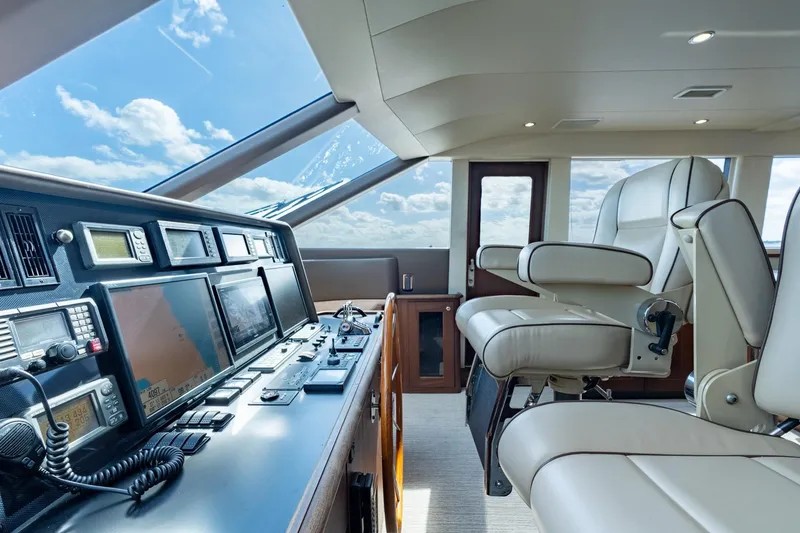

  Pilothouse - Lower Helm Electronics
  • GPSMAP 7612
  • Furuno NavNet radar
  • 2x NEC MultiSync LCD1770VX displays
  • Furuno GP-37
  • Simrad AP25 Autopilot
  • GARMIN AIS 300
  • VHF RADIO Icom IC-M604
  • STARLINK SO7-721048 HIGH PERFORMANCE PANEL

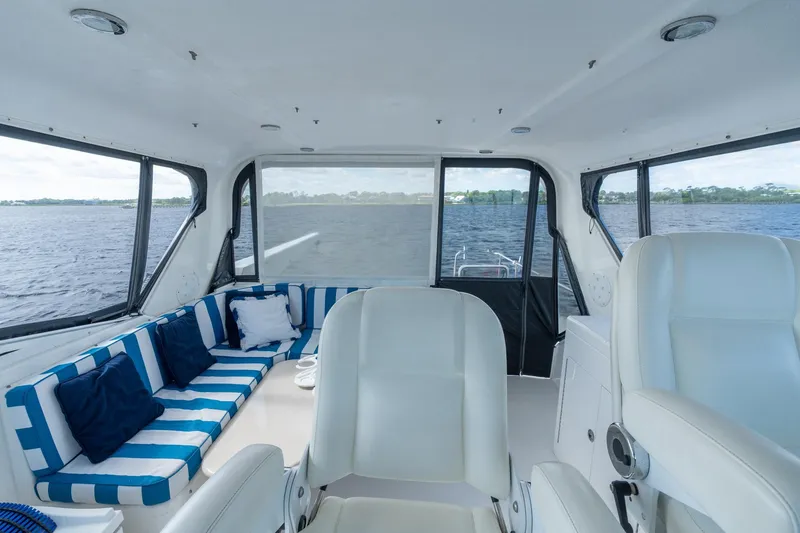

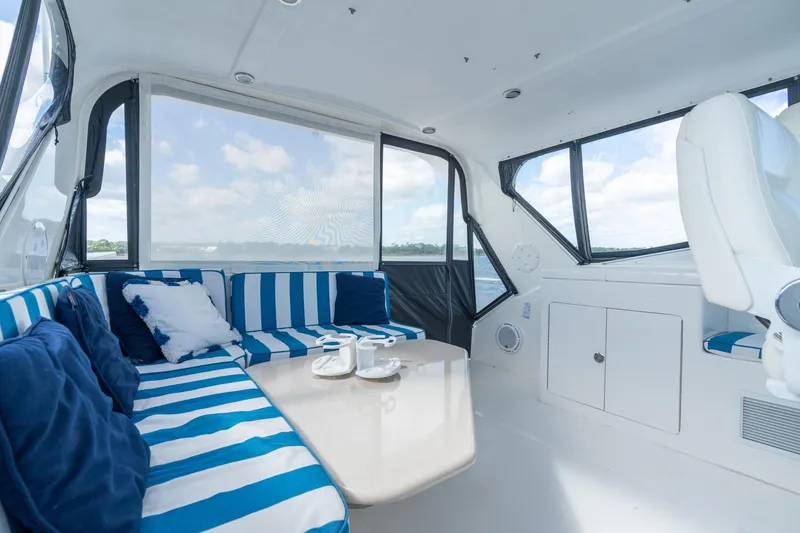

Flybridge

• Headroom 6'6"
• Accessed from Galley, Pilothouse, and Aft Deck ladder
• Hardtop with recessed overhead lighting
• Fiberglass arch
• Glass Windshield
• Three sided panel enclosure
• “L” shaped settee with new cushions, covers and storage below
•  TV in Custom mount
• Cocktail & dining table
• Fiberglass nonskid deck with Deck courtesy lights
• Access hatch with ladder from Aft Deck
• Cabinet with storage
• EPIRB (ACR) located boat deck

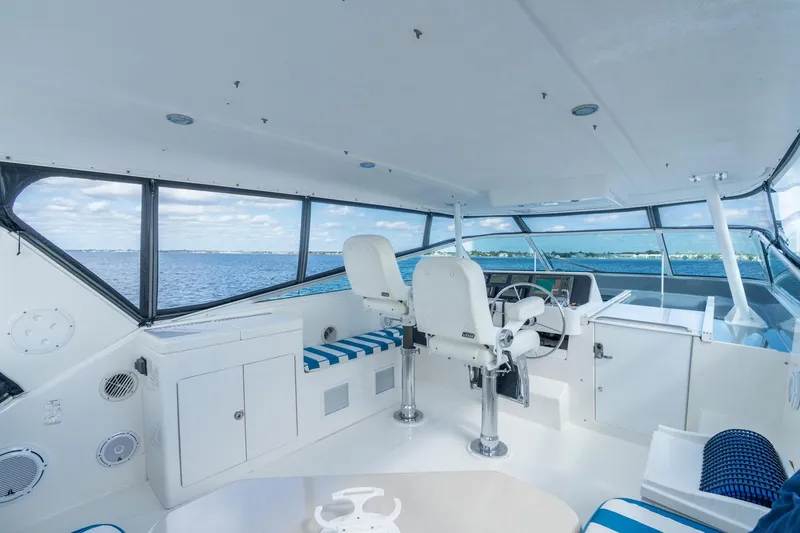

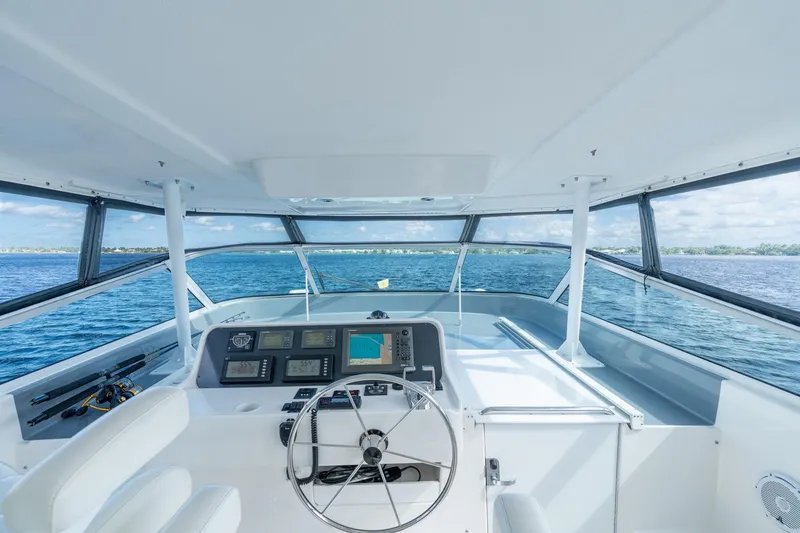

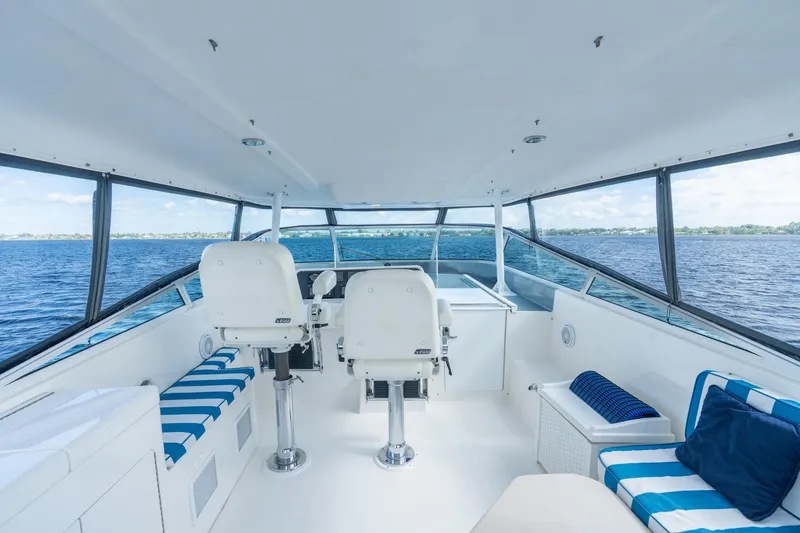

Flybridge Helm

• MTU single lever clutch and throttles with synchronizer and low/high idle
• MTU engine monitors
• Naiad Stabilizer control with roll rate control
• Bow thruster control
• Stidd Helm and companion seats with foot-armrest

Flybridge Electronics

• Furuno NavNet Plotter
• 2x Furuno DGPS GP-37
• NAIAD Marine BOW Thruster control
• Icom VHF
• Simrad Rudder indicator
• RITCHIE 3.5 MAGNETIC COMPASS
• ACR SEARCHLIGHT REMOTE CONTROL PAD
• STABILIZER REMOTE CONTROL PAD

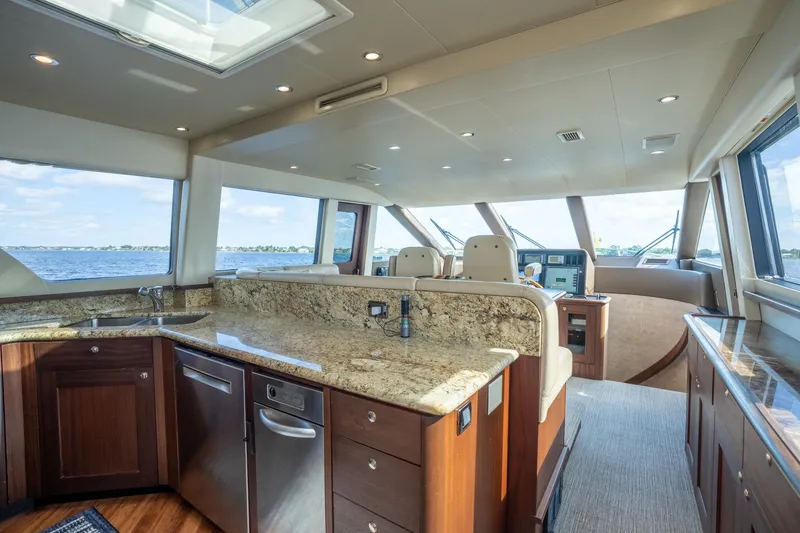

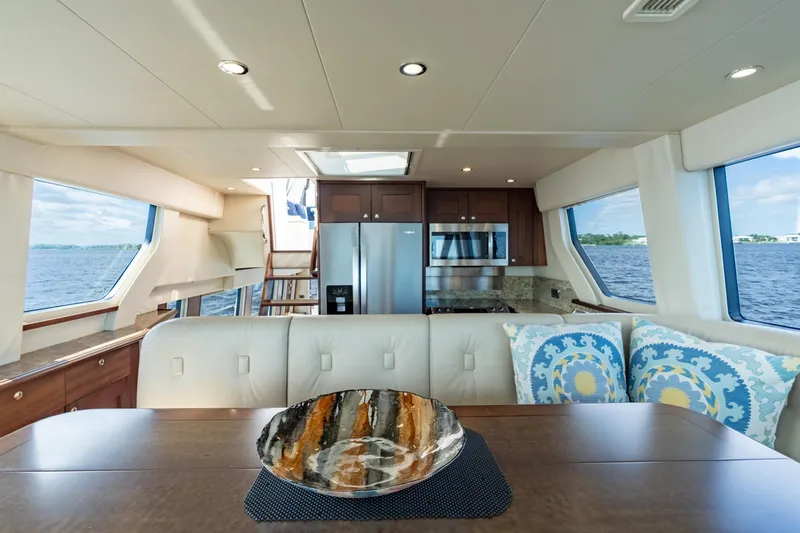

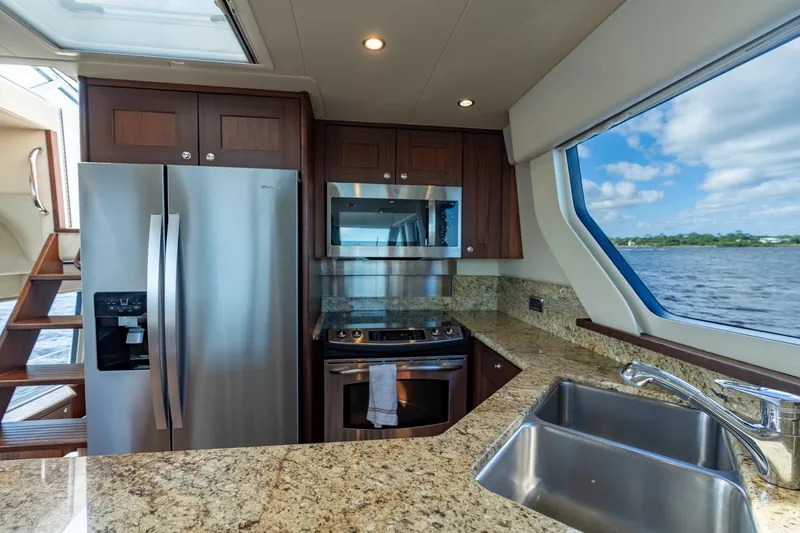

Galley

• Headroom 6’9”
• Same level open to Pilothouse
• Overhead opening hatch / skylight with screen and blackout shade
• Overhead LED lights
• Custom Wood flooring
• Port and starboard windows with dropdown
• Granite counter tops
• Digital A/C control
• Double stainless-steel sink with garbage disposal
• Grohe Single lever faucet with pullout sprayer
• GE Profile Stove with Oven - 4 burner glass cooktop with warmer
• GE Profile Microwave & Convection oven JVM7195SKGSS New 2025
• Bosch Dishwasher - Stainless Steel
• Whirlpool Refrigerator WRS321SDHZ13 New 2025
• KitchenAid Trash compactor - Stainless Steel
• Overhead storage cabinets and Starboard side dish storage buffet

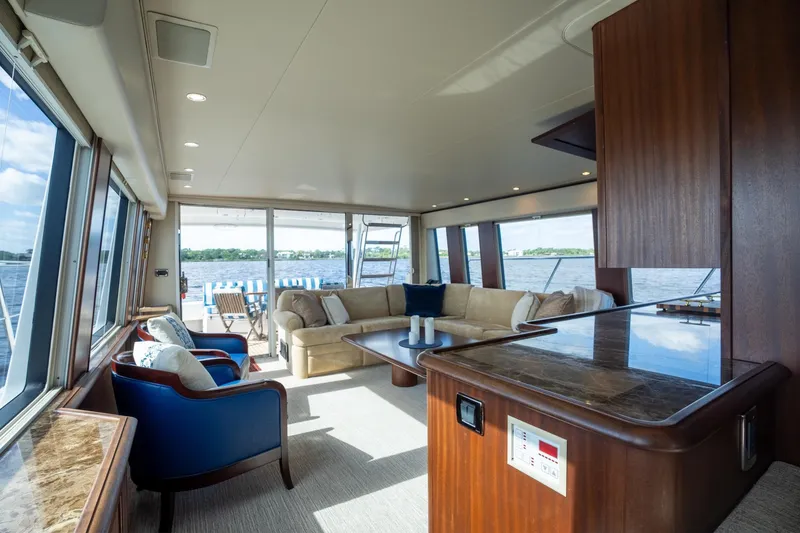

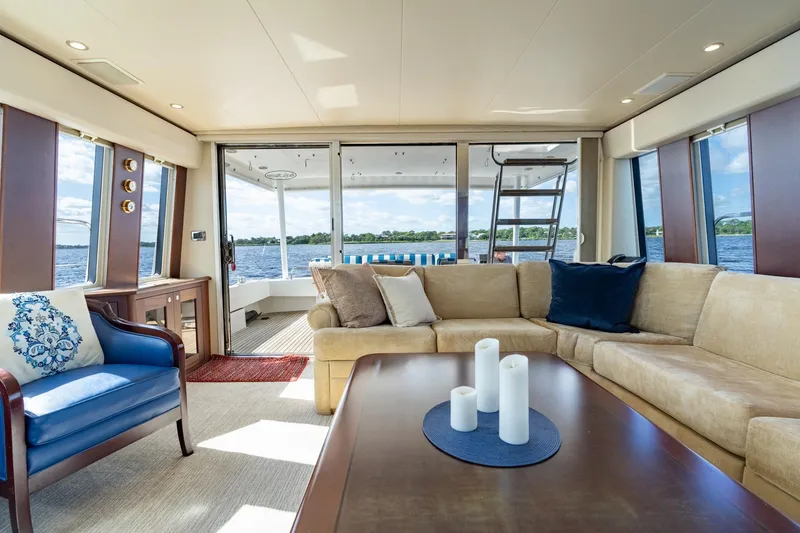

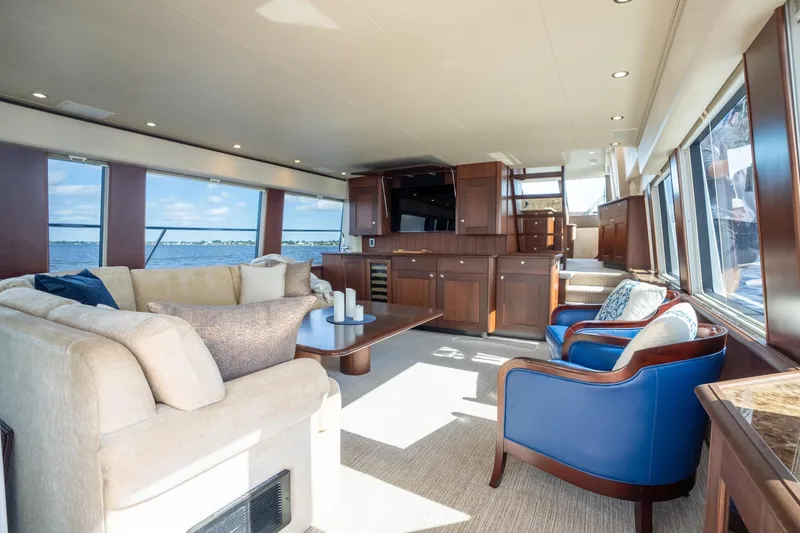

Main Salon

• Headroom 6'6"
• Furniture quality “L” shaped sofa with storage under sofa
• Custom Hi/Lo table adjusts electrically - cocktail to dining.
• Stainless steel framed sliding door to aft deck with retractable screen
• AC distribution panel, Generator control panels, complete gauges, hour meters
• 42’ Samsung Smart TV
• Surround sound speaker system

Wet Bar

• U-line Wine cooler
• Scotsman Icemaker SCCP50MA-!SU
• Stainless steel sink
• Isotherm mini fridge CR65EL
• Storage cabinet for Crystal wine glasses
• Bottle storage cabinet with pullout drawer

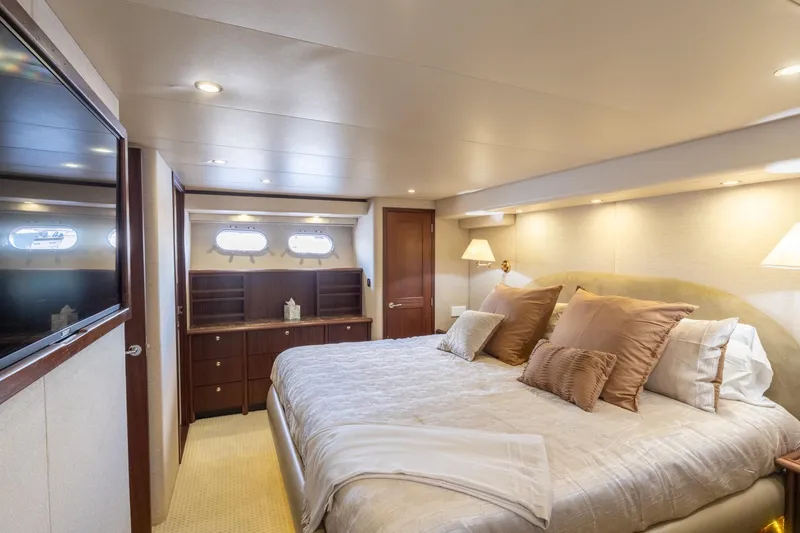

Master Stateroom

• Headroom 7'5"
• King size walk around bed on centerline with drawers underneath
• Sony 32” LED HDTV
• Two Cedar-lined, lighted hanging lockers with full length mirror on door
• Desk with bookshelves, storage drawers and chair
• Dresser with 7 large drawers to port
• Four stainless port lights with screens
• Privacy shades

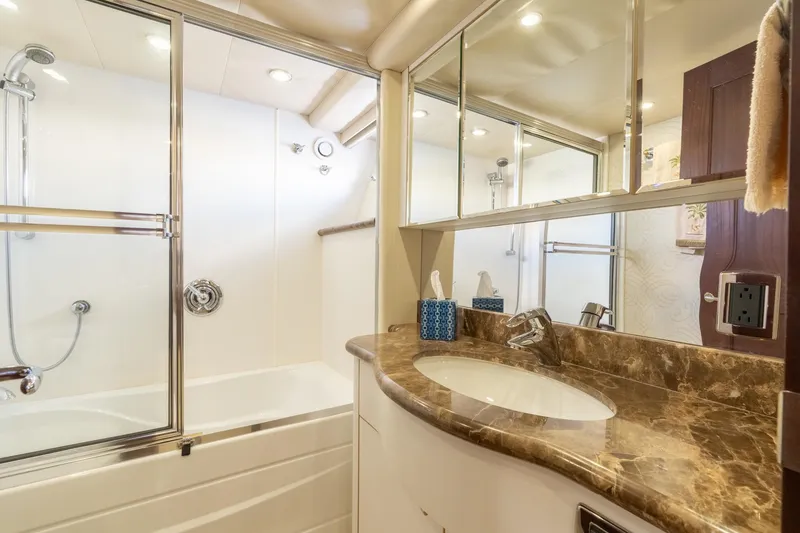

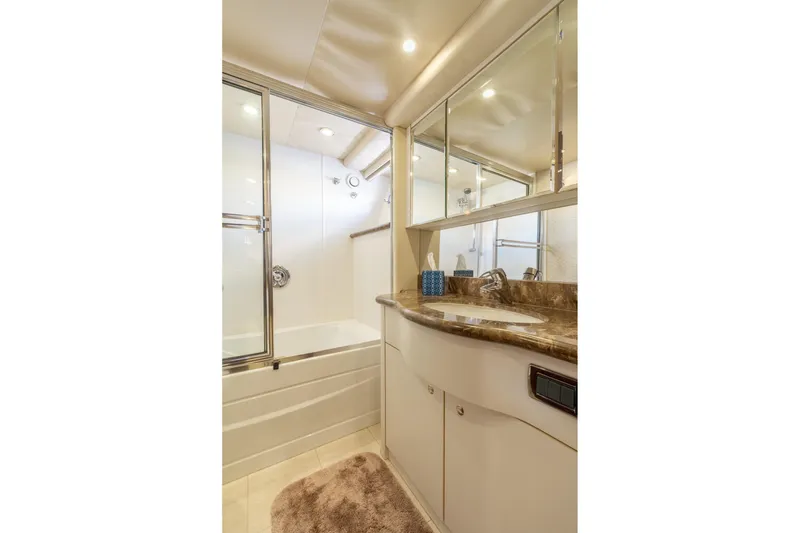

Master Head - Ensuite

• Marble countertop with sink
• Grohe single lever faucet
• Headhunter Jet type marine toilet freshwater
• Marble flooring
• Towel storage cabinet
• 5' Bathtub with shower
• Mirrored vanity with storage
• Stainless port light with screen

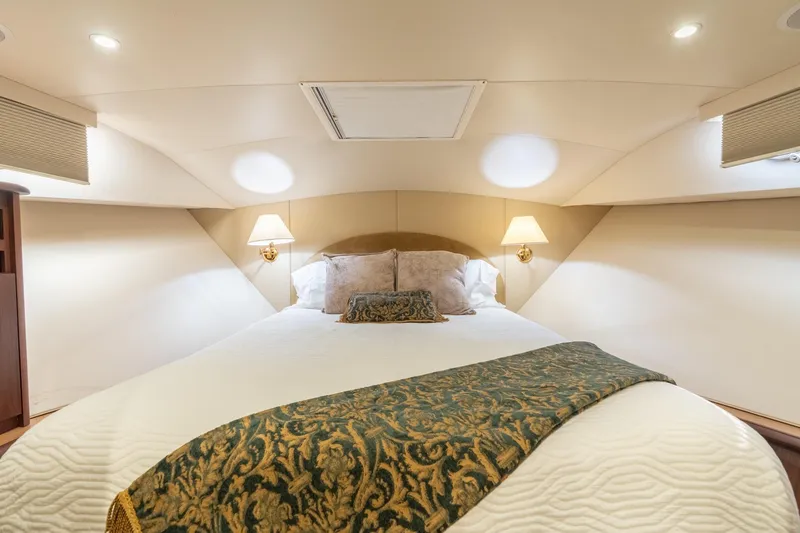

VIP Stateroom

• Headroom 6'5"
• Queen size bed with swing arm reading lights and drawers underneath
• Smart TV
• Cedar lined, hanging locker
• Ventilation hatch with screen and privacy cover
• Two stainless port lights with screens

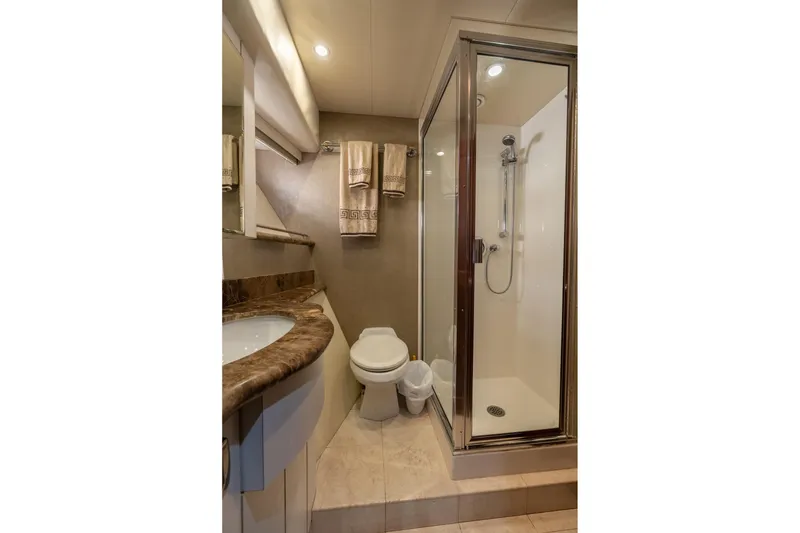

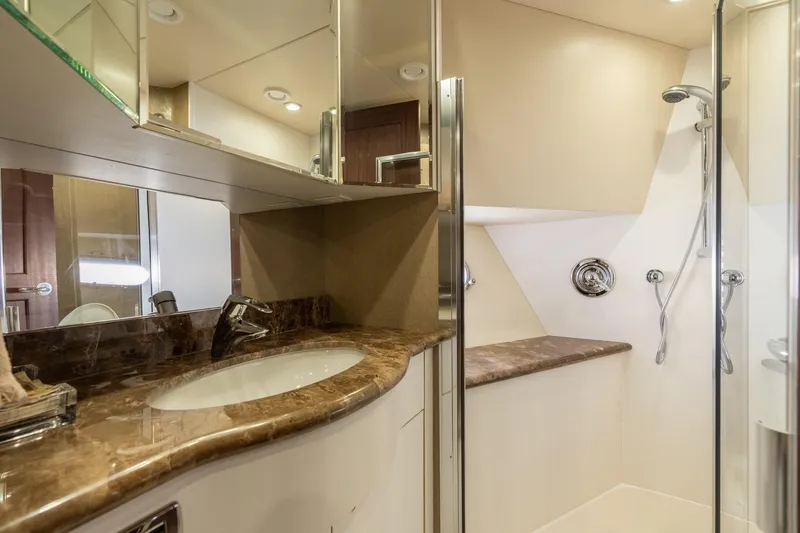

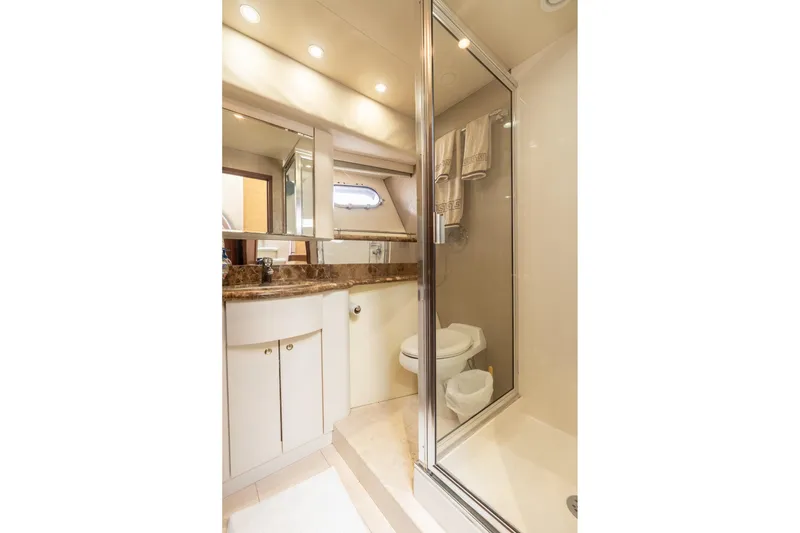

VIP Head - Ensuite

• Marble countertop with sink
• Grohe single lever faucet
• Headhunter Jet type marine toilet freshwater
• Sunken shower with safety glass door
• Pressure balanced shower valve
• Mirrored vanity with sink
• Power ventilation
• Air conditioning outlet
• Stainless port light with screen
• Marble flooring
• Stahl Shower

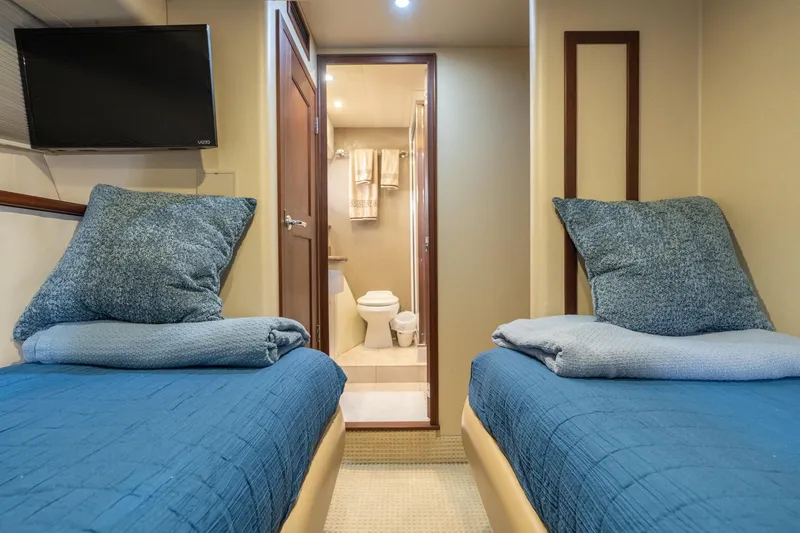

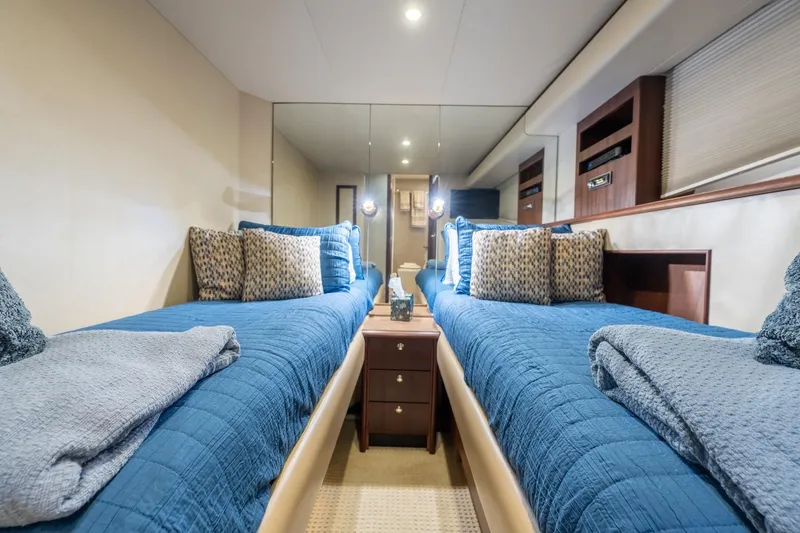

Guest Stateroom

• Headroom 6'5"
• Twin berths (Insert to make single berth)
• 32” LED HDTV
• Cedar lined, lighted hanging locker
• Built-in drawers under berths
• Reading lights
• Stainless port light with screen

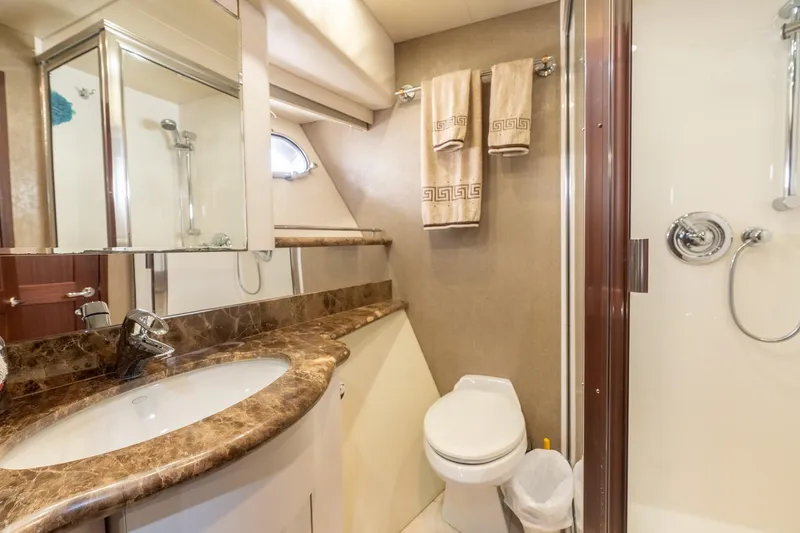

Guest Head – Doubles as the Day Head

• Ensuite
• Marble flooring
• Entry from foyer or guest stateroom
• Marble countertop with sink
• Headhunter Jet type marine toilet freshwater
• Mirrored vanity with storage
• Stainless port light with screen
• Stahl shower

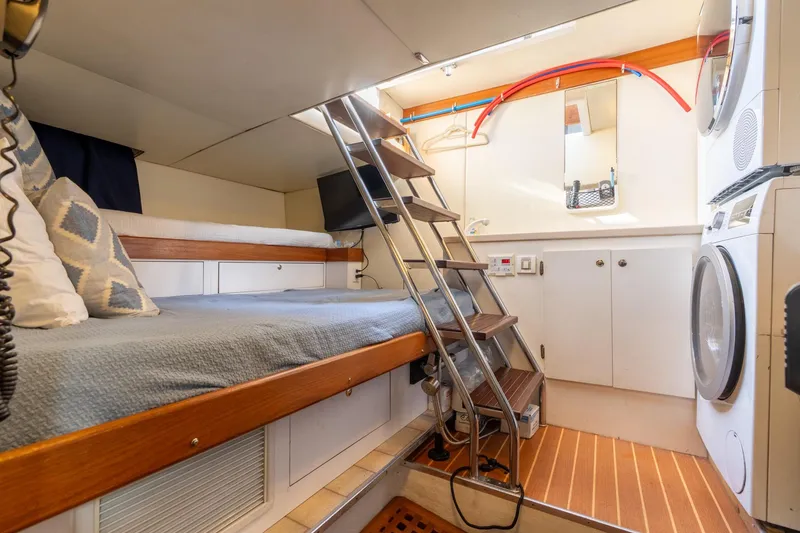

Crew Quarters

• Access from Aft Deck settee via 6 step stairway
• Engine Room access is from the Crew Quarters
• Overhead light, Portside parts cabinets and aft storage lockers
• Upper and lower berths to starboard – now used for additional storage
• Handheld fire extinguishers
• Digital A/C control
• Countertop with sink with hot & cold pullout sprayer faucet
• (1) 110v outlet with GFI
• Small refrigerator and stacked Bosch Washer & Dryer (Dryer new 2025)
• Commercial watertight door to engine room, with dog down latches

Crew Head - Ensuite

• Wired for electric head with macerator pump
• 20-gallon FRP holding tank
• Y Valve with overboard pump
• Holding tank with tank watch level indicator
• Dockside pump out fitting - located port Aft Deck

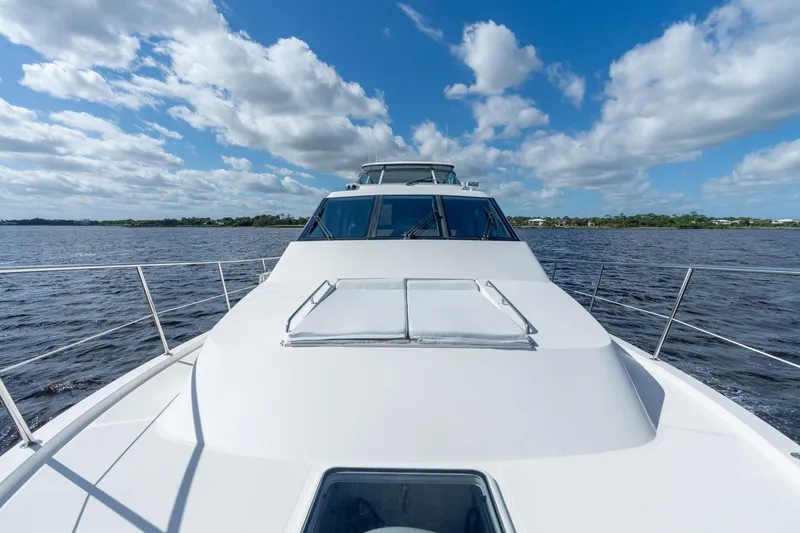

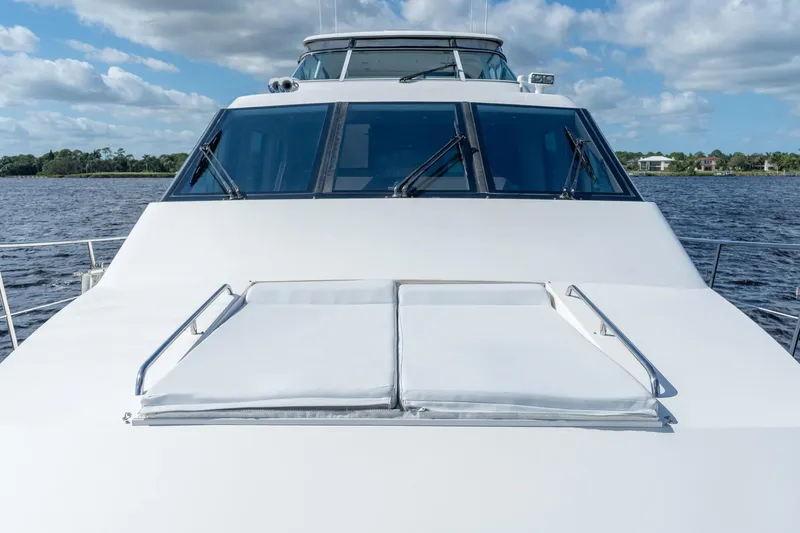

Foredeck

• Fiberglass non-skid decking
• Stainless steel Bow rail
• Stainless Steel Bow cleats - 12” with chafe guards
• Lewmar Windlass - 3000 lb. capstan with chain wildcat 24v
• 300’ x 3/8” high test chain
• Windlass foot up & down switches with covers
• Lewmar 110 lb. Claw Anchor
• Stainless steel anchor mount
• Fender / storage locker
• Fresh & sea water washdowns
• Sun pad - grab rails – new Sun pads - 2022

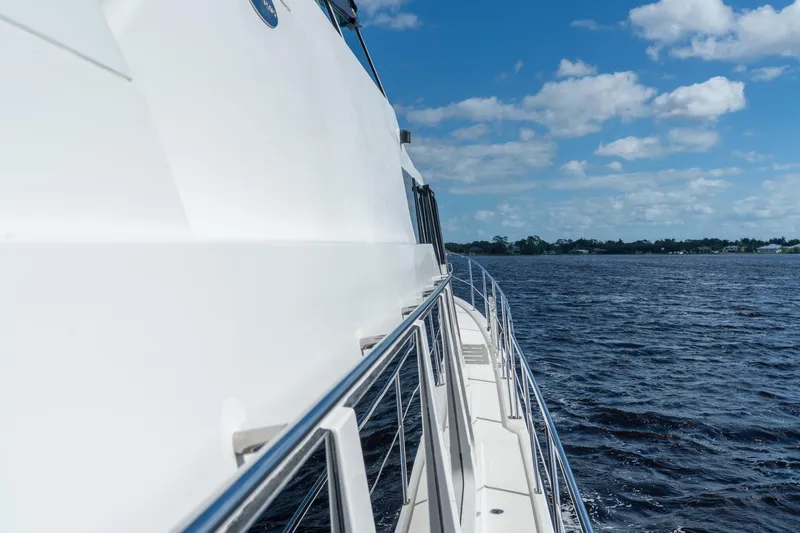

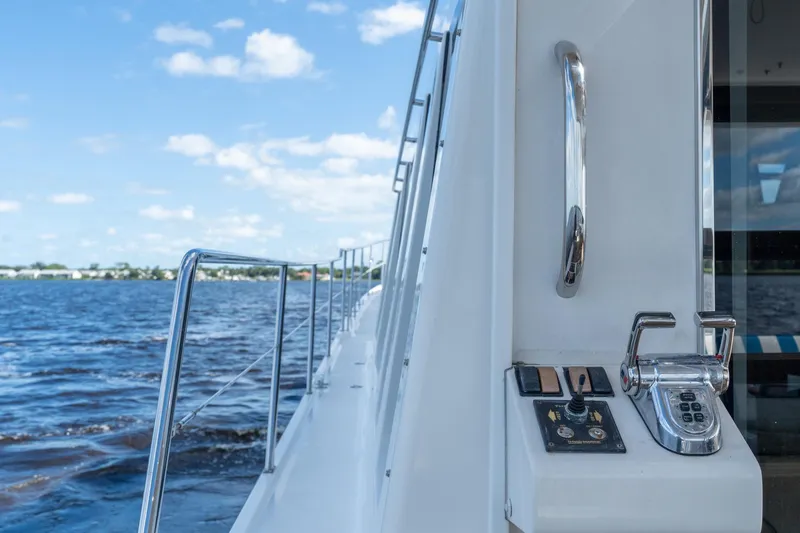

Side Decks

• Full walkaround 12” wide non-skid decking
• Stainless Steel Port and Starboard spring line cleats - 12” with chafe guards
• Stainless Steel handrails with Cabin side grab rails and Toe rail safety rail
• Port & Starboard ladder mounts at Pilothouse handrail gates

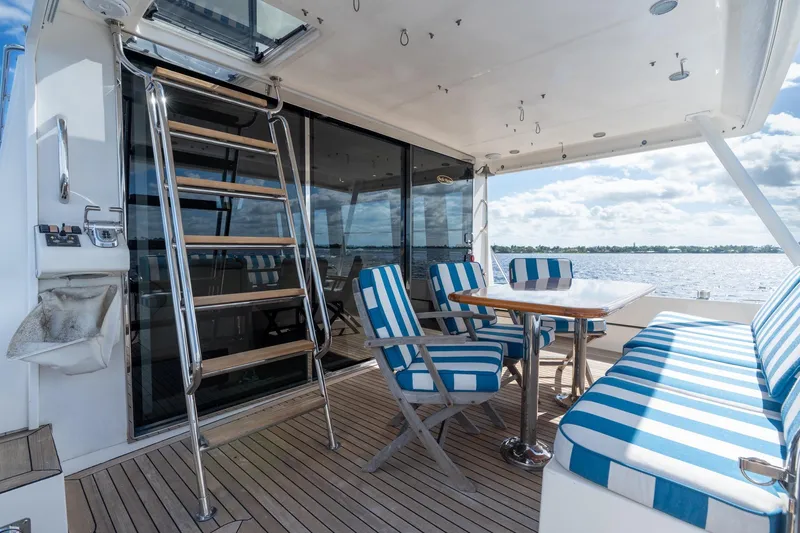

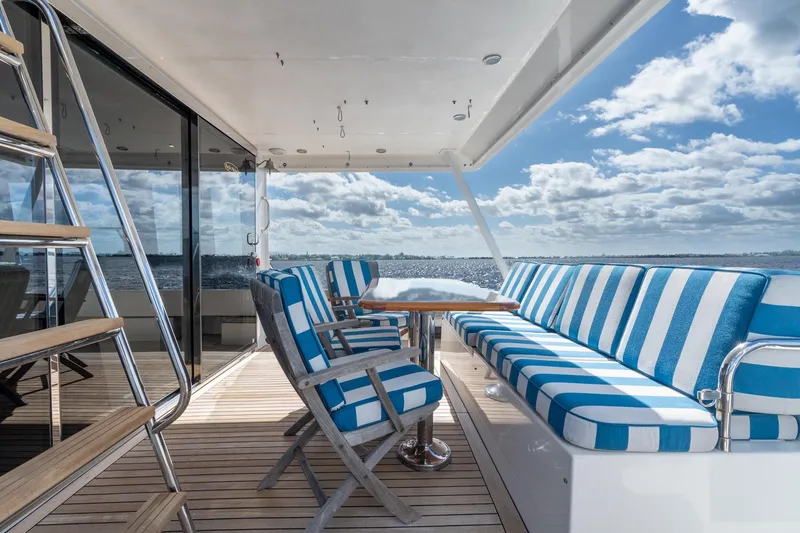

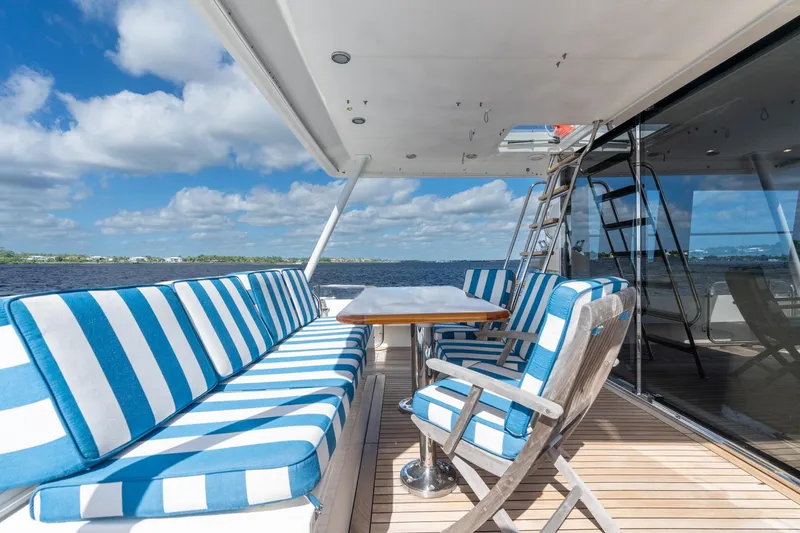

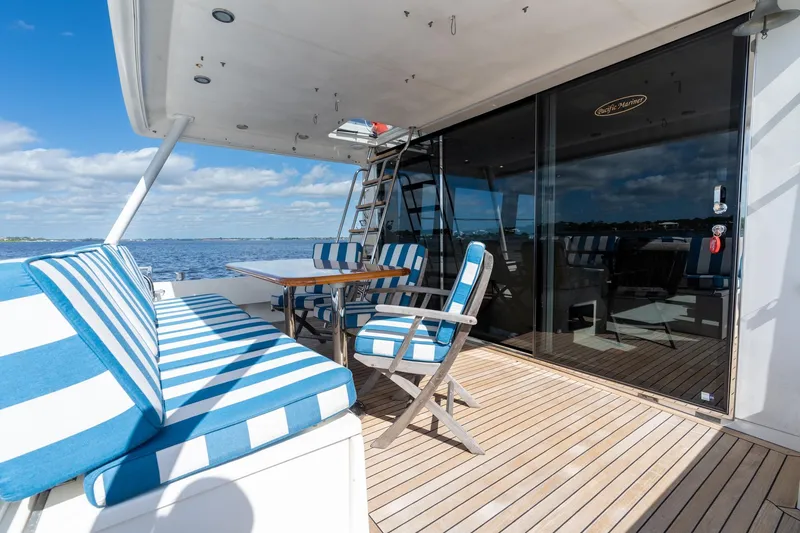

Aft Deck

• Headroom 6'8"
• Fiberglass deck with Teak overlay
• Fiberglass overhead with recessed lights
• Port and starboard steps to gunwale
• Teak table with pedestal & storage cover
• 2 Cablemaster retractable 50-Amp shore cords on aft deck
• Warping winches on Port and Starboard aft corners, with foot switches 24v
• Stainless Steel Port and Starboard Aft cleats - 12” with chafe guards
• Dockside water connector, Port aft deck with pressure regulator
• Freshwater washdown, Port aft deck
• 7-Step ladder to bridge with teak steps, port forward
• Helm station, Aft bulkhead to Port, with MTU clutch/throttle controls, Bow thruster control, Port and Starboard engine start and stop switches
• Recessed storage, Port side in-deck
• Bench seat aft, lifts for access to Lazarette and Crew's Quarters
• Marinco 30-Amp shore power connector, starboard outboard

Swim Platform

• 5' boarding platform with storage
• Large storage locker with 2 access hatches (Spare Props)
• Stainless steel swim ladder
• Stainless Steel pop-up cleats
• Hot and cold shower with pullout sprayer
• (3) Euro style hoop rails, which are removable

Air Conditioning

• 2 New Dometic A/C Chillers, Reverse cycle system
• Stern underwater discharge for quiet Aft Deck
• Digital thermostats - Pilothouse, Galley, Salon, Master Stateroom, VIP Stateroom, Twin Guest Stateroom, Crew Quarters
• 240V raw water pump with sea strainer

Freshwater System

• Water tank 285-gallon 316 L stainless steel / Loc. under master berth
• Headhunter 110-volt Freshwater pump with 24 volt back up pump (New 2025)
• Accumulator tank 10 gallon
• Shut off valves at each fixture
• Hot and cold outlet Engine Room
• Dockside water inlet with pressure reducing valve
• Freshwater wash downs Fore and Aft Decks
• Freshwater shower - hot and cold, located on Aft Deck at swim platform
• Hot water heater-30 gallons
• Cannister freshwater prefilters

Water Maker

• Sea Recovery – AquaWhisper (new control board 2025)

Head System

• Headhunter freshwater jet style Heads (3)
• 125-gallon FRP holding tank, Y Valve, 24 volt overboard discharge pump
• Deck pump-out fitting located port side deck

Electrical

• 20 kW Northern Lights generator with sound shield 7767 Hours
• Racor 500 fuel filter with glass bowl
• Power takeoff for 25 HP bow thruster
• Battery with battery box and battery shut off switch
• Reverso oil change system
• All wiring ABYC standards
• 16 kW Northern Lights generator with sound shield 7072 Hours
• Racor 500 fuel filter with glass bowl
• Battery with battery box and battery shut off switch
• Auto oil change system

 Shore Power

• Charles Isolation transformers port and stbd. 50-amp cords
• Port cord has 10% boost on transformer (voltage stabilizer)
• Battery shutoff switches start/ house batteries
• Battery parallel switch / stbd. side Engine Room
• Battery charger / house and start / 40 amp
• Battery charger / generator batteries / 20 amp
• (1) 110v outlet with GFI
• 2 Cablemaster retractable 50-Amp shore cords P&S aft deck - 75’ Port and 65’ Starboard

Stabilizers

• NAIAD Digital MultiSea II with 4.5 sq. ft. fins
• Control heads at Lower Helm and Flybridge
• Model #254 system

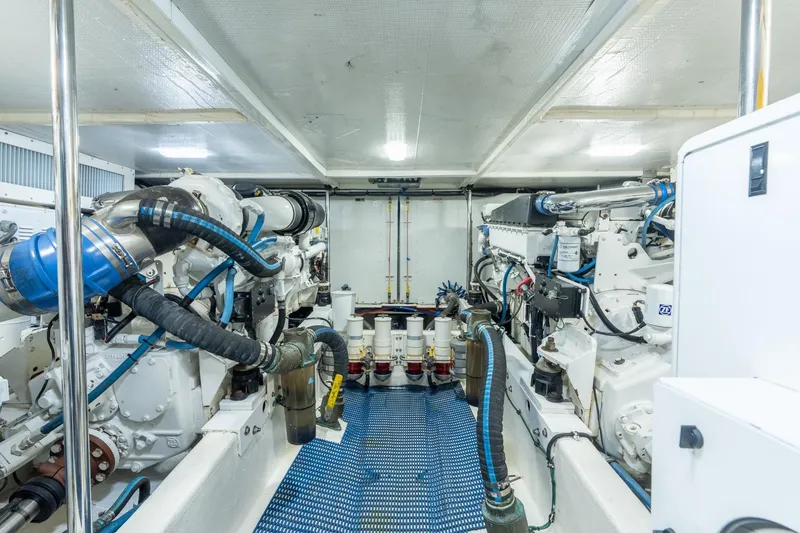

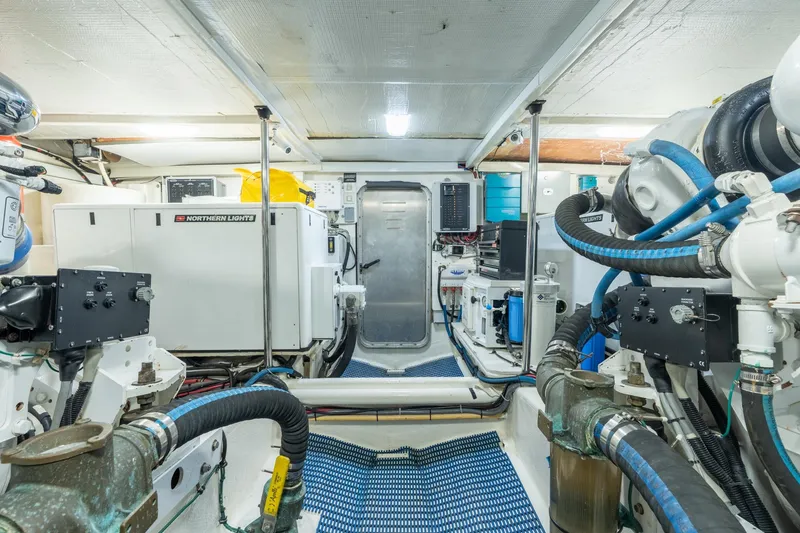

Engine Room

• Headroom 5’7”
• Access from Crew Quarters / watertight door
• Overhead lights 24v (5)
• Fuel tanks (2) aluminum painted with sight gauges total 1100 gallons
• Racor fuel filters - dual 1000 / 30-micron filters with vacuum gauge
• Fuel tanks can be filled from port or stbd. side decks & Fuel tank auto-level
• Fire system / Fireboy FE241
• Delta T air intake system – P & S 24v intake blowers  with new Fans - 2023
• Reverso Oil change system / 24v / mains and gensets
• Hot water heater and Hot & Cold water faucet
• Craftsman 4- drawer toolbox
• Naiad Stabilizer / Reservoir, Model #254 system
• 24v distribution breaker panel
• Batteries - (4) 8D’s wet cell with battery boxes
• Batteries - (2) GRP 27 generator start batteries with boxes
• Port and Starboard shore power cords breaker panel

Engines

• DDC/MTU Series 60 825 HP engines with 2,600 hours
• Gears ZF / Model 350 A with spin on filters
• Shafts 2.5” stainless high strength
• Dripless shaft seals with spares
• Crossover plumbing on shaft seals
• Stainless steel exhaust elbows
• Props - 5 blade 31" x 37"- “S” Class
• Engine stringers foam cored - No Balsa or Wood

Docking Stations - Total of 4

• Pilothouse, Flybridge, Starboard Main Deck at Pilothouse and Aft Deck Portside
• Electronic clutch / throttles, main engine start and stop, Bow thruster joystick

Boarding Ladder

• MarQuipt 4 Step vertical - stows in Foredeck locker

Notes on Service and Maintenance Items

• All headliners, wall coverings, valances – New 2025
• All pumps, engines, generators on rubber isolation mounts
• Solid fiberglass bottom - all deck, cabin sides, hull sides are Airex Cored (No Balsa Core)
• (4) Piece mold, Hull, Cabin, Aft Deck, Swim platform - eliminates stress cracks & leaks
• Bottom paint & wax hull and superstructure & sand teak deck
• Replace rudder bearings and seals, rebuild steering ram & stabilizer system serviced
• Port & Starboard engine start and 2 house batteries  (6) 2022
• Complete set of available Operator / Equipment Manuals & Notebooks
• Complete set of owners manuals

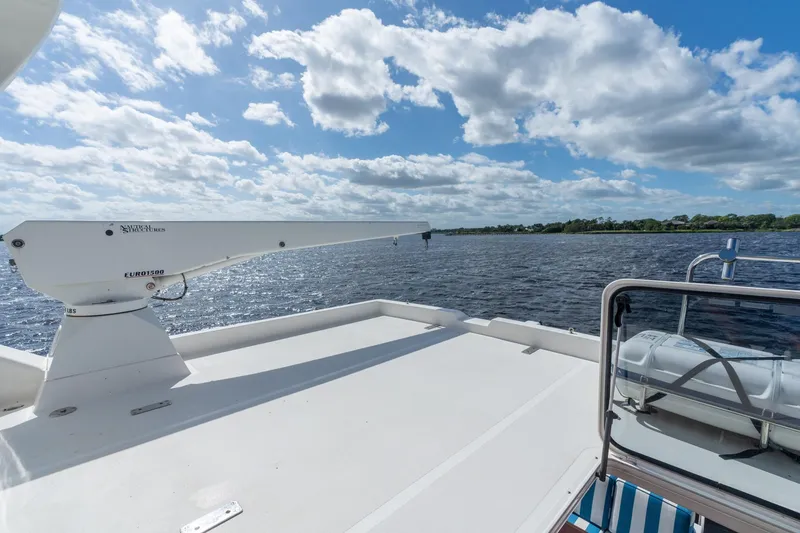

Davit (Davit rebuilt 2024)

• Nautical Structures 1500 lb. - hydraulic boom & rotation – Completely rebuilt 2021

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
