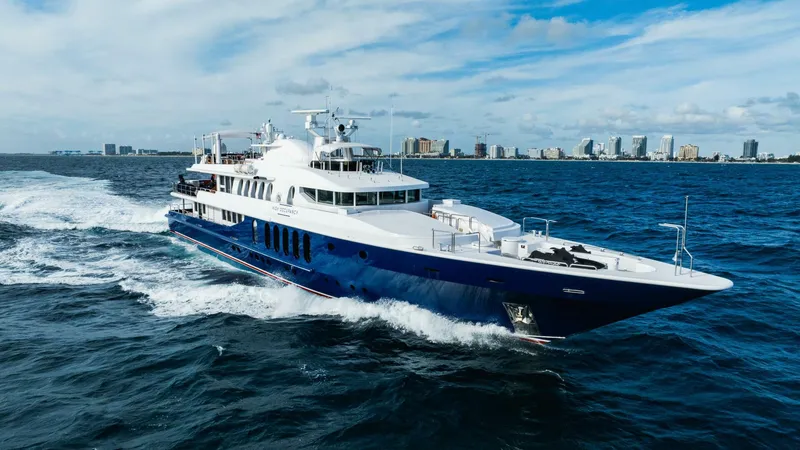

1989 Oceanfast 164 CustomSold
$5,398,000
Boat in Miami, FL 33154 US
Built in 1989
164 Custom
--
164 feet
--
Aluminum

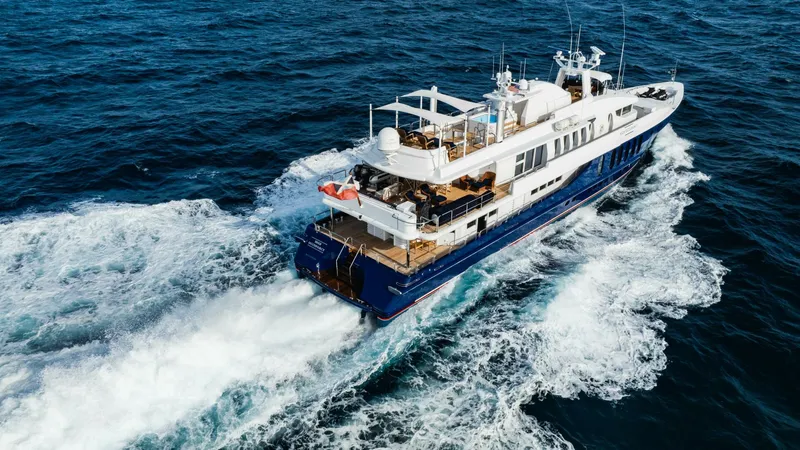

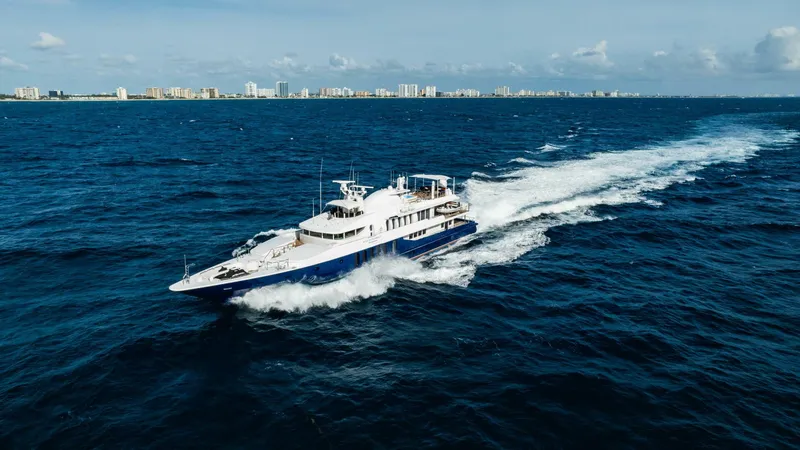

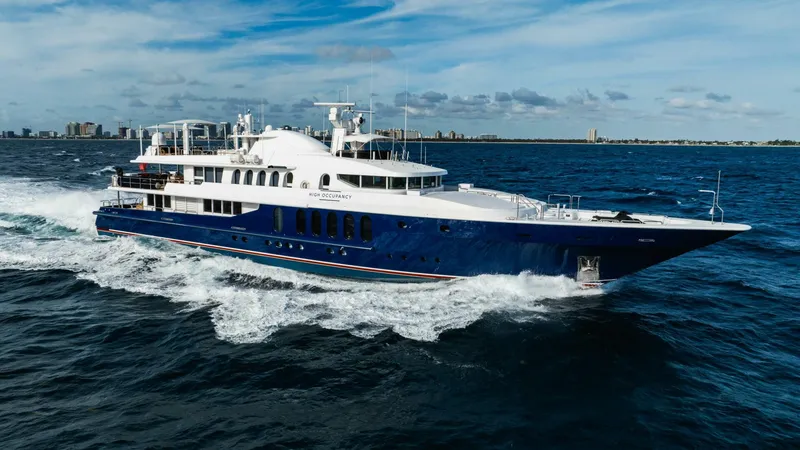

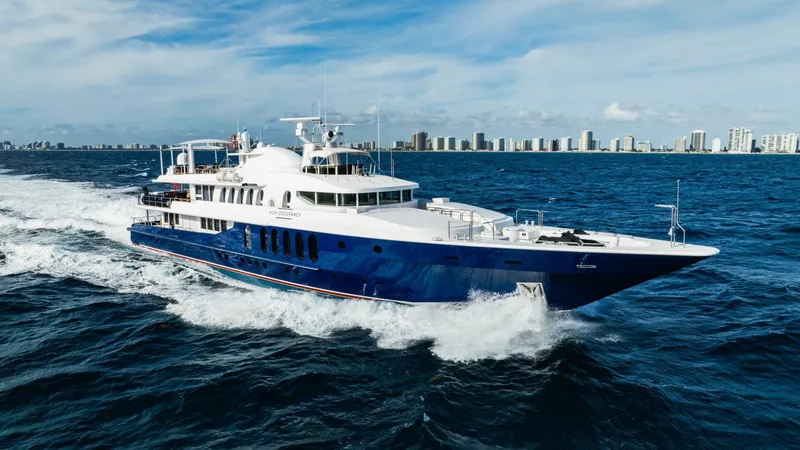

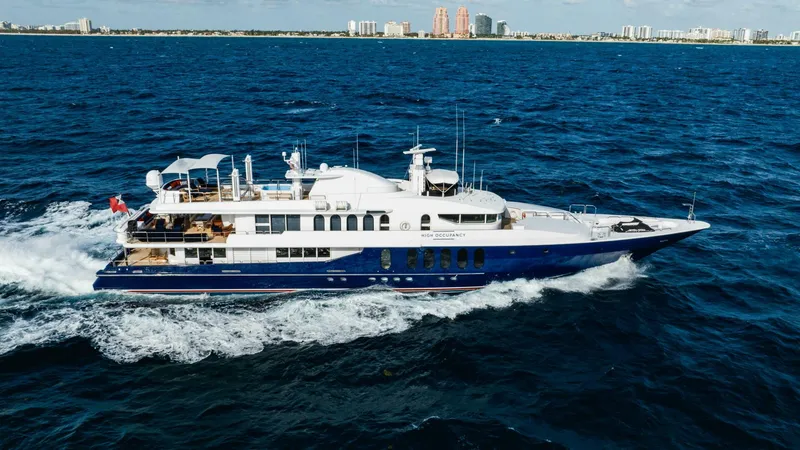

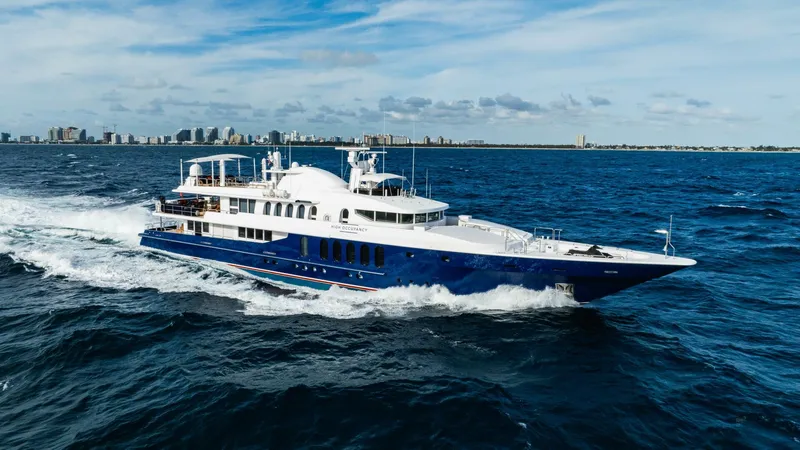

The 1989 OCEANFAST 164 "HIGH OCCUPANCY" is designed to offer luxurious accommodations and amenities for a large number of guests, ensuring a comfortable and enjoyable experience on the water. Having a shallow draft allows for cruising in areas such as the Bahamas that most yachts of this size are unable to navigate. Its multiple decks, spacious staterooms, and well-equipped areas for dining, entertainment, and relaxation make it an ideal vessel for both private use and charter operations.
CURRENT MORTGAGE IS ASSUMABLE (PENDING APPROVAL PROCESS) IF CONSIDERING TO FINANCE WILL SHARE DETAILS
Notable Features:
- Timeless Jon Bannenberg / Phil Curan Design
- 24 Knot Cruise, 30 Knot Top Speed Performance
- Shallow draft (5'3" min / 5'10" max) with water jet propulsion
- 496 GT, Certification from IYB
- Aluminum Hull & Superstructure
- Large Interior Volume, Open interior plan with floor to ceiling windows
- New Hull paint 2020, with Ceramic coating 2023
- Rebuilt KaMeWa Jets 2023
- Master on the bridge deck with his & hers bathrooms and private entrance to outside
- 6 Cabins with 6th cabin currently setup as a Media Room featuring ensuite head.
- 2023/2024 Updated Bridge Electronics, Audio Visual Equipment, and Starlink Satellite.
- 2020 All New interior furnishing and carpets.

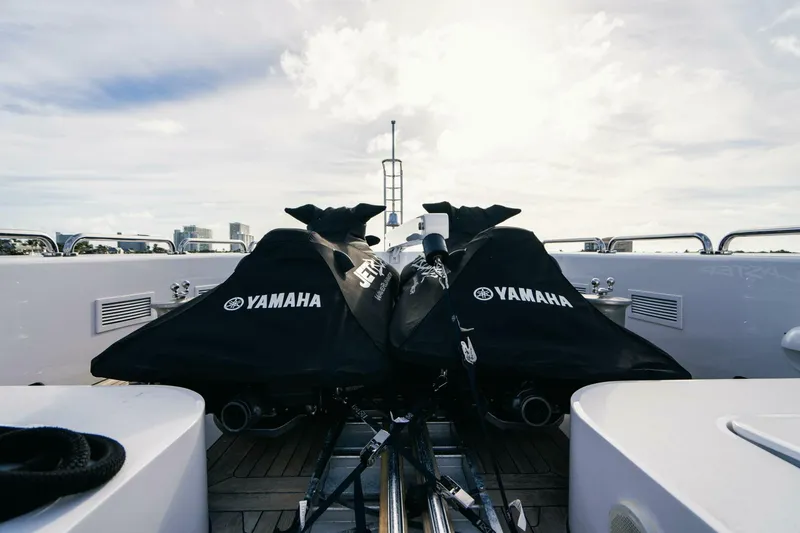

- 19' Nouvarania Tender, 2 New Yamaha Jet Skis
- New Teak deck on Sundeck
RECNT WORKS DONE
2023 Refit Details
- Rebuild water jet Rams, hydraulic pumps, and backup pumps
- Replaced SLIOS in KaMeWa control system.
- Replace both Bow Thruster electric motors, hoses, pumps, and modules
- Replace all cables, rebuilt rams, and replace cables with Spectra on both Cranes, fitted wireless remotes
- Repainted Jacuzzi.
- Fitted Starlink satellite internet systems, and new Camera System

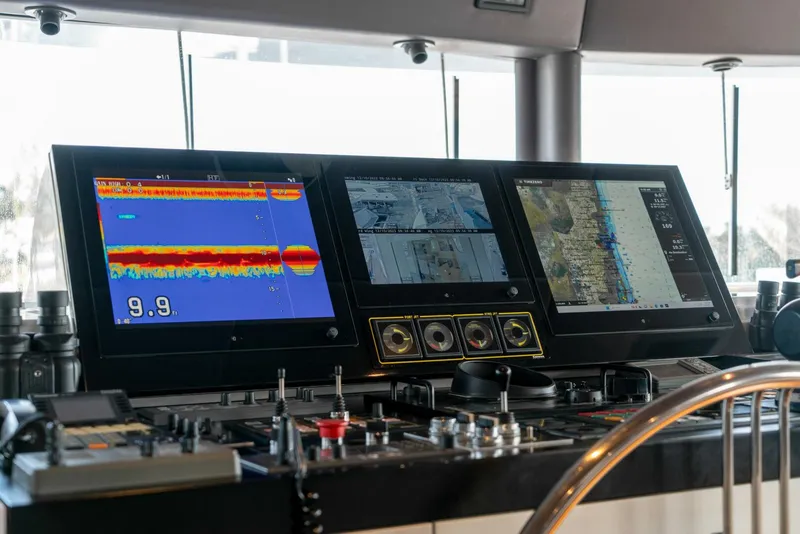

- Replaced bridge monitors and added a third screen to monitor camaras.
- Fitted new satellite compass.
- Fitted tender tow lights.
- Replaced engineering monitoring screen on dash.
- Painted white foredeck forward of bridge.
- Painted wing station covers and made them removeable.
- Ceramic coated the blue hull.
- Rebuilt refrigeration system.
- Reinsulated 70% of chilled water aircon lines.
- Fitted 2 new screens to Captain's cabin for monitoring bridge Nav and cameras.
- Replaced Nobel Tech Nav Computer.
- Fitted 4 new UPS'S in bridge.
- Replaced one Air Con compressor and condenser.
- Fitted Harmonics filters to both Aircon compressors and 6 engine room fans.
- Rebuilt hydraulic power packs for both aft deck windlasses and cranes.
- Redesigned aft deck and crane hydraulics to function correctly.
- Replaced wing station upper instrument panels with correct hole patterns.
- Serviced Dive compressor.
- Service Atlas shore power unit.
2020 Refit Details
- Main Engines Port: Completely rebuilt; Stbd: W5, new liners, rings, cylinder heads reconditioned, fuel injector pumps tested and serviced, all new injector's, all three turbos tested and calibrated, new pre-heater pump (2020). Major service will be due again soon.
- Generators both are completely rebuilt as of September 2020
- Emergency Fire System had annual service, replaced quick release cables, replace solenoids to engine room fire flaps
- Forward watermaker (New 2017)
- Aft watermaker (New 2017)
- New Low-pressure pump 2020
- All sea water valves onboard have been replaced (2020) Both bow thrusters have had their annual service
- Both oil cooler pumps replaced
- All hydraulic systems including pumps were serviced by Signature marine
- Both motors serviced and mega tested by Furnas Marine (2020)
- Aft motor rear bearing replaced
- Black water system had annual service and valves replaced
- New bilge system installed (2020)
- Bow Fire Pump had annual service, replace bearing in motor (2020)
- Replace all mounts on pump and motor
- Both cranes had an annual service to all hydraulics system valve blocks etc., Signature Marine (2020)
- New Vectron cable was replaced on both cranes, Florida Rigging (2020)
- Both cranes painted (September 2020)
- KaMeWa System hydraulic cylinders serviced (2020)
- A/V upgrade - distributed audio system throughout the guest common areas of the vessel with Pandora, Spotify, and Apple Music compatible system iPad-controlled audio video system in common areas and master stateroom
- Satellite TV, Blu-ray, and Apple TV Video sources (only Blu-ray in lower guest cabins) WiFi network throughout the vessel
- Multiple Internet sources (VSAT, Cell Data, & Marina Wifi)
- Air/conditioning system had annual service, replace zincs in chiller
- Replace all air handlers fan system
- Exhaust fan replacement in several areas
- All Grey water sump tanks replaced and serviced
- Exhaust fan replaced in laundry area
- Installed new instant hot water system in day head on sundeck
- The complete superstructure was professionally polished (2020)
- New shell plate completed under swim platform
- New teak decks on sundeck (Sept 2020)
- Rebuild of (2) Richfield bow thrusters
- Installation of (12) new hoses, KaMeWa waterjet reversing & steering buckets
- Installation of rebuilt rotation ram passerelle
- S-Band radar servicing including installation of a new mic
- Starboard aft davit servicing
- Hull shell plate work chain locker and midships cofferdam
- Hull shell chain locker & cofferdam ceramic polymer-metal coatings application
- Hull topsides paintwork bow & various areas by LUU marine
- Foredeck non-skid painting
- Refinishing jacuzzi tub / Ceramic coat
- Renewal of caulking beads as required / superstructure
- Foredeck davit rebuild by UMT
- Renewal of cushions & covers
- Refinish bridge deck aft round tables
- Polishing of superstructure paint in areas as required
- Installation of (2) new pilothouse curved windows
- Installation of new carpet Fabrica mater cabin & hallway
Yacht Features
This luxurious yacht features a meticulously crafted interior and a variety of spacious and well-appointed decks. Imagine a yacht of this size that provides all of the amenities you could want while being able to cruise at high speeds through even the shallowest areas. Here’s a detailed breakdown of the key areas and amenities:
Interior
Headliners and Finishings:
- Leather, mirror, and painted panels
- LED overhead lighting
- Lacquer finish walls
- Duet blinds and Roman shades for window treatments

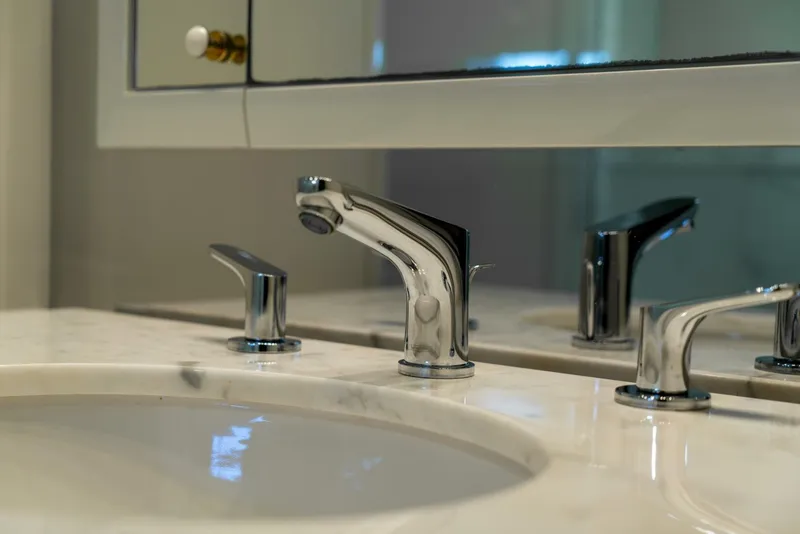

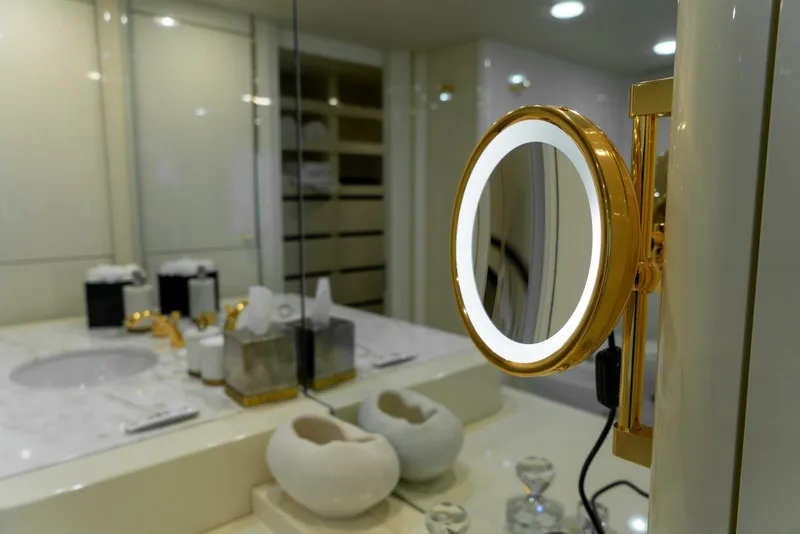

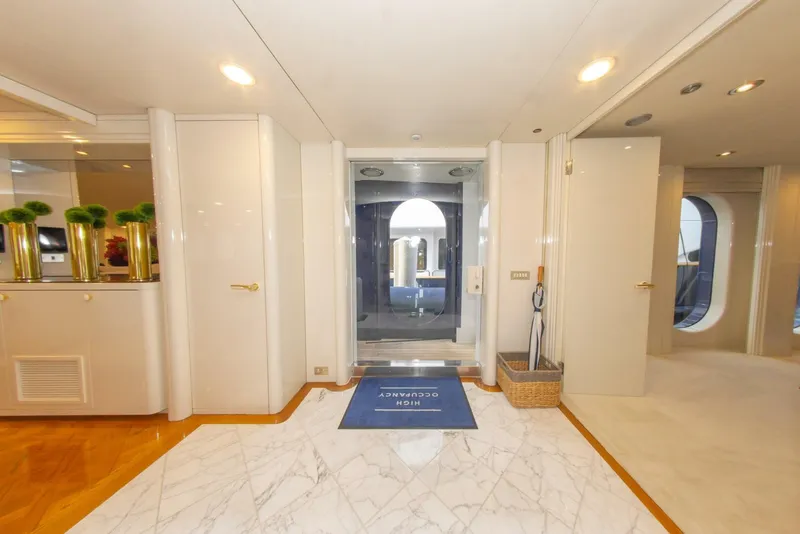

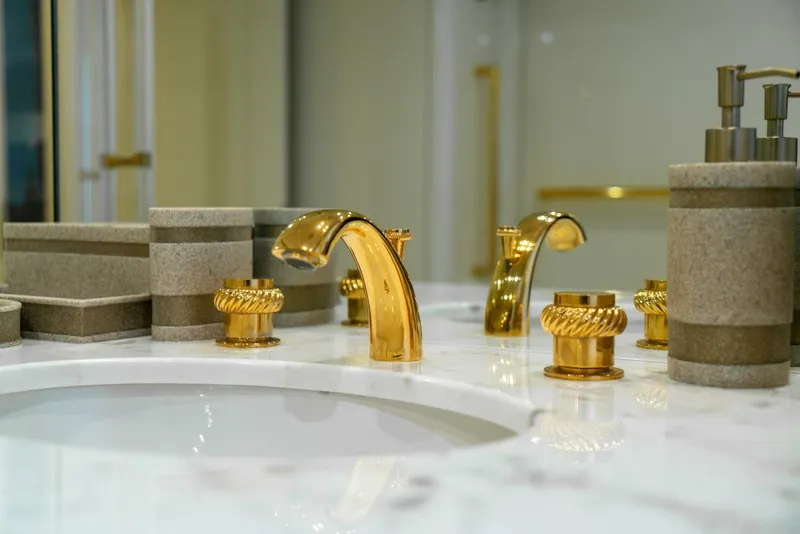

- White marble in main foyer and bathrooms
- Custom white carpet in the main salon
- Custom wool carpeting in staterooms
- High gloss teak and holly aft salon sole
- High gloss beech wood soles in galley and crew mess

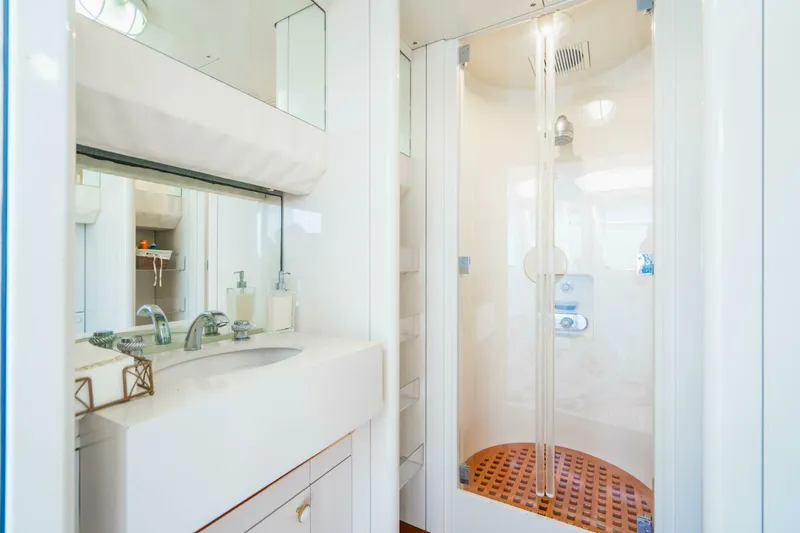

- All staterooms have ensuite bathrooms
Main Deck

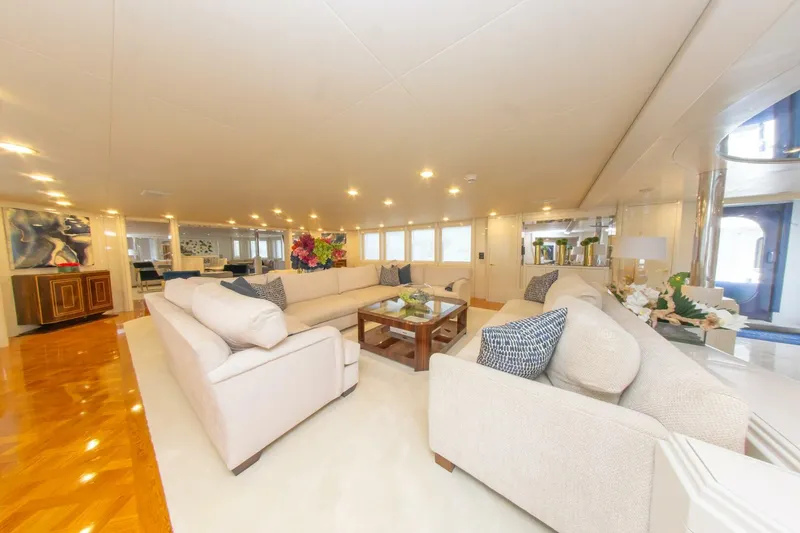

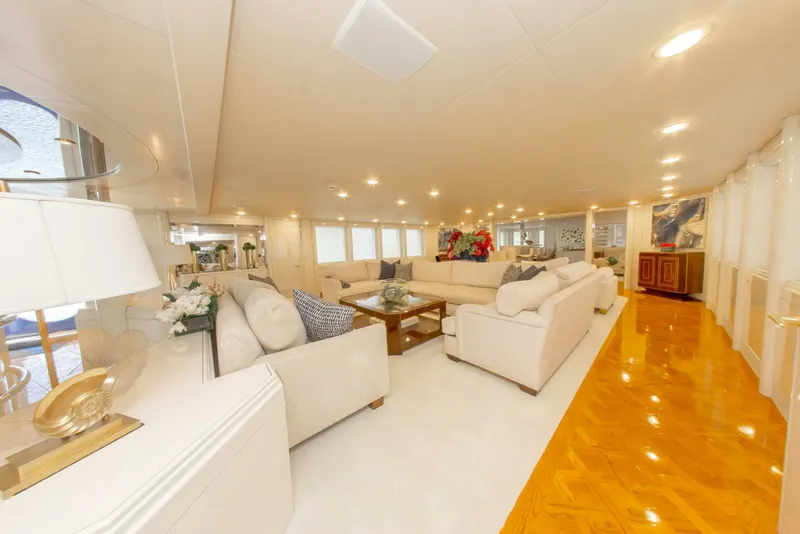

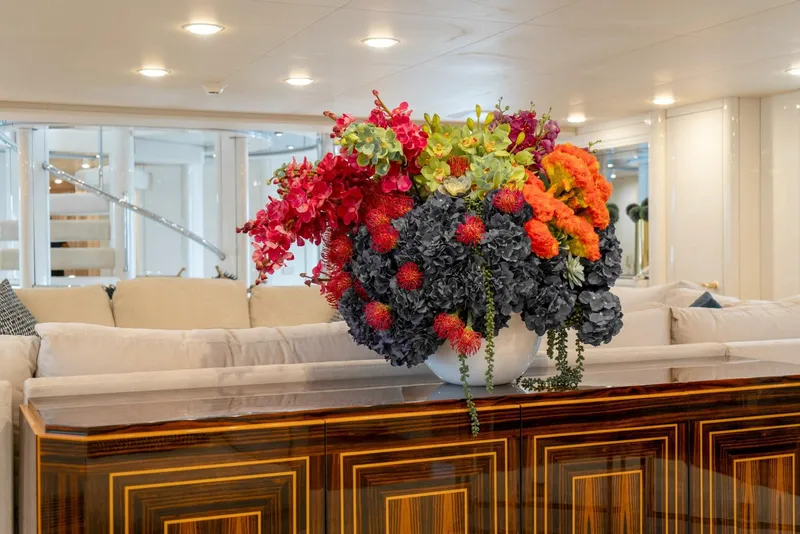

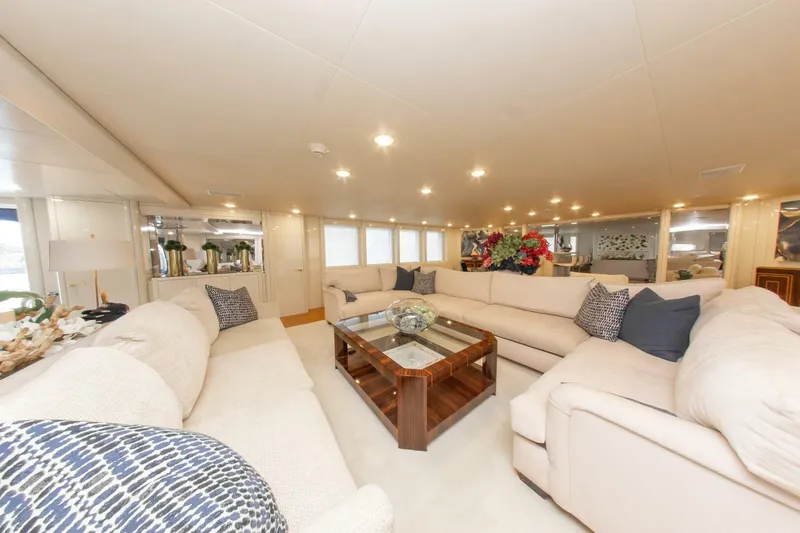

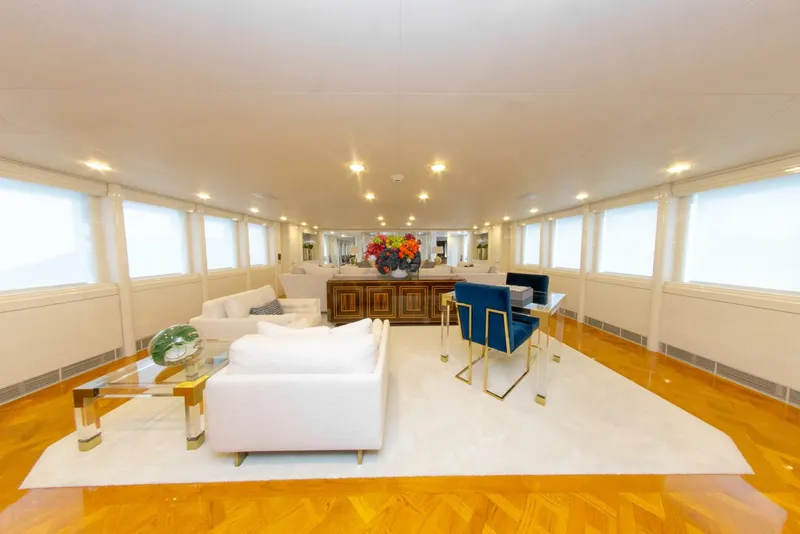

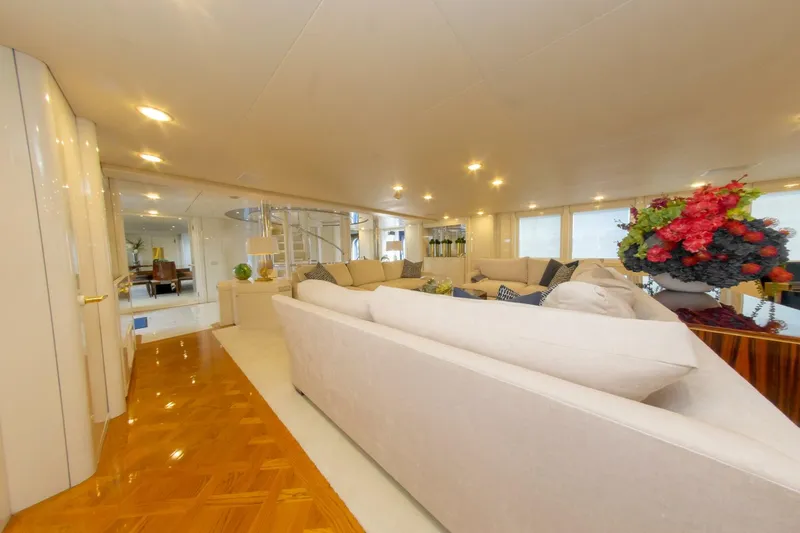

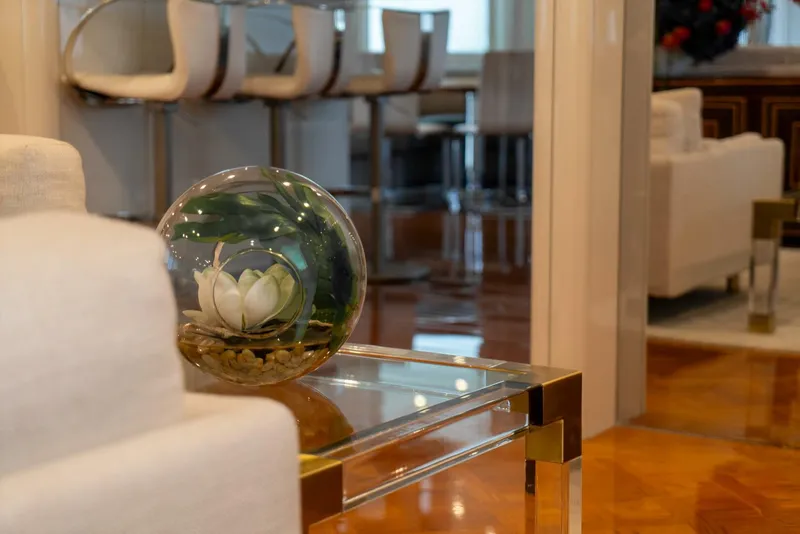

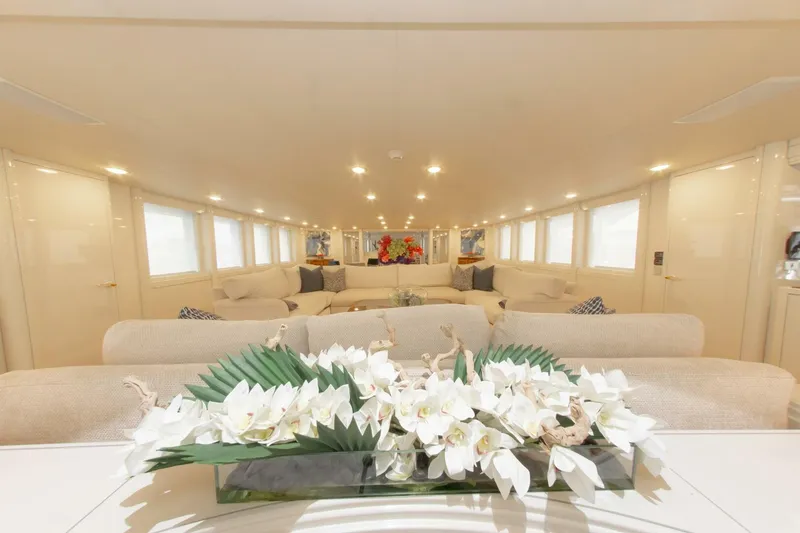

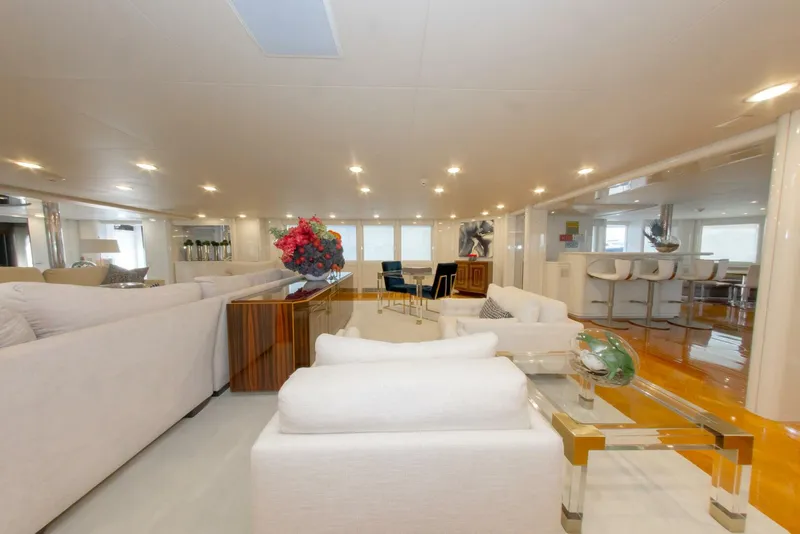

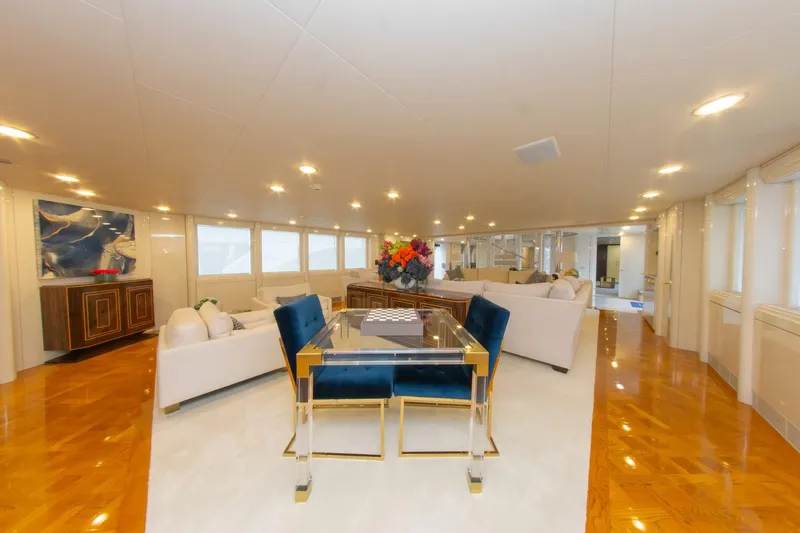

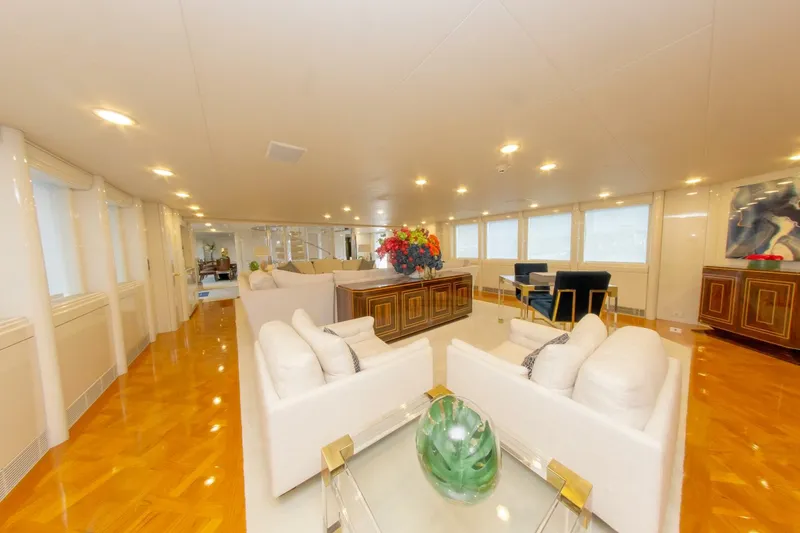

Main Salon:
- Entry through sliding glass doors from port or starboard
- Comfortable seating with white carpeting

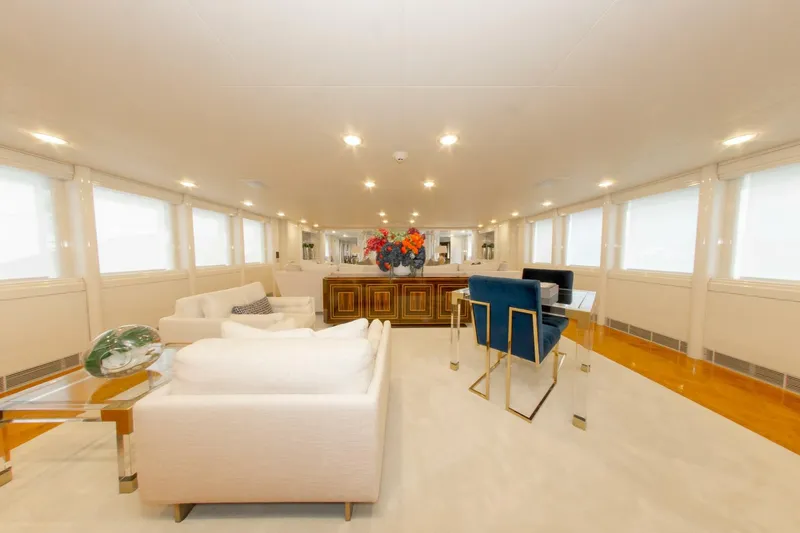

- Game table

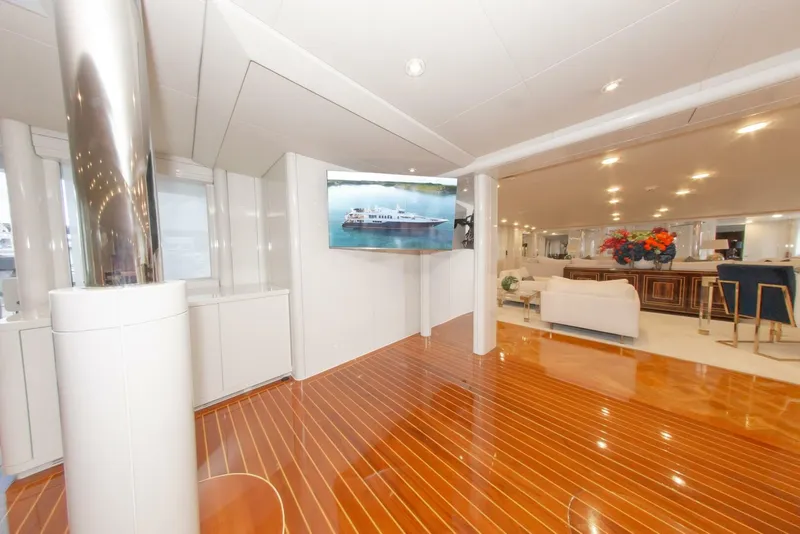

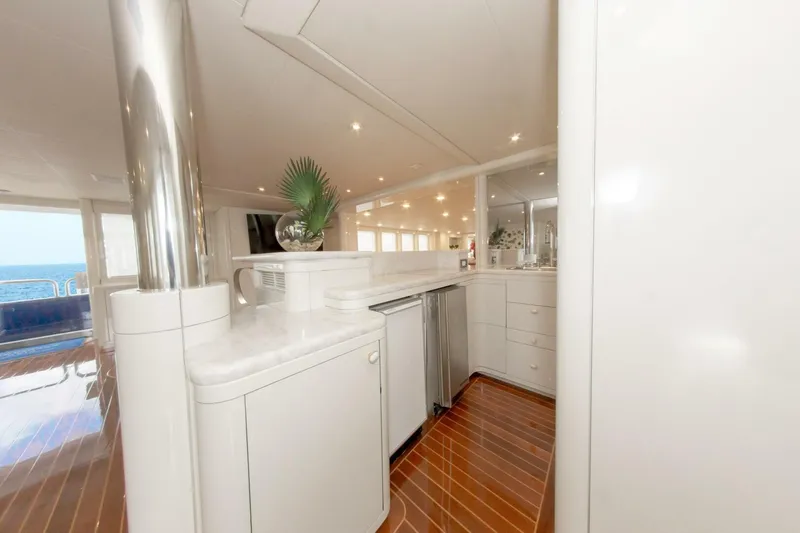

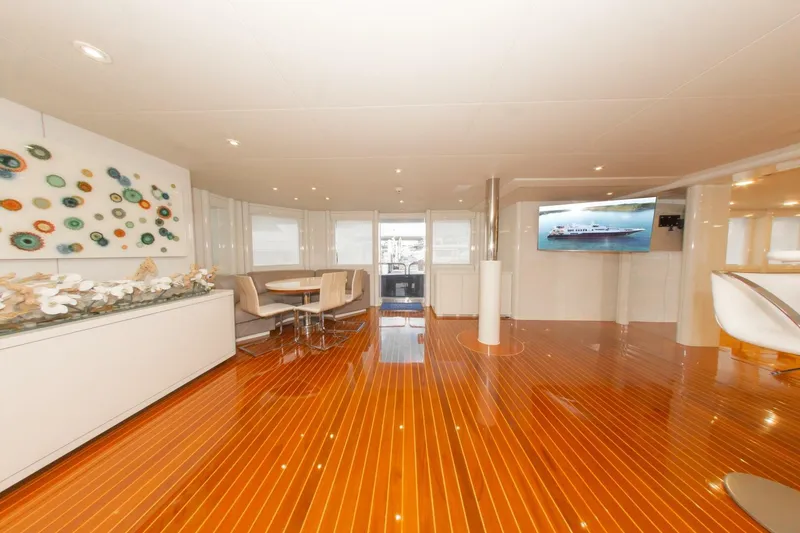

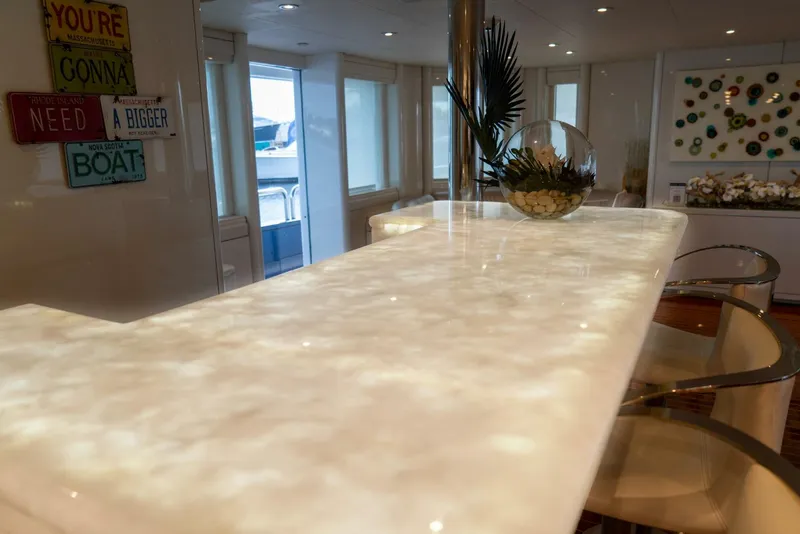

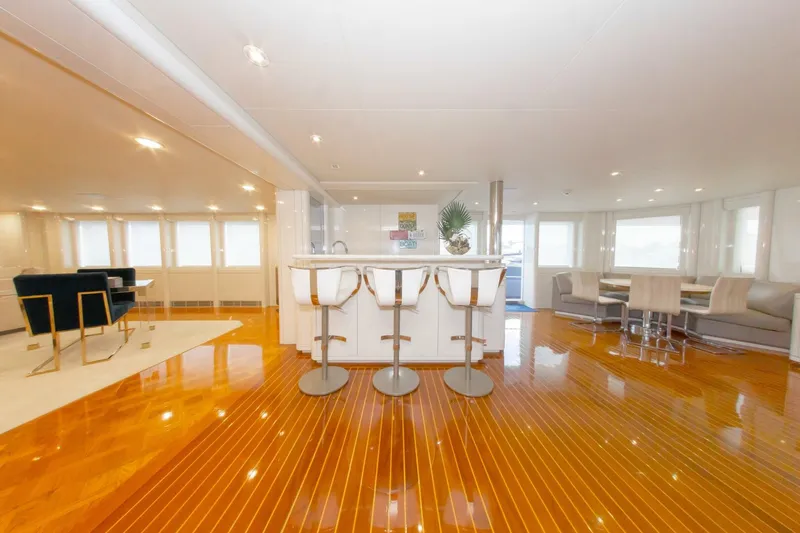

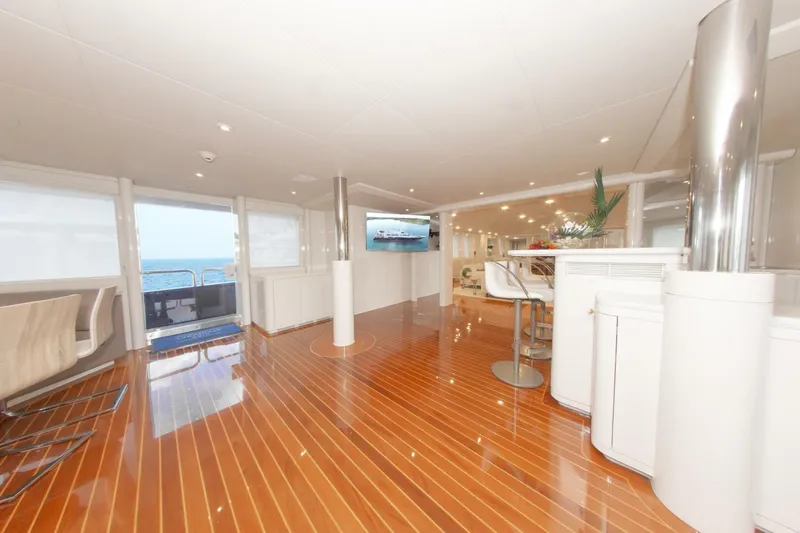

- Open entertaining area aft with a full-service bar (white light-up onyx, 3 barstools)

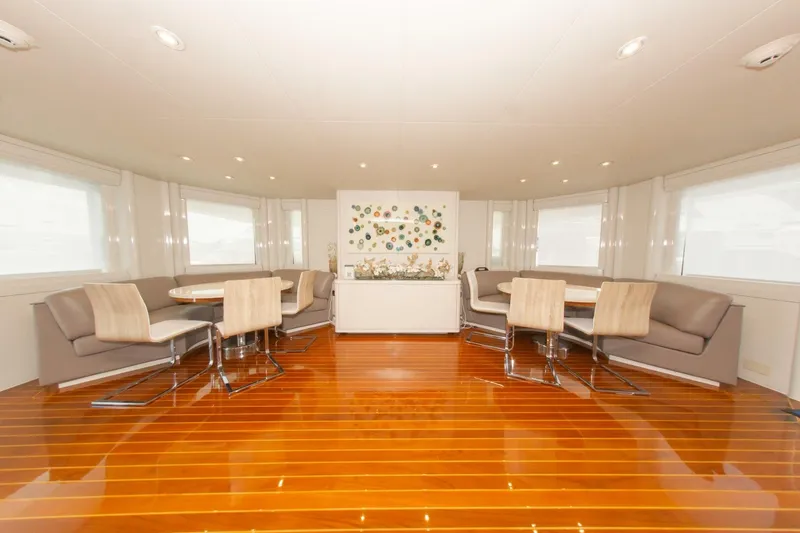

- Two circular seating areas for casual dining for 12 guests
- Varnished teak and holly floors
- Large TV on the port side

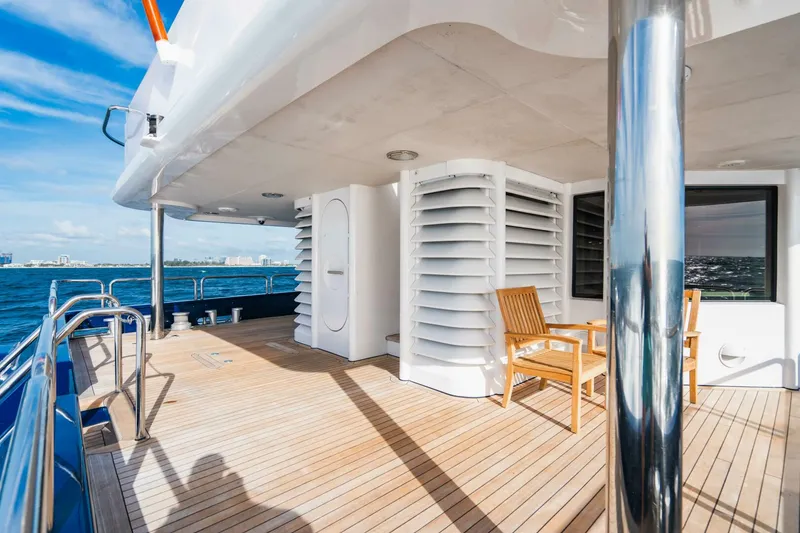

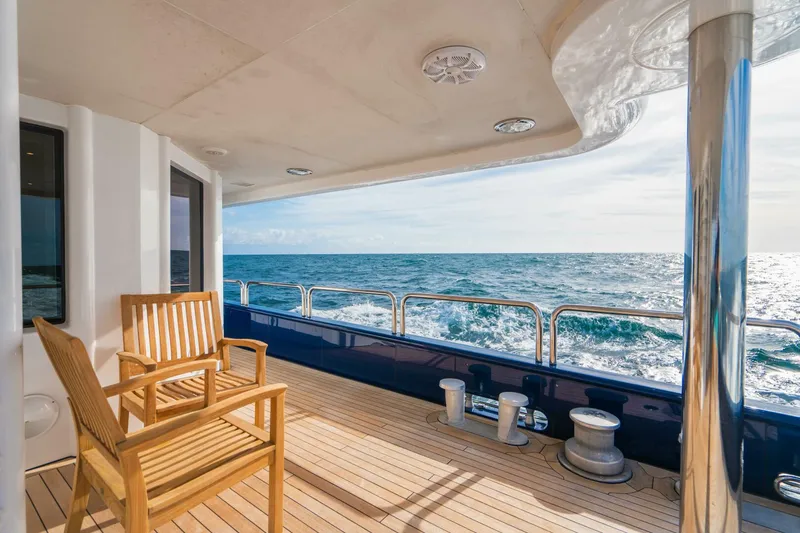

Outdoor Access:
- Exit doors to outside seating port aft
- Access to engine room through watertight door
- Access to lower bathing platform with teak flooring
Additional Areas:

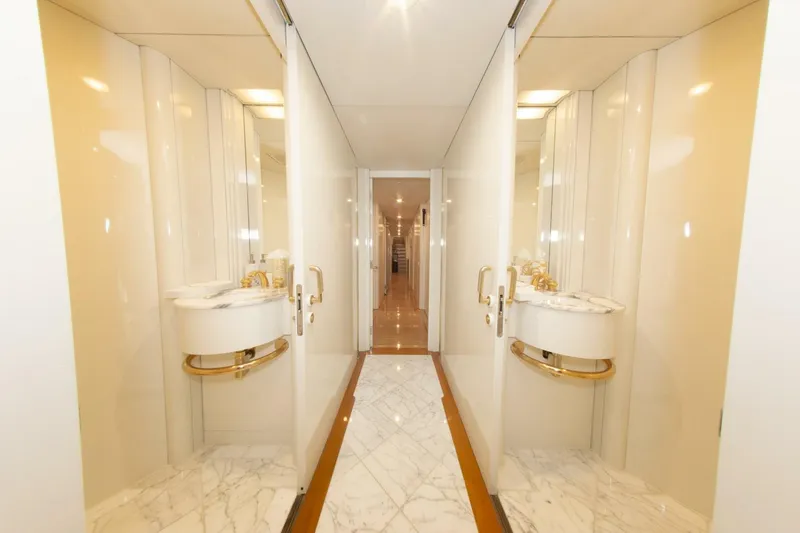

- Two identical guest bathrooms

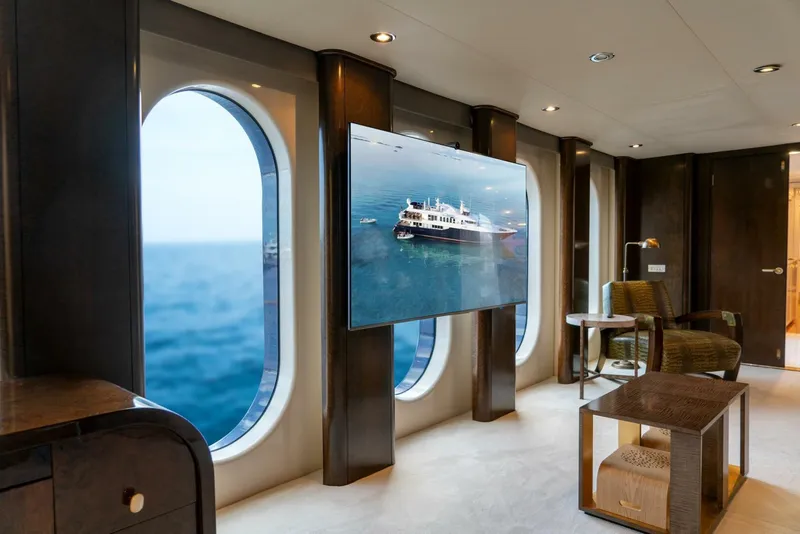

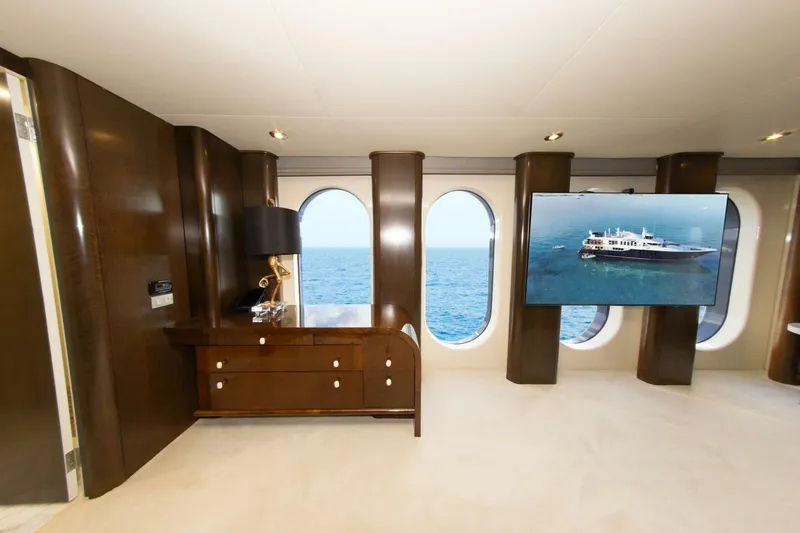

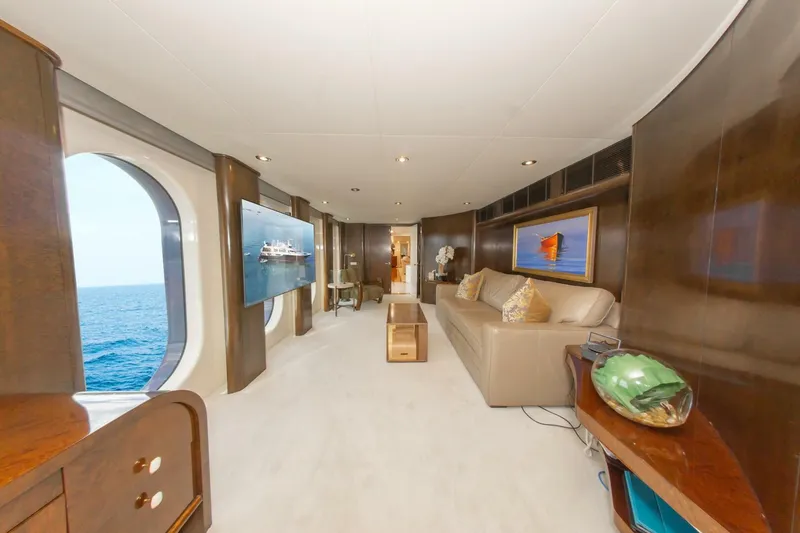

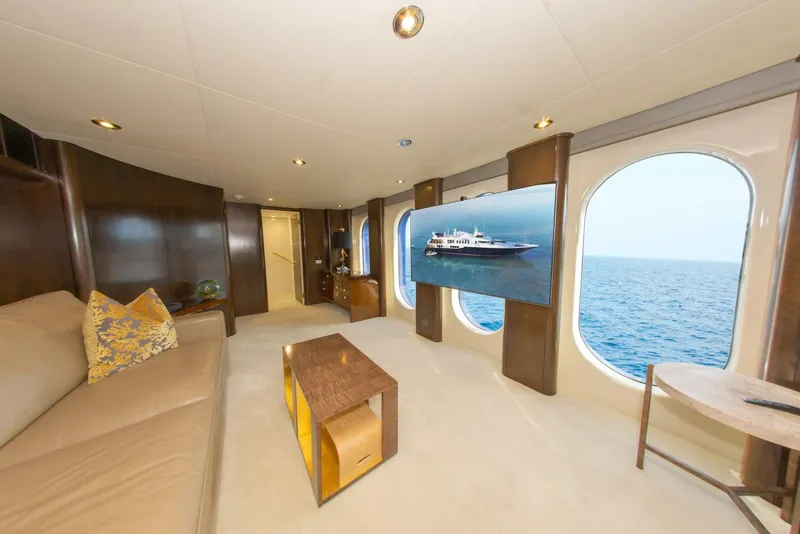

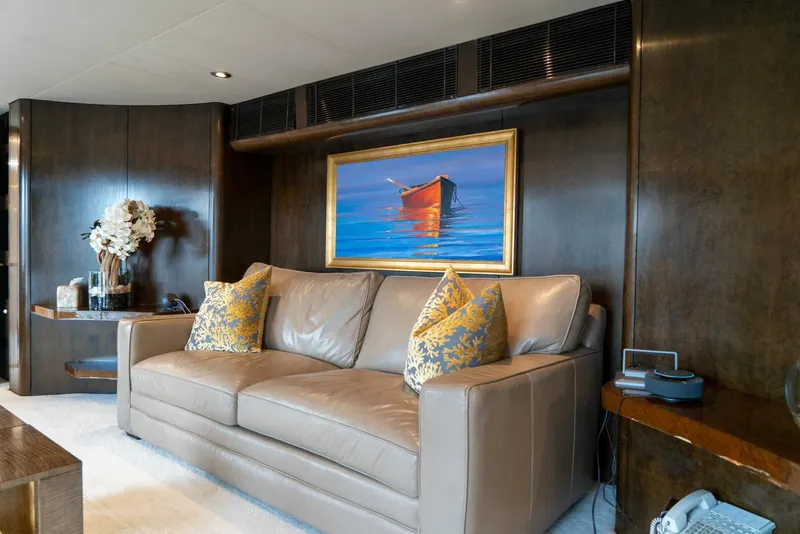

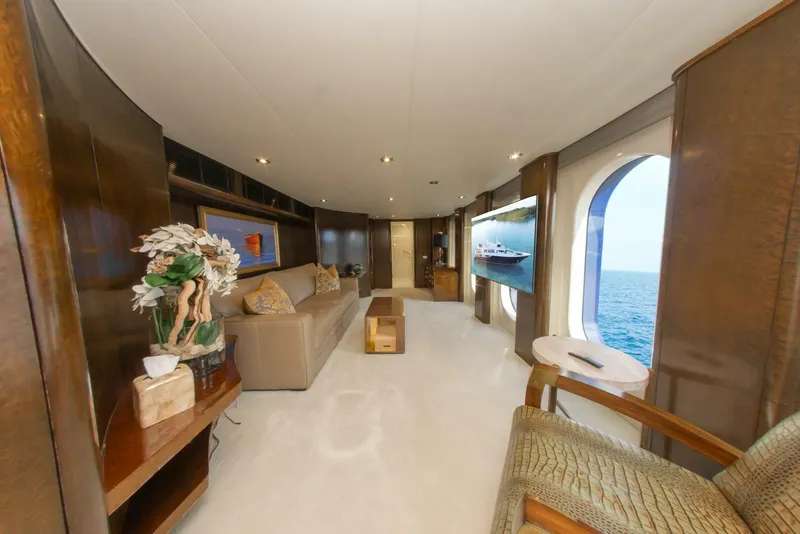

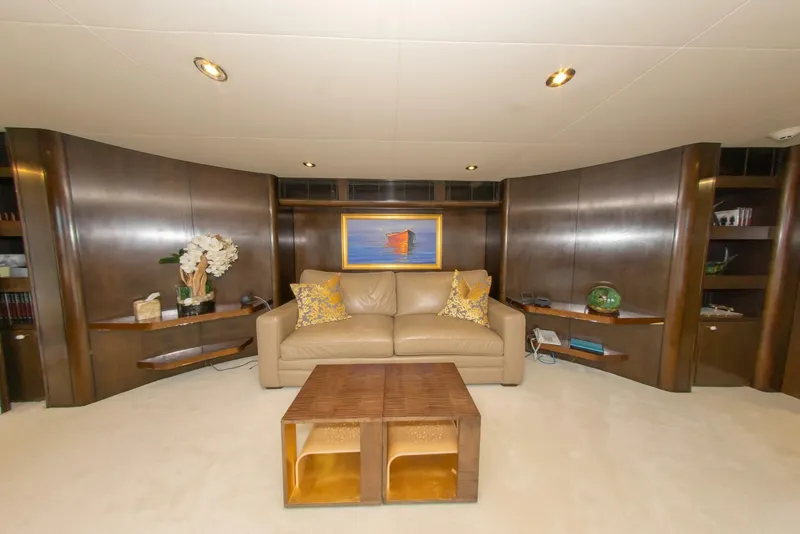

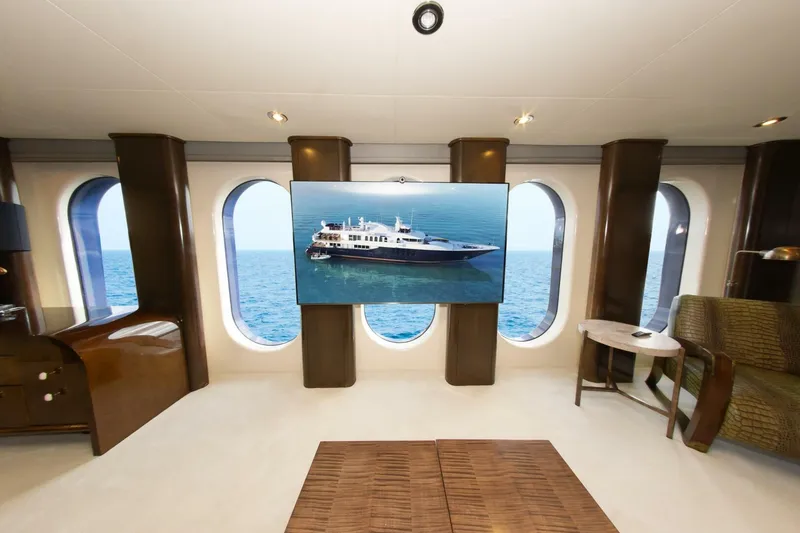

- Media room with lounge seating, coffee table, TV, separate head, shower, and closet (could be converted back to a 6th stateroom with queen bed)

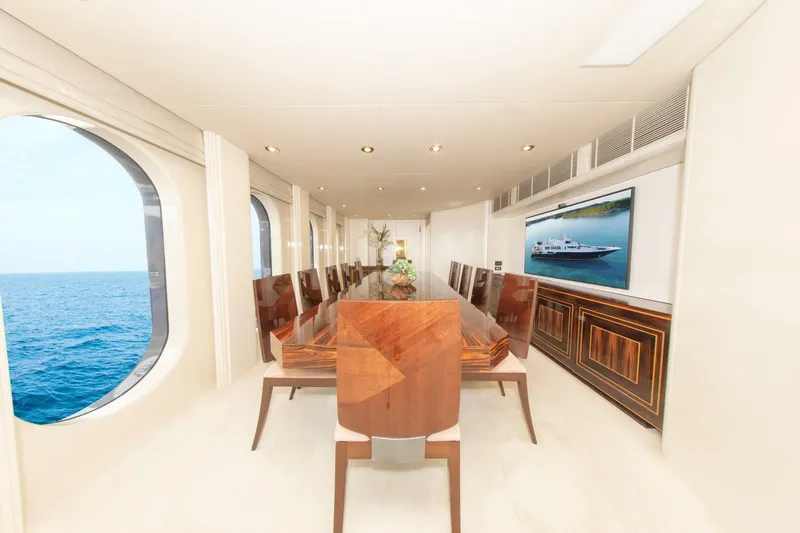

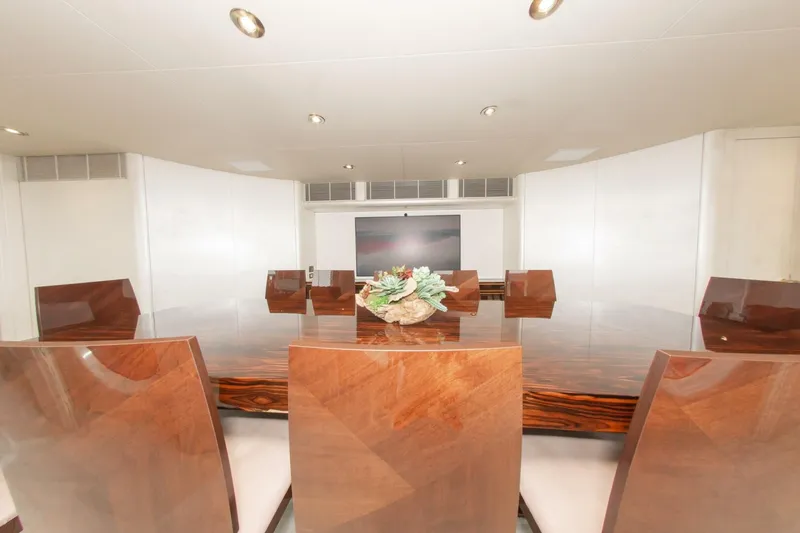

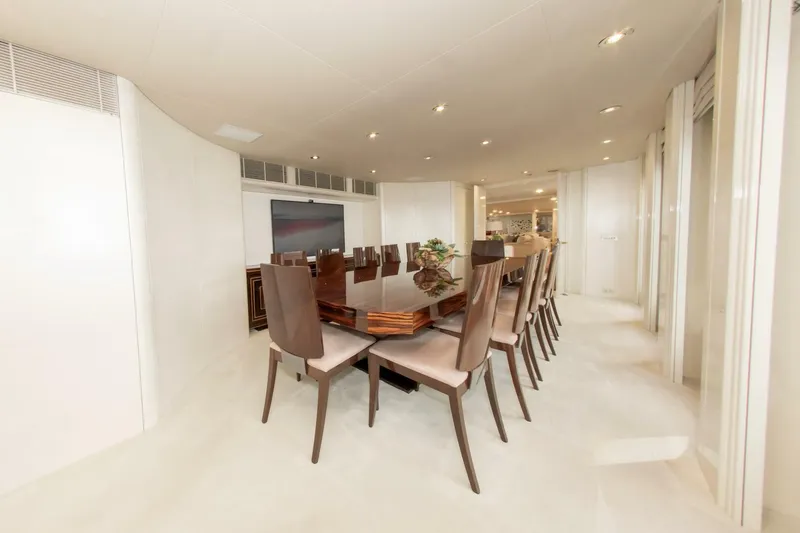

- Formal dining area for 12 guests, can be closed off for privacy

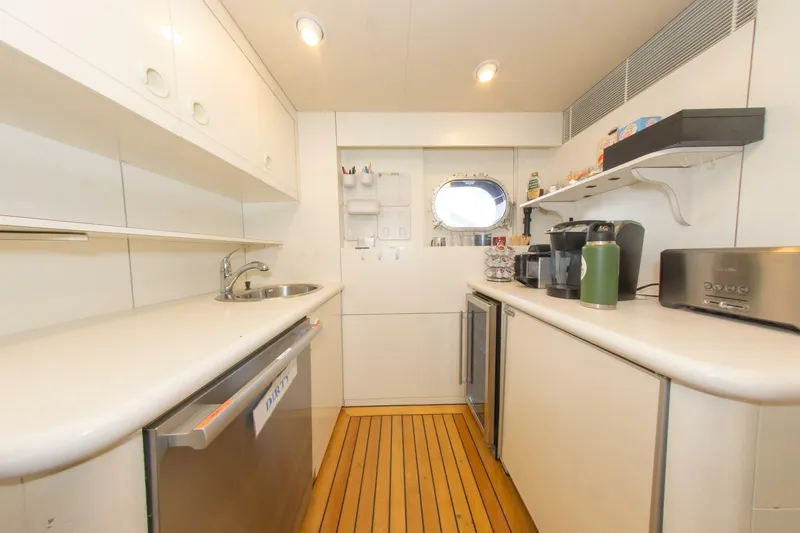

- Stewardess prep area adjacent to the galley

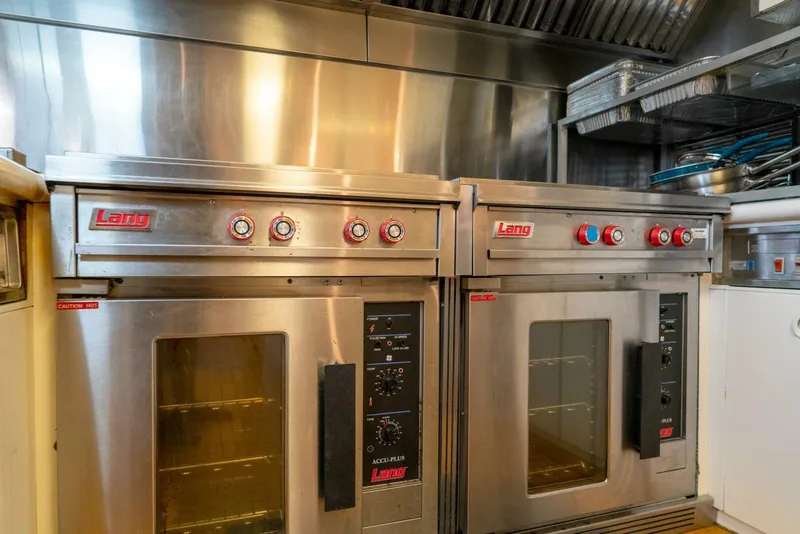

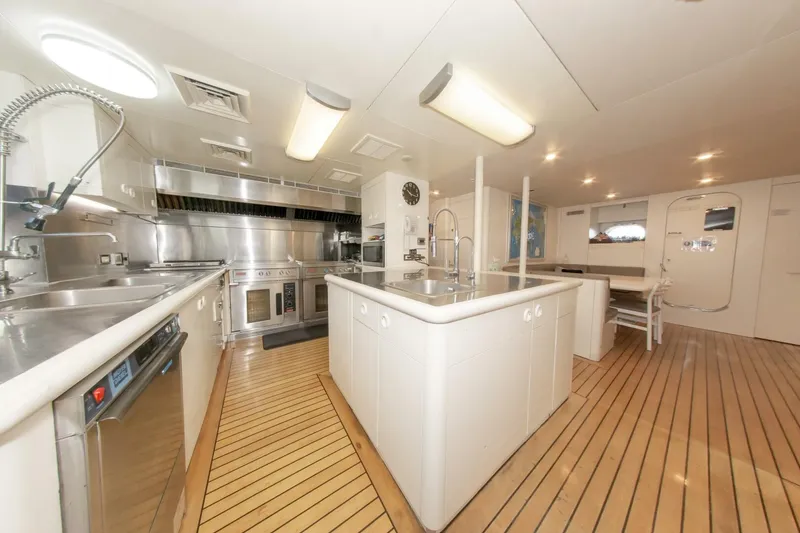

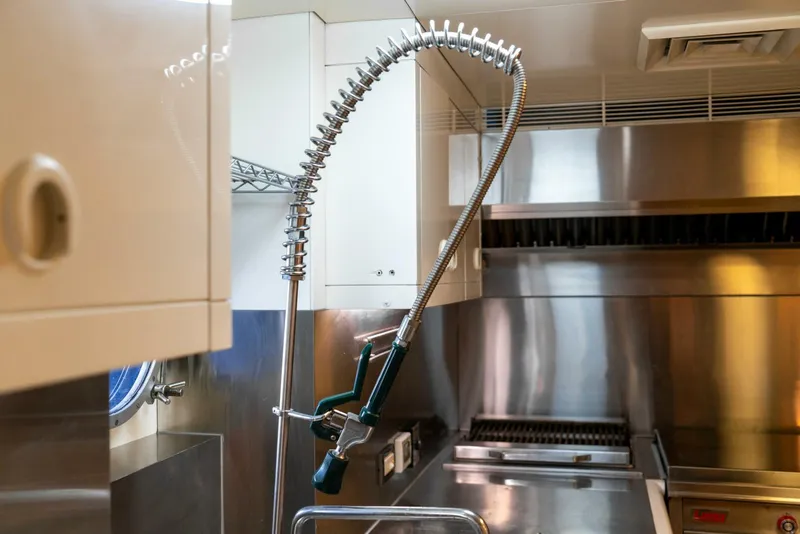

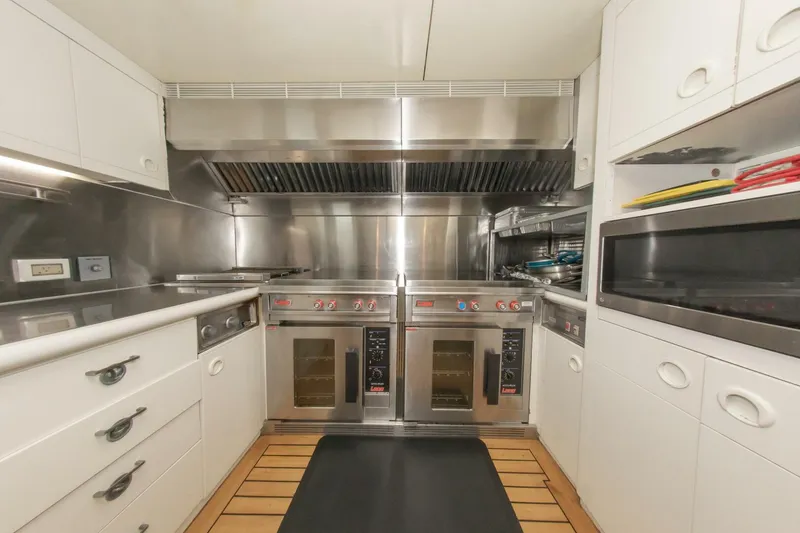

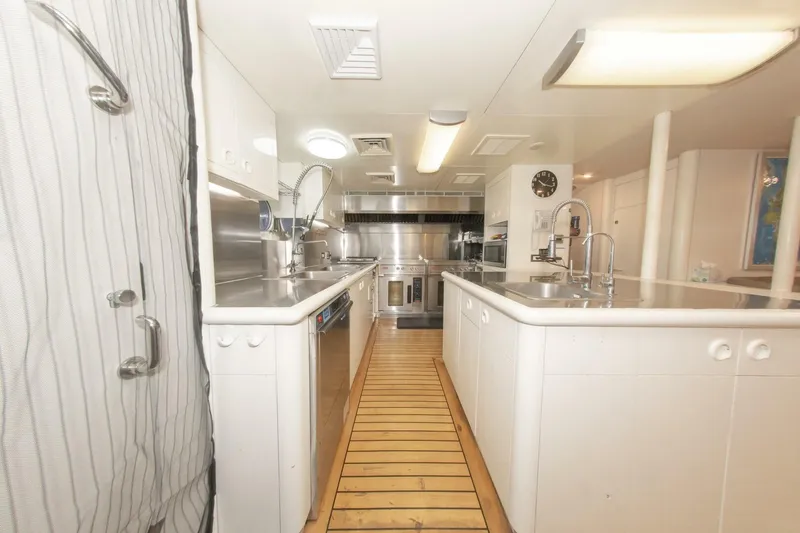

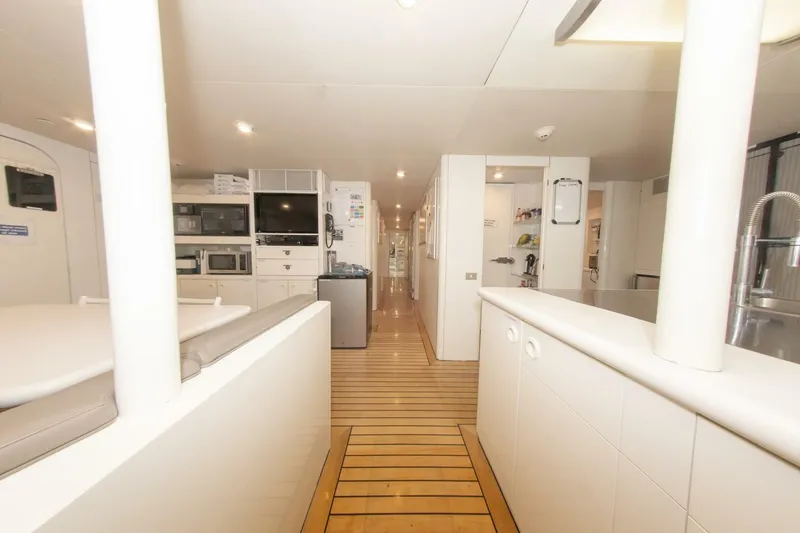

- Commercial stainless-steel galley

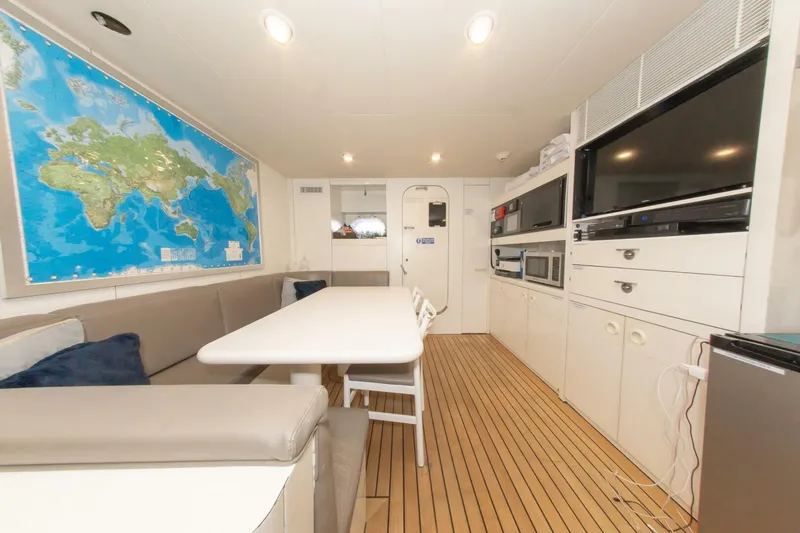

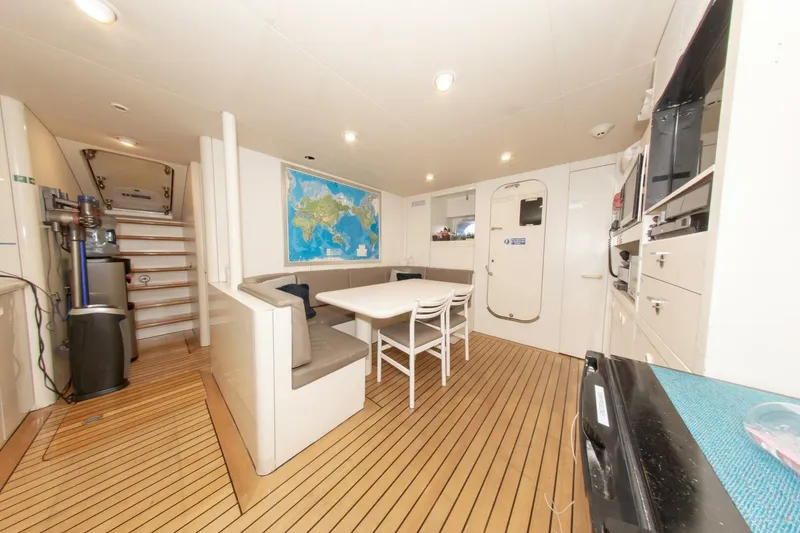

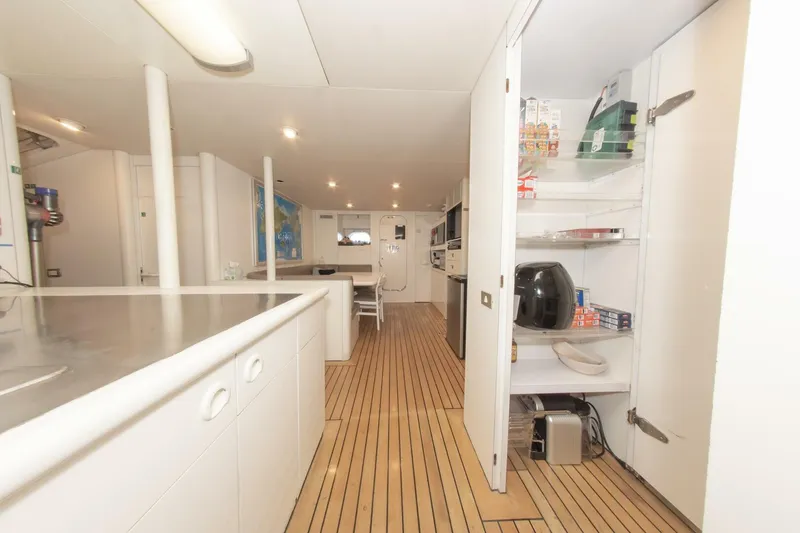

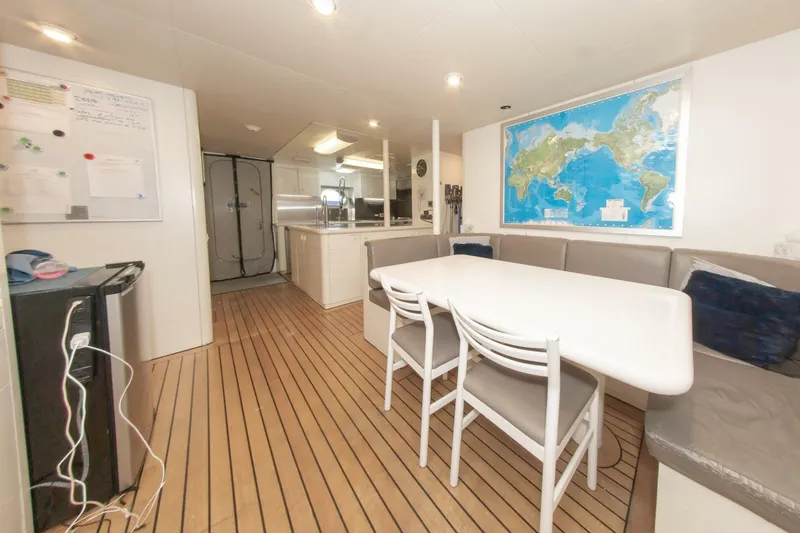

- Crew mess with U-shaped settee and surveillance system
- Walk-in laundry room with dual washer/dryer
Bridge Deck / Upper Deck

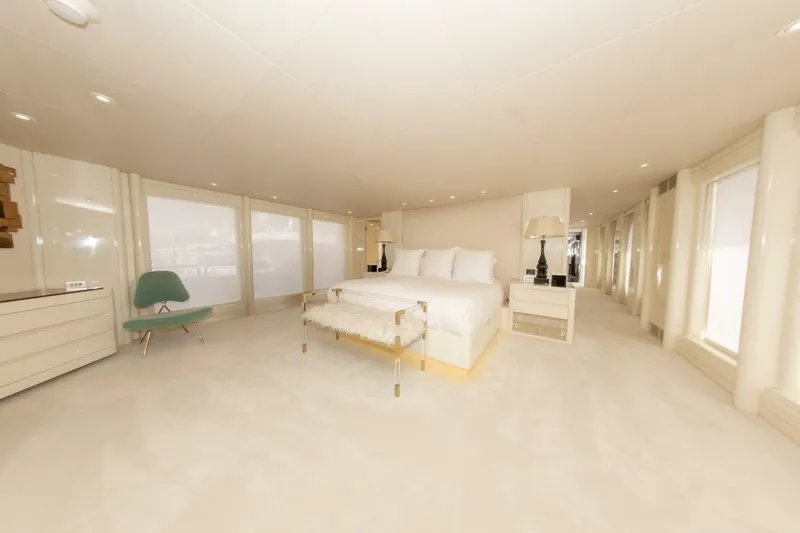

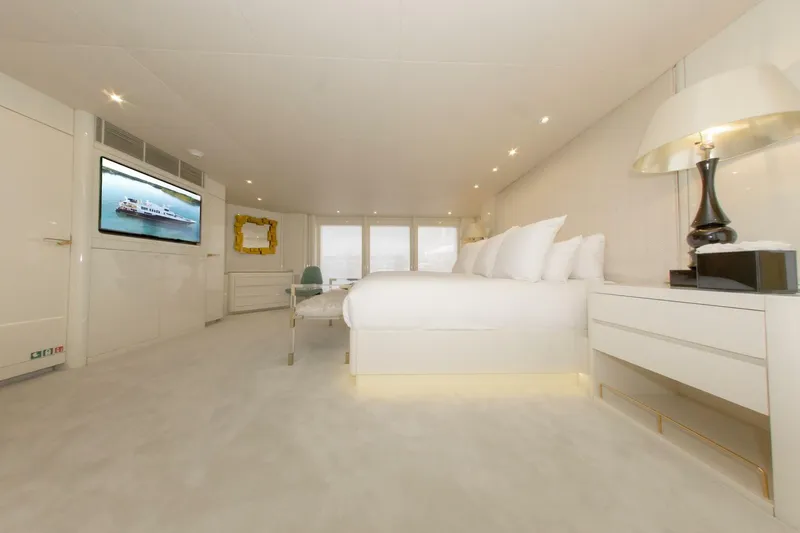

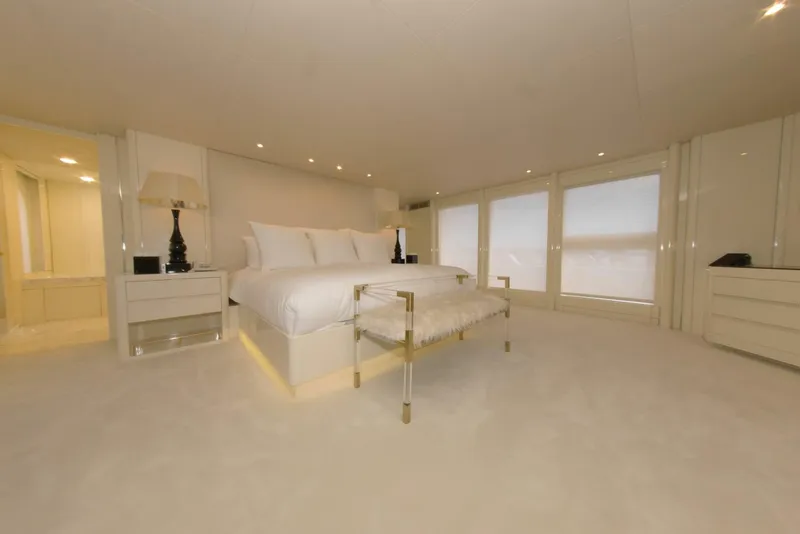

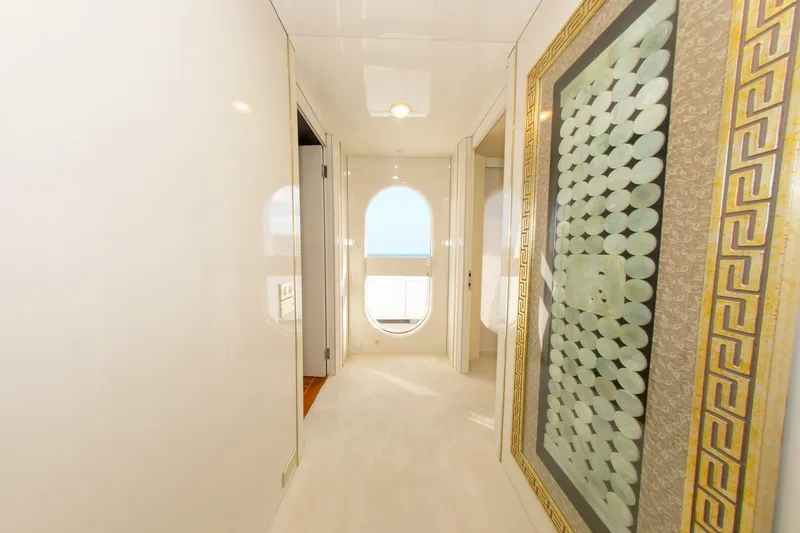

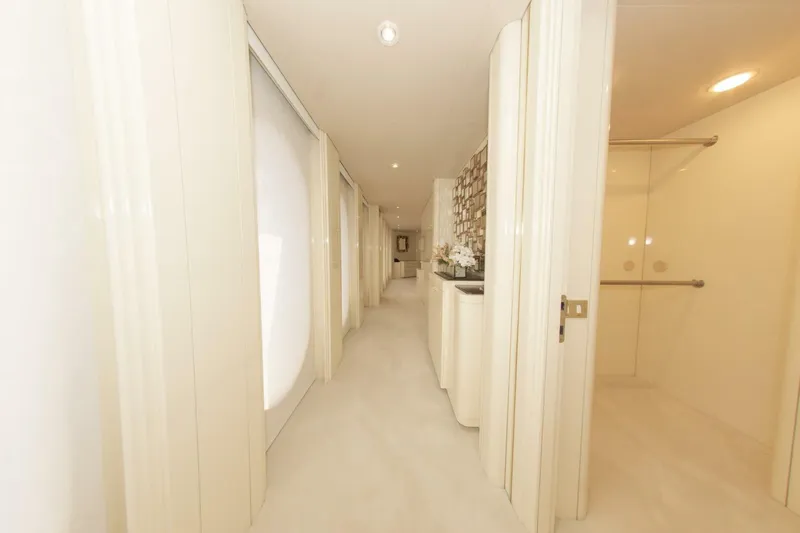

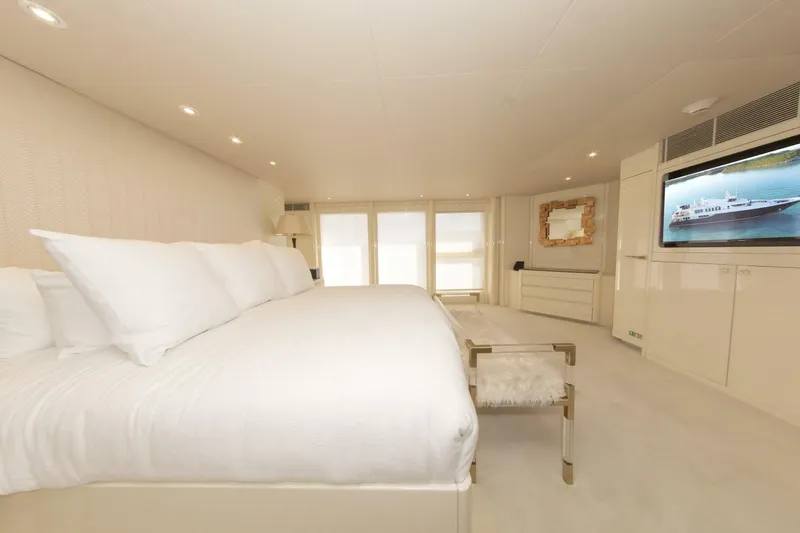

Owner’s Suite:

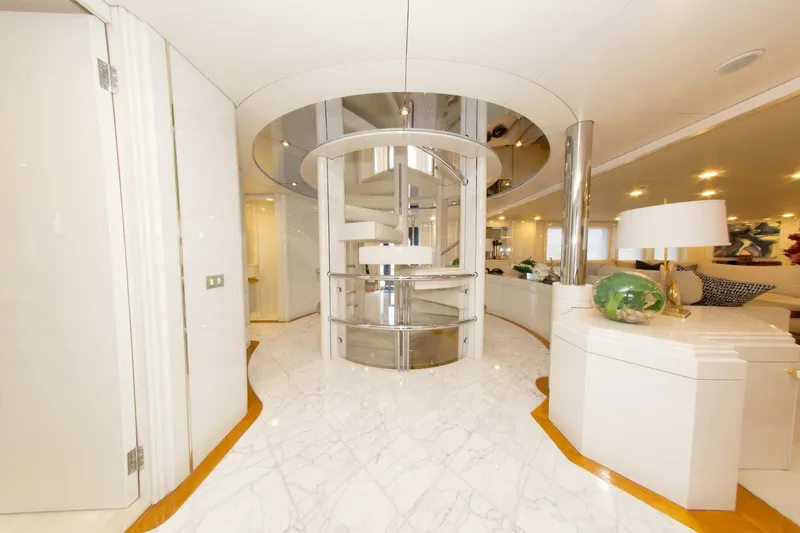

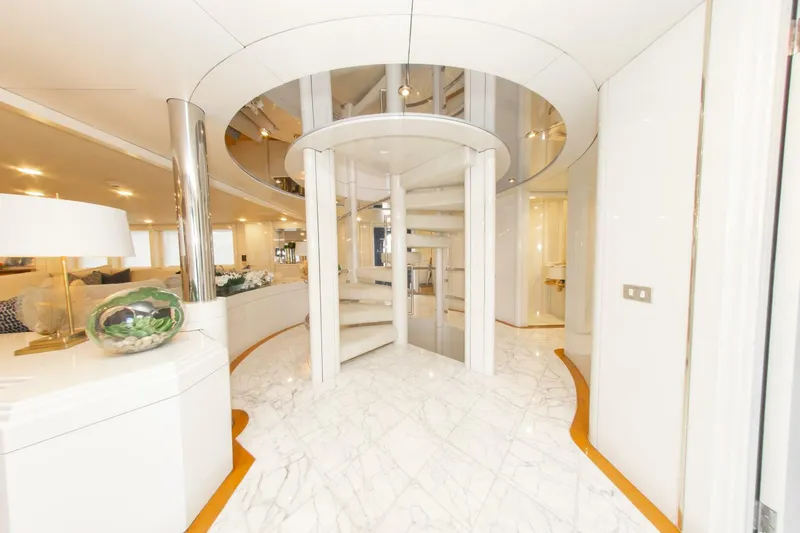

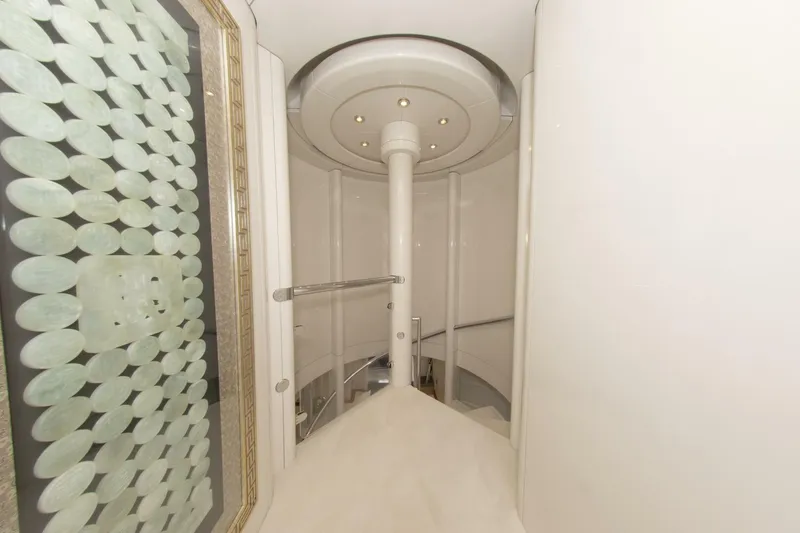

- Spiral staircase leading up from the main salon

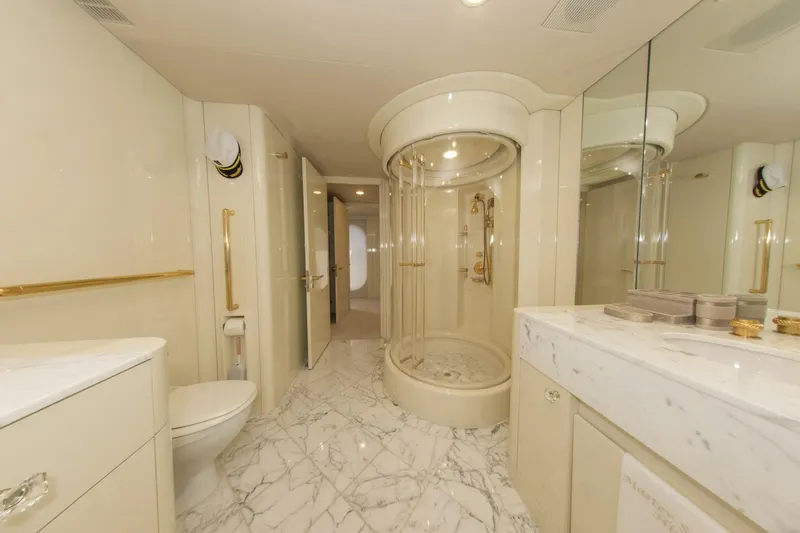

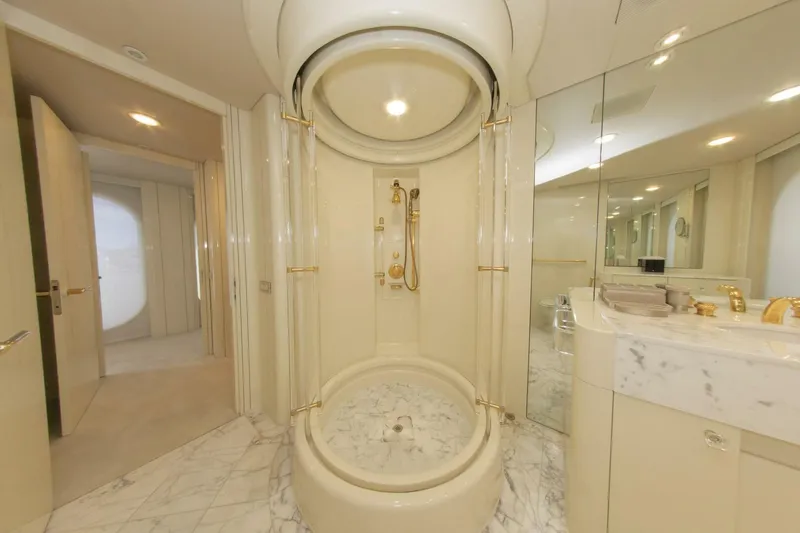

- His closet, shower, and head on the right upon entry

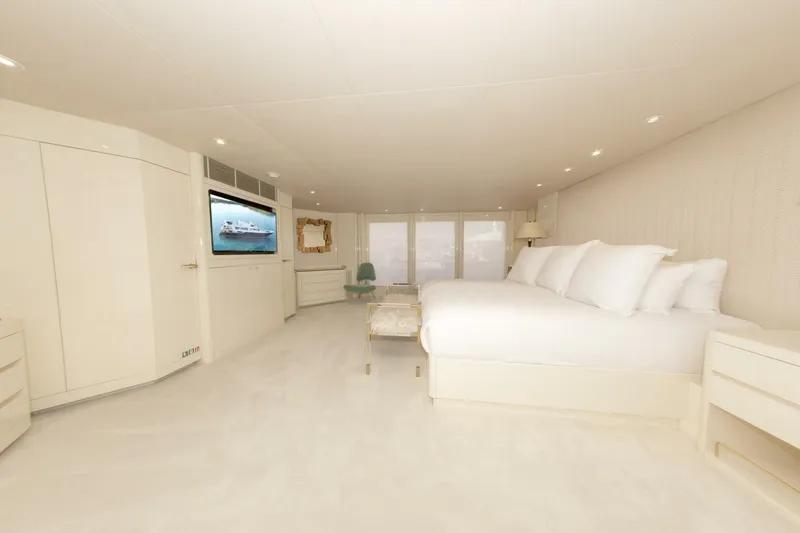

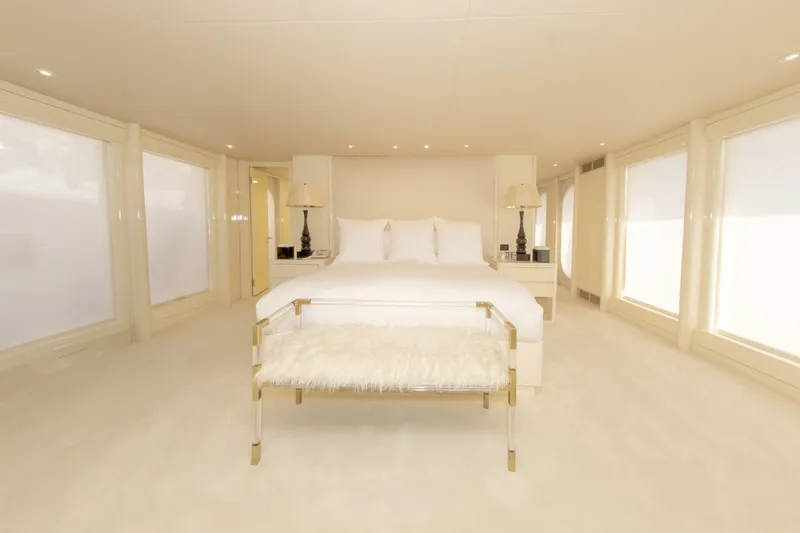

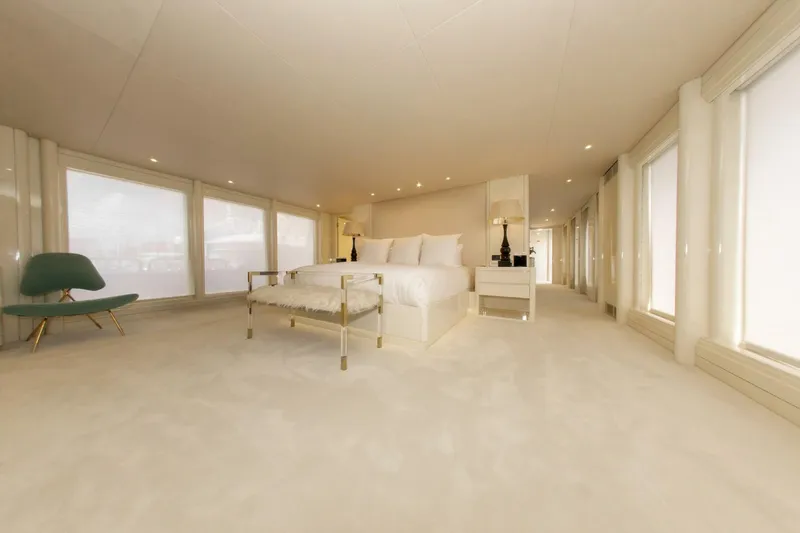

- Spacious master suite with king size bed, new white carpet
- Large windows with blackout shades

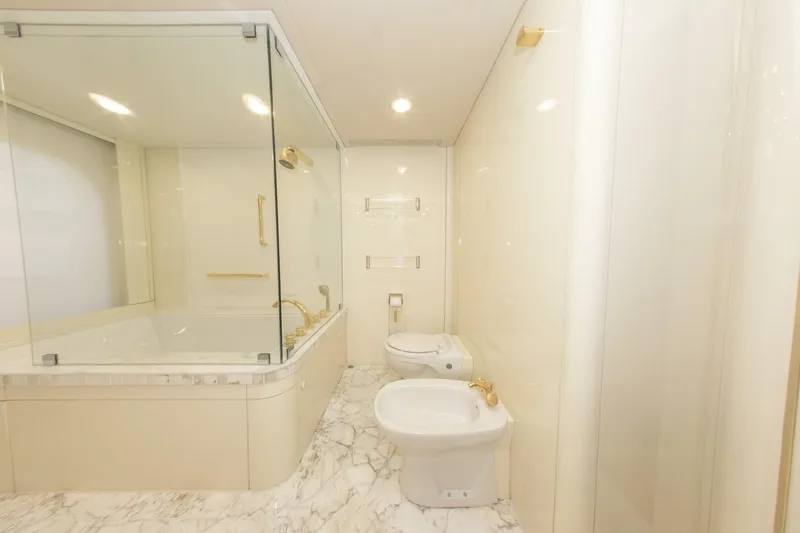

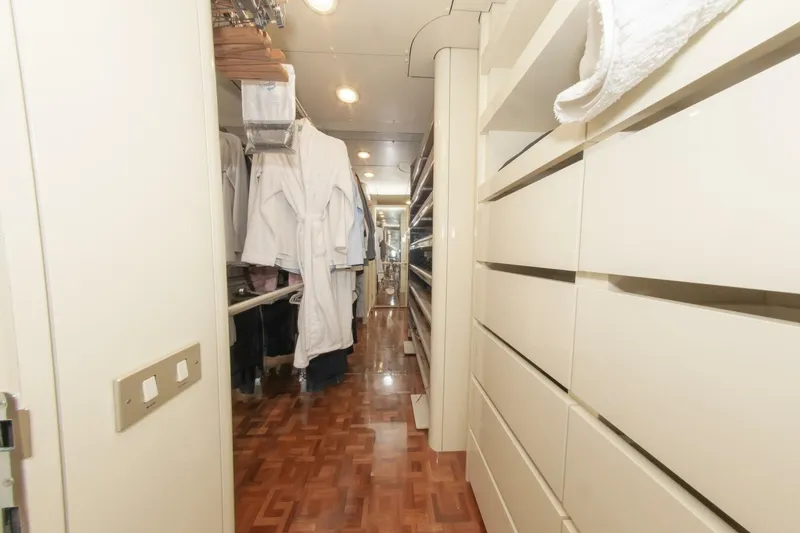

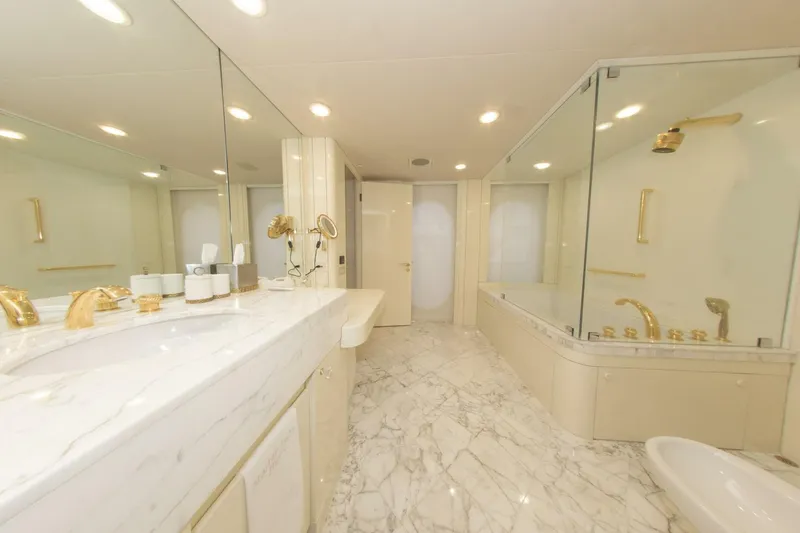

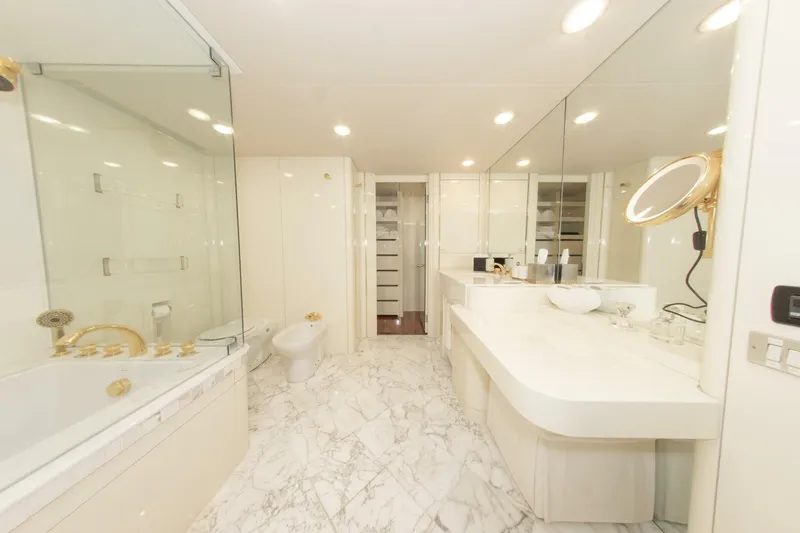

- Her bathroom with jacuzzi tub, vanity, and walk-in closet
- Private door to aft deck
- New carpeting
Additional Features:

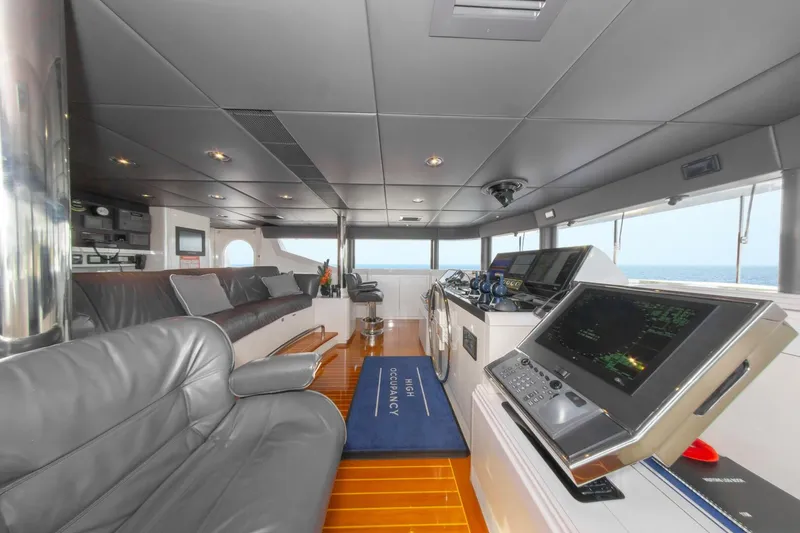

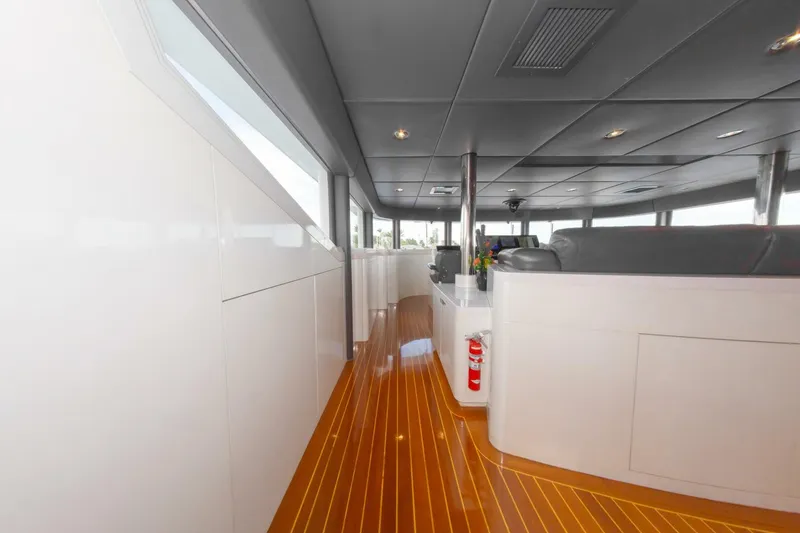

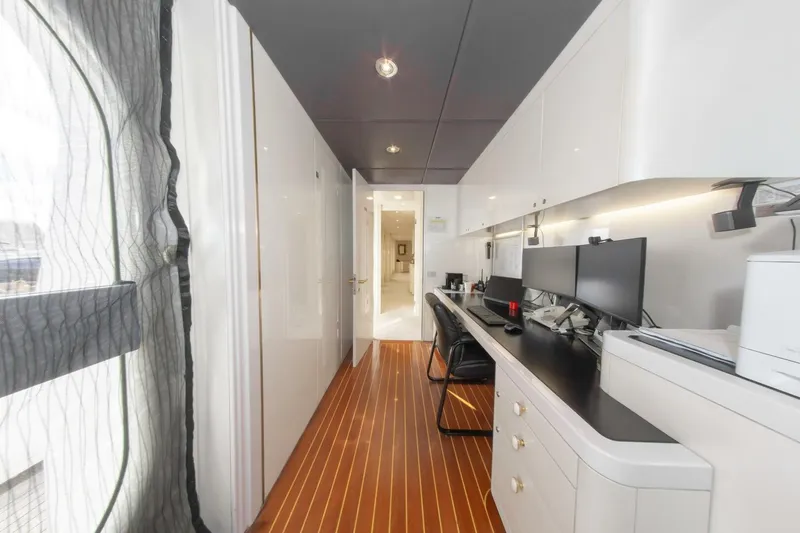

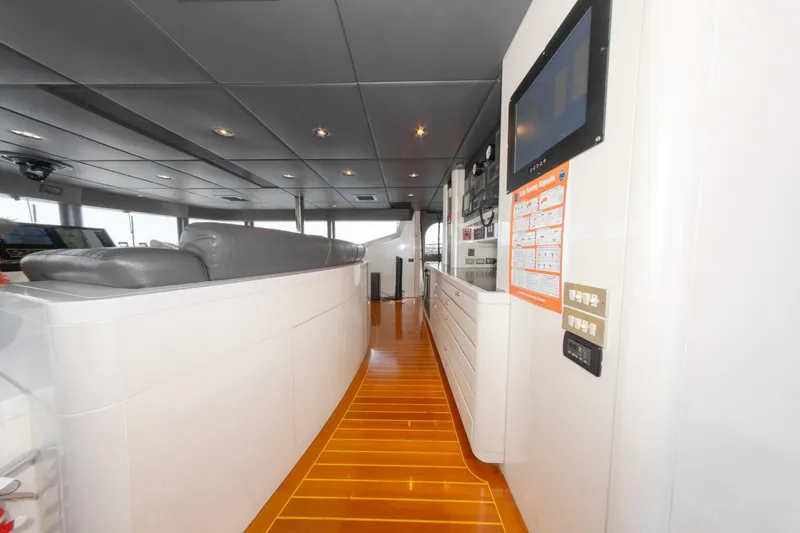

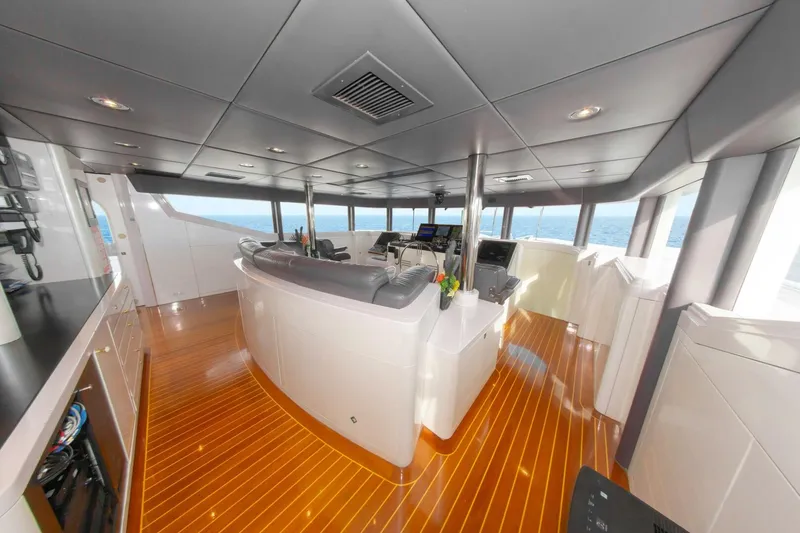

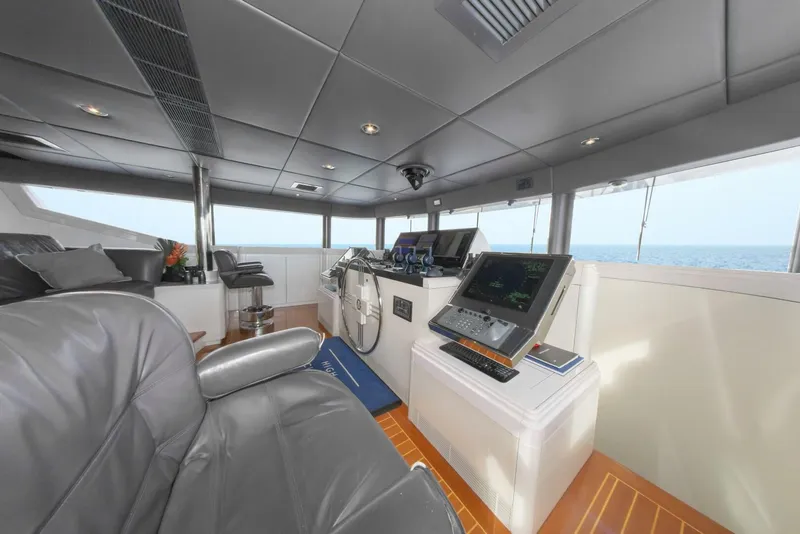

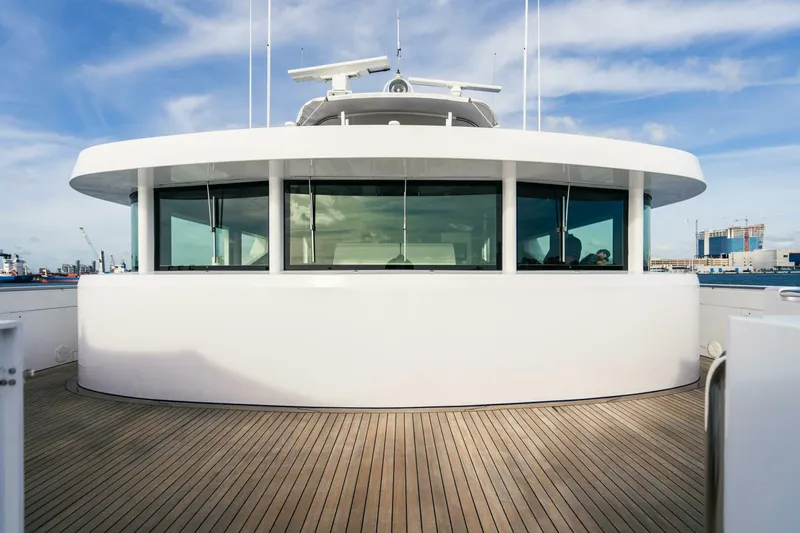

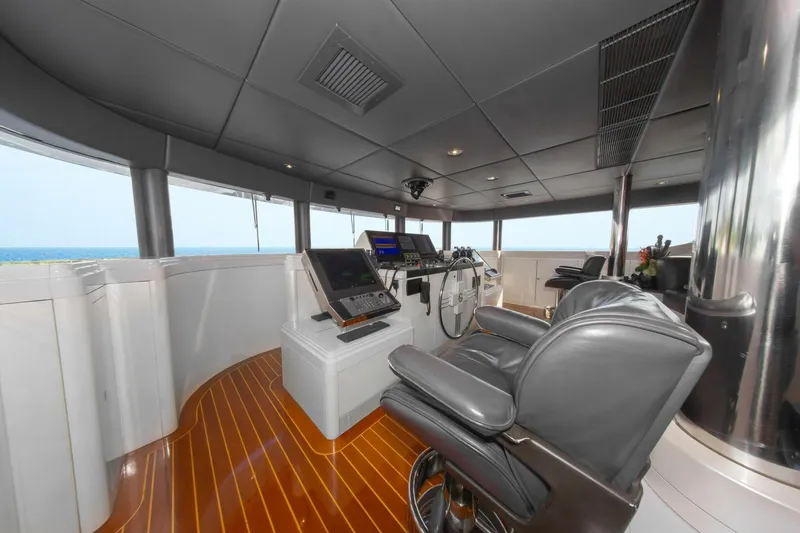

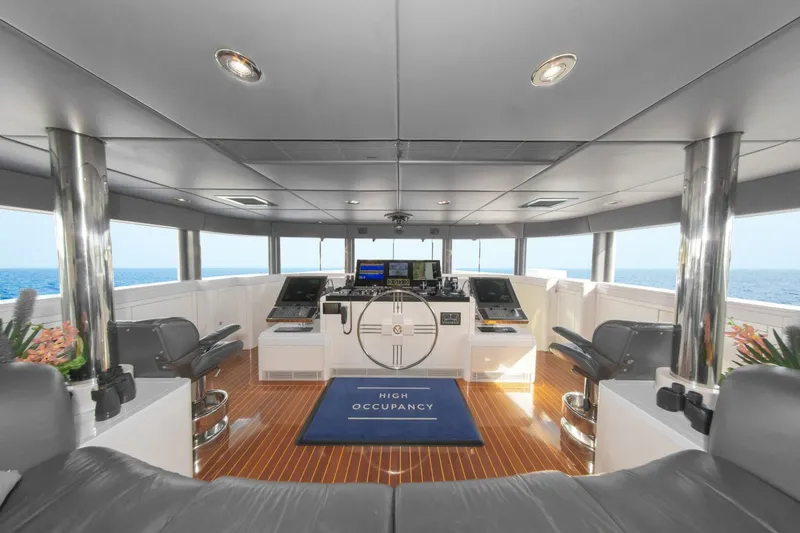

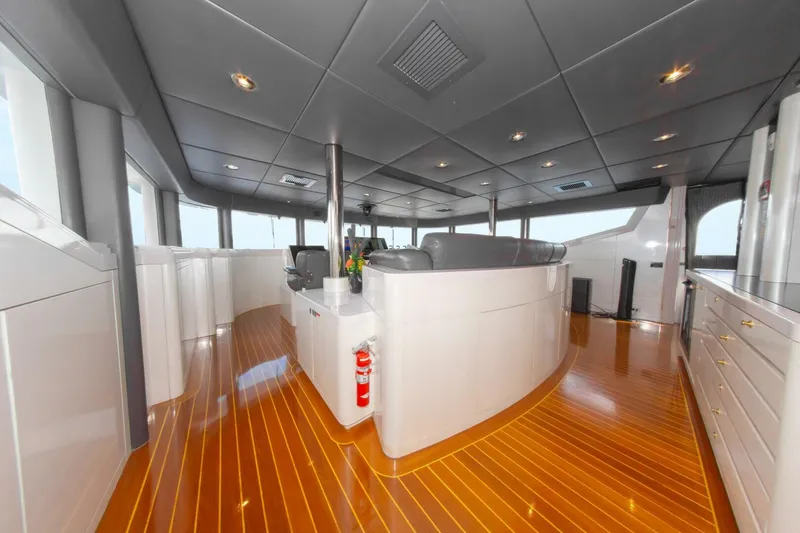

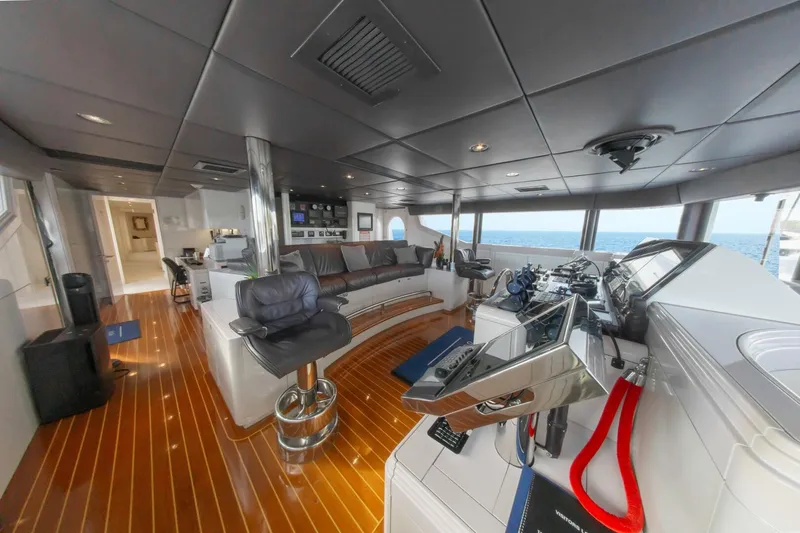

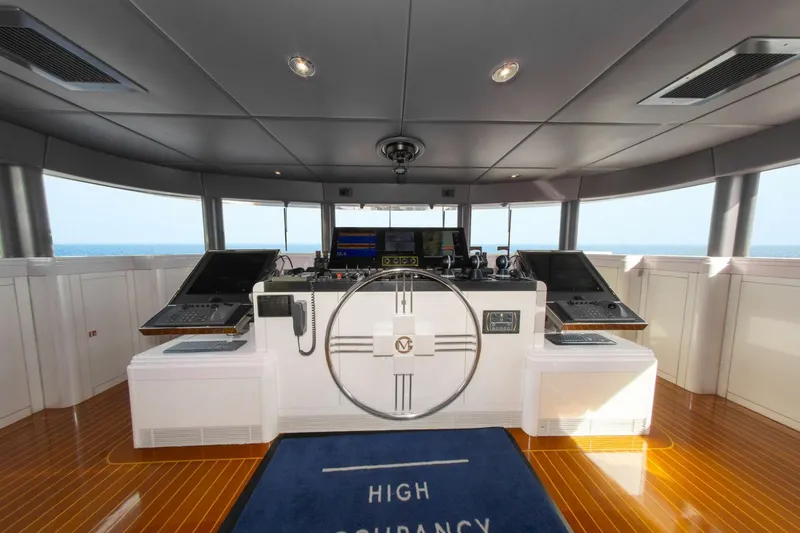

- Captain’s office and bridge
- Captain’s cabin port side aft of the pilothouse
- Sliding glass doors for easy access outside from the bridge
- Tender storage and launching crane aft

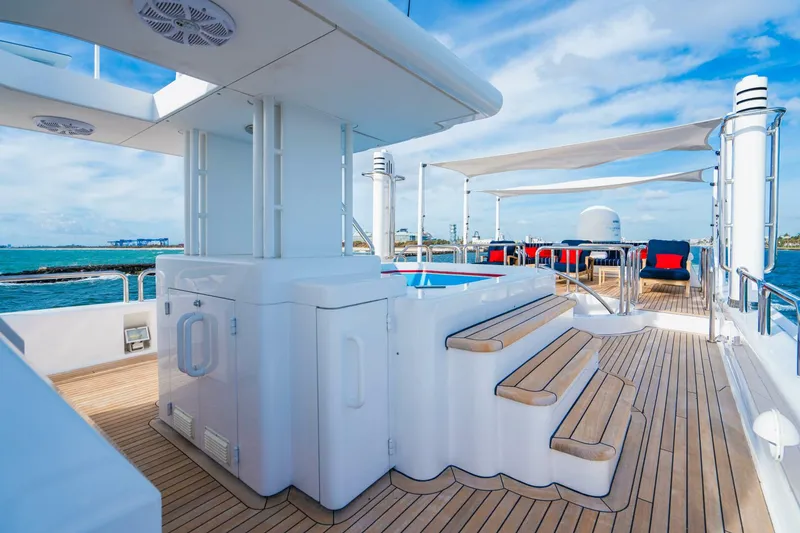

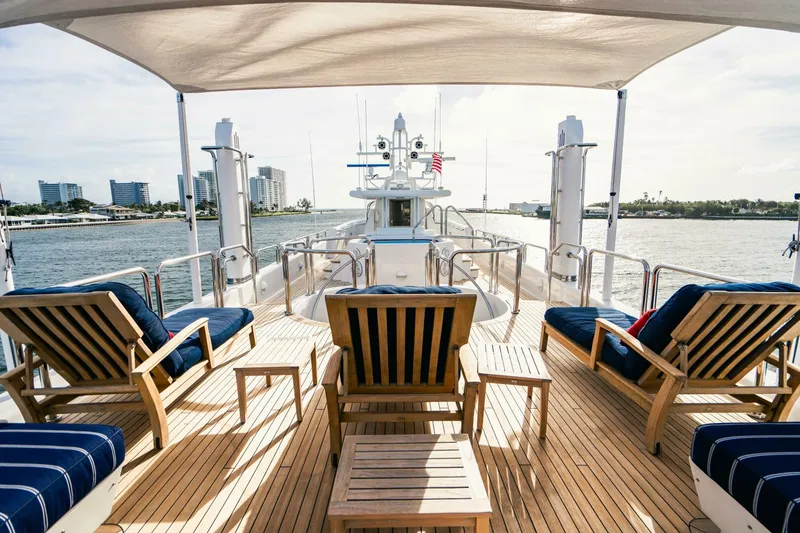

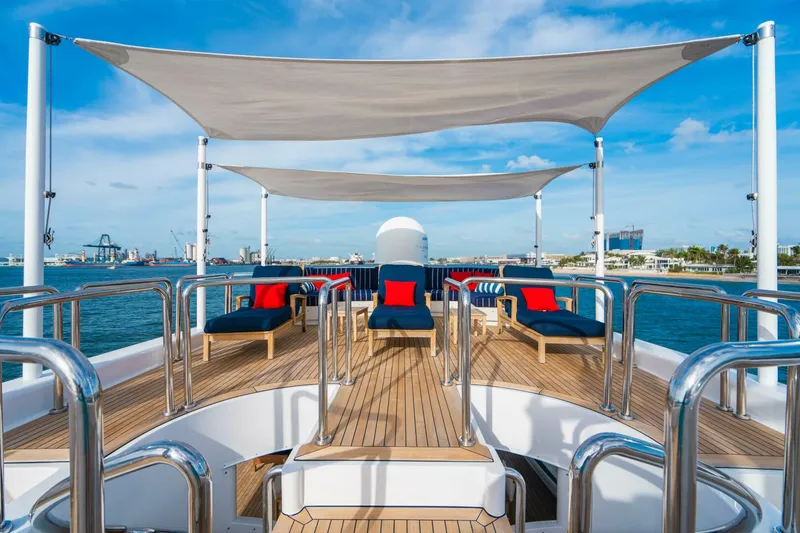

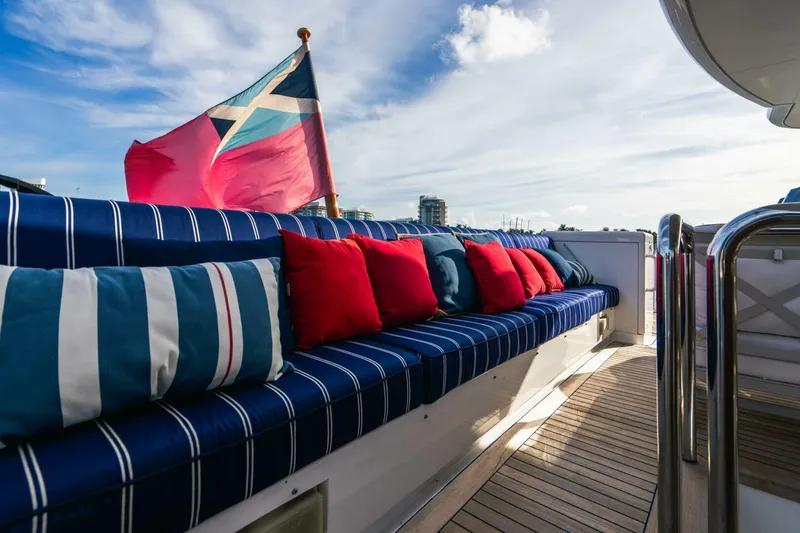

Sundeck

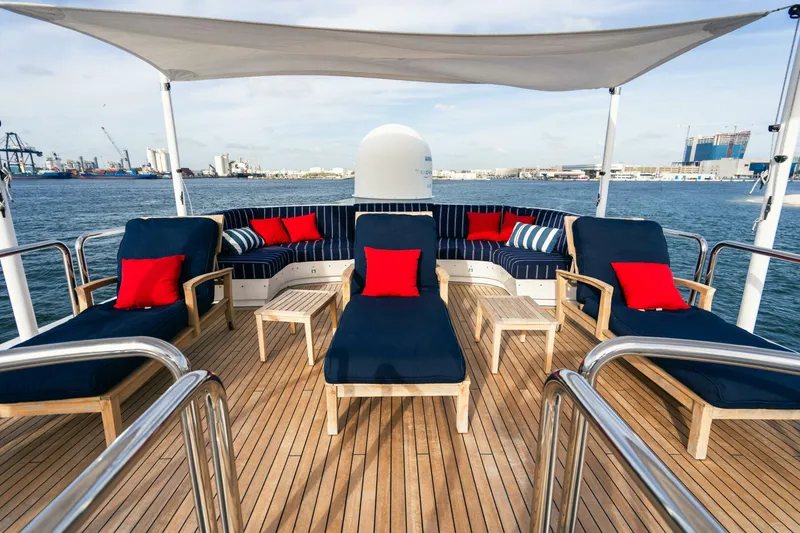

- Two staircases leading up from the bridge deck aft

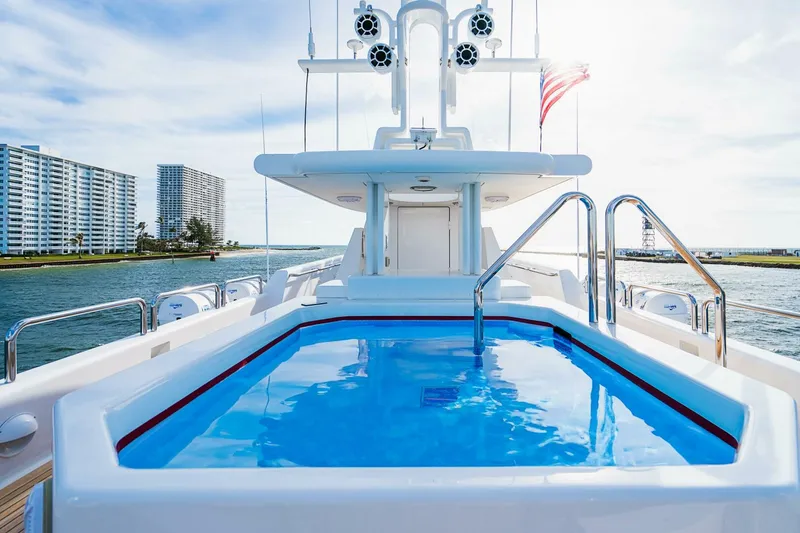

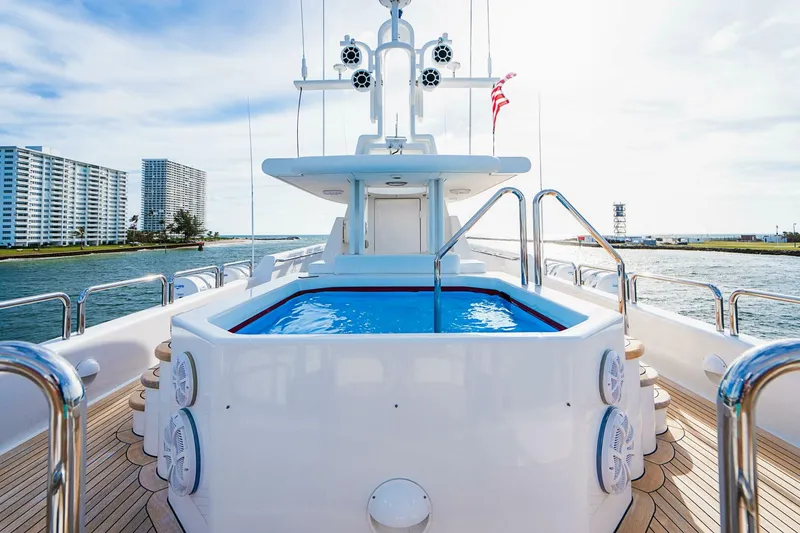

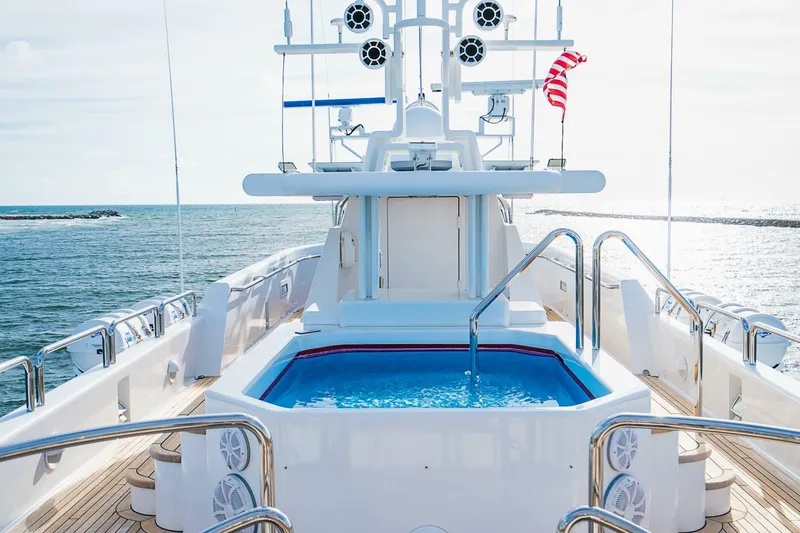

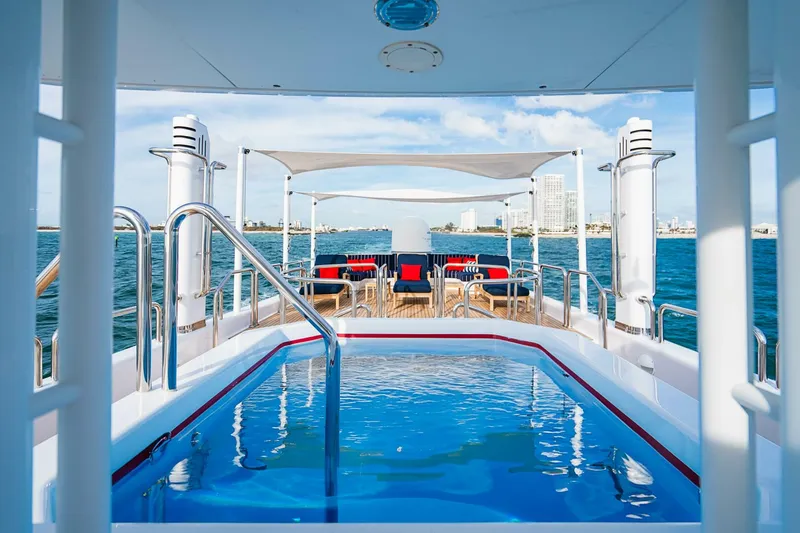

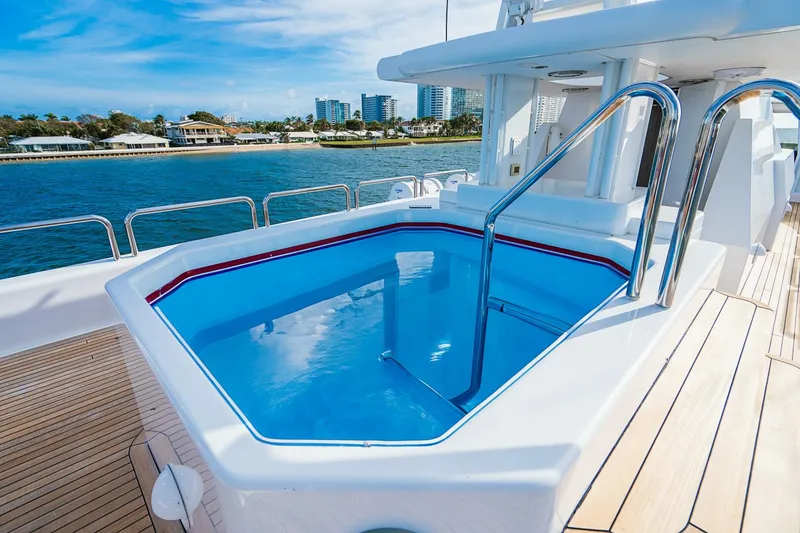

- Sunbathing and entertaining area with a 10-person Jacuzzi
- Bar with refrigerator
- Guest head with shower
- New sound system with speakers & lights

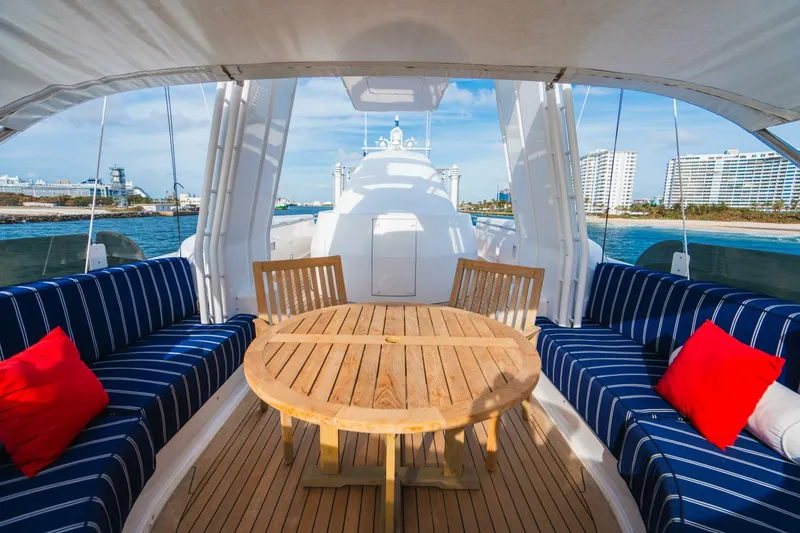

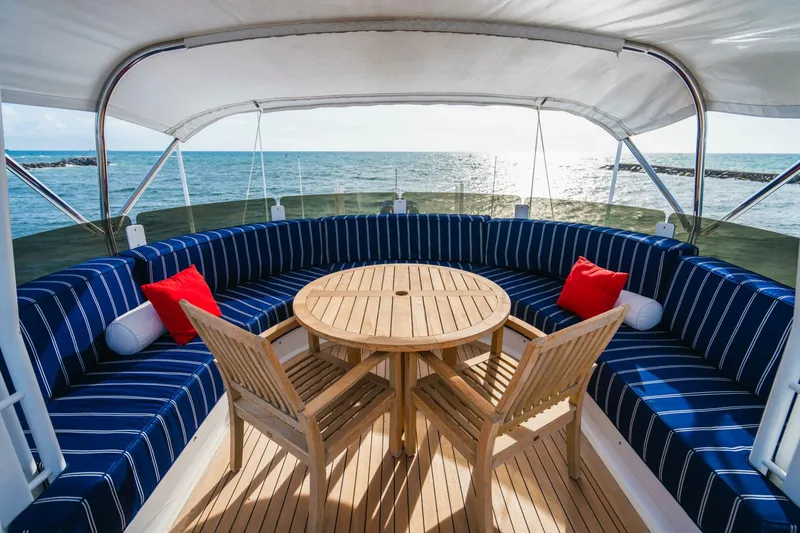

- Circular seating area with great views

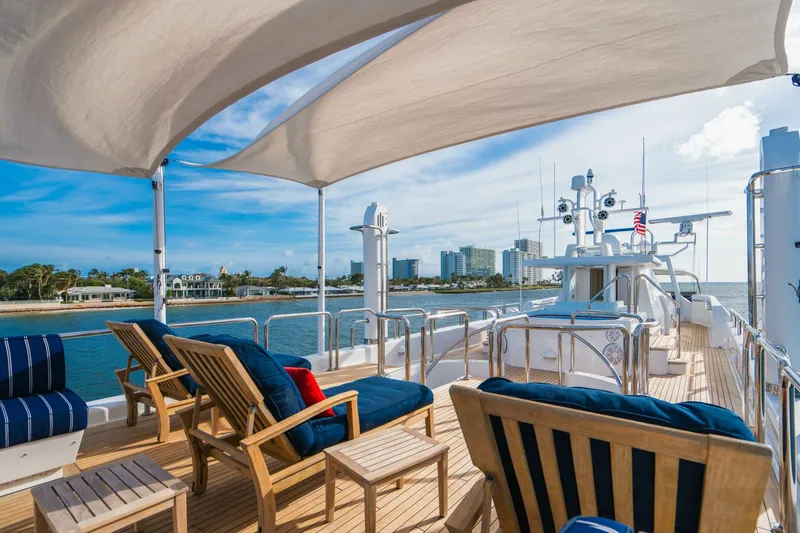

- Seating area and 4 teak sun loungers aft
Lower Deck

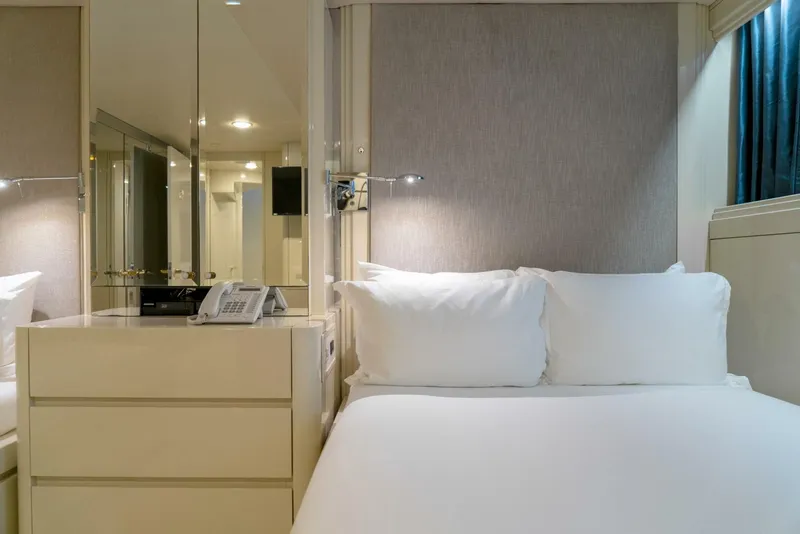

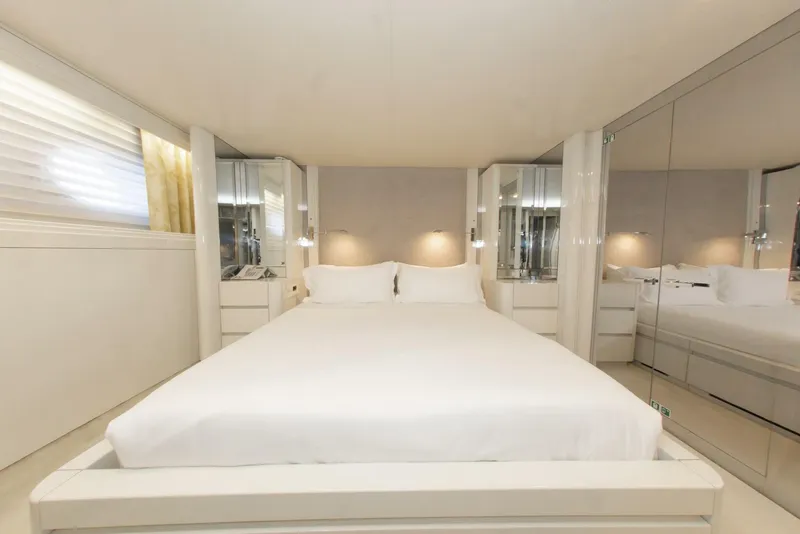

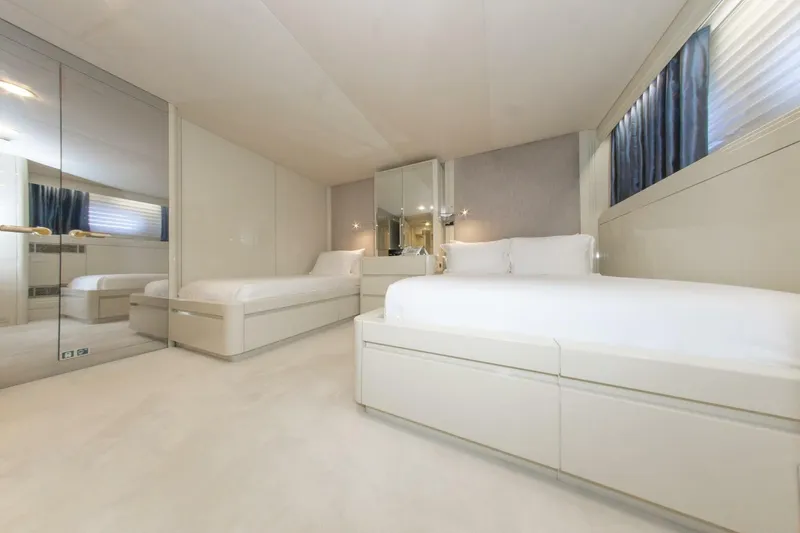

Guest Staterooms:

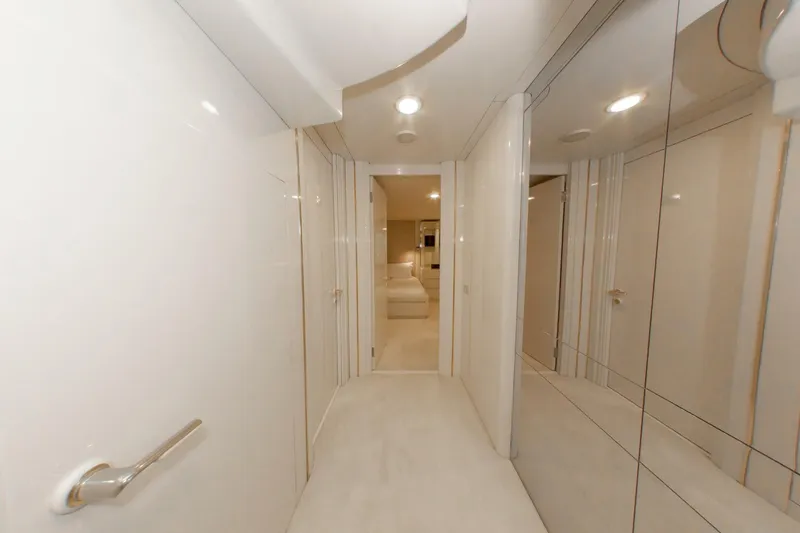

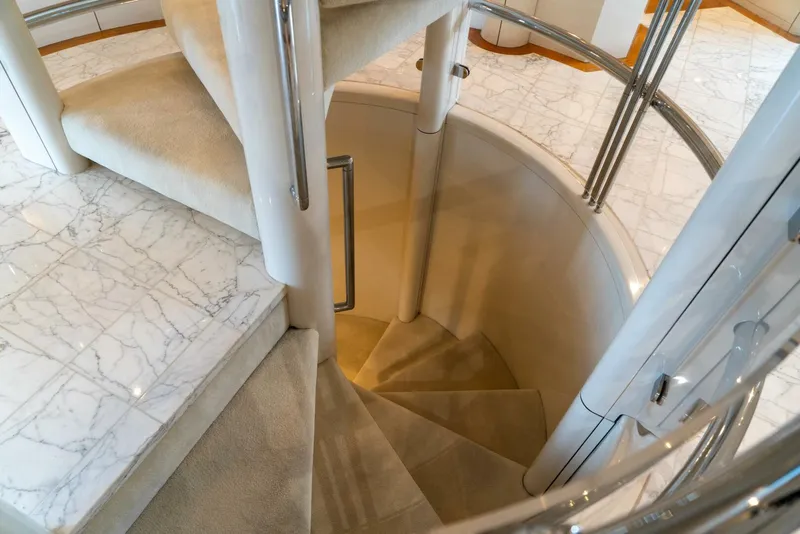

- Accessible via a spiral staircase from the main salon
- Four en-suite staterooms with light color design, lacquered furniture, mirrored wardrobes, and TVs

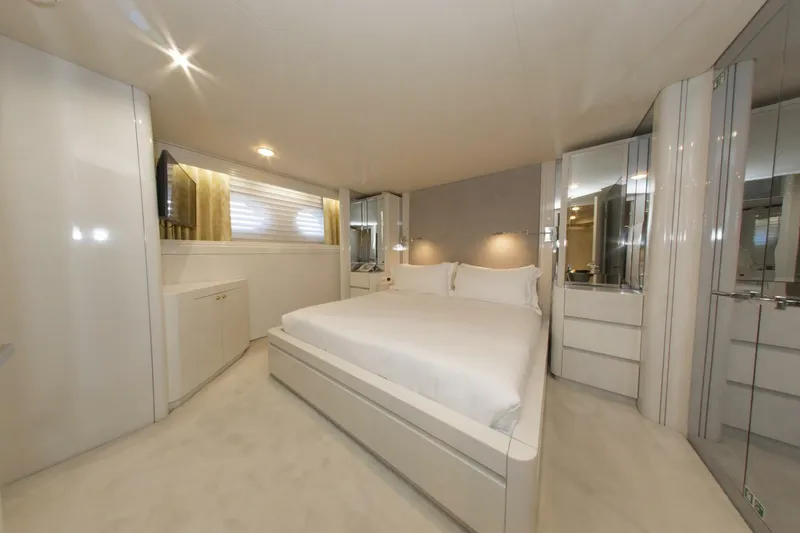

- Two aft cabins with king beds, en-suite heads with showers
- Two forward cabins with queen and single beds, sleeping up to 3 guests each, en-suite bathrooms with tub / shower combination
Crew Quarters:
- Four crew cabins accommodating 9 crew members, refurbished in 2010
- Separate Captain's Cabin aft of the wheelhouse on the bridge deck
This comprehensive layout ensures that both guests and crew experience the utmost comfort and convenience while aboard, with a blend of elegant design and practical amenities
Technical Equipment
Port Engine: MTU 16V396 TB94 – Replaced with remanufactured engine April 2022 - HP is 3750 Engine hours: 368
Center Engine: MTU 16V 2000M93 CR - New 2006 – HP is 2800 Engine hours: 2419 since complete overhaul
Starboard Engine: MTU 16V396 TB94 - HP is 3750 W5 service complete 2020 Engine hours: 4028, since complete overhaul
All Three Main Engines – removed and replaced engine and gearbox tapered mounts Removed and installed coupling overhauled with new seals
Economical speed: 15kts, 120 gals per hour, 3,120 nm range
Cruise speed: 24kts, 380 gals per hour, 1,600 nm range
Light load & flat sea state max speed: 30 knots
3 x KaMeWa 80 562/6 Waterjets, new control system 2006ZF transmissions Rolls Royce engine controls, upgraded to digital in 2006
- Dry exhaust muffler system (New 2016)
- Dahl fuel filters
- Koopnautic/Quantum stabilizers
- Quantum fins new 2005
- FAL 124 AVA2 x 48 kW Richfield Retractable bow thrusters
- 7 x bilge compartments with high water alarms
- Heli-Sep 500 OCD oily/water (OWS)separators new 2005, (Annual Service Jan 2020)
- Alfa Laval M.A.B. 104B fuel oil purifier Rebuilt (Jan 2020)
- Freshwater system = 2 x Speck Hydrophore Bronze BS-40
- Greywater system = Evac Ejector system
- Blackwater system = Evac Ejector system
- 16 x Evac marine toilets
- Hamann waste treatment system New upgrade March 2008
- 2 x Water-maker, Village Marine 3000 GPD
- Atlas
- Copco compressed air system
- Dive compressor and system
- Delta T engine room blowers
- Air conditioning is chilled water type
- New Air-Con Chiller system 38 ton with WIFI control panel - Model MDTCH38T2S083SC (New 2011)
- Marine Air digital AC controls
- Naiad Quantum stabilizers
Electrical System
AC Atlas Smart Box installed April 2008. 480V / 208V 3 phase 2 x 100 amps 100' shore power cord DC = 24v Atlas 76 kVA. M/E Alarm system (2006) SAFT (Nickel Cadmium) batteries
2 x Kohler Generators 125 kW Port Gen = 4046.1, since complete overhaul (March 2022) Starboard Gen = 3369, since complete overhaul (March 2022)

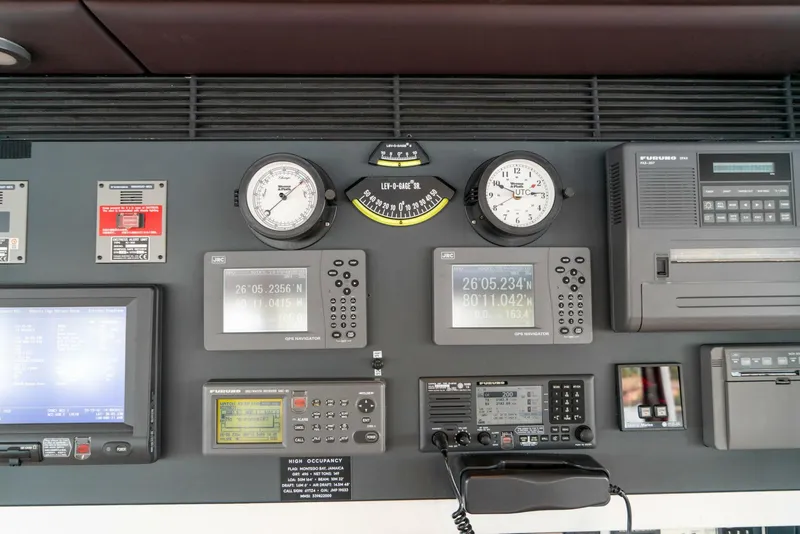

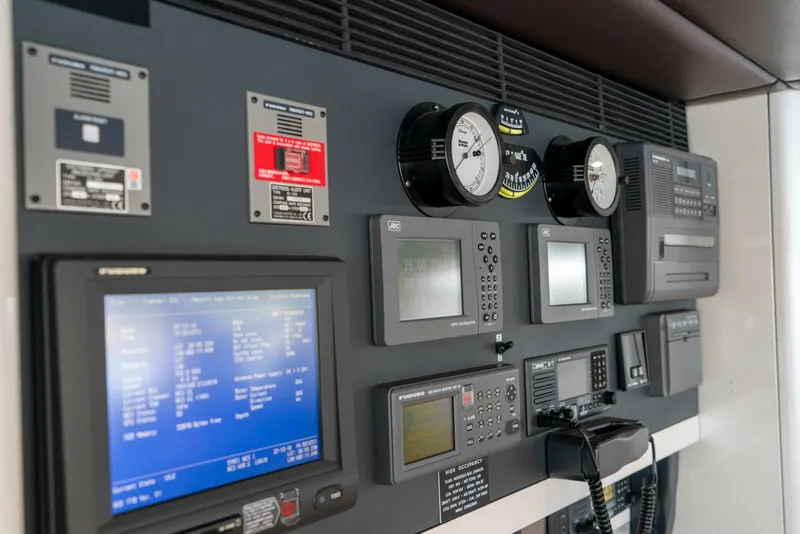

Communication and Navigation Equipment
- C-Plath Navipilot V HSC
- Navigat X MKI Digital gyro, Annual Overhaul Replacement of all parts
- Furuno SC-110
- Sat compass backup via Sperry Navitwin compass monitor
- C-Plath Naviknot III speed log
- Sperry Doppler speed log, (New July 2007)

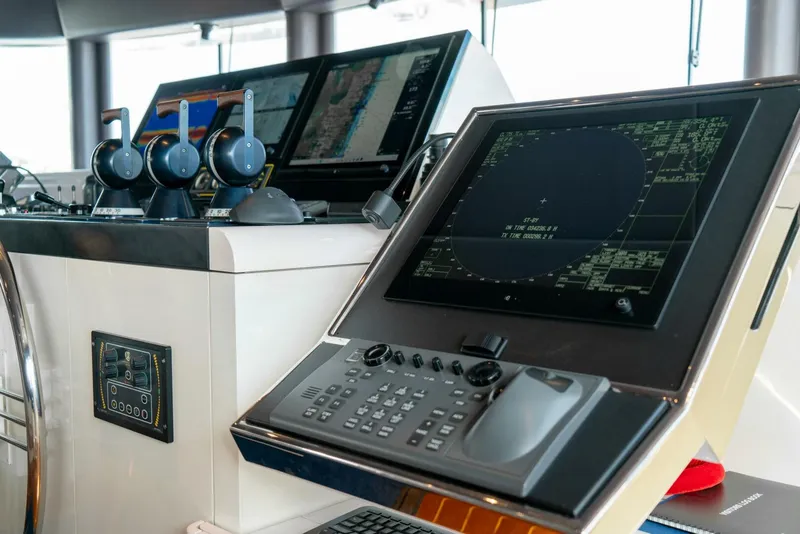

- Furuno X Band 2150 96 mi. radar Replacement new Magnetron (March 2020)
- Furuno S Band 2135 96 mi. radar Replacement new Magnetron (March 2020)
- B&G depth sounder
- Furuno FCV-1200L color LCD sounder
- Furuno depth sounder

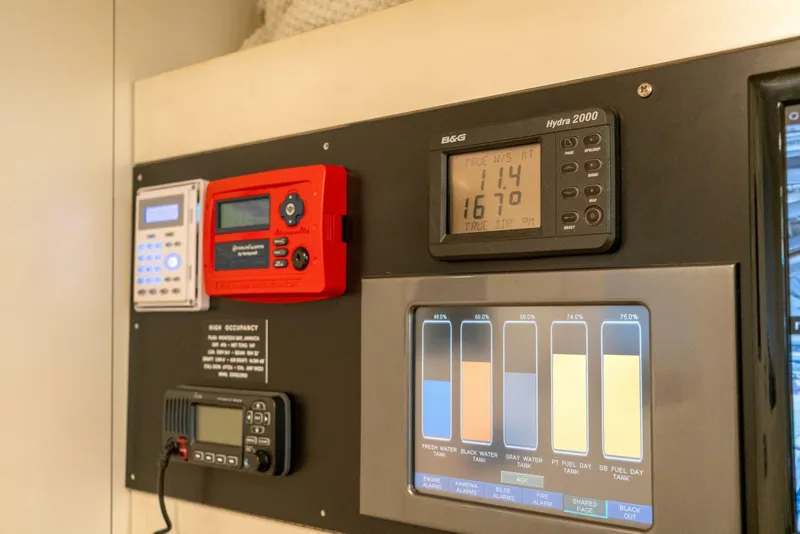

- B&G Hydra 2000
- 2 x JRC GPS Navigator
- GPS's Maptech Pro Course Plotter
- Furuno Felcom 12 GMDSS
- Inmarsat C
- Furuno FS -2575C GMDSS SSB Transceiver
- DSC Watch Receiver
- Furuno FS-1562-15
- Furuno DSC-60
- 2 x Furuno FM-8900 GMDSS VHF's
- Furuno FS-1562 SSB transceiver
- Weather fax Furuno Fax-207AIS
- Furuno FA-100JRC
- Navitex NCR-330
- 10 x ICOM VHF portables IC-M88
- 2 x 15" monitor screens
- 2 x B&G 2020 displays for bow thruster controls
- Telephone/Intercom PABX Panasonic KX-TD 1232
- 4 x Kahlenberg air horns
- Searchlight
- Weems & Plath clock & barometer
Audio Visual and Entertainment Equipment
9 x U.S. Direct TV receivers SeaTel Satellite DSS TV system
Sharp 60" TV w/HD receiver in Media Room/Study Sharp 40" flat screen in Master Stateroom Samsung 21" flat screen TV in Captain's Cabin Samsung 28" flat screen TV's in
Guest Staterooms Sharp 19" TV in Crew Mess
Deck Equipment
- 2 x Geographe vertical anchor windlasses
- 2 x Geographe GD 1000 aluminum warping capstans
- 2 x Harrison Croft stainless steel custom anchors, Poole stockless type, 270 kg each
- Spare anchor, Bruce 50 kg, with additional 3/4" chain
- NVK-2 19mm stud link galvanized chains, 450' each port & starboard Chains stowed in lockers w/watertight hatches in foredeck tender locker
- Saltwater Chain wash
- 6 x S/S custom fairlead's
- 7 x anodized aluminum mooring bits
- Marquipt electric / hydraulic passarelle which extends well out from center
- 2 x Veem 1750 tender davits, located P&S on aft boat deck 1,000lbs
- Marquipt crane on foredeck19' Novurania custom tender (New 2012)
Sundeck Open air observation lounge with Bimini top Amidships on deck washroom with separate toilet and shower stall Aft is octagonal 10-person Jacuzzi tub Centerline stairwells P&S down to aft boat deck New sound system with lighted speakers

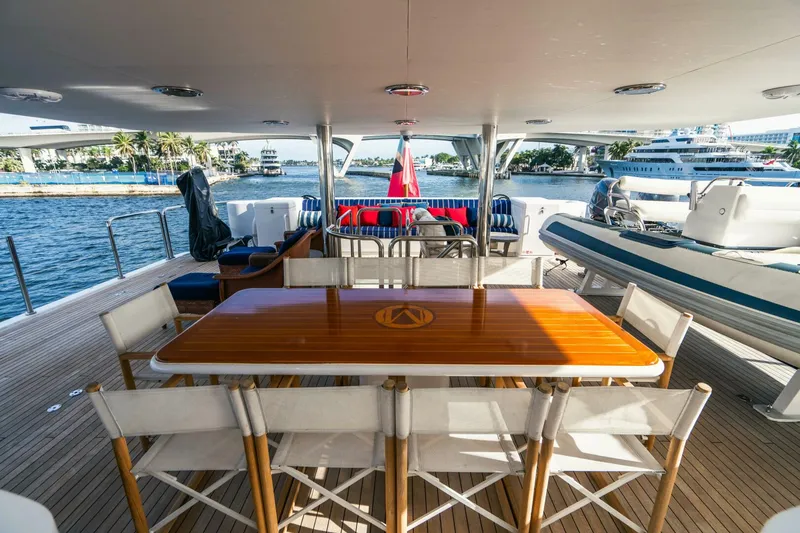

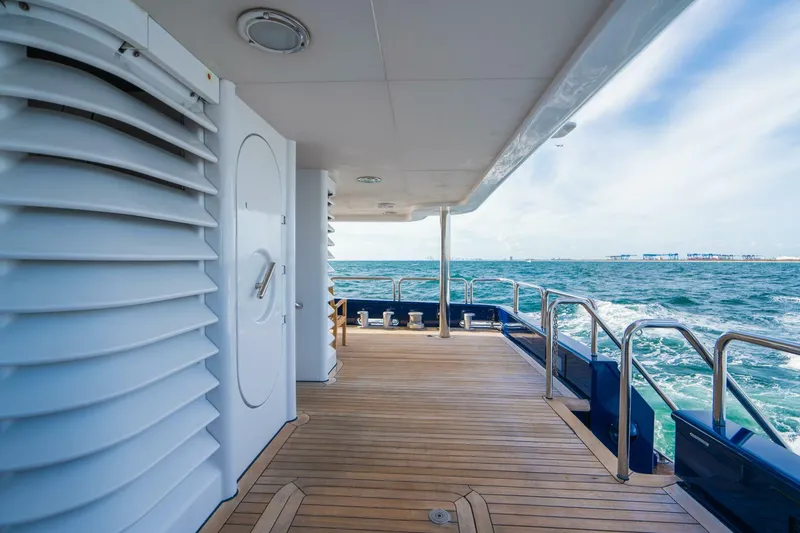

Aft Boat Deck Large dining area and deck seating aft with deck chairs & bench seating aft Owner's stateroom w/private entry aft to starboard P&S sliding doors to wheelhouse
Portuguese Bridge

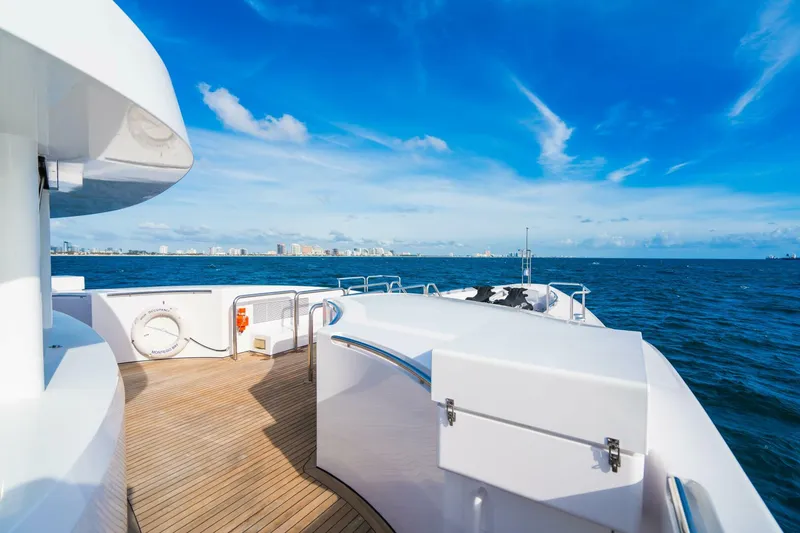

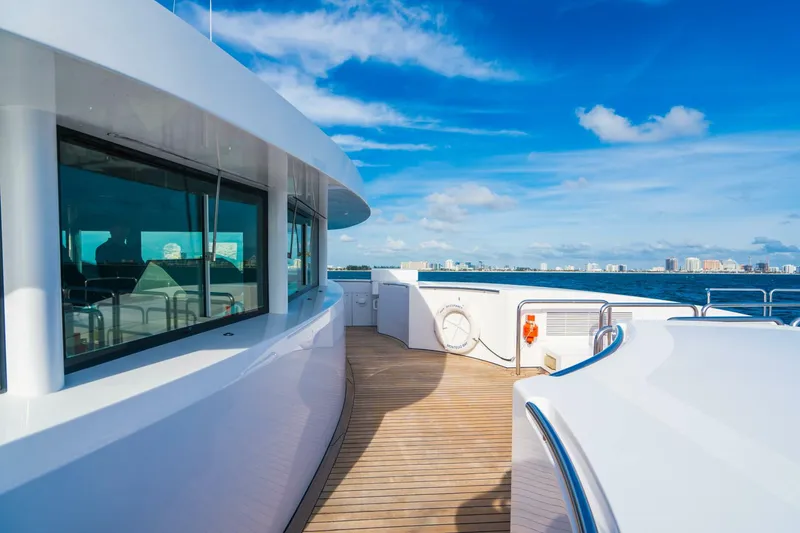

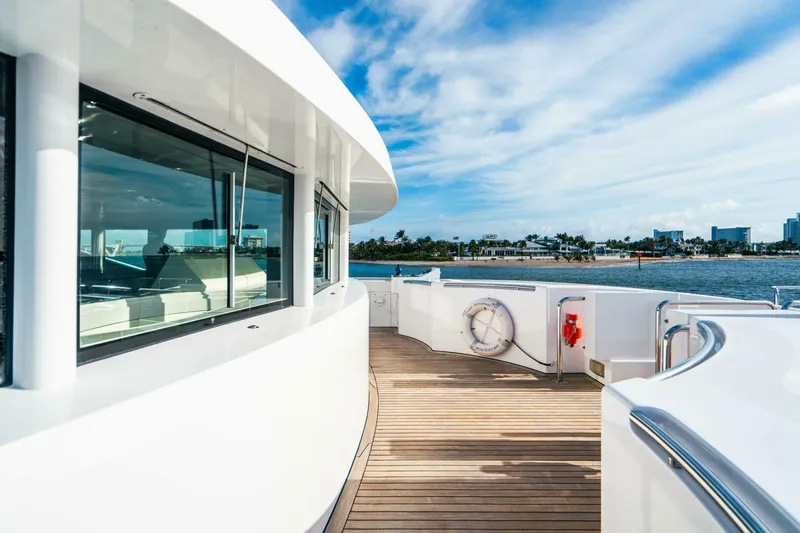

Foredeck Raised heavy duty S/S handrails P&S anchor windlasses Large deck hatch on center for tender stowage Port hatch entry to fwd. pump room P&S storage locker

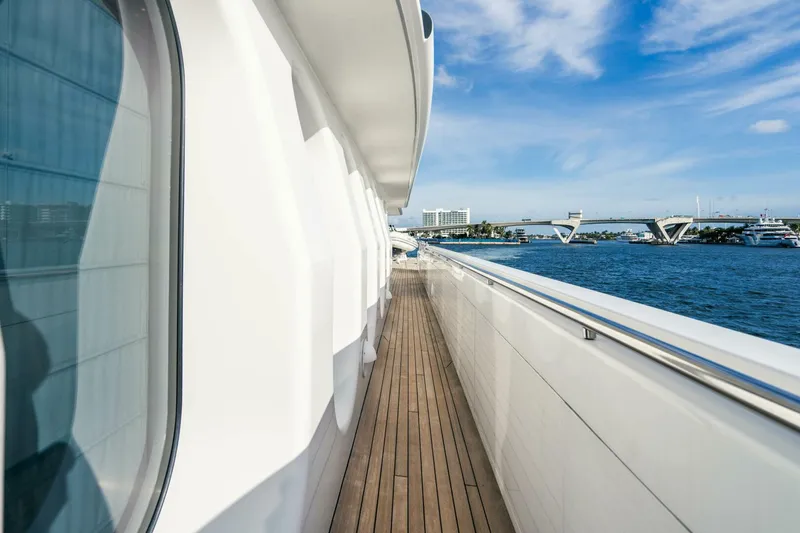

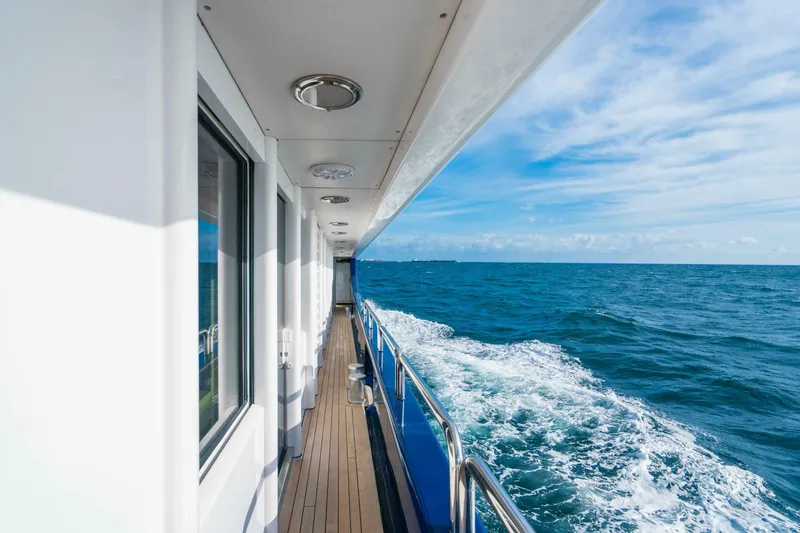

Main Deck Raised closed in bulwarks with heavy duty S/S handrail secured on top P&S access to main entry doors Boarding doors in hull sides
Overhead lighting Overhead closed-circuit TV cameras P&S aft guest entry doors New bar with white light-up Onyx

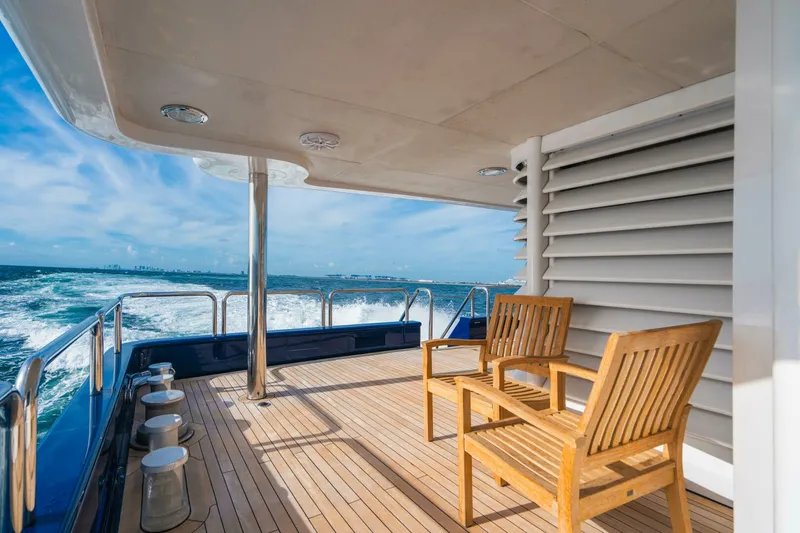

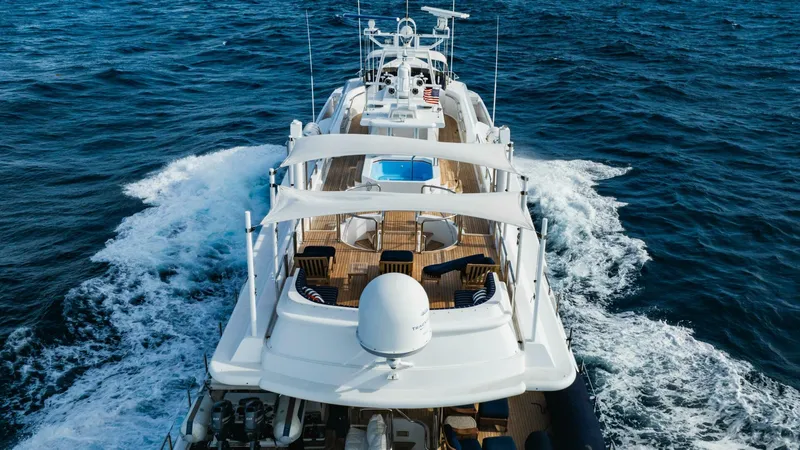

Aft Deck Lower closed in bulwarks with heavy S/S handrail secured on top Centerline stairway down to swim platform with removable S/S rail sections S/S handrails & courtesy
deck lights P&S side deck openings in bulwarks which are fairlead's and freeing ports S/S deck scupper drains in waterways Aft on centerline is stairway up to Owner's deck
Galley and Laundry Equipment
- Corian countertops
- 2 x 4-burner Garland Oven / Range Lang Hobs (2016)
- Hot griddle
- Hood Depot stove hood extractor system
- Wells deep fryer
- Wells BBQ grill
- LG Panasonic microwave (2016)
- APW express toaster
- Sub Zero freezer
- Hoshizaki icemaker
- Honeywell dual compressor refrigeration

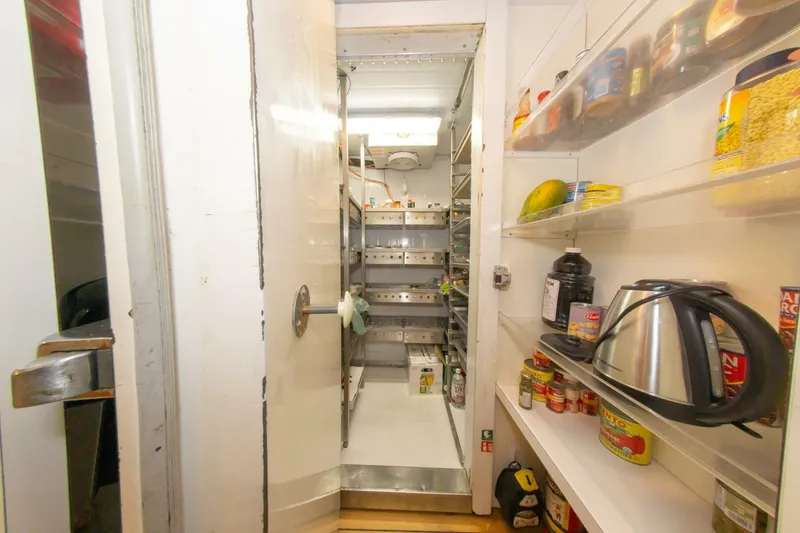

- Walk-in refrigerator, 72 cu.ft.Port & starboard walk-in freezers in crew area, 90 cu.ft. each
- Insinkerator garbage disposal
- 1 x Miele automatic dishwasher
- 2 x Miele Touchtronic W3033 washing machines
- 2 x Miele Touchtronic T8003 dryers Moyer
- Diebe dish washer
- Laurastar steam iron
- Wine cooler aft of galley, 2 x 27 bottle racks
- Scotsman refrigerator & icemaker at aft deck bar
Tender and Toys
- 19’ Novurania Tender
- 2 X Yamaha Waverunners
Price History
| Date | Event | Price |
|---|---|---|
| 7/16/24 | Initial price | $5,398,000 |
1989 Oceanfast 164 Custom Video Tours
Overview from around the web 1989 Oceanfast 164 Custom
Customers praise the 1989 Oceanfast 164 Custom for its exceptional craftsmanship and timeless design
Many highlight its spacious and luxurious interior, making it perfect for extended cruising and entertaining guests. The vessel's solid construction and reliable performance receive consistent commendation, with owners appreciating its smooth handling and stability on the water. Additionally, the classic styling combined with modern amenities offers a unique blend of elegance and comfort that continues to impress boating enthusiasts. Overall, feedback emphasizes the Oceanfast 164 Custom as a well-built, stylish, and comfortable yacht that stands the test of time.
The Biggest Pros and Cons
The 1989 Oceanfast 164 Custom is a notable luxury yacht with several strengths and some considerations to keep in mind. Here’s a summary of the pros and cons:
Pros
Spacious Design: With a length of 164 feet, this yacht offers expansive interior and exterior spaces, providing ample room for entertaining and comfortable living.
Custom Build: Being a custom-designed vessel, it often features unique layouts and high-end finishes tailored to the owner’s preferences.
Durability: Oceanfast is known for solid craftsmanship and quality construction, ensuring longevity and reliability.
Performance: Designed for both luxury and performance, it typically offers smooth cruising capabilities suitable for extended voyages.
Timeless Style: The classic 1989 design has a timeless appeal that many yacht enthusiasts appreciate.
Cons
Age: As a vessel built in 1989, it may require ongoing maintenance, updates, or refurbishments to modernize systems and amenities.
Fuel Efficiency: Older yachts of this size and era may not be as fuel-efficient as newer models, leading to higher operational costs.
Technology: Navigation, entertainment, and onboard systems might be outdated unless upgraded.
Operating Costs: Larger yachts generally come with higher costs for crew, docking, insurance, and upkeep.
Availability of Parts: Some components specific to this custom build may be harder to source due to the vessel's age and uniqueness.
Made For
The 1989 Oceanfast 164 Custom is designed for discerning yacht enthusiasts seeking a luxurious and spacious vessel that combines classic elegance with robust performance. Ideal for those who appreciate custom craftsmanship and expansive living areas, this yacht is perfect for extended cruising, entertaining guests, or enjoying private retreats on the water. Its size and design make it well-suited for experienced captains and owners who desire both comfort and versatility in their maritime adventures.
Be the first to know when similar boats hit the market
Get notified when new boats become available
Meet the Broker
Address
Other Information about YachtsBlue
A boutique brokerage firm and dealership catering to high-level clientele and providing exemplary support and service throughout the sales process and throughout ownership. We would like the opportunity to welcome you into the YachtsBlue family.
Boat Location
Contact YachtsBlue
757 NE 17th Street, Suite 704, Fort Lauderdale, FL, 33316
Login with Google
