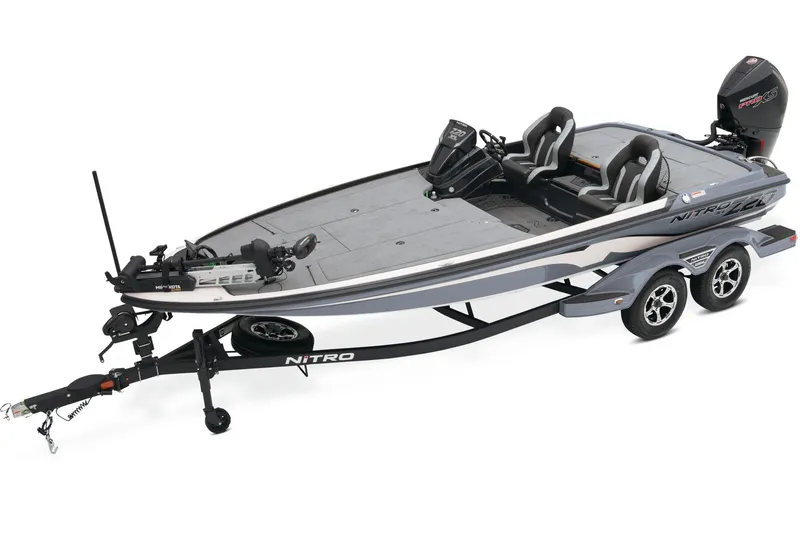

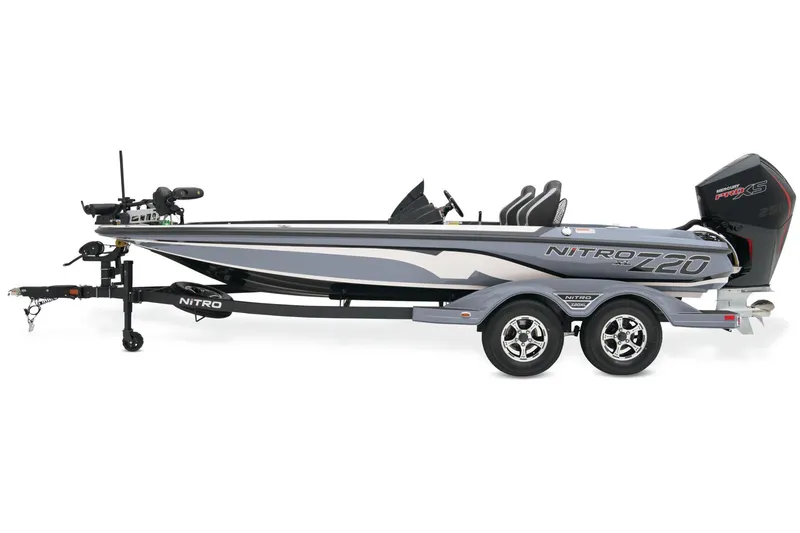

2026 Nitro Z20 XL Pro

$72,195

New

Boat in Springfield, TX 65898 US

builtBuilt in 2026
Year the boat was built
model

Z20 XL Pro

Boat model
engine

1 Engine (MERCURY MARINE)

Engine type and count
length

20.2 feet

Overall boat length
fuel

Gas

Fuel type
material

Fiberglass/Reinforced

Hull material
Base Price
$66,780
- Savings
$2,000
Special Price
$64,780
- Included Options
$5,720
- Prep
$495
- Freight
$1,200
Your Price
$72,195
Nominal Length
20.17ft
Length Overall
20.17ft
Beam
7.83ft
Drive Up Draft
1.33ft
Deadrise At Transom
16deg
Dry Weight
2000lb
Fuel Tanks
50gal
Hull Material
fiberglass
Hull Shape
modified-vee
Engine 1
Engine Make
MERCURY MARINE
Engine Model
225L PXS4 TQM 1.75
Total Power
225hp
Engine Type
outboard
Fuel Type
gasoline
Additional Details
  • Length:20' 2"

  • Beam: 7' 10"

  • Bottom Width: 6' 3"

  • Max. Recommended HP: 250 HP

  • Fuel Capacity: 50 gal.

  • Max. Person Capacity: 4 persons

  • Max. Person Weight: 575 lbs.

  • Max. Person, Motor & Gear Weight: 1750 lbs.

  • Interior Depth: 18"

  • Transom Height: 22"

  • Deadrise: 16 degrees

  • Draft: 16"

  • Average Dry Weight: 2000 lbs.

  • Average Package Weight: 4050 lbs.

  • Package Height: 6' 1"

  • Package Width: 8' 6"

  • Towing Length: 27' 0"

  • Storage Length: 23' 8"

Standard Features

PRO

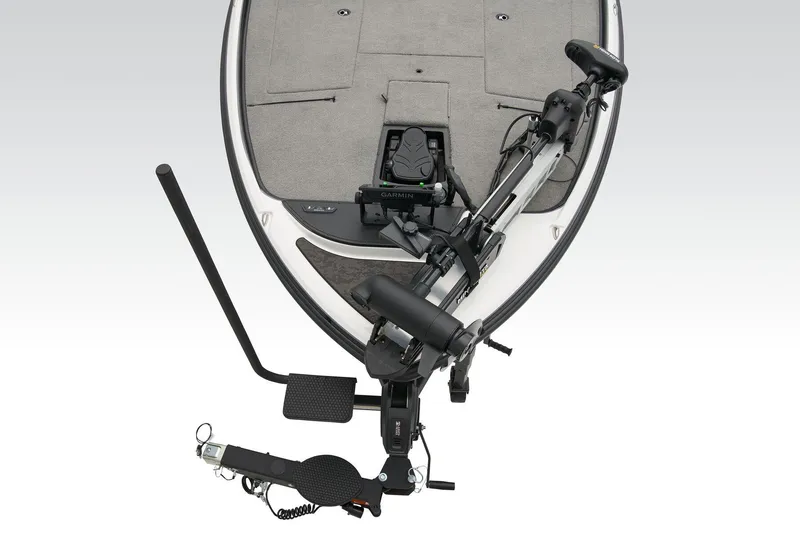

  • NEW Garmin® Force® Pro 36V, 80-lb. (36.29 kg) thrust, 50” (1.27 m) shaft trolling motor

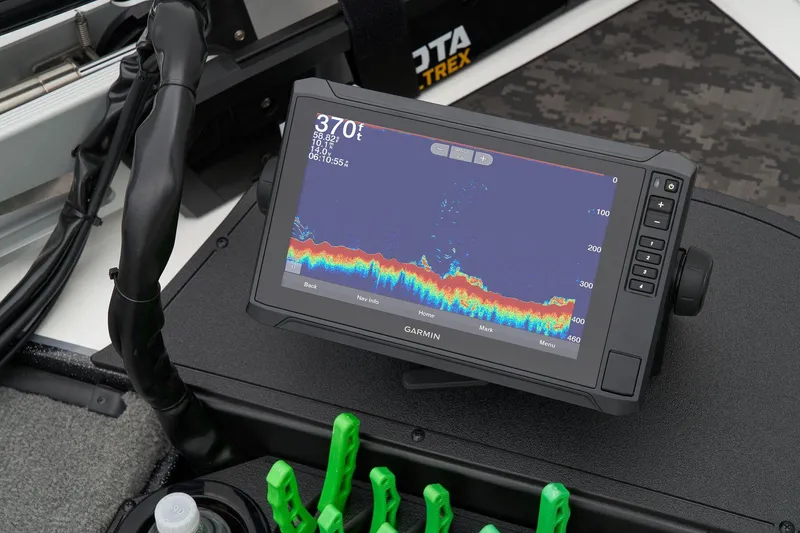

  • Bow Garmin® ECHOMAP™ UHD2 9” (22.86 cm) sv gimbal-mounted fishfinder w/LiveScope™ Plus System

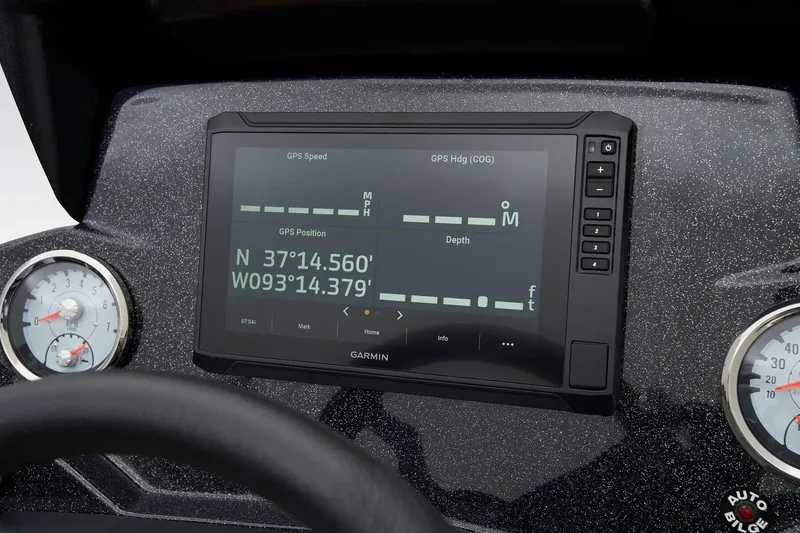

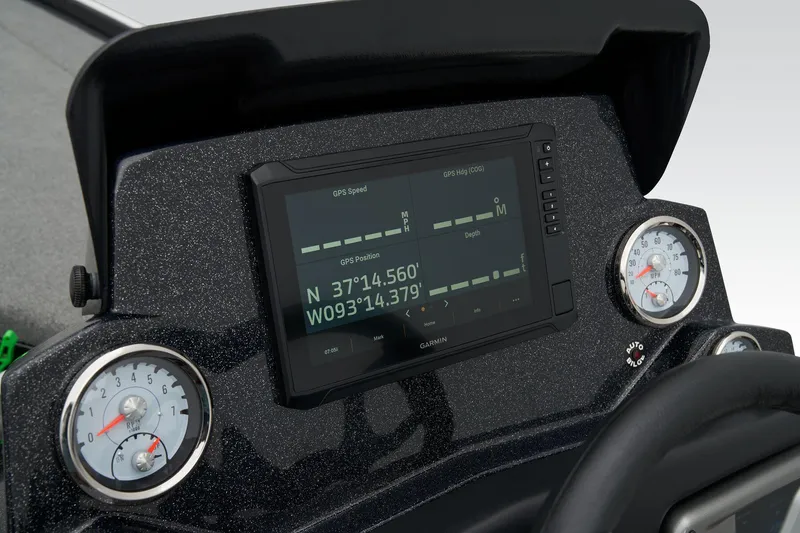

  • Console Garmin® ECHOMAP™ UHD2 9” (22.86 cm) sv flush-mounted fishfinder w/GT36UHD & GT8HW-IH

  • Power-adjust pneumatic lumbar support for driver’s seat

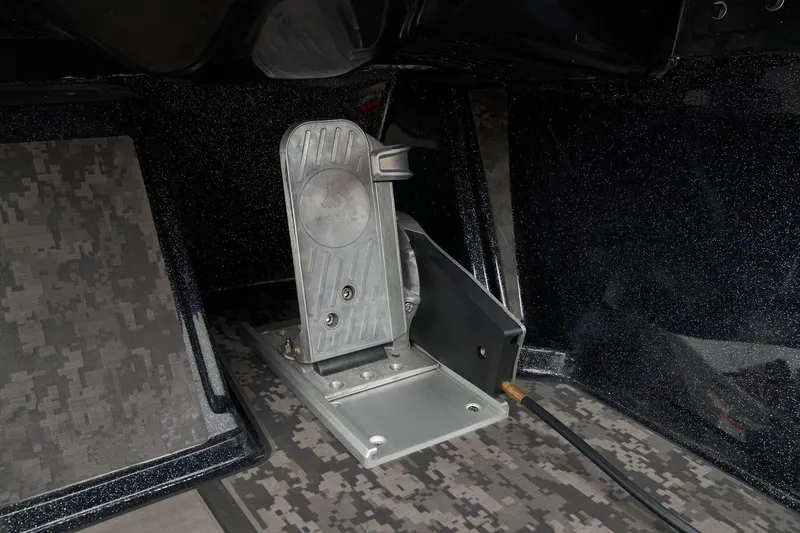

  • Hot Foot® throttle

  • Pro-Trim lever

  • Livewell culling system

  • Factory-applied keel protector

  • 1 standard & 1 automatic bilge pump

  • 4-bank, 40-amp battery charger

Comfort, Convenience & Peace of Mind

  • NMMA® certified

  • Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements

  • EPA-compliant fuel system

  • Anti-fatigue, padded comfort bow deck

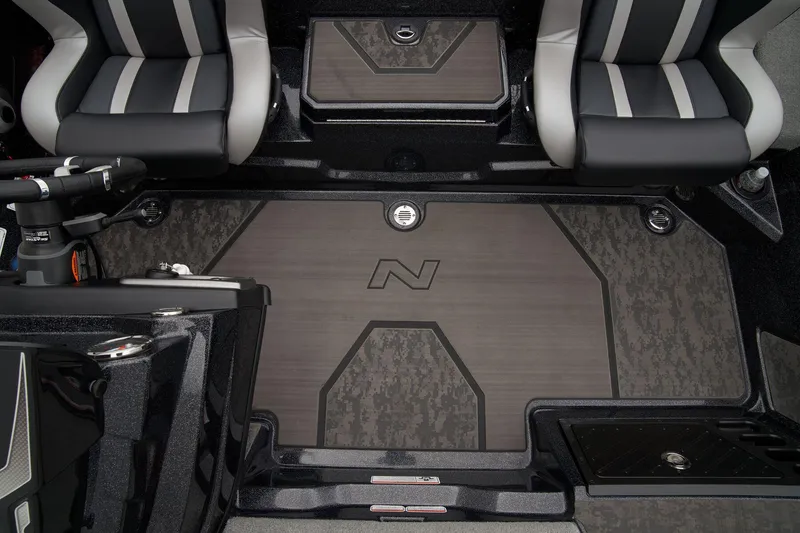

  • Digital Camo non-skid bow & stern mats

  • Low-profile gunnels to maximize deck size & for easier casting

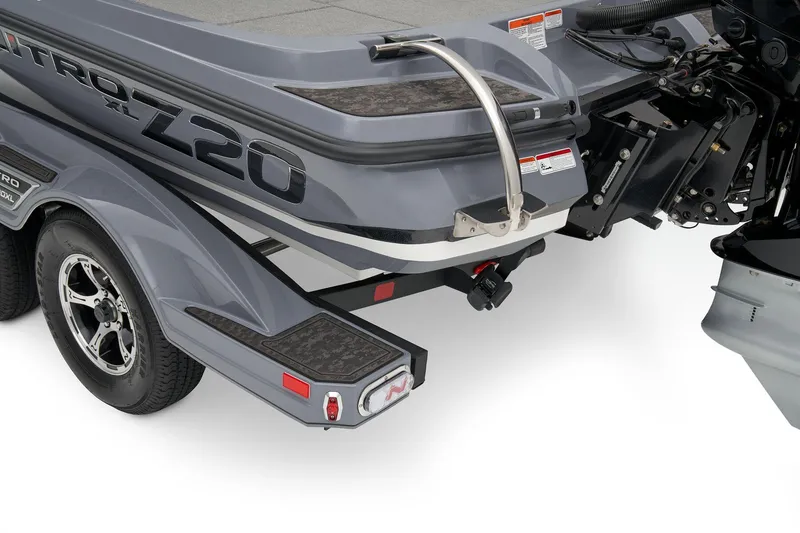

  • Integrated fold-down stainless steel reboarding ladder, angled for allowing optional shallow-water anchor

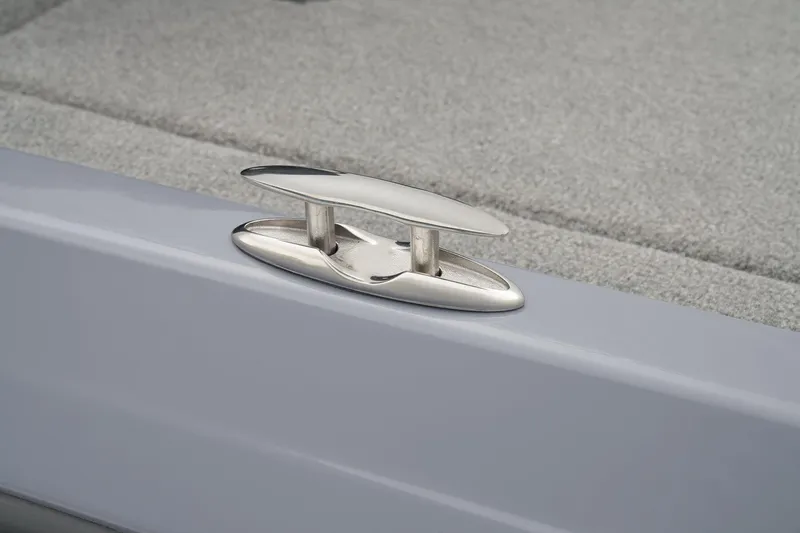

  • 4 stainless steel pull-up cleats

  • 4 grab handles (1 at each seat)

  • Fire extinguisher

  • Horn

  • Paddle

Livewell System

  • 2 aft 19-gal. (71.92 L) insulated, rotomolded GUARDIAN™ livewells w/digital timers & rounded corners

  • 500 GPH (1,893 LPH) aerator/fill pump

  • 750 GPH (2,839 LPH) livewell recirculation/pump-out system

  • Livewell control valve

  • Dual remote drain controls

Trolling Motor

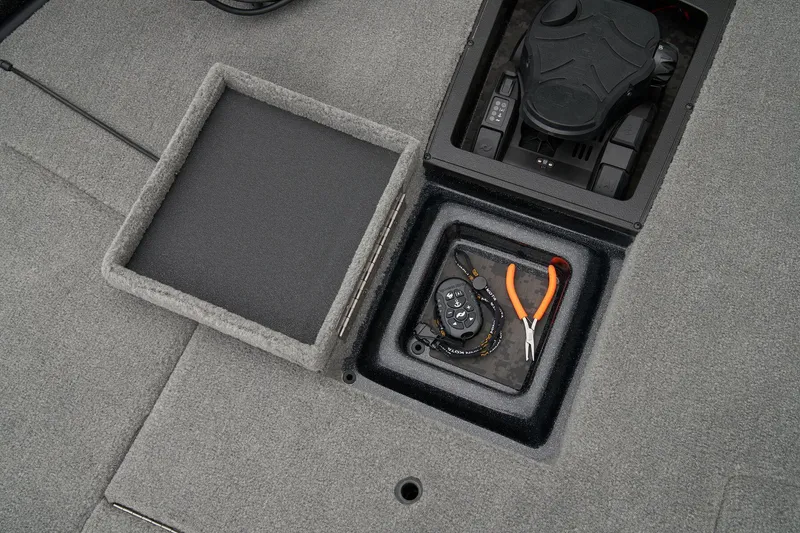

  • Trolling motor pedal recess

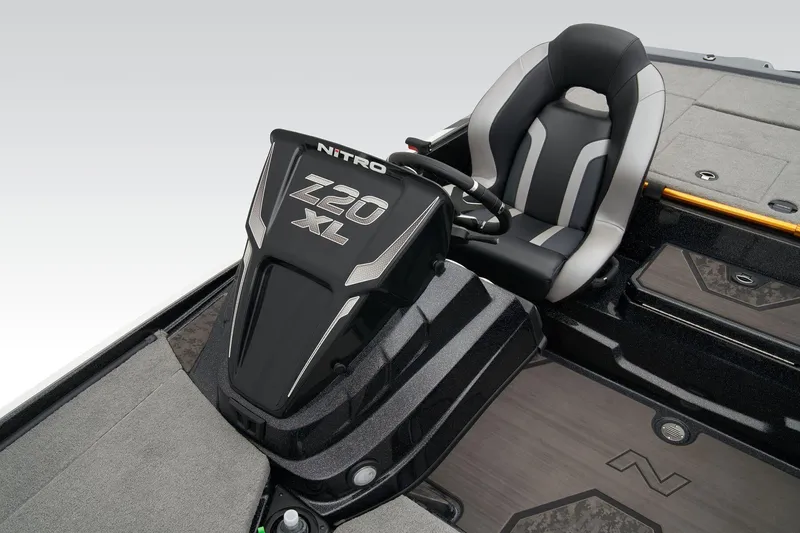

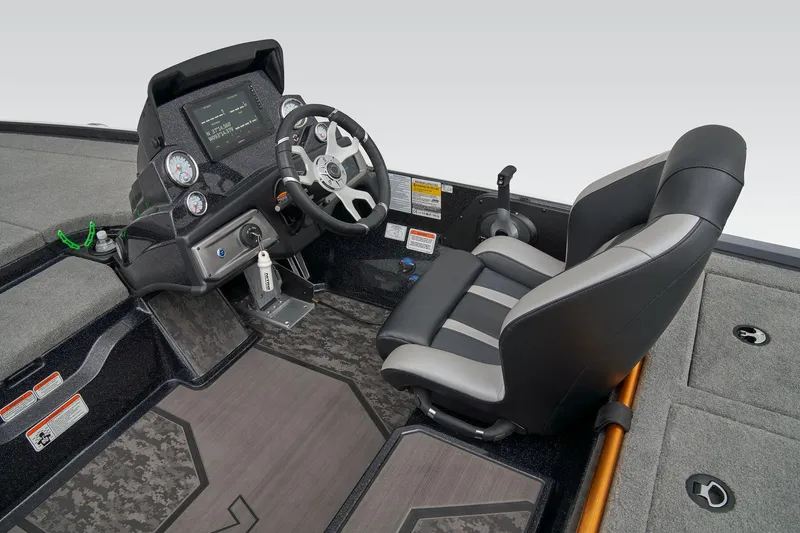

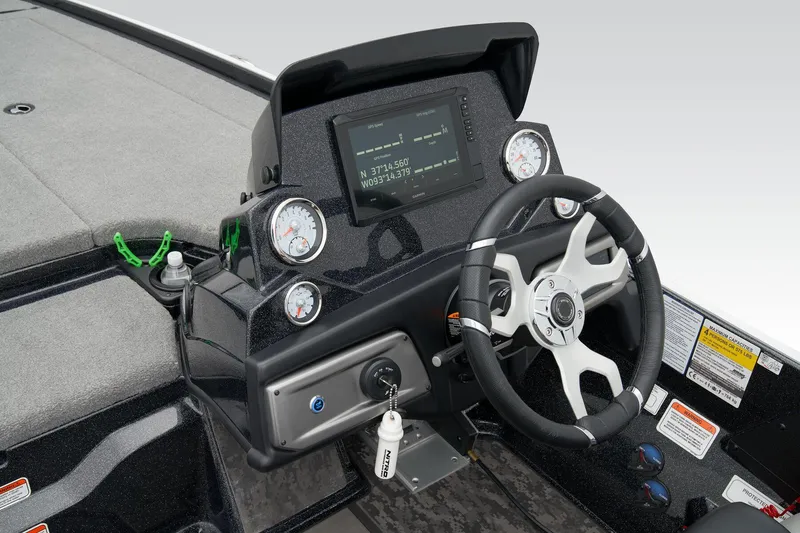

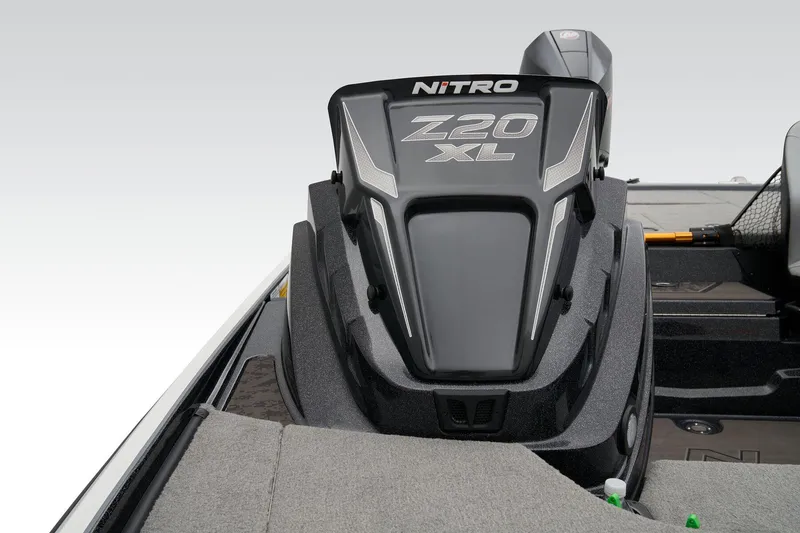

Console

  • Modular, aerodynamic console design w/expanded leg clearance & large fishfinder surface

  • Removable acrylic, tinted plexiglass windscreen

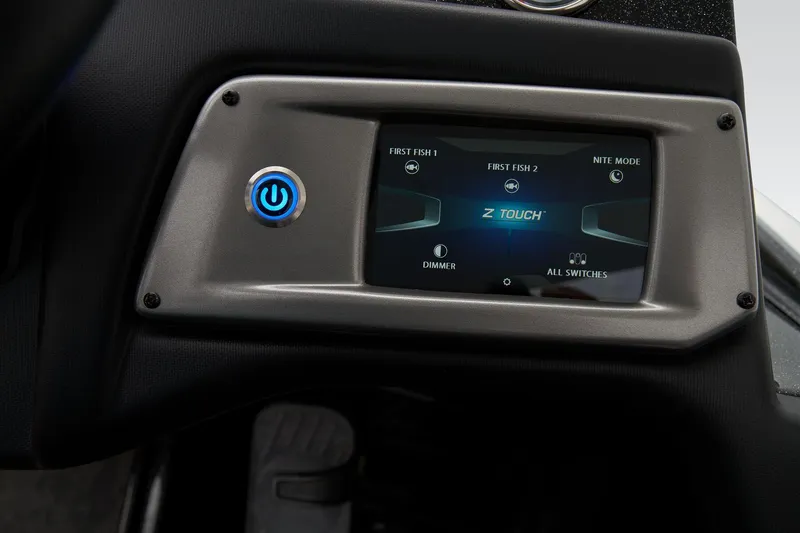

  • 5" (12.7 cm) digital touchscreen control

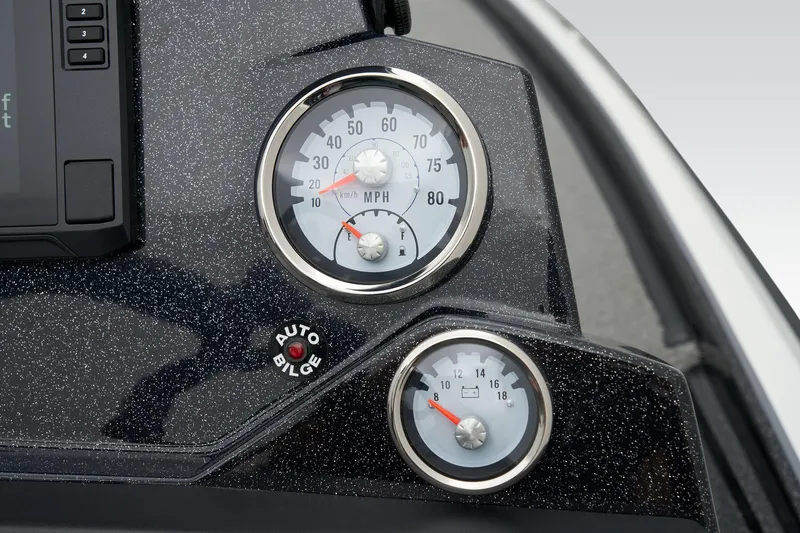

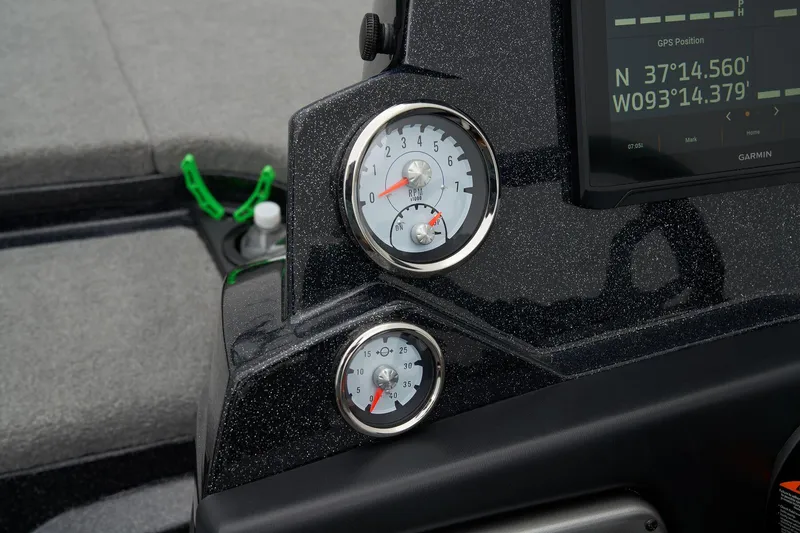

  • NEW Z3 digital gauges

  • Dash light dimmer

  • Tilt hydraulic steering

  • 12V outlet

  • LED courtesy light

  • Ready to accept optional removable port console

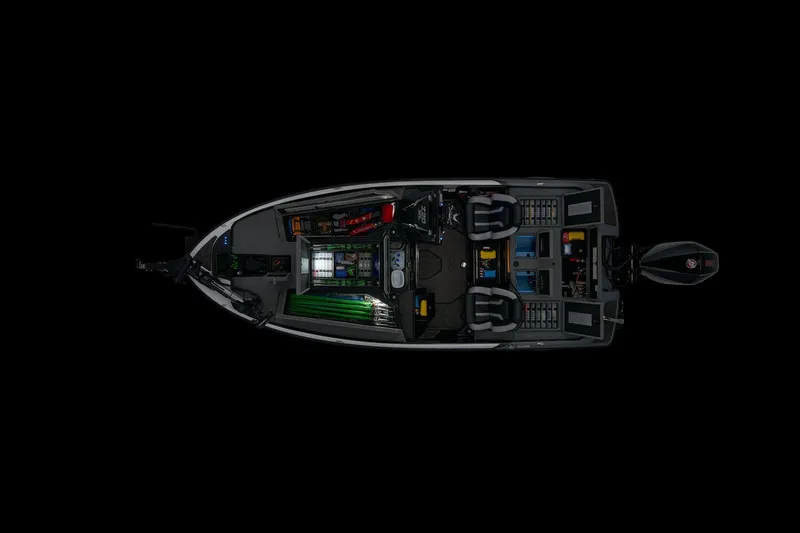

Interior

  • 42.5-sq.-ft. (4.0-sq.-m) anti-fatigue, padded bow deck for comfort & casting mobility

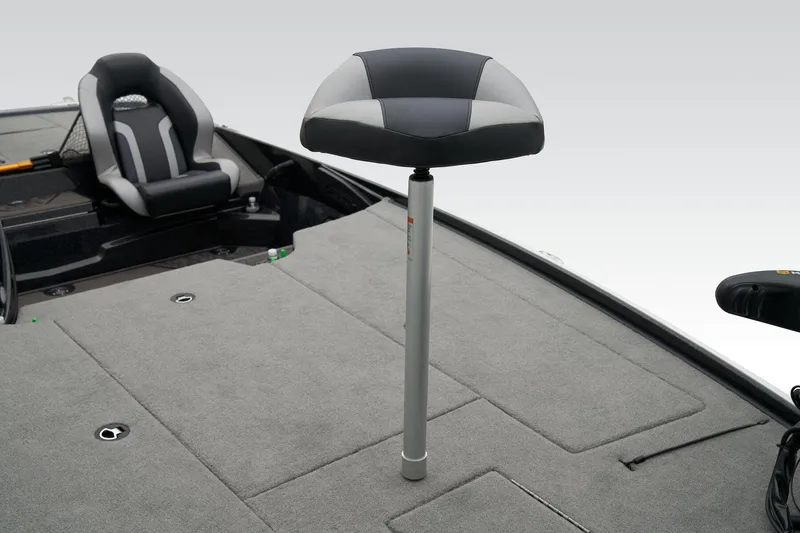

  • Bike seat w/pedestal

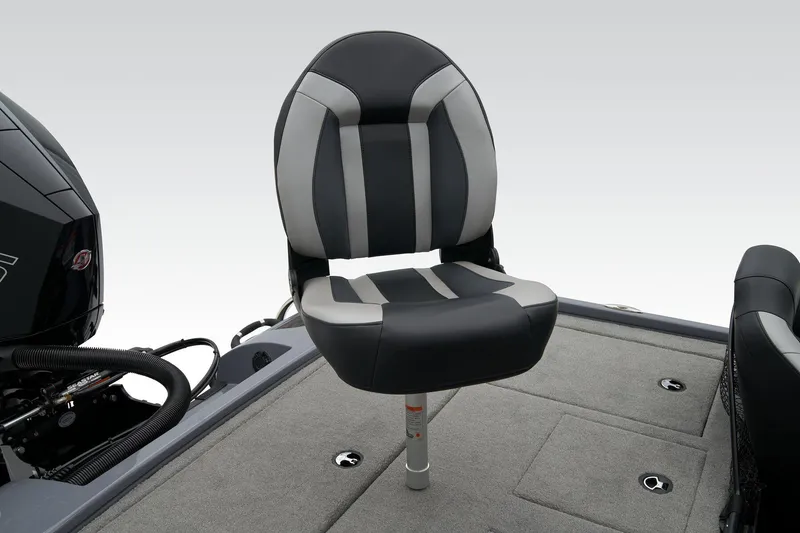

  • Folding fishing seat w/composite frame

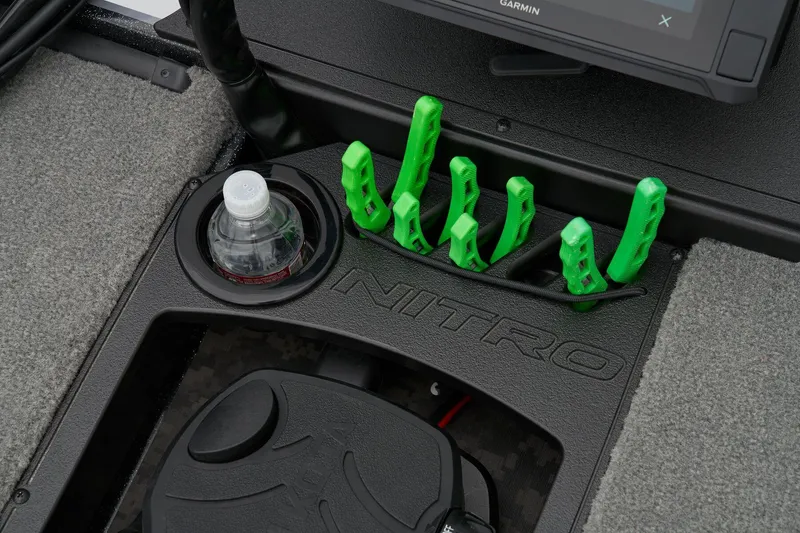

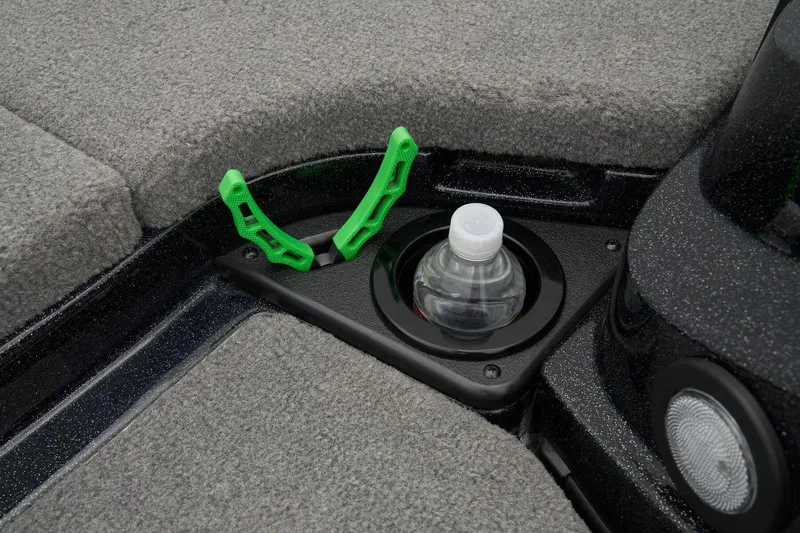

  • Bow tool/drink holder

  • Bow port & starboard rod hold-down straps

  • Molded-in drainage channels around bow storage compartments

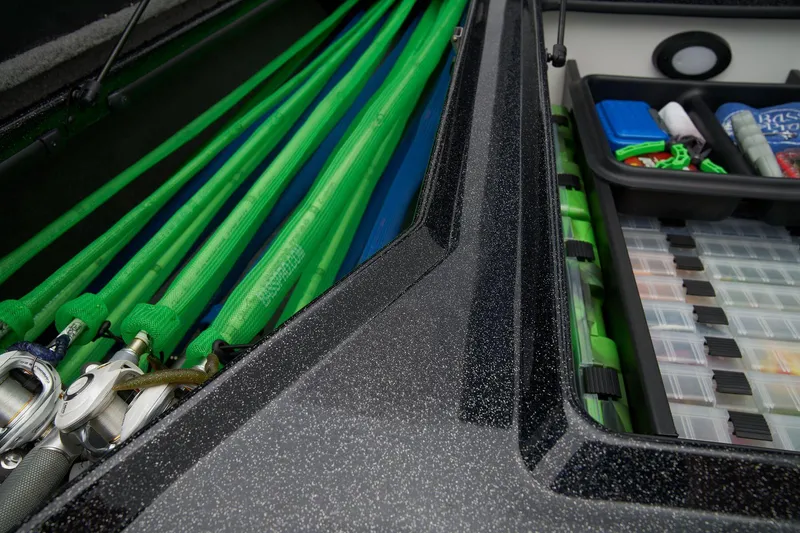

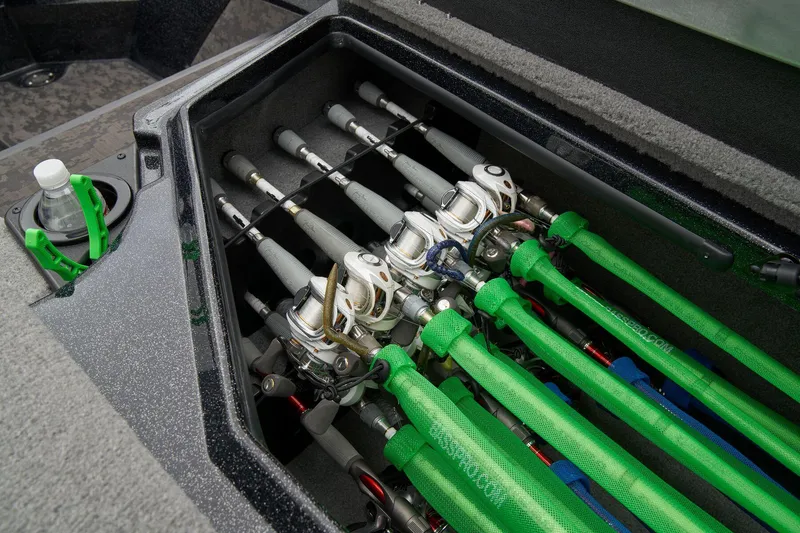

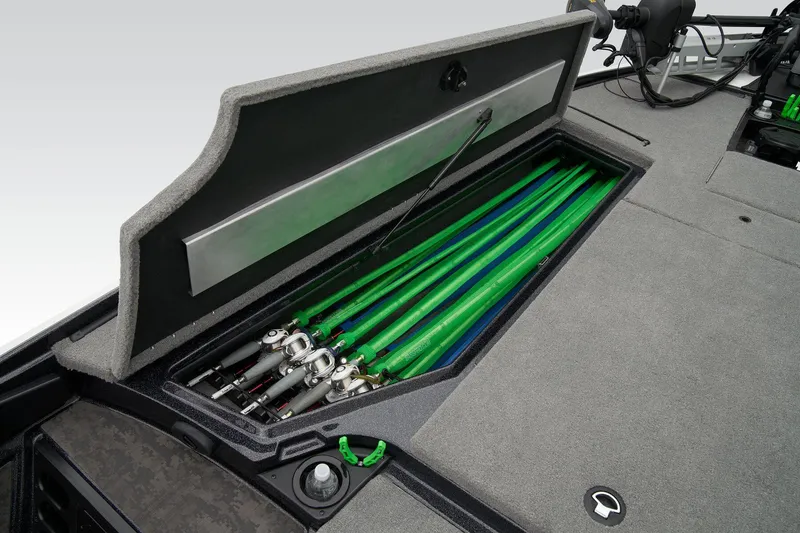

  • Oversized, lockable bow port & starboard rod lockers w/lift assists for rods up to 8' (2.44 m)

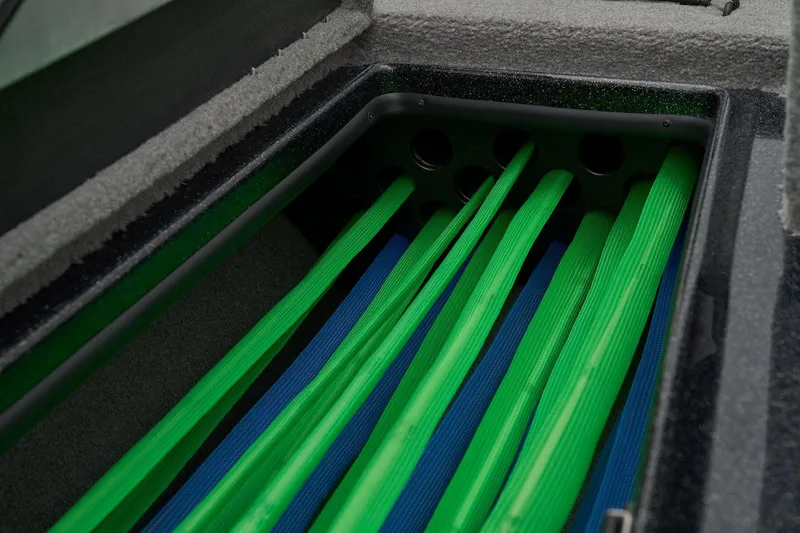

  • Rod organizer in bow port rod locker

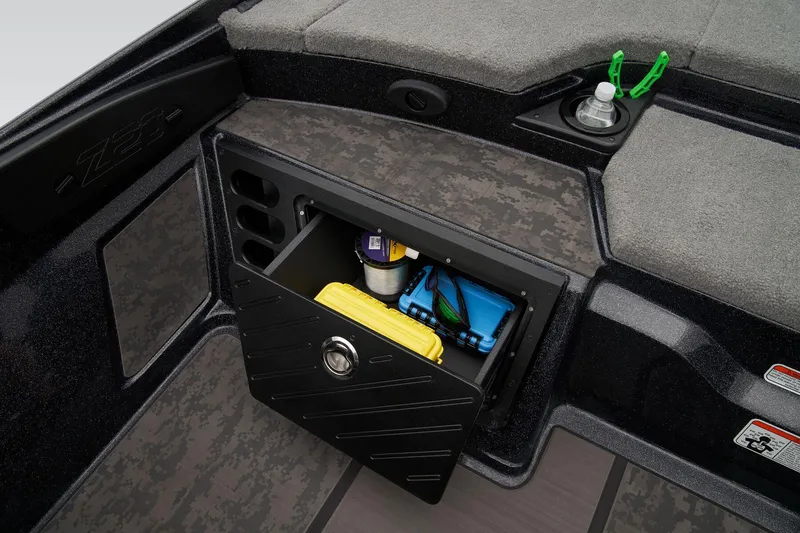

  • NEW bow integrated day box

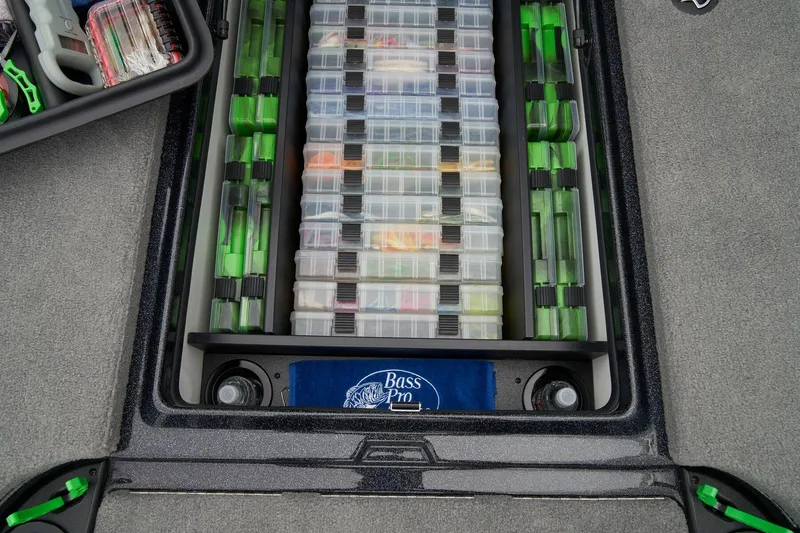

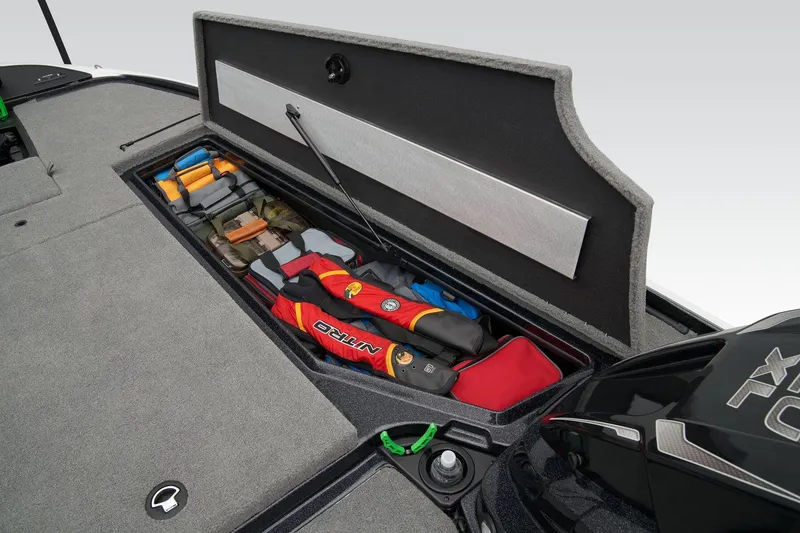

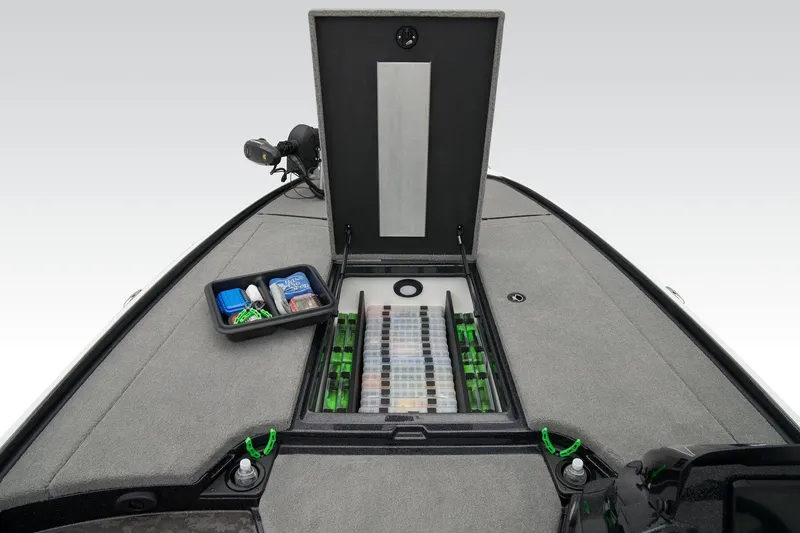

  • Oversized lockable bow center storage locker w/TACKLE MANAGEMENT SYSTEM™

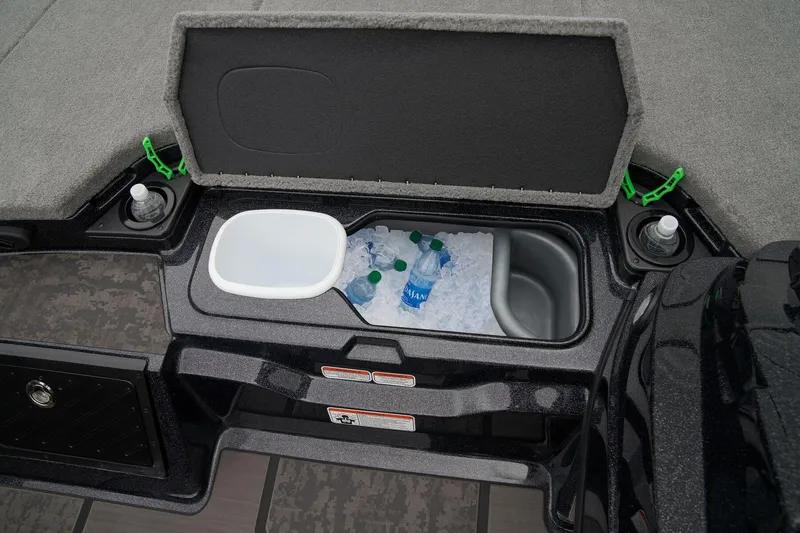

  • Step to bow deck w/62-qt. (58.67 L) insulated cooler, removable trash receptacle & snap-in sandwich tray

  • Footrest w/non-skid mat under console(s)

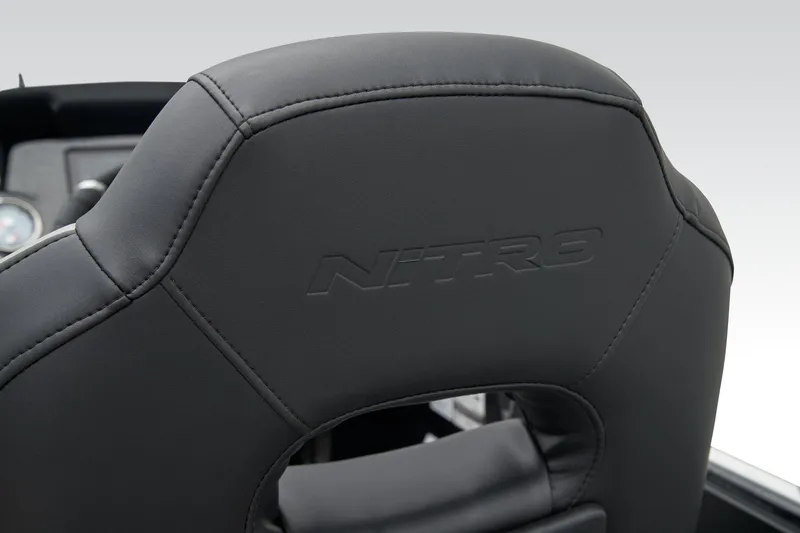

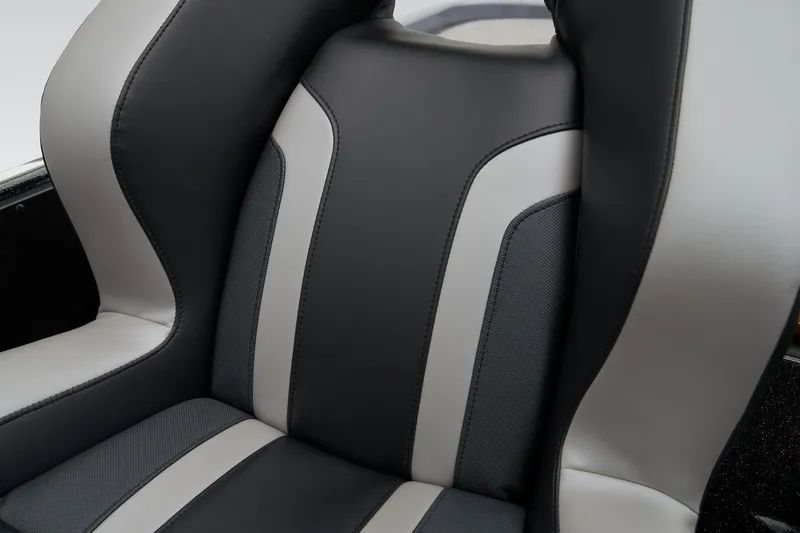

  • Z-CORE™ seating system w/Force Flex suspension & contoured, rotomolded frame for driver & passenger seats

  • Low driver & passenger flat seat mounting

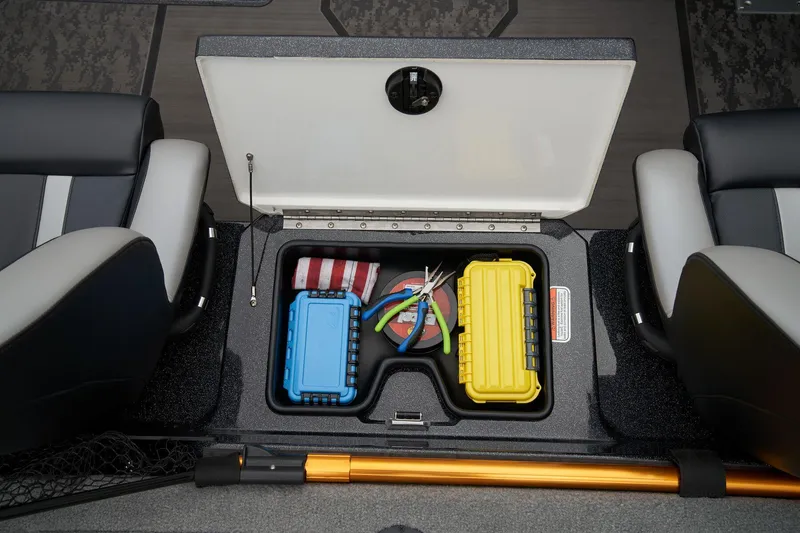

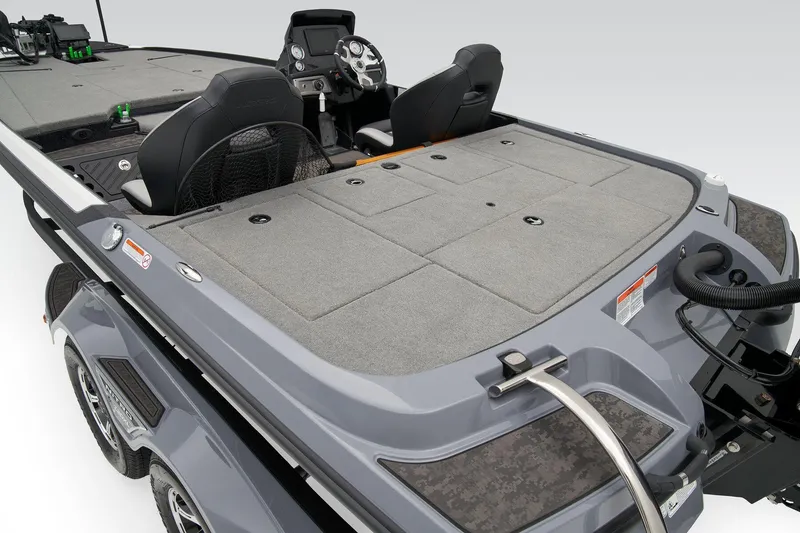

  • Step to aft deck w/lockable storage & removable tub

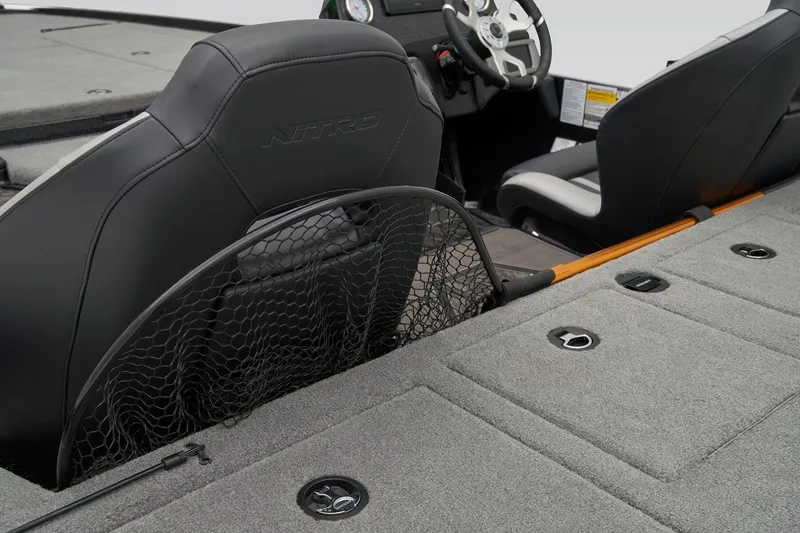

  • Designated net storage behind seating

  • Built-in tournament ruler & holder

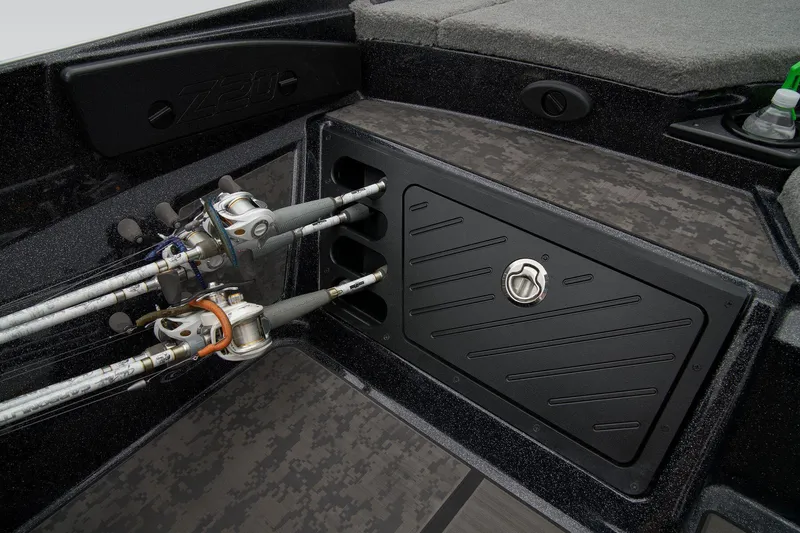

  • Passenger rod ramp w/rod handle organizer & hold-down strap

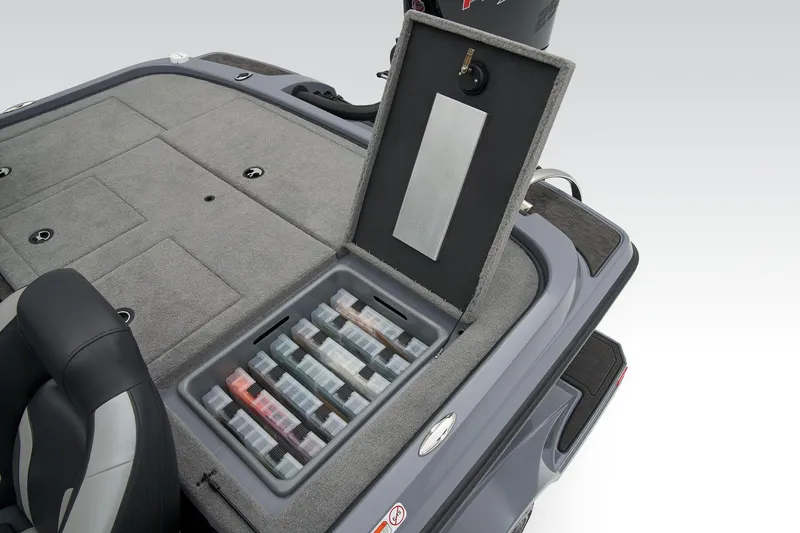

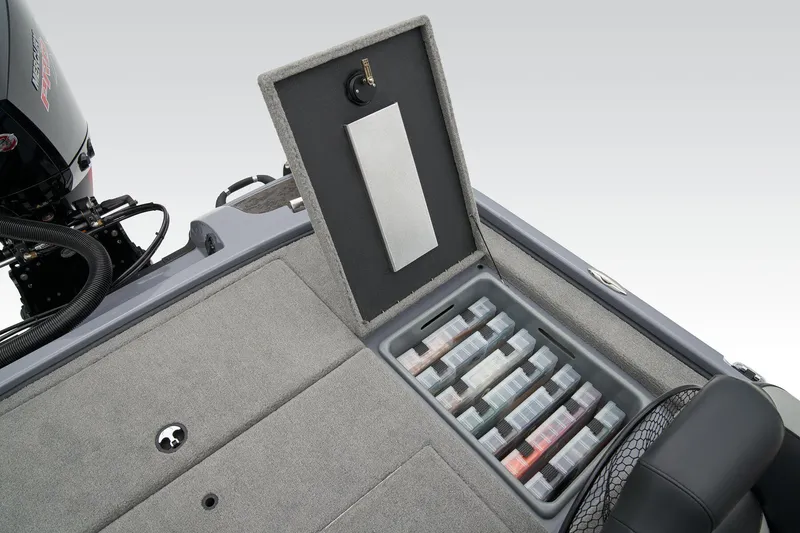

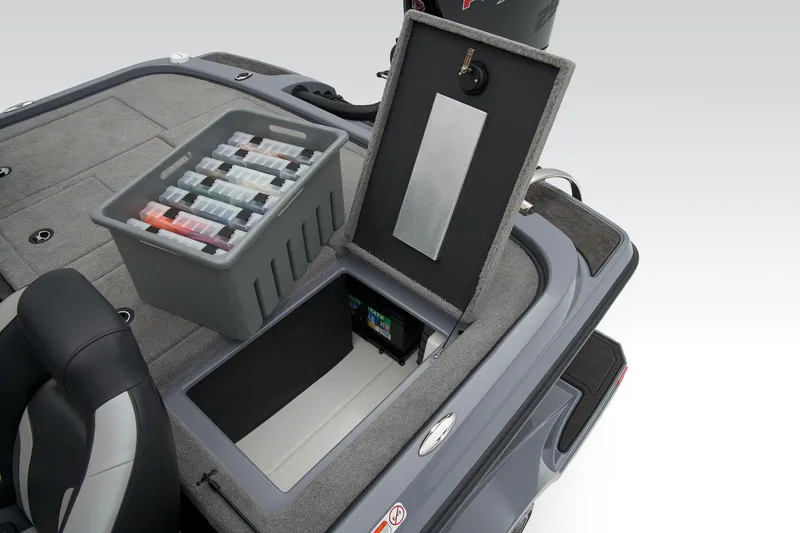

  • 2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays

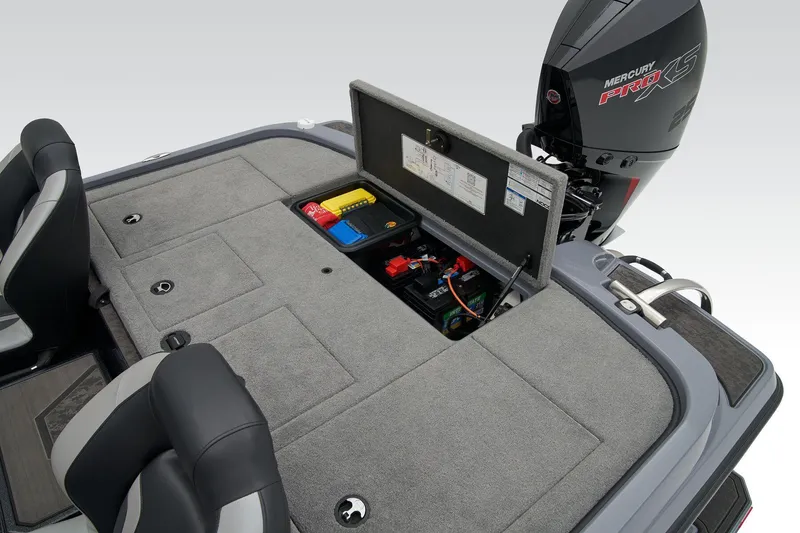

  • Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup

  • Insulated aluminum lids w/welded corners

  • 16-oz. (.45 kg) plush, marine-grade cut pile carpet on decks & floor

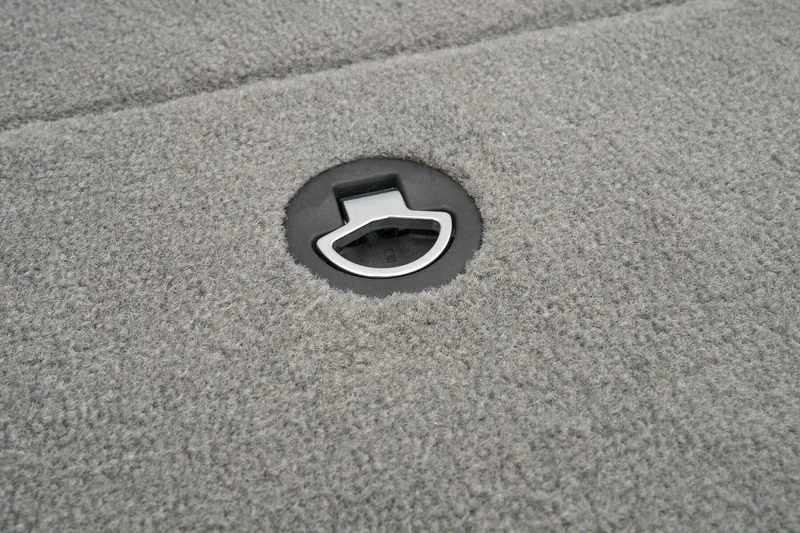

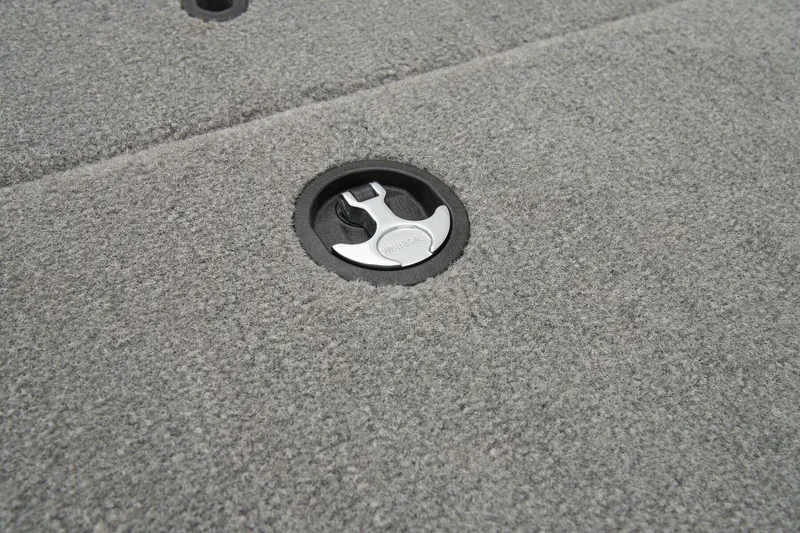

  • Stainless steel lockable slam latches

  • Lift-out tool/rope storage tray in rigging compartment

Performance

  • NITRO VORTEX TECHNOLOGY™ (NVT™) hull for a smoother, drier ride

  • RAPID PLANING SYSTEM™ (RPS™) for quicker holeshots & maximized speed

  • 12" (30.48 cm) adjustable jack plate—Black

  • Rigging tube for organized wiring & abrasion resistance

  • Stainless steel propeller

Construction & Exterior

  • 100% composite deck core w/superior thermal stability & strength-to-weight ratio

  • Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2" (5.08 cm)

  • Gelcoated stringer/liner system

  • Foam-filled hull for optimal buoyancy & safety

  • Full-width fiberglass-encapsulated composite transom

  • Splashwell protective film

  • Black hardware

Electrical

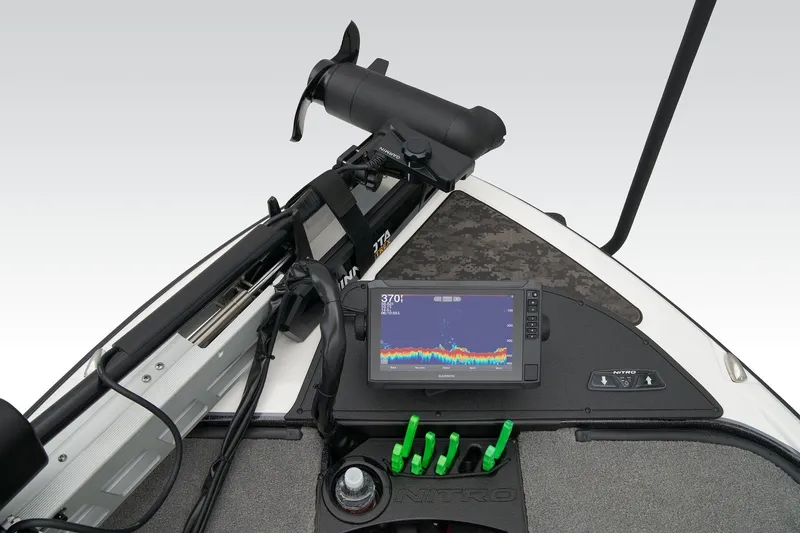

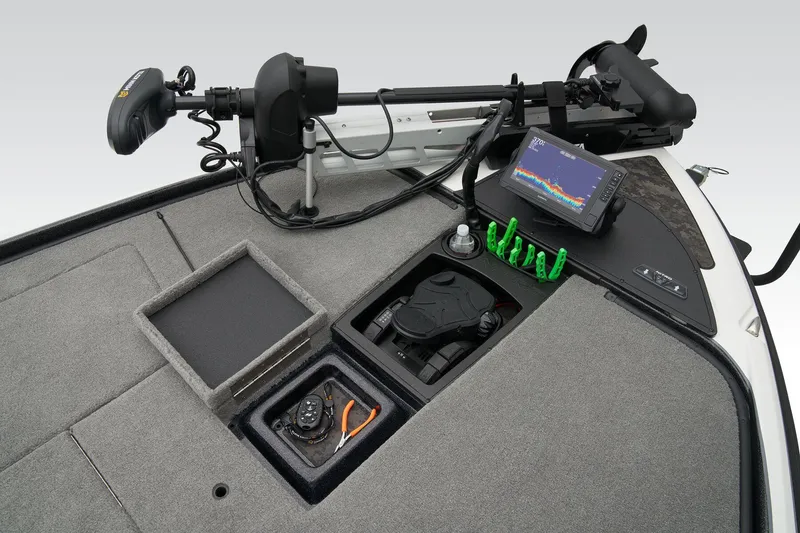

  • Angled bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount most 12" (30.5 cm) fishfinders

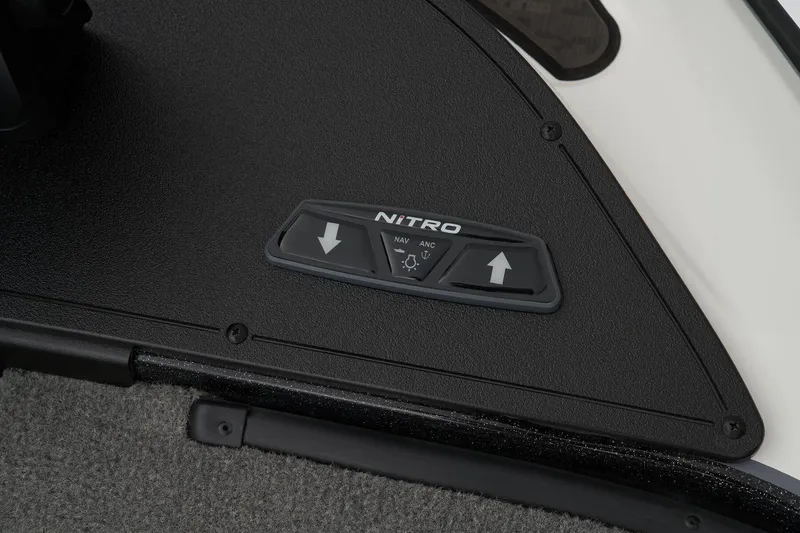

  • NEW wireless bow keypad

  • LED console courtesy light

  • Manual LED-lighted bow gear storage

  • Interstate® cranking battery

  • 3 heavy-duty Interstate® trolling batteries

  • NOCO® GB40 jump starter pack

  • 6-gauge trolling motor wiring w/50-amp circuit breaker

  • NEW single, completely-sealed ECM

  • Automotive-style labeled fuse panel w/cover

  • Master power switch

  • Waterproof Deutsch connectors on gauges

  • Water- & abrasion-resistant connectors

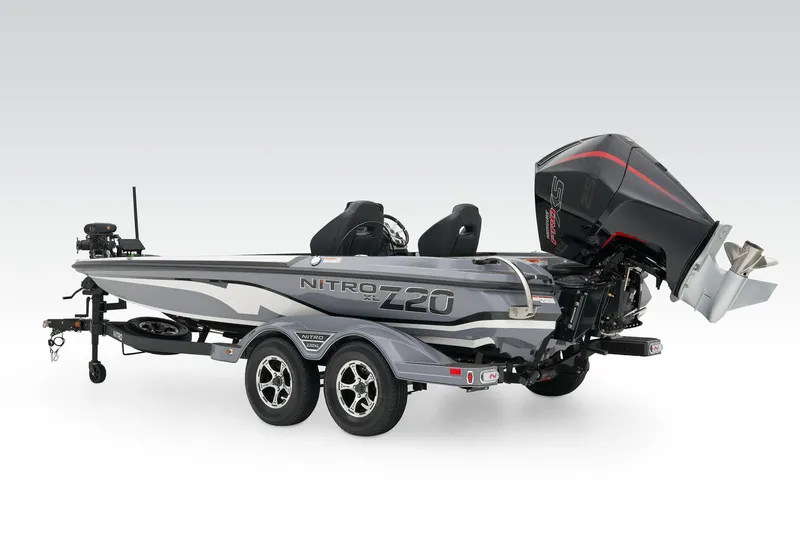

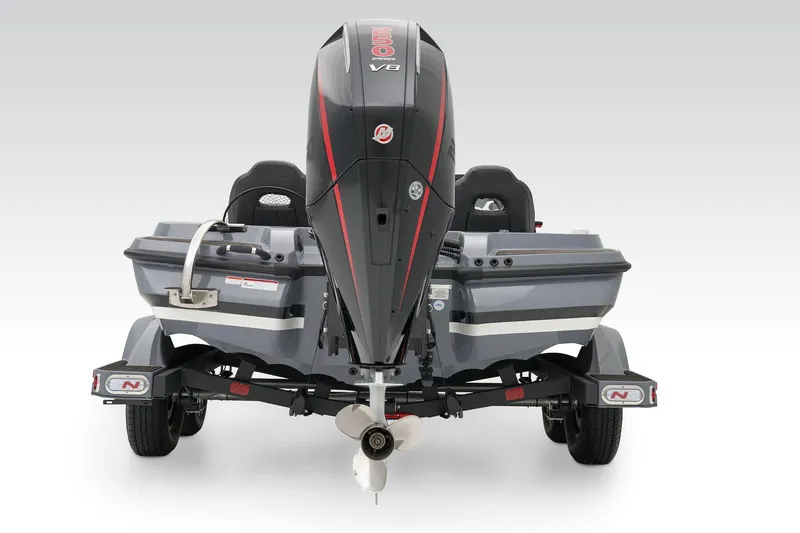

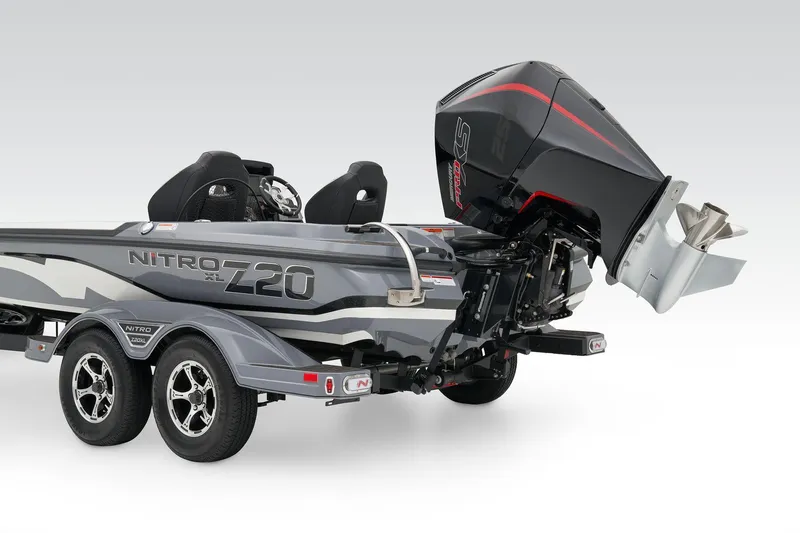

Trailer

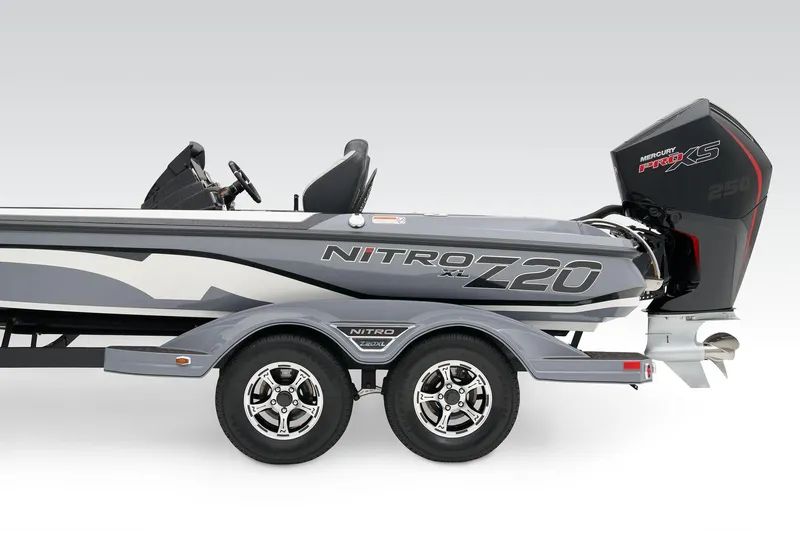

  • Custom-fit, tandem-axle steel NITRO® trailer w/enhanced stability & performance

  • Surge disc brakes on both axles

  • 14" (35.56 cm) aluminum wheels w/radial tires

  • Hub system w/1-year limited warranty

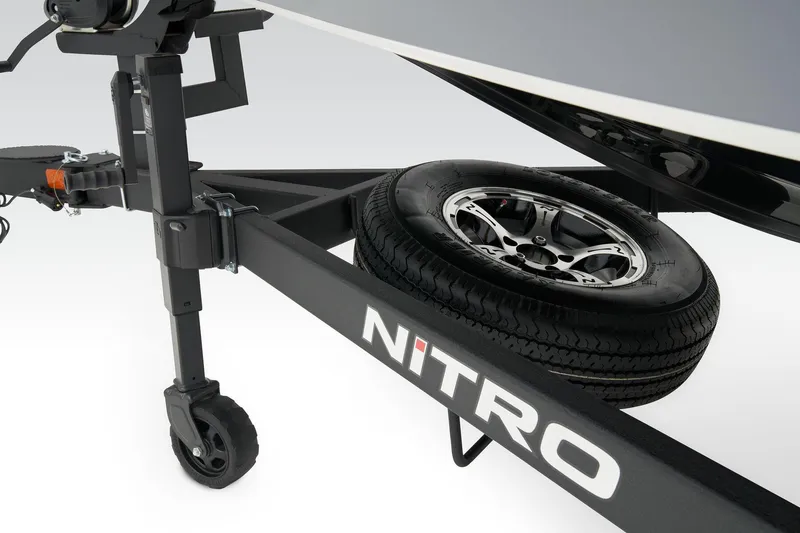

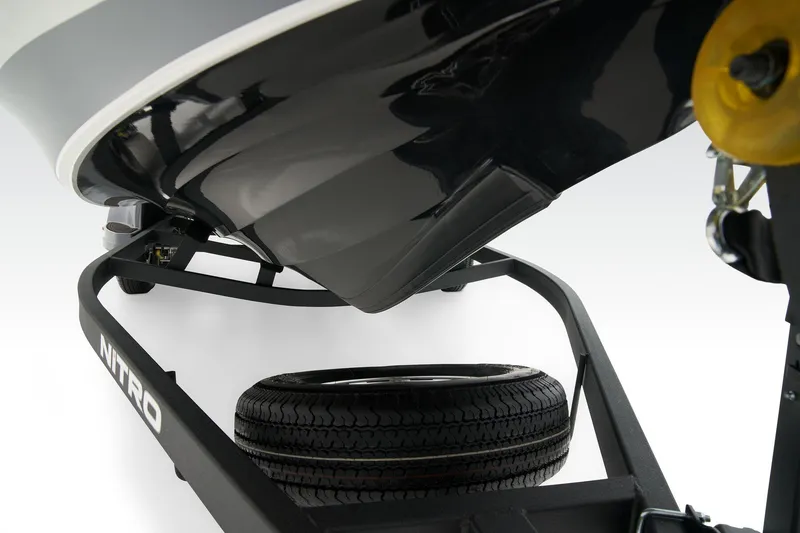

  • Spare tire carrier w/matching spare

  • All-welded rectangular GALVASHIELD® frame

  • 7-pin connector

  • Space-saving swing-away tongue to reduce storage length

  • Fold-away tongue jack

  • Heavy-duty winch w/nylon strap & bow safety strap

  • Integrated winch stand step & safety handle for boarding at bow while boat is on trailer

  • Outboard motor support to reduce hull & transom stress while towing

  • Carpeted bunks & fender boards to protect hull

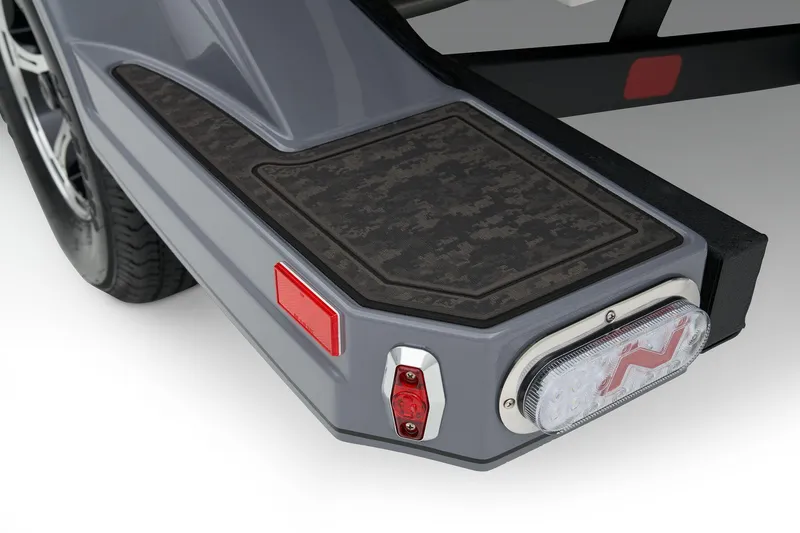

  • 6" (15.24 cm) oval LED tail lights w/integrated back-up lights

  • Retractable transom tie downs

  • Safety cables

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.

Price History

DateEventPrice
1/3/26Price decreased$72,195(-2.7%)
12/27/25Price increased$74,195(+2.8%)
12/26/25Price decreased$72,195(-2.7%)
10/24/25Initial price$74,195

Overview from around the web 2026 Nitro Z20 XL Pro

Customers are raving about the 2026 Nitro Z20 XL Pro, highlighting its exceptional performance on the water and sleek design

Many praise its powerful engine options and smooth handling, making it a top choice for serious anglers. The spacious and well-organized deck layout receives frequent compliments for providing ample room to fish comfortably, while the advanced electronics and fishing features enhance the overall experience. Users also appreciate the durable construction and attention to detail, noting that the Z20 XL Pro delivers both reliability and style. Overall, feedback reflects a strong satisfaction with the boat's combination of power, functionality, and innovative features.

The Biggest Pros and Cons

The 2026 Nitro Z20 XL Pro offers a range of advantages and a few considerations to keep in mind:

Pros

Spacious Design: The XL layout provides ample room for anglers, making it ideal for both solo and group fishing trips.

Advanced Electronics Integration: Equipped with the latest fish-finding and navigation technology to enhance your fishing experience.

Powerful Performance: Designed with a high-performance hull and reliable engine options that deliver excellent speed and handling on the water.

Durable Construction: Built with quality materials ensuring long-lasting durability and resistance to harsh water conditions.

Versatile Storage: Multiple storage compartments help keep gear organized and easily accessible.

Cons

Price Point: As a premium fishing boat, it may have a higher initial cost compared to smaller or more basic models.

Size and Maneuverability: The larger size can make it less maneuverable in tight or shallow waters.

Fuel Consumption: Powerful engines may lead to higher fuel usage during extended trips.

Made For

The 2026 Nitro Z20 XL Pro is designed for serious anglers who demand top-tier performance on the water. Ideal for tournament fishermen and passionate bass anglers, this boat offers advanced features, superior handling, and ample storage to enhance every fishing adventure. Whether you're targeting trophy bass or exploring new fishing spots, the Nitro Z20 XL Pro delivers the power, precision, and reliability you need to elevate your game.
