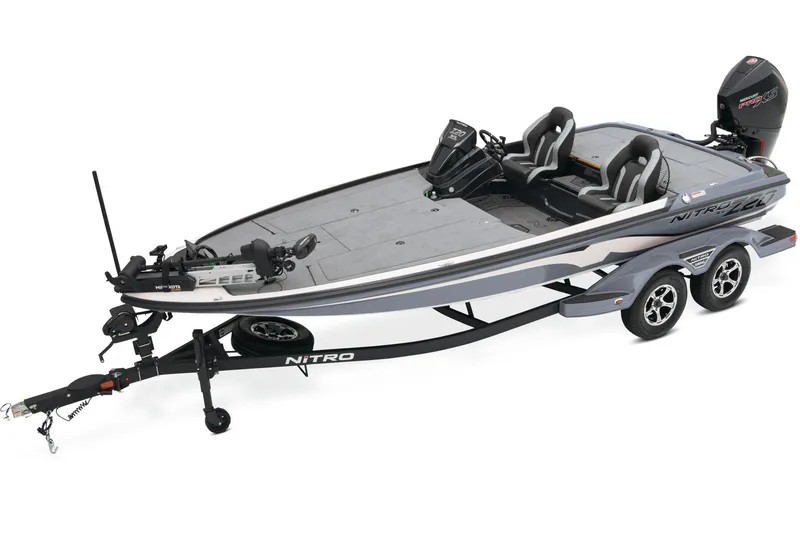

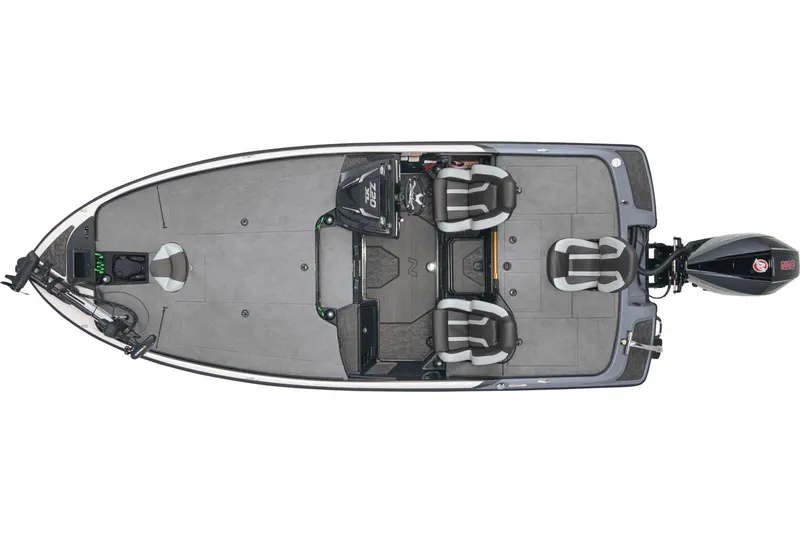

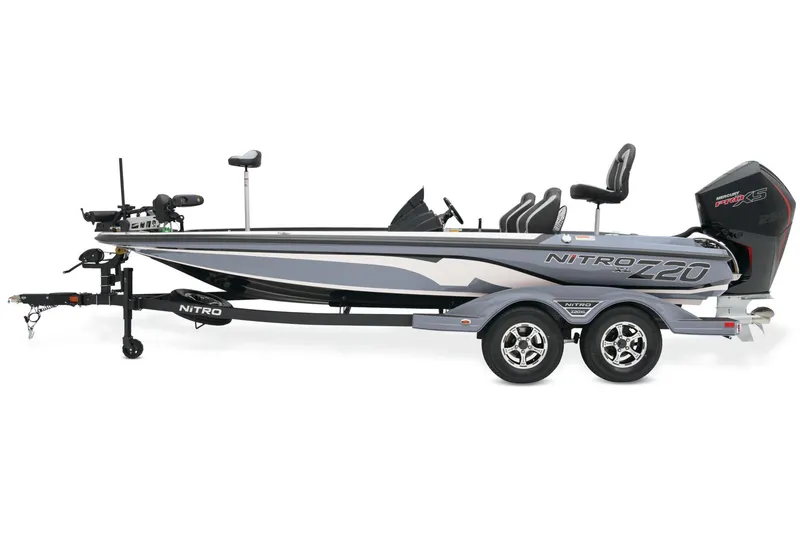

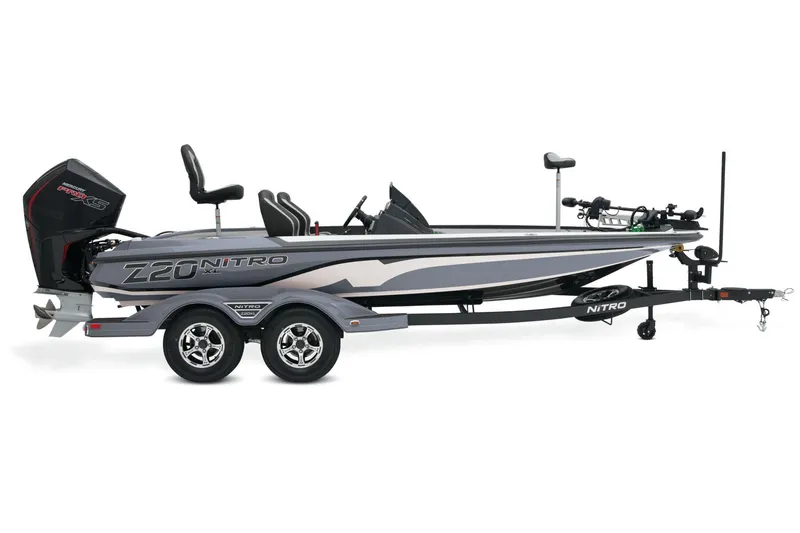

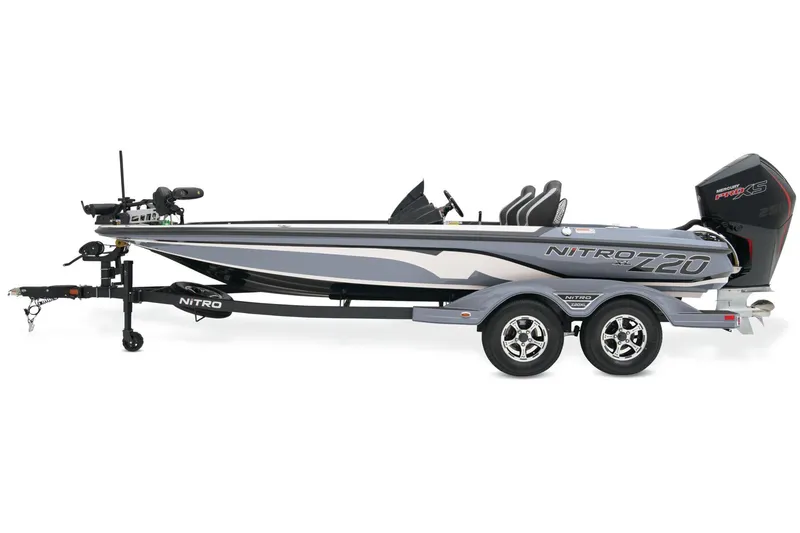

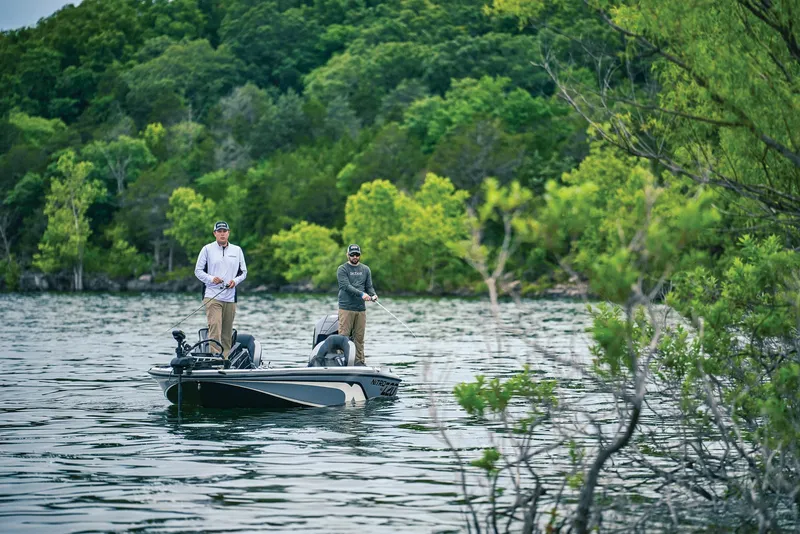

2026 Nitro Z20 XL Pro

• Length:20' 2"

• Beam: 7' 10"

• Bottom Width: 6' 3"

• Max. Recommended HP: 250 HP

• Fuel Capacity: 50 gal.

• Max. Person Capacity: 4 persons

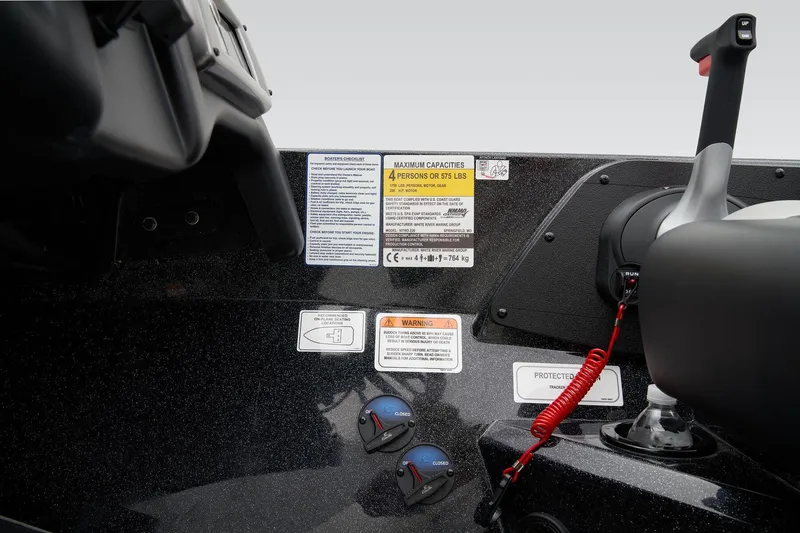

• Max. Person Weight: 575 lbs.

• Max. Person, Motor & Gear Weight: 1750 lbs.

• Interior Depth: 18"

• Transom Height: 22"

• Deadrise: 16 degrees

• Draft: 16"

• Average Dry Weight: 2000 lbs.

• Average Package Weight: 4050 lbs.

• Package Height: 6' 1"

• Package Width: 8' 6"

• Towing Length: 27' 0"

• Storage Length: 23' 8"

PRO

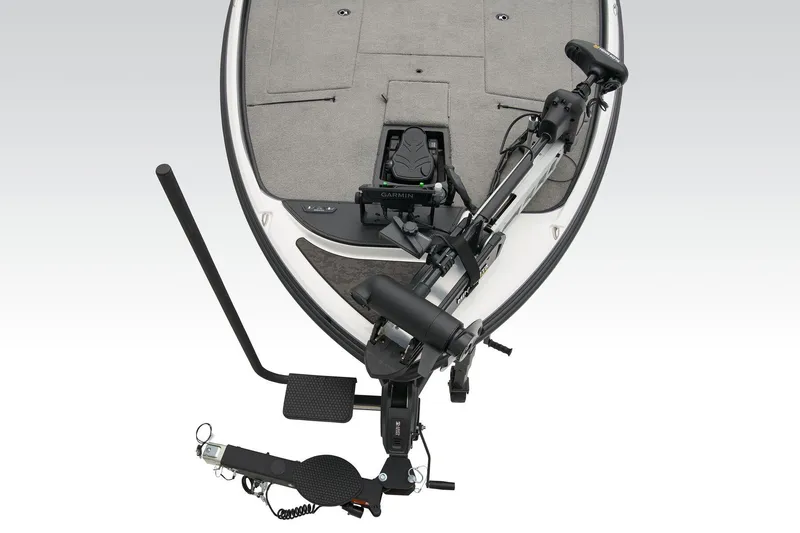

• NEW Garmin® Force® Pro 36V, 80-lb. (36.29 kg) thrust, 50” (1.27 m) shaft trolling motor

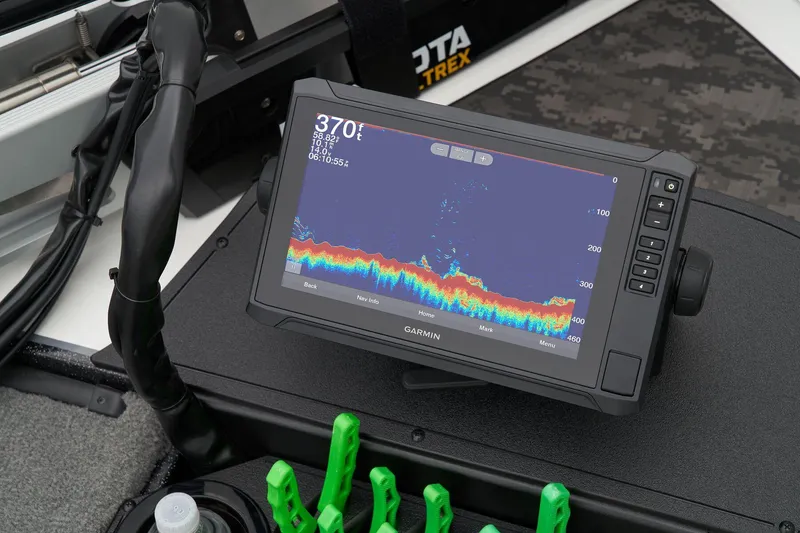

• Bow Garmin® ECHOMAP™ UHD2 9” (22.86 cm) sv gimbal-mounted fishfinder w/LiveScope™ Plus System

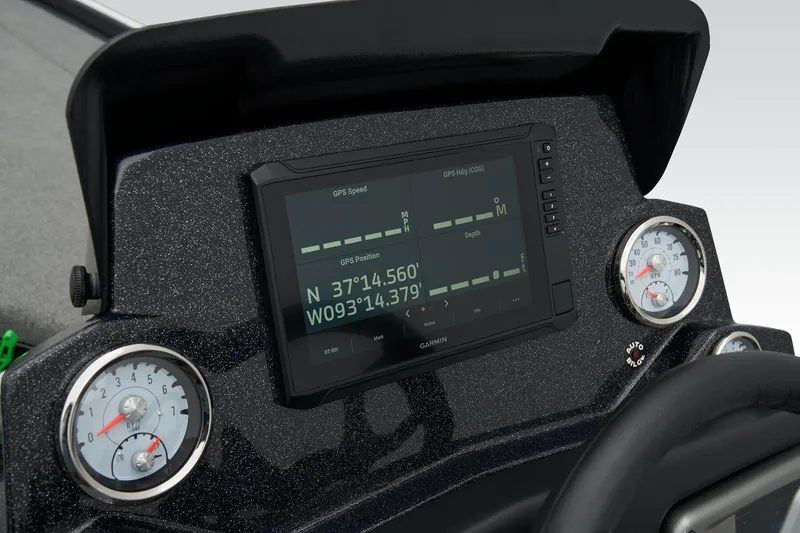

• Console Garmin® ECHOMAP™ UHD2 9” (22.86 cm) sv flush-mounted fishfinder w/GT36UHD & GT8HW-IH

• Power-adjust pneumatic lumbar support for driver’s seat

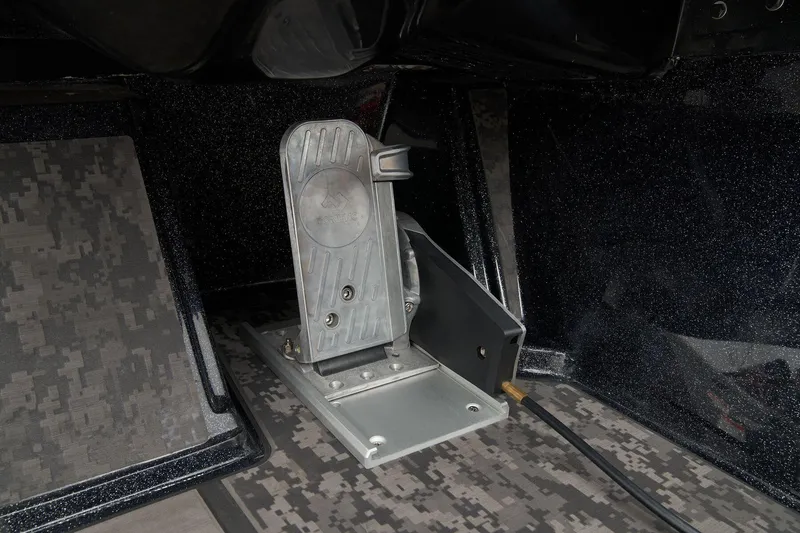

• Hot Foot® throttle

• Pro-Trim lever

• Livewell culling system

• Factory-applied keel protector

• 1 standard & 1 automatic bilge pump

• 4-bank, 40-amp battery charger

Comfort, Convenience & Peace of Mind

• NMMA® certified

• Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements

• EPA-compliant fuel system

• Anti-fatigue, padded comfort bow deck

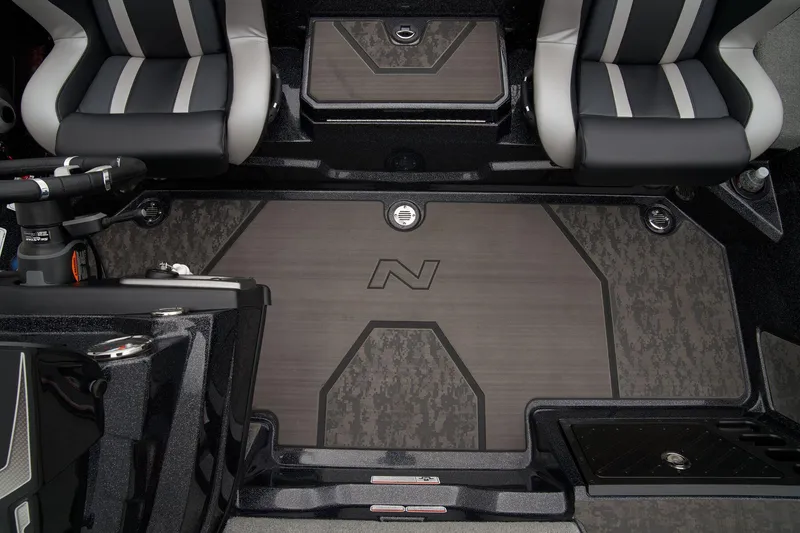

• Digital Camo non-skid bow & stern mats

• Low-profile gunnels to maximize deck size & for easier casting

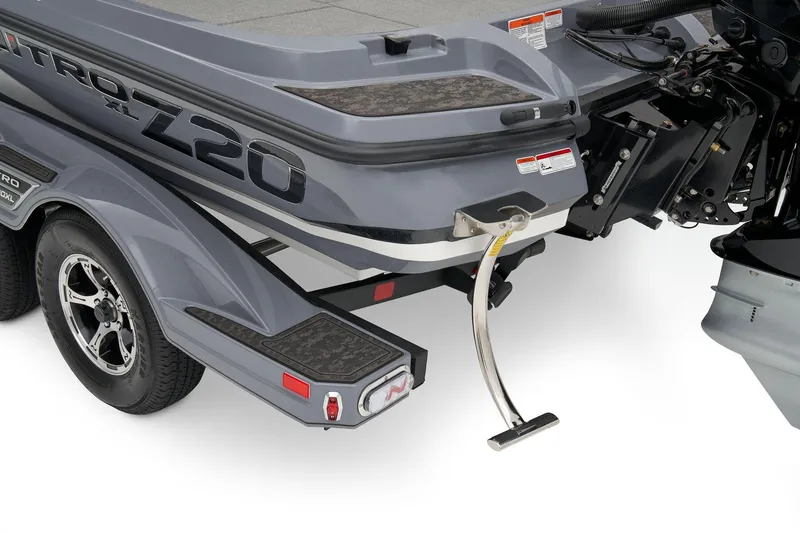

• Integrated fold-down stainless steel reboarding ladder, angled for allowing optional shallow-water anchor

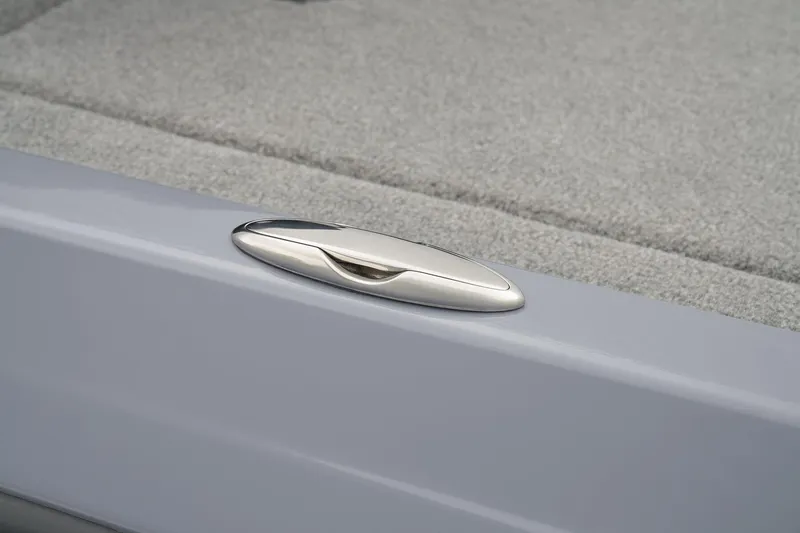

• 4 stainless steel pull-up cleats

• 4 grab handles (1 at each seat)

• Fire extinguisher

• Horn

• Paddle

Livewell System

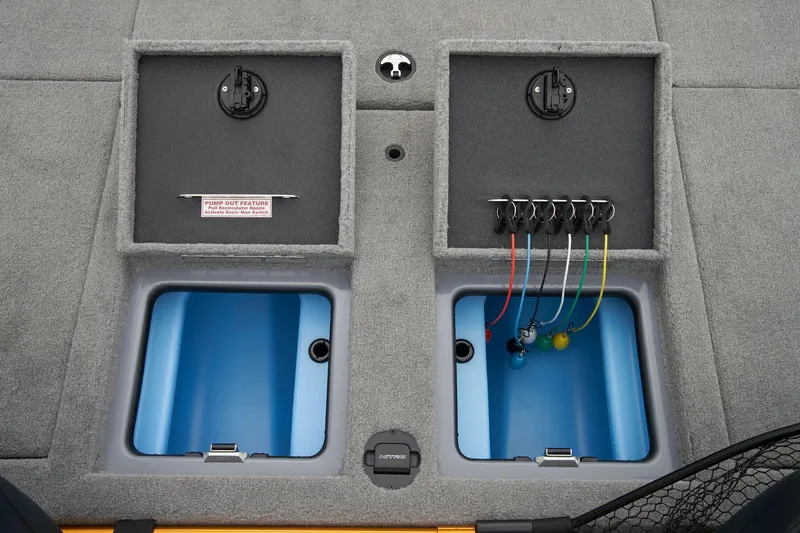

• 2 aft 19-gal. (71.92 L) insulated, rotomolded GUARDIAN™ livewells w/digital timers & rounded corners

• 500 GPH (1,893 LPH) aerator/fill pump

• 750 GPH (2,839 LPH) livewell recirculation/pump-out system

• Livewell control valve

• Dual remote drain controls

Trolling Motor

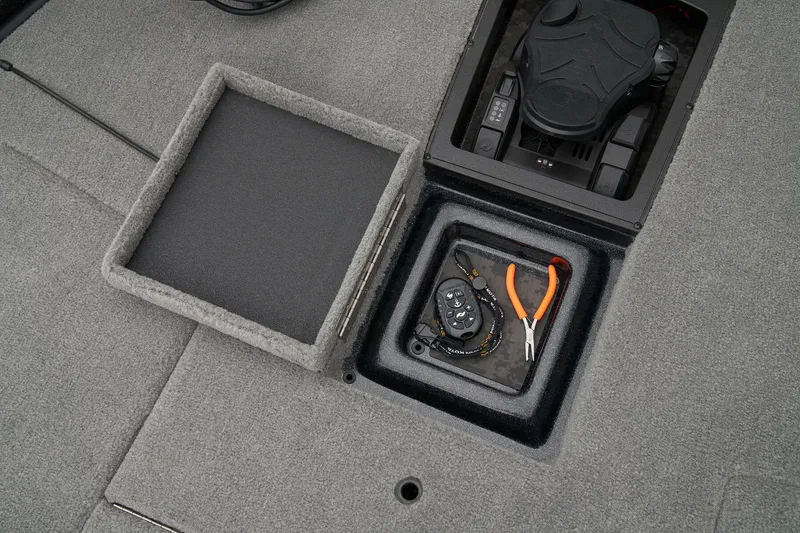

• Trolling motor pedal recess

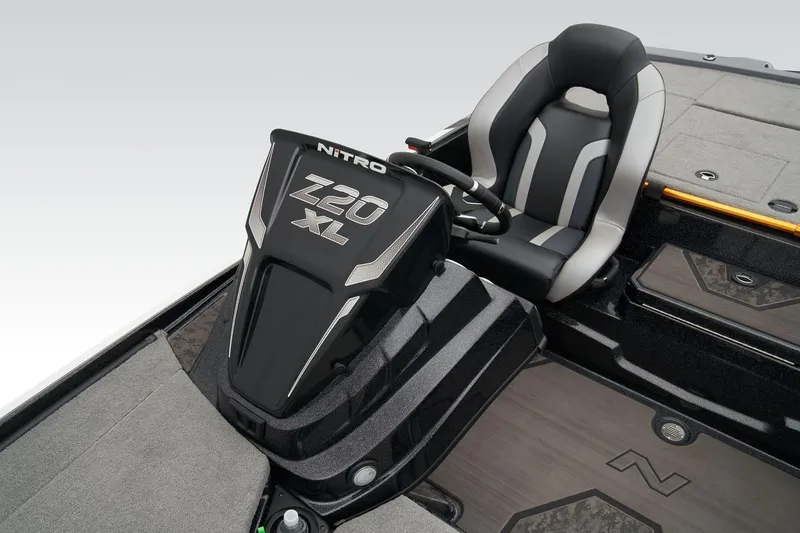

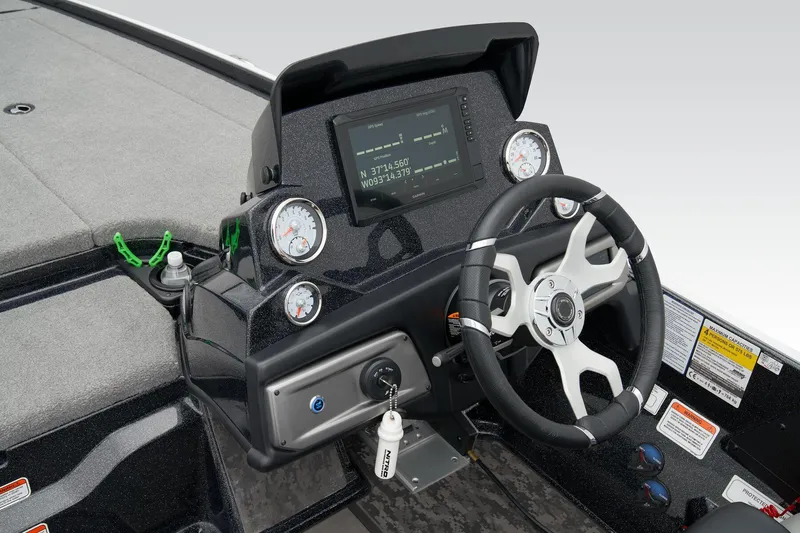

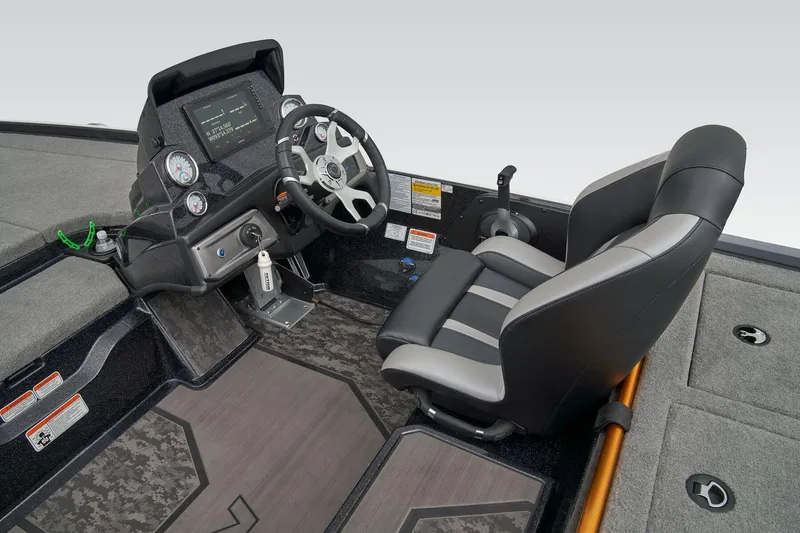

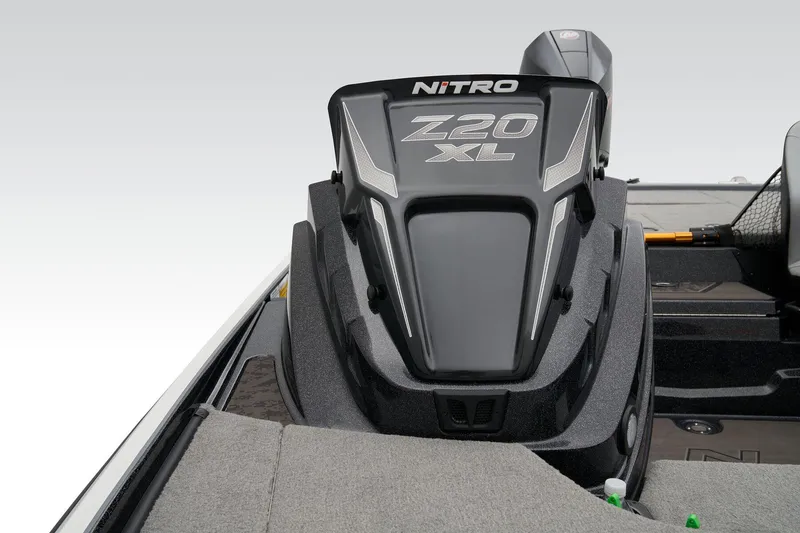

Console

• Modular, aerodynamic console design w/expanded leg clearance & large fishfinder surface

• Removable acrylic, tinted plexiglass windscreen

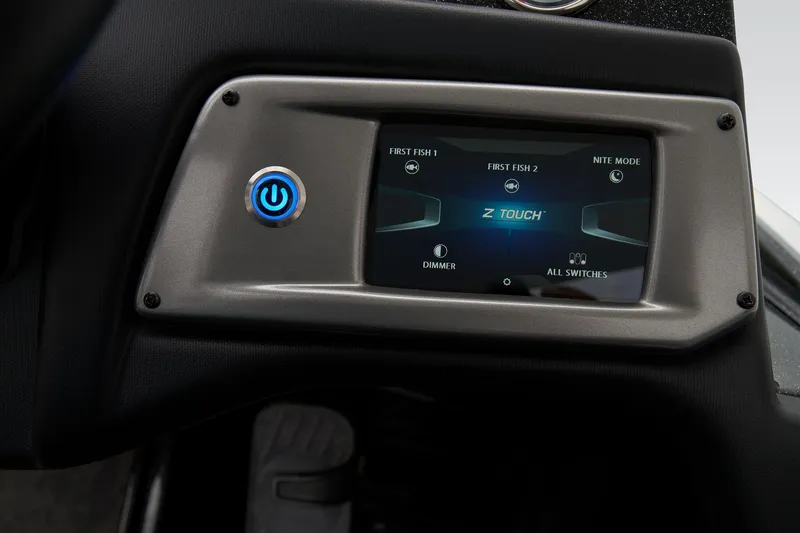

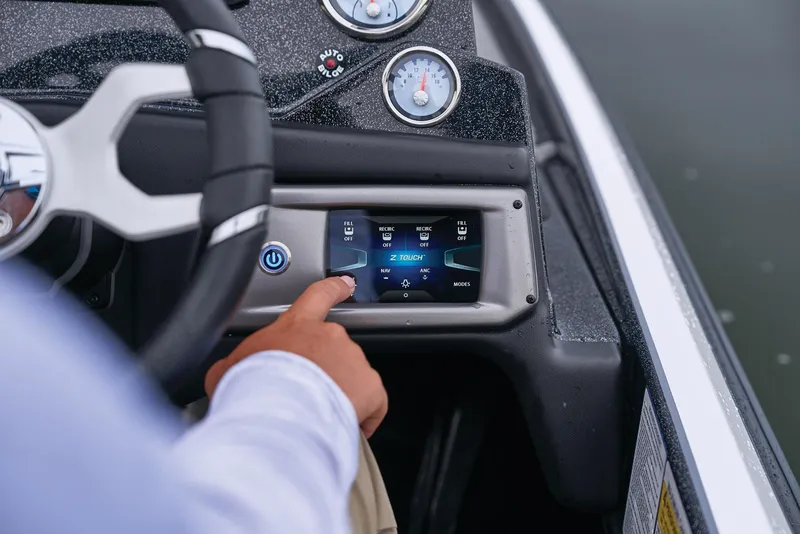

• 5" (12.7 cm) digital touchscreen control

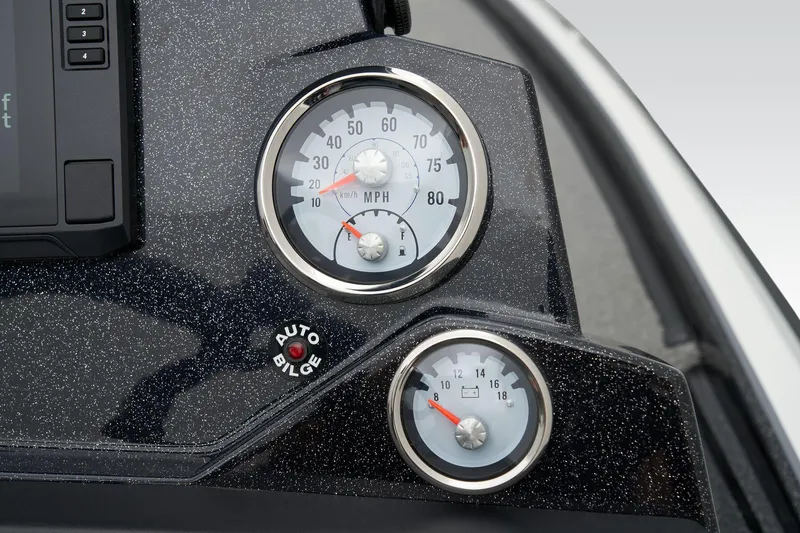

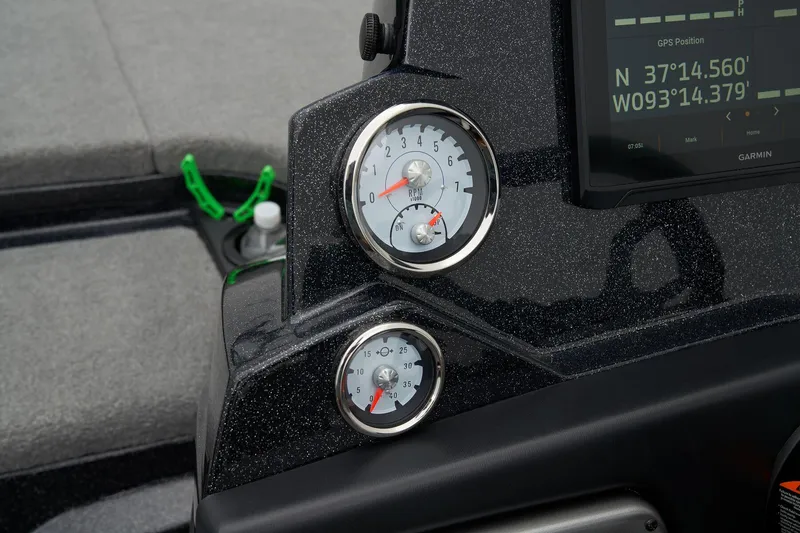

• NEW Z3 digital gauges

• Dash light dimmer

• Tilt hydraulic steering

• 12V outlet

• LED courtesy light

• Ready to accept optional removable port console

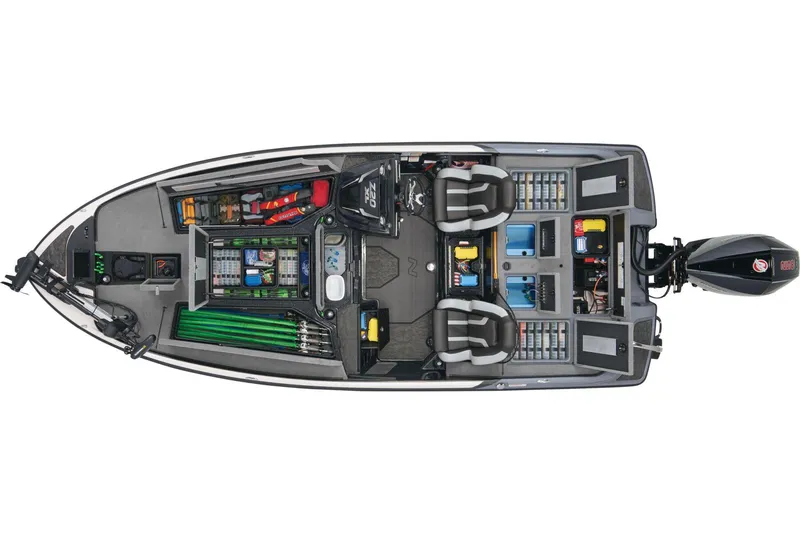

Interior

• 42.5-sq.-ft. (4.0-sq.-m) anti-fatigue, padded bow deck for comfort & casting mobility

• Bike seat w/pedestal

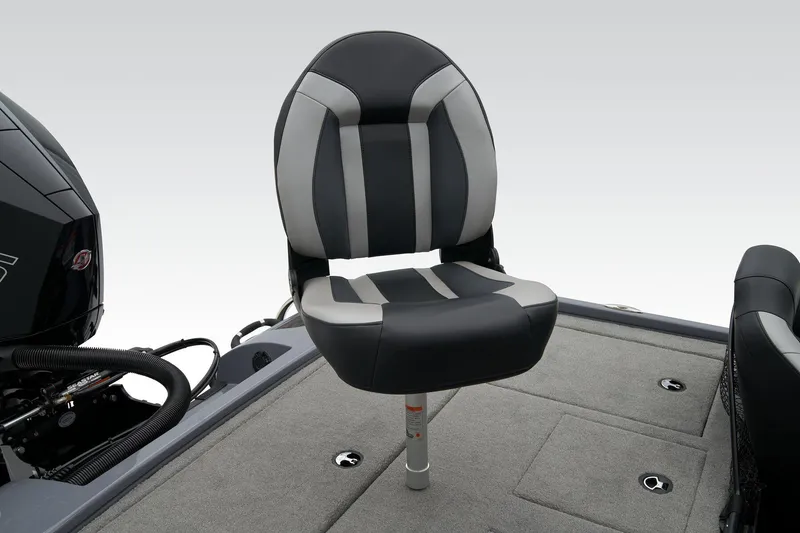

• Folding fishing seat w/composite frame

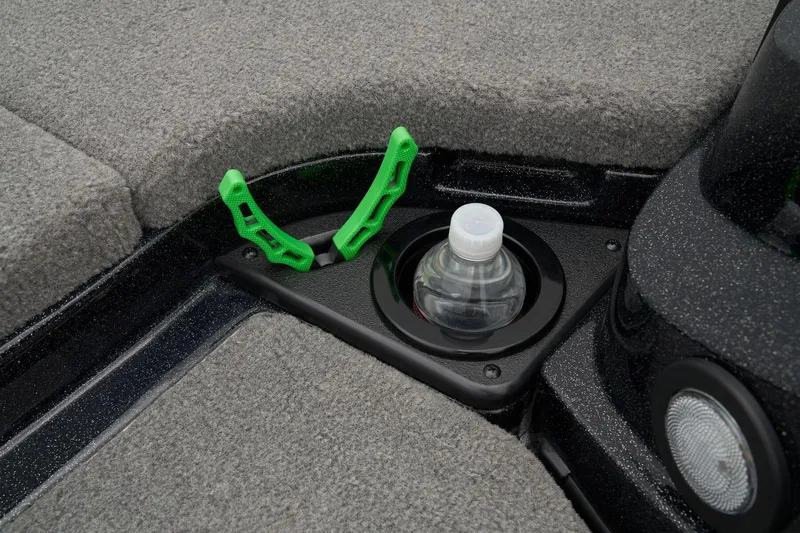

• Bow tool/drink holder

• Bow port & starboard rod hold-down straps

• Molded-in drainage channels around bow storage compartments

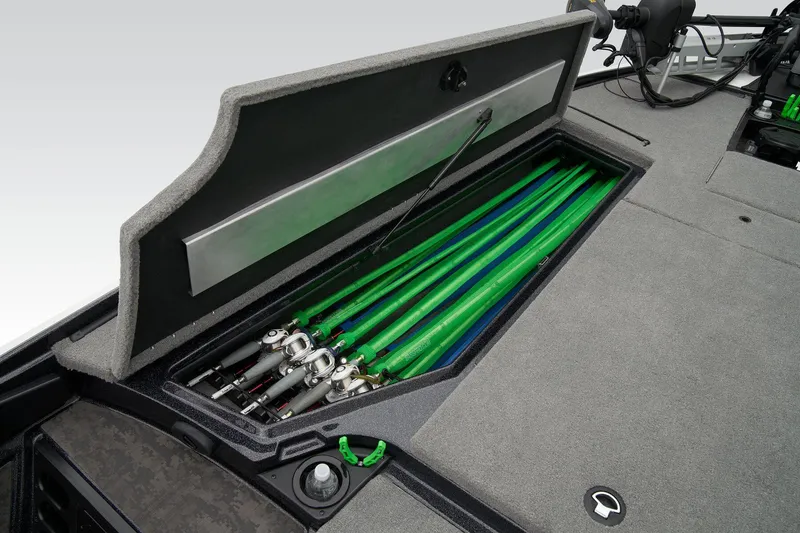

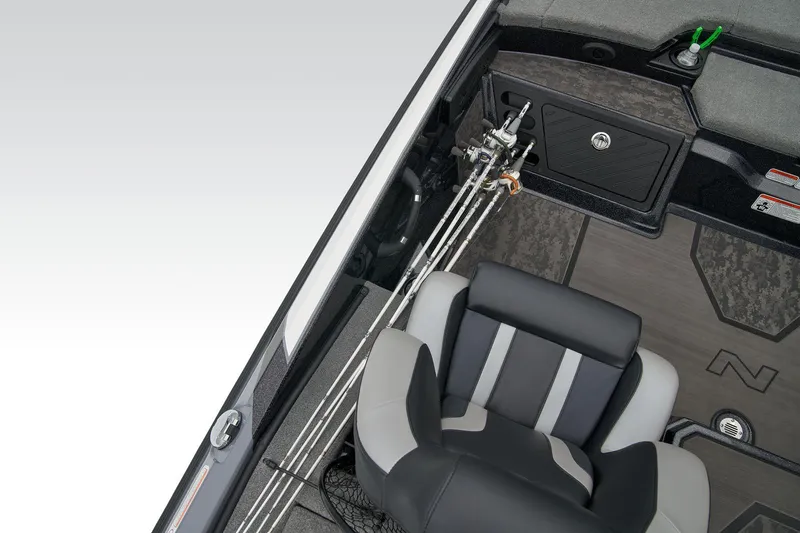

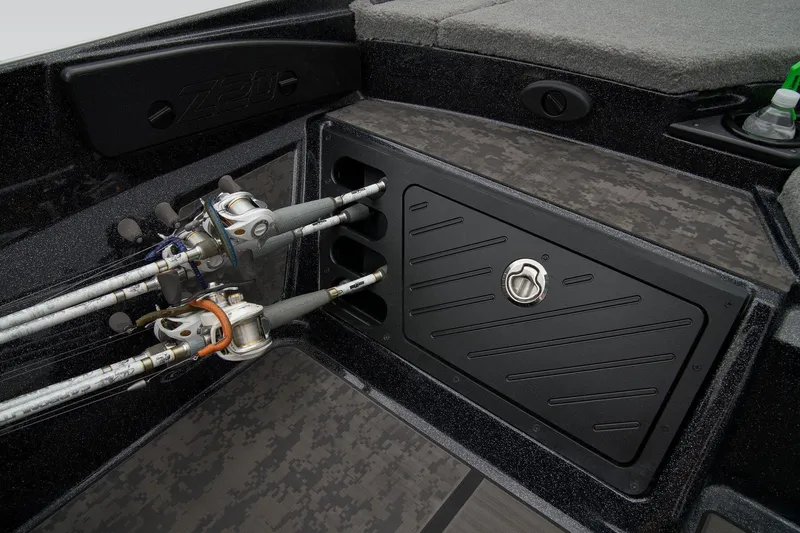

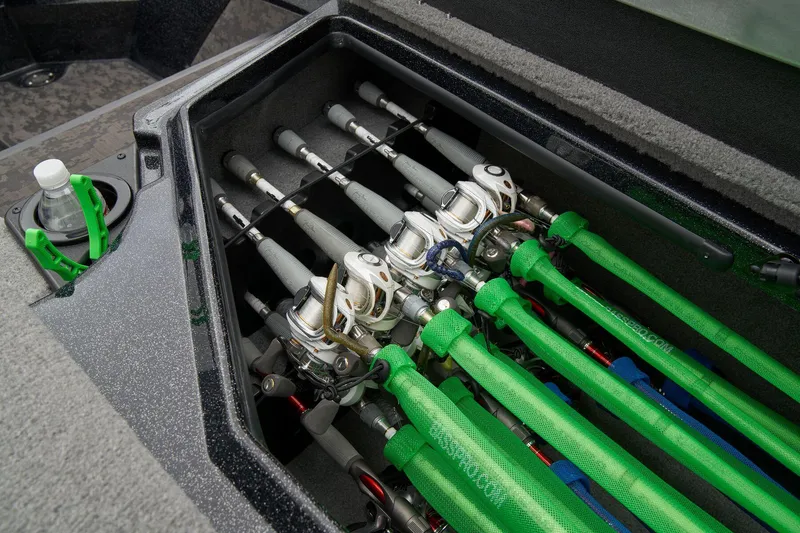

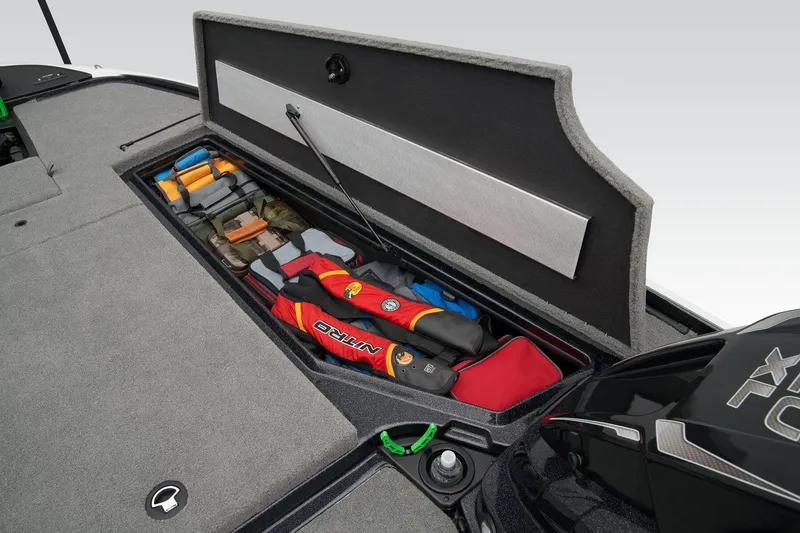

• Oversized, lockable bow port & starboard rod lockers w/lift assists for rods up to 8' (2.44 m)

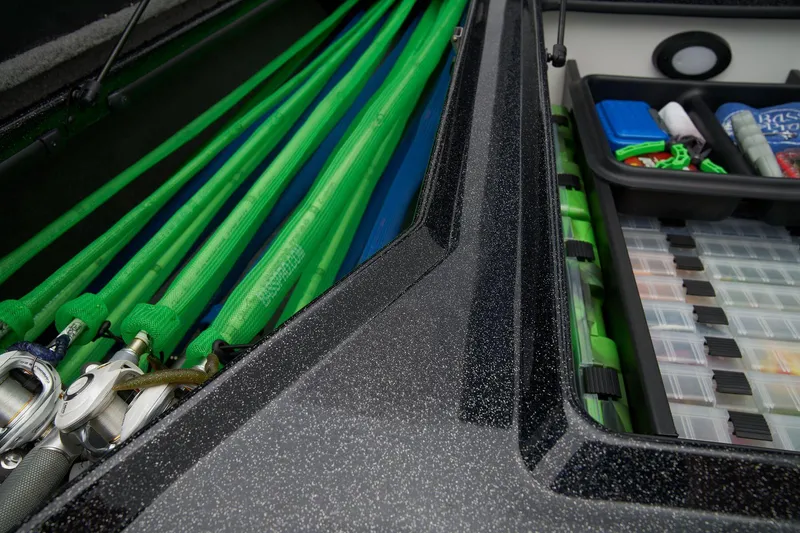

• Rod organizer in bow port rod locker

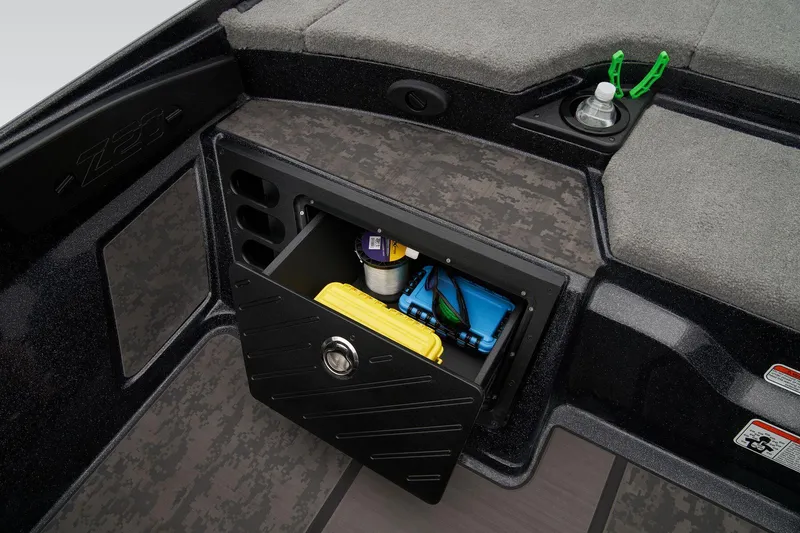

• NEW bow integrated day box

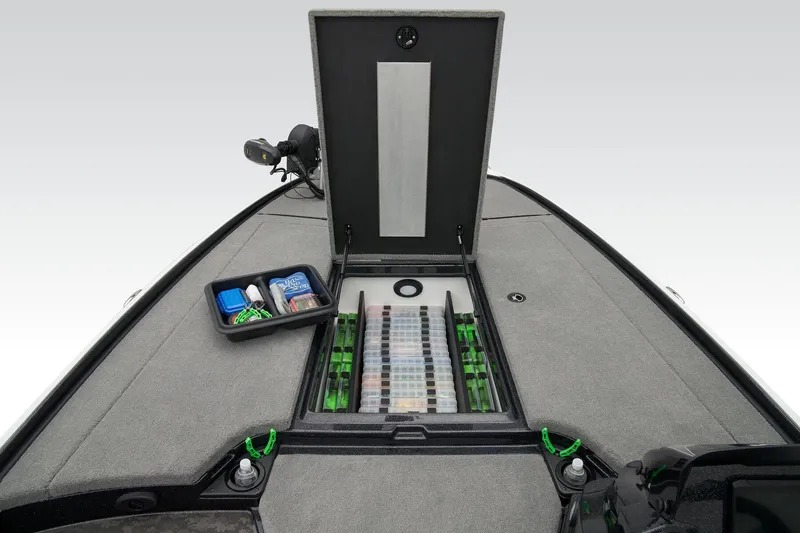

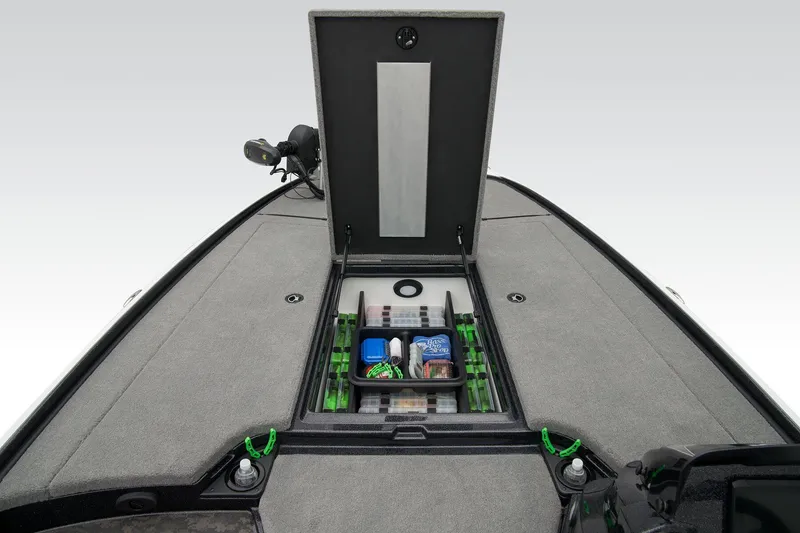

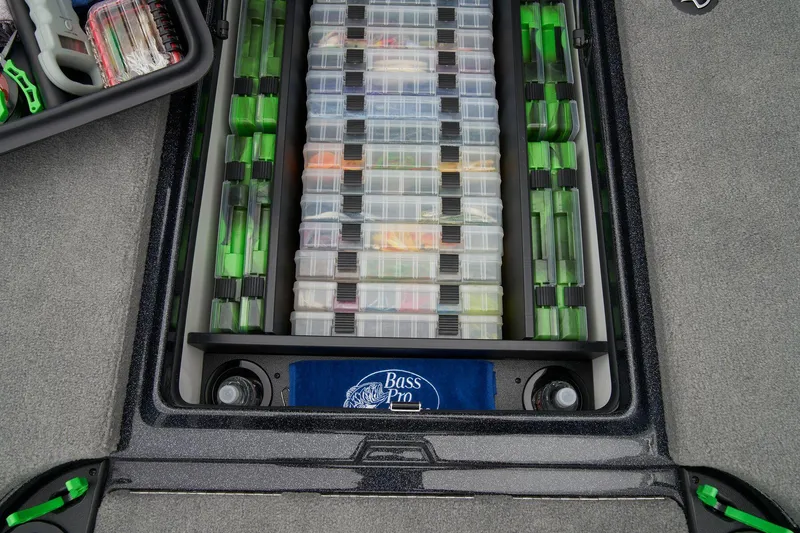

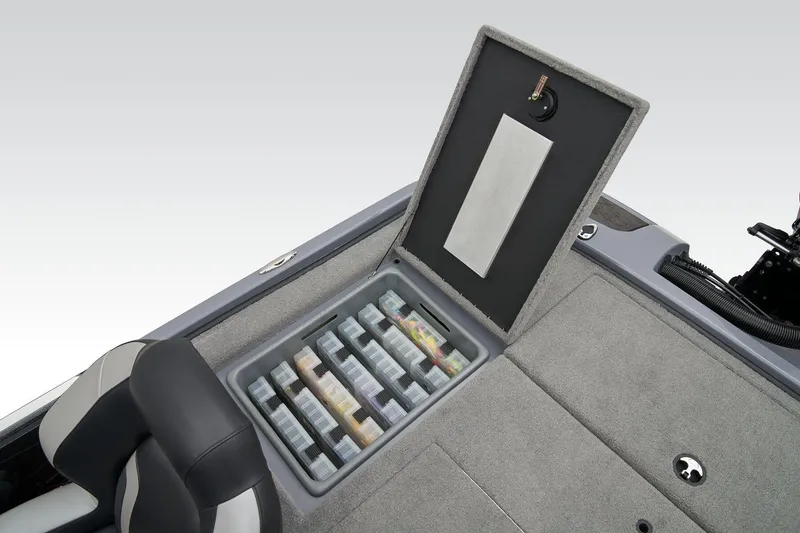

• Oversized lockable bow center storage locker w/TACKLE MANAGEMENT SYSTEM™

• Step to bow deck w/62-qt. (58.67 L) insulated cooler, removable trash receptacle & snap-in sandwich tray

• Footrest w/non-skid mat under console(s)

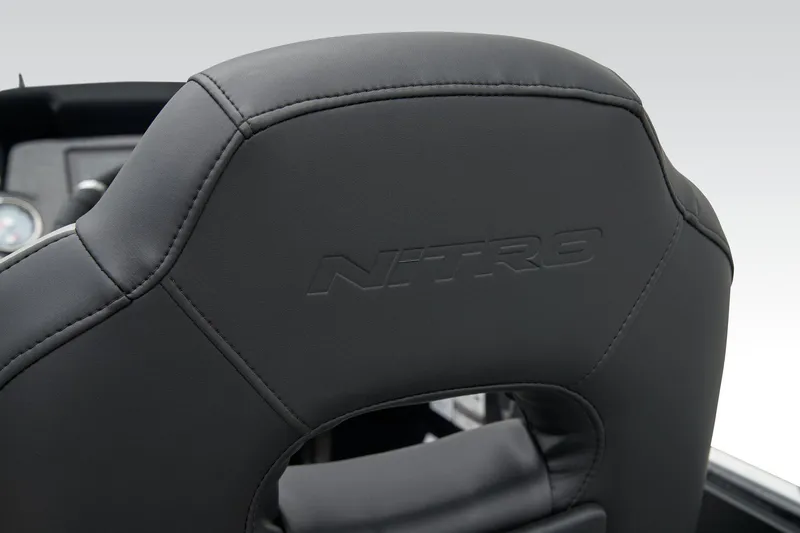

• Z-CORE™ seating system w/Force Flex suspension & contoured, rotomolded frame for driver & passenger seats

• Low driver & passenger flat seat mounting

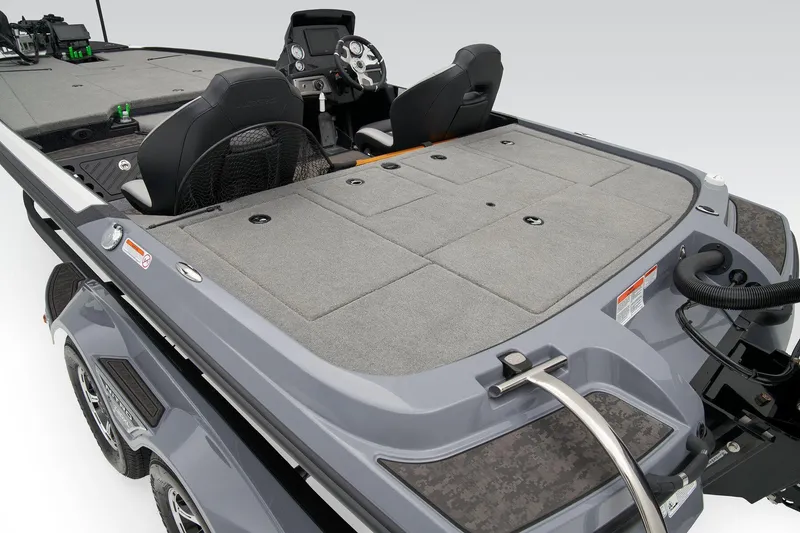

• Step to aft deck w/lockable storage & removable tub

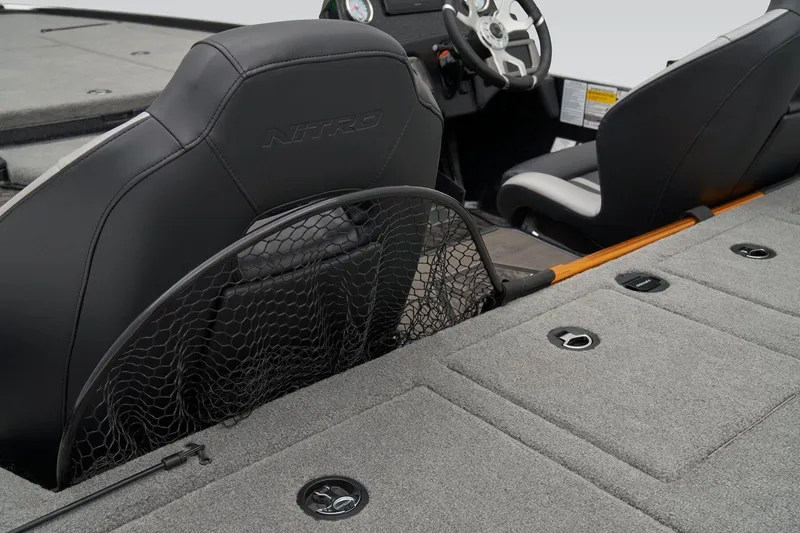

• Designated net storage behind seating

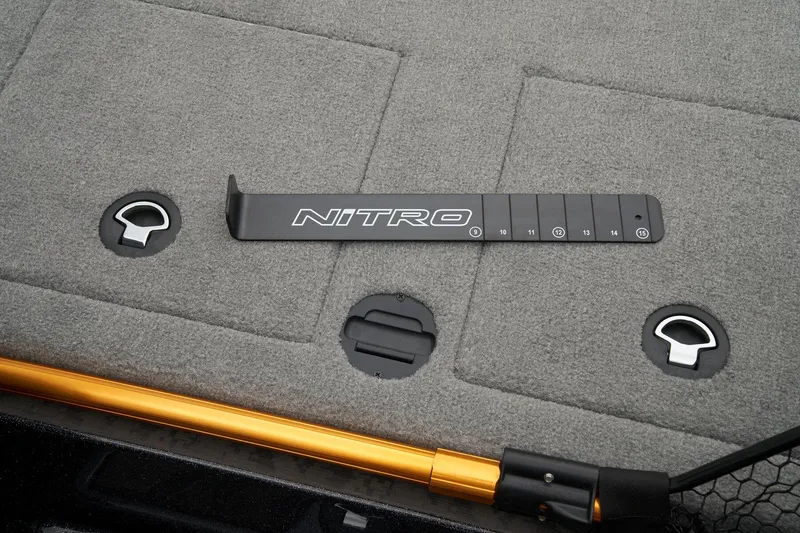

• Built-in tournament ruler & holder

• Passenger rod ramp w/rod handle organizer & hold-down strap

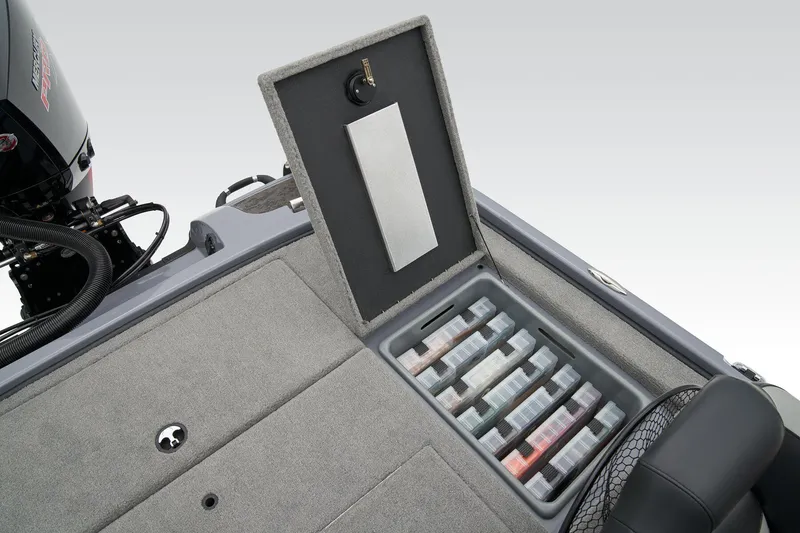

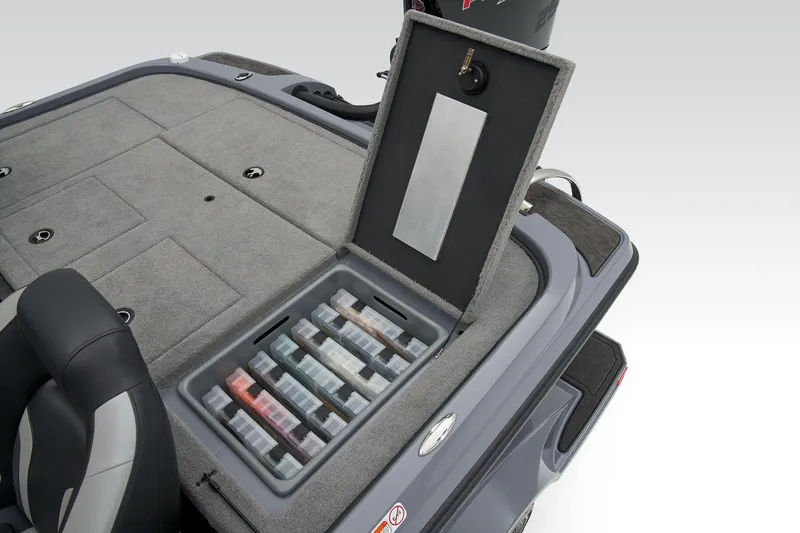

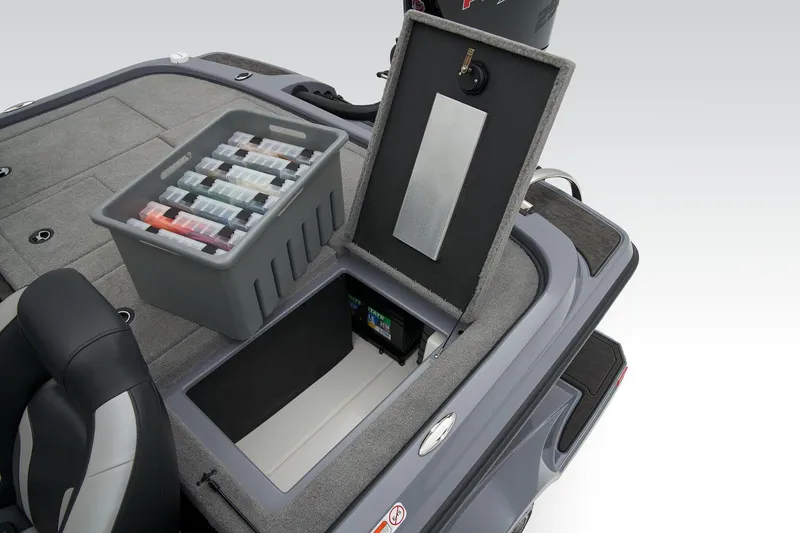

• 2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays

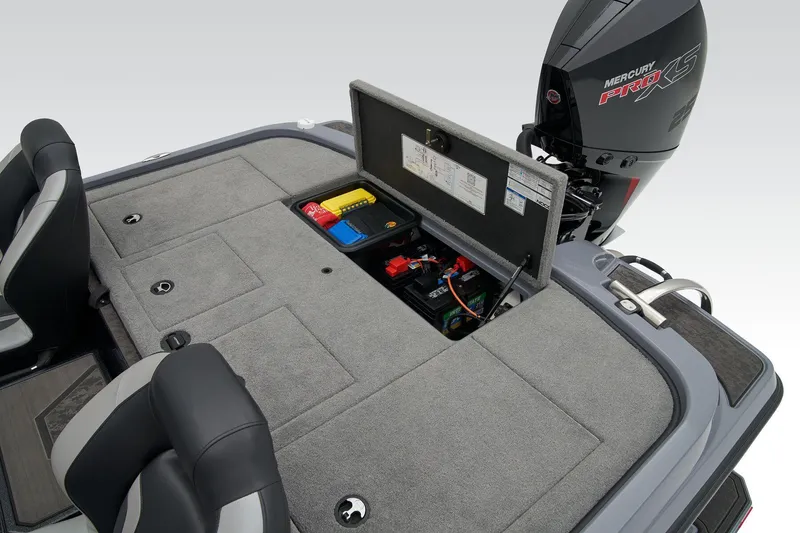

• Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup

• Insulated aluminum lids w/welded corners

• 16-oz. (.45 kg) plush, marine-grade cut pile carpet on decks & floor

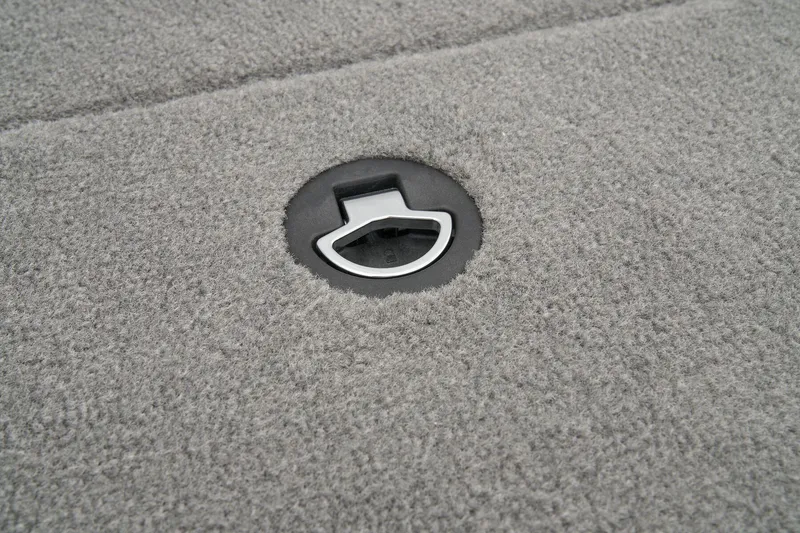

• Stainless steel lockable slam latches

• Lift-out tool/rope storage tray in rigging compartment

Performance

• NITRO VORTEX TECHNOLOGY™ (NVT™) hull for a smoother, drier ride

• RAPID PLANING SYSTEM™ (RPS™) for quicker holeshots & maximized speed

• 12" (30.48 cm) adjustable jack plate—Black

• Rigging tube for organized wiring & abrasion resistance

• Stainless steel propeller

Construction & Exterior

• 100% composite deck core w/superior thermal stability & strength-to-weight ratio

• Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2" (5.08 cm)

• Gelcoated stringer/liner system

• Foam-filled hull for optimal buoyancy & safety

• Full-width fiberglass-encapsulated composite transom

• Splashwell protective film

• Black hardware

Electrical

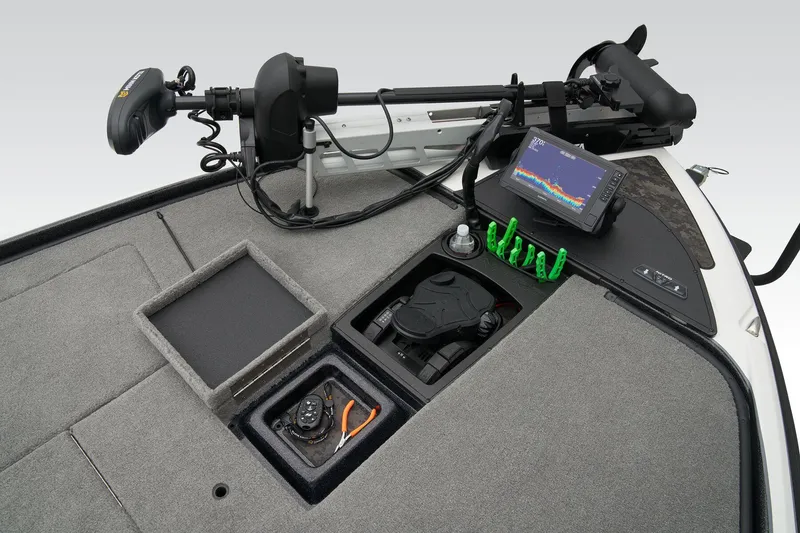

• Angled bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount most 12" (30.5 cm) fishfinders

• NEW wireless bow keypad

• LED console courtesy light

• Manual LED-lighted bow gear storage

• Interstate® cranking battery

• 3 heavy-duty Interstate® trolling batteries

• NOCO® GB40 jump starter pack

• 6-gauge trolling motor wiring w/50-amp circuit breaker

• NEW single, completely-sealed ECM

• Automotive-style labeled fuse panel w/cover

• Master power switch

• Waterproof Deutsch connectors on gauges

• Water- & abrasion-resistant connectors

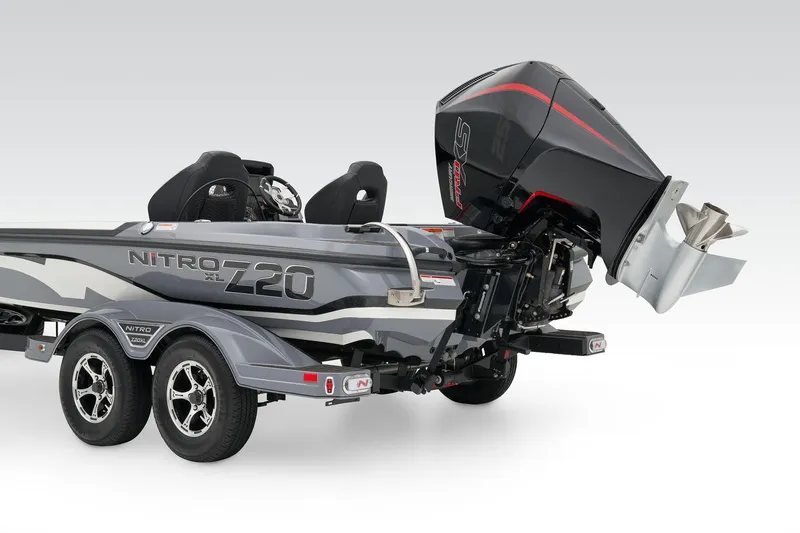

Trailer

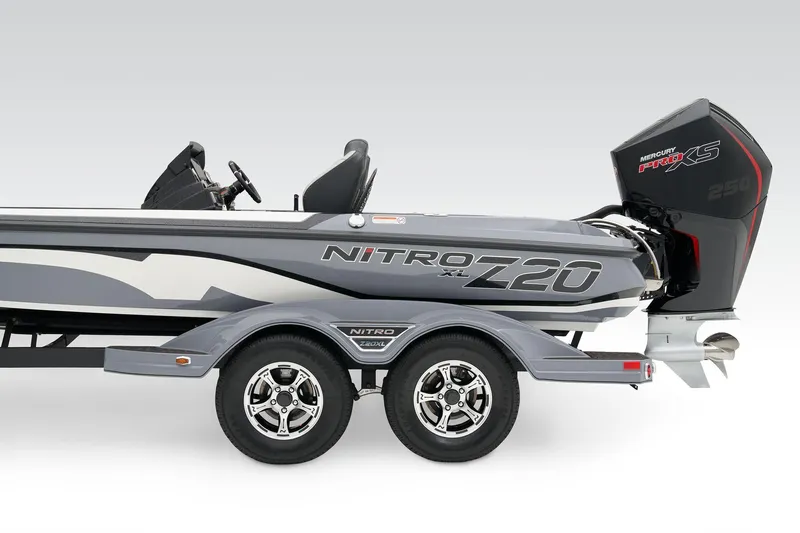

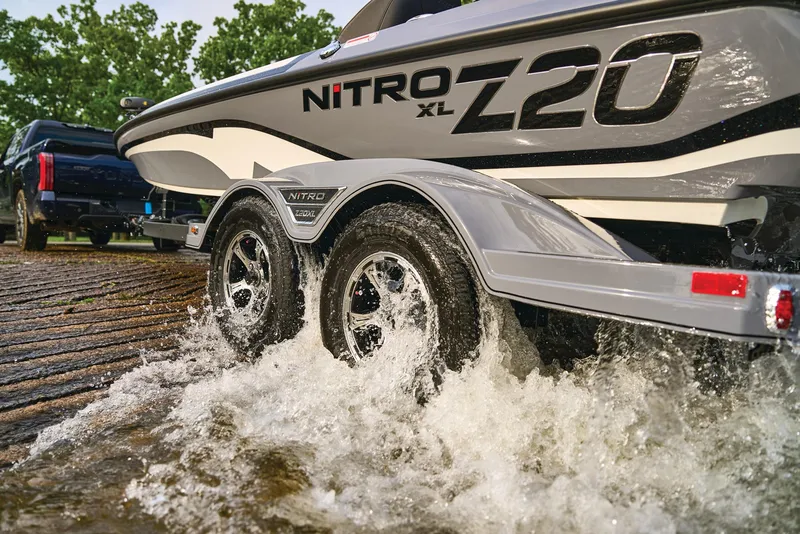

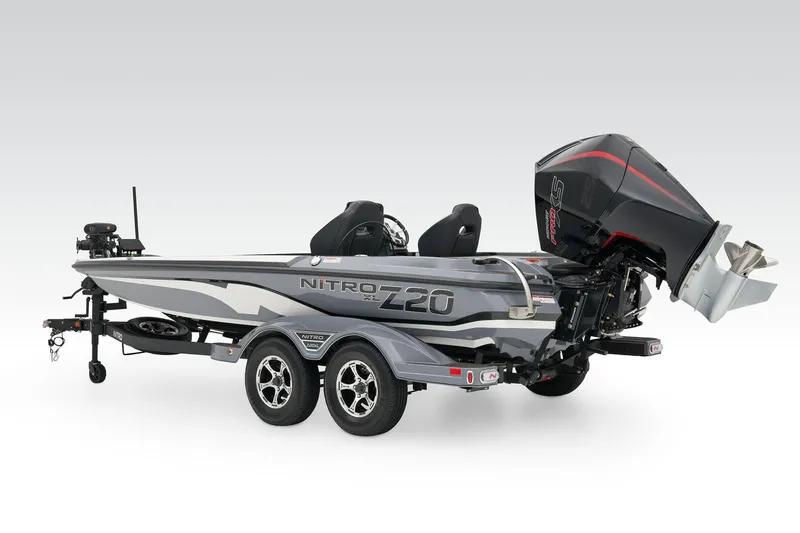

• Custom-fit, tandem-axle steel NITRO® trailer w/enhanced stability & performance

• Surge disc brakes on both axles

• 14" (35.56 cm) aluminum wheels w/radial tires

• Hub system w/1-year limited warranty

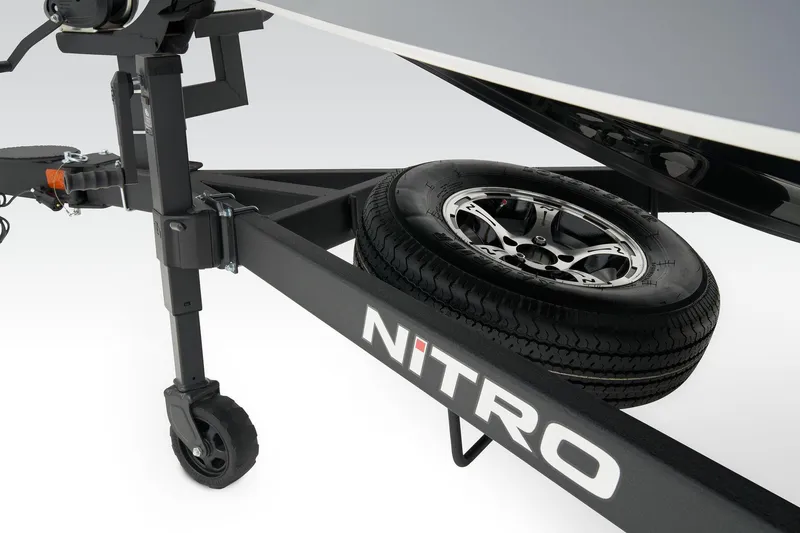

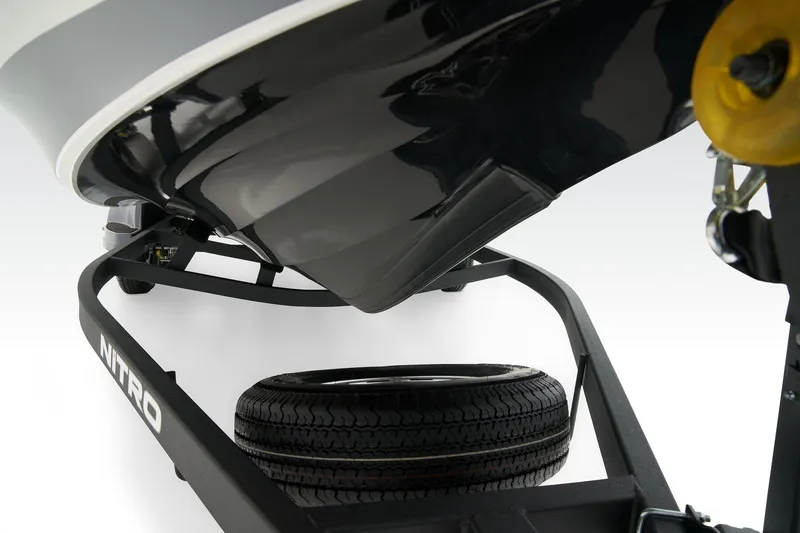

• Spare tire carrier w/matching spare

• All-welded rectangular GALVASHIELD® frame

• 7-pin connector

• Space-saving swing-away tongue to reduce storage length

• Fold-away tongue jack

• Heavy-duty winch w/nylon strap & bow safety strap

• Integrated winch stand step & safety handle for boarding at bow while boat is on trailer

• Outboard motor support to reduce hull & transom stress while towing

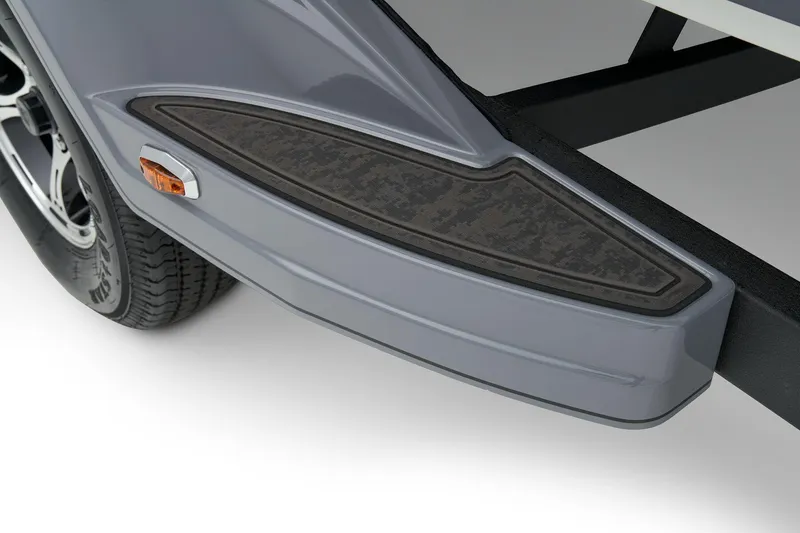

• Carpeted bunks & fender boards to protect hull

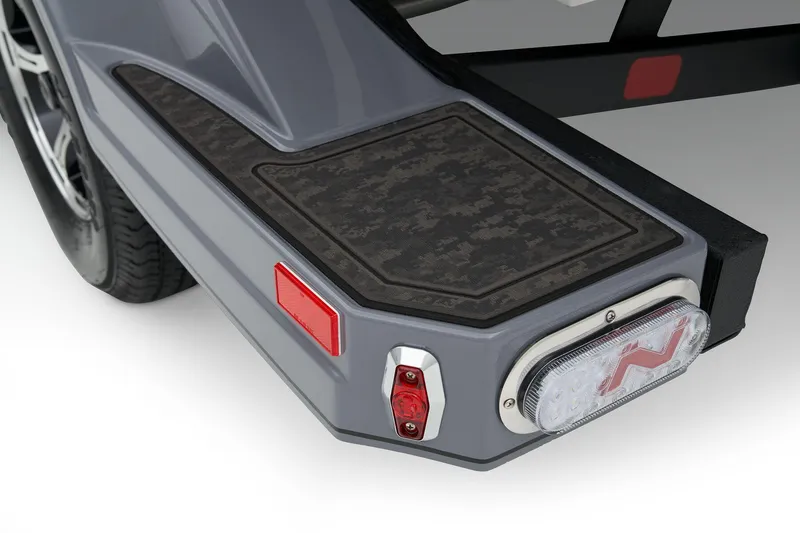

• 6" (15.24 cm) oval LED tail lights w/integrated back-up lights

• Retractable transom tie downs

• Safety cables
