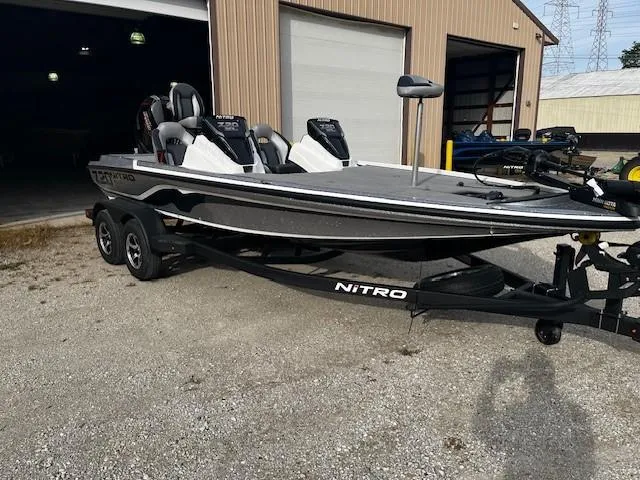

2025 Nitro Z20 XL

$59,699

New

Boat in Gurnee, IL 60031 US

builtBuilt in 2025
Year the boat was built
model

Z20 XL

Boat model
engine

1 Engine (MERCURY MARINE)

Engine type and count
length

20.2 feet

Overall boat length
fuel

Gas

Fuel type
material

Fiberglass/Reinforced

Hull material
Base Price
$59,995
- Savings
$4,811
Special Price
$55,184
- Included Options
$2,795
- Prep
$495
- Freight
$1,225
Your Price
$59,699
Nominal Length
20.17ft
Length Overall
20.17ft
Beam
7.83ft
Drive Up Draft
1.33ft
Deadrise At Transom
16deg
Dry Weight
2000lb
Fuel Tanks
50gal
Hull Material
fiberglass
Hull Shape
modified-vee
Engine 1
Engine Make
MERCURY MARINE
Engine Model
250L PXS4 TQM 1.75
Total Power
250hp
Engine Type
outboard
Fuel Type
gasoline
Additional Details
Additional Specs
  • Length:20' 2"

  • Beam: 7' 10"

  • Bottom Width: 6' 3"

  • Max. Recommended HP: 250 HP

  • Fuel Capacity: 50 gal.

  • Max. Person Capacity: 4 persons

  • Max. Person Weight: 575 lbs.

  • Max. Person, Motor & Gear Weight: 1750 lbs.

  • Interior Depth: 18"

  • Transom Height: 22"

  • Deadrise: 16 degrees

  • Draft: 16"

  • Average Dry Weight: 2000 lbs.

  • Average Package Weight: 4050 lbs.

  • Package Height: 6' 1"

  • Package Width: 8' 6"

  • Towing Length: 27' 0"

  • Storage Length: 23' 8"

Standard Features

Comfort, Convenience & Peace of Mind

  • NMMA® certified

  • Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements

  • EPA-compliant fuel system

  • Anti-fatigue, padded comfort bow deck

  • Digital Camo non-skid bow & stern mats

  • Low-profile gunnels to maximize deck size & for easier casting

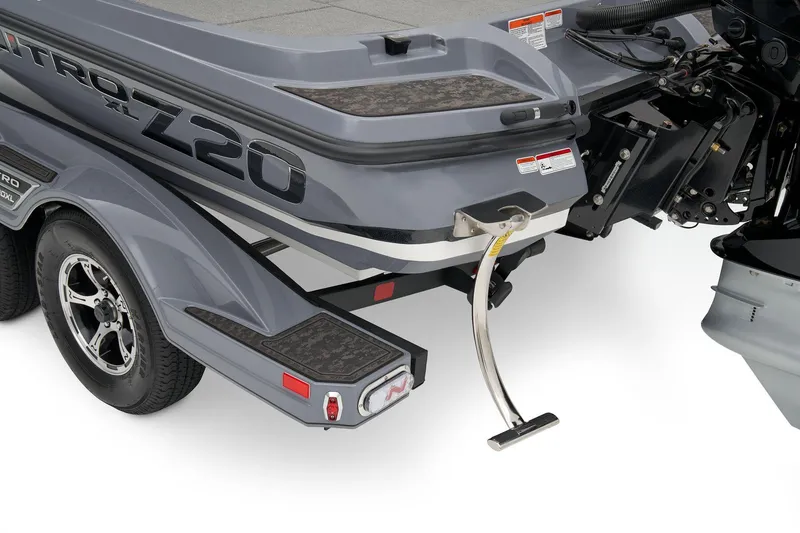

  • Integrated fold-down stainless steel reboarding ladder, angled for allowing optional shallow-water anchor

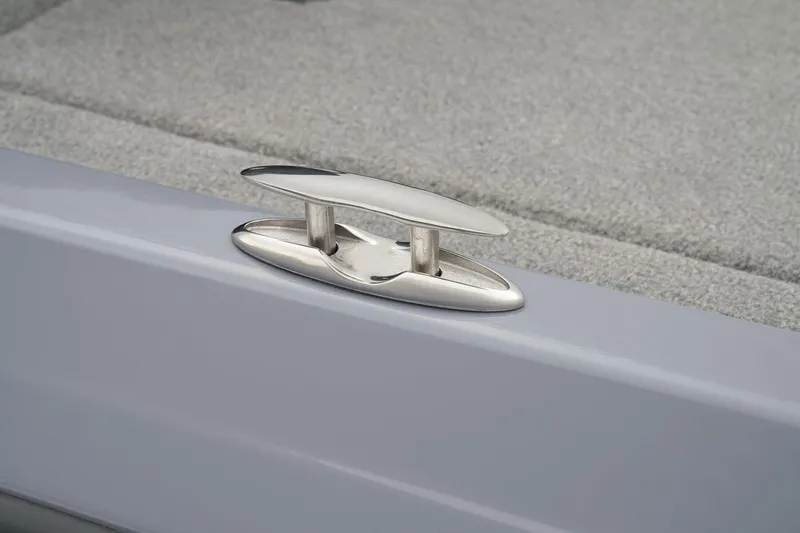

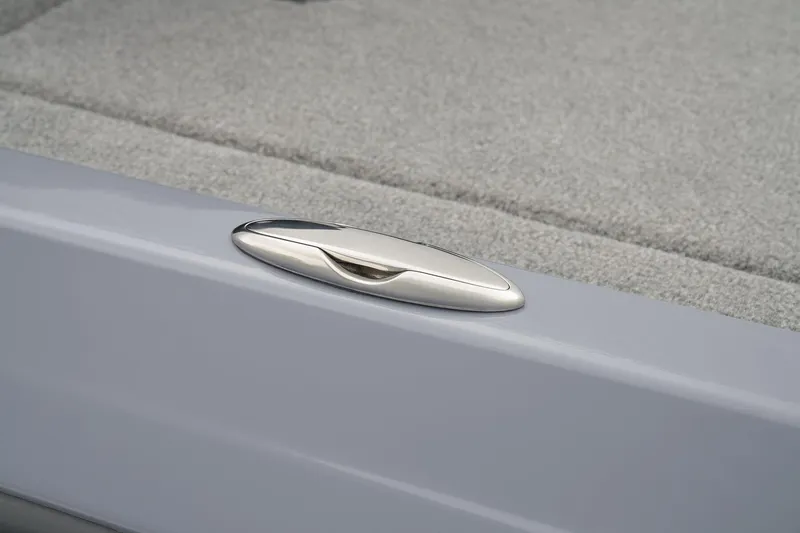

  • 5 stainless steel pull-up cleats, including cleat at driver seat

  • 4 grab handles (1 at each seat)

  • Fire extinguisher

  • Horn

  • Paddle

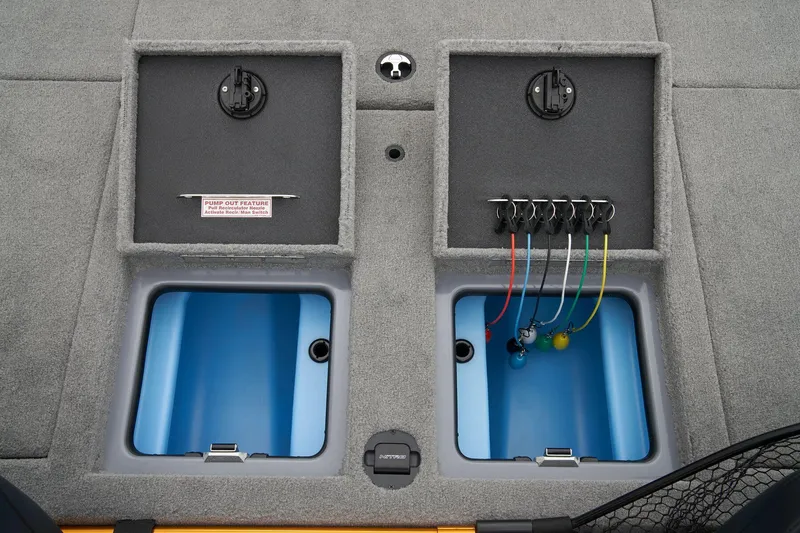

Livewell System

  • 2 aft 19-gal. (71.92 L) insulated, rotomolded GUARDIAN™ livewells w/digital timers & rounded corners

  • 500 GPH (1,892.71 LPH) aerator/fill pump

  • 750 GPH (2,839.06 LPH) livewell recirculation/pump-out system

  • Livewell control valve

  • Dual remote drain controls

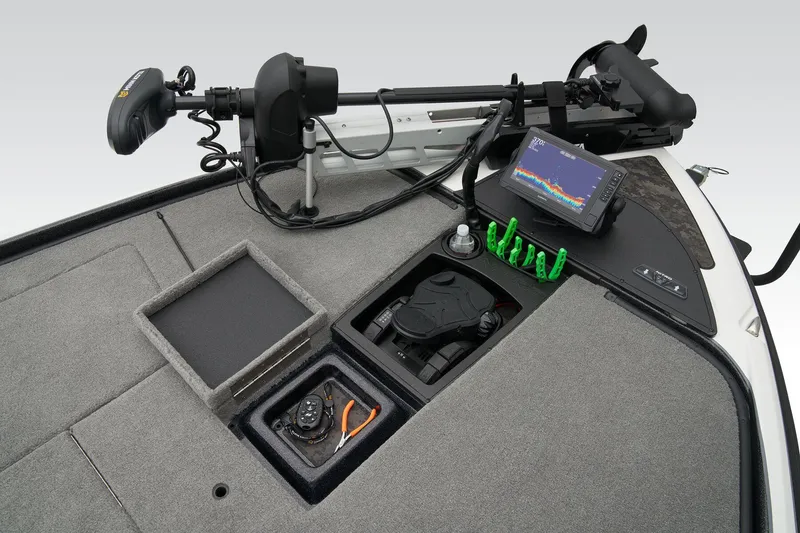

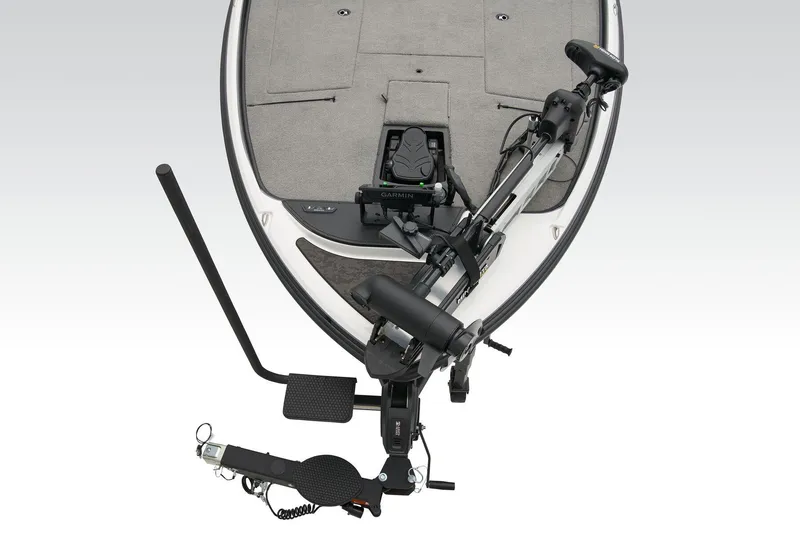

Trolling Motor

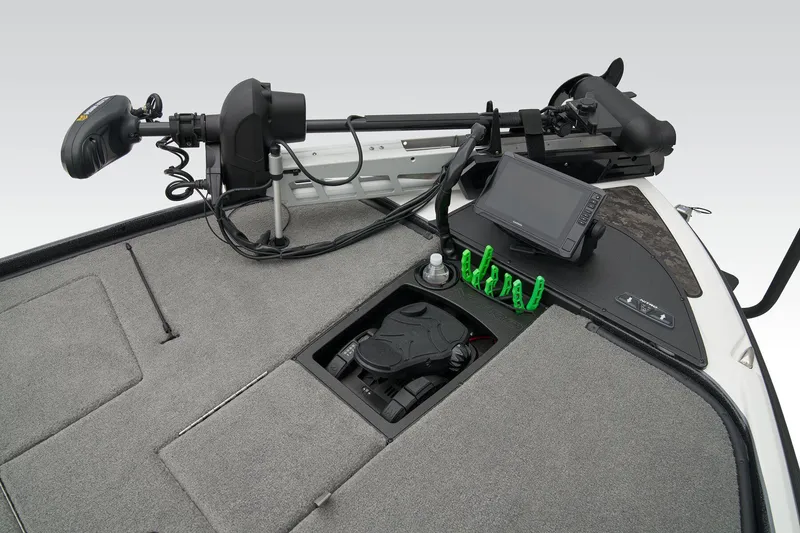

  • Minn Kota® Maxxum® 24V, 70-lb. (31.75 kg) thrust, 42" (1.07 m) shaft trolling motor w/mount

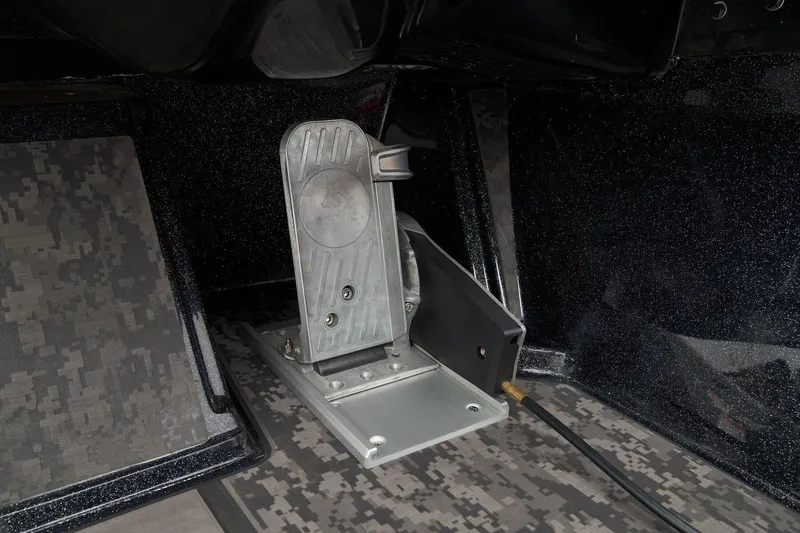

  • Trolling motor pedal recess

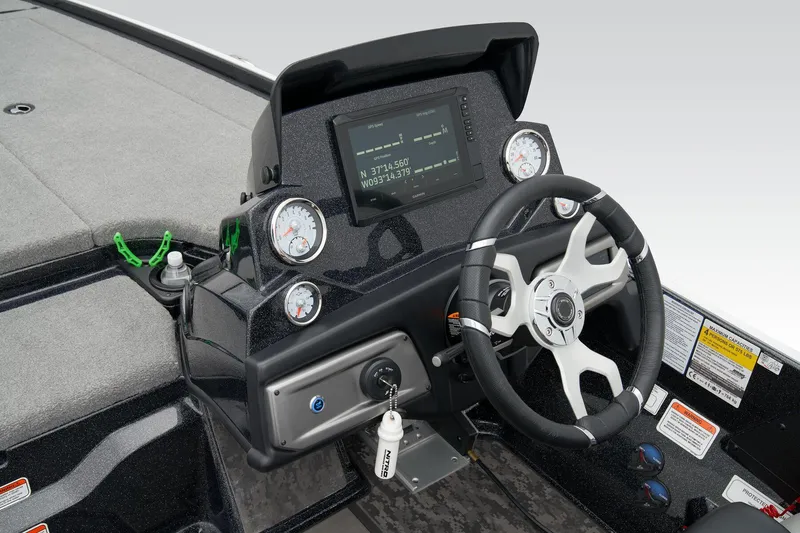

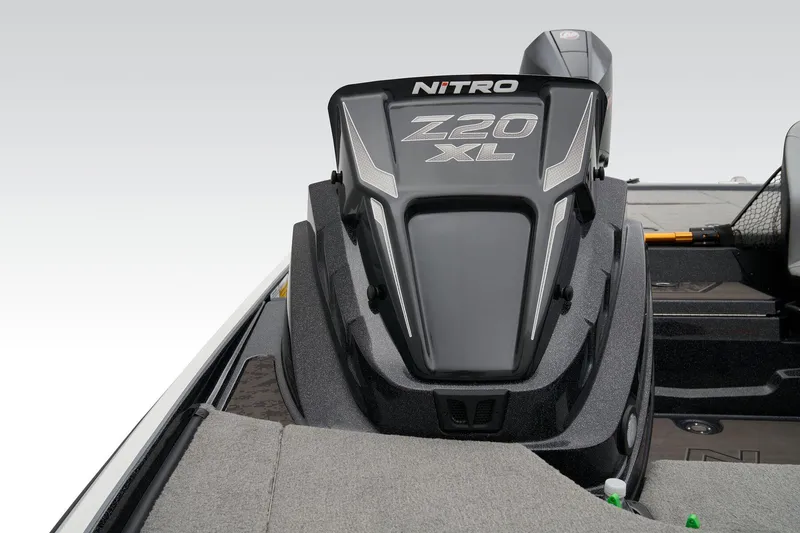

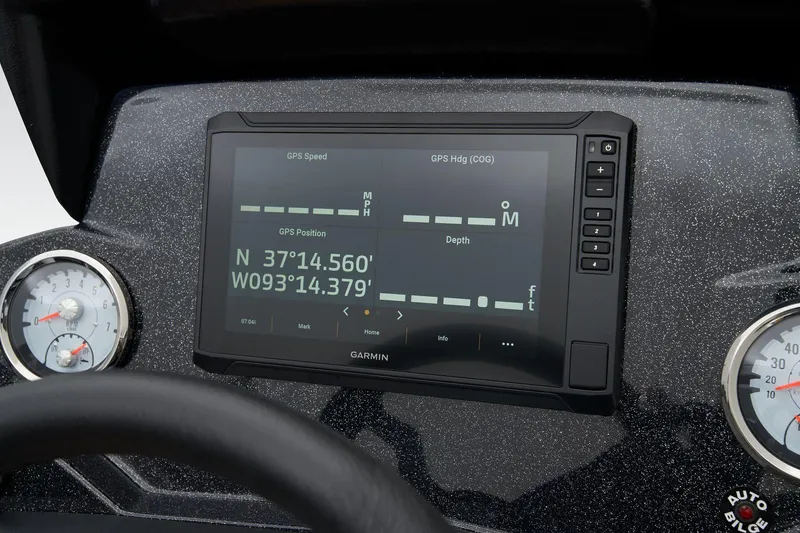

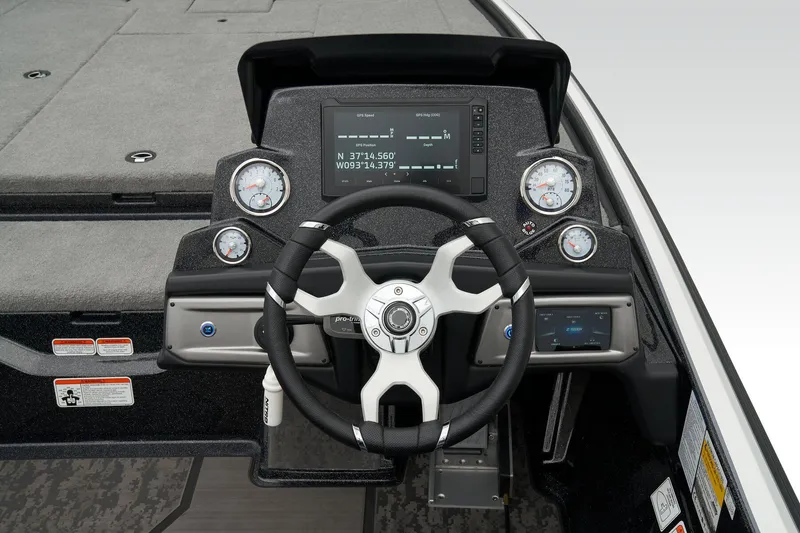

Console

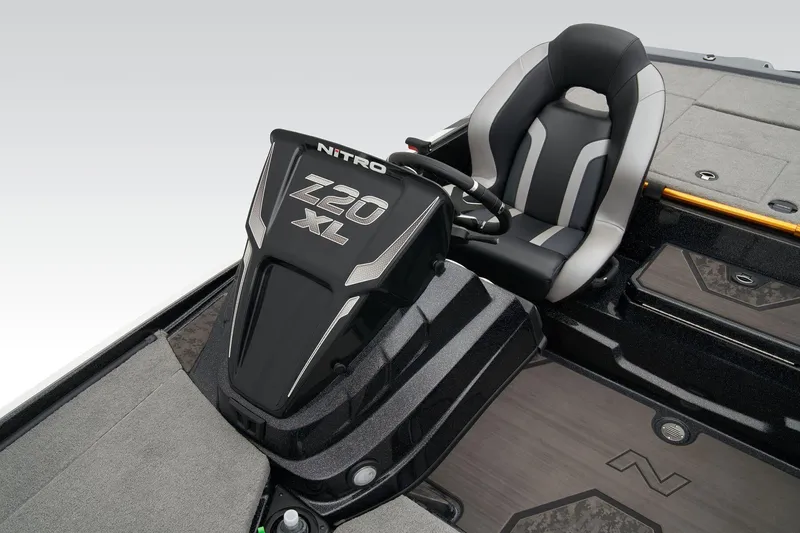

  • Modular, aerodynamic console design w/expanded leg clearance & large fishfinder surface

  • Removable acrylic, tinted plexiglass windscreen

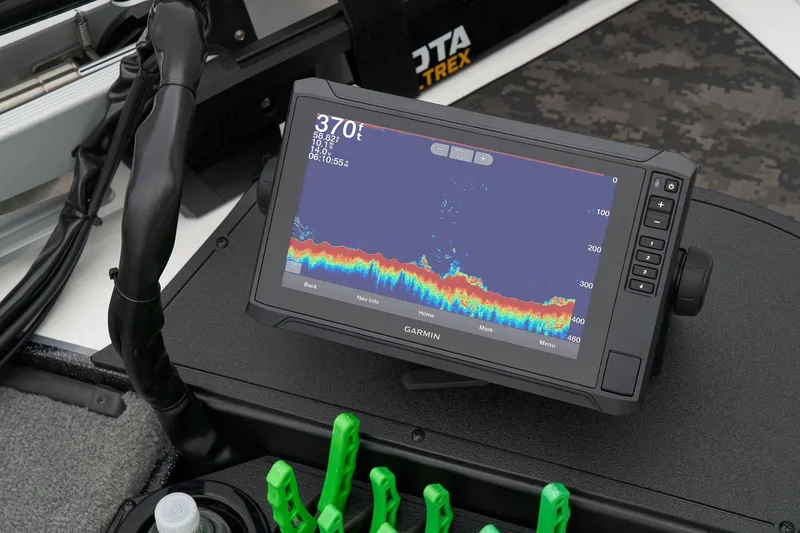

  • Lowrance® Eagle 5 flush-mounted fishfinder

  • 5" (12.7 cm) digital touchscreen control

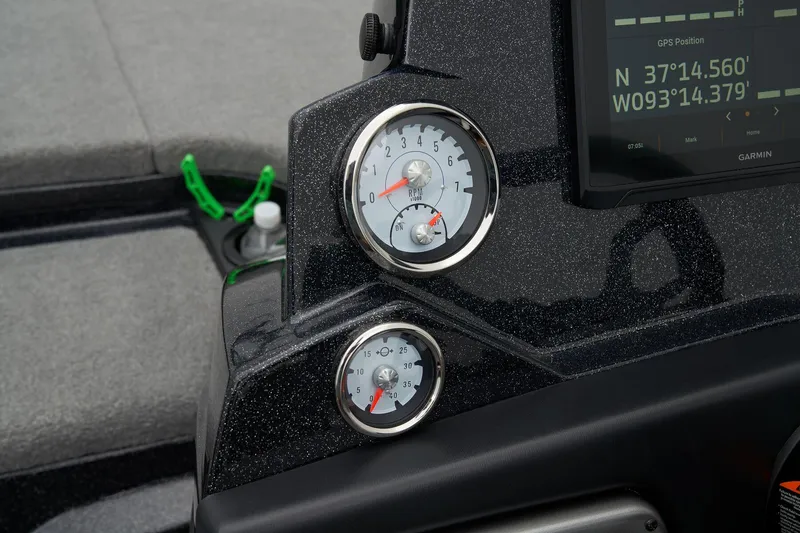

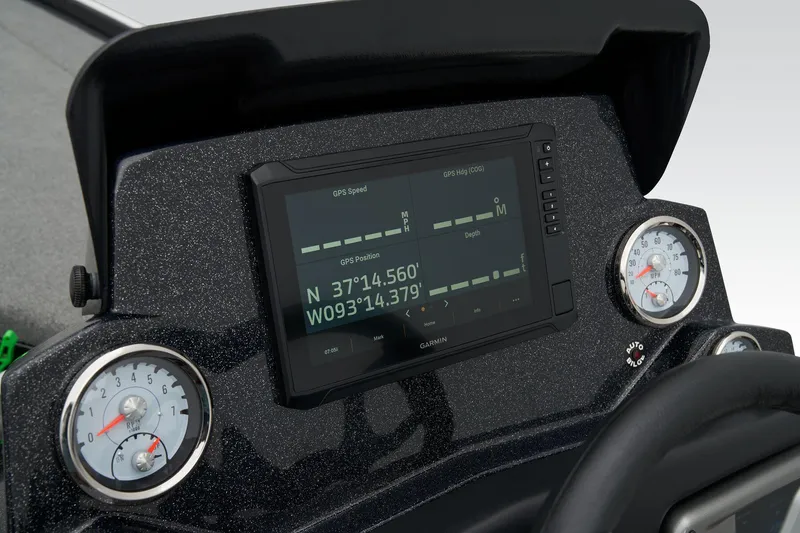

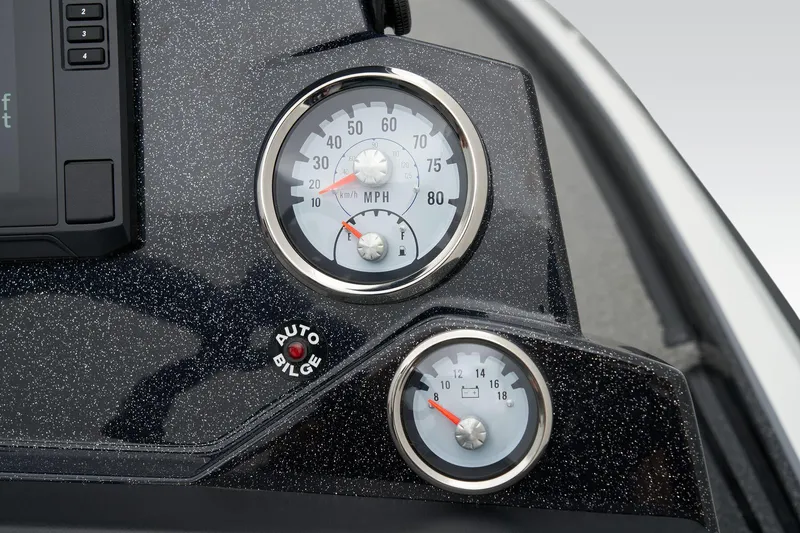

  • Veethree® multifunction instrumentation w/speedometer/fuel gauge, tach/trim gauge, voltmeter gauge & water pressure gauge

  • Dash light dimmer

  • Tilt hydraulic steering

  • Below-console RAM® X-Grip® phone holder & 12V outlet

  • LED courtesy light

  • Ready to accept optional removable port console

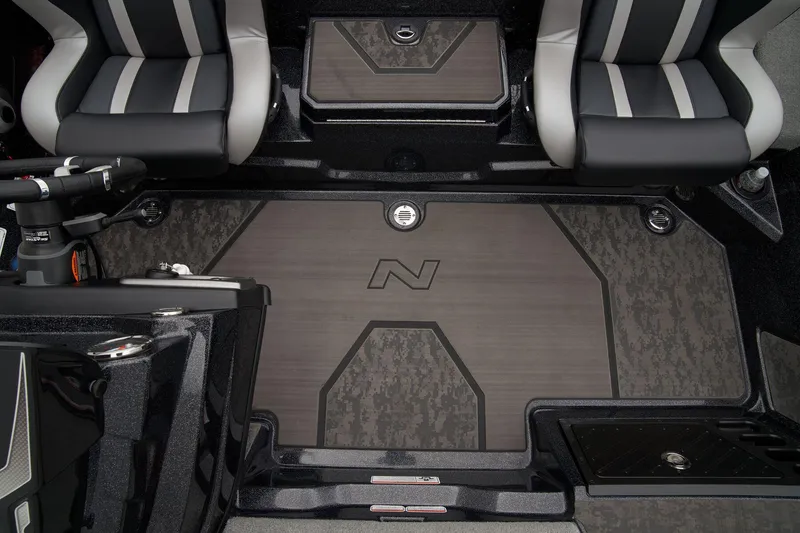

Interior

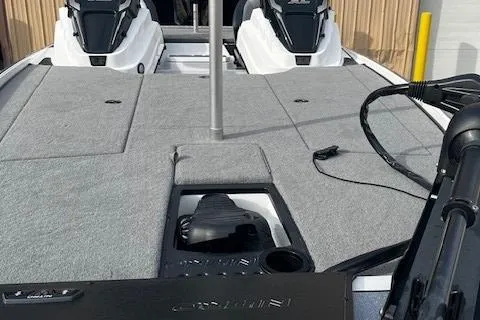

  • 42.5-sq.-ft. (4.0-sq.-m) anti-fatigue, padded bow deck for comfort & casting mobility

  • Bike seat w/pedestal

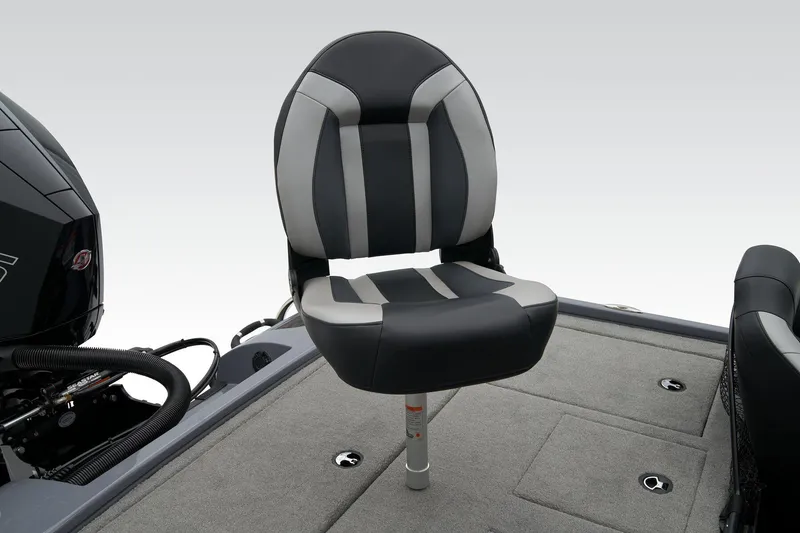

  • Folding fishing seat w/composite frame

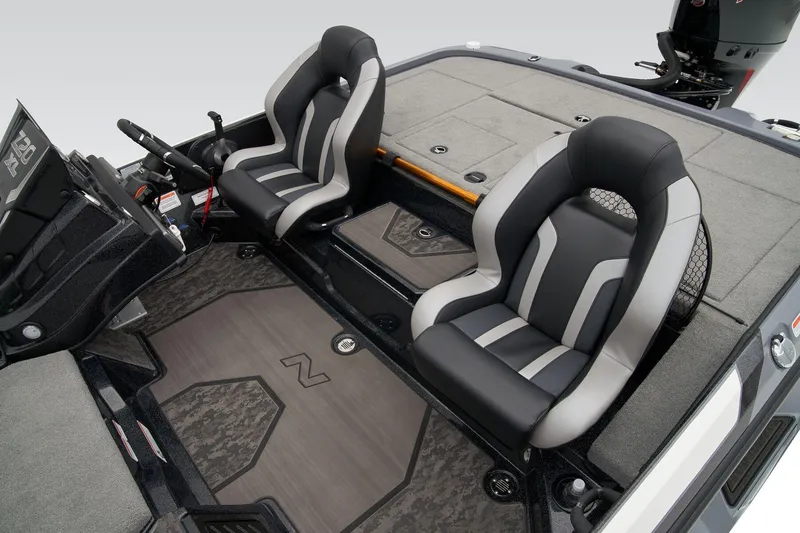

  • Z-CORE™ seating system w/Force Flex suspension & contoured, rotomolded frame for driver & passenger seats

  • Low driver & passenger flat seat mounting

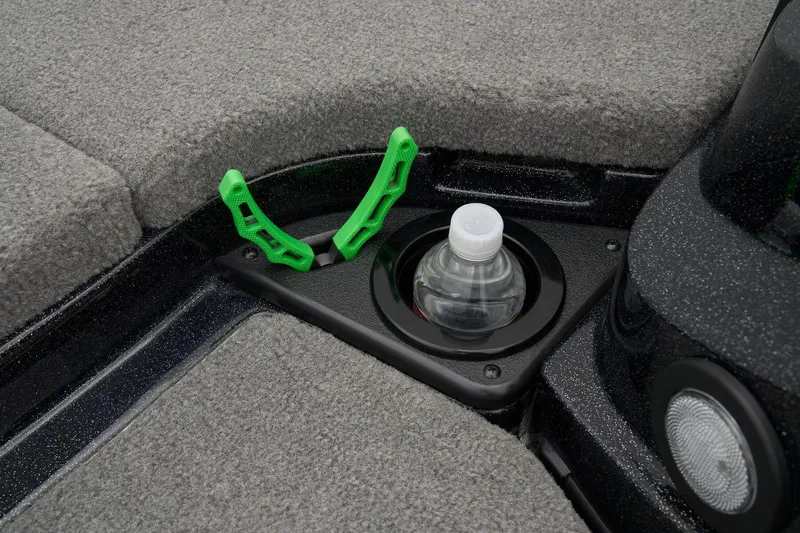

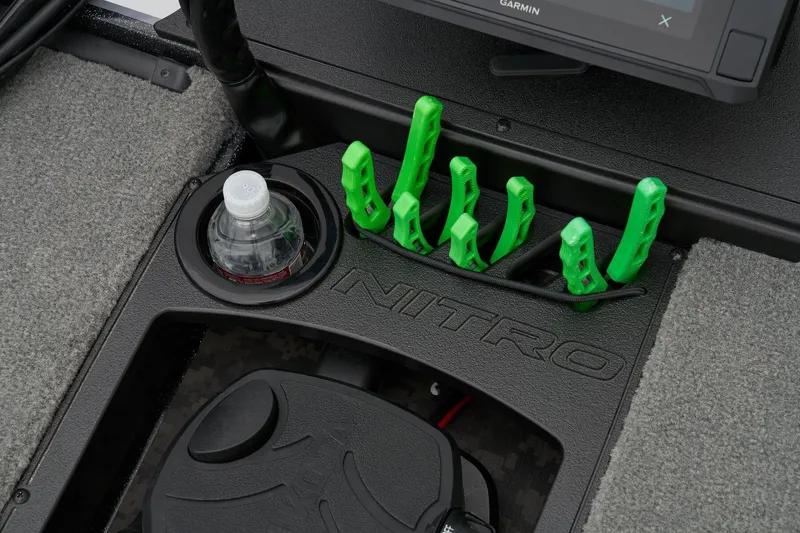

  • Bow tool/drink holder

  • Bow port & starboard rod hold-down straps

  • Molded-in drainage channels around bow storage compartments

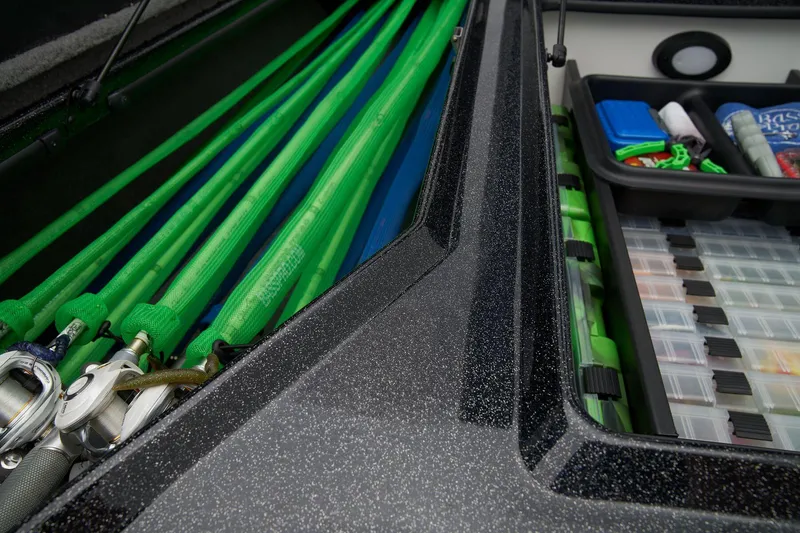

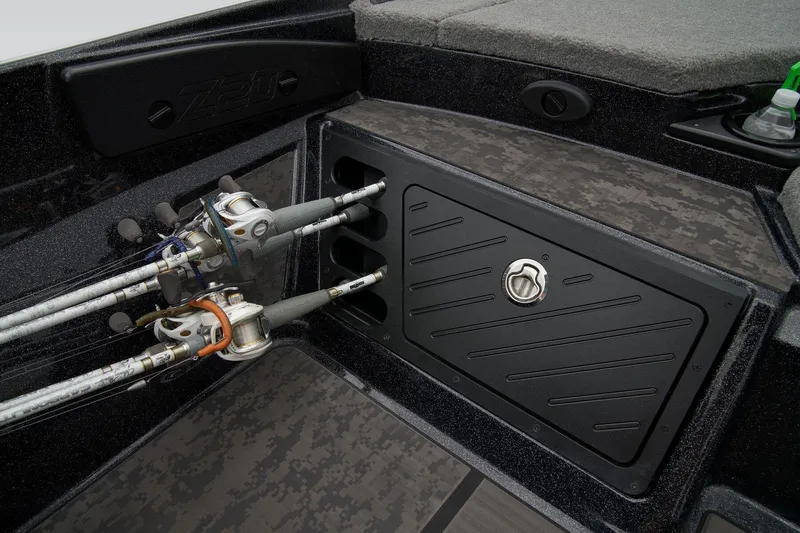

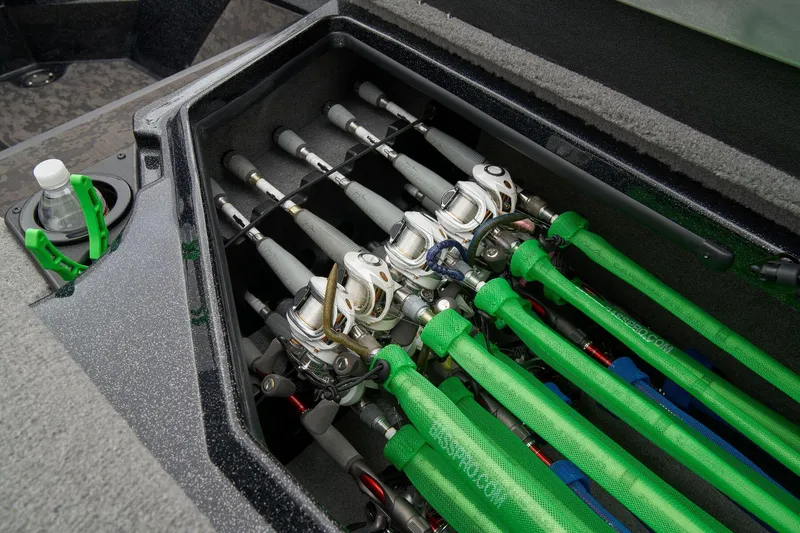

  • Oversized, lockable bow port & starboard rod lockers w/lift assists for rods up to 8' (2.44 m)

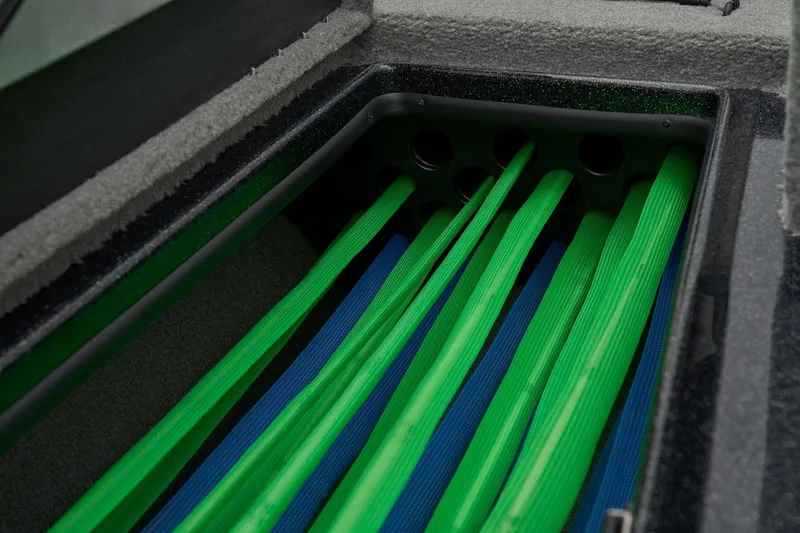

  • Rod organizer in bow port rod locker

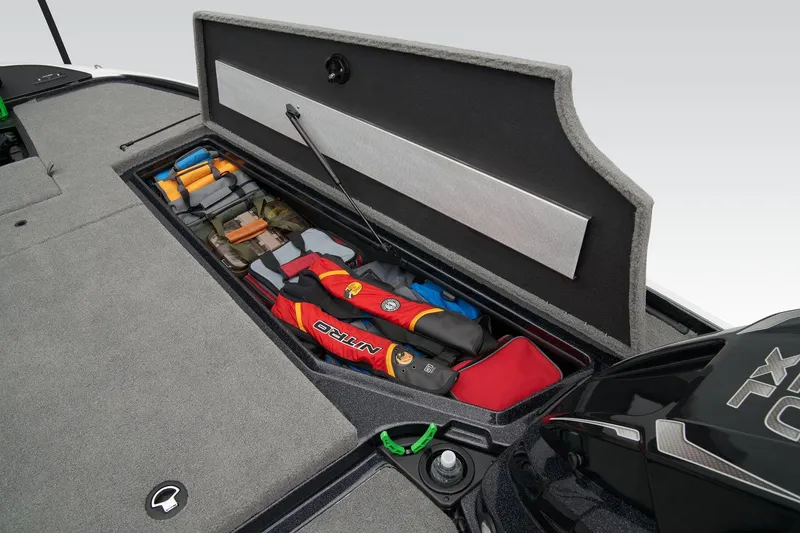

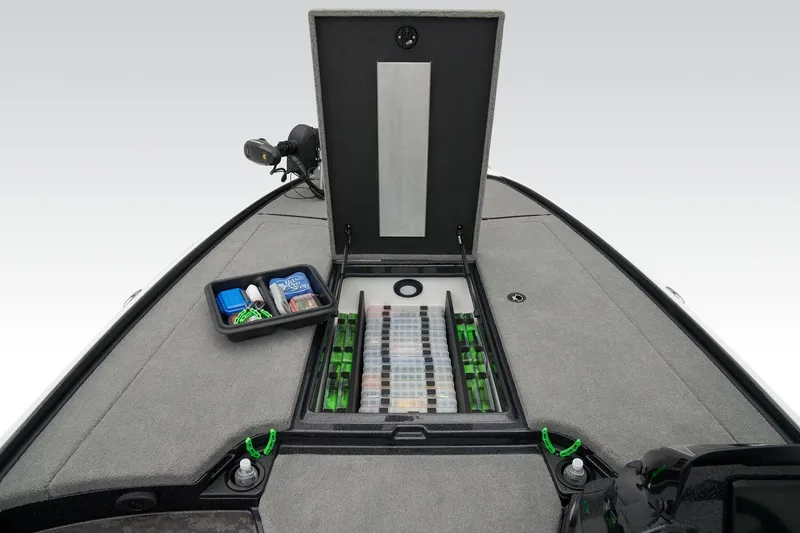

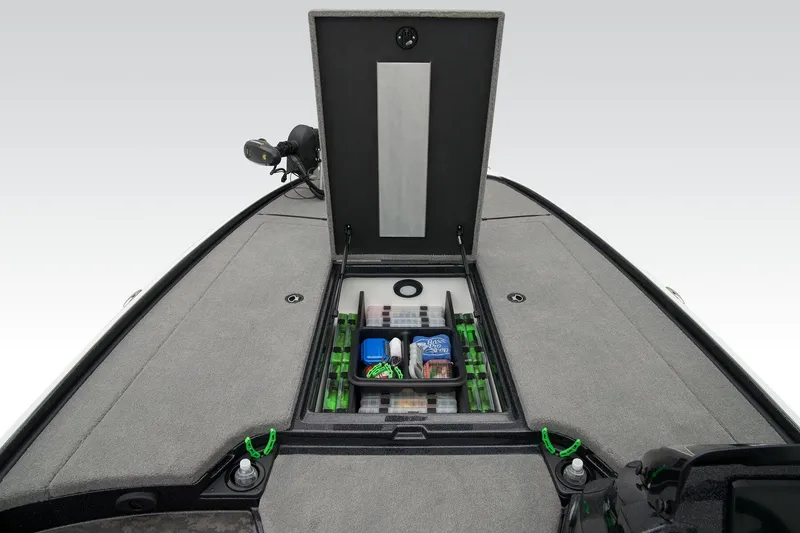

  • Oversized lockable bow center storage locker w/TACKLE MANAGEMENT SYSTEM™

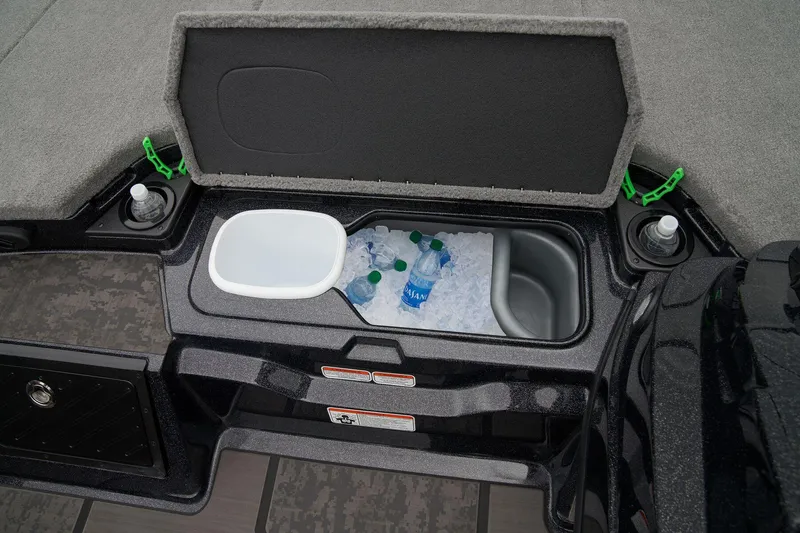

  • Step to bow deck w/62-qt. (58.67 L) insulated cooler, removable trash receptacle & snap-in sandwich tray

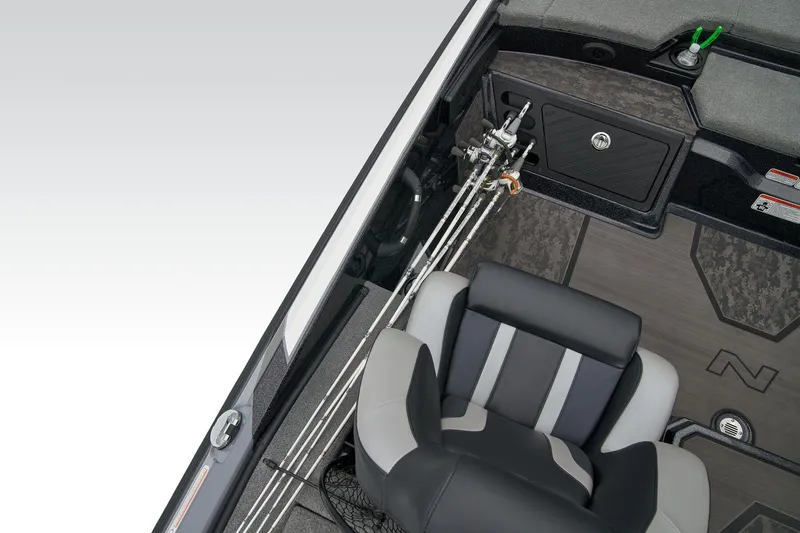

  • Partner rod ramp w/rod handle organizer & hold-down strap

  • Footrest w/non-skid mat under console(s)

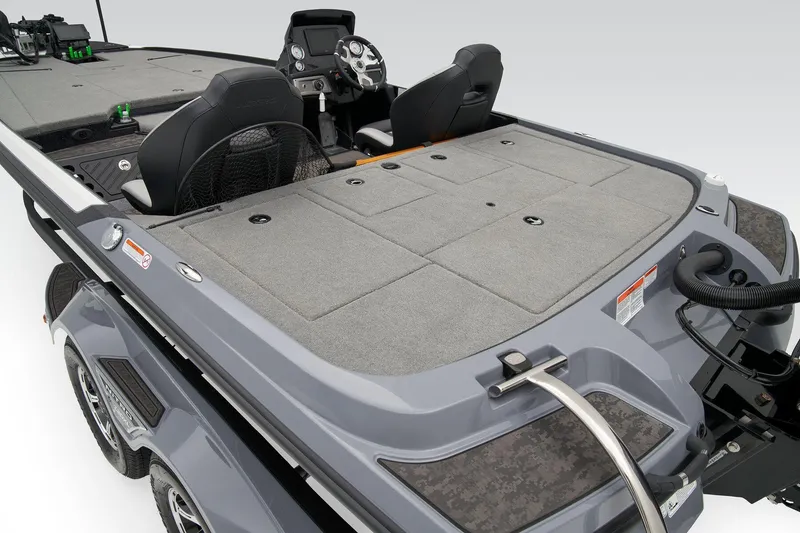

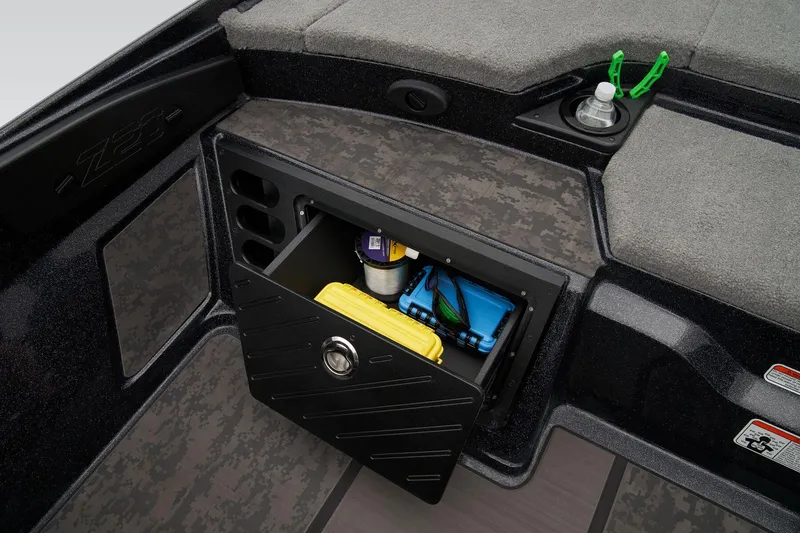

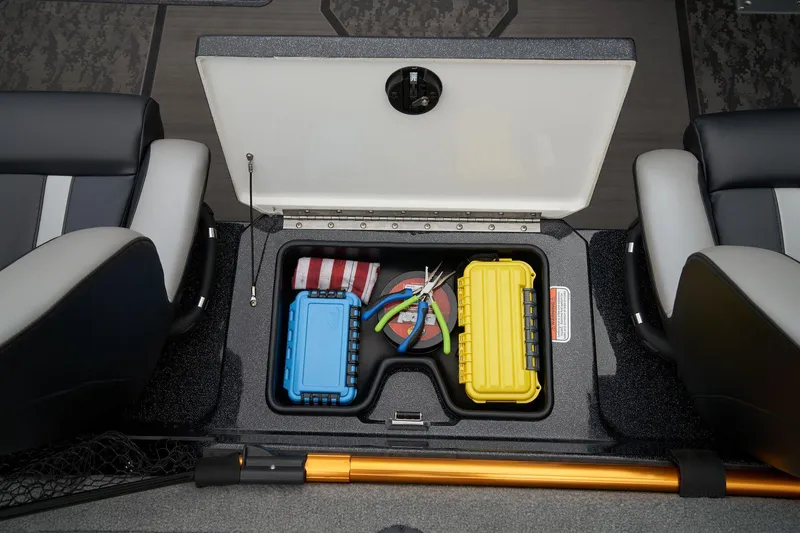

  • Step to aft deck w/lockable storage & removable tub

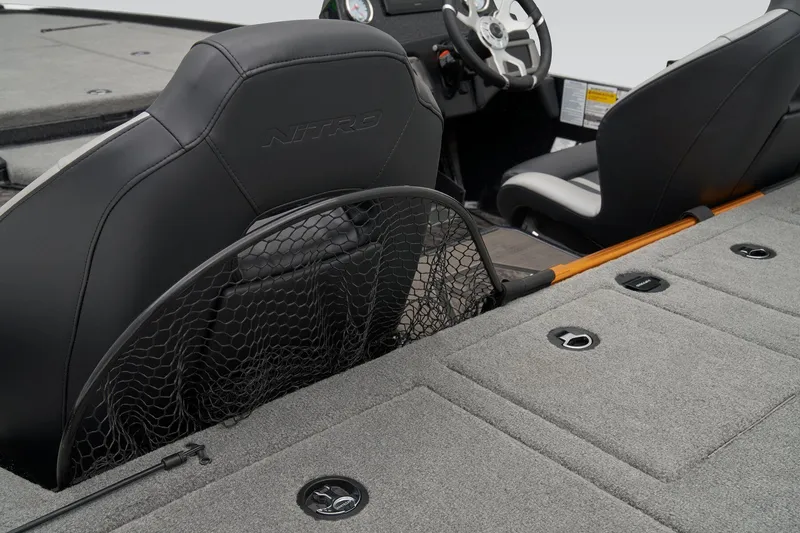

  • Designated net storage behind seating

  • Built-in tournament ruler & holder

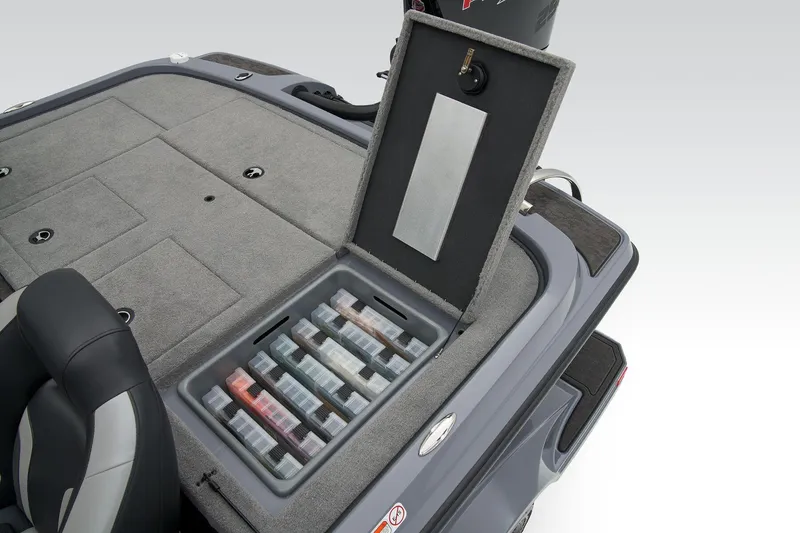

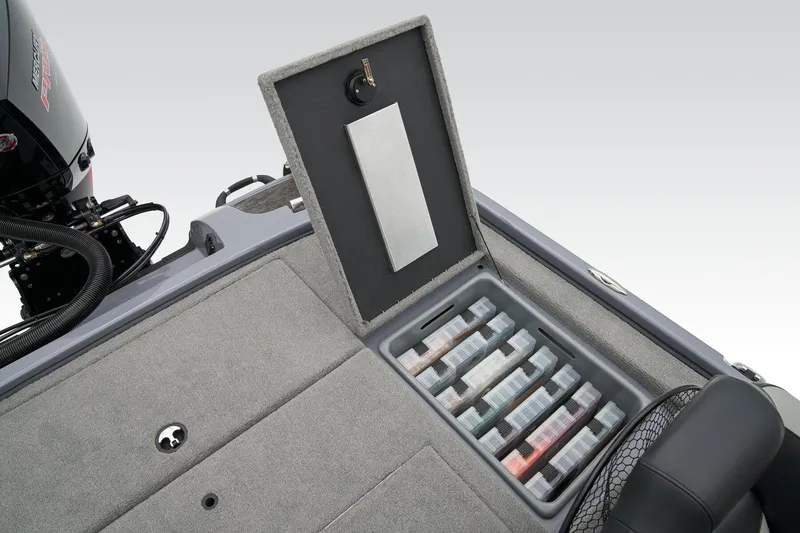

  • 2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays

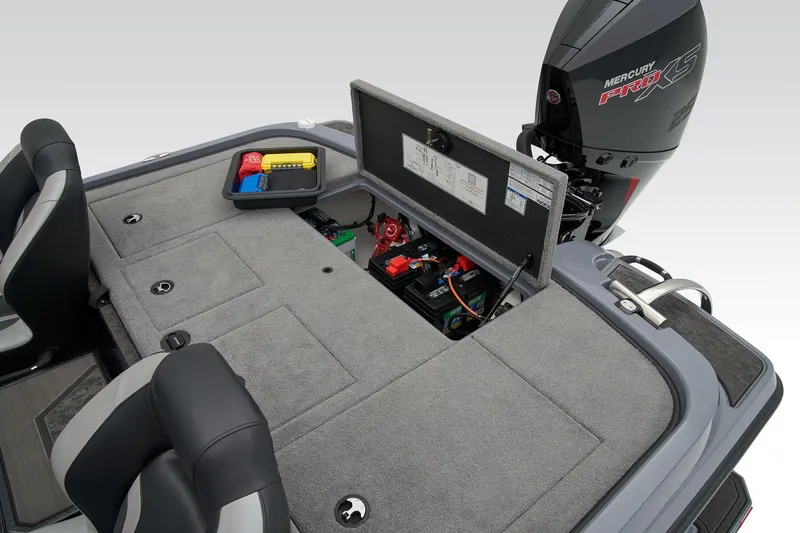

  • Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup

  • Lift-out tool/rope storage tray in rigging compartment

  • Insulated aluminum lids w/welded corners

  • 16-oz. (.45 kg) plush, marine-grade cut pile carpet on decks & floor

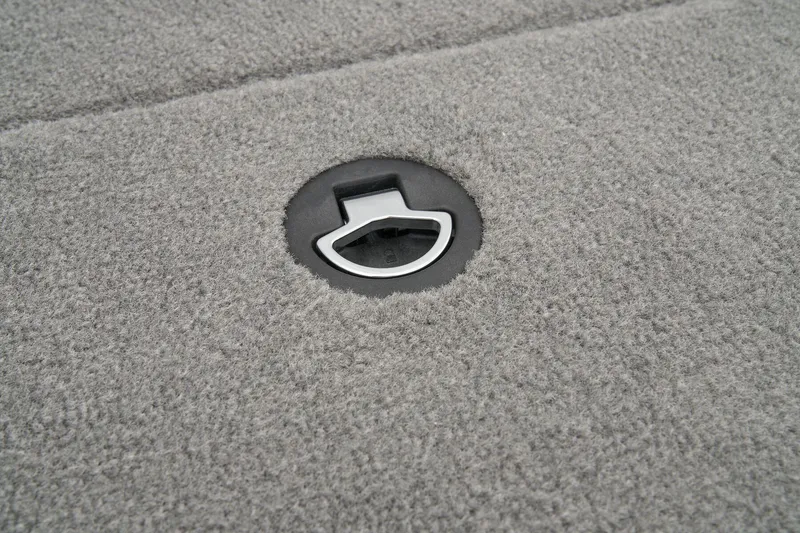

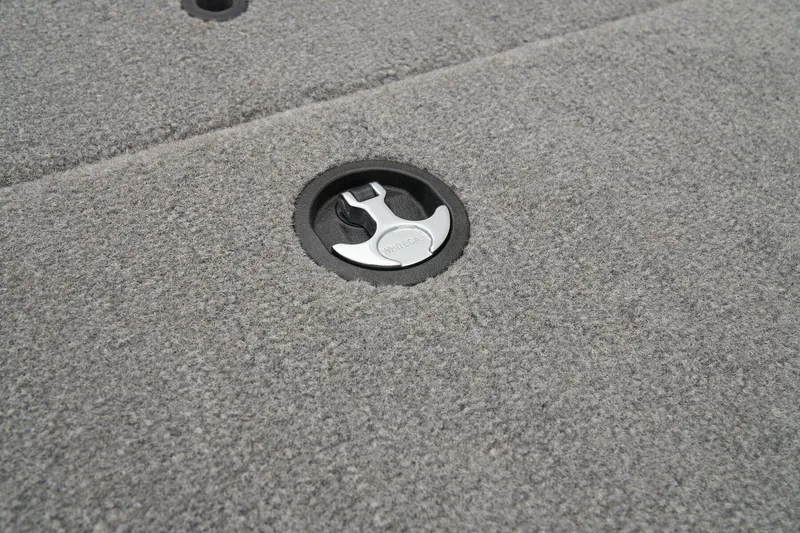

  • Stainless steel lockable slam latches

Exterior

  • NITRO VORTEX TECHNOLOGY™ (NVT™) hull for a smoother, drier ride

  • RAPID PLANING SYSTEM™ (RPS™) for quicker holeshots & maximized speed

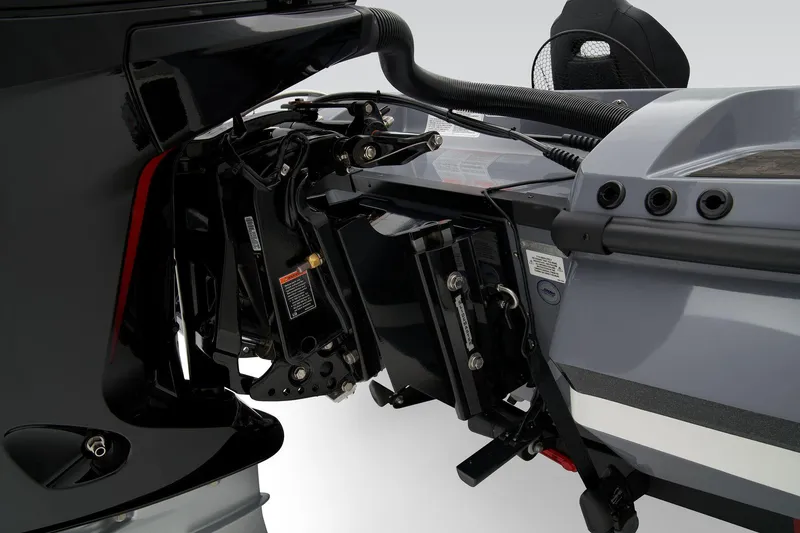

  • 12" (30.48 cm) adjustable jack plate—Black

  • Rigging tube for organized wiring & abrasion resistance

  • Stainless steel propeller

Construction & Exterior

  • 100% composite deck core w/superior thermal stability & strength-to-weight ratio

  • Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2" (5.08 cm)

  • Gelcoated stringer/liner system

  • Foam-filled hull for optimal buoyancy & safety

  • Full-width fiberglass-encapsulated composite transom

  • Splashwell protective film

  • Black hardware

Electrical

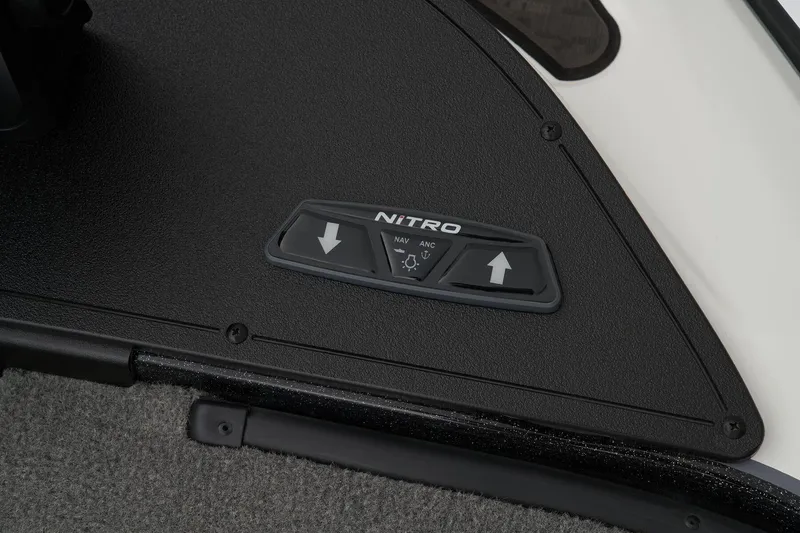

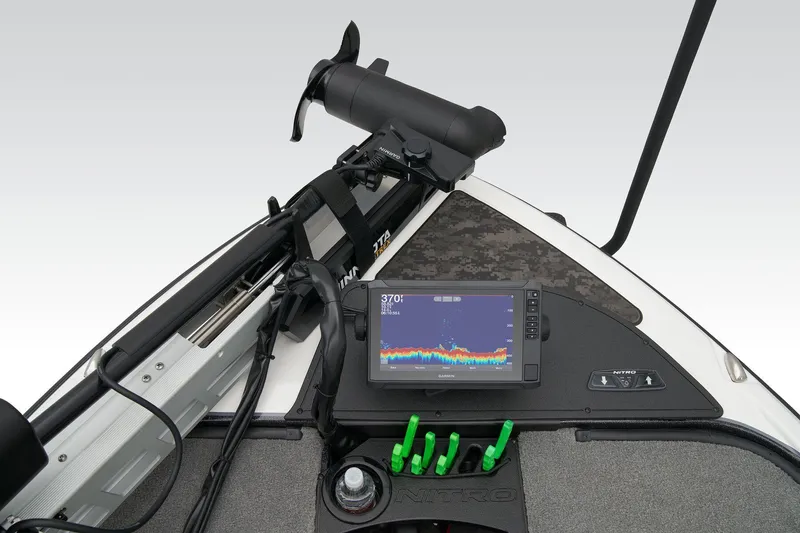

  • Angled bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount most 12" (30.5 cm) fishfinders

  • LED console courtesy light

  • Manual LED-lighted bow gear storage

  • Automotive-style labeled fuse panel w/cover

  • Interstate® cranking battery

  • 2 heavy-duty Interstate® trolling batteries

  • NOCO® GB40 jump starter pack

  • 3-bank, 30-amp onboard battery charger w/exterior receptacle

  • 6-gauge trolling motor wiring w/50-amp circuit breaker

  • Master power switch

  • Waterproof Deutsch connectors on gauges

  • Water- & abrasion-resistant connectors

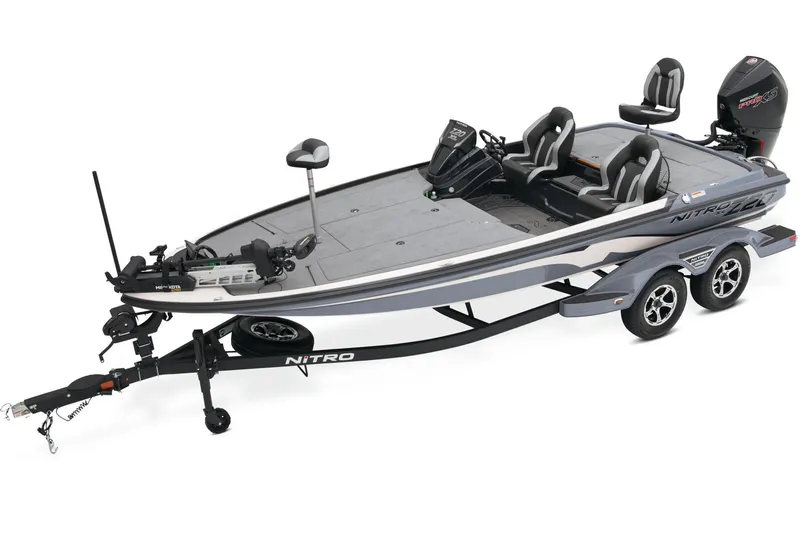

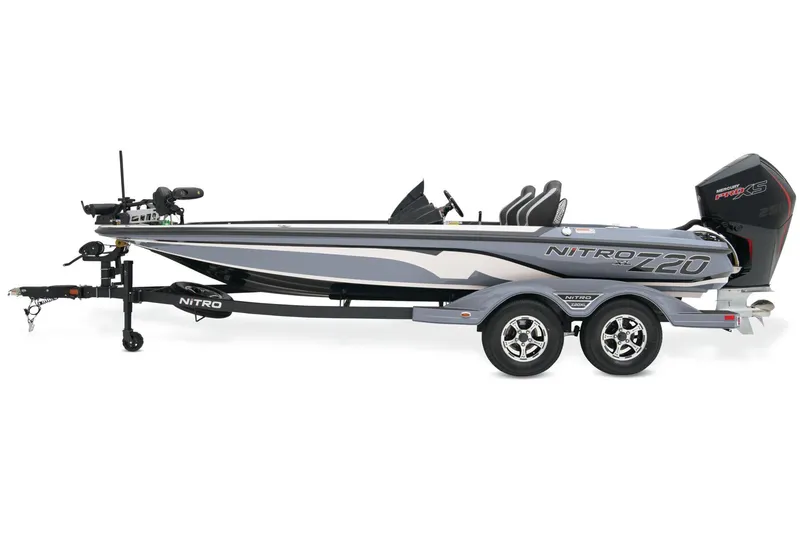

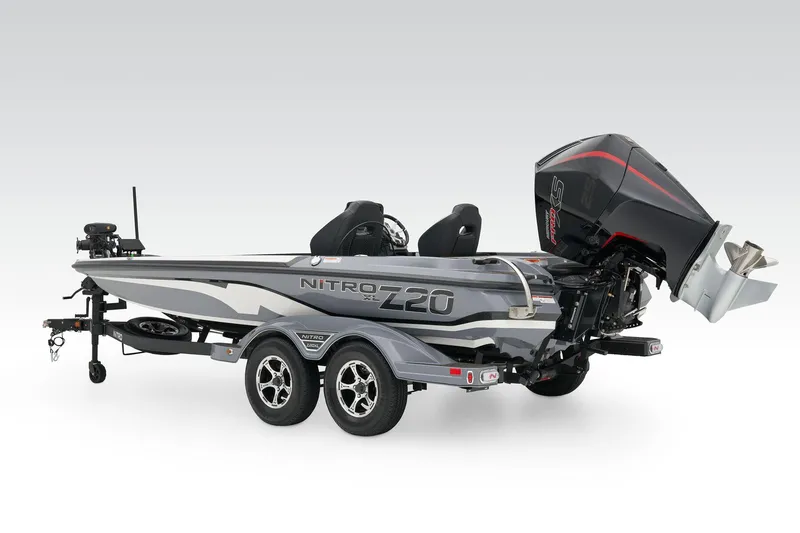

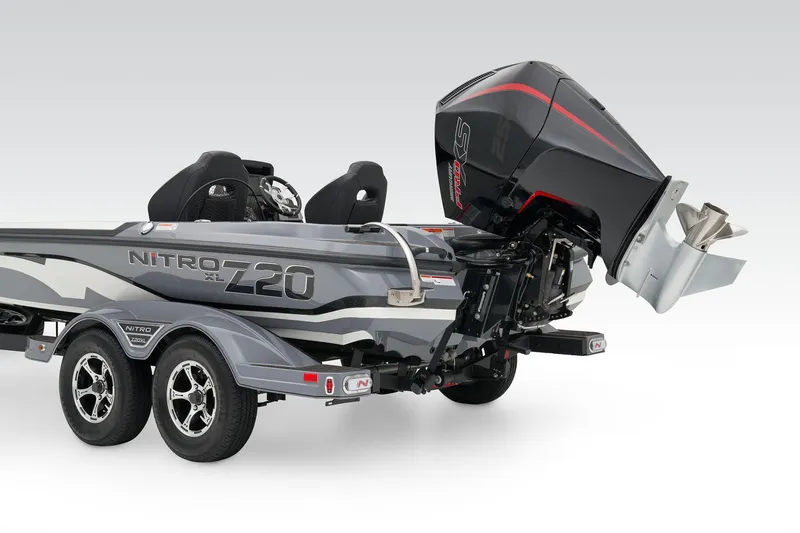

Trailer

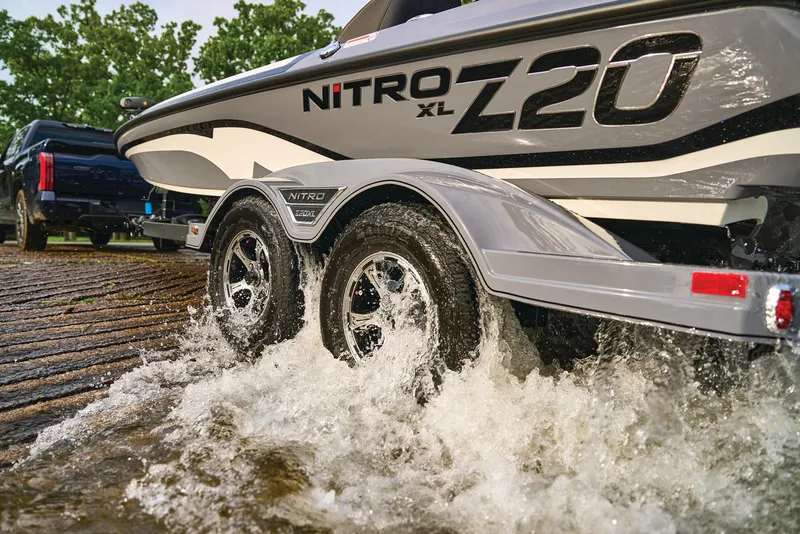

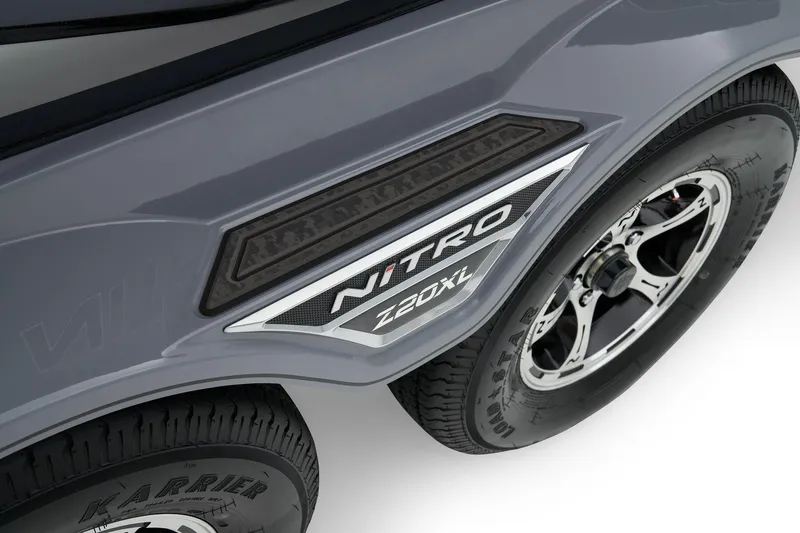

  • Custom-fit, tandem-axle steel NITRO® trailer w/enhanced stability & performance

  • 7-pin connector

  • 14" (35.56 cm) aluminum wheels w/radial tires

  • Surge disc brakes on both axles

  • Hub system w/1-year limited warranty

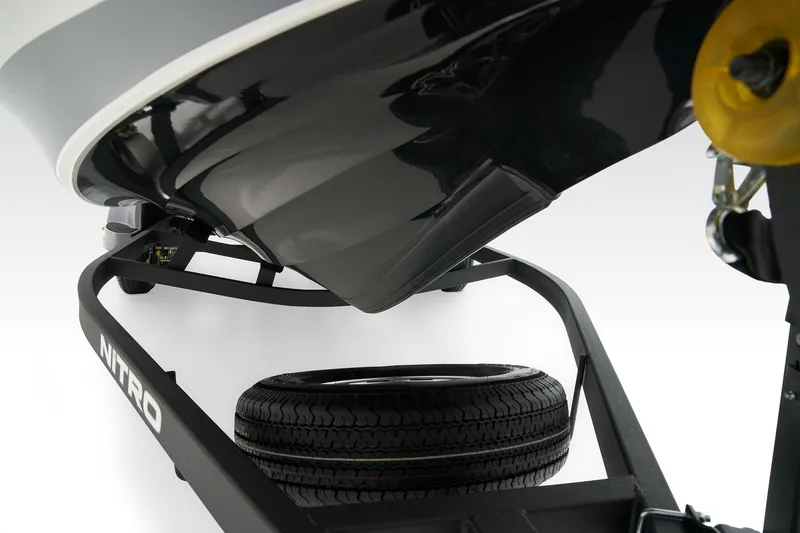

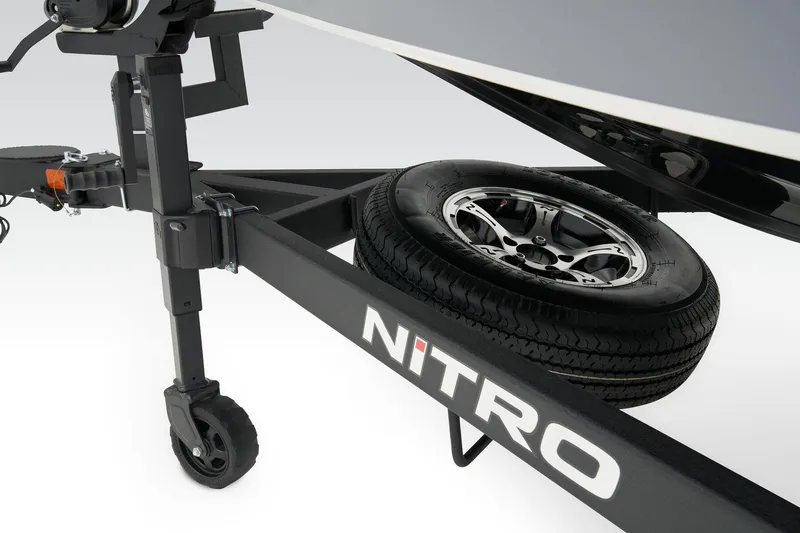

  • Spare tire carrier w/matching spare

  • All-welded rectangular GALVASHIELD® frame

  • Space-saving swing-away tongue to reduce storage length

  • Fold-away tongue jack

  • Heavy-duty winch w/nylon strap & bow safety strap

  • Integrated winch stand step w/safety handle for easier boarding/reboarding at bow while boat is on trailer

  • Outboard motor support to reduce hull & transom stress while towing

  • Carpeted bunks & fender boards to protect hull

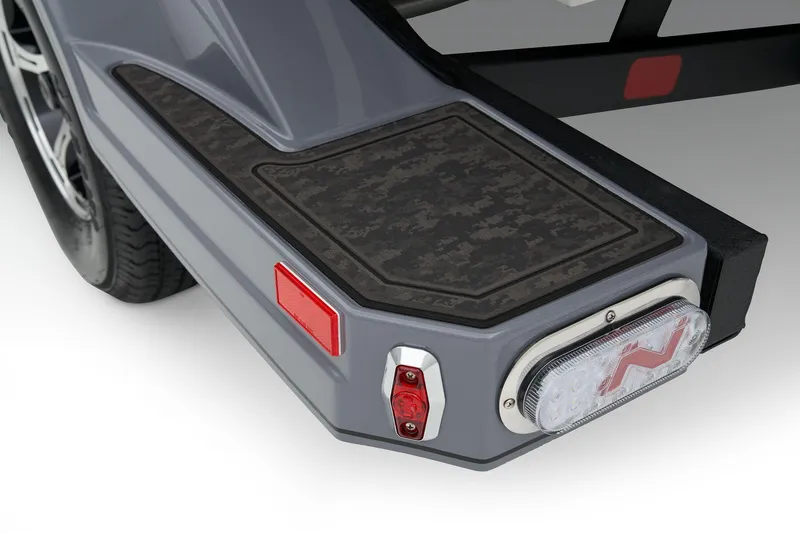

  • 6" (15.24 cm) oval LED tail lights w/integrated back-up lights

  • Retractable transom tie downs

  • Safety cables

Default Title

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.

Price History

DateEventPrice
2/6/26Price decreased$59,699(-3.6%)
8/2/25Price decreased$61,899(-2.2%)
6/28/25Initial price$63,299

Overview from around the web 2025 Nitro Z20 XL

Customers are raving about the 2025 Nitro Z20 XL, highlighting its exceptional performance on the water and advanced features

Many praise its powerful Mercury engine, which delivers impressive speed and acceleration, making it ideal for both competitive fishing and recreational boating. Anglers appreciate the spacious and well-designed deck layout, providing ample room for casting and maneuvering. The Z20 XL's cutting-edge electronics and fish-finding technology receive high marks for enhancing the fishing experience. Additionally, users note the boat’s smooth handling, durability, and stylish design, making it a top choice for serious bass fishermen looking for reliability and superior performance.

The Biggest Pros and Cons

The 2025 Nitro Z20 XL offers a range of advantages and a few considerations to keep in mind:

Pros

Powerful Performance: Equipped with a high-performance engine, the Z20 XL delivers impressive speed and acceleration, ideal for serious anglers.

Spacious Layout: The XL model provides extra room, offering ample deck space for comfortable fishing and easy gear organization.

Advanced Electronics: Comes with cutting-edge fish-finding technology and navigation systems to enhance your fishing experience.

Durable Construction: Built with high-quality materials and a robust hull design, ensuring long-lasting durability and stability on the water.

Versatile Storage: Features multiple storage compartments, including specialized rod lockers and tackle storage, keeping equipment secure and accessible.

Cons

Higher Price Point: The advanced features and larger size may come with a higher cost compared to more basic models.

Fuel Consumption: With a powerful engine, fuel efficiency may be lower, which could impact operating costs during extended use.

Size Considerations: The larger footprint of the XL model may require more storage space and a bigger trailer for transport.

Learning Curve: Advanced electronics and performance capabilities might require some time to fully master for beginners.

Made For

The 2025 Nitro Z20 XL is designed for serious bass anglers who demand top-tier performance on the water. Ideal for both competitive tournament fishermen and passionate weekend warriors, this boat offers advanced features, superior speed, and exceptional handling to help anglers maximize their fishing experience. Whether you’re navigating tight spots or cruising open waters, the Z20 XL delivers the power and precision needed to elevate your game.
