• Length:17' 4"

• Beam: 7' 6"

• Bottom Width: 6' 0"

• Max. Recommended HP: 115 HP

• Fuel Capacity: 24 gal.

• Max. Person Capacity: 3 persons

• Max. Person Weight: 460 lbs.

• Max. Person, Motor & Gear Weight: 1100 lbs.

• Interior Depth: 16.25"

• Transom Height: 20.5"

• Deadrise: 16 degrees

• Draft: 15"

• Average Dry Weight: 1450 lbs.

• Average Package Weight: 2650 lbs.

• Bridge Clearance: 6' 2"

• Package Height: 5' 3.5"

• Package Width: 7' 11.5"

• Towing Length: 23' 8"

• Storage Length: 20' 9"

Comfort, Convenience & Peace of Mind

• NMMA® certified

• Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements

• EPA-compliant fuel system

• Non-skid bow & stern mats

• Low-profile gunnels to maximize deck size & for easier casting

• Integrated fold-down stainless steel reboarding ladder, angled for allowing optional shallow-water anchor

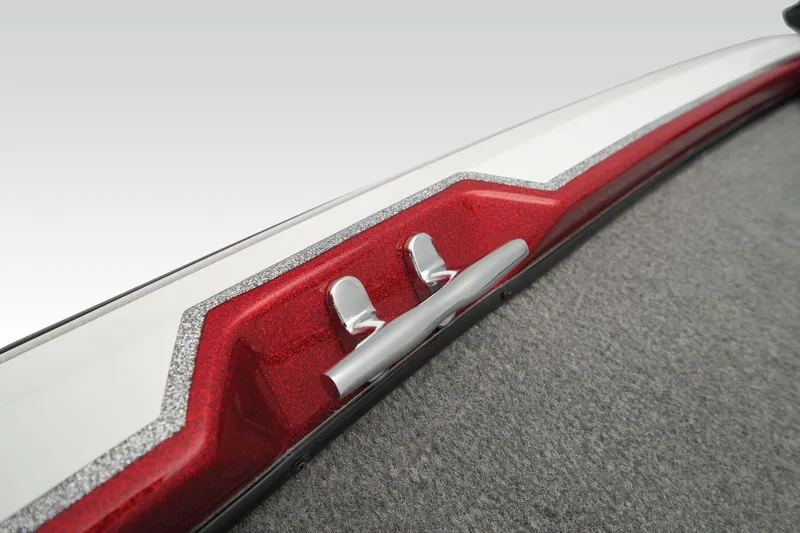

• 4 stainless steel, angled cleats flushed w/gunnels

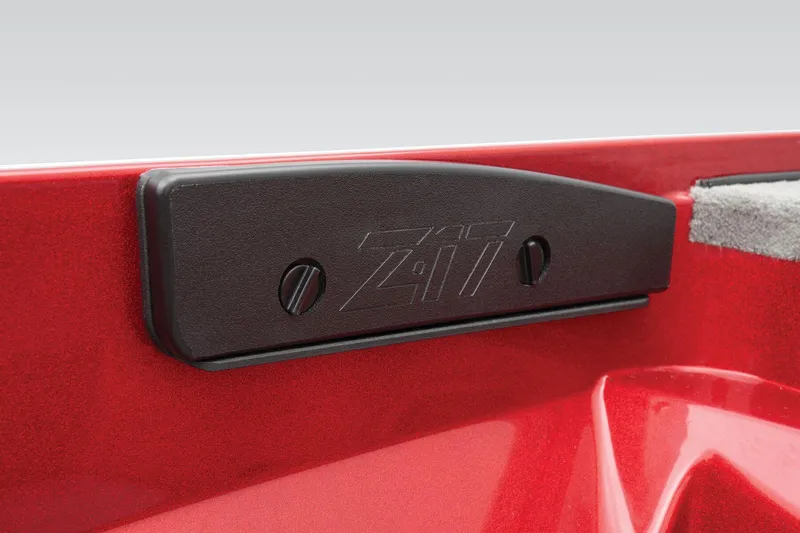

• 2 grab handles (1 at passenger, 1 at transom)

• Fire extinguisher

• Horn

• Paddle

Livewell System

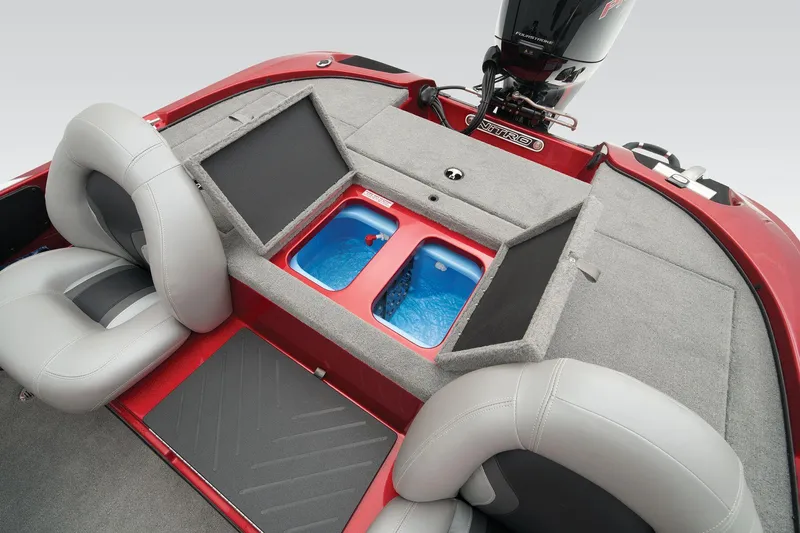

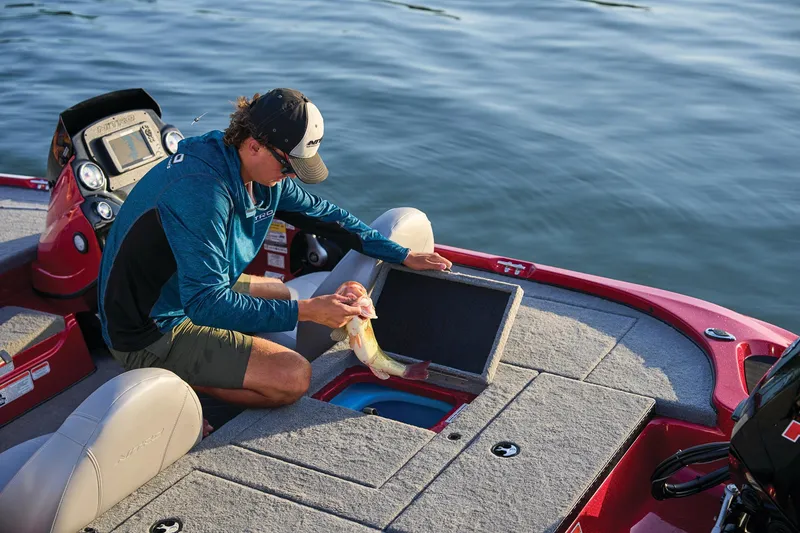

• Aft 23-gal. (87.06 L) rotomolded GUARDIAN™ livewell w/divider, timer & rounded corners

• 500 GPH (1,893 LPH) aerator/fill pump

• 500 GPH (1,893 LPH) livewell recirculation/pump-out system

Trolling Motor

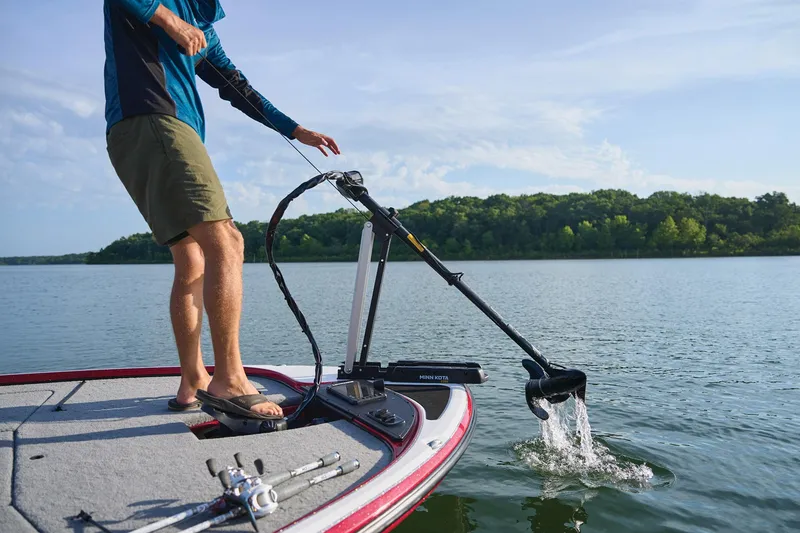

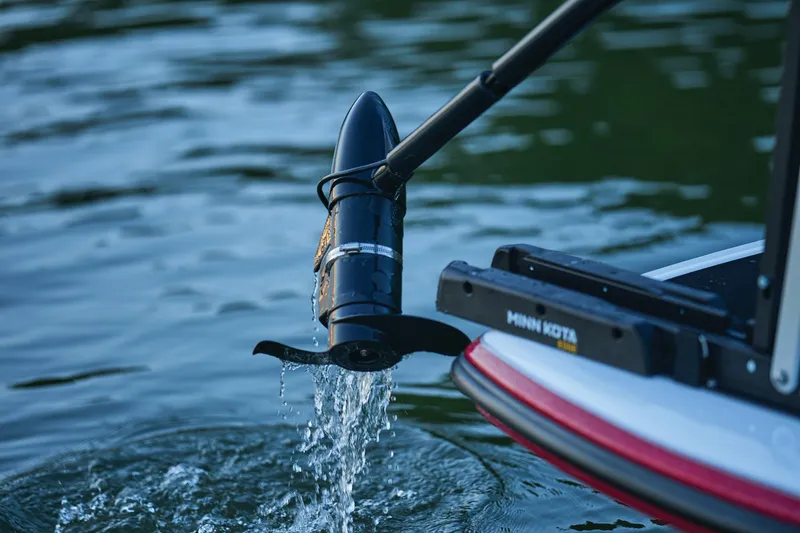

• Minn Kota® Edge® 12V, 55-lb. (24.95 kg) thrust, 45" (1.14 m) shaft trolling motor w/mount

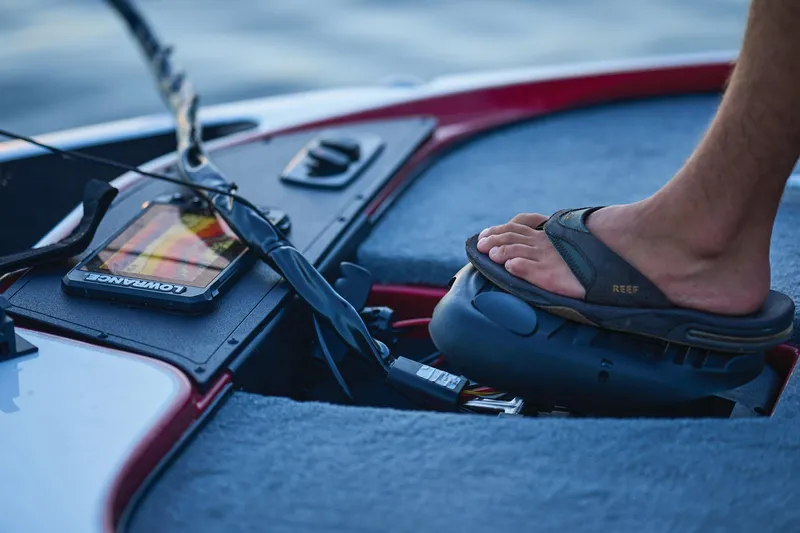

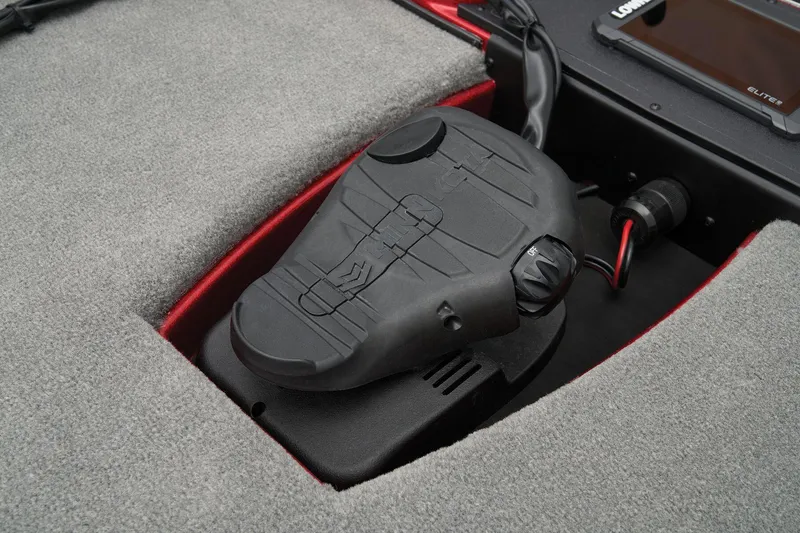

• Trolling motor pedal recess

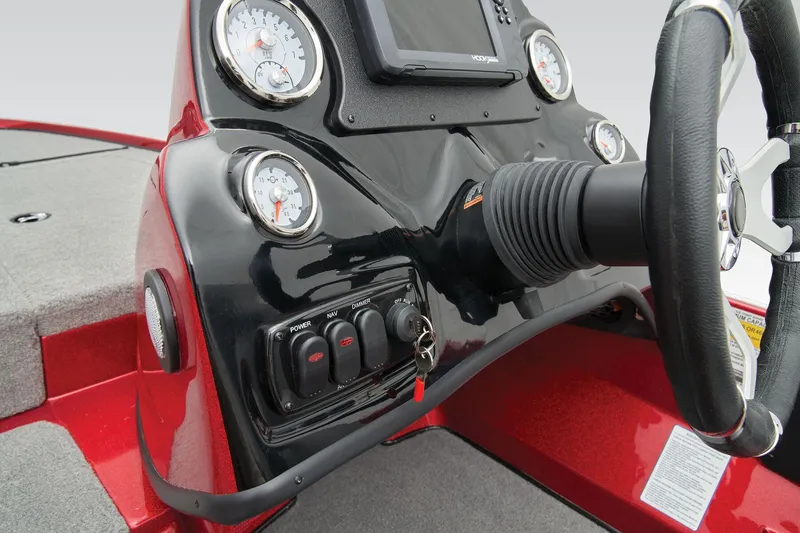

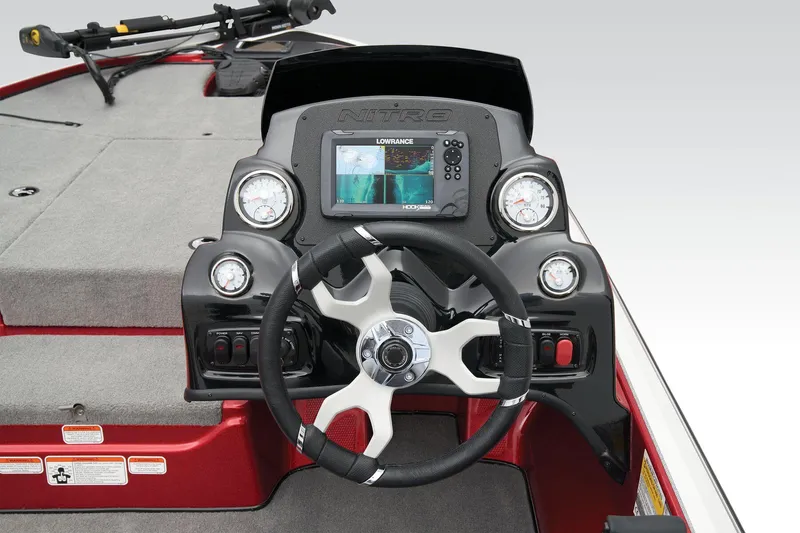

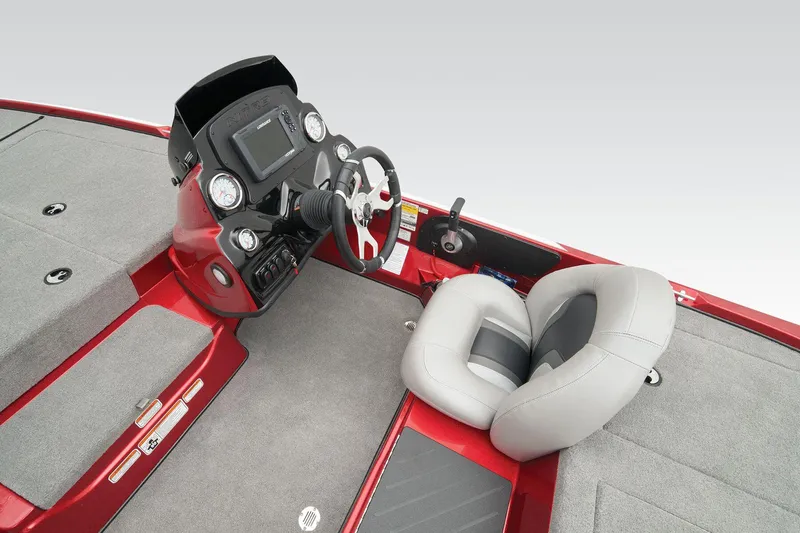

Console

• Custom-molded modular console w/2-tone gelcoat

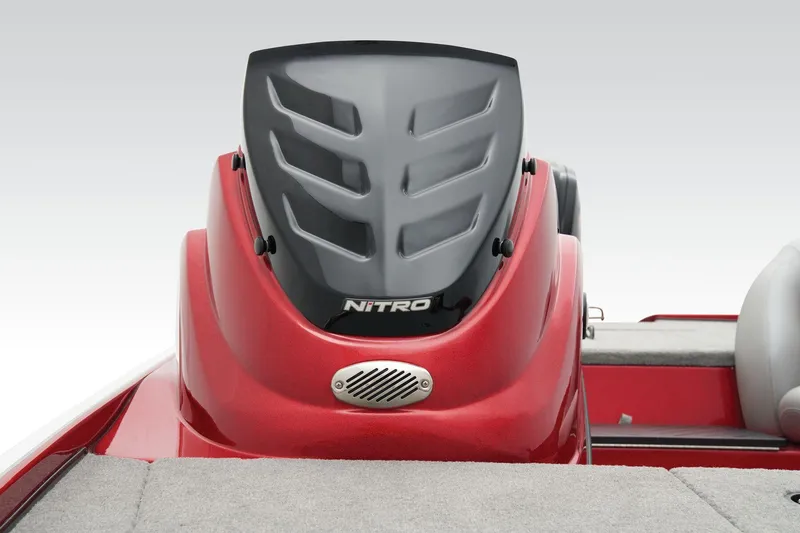

• Removable acrylic, tinted plexiglass windscreen

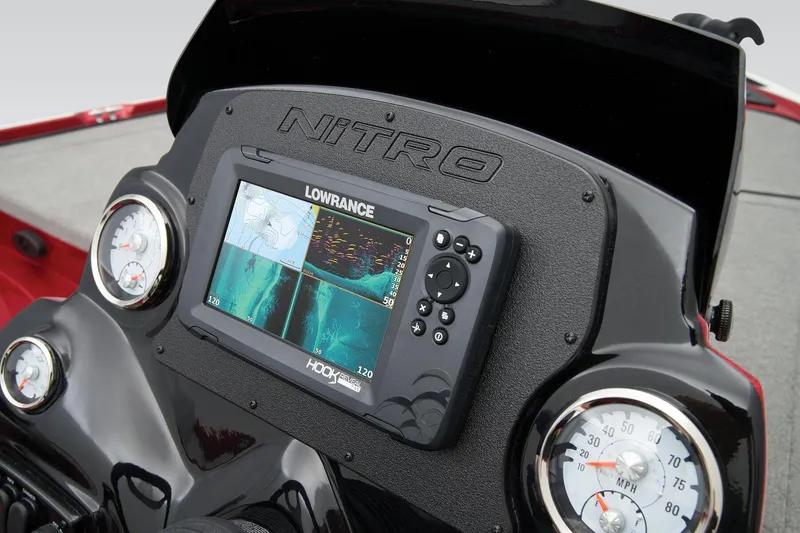

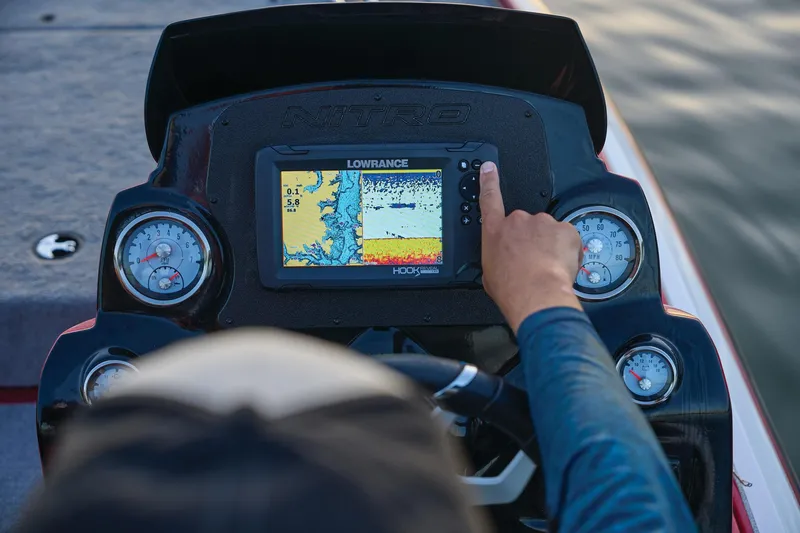

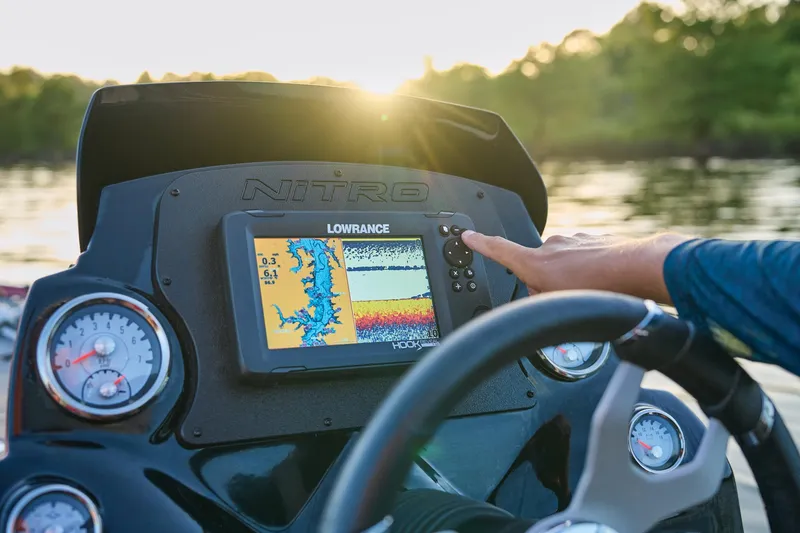

• Lowrance® Eagle 4 flush-mounted fishfinder

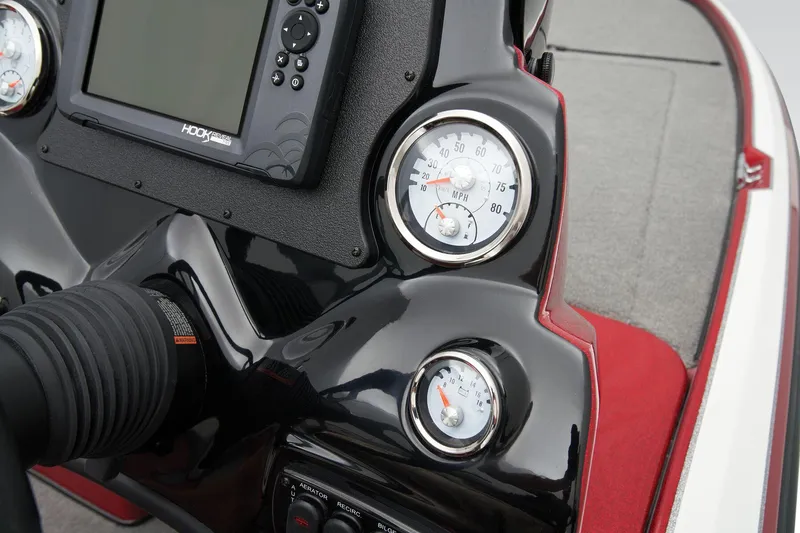

• NEW Z3 digital gauges

• Dash light dimmer

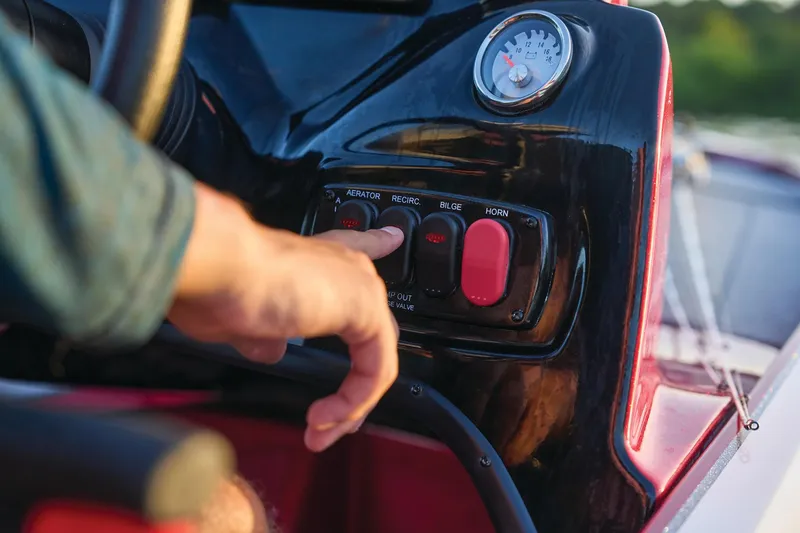

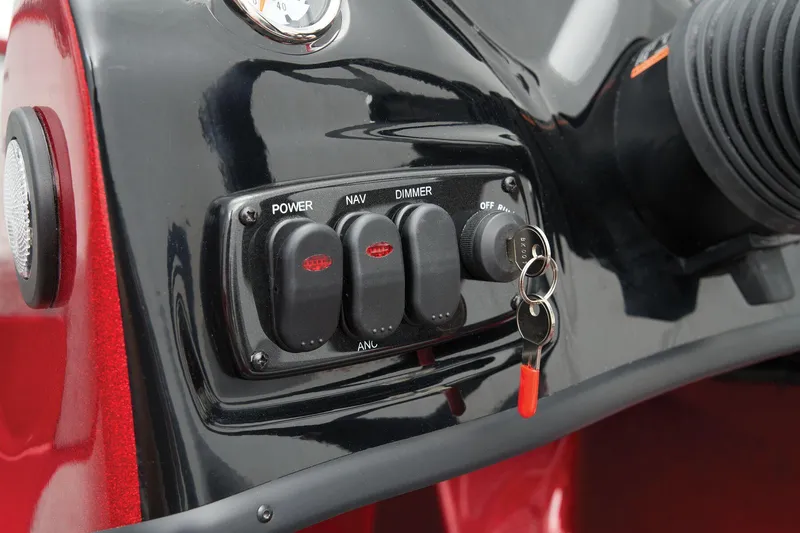

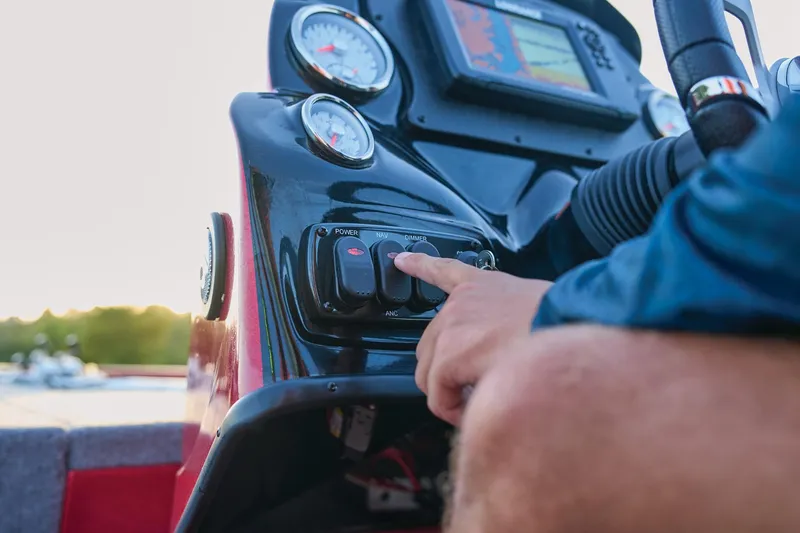

• Water-resistant switch panels

• Mechanical tilt rotary steering

• 12V outlet

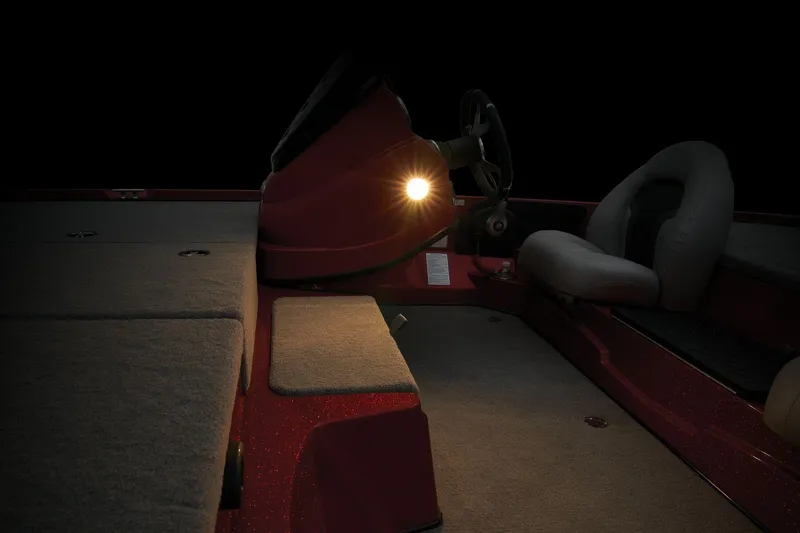

• LED courtesy light

• Ready to accept optional removable port console

• Room to flush-mount optional, exchanged 9" (22.86 cm) fishfinder

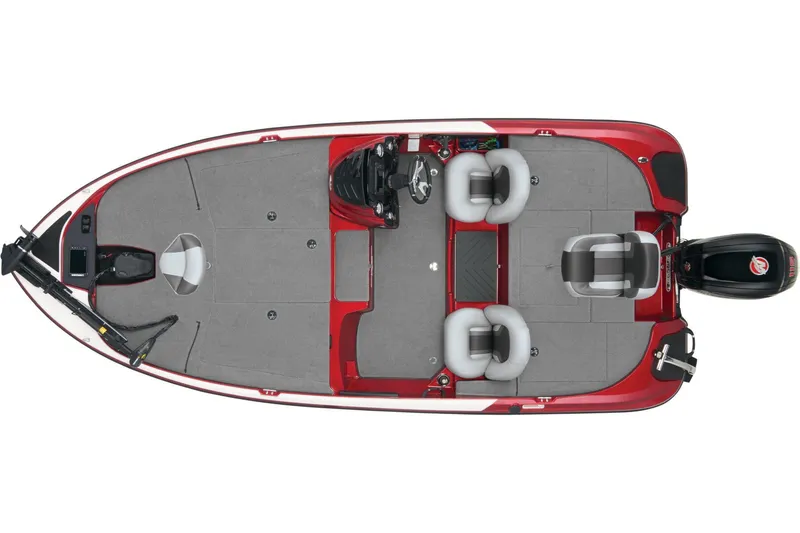

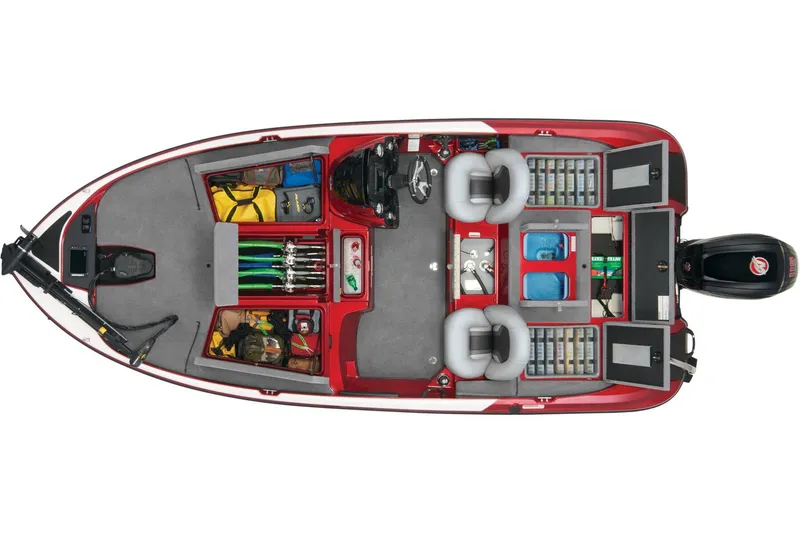

Interior

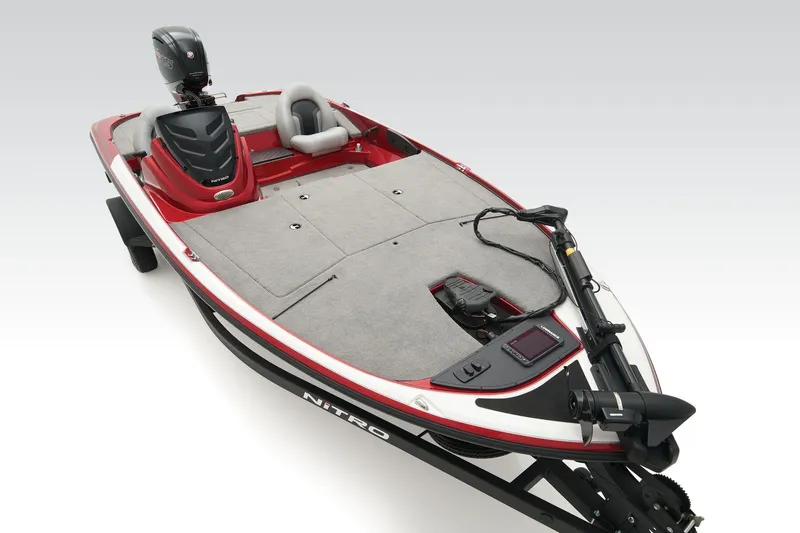

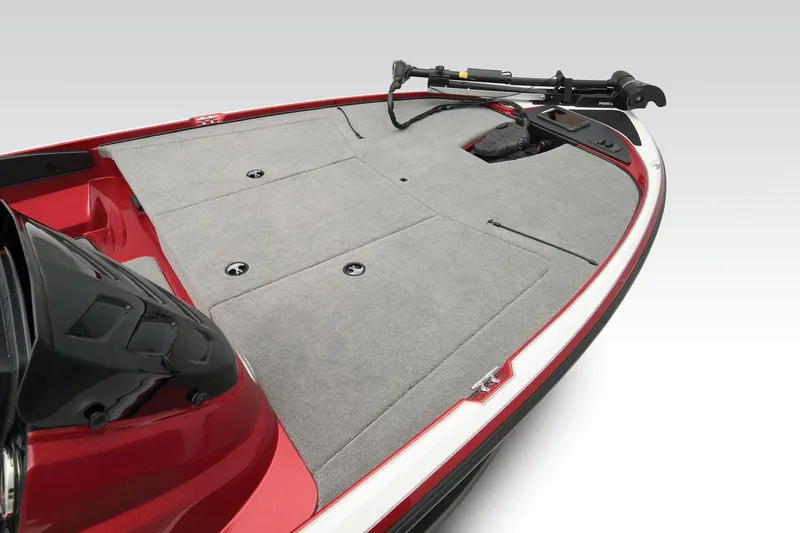

• 32-sq.-ft. (3.0-sq.-m) bow deck for casting mobility

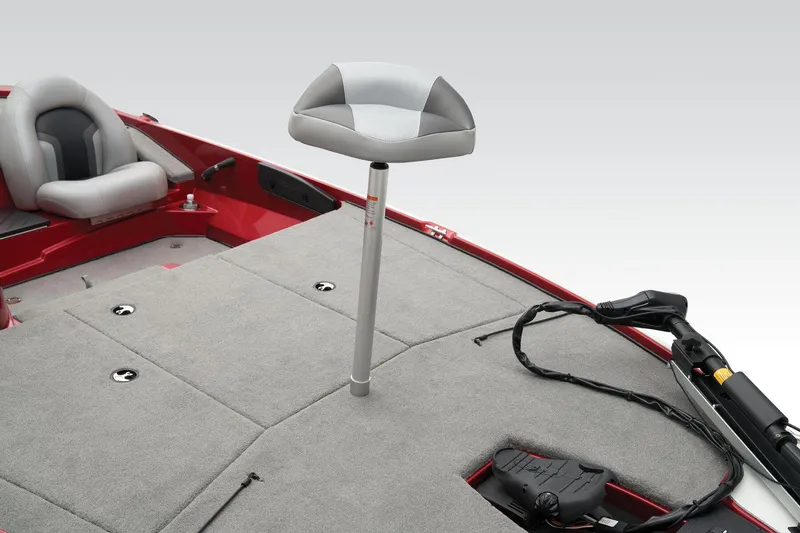

• Bike seat w/pedestal

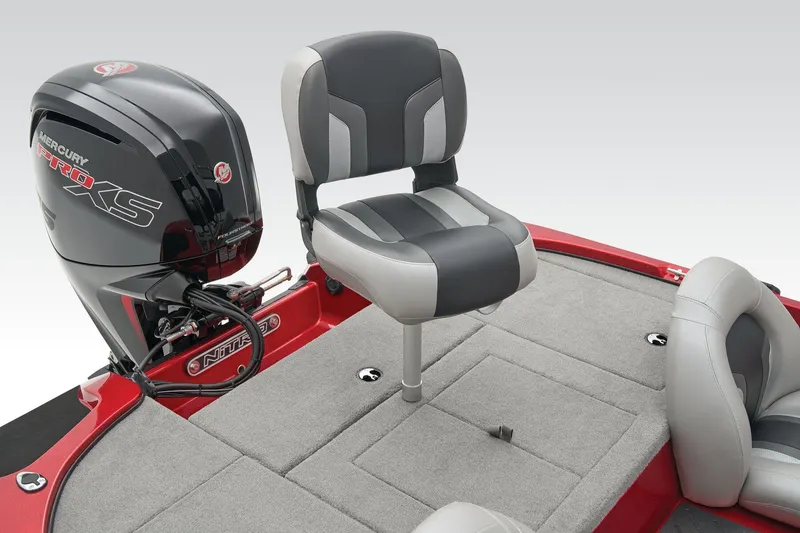

• Folding fishing seat w/composite frame

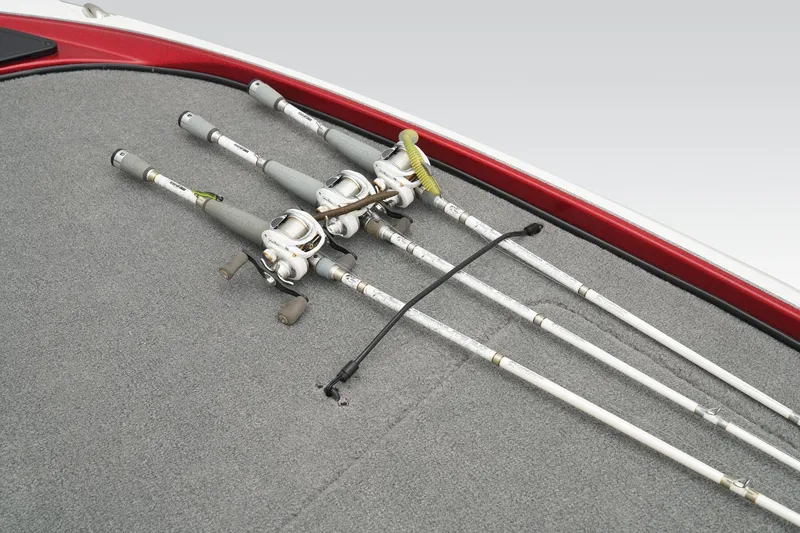

• Bow port & starboard rod hold-down straps

• Molded-in drainage channels around bow storage compartments

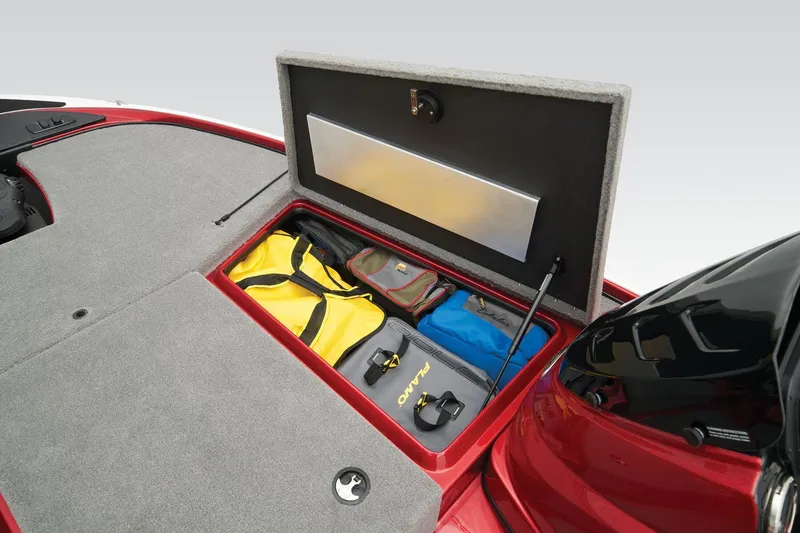

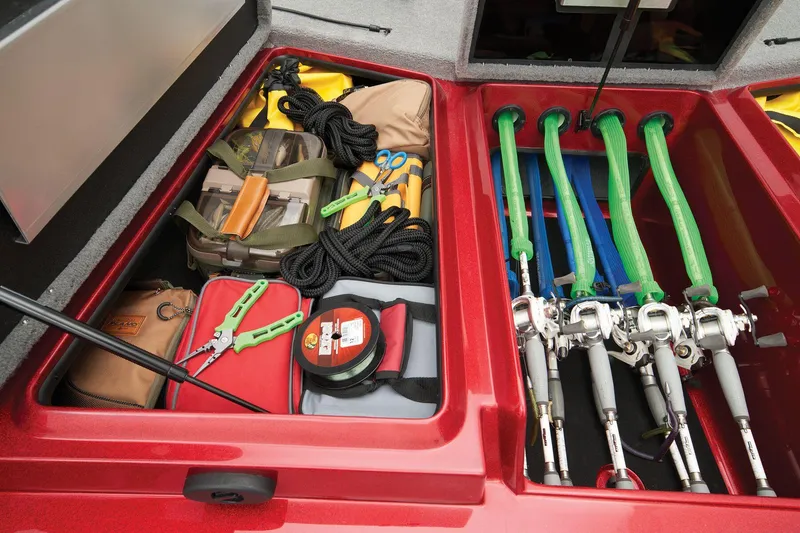

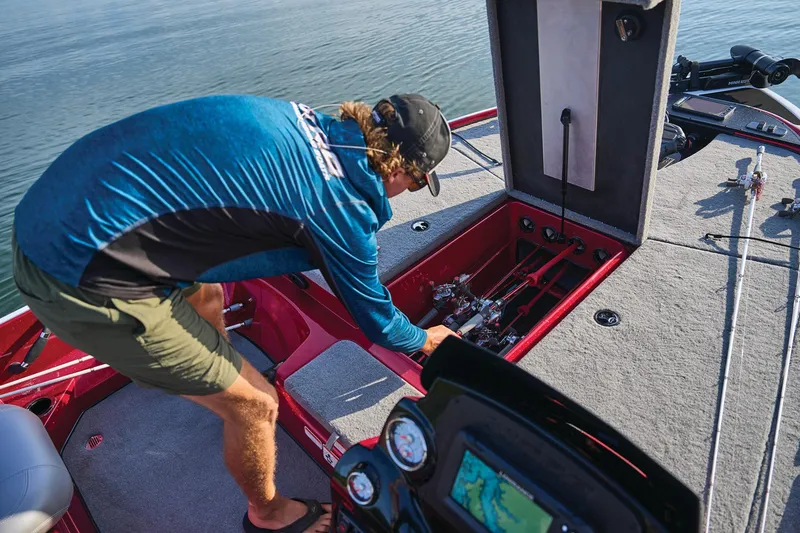

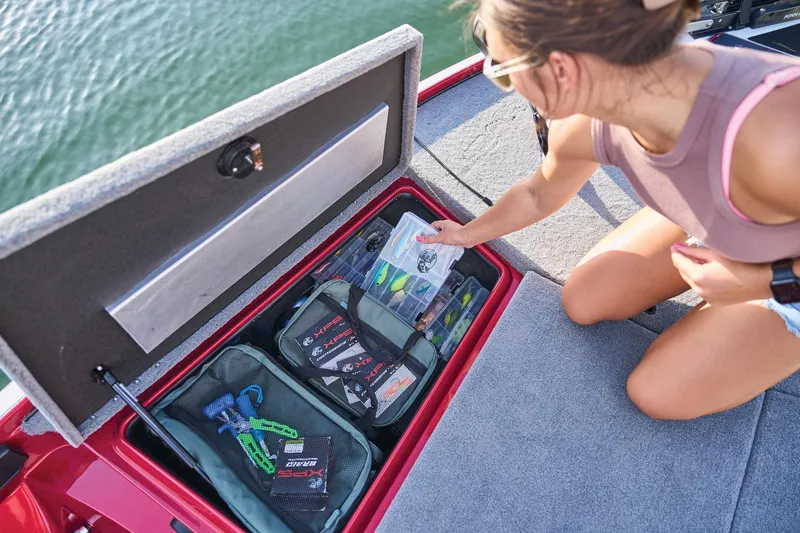

• Oversized, lockable bow port & starboard rod lockers for rods up to 7' (2.13 m)

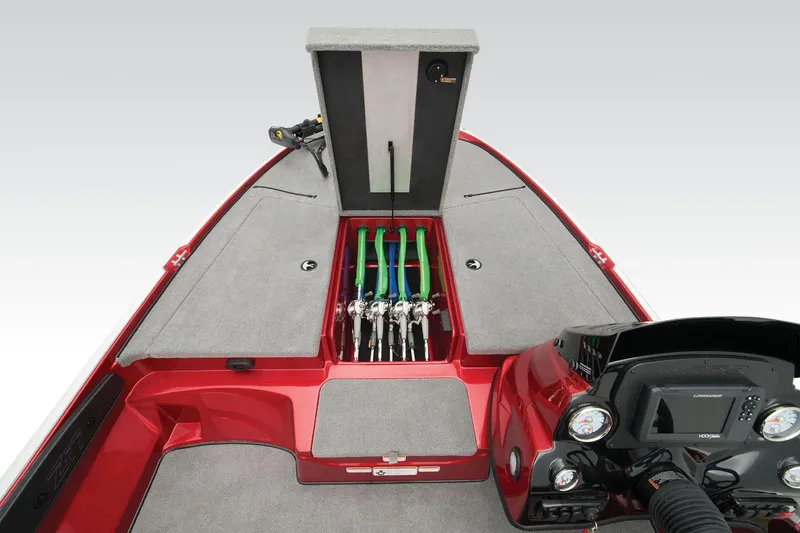

• Oversized lockable bow center storage locker w/lift assist & organizer for 4 rods up to 7' 6" (2.29 m)

• Step to bow deck w/42-qt. (39.75 L) insulated cooler

• Footrest w/non-skid mat under console(s)

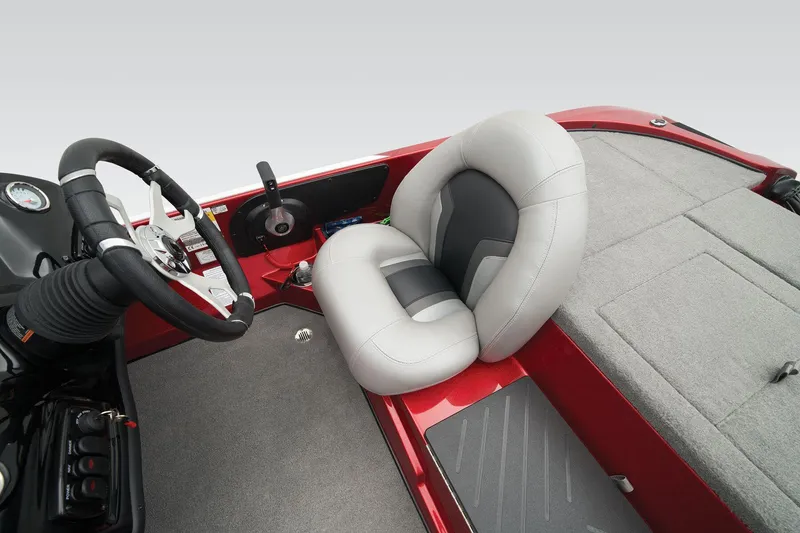

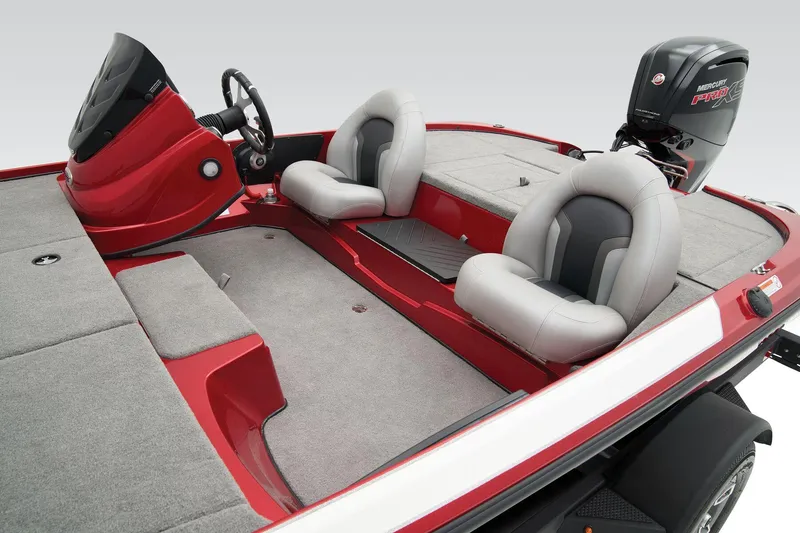

• Driver & passenger bucket seats w/molded-in storage below

• Step to aft deck w/polymer lid

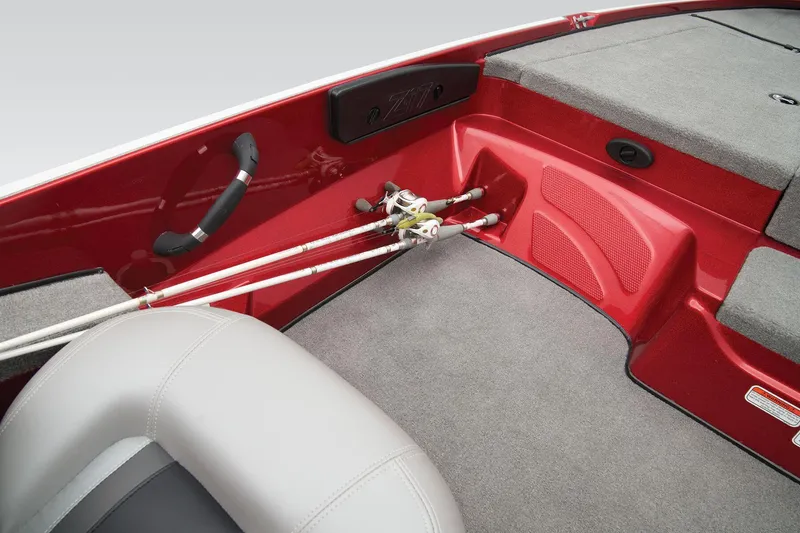

• Passenger rod ramp w/rod handle organizer & hold-down strap

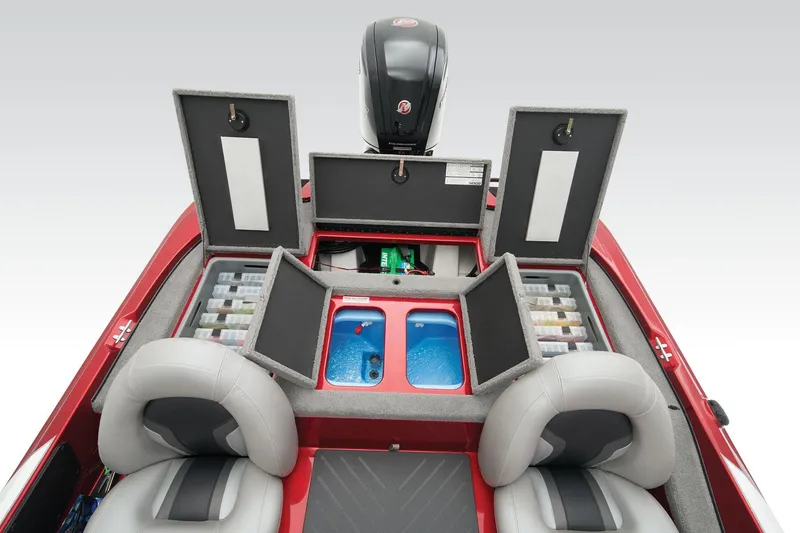

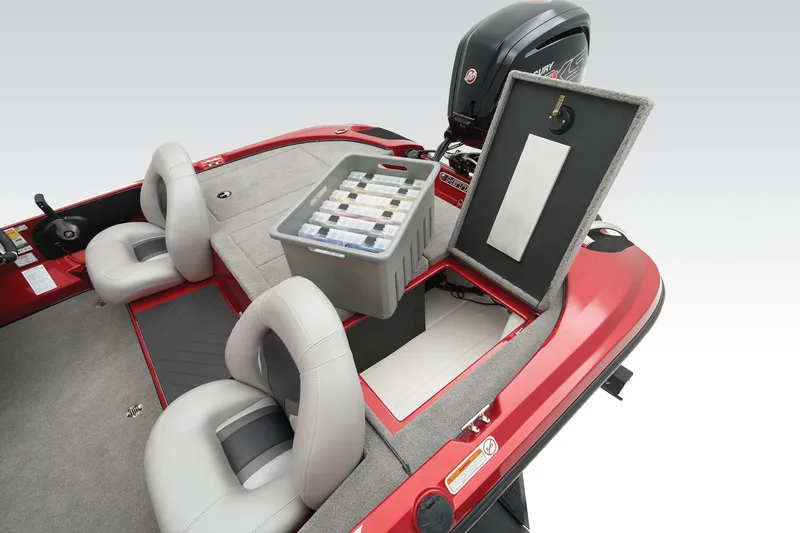

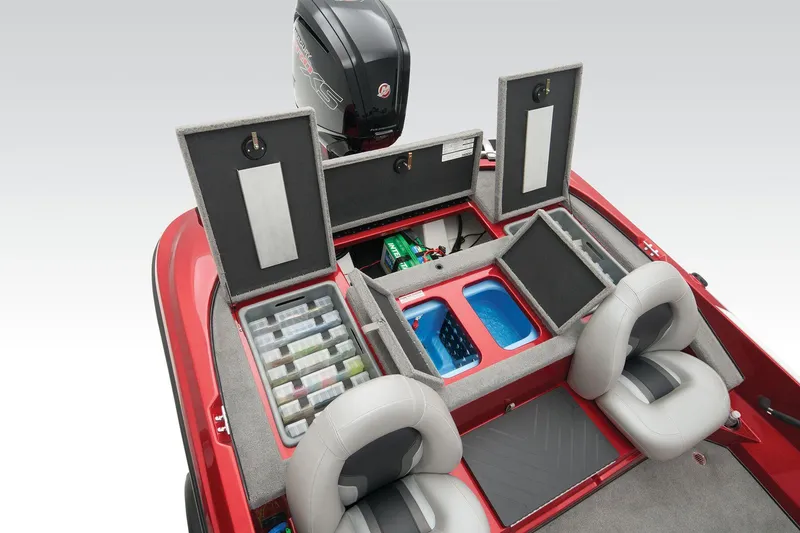

• 2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays

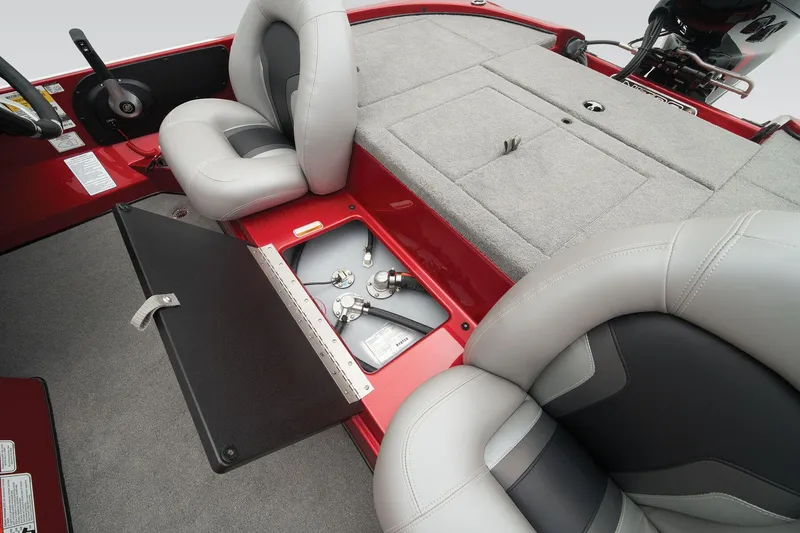

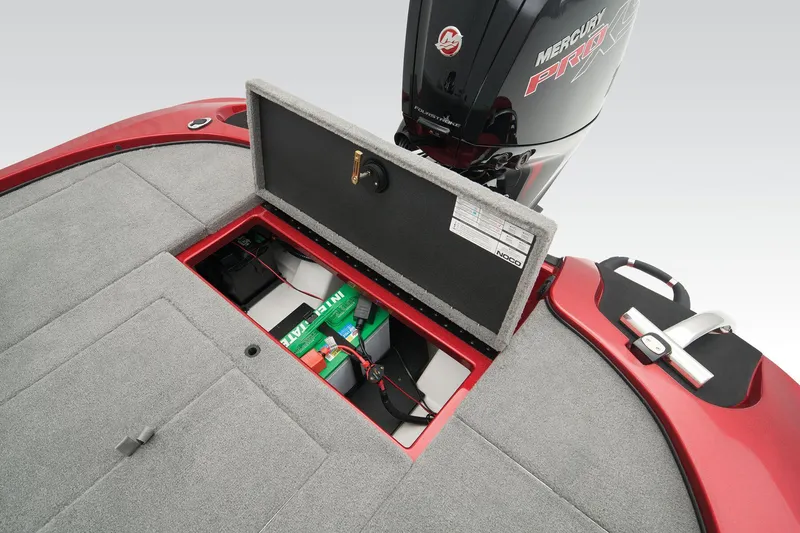

• Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup

• Insulated aluminum lids w/welded corners

• 16-oz. (.45 kg) plush, marine-grade cut pile carpet on decks & floor

• Lockable latches

Performance

• NITRO VORTEX TECHNOLOGY™ (NVT™) hull for a smoother, drier ride

• RAPID PLANING SYSTEM™ (RPS™) for quicker holeshots & maximized speed

• Stainless steel propeller

Construction & Exterior

• 100% composite deck core w/superior thermal stability & strength-to-weight ratio

• Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2" (5.08 cm)

• Gelcoated stringer/liner system

• Foam-filled hull for optimal buoyancy & safety

• Full-width fiberglass-encapsulated composite transom

• Black hardware

Electrical

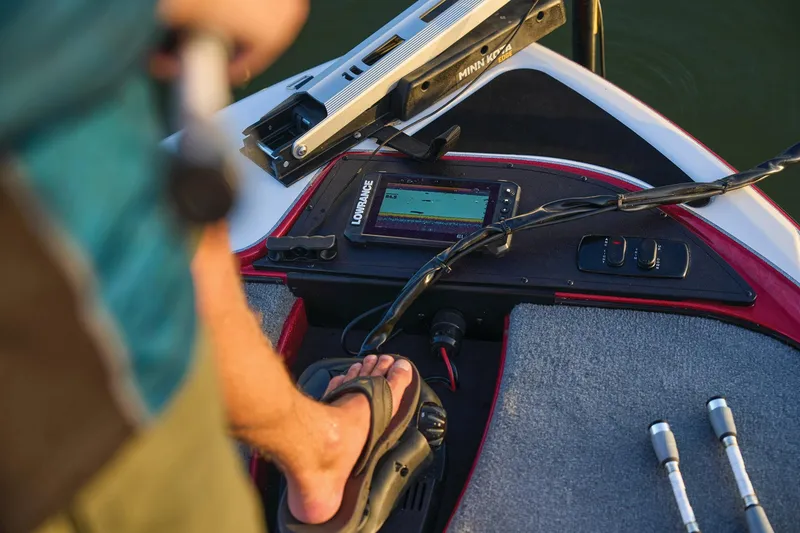

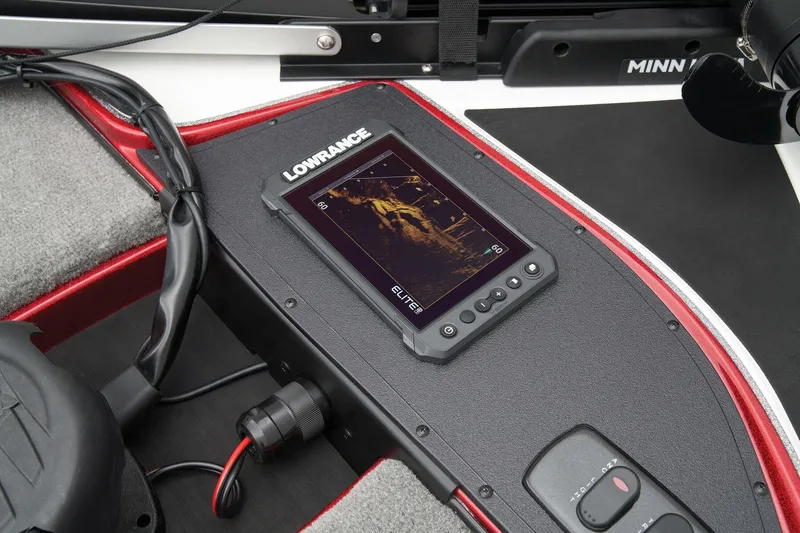

• Bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount 9" (22.86 cm) fishfinder

• LED console courtesy light

• Interstate® cranking battery

• Heavy-duty Interstate® trolling battery

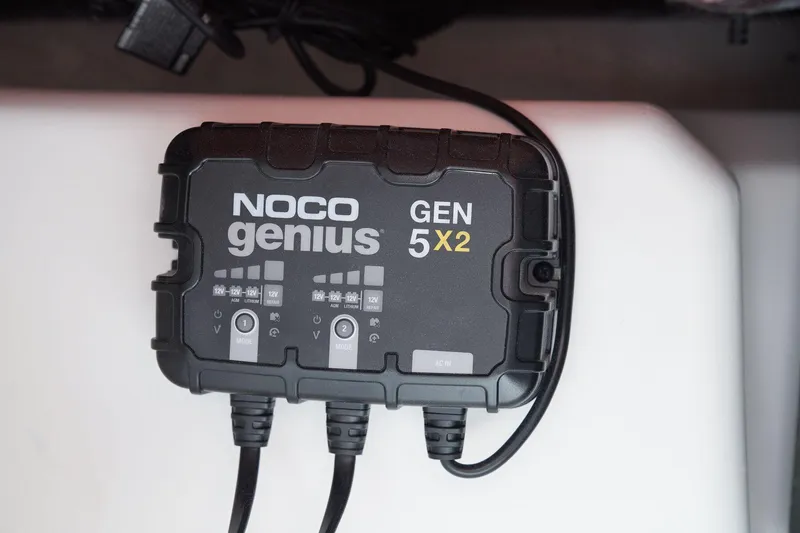

• 2-bank, 10-amp battery charger w/exterior receptacle

• 6-gauge trolling motor wiring w/50-amp circuit breaker

• Automotive-style labeled fuse panel w/cover

• Master power switch

• Waterproof Deutsch connectors on gauges

• Water- & abrasion-resistant connectors

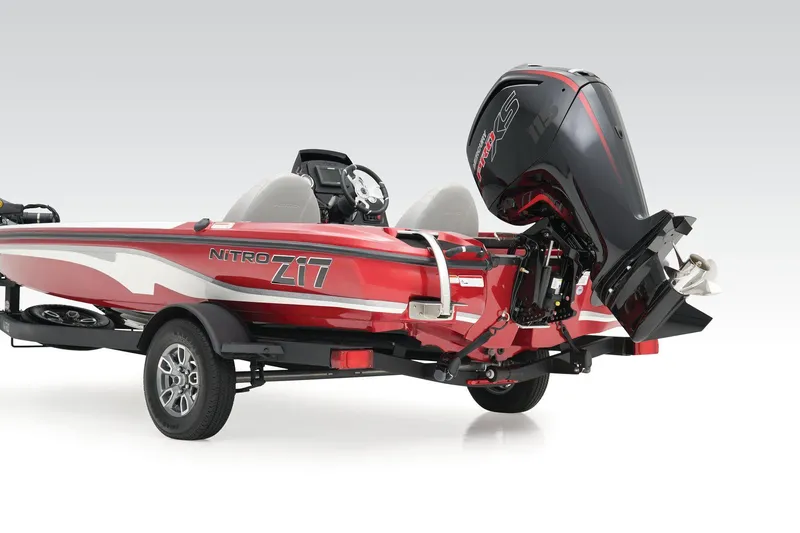

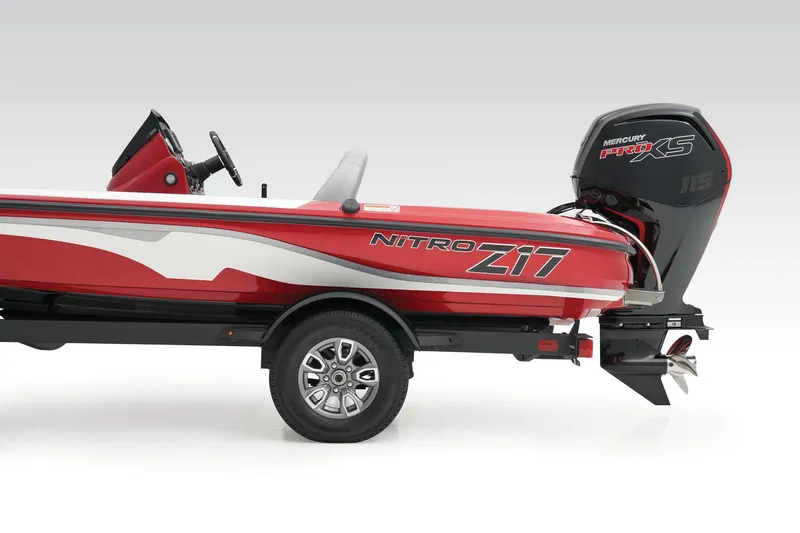

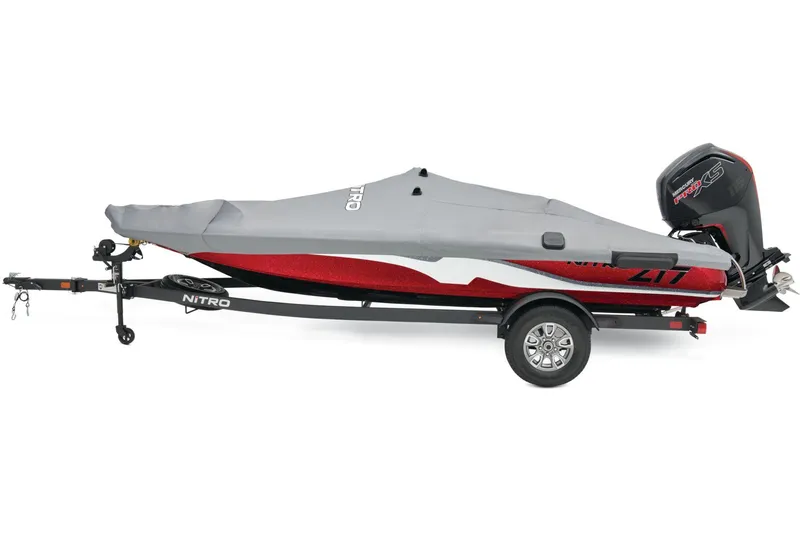

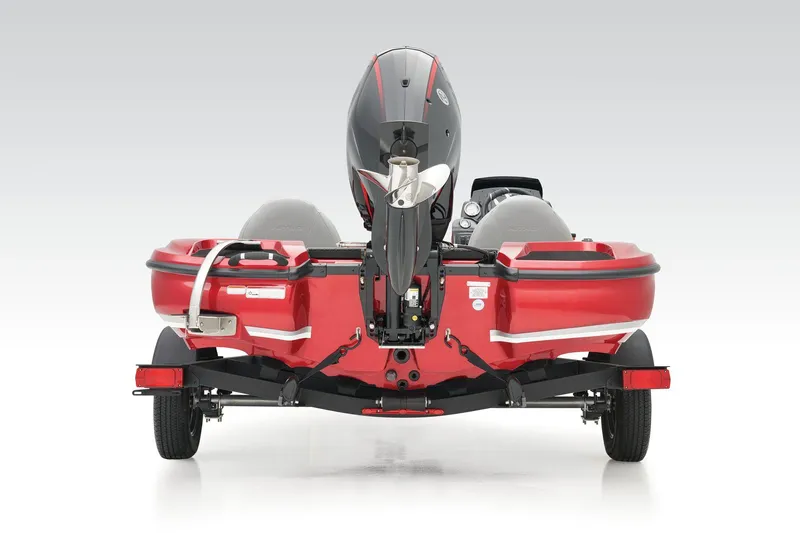

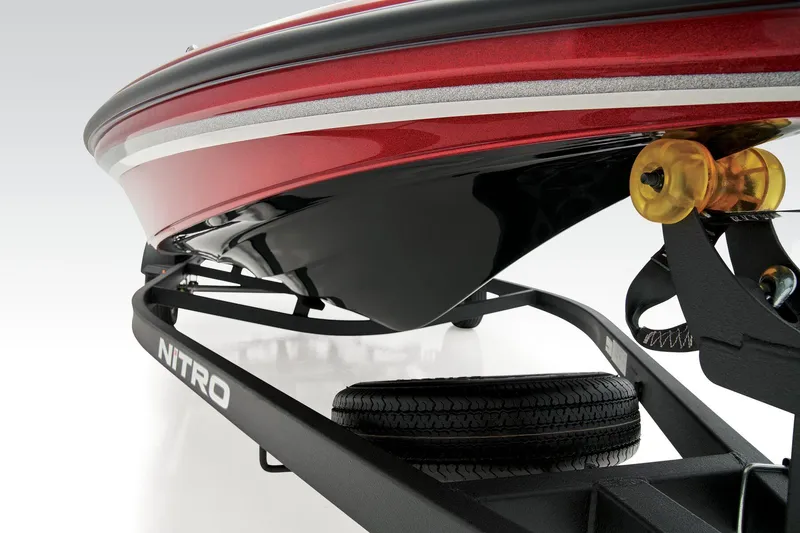

Trailer

• Custom-fit, single-axle NITRO® trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability

• 13" (33.02 cm) chrome wheels w/radial tires

• Spare tire carrier (spare tire available at additional cost)

• All-welded rectangular GALVASHIELD® frame

• 7-pin connector

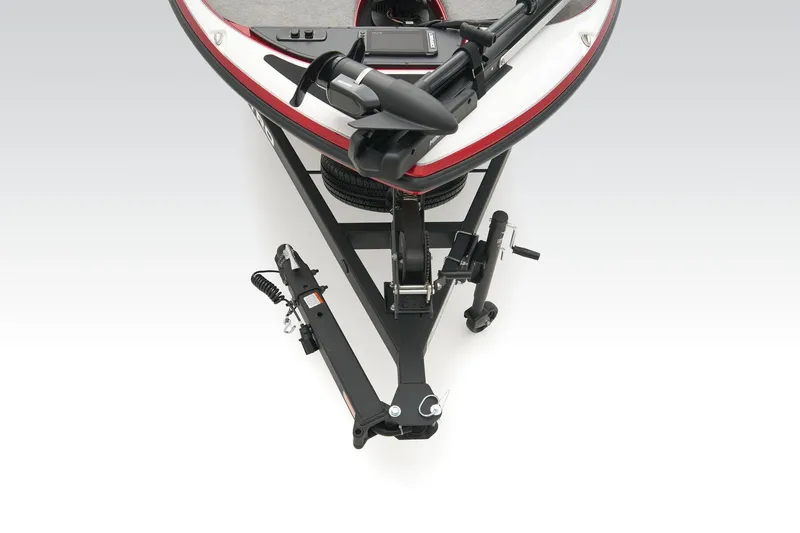

• Space-saving swing-away tongue to reduce storage length

• Fold-away tongue jack

• Heavy-duty winch w/nylon strap & bow safety strap

• Outboard motor support to reduce hull & transom stress while towing

• Carpeted bunks & fender boards to protect hull

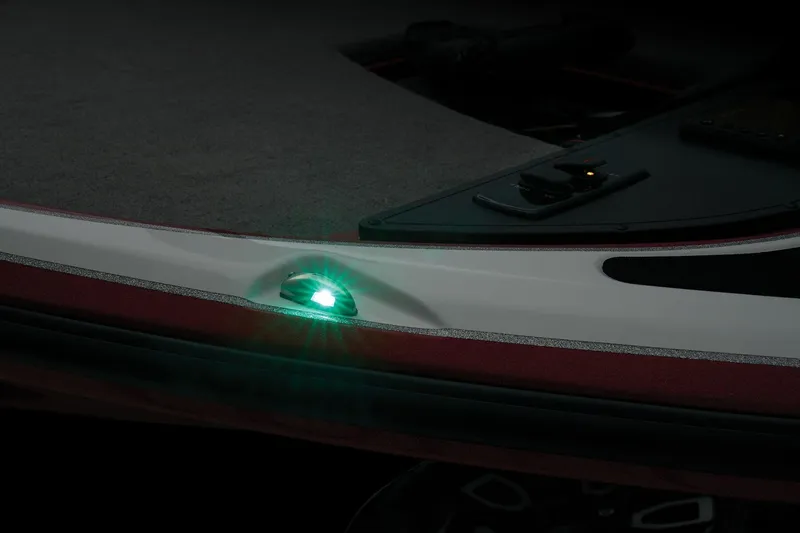

• Submersible LED lights

• Retractable transom tie downs

• Safety cables
