1974 Nautor Swan 38

Solid fiberglass hull.
White Awlgrip paint (2014).
Single blue sheer stripe.
Double blue waterline stripes.
Fin keel.
Skeg hung rudder.
Bilges stripped and re-gel coated (2014).

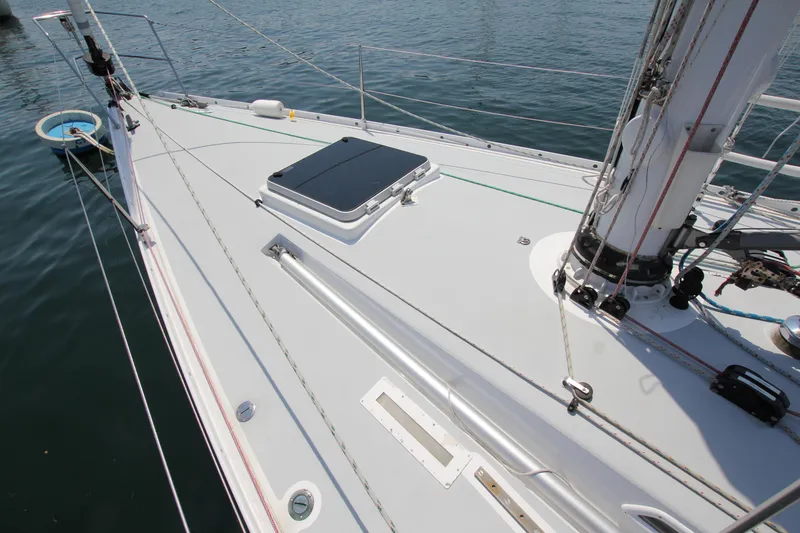

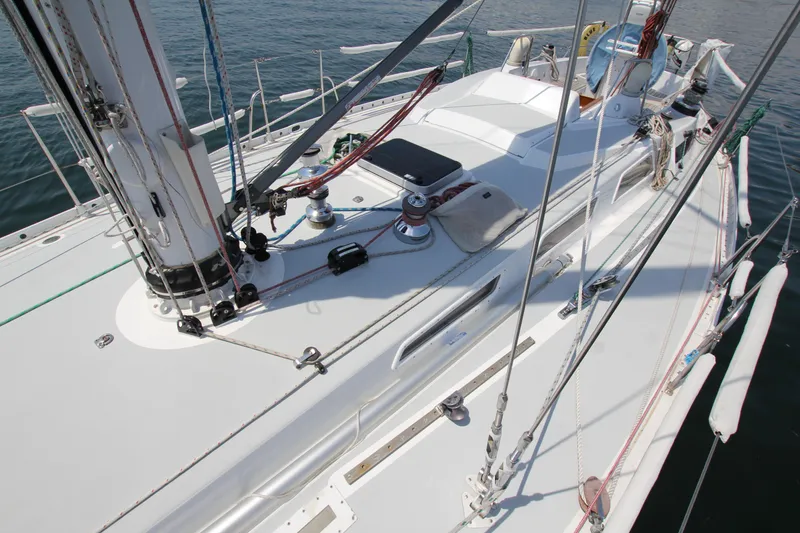

Deck plan reconfigured to allow for more easy shorthanded sailing.
Fiberglass with closed cell foam core decks.
Painted non skid on side decks (no teak).
Awlgrip painted cockpit and deck house (2018).
Aluminum painted toe rails.
Stainless steel bow and stern rails.
Stainless steel stanchions.
Lifeline gates port and starboard.
1 x 19 double lifelines.
2 x pair mooring cleats, 1 forward and 1 aft.
2 x pair headsail tracks, 1 pair forward for jib sheeting inside the shrouds and 1 pair aft for overlapping head sails
sheeting outside the shrouds.
Harken mainsheet traveler.
Double turning deck blocks for headsail sheets.
Line pullers for the genoa cars on the genoa tracks.
Pad eyes for harness clip on located on deck and in cockpit (2017).
2 x deck light prisms.
2 x recesses, 1 each side deck to house 2 spinnaker poles.

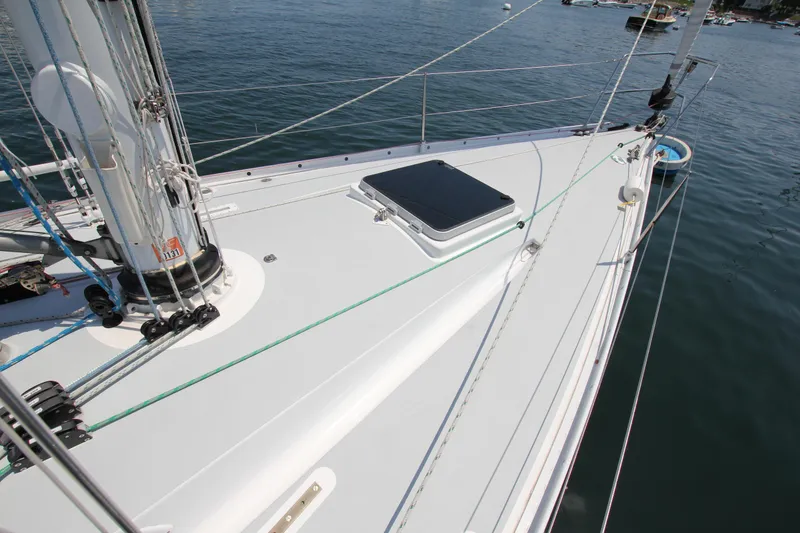

2 x opening deck hatches (2014).
6 fixed ports.

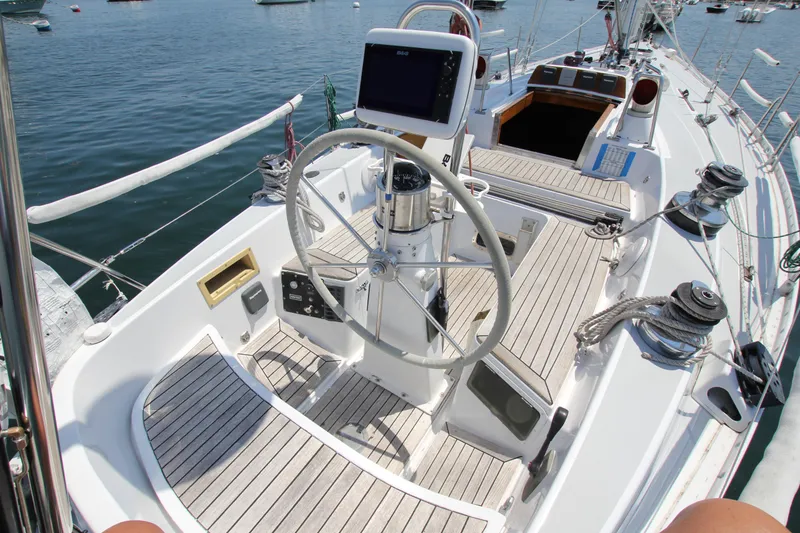

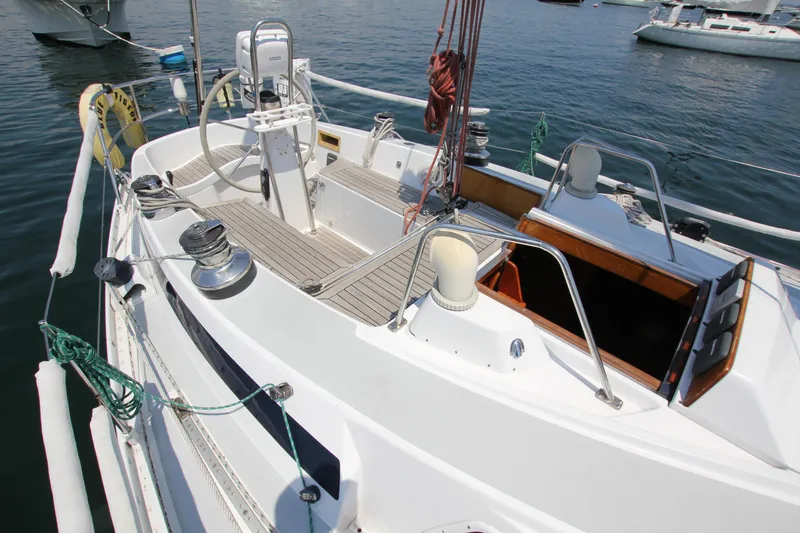

Pedestal wheel steering.
Stainless steel wheel with elkhide cover (2017).
Protective rail over pedestal.
Pod over companionway to house electronic displays.

WINCHES
All Lewmar self tailing.
2 x #55, 2 speed, primary.
2 x #46, 2 speed secondary.
2 x #44, 2 speed utility.
1 x #16, utility.

GENERAL ARRANGEMENT

Sleeps 4 in 2 sleeping cabins, plus 2 on the saloon settees and 2 more in pilot berths in the main saloon for a total of 8.
Lee cloths for all bunks except the "V" bunks. Mat varnished (2018) Burmese teak over marine ply interior woodwork with
gloss varnished (2016) trim work. Teak and holly cabin sole. Blue Ultra suede upholstery.

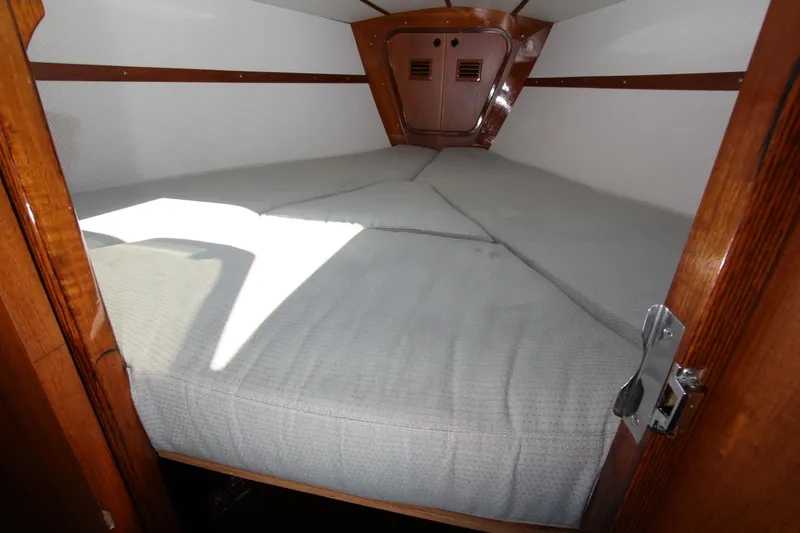

FORWARD CABIN

"V" berth with access to storage under.
Access to chain locker forward.
Forward cabin and head modified to enlarge the head area and improve the comfort of the bunks.

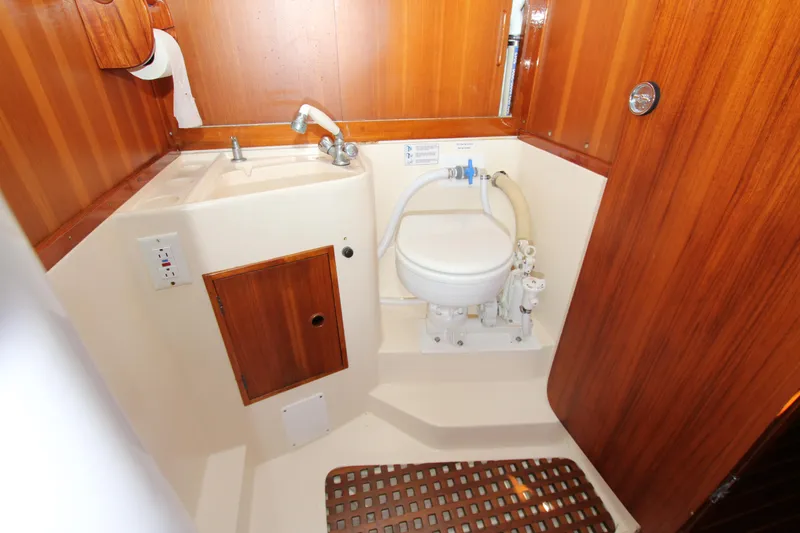

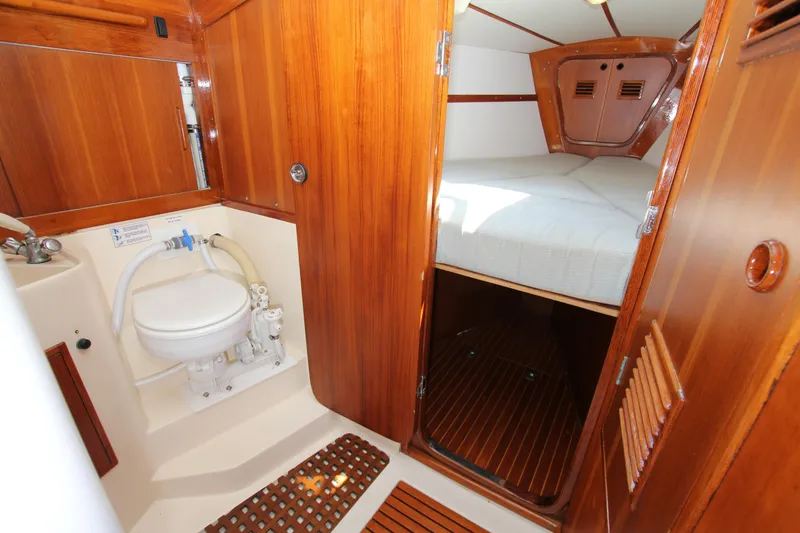

HEAD

Located immediately aft of the forward cabin. Occupies the full width of the boat.
Telephone type shower.
Electric Raritan PHII head to port (2018).
2 large lockers opposite the head and on the starboard side.

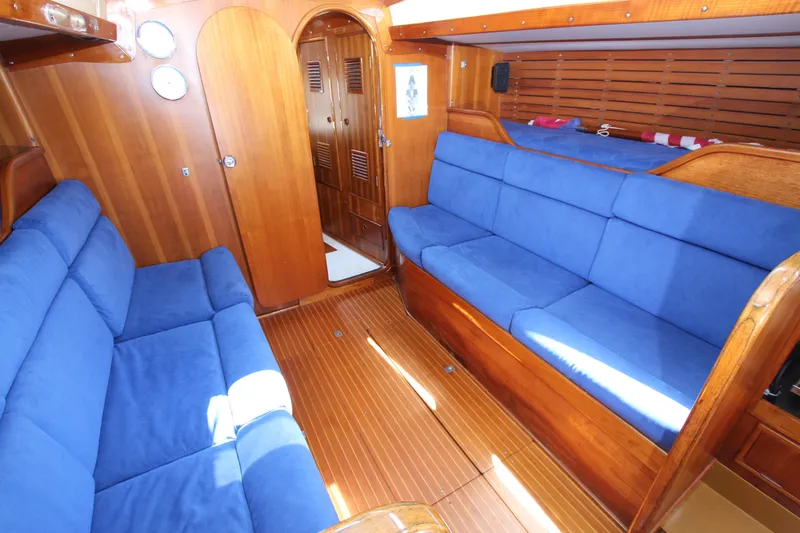

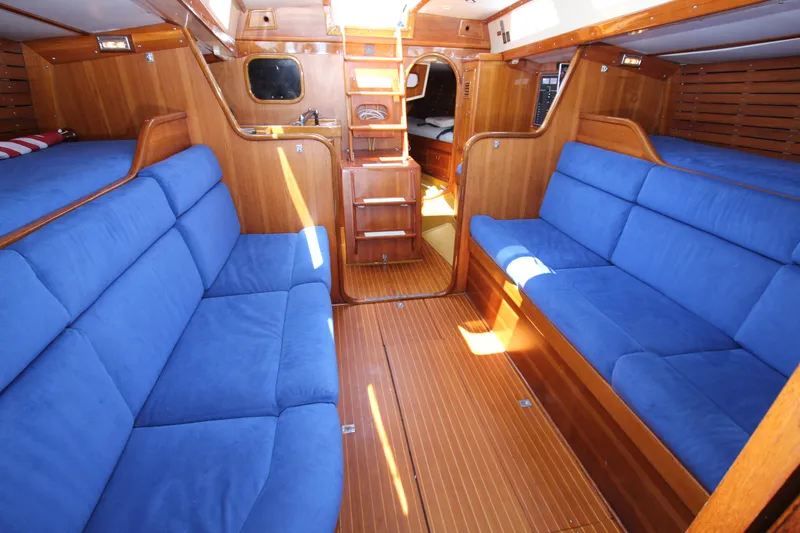

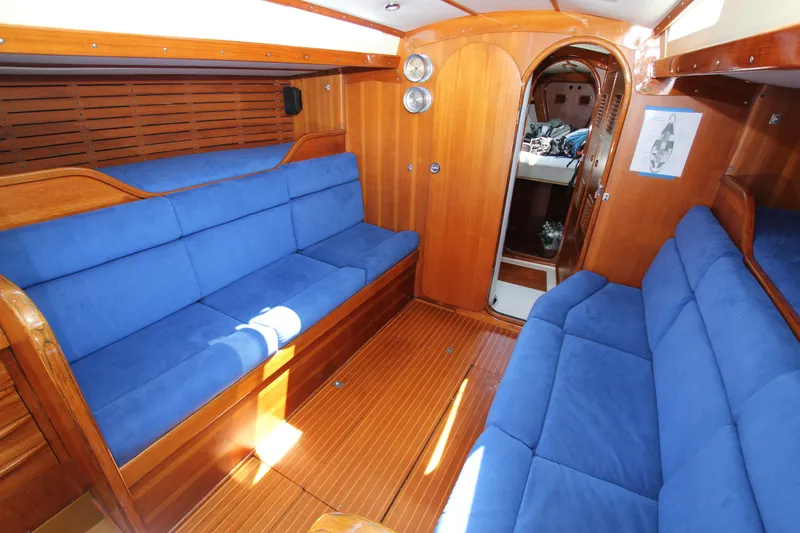

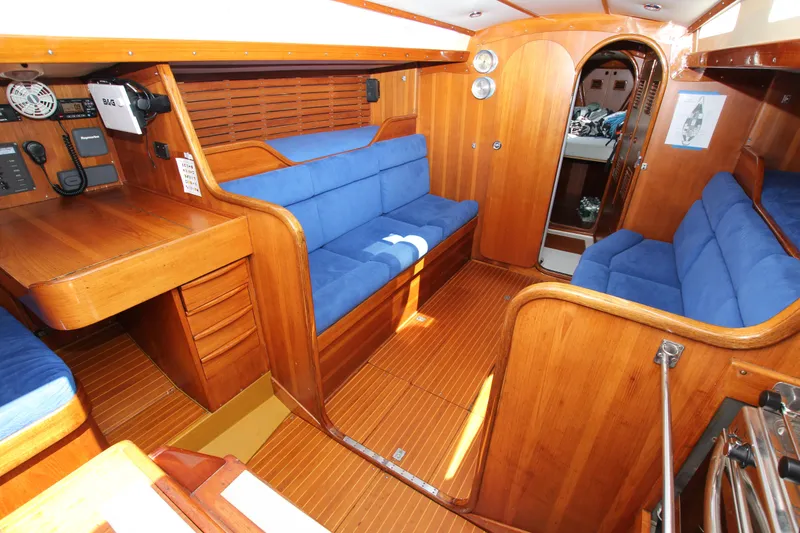

MAIN SALOON

Located aft of the head.
2 straight settees, 1 to port and 1 to starboard.
2 pilot berths, each located outboard of the settees.
Dining table with folding leaves port and starboard.

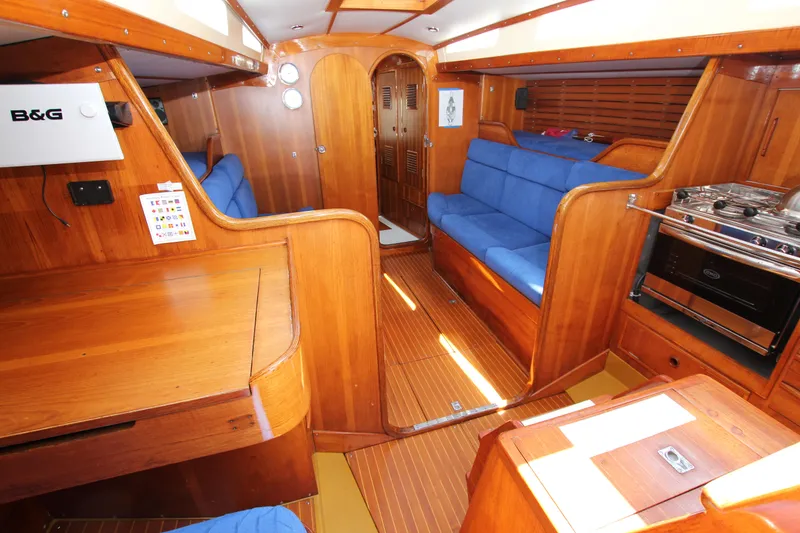

GALLEY

Located aft of the saloon on the starboard side.
"L" shaped.
Stainless steel sink with hot and cold pressure water faucet.
Top loading Seafrost refrigerator (2014).
Open Sea 2 x burner propane stove with oven (2016).

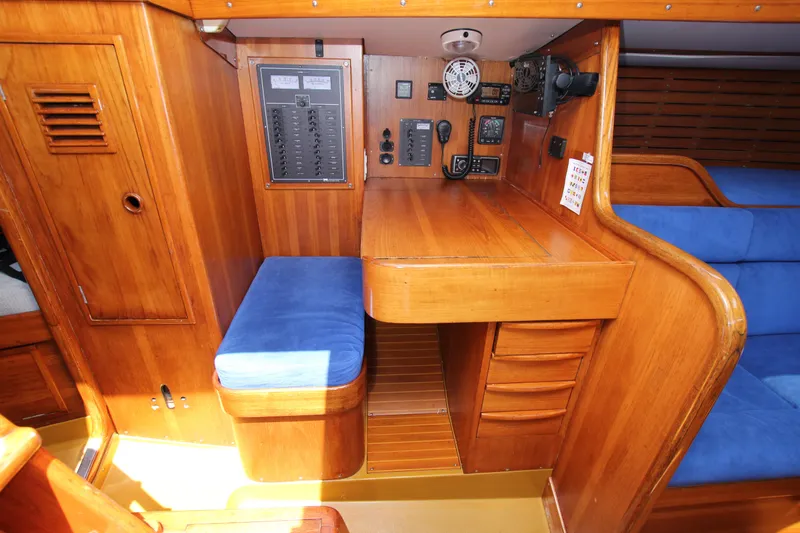

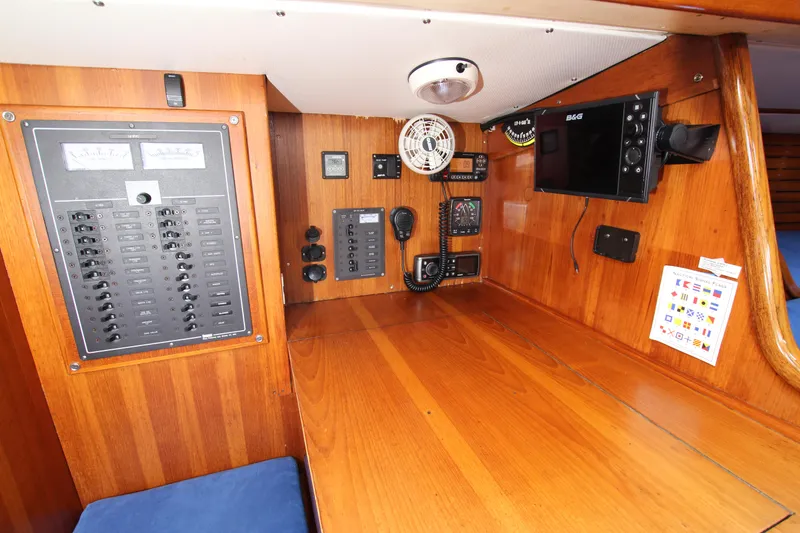

NAVIGATION STATION

Located opposite the galley.
Forward facing.
AC and DC electrical panels outboard.
Chart storage under lifting desk top.

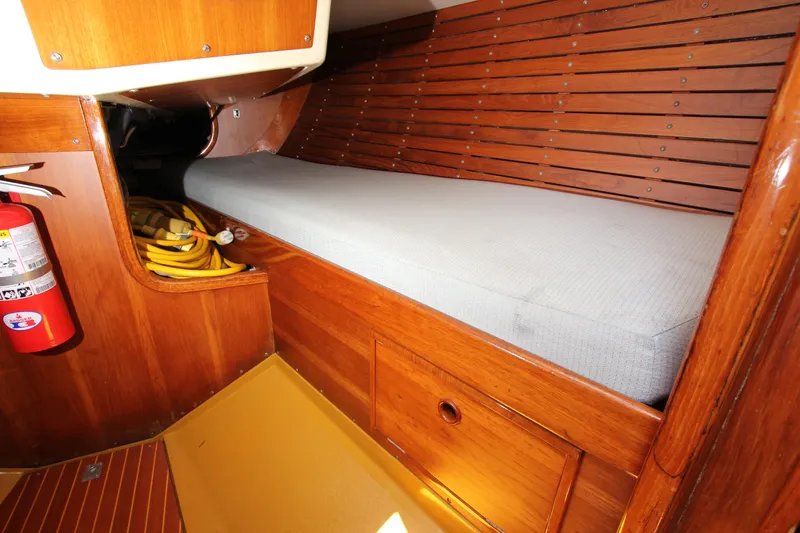

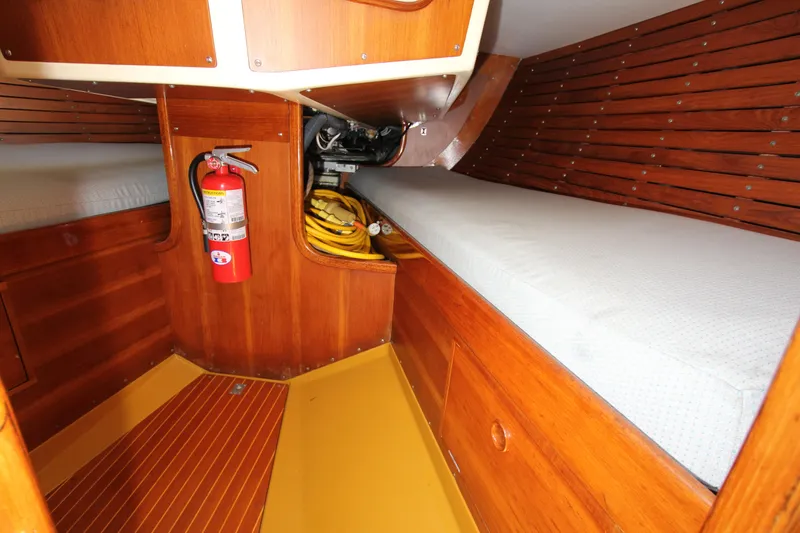

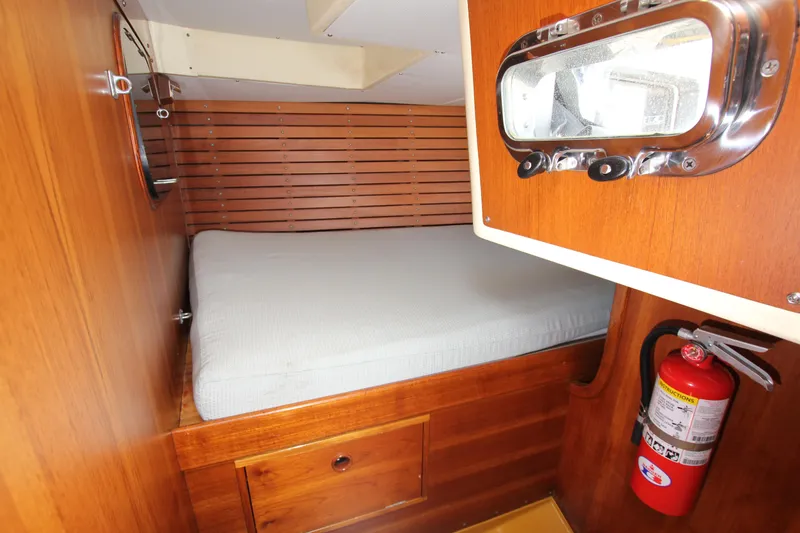

AFT CABIN

Accessed on the port side and via the navigation station.
2 x single bunks, 1 to port and 1 to starboard.
Access hatch from the aft cabin to the galley.

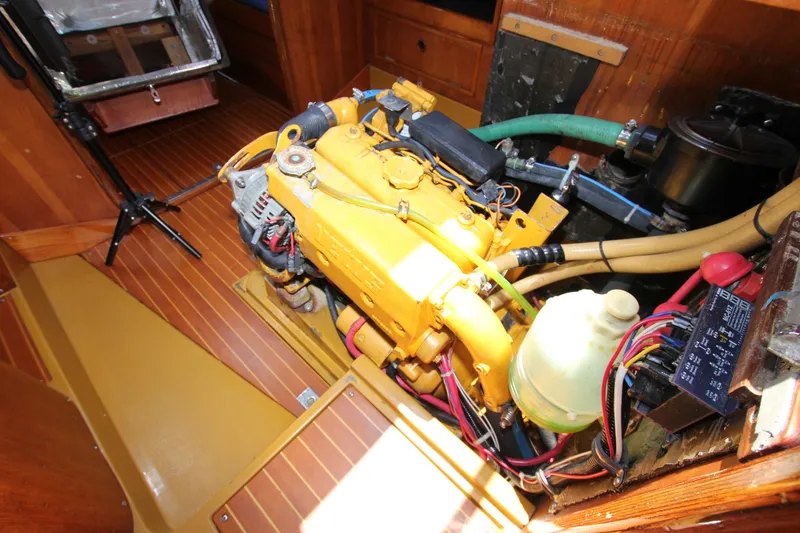

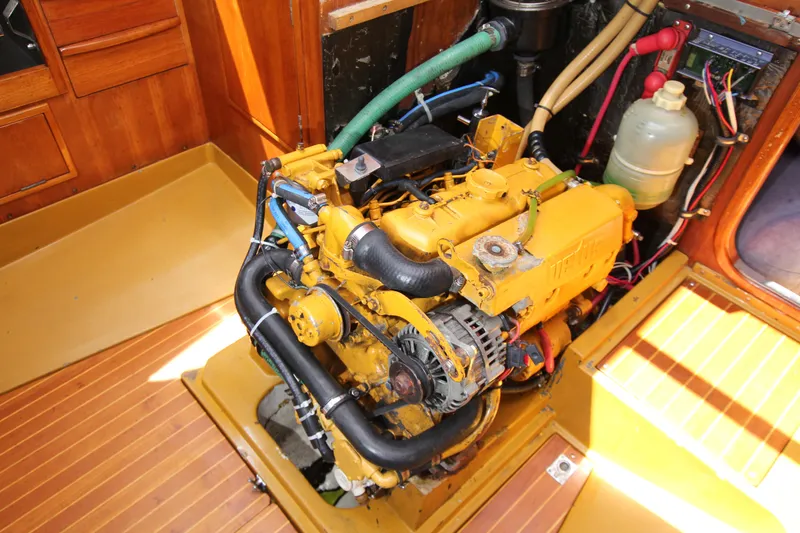

Vetus M41, diesel engine with 40hp.
Engine mounts (2012).
Engine overhaul (2012).
30 gallon diesel tank.

1 x electric bilge pump with automatic and manual functions.
2 x manual bilge pumps, 1 in cockpit, 1 below decks.
2 x dorade vents, 1 each side of the companionway.
Fresh water plumbing replaced (2015).
Head plumbing replaced (2015).
Bilge pump hoses replaced (2015).
Head sea cock replaced (2015).
Fuel tanks cleaned (2014).
Propane system re-plumbed (2014).
2 x fresh water tanks, 54 gallons.
Black water holding tank, 15 gallons.
Water heater, 6 gallons, operated via engine heat exchanger and AC shore power.

12 volt DC system.
120 volt AC shore power system.
12 volt and 120 volt outlets throughout interior.
8D AGM house battery (2023).
Group 24 Optima engine start battery (2014).
Solar panel charges engine start battery.
Battery charger.
Xantrex 1800watt inverter.
8 x overhead LED w/ dimmer cabin lights (2018).

AT NAVIGATION STATION
B&G Zeus3, 7", MFD and Sail Steer
Icom IC M-424 VHF.
Actisense NGT-1-USB connect N2K instruments to PC (2016).

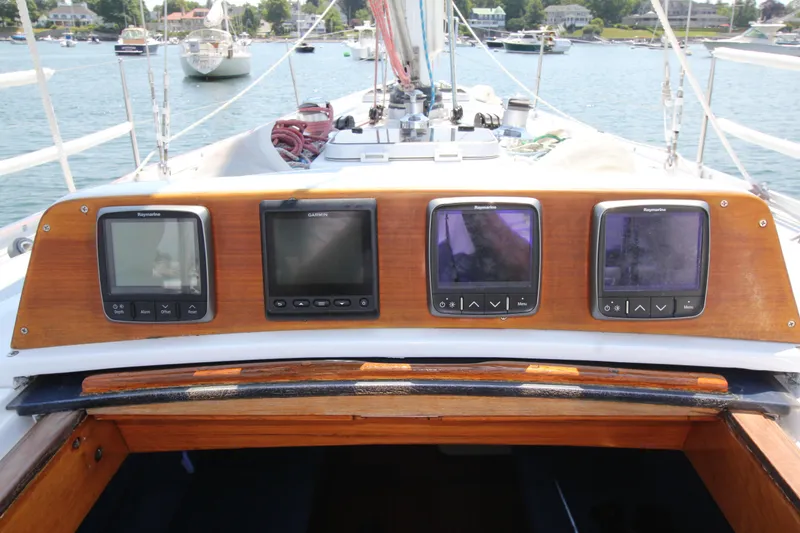

IN COCKPIT
Over companionway
Raymarine I50 depth display.
Garmin GNX20 display (2018).
2 x Raymarine I70 displays (2018).

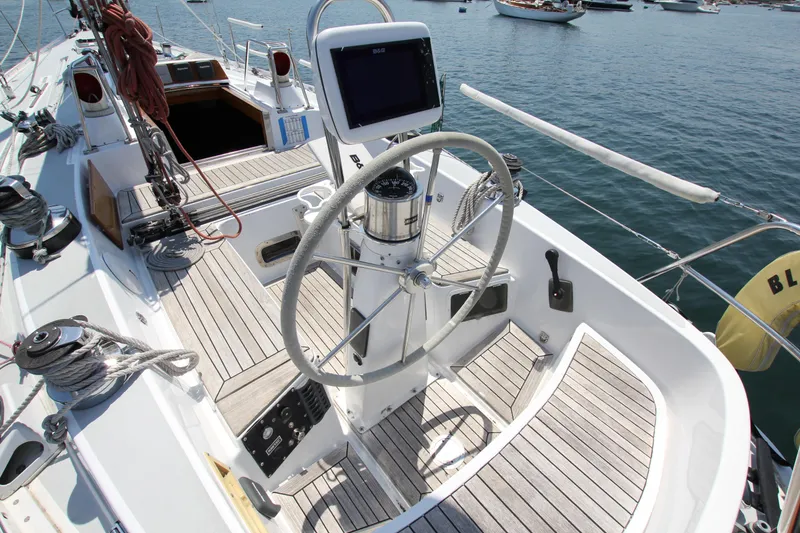

AT HELM
B&G Zeus 3, 9" MFD with Sail Steer (2018).
Fusion IP 700I stereo with Bose speakers in cockpit and in cabin.
Raymarine AIS 650 (2016).

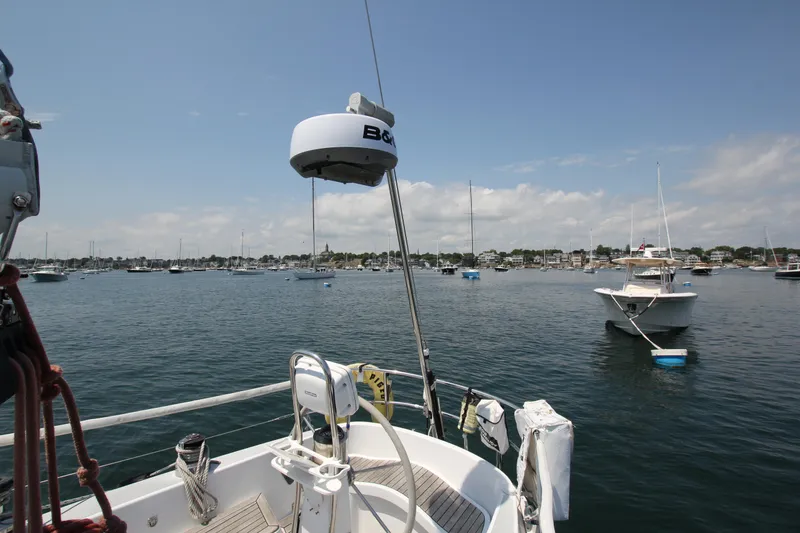

B&G Halo 20+ radar with scanner on backstay (2022).
Raymarine EV-200 autopilot.
Iridium GO! antenna on stern rail wired to navigation station (2018).
NoLand NMEA engine data converter provides fuel gauge, RPMs, water temperature and oil pressure readings to the
Zeus screens (2017).
Raymarine masthead wind wand.
Airmar DX900+ electromagnetic depth, temperature and speed transducer (2018).

White Awlgrip painted aluminum mast and boom.
Mast overhaul (2015) includes: all old unused hardware removed and holes filled and faired, old wiring removed and new
wiring added, LED lights added, replaced masthead sheaves, Awlgrip paint.
Navtec rod rigging (2015).
White Awlgrip painted carbon spinnaker pole stored on deck (2015).

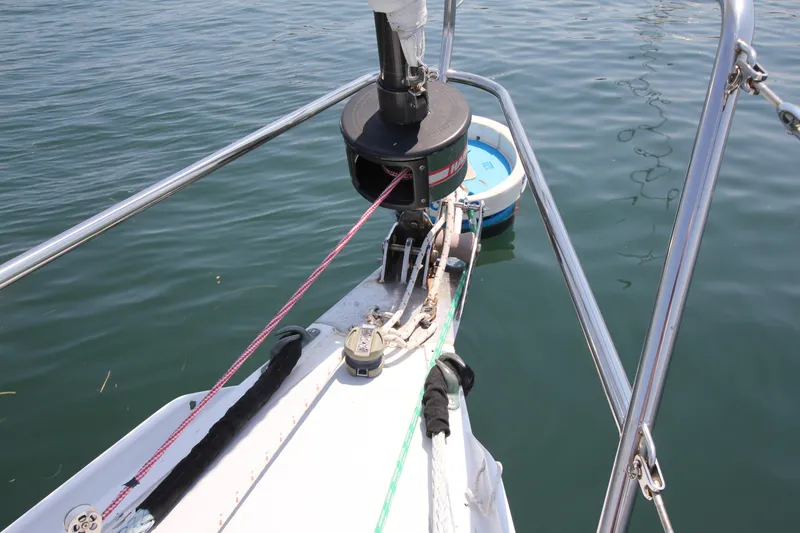

Harken roller furling for headsails.
Quick vang boom vang.
Sail Tec backstay and babystay adjusters (2012).
Jib sheet and spinnaker sheets (2016).

SAILS

Mainsail, Doyle (2023)

120% jib, Doyle (2023)

Mainsail, Sperry, flex pen 19iT, 3 reefs (2013).
Doyle SailPack with lazyjacks (2021)
#1 genoa, Doyle, roller furling, 155%, PE20 with tri-radial panel (2019).
#1 genoa, Sperry, roller furling, 155%, CXP6 and CXP7 laminate cloth (2013).
#3 jib, Doyle, roller furling, 105%, w/4 vertical battens (2018).
A2 asymmetric spinnaker, Doyle (2016).
Other older sails in varying condition:
135%, North cruising genoa (1999).
North asymmetric spinnaker with snuffer (2021)
0.75oz North spinnaker.
1.5oz North spinnaker.
#2, 3DL, North genoa (1995).
Mainsail, North (1998).
#1 heavy genoa, North.

Emergency tiller.
4 x Mustang hydro-static inflatable PFDs. w/ AIS MOB
3 x fenders with covers.
4 docking lines.
Shore power cords.
2 x anchors, 1 is a Manson Racer R-6 with rode (2016).
Throw bag with heaving line (2017).
Life sling.
Horseshoe buoy.
2 x 5lb ABC fire extinguishers (2017).
Drogue.
Wired auxiliary tricolor navigation lights w/back up battery (2017).
Life line cushions (2017).
Radar reflector for shrouds (2017).
Deck sheet bags (2017).
Lee cloths for 6 bunks (2017).
