2005 Morris M36Sold

$260,000

Used
We will let you know when another 2005 Morris M36 is available in Westbrook, CT

Boat in Westbrook, CT 06498 US

builtBuilt in 2005
Year the boat was built
model

M36

Boat model
engine

1 Engine (Yanmar)

Engine type and count
length

36 feet

Overall boat length
fuel

Diesel

Fuel type
material

Fiberglass/Reinforced

Hull material
Nominal Length
36ft
Length Overall
36.08ft
Length at Waterline
25ft
Beam
10.08ft
Max Draft
6.5ft
Displacement
8780lb
Ballast
3750lb
Cabins
1
Heads
1
Fresh Water Tanks
20gal
Fuel Tanks
12gal
Holding Tanks
20gal
Hull Material
fiberglass
Engine 1
Engine Make
Yanmar
Engine Model
2GM20C
Total Power
18hp
Engine Type
inboard
Fuel Type
diesel
Drive Type
sail
Propeller Type
2-blade
Teak Cockpit
Cockpit Cushions
Cockpit Table
Swimming Ladder
Electric Bilge Pump
Manual Bilge Pump
Marine Head
Refrigerator
Battery Charger
Depthsounder
Radar
Log Speedometer
Wind Speed And Direction
Plotter
Autopilot
Radio
Compass
Cd Player
Gps
Cockpit Speakers
Vhf
Ais
Mainsail Cover
Steering Wheel
Tiller
Spinnaker
Asymmetric Spinnaker
Furling Genoa

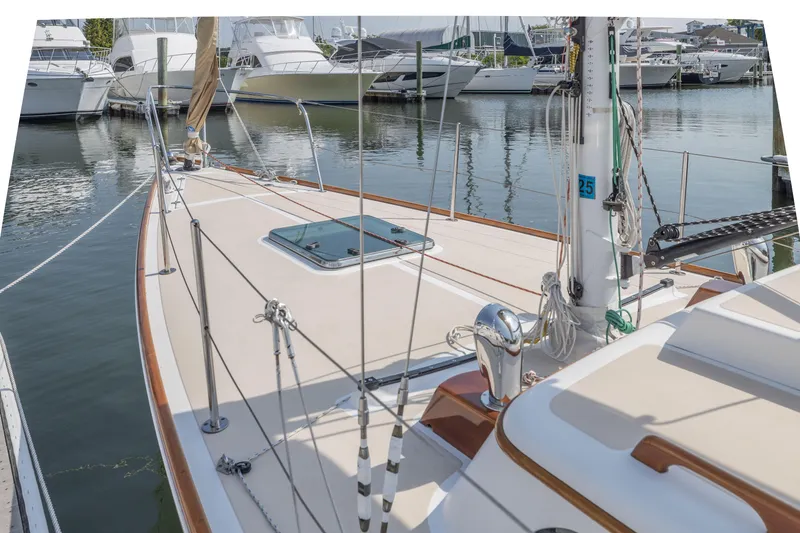

Hull and Deck
  • Manually consolidated composite hull with Vinylester resin throughout and Core-Cell core (a structural foam core material using a SAN polymer base featuring high toughness and impact resistant characteristics)
  • Core removed in areas of deck hardware and through-hull fittings
  • Longitudinal stringers and transverse keel floors
  • Fiberglass engine bed
  • Plywood structural bulkheads
  • Quarter sawn teak decking on cockpit sole
  • Varnished teak Toe Rail
  • Sport Yacht white gelcoat molded beige non-skid Deck
  • Sport Yacht white gelcoat Hull
  • Cove stripe
  • Awlgrip Boot top stripe
  • Baltoplate VC Offshore by Interlux bottom paint, for reduced water resistance
  • Bilge: White gelcoat
  • Stainless steel 24” stanchions  fitted to deck plates mounted each side port and starboard (upgrade)
  •  Custom welded stainless steel bow rail and stern pulpit (upgrade)
  • Boarding gates located midship potrt and starboard
  • Forward and aft ends of the lifelines are terminated on the pulpits
  • Double uncoated 1X19 wire lifelines with pelican hooks at the mid-ship gates
  • Harken sailing hardware
  • (4) Harken self-tailing winches
  • (2) Triple Lewmar rope clutches
  • Varnished teak toe rail and coaming cap
  • Varnished teak flagstaff with SS socket
  • Stainless steel deck plates and latches
  • Cockpit drainage meets the minimum requirements of ORC Category 2 and CE Category B
  • Morris Yachts custom scuppers
  • Deckhouse portlights are toughened safety glass, frameless installation
  • Bomar Forward cabin hatch
  • Foredeck and cockpit hatches are flush fiberglass
  • Saloon style removable companionway doors with storage bag in cockpit locker
  • Removable swim ladder
  • Jabsco diaphragm 12VDC bilge pump with removable strainer
  • Whale Gusher 10 manual bilge pump in cockpit
Engine, Mechanical, Water Systems
  • Simple, dependable, Yanmar 2GM20C Saildrive unit, 2-cylinder, direct-injected, fresh-water cooled, naturally aspirated, marine diesel engine
  • 18 HP at 3,600 RPM
  • Approx. 600 hours running time
  • Yanmar engine mount pan – fiberglass
  • Service access under Companionway and via Lazarettes
  • Flex-O-Fold two blade propeller
  • Morris custom instrument panel at the helm, includes Faria gauges w/SS bezels, start button, audible alarms for cooling water high temperature and low lube oil pressure, and tachometer with illumination switch
  • Morse single lever throttle with neutral safety switch located on the pedestal
  • Engine cut-out
  • Engine box is fitted with Soundown Vinyl/Foam composite noise reduction insulation
  • Racor model #220 spin-on fuel/water separator
  • 12-gallon aluminum fuel tank w/deck filler cap
  • Wema fuel tank level gauge
  • Edson wire rope/chain steering system with 34” stainless steel wheel with teak trim
  • Electric Autohelm Actuator
  • Carbon fiber/epoxy rudder with carbon fiber rudderpost
  • (2) Self-aligning rudder bearings and adjustable lip seal
  • Emergency tiller
  • 20-gallon PVC fresh water tank w/deck filler cap
  • Wema fresh water tank level gauge
  • 20-gallon Polyethylene holding tank with gravity drain to seacock
  • Snake River external holding tank tank level monitor
Electronics, Communication and Navigation

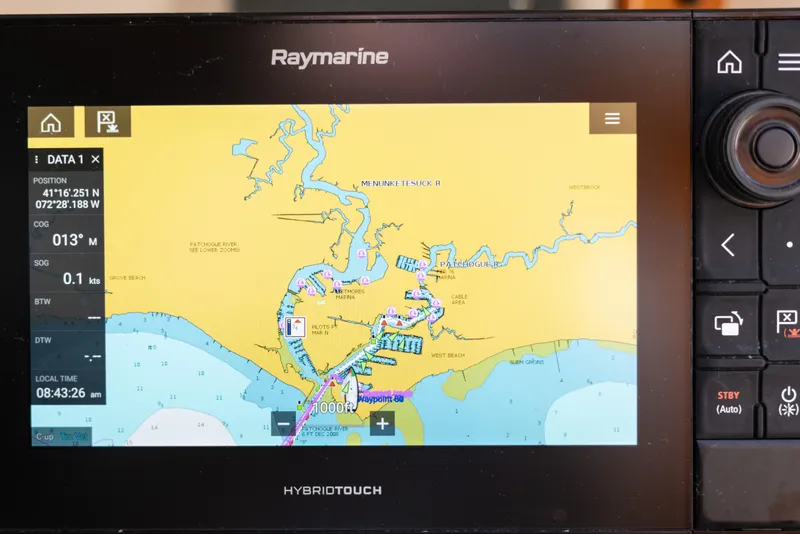

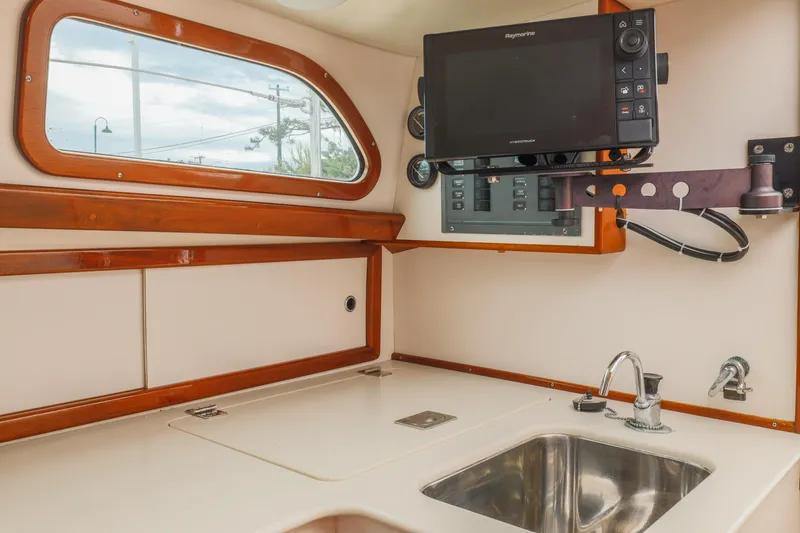

  • Recently upgraded Raymarine Axiom 9 Pro-S multifunction Chart Plotter with integral AIS
  • Plotter is mounted on a swivelling bracket so it can be seen by the Helmsman, or from below
  • Raymarine Quantum Radar
  • ICOM IC-M402 waterproof VHF Radio w/full function command microphone (main unit below, with repeater in Cockpit)
  • Tacktick Ocean Pack sailing system, includes speed, depth, wind and compass sensor functions
  • (2) Tacktick digital displays mounted in cockpit, solar powered with storage battery
  • Ritchie 5” compass
  • Raymarine ST6001 Autopilot
  • Alpine AM/FM stereo with built in CD player
  • (2) Sonnance speakers in the main cabin
  • (2) Alpine 5” waterproof speakers port and starboard in the cockpit
Electrical
  • Lead Acid House battery (100 Ah at12 VDC)
  • 1000M (60 Ah 12VDC) engine start battery with 800 CCA (2022)
  • Mastervolt 60 A alternator and multi-stage regulator for battery charging

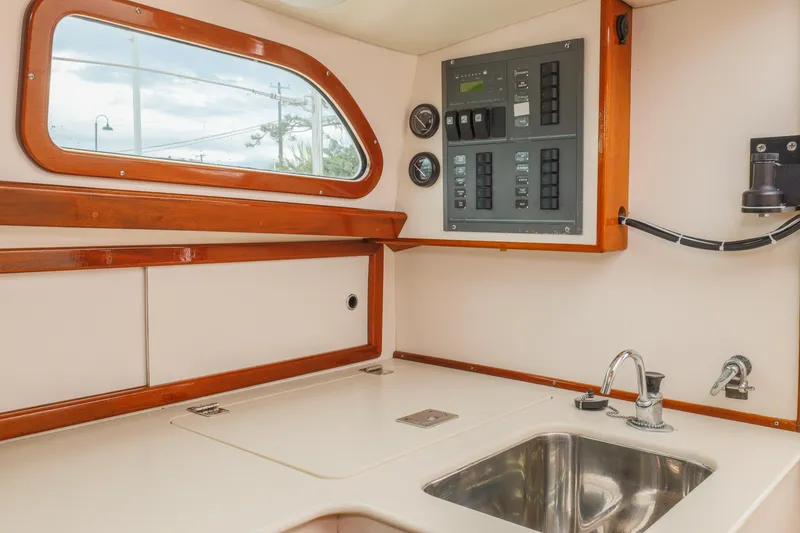

  • Mastervolt 12 VDC distribution panel
  • Fresh water and Fuel Gauges
  • Battery condition monitor
  • ProMariner ProSport 6A portable smart battery charger
  • Jabsco diaphragm 12VDC bilge pump with removable strainer
  • Perko bicolor bow light with chrome plated brass housing
  • Perko transom stern light with chrome plated brass housing
  • Steaming light on the mast includes a deck flood light
  • LED Anchor light

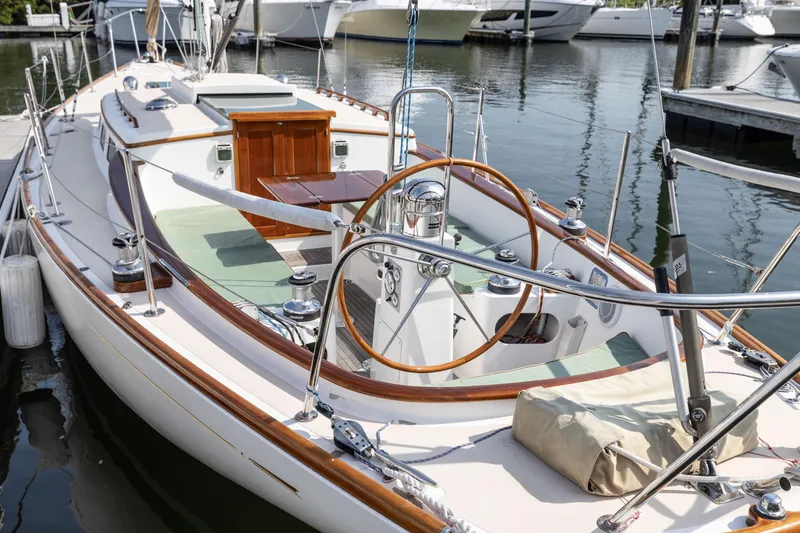

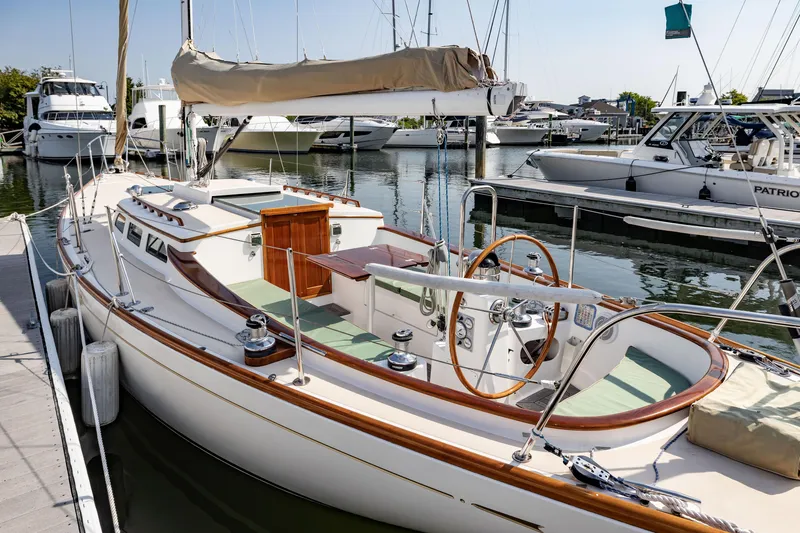

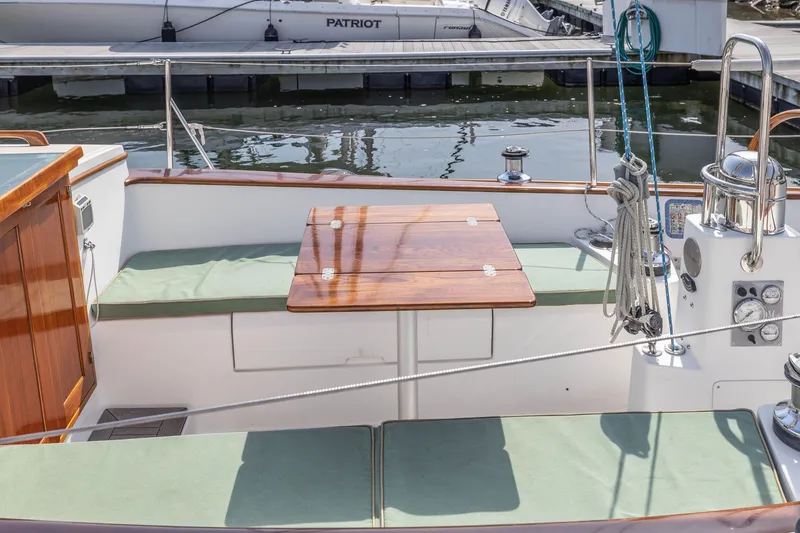

Cockpit
  • Edson 34" stainless steel wheel with teak trim
  • Pedestal with single lever engine control
  • Engine cut out
  • Engine panel with tachometer, oil pressure, temperature gauge, stop/start, panel light
  • ICOM IC-M402 waterproof VHF Radio repeater
  • Tacktick Ocean Pack sailing system, includes speed, depth, wind and compass sensor functions.
  • (2) Tacktick digital displays mounted in cockpit. Solar powered with storage battery
  • Ritchie 5” compass
  • Raymarine ST6001 Autopilot
  • (2) Triple Lewmar rope clutches
  • (2) Cockpit seats 6' x 20" with folding, green ultrasuede covers
  • Helmsman's seat 4' x 16"  with green ultrasuede covers
  • Storage under seat
  • (2) Large, lockable Lazarettes with flush-locks, 78" x 35" x 35", also providing service access to the engine
  • Removable high-gloss mahogany folding table  24" long x 14" or 28" wide (may also be installed below)
  • (4) custom Padeyes for safety harness
  • Teak Cockpit
  • Cockpit Tenting
  • Whale Gusher 10 manual bilge pump
  • LifeSling
  • Horn



Galley
  • Isotherm 1.45 cubic feet top loading 12VDC refrigerator with stainless steel liner and wire basket
  • Origo single burner alcohol stove stored in a galley locker
  • Corian counter top
  • Mirror-polished stainless steel sink
  • Fynspray model WS-60 chrome manual pump faucet
  • 12 VDC outlet
  • Garbage bin
  • Shelves behind counter
  • (2) Drawers below
  • (2) Lockers below
  • Lock for Starboard Lazarette

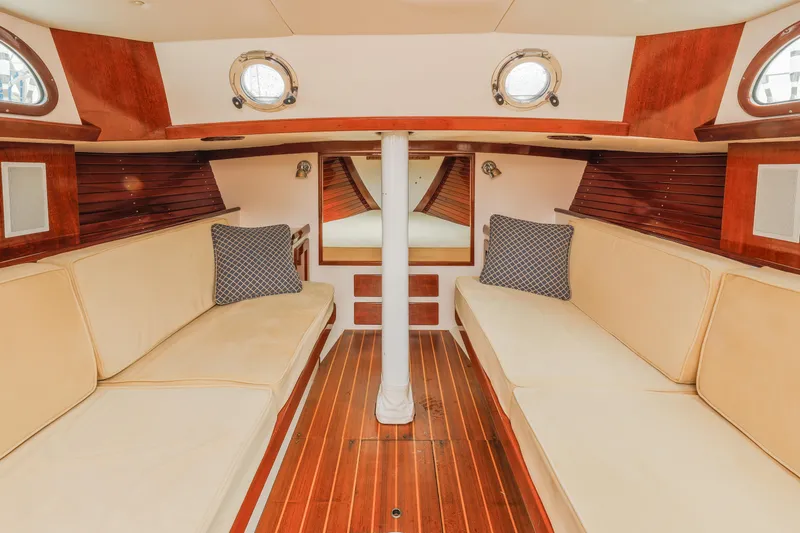

Accomodations

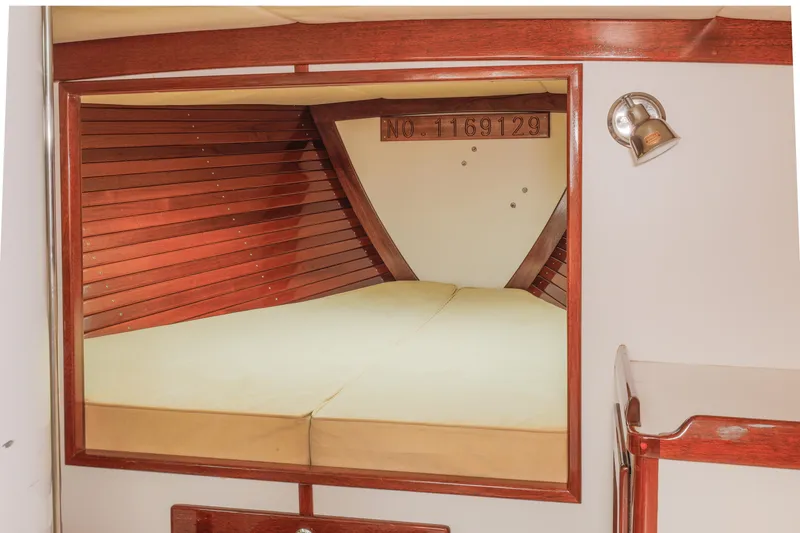

  • Vee berth upgrade includes Ultrasuede cushions matching the Main Cabin: 6' 2" long x 6' wide (max) 2' wide (min)
  • Storage below berth
  • (2) Forward lockers
  • (2) Drawers beneath berth
  • Mahogany hull sheathing
  • The interior joinery in Herreshoff style with white bulkheads and gloss varnished mahogany trim
  • (2) Circular stainless steel opening portlights mounted in the forward end of the trunk cabin
  • Soft Majilite overhead liner
  • (4) Cantalupi bulkhead mounted chrome reading lights with integral switches
  • (3) Cantalupi dome lights with integral switches

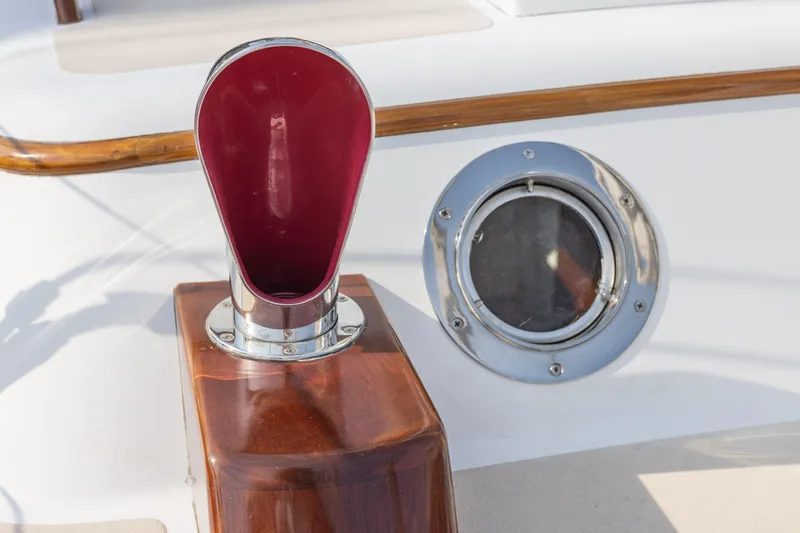

  • (2) Stainless steel 3” cowl vents on varnished teak dorade boxes
  • (2) Benchseats, or berths, seats 6' 2" x 2' 2" with ultrasude cushions
  • Storage below seats and behind seats

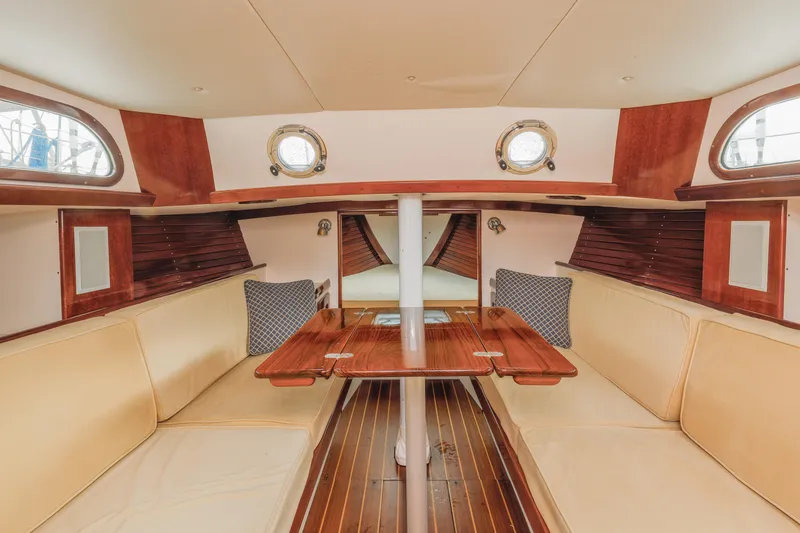

  • Removable high-gloss mahogany folding table  24" long x 14" or 28" wide (may also be installed in Cockpit)
  • (2) Kidde Mariner 110 portable dry chemical fire extinguishers
  • Double louvered, high-gloss, lockable varnished lift-off companionway doors
  • Excellent forward access to engine below companionway
  • Teak and Holly Sole

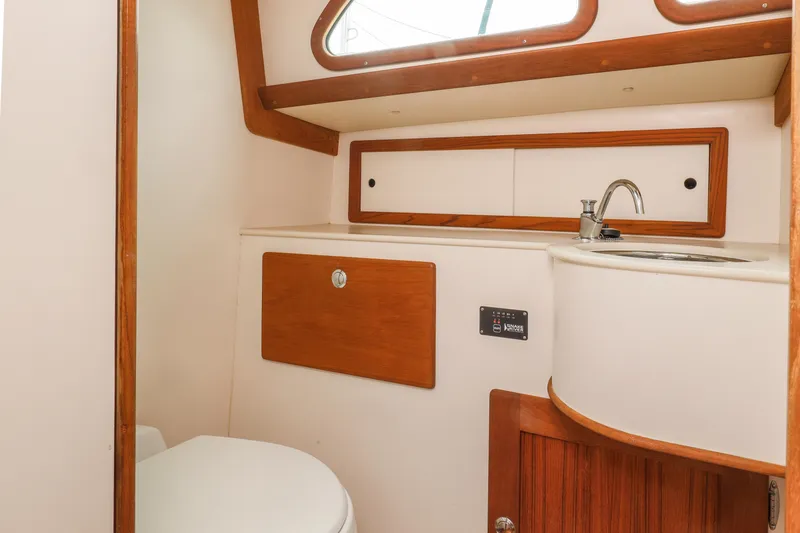

Head
  • Corian counter top with mirror-polished stainless steel sink
  • Fynspray model WS-60 chrome manual pump faucet
  • High grade glass mirror with frame on forward bulkhead
  • Oiled teak trim
  • Lock control to secure port lazarette
  • Dometic Vacuflush Head with model 506 with vacuum tank and vacuum pump
  • Overhead light
  • Fixed port
  • Overhead Nicro Solar powered vent
  • (2) Storage lockers
Spars, Rigging and Sails
  • Carbon fiber mast and aluminum boom by Hall Spars
  • Fractional rig with swept back spreaders
  • Antal size 40 mainsail luff track
  • Standing rigging is Navtec stainless steel rod
  • Integral hydraulic backstay adjuster
  • Hall QuikVang
  • Running rigging is low-stretch New England Rope or similar
  • Self-tacking jib on athwartships curved track
  • Harken Unit-1, below deck manual headsail furling unit
  • Fries Sail Design (FSD) includes the following:
  • Mainsail with single slab reef, lazy jacks and North Quick Cover (2018)
  • Jib with flexible battens for short furling (2018)
  • Asymmetrical Spinnaker (2019)
  • North Sails 3DL Set includes the following:
  • 3DL Mainsail (2009)
  • 3DL Jib, with furling battens for long-term furling (2013)
  • A3 Smaller Reaching Asymmetrical Spinnaker (2012)
  • Spinnaker Snuffer
  • Speed Trim for Mainsail at Helm
  • Jiffy reef system for Mainsail
  • Furling Jib
  • (4) Harken 40.2 ST winches
  • Spinnaker halyard with Harken winch on mast
  • (2) Spinnaker sheets
  • Tack pendant
  • Foredeck padeye for tack fitting
  • (3) Snatch blocks
  • Sail Area    558 ft2    51.84 sq m
  • I    38’-8”    11.78 m
  • J    12’-9”    3.89 m
  • P    41-3”    12.57 m
  • E    15’-1”    4.60 m
Anchoring and Mooring
  • Bruce 22 lb anchor located in foredeck stowage locker
  • Anchor rode: 100’ nylon, 1/2” diameter with six feet of 5/16” chain

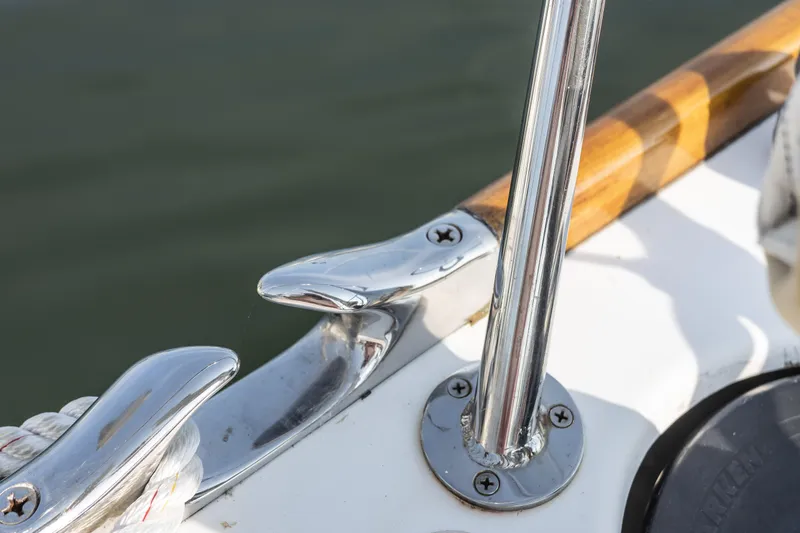

  • (4) Herreshoff style stainless steel cleats. (2) 10” at bow and (2) 8” at stern
  • (4) Morris custom cast stainless steel enclosed chocks (2 aft, 2 midships)
  • (2) Morris custom cast stainless steel open chocks at bow
  • 8” Herreshoff style stainless steel cleats
  • (1) Bow line 25’ nylon, 1/2” diameter
  • (2) Spring lines 35’ nylon, 1/2” diameter
  • (1) Stern line 25’ nylon, 1/2” diameter
  • (3) 8” x 20” vinyl ribbed fenders
  • (1) Aluminum boat hook
