LOA 15.42m     50' 7''
LH 14.65m       48' 1''
LWL 13.83m     45' 4''
Beam 4.85m    15' 11''
Draft 2.15m       7' 1''  Standard Draft / 1.80m  5' 11'' Shallow Draft
Displacement 21.16 t / 46,650 lbs
Engine 110 PS   110 hp  Standard / 150 PS  150 hp Option
Fresh water 766 l 202 gal
Fuel tank(s) total capacity = 570 l  / 150 gal
CE Certifcate A - 12
Mast length above WL 24.09m  / 79' 0''
SAIL AREA
Mainsail approx. 78.70m2        847 sq ft
Self-tacking jib approx. 52.20m2    562 sq ft
Reacher approx. 86.80m2        934 sq ft
Gennaker approx. 170.90m2    1,839 sq ft
Total sail area approx. 130.90m2.   1,409 sq ft
RIg I - 20.68m / 67' 10'' J - 5.68m / 18' 8'' P - 19.85m / 65' 1'' E - 6.61m / 21' 8''

There are many factory Upgrades/Options  to the standard specs  listed here - Reach out to one of our local offices fro complete list of uopgrades /options available.

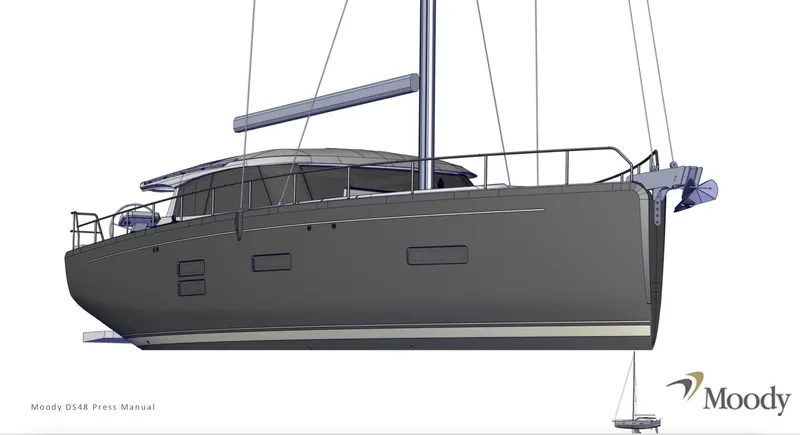

HULL

· 8 hull windows (4 on starboard, 4 on port)
· GRP hull, gelcoat: Off White, 1st layer Vinylester resin and Balsa wood sandwich
· Waterline and cove line, gelcoat color: Moody Grey

KEEL & RUDDER

· L-keel, cast iron, draft: 2.15 m / 7 ft 1 in. (shoal draft version = 5 ft 11 in)
· Single GRP rudder with sea-water resistant aluminum shaft and self-aligning JEFA bearings

LAYOUT AND INTERIOR

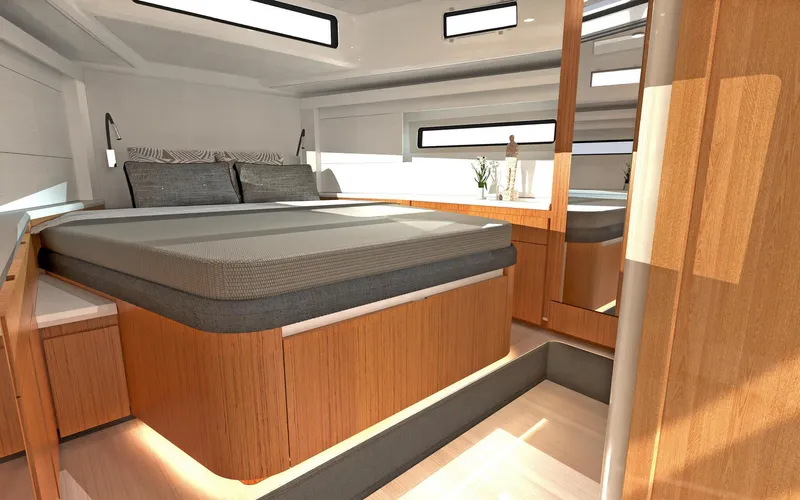

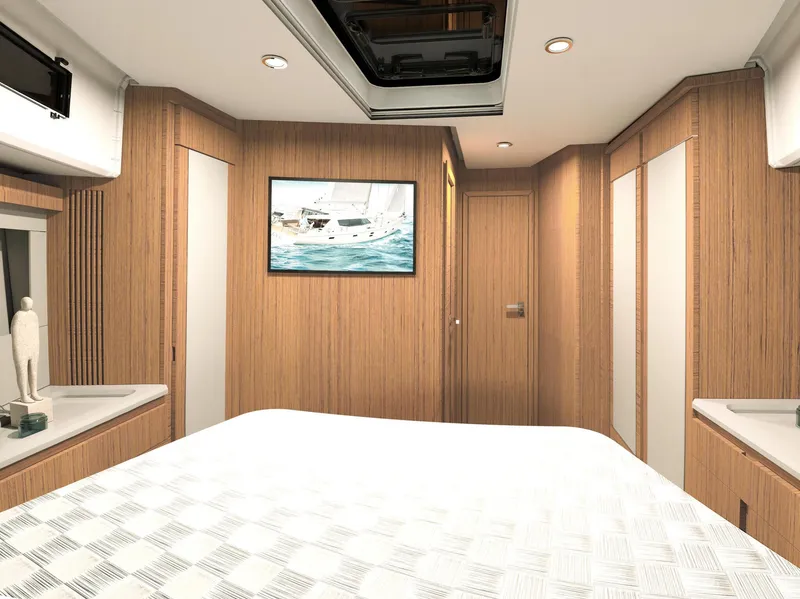

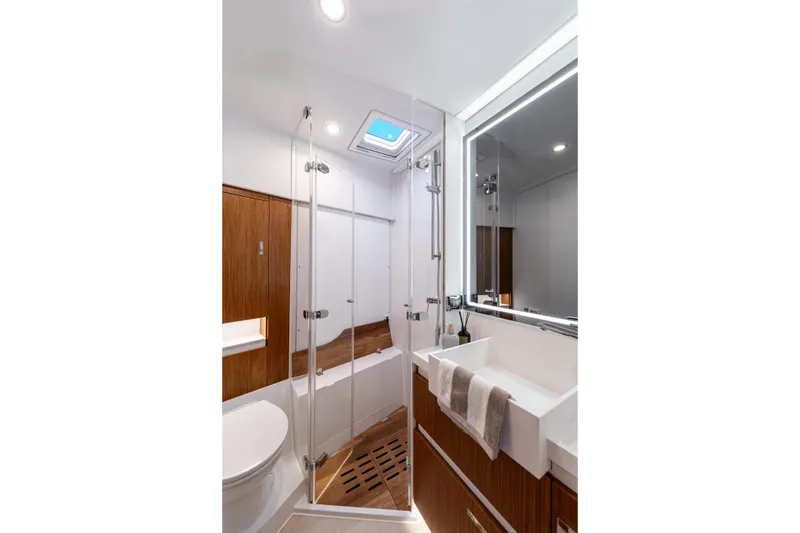

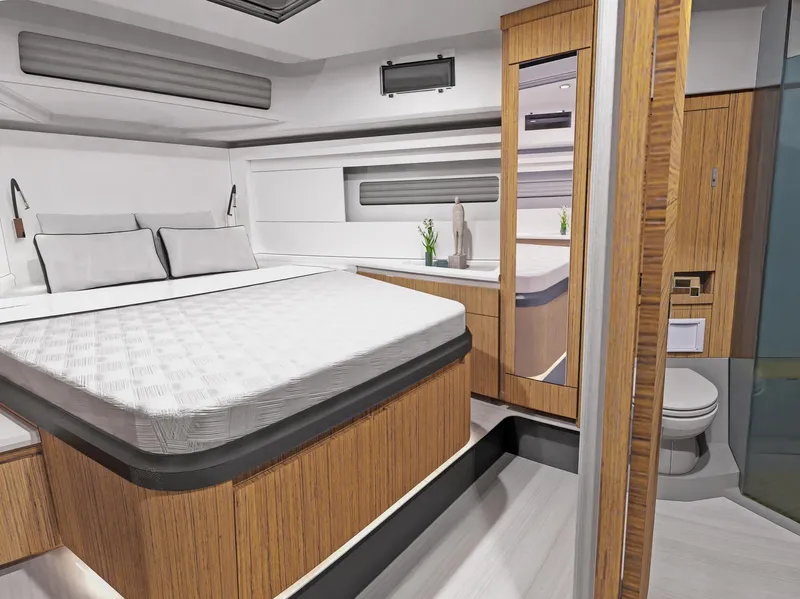

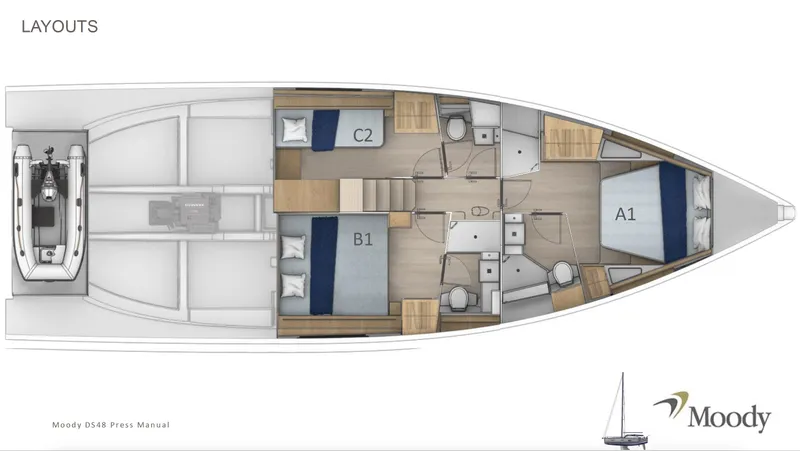

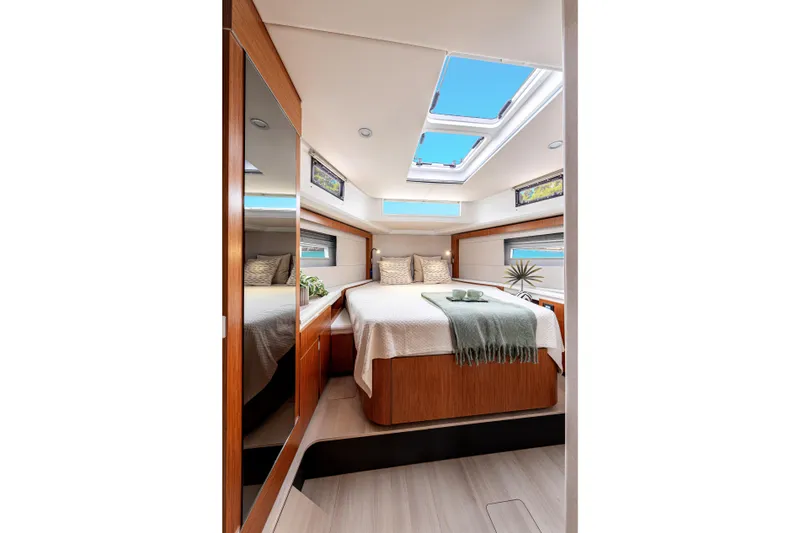

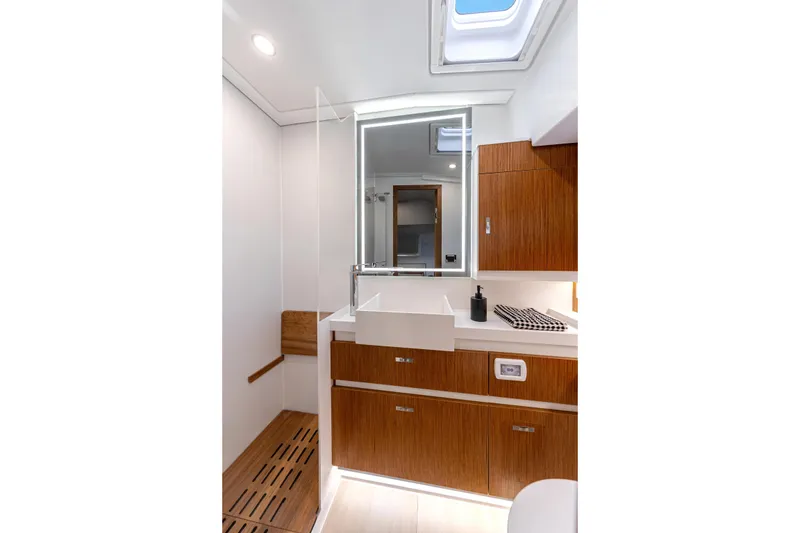

· A1: Master cabin with island double berth, storage space and ensuite head with separate shower stall

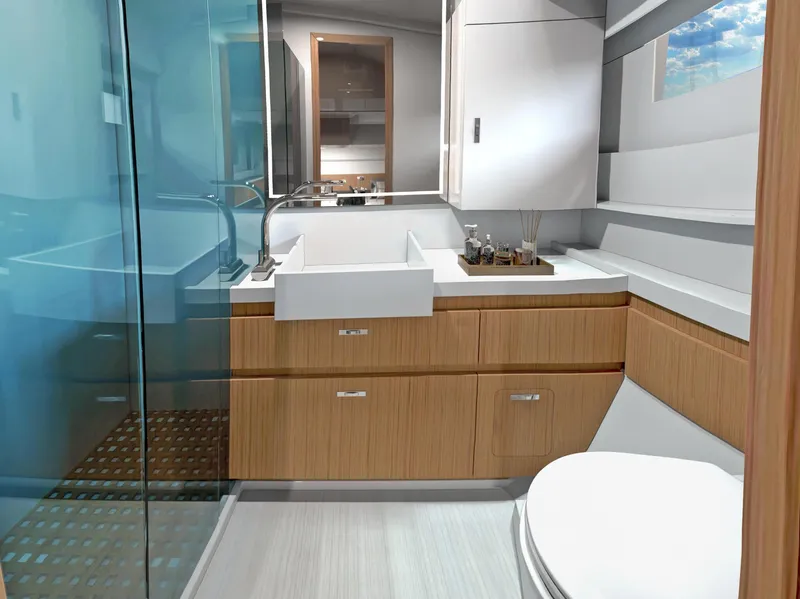

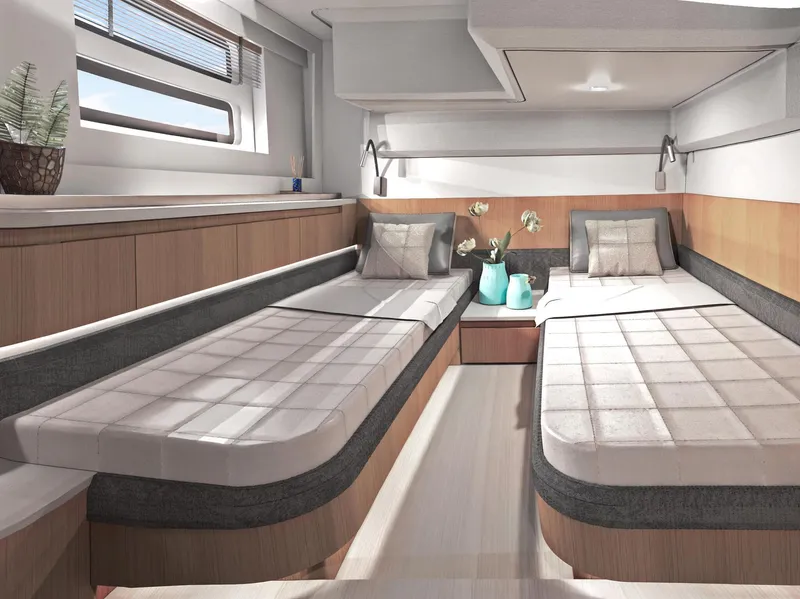

· B1: VIP cabin incl. "King size" bed, storage locker and ensuite head with separate shower stall

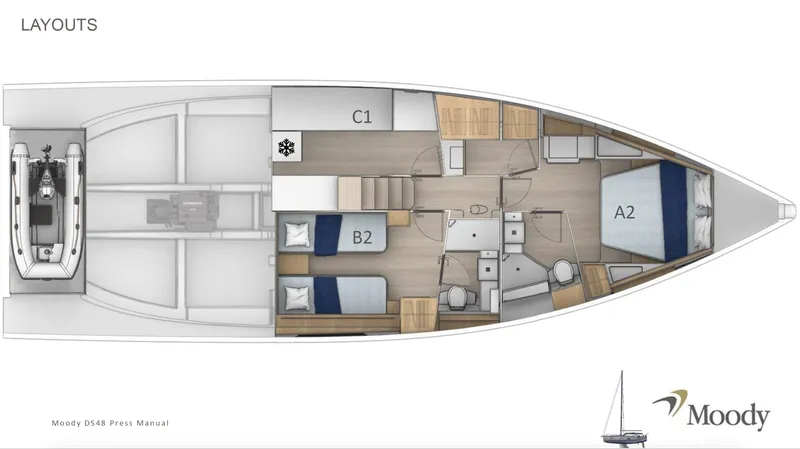

· C1: Storage room and walk-in wardrobe for master cabin

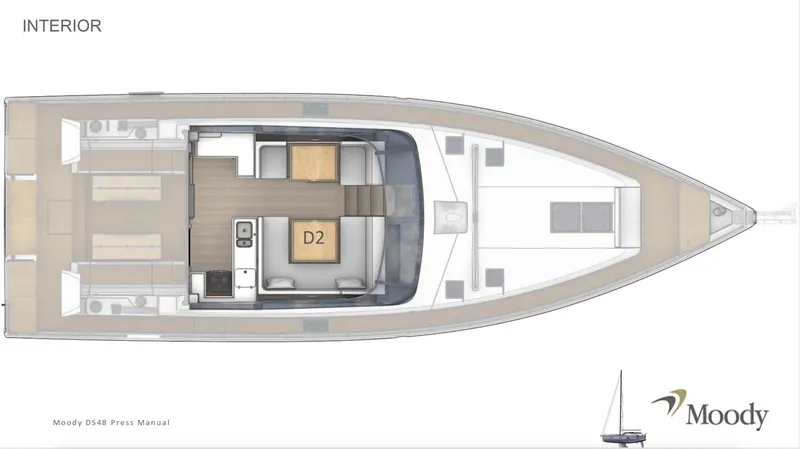

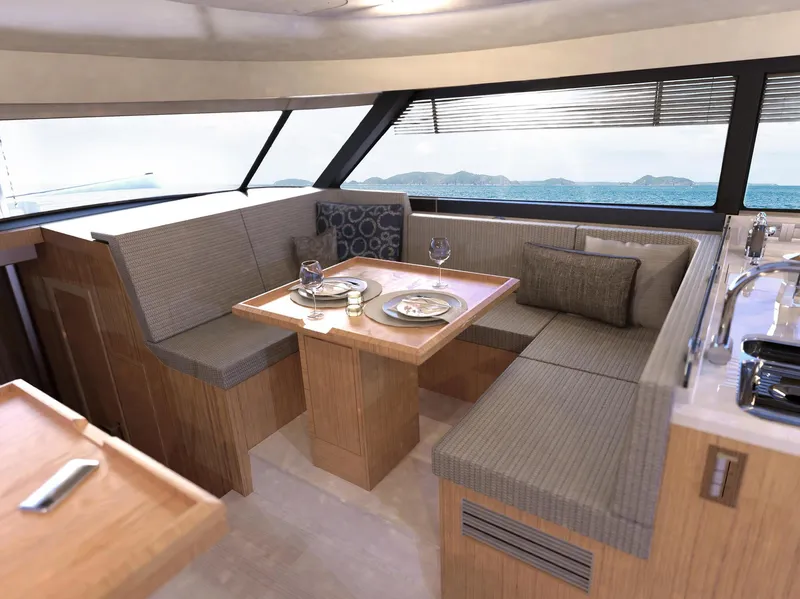

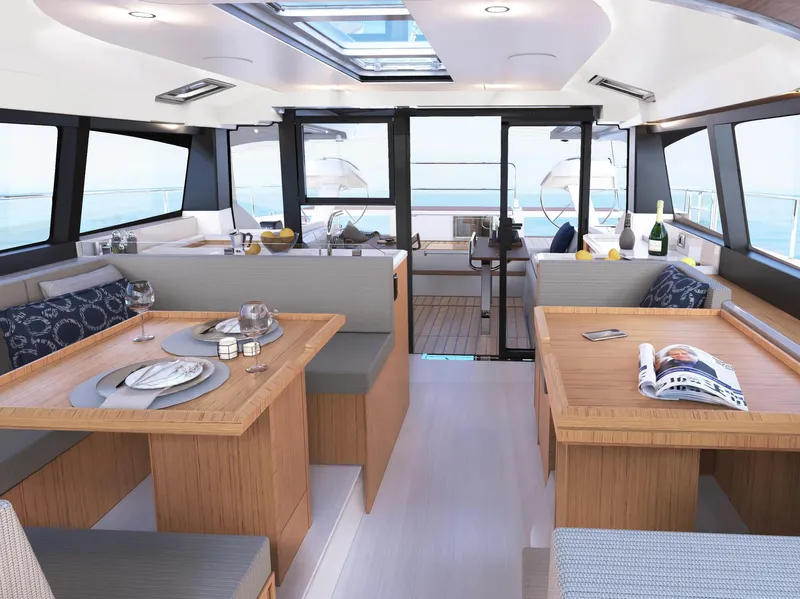

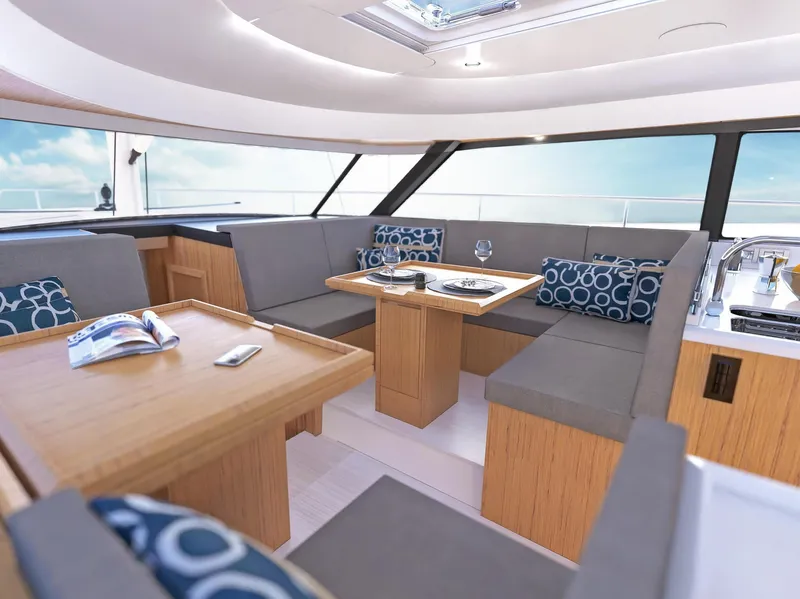

· D1: Saloon with full functional transversal galley and dining area on stb - proper chart table with storage room to port (Other Layout options available)

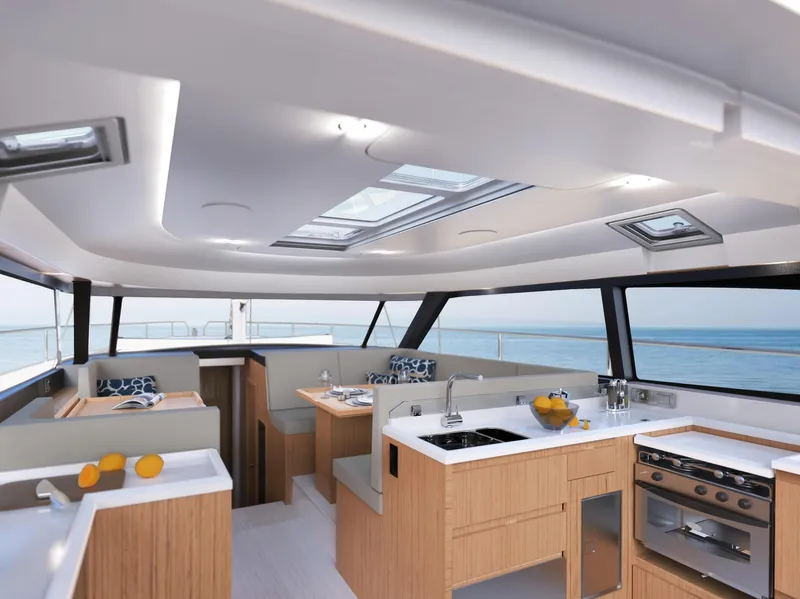

· 3-burner gas stove with oven, double waste bin, 12V fridge approx. 135 l  / 4.7 cu ft., double sink with faucet
· Interior furniture in high quality marine plywood, satin varnished
· Galley, colored, color: white
· Worktop in galley - Marine Mineral Stone, color: Grained Black

WOOD (FURNITURE AND FLOORBOARDS)

· Furniture - Traditional Mahogany - satin varnish
· Floorboard - New Zealand Acacia (blond color wood)

UPOLSTERY

· Comfort mattreses for all berths
· Upholstery - Dorset, color: Cream

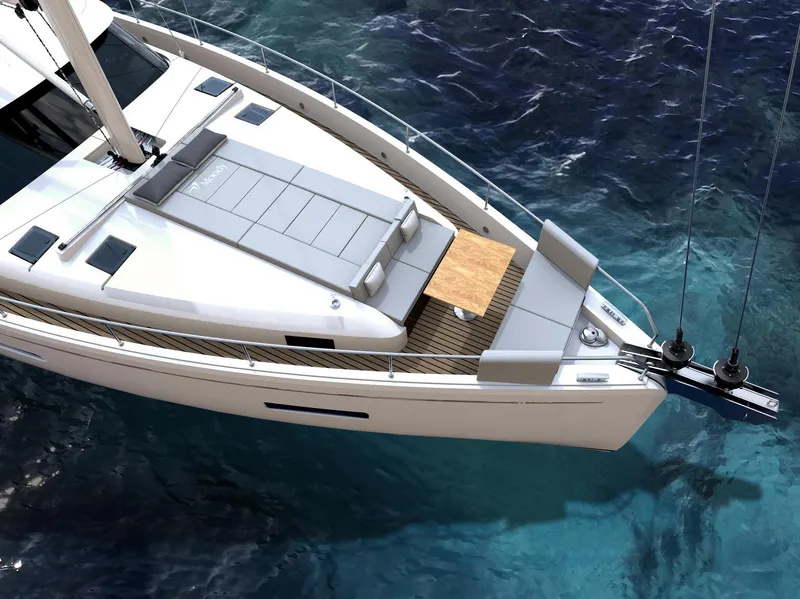

DECK AND OUTSIDE EQUIPMENT

· GRP deck with antislip surface, gelcoat color: Off White, 1st layer vinyl ester resin with balsa sandwich core.
· Synthetic teak on side deck, cockpit bottom, helmsman seats, cockpit benches and bathing platform
  (Per color selection)
· Twin wheel steering system · 2 stainless steel steering wheels with leather cover

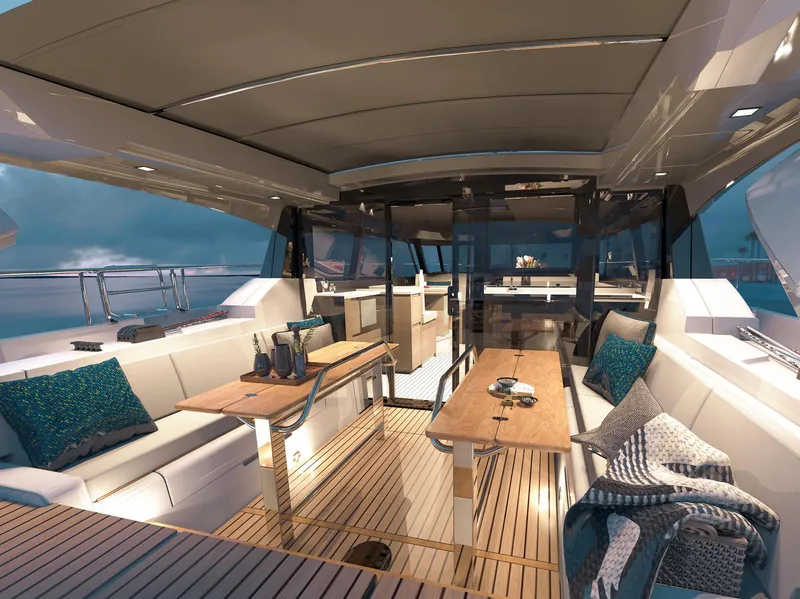

· 2 cockpit tables, stainless steel with folding teak tops
· Pulpit and pushpit, stainless steel · Railing, stainless steel tube and wire, incl. integrated boarding ladder       built in to rails on both sides
· Halyards and control lines in cockpit at helm position, stern locker, 2 cockpit lockers, 6 retractable mooring     cleats, handrail on coach roof, double anchor arm and anchor locker
· 2 LEWMAR 65 EST EVO electrical halyard winches

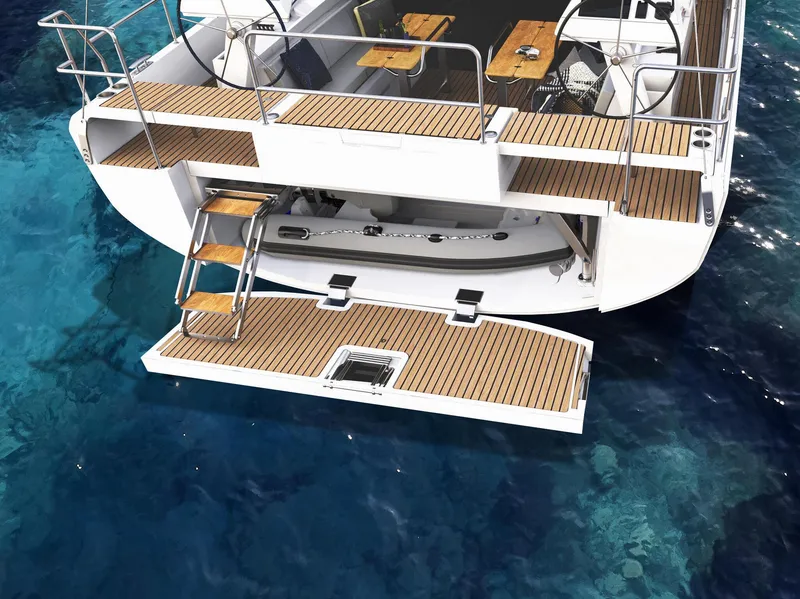

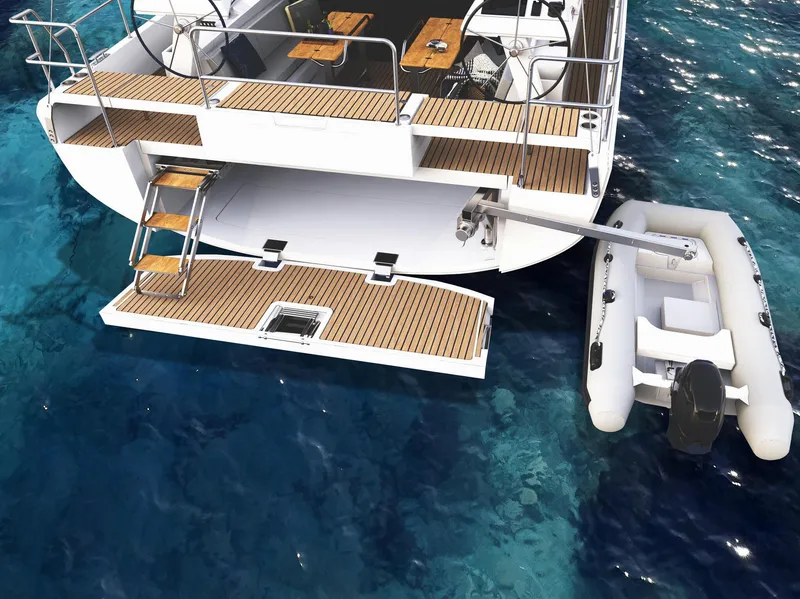

· Bathing platform, manual fold-out with swimming ladder
· 2 helmsman seats, foldable
· Anchor windlass, electrical, 1500 W, with automatic fuse, remote control with chain counter
· Delta-anchor 40 kg, galvanized with 60 m galvanized chain
· Self tacking jib system
· German mainsheet system - lead to both port and stb
· Sliding door and high/low window in deckhouse
· Panoramic deck saloon windows, central glass skylight, 2 portlights, 1 fwd. coach roof front window, 2 big     and 6 small openable decks hatches

RIG & SAILS

· Rig, anodized aluminum deck stepped mast, boom, with rigid boom vang
· Backstay tensioner-screw type, manual with winch handle
· Bimini with canvas sliding mechanism (per color selection)
· Quantum or Elvstrom Blue Water Dacron sails - full battened, main and jib

NAVAGATION & INSTRUMENTS

· Illuminated magnetic compass
· Navigation lights - LED P & S bow, and transom

PROPULSION

· Engine (Diesel, approx. 110 hp) - Saildrive unit, 3-blade folding bronze propeller
· Bow thruster, 24V, including dedicated batteries - tunnel design
· Fuel tank(s) 2 at 285 lt each / 75 us gal each  = 150 US gal

EQUIPMENT

· 12V and 230V electric system, 230V shorepower and sockets in cabins and heads
· Battery set, capacity: 1x 90 Ah + 4x 160 Ah AGM · Country Version: USA / JPN
· Battery charger 75 A
· Shore power 230 V

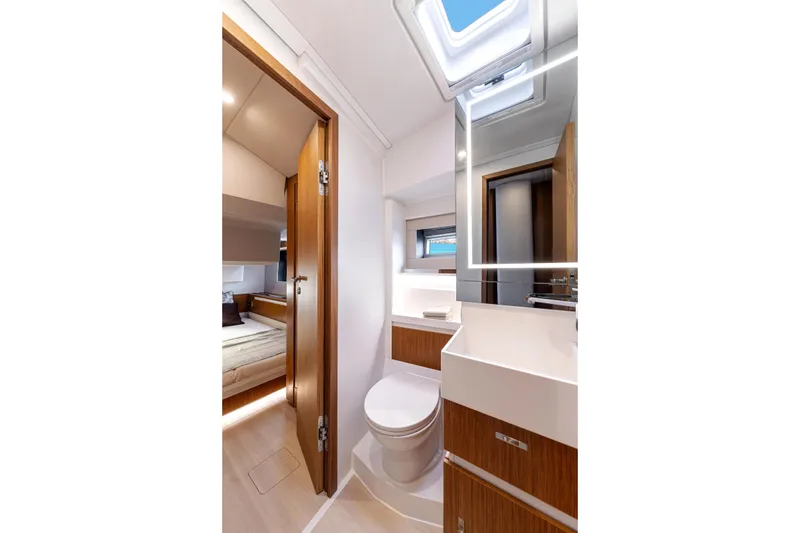

· Manual toilet with sea water flush - cabin layout B1 or B2
· Electric toilet with sea water flush - cabin layout A1 or A2
· Shower unit in cockpit, warm-/cold water · Water akku for pressure equalization
· LPG gas system, stowage for 2 gas bottles
· Blackwater system (appr. 85 l  / 22.5 us gal per head) with deck extraction and seacock for overboard discharge from head
· Freshwater system with electric pump and 40 l / 10.5 us gal hot water, heated also by main engine
· Fresh water tank, appr. 766 l / 202 us gal
· Fuel tank(s),  2 total Capacity approx. 570 l / 150.5 us gal
· Fuel filter

ACCESSORIES

· Blind set with screens for deck hatches
· Skysol blinds for deckhouse windows
· Venetian blinds for hull windows
· Wind direction indicator at masthead
· Flagpole
· Add. winch handle
· Mast steps

SHIPPING & TRANSPORT

· CE - Certificate Cat. A-12, B-14, C-16
· Owners manual(s) in digital format
· Shipping to east coast included in base price of vessel. addl port handling fee, trucking per estimate
· Vessel Commissioning and Wharfage and Trucking fees to be estimated

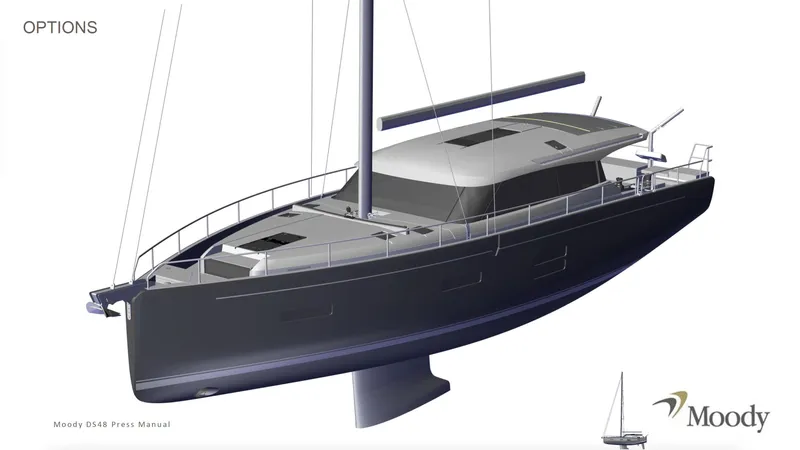

Moody offers many upgrades to personalize your build  -  contact dealer for complete spreadsheet with all factory options and upgrades. Specifications listed above are Standard Specs !   BUILD TIMES ARE APPROX 6 MONTHS + Transportation and vessel final commissioning
