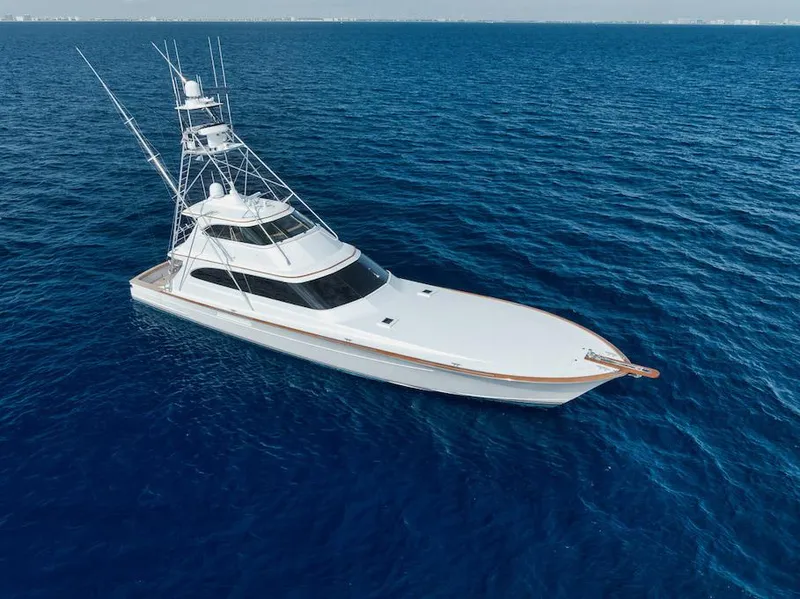

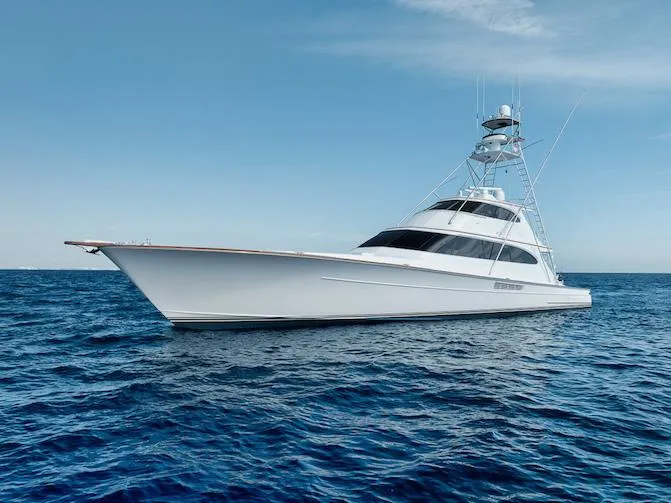

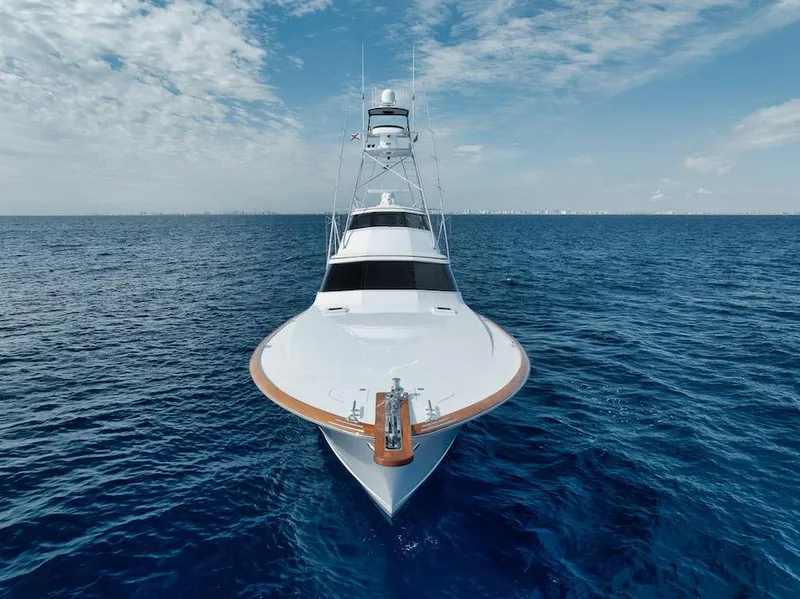

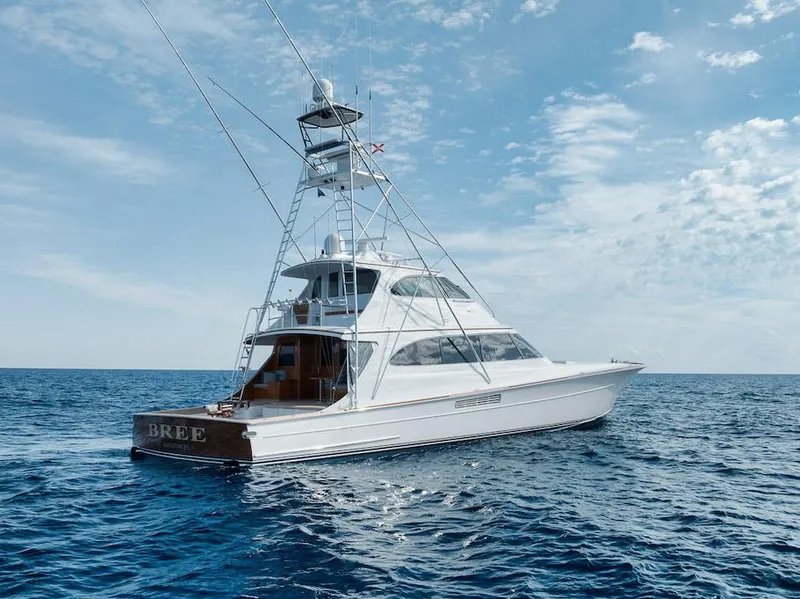

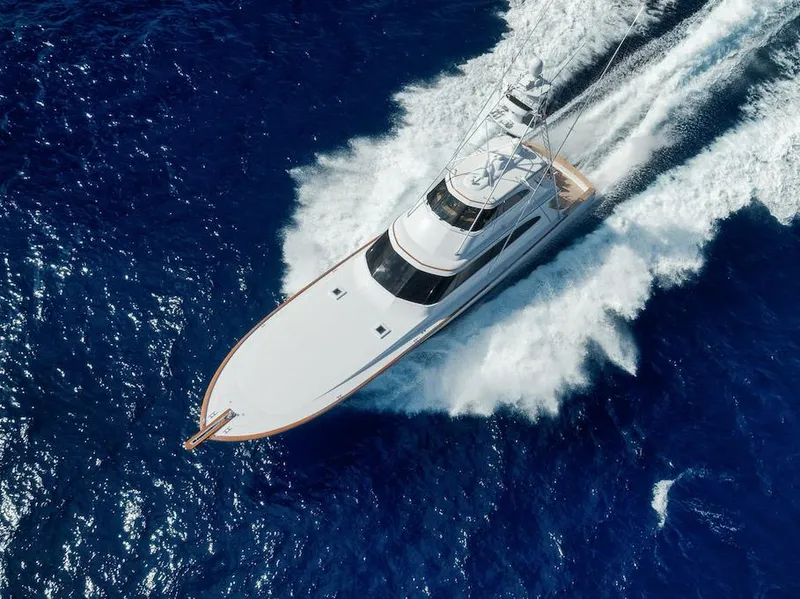

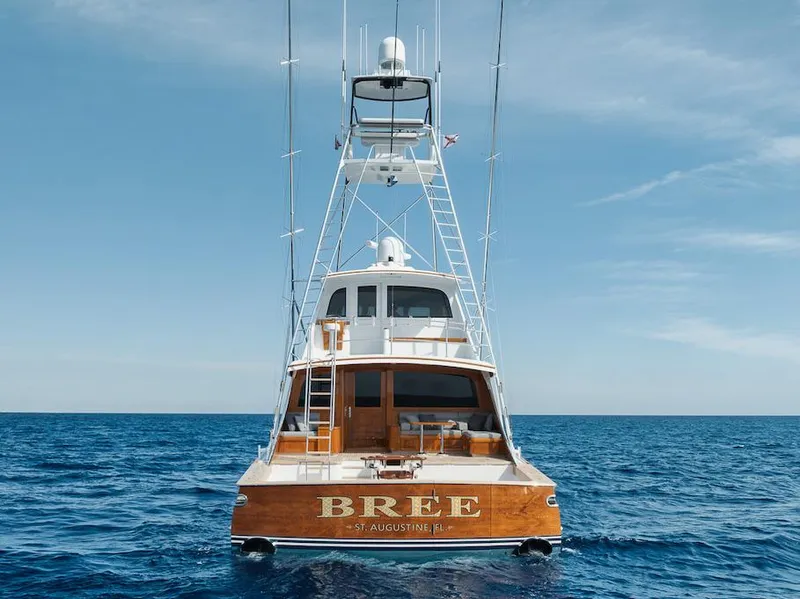

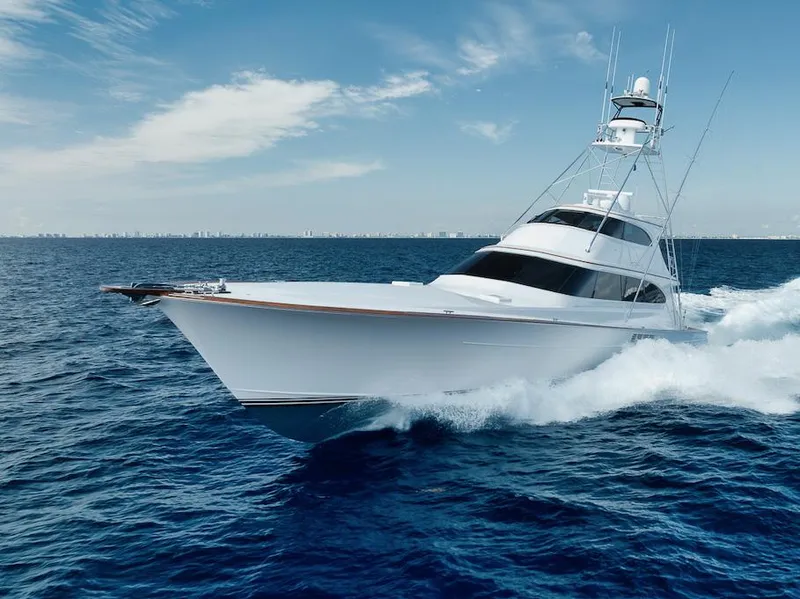

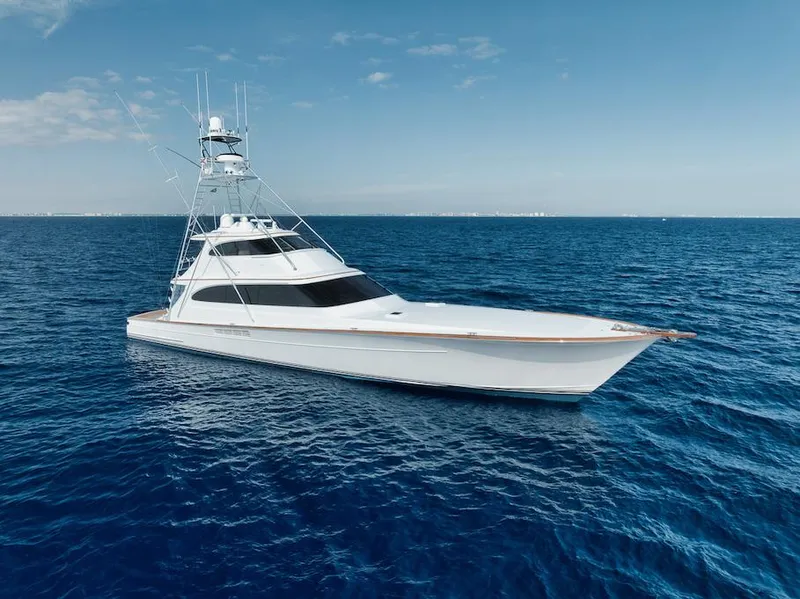

2016 Merritt Yachts 86' Enclosed Flybridge

$8,950,000

Used

Boat in West Palm Beach, FL 33401 US

builtBuilt in 2016
Year the boat was built
model

86' Enclosed Flybridge

Boat model
engine

2 Engines (2x Caterpillar)

Engine type and count
length

86 feet

Overall boat length
fuel

Diesel

Fuel type
material

Fiberglass/Composite

Hull material
Nominal Length
86ft
Length Overall
86ft
Beam
21ft
Max Draft
5.42ft
Dry Weight
237440lb
Cruising Speed
28kn
Max Speed
34kn
Fresh Water Tanks
400gal
Fuel Tanks
3360gal
Holding Tanks
100gal
Hull Material
composite

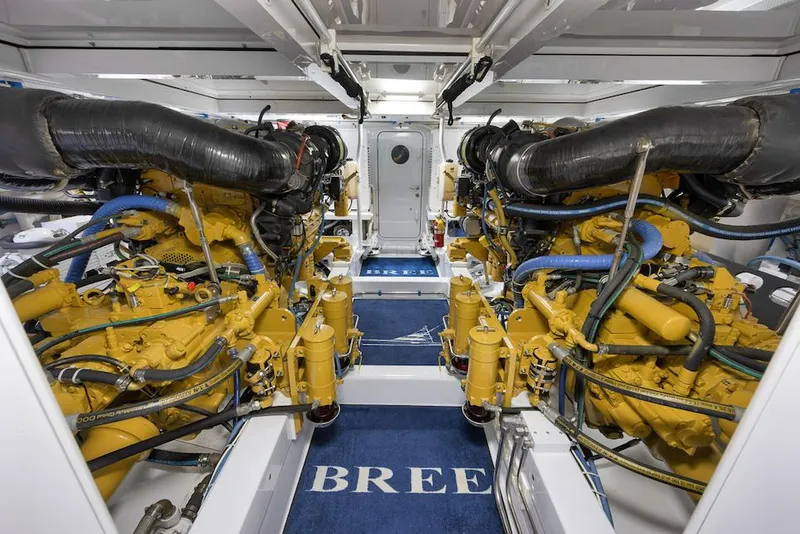

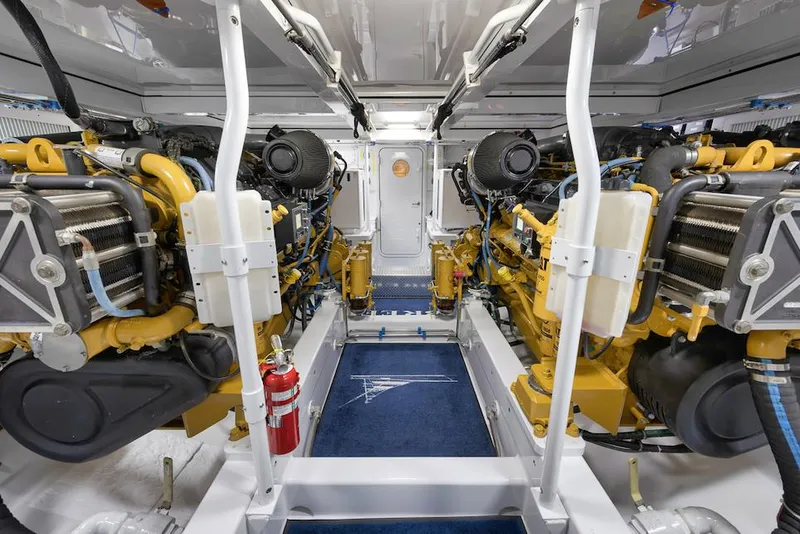

Engine 1
Engine Make
Caterpillar
Engine Model
C32A
Total Power
1930hp
Engine Hours
4005
Engine Type
inboard
Fuel Type
diesel
Engine 2
Engine Make
Caterpillar
Engine Model
C32A
Total Power
1930hp
Engine Hours
4005
Engine Type
inboard
Fuel Type
diesel
STABILIZATION

Seakeeper Sk 2600 in self contained compartment below cockpit deck.

Hours: 5,100

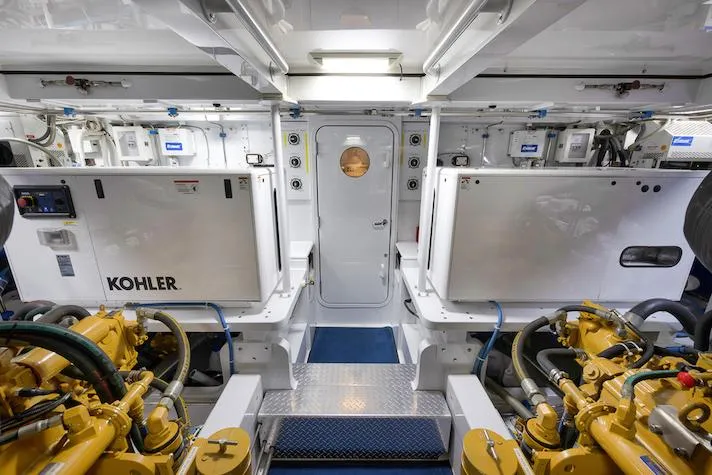

GENERATORS

2 Kohler 40 kw (new in 2019)

Hours: Port 1730, Stbd 1735

ELECTRONICS

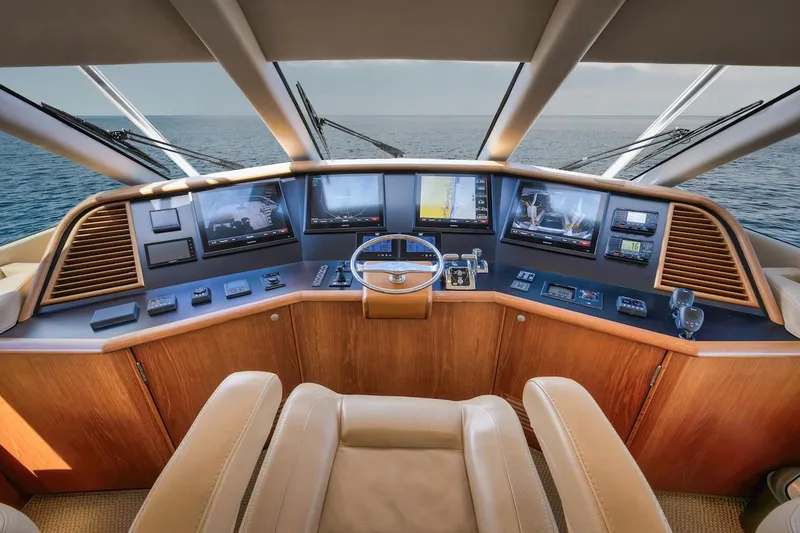

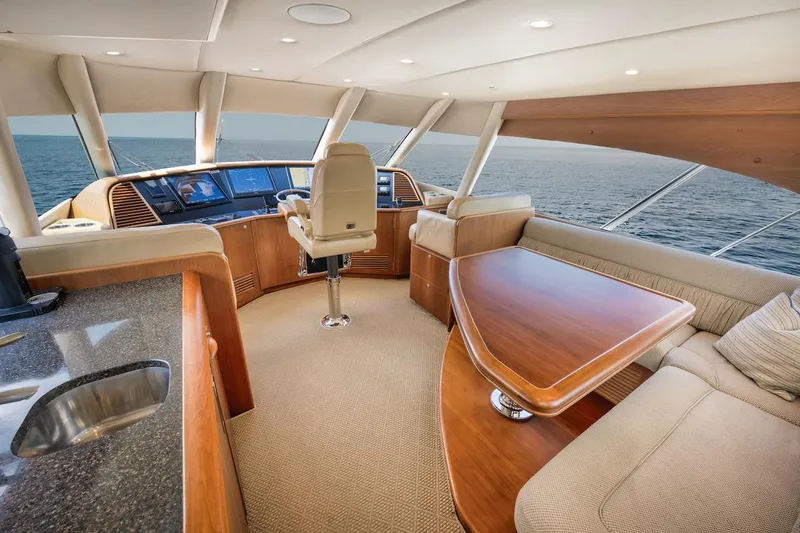

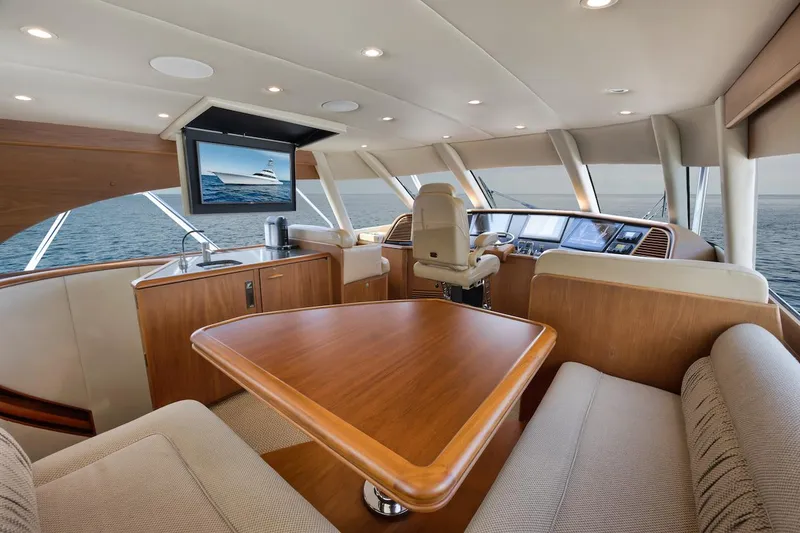

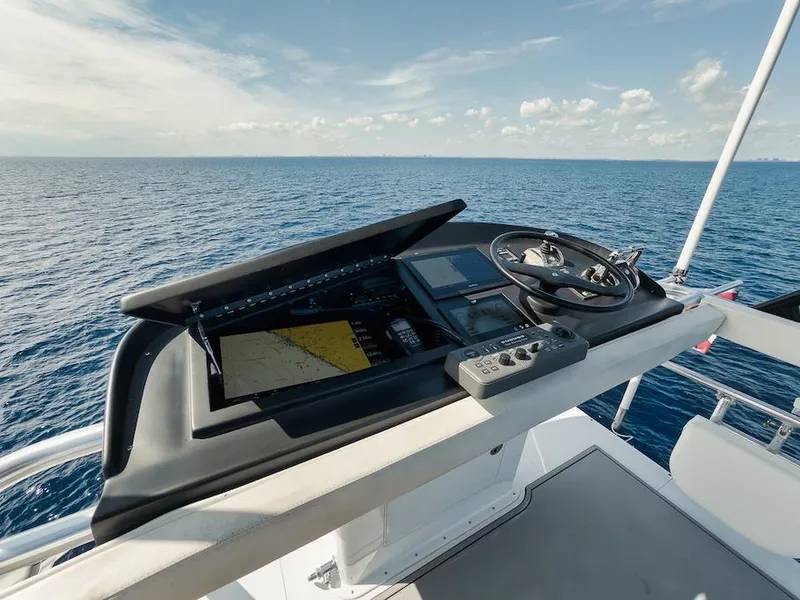

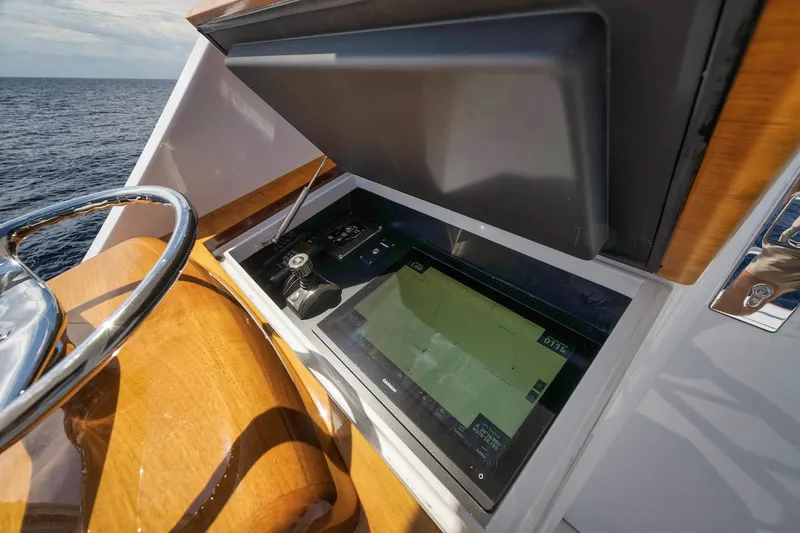

FLYBRIDGE

  • 4 19” 8530 GARMIN SCREENS BLACK BOX W/US CHARTS
  • 1 6FT GARMIN 25KW RADAR
  • 1 4FT GARMIN 6KW RADAR
  • 1 SIMRAD AP70 AUTO PILOT
  • 1 FLIR M-625L THERMAL/LOWLIGHT NIGHT VISION CAMERA
  • 2 ICOM M506-31 VHF RADIOS
  • 1 AIRMAR PM411 TRANSDUCER
  • 1 AIRMAR B275 CHRIP TRANSDUCER
  • 1 FURUNO OMNI SONAR

TOWER

  • 1 17” 8612 GARMIN PLOTTER
  • 1 15” 7600 GARMIN PLOTTER
  • 1 SIMRID AUTO PILOT
  • 2 ICOM COMAND MIC VHF

AFT STATION

  • 1 20” 8612 GARMIN PLOTTER
  • 2 ICOM COMAND MIC VHF

AV EQUIPMENT

  • Starlink marine mobile dish
  • KVH satellite communication dome
  • KVH tracvision direct tv dome
  • Direct tv receivers in all staterooms
  • Crestron control system
  • Kaleidoscope movie storage hard drive
  • Apple TV
  • Apple ship computer
  • TV’s with surround sound in all staterooms
  • Headphone jacks in master and salon
  • Cameras for bow,stern, mezzanine and engine room

ADDITIONAL EQUIPMENT

  • CAT 360 system w/joystick maneuvering, and dynamic positioning
  • Asea transformer power system
  • Wards electric control panel

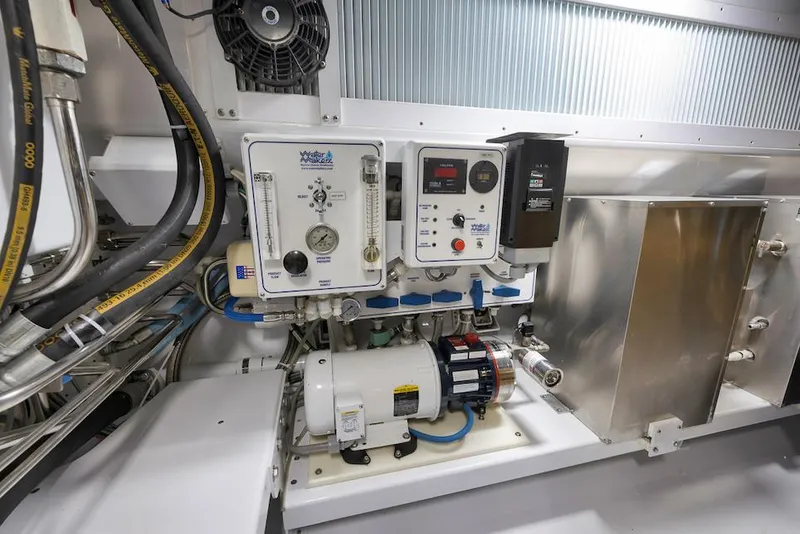

  • Water maker reverse osmosis system
  • Spot zero water purifier
  • Headhunter tank sensor system
  • Humpfree trimtabs
  • 2 Dometic Eskimo ice makers
  • Hooker electric livewell system with on deck tuna tube hook up
FISHING EQUIPMENT

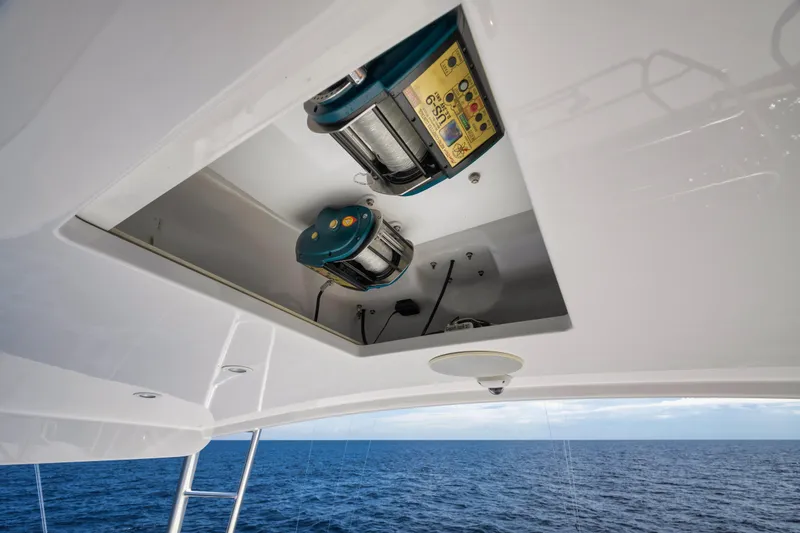

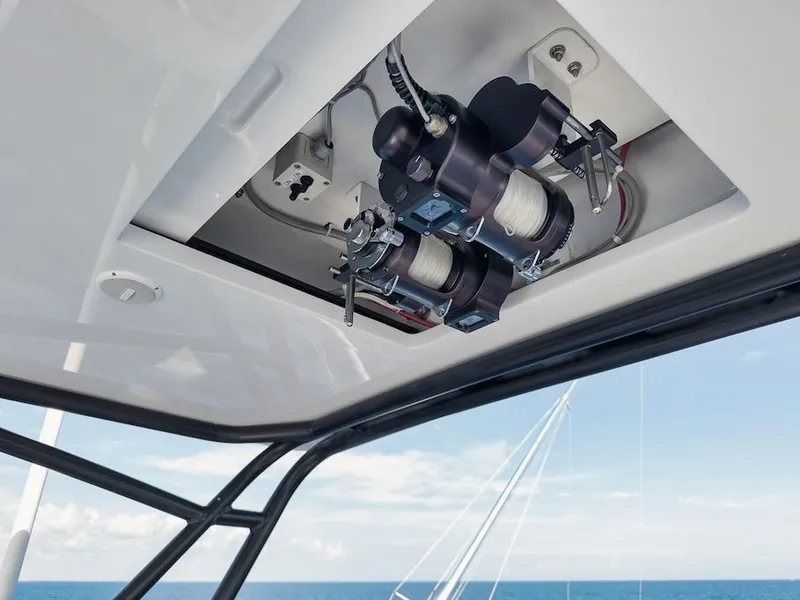

  • 2 hooker electric Shimano electric teaser reels in tower
  • 2Miya Eroch US-9 electric teaser reels in flybridge aft

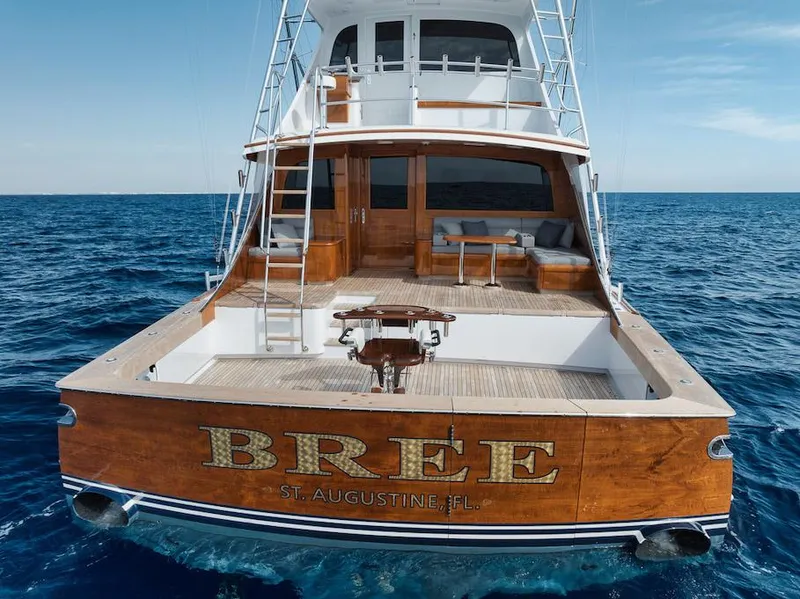

  • Blue water marlin fighting chair
  • Blue water sailfish rocket launcher
  • 80 gallon indeck livewell
  • Pipe welders 47’ four spreader hydraulic outriggers

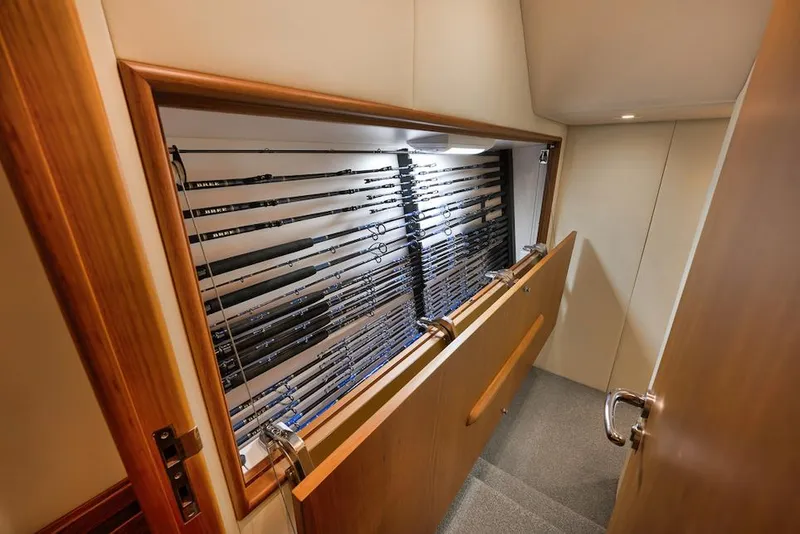

  • 37 piece fishing rod storage
  • Custom reels storage for 30’s,50’s,80’s, spinning reels and electric reels
MAINTENANCE & UPDATES
  • 10/24 ceramic coated all painted surfaces
  • 10/24 updated all components of seakeeper to newest models
  • 10/24 replaced seakeeper bushings
  • 9/24 main engines serviced
  • 9/24 generators serviced
  • 6/24 replaced washer and dryer to updated Samsung model
  • 6/24 all new mezzanine cushions
  • 5/24 complete new coat of varnish on cockpit,aft flybridge, and half rounds
  • 04/23 ward electric replaced 5 power modules in Asea transformer(10,000 each)
  • 02/23 replace both De’Angelo exhaust risers and gaskets
  • 08/22 stripped all varnish and rebuilt back up
  • 09/21 repainted forward black mask
  • 03/20 install new kohler 40kw generator
  • 02/20 updated tower and aft station Garmin monitors
  • 02/20 furuno Omni sonar installed
  • 10/19 both twin disc transmission replaced
PERFORMANCE LOG

RPM/ SPEED/ BURN

600/ 6.5kts/ 6gph

700/ 8.0kts/ 14gph

850/ 10.0kt/ 17gph

1000/ 11.5kt/ 23gph

1200/ 14.5kt/ 44gph

1500/ 20.0kt/ 74gph

1600/ 21.5kt/ 86gph

1700/ 23.5kt/ 102gph

1800/ 25.0kts/ 110gph

1900/ 28.0kts/ 140gph

2000/ 29.5kts/ 150gph

2100/ 30.5kts/ 160gph

2200/ 31.0kts/ 165gph

2300/ 32.5kts/ 172gph

2400/ 33.5kts/ 192gph

2450/ 34.5kts/ 198gph

BROKER/ CONTACT

Contact Kyle Liane to schedule a viewing of BREE

(904) 501-5876 | kyle.liane@ringpower.com

DISCLAIMER

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
