• Length:17' 2"

• Beam: 6' 11"

• Bottom Width: 5' 3"

• Max. Recommended HP: 75 HP

• Fuel Capacity: 6.6 gal.

• Max. Person Capacity: 6 persons

• Max. Person Weight: 1000 lbs.

• Max. Person, Motor & Gear Weight: 1650 lbs.

• Interior Depth: 18"

• Transom Height At Center Line: 20"

• Draft: 8"

• Average Dry Weight: 1210 lbs.

• Average Hull Weight: 950 lbs.

• Average Package Weight: 2050 lbs.

• Package Height: 6' 8"

• Storage Length: 22' 4"

Certification & Safety

• Backed by MAKO® Assurance 5+Life—the best factory warranty in saltwater boats

• NMMA® certified

• Factory leak tested for hull, plumbing & fitting integrity

• Horn

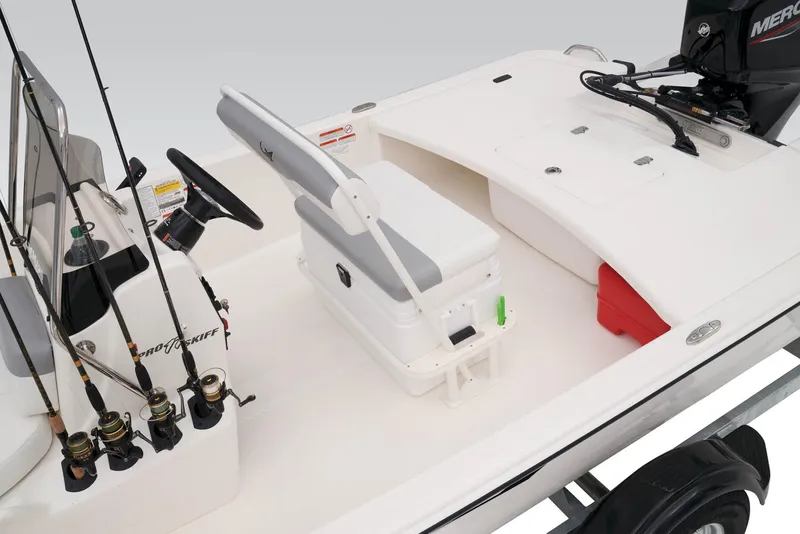

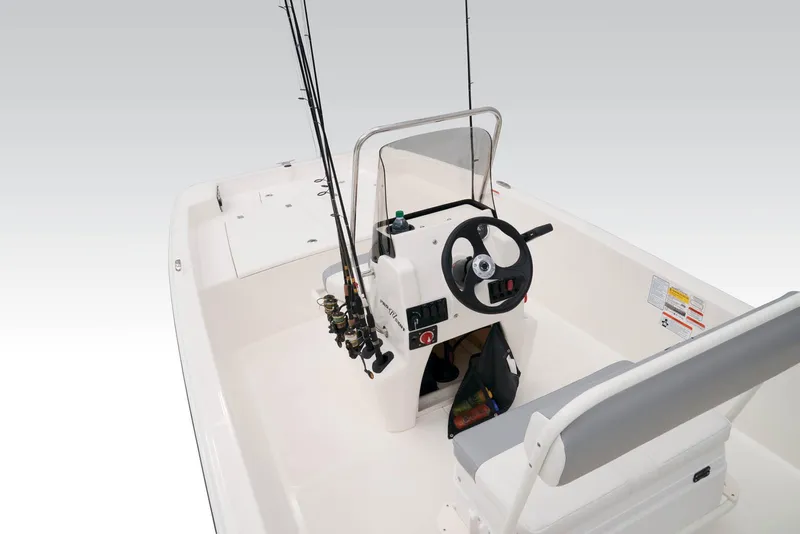

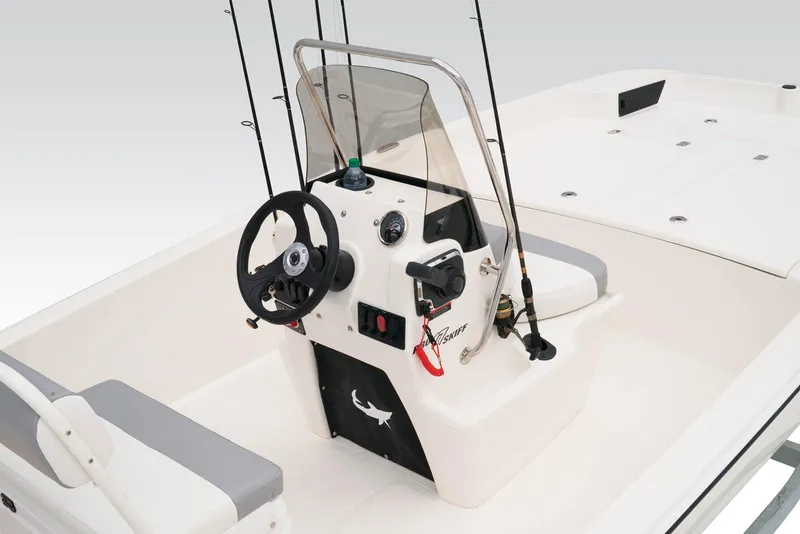

Console

• Single-cable, no-feedback rotary steering

• Multifunction tachometer/trim gauge

• Panel-mounted control box w/power trim

• Molded center console w/integrated 8-gal. (30.28 L) baitwell, molded-in grab handles & hinged padded seat cushion & back

• Storage curtain w/integral pocket

• Stainless steel grab rail

• Contoured acrylic windscreen

• Area to flush- & surface-mount additional electronics

• Drink holder

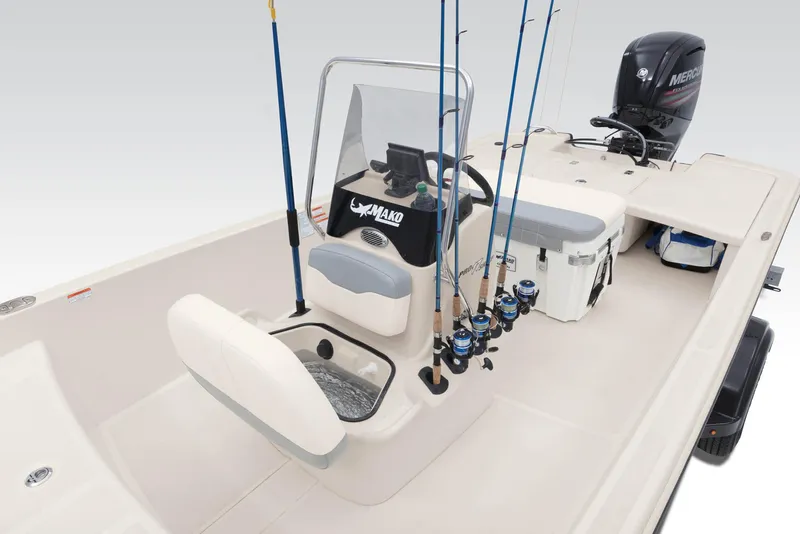

• 5 vertical flush-mounted console rod holders



Interior

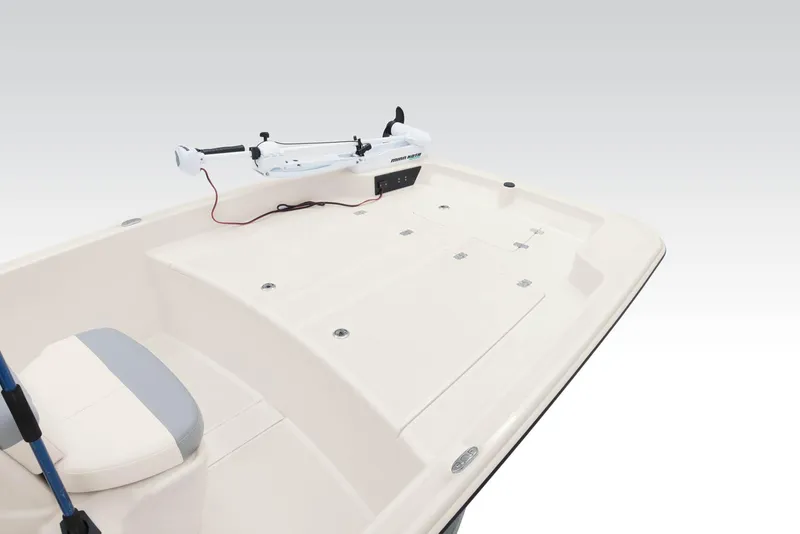

• Integrated trolling motor landing

• Anchor locker

• 2-tone high-density marine-grade vinyl upholstery w/stain-resistant coating & composite substrates on seats

• 360° fishability

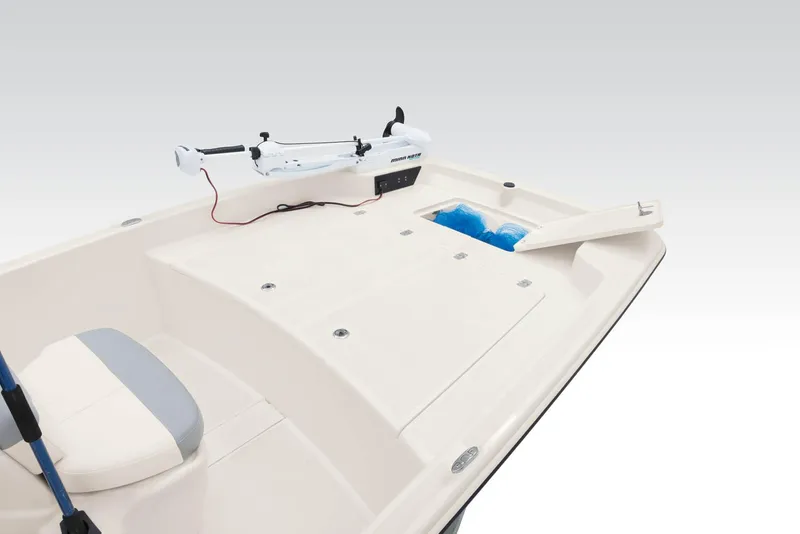

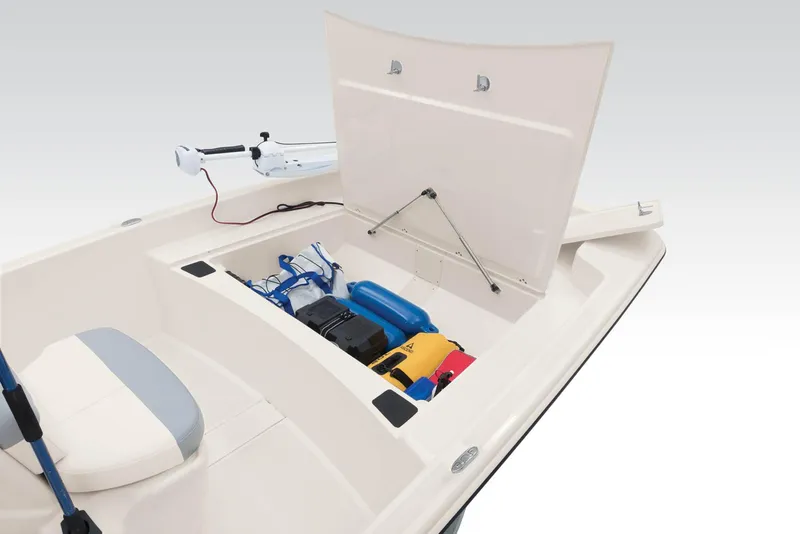

• Raised bow fishing platform w/patterned non-skid surface & lockable storage compartment

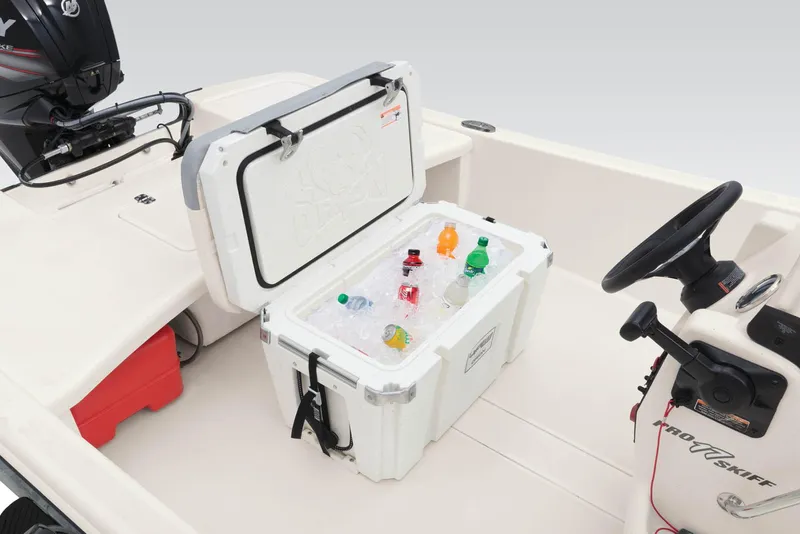

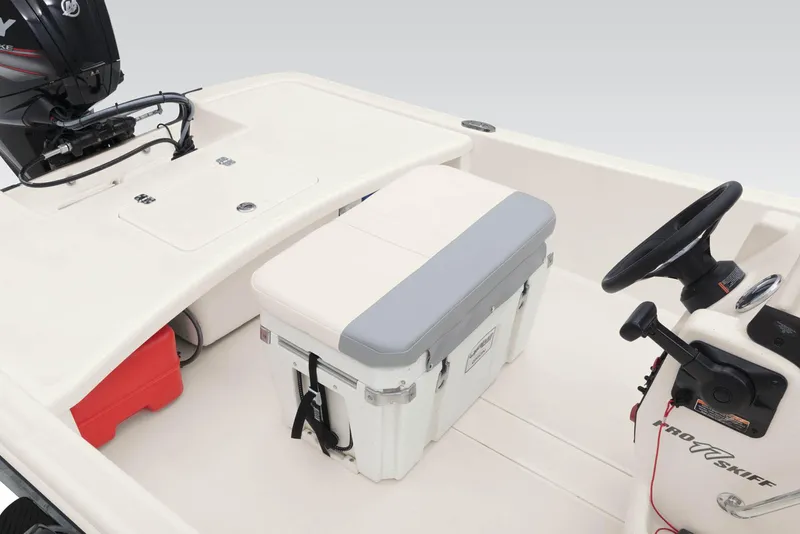

• Rotomolded, removable Orion® 65-qt. (61.51 L) foam-filled helm seat/cooler w/superior ice-keeping ability

• Raised, closed-molded aft fishing platform w/patterned non-skid surface

• Aft 19-gal. (71.92 L) livewell w/adjustable aerator & overflow

• Fiberglass lids



Performance

• Award-winning Advanced Inverted V (AIV) hull design for superb load-carrying abilities & a smoother, drier ride in choppy waters

• Integrated anti-spray hull design

• Factory-matched propeller



Hardware

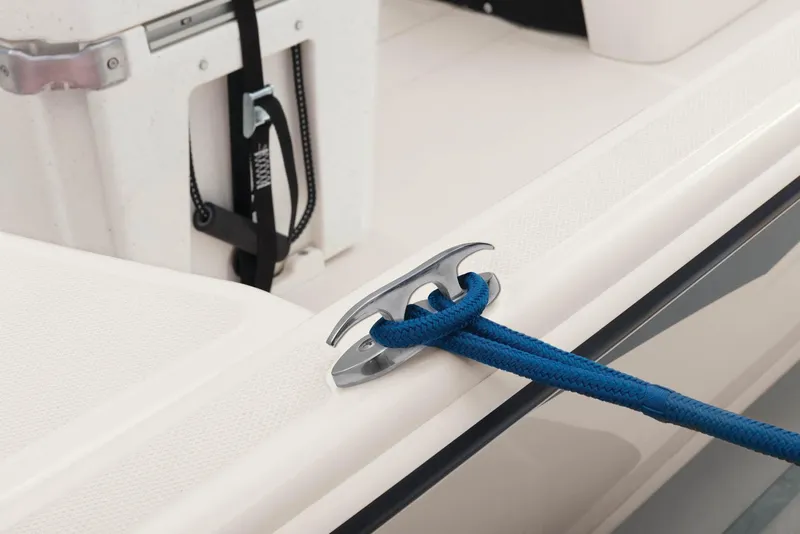

• 4 stainless steel cleats

• Reboarding step & stainless steel grab handle

• Stainless steel bow & stern eyes



Construction & Exterior

• Color: MAKO® Bone White gelcoat

• 100% composite construction

• Encapsulated, fiberglass-infused transom w/high-density composite core

• Molded, patterned non-skid casting platform & cockpit sole

• Console chemically bonded & mechanically fastened to deck w/.25" (6.35 mm) aluminum backing plates

• Closed-cavity, closed-cell foam-injected hull & deck system chemically bonded & mechanically fastened w/stainless steel fasteners for strength & durability

• Premium marine-grade stainless steel hardware & fasteners for corrosion resistance

• Stipple texture to B-side of all fiberglass lids

• Composite seat substrates

• Heavy-duty rub rail



Electrical, Mechanical & Plumbing System

• 700 GPH (2,649.79 LPH) bilge pump

• 600 GPH (2,271.25 LPH) baitwell pump w/adjustable spray head

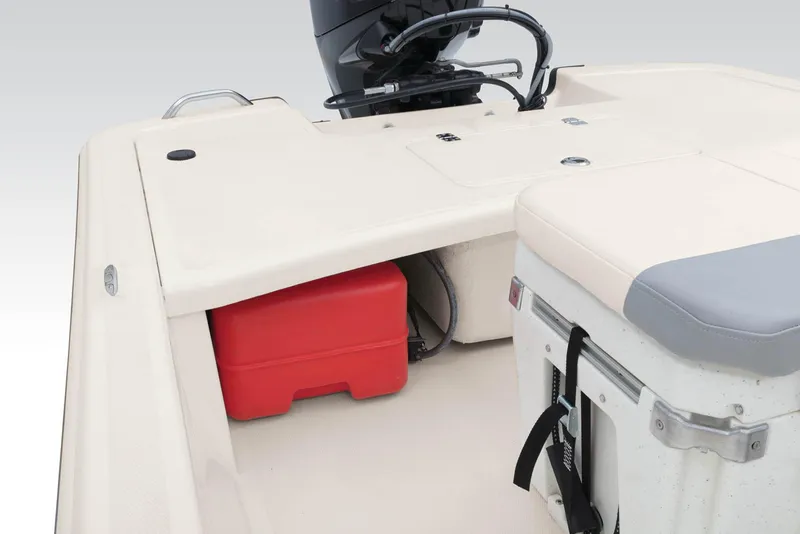

• Portable 6-gal. (22.71 L) fuel tank w/hold-down strap

• High-speed baitwell water pickup

• USCG-compliant navigation lights

• Interstate® cranking battery w/tray

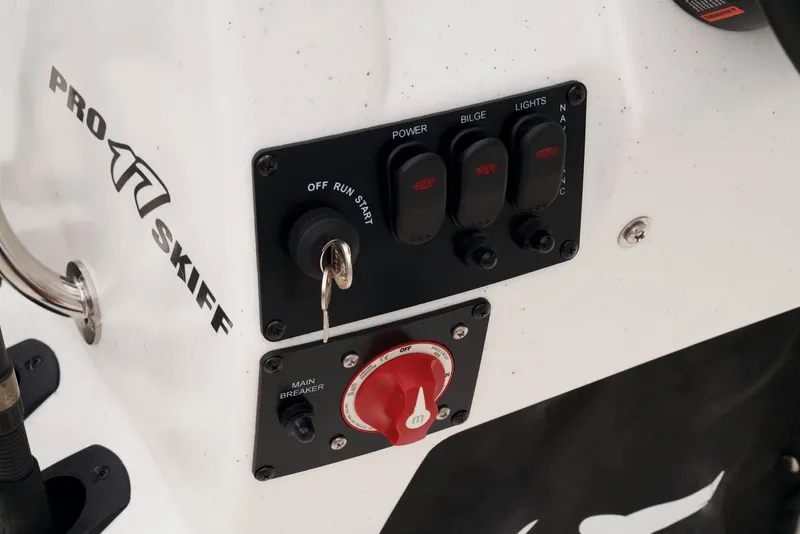

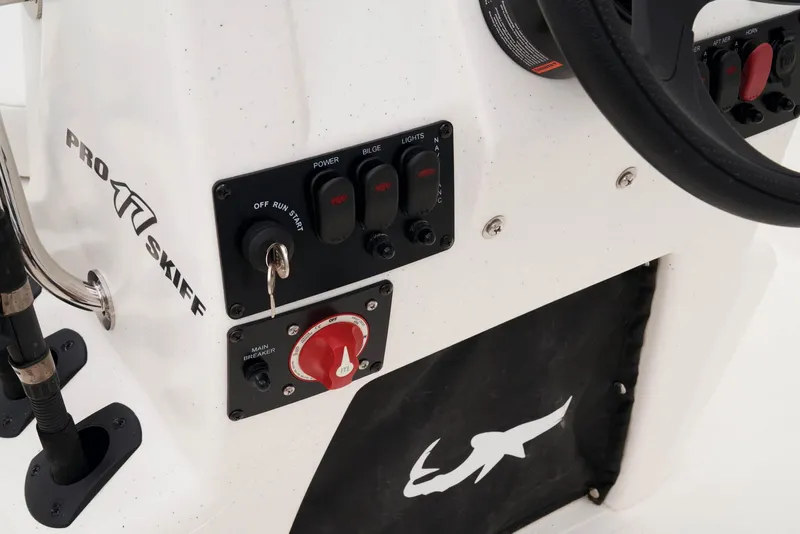

• Marine-grade rocker switches w/push button breaker protection

• 12V outlet

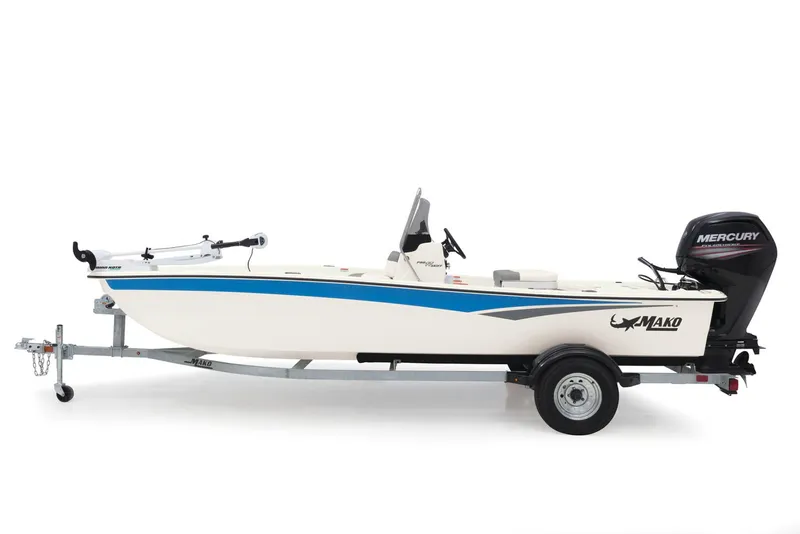

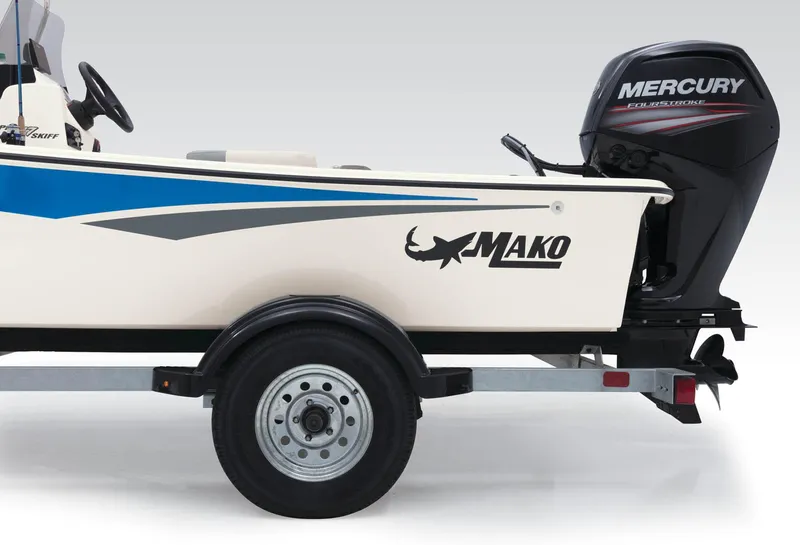

Trailer

• Custom single-axle trailer

• All-welded, tubular frame for a unitized structure w/exceptional strength-to-weight ratio

• Hot-dipped galvanized construction

• Hot-dipped galvanized wheels w/13" (33.02 cm) radial tires

• Super Lube hubs

• Swing-up locking jack w/swivel wheel

• Outboard motor support to reduce hull & transom stress while towing

• 4 carpeted bunks to protect hull

• Transom tie-down straps (supplied w/boat package)

• Safety chains
