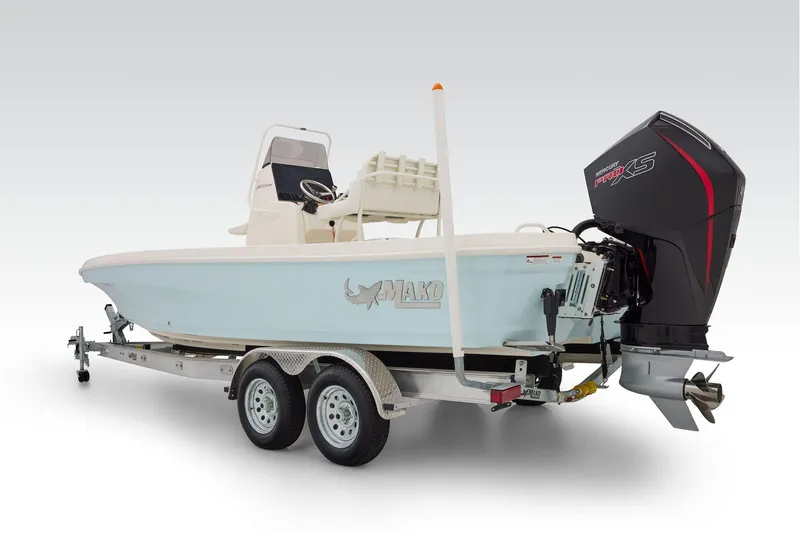

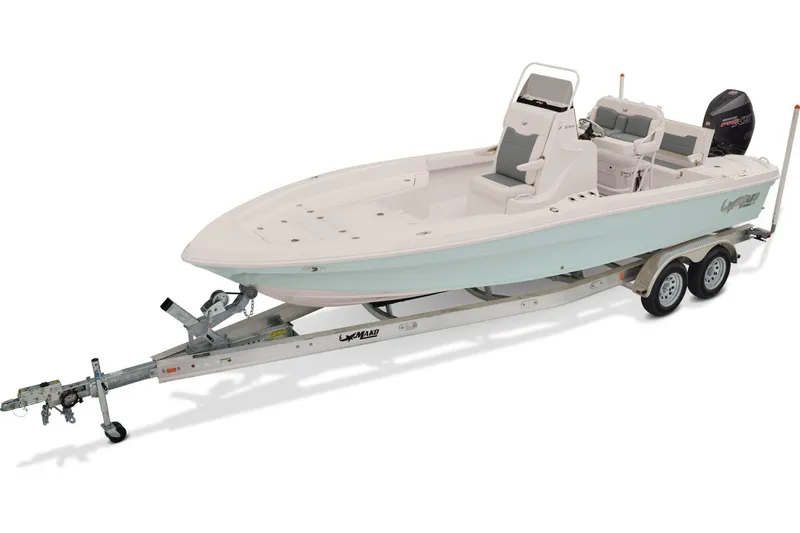

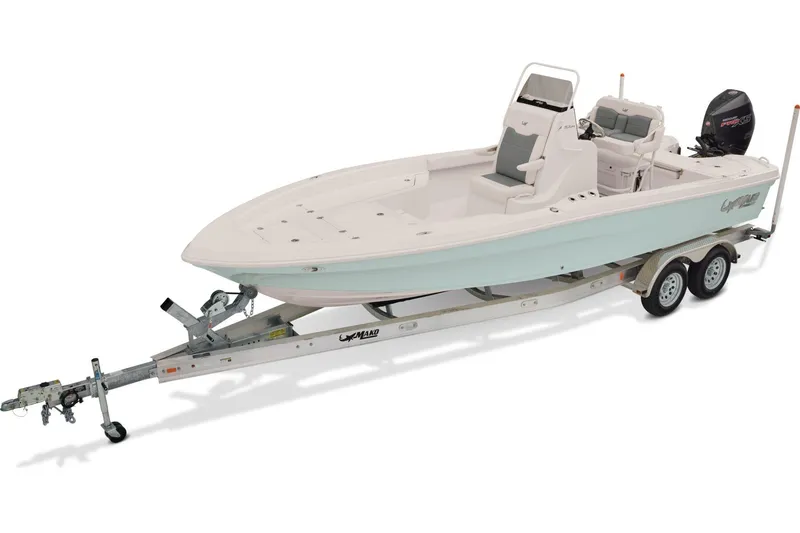

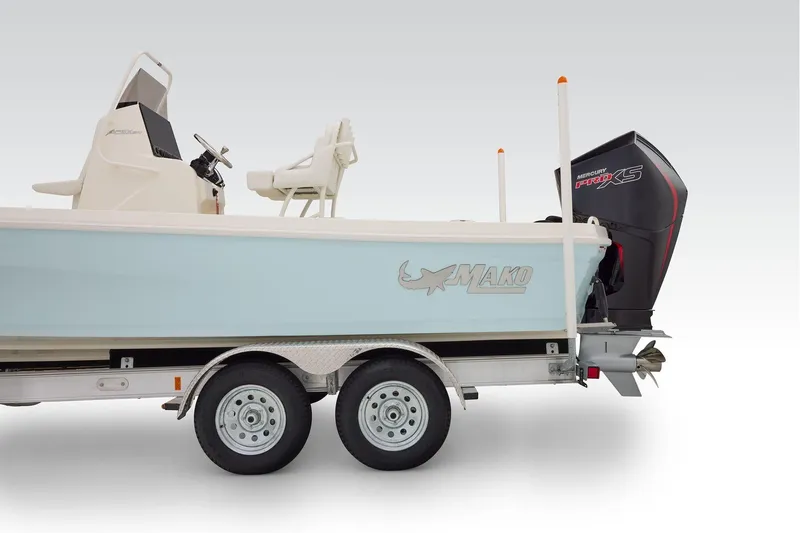

2026 Mako 24 APEX

• Length:24' 8"

• Beam: 8' 3"

• Bottom Width: 6' 3"

• Max. Recommended HP: 400 HP

• Fuel Capacity: 82 gal.

• Max. Person Capacity: 10 persons

• Max. Person Weight: 1500 lbs.

• Max. Person, Motor & Gear Weight: 2810 lbs.

• Interior Depth: 19"

• Transom Height At Center Line: 25"

• Deadrise: 15 degrees

• Draft: 15"

• Average Dry Weight: 3300 lbs.

• Average Hull Weight: 2600 lbs.

• Average Package Weight: 4850 lbs.

• Package Height: 9' 3"

• Storage Length: 34' 6"

Certification & Safety

• Backed by MAKO® Assurance 5+Life—the best factory warranty in saltwater boats

• NMMA® certified

• Factory leak tested for hull, plumbing & fitting integrity

• Integrated emergency ladder in transom

• Horn

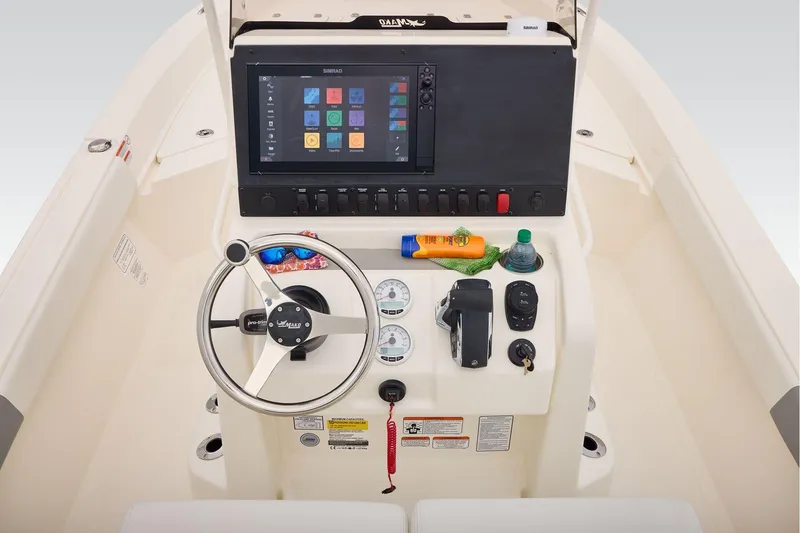

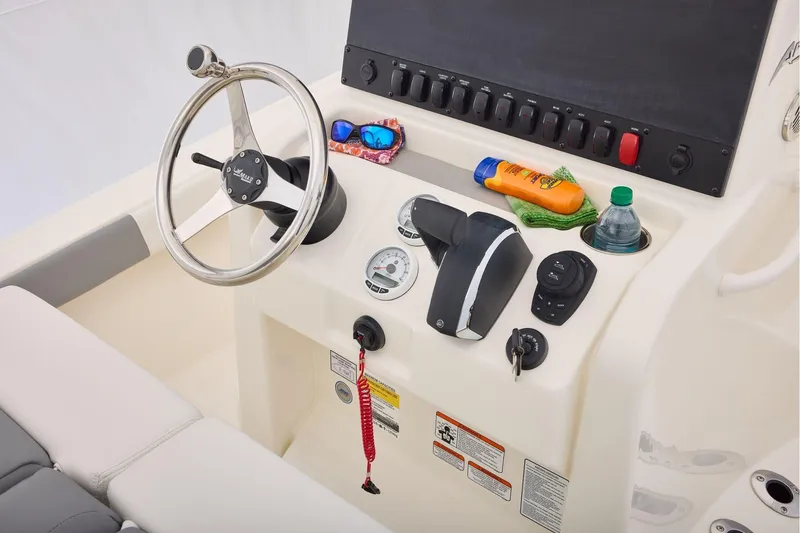

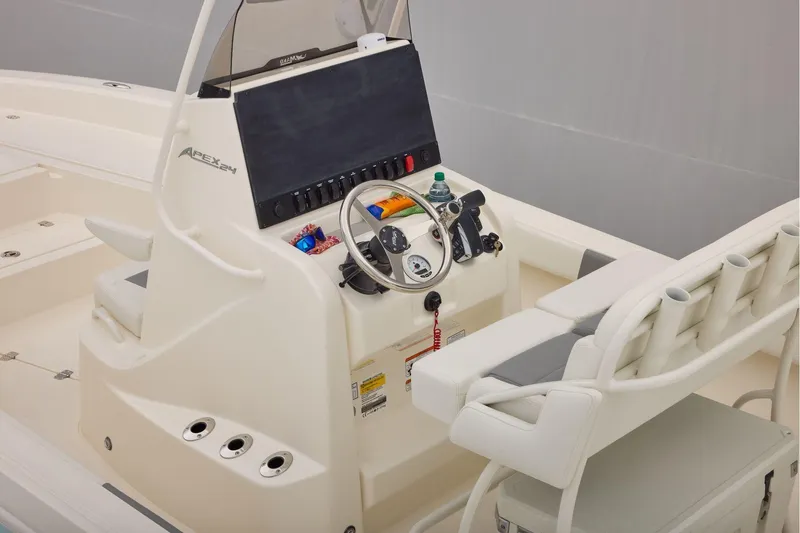

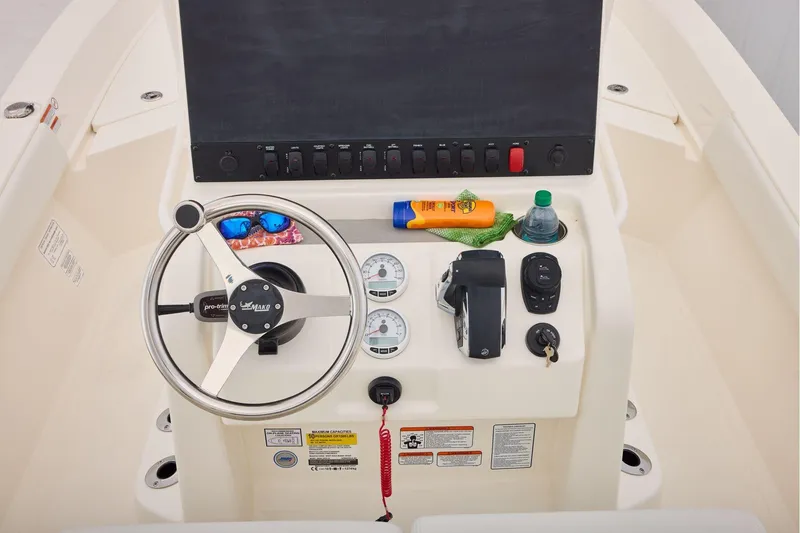

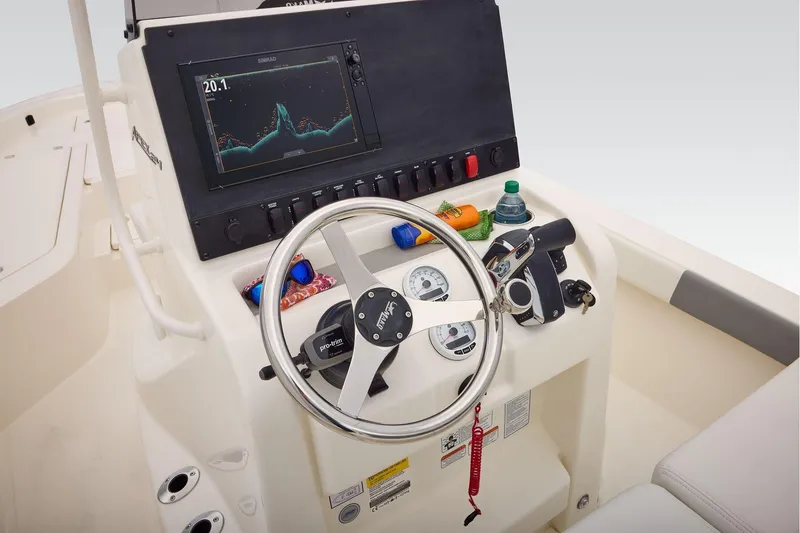

Console

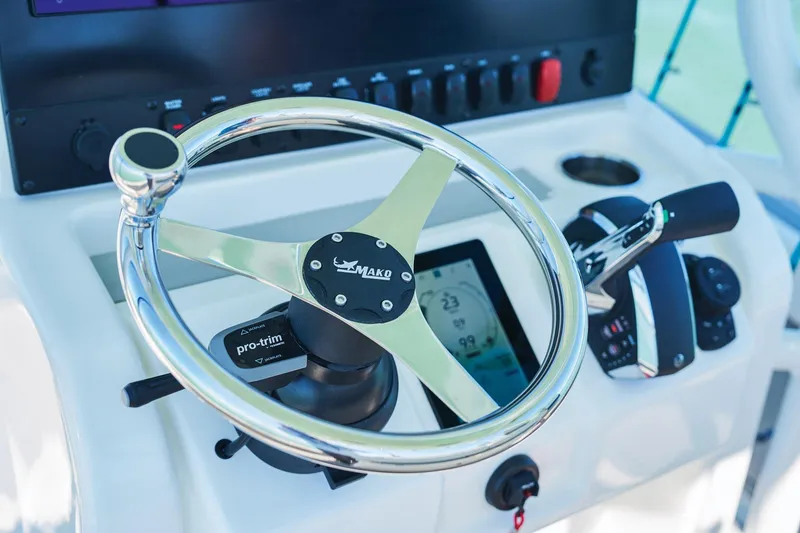

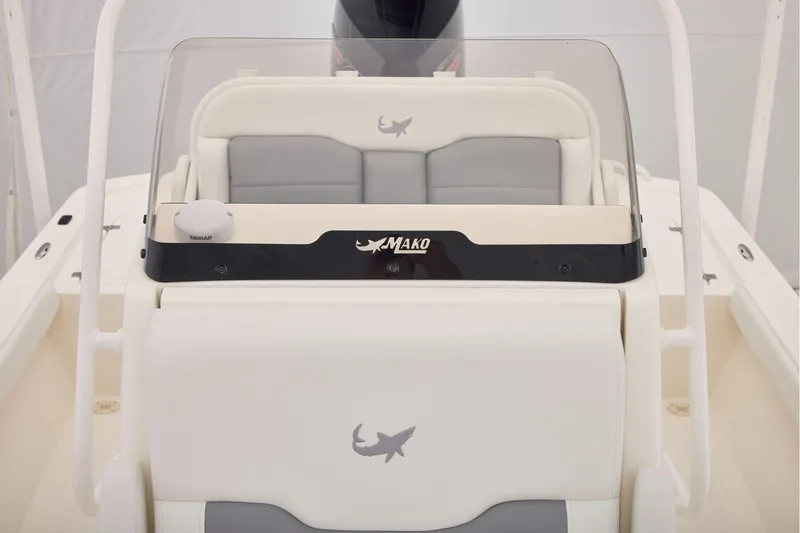

• Acrylic windscreen

• Stainless steel steering wheel w/knob

• Tilt hydraulic steering

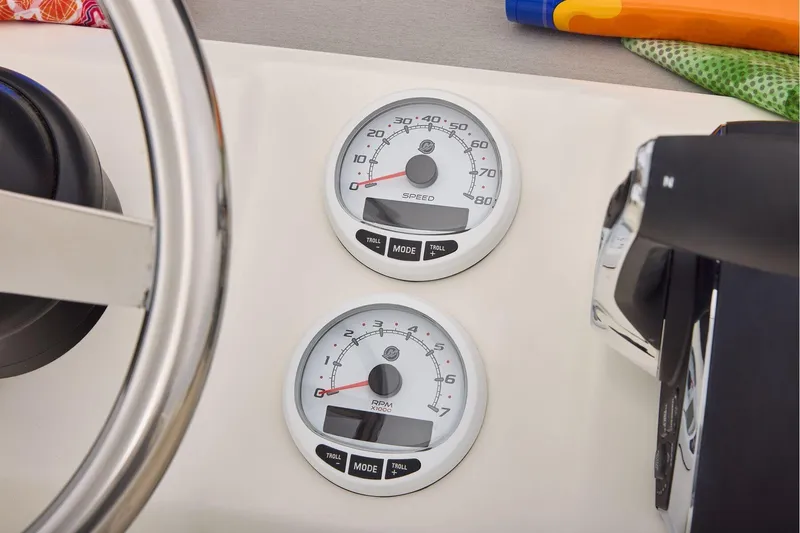

• Mercury® SmartCraft® digital gauges

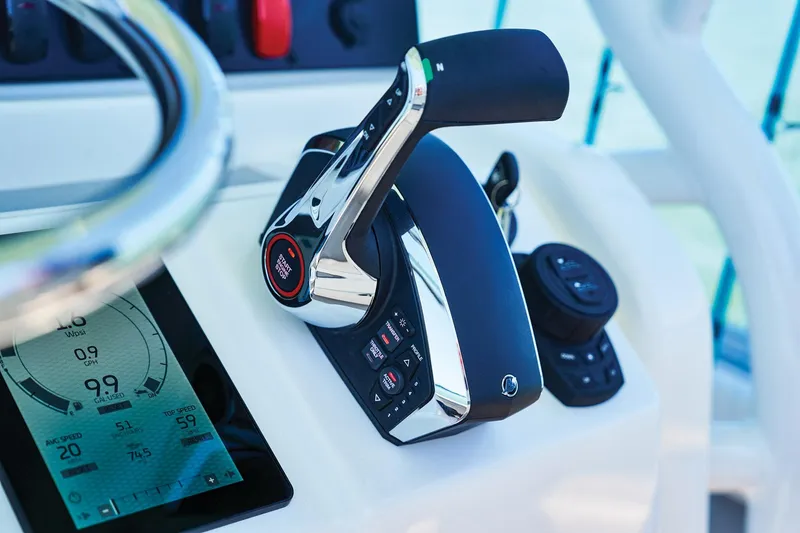

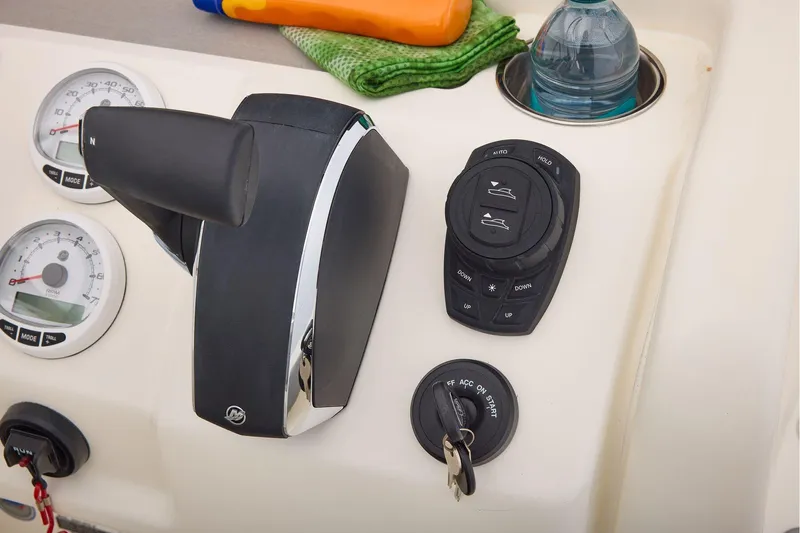

• Binnacle-mounted digital throttle & DTS shift controls

• Easy access to helm electronics, instruments & switches

• Forward-console seat

• Integrated footrest

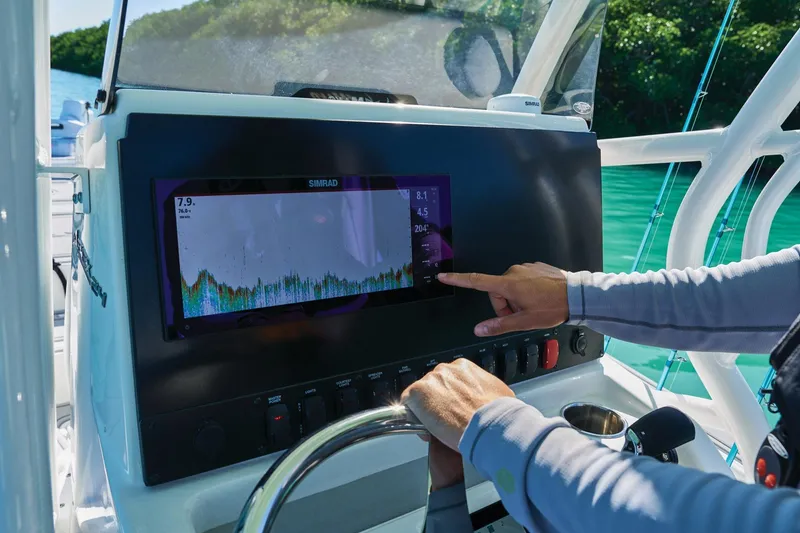

• Extra-large electronics mounting surface

• Drink holder

• 12V DC & 5V USB charging outlets

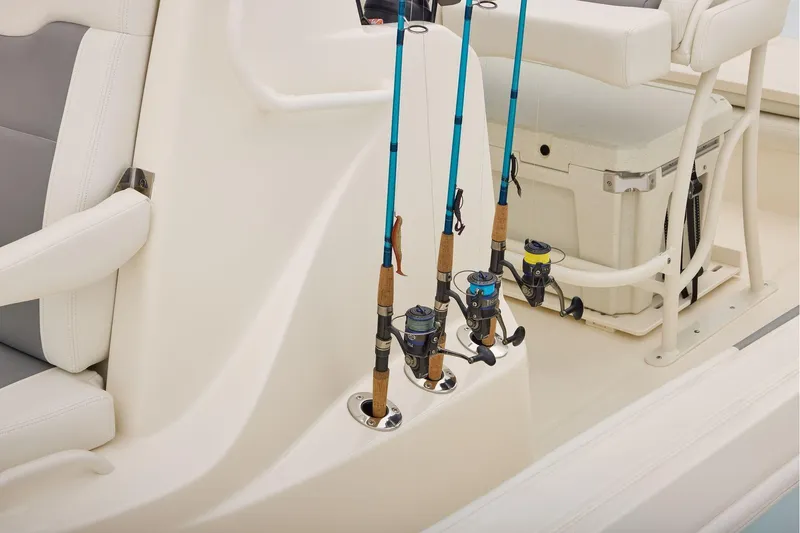

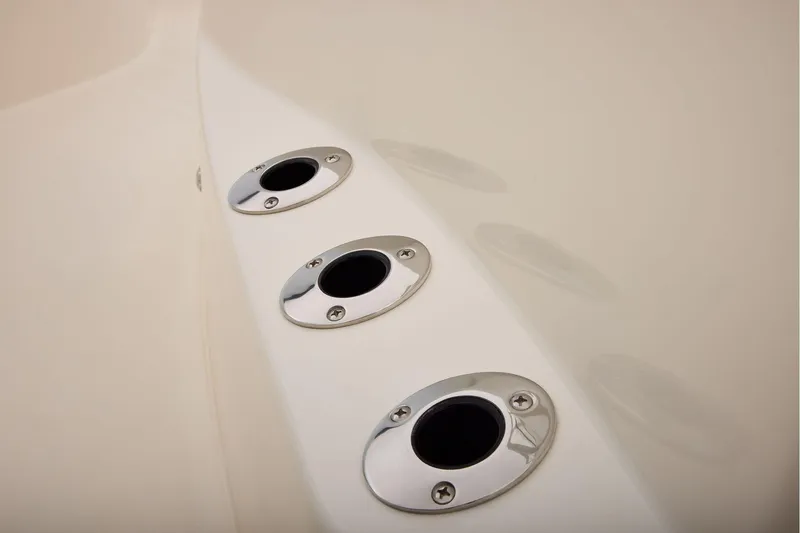

• 6 flush-mounted console rod holders

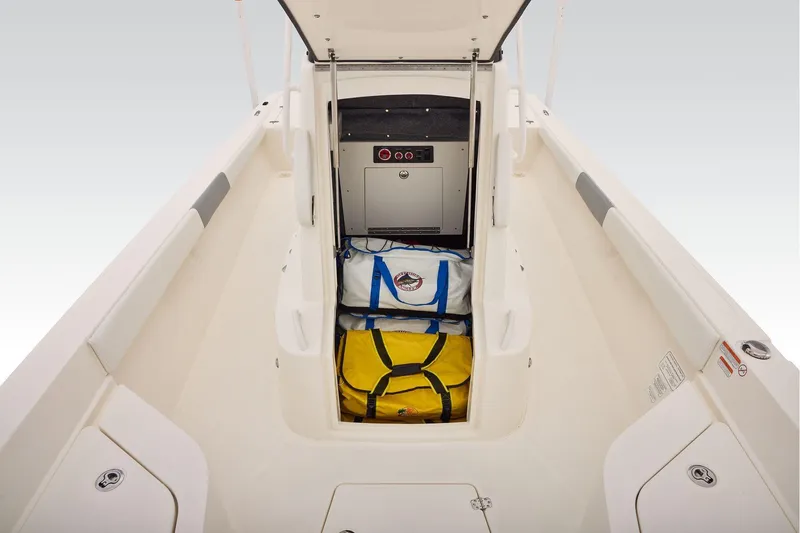

Head

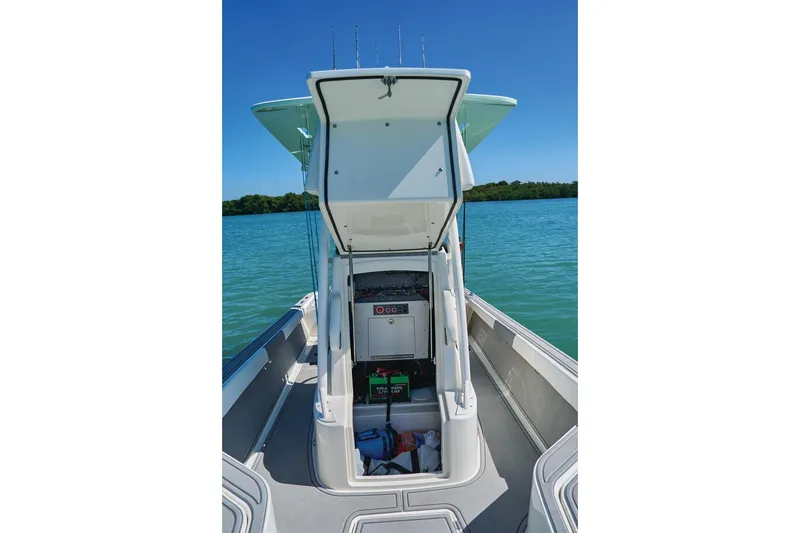

• Front-facing door provides easy access to head compartment

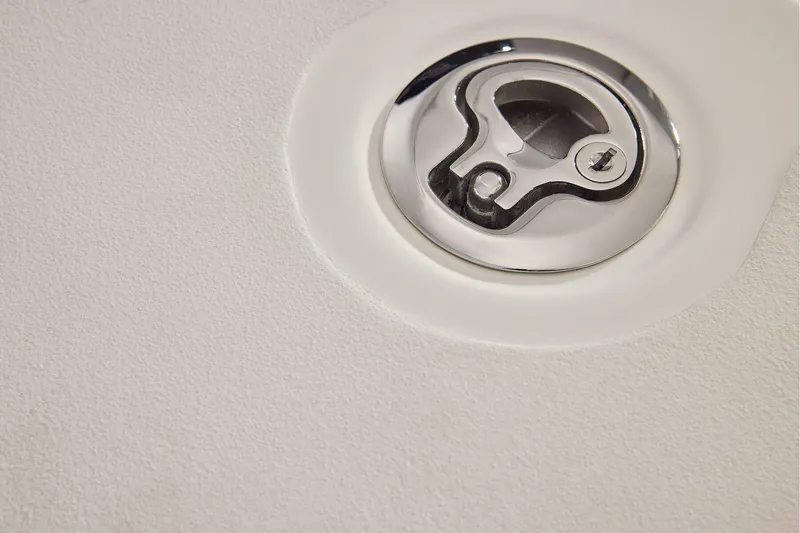

• Head enclosure/storage space w/stainless steel latch

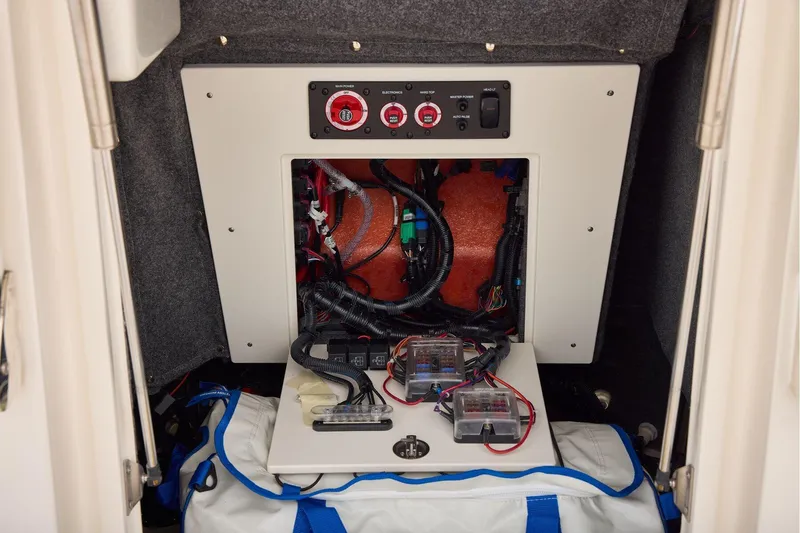

• Wiring access hatch & battery access

• Main distribution panel & fuse block inside head

• Courtesy light

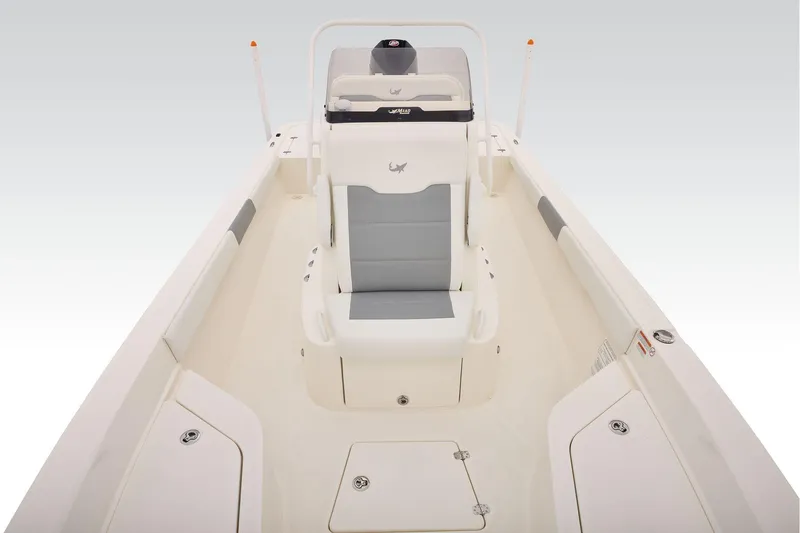

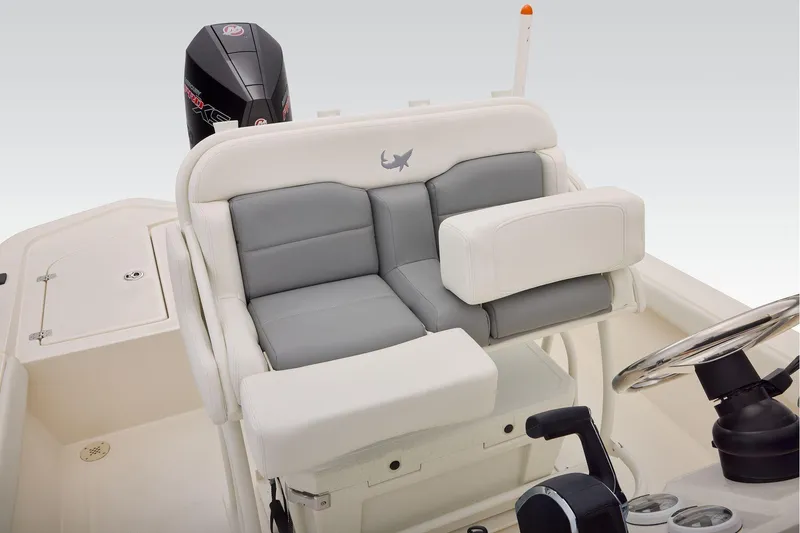

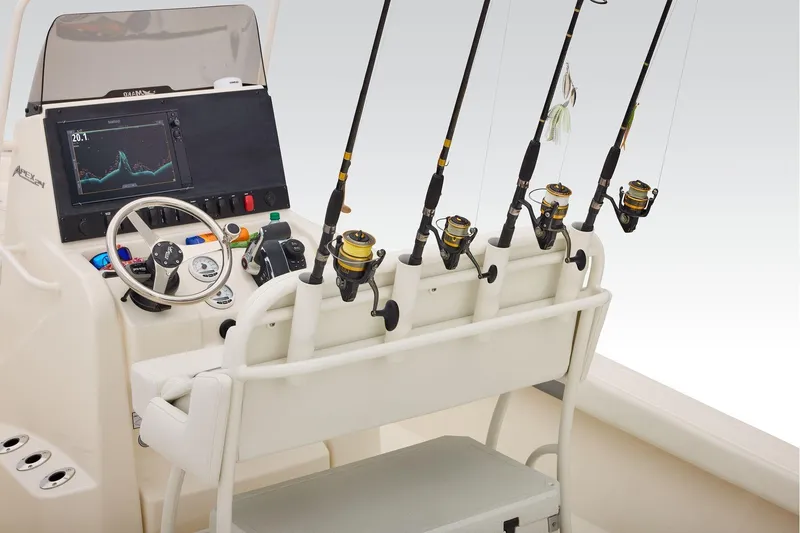

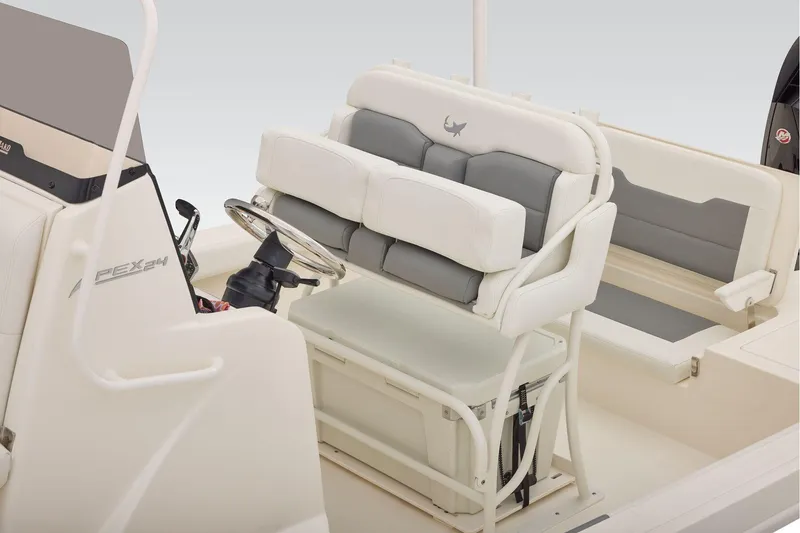

Leaning Post

• Powdercoated aluminum leaning post

• Helm seat w/flip-up leg rolls

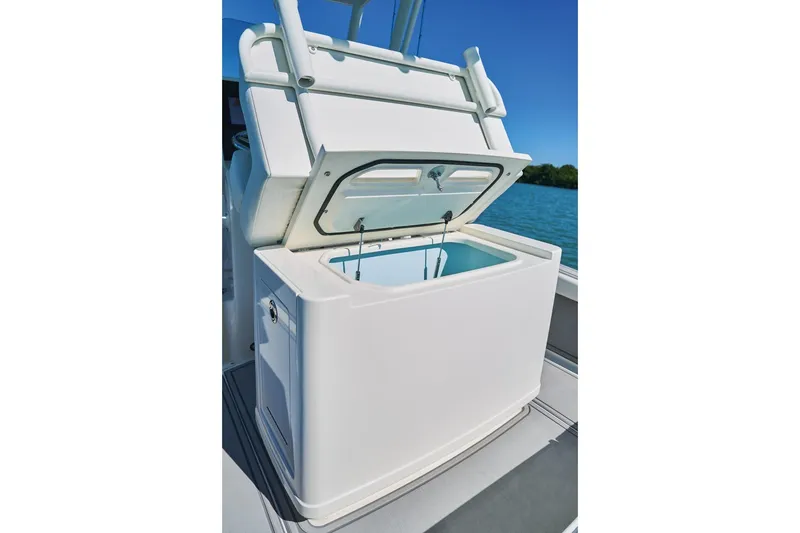

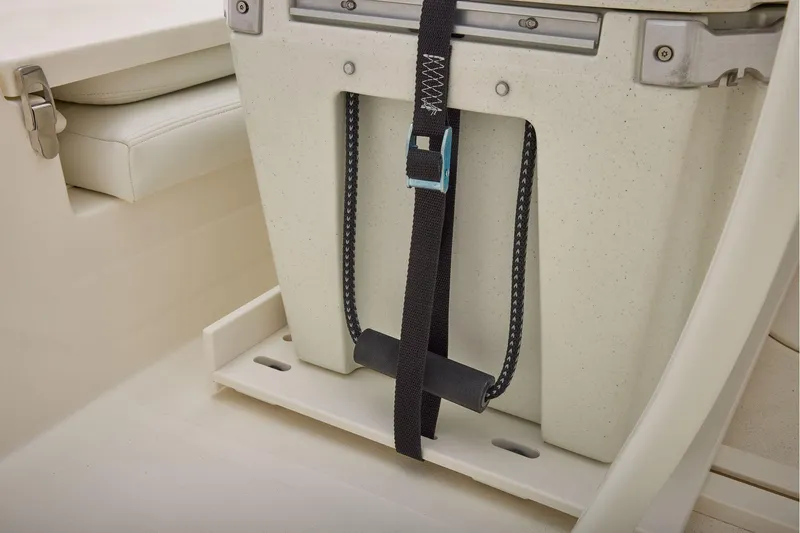

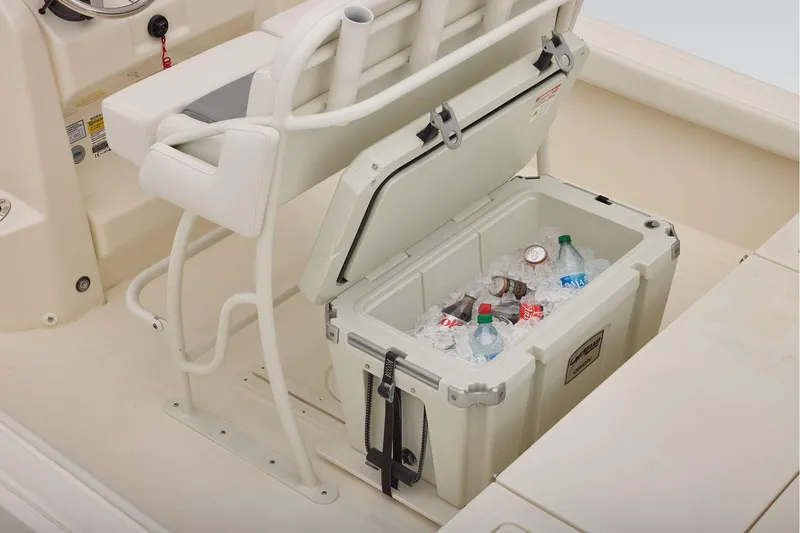

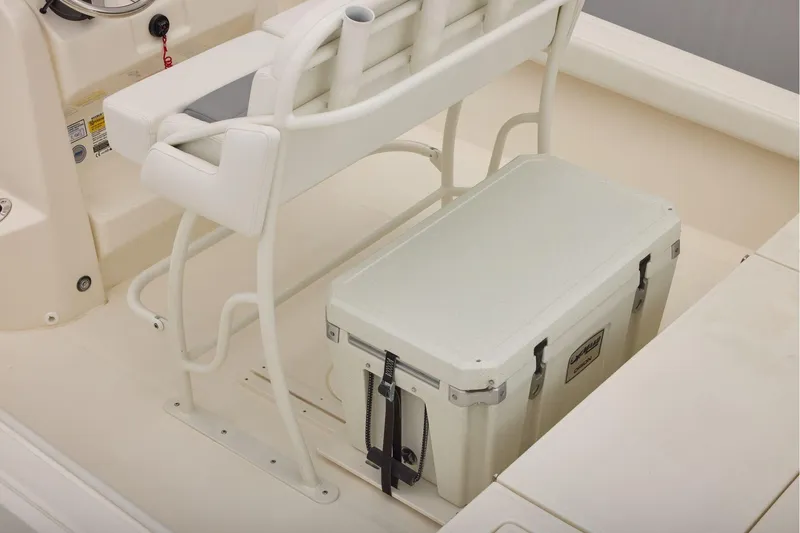

• Slide-out 65-qt. (61.51 L) cooler underneath

• Rod holders

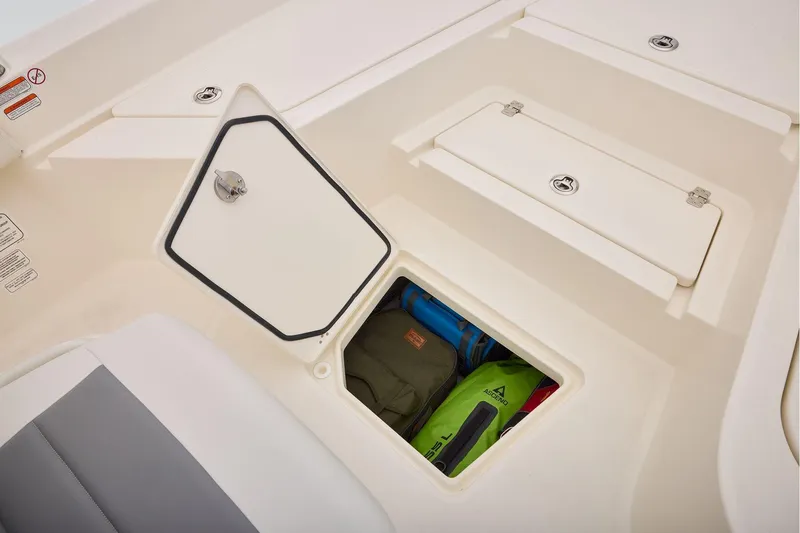

Interior

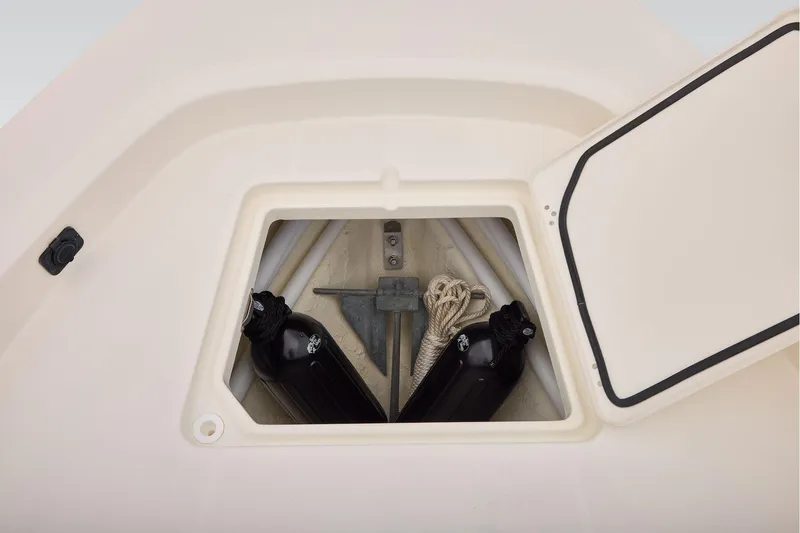

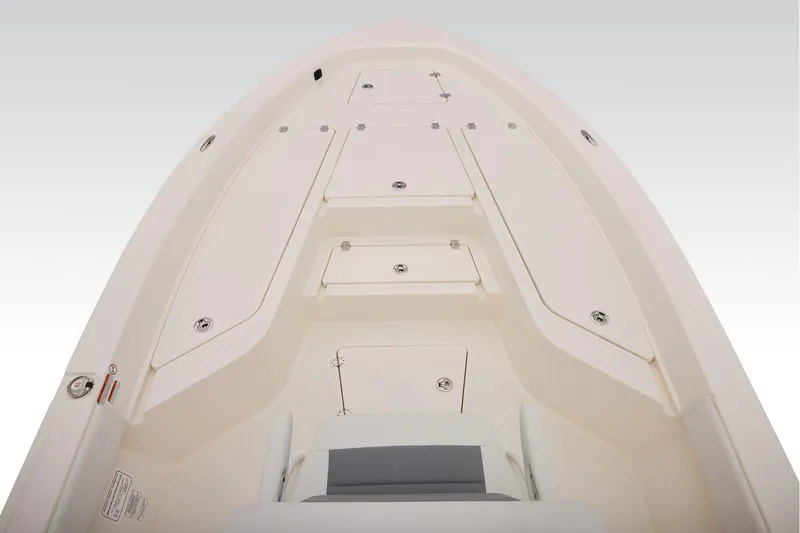

• Anchor locker

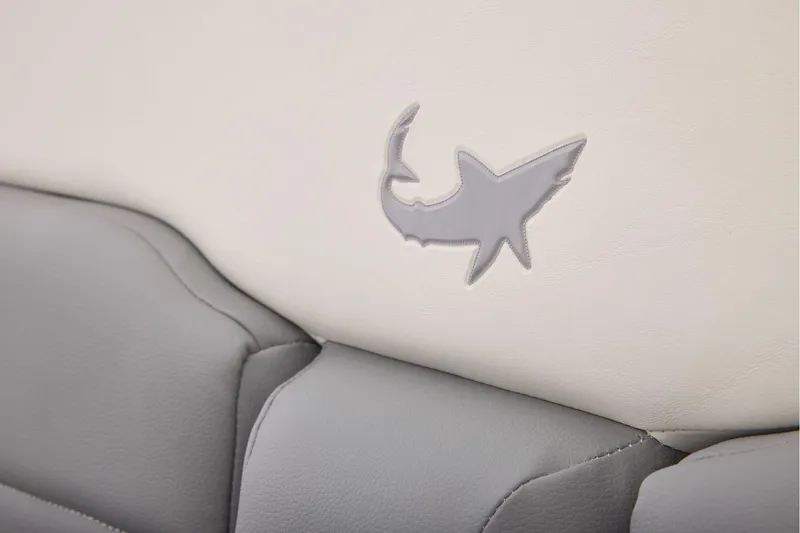

• 2-tone high-density marine-grade vinyl upholstery w/stain-resistant coating & composite substrates on seats

• White powdercoated rails

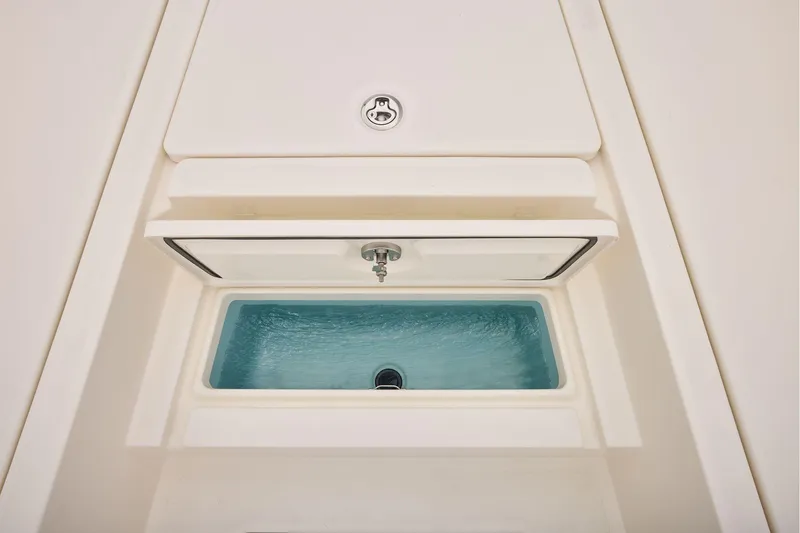

• Forward 19-gal. (71.92 L) baitwell

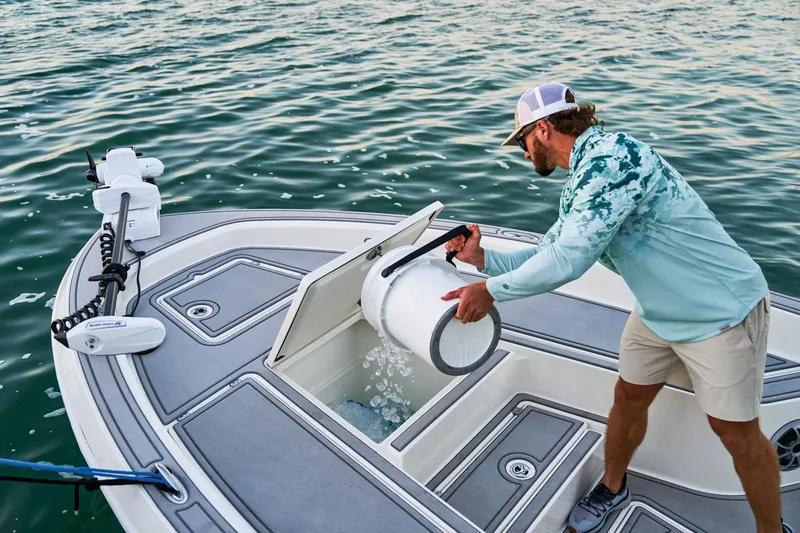

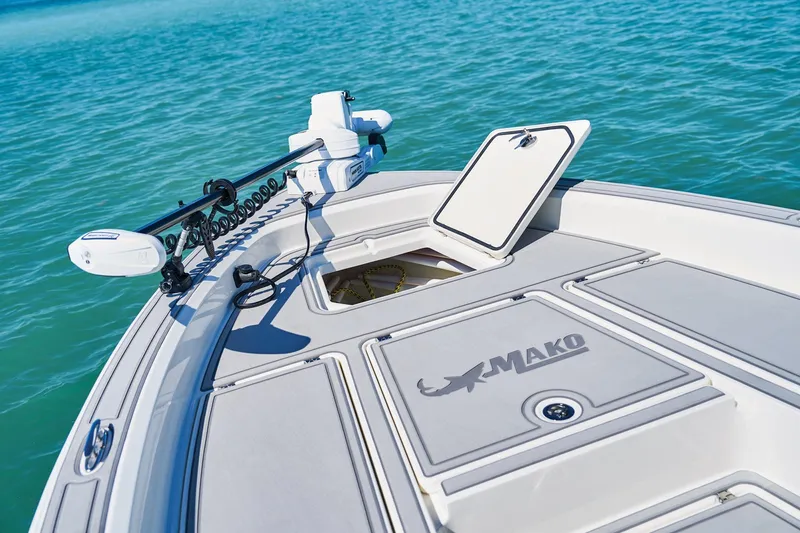

• Bow 210-qt. (198.73 L) insulated fishbox

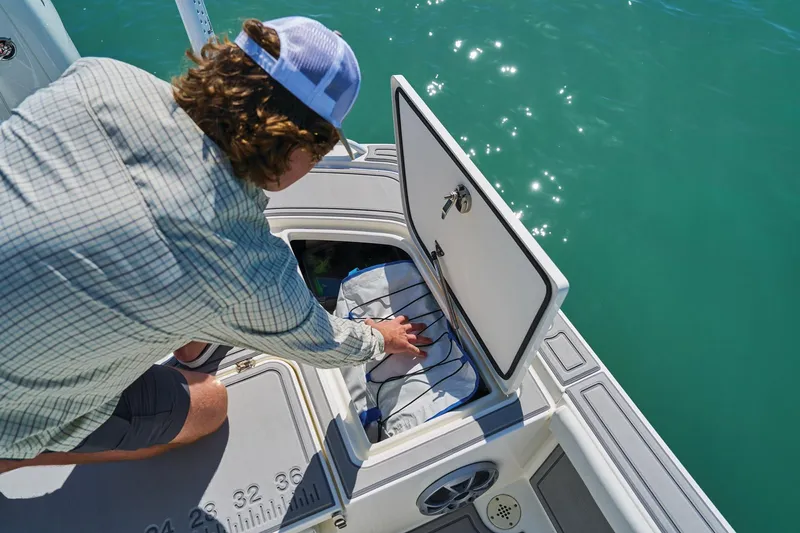

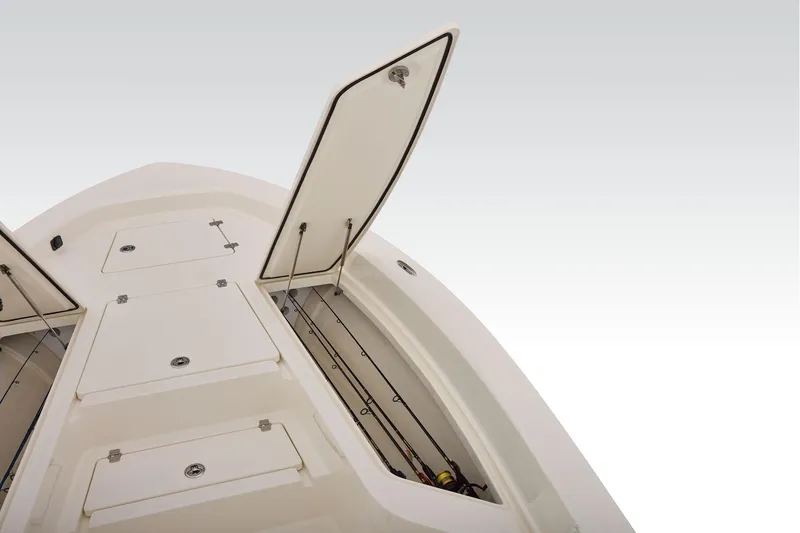

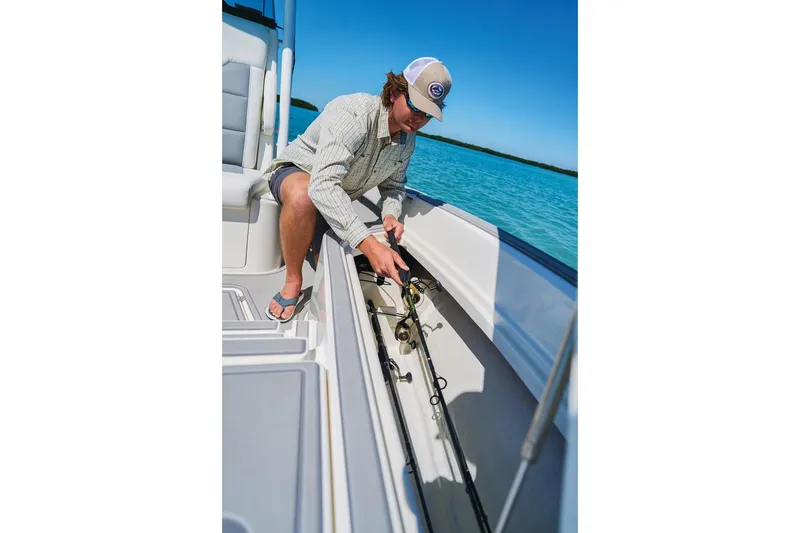

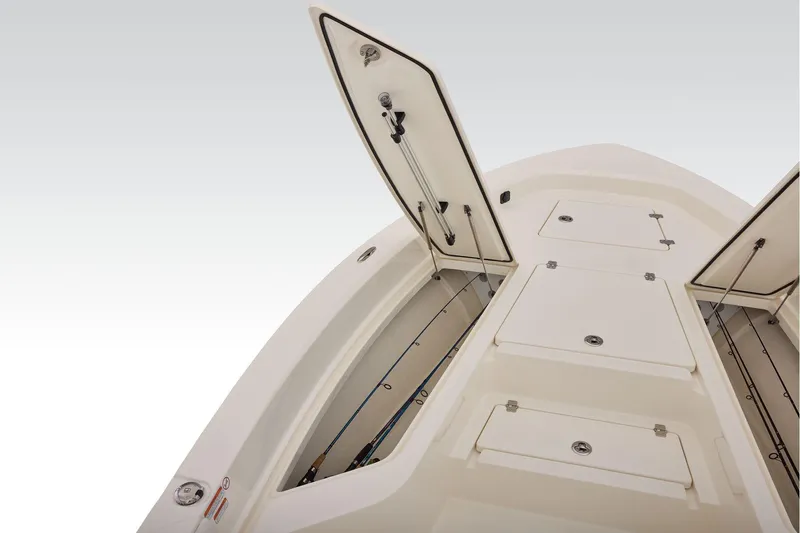

• Bow rod lockers for storage of up to 12 rods

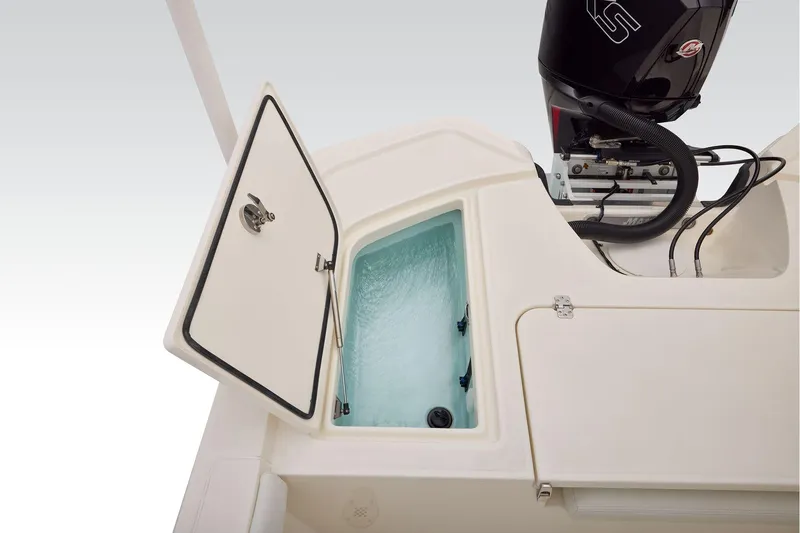

• Aft 16-gal. (60.57 L) baitwell

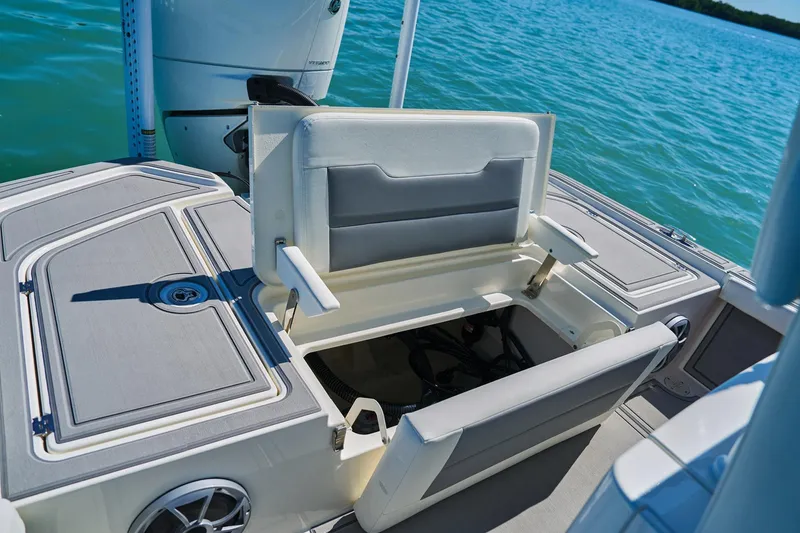

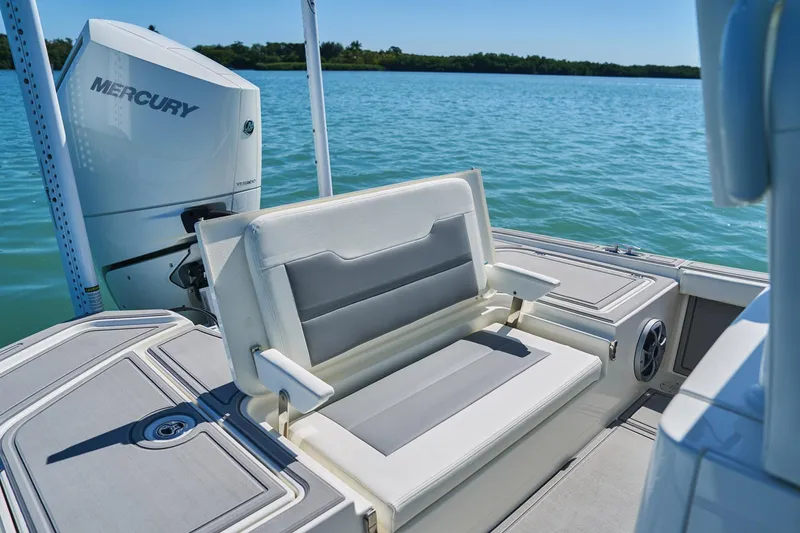

• Aft folding jumpseat

• Yacht-style non-skid surfaces throughout

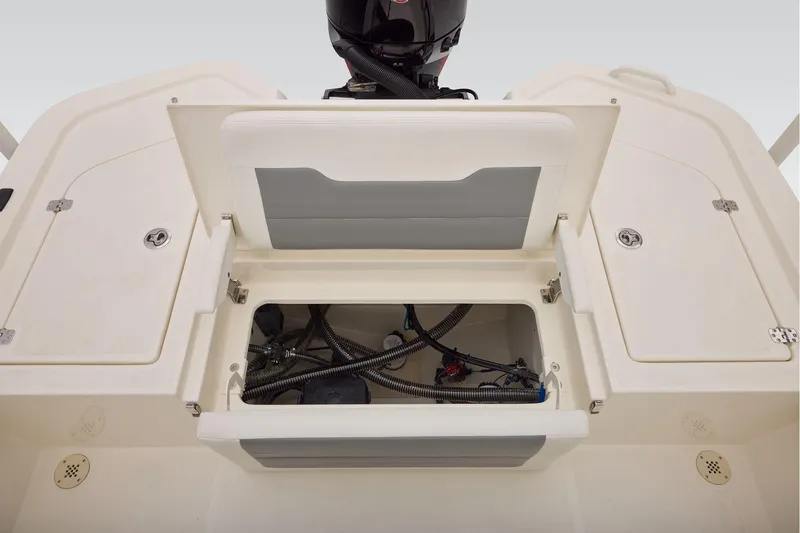

• Bilge access under aft jumpseat

• Side coaming bolsters

• Four 6" (15.24 cm) polished marine-grade stainless steel cleats

Performance

• Legendary dry-riding MAKO® hull

• Performance lifting strakes

• 8" (20.32 cm) Bob's Machine Shop® hydraulic jack plate

• Factory-matched stainless steel propeller

• Power steering standard w/all motors

Construction & Exterior

• Color: MAKO® Bone White gelcoat

• 100% composite construction

• Coosa® Bluewater 100% composite transom core

• Heavy-duty, fiberglass-encapsulated transom w/1.5" (3.81 cm) fiberglass-impregnated, high-density composite core

• Hull/deck joint chemically sealed & bonded 360° & mechanically fastened every 6" (15.24 cm) w/316 stainless steel fasteners

• 1-piece molded fiberglass stringer grid w/integrated transom knee supports & gelcoat finish

• Closed-cell foam-injected stringer grid for USCG-approved flotation

• Premium marine-grade stainless steel hardware & fasteners for corrosion resistance

• Closed-molded hatch covers w/finished undersides & integrated gaskets

• Heavy-duty rub rail

Electrical, Mechanical & Plumbing System

• 2,000 GPH (7,571 LPH) bilge pump w/automatic switch

• Dual 1,000 GPH (3,785 LPH) baitwell pumps

• High-speed raw water intake

• USCG-compliant navigation lights

• 4 cockpit courtesy lights & 1 head light

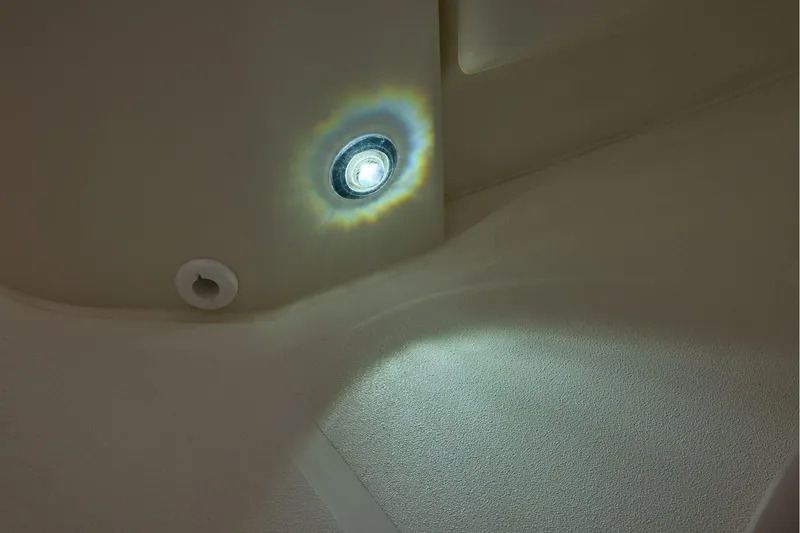

• Interior courtesy lights

• TRACKER® Lithium WRM100 cranking battery

• Marelon® corrosion-free seacocks on all below-water thru-hull fittings

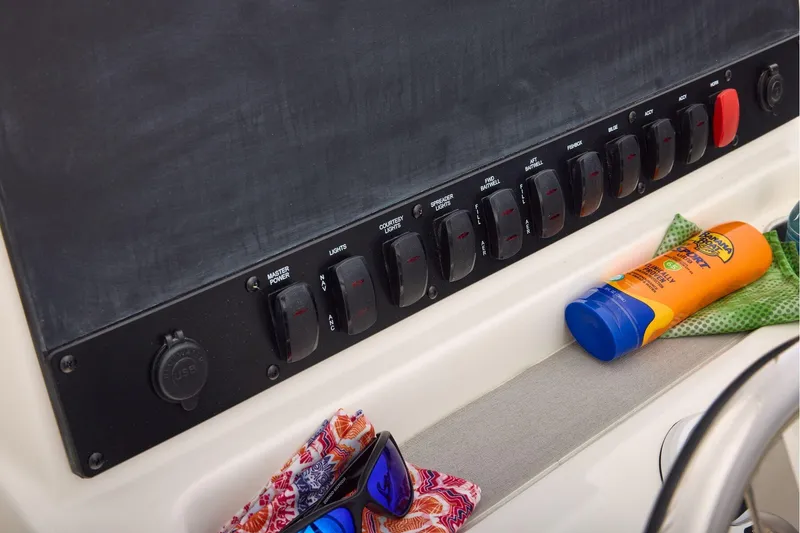

• Heavy-duty electrical switching system

• Labeled, tinned-copper wiring for easy maintenance & protection in a marine environment
