• Length:23' 4"
• Beam: 8' 6"
• Bottom width: 6' 10"
• Max. recommended HP: 300 HP
• Fuel capacity: 136 gal.
• Max. person capacity: 11 persons
• Max. person weight: 2040 lbs.
• Max. person, motor & gear weight: 3375 lbs.
• Interior depth: 32"
• Transom height at center line: 30"
• Deadrise: 21 degrees
• Draft: 18"
• Dry weight: 5010 lbs.
• Average hull weight: 4100 lbs.
• Average package weight: 7200 lbs.
• Package height w/T-top or hardtop: 12' 0"
• Storage length: 32' 10"

Certification & Safety

• Backed by the MAKO® Assurance 5+Life—the best factory warranty in the business
• NMMA® certified
• Factory leak tested for hull, plumbing & fitting integrity
• Stainless steel hardware & fasteners for corrosion resistance
• CorrosionX stainless spray treatment included
• Horn

Console

• Custom anodized aluminum steering wheel w/knob
• Dual-cylinder hydraulic steering
• Binnacle-mounted motor control
• Gauge panel w/digital gauges
• Trim tab switches w/position indicator lights & auto retract
• Powdercoated aluminum battery switch panel w/labels, main power shutoff, emergency parallel switch, removable knobs & voltage sensing relays (VSR)
• Switch panel w/manual reset circuit breakers & illuminated switches
• Easy access to helm electronics, instruments & switches
• Removable forward-console seat w/94-qt. (89 L) insulated, drained cooler
• Integrated full-width fiberglass footrest w/non-skid surface
• Tempered safety glass windscreen w/aluminum frame
• Easy-access battery storage
• Marine-grade tinned wiring w/submersible connectors
• Lockable, sealed glovebox
• Portlight
• Extra-large electronics mounting surface
• 2 console drink holders
• 12V DC outlet

Construction & Exterior

• 100% composite construction
• Coosa® Bluewater 100% composite transom core
• Heavy-duty, fiberglass-encapsulated transom w/2" (5.08 cm) fiberglass-impregnated, high-density composite core
• Hull/deck joint chemically sealed & bonded 360° & mechanically fastened every 6" (15.24 cm) w/316 stainless steel fasteners
• 1-piece molded fiberglass stringer grid w/integrated transom knee supports
• Closed-cell, foam-injected stringer grid for USCG-approved flotation
• Premium marine-grade stainless steel hardware
• Heavy-duty rub rail w/stainless steel insert
• Closed-molded hatch covers w/finished undersides & integrated gaskets
• Aluminum backing plates for cleats, chocks & hinges
• Recessed, pull-out, telescoping boarding ladder
• MAKO® Bone White gelcoat

Electrical, Mechanical & Plumbing Systems

• Automatic 2,000 GPH (7,570 LPH) bilge pump
• 1,100 GPH (4,164 LPH) baitwell pump
• Pressurized raw water washdown pump
• High-speed raw water intake
• Pressurized freshwater pump
• 6-gal. (22.7 L) freshwater tank
• USCG-compliant navigation lights
• 2 cockpit courtesy lights & 1 head light
• 1 cranking battery per outboard
• Dual battery rigging w/voltage sensitive relay (VSR) & emergency parallel switch
• Marelon® corrosion-free seacocks on all below-water thru-hull fittings
• Labeled, tinned-copper wiring for easy maintenance & protection in a marine environment
• Pre-wired for optional stereo system & speakers
• Pre-wired for optional anchor windlass

Head

• Gelcoat-finished surface, wiring access hatches, battery switch panel, battery access & 6' (1.8 m) head room

Interior

• NEW 2-tone high-density marine-grade vinyl upholstery w/stain-resistant coating & composite substrates on seats
• Anchor locker
• Foredeck dodger mounting boss
• Port & starboard bow seats w/86-qt. (81 L) insulated storage below w/gravity overboard drainage
• 396-qt. (375 L) center bow in-deck storage compartment
• Low profile brushed anodized aluminum bow rails
• Self-bailing cockpit w/transom valves
• 2 port & 2 starboard gunnel-mounted rod holders
• Port & starboard under-gunnel rod racks for 6 rods up to 7' (2.1 m) long
• Freshwater shower w/pull-out spray head
• Port & starboard aft in-deck fishboxes w/gravity drains & diaphragm pump
• Starboard aft bait prep area w/utility compartment, knife & plier holder & frozen bait tray/sink w/lid that doubles as cutting board
• Molded non-skid surfaces throughout
• Bilge access hatch
• Walk-thru transom w/latching door
• Port & starboard molded-in swim platforms
• Port & starboard aft coaming bolsters
• 2 bow drink holders

Leaning Post

• Fiberglass leaning post
• Backrest
• Rod holders
• Bait station w/31-gal. (117 L) anti-slosh baitwell w/port & starboard tackle storage

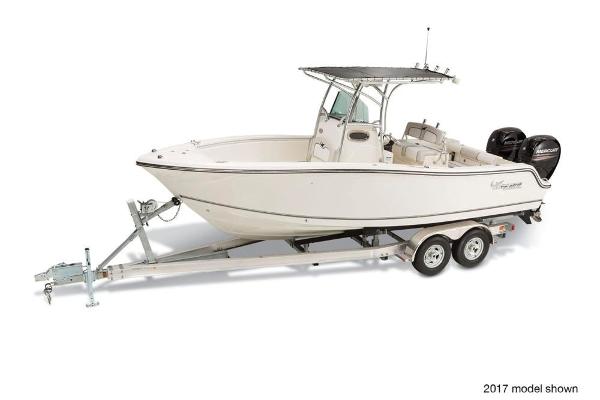

Optional Trailer

• OPTIONAL tandem-axle EZ Loader® aluminum trailer available
• NMMA® certified.
• DOT approved.
• Tandem-axle brakes.
• 14" (35.6 cm) radial tires w/galvanized V5 wheels.
• Oil bath hubs.
• Leaf spring suspension.
• Heavy-duty winch w/nylon strap & safety strap.
• Stainless steel hardware.
• Galvanized steel components.
• LED lighting.
• LED marker lights.
• PVC loading guides.
• Galvanized fenders.

Performance

• Legendary dry-riding MAKO® hull
• Aggressive deep V hull design
• Performance lifting strakes
• Recessed electric trim tabs
• Factory-matched stainless steel propeller(s)

T-Top or Hardtop

• Canvas T-top
• .25" (.64 cm) aluminum backing-plate reinforcement for T-top
• Aft spreader lights
• Electronics box

All boat sales subject to your satisfactory sea trial.
