• Hull, deck, nacelle and coachroof in infused monolithic composite and balsa sandwich infused with anti-osmotic and polyester resins
• Hull bottoms and keels in monolithic infused laminate

• Aft cockpit sole, sugarscoops and forward cockpit in teak
• Deck hatches, bay window and companionways:
  • 11 Lewmar T44 flush (12 hatches on the 6-cabines/6-bathroom version) –
  • 2 Lewmar T60 flush in forepeaks
  • 2 Aft companionways with electric lock (1 on the 6-cabines/6-bathroom version)
  • Sliding bay window (open dimensions 2.3 x 2.1 m/7’7” x 6’11”)
• Safety:
  • Composite bulwark 120mm (4¾”)
  • Stanchions H 780 mm (30¾”)
  • 3 Rows of guardwires
  • Retractable guardwires at sugarscoops
  • Forward pulpits with wood seats
  • Gangway door

 AFT PLATFORM AND SUGARSCOOPS

• Stainless steel foldable and removable bathing ladder with handles ladder to port
• Hot/cold shower head to port
• Optional second ladder and second shower to starboard

AFT COCKPIT

• Cockpit flush-decked with the salon
• Starboard:
  • L-shaped bench seat with 2 storage lockers and technical access (abandonship station)
  • Teak table 2.2 x 1.1m (7’3” x 3’7”)
  • 3 Exterior TRIBU seats [Model: REGISTA – Color: White/Linen]
  • Sunbathing area
• Port: BAR unit
  • Sink beneath horizontal cover
  • Removable wood serving table
  • Cup/glass holder
  • Plexiglass open storage
  • 80-Liter (2.8 cu ft) refrigerator 24V
  • Storage behind doors with shelves (option: ice-maker)
  • Trash can access from above
• Aft:
  • Wide seating on aft beam with liferaft storage space
  • Lateral fittings to port and starboard:
    • Cup/glass holder
    • Push pull light
    • Storage beneath horizontal cover to port (option: Grill)
    • Ice-Maker beneath horizontal cover to starboard
  • Under-floor lockers in central nacelle:
    • 2 Storage lockers aft
    • 1 Large central locker

FORWARD COCKPIT

• Access from the salon via the glazed door
• 2 Seating areas with 1 storage locker beneath port seat and technical equipment access to starboard
• Open storage and cup/glass holder to starboard   Sunbathing areas to port and starboard

FOREDECK

• 4 Storage lockers, of which one is the chain locker
• Trampoline with gray nylon netting
• 2 Forward pulpits with wood seat

 FOREPEAKS

• Forepeaks with access through key-lockable T60 deck hatches
• Sail locker fittings:
  • Stainless-steel ladder
  • Floor
  • Painted white
• OPTIONS
  • Forepeak fitted out with single bunk
  • Forepeak fitted out with 2 bunk beds

FLYBRIDGE

• Access from the cockpit via mirror-polished stainless-steel stairs with teak treads
• Electric closing system
• 2 Helm stations (main one to starboard) with:
  • Helm seat with storage below and armrest
  • Cushions: seatbase and backrest [Fabric: Sunbrella® Natte Linen Chalk]
  • Engine throttle on starboard armrest
  • Stainless-steel steering wheel with gray anthracite cover Ø1100mm (43”) - Hydraulic steering system
  • Composite helm consoles (black gelcoat) port and starboard:
    • Starboard helm console equipped with:
      • Compass
      • Windlass controls and chain counter
      • Control panel lighting
      • Engine panels
      • Optional nav. instruments
    • Port helm console equipped with:
      • Optional nav. instruments
    • Port: BAR unit
      • Sink beneath horizontal cover
      • Corian® [Warm Grey] counter top
      • Cup/glass holders in black plexiglass beneath horizontal cover
      • Open plexiglass storage, (option: lifting electric bar)
      • 80-Liter (2.8 cu ft) refrigerator 24V
      • Storage behind doors with shelves (option: ice-maker)
      • Trash access from above

1. -

1. -

STANDING RIGGING

• White lacquered aluminum mast [RAL 1096] with 2 sets of spreaders and 2 diamond stays
• Spreader lights
• Decklight on the mast
• White lacquered aluminum boom [RAL 1096] with recessed spotlights (carbon as an option)
• Forward transverse beam in white lacquered aluminum [RAL 1096] with chainplate for genoa furler and two bow rollers
• 2 Sheathed wire capshrouds
• 2 Sheathed lower capshrouds
• 1 Main forestay for genoa
• Staysail stay (option)
• Adjustable lazy-jacks with spacers

RUNNING RIGGING

• 1 Dyneema® double purchase mainsail halyard
• 1 Dyneema® topping lift
• 3 Dyneema® reefing lines  Mainsail sheet led back to sail-trimming station

• Anchor chain path integrated into longitudinal beam
• Electric windlass 2000W - 24V [QUICK]. Horizontal gypsy (14mm Ø), vertical capstan. Corded remote control plus fixed remote control and chain counter at main helm station to starboard.
• Chain locker to starboard of windlass
• 10 Mooring cleats + 1 secondary anchoring cleat on longitudinal beam
• 2 fairleads

• 2 x YANMAR 4LV 150HP common-rail diesel engines – Propeller shafts

Folding propellers:

• Standard: Flexofold 3-blade Ø23’’x16
• Option: Bruntons - Varifold 4-blade Ø22’’x16

Electric engine controls at starboard helm station on flybridge

• 2 spade rudders: foam sandwich and stainless-steel stock
• Epoxy rudder tubes
• Self-aligning upper and lower rudder bearings
• Hydraulic steering transmission (1 actuator per rudder)
• Hydraulic pump in engine compartment behind steering linkage
• Raw water strainer
• Engine compartment ventilation
• Engine upgrade option: 2 x YANMAR 4LV 195HP common-rail diesel engines

Folding propellers:

• Standard: Flexofold 4-blade Ø23’’x16
• Option: Bruntons - Varifold 4-blade Ø23’’x16 7.

Fuel system

• 2 x 650-liter (2 x 170 US gal) tanks (total capacity: 1,300 liters/340 US gal)
• Fuel tank gauges on touch screen (general distribution panel – port companionway)
• Prefilter and water separator with sensor and filter
• 1 Fuel shutoff valve per tank
• Electric controls for port/starboard diesel transfer on deck next to filler neck

• Main AC panels in port companionway
• Main DC panels in starboard companionway
• Secondary AC & DC electrical panels installed in different areas depending on version

230V AC, 50Hz SOURCES

• Shore power: 63A
• Engine alternators: 2 x 110A 24V
• Inverter: VICTRON 2000 VA 24V/230V
• Inverter: (option, in lieu of standard) : VICTRON 2 x 5000 VA 24/230V
• Generator (option): ONAN 19 kVA 230V 50Hz (starboard engine compartment) ONAN 13,5 kVA 230V 50Hz (additional – port engine compartment)

24V DC SOURCES

Batteries:

• 6 Service batteries 1050Ah / 24V - GEL
• 2 Engine starter batteries 75A 12V
• 1 Battery shut-off (house battery bank) in the forward port companionway

Charger: 100A 230V [CATS POWER DESIGN] 1

DISTRIBUTION 230V AC

BUS A

• Sockets
• Sockets in technical compartments (engine rooms)
• Engine starting battery charger
• Electrical appliances in the galley (Oven, Hob, Extractor hood, Dishwasher (option), Microwave oven (option), Coffeemaker (option)
• Washing machine (option) Dryer (option) Washer-dryer (option)

BUS B

Service bank battery chargers

• 100A (standard)
• 2 x 100A additional (option)

BUS C

• Air heater (air-conditioning option)

BUS D

• Standard combined refrigerator in the galley
• Hi-Fi and video (option)

230 V SOCKETS*

Salon (lateral galley), 6 sockets in total:

• Port: 1 in the sofa base + 2 in the cabinet
• Starboard: 2 in the sofa base
• Chart table: 1

Salon (panoramic galley), 4 sockets in total:

• Starboard: 2 in the sofa base + 1 in the cabinet
• Chart table: 1

Cabins: 1 socket per bedside unit + 1 in bed base

Guest bathrooms: 1 socket

Owner’s bathroom: 2 sockets

Single bunk forepeak (option): 1 socket

2 Bunk beds forepeak (option): 2 sockets

(*) Each 230V socket includes a USB socket (except in the furniture bases and galley)

Lighting

ENGINE COMPARTMENT

• 2 Touch-activated LED lights

INTERIOR

• Ceiling lights: LED spots [iGuzzini] and peripheral LED striplights
• LED bedside lights and desk light and chart table light [Mini Tolomeo Artemide]
• Indirect lighting in all areas: LED striplights

EXTERIOR

• Aft cockpit lighting: LED striplights

Courtesy lighting:

• LED striplights beneath sugarscoop steps
• LED lights on bench seats (cockpit, main deck and flybridge)
• Push-pull lights on aft beam and in forward cockpit

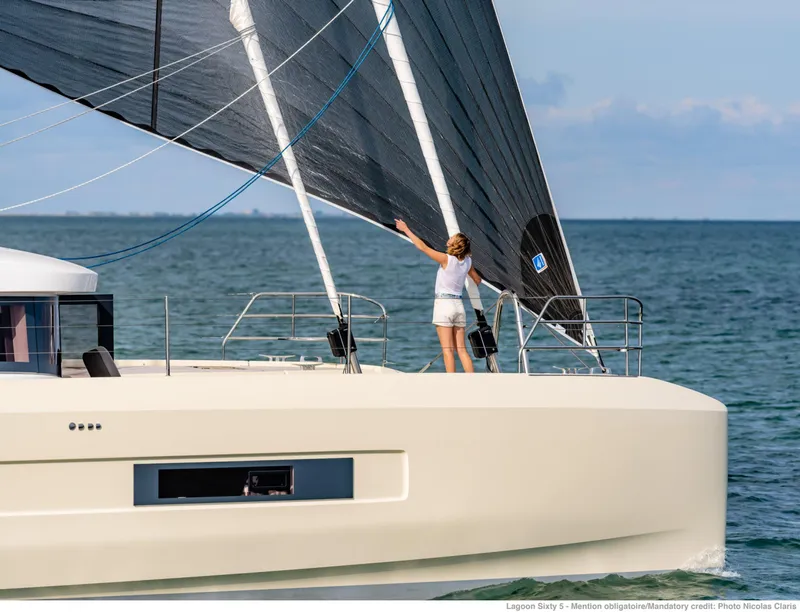

The gorgeous silhouette of the SIXTY5 reveals a yacht that is as pretty as she is capable, equally happy at anchor off Cannes or exploring the fjords of Patagonia. Open spaces, flooded with natural lighting, draw your attention to the horizon.
