Specifications

Overall length 38' 11"

Hull length 38' 2"

Waterline length 35' 2"

Beam 12' 9"

Displacement (light load with deep keel) 16,163 lbs

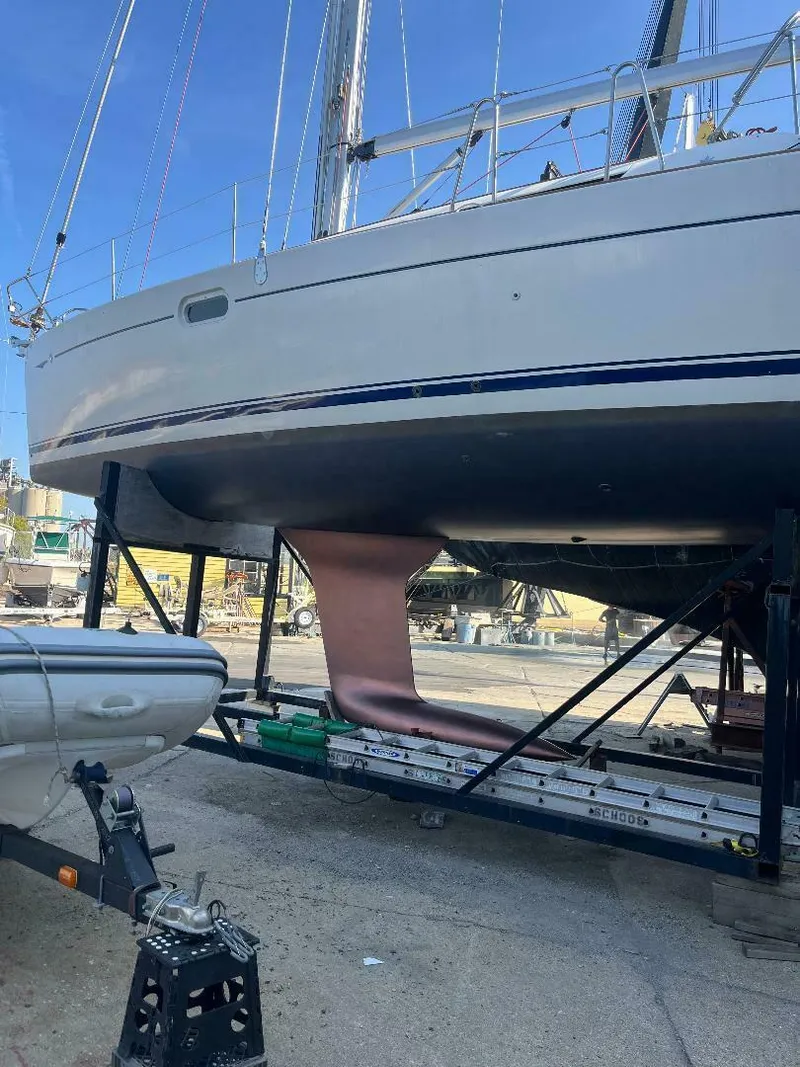

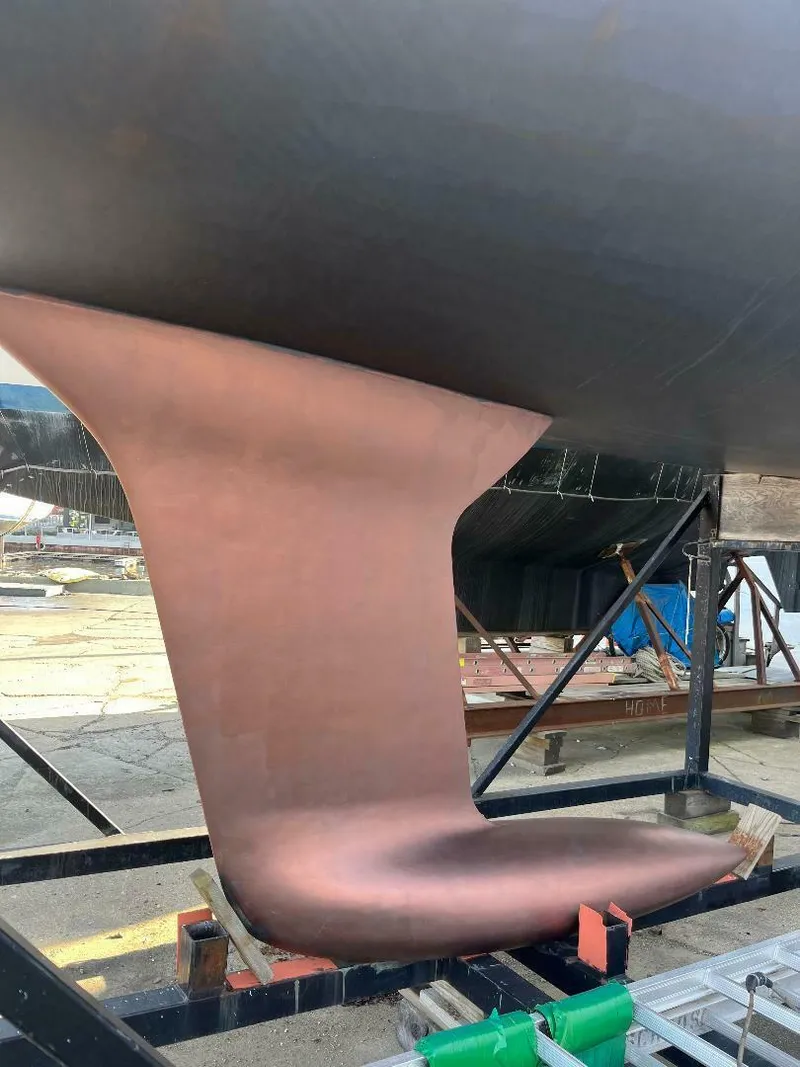

Performance keel draft cast iron fin keel with elongated bulb 7' 3"

Performance keel weight 4,629 lbs.

Architect/designer M. Lombard

Water2 rotomolded tanks located under forward and aft berths with separate deck fills 94 GAL

Fuel rotomolded tank located under aft berth with deck fill 34 GAL

Holding tank rotomolded tank located in head compartment with valve for overboard discharge via gravity and deck fitting for pump out 22 Usgal

Fridge compartment with vertical access 47 Usgal

Sails

Performance mainsail Quantum Prestige series tri-radial with sandwich construction of double taffeta layers for form stability and Rutgerson rolling cars, 2 automatic reefs and a 3^rd classic reef point 420 sqft

Performance furling genoa 123% tri-radial Quantum Prestige series with sandwich construction of double taffeta layers for firm stability and Sunbrella UV luff protection, Rutgerson stainless steel eyes 409 sqft

Spinnaker

Total sail area 829 sqft

Sail handling

Lazy bag in Sunbrella Captain Navy fabric with integrated lazy jacks

Genoa winches 2 x Harken 44.2 self-tailing winches

Coach roof winches 2 x Harken 40.2 self-tailing winches

Winch handles 2 x Harken handles with ball-bearing grip

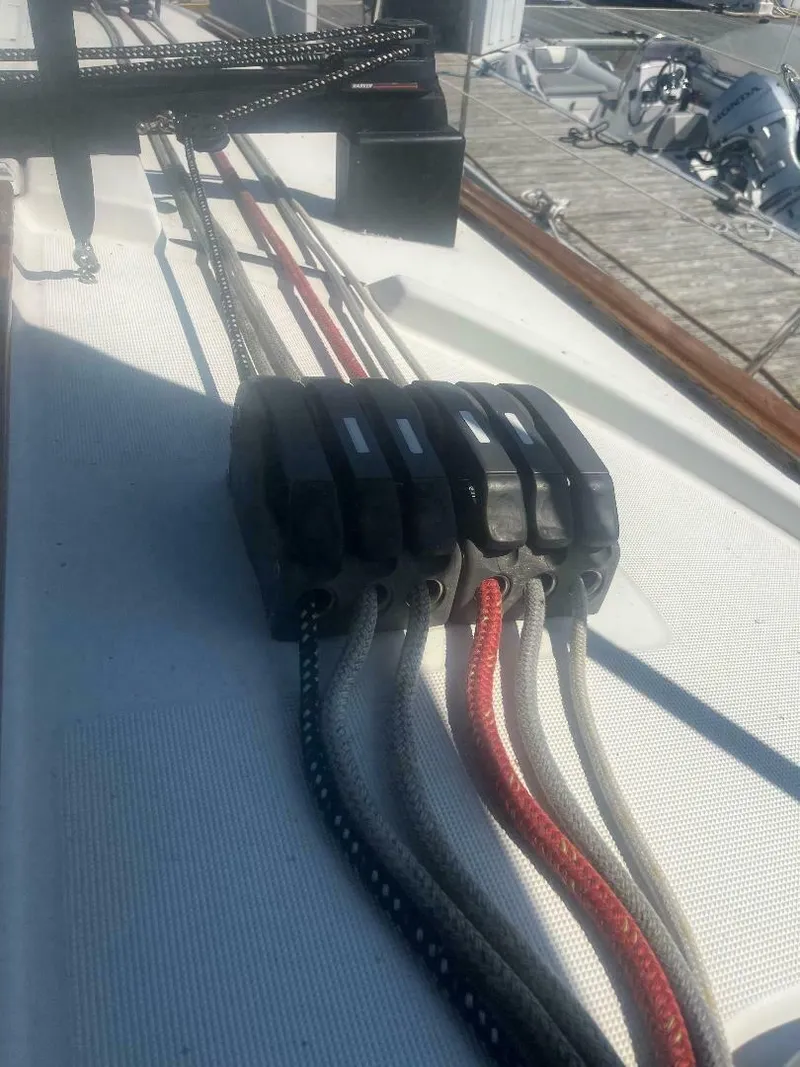

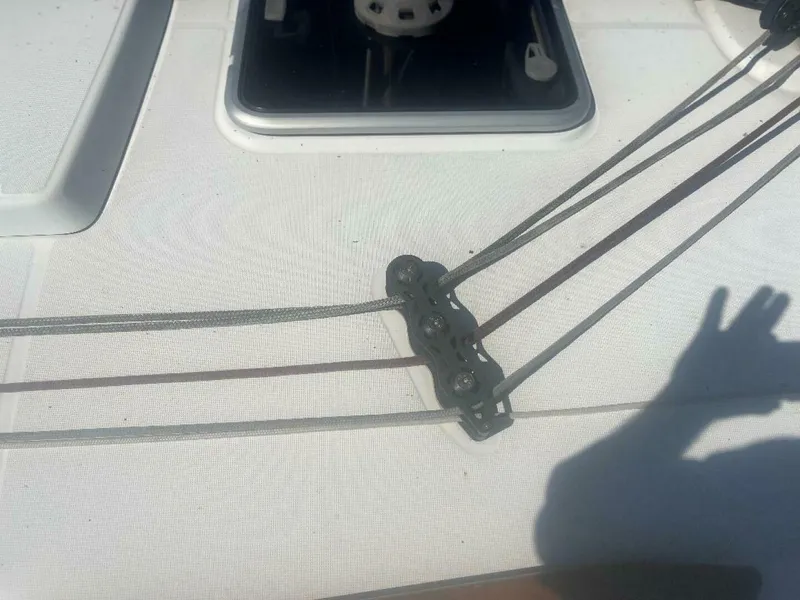

Line jammers Spinlock, on both sides of coach roof with Harken return blocks

Mainsheet traveler roof-mounted big boat traveler with ball-bearing car, ends, control lines lead aft to cockpit

Mast and Rigging

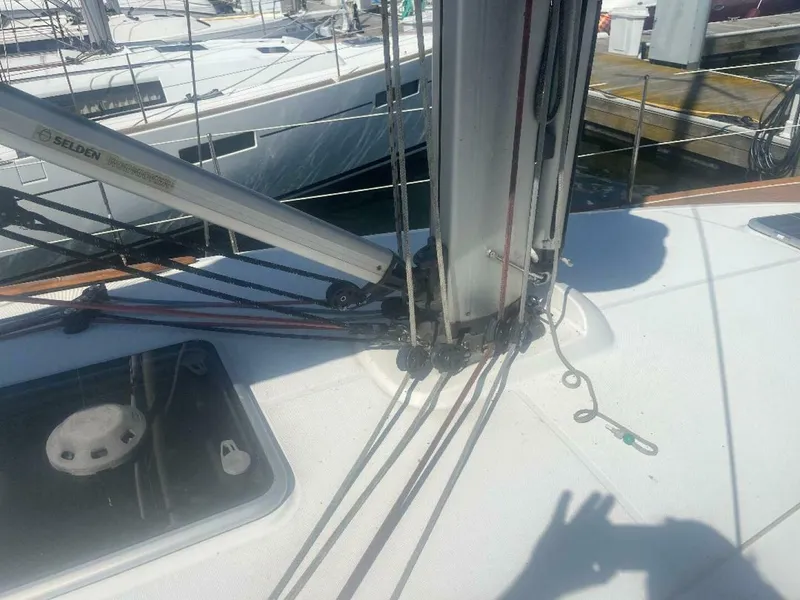

Selden aluminum with double spreaders, spinnaker track mounted forward.

Standing rigging discontinuous 1 x 9 stainless steel wire

Backstay adjustable via a block and tackle system and bridle-mounted car

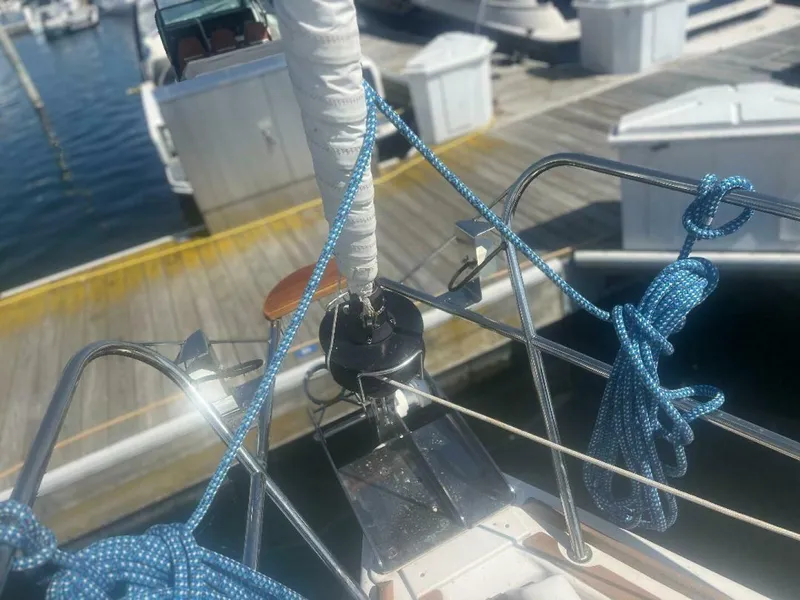

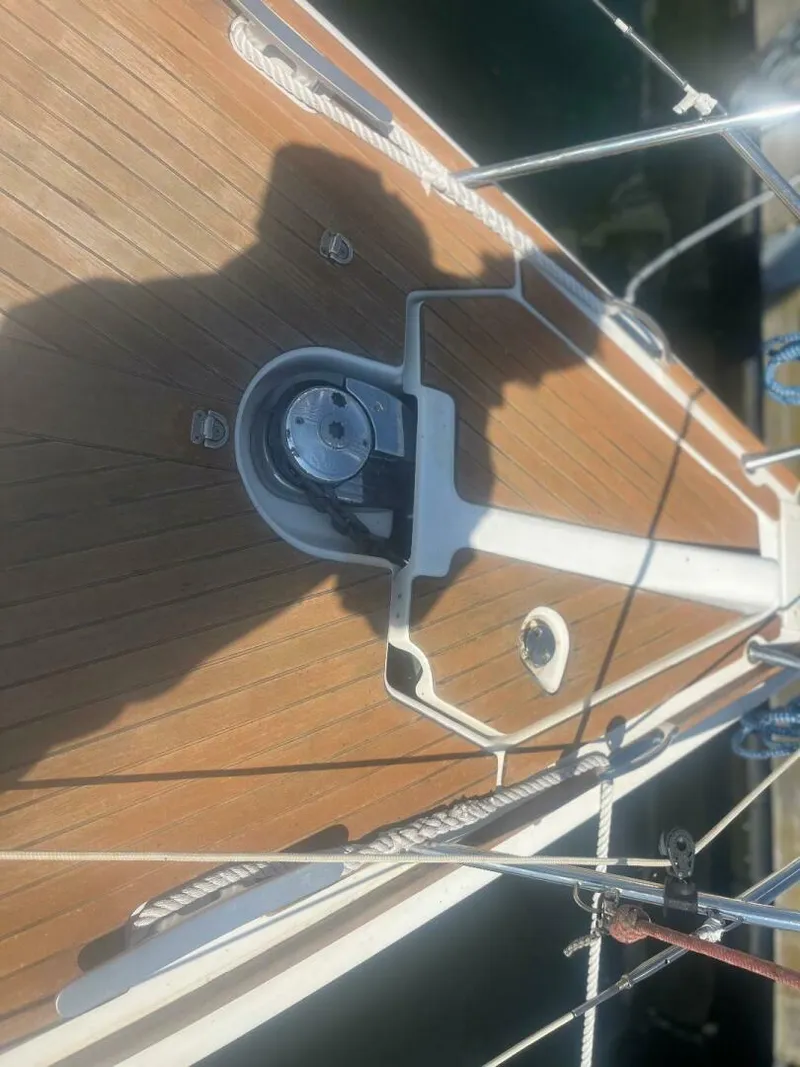

Genoa furler Facnor LX racing series with removable drum, double sail slot and round profile, mounted to stem head fitting, furling line lead aft to roof winch

Running rigging Dyneema mainsail halyard, genoa halyard, spinnaker halyard, mainsheet, genoa sheets

Rigid boom vang with gas cylinder and control line lead aft to the cockpit

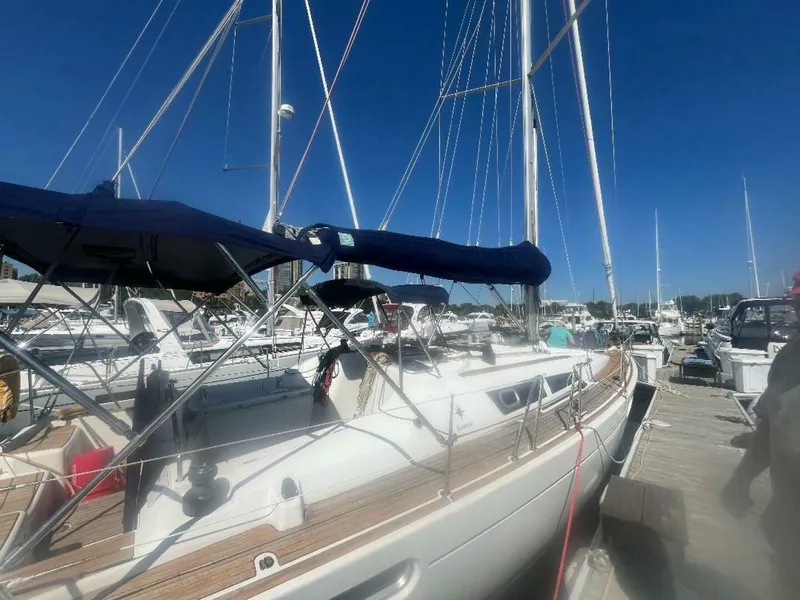

Cockpit

Teak inlay on seating area, transom and transom steps

Cockpit lockers 2 lockers under bench seats and 1 lazarette locker under port helm seat for technical access to steering system

Life raft locker located in dedicated compartment between helm seats

Cockpit table folding injection-molded fiberglass table with storage, cup holders, stainless steel handrail, courtesy lighting, 12v plug

Gas locker located in lazarette locker under starboard helm seat, room for 2-10-gal gas bottle with connection to gas system and cut-off valve under stove in the galley

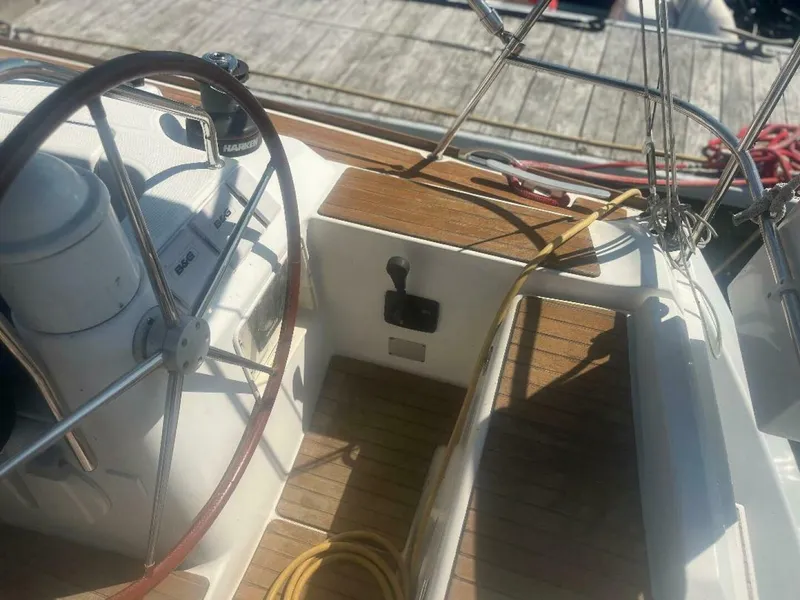

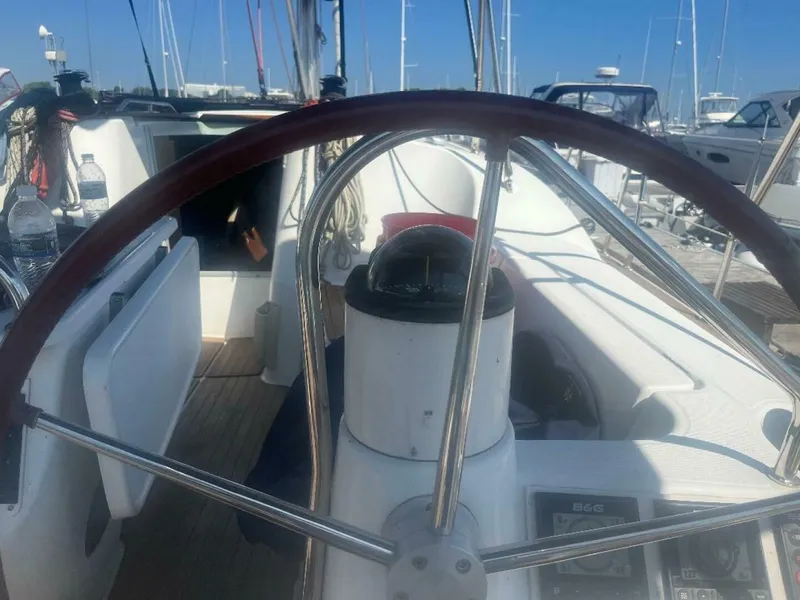

Wheels 2 leather-covered steering wheels with compasses at each steering position and stainless steel grabrails.

Emergency tiller with chrome fitting in cockpit floor

Instrumentation dedicated space for instruments within easy reach of helm positions, room for GPS chartplotter mounted at aft end of cockpit table with easy viewing from each helm

Engine controls throttle and engine control panel mounted at starboard helm, engine panel includes RPM gauge, warning lights, ignition

Swim ladder folding stainless steel ladder mounted on transom

Cockpit shower retractable hot and cold water shower with tap

Anchor locker forward, lockable, room for anchor and tackle, integrated area, holder for windlass handle

Deck Hardware

Bow pulpit open stainless steel with teak step, navigation lights and integrated wiring for lights

Stern pulpit stainless steel with flag holder, buoy cradle and integrated wiring passage for GPS antenna

Electric windless Quick 1000W combination rope and chain, vertical-mounted in the anchor locker hand-held remote

Anchor roller double stainless-steel fitting

Lifelines double level of stainless-steel lifelines with PVC coating, stainless steel stanchions

Lifeline gates opening gates on each side

Toe rail teak profile with 6 integrated stainless-steel chocks and drainage for side deck

Cleats 4 x aluminum mooring cleats forward and aft

Midship cleats 2 x aluminum mooring cleats placed on side deck near midship chocks

Handrails sculpted, long teak handrails on coach roof for secure movement forwards

Construction

Deck Prisma Process injected deck, ISO gelcoat surface, discontinuous blas block coring

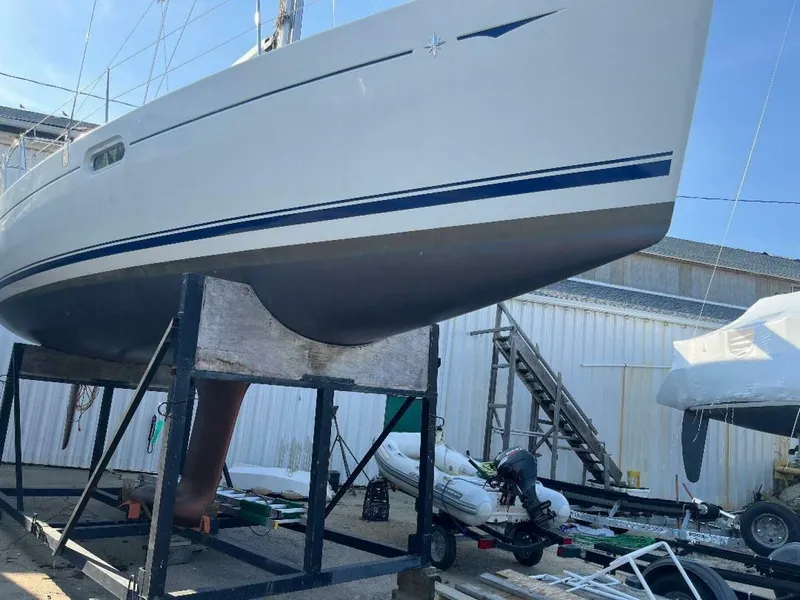

Hull solid hand-laid ISO gelcoat surface, vinylester resin in outer skin to protect against osmosis

Structure 3^rd generation inner fiberglass grid, high-load zones cut out and reinforced, drainage system through structure, special emergency repair zone in keel area

Lighting

Flush mounted chrome brass ceiling lights I saloon, head compartments and cabins

Chrome reading lights in aft cabins

Indirect halogen lighting under side decks in saloon and head compartments

Gooseneck chart light mounted at nav station

Electrical

12v alternator output 60A

Charge distributor/isolator

Engine start battery capacity, battery located under aft starboard berth

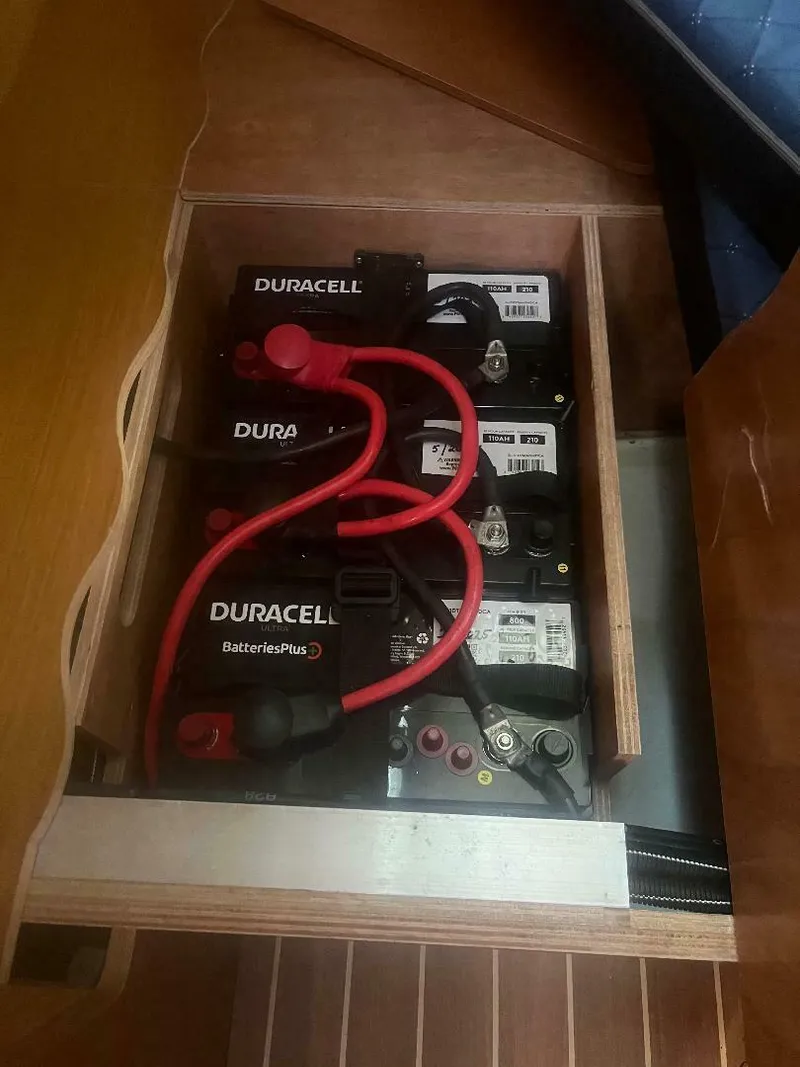

Domestic battery bank capacity, batteries located under port aft berths

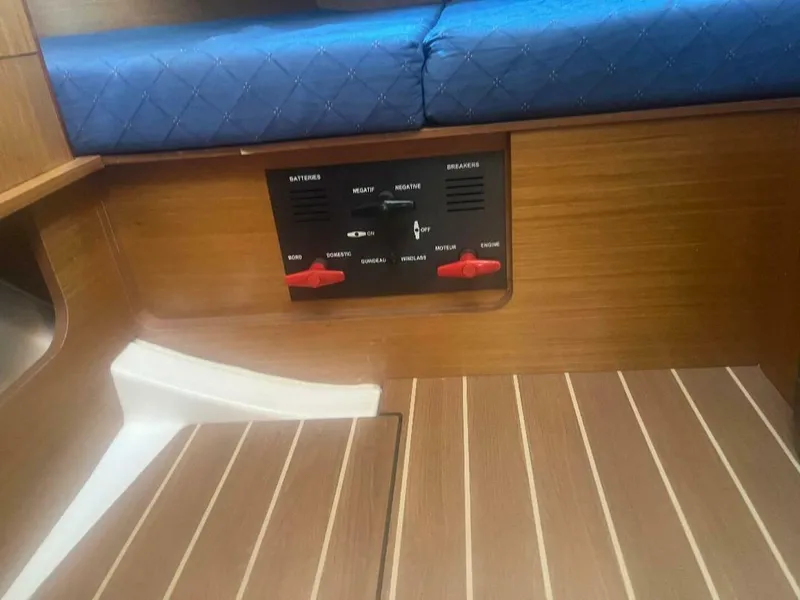

Positive battery switch for engine and domestic bank and general cut-off switch mounted on panel in aft cabin

Shorepower 115v inlet with differential breaker, one 115v plug per cabin , 115v plug in galley and nav station + 40A battery charger, multi-phase

Electrical panel with 2v breakers, 115v breakers, 12v ammeter, 12v consumption meter, 12v consumption meter, 12v charging meter

12v plug per cabin and at nav station

Plumbing

Hot and cold pressurized water distribution through-out the boat via semi-rigid hose

"Heavy-duty" water pump and accumulator tank for consistent water pressure

10 Usgal hot water tank that is connected to engine heat exchanger and to a 115v electrical system

Chromed shower faucet in washroom

Electric bilge pump on float switch and manual dual-action pump in cockpit

Digital water level display

Shower sump equipped with individual electric pump with filters and on-off switches

Large manual pump marine toilet (new pump in 8/2025)

Engine and Steering

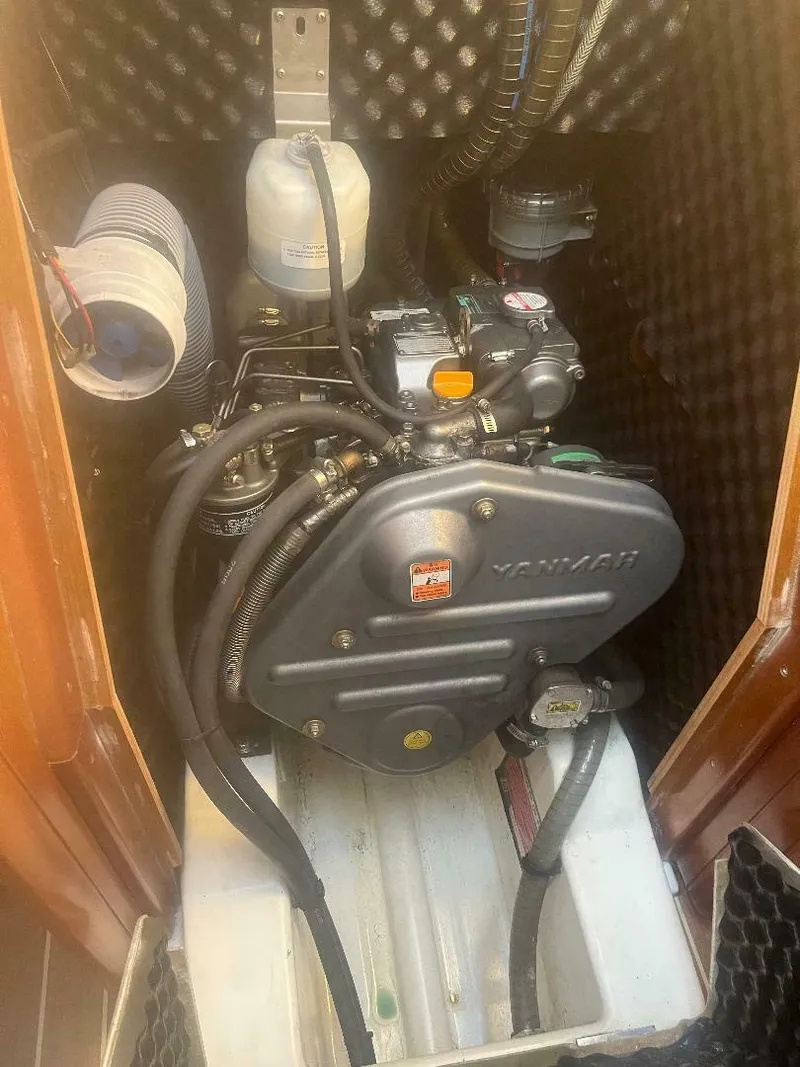

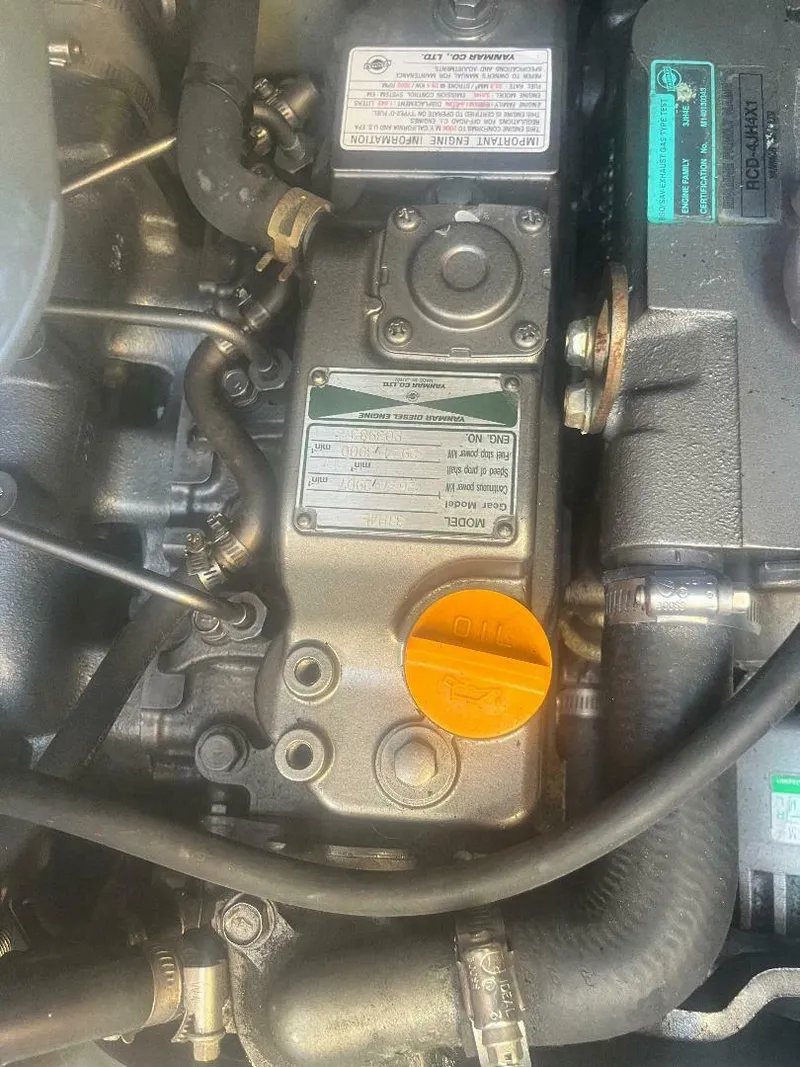

Yanmar 3JH4E 40HP, 29.4Kw diesel engine

Fully soundproofed engine compartment with engine access behind stairwell and from aft cabin

Stainless steel propeller shaft 30mm diameter

Fuel/water separator

Built-in muffler, forced air ventilation and stainless-steel exhaust fitting aft

Feathering propeller, add performance under power, low-speed maneuvering backing and less drag under sail

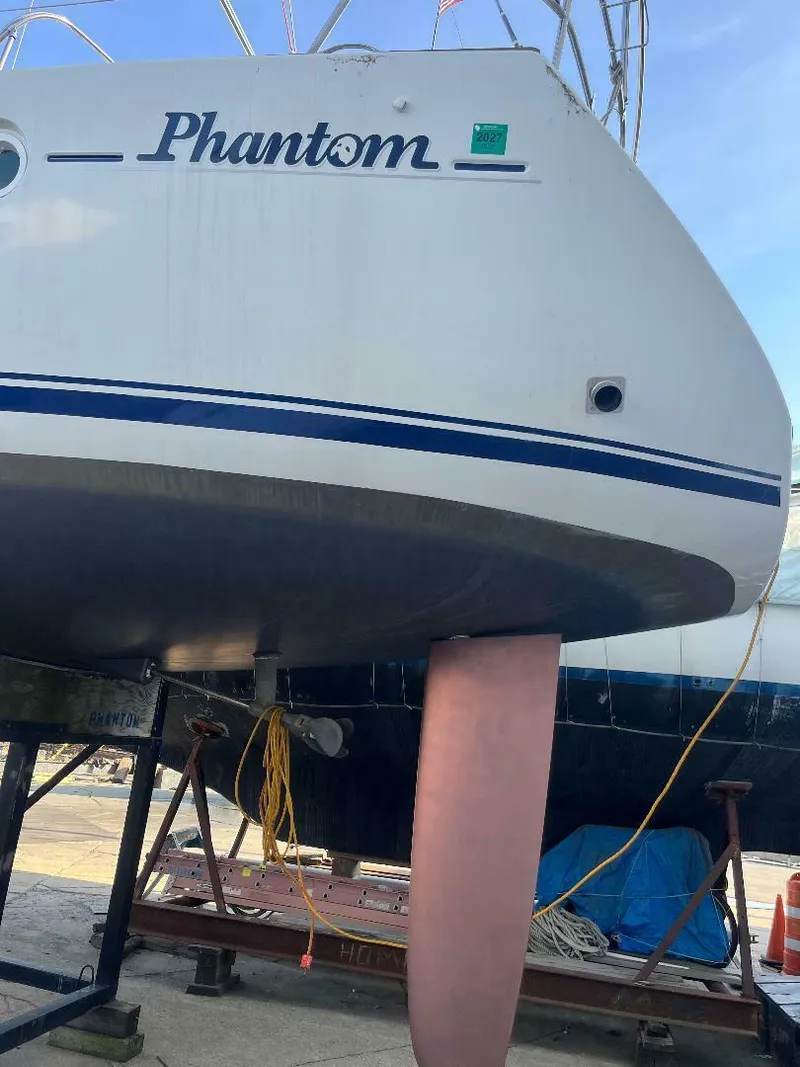

Fiberglass rudder with stainless steel shaft

Patented self-aligning rudder bearings for lower friction

Comfort Features and Options

Fixed hull ports with track-mounted curtains 4

Opening cockpit and roof ports with curtains 2

Lateral fixed windows with curtains 4

Opening ports integrated into lateral windows 2

Opening deck hatches forward-facing with sun blinds integrated into headliner 4

Combination shade/insect screen for deck hatches

CD/radio player in saloon

Saloon stereo speakers x2

Cockpit speakers x2 watertight

Interior features and option

Wood

Fine Teak Interior laminated panels with solid wood trim around galley, companionway and cabinetry finished in satin UV stabilized varnish

Laminated floorboards with light-colored lines, finished in satin UV stabilized varnish, varnished edges

Forward Cabin

Forward owner's cabin with central berth and storage forward of the berth

Double berth with wood trim, high density foam mattress

Double cabinet with shelves and hanging rod

Wood hull liner with storage shelf, vinyl liner above shelf

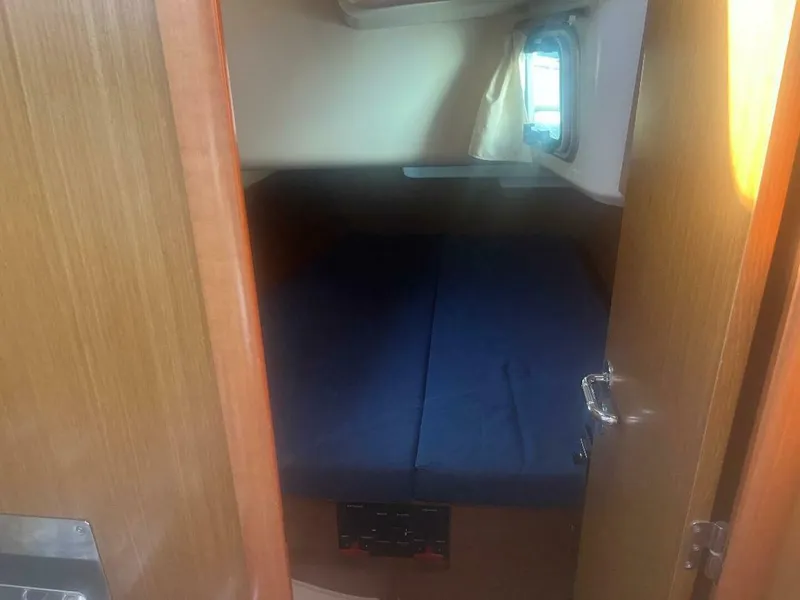

Twin Aft Cabins

Double berths, high density foam 6'7" x 4'10"

Deep cabinet with shelves and hanging

Wood hull liner with storage shelf, vinyl liber above shelf

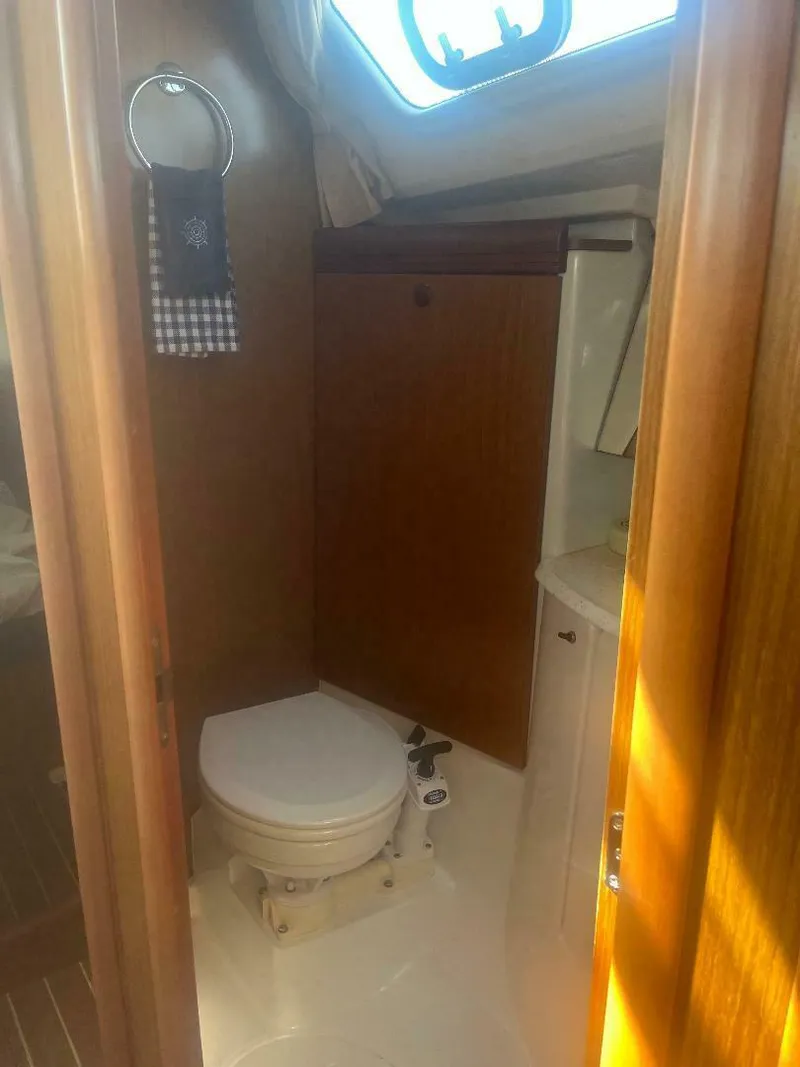

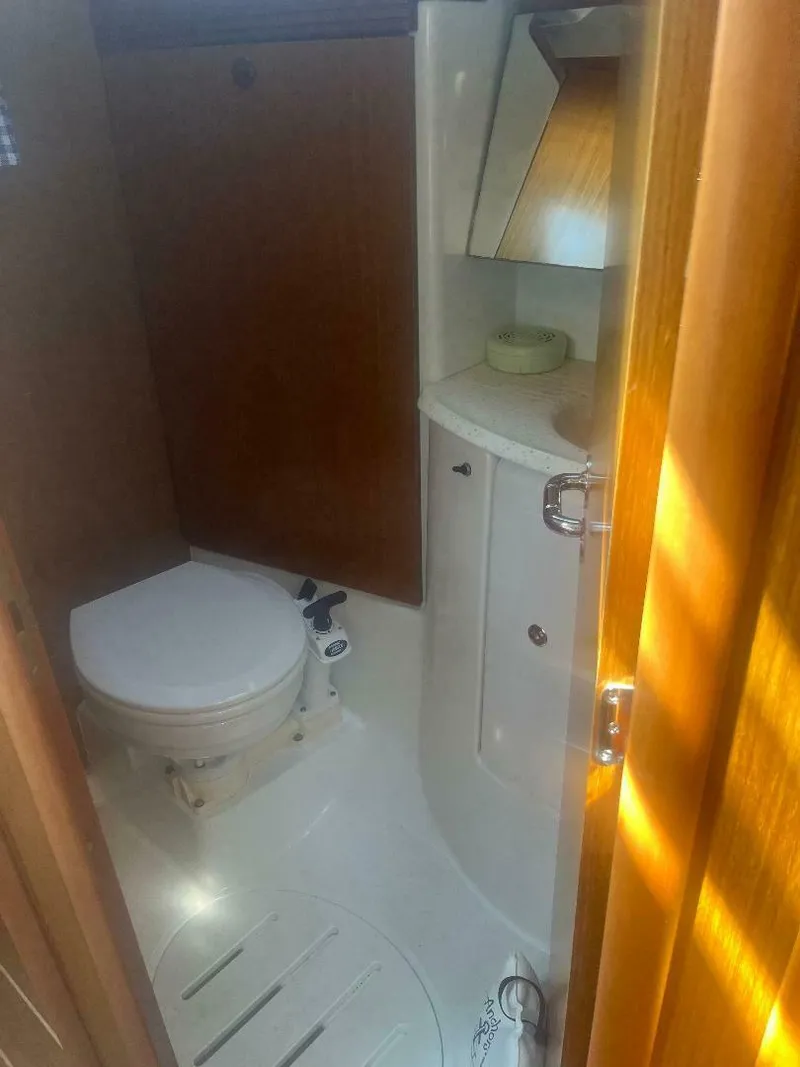

Head compartment aft with sink, shower, clothes hook, mirror, towel holder, toilet paper holder, wastebasket, cabinet above sink, shower sump with grate and electric drainage pump, access from saloon

Navigation saloon

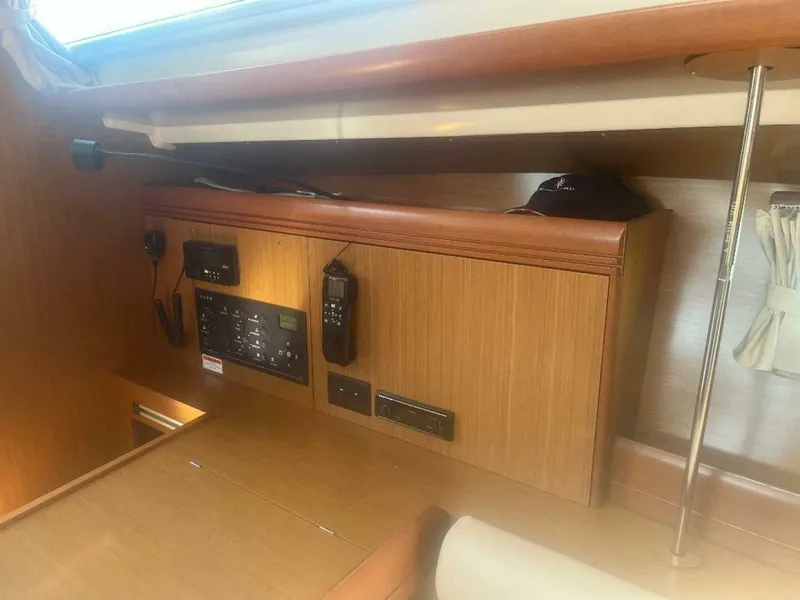

Navigation station full function with genera electrical panel, room for the latest in GPS chartplotters and bookshelf

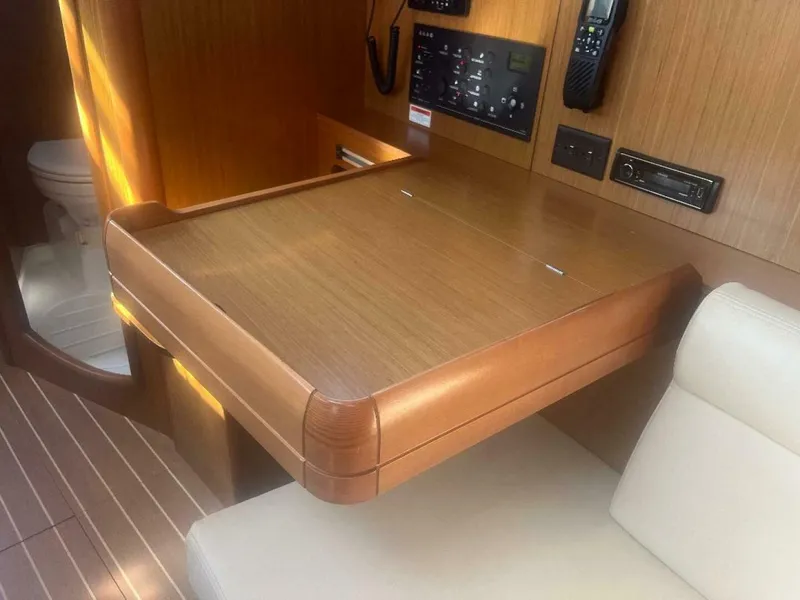

Sliding nav desk that can be placed in forward-facing position for increased seating with curved nav seat and storage underneath

Deep navigation desk with storage

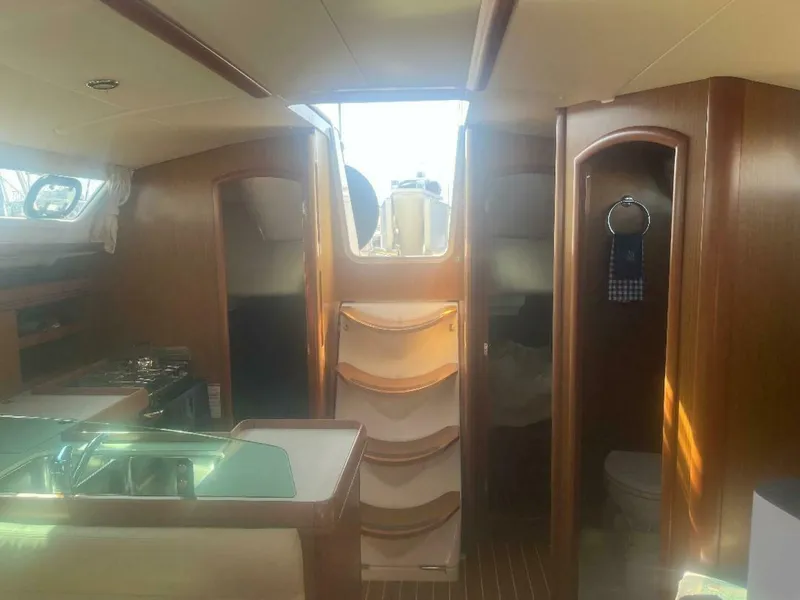

Saloon

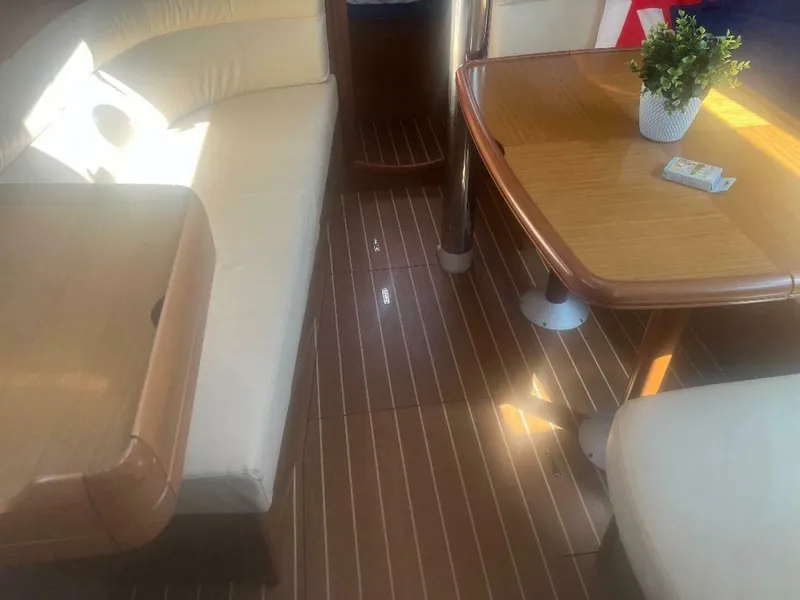

Saloon with U-shaped seating area to starboard, wrap-around cushions and storage under seating area

Saloon dining table with wood fiddles, removable pedestal legs

Bar locker and bottle storage

Upper storage cabinets

Lounge seating to port with plush cushions and cushions facing tables

Companionway with cured wood steps and non-slip strips

Plexiglass companionway door with dedicated storage location in the aft starboard cabin

Galley

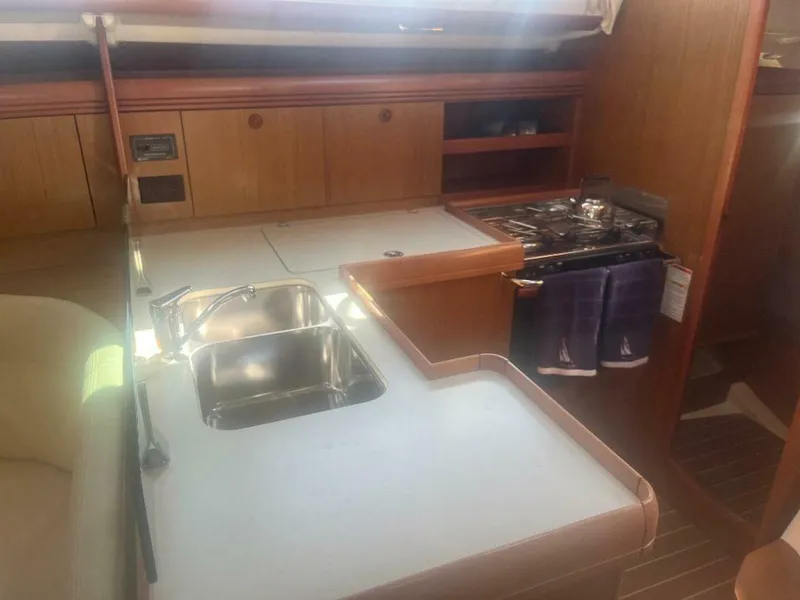

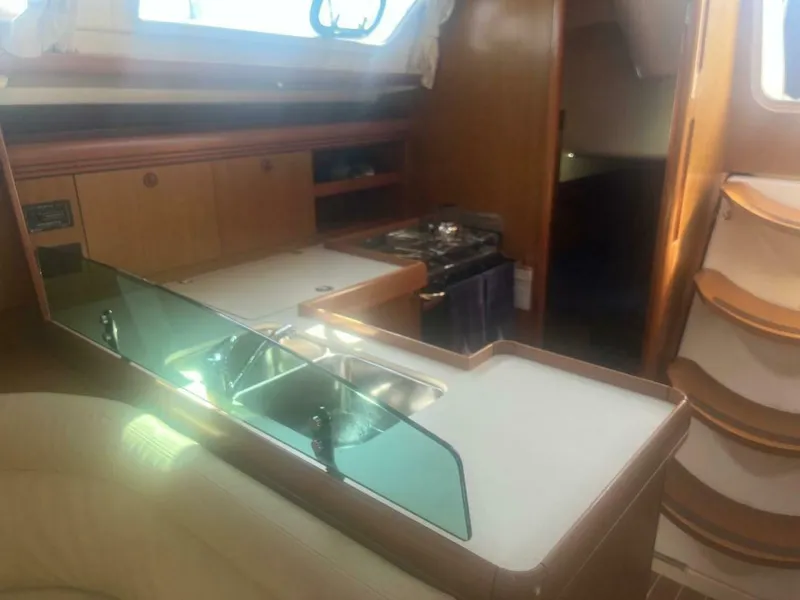

Galley with double stainless-steel sinks with cover and reversible cutting board, solid surface countertops, chrome plumbing fittings, strange cabinets and drawers

L-galley to port with glass separator between galley counter and seating area

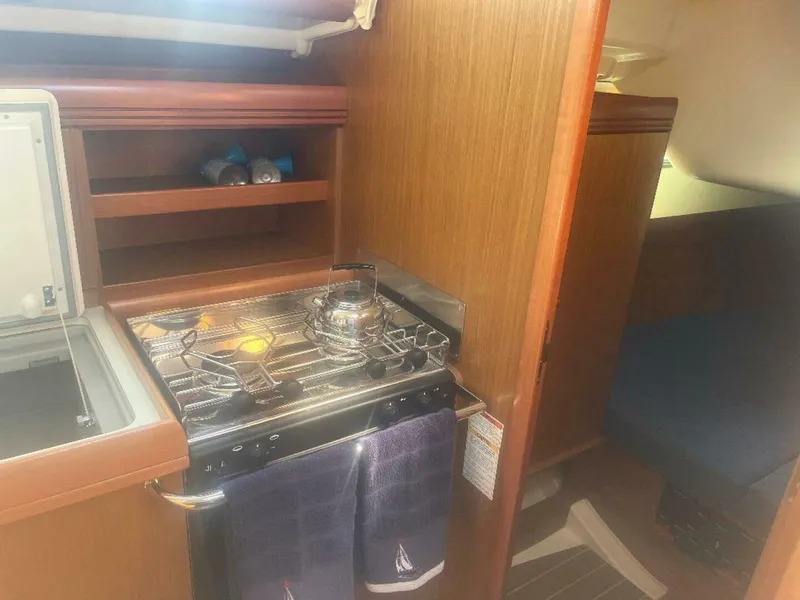

Gimballed 2-burner stove with oven with stainless steel protection bar

Luxury 2-burner stove with black finish, wood handle, stainless steel oven/broiler

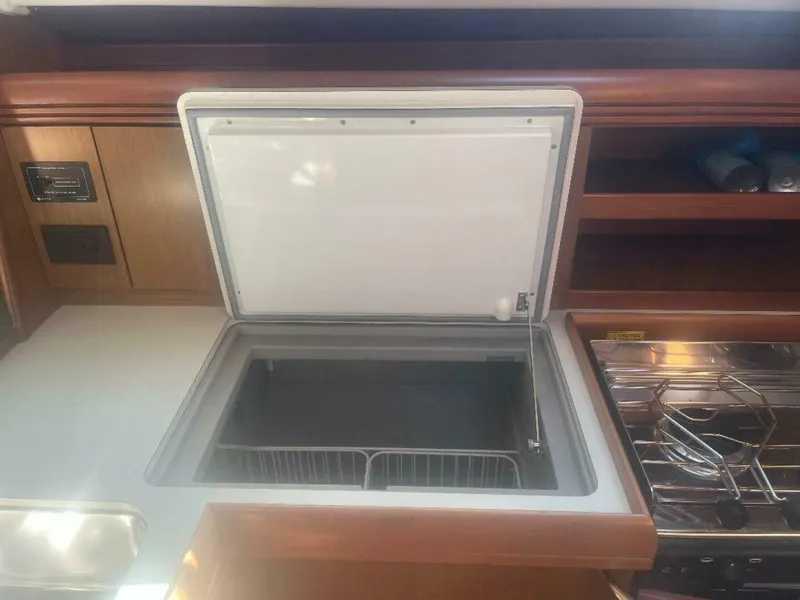

Single fridge box with freezer area, wire baskets, interior lighting comes on when door opened, 12v refrigeration and integrated compressor

Headroom

Forward cabin 6'2"

Aft cabins 6'5"

Companionway 6'6"

Saloon 6'3"

Galley 6'4"

C Cushions for side benches and each helm station

Sails

Quantum Sunbrella Mainsail SailPack

Quantum MC6000 16K DPI Race/Cruiser Mainsail 42.110m2

Quantum MC6000 16K DPI Racer/Cruiser Genoa 41.472m2

Nort Sails Asymmetric Code 1.5A Norlon 75 with Snuffer sock

Instruments

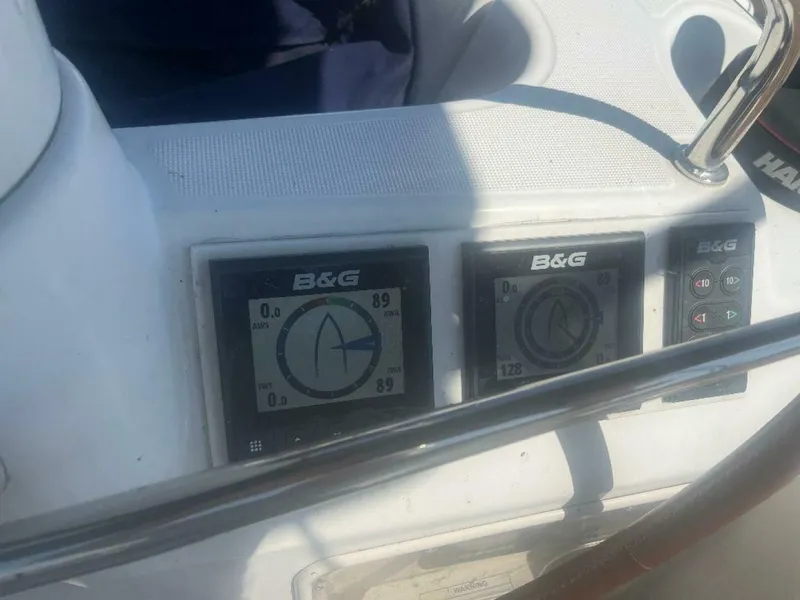

B&G Triton 2 Digital Display(4)

B&G Triton2 Autopilot Controller/Display

B&G VHF W/L Handset, H50

B&G H50 VHF Marine Radio with AIS and DSC

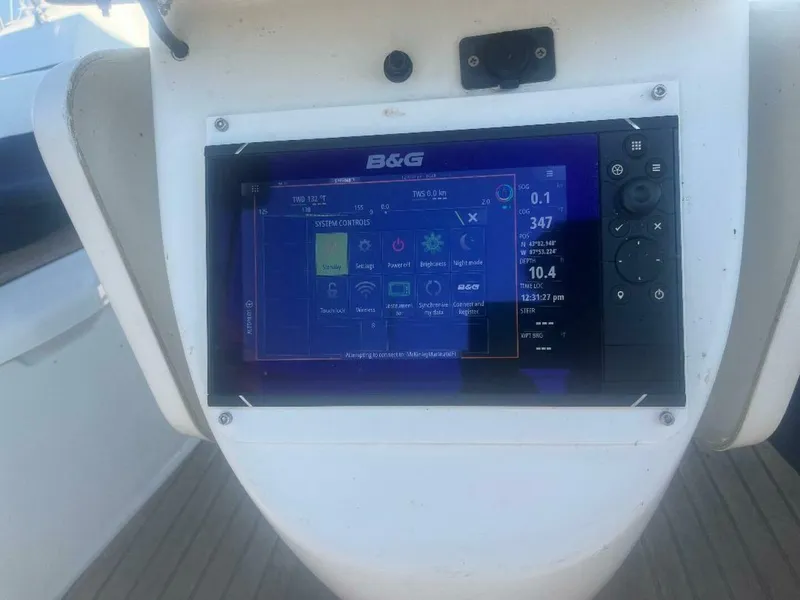

B&G Zeus3-9 Multifunction Display
