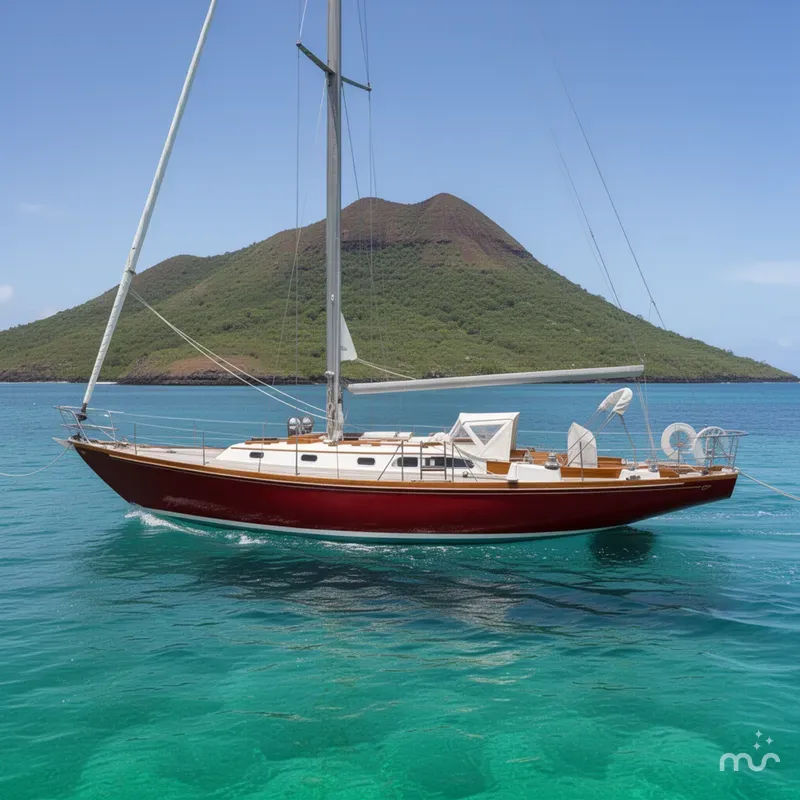

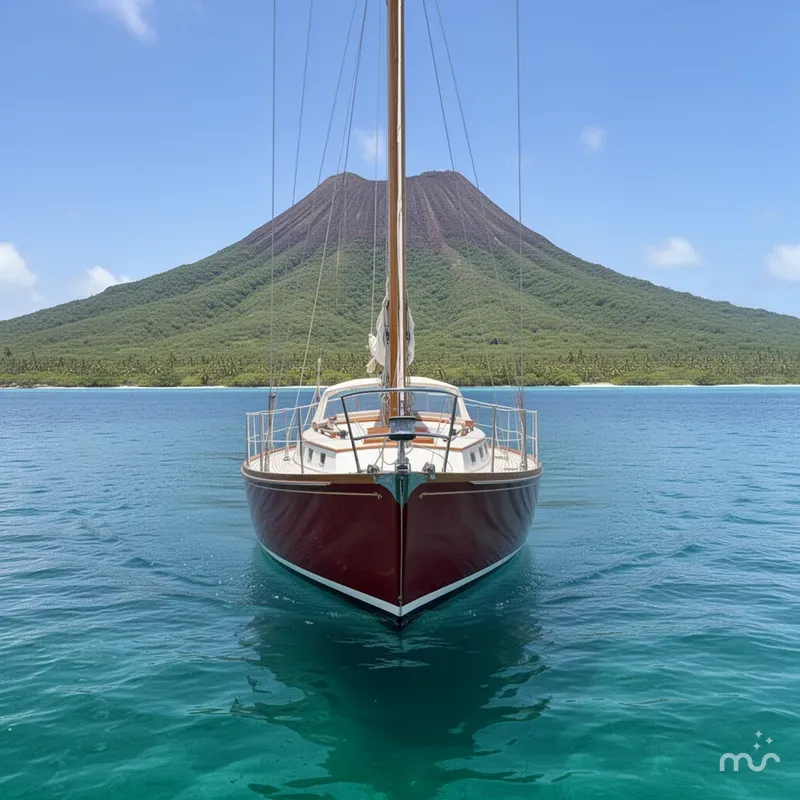

1978 Hinckley Yachts Bermuda 40 MKIII

Additional Specs, Equipment and Information:

Builder/Designer

Builder: Hinckley Designer: Bill Tripp

Dimensions

LOA: 40' 9"                 LWL: 28' 10"                    Beam: 11' 9"

Displacement: 20000         Draft: 4'6"/8'9"              Ballast: 6500

Engines

Engine(s): Westerbeke     Engine(s) HP: 40         Engine Model: 4-108

Tankage

Fuel: 48 gal              Water: 80 gal in 2 Tanks             Holding: 14 gal

Accommodations

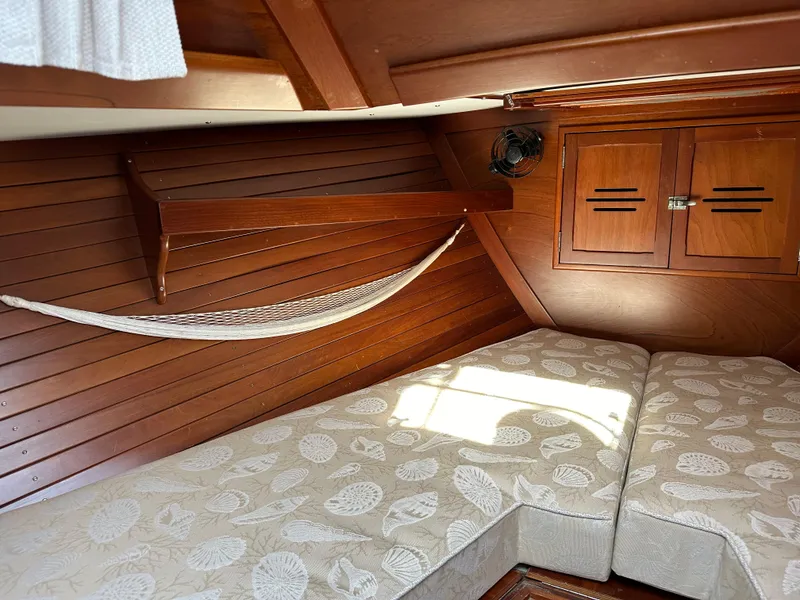

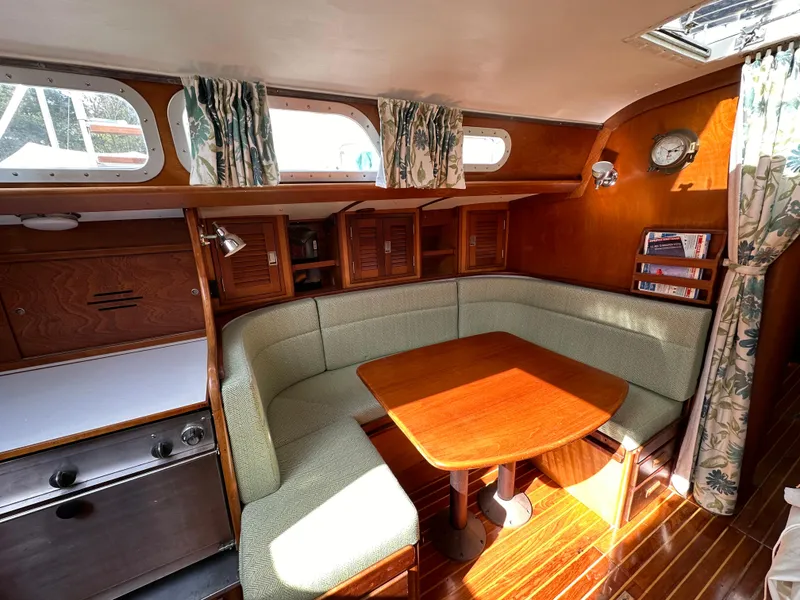

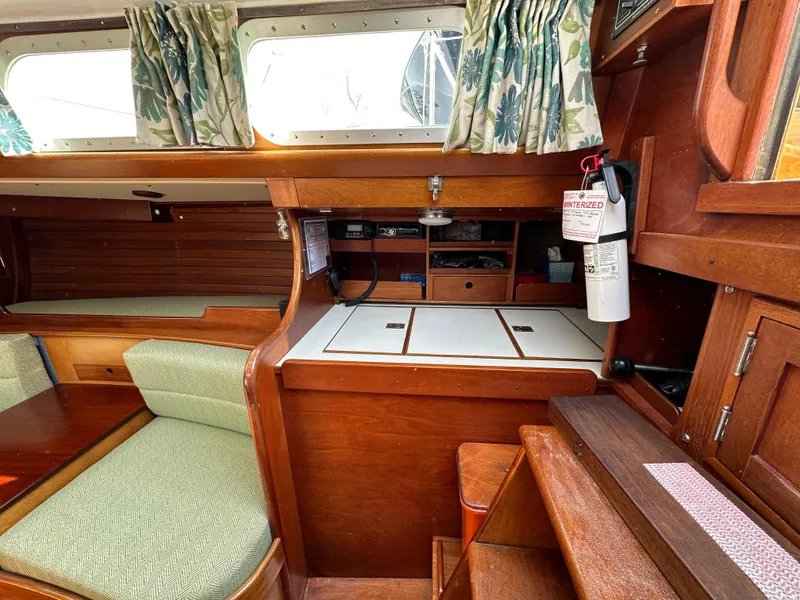

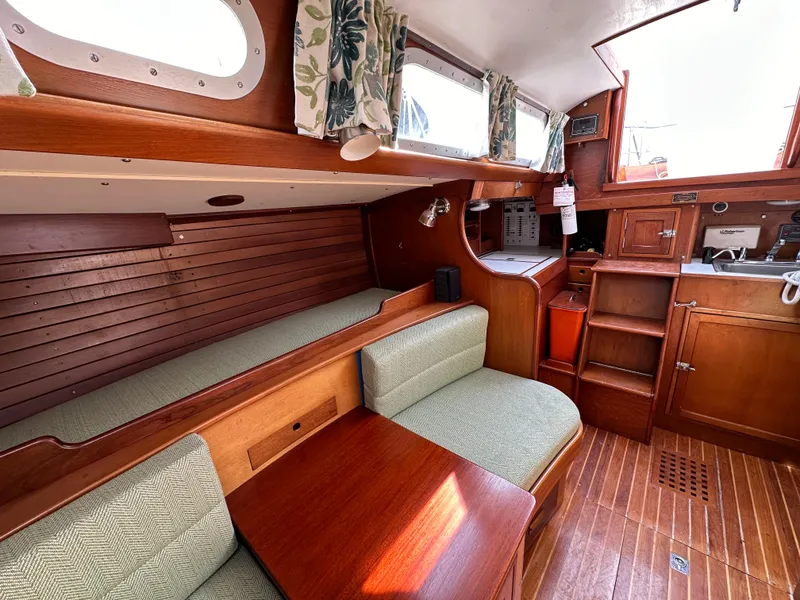

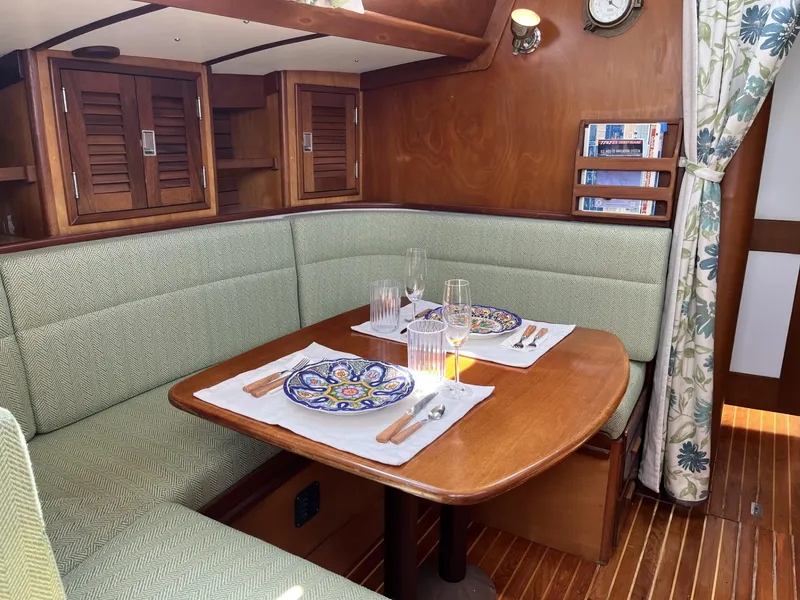

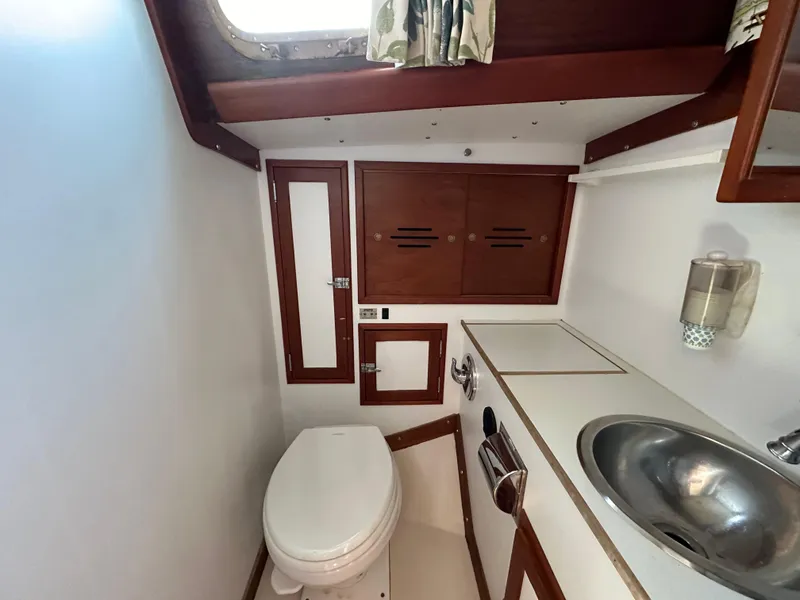

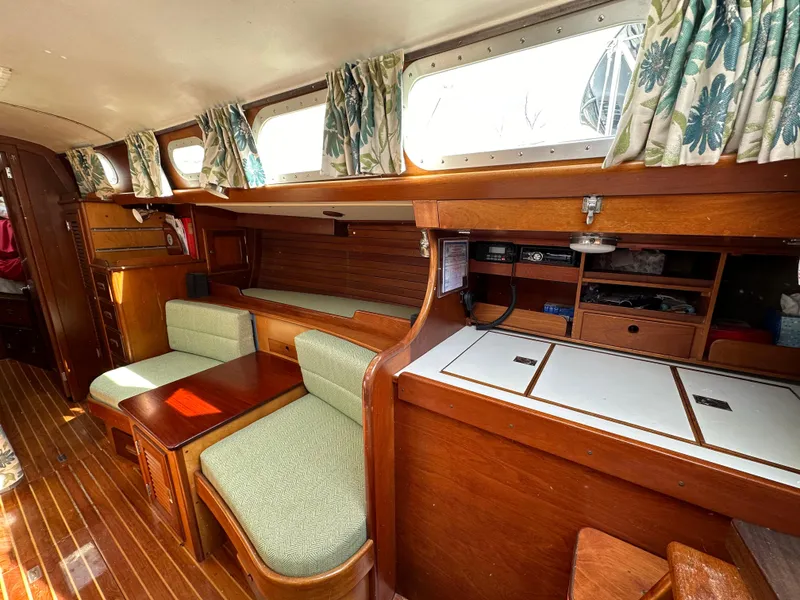

Sleeps Five in two cabins. Foward stateroom has "V" berths with a seat between, adaptor to double berth , hanging locker, bureau and bookshelves, Head is next aft to port with hot shower, SS sink. The main salon has a U shaped dinette arrangement to port which drops down to double berth . There are two custom seats with liquor cabinet between starboard along with a Single berth The galley is to port of the companionway , gimballed Shipmate 3 burner stove w/ oven,  SS sink , hot & cold pressure water and salt water hand pump. Refrigeration is to starboard combined with navigation station.

Hull
The Bermuda 40 has a hand-laid solid fiberglass hull that is molded in one piece. The exterior skin is a layer of 1 1/2oz mat and unidirectional glass with vinylester resin.
The 6500 lb external lead ballast was cast at the Hinckley yard with 3% antimonial lead and secured to the hull with 1" silicon bronze bolts. The foil-shaped centerboard is a single casting of solid bronze, and is controlled by a hydraulic driven worm gear.

• Stainless steel bow pulpit and stern pulpit.
• Stainless steel stanchions and double life lines.
• Oyster White Awlcraft  Cabin top , sides and glass portion of decks

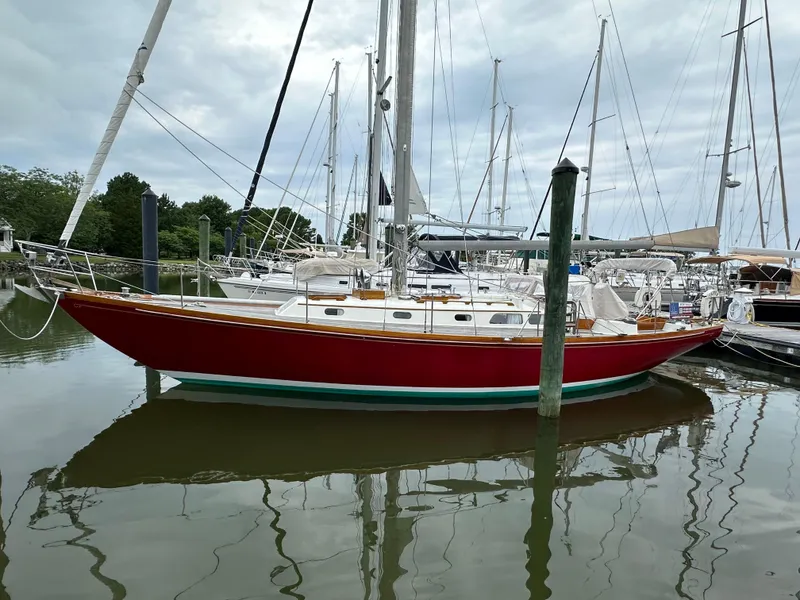

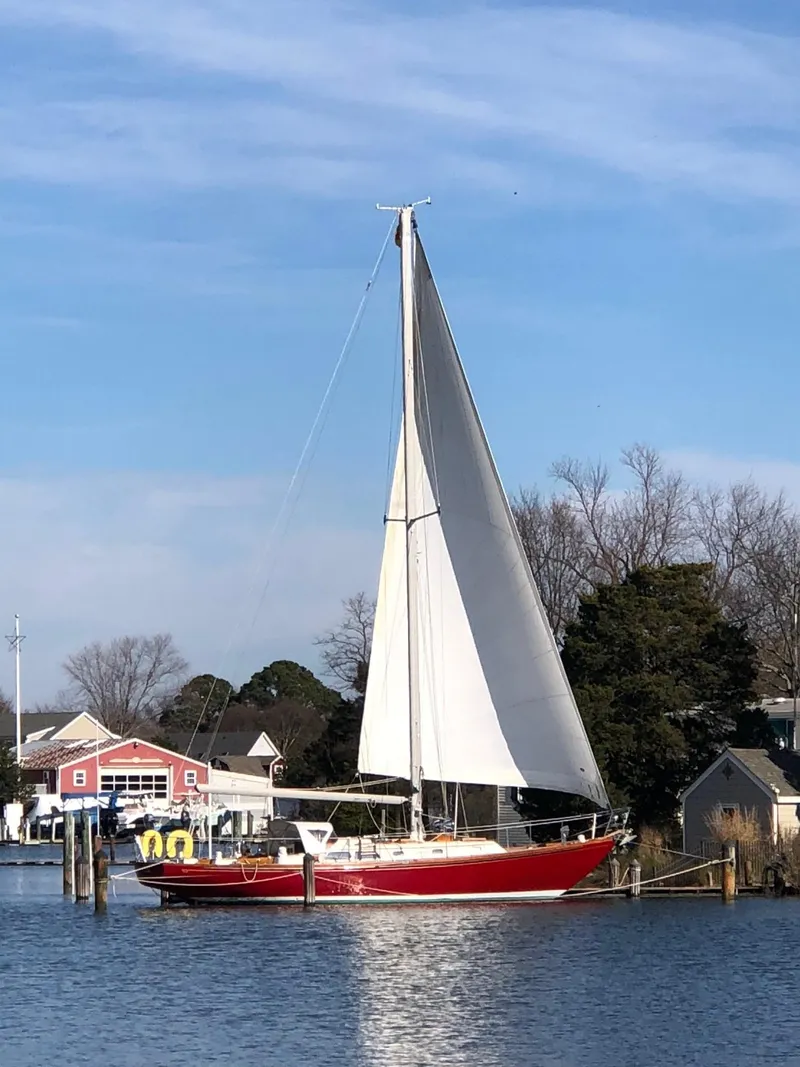

• Vivid Red Awlgrip Hull.

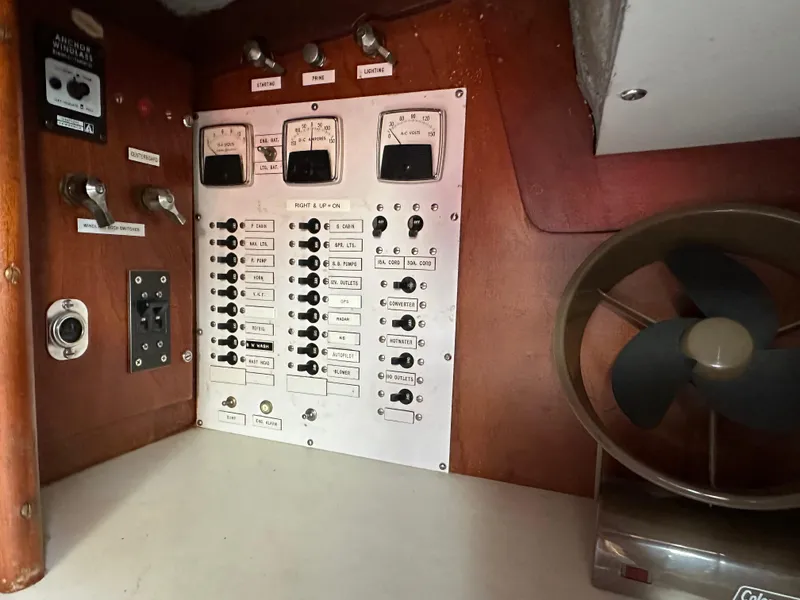

Electronics

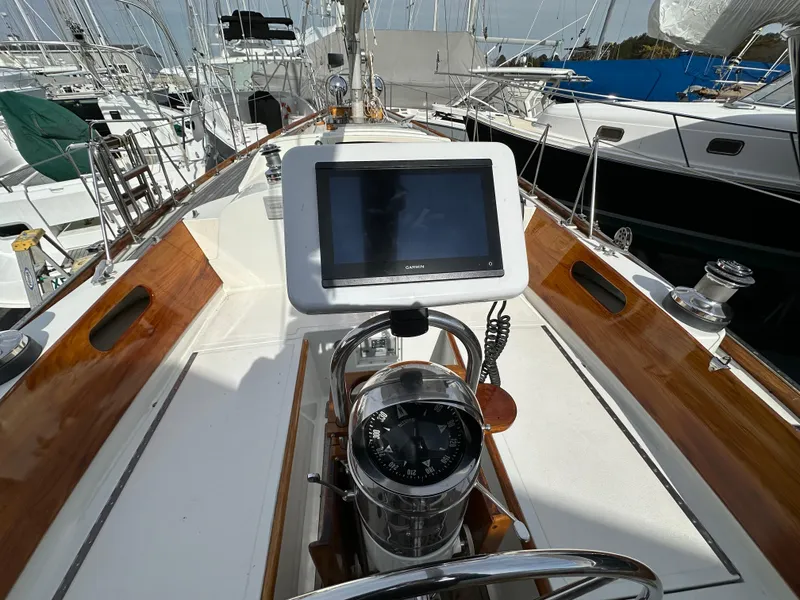

• Garmin Electronics with Radar
• Icom VHF.
• Wind instruments and depth.
• JVS Stereo and speakers.
• Ritchie Compass
• Robertson Auto Pilot

Sails/Rigging
Main sail and Genoa  are in Excellent condition.

• Two Barient 32 winches
• Two Barient 28 winches.
• Main - In Mast Power Furling System
• Jib furling system-Harken
• New Jenkin Sales - Main,Jib and Spinnaker

Deck

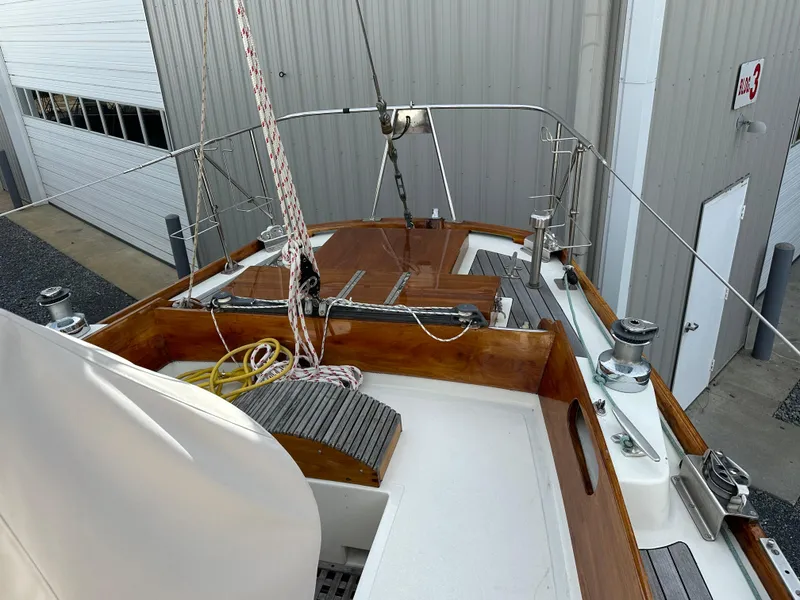

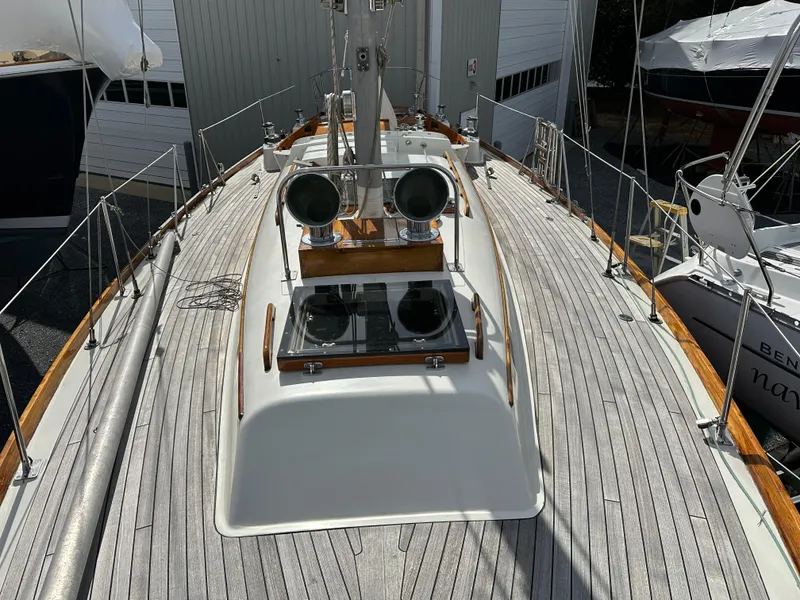

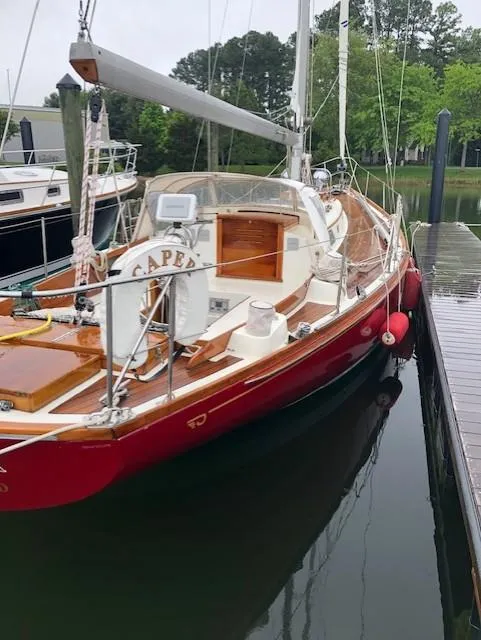

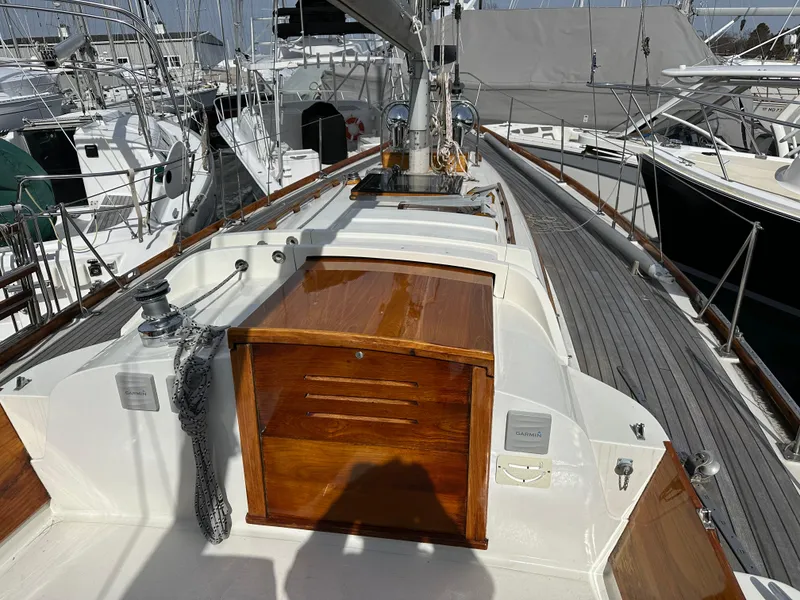

Teak Decks .Deckhouse and cockpit are molded in one piece with integral fiberglass and cored with 3/4" cross linked closed cell PVC foam? Deck scuppers are recessed with outlets at the boottop. The deck is bonded with fiberglass to a 6" hull flange and through-bolted with the toe-rail fasteners on 8" centers. All deck trim, hatches, rails,and coamings are varnished teak. Main and foward hatches are Hinckley built of teak and translucent plexiglass.

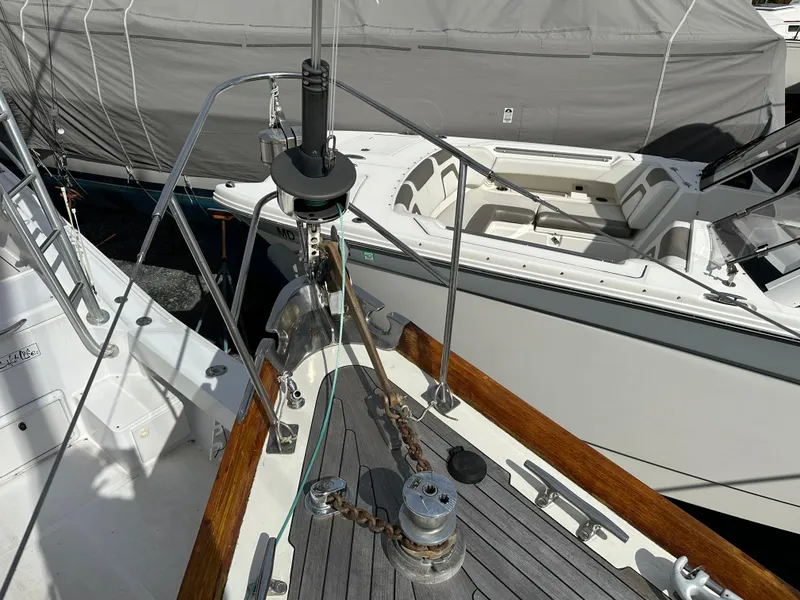

• Simpson-Lawrence  Windlass.
• Varnished teak hatch boxes, hand rails and exterior trim.
• Varnished Cockpit Table
• CQR Anchor
• Danforth Anchor

Recent Upgrades

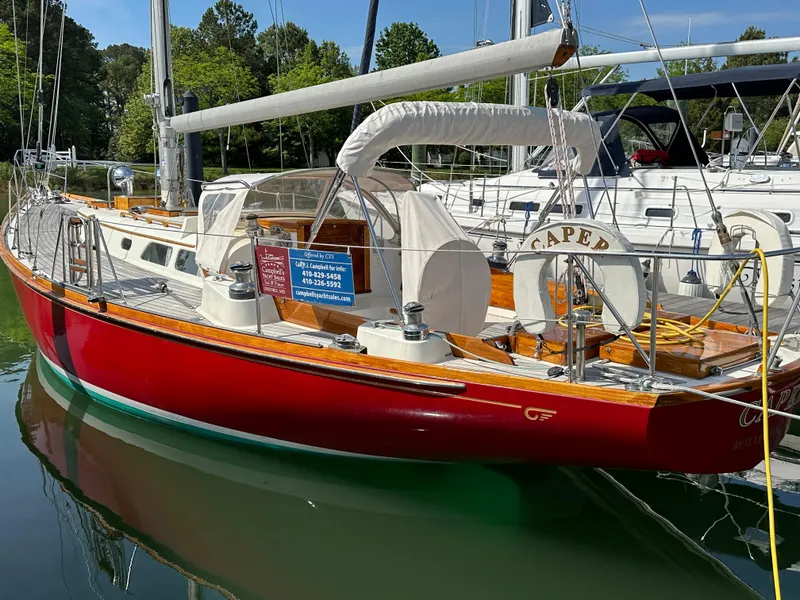

• Topsides painted Awlgrip Vivid Red  2017
• Cabin top , sides and glass portion of deck painted Awlcraft Oyster White 2017
• All stainless and other deck fittings removed and re bedded 2017
• Dodger with safety grab bars.
• Retractable Bimini
• House Batteries.
• Solid State onboard charger.
• High pressure wash down pump.
• Espar heating and wiring with fans
• Icom VHF
• New Winter Covers
