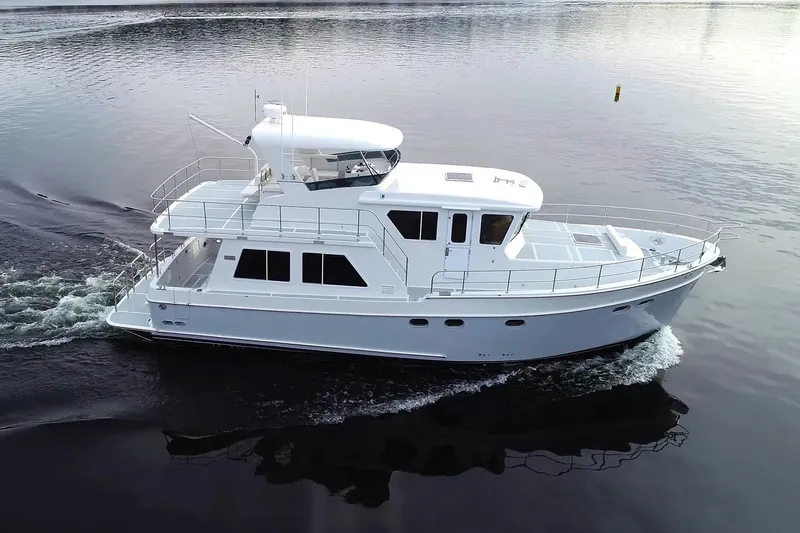

2026 Helmsman Trawlers 46 Pilothouse
1/32
$1,147,000
Boat in Boston, MA
$1,147,000
2026 Helmsman Trawlers 46 Pilothouse
Marine Source: Answer Hub for the 2026 Helmsman Trawlers 46 Pilothouse
Merging the web, expert opinions, and more into one place.
Ask or choose any question.
What are the most notable features?
Can you find other images of this boat?
What safety features are included?
2026 Helmsman Trawlers 46 Pilothouse Full Details
Nominal Length
46ft
Length Overall
50.08ft
Length at Waterline
42.5ft
Length on Deck
46ft
Beam
16.25ft
Drive Up Draft
5ft
Dry Weight
45000lb
Fresh Water Tanks
300gal
Fuel Tanks
800gal
Holding Tanks
100gal
Hull Material
fiberglass
Engine 1
Engine Make
Cummins
Engine Model
QSC8.3
Total Power
493hp
Fuel Type
diesel
Engine Year
2025
Design & Construction
- Semi-displacement hull design with soft chines, deep forefoot, broad sections aft for form stability, and full keel
- Structural stiffness with a solid FRP laminate hull with vinylester resins in external layers — hull fitted with an internal FRP grid
- Decks built with substantial laminations and cored with PVC foam
- Strong stainless steel skeg and large rudder

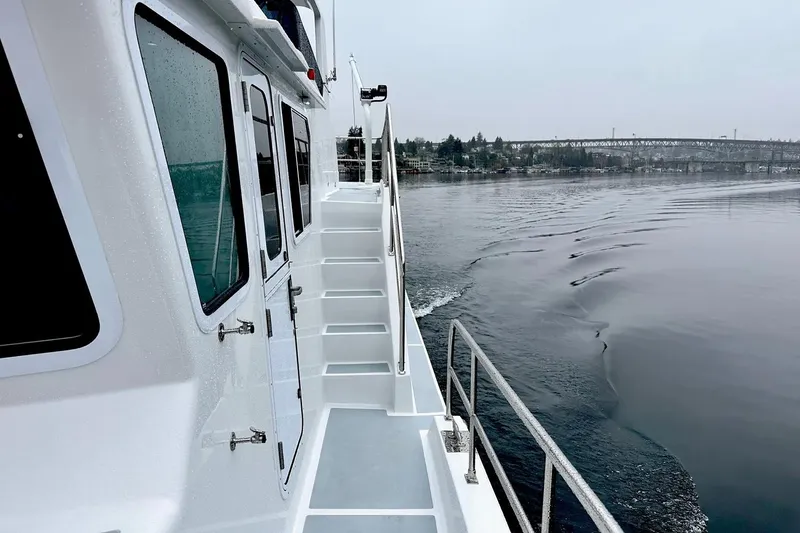

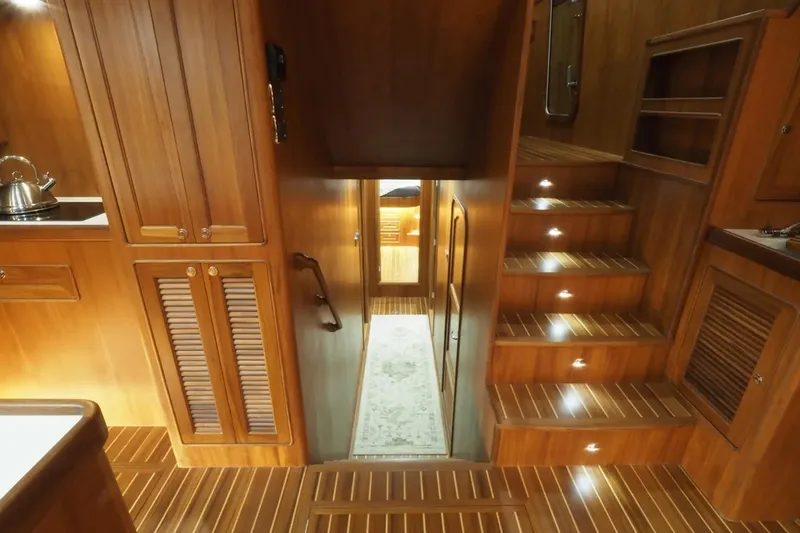

- Wide-beam salon, open interior design, port and starboard pilothouse doors, secure steps and handrails to flybridge

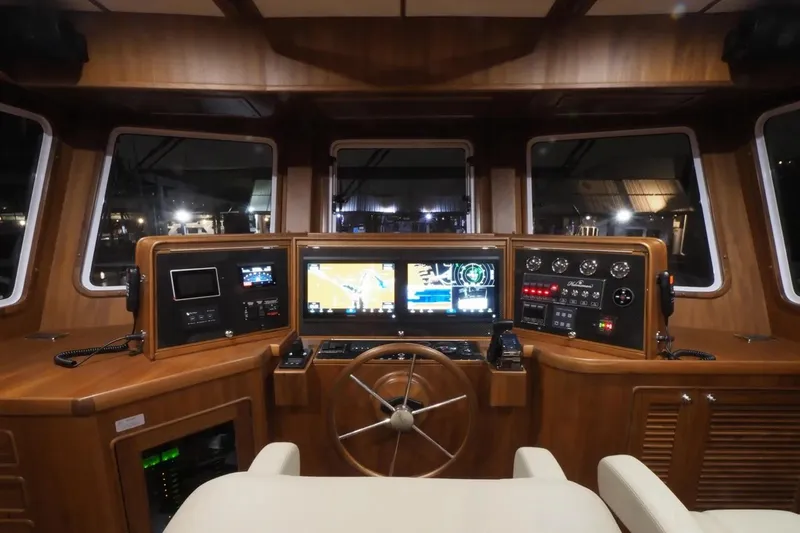

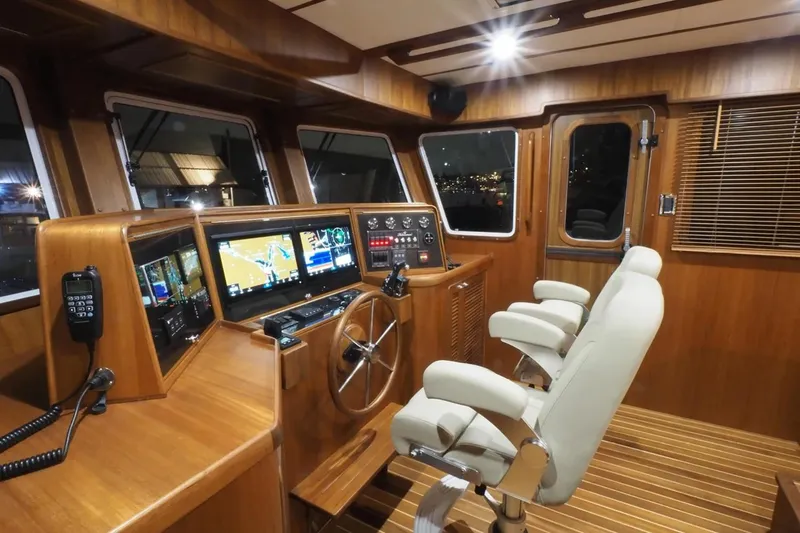

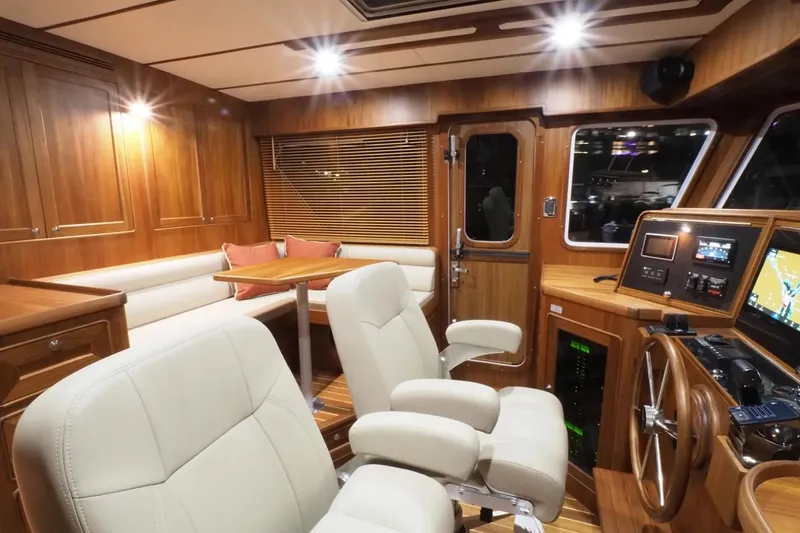

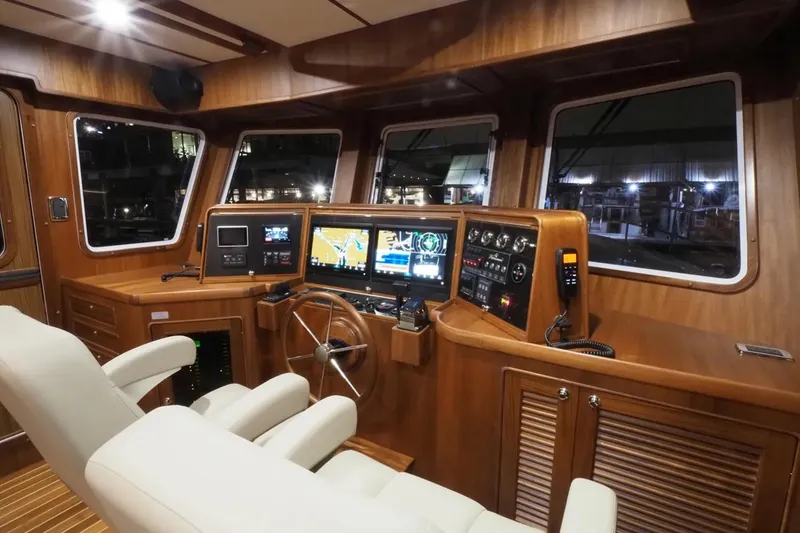

- Raised pilothouse with L-shaped dinette and high-backed pedestal helm seats (2)

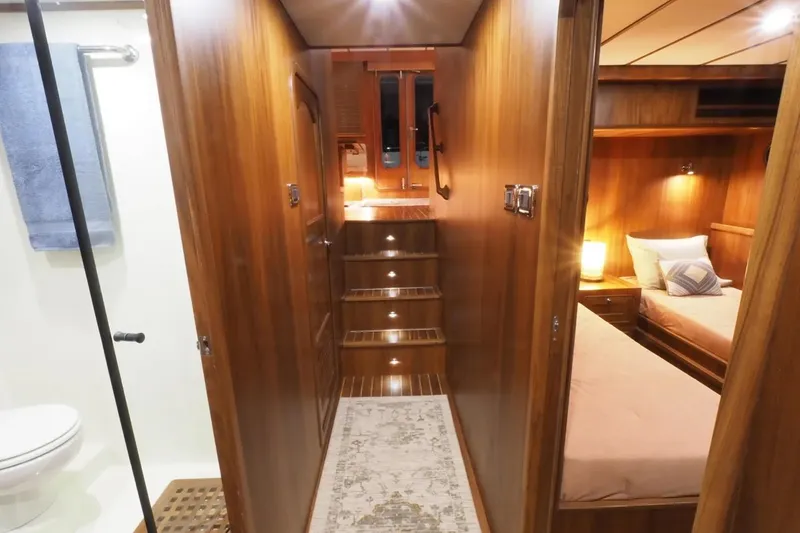

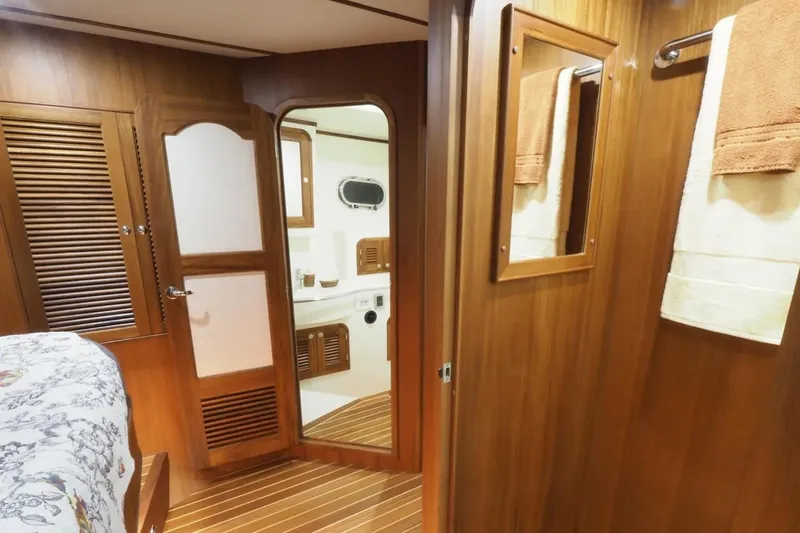

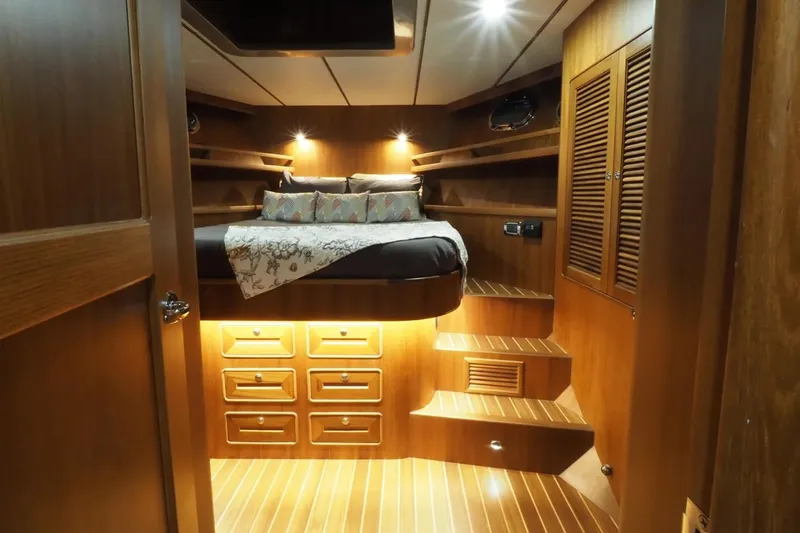

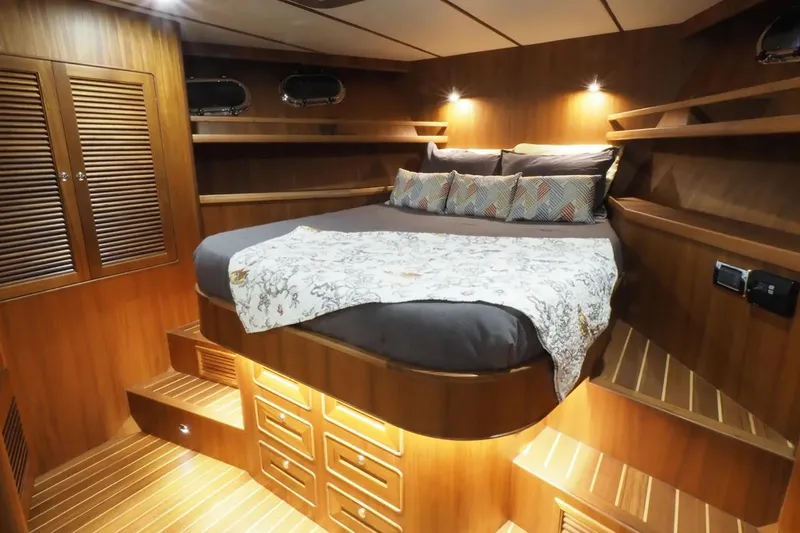

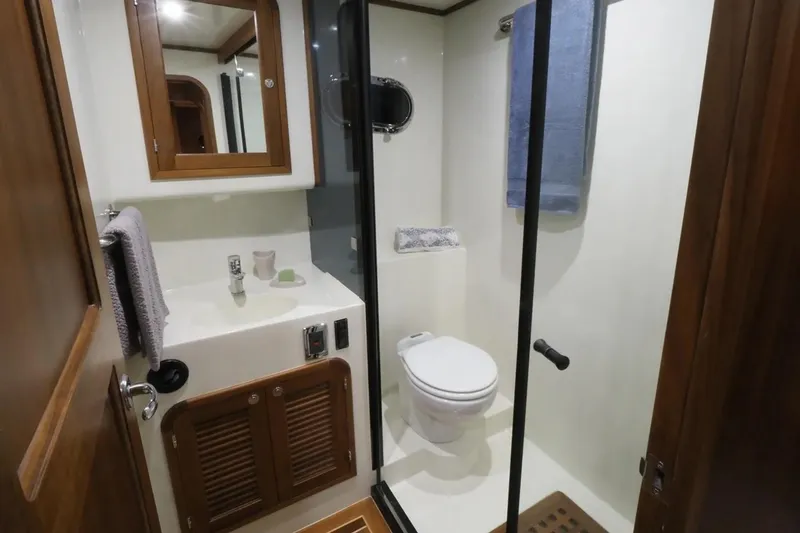

- Master stateroom with ensuite head with shower compartment; queen-sized berth, extensive storage

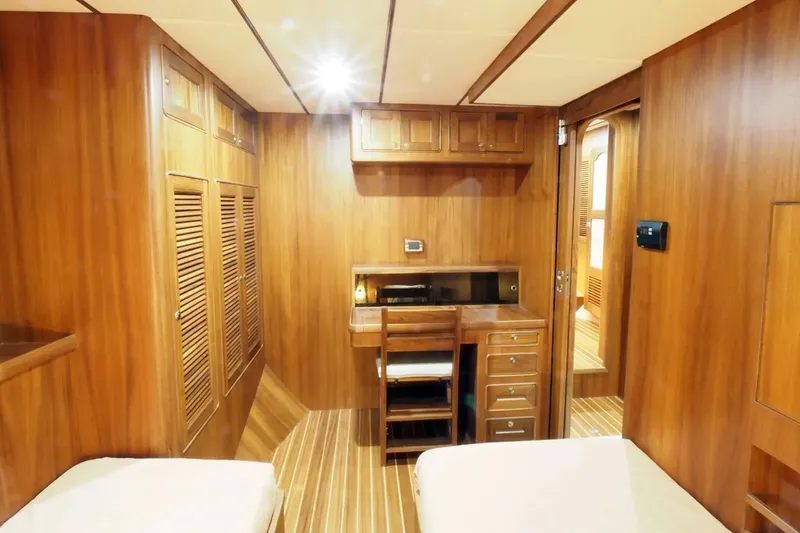

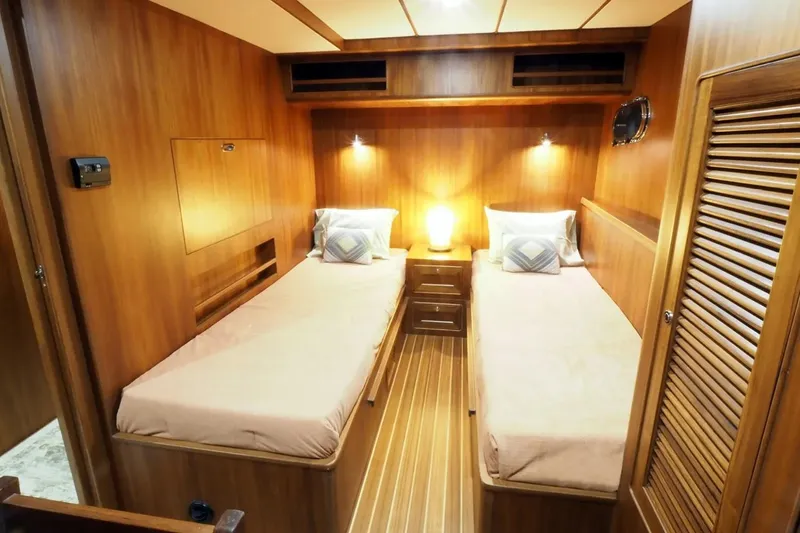

- Multiple layout options for the second stateroom, including a VIP stateroom, a combination stateroom / office, or dedicated office

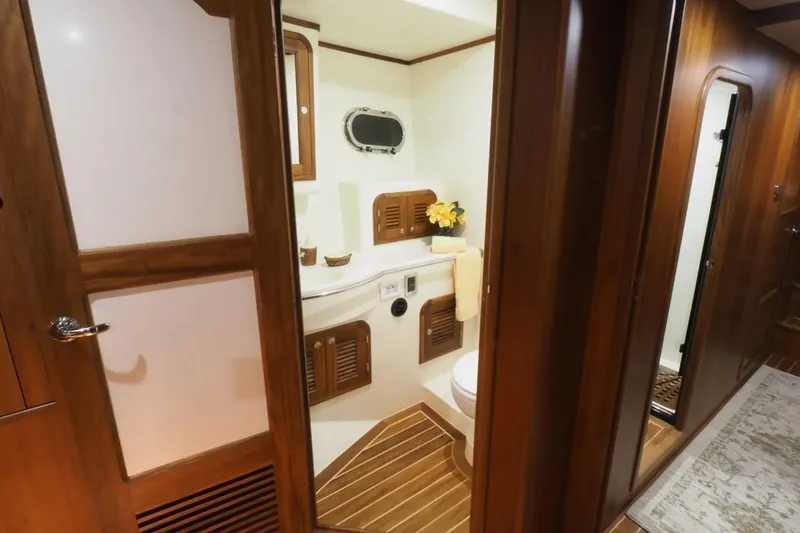

- Day head readily accessed from salon or guest stateroom

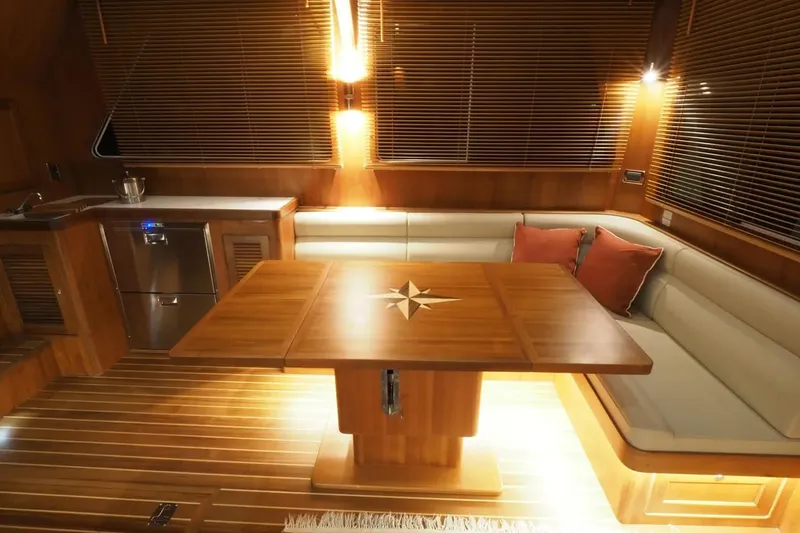

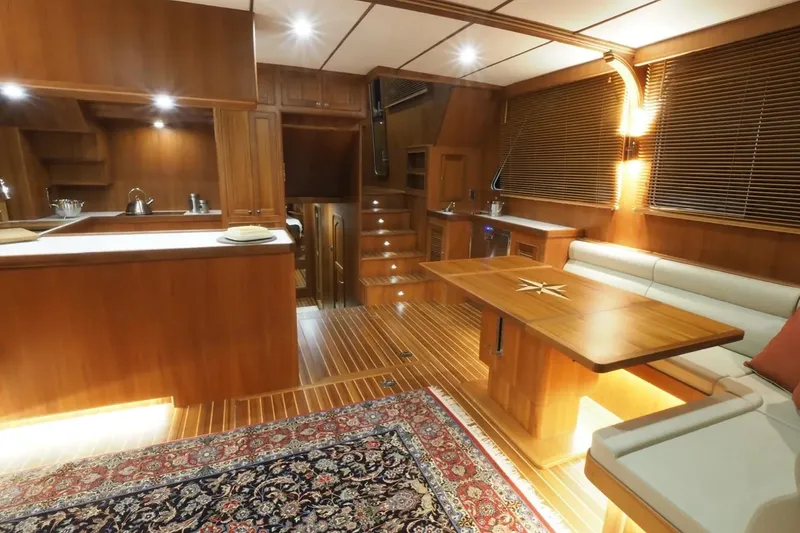

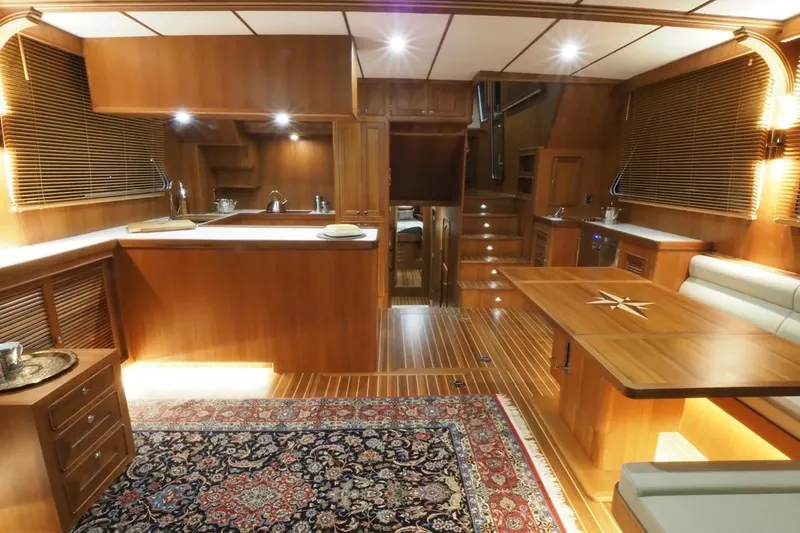

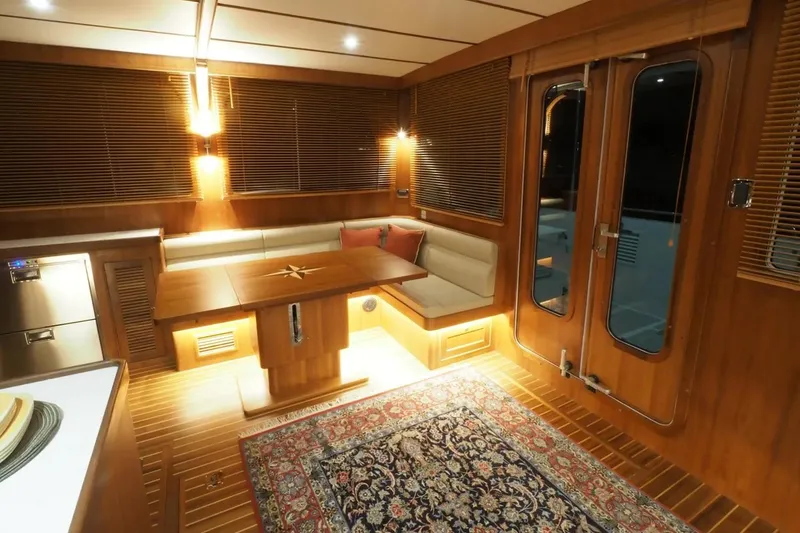

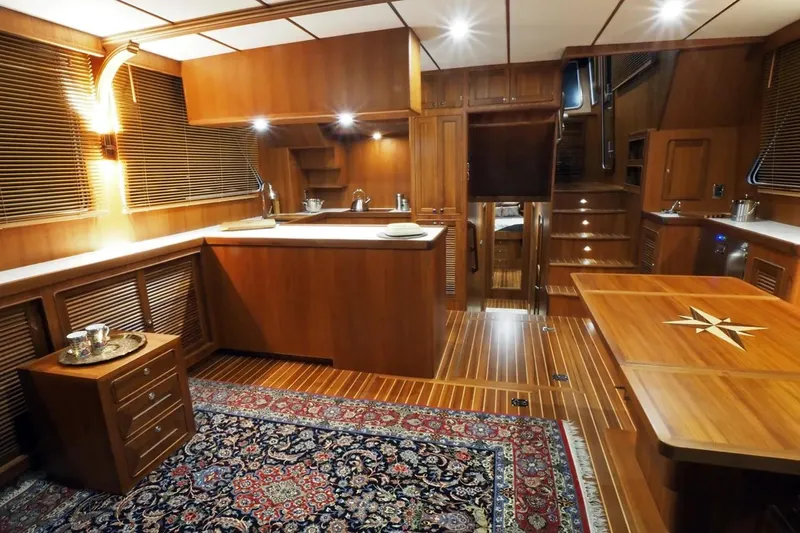

- Convertible U-shaped dining settee in salon; space for freestanding chairs or recliners
- Pilothouse hinged watertight Dutch doors (2)

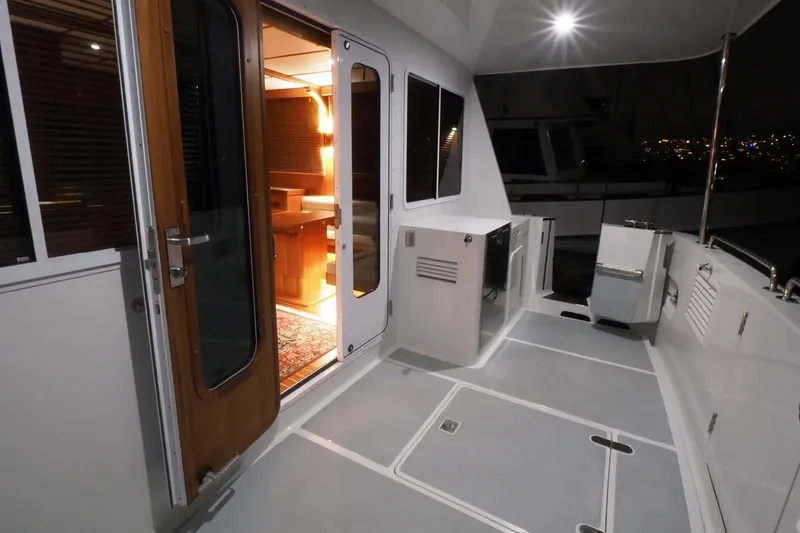

- Sliding aluminum aft cabin door to cockpit
- FRP fuel tanks (2), stainless steel water tanks (2), and FRP holding tank (1)
- Extensive use of sound deadening techniques and materials
- Multi-layer composite interior floor construction, with rubber cork inner layer for sound and vibration reduction, topped with teak and holly strip planking
- Expertly-crafted cabinetry — teak solids and veneers throughout for strength, water resistance and long-lasting beauty
- Hand-brushed and hand-rubbed two-part polyurethane varnish in multiple layers, with final satin finish
- Oversized double-rung stainless steel safety rails with finely polished welds
- Storage lockers for fenders and lines built into forward trunk cabin (4)
- Cushioned seating at foredeck
Exterior
- Matterhorn White gel coat hull, superstructure and deck surfaces
- Side-Power SEP130 bow and stern thrusters with PRO variable speed DC control

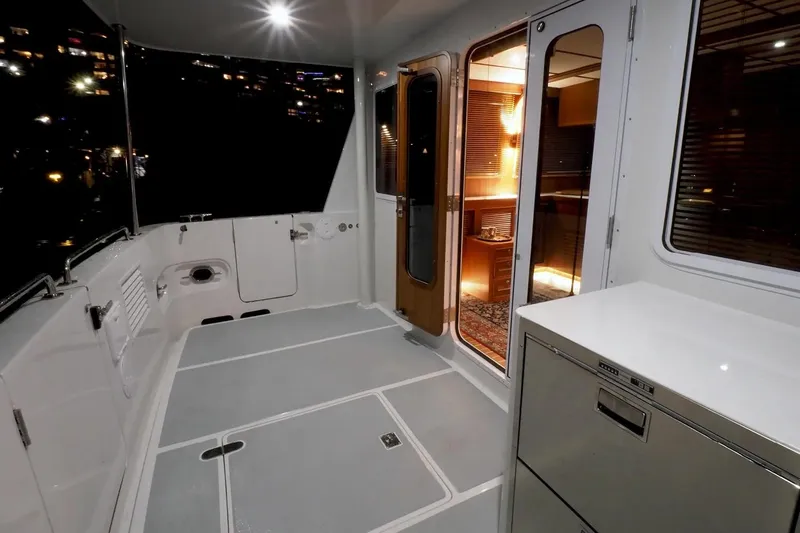

- Transom door; cockpit side entry doors (2)
- FRP swim platform with pull-out ladder; removable safety handrails (3)
- Full-length cockpit cover

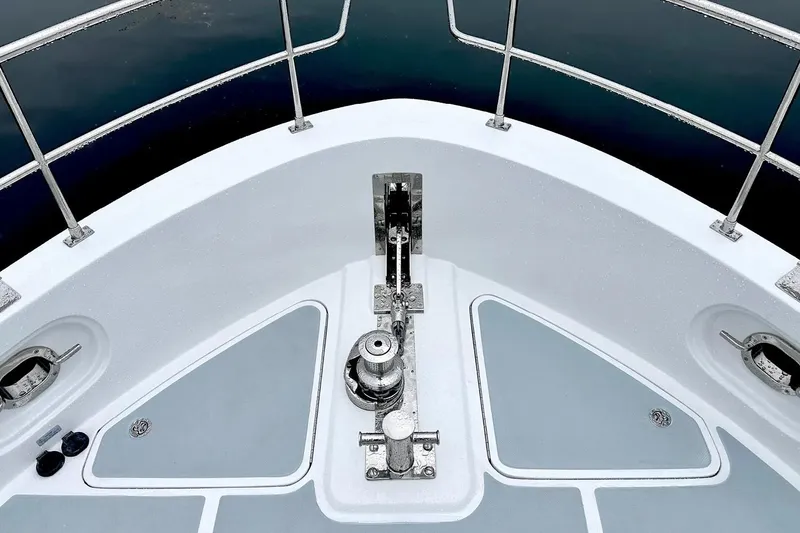

- Lewmar V5 windlass, 3/8” chain, 66 lb stainless steel Bruce-type anchor
- Anchor chain locker access hatch on foredeck
- Raw water and fresh water anchor washdown at bow
- Hawse cleats on transom (2), aft (2) and amidships (2)

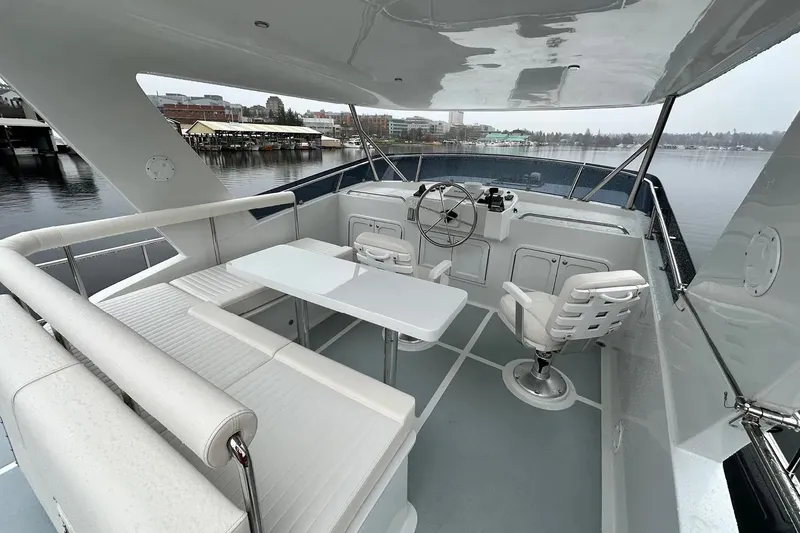

- Flybridge control center with stainless steel wheel; high-backed pedestal seats (2)

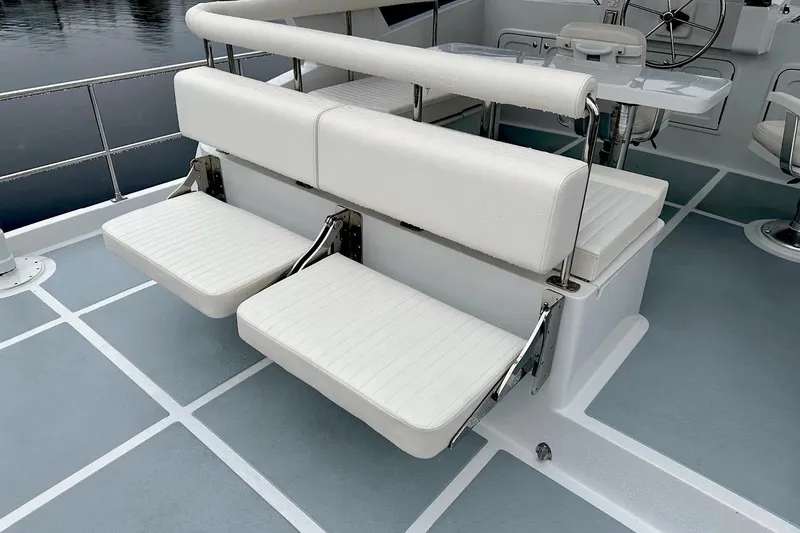

- Flybridge L-shaped settee with cocktail table
- Lazarette storage compartment
- Cockpit raw water wash
- LED navigation lights
- LED courtesy lighting on steps and flybridge
- Radar arch with hinge
- Three pantographic windshield wipers with washer system
- Stainless steel handrail on transom
- Seahawk epoxy barrier coating and bottom paint
- Seahawk Barnacle Blocker on underwater metal
Engineroom
- Cummins QSC8.3 liter 493 hp electronically controlled common-rail diesel engine
- Dual Racor fuel filters
- Reverso oil-change system
- Dripless-type prop shaft seal
- Tides rudder shaft seals
- Sea Star hydraulic steering system with autopilot hydraulic steering taps installed
- Rule 2000 bilge pump (1); Rule 1500 bilge pumps (3); high water alarm
- Shower sump pump
- Hinged interior floor hatches with gas stays
- Removable deck plates throughout engine room
- LED lighting in engineroom
- Tool storage cabinet / workbench
Electrical
- Northern Lights 9 kw generator in sound enclosure
- Northstar 215 A-hr AGM house batteries (5) in rack, AGM bow thruster / windlass batteries (2), AGM stern thruster batteries (2)
- Northstar 185 A-hr AGM engine start battery (1), generator start battery
- Victron MultiPlus 12V/3000VA Inverter & Charger with Victron Cerbo GX 50 Touch display and SmartShunt
- Blue Sea Systems Remote Battery Switches and Automatic Charge Relays
- SmartPlug 50 amp shorepower inlet (1)
- Victron 7000VA isolation transformer
- Blue Sea Systems electrical (AC/DC) distribution panel
- Bonding system with aluminum anodes
Interior
- LED interior overhead lighting with dimmers
- LED reading lights in salon, galley, pilothouse and master stateroom
- LED cockpit lighting
- Louvered storage cabinet doors for ventilation
- Door for engineroom access from day head
- Stainless steel overhead hatches and portlights with screens
- Opening center windshield window; motor operated
- Wood blinds in salon and pilothouse

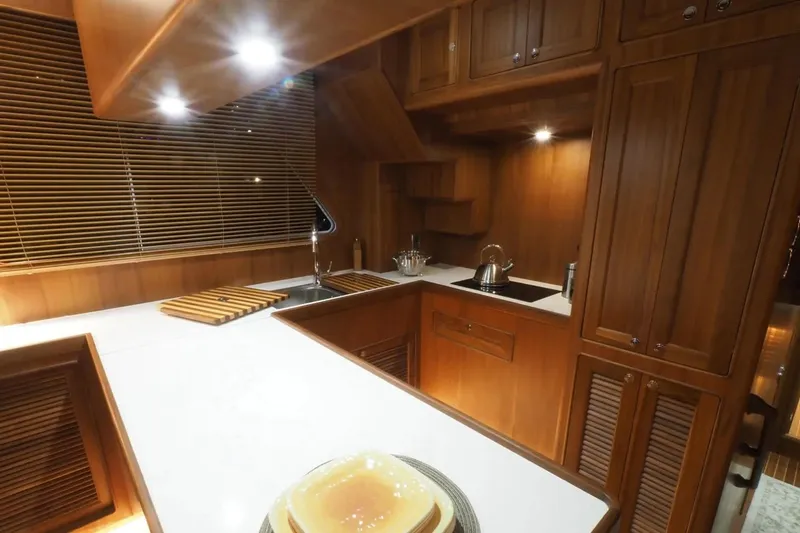

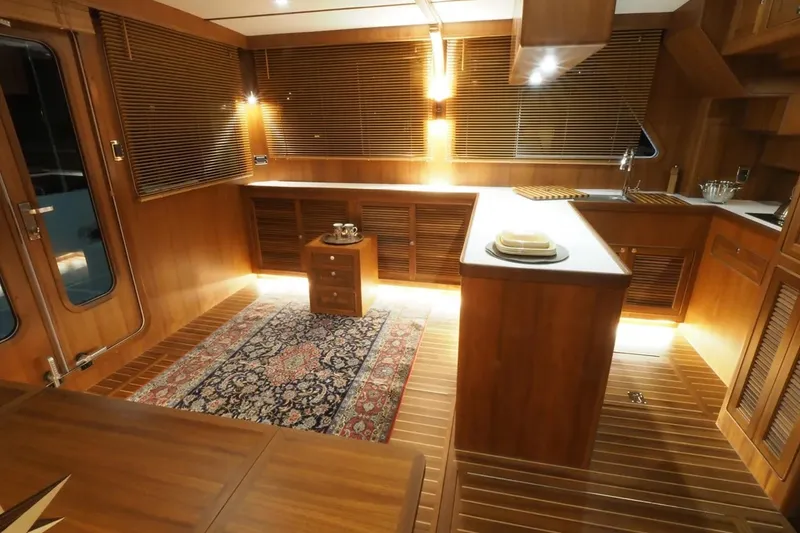

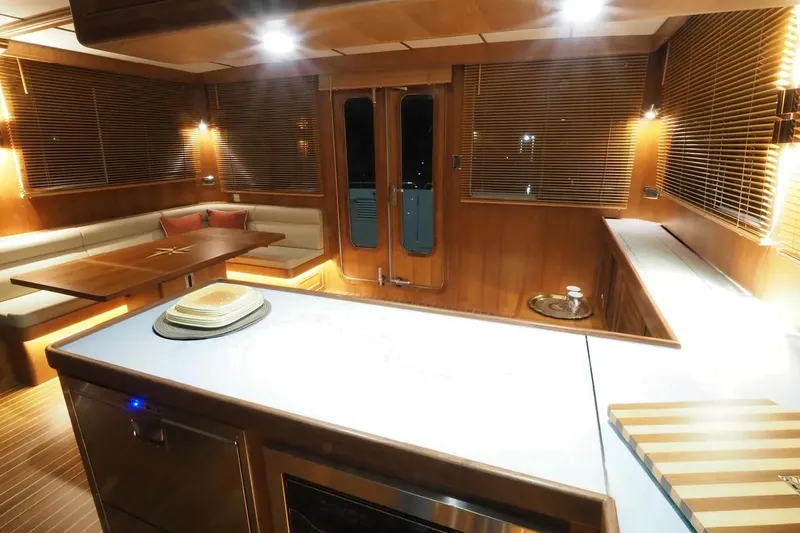

- Caesarstone galley countertops
- Overhead storage cabinets in galley
Domestic Systems
- Force 10 galley range - propane or electric; microwave
- Vitifrigo refrigeration: double-drawer refrigerator (1) and double-drawer freezer (1) in galley
- Webasto DBW2010S 50,000 BTU hydronic heating system (or credit toward optional reverse-cycle heating/cooling system)

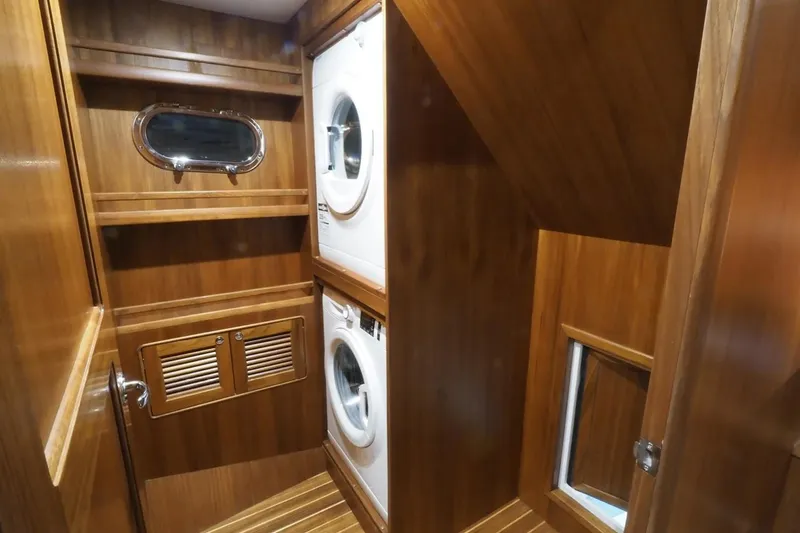

- Washer and dryer
- Dometic Masterflush heads (2 or 3, depending on layout)
- Macerator overboard pump with through-hull fitting
- Marco variable speed potable water pump
- 17 gallon Torrid water heater
- Cockpit fresh water shower (hot and cold)
Misc
- Lines, fenders, shore power cable, and USCG safety equipment included
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Delivery is to either Seattle or Charleston!
